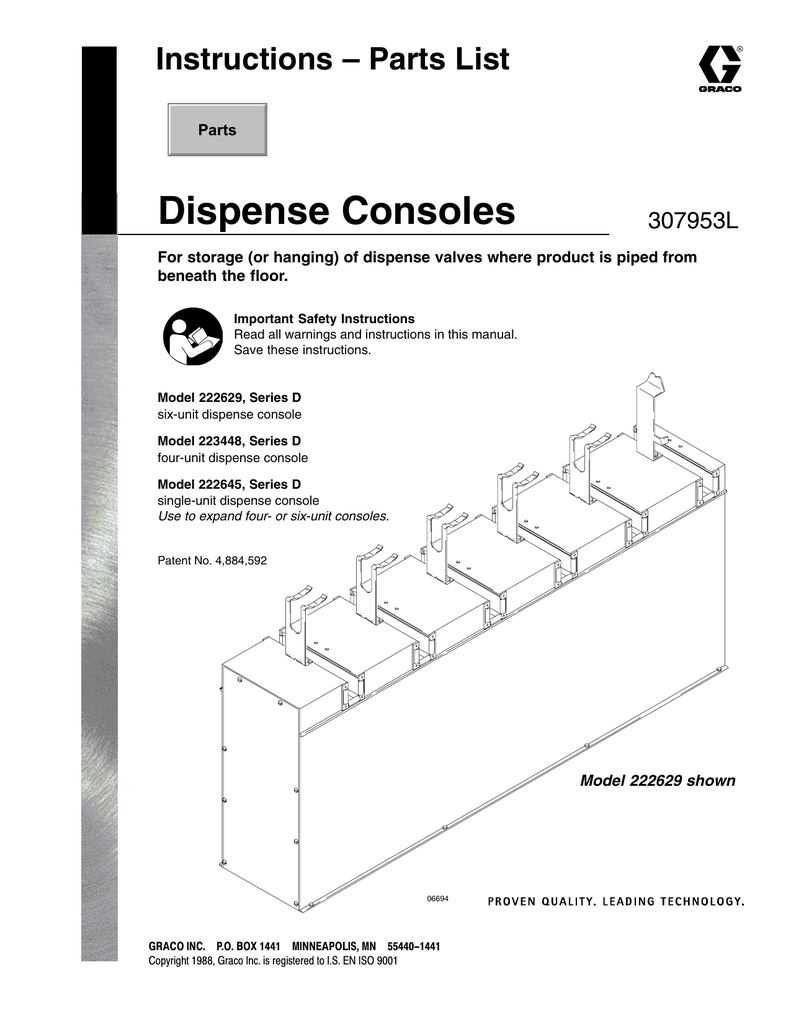

Graco 307953L Dispense Consoles Owner's Manual

Instructions – Parts List
Parts
Dispense Consoles
307953L
For storage (or hanging) of dispense valves where product is piped from
beneath the floor.
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
Model 222629, Series D
six-unit dispense console
Model 223448, Series D
four-unit dispense console
Model 222645, Series D
single-unit dispense console
Use to expand four- or six-unit consoles.
Patent No. 4,884,592
Model 222629 shown
06694
GRACO INC.ąP.O. BOX 1441ąMINNEAPOLIS, MNą55440-1441
Copyright 1988, Graco Inc. is registered to I.S. EN ISO 9001
Installation
Water Bib Bracket
Mounts on console at departure
end. Add Hose Stop Kit to hose.
Model 222629 shown
Dispense Valve Bracket
Console
Nut, 1/2”–13
Top Floor Plate
End marked “WATER BIB THIS END”
faces departure end of building
Threaded Rod, 1/2”–13 x 18”
Nut, 1/2”–13
06693D
Bottom Floor Plate
End marked “WATER BIB THIS END” faces
departure end of building
Secure console to floor plates with
appropriate fasteners in all positions.
(8 for 222629 and 6 for 223448)
Install the Four or Six Unit Dispense Console
Model 222645
Single Unit Console
NOTE: The end of the console which is used for the
water bib must face the departure end of the building.
NOTE: Order and install one Hose Stop Kit, part no.
218341 for each water bib hose.
1. Install the bottom floor plate and top floor plate,
using the threaded rods and nuts as shown above.
Console
2. Place the console over the floor plates.
3. Use appropriate fasteners (not supplied) to secure
the console to the top floor plate.
Nut
Add a Single Unit Dispense Console
Top Floor Plate
1. Remove the end panel of the four or six unit Dispense Console. Install the bottom floor plate and
top floor plate using the threaded rods and nuts as
shown to the left.
Threaded Rod
Bottom
Floor Plate
2. Place the console over the floor plates.
Nut
3. Use appropriate fasteners (not supplied) to secure
the console to the top floor plate.
4. Reinstall the end panel.
2
307953
06695B
Parts
5/16–18 x .5” HHCS
(Qty. 8 or 12)
pistol-grip dispense
valve brackets
2
1a
1
3
1b
5
Nut, 1/2”–13
#10–24 x .5”
PHCS, (Qty. 8)
4
Threaded Rod,
1/2”–13 x 18”
End panel
Nut, 1/2”–13
06693D
Replaceable Parts
Ref.
No. Part No.
Six-Unit Dispense Console
Model 222629
Items 1 to 5
1
196471
BRACKET, EM5 / PM5 dispense
valve
5
3
1
1a
110285*
BRACKET, pistol-grip dispense valve
5
3
1
Four-Unit Dispense Console
Model 223448
Items 1 to 5
1b
110237*
BRACKET, inline dispense valve
5
3
1
2
110236
BRACKET, water bib
1
1
N/A
3
222641
KIT, replacement, bracket roller
12
8
2
Single-Unit Dispense Console
Model 222645
Items 1, 3, 4, and 5
4
218591
KIT, replacement, bracket roller
12
8
2
5
249440
BRACKET, Matrix, dispense valve
5
3
1
Accessory Kits
Description
Quantity by Model
222629
223448
222645
* If old-style pistol-grip dispense valves are being used, order 110285 brackets (1a).
If old-style inline dispense valves are being used, order 110237 brackets (1b).
Must be purchased separately.
Hose Stop Kit
Part No. 218341
Order one for each water bib used.
End panel Replacement Kit
Part No. 234423
Includes eight screws, #10–24 x .5” lg.
307953
3
Graco Standard Warranty
Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the
date of sale by an authorized Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited
warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment
determined by Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non–Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of
Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection
with accessories, equipment, materials or components sold but not manufactured by Graco. These items sold, but not manufactured
by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide
purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires
exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procedures concernées.
Graco Information
TO PLACE AN ORDER, contact your Graco distributor, or call this number to identify the distributor closest to you:
1–800–533–9655 Toll Free
612–623–6928
612–378–3590 Fax
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
MM 307953
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
www.graco.com
PRINTED IN USA 307953L 11/1988 Rev. 7/2005
