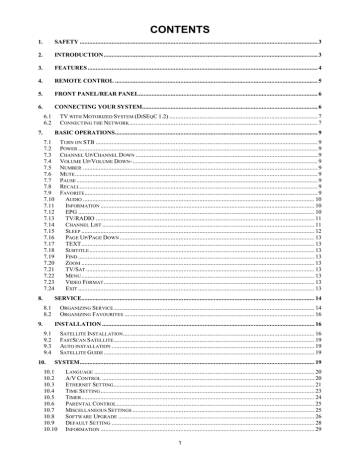

CONTENTS
1.
SAFETY ..................................................................................................................................................... 3
2.
INTRODUCTION ...................................................................................................................................... 3
3.
FEATURES ................................................................................................................................................ 4
4.
REMOTE CONTROL ............................................................................................................................... 5
5.
FRONT PANEL/REAR PANEL ................................................................................................................ 6
6.
CONNECTING YOUR SYSTEM.............................................................................................................. 6
6.1
6.2
7.
TV WITH MOTORIZED SYSTEM (DISEQC 1.2) ............................................................................................. 7
CONNECTING THE NETWORK ...................................................................................................................... 7
BASIC OPERATIONS ............................................................................................................................... 9
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
7.10
7.11
7.12
7.13
7.14
7.15
7.16
7.17
7.18
7.19
7.20
7.21
7.22
7.23
7.24
8.
TURN ON STB ........................................................................................................................................... 9
POWER ...................................................................................................................................................... 9
CHANNEL UP/CHANNEL DOWN .................................................................................................................. 9
VOLUME UP/VOLUME DOWN- .................................................................................................................... 9
NUMBER ................................................................................................................................................... 9
MUTE ........................................................................................................................................................ 9
PAUSE ....................................................................................................................................................... 9
RECALL ..................................................................................................................................................... 9
FAVORITE.................................................................................................................................................. 9
AUDIO ................................................................................................................................................. 10
INFORMATION ...................................................................................................................................... 10
EPG .................................................................................................................................................... 10
TV/RADIO ......................................................................................................................................... 11
CHANNEL LIST ..................................................................................................................................... 11
SLEEP .................................................................................................................................................. 12
PAGE UP/PAGE DOWN .......................................................................................................................... 13
TEXT .................................................................................................................................................. 13
SUBTITLE ............................................................................................................................................. 13
FIND .................................................................................................................................................... 13
ZOOM .................................................................................................................................................. 13
TV/SAT ............................................................................................................................................... 13
MENU .................................................................................................................................................. 13
VIDEO FORMAT .................................................................................................................................... 13
EXIT .................................................................................................................................................... 13
SERVICE.................................................................................................................................................. 14
8.1
8.2
9.
ORGANIZING SERVICE .............................................................................................................................. 14
ORGANIZING FAVOURITES ....................................................................................................................... 16
INSTALLATION ..................................................................................................................................... 16
9.1
9.2
9.3
9.4
10.
SATELLITE INSTALLATION........................................................................................................................ 16
FASTSCAN SATELLITE.............................................................................................................................. 19
AUTO INSTALLATION ............................................................................................................................... 19
SATELLITE GUIDE .................................................................................................................................... 19
SYSTEM ................................................................................................................................................... 19
10.1
10.2
10.3
10.4
10.5
10.6
10.7
10.8
10.9
10.10
LANGUAGE .......................................................................................................................................... 20
A/V CONTROL ..................................................................................................................................... 20
ETHERNET SETTING.............................................................................................................................. 21
TIME SETTING ...................................................................................................................................... 23
TIMER .................................................................................................................................................. 24
PARENTAL CONTROL ............................................................................................................................ 25
MISCELLANEOUS SETTINGS .................................................................................................................. 25
SOFTWARE UPGRADE ........................................................................................................................... 26
DEFAULT SETTING ............................................................................................................................... 28
INFORMATION ...................................................................................................................................... 29
1
11.
11.1
12.
12.1
12.2
12.3
12.4
12.5
12.6
12.7
13.
13.1
13.2
13.3
13.4
13.5
13.6
13.7
13.8
13.9
14.
14.1
14.2
14.3
CONDITIONAL ACCESS ....................................................................................................................... 29
CA SETTING ........................................................................................................................................ 29
MEDIA ..................................................................................................................................................... 30
MOVIE ................................................................................................................................................. 30
MUSIC ................................................................................................................................................. 31
IMAGE ................................................................................................................................................. 32
SOFTWARE ........................................................................................................................................... 34
DISK MANAGE ..................................................................................................................................... 34
REMOVE USB DEVICE SAFELY! ............................................................................................................ 35
HDD FORMAT...................................................................................................................................... 35
APPLICATION ........................................................................................................................................ 35
YOUTUBE............................................................................................................................................. 35
RSS READER ....................................................................................................................................... 36
WEATHER FORECAST ........................................................................................................................... 37
GOOGLE MAPS ..................................................................................................................................... 37
FTP ..................................................................................................................................................... 38
TITAN ONLINE ..................................................................................................................................... 38
WEB TV .............................................................................................................................................. 38
DLNA ................................................................................................................................................. 38
BIG2SMALL .......................................................................................................................................... 39
GAME....................................................................................................................................................... 39
TETRIS ................................................................................................................................................. 39
SNAKE ................................................................................................................................................. 39
OTHELLO ............................................................................................................................................. 39
15.
EPG........................................................................................................................................................... 40
16.
NEW FEATURES .................................................................................................................................... 40
17.
TROUBLE SHOOTING .......................................................................................................................... 41
18.
SPECIFICATIONS .................................................................................................................................. 42
2
1. SAFETY
This HD Receiver has been manufactured to satisfy the international safety standards.
Please read the following safety precautions carefully.
MAINS SUPPLY: External DC 12V Adapter
OVERLOADING: Do not overload wall outlet, extension cord or adapter as this may result in fire or
electric shock.
LIQUIDS: Keep liquids away from the HD Receiver. The apparatus shall not be exposed to dripping
or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
CLEANING: Disconnect the HD Receiver from the wall outlet before cleaning .Use a light damp cloth
(no solvents) to dust the HD Receiver.
VENTILATION: The slots on top of the HD Receiver must be left uncovered to allow proper airflow to
the unit. Do not stand the HD Receiver on soft furnishings or carpets. Do not expose the HD Receiver
to direct sunlight or do not place it near a heater. Do not stack electronic equipments on top of the HD
Receiver.
ATTACHMENTS: Do not use any attachments that are not recommended as these may cause
hazard or damage the HD Receiver.
CONNECTION TO THE SATELLITE DISH LNB: Disconnect the HD Receiver from the mains before
connecting or disconnecting the cable from the satellite dish.
FAILURE TO DO SO CAN DAMAGE THE LNB.
CONNECTION TO THE TV: Disconnect the HD Receiver from the mains before connecting or
disconnecting the cable from the satellite dish.
FAILURE TO DO SO CAN DAMAGE THE TV.
EARTHING: The LNB cable MUST BE EARTHED to the system earth for the satellite dish.
LOCATION: Place the HD Receiver indoor in order not to expose to lightening, rain or sunlight.
2. INTRODUCTION
Thank you for purchasing the HD Receiver.
This HD Receiver is fully compliant with the international DVB standard and thus transmits digital
images, sounds, information guides and teletext directly to your TV through the satellite broadcasting.
Now you can comfortably see and receive digitally transmitted music, news, movie and sports satellite
broadcasts in your office or at your home. You can enjoy interesting games embedded in HD
Receiver.
In service search section, both the automatic service search method and the manual search mode
are provided. Also it supports DiSEqC 1.0, 1.2 and USALS, enabling you to move your antenna in
order to focus preferred satellite. You can save up to 6000 TV and Radio services and work around
with the favorite, Lock, Delete, Move and Sort functions.
The menu is very modern and supports multiple languages. All functions can be carried out using the
remote control and some of the functions can also be carried out using the front panel. The HD
Receiver is easy to use and adaptable for future advances. Please be aware that new software may
change the functions of the HD Receiver.
3
If you have any difficulties concerning the operation of your HD Receiver, please refer to the relevant
section of this manual, including the ‘Troubleshooting’. This Manual will provide you with useful
information on using the HD Receiver.
3. FEATURES























MPEG-Fully DVB-S / DVB-S2 (H.264) HD compliant
6000 channels (TV and Radio) programmable
Multilingual menu text support
Channel switching time less than 1 second
Channel list editing
Favorite channel list editing
True-color On-Screen Display (OSD)
Full Picture In Graphic (PIG) function
Electronic Program Guide (EPG) for on screen channel information
Subtitle supported
Teletext supported by VBI insertion and software emulation
Parental lock facility by channel and program event
Program and Channel information transfer from receiver to receiver
Exciting games embedded
Dolby Digital Bit-Stream output via HDMI
DiSEqC 1.0, 1.1, 1.2 ,USALS and Unicable
HDMI Full HD (1080p) Video/Audio Output
2x USB 2.0 Host
RTC (Real-Time-Clock)
Time Shift
Video Recording
Recording one channel and Time Shifting another channel (optional)
3G Network Function Supported
4
4. Remote Control
You can power on/off the receiver, operate on screen menu, and
use a variety of hot key function.
POWER
To switch your receiver on from standby or standby to on.
MUTE
Used to enable or disable the audio
NUMERIC KEYS
Used to select channels or enter programming parameters
TV / RADIO
Receiver switches between TV and Radio mode.
(ZOOM)
Press
key select zoom times, from X1 to X16.
RECALL
Return to the previous menu or status.
TV/SAT
Receiver switches between TV and receive mode.
INFO
To display channel status or various program information of current service.
EPG(Electronic Program Guide)
Display the Programs guide on screen when available.
MENU
Displays the Main Menu on the screen, or return to the previous menu or
status.
EXIT
Cancel the user selection and return to the viewing mode from a menu.
OK
To select menu option, or to updated on entry.
<,> KEY
To adjust volume level, or to move cursor left or right in the menu.
^,v KEY
To change channels, or to move cursor up or down in the menu.
PAGE /PAGE
To move up the cursor to the next or previous page
in the menu or channel list.
●REC
Has different functions per menu.
Teletext
Shows teletext information of the current channel supports.
Subtitle
Subtitle Display.
(FIND)
Use to prompt find channels sort by character.
TIMER
Press timer key you can setup up the Standby time.
V.FORMAT
Press V.FORMAT button to switch the display mode among "AUTO", "By
Native TV","480p", "576P", "720P_50","720P_60,"1080i_50"," 1080i_60" ,"
1080P_50" and" 1080P_60"
FAV(FAVORITE)
To set receiver to the favorite server mode,
display the favorite channel.
FOLDER
Press this button to enter the Record Manager menu directly.
AUDIO(Red Key)
Audio channels setup, to select audio mode; Left, Right , Stereo, Mono.
OPTION(GREEN KEY)
Shows NVOD information of the current channel supports.
SAT
Display the satellite list at normal picture.
Play Mode
Select the play mode in MP3 or JPEG player.
USB
To remove the USB Hard Disk safely.
5
TMS(Time Shift)
Press this button to display Time Shift info bar.
Play
To play the MP3, JPEG, or Record files.
Stop
To stop the Time Shift, recording, or MP3/JPEG player.
PAUSE
Used to select the freeze function.
Press once to freeze the screen picture.
FB
To start Fast Backward function.
FF
To start Fast Forward function.
SB
To start Slow Backward function.
SF
To start Slow Forward function
/
PREV/NEXT
Switch to preview or next file in play mode
5. Front panel/Rear Panel
Please refer to the diagram above for all possible connections of your receiver
Do not connect the unit to the mains socket until all other connections have been made and checked.
LNB IN 13/18V 400mA MAX: This port is to connect the coaxial cable from LNB of your Dish.
AV OUT: This RCA connector is used to connect TV using RCA cable.
HDMI: Audio and Video output socket for TV set with HDMI Input Jack only.
RS 232 SERIAL PORT: This is used to connect your receiver to a computer through a serial cable.
USBA/B : USB 2.0 Host, connect to USB hard disk, or flash disk and 3G dongles.
IR IN: Connect an External IR-Sensor (Infrared).
Ethernet: Network port, you can get a new software updates from this port.
DC 12V:This is used to connect an external 12V adapter.
Card Slot: One CA Interface for Conax. (on the right side of the receiver)
6. Connecting Your System
There are two ways to connect the receiver to your existing TV system. We recommend using one of
the following cases for the best result:
6
1. If you have a high definition television set, you should use a HDMI cable for best result, Plug one
end of the cable into the HDMI socket on the receiver, and the other end into the matching socket on
your television. In this case, you do not have to make audio connections because the HDMI connector
can output stereo audio or Dolby Digital audio.
2. Connect one end of RCA cable to the RCA jack on the back of the receiver and the other end to a
RCA jack on your TV.
Finally connect the coaxial cable from the LNB of your Dish to the LNB IN jack on the receiver.
With External Audio / Hi-Fi System
To connect any external Audio Hi-Fi system, the receiver has been provided with RCA connector at
the back of the receiver marked with AV OUT.
Connect an RCA cable from the AV OUT jack on the back of the receiver to the LINE, AUX, SPARE
OR EXTRA input jacks on your Hi-Fi System.
6.1
TV with Motorized System (DiSEqC 1.2)
Connect one end of your coaxial cable to the LNB IN connector on the receiver and the other end to
the REC or Receiver connector on the DiSEqC 1.2 motor.
Connect the coaxial cable from the LNB to the LNB connector on the DiSEqC 1.2 motor.
All our receivers are designed to be DiSEqC 1.0 and DiSEqC 1.2 compatible.
This allows multiple antennas to be connected to the receiver at the same time.
If you have two or more fixed antennas or LNBs, then we recommend you use a DiSEqC 1.0
switch.
Connect the coaxial cable from the first LNB to the LNB 1 or LNB A input connector of the DiSEqC
switch.
Do the same for any other LNBs that you have.
Connect one end of a coaxial cable to the RF output connector of the DiSEqC switch,
connect the other end to the LNB IN socket on the receiver.
To the digital receiver, you can connect either a single satellite antenna directly or LNB of
multi-feed equipment.
6.2
Connecting the Network
1. Connecting to the LAN:
7
Connect one end of the Ethernet cable to the product and the other end to the LAN router.
2.Connecting to the Wi-Fi (Wireless LAN):
a.
b.
You can connect the network via the Wi-Fi access point or DSL/cable modem.
Plug in the wireless USB dongle to the USB port.(Separate purchase required)
Set the options for the Wi-Fi.
1. Network Name (SSID): Select the network name of your Wi-Fi access point from the list.
2. Security Type (WEP): This product supports WEP 40/128bit ASCII and WEP 40/128bit HEX. The security
type of the Wi-Fi and the product shall be set the same.
3. Password: When using the security type, you must set the password. Enter the same password in the Wi-Fi
setting menu.
3. Connecting to the 3G:
Connect the network via the 3G dongle. Plug in the USB that has 3G dongle.
Note:
1)
2)
3)
4)
Make sure the distance between the Wi-Fi access point and the product is not too far away. This may lower the
quality of service.
It is recommended to purchase a wireless USB dongle distributed by RT5370. Other products may not function or
respond.
It is recommended to purchase a 3G USB dongle distributed by huawei E1750 , E1550 , E1752 , E173 Other
products may not function or respond.
We recommend the network connection over a direct LAN.
8
7.4
7. Basic Operations
7.1
Volume Up/Volume Down-
In full screen, press [VOL+/VOL-] to adjust volume.
Turn on STB
First, connect to an external 12V adapter to turn on
7.5
the unit.
In full screen, use number key and press [OK] on the
When the STB is first used, there will play the first
Remote Control Unit to change channel.
Number
channel from the default Channel List. If the STB is not
first used, STB will play the same channel as last time
7.6
before turning off.
Mute
1 Press [MUTE] key to mute the sound and the
screen will show up mute OSD.
? Frequently Asked Question
2 Press [MUTE] key again to restore sound.
Q: The power of my STB has been turned on and not
7.7
in Standby mode, but the TV screen showed
Pause
1 In playing mode, press [Pause] key, the picture will
nothing:
be paused, but the sound of the channel will still
A: Make sure the TV set has been set to the correct
video input (not the TV channels). For example, if you
have connected the unit with the Video1 input of the TV
set, the TV set has to be switched to Video1.
continues.
2 Press [Pause] key again, the screen’s picture will
skip over to the current playing picture, and the
Q: The power of my STB has been turn on and not in
sound of the channel will corresponding playing.
Standby mode, but the TV screen showed
7.8
nothing except one box with “No Signal” image.
A: That means the channel, which you select, is no
Recall
Press [RETURN] key will directly switch to the previous
signal. It could be several causes:
channel that you played before current channel.
1 The channel which you select is not in your
allocate satellite. The simply solution is to change
7.9
channel.
Favorite
1 In full screen, press [FAV] key, it will display a
2 The signal of current TV channel is too weak. You
window of “Favorite list” on the left of the screen,
can try to change channel to other strong signal
which you can watch like below.
channels. If the problems still exist, please consult
your local dealer or other professionals for
technical service.
3 You use the Dual LNB, and you need Modify LNB
Type
7.2
Power
1 Press [Power] Key can enter the Standby state
2 In Standby state, press [Power] Key again can call
back the unit and go on play the previous channel
3 User can also disconnect the device’s main power
to end the Standby state.
2 In the window of " Favorite list ", you can move
7.3
Channel Up/Channel Down
highlight by press [Channel Up/Channel Down]
In full screen, press [CH+/CH-] to change channel.
key to select favorite Channels.
3 In the window of ” Favorite list ", you can press
[Left/Right] key to select favorite groups Pressing
9
[P-/P+] keys can implement the “Page up/Page
down” function
4 Press [Exit] key to exit the current window.
7.12 EPG
1 The STB has an Electronic Program Guide (EPG)
? Frequently Asked Question
to help you navigate channels through all the
Q: Why the screen displays “No Favorite Channel”,
possible viewing options. The EPG supplies
after pressing [FAV] key?
information such as channel listings and starting
A: It is because that you haven’t set any channels as
and ending times for all available channels.
“favorite channel”. Please refer to Favorite
Press [EPG] key to display EPG screen.
.
7.10 Audio
1 In full screen, press [AUDIO] key can open the
“Audio” window on the screen.
2 Press [Red] key can select the channels by
different group, such as by
Favorite/Satellite/Provider/CAS etc.
3 Press [Green] key to select different display mode
among Now EPG, Next EPG, More and Schedule,
2 You can modify the audio track by press [Channel
like the following picture:
Up / Channel Down] key and modify the audio
mode by press[left/right] key.
3 Mode: Left/Right/Stereo/Mono
7.11 Information
In full screen, press [INFO] key (press [INFO] key and
[RED] key) can open information screen, in the window
shows the parameters of current channel.
10
5 In EPG menu, when you select one event by high
light item, you can set this event to record timer list
directly by press [REC] button.
6 In EPG menu, press [Exit] to close EPG screen.
7.13 TV/RADIO
In TV mode, pressing [TV/RADIO] key can switch to
Radio mode. In Radio mode, press [TV/RADIO] key to
switch to TV mode.
7.14 Channel List
1 In full screen, press [OK] key can enter “Channel
List”.
4 Press [Yellow] key in EPG menu can set one
record timer or go to Timer List menu.
2 Press [Red] key to change the different group.
Which you can watch like below.
11
move highlight and press [OK] key to confirm you
selection.
3 Press [Green] key to display details information for
EPG Now.
l
6 Press [white] key you can change the channel list
mode.:mode1,mode2,mode3 and EPG
7 The five kinds of sorting way are:

Default: Sorting by scanning result.

FTA/$: Sort channel through free and
scramble sequence. Free channel will in the
front of channel list and scramble channel will
at the rear of channel list

Lock: Accumulated all locked channels and
list in the last of TV Channel List.

Name (A-Z): Sorting in Alphabetical Order,
ignore “$” symbol.
4 Press [Yellow] key you can change the current

channel’s property, such as FAV/ Lock/ Skip/
Name (Z-A): Sorting in Alphabetical Order,
ignore “$” Symbol.
Delete/ Rename.
8 Press [Up/Down] key to move highlight and press
[OK] key to play the highlighted channel.
9 Press [Page Up/Down] key to page up and page
Down.
10 Press [Exit] key to exit the channel list.
7.15 Sleep
1
This function can set sleep timer. When you set a
sleep timer and the time arrive, the system will
enter to standby automatically.
2
Pressing [SLEEP] key, it will switch the mode
between Sleep Timer Off /10/30/60/90/120
minutes.
5 Press [Blue] key can open the “Sort” window like
below. There are five kinds of sorting ways. You
can press [Channel Up/Channel Down] key to
12
7.16 Page Up/Page Down
select channel from the channels list
In Channel list, press [Page+/Page-] key can page up
directly.
and page down the channel list.
7.17 TEXT
1
7.20 Zoom
Press [TTX] key in full screen, you can open
1 The [ZOOM] key allows you to magnify a certain
teletext page on the channel which has teletext
area on the images
information.
2
2 Press [ZOOM] key again, the image will enlarge
If the channel has no teletext information, it will
rotate as x1, x2, x4, x6, x8, x12, x16.
show “No Teletext Data” on the screen.
3 In “x2 ~ x16” image, using [Up/ Down/ Up/ Down]
keys to move the image center area you want to
see.
7.18 Subtitle
1.
4 In zoom mode, press [Exit] to close “Zoom”
Press [SUBTITLE] key in full screen you can
window.
select the subtitle language or off on the channel
which has subtitle.
2.
7.21 TV/Sat
If you set the Auto subtitle option as ON in
Miscellaneous settings menu, the subtitle will be
1
showed automatically.
Press [TV/Sat] key can switch between TV mode
and STB mode
7.19 Find
7.22 Menu

Press [MENU] key can open the menu, exit the
current menu to last menu or close the window.
7.23 Video Format
Press [V. Format] key under Full Screen playback for
1st, it will show the current system outputting video
resolution, continuously press this key, system will
switch its outputting video resolution by sequence
"AUTO", "By Native TV","480p", "576P",
"720P_50","720P_60,"1080i_50"," 1080i_60" ,"
1080P_50" and" 1080P_60"
1 Press[Find] key in full screen can open the “Find”
window like above.
You can
press[Up/Down/left/right ]key to move
highlight and press[OK]key to input the
selected symbol or letter into the dialogue.
2 After input each character, the program list
on the left will search the channel
according your input, and list the matched
channel.
7.24 Exit
3 Move highlight to “OK” and press [OK]
1 Press [EXIT] key can exit the current menu
key can close “Find” window and you can
to last menu or close the window.
13
2. You can press [Page Up/Page Down] key
8. Service
to implement the Page Up/Page Down
When you press [Menu] key to enter menu,
function.
there will display the picture like below:
3. You can use [Red] key to switch different
Group.
4. You can press [Green] key to select the
programs by different select mode.
5. Press color key can implement the
corresponding function in “Organizing
Services”.
Groups
 Press [Left/Right] key you can select the
submenu of Organizing services and
Organizing favourites.
 Press [OK] key to enter the “Organizing
Service”. If Menu Lock is “On”, it will display
an dialogue for user to key in password.
The default Password is “0000”.
1 Press [Red] key can open the “Groups” window
 Press [Menu] key to go back to main menu.
8.1
like above
2 You can press [Up/Down] key to move
Organizing Service
highlight and press [OK] key to select group.
When you enter to “Organizing Service” menu,
3 Press [Menu] key to close “Groups” List.
there will display the screen like below.
Options
1. You can move highlight by press [Channel
Up/Channel Down] key and [OK] key to
1.
select the programs which you want to edit.
Press [Green] key can open the “Options”
window like above.
14
2.
You can press [Up/Down] key to move
highlight and press [OK] key to confirm the
select mode.
3.
Press [Menu] key to close “Options” List.
Move
1.
Select the channels which you want to edit
in channel list by press [OK] key or other
select mode.
2.
Then press [Right] key to move the high
light to right toolbar.
3.
Delete
Select Move icon by press [Channel
a) Select the channels which you want to
Up/Channel Down] key and [OK] key.
4.
edit in channel list by press [OK] key or
Move the channels to the position which
other select mode.
you want and press [OK] key to confirm.
b) Then press [Right] key to move the high
Like the following picture:
light to right toolbar.
c) Select Delete icon by press [OK key to
delete channel one by one.
d) When you high light in channel list ,you
can press [OK] key to select more
channels ,and repeat b and c step to
deleted.
Skip and rename
Follow the same way you can set the channel’s
Skip or give the new name for high light channel.
Lock
1
Select the channels which you want to edit in
channel list by press [OK] key or other select
mode.
2
Then press [Right] key to move the high light
to right toolbar.
3
Select Lock icon by press [Channel
Up/Channel Down] key and [OK] key.
4
Lock the channel by press [OK] key.
Like the following picture:
Find
15
press
button.
to choose Add mode and press “ OK ”
Remove
To remove services from favorites, Mark the
desired services by press “ OK ” button in
Favorite List, press
to choose Remove
mode and press “ OK ” button.
3
Move
You can reorder and move the service to the
preferred position in Favorite List.
4
1.
Rename
Select the desired FAV List by press “FAV”
button, using ,
buttons to choose Rename
mode and press “ OK ” button to display
keyboard, and rename it.
5
Press[Find] key can open the “Find”
window like above. You can
press[Up/Down/left/right]key to move
highlight and press [OK] key to input the
6 Group, Options and Find functions
Please refer to the “Organizing Services” part in this
manual.
selected symbol or letter into the dialogue.
2.
After input each character, the program list
on the left will search the channel according
9. Installation
your input, and list the matched channel.
3.
Move highlight to “OK” and press [OK] key
can close “Find” window and you can select
channel from the channels list directly.
8.2
Organizing Favourites
This menu is helpful in adding and deleting
services to and from the favorite group.
1.Press [OK] key to enter the “Installation”. If Menu
Lock is “On”, it will display an dialogue for user to key
in password. The default Password is “0000”.
2.Press [Left/Right] key to select menu pages among
Satellite Installation,FastScan Satellite,Auto
installation,Satellite Guide
3. Press [Up/ Down] key to select menu items. Press
[menu] key to go back to main menu.
FAV List
To choose the FAV List by press “FAV” button.
1
9.1
Satellite Installation
Satellite
Add
To add services into favorites, Mark the desired
services by press “ OK ” button in Service List,
2
1 Satellite: Press[OK]key to enter the Satellite
list.
16
2 Press [Up/ Down] key to select satellite. Press
Positioner
[Page] key to page up or page down.
Positioner: In “Positioner” item, you can press
LNB Type
[Left/Right] key to switch “Off / DiSEqC 1.2 /
In this item, press[Left/Right]key can switch
USALS” functions.
among “Standard”, “User” and
22K
“Universal” , ”Unicable” mode.
You can use [Left/Right] key to switch “ON / Off”.
When this item is switched to “ON”, receiver will
receive TV and radio input signal from 22K port.
If the item is switched to “Off”, the receiver will
receive all signal from 0K port.
! Notice
When you choose LNB type “Universal”, you
can not modify 22K.
Polarity
In “Polarity” item, [Left/Right]key to switch “Auto /
H / V” functions.
DiSEqC
DiSEqC: You can press [OK] and [Up/ Down] key to
switch options. There are several options for your
LNB Power
selection:
In “LNB POWER” item, you can press [Left/Right] key
a) Disable: without DiSEqC.
to switch: ” On/Off” functions.
b) 1/2, 2/2: two ports DiSEqC
TP Edit
c) 1/4, 2/4, 3/4, 4/4: 4 ports DiSEqC
When you enter to “TP Edit” menu, there will
d) 1/8, 2/8… 8/8: 8 ports DiSEqC
display the screen like below:
e) 1/16, 2/16….16/16: 16 ports DiSEqC
17
3 For the existed transponder, you also can
use number keys to modify the parameters
of “TP Frequency” and “Symbol Rate”.
4 When you complete your modification,
Press [Red] key, it will show up a dialog to
ask you scan mode, program type, scan
type and NIT Search on/off. After you set
up, press [OK] key to start scanning.
5 In the “TP Scan” item, press [Exit] key to
exit the scanning and save the current
parameters.
1 In “Satellite” item, press[Left/Right]key to
switch satellite that you want to scan or
Single Scan
press[OK]key to enter satellite list for
1 Press [Red] key, it will show up a dialog to
selection.
ask you scan mode (means you want to
2 In “TP Index” item, you not only can use
scan all channels or only scan free
[Left/Right]key to select transponder but also
channels), program type (means you want
can use[Add] and [Delete]functions.
to scan all channels or only scan TV/Radio
 When you press[Green] key, it will display
channels), scan type (means preset scan,
“New TP” in “TP Index” item; You should
that is searching the existed TP. Automatic
set the parameters of “TP Frequency” and
Scan means blind scan. It is no need
“Symbol Rate” for this new transponder.
existed TP info) and NIT Search on/off.
The parameters of “TP Frequency” and
After you set up, press [OK] key to start
“Symbol Rate” can set by number keys.
scanning.
The available range are “3000~13450
2 Press [White] key into the blind scanning
immediately.
MHz” and “1000~45000Ks/s”.
 When you press[Yellow] key, there will
TP Scan
show up a warning message for reminding
whether you will delete the current
Press [Green] key to scan current TP’s
programs.
transponder or not. If you select “Yes”, the
current transponder will be deleted, and the
Auto DiSEqC
total account of transponder will reduce 1
Press [Blue] key to run Auto DiSEqC function, it
can find the satellite connect to which port
automatically.
correspondingly.
 When you press [Blue] key, there will show
up a warning message for reminding
Blind Scan
whether you will delete all transponders or
Press [White] key can directly into blind scan
mode to scan the current satellite.
not. If you select “OK”, all transponders will
be deleted.
18
9.2
FastScan Satellite
In this menu, you can search the channels fast
by select the provider and press OK button on
Start Search item.
“Satellite Guide” is use for user to enter local
longitude; local latitude and satellite longitude.
By the evaluation from the receiver evaluate the
antenna azimuth and antenna elevation; user
9.3
can follow this guidance to adjust antenna.
Auto installation
1
You can use number keys to input
parameters in “Local Longitude”, “Local
Latitude” and “Satellite Longitude”.
2
You can use [Left/Right] key to select east
or west in “Local Longitude” and “Satellite
Longitude”, select north and south in
“Local Latitude”.
3
Moving highlight to “Start” item and press
[OK] key. The lower column on the screen
will calculate the corresponding value
automatically.
“Auto Installation” is a very new and convenient
function. It will automatically detect all dishes
connecting to this machine and scan the
available services belonging to the satellite
matched according to satellites and
transponders data in current database. You
don’t have to input any parameter of your
antenna settings. Just press “ OK ” button to
enter this “Auto Installation” menu then it starts
scanning and shows you the result at the end of
scanning.
9.4
4
Orientation means the angle between
south and satellite.
Press [Exit] key to draw back to “Main” Menu.
10. System
When you enter to “System” menu, you will see
a screen like below:
Satellite Guide
When you enter to “Satellite Guide” menu, you
will see the screen like below:
19
Audio” you set, system will play this audio
language as default. If the channel hasn’t the
suited audio language, then the system will
compare automatically with second audio
language. The selections of audio languages
include: English, French, German, Russian,
Arabic, Portuguese, Turkish, Spanish, Polish and
Italian.
3 Second Audio: If the channel has no correspond
audio with “First Audio” but have corresponded
audio with “Second Audio”, system will play the
second audio language as default. If no audio
language corresponds with the “Second Audio”,
In “System” menu:

then the default language of current channel will
Press[Left/Right]key to select menu items
be played automatically. The selections of audio
among Language, A/V Control,Ethernet
languages include: English, French, German,
Setting,Time setting, Timer, Parental
Russian, Arabic, Portuguese, Turkish, Spanish,
Control,Miscellaneous Settingls,Software
Polish and Italian.
4 Audio Priority: Press [Left/Right] key to select
Upgrad, Default Setting, HDMI
Dolby or Language.
Certificatio ,Information.
5 EPG: Press [Left/Right] key can select EPG
 Press[OK]key to enter the selected item.
language.
10.1 Language
6 Subtitle Language: Press [Left/Right] key
can select subtitle language.
When you enter to “Language” menu, you will
7 Teletext: You can set teletext language. If the
see the screen like below:
streams have this language you can see the
teletext in language you set.
8 Press [MENU] key to draw back from “Language”
menu.
10.2 A/V Control
When you enter to “A/V Control” menu, you will
see the screen like below:
1 Language: press [Left/Right] key to select menu
languages, the selections of languages include:
French, English, Spanish, Russian, German,
Greek, Italian, Portuguese, Arabic, Polish. etc.
2 First Audio: Some channels have more than one
audio language for choosing; by this function you
can set the first audio for this channel. If the
playing channel has the same audio as the “First
20
 Press [MENU] key to draw back from “A/V
Display Mode is for switching the system outputting
video resolution. Move highlight on it and press left or
Control” menu.
right key, it will switch video resolution circularly by the
sequence "AUTO", "By Native TV","480p", "576P",
10.3 Ethernet Setting
"720P_50","720P_60,"1080i_50"," 1080i_60" ,"
When you enter to “Ethernet Setting” menu, you will see
the screen like below
1080P_50" and" 1080P_60"This effect is equal to press
V.Format Key under Full Screen and their last setting
saving will be efficient for each others. By Source means
system will set the video output resolution according to
the program it’s playing, different resolution programs
switching perhaps will makes TV screen flickering. By
Native TV means system will be according to the HDMI
TV’s max supported resolution to set its resolution, if
system is not connected to a HMDI TV, it will set
resolution to be default
 Aspect Mode is for switching the screen aspect
ratio mode. Now we provide below options: 4:3
PS / 4:3 LB / 16:9/Auto. You can press [Left/Right]
key to select each mode circularly. 16:9 will

provide user pillar box mode it means user use
Wire Network
1.Select Wire Network on Link Type item
16:9 TV to display but need to see a 4:3 full display
2.You can configure the Ethernet setting options.
picture. System will force press wide screen
a).DHCP: The system will automatically assign a
picture to be narrow and there’re black band on
dynamic IP address to the digital receiver
b). IP Address:The IP Address, Subnet Mask,
Gateway and DNS options become enabled. You have
to set these options according to your IP address by
manual.
3. Press [Menu] key to save and exit
left and right site. Auto means system won’t do
any aspect ration translation, 16:9 picture source
will be good display on a 16:9 TV but will be too
narrow on a 4:3 TV, and 4:3 picture source will be

too wide in a 16:9 TV but will be good
Wi-Fi Nekwork
1.Select Wireless Network on Link Type item
display in a 4:3 TV.
 Digital Audio Out is for setting the both SPDIF and
HDMI’s digital audio output mode, it has options
LPCM Out, Auto, You can press [Left/Right] Key to
select each mode circularity. LPCM Out means
system will decode no matter AC3 or PCM audio
track data to be LPCM, digital audio decoder or
HDMI TV will get LPCM digital audio data. Auto
means system will detect which the connected
HDMI TV can decode and then output that data. If
HDMI TV can decode AC3, system just output
RAW data, if HDMI TV can decode LPCM only,
system will just decode AC3 or LPCM to be LPCM
2.Press [red] button the wireless LAN network list will
and then output.
appear, Select you Wi-Fi network and press [ok]
 Service Switch Mode: Press [left/right] button to
button, at last input password.
select unblank or blank.
21
3.Press [OK] button on Connect item to start
connecting.
a)
In this menu you may assign a dynamic IP
address to the digital receiver. To do so, select
the DHCP On.
b)
If you have a static IP address, unselect the
DHCP Enable, then the IP Address, Subnet
Mask, Gateway and DNS options become
enabled. You have to set these options
according to your IP address.
c)
WiFi Manager
3.
Insert WiFi equipment first, then search available Enter
Dial setting
net signal, input the password to connect with network.

3G Network
1.
Select 3G Network on Link Type item
2.
When you inset the 3G dongle, the screen will
In this menu,you can press [OK] key to select 3G
display a message like “3G Device plug in “after 14
seconds and will auto connect 3G Network. you will
see picture like the below
22

GPRS
10.4 Time Setting
1.
Select GPRS Network on Link Type item
When you enter to “Local Time Setting” menu,
you will see the screen like below:
2.
Inset the GPRS SIM card
3.
Press [RED] key into the GPRS Setting menu.
 GMT Usage: This item is use for open the
usage of GMT. You can press[Left/Right] keys
to switch “On/Off”.
 The “GMT Offset” item is valid only when the
setting of “GMT Usage” is “Yes”. You can
press[Left/Right]keys to switch “GMT Offset”
value, and the range is “-12:00 ~ +12:00”,
increase each half hour progressively.
 You can press [Left/Right] to control Summer
time on or off.
 “Date” and “Time” items are valid only when
the setting of “GMT Usage” is “No”. You can
4.In this menu you can press [OK] key to select GPRS
press [Left/Right] keys to moving highlight and
Setting.
use number keys to input directly.
 Press [MENU]key to draw back from “Local
Time Setting” Menu.
23
ii.
Date: use number keys to input your
wakeup date.
10.5 Timer
iii.
Press [OK] key to open timer menu.
On Time: use number keys to input your
 Current time information will display on the
wakeup time. Once the time’s up, no
first column; if the current time is incorrect,
matter what the system is in standby
please modify the time information in “Time”
mode or in playing mode, the system will
item.
automatically switch to the channel you
want and start to play.
 Timer Number: You can press [Left/Right] keys
iv.
to set Timer number, and there are 8 timers
Duration: After you set a time for
“Duration” item, once the time’s up, the
in total.
system will automatically switch to
 Timer Mode: There are several modes for
Timer to setting, include Off, Once, Daily,
standby mode. If you want not work this
Weekly and Monthly .
function, set the duration is 00:00.
 Timer Service: There are two options for
 When you select “Message” (reminding
“Timer Service”, include “TV Channel” and
message) option in “Timer Service”, the
“Radio Channel” (timer setting for channel
screen will display like below:
change and Wakeup/Sleep) and "Record
Radio" and "Record TV" (Timer setting for
Record the TV or Radio program to USB
Hard Disk) and Message (reminding
message).
 When you select “Channel” (timer setting for
channel change and Wakeup/Sleep) option
in “Timer Service”, the screen will display like
below:
v.
Wakeup Message: press [Left/Right] key to
select reminding message as Birthday,
Anniversary and General.
vi. Date, you can use number key to input your
wakeup date.
vii. On Time: use number keys to input your
wakeup time. Once the time’s up, no matter
what the system is in standby mode or in
playing mode, the system will automatically
pop a reminding message.
i.
Channel: press [OK] key to enter
viii. The message will always display on the
channel list and select channel that
screen, you can press [Exit] key to close it.
you want to setting.
24
ix. Standby After Finish: You can press
have to input the password or not. If the
[Left/Right] to control the system is in
setting is “On”, play the channels with lock
standby mode or in playing mode after the
mark will show up a dialogue on the screen
record stopped.
and ask for the password. If the setting of
x. Extend Record Time : Press [left/right]
“Channel Lock ”is “Off”, the Lock function
button or input the number using numeric
will invalid.
keys to set the Extend Record Time. It is
4.
New Password is used for revising
used to add time at beginning and end of the
password; you can input the new password
record time.
in this item by using number keys directly.
xi. Press [MENU] key to exit the current menu.
After you filled in 4 digital numbers, the
highlight will auto skip to Confirm Password
10.6 Parental Control
and ask you to input the new password
You can set a password for anyone who wishes
again. If the password is correct, the screen
to operate in the “Installation” menu. And you
will show up a message of “Saving Data,
can also set the password for the lock channels.
Please Wait…”. After finish saving and
(How to set the lock channel please refer to
draw back to “System Setup” menu, the
LOCK) Here will show you how to setting and
revising is complete.
how to revising the password.
1.
Press [MENU] key to draw back from the
In “Parental Lock” function, press [OK] key,
“Parental Lock” menu.
there will pop an dialogue for you to input
2.
the password. When you input the correct
10.7 Miscellaneous Settings
password, you will see a screen like below:
When you enter to “Miscellaneous Settings” menu,
you will see a screen like below:
Menu Lock determining that when user
wish to enter “Installation” menu, whether
1 Subtitle Auto: You can press [Left/Right]key
have to input Password or not. If the setting
to select “On” or “Off”. If the current
of “Menu Lock” is “On” which means user
channel has subtitle information, it will be
have to key in password, set “Off” means
showed up automatically while this function
unlock.
3.
is “ON”, if this function is “OFF”, you need
Channel Lock determining that when user
wish to play the lock channels, whether
25
turn on the subtitle manually by press
select USB A or USB B; press ' OK ' button to
[SUBTITLE] key.
enter.
2 Auto Power Down: You can
press[Left/Right] key to select the time or
“Off”, if you select time, duration this time if
no any operation on receiver, it will go to
standby mode.
3 Deep standby: if set to “on”, Press power
key receiver will be in real standby status,
the consumption will less than 0.5 Watt. if
it’s set to “off” ,Press power key, receiver
will be in fake standby status.
In this menu you can select the Upgrade Mode
among Software(No channel list), Channel list,
All SW+bootloader and All SW+Channel list,
and you can select the appropriate upgrade file
on "Upgrade File" item. After you select the
"Upgrade Mode" and "Upgrade File", press ' OK
' button on "Start" item, the receiver can upgrade
automaticlly.
NOTE:
You must put the upgrade file on the /ROOT
DIRECTORY of the USB storage.
4 OSD Timeout: When you switch channels
in full screen, there will show up some
information about current channel on the
lower of the screen. And regarding to the
duration of these information show up on
the screen, you can press [OK] and [up/
down] key to set the time. The range of the
duration is “1 second ~ 10seconds”.
5 Position: control display position of the info
bar in full screen mode. You can choose
10.8.2 Http Upgrade
“bottom” or “top”.
10.8 Software Upgrade
1. When connected to the Internet, receiver can
manually or automatically make software update
from file from server.
10.8.1 Upgrade By USB
Note:
In this menu you can upgrade the software from
USB conveniently, Press “Left/Right” button
26
This function depends on connection with
SW+Channel list/Software(no channel
external server. In case of no software on
list)/Channel list.
server, this function will not work.
2 Moving highlight to “Start” on master reeciver
10.8.4 Ftp Upgrade
and press[OK]key to start upgrade.
3 Turn on slave receiver and it needn’t operate
any setting.
4 Press [Exit]key to draw back.
10.8.6 Backup to USB
When connected to the Internet, receiver can
make software update from file from FTP server.
Note:
This function depends on connection with
external server. In case of no software on
server, this function will not work.
In this menu ,you can dump the software to the
USB equipment
1.In "Backup file",you can press [OK] key to
10.8.5 Upgrade by RS232:
edit the file name.; Press “Left/Right” button
select USB A or USB B;
2.In”Mode”, you can press[left/right] key to
select “All” or ” channel list” mode backup to
USB
3.In "Backup to USB", you can press [OK] to
start backup software .
Upgrade By Satellite
1 We offer the functions for user to connecting
receiver (Master) to the other receiver
(Slave) via serial interface.
Connect master receiver to slave receiver
via serial interface. Enter “Software
Upgrade” menu in master receiver and
press[left/right]keys to switch upgrade
mode: All SW+bootloader /All
27
When you press [OK] key in the “Backup
This function can upgrade the software through
restore” item, it will pop a dialogue ask this
signal lines from the satellite
operation will load to backup default . If you
1 Select the satellite and TP or input the TP
select “Yes”, all the channels user added will
value and download PID, these parameters you
be deleted
can get from your provider.
2 Then move the highlight to the start button
10.9.2 Factory reset:
and press [OK] button to start upgrade.
10.9 Default Setting
When you press [OK] key In the “Factory reset”
item:
If you select “Yes” option, the all revised
parameters of the receiver will reset to default
10.9.1 Backup restore:
value. Please carefully to using this function
10.9.3 Backup save:
28
11. Conditional Access
11.1 CA Setting
When you press [OK] key in the “Backup save”
item,there will show a message to inquiry
you"Do you want to set current database as
default data?".If you select “OK” option,it will
We provide one CA slots for user to use.
to
Receiver has build in smart card module with
set current data as default data
CONAX system. By using cards in this system
provided by operators, it is possible to watch
10.10 Information
many scrambled channels coded in this system.
This menu shows detailed information about
cord inserted into cord reader module. It allows
inserted according to help messages visible on
the bottom of the screen.
1 When you enter to “Information” menu, you
will see a screen like above. The screen
displays :MODEL ID,S/W VERSION,H/W
VERSION,LOADER VERSION,LATEST
Note: All information showed in this menu and
UPDATE,STB SN,
submenu are coming from inserted card. In case
2 Press [MENU] key to draw back to “System”
if anything is wrong, it could be card problem.
menu.
After inserting the card correctly at any time, a
message-box will show on the screen with
message about detecting the card, in "card info"
menu all available information will be displayed.
29
You can press [left/right] key to set the message
display time.
12. Media
if you enter to the "Media" Menu, you will see
the picture like the below:
Note: If no USB Hard Disk insert to the receiver
this menu is not available.
You can see the video files in this menu, it can
support .mpeg and .ts format file.and press [play] key,
you can preview the video at the top right corner.if you
want to watch the video in full screen you can press [OK]
button.
You can press [1] key to adjust the volume while you
preview the video file,press [0]key to sort the file list. and
press
12.1 Record
In this menu you can playback the record files, and you
can press [Red] key to rename the file, or press [Green]

to enable or disable the audio
Yellow key
To edit the files or folders. Include rename, copy, delete
and create folder function. You can press [Exit] key to
key to lock the file, or press [Yellow] key to delete the
12.3 Movie
file.
You can press [1] key to adjust the volume while you
preview the record file on top of the right corner .and you
can press
to enable or disable the audio.
In this menu you can press [left/right] button to
select the USB disk that you want to visit. Then
Press [ok] button to enter the Video list
12.2 Movie
You can see the video files in this menu, it can
In this menu you can press [left/right] button to select the
support .mpeg and .ts format file.and press
USB disk that you want to visit. Then Press [ok] button
[play] key, you can preview the video at the top
to enter the Video list
30
right corner.if you want to watch the video in full

screen you can press [OK] button.
Move the selected file by press Red key and
You can press [1] key to adjust the volume while
[UP][DOWN] key.
you preview the video file,press [0]key to sort

the file list. and press
Delete the selected file by press Green key.
to enable or disable
Red Key:
Green Key:
the audio


Delete all the file by Yellow Key, but there is one
Yellow key
Yellow Key:
To edit the files or folders. Include rename,
remind “Delete All” before practical operation, if
copy, delete and create folder function. You can
select Yes, all file will be deleted, and close the
press [Exit] key to previous menu.
Play list window.

Press OK button to play file.
12.4 Music
[Green] key:
All the MP3 files in current directory are added
into MP3 play list by press [Green] key, and will
display “
”behind the MP3 files.
In this menu you can press [left/righ] button to
select the USB disk that you want to visit. Then
Press [ok] button to enter the music list
In this menu you can select the MP3 file to play
[Yellow] key:
by press [OK] key or [PLAY] key. Also you can
To edit the files or folders in the USB
storage.press this button you can see the
picture like the below.
setting the play list..
[Red] key: Show play list as the picture bellow:
31

Red
Key
Switch to the next file or stop playing by the
To rename the file or folder.
repeat mode when play is over on the current

file.
Green Key
[0] key: To sort the file list by different order.
[FAV]key: To add mp3 or jpeg to play list.
To copy the file or folder to other folder.

Yellow Key
To delete the file or folder from the disk.

Blue Key
To create a new folder in the disk.
Press [EXIT] key to draw back to ‘EDIT’ MENU
[White] key:
To setting the Repeat mode of the MP3 player.
12.5 Image
In this menu you can press [left/right] button to
select the USB disk that you want to visit. Then
Press [ok] button to enter the Image list
After begin to play MP3, it will show the MP3
play window.
Press “PAUSE” button to pause.. Press “PLAY”
button to play. Press “STOP” button to stop and
time return to 00:00.
Press “PREV” button to jump to the beginning of
Press 'OK' button on the selected files to play
the files.
file list if play is over 3 seconds; or jump to
previous file if play less than 3 seconds.
Press “NEXT” button to go to the next file.
Press “FORWARD” button to forward 4S.
Press “BACKWARD” button to back 4S.
Jump to beginning or end if less than 4S to the
beginning or end of music file.
32

Red Key:
You can preview the picture at the top right
Move the selected file by press Red key and
corner if the scroll bar is on the picture files
[UP][DOWN] key..
(JPG, BMP), and show the logo when at MP3

file.
Delete the selected file by press Green key.
Move scroll bar when press up/down key, page

up or down by page key.
Press Yellow Key, will delete all image files in
Go into sub-directory when press ok key in the
file directory, play the selected file when scroll
bar is on the file, automatic return USB menu
after play is over.
play list, but system will remind you “ Delete All ”
Green Key:
Yellow Key:
before practical operation, if you select Yes, all
file will be deleted and Play list window will be
closed.
White key:

In this menu to setting JPEG player.
Press OK button to play file
[Green] key:
All the Image files in current directory are added
into Image play list by Green key, and will
display “
”behind the Image files, like below.
[0] Key:
To sort the file list by press [0] button.
[Red] Key:
Show file play list. There will display “The type of
[Yellow] key:
To edit the files or folders in the USB storage .
playlist do not exist” if there are no any file.
Image view operation
like in MP3 menu. Include rename, copy, delete
Please see the below image operation menu if
and create folder function. You can press [Exit]
Image function is selected.
key to previous menu.
[Blue] key
33
To preview the images. press this key you can
see the picture like below.
HDD Format
Press "Green" button to enter the HDD Format
12.6 Software
menu like the below picture.If you want to format
the HDD then select the File System between
In this menu you can press [left/right] button to
the "FAT" and the "NTFS", Press "OK" Button to
select the USB disk that you want to visit.
confirm.
1. Select you want to upgrade file,
HDD Information
press[Green] key select the Upgrade Mode
among Software(No channel list), Channel
list, All SW+bootloader and All
SW+Channel list
2. press ' OK ' button on "Start" item, the
receiver can upgrade automaticlly
12.7 Disk Manage
In this menu you can select USB disk for HDD
Format,HDD information and USB Speed test.
34
Press “Yellow” button to enter the HDD
Information menu like the below picture,you can
see details information about the HDD
USB Speed Test
Press “Blue” button to enter the USB Speed
Test menu like the below picture,you can see
the Standard speed and your USB harddisk
speed, according this information you can know
what operation your disk can support..In this
menu,and you can press ”Red” button refurbish
13. Application
the USB disk speed.
If you enter to the " Application " Menu, you will
see the picture like the below:
12.8 Remove USB Device safely!
Use this menu you can remove the USB Device
safely.
13.1 Youtube
12.9 HDD Format
This menu is some internet applications.
Press "Yellow" button to enter the HDD Format
"youtube"
menu like the below picture. If you want to
"www.youtube.com". When you enter this menu,
format the HDD then select the File System
you will see a screen like below:
between the "FAT" and the "NTFS", Press "OK"
Button to confirm.
35
can
play
stream
media
from
13.2 RSS Reader
1.Press [up/down] key to move highlight.
2.Press [ok] key on one item, it will play
pertinent video. The video will show on top left
corner. Press [OK] again, it only shows video in
In this menu you can see the news
 Red key
To update the news to the newest.
 Green key
To add new channels,you can input a new
website.use this menu.you can add 10 channels
at most.
the centre of your screen. Now press [zoom]
key, the video will play in full screen.
3.Press [vol+/vol-] to control volume.
4.Press [pause] key to pause video, or press
[stop] key to stop play.
5. Press [red] key to display the featured video.
6. Press [green] key to sort by site and duration.
The site has Germany, worldwide, Poland and
so on. Duration has all time, this week, this
month and so on.
7.Press [yellow] key to switch group. These are
game, news, tech, move and so on.
8.Press [blue] key to display the top video.
These are top favorites, top rated, most views,
most recent and so on.
 Yellow key
To delete current channel.
 Blue key
To edit current channel information.you can edit
channel name and channel Url.
9. Press FIND [ ] key in full screen to open the
"Find” window. You can press [,,,] keys to
move highlight and press[ENTER]key to input
the letters .
36
Press ok button to see the detail infomation.like
the below.
In this menu you can see the weather forecast,
press [Green] key to add city.
13.3 Weather Forecast
 Red key
To update the weather forecast to the newest.
 Green key
To add new city.use this menu.you can add 5
cities at most.
 Yellow key
To delete current city.
 Blue key
To switch other temperature mode.
13.4 Google Maps
Inside the menu can browse Google Maps
37
13.5 FTP
13.7 Web TV
When you enter to “Web TV” menu, you will see a
screen like below:
When connected to the Internet, receiver can
1. In this menu you can select your favorite
download some files, such as software, MP3 or
channel to view, press [OK] key play in full
Image files from FTP server.
screen, you can press [up / down] key to
Note:
change channels, and press [left / right] key
This function depends on connection with external
or [volume + / -] key to adjust volume level.
server. In case of no any files on server, this function will
2.
Press [green] key to add channel URL;
not work.
3.
Press [blue] key to edit channel URL;
4.
Press [yellow] key to delete channel URL.
5.
If you get the “WebTV List.txt” file, you can
13.6 Titan Online
add more channels and press [white] key to
In this memu you can connect to the server get some
update the channels from USB.
informations, like News, FAQ, User manual etc.
13.8
DLNA
You can use this function to share the media file from
android device, firstly download and install the APP
named “BubbleUPnp” from app store on android device,
and then connect to the same network both on receiver
and android device, enter to DLNA menu on receiver as
38
“ready to receive data” state, at last run the
d) Start on the game:
“BubbleUPnp” app on android device, and select the
 [left/right] Move shape left or right
receiver as the Renderer by android device media files
 “Channel Up” Rotate clockwise
sharing.
 “Channel Down” Faster drop
 [OK] Pause/Play the game
13.9 Big2small
 [menu] Quit game and draw back to
With this function you can watch the TV channels on
“Game” menu.
android device from receiver (Big2Small server). firstly
download and install the android client APP:Big2Small
14.2 Snake
Version:1.2.3 in Google play app store
a) Moving highlight to “Setup” and press
https://play.google.com/store freely, also install the MX
player on mobile device, then connect to the same
[left/right] key to select the game level
network both on receiver and android device. Set the
(speed).
Big2small server as ON in receiver menu, run the
b) Moving highlight to “Start” and press [OK]
Big2Small app on android device and play the channels
key to start the game.
from Big2Small server.
c) Moving highlight to[Cancel]keys and
14. Game
press [OK]key to draw back from the
game.
d) Start on the game:
 [left/right] use these arrow keys to
guide the snake.
 [OK] Pause/Play game
 [menu] Quit game and draw back to
“Game” menu.
14.3 Othello
a) Moving highlight to “Setup” and press
When you enter “Game” menu, you will see
[left/right]keys to select the game level
three Games include Tetris, Snake and Othello.
(degree of difficulty).
b) Moving highlight to “Start” and press [OK]
Basic operation statement:
key to start the game.
14.1 Tetris
c) Moving highlight to [Cancel] keys and
press [OK] key to draw back from the
a) Moving highlight to “Setup” and press
game.
[left/right] key to select the game level
d) Start on the game:
(speed).

b) Moving highlight to “Start” and press [OK]
[[left/right/ UP/ Down] use these
arrow keys to guide chessman.
key to start the game.
c) Moving highlight to [Cancel]keys and

[OK] set chessman.
press [OK]key to draw back from the

[menu] Quit game and draw back to
“Game” menu.
game.
39
15. EPG
Press ‘OK’ button to this menu you can see the
picture like the below,you can select EPG more
and Schedule.This Function is same as EPG.
16. New Features
Equalizer
When you listen the Radio program, it will
display the music spectrum graphic on TV
Screen.
40
17. Trouble Shooting
If you suspect there is a fault with your receiver, please check the following trouble shooting guide
before calling authorized service agent.
Warning! Under no circumstances attempt to repair the receiver yourself. Tampering with the receiver
may result in fatal electric shock and will invalidate your warranty.
Symptom
Possible cause
Settings you made in the
menu have not change
The receiver lost power before being able to enter into standby
mode
Some of the Settings saved by user can be deleted partly or fully
The level of signal is weak
LNB is out of order
The cable from the LNB is incorrectly Connected (short circuit or
open circuit)
The position of dish is aligned incorrectly
No signal
Receiver is on but no picture
or sound except the following
messages (NO TV program)
Receiver not responding to
remote control unit
Poor picture Quality
No sound
Channel is not available
Channel is scramble
RCU batteries are dead or inserted incorrectly
The RCU is pointing toward wrong direction
The level of Signal strength is low
The cable is connected incorrectly
The Volume level is low
Muting function is active
No display on the LED Display
Panel
The power cord is not plugged in correctly.
No picture on the screen
Receiver is in Standby mode
RCA Jack or cable is not connected firmly to the video output port
of television
Incorrect channel or video output is selected on television
Brightness level of your TV set is incorrectly defined
41
18. Specifications
SYSTEM RESOURCES
Main Processor
594MHz based CPU
Flash Memory
64 Mbits
DDR SDRAM
1024 Mbits
Tuner/Front-end(Optional)
Tuner Type
DVB-S / DVB-S2
Input Connector
F-type, Connector, Female
Signal Level
-65 to -25 dBm
LNB Power & Polarization
Vertical: +13V
Horizontal: +18V
Current: Max. 400mA
Overload Protection
22KHz Tone
Frequency: 22±1KHz
DiSEqC Control
Amplitude: 0.6±0.2V
Version 1.0, 1.1 1.2, USALS Available, unicable
Demodulation
QPSK, 8PSK
Input Symbol Rate
1-45 Mbps, Convolution Code Rate
Forward Error Correction (FEC)
DVB-S 1/2, 2/3, 3/4 5/6, 7/8
DVB-S2 1/2, 3/5 , 2/3, 3/4 ,4/5 , 5/6, 8/9 , 9/10
POWER SUPPLY
Input Voltage
DC 12V/2A
Power Consumption
15W MAX
MPEG TS A/V Decoding
Transport Stream
MPEG-2, H.264
Input Rate
Max.120Mbit/s
Aspect Radio
4:3, 16:9, Letter Box
Video Decoding
MPEG-2, [email protected], MPEG-4 part 10/H264
Video Resolution
720*480P/I, 720*576P/I, 1280*720p,1920*1080i, 1920*1080P
Audio Decoding
MEPG-1 layer I/II, Mpeg2 layerII, Dolby digital
Audio Mode
Left / Right / Stereo/ Mono
Sampling Rate
32, 44.1 and 48KHz
A/V & DATA INPUT/OUTPUT
Video CVBS output
AV OUT(3.5MM Earphone Jack)
Audio L/R output
IR(3.5MM Earphone Jack)
38Khz
42
Transfer rate 115.2Kbps
RS-232C(3.5MM Earphone Jack)
9 pin D-sub Type
LAN
100M
USB
Two USB 2.0 slot Compatible
VER1.3
HDMI
Type A
PHYSICAL SPECIFICATION
Size[W*H*D]
115X75X21mm
Net Weight
0.11KG
Operation Temperature
0℃~+45℃
Storage Temperature
-10℃~+70℃
Storage Humidity
5%~95% RH (Non-Condensing)
43
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
