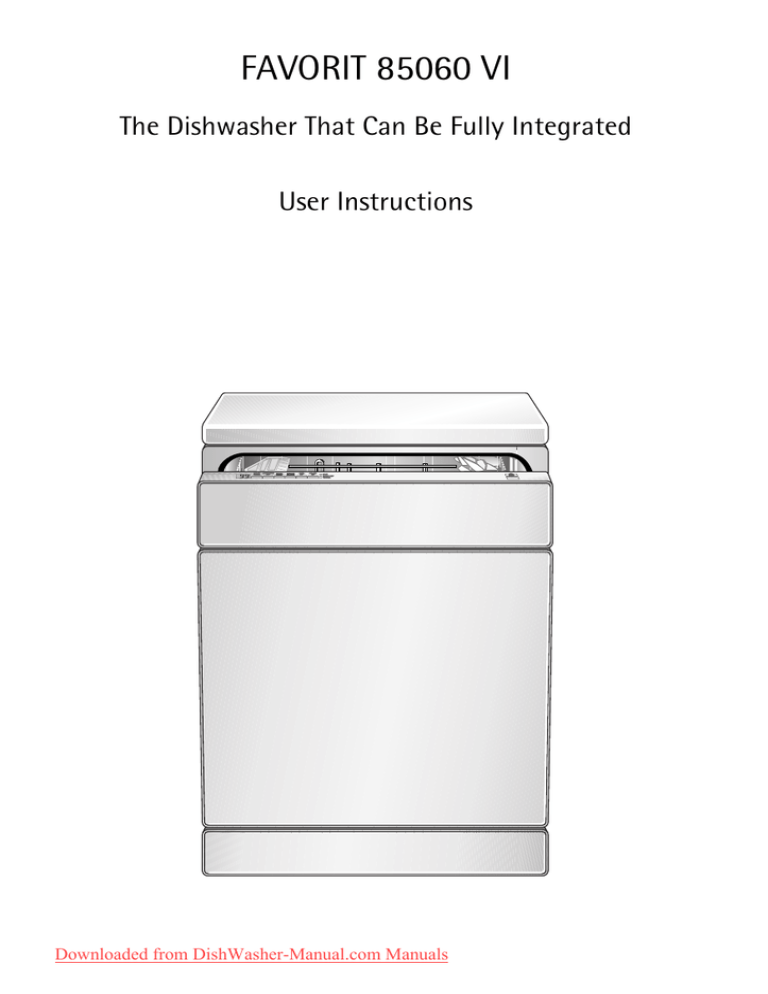

FAVORIT 85060 VI
The Dishwasher That Can Be Fully Integrated
User Instructions
Downloaded from DishWasher-Manual.com Manuals
Dear customer,
Please read these user instructions carefully.
Above all please observe the safety instructions on the first few pages
ofthese user instructions! Please keep these user instructions for later
reference. Pass them on to any subsequent owner of the appliance.
1
0
The warning triangle and/or specific words (Warning!, Caution!,
Important!) are used to highlight instructions that are important for
your safety or for the function of the appliance. It is imperative that
these instructions are observed.
This symbol or numbered instruction steps lead you step for step
through the operation of the appliance.
3
Next to this symbol you receive additional information and practical
tips on using the appliance.
2
Tips and instructions for the economical and environmentally conscious
use of the appliance are marked with a clover leaf.
In the event of a malfunction, these operating instructions contain
information on how to rectify faults yourself, see the "What to do, if..."
section.
If these instructions are insufficient, please contact your nearest customer service centre.
In the case of technical problems, our customer service organisation is
available to provide you with assistance at any time (you will find
addresses and telephone numbers in the "Customer Service Centres"
section).
In this respect please read the "Service" note on the rear of these user
instructions.
3
Your dishwasher is fitted with the new "PULSE WASH" wash system.
With this wash system, the motor speed and spray pressure are
varied during the wash programme to improve the cleaning of the
dishes. It is for this reason that the noise level changes during the
wash programme.
Printed on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly ...
Downloaded
from DishWasher-Manual.com Manuals
2
Contents
CONTENTS
Operating Instructions
....................................
5
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Economical and Ecological Dishwashing . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Appliance Features, Display and Control Fields . . . . . . . . . . . . . . . . . . . 9
Display and control field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Prior to using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Special salt for the water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the amount of special salt to be added . . . . . . . . . . . . . . . . . . .
Adding special salt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Activating/deactivating the inflow of rinse aid . . . . . . . . . . . . . . . . . . .
Adding rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting Rinse Aid Dosing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Activating/deactivating the acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . .
11
11
12
13
13
14
15
15
16
17
18
In Daily Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading cutlery and dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Pans, Frying Pans and Large Plates . . . . . . . . . . . . . . . . . . . . . .
Loading Cups, Glasses and Coffee Services . . . . . . . . . . . . . . . . . . . . . . .
Adjusting the Height of the Upper Basket . . . . . . . . . . . . . . . . . . . . . . .
Filling with Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Use of "3 in 1"/ Combi Detergent Tablets . . . . . . . . . . . . . . . . . . . . . . . .
Concentrated Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detergent tablets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic Wash Programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the Wash Programme (Programme Table) . . . . . . . . . . . . . . . . . .
Starting a dishwashing cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing/interrupting/cancelling a dishwasher cycle . . . . . . . . . . . . . .
Setting or changing the start delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Load Sensing – Sensor Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching off the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing the dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
19
20
21
22
23
24
25
26
26
26
27
28
28
29
30
31
31
Downloaded from DishWasher-Manual.com Manuals
3
Contents
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Cleaning the Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
What to do, when ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
...Error messages are displayed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
...there are problems with the operation of the dishwasher. . . . . . . . . . . .
...the wash result is not satisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33
33
35
35
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Notes for Test Institutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Installation and Connection Instructions . . . . . . . . . . . . . . . .
38
Installing the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Installing the Furniture Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Connecting the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Permitted water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connect the inlet hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leak prevention system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Departments
Guarantee Conditions
Service
39
39
39
39
41
42
42
43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Downloaded
from DishWasher-Manual.com Manuals
4
Operating Instructions
OPERATING INSTRUCTIONS
1
Safety Instructions
The safety aspects of AEG electrical appliances comply with accepted
technical standards and the German Appliance Safety Law. Nevertheless, as a manufacturer we consider it our obligation to make you
aware of the following safety information:
Installation, Connection and Placing into Operation
• The dishwasher may only be transported upright.
• Check the dishwasher for transport damage. Do not in any circumstances connect an appliance that is damaged. In the case of damage,
please contact your supplier.
• Prior to placing the appliance in operation, ensure that the nominal
voltage and type of supply on the rating plate match that of the supply where the appliance is to be installed. The fuse rating is also to be
found on the rating plate.
• For information on how to correctly install and connect up your dishwasher, please read the “Installation“ section. Multiway plugs / connectors and extension cables must not be used. This could constitute
a safety hazard.
Child Safety
• Children often do not recognise the hazards associated with the use
of electrical appliances. It is therefore important that you ensure
children are adequately supervised and that you do not allow children to play with the dishwasher – there is a risk that children can
shut themselves inside the appliance (risk of suffocation!).
• Packaging materials (e.g. films, styrofoam) can be dangerous for children. Risk of suffocation! Keep packaging away from children.
• Detergents can cause burns to the eyes, mouth, and throat, or even
cause choking! Please observe the manufacturer's safety instructions
for cleaners and detergents.
• The water in your dishwasher is not suitable for drinking. If there are
still remnants of detergent in the appliance, there is a risk of burns!
• When disposing of the dishwasher: unplug from the mains, cut off
and dispose of the mains cable. Break the door lock so that the door
no longer shuts.
Downloaded from DishWasher-Manual.com Manuals
5
Operating Instructions
General Safety
• Repairs to the dishwasher are only to be carried out by qualified service engineers. Improper repairs can give rise to significant hazards for
the user. If your appliance needs repairing, please contact customer
service or your dealer.
• Never place the dishwasher in operation if the mains cable, water
inlet or drain hose is damaged; or the control panel, work top or
plinth area is damaged such that the inside of the appliance is freely
accessible.
• If the mains lead is damaged, or is to be replaced for a longer lead,
the cable (obtainable from AEG customer service) must be changed
by a service engineer authorised by AEG.
• Never unplug the appliance by pulling on the cable, always pull the
plug.
• Additions or modifications to the dishwasher are not permitted for
safety reasons.
• Ensure that the door of the dishwasher is always closed when it is not
being loaded or unloaded. In this way you will avoid anybody tripping
over the open door and hurting themselves.
• Sharp knives and items of cutlery with sharp edges must be placed in
the cutlery tray or in the upper rack.
Correct Use
• Only wash household dishes using the dishwasher. If the appliance is
used for other purposes, or is used incorrectly, the manufacturer cannot accept any liability for any damage caused.
• Prior to use, ensure that the manufacturers of the special salt, detergent, and rinse aid employed specifically permit the usage of their
products in household dishwashers.
• Do not put any solvents in the dishwasher. There is a risk of an explosion!
• The anti-flood system provides dependable protection against damage due to leaks. For this system to function correctly, the following
preconditions must be met:
– The appliance must remain connected to the mains even when it is
switched off.
– The dishwasher must be correctly installed.
– Always shut off the water supply at the tap when the dishwasher is
not to be used for longer periods, e.g. when you are away on holiday.
Downloaded
from DishWasher-Manual.com Manuals
6
Operating Instructions
• Do not sit or stand on the open door, the appliance may tip over.
• In the event of a fault, first close the tap, then switch off the appliance and unplug it from the mains. If the appliance is permanently
wired to the mains: switch off the fuse(s) or unscrew them.
2
Disposal
Disposing of the Packaging Material
Dispose of the dishwasher packaging material correctly. All the packaging materials used are harmless to the environment and can be recycled.
• Plastic parts are marked with standard international abbreviations:
– >PE<
for polyethylene, e.g. sheet wrapping material
– >PS<
for polystyrene, e.g. padding material (always CFC-free)
– >POM< for polyoxymethylene, e.g. plastic clips
• Cardboard packaging is manufactured from recycled paper and
should be deposited in the waste paper collection for recycling.
Disposal of old appliances
As and when you cease to use your dishwasher, please take it to a recycling centre or to your dealer who will, for a small contribution to the
costs, dispose of it for you.
Downloaded from DishWasher-Manual.com Manuals
7
Operating Instructions
2
Economical and Ecological Dishwashing
• Only connect the dishwasher to the hot water supply if your hot
water is not electrically heated.
• Ensure that the water softener is correctly adjusted.
• Do not pre-rinse dishes under running water.
• If you wash a small load, the load sensor calculates the amount of
water necessary and shortens the programme. It is more economical
to always wash with a full load.
• Select the wash programme to suit the nature and degree of the soiling on the dishes.
• Do not use more detergent, special salt or rinse aid than is recommended in these operating instructions and by the manufacturer of
the respective product.
• The dishwasher's interior light is always switched on as long as the
door of the appliance is open. To save energy you should therefore
always close the door of the dishwasher after loading or removing
dishes.
Downloaded
from DishWasher-Manual.com Manuals
8
Operating Instructions
Appliance Features, Display and Control
Fields
Top Spray Arm
Rubber Seal for
Connecting the
Water Feed to the
Spray Arm
Spray Arms
Water Hardness Switch
Container for
Special Salt
Container
for Rinse Aid
Detergent
Dispenser
Display and Control Fields
Rating plate Filters
Downloaded from DishWasher-Manual.com Manuals
Interior Lighting
9
Operating Instructions
Display and control field
Multi-display
Function buttons
1
2
Set start delay
3
Control Indicators
ON/OFF button
4
Control field
The control field comprises the cycle programme buttons and their
LED indicators and the button used to set the start delay.
Function buttons: In addition to the dishwashing cycle and/or start
delay selected, the following functions can also be set with the help of
these buttons:
Function button 1
Set water softener
Function button 2
Activate/deactivate rinse aid inflow
Function button 3
Activate/deactivate acoustic signal
Function button 4
- not programmed -
The multi-display can indicate:
– the level of hardness to which the water softener is set.
– whether the rinse aid inflow has been activated/deactivated.
– whether the acoustic signal has been activated/deactivated.
– the start delay that has been set.
– the estimated time remaining for the current dishwashing cycle.
– what type of error has occurred with the dishwasher.
Control indicators have the following meanings:
3
SALT
Refill with special salt
RINSE AID
Refill with rinse aid
WATER
Open the tap
The indicators are never illuminated while a dishwashing cycle is running.
Downloaded
from DishWasher-Manual.com Manuals
10
Operating Instructions
Prior to using for the first time
Prior to using for the first time, remove all the clips with which the dish
racks are secured for transport. Then perform the following steps:
0 1. Adjust the water softener
2. Fill with Special Salt for the Water Softener
3. Fill with Rinse Aid
3
Special salt and rinse aid must not be added if you use 3-in-1 detergent
tablets.
Water softener
To avoid scale deposits on the dishes and in the dishwasher, the dishes
must be washed with soft water, i.e. water with a low lime content. The
dishwasher therefore has a built-in water softener, in which tap water
with a hardness of 4°d (German degree) and harder is softened with the
aid of special salt.
3
Your water supplier will be able to inform you about the hardness and
hardness range of the water in your area.
The water softener can be set manually using the water hardness
switch; it can also be set electronically using the buttons on the control
panel.
Adjusting the
hardness setting
Water hardness
In °d 2
In mmol/l 3
51 - 70
43 - 50
37 - 42
29 - 36
23 - 28
9,0 - 12,5
7,6 - 8,9
6,5 - 7,5
5,1 - 6,4
4,0 - 5,0
IV
19 - 22
15 - 18
3,3 - 3,9
2,6 - 3,2
III
11 - 14
1,9 - 2,5
II
4 - 10
0,7 - 1,8
under 4
under 0.7
Range
Manually Electronically
Indication Number of
on the
acoustic
multi-dis1
signals
play
10 4
9
8
7
6
10l
9l
8l
7l
6l
10
9
8
7
6
5
4*
5l
4l
5
4
3
3l
3
I/II
2
2l
2
I
1
no salt
necessary
1l
1
1
0*
Downloaded from DishWasher-Manual.com Manuals
11
Operating Instructions
1) The water hardness will only be indicated acoustically if the acoustic signal has
been activated.
2) (°d) German degree, measure of the hardness of water
3) [mmol/l] millimol per litre, international unit for the hardness of water
4) On this setting the length of the dishwashing cycle may be slightly longer.
*) Factory setting
Setting the water softener
0
Using the table as a guide, adjust the water softener to that which corresponds to the hardness of the water in your area:
The dishwasher must be switched off.
Setting manually:
1. Open the dishwasher door.
2. Remove the lower rack from the
dishwasher.
3. Turn the hardness range switch to 0
or 1 (see table).
4. Replace the lower rack.
Setting electronically:
5. Press the ON/OFF button.
The LED indicators for all the buttons in the control panel that are now
able to be selected will become illuminated.
3
If the only LED indicator illuminated is one that belongs to a programme button, this means that this dishwashing cycle has been activated. The dishwashing cycle must be cancelled:
Press function buttons 2 and 3 simultaneously for approx. 1 second.
The LED indicators for all the buttons in the control panel that are now
able to be selected will become illuminated.
6. Press function buttons 2 and 3 simultaneously and keep them pressed.
The LED indicators in function buttons 1 to 3 will flash.
7. Press function button 1.
The LED indicator for function button 1 will flash.
The multi-display will indicate the hardness setting.
The number of the acoustic signals heard (only when the acoustic signal has been activated) also corresponds to the hardness setting.
8. Pressing function button 1 increases the hardness setting by 1.
(Exception: hardness setting 1 follows hardness setting 10).
Downloaded
from DishWasher-Manual.com Manuals
12
Operating Instructions
9. When the hardness setting is correct, press the ON/OFF switch.
The hardness setting is now saved.
Special salt for the water softener
3
If the water hardness in your area is less than 4 °d, then the water in
your dishwasher does not need to be softened and you do not need to
use special salt or salt substitute.
Water can be softened in one of two ways:
• If you are using dishwasher detergent that already contains salt substitute, the detergent only is put into the detergent compartment.
– In this case the water softener must manually be set to 0 and
electronically to 1 to ensure that no special salt is added.
• If you are using dishwasher detergent and special salt separately, the
special salt is to be put into the salt supply container.
– In this case the water softener must manually be set to 0 and
electronically to between 2 and 10 (depending on the water
hardness in your area) to ensure that the special salt is taken from
the detergent container only.
1
Use only special salt intended for dishwashers. Never fill the salt supply
container with different types of salt (e.g. cooking salt) or detergent.
This would destroy the water softener.
Prior to filling with salt, please check each time that you really do have
a packet of special salt in your hand.
Setting the amount of special salt to be added
3
Some appliances are equipped with an additional 3 in 1 function.
If you use 3-in-1 dishwashing tablets and select the 3 in 1 function
together with the dishwashing cycle, the inflow of special salt does not
have to be deactivated (see ”3 in 1 function”).
0 1. Set the water softener manually and electronically to the desired water
hardness:
Manual
setting
Electronic
setting
Multi-display
indicator
Addition of special salt
0
1
IL
Do not add special salt.
0-1
2-10
2 l to 10 l
Addition of special salt
via salt supply container
(factory setting)
Downloaded from DishWasher-Manual.com Manuals
13
Operating Instructions
3
If the water softener is electronically set at “1” for the purpose of using
detergent that includes special salt, the special salt indicator is deactivated.
Adding special salt
If you are using dishwasher detergent and special salt separately, add
the special salt:
– Before using the dishwasher for the first time.
– When the indicator for special salt SALT is illuminated on the control
panel.
0 1. Open the door, remove the lower
rack.
2. Undo the lid on the salt container by
turning it anticlockwise.
3. Only when using for the first time:
fill the salt container with water.
4. Place the funnel supplied on the
container opening.
Fill the container with special salt
through the funnel; the capacity of
the container is approx. 1.0-1.5 kg
depending on the grain size. Do not
overfill the salt container with special salt.
LE
SA ALT Z
S AL
S EL
S
3
The water expelled by filling the salt container with special salt runs
out of the salt container onto the base of the washing compartment.
This is not a cause for concern, the water will be pumped out at the
start of the next wash programme.
5. Clean any salt remnants on the container opening.
6. Turn the lid clockwise to the stop, otherwise special salt will leak into
the wash water, this could lead to poor wash results. To avoid this run a
rinse programme after filling the salt container with special salt. This
will wash away salt water and any salt crystals that have been spilt.
3
Depending on the size of the salt grains, it can take several hours for
the salt to dissolve in the water and for the SALT indicator to extinguish.
The setting of the water softener and thus the consumption of salt are
dependent on the hardness of the local water.
Downloaded
from DishWasher-Manual.com Manuals
14
Operating Instructions
Rinse aid
Rinse aid ensures that your dishes gleam and are free from spots, and
that your glasses are clear.
Rinse aid can be added in one of two ways:
• If you are using dishwasher detergent that already contains rinse aid,
the detergent including the rinse aid is put into the detergent compartment.
– In this case the dispensing of rinse aid from the supply container
must be deactivated to avoid a double dosage.
• If you are using dishwasher detergent and rinse aid separately, the
rinse aid is to be put into the rinse aid supply container.
– In this case the dispensing of rinse aid from the supply container
must be activated.
– The amount of rinse aid to be dispensed must be set.
1
Use only branded rinse aid for dishwashers. Never fill the rinse aid container with any another substance (e.g. concentrated vinegar) or dishwasher cleaning agent. This would damage the appliance.
Activating/deactivating the inflow of rinse aid
3
Some appliances are equipped with an additional 3 in 1 function.
If you use 3-in-1 dishwashing tablets and select the 3 in 1 function
together with the dishwashing cycle, the inflow of rinse aid does not
have to be deactivated (see ”3 in 1 function”).
1. Press the ON/OFF button.
The LED indicators for all the buttons in the control panel that are now
able to be selected will become illuminated.
3
If the only LED indicator illuminated is one that belongs to a programme button, this means that this dishwashing cycle has been activated. The dishwashing cycle must be deselected:
Press function buttons 2 and 3 simultaneously for approx. 1 second.
The LED indicators for all the buttons in the control panel that are now
able to be selected will become illuminated.
2. Press function buttons 2 and 3 simultaneously and keep them pressed.
The LED indicators for function buttons 1 to 3 will flash.
3. Press function button 2.
The LED indicator for function button 2 will flash.
Downloaded from DishWasher-Manual.com Manuals
15
Operating Instructions
The multi-display will indicate the current setting:
0d
Inflow of rinse aid is deactivated
1d
Inflow of rinse aid is activated (factory setting)
4. Pressing function button 2 will change the setting.
5. Once the multi-display is indicating the required setting, press the
ON/OFF button.
The setting is now saved.
Adding rinse aid
If you are using dishwasher detergent and rinse aid separately, add the
rinse aid:
– Before using the dishwasher for the first time.
– When the RINSE AID indicator on the control panel is illuminated.
The rinse aid compartment is on the inside of the dishwasher door.
0 1. Open the door.
2. Press the rinse aid compartment
release button with your finger.
3. Fully open the rinse aid compartment
lid.
Downloaded
from DishWasher-Manual.com Manuals
16
Operating Instructions
4. Fill with rinse aid exactly up to the
level marked “max”; this corresponds
to a quantity of approx. 140 ml.
5. Close the lid and press until it locks
into place.
6. Wipe up any spilt rinse aid with a
cloth. Otherwise too much foam will
be formed during the wash.
Adjusting Rinse Aid Dosing
3
As the dishes are washed rinse aid is released from the dispenser into
the wash water. The dose is factory set at 4, and can be adjusted from
1 to 6. Only change the setting if streaks, milky spots or dried on water
marks are visible on glasses or crockery.
0 1. Open the door of the dishwasher.
2. Press the rinse aid compartment
release button with your finger.
3. Fully open the rinse aid compartment
lid.
4. Set the dose level.
5. Close the lid and press until it locks
into place.
6. If rinse aid has run out, wipe up with
a cloth.
Downloaded from DishWasher-Manual.com Manuals
17
Operating Instructions
Activating/deactivating the acoustic signal
The acoustic signal can indicate acoustically:
– at which water hardness the water softener is set.
– when a dishwashing cycle has finished.
– when an error has occurred with the dishwasher.
You can switch on/off the acoustic signal in the following way:
1. Press the ON/OFF button.
The LED indicators for all the buttons in the control panel that are now
able to be selected will become illuminated.
3
If the only LED indicator illuminated is one that belongs to a programme button, this means that this dishwashing cycle has been activated. The dishwashing cycle must be deselected:
Press function buttons 2 and 3 simultaneously for approx. 1 second.
The LED indicators for all the buttons in the control panel that are now
able to be selected will become illuminated.
2. Press function buttons 2 and 3 simultaneously and keep them pressed.
The LED indicators for function buttons 1 to 3 will flash.
3. Press function button 3.
The multi-display will indicate the current setting:
0 b
Acoustic signal deactivated
1 b
Acoustic signal activated (ex-factory setting)
4. Pressing function button 3 will change the setting.
5. Once the multi-display is indicating the required setting, press the
ON/OFF button. The setting is now saved.
In Daily Use
• Is it necessary to refill with special salt or rinse aid?
• Load cutlery and dishes into the dishwasher
• Fill with dishwasher detergent
• Select a wash programme suitable for the cutlery and dishes
• Start the wash programme
Downloaded
from DishWasher-Manual.com Manuals
18
Operating Instructions
Loading cutlery and dishes
1
Sponges, household cloths and any object that can absorb water may
not be washed in the dishwasher.
For washing in the dishwasher the following cutlery/dishes
are not suitable:
• Cutlery with wooden, horn,
china or mother of pearl handles
• Plastic items that are not heat
resistant
• Older cutlery with cement that is
not temperature resistant
• Bonded cutlery items or dishes
• Pewter or copper items
• Lead crystal glass
• Steel items subject to rusting
• Wooden platters
• Items made from synthetic fibres
are of limited suitability:
• Only wash stoneware in the dishwasher if it
is specifically marked as being dishwashersafe by the manufacturer.
• Glazed patterns may fade if machine
washed frequently.
• Silver and aluminium parts have a tendency
to discolour during washing. Left-overs, e.g.
egg white, egg yolk and mustard often
cause discolouring and staining on silver.
Therefore always clean left-overs from silver
immediately, if it is not to be washed
straight after use.
• Some types of glass can become dull after a
large number of washes.
• Before loading the dishes, you should:
– Remove large left-overs.
– Soften remnants of burnt food in pans.
• When loading the dishes and cutlery, please note:
– Dishes and cutlery must not impede the rotation of the spray arms.
– Load hollow items such as cups, glasses, pans, etc. with the opening
downwards so that water cannot collect in the container or a deep
base.
– Dishes and items of cutlery must not lie inside one another, or
cover each other
– To avoid damage to glasses, they must not touch
– Do not lay small objects (e.g. lids) in the cutlery rack
Downloaded from DishWasher-Manual.com Manuals
19
Operating Instructions
Loading Cutlery
1
0
Long, pointed items of cutlery are a hazard if placed in the cutlery
basket, particularly to children (see Safety Instructions). They should
therefore be placed in the upper rack.
Place knives, small spoons and small
forks in the cutlery tray.
Place forks and spoons that do not
fit in the cutlery tray in the cutlery
basket.
To ensure that all items of cutlery in
the cutlery basket are properly
washed, you should
0 1. place the grid insert on the cutlery
rack
2. place forks and spoons in the grid
insert on the cutlery basket with the
handle downwards.
3. For larger items of cutlery, e.g. a
whisk, half of the top for the cutlery
basket can be left off.
Downloaded
from DishWasher-Manual.com Manuals
20
Operating Instructions
On some models of dishwasher
it is possible to open the cutlery
basket.
To ensure that the cutlery basket
cannot open on removal from the
appliance, you should always hold
both parts of the two part handle.
0 1. Place the cutlery basket on a table
or work surface
2. open the two part handle
3. remove cutlery
4. close the two part handle.
1
Loading Pans, Frying Pans and Large Plates
Load large and heavily soiled dishes
in the lower rack (Plates up to 29cm
in diameter).
Your dishwasher has one of the following two types of lower rack:
Type 1: The right-hand plate
inserts in the lower rack can be
folded across one another
3
To ease the loading of large items,
the two right-hand plate inserts in
the lower rack can be folded across
one another.
Downloaded from DishWasher-Manual.com Manuals
21
Operating Instructions
Type 2: The two rear plate inserts
in the lower rack can be folded
across one another
3
To ease the loading of large items,
the two rear plate inserts in the lower
rack can be folded across one
another.
Loading Cups, Glasses and
Coffee Services
Load small, delicate items and long
pointed cutlery in the upper rack.
• Arrange items of crockery on the
folding cups racks so that they are
offset from each other and water
can reach all items.
• The cup racks can be folded up out
of the way for tall items.
• Lay or hang wine, champagne, and
brandy glasses in the cut outs on
the cup racks.
• Glasses, beakers, etc. can also be
placed on the two rows of prongs
on the left of the upper rack.
Downloaded
from DishWasher-Manual.com Manuals
22
Operating Instructions
Adjusting the Height of the Upper Basket
Maximum Height of the Dishes in the
Upper Basket
Lower Basket
3
With upper basket raised
22 cm
31 cm
With upper basket lowered
24 cm
29 cm
The height of the basket can also be adjusted when it is loaded.
Lowering the Upper Basket:
0 1. Pull the upper basket out completely.
2. Holding the upper basket at the rear
right, lift it as far as it will go and
then lower it vertically. The upper
basket will engage in the lower position.
Raising the Upper Basket:
0 1. Pull the upper basket out completely.
2. Holding the upper basket at the rear
right, lift it as far as it will go and
then lower it vertically. The upper
basket will engage in the higher
position.
Downloaded from DishWasher-Manual.com Manuals
23
Operating Instructions
Filling with Detergent
1
Only use dishwasher detergent.
Fill with detergent:
– Prior to the start of a wash programme (not for the pre wash programme). The detergent is released into the wash water during the
programme.
Please observe the manufacturer's dosing and storage recommendations as stated on the detergent packaging.
The detergent compartment is on the
inside of the dishwasher door.
0 1. If the lid is closed:
press release button (1).
The lid springs open.
2
2. Fill the detergent dispenser with
detergent. The markings indicate the
dosing levels:
“20” corresponds to approx. 20 ml of
detergent,
“30” corresponds to approx. 30 ml of
detergent.
3. Close the lid and press until it locks
into place.
3
If the dishes are very heavily soiled
put additional detergent into the
adjacent chamber (2). This detergent
will take effect during the pre wash.
Downloaded
from DishWasher-Manual.com Manuals
24
Operating Instructions
Use of "3 in 1"/ Combi Detergent Tablets
General Advice
These products are tablets with combined detergent/rinse-aid and salt
functions.
0 1. Before using these products you should first check that the water hardness in your supply is compatible with the use of these products as per
the detergent manufacturers instructions (on the product packaging).
2. These products should be strictly used according to the detergent manufacturers instructions.
Do not place the tablets in the tub or the cutlery basket as this will
result in poorer wash results. The tablets should be placed in the
detergent doser.
3. If you encounter problems when using "3 in1" products for the first
time then please contact the detergent manufacturers care line (the
telephone number is given on the product packaging).
1
Special Advice
When using combination products, the rinse-aid and salt lights are no
longer useful. It may be helpful therefore to switch the rinse aid off please note that only some dishwashers have this facility - and selecting the lowest possible setting for water hardness.
For more information please refer to your instruction manual.
If you decide to switch to the use of a standard detergent system we
advise that you:
• Refill both the salt and rinse aid compartments.
• Switch the waterhardness setting to the highest possible position
and run for three normal cycles without a load.
• Readjust the waterhardness setting again according to the conditions
for your region (as per the instruction manual).
Downloaded from DishWasher-Manual.com Manuals
25
Operating Instructions
Concentrated Detergent
Based on their chemical composition, dishwasher detergents can be
split into two basic types:
– conventional, alkaline detergents with caustic components
– low alkaline concentrated detergents with natural enzymes.
2
The use of 50 °C wash programmes in conjunction with concentrated
detergents reduces pollution and is good for your dishes; these wash
programmes are specially matched to the dirt-dissolving properties of
the enzymes in the concentrated detergent. For this reason 50 °C wash
programmes in which concentrated detergents are used can achieve
the same results that can otherwise only be achieved using 65 °C programmes.
Detergent tablets
3
Detergent tablets of different makes dissolve at different speeds. For
this reason some detergent tablets cannot develop their full cleaning
power during short programmes. Therefore please use wash programmes with pre wash when using detergent tablets.
Automatic Wash Programmes
During the AUTOMATIC programmes the amount of soiling on the
dishes is determined by how cloudy the water is.
If the appliance is partially loaded and the dishes lightly soiled, the “pre
wash”, “main wash” and “rinsing” elements of the programme are
shorter and the water consumption level is lower.
If the appliance is fully loaded and the dishes heavily soiled, the “pre
wash”, “main wash” and “rinsing” elements of the programme are
longer and the water consumption level is higher.
For this reason the programme duration, water and energy consumption levels can vary within the stated range for AUTOMATIC programmes (see Programme Table).
In this way, the dishes are always optimally washed while water and
electricity consumption are kept low.
During AUTOMATIC programmes the temperature of the wash water is
also automatically adjusted to between 50 °C and 65 °C depending on
the amount of soiling on the dishes.
Downloaded
from DishWasher-Manual.com Manuals
26
Operating Instructions
Selecting the Wash Programme (Programme Table)
Choose the most suitable wash programme with the aid of this table:
Type of
dishes
In Addition
Dinner service and
cooking items
-
-
Type of soil- • heavily
soiled
ing
• normally
soiled
• dried-on left- • dried-on
overs,
leftovers
in particular
egg white and
thickeners
Suitable
Wash-Programme
Programme
Sequence 3
Consumption Figures
INTENSIVE
70°
Pre-wash
Main wash
2x intermediate
rinses
Final rinse
Dry
AUTO
Pre-wash
Main wash
Intermediate
rinse
Final rinse
Dry
Dishes
without
Pans
-
Coffee service and dessert
dishes
with nontemperature
resistant dishes
• just used, • normally to
lightly soiled
• average to
slightly
soiled
with
delicate glasses
• lightly
soiled
particularly suitable when
concentrated detergents are
used.
30 MIN 1
Main wash
Final rinse
-
ECO 2
50°
Pre-wash
Main wash
Intermediate
rinse
Final rinse
Dry
GLASS
45°
Main wash
2x intermediate
rinses
Final rinse
Dry
4
Duration 5
110 - 120 min.
Energy
1.75 – 1.95 kWh 1.00 – 1.50 kWh 0.8 kWh
0.95 – 1.05 kWh 0.9 kWh
Water
23 - 25 litres
12 - 14 litres
90 - 110 min.
13 - 25 litres
30 min.
9 litres
130 - 150 min.
73 min.
15 litres
1) This programme is not suitable when left-overs have dried on.
2) Test programme for test institutes
3) Noise levels vary at different stages of the wash programme as at some programme
stages the dishes are washed more energetically so that they will be cleaned more thoroughly.
4) The consumption figures were determined under standard conditions. They are intended
as a guide only and depend on the loading. For this reason figures may vary in practice.
5) When the hardness setting is electronically adjusted to 10, the length of the dishwashing
cycle may be slightly longer.
Downloaded from DishWasher-Manual.com Manuals
27
Operating Instructions
Starting a dishwashing cycle
0 1. Check that dishes and cutlery are arranged in the dishwasher so that
the spray arms can turn freely.
2. Turn the water tap on fully.
3. Press the ON/OFF button.
The LED indicators of all the buttons on the control panel that can now
be selected light up.
4. Press the programme button for the required cycle (see “Cycle table”).
The programme indicator comes on.
The remaining time expected for the cycle will be shown in the multidisplay.
3
This remaining time may be adjusted according to the size of the load,
degree of soiling, etc.
5. Close the dishwasher door.
The dishwasher cycle starts.
A light signal in the form of a dot appears at floor level.
3
If the dishwasher is built in at high level with flush fitting cupboard
doors, the light signal cannot be seen.
3
The dot shaped light signal is not dangerous. (It is not a laser.) It is lit
while a dishwasher cycle is running and goes out when the cycle ends.
3
If after the start of the cycle fault codes are displayed in the multi-display and/or acoustic fault codes can be heard, please read the section
“What to do, if …”
Changing/interrupting/cancelling a dishwasher cycle
3
Only change or interrupt a dishwashing cycle that is in progress if it is
absolutely necessary. After the appliance is closed again, the air that
has entered is heated up to a high degree and expands. This can allow
water into the bottom reservoir and may trigger the anti-flood system.
Changing a dishwasher cycle
3
If you want to change the dishwasher cycle before closing the dishwasher door, briefly press the button for the new dishwasher cycle.
If you want to change the dishwasher cycle after the cycle has started,
proceed as follows:
Downloaded
from DishWasher-Manual.com Manuals
28
Operating Instructions
Hot steam may escape when the dishwasher door is opened. There is a
risk of scalding. Therefore:
0 1. Open the dishwasher door carefully.
The dishwasher cycle will stop.
2. Press the button for the new dishwasher cycle and hold it down.
Then the indicator for the current cycle will flash.
After a few seconds just the indicator for the new dishwasher cycle will
be lit.
3. Release the programme button.
4. Close the dishwasher door.
The newly selected dishwasher cycle begins from the start.
1
Interrupting the dishwasher cycle by opening the dishwasher door
0 1. Open the dishwasher door.
The dishwasher cycle will stop.
2. Close the dishwasher door.
The dishwasher cycle will continue.
Cancelling a dishwasher cycle
0 1. Open the dishwasher door.
2. Press function buttons 2 and 3 and keep them pressed down for about
1 second.
The LED indicators of all the buttons on the control panel that can now
be selected light up.
3. Release the function buttons.
The dishwasher cycle has been cancelled.
4. Switch off the dishwasher using the ON/OFF button.
Setting or changing the start delay
Using the start delay timer you can adjust when within the next 19
hours the dishwashing cycle is to begin.
Setting the start delay:
0 1. Open the door of the dishwasher.
2. Press the ON/OFF button.
The LED indicators for all the buttons in the control panel that are now
able to be selected will become illuminated.
3. Continue pressing the DELAY TIMER button until the number of hours
of delay until the dishwashing cycle is to start is flashing in the multidisplay.
Downloaded from DishWasher-Manual.com Manuals
29
Operating Instructions
4. Press the button for the desired dishwashing cycle.
The length of the selected dishwashing cycle will flash for a moment in
the multi-display, and then the selected starting time will be displayed
again.
5. Close the door.
The dishwashing cycle will start automatically following a countdown
of the hours set.
Changing the start delay:
As long as the dishwashing cycle has not started, you can still change
the start delay set by pressing the DELAY TIMER button.
Cancelling the start delay:
As long as the dishwashing cycle has not started you are still able to
cancel the start delay. Continue pressing the START DELAY button
until the length of the selected cycle appears in the multi-display. The
selected dishwashing cycle will begin immediately after the dishwasher
door has been closed.
Changing the dishwashing cycle after the start delay has been set:
As long as the dishwashing cycle has not started, you are still able to
change the start delay set by pressing a cycle button.
0 1. Press the button for the new dishwashing cycle and hold it down.
First, the indicator for the dishwashing cycle that has just been selected
will flash.
After several seconds only the indicator for the new dishwashing cycle
will be flashing.
2. Release the cycle button.
3. Close the door.
The dishwashing cycle will start automatically following a countdown
of the hours set.
Load Sensing – Sensor Logic
If a wash programme is started even though there are only a few dishes
in the upper and/or lower rack, an intelligent electronic system adjusts
the amount of water and the duration of the wash programme to the
number of dishes. By this means it is possible to wash only a few dishes
quickly and economically. At half load (6 place settings), up to 2 litres
of water and 0.2 kWh of electricity are saved.
Downloaded
from DishWasher-Manual.com Manuals
30
Operating Instructions
Switching off the dishwasher
When the dishwasher cycle has ended, the dot shaped light signal on
the floor below the door of the appliance goes out.
If the acoustic signal is activated, at the end of the dishwasher cycle a
15 second long continuous acoustic signal is heard.
Hot steam may escape if the door is opened immediately after the end
of the cycle. Therefore:
0 1. Open the door carefully.
2. Switch off the dishwasher using the ON/OFF button.
All display indicators will go out.
If the dishwasher is not switched off, then the acoustic signal is
repeated after 3 minutes and after 6 minutes.
1
Removing the dishes
3
• Hot dishes are sensitive to knocks. Therefore leave the dishes to cool
before removing them.
• Leave the dishes in the dishwasher for approx. another 15 minutes
after the end of the cycle for a better drying result and to allow them
cool down.
• Empty the lower basket first, then the upper basket. This way you
avoid dripping any water remaining in the upper basket onto dishes
in the lower basket and leaving water stains.
Care and Cleaning
1
Do not under any circumstances use furniture care products or aggressive cleaners.
• If necessary, clean the controls only with a soft cloth and pure warm
water.
• Occasionally check the internal containers, door seal, and water inlet
for soiling, clean if necessary.
Downloaded from DishWasher-Manual.com Manuals
31
Operating Instructions
Cleaning the Filter
The filters in the base of the washing compartment are to a large
extent self-cleaning.
Nevertheless the filters should be
checked and cleaned from time to
time. Dirty filters will degrade the
washing result.
0 1. Open the door, remove the lower
rack.
2. The dishwasher filter system comprises a coarse/fine filter, microfilter
and a flat filter. Unlock the filter system using the handle on the microfilter, and remove.
3. Turn the handle about ¼ a turn anticlockwise and remove.
4. Take hold of the coarse/fine filter (1/
2) by the handle with the hole and
remove from the microfilter (3)
5. Clean all filters thoroughly under
running water.
6. Remove the flat filter (4) from the
base of the washing compartment
and clean both faces thoroughly
3
7. Put the flat filter back in the base of
the washing compartment
8. Place the coarse/fine filter in the
microfilter and press together.
9. Put the filter combination in place
and lock by turning the handle clockwise to the stop. During this process
ensure that the flat filter does not
protrude above the base of the washing compartment.
1
Under no circumstances may the
dishwasher be used without filters.
Downloaded
from DishWasher-Manual.com Manuals
32
Operating Instructions
What to do, when ...
Try to rectify minor faults on the dishwasher with the aid of the
instructions given here. If you call in customer service to resolve one of
the malfunctions listed here, or rectify an error made in the operation
of the appliance, the customer service engineer’s visit is not free of
charge, even during the period of guarantee.
...Error messages are displayed.
If your appliance is equipped with an optical floor signal, in the event
of an error a dot-shaped optical signal will flash on the floor.
3
Errors will only be indicated acoustically if the acoustic signal has been
activated.
If, as listed in the table below, any of the indicators in the control panel
or the display panel are flashing or are illuminated, and/or if an acoustic signal can be heard, you can probably rectify the fault yourself.
Malfunction
One continuously repeated
warning tone can be heard;
the cycle indicator for the
selected cycle is flashing:
The WATER indicator is continuously illuminated: error
code Å 10 is displayed in the
multi-display: There is no
water running into the dishwasher.
Possible cause
Remedy
The tap is blocked or
furred with lime-scale.
Clean tap.
The tap is turned off.
Turn the tap on.
The filter (where
present) in the
Clean the filter in the
threaded hose fitting at
threaded hose fitting.
the water inlet valve is
blocked.
Filters in the base of
the washing compartment are blocked.
Press the button for the
commenced dishwashing
cycle;
then abort the dishwashing
cycle (see chapter: Starting a
dishwashing cycle);
Clean out the filters. (See
chapter: Cleaning the filters)
The water inlet hose has
Check hose installation.
not been correctly laid.
Downloaded from DishWasher-Manual.com Manuals
33
Operating Instructions
Malfunction
Two short continuously
repeated warning tones
can be heard, the cycle indicator for the selected dishwashing cycle is flashing,
error code Å 20 is displayed
in the multi-display.
Possible cause
Remedy
The siphon is blocked.
Clean out siphon.
The water drain hose
has not been correctly
laid.
Check hose installation.
Three short continuously
repeated warning tones
The leak prevention sys- Turn off the tap and contact
can be heard, error
tem has been triggered. customer service.
code Å 30 is displayed in the
multi-display.
After rectifying an Å 10 or Å 20 error, press the button for the commenced dishwashing cycle. The dishwashing cycle will continue.
If the fault is displayed again, please contact customer service.
3
For all other errors displayed, please contact customer service stating
the error code (see chapter: Customer service).
Downloaded
from DishWasher-Manual.com Manuals
34
Operating Instructions
...there are problems with the operation of the dishwasher.
Malfunction
Possible Cause
Remedy
The door of the dishwasher is
Shut the door.
not closed properly.
Mains plug is not plugged in. Insert mains plug.
The programme does
not start.
House fuse in defective.
Replace fuse.
In the case of dishwasher
models with start delay
timer:
A start delay is selected.
If dishes are to be washed
immediately cancel delay
start timer.
The washing compartment is
made of corrosion-resistant
stainless steel. Rust spots in
the washing compartment
Rust spots are visible in are from particles from outthe washing compart- side the appliance (rust particles from the water pipe,
ment.
from pans, cutlery, etc.).
Remove such spots with a
commercially available stainless steel cleaner.
Only wash cutlery and dishes
that are suitable for dishwasher use.
There is a whistling
noise during washing.
Use a different brand of
detergent.
The whistling is not a cause
for concern.
Close the lid of the special
salt container securely.
Mains plug is not plugged in. Insert mains plug.
Dishwasher interior
lighting does not work. Light bulb for the interior
Contact customer service.
lighting is defective.
...the wash result is not satisfactory.
The dishes are still dirty.
– The wrong wash programme was selected.
– The dishes were arranged in such a manner that water has not
reached all parts. The dish racks must not be overloaded.
– The filter in the base of the washing compartment is dirty or incorrectly positioned.
– Detergent was not used or too little was used.
– In the case of scale deposits on the dishes: the special salt container
is empty or the water softener is incorrectly adjusted.
– The
drain
hose is incorrectly laid.
Downloaded
from
DishWasher-Manual.com
Manuals
35
Operating Instructions
The dishes are wet and dull.
– Rinse aid was not used.
– The rinse aid container is empty.
There are streaks, milky spots or a bluish coating on glasses and
dishes.
– Decrease rinse aid dosing.
There are dried water drops on the glasses and dishes.
– Increase rinse aid dosing.
– The detergent may be the cause. Contact the detergent manufacturer's consumer advisor.
Technical Data
Capacity:
12 place settings including serving dishes
Permitted Water
Pressure:
1-10 bar (=10-100 N/cm2 = 0.1-1.0 MPa)
Electrical Connection:
Information on the electrical connection is given on the
rating plate on the inner edge of the dishwasher door on
the right.
Dishwasher: Free-Standing Appliances
Dimensions:
850 x 598 x 598 (H x W x D in mm)
Max. Weight:
54 Kg
Dishwashers that Can Be Integrated, Built-In Dishwashers
Dimensions:
820 – 880 x 596 x 570 (H x W x D in mm)
Max. Weight:
50 Kg
Dishwashers that Can Be Fully Integrated
Dimensions:
820 – 880 x 596 x 546 (H x W x D in mm)
Max. Weight:
50 Kg
; This appliance conforms with the following EU Directives:
– 73/23/EWG dated 19. 02. 1973 – Low Voltage Directive
– 89/336/EWG dated 03. 05. 1989
(including Directive Amendment 92/31/EWG) – EMC Directive
Downloaded
from DishWasher-Manual.com Manuals
36
Operating Instructions
Notes for Test Institutes
Testing in accordance with EN 60704 must be carried out with the
appliance fully loaded and using the test programme (see Programme
Table).
Tests in accordance with EN 50242 must be carried out when the salt
dispenser and rinse aid container have been filled with salt and rinse
aid respectively and using the test programme (see Programme Table).
Full Load:
12 place settings
incl. serving dishes
Half Load:
6 place settings incl. serving dishes,
leaving alternate positions free
Detergent Dosing:
5g + 25g (Type B)
20g (Type B)
Rinse Aid Setting:
4 (Type III)
4 (Type III)
Sample loading arrangements:
Upper basket without cutlery tray *
Upper basket with cutlery tray *
* If necessary, move the cup rest from right to left. When doing this, ensure that the
cup rest is at the same height.
Lower basket with cutlery basket
Cutlery basket
Downloaded from DishWasher-Manual.com Manuals
37
Installation and Connection Instructions
INSTALLATION AND CONNECTION
INSTRUCTIONS
Installing the Dishwasher
• The dishwasher must be installed on a firm floor and adjusted to
ensure that it is stable and level.
• To compensate for unevenness in the
floor and to match the height of the
appliance to that of surrounding units
extend the threaded feet by unscrewing:
– use a screwdriver.
• For built-in, integrated and fully integrated dishwashers, the rear feet
should be adjusted from the front of
the appliance using a screwdriver.
• The drain hose, inlet hose and mains
cable must not be kinked or crushed
when the dishwasher is in position.
• In addition, the dishwasher must be firmly screwed to the work surface or to the neighbouring units. This is essential to ensure the dishwasher does not tip.
Installing the Furniture Door
(see installation stencil supplied)
3
The door of the appliance can be fitted with a wooden furniture door
of the following dimensions:
Width:
591 mm – 594 mm
Thickness:
16 mm – 24 mm
Height:
max. 715 mm
Weight:
max. 10 kg
Downloaded
from DishWasher-Manual.com Manuals
38
Installation and Connection Instructions
Connecting the Dishwasher
Water Connection
The dishwasher is fitted with safety devices that prevent the wash
water returning into the drinking water system and comply with the
applicable plumbing regulations.
• The dishwasher can be connected to cold and hot water supplies up
to max. 60 °C.
• The dishwasher must not be connected to open hot water appliances
or instantaneous water heaters.
Permitted water pressure
Lowest permitted water pressure:
1 bar (=10 N/cm2 =100 kPa)
Consult your installer if the water pressure is less than 1 bar.
Highest permitted water pressure:
10 bar (=100 N/cm2 =1 MPa)
In the case of a water pressure greater
than 10 bar, a pressure reduction valve
must be used (available from your
dealer).
Connect the inlet hose
1
0
3
The water inlet hose must not be kinked, crushed or entangled when it
is being connected up.
Connect the threaded hose fitting (ISO 228-1:2000) on the water inlet
hose to a tap with an external thread (¾ inch). The inlet hose is
equipped either with a plastic or with a metal connection nut:
– Tighten plastic hose connection nuts by hand only.
– Metal hose connection nuts must be tightened using an
appropriate tool. Finally, visually check that it is water-tight (ensure
that the tap is not dripping).
• In order that access to the tap in the kitchen is not limited by the use
of the dishwasher, we recommend the installation of an additional
tap, or fitting a two way adapter to the existing tap.
• If you need a longer water inlet hose than that supplied, VDE
approved complete hose sets are to be used. These are available from
your local Service Force Centre.
Downloaded from DishWasher-Manual.com Manuals
39
Installation and Connection Instructions
3
The following section is only applicable to dishwashers that have a
safety valve on the threaded hose fitting for the tap:
Water inlet hose with safety valve
After connecting the double-walled water inlet hose, the safety valve is
next to the tap. Therefore the water inlet hose is only under pressure
while the water is running. If the water inlet hose starts to leak during
this operation, the safety valve cuts off the running water and the
draining pump in the dishwasher is switched on.
1
Please take care when installing the water inlet hose:
– The electrical cable for the safety valve is in the double-walled water
inlet hose. Do not immerse the water inlet hose or the safety valve in
water.
– If the water inlet hose or the safety valve is damaged, remove the
mains plug immediately.
– A water inlet hose with safety valve must only be replaced by a
specialist or Customer Services.
Downloaded
from DishWasher-Manual.com Manuals
40
Installation and Connection Instructions
Water drain
Drain hose
1
The drain hose must not be kinked, crushed or entangled.
• Connecting the drain hose:
– Maximum permitted height: 1 metre.
– Minimum required height 40 cm above the lower edge of the
machine.
Extension hoses
• Extension hoses are available from
your dealer or customer service.
The internal diameter of the extension hoses must be 19 mm to
ensure that the function of the
appliance is not impeded.
• Extension hoses may be laid a maximum of 3 metres horizontally; the
maximum permitted height for the
connection for the drain hose is
then 85 cm.
Sink outlet connection
• The outlet of the drain hose (ø 19 mm) fits all commonly available
sink outlet spigot types. The outer diameter of the spigot connection
must be at least 15 mm.
• The drain hose must be fixed to the sink outlet connection using the
hose clamp supplied.
If the dishwasher is fitted at a high position
If the dishwasher is installed at a high level, and the drainhose connection is less than 30 cm from the bottom of the appliance, adapter kit
ET 111099520 must be fitted. This is available from Customer Service.
Water drain into wash basins (only possible with free-standing
appliances)
In the case that you wish to hang the drain hose in a wash basin, use a
detachable hose elbow. You can obtain this from AEG customer service
under spare part number ET 646 069 190.
0 1. Fit the elbow to the drain hose.
2. Secure the drain hose against sliding off the edge of the wash basin.
Pass a piece of cord through the hose elbow and fix it to the wall or the
tap.
Downloaded from DishWasher-Manual.com Manuals
41
Installation and Connection Instructions
Leak prevention system
To avoid damage caused by water leakage, the dishwasher is equipped
with a leak prevention system.
In the event of a fault, the safety valve in the appliance immediately
interrupts the inflow of water and the drain pump is activated. In this
way water can neither escape nor overflow. Any remaining water in the
appliance is automatically pumped out.
In the event of a fault when the appliance is switched on, a buzzing
tone can also be heard.
Electrical connection
1
In compliance with electric company technical requirements for mains
connections, hard-wired connections to the mains may only be made
by approved electri-cians.
When connecting the appliance, observe the German VDE regulations
and, if applicable, any additional conditions required by your local electricity supplier. Following installation, live parts and live insulated wiring must not be accessible using a finger test in accordance with EN
60335/DIN VDE 0700.
Information on the electrical connection can be found on the rating
plate on the right side of the inner edge of the dishwasher door. If the
appliance has a change-over switch, the additional instructions on the
change-over diagram in the mains connector box must be observed.
Prior to connecting ensure that the mains voltage and current rating at
the site of installation match the nominal voltage and current rating
given on the rating plate. The required fuse protection is also to be
found on the rating plate.
To isolate the dishwasher from the mains, remove the mains plug.
Important: The plug must still be accessible after the appliance has
been installed.
If the appliance is hard-wired to the mains supply, then it must be
safely isolated from the mains within the electrical installation with
switches intended to ensure all-pole(N,L1) disconnection, shall be
directly connected to the supply terminals and shall have a contact
separation (fuses, cut outs, current trips or similar) of at least 3mm in
each pole.
Downloaded
from DishWasher-Manual.com Manuals
42
Installation and Connection Instructions
Connections
The water inlet and drain hoses, as well as the mains cable must be
connected beside the dishwasher as there is insufficient space behind
the appliance.
The plumbing and electrical installation example given below can only
be regarded as a recommendation; the actual situation where the dishwasher is to be installed will define the exact installation (available
connections, local electricity and water board regulations for connecting up appliances, etc.).
Two 45° or Straight Connections,
Outer ø 19 mm, Length 30 mm
Water
inlet
Mains
cable
Water
drain
Double tap
Mains socket
Downloaded from DishWasher-Manual.com Manuals
Water drain
Water inlet
Mains
cable
43
Service Departments
SERVICE DEPARTMENTS
U.A.E. Abu Dhabi
Universal Trading Company
P.O. Box 43 99
Tel.: 335331
Jordan
Jordan Household
Supply Co. Ltd.
P.O. Box 3/68
Amman/Tel.: 69 70 50
Malta
ITC
International Trading Company
White House Building
Mountbatte Street
Blata L-Bajda/Tel.: 220644
Egypt
Middle East Commercial
Center
P.O. Box 19
Kairo-Heliopolis
Tel.: 29917/31634
Canada
EURO-LINE Appliances
2150 Winston PARK Drive 20
Oakville, Ontario L6H 5V1
Tel.: 905 829 3980
Fax: 905 829 3985
Mauritius
Happy World Centre Ltd.
P.O. 7 54
1 Chausee Street
Port Louis
Tel.: 25355
Australia
ANDI-Co Pty. Ltd
9 Kingston Town Close
Oakleigh VIC 3166
Tel.: (03) 9569 1235
Fax: (03) 9569 1450
Korea (South)
Core Incorp.
3/F Chewoo Bldg.
200 Nonhyun-Dong
Kangnam-Ku
Seoul
Telefon 82 2 549 89 61
Namibia
AEG NAMIBIA (PTY) LIMITED-Jeppe Street
Northern Industrial Area
Windhoek
Tel.: (061) 21-6082/4
Fax: (061) 217838
Bahrain/Arabian Gulf
A.A. Zayani & Sons
P.O. Box 9 32
Bahrain
Tel.: 261060
Croatia
Electrolux D.O.O.
Suplova 7
10000 Zagreb
Tel.: 1 61 19512
Fax: 1 61 19513
New Zealand
Euro-Life New Zealand Ltd.
Privat Bag
58 Symonds Street
Auckland
Tel.: (09) 525 2222
Bulgaria
Electrolux Bulgaria E.O.O.D.
91 Levski Blvd.
1000 Sofia
Tel.: 2 806676
Fax. 2 980 5276
Kuwait/Arabian Gulf
Ali Al-Ghanim Est.
P.O. Box 10 83
Tel.: 5322463
Fax: 5242114
Nouvelle Caledonie
Socometra N.C.
B.P. 483
Nouman
Tel.: 275444
Cyprus
Hadjikyrlakos & Sons Ltd.
Prodromou 121
P.O. Box 21587
Nicosia 1511
Service Telephones:
Nicosia 02 481226
Limassol 05 562182
Larnaca 04 633929
Paphos 06 932 699
Lebanon
Adib & Assaferi
P.O. Box 539
Tripoli
Oman
Moshin Haider Darwish
P.O. Box 1 35
Muscat
Tel.: 703743
Downloaded
from DishWasher-Manual.com Manuals
44
Service Departments
Estonia
Electrolux Estonia Ltd.
Mustamäe tee 24
EE0006 Tallinn
Tel.: (372) 6 650 090
Fax: (372) 6 650 092
Latavia
Electrolux Latavia Ltd.
Terlaton Street 42/44
1011 Riga
Tel.: 371 2 297821
Fax: 371 2 821286
Poland
Electrolux Poland Sp. zo.o.
ul. Domaniewska 41
02-034 Warszawa
tel.: 022 874 33 33
fax: 022 874 33 00
Hongkong
Wo Kee Services Ltd.
585-609 Castle Peak Road
Kwai Chung N.T.
Hongkong
Tel.: 2494 4000
Lthuania
Electrolux Lthuania
Verkui 29
2600 Vilnus
Tel.: 372 272 3326
Fax: 372 272 3366
Russia
Electrolux Russia Ltd.
16 Olympiysky prospekt
129090 Moscow
Tel.: (095) 937 7837
Fax: (095) 926 5513
Israel
Electricity & Electronic
Services-Evis LTD.
19 Hataasia st.
Raanana, Industrial area 43654
Tel: 972-9-7448118
Fax: 972-9-7603618
e-mail:evis@evis.co.il
Malaysia
Saudi Arabia
Arzbergh Engineering
Alia Trading Corporation
No. 49A/B, Jalan Petaling Utama P.O. Box 4101
7
King Abdul Aziz Street
4600 Petaling Jaya
Riyadh
Tel.: 3 795 1084
Tel.: 4645977
Fax: 3 795 1082
Al Nahas Est.
Musaidia Market I
P.O. Box 1 15 29
Jeddah
Tel.: 6606852
Japan
Electrolux Japan Ltd.
Domestic Appliances Department
Maruzen Showa Warehouse Building
Tookai 4-5-12, Ota-ku
143-006 Tokyo
Tel.: 0120-13-7117
Fax: 03-3790-5257
Singapore
Arzbergh Engineering
19 Tanglin Road 06-07
Singapore 247909
Tel.: 65 7356572
Fax: 7351124
Slovenia
Electrolux Slovenia D.O.O.
Traska Ul. 132
1000 Ljubljana
Tel.: 61 1234 137
Fax: 61 1234 238
Thailand
OLYMPIA Thai Ltd.
44 Ratchadapisek Road
10320 Bangkok
Tel.: 2 513 6111
Fax: 2 513 2574
Slovakia Rep.
Electrolux Slovakia S.R.O.
Seberiniho 1
821 03 Bratislava
Tel.: 02 4333 4322, 4355
Fax: 02 4333 6976
South Africa
AEG (Pty) Ltd.
55, 12th Road
P.O. Box 1 02 64
Kew/Johannesburg 2000
Tel.: 8069111
Hungary
Electrolux Lehel KFT
(AEG Div)
Erzsébet Királyné útja 87.
1142 Budapest
Tel.: 00361/467-3200
Syria
Masri & Shami
P.O. Box 24 96
Damascus
Tel.: 214080
Downloaded from DishWasher-Manual.com Manuals
45
Guarantee Conditions
GUARANTEE CONDITIONS
Weitere Kundendienststellen im Ausland
In diesen Ländern gelten die Garantiebedingungen der örtlichen Partner. Diese können dort eingesehen werden.
Further after-sales service agencies overseas
In these countries our AEG agents’ own guarantee conditions are applicable. Please obtain further details direct.
Autres agences étrangères assurant le service après-vente
Dans ces pays, les conditions de garantie des concessionnaires de la
région sont valables. Vous pouvez les consulter sur place.
Otros puntos de Postventa en el extranjero
En estos países rigen las condiciones de nuestros representantes locales.
las cuales pueden ser consultadas allí mismo.
Ulteriori uffici del servizio tecnico assistenza clienti all’estero
In questi paesi sono valide le condizioni di garanzia dei partner locali.
Queste condizioni possono essere esaminante sul luogo.
Serviços de assistência técnica no estrangeiro
Nestes países são válidas as condições de garantia dos concessionários
locais, podendo aí ser consultadas.
További vevöszolgálati irodák külföldön
Ezekben az országokban a mi AEG vevöszolgálatainknál saját jótállási
feltételek alkalmazhatók. A további adatokat kérjük közvetlenül szerezzék be.
Servisne službe
Na garancijskem listu boste našli seznam pooblašèenih servisnih služb
AEG.
Downloaded
from DishWasher-Manual.com Manuals
46
Service
SERVICE
In the section "What to do, if..." the most important sources of faults
that you can rectify yourself are summarised.
If, nevertheless, you call in customer service to resolve a problem listed
in these instruction, or because of an error made in operating the
appliance, the customer service engineer’s visit is not free of charge,
even during the warranty period.
If you can not find any information on a specific malfunction in these
operating instructions, please contact customer service.
Please provide customer service the PNC number and the S No. (serial
number), you can find these on the rating plate. The plate is on the
inner edge of the door on the right.
So that you always have these numbers at hand, we recommend you to
make a note of them here:
PNC :...............................................................................................................................
S-No. :.............................................................................................................................
Downloaded from DishWasher-Manual.com Manuals
47
