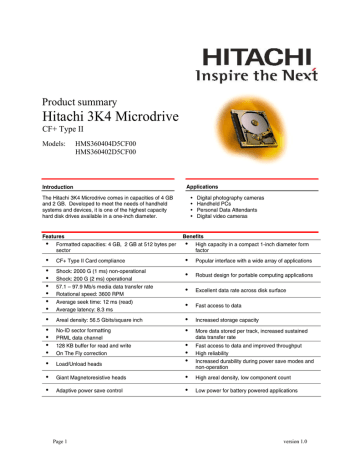

Microdrive 3K4 Product Summary v1.0
Product summary
Hitachi 3K4 Microdrive
CF+ Type II
Models:
HMS360404D5CF00
HMS360402D5CF00
Introduction
Applications
The Hitachi 3K4 Microdrive comes in capacities of 4 GB
and 2 GB. Developed to meet the needs of handheld
systems and devices, it is one of the highest capacity
hard disk drives available in a one-inch diameter.
Features
y Formatted capacities: 4 GB, 2 GB at 512 bytes per
sector
•
•
•
•
Digital photography cameras
Handheld PCs
Personal Data Attendants
Digital video cameras
Benefits
y High capacity in a compact 1-inch diameter form
factor
y
y
y
y
y
y
y
y
y
y
y
y
CF+ Type II Card compliance
y
Popular interface with a wide array of applications
Shock: 2000 G (1 ms) non-operational
Shock: 200 G (2 ms) operational
57.1 – 97.9 Mb/s media data transfer rate
Rotational speed: 3600 RPM
Average seek time: 12 ms (read)
Average latency: 8.3 ms
y
Robust design for portable computing applications
y
Excellent data rate across disk surface
y
Fast access to data
Areal density: 56.5 Gbits/square inch
y
Increased storage capacity
No-ID sector formatting
PRML data channel
128 KB buffer for read and write
On The Fly correction
y
More data stored per track, increased sustained
data transfer rate
y
Load/Unload heads
y
y
y
Fast access to data and improved throughput
High reliability
Increased durability during power save modes and
non-operation
y
Giant Magnetoresistive heads
y
High areal density, low component count
y
Adaptive power save control
y
Low power for battery powered applications
Page 1
version 1.0
Hitachi Global Storage Technologies
Data organization (logical)
Number of logical heads
Logical sectors/track
Number of logical cylinders
Logical sector size
Total customer usable data sectors
Total customer usable data bytes
HMS360404D5CF00 HMS360402D5CF00
16
16
63
63
7936
3968
512
512
7,999,488
3,999,744
4,095,737,856
2,047,868,928
DC power requirements
Power supply
Nominal supply
Power supply ripple (0 – 20Mhz)
Tolerance
Supply current
Performance Idle average
Low power idle average
Read
Write
Seek average
Standby
Peak (maximum RMS in .5 ms
windows)
+3.3 V power supply case
+3.3 volts
70 mV p-p max
+5 V power supply case
+5 volt
100 mV p-p max
Notes
1
2
±5%
Population mean (nominal condition)
225 mA
230 mA
67 mA
72 mA
303 mA
315 mA
305 mA
314 mA
265 mA
230 mA
16 mA
18 mA
363 mA
3
4
5
6
385 mA
Notes
1. The maximum fixed disk ripple is measured at 3.3 / 5 V input of the drive.
2. The disk drive shall not incur damage for an over-voltage condition of +25% (maximum duration of 20 ms) on the
3.3 / 5-volt nominal supply.
3. The idle current is specified at an inner track.
4. The read/write current is specified at 100% duty.
5. The seek average current is specified based on three operations per 100 ms.
6. The worst-case operating current at unloading.
Interface connector
The interface connector of the Hitachi Microdrive complies with CompactFlash Specification, Revision 1.4.
ATTENTION: The drive must be protected against electrostatic discharge (ESD) especially when
being handled. The safest way to avoid damage is to put the drive in an anti-static bag before ESD
wrist straps are removed.
Drives should only be shipped in approved containers. Severe damage can be caused to the drive if the
packaging does not adequately protect against the shock levels induced when a box is dropped. Consult
your Hitachi representative if you do not have an approved shipping container.
Page 2
version 1.0
Hitachi Global Storage Technologies
Command descriptions
The following commands are supported by the drive:
1
2
COMMAND
Access
Metadata
Storage
Check Power
Mode
Execute Device
Diagnostic
Erase Sector(s)
Format Track
Identify Device
Idle
Idle Immediate
Initialize Device
Parameters
Read Buffer
Read DMA
Read Long
Sector
Read Multiple
Read Sector(s)
Read Verify
Sector(s)
Recalibrate
Request Sense
Seek
Sense
Condition
Set Features
Set Multiple
Mode
Set Sleep
Mode
Standby
Standby
Immediate
Translate
Sector
Wear Level
Write Buffer
2
Write DMA
Class
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
3
3
2
2
3
Write Long
Sector
Write Multiple
Write Multiple
w/o erase
Write Sector(s)
Write Sector(s)
w/o Erase
Write Verify
Code (hex)
B8h
E5h or 98h
90h
C0h
50h
ECh
E3h or 97h
E1h or 95h
91h
E4h
C8h or C9h
Class 3. Upon receipt of a Class 3
command, the card sets BSY within
400 ns, sets up the sector buffer for
a write operation, sets DRQ within
20 ms (assuming no reassignments),
and clears BSY within 400 ns of
setting DRQ.
Signal definition
For signal definition, refer to
CompactFlash Specification,
version 1.4
C4h
20h or 21h
40h or 41h
1Xh
03h
7Xh
F0h
EFh
C6h
E6h or 99h
E2h or 96h
E0h or 94h
87h
F5h
E8h
CAh or
CBh
32h or 33h
C5h
CDh
30h or 31h
Load/Unload heads
When used properly, the Load/
Unload mechanism is designed to
allow 300,000 cycles of starts and
stops. Invoking one of the following
commands unloads the heads:
SOFT RESET
STANDBY
STANDBY IMMEDIATE
The Load/Unload mechanism is also
invoked as one of the idle modes.
After a short period of inactivity the
Adaptive Battery Life Extender
power management will unload the
heads to conserve energy. When
the heads are unloaded, they rest in
a small detent. To prevent the
heads from being thrown off the
ramp during angular acceleration, a
bi-directional, normally open,
mechanical latch engages with the
actuator to keep it from turning in the
head loading direction. This action
causes a “rattle” sound to be heard
which can be mistaken for loose
parts.
38h
3Ch
Class 1. Upon receipt of a Class 1
command, the card sets BSY within
400 ns.
Most software and operating
systems make use of a disk drive in
bursts. The Hitachi Microdrive monitors the commands sent from the
host to detect patterns which indicate that a command sequence is
finished by putting the drive into low
overall power consumption and
longer battery life with no loss in
performance. If the host system
changes the number or frequency of
the commands sent, the disk drive
automatically adapts to this new
pattern.
This feature has three idle modes:
• Performance idle
• Active idle mode
• Low Power idle
Operating modes
22h or 23h
Class commands
Page 3
Class 2. Upon receipt of a Class 2
command, the card sets BSY within
400 ns, sets up the sector buffer for
a write operation, sets DRQ within
700 us, and clears BSY within
400 ns of setting DRQ.
Adaptive Battery Life Extender-3
The Adaptive Battery Life Extender-3
(ABLE-3) provides power saving
without performance degradation.
ABLE-3 technology automatically
determines the correct time to start
removing power from the drive
electronics.
To provide the greatest flexibility of
operation with optimum performance
and power consumption, the drive
has a number of operating modes.
These are defined below.
Spin Up
Start up time period from spindle
stop or power down.
Seek
Seek operation mode
Write
Write operation mode
Read
Read operation mode
Performance idle
The device is capable of responding
immediately to media access requests. All electronic components
remain powered and full frequency
servo remains operational.
Low Power idle
Spindle motor is rotating normally
with actuator unloaded to the parking
positions.
Standby
The device interface is capable of
accepting commands. Spindle motor
is stopped. All circuitry except host
interface is in power saving mode.
The execution of commands is delayed until spindle becomes ready.
Sleep
Same as Standby
version 1.0
Hitachi Global Storage Technologies
Electromagnetic compatibility
When installed in a suitable enclosure and exercised with a random
accessing routine at the maximum
data rate, the drive meets the worldwide EMC requirements of the
United States Federal Communications Commission (FCC) Rules
and Regulations (Class B), Part 15.
This drive is certified for compliance
to EC directive 89/336/EEC.
C-Tick Mark complies with Australian
EMC standard, AS/NZS 3548:1995
Class B.
The drive complies with Taiwan
BSMI.
Operating environment
The drive operates within its performance limits when the following
environment is maintained. Product
life calculations are based on the
nominal environment for a typical
application.
Relative humidity
(non-condensing)
Operating
Non-operating
8% to 90%
5% to 95%
Wet bulb temperature
(non-condensing maximum)
Operating
29.4°C
Non-operating
40°C
Elevation
Operating
altitude
Non-operating
altitude
–300 3,000m
–300 12,000m
Temperature
Operating
Non-operating
Temp. gradientoperating (max)
Temp. gradientnon-operating
(max)
Drive usage conditions
0 to 70°C
–40 to 70°C
5°C/hour
5°C/hour
Cooling requirement
The host system must provide sufficient airflow across the drive to
maintain the temperature at less
than 65°C at the center of the top
cover of the drive.
Operating shock
No data loss or permanent damage
occurs during a half-sine shock
pulse of 1960 m/sec2 of 2-ms
duration and a half-sine shock pulse
of 98 m/sec2 of 11-ms duration.
Non-operating shock
The disk drive must withstand with
no damage a half-sine wave shock
pulse of 1176 m/sec2 of 11-ms
duration and a half-sine wave shock
pulse of 19600 m/sec2 of 1ms
duration on six sides when heads
are unloaded.
Operating and non-operating
vibration
Due to the complexity of this subject
we recommend that users contact
the distributor to discuss how to perform the necessary measurements if
they believe this to be an area which
requires evaluation.
The drive is designed to be used
under the following conditions:
• Levels of shock, vibration, temperature, humidity, altitude, and
magnetic field are within the
specifications.
• Precautions are taken to prevent electrostatic discharge
(ESD).
• The breathing hole on top of the
drive is not covered.
• Pressure is not applied to the
top cover of the drive.
• The drive is operated within the
specification of less than
140 power-on hours per month.
• The Seeking, Writing, and
Reading operations of the drive
constitute no more than 20% of
power-on hours.
• The power requirements of the
drive are satisfied.
• The interface connector is firmly
mated.
• The proper power off sequence
is followed (see the drive specification for further details).
Mechanical data
Dimensions
Height
Width
Length
5.0 + 0.0/ –0.1
42.80±0.10
36.40±0.15
The maximum weight of the drive is
16 grams.
The drive will mount in all axes (six
directions).
See the illustrations on the following
page.
Page 4
version 1.0
Hitachi Global Storage Technologies
Mechanical dimensions
Page 5
version 1.0
Hitachi Global Storage Technologies
© Copyright Hitachi Global Storage Technologies
Hitachi Global Storage Technologies
5600 Cottle Road
San Jose, CA 95193
Produced in the United States
11/03
All rights reserved Microdrive™ is a trademark of
Hitachi Global Storage Technologies.
Microsoft, Windows XP, and Windows are trademarks of Microsoft Corporation in the United States,
other countries, or both.
Other product names are trademarks or registered
trademarks of their respective companies.
References in this publication to Hitachi Global
Storage Technologies products, programs or services
do not imply that Hitachi Global Storage Technologies intends to make these available in all countries
in which Hitachi Global Storage Technologies
operates.
Product information is provided for information
purposes only and does not constitute a warranty.
Information is true as of the date of publication and is
subject to change. Actual results may vary.
This publication is for general guidance only.
Photographs may show design models.
04 November 2003
Page 6
version 1.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
