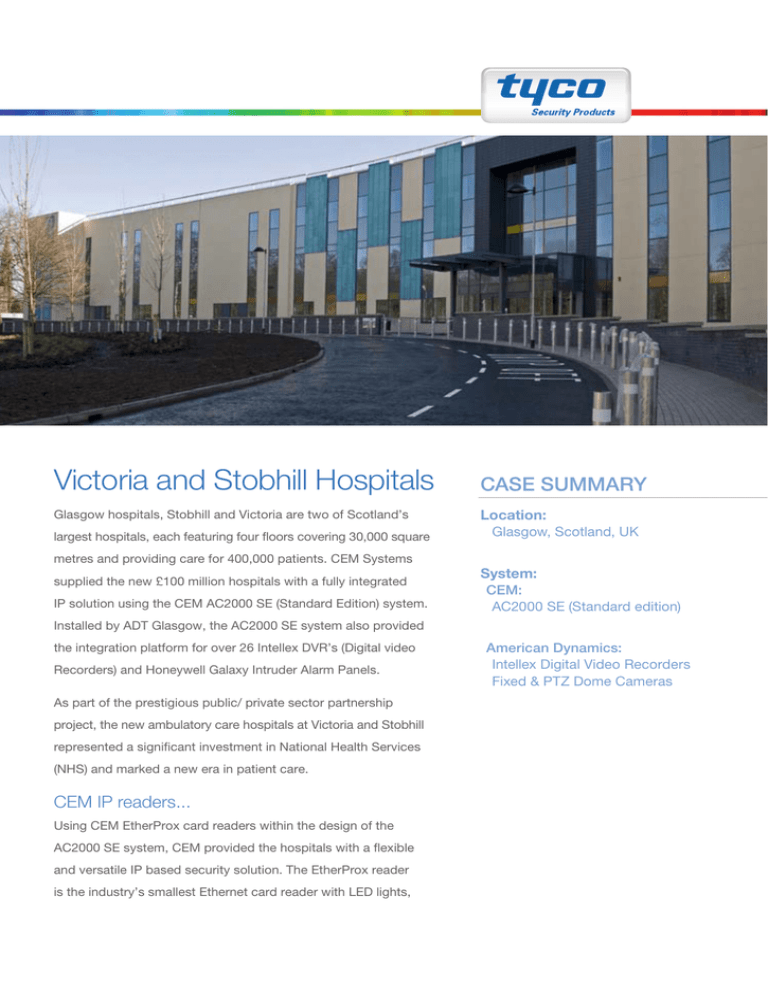

Victoria and Stobhill Hospitals
Glasgow hospitals, Stobhill and Victoria are two of Scotland’s
largest hospitals, each featuring four floors covering 30,000 square
metres and providing care for 400,000 patients. CEM Systems
supplied the new £100 million hospitals with a fully integrated
IP solution using the CEM AC2000 SE (Standard Edition) system.
CASE SUMMARY
Location:
Glasgow, Scotland, UK
System:
CEM:
AC2000 SE (Standard edition)
Installed by ADT Glasgow, the AC2000 SE system also provided
the integration platform for over 26 Intellex DVR’s (Digital video
Recorders) and Honeywell Galaxy Intruder Alarm Panels.
As part of the prestigious public/ private sector partnership
project, the new ambulatory care hospitals at Victoria and Stobhill
represented a significant investment in National Health Services
(NHS) and marked a new era in patient care.
CEM IP readers...
Using CEM EtherProx card readers within the design of the
AC2000 SE system, CEM provided the hospitals with a flexible
and versatile IP based security solution. The EtherProx reader
is the industry’s smallest Ethernet card reader with LED lights,
American Dynamics:
Intellex Digital Video Recorders
Fixed & PTZ Dome Cameras
integrated keypad for added PIN security and an LCD
medical staff, contractors and visitors. Using the user
display to show card response messages, for example,
friendly AC2000 pass design module, security staff can
‘Access Granted’, ‘Wrong Timezone’, ‘Card Expiring’.
easily design and print their own access control passes.
The keypad adds PIN security ensuring there are
This allowed them to easily add the NHS logo to their
numerous layers of security in order for an individual
card design. Using the AC2000 ‘Access Levels’
to enter certain areas of the hospital. This could prove
application, the AC2000 system offered the hospitals
particularly useful for the pharmacy, intensive care and
the ability to link card holders to access groups such
other secure areas of the hospital which require restricted
as day surgery, Accident & Emergency, X-ray etc.
access. The EtherProx reader also features an internal
This ensures that each individual cardholder has the
database giving off-line card validation at all times, even
appropriate level of access to restricted areas.
when host communications are not available. A selection
AC2000 ‘Broadcast Zones’ application also aids the
of EtherProx readers were also mounted in tamperproof
hospitals in their fire evacuation strategy. Broadcast
intercom enclosures to add the option of dialogue to
zones allows emergency evacuation to be staggered
particular hospital doors.
in the event of a fire and is also used to open certain
Cost savings with PoE+...
doors at specific times of the day for free access.
Significant cost savings were made throughout the
High standard of integrated video...
project using the industry first, CEM DIU 230 (high
As an integrated security management system, the
power POE+ Door Interface Unit). The key benefit of the
AC2000 SE system installed at Stobhill/Victoria was
DIU 230 is that it eliminates the need for both a mains
fully integrated with Galaxy Intruder panels and
connection and a local power supply to the door. As a
American Dynamics Intellex DVR’s (Digital Video
new building with Ethernet infrastructure, the DIU 230’s
Recorder’s). Both hospitals have one of the UK’s
dedicated security network supplied sufficient power
largest virtual matrix systems with over 26 Intellex
via the same Cat 5e/6 cable to power CEM EtherProx
DVR’s and over 300 fixed dome and PTZ (Pan, Tilt,
readers and most importantly to reliably power a double
Zoom) dome cameras installed. The Intellex allows staff
magnetic lock at 840mA securing the door. In addition
to simultaneously record, play back and archive video,
to reducing the cost of electrical infrastructure, the DIU
text and audio footage - ensuring footage is never lost.
230 installation is classed as low voltage and can be
The Intellex also responds to events with alarm-
completed by IT network installers without the expense
triggered dome positioning and can be set to record
of an electrician or electrical contractor.
only the events you need by setting triggers for alarms
Software applications…
generated electronically. This can help save space on
Stobhill & Victoria hospitals found many of the AC2000
the hard drive.
SE software modules beneficial including AC2000 VIPPS
Integrated Alarm Event Display (AED)
(ID Badging) which allows the security personnel to
The AC2000 AED application is a powerful interface
produce permanent and temporary ID Badges for
that shows graphical maps of the hospitals and their
2
associated reader/ camera locations. It is the central
“The AC2000 SE system is ideal
graphical user interface that integrates the Intellex
for the hospitals, not only due to
cameras and Galaxy Intruder Panels into AC2000.
AED responds to all alarm situations in real time,
its versatility but also the savings
providing a dynamic on-screen interface to reader and
accrued thanks to the innovative
camera footage. Via the AED application located in the
CEM PoE+ Solution. In addition to
hospital security room, security personnel can quickly
project savings the DIU 230 also
respond to alarm events and view footage as well as
simplified the installation.”
remotely control doors in the event of an emergency.
This is highly important to the hospitals as staff need
to feel secure when dealing with patients. If a patient
Martin Bell
becomes abusive or violent and a member of staff feels
Integrated Solutions Group Account
uncomfortable they can also hit a panic alarm and it will
Manager for ADT Glasgow
show on the central AED. The security team can then
click on the nearest camera in the AED application to
view the situation.
Keeping patients and staff secure…
Over the next 6 years, there will be a £750 million
investment in Glasgow’s hospitals and security will be
of extreme importance due to patient safety, criminal
threats and increased attacks on staff. CEM Systems
have provided Stobhill and Victoria with an advanced
future proof security solution and will continue to support
both Glasgow hospitals in their future security needs.
