Warmenfat Micro Amplifier
Warmenfat Micro Amp

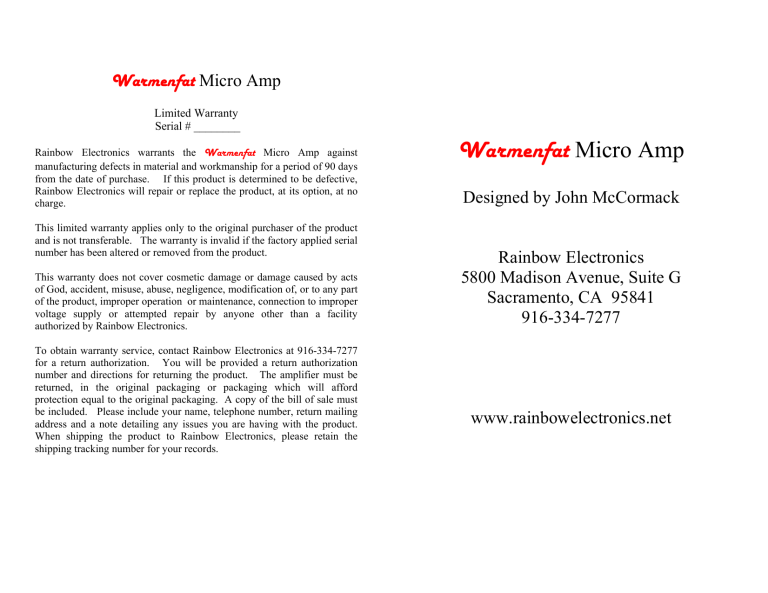

Limited Warranty
Serial # ________
Rainbow Electronics warrants the Warmenfat Micro Amp against
manufacturing defects in material and workmanship for a period of 90 days
from the date of purchase. If this product is determined to be defective,
Rainbow Electronics will repair or replace the product, at its option, at no
charge.
This limited warranty applies only to the original purchaser of the product
and is not transferable. The warranty is invalid if the factory applied serial
number has been altered or removed from the product.
This warranty does not cover cosmetic damage or damage caused by acts
of God, accident, misuse, abuse, negligence, modification of, or to any part
of the product, improper operation or maintenance, connection to improper
voltage supply or attempted repair by anyone other than a facility
authorized by Rainbow Electronics.
To obtain warranty service, contact Rainbow Electronics at 916-334-7277
for a return authorization. You will be provided a return authorization
number and directions for returning the product. The amplifier must be
returned, in the original packaging or packaging which will afford
protection equal to the original packaging. A copy of the bill of sale must
be included. Please include your name, telephone number, return mailing
address and a note detailing any issues you are having with the product.
When shipping the product to Rainbow Electronics, please retain the
shipping tracking number for your records.
Warmenfat Micro Amp
Designed by John McCormack
Rainbow Electronics
5800 Madison Avenue, Suite G
Sacramento, CA 95841
916-334-7277
www.rainbowelectronics.net
Warmenfat Micro Amp
Congratulations! You are now the proud owner of the finest little
micro amplifier ever made. The Warmenfat Micro Amp is not just a
guitar amplifier; it is a tone building block that can be used in many
ways including:
o
o
o
o
o
o
Lead Guitar Amplifier
Bass Guitar Amplifier
Direct Box
Effect Box (to warm up sound)
Microphone Preamplifier
Signal conditioner
We can not stress the importance of experimentation! Many “experts”
will tell you the correct way to do something. Music should be fun and
therefore we encourage you to do it THIS way instead!
Try How It Sounds
The Warmenfat Micro Amp will open your world to many wonderful
warm and fat tonal experiences!
---It is my personal belief that quality tone will lead the musician to better
creativity and will actually enhance his/her musical abilities! –
John McCormack
Superior tone is accomplished by combining a sophisticated design
with the highest quality components normally found only in the
finest high end hi fi, aerospace and industrial process equipment.
Your Warmenfat Micro Amp has been engineered to give many
years of daily use before tube replacement is needed.
Warmenfat
is a trademark of John F. McCormack dba Rainbow Electronics
Advanced Recording Configuration
Cascaded Crunch (Figure 5)
Instructions for Getting Started
(See Figure 1)
Two or more Warmenfats connected
1. Connect the 12 volt ac power source into the appropriate
jack. Use only an adapter rated 12 volts at 1 amp or 1000
ma.
Warning: Use only a 12 volt ac adapter!
INPUT
LINE/REC PRE
OUTPUT OUT
SPKR
OUT
12 VAC
LINE/REC PRE
INPUT OUTPUT OUT
SPKR
OUT
12 VAC
2. Plug the guitar into the jack marked INPUT
3. Plug a speaker (4Ω to 16Ω) into the jack marked SPKR
OUT. (Maximum output power level is with 16 Ω speaker)
4. Turn on Power.
Channel 1
Channel 2
Line input
Line input
Mixer
LINE/REC PRE
INPUT OUTPUT OUT
SPKR
OUT
Speaker
Mix Clean (Figure 2) and Super Crunch (Figure 3) in mixer for unique blend of
warm, clean, super sustain sound.
Figure 1 Basic Hook Up
12
vac
12VAC
In all tube guitar rigs, the Warmenfat Micro Amp helps remove
the nasty shrilly sound caused from solid state effects pedals. It
provides proper tube loading for the guitar pickups.
Clean Sound
(Figure 2)
Using Clean (Figure 2) or Crunchy (Figure 3) settings connect the
Guitar into the INPUT. Hook up the Volume, Wawa pedal and/or
stomp box effects as indicated below:
Power
On
Post
Gain
High
Gain
Pre
Gain
LINE/REC PRE SPKR
INPUT OUTPUT OUT OUT 12VAC
Ì Input
In
Out In
Out
Settings
volume, wawa pedal and/or
stomp box effects
Power On – up position
Post Gain – full blast clockwise
High Gain Off – down position
Pre Gain to desired level – most
Guitars less than 50%
Guitar Amplifier
In all tube guitar rigs, the Warmenfat Micro Amp helps remove
the nasty shrilly sound caused from solid state effects pedals. It
provides proper tube loading for the guitar pickups.
Clean Sound
(Figure 2)
Using Clean (Figure 2) or Crunchy (Figure 3) settings connect the
Guitar into the INPUT. Hook up the Volume, Wawa pedal and/or
stomp box effects as indicated below:
Power
On
Post
Gain
High
Gain
Pre
Gain
LINE/REC PRE SPKR
INPUT OUTPUT OUT OUT 12VAC
Ì Input
In
Out In
Out
Settings
volume, wawa pedal and/or
stomp box effects
Power On – up position
Post Gain – full blast clockwise
High Gain Off – down position
Pre Gain to desired level – most
Guitars less than 50%
Guitar Amplifier
Want warmer tone?
By using the Warmenfat Micro Amp as an effect, you can
improve tone!
Below are some recommendations. Try Them!
Experiment!
For solid state amplifiers connect the Warmenfat between PRE
OUT and MAIN IN jacks or in the EFFECTS LOOP jacks. This is
very effective in warming up the tone of a solid state amplifier.
LINE/REC PRE SPKR
INPUT OUTPUT OUT OUT 12VAC
Break up or Crunch Sound
(Figure 3)
Power Post
On
Gain
High
Gain
Pre
Gain
Send
Return
Settings
Guitar Amplifier
Using Clean (Figure 2) or Crunch (Figure 3) settings connect the
Warmenfat’s INPUT to guitar amplifier’s send or preamp output.
Connect the Warmenfat’s PRE OUT to return of power amp input.
Power On – up position
Post Gain - 50% clockwise
High Gain Off – down position
Pre Gain - 50% to 70% clockwise
Maximum Crunch Sound
(Figure 4)
Power Post
On
Gain
High
Gain
Pre
Gain
Need More Power?
By using the PRE OUT or LINE OUT jacks, you can connect the
Warmenfat Micro Amp to an external power amplifier. Now your power
output is as great as the amplifier it is connected to.
Use LINE OUT jacks to connect to a standard HI FI power amplifier,
stereo or surround sound receiver. You can even connect the Warmenfat
to a television set if it has “AUDIO IN” jacks. This enables you to
practice in a hotel room while you are on the road.
Use PRE OUT jack to connect the Warmenfat to a professional power
amplifier.
You can also hook the Warmenfat into the “POWER AMP IN” or
“EFFECTS RETURN” on a guitar amplifier.
LINE/REC PRE SPKR
INPUT OUTPUT OUT OUT 12VAC
Settings
Power On – up position
Post Gain – desired volume level
Full Blast for most crunch
High Gain On – up position
Pre Gain -- 100% clockwise
Effect return or input
Guitar Amplifier
Power Amplifier
Input
Output
O O
O O
Speakers
Maximum Crunch Sound
(Figure 4)
Power Post
On
Gain
High
Gain
Pre
Gain
Need More Power?
By using the PRE OUT or LINE OUT jacks, you can connect the
Warmenfat Micro Amp to an external power amplifier. Now your power
output is as great as the amplifier it is connected to.
Use LINE OUT jacks to connect to a standard HI FI power amplifier,
stereo or surround sound receiver. You can even connect the Warmenfat
to a television set if it has “AUDIO IN” jacks. This enables you to
practice in a hotel room while you are on the road.
Use PRE OUT jack to connect the Warmenfat to a professional power
amplifier.
You can also hook the Warmenfat into the “POWER AMP IN” or
“EFFECTS RETURN” on a guitar amplifier.
LINE/REC PRE SPKR
INPUT OUTPUT OUT OUT 12VAC
Settings
Power On – up position
Post Gain – desired volume level
Full Blast for most crunch
High Gain On – up position
Pre Gain -- 100% clockwise
Effect return or input
Guitar Amplifier
Power Amplifier
Input
Output
O O
O O
Speakers
Want warmer tone?
By using the Warmenfat Micro Amp as an effect, you can
improve tone!
Below are some recommendations. Try Them!
Experiment!
For solid state amplifiers connect the Warmenfat between PRE
OUT and MAIN IN jacks or in the EFFECTS LOOP jacks. This is
very effective in warming up the tone of a solid state amplifier.
LINE/REC PRE SPKR
INPUT OUTPUT OUT OUT 12VAC
Break up or Crunch Sound
(Figure 3)
Power Post
On
Gain
High
Gain
Pre
Gain
Send
Return
Settings
Guitar Amplifier
Using Clean (Figure 2) or Crunch (Figure 3) settings connect the
Warmenfat’s INPUT to guitar amplifier’s send or preamp output.
Connect the Warmenfat’s PRE OUT to return of power amp input.
Power On – up position
Post Gain - 50% clockwise
High Gain Off – down position
Pre Gain - 50% to 70% clockwise
Advanced Recording Configuration
Cascaded Crunch (Figure 5)
Instructions for Getting Started
(See Figure 1)
Two or more Warmenfats connected
1. Connect the 12 volt ac power source into the appropriate
jack. Use only an adapter rated 12 volts at 1 amp or 1000
ma.
Warning: Use only a 12 volt ac adapter!
INPUT
LINE/REC PRE
OUTPUT OUT
SPKR
OUT
12 VAC
LINE/REC PRE
INPUT OUTPUT OUT
SPKR
OUT
12 VAC
2. Plug the guitar into the jack marked INPUT
3. Plug a speaker (4Ω to 16Ω) into the jack marked SPKR
OUT. (Maximum output power level is with 16 Ω speaker)
4. Turn on Power.
Channel 1
Channel 2
Line input
Line input
Mixer
LINE/REC PRE
INPUT OUTPUT OUT
SPKR
OUT
Speaker
Mix Clean (Figure 2) and Super Crunch (Figure 3) in mixer for unique blend of
warm, clean, super sustain sound.
Figure 1 Basic Hook Up
12
vac
12VAC
Warmenfat Micro Amp
Congratulations! You are now the proud owner of the finest little
micro amplifier ever made. The Warmenfat Micro Amp is not just a
guitar amplifier; it is a tone building block that can be used in many
ways including:
o
o
o
o
o
o
Lead Guitar Amplifier
Bass Guitar Amplifier
Direct Box
Effect Box (to warm up sound)
Microphone Preamplifier
Signal conditioner
We can not stress the importance of experimentation! Many “experts”
will tell you the correct way to do something. Music should be fun and
therefore we encourage you to do it THIS way instead!
Try How It Sounds
The Warmenfat Micro Amp will open your world to many wonderful
warm and fat tonal experiences!
---It is my personal belief that quality tone will lead the musician to better
creativity and will actually enhance his/her musical abilities! –
John McCormack
Superior tone is accomplished by combining a sophisticated design
with the highest quality components normally found only in the
finest high end hi fi, aerospace and industrial process equipment.
Your Warmenfat Micro Amp has been engineered to give many
years of daily use before tube replacement is needed.
Warmenfat
is a trademark of John F. McCormack dba Rainbow Electronics
Warmenfat Micro Amp
Limited Warranty
Serial # ________
Rainbow Electronics warrants the Warmenfat Micro Amp against
manufacturing defects in material and workmanship for a period of 90 days
from the date of purchase. If this product is determined to be defective,
Rainbow Electronics will repair or replace the product, at its option, at no
charge.
This limited warranty applies only to the original purchaser of the product
and is not transferable. The warranty is invalid if the factory applied serial
number has been altered or removed from the product.
This warranty does not cover cosmetic damage or damage caused by acts
of God, accident, misuse, abuse, negligence, modification of, or to any part
of the product, improper operation or maintenance, connection to improper
voltage supply or attempted repair by anyone other than a facility
authorized by Rainbow Electronics.
To obtain warranty service, contact Rainbow Electronics at 916-334-7277
for a return authorization. You will be provided a return authorization
number and directions for returning the product. The amplifier must be
returned, in the original packaging or packaging which will afford
protection equal to the original packaging. A copy of the bill of sale must
be included. Please include your name, telephone number, return mailing
address and a note detailing any issues you are having with the product.
When shipping the product to Rainbow Electronics, please retain the
shipping tracking number for your records.
Warmenfat Micro Amp
Designed by John McCormack
Rainbow Electronics
5800 Madison Avenue, Suite G
Sacramento, CA 95841
916-334-7277
www.rainbowelectronics.net
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
