Acer AT150 F1 specifications
Acer AT150 F1 specifications

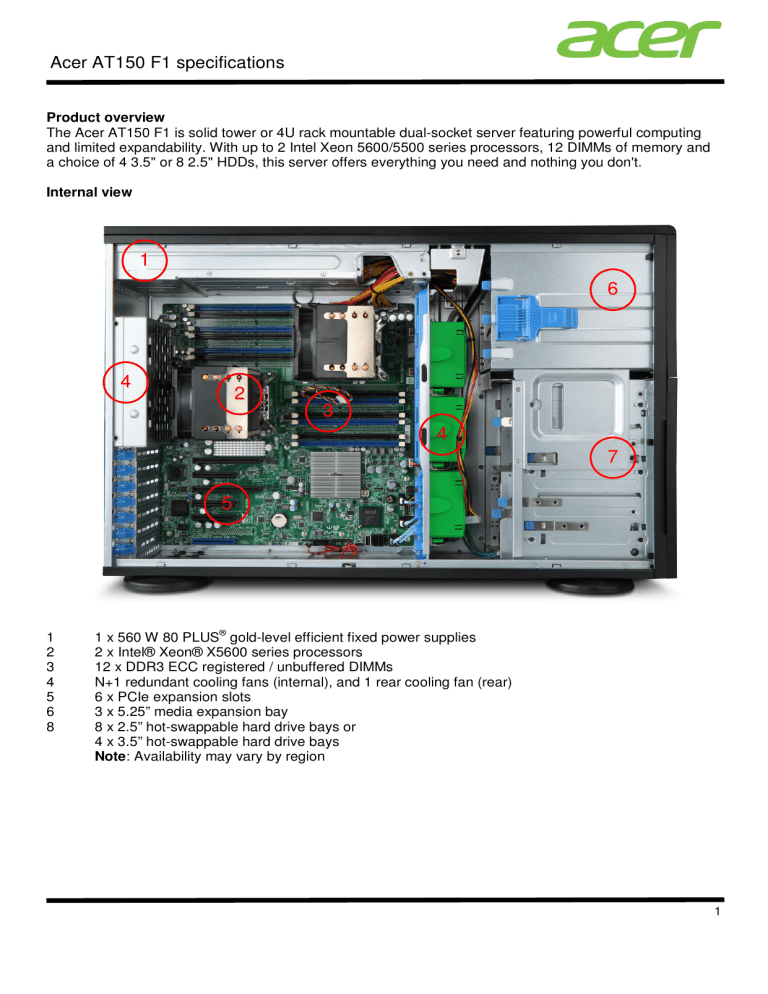

Product overview
The Acer AT150 F1 is solid tower or 4U rack mountable dual-socket server featuring powerful computing
and limited expandability. With up to 2 Intel Xeon 5600/5500 series processors, 12 DIMMs of memory and
a choice of 4 3.5" or 8 2.5" HDDs, this server offers everything you need and nothing you don't.
Internal view
1
6
4
2
3
4
7
5
1
2
3
4
5
6
8
1 x 560 W 80 PLUS® gold-level efficient fixed power supplies
2 x Intel® Xeon® X5600 series processors
12 x DDR3 ECC registered / unbuffered DIMMs
N+1 redundant cooling fans (internal), and 1 rear cooling fan (rear)
6 x PCIe expansion slots
3 x 5.25” media expansion bay
8 x 2.5” hot-swappable hard drive bays or
4 x 3.5” hot-swappable hard drive bays
Note: Availability may vary by region
1
Acer AT150 F1 specifications
Front View
4U Rackmount View
Front I/O
1
2 x USB ports
2
ID LED button
3
Network, hard drive and power status indicators
4
3 x 5.25” drive bays
5
8 x 2.5” hot-swappable hard drive bays or
4 x 3.5” hot-swappable hard drive bays
Note: Availability may vary by region
2
Acer AT150 F1 specifications
Rear View
Rear I/O
1
PS2 mouse and keyboard ports
2
4 x USB ports
3
2 x Gigabit LAN port (RJ-45)
4
Video port
5
Serial port
6
System ID LED
7
Management port (RJ-45)
What's New
• New Intel® Xeon® 5600 Series processors
Intel Xeon X5675, X5672, E5649, E5645, E5607, E5606, E5603
• Fixed power supply with 80 PLUS® gold-level efficiency
• Smart Server Manager v1.1 with improved management functionality
Product Specifications
Processors and Chipset
• Up to two Intel® Xeon® 5500/5600 series processors
3
Acer AT150 F1 specifications
• Chipset: Intel® 5520
Memory
• Memory capacity:
Registered DIMM: 1, 2, 4, 8, 16 GB
Unbufferred DIMM: 1, 2, 4 GB
• Maximum capacity: up to 192 GB registered DIMMs when fully populated with 2 DIMMs per channel in
12 slots
• Maximum capacity: up to 48 GB unbuffered DIMMs when fully populated with 2 DIMMs per channel in
12 slots
Network Controllers
• Integrated dual-port Intel® 82576EB Gigabit Ethernet Controller (2 ports total)
Storage
• Hard disk form factor: 2.5” or 3.5”
• Type: SAS / SATA / SSD with hot-plug capability
• 3.5” Maximum capacity:
Up to 8 TB SATA HDD (2 TB 3.5" x 4 HDDs)
Up to 2.4 TB SAS (600 GB 3.5” x 4 HDDs)
• 2.5” Maximum capacity:
Up to 8 TB SATA HDD (1 TB 2.5" x 8 HDDs)
Up to 9.6 TB SAS (600 GB 2.5” x 8 HDDs)
Storage Controllers
• Integrated Intel® ICH10R Serial ATA host controller (six 3 Gb/s SATA ports) with software RAID 0, 1, 5,
10 support
• Optional PCIe 4-/8-port SAS RAID card
Expansion slots
• 2 x PCIe® 2.0 x8 (x16 connector)
• 2 x PCIe® 2.0 x4 (x8 connector)
• 1 x PCIe® 1.0 x4 (x8 connector)
• 1 x Flex I/O (PCIe® x8)
Management
• Acer Smart Server Manager
• System ID LED buttons, System Health LED
• Acer Smart Console for server management and KVM over IP remote management
Deployment/Serviceability
• Acer Smart Setup
• BIOS Update Tool
• IPMI Firmware Update Tool
Operating Systems
• Windows Server® 2008
• Windows Server 2008 R2
• Windows Server 2003
• Red Hat Enterprise Linux 5.4
4
Acer AT150 F1 specifications
• SuSE Linux Enterprise Server 11
• VMware ESXi™ 4
• VMware ESX™ 4
Input/output interface
Front
• One Power/off button
• LED indicators: power, HDD activity, LAN port 1 through 2, ID, and System status
• 2 x USB 2.0 ports
Rear
• PS2 keyboard port
• PS2 mouse port
• 4 x USB 2.0 ports
• BMC Management port
• Serial port
• Video port
• 2 x Gigabit port
• ID LED
Optical drive
• 5.25” SATA DVD Super multi
• 5.25” tape drive
Chassis/Form Factor
• Tower/ 4U rack mountable
Power Supply
• 1 x 560 W 80 PLUS® gold-level efficient, fixed power supply
Regulatory Compliant Standards
EMC
• FCC (Class A)
• CE (Class A)
• BSMI (Class A)
Safety
• UL/cUL
• CB
Nemko/GS
Environmental Specifications
Dimensions
434 (H) x 648 (D) x 178 (W) mm (17.2 x 25.5 x 7 inches)
Weight
Maximum
39 kg (88.1 lbs)
Minimum (includes a single HDD, CPU and
RAM, and PSU)
28.5 kg (62.8 lbs)
Operating
10° - 35° C (50° - 95° F)
Non-operating
-40° - 70° C (-40° - 158° F)
System inlet
temperature
5
Acer AT150 F1 specifications
Relative
humidity
Operating
8 - 90 %
Non-operating
5 - 95 %
Acoustics
Idle
LWAd
6.2 BA
LpAm
43.6 dBA
Operating
Power
LWAd
6.0 BA
LpAm
43.9 dBA
Rated Steady –state power
560 W
Maximum Peak Power
600 W
BTU rating
1910 BTU/hr at 100 - 240 VAC
6
Acer AT150 F1 specifications
Technical specifications
PCIe® specifications
The primary I/O bus for the main board is PCIe Gen2. The following table lists the characteristics of the
PCI-E bus segments. Details about each bus segment follow the table.
NOTE: The signaling bit rate of PCI Express is 2.5Gbit/s one direction per lane for Gen 1 and 5.0Gbit/s one
direction per lane for Gen 2.
Expansion
slot
Number
Type
Bus width1
Voltage
Connector
Location
Length
PCIe x16
2
PCIe Gen2
x8
3.3V
x16
Onboard
Full height
PCIe x8
2
PCIe Gen2
x4
3.3V
x8
Onboard
Full height
PCIe x8
1
PCIe Gen1
x4
3.3V
x8
Onboard
Full height
Flex I/O
1
PCIe Gen2
x8
3.3V
x8
Onboard
Full height
NOTE:
1. Indicates the number of physical electrical lanes running to a PCIe® connector.
2. Default bus assignment (in decimal). Inserting cards with PCI™ bridges may alter the actual bus
assignment number.
3. Slots are enumerated differently based on the operating system. Microsoft® operating systems
enumerate Device ID by bus starting from the lowest bus to the highest.
Onboard storage specifications
Item
Description
Controller
Intel® 82801JR (ICH10R) I/O Controller Hub
Simultaneous drive transfer channels
6 onboard SATA ports
Max throughput per channel
3 Gb/s
Data transfer method
Drive type supported
RAID levels support
RAID function support
RAID OS support
•
Non-RAID mode
•
RAID mode
Serial ATA
•
RAID 0, 1, 10, 5 (Intel software RAID)
•
RAID 0, 1, 10 (Adaptec software RAID)
NOTE: Intel software RAID only supports Windows OS
Supports multiple logical volumes
Setup through ROM based Array Configuration Utility
Installation scripting support
NOTE: This controller does not support LED functions
• Windows Server 2008
• Windows Server 2008 R2
• Windows Server 2003
• Red Hat Enterprise Linux 5.4
• SuSE Linux Enterprise Server 11
7
Acer AT150 F1 specifications
Additional features
•
NCQ (Native Command Queuing)
•
AHCI (Advanced Host Controller Interface)
Onboard LAN specifications
Item
Description
Controller
Intel® 82576EB Gigabit Ethernet Controller
(2 ports total)
Network interface
10Base-T / 100Base-TX / 1000Base-T
Compatibility standards
Manageability
Virtualization acceleration
•
IEEE 802.3 Ethernet interface for 10BASE-T
•
IEEE 802.3ab Ethernet interface for 1000BASE-T,
•
IEEE 802.3u Ethernet interface for 100BASE-TX
•
NC-SI, SMBus
•
PXE, iSCSI boot
Intel® I/O Acceleration Technology
Virtual Machine Device Queues (VMDq)
PCI-SIG SR-IOV implementation
Connector
RJ-45
Supported cable type
CAT 5e wire
Memory specifications and population
Item
Description
Supported memory types
•
Registered DDR3 1066 / 1333 MHz
•
Unbuffered DDR3 1066 / 1333 MHz
NOTE: Acer does not qualify mixed memory configurations of
memory type, capacity or make.
Population
Acer’s validated memory populations are listed below.
NOTE: Support for 8 / 16 GB DIMMs may vary by regional
availability.
Single processor configuration guide
NOTE: Quad Rank DIMMs and Unbuffered DIMMs can only use a maximum of 6 slots
DIMM #
DIMM 1B
DIMM 1A
DIMM 2B
DIMM2A
1
X
2
X
X
3
X
X
4
X
X
X
X
6
X
X
X
X
DIMM3B
DIMM3A
X
X
X
8
Acer AT150 F1 specifications
Dual processor configuration guide
NOTE: Quad Rank DIMMs and Unbuffered DIMMs can only use a maximum of 6 slots per CPU (12 slots
total)
DIMM
#
CPU 1
1B
1A
2B
2A
2
X
3
X
X
4
X
X
6
X
X
CPU 2
3B
3A
1B
1A
2B
2A
3B
3A
X
X
X
8
X
X
X
X
X
9
X
X
X
X
X
X
12
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
* support depends on 8GB/16GB DIMM available
Mirroring mode:
•
For mirroring mode, the memory contains a primary image and a copy of the primary image. Therefore,
the effective size of memory is reduced by at least one-half.
•
Follow the population rules described in independent mode.
•
Mirroring mode needs the channel 1 & channel 2 with identical DIMM. DIMM slot populations within a
channel do not have to be identical but the same DIMM slot location across channel 1 and channel 2
must be the same. DIMM1A and DIMM2A should be the same type, size and manufacturer. DIMM1B
and DIMM2B memory should be the same type, size and manufacturer.
•
Same rule is applied to the CPU2.
•
Please refer to the User Guide for complete population for both single and dual processor
configurations.
Lockstep mode:
•
In Lockstep Channel Mode, each memory access is a 128-bit data access that spans Channel 1 and
Channel 2. This is done to support SDDC for DRAM devices with 8-bit wide data ports. The same
address is used on both channels such that an address error on any channel is detectable by bad
ECC. Lockstep Channel mode is the only RAS mode that supports x8 SDDC.
•
Follow the population rules described in independent mode.
•
Lockstep mode needs the channel 1 & channel 2 with identical DIMM. DIMM slot populations within a
channel do not have to be identical but the same DIMM slot location across channel 1 and channel 2
must be the same. DIMM1A and DIMM2A should be the same type, size and manufacturer. DIMM1B
and DIMM2B memory should be the same type, size and manufacturer.
•
Same rule is applied to the CPU2.
•
Please refer to the User Guide for complete population for both single and dual processor
configurations.
9
Acer AT150 F1 specifications
.
Sparing mode:
•
•
In this mode, if system detects degrading memory and system still not crash, the data in failed channel
will be copied to spare channel. Failed channel is then isolated and spare channel becomes active. But if
any uncorrectable error happens before the isolation, it will still cause the system stop normal operation.
Follow the population rules described in independent mode.
•
Sparing mode need all three channels with identical DIMMs. 1A, 2A and 3A should be the same type,
size and manufacturer. 1B, 2B and 3B memory should be the same type, size and manufacturer. Same
rule is applied to CPU2.
•
Memory sparing mode is only supported by Intel Xeon 5600 series processor. Intel Xeon 5500 series
processor does NOT support the memory sparing mode.
•
Please refer to the User Guide for complete population for both single and dual processor
configurations.
Memory Identification
Generally, there are some memory information printed on the label of DIMM, but different vendor may have
different format. For example:
4GB 2Rx4 PC3-10600R xx xx xxx
1. Density
1GB, 2GB, 4GB, 8GB, 16GB
2. Rank
1R = Single Rank
2R = Dual Rank
4R = Quad Rank
Note: if any quad rank DIMM is used, maximum only 2 DIMM per channel can be supported
3. Bit Organization
This platform supports x4 and x8
Note: It’s not recommend to mix DIMM with different bit organization in one system
4. Speed
PC3 – 6400 => DDR3- 800
PC3 – 8500 => DDR3- 1066
PC3 – 10600 => DDR3- 1333
10
Acer AT150 F1 specifications
Power specifications
560W Power Supply
Operational Input 100 to 240
Voltage Range
(Vrms)
Frequency
Range (Nominal)
(Hz)
60/50
Nominal Input
Voltage (Vrms)
100
120
208
200
220
230
240
Max. Rated Output
Wattage (Watts)
560
560
600
600
600
600
600
Nominal Input
Current (A rms)
6.5
6.5
3.5
3.5
3.5
3.5
3.5
Max. Rated Input
Wattage Rating
(Watts)
670
650
690
690
690
680
680
Max. Rated VA
(Volt-Amp)
677
657
719
719
719
709
709
Efficiency (%) at
Max. Rated Output
Wattage
84
87
87
87
87
89
89
Power Factor
0.99
0.99
0.96
0.96
0.96
0.96
0.96
Leakage Current
(mA)
0.5
0.5
1.0
1.0
1.0
1.0
1.0
Max. Inrush
Current (A peak)
Less
than 30A
Less than
30A
Less than
30A
Less than
30A
Less than
30A
Less than
30A
Less than
30A
Max. Inrush
Current Duration
(mS)
3.5
3.5
2.5
2.5
2.5
2.5
2.5
Max. British
Thermal Unit
Rating (BTU/hr)
2285
2285
2353
2353
2353
2319
2319
11
Acer AT150 F1 specifications
Acer server software utilities
Smart Setup 2.X
Easy deployment via the latest version of Acer’s Smart Setup. Smart Setup is
available both in box as a driver packed installation DVD or a downloadable file to be
put into a USB 2.0 device, and eases the deployment of Acer servers for any certified
OS. Through its unique interface, users may select to have all the correct drivers be
pre-deployed for the OS of their choosing, as well as setup hardware RAID devices,
BMC settings (where available), and even clone the pre-settings to a bootable USB
device to ease mass server deployments.
Smart Console
Web-based management utility to simplify system management with embedded
iBMC, system monitoring and alerting, event handling, remote power control and
KVM-over-IP. Smart Console is OS independent and offers virtual media through
floppy, ODD, and removable disk.
Smart Server
Manager v1.1
Offering 24-7 monitoring for system health and performance.
Delivers proactive event management features including system event logging,
event handling from e-mail and SNMP Trap (PET) alerting.
Monitors onboard hardware, operating systems and virtual machines
Allows remote control from KVM and Power control
Satisfies management in web-based UI, role-based administration, and automated
management scripts.
12
Acer AT150 F1 specifications
Available options
Processors (up to 2)
Intel® Xeon® processor (Six Core)
X5675 (12 MB L3 cache, 3.06 GHz, DDR3-1333 MHz, 95W)
X5670 (12 MB L3 cache, 2.93 GHz, DDR3-1333 MHz, 95 W)
X5660 (12 MB L3 cache, 2.80 GHz, DDR3-1333 MHz, 95 W)
X5650 (12 MB L3 cache, 2.66 GHz, DDR3-1333 MHz, 95 W)
L5640 (12 MB L3 cache, 2.26 GHz, DDR3-1333 MHz, 60 W)
E5649 (12 MB L3 cache, 2.53 GHz, DDR3-1333 MHz, 80 W)
E5645 (12 MB L3 cache, 2.40 GHz, DDR3-1333 MHz, 80W)
Intel® Xeon® processor (Quad Core)
X5672 (12 MB L3 cache, 3.20 GHz, DDR3-1333 MHz, 95W)
X5667 (12 MB L3 cache, 3.06 GHz, DDR3-1333 MHz, 95 W)
X5570 (8 MB L3 cache, 2.93 GHz, DDR3-1333 MHz, 95 W)
X5560 (8 MB L3 cache, 2.80 GHz, DDR3-1333 MHz, 95 W)
X5550 (8 MB L3 cache, 2.66 GHz, DDR3-1333 MHz, 95 W)
E5640 (12 MB L3 cache, 2.66 GHz, DDR3-1066 MHz, 80 W)
E5630 (12 MB L3 cache, 2.53 GHz, DDR3-1066 MHz, 80 W)
E5620 (12 MB L3 cache, 2.40 GHz, DDR3-1066 MHz, 80 W)
L5630 (12 MB L3 cache, 2.13 GHz, DDR3-1066 MHz, 40 W)
L5609 (12 MB L3 cache, 1.86 GHz, DDR3-1066 MHz, 40 W)
E5607 (8 MB L3 cache, 2.26 GHz, DDR3-1066 MHz, 80 W)
E5606 (8 MB L3 cache, 2.13 GHz, DDR3-1066 MHz, 80 W)
E5603 (4 MB L3 cache, 1.60 GHz, DDR3-1066 MHz, 80 W)
E5540 (8 MB L3 cache, 2.53 GHz, DDR3-1066 MHz, 80 W)
E5530 (8 MB L3 cache, 2.40 GHz, DDR3-1066 MHz, 80 W)
E5520 (8 MB L3 cache, 2.26 GHz, DDR3-1066 MHz, 80 W)
E5506 (4 MB L3 cache, 2.13 GHz, DDR3-800 MHz, 80 W)
E5504 (4 MB L3 cache, 2 GHz, DDR3-800 MHz, 80 W)
L5530 (8 MB L3 cache, 2.40 GHz, DDR3-1066 MHz, 60 W)
L5520 (8 MB L3 cache, 2.26 GHz, DDR3-1066 MHz, 60 W)
L5506 (4 MB L3 cache, 2.13 GHz, DDR3-800 MHz, 60 W)
Intel® Xeon® processor (Dual Core)
13
Acer AT150 F1 specifications
E5502 (4 MB L3 cache, 1.86 GHz, DDR3-800 MHz, 80 W)
Memory
Memory type
Registered / Unbuffered DDR3 ECC memory
Capacities
1 / 2 / 4 / 8 / 16 GB DIMMs
DIMM number
12
Max memory
192 GB (48 GB unbuffered)
Hard drives
Type
Interface, bandwidth
Capacities (RPM)
Enterprise SATA, 2.5”
3 Gb/s
150 GB (10K)
160 GB (7.2K)
300 GB (10K)
500 GB (7.2K)
1 TB (7.2K)
Enterprise SATA, 2.5”
6 Gb/s
250 GB (7.2K)
500 GB (7.2K)
1 TB (7.2K)
Enterprise SATA, 3.5”
3 Gb/s
250 GB (7.2K)
500 GB (7.2K)
750 GB (7.2K)
1 TB (7.2K)
2 TB (7.2K)
Enterprise SAS, 2.5”
6 Gb/s
NOTE: SAS drives require an
add-on RAID card
73 GB (15K)
146 GB (15K)
300 GB (10K)
450 GB (10K)
600 GB (10K)
Enterprise Nearline SAS, 3.5”
6 Gb/s
NOTE: SAS drives require an
add-on RAID card
Enterprise SAS, 3.5”
NOTE: SAS drives require an
add-on RAID card
500 GB (7.2K)
1 TB (7.2K)
2 TB (7.2K)
6 Gb/s
146 GB (15K)
300 GB (15K)
450 GB (15K)
600 GB (15K)
14
Acer AT150 F1 specifications
Optical drives
DVD-ROM
SuperMulti (DVD ± RW)
RAID cards
Model
Port number
RAID support
®
4 internal ports
0, 1, 5, 10
®
LSI MegaRAID SAS 9260-8i*
8 internal ports
0, 1, 5, 6, 10, 50, 60
Flex I/O, LSI® SAS 2108*
8 internal ports
0, 1, 5, 6, 10, 50, 60
LSI MegaRAID SAS 9240-4i
*Battery Backup Unit BBU07 available
RAID HBA for Tape Drive
Note: LTO tape drives require an add on card for external or internal connectivity
Model
Port number
RAID support
4 internal / 4 external ports
0, 1, 10
Model
Port number
Bandwidth
Intel® Gigabit CT2 desktop
adapter
1
10/100/1000 Mbps
Supermicro AOC-SG-i2 server
adapter
4
10/100/1000 Mbps
Supermicro AOC-SG-i4 server
adapter
4
10/100/1000 Mbps
Supermicro AOC-STGN-i2S
server adapter (DA2)*
2
10 Gbps
Intel® X520-SR1 server adapter*
1
10 Gbps
Intel® X520-SR2 server adapter*
2
10 Gbps
1
10 Gbps
®
LSI SAS3442E-R
Ethernet network cards
®
Intel X520-LR1 server adapter*
*Note: Intel’s 10GbE cards vary in terms or their connecter type. The X520-DA2 is a copper connector for
lengths up to 7M, while the X520-SR1/2 is an optical connection for cables up to 550M. The X520-LR1 is
for even longer cable lengths up to 10kM.
Fibre Channel HBAs
Model
®
Qlogic QLE2460
Port number
Bandwidth
1
4 Gb/s
15
Acer AT150 F1 specifications
Qlogic® QLE2462
2
4 Gb/s
®
1
8 Gb/s
®
2
8 Gb/s
Model
Tape capacity
Form factor
LTO Ultrium-3, 3Gb/s SAS
400/800 GB
External 1U rack
LTO-4, 3Gb/s SAS
400/800 GB
External 1U rack
LTO Ultrium-3, 3Gb/s SAS
400/800 GB
Internal 5.25” half-height
LTO-4, 3Gb/s SAS
400/800 GB
Internal 5.25” half-height
DAT72 SATA/USB TBU
36 GB
Internal 5.25” half-height
Qlogic QLE2560
Qlogic QLE2562
Tape Backup Unit (TBU)
72 GB
DAT160 USB TBU
160 GB
Internal 5.25” half-height
TPM module
TPM module with STMicro chip
16
Acer AT150 F1 specifications
Service and support
Acer Servers offer a comprehensive service suite to take care of daily IT needs. Users can select the 1 year
onsite intervention plus 2nd and 3rd year free spare parts standard warranty or choose extended
warranties and services2 or choose extended warranties and services.
In a continuing effort to improve the quality of our products, information in this document is subject to
change without notice. Images shown are only representations of some of the configurations available for
this model. Availability may vary depending on region.
© 2010. All rights reserved.
Microsoft and Windows are registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and
Xeon Inside are trademarks of Intel® Corporation.
NOTE: Extension warranty services may vary by country. Please contact Acer authorized resellers for more
information.
17
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
