Unigreen Master UMP 20 User`s guide

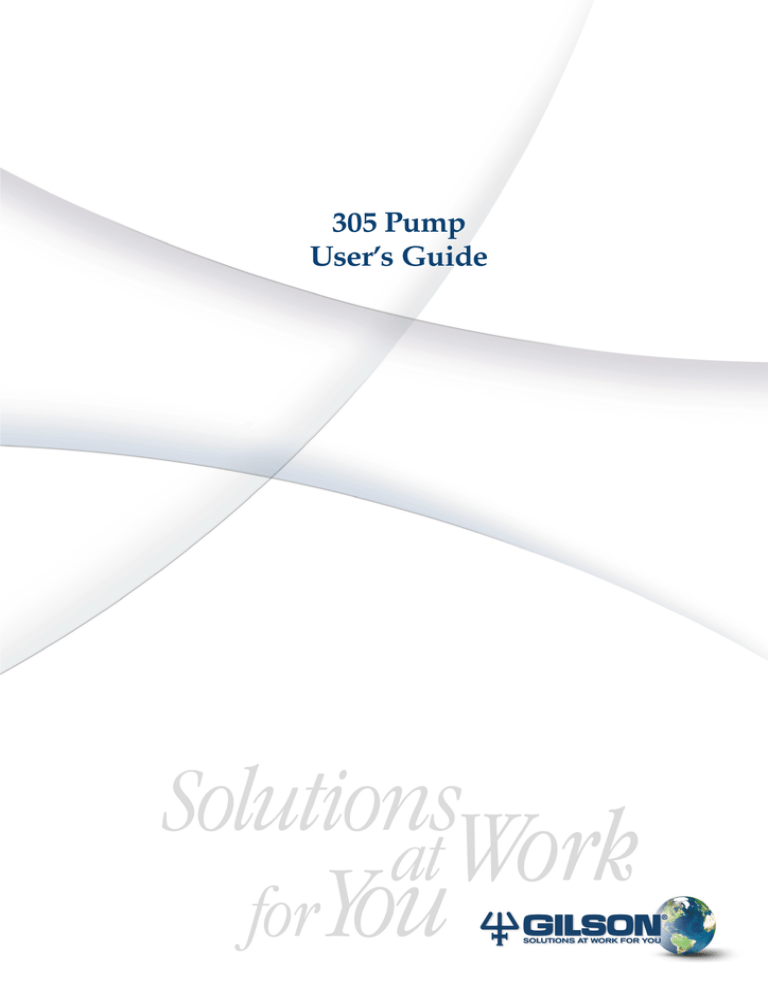

305 Pump
User’s Guide
305 Piston Pump
User’s Guide
LT801152M/©2003 Gilson SAS All rights reserved
September 2003
Table of Contents
Safety
1 Introduction
Using this Manual ........................................................................ 1-2
Unpacking ...................................................................................... 1-3
2 Description
Front View ...................................................................................... 2-2
Keypad ............................................................................................ 2-3
Rear View ....................................................................................... 2-4
3 Installation
Electrical Installation - Power ..................................................... 3-2
Inserting the Fuses .................................................................. 3-2
Selecting the Voltage ............................................................... 3-2
Mechanical Installation ............................................................... 3-4
Pump Head Installation ........................................................ 3-4
Mast Installation ..................................................................... 3-4
Positioning the Modules .............................................................. 3-6
Manual Injection System ....................................................... 3-6
Auto-Analytical System ......................................................... 3-6
Auto-Preparative System ....................................................... 3-7
Control Connections ..................................................................... 3-8
Connecting the Manometric Module ................................... 3-8
Connecting the 306 to Other Gilson Modules .................... 3-8
Connecting the 305 to a 307 ................................................... 3-9
Hydraulic Connections .............................................................. 3-10
Input/Output Connections ...................................................... 3-11
Operation of the Inputs ........................................................ 3-11
Output Controls .................................................................... 3-13
4 Operation
Priming the Pump Head .............................................................. 4-2
Using the Keypad .......................................................................... 4-3
Setting Up the Pump ..................................................................... 4-4
Set Up Pump Hardware (PUMP) .......................................... 4-5
Mode Selection ............................................................................. 4-15
Running the Pump in Flow Mode ...................................... 4-15
Running the Pump in Dispense Mode .............................. 4-17
Running the Pump in Program Mode ............................... 4-20
Table of Contents-1
File Selection ................................................................................. 4-22
Directory .................................................................................. 4-23
Copy ......................................................................................... 4-23
Delete ....................................................................................... 4-23
Edit/New ................................................................................ 4-23
Quit .......................................................................................... 4-23
Programming a Method ............................................................. 4-24
Menu: Number of Loops ...................................................... 4-24
Menu: When Finished, Use ................................................. 4-24
Menu: Choose an Event Type ............................................. 4-25
Mixt .......................................................................................... 4-25
Flow .......................................................................................... 4-26
Wait .......................................................................................... 4-27
Out ........................................................................................... 4-28
Inj .............................................................................................. 4-29
Reading/Writing/Editing Timed Events ......................... 4-30
Programming the Safety Files ................................................... 4-31
Low Pressure Safety File (File 11) ........................................ 4-31
High Pressure Safety File (File 12) ...................................... 4-32
Input #2 Safety File (File 13) ................................................ 4-32
Power Failure Safety File (File 14) ....................................... 4-32
Running a Method Program ..................................................... 4-34
Cond Soft Key ........................................................................ 4-34
Run Soft Key ........................................................................... 4-35
Programming Examples ............................................................ 4-38
Example 1 ............................................................................... 4-38
Example 2 ............................................................................... 4-40
5 Maintenance and Troubleshooting
Pump Head Maintenance ........................................................... 5-2
Troubleshooting ............................................................................. 5-3
Electrical Problems .................................................................. 5-3
Hydraulic Problems ................................................................ 5-3
Appendices
Appendix A - Accessory Parts Lists ....................... Appendix A-1
Standard Accessory Parts List ........................... Appendix A-2
Additional Accessory Parts List ........................ Appendix A-3
Appendix B - GSIOC Control ................................. Appendix B-1
GSIOC Features ................................................... Appendix B-2
GSIOC Commands ............................................. Appendix B-3
Appendix C - Twin-pump Systems ....................... Appendix C-1
Appendix D - Reference Informations ................... Appendix D-1
Solvent Miscibility Table ................................... Appendix D-2
Liquid Compressibility Values ........................ Appendix D-3
Flow Rate Accuracy Principle ........................... Appendix D-5
Appendix E - 305 Programming Sheet .................. Appendix E-1
Appendix F - Technical Data ................................... Appendix F-1
Type of Pump ........................................................ Appendix F-2
Working Range & Performance Data ................ Appendix F-3
Control and Interfaces ......................................... Appendix F-5
Environmental Conditions ................................ Appendix F-7
Table of Contents-2
Safety
Read this section carefully before installing and operating the pump.
For safe and correct use of the pump, it is essential that both operating and service
personnel follow generally accepted safety procedures as well as the safety instructions
given in this document, the 305 Pump User’s Guide.
The instrument described in this document is 305 high pressure piston pump for use in
single or multi-pump applications. It can control Gilson Model 306 slave pumps in
multi-pump applications. It should only be used in the laboratory or similar indoor
environment, by qualified personnel. If the instrument is used in a manner not specified
by Gilson, the protection provided by the instrument may be impaired.
Ensure that the ventilation fan on the Piston Pump operates and is not obstructed when
the instrument is installed.
Voltages present inside the instrument are potentially dangerous. If there is a problem
with the instrument, the power cable should be removed until qualified service personnel
have repaired it. This is to prevent anyone from inadvertently using the instrument,
thus causing possible harm to themselves, or damage to the instrument itself.
The leakage current of this instrument is within the limits allowed by safety standards
for laboratory equipment. An efficient ground connection is imperative for the physical
protection of the user.
Power supply cord reference 7080316106 is for use in France and Germany. Power
supply cord reference 7080316105 is for use in USA and Canada. For other countries
contact your local Gilson distributor. You must only use the type of fuse described and
specified in this document: 2.0 Amp type “T” slow blow for use where the power
supply is between 100 V and 120 V, 1.0 Amp type “T” slow blow fuse for use where the
power supply is between 220 V and 240 V.
Safety-1
Safety
However, adequate protection including clothing
and ventilation must be provided if dangerous
liquids are used. In case of incidental spillage, carefully
wipe with a dry cloth, taking into account the nature
of the spilled liquid and the necessary safety
precautions.
Symbol Explanation
~
Alternating current
PROTECTIVE CONDUCTOR
TERMINAL
I
On (Supply switch)
O
Off (Supply switch)
Caution, risk of electric shock
!
Safety-2
Caution (refer to User’s Guide)
Cleaning, installation, dismantling, maintenance,
adjustment and repair should only be performed by
personnel trained in such work, and who are aware
of the possible dangers involved. This instrument
must not be sterilized, using an autoclave, or any
other mechanical device. When you need to clean
this instrument, use one of the three following
methods:
1 - a clean dry cloth,
2 - a cloth dampened with water,
3 - a cloth dampened with soapy water.
If a cloth dampened with soapy water is used to
clean the pump, only domestic soap may be used.
No other form of detergent or chemical may be used.
These electronic and hazard symbols appear on the
pump:
Introduction
1
Gilson’s 305 Master pump conform to the standard specified in the ‘Declaration of
Conformity’ certificate (reference LT801354) supplied with the instrument.
The 305 Master pump is designed as a system controller. It can operate as a stand-alone
isocratic pump or as a system controller, to deliver fluids (liquids or liquefied gas when
specially equipped). As a system controller, the 305 Master pump controls a complete
pumping system, elution pumps and injection pump.
The 305 Master pump can operate in three different modes. These modes are:
Flow:
The 305 pump provides a constant flow rate. The pump starts when the Run
key is pressed and stops when the Stop key is pressed. The flow mode is for
isocratic use only.
Dispense: The 305 dispenses a specified volume. The pump starts when the Start key is
pressed and stops when the specified volume has been dispensed. The
dispense mode is for isocratic use only.
Program:
The 305 controls a multi-pump system with up to 2 slave elution pumps and
1 slave injection pump. In this mode, the 305 Master pump can create
gradients of flow rate and composition, open and close outputs to control
other instruments and wait for signals from other instruments.
The operation of each mode is explained in Chapter 4.
The present software version is 3.01.
1-1
1
Using this Manual
Introduction
1-2
Using this Manual
The 305 piston pump is a precision instrument
which is simple and easy to use. To gain the
maximum from the instrument, you should:
• Read the description of the instrument in chapter 2.
• Install the instrument as shown in chapter 3.
• Follow the operating instructions given in chapter 4.
Introduction
The 305 piston pump is packed in a single carton.
Upon receipt of your instrument, carefully unpack
the unit and inspect it for possible damage. This
should be done immediately. Check the contents of
the carton against the parts list to verify that all
parts are included and undamaged. The parts list is
given in Appendix A. Do this now, even if the unit
will not be used immediately. Report any damage to
the responsible carrier immediately. Read the
description in chapter 2 to become familiar with the
instrument, its different parts and their names.
Unpacking
Unpacking
1
1-3
Introduction
1-4
1
Description
2
This chapter describes the physical layout of the 305 piston pump. It describes the main
body of the 305 and the position of the electrical connectors on the rear panel.
2-1
2
Description
Front View
Front view
The figure below shows a front view of the 305 Master
pump with a pump head mounted. There is a keypad
which consists of a display, a numeric keypad and
soft keys for programming the 305. The pump head
is mounted on the right hand side.
Display
Keypad
Pump head outlet
Pump head
Side screw
Pump head clamp
Pump head inlet
2-2
Side grip
2
Description
Keypad
Keypad
The figure below shows the keypad with the
numeric keys, the display and the soft keys.
Power-on indicator
Display
Numeric keypad
Softkeys
PRIME
HELP
CANCEL
ENTER
Display: two 24-character lines are used to dispaly
parameters commands and messages.
Softkeys: their functions are determined by the
software and may change from menu to menu. The
present functions are displayed above each softkey.
PRIME: the pump runs at its maximum flowrate
until you press the STOP stoftkey.
HELP: dispays advice and instructions at any time,
with no effect on the operation of the pump.
CANCEL: cancels your last entry before it has been
stored in the memory.
ENTER: confirms a selection or parameter value and
stores it in the memory.
Numeric keypad: this is used to key in values
during programming. The parameter being modified
is always underlined with a flashing cursor.
2-3
2
Description
Rear View
Rear View
The figure below shows a rear view of the 305 with
the electrical connectors. The function of each
connector is as follows:
• GSIOC TO SLAVE PUMP
Connection to a slave pump.
• GSIOC FROM CONTROLLER
Connection to a computer.
• PRESSURE CONTROL
Connection to the manometric module.
• INPUT/OUTPUT CONTROL
Connector for the 305 inputs and outputs.
• Power switch
On/off power switch.
• Power receptacle
Voltage selector and fuse holder.
GSIOC socket, to be used if
the 305 is the Master pump
GSIOC socket, to be used
if the 305 is a slave pump
Pressure control
Input/Output socket
Power
switch
Power
socket
Fan opening
2-4
Fuse holder and
voltage selector
Installation
3
This chapter describes how to install the 305 Master pump. It is recommended that you
follow the installation instructions in the order that they are presented in the manual.
3-1
3
Electrical Installation - Power
Installation
Electrical Installation - Power
For safety reasons, the 305 is shipped without the
fuses installed and with the voltage selector in the
220/240 Volt position. You must:
• Insert the correct fuses.
• Set the voltage selector to your local voltage.
Inserting the Fuses
Ensure that the power cord is not connected before
starting to install the fuses. Follow the procedure
below to install the two fuses.
• The voltage selector and fuse holder is located
under neath the power socket. See opposite figure.
Pull the voltage selector out of the power
receptacle. This is done by gently levering the
selector out using a small screwdriver.
• Pull out the drawer as shown in the figure
opposite. Insert the first fuse into the clips.
• Push the drawer back into position.
• Pull out the drawer for the second fuse which is
on the other side of the voltage selector. Insert the
second fuse into the clips.
The instrument requires two fuses to be installed.
The type of fuses required are: 2.0 Amp type “T”
slow blow for 100 -120 V, 1.0 Amp type “T” slow
blow for 220-240 V.
For safety reasons, piston pumps are delivered
without fuses installed. Fuses must be installed by
the user upon delivery.
Selecting the Voltage
The 305 can be set to operate at 100/120 volts or
220/240 volts. The different voltages are selected
depending on the orientation of the fuse holder.
To set the voltage to 100/120 volts:
Insert the fuse holder with the numbers 110/120 on
the bottom, facing the small white arrow.
3-2
Installation
Insert the fuse holder with the numbers 220/240 on
the bottom, facing the small white arrow.
For safety reasons, do not connect the power cord
until you have finished assembling the instrument.
Electrical Installation - Power
To set the voltage to 220/240 volts:
3
3-3
3
Mechanical Installation
Installation
Mechanical Installation
This section explains how to install the pump head,
the mast clamp and mast. The pump head and mast
clamp for each pump should be installed before
positioning the modules.
Pump Head Installation
The pump head is shipped in a hard case to protect
it during transit. Unpack the pump head from its
case and check that all of the parts are included.
Follow the procedure below to install the pump head.
• Insert the pump head into the front aperture of
the pump. See the opposite figure. The notch at
the bottom of the pump head body must be fitted
onto the matching pin on the pump, just below
the aperture. This notch ensures that the inlet port
is on the bottom and the outlet port is on the top.
• Holding the pump head in place with one hand,
set the clamp diagonally over the head.
• Turn the clamp clockwise into position in the slots
on both sides of the pump head.
• Tighten the thumb screw until the clamp holds
the pump head securely. Make sure that the clamp
ends are secured in their slots on both sides.
See the pump head User’s Guide for more information
on the pump head.
Mast Installation
The mast is used to stabilise a system when several
modules are stacked on top of each other. It can also
used to hold the prime/purge valve and a manual
injection valve. The mast clamp should be installed
before positioning the 305 Master pump in a system.
The mast is added after all of the modules have been
put in place. Follow the procedure below to install the
mast clamp.
• Remove the side screw holding the module cover.
See the opposite figure.
• Screw on the mast clamp.
3-4
Installation
Mechanical Installation
Fix one clamp onto each pump in the system. After
all the modules have been positioned, the stainless
steel mast can be secured within the clamps. The
lower end of the mast should be level with the
bottom of the lowest pump.
3
3-5
3
Positioning the Modules
Installation
Positioning the Modules
Before putting each module in position, make sure
that each module is ready, i.e. that the fuses have
been installed and that any mechanical installation
is finished.
The physical positioning of each of the modules in
your system will depend on your type of system.
Some suggested layouts are given below. These
layouts have been desigend to make the hydraulic
and electrical connections as simple as possible.
Manual Injection System
This is a binary gradient system with two pumps,
one manometric module, one mixer and one
detector. The pumping system consists of one 305
Master pump and one 306 slave pump. The different
modules should be located as shown in the figure
opposite.
The detector is located at the bottom of the stack and
the pumps and other modules are positioned over it.
The 305 Master pump should be the top pump. This
makes the hydraulic connections to the manometric
module as short as possible which gives the best
results. It is also easy to read the display and to use
the keypad.
Auto-Analytical System
This is a binary gradient system with two pumps,
one manometric module, one mixer, one detector
and one auto-sampler.
The pumping system consists of one 305 Master
pump and one 306 slave pump. The 305 Master
pump should be the top pump. This makes the
hydraulic connections to the manometric module as
short as possible which gives the best results. It is
also easy to read the display and to use the keypad.
The figure opposite shows the layout with a Gilson
231-402 auto-sampler. The next figure shows the
layout with a Gilson 232-402 auto-sampler.
3-6
Installation
This is a binary gradient system with two elution
pumps, one injection pump, one manometric module,
one mixer, one detector and one fraction collector.
In this configuration, automatic injection is
performed by the injection pump, located
below the master pump.
The pumping system consists of one 305
Master pump and two 306 slave pumps. The
305 Master pump should be the top pump.
This makes the hydraulic connections to the
manometric module as short as possible
which gives the best results. It is also easy to
read the display and to use the keypad (see
the opposite figure).
Positioning the Modules
Auto-Preparative System
3
3-7
3
Installation
Control Connections
Control Connections
After positioning all of the modules in the system, it is
necessary to connect each module to the system
controller. Two types of electrical connection must
be made.
• The manometric module must be connected to the
305 Master pump.
• All of the slave pumps must be connected to
the Master pump using the GSIOC cable provided.
Connecting the Manometric Module
The manometric module has two functions, to
dampen the pulsations of the pump and to supply
the current pressure value to the Master pump. The
Master pump needs this information to accurately
control the flow rate and to ensure that the system
pressure is not above or below the control limits
entered in the program. The opposite figure shows
the connection for the manometric module.
Connecting the 305 to other Gilson
Modules
The 305 Master pump and the other modules in the
system communicate using the Gilson Serial Input/
Output Channel (GSIOC). Each slave module
controlled by the 305 Master has a GSIOC connector
on its rear panel and is connected to the 305 Master
using the GSIOC cable provided. It is possible to
connect the 305 Master pump to two slave modules
using this cable. If there are more than two slave
modules, two GSIOC cables can be connected together.
The opposite figure shows the GSIOC connections for
a system with 3 elution pumps and on injection pump.
To connect the 305 Master pump to the slave pumps:
Connect the socket marked GSIOC TO SLAVE on
the rear panel of the 305 Master pump to the slave
pumps using the GSIOC cables provided.
Slave pump
B
C
Inj
3-8
I.D. Number
2
3
4
Each slave pump and the injection pump must have
the GSIOC ID number set as appropriate, see the
opposite table. Ensure that their respective ID numbers
have been correctly set. This can be checked by
3
Installation
Control Connections
looking at the rear of the 306 pumps and ensuring
that the correct switch (2, 3 or 4) has been switched
into the bottom position. The switches are labelled
REMOTE, and are numbered 1 to 8 from left to right.
Connecting the 305 to a 307
The 305 Master pump can directly control a 307
pump without the addition of a manometric module
and with pressure display on the 305 screen.
In this case, the value 2 must be entered in the 307
software as a GSIOC identification number for the
307 pump. If this is omitted, the pressure value
dispalyed by the 305 will remain at zero. The
remedy is to first correct the 307 identification, then
to switch off and on the two pumps.
Set-up 1
Hydraulically, the 307 should normally be used for
solvent B, and set-up 1 is recommended (rather
than set-up 2) for the following reasons:
• As it is usually the case in Gilson gradient
systems, solvent B, of higher elution strength
than A (and normally more expensive), does not
enter the pulse dampener. This makes purge
easier.
• Tubing is shorter and fewer elbows are required.
Set-up 2
3-9
3
Hydraulic Connections
Installation
3-10
Hydraulic Connections
The hydraulic connections for the 305 pump head
are made using the tubing provided in the standard
accessory package. Connect the 305 pump head
input with the inlet tubing assembly provided with
the pump head. The connections to the 305 pump
head output should be made using stainless steel,
titanium tubing or plastic tubing.
3
Installation
Inputs
Start/Stop
Pause/Resume
IN # 1
IN # 2
For coordination with surrounding equipment,
electrical contacts are used.
The input/Output connector is a 14-pin terminal
block connector. Connections are made to the inputs
and outputs using the connector supplied in the
standard accessory package.
Pin #
Operation of the Inputs
To activate an input, you must connect it to ground
or 0 V. This is usually done using a relay output,
with one side connected to 0 V (Pin 1) and the other
side connected to the input. When the output is
closed, the input is connected to 0 V and is activated.
Each of the four inputs are described in detail in the
following pages.
GND
1
2
3
4
Ground
Start/Stop Input
Pause/Resume Input
IN # 1 Input
IN # 2 Input
Out # 3 Output
Out # 3 Output
Out # 2 Output
Out # 2 Output
Out # 1 Output
Out # 1 Output
Gradient Profile Out
Gradient Profile GND
Not connected
Outputs contact
from the 305
5
6
7
Start/Stop Input
Pause/Resume
Wait for Input # 1
Activate Input # 2
8
9
Out # 1
Out # 2
Out # 3
Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
The function and pin numbers for each input and
output are as follows.
Inputs to the 305
Outputs
Input/Output Connections
Input/Output Connections
Gradient
Profile
10 11 12
GND
13 14
Not used
305 Input/Output Connector
The Start/Stop Input
The start/stop input is used to start and stop the 305
pump using an external relay contact.
This input is only
Mode
Input
Result
activated when
the input changes Flow
Closed Start Flow
from open to
Open
Stop Flow
closed or from
Dispense Closed Start Dispense
closed to open.
Open
Stop Dispense
The operation for
Program Closed Start Program
each mode is
Open
Stop Program
given opposite.
In the Program mode, Stop does
not stop the flow, it only stops
the program from continuing.
The flow will continue with the
flow rate and composition which
existed when the stop input was
activated. The program will restart from the beginning when
the contact is opened. At the end
of each operation, the solvent
consumption will be displayed.
In the Dispense mode, the Start
input can be activated with a
pulse.
3-11
3
Input/Output Connections
Installation
The Pause/Resume Input
Mode
Input
Result
Flow
Closed Pause Flow
Open
Resume Flow after Pause
Dispense Closed Pause Flow
Open
Resume Flow after Pause
Program Closed Pause Program
Open
Restart Program
The Pause/Resume input is used to
pause and restart the 305 pump using
an external contact.
This input is only activated when
the input changes from open to
closed or from closed to open. The
operation of each mode is shown in
the table opposite.
In the Program mode, this input can be configured
to obtain a pause with or without flow. This choice
is offered inside the
software branch I/O,
I. Pause/Prog
is w. flow
within the screen :
The default value is with (w) flow, press change to
obtain a pause without (w.o) flow. During a pause
with flow, the flow will continue with the flow rate
and composition which existed when the pause
input was activated. The program will continue
from the same point in the from the same point in
the program when the resume contact is opened.
The pause without input is of particular interest
when the 305 is used as a metering pump to feed a
reagent in high pressure reactors. In this application,
the 305 can wait for correct values of external
parameters (temperature, pressure, composition)
before adding more reagent.
The IN # 1 Input
Timed event
Input
Wait input # 1 Closed Open
Result
Wait IN # 1 is closed
Wait input # 1 Closed Closed Continue with program
Wait input # 1 Open
Open
Wait input # 1 Open
Closed Wait IN # 1 is open
For more information, see
Programming the inputs in
Chapter 4.
3-12
Continue with program
This input only operates in
the Program mode. It is fully
programmable. It can be used
to make the program wait
until a piece of equipment is
ready.
An example for this input is
when the pumping system is
waiting for a signal from a
sample injector or a fraction
collector.
3
Installation
This input is activated when closed. Activating
this input while Program mode is selected, causes
File 13 to run. If nothing is programmed in File 13
or if File 13 is already running, this input will be
ignored. This input can be used to start a special
program if an external signal is received, for
example a warning signal from a temperature
measuring system.
Mode
Input
Program Open
Result
No effect
Program Closed Start File 13
Output Controls
Input/Output Connections
The IN # 2 Input
The 305 Master pump has three output relays.
Each output relay consists of two terminals.
These terminals can be connected together (contacts
closed) or not connected together (contacts open).
All of the outputs are electrically isolated from each
other and from ground. These contacts can be used
to control other equipment, e.g. to turn on or off
another piece of equipment.
For more information, see
Programming the outputs in
Chapter 4.
3-13
Installation
3-14
3
4
Operation
After switching ON the 305, the display shows the
following information for one second:
Model 305 VX.X
Manometric Module: M805
This indicates the pump version, software version, VX.X, and the Manometric Module
which is connected. If the Manometric Module is not properly connected, None is
displayed. After this step, one of the Ready-to-Run screens is displayed.
4-1
4
Operation
Priming the Pump Head
Priming the Pump Head
Do not run the pump when the pump head is dry.
This can result in severe pump head damage.
Check that the solvent bottle is filled with HPLC
grade, degassed solvent or buffer. Immerse the inlet
tubing filter into the solvent reservoir. Make sure that
all of the hydraulic connections are properly made.
Before priming, all electrical connections must be
made, and all hydraulic connections in place. All
pumps present in the system, A, B, C and Inj can
be primed in the Program Mode using the 305
Prime command. However, the pumps must be
connected and declared present in the “Setup
Pump Hardware” procedure, page 4-5.
For 5SC, 10SC, 10WSC and 10WTi pump heads,
use the syringe supplied with the pump head to
prime the pump as follows:
• Attach the syringe to the luer fitting of the low
pressure prime valve (refer to the figure below).
• Draw liquid into the syringe with the low pressure
prime valve in the SYRINGE LOAD position.
• Turn the valve to the SYRINGE-INJECT position.
Press the PRIME key on the front panel of the
305, the screen will indicate which pumps are
present, and you simply select which pump you
wish to prime by pressing the Pump key until the
desired pump has been selected. Press Run and
the pump will start running at its maximum speed.
Depress the syringe (if used) until the pump inlet
is clear of bubbles and some liquid has passed
through the pump outlet.
앖
Syringe
Inject position
앗
Syringe
Load position
씮
씮
4-2
Check that there are no leaks in
the system.
씮
Run position
Pump Inlet
씮
• Turn the valve to the RUN position.
Remove the syringe from the prime
valve. When no bubbles can be seen
at the outlet tubing, press the STOP
key to end the priming procedure.
For the 25SC, 50SC, 100SC, 25WTi
and 200WTi pump heads,
Inlet filter • prime the pump directly without
10 µm
syringe or valve.
4
Operation
The keypad consists of numeric keys, dedicated
keys such as Enter and Prime, 5 white soft keys and
a 2 line 24 character display. The function of each
part of the keypad is as follows.
Numeric keys: Used to enter numeric values(to
define parameters).
PRIME:
Runs the pump at maximum flow
rate.
HELP:
Displays help messages.
CANCEL:
Cancels a value before it is entered
into the memory.
ENTER:
Enter a value into the memory.
Using the Keypad
Using the Keypad
The 24-character display is used to indicate the
flow rates, solvent compositions etc... The bottom
line of the display is used to present the soft key
options above the 5 white soft keys. Pressing one of
the white soft keys selects the option displayed
directly above it. The following soft key options will
occur frequently and should be noted.
Quit:
Next:
Prev:
Return to the Ready-to-Run screen.
Brings you to the next screen.
Brings you to the previous screen.
Time is expressed in minutes and hundredths of a
minute. For example a time display of 2.50 min is 2
minutes and 30 seconds.
The words “key in” mean enter in a numerical
value. A flashing cursor on the screen underlines
the current parameter to be entered/modified.
The symbol # is used in this guide to show the
factory set value (the default value).
The symbol • is used in this guide to show a key
which must be pressed or a value which must be
entered.
4-3
4
Setting Up the Pump
Operation
4-4
Setting Up the Pump
The software for the 305 Master pump can be
explained with the help of the chart in Figure 15.
The chart has 4 software branches.
Pump: This is used to enter data about each pump
in the system, this means pumps A, B, C
and the Injection Pump, if present.
I/O:
This is used to define the Input/Output
functions.
File:
This is used to write a method program.
Mode: This is used to select the mode of operation.
4
Operation
Setting Up the Pump
With a new pumping system, you must enter data
about each pump connected, i.e. Refill Time, solvent
Compressibility and pump Head Size and Inlet
Pressure. This is done using the Pump branch of the
software. Data concerning the overall pumping
system, for example high pressure limit, low pressure
limit etc. is done using the I/O branch of the software.
The File branch is used for writing files of method
programs. The Mode branch is used to operate the
system in one of three possible modes, Flow,
Dispense, or Program Mode.
The specifications for Pump and I/O must be set for
a new system setup, or when the physical setup of
the pumping system is changed, for example,
changing a pump head size or removing or introducing a pump.
Set Up Pump Hardware (PUMP)
A pumping system consists of a minimum of 1
pump and a maximum of 3 elution pumps and
1 injection pump. Pump A, the first elution pump
(the 305 Master pump), is always present.
The sequence of screens and soft key command
options for the setup of pump hardware is shown
in page 4-6.
To go to the pump setup menu:
• press Menu
• press Pump
The maximum flow rate
depends on the Head Size and
the refill time. If the refill time
is too long, a message Invalid
settings flashes when you run
the program. The refill time or
flow rate must be lowered. The
figure below shows a curve of
refill times versus flow rate.
Use this menu to enter data about pump A.
• Select pump A by pressing the soft key below A
• The sequence for defining parameters is:
1. Refill time
2. Liquid Compressibility
3. Head size
4. Inlet Pressure (for liquefied gas)
A value for each parameter is keyed in using the
keypad and is stored in memory by pressing
Enter. This automatically brings you to the next
menu screen. If you do not want to change the
value already stored in memory, press the Next
soft key or press Enter.
4-5
4
Setting Up the Pump
Operation
Pump A Refill time
The refill time is the time required for the piston
return stroke. Normally it is set at the lowest value
(125 ms) to give the fastest refill time. If cavitation
or degassing occurs, then a higher value must be
used. The minimum value is 125 ms ( the default
value) and the maximum value is 1000 ms.
# The default value is 125ms.
• Key in the refill time and press Enter.
This brings the menu screen onto compressibility.
4-6
4
Operation
This data is used to calculate the flow rate compensation for the compressibility of the solvent. The
minimum value is 0 and the maximum value is
2000 Mbar-1. Compressibility values for commonly
used solvents at atmospheric pressure are listed in
Appendix E. The values for the most common
solvents are:
# The default value is 46 for water.
• Key in the value for the solvent being used with
pump A and press Enter.
Solvent
Water
Methanol
Acetonitrile
X0 (Mbar-1)
46
123
99
Setting Up the Pump
Pump A Compressibility
This menu will not appear if
there is no manometric module
connected to the system.
Pump A Head Size
This parameter is the size of the pump head fitted
to the pump. The pump head size is marked on the
face of the pump head. Possible values are 5, 10,
25, 50, 100 and 200.
# The default value is 200.
• Key in the value for the pump head size on
pump A and press Enter.
The three parameters for pump A are now entered.
Press the Info soft key to display the operating time
for the pump head. This time can be reset to zero
by pressing the Reset soft key. This should be reset
every time the pump head has routine maintenance
or when a new pump head is installed. Pressing
Ok returns to the pump head size display.
Press the Next soft key to return to the Setup pump
hardware menu to setup the parameters for other
pumps in the system. Press the Quit soft key to
return to the first Ready-to-Run screen. The next
menu to program is the Input/Output parameter
setup.
Inlet Pressure
The Inlet Pressure (P0) for liquefied gas is the
pressure at the inlet of the pump head of the 305.
For example, when using carbon dioxide at a
temperature of 22°C, the value should be defined
as 6 MPa. The minimum value is 0 for solvents used
in Liquid Chromatography and the maximum
allowed value is 10 MPa. The default value is 0 MPa.
4-7
4
Setting Up the Pump
Operation
A table of inlet pressure values for CO2 is shown
below.
Ambient temperature (°C)
15
20
22
25
30
31 (TC)
Pressure P0 (MPa)
5.1
5.8
6.0
6.5
7.2
7.4 (PC)
• Key in the desired inlet pressure according to the
ambient temperature.
• Press Enter.
The four parameters for pump A are now entered.
Entering the Parameters for Other Pumps in
the System
You must tell the 305 Master pump if the slave
pumps B, C, and Inject are present in your system.
By default, pumps B, C, and Inject are set as
present. This can be changed by pressing the
Change soft key when defining the relevant pump.
If a pump is defined as present, the parameters
Refill Time, Compressibility and Head Size must be
defined.
If pump B is defined as absent, the Pump C is
automatically set as absent.
Summary:
• press the Menu soft key.
• press the Pump soft key.
• Select pump (A, B, C or Inj). (Define pumps B, C
or Inj as present or absent.)
• Key in the desired refill time. (Minimum time 125
ms, maximum time 1000 ms.)
• Key in the solvent compressibility. (Minimum
value 0, maximum value 2000 Mbar-1.)
• Key in the relevant Pump Head Size. (5, 10, 25,
50, 100, or 200.)
• Key in the Inlet Pressure. (Minimum value 0 MPa,
maximum value 10 MPa.)
When all pumps have been defined, press the Quit
soft key.
4-8
4
Operation
Setting Up the Pump
Input/Output Parameter Set Up (I/O)
The I/O menu is used to enter data about parameters associated with the complete system. To go to
the Input/Output parameter setup procedure:
• press the Menu soft key
• press the I/O soft key
The sequence for defining parameters is:
1. High pressure limit.
2. Low pressure limit.
3. Alarm On/Off.
4. GSIOC ID number.
5. Output Contacts.
6. Pause/Program with or without flow.
7. Gradient profile selection.
8. Delay Volume selection.
9. Zero Manometric Module.
The sequence of menu screens and soft key options
is shown on page 4-6.
High Pressure Limit
If the pressure reading from the manometric module rises above the defined limit, the pump will
stop. The sequence following a high pressure error
is described page 4-10.
The pressure can be displayed in three different
units; bar, MPa, or kpsi. Change the units displayed by pressing the soft key below the units
currently indicated on the display.
The maximum value is the maximum pressure limit
for the manometric module connected in the system. The 305 Master pump knows which manometric module is connected and will refuse any
value which is outside the range for that model.
# The default value is the maximum pressure
allowed by the manometric module.
• Key in the pressure limit that applies to your
system and press Enter.
Manometric
Module
805
806
807
Maximum
pressure (bar)
600
320
80
This menu will not appear if
there is no manometric module
connected to the system.
Low Pressure Limit
If the pressure reading from the manometric module
drops below the defined limit, the pump will stop.
The sequence following a low pressure error is
described page 4-10. The minimum value is 0.
4-9
4
Setting Up the Pump
Operation
4-10
This menu will not appear if
there is no manometric module
connected to the system.
# The default value is 0.
• Key in the value that applies to your system and
press Enter.
4
Operation
Setting Up the Pump
Alarm
The alarm is a buzzer which sounds every time
there is an error or an invalid setting entered or
encountered. It can be programmed to be either On
or Off. This function only controls the operation of
the buzzer, it does not affect the operation of the
pump when there is an error.
If the alarm is set to be On, the warning buzzer
will sound every time an error is encountered. An
error can be a pressure limit encountered, an
invalid setting, or a pump absent. This setting can
be changed from On to Off by pressing the soft key
under Change.
# The default setting is Off.
• Select the option you want and press the Next
soft key to go to the next menu.
GSIOC Unit ID Number
Each pump in a multipump system has to have an
identification number to distinguish it from other
pumps and equipment connected to the GSIOC
communications channel.
When using a 305 Master pump, you must have
the identification numbers detailed in the table
above for the slave pumps. The Master pump can
have any number between 0 and 63, however the
default value of 1 is recommended for simplicity.
# The default value is 1.
• Key in the identity number you require for this
pump and press Enter.
Do not set the Master pump ID
number to 2, 3 or 4 as these
numbers are reserved for the
Slave Pumps and Injection
Pump.
Output Contacts (Ouptut #xx is Open / Closed)
There are three relay outputs in the 305 Master
pump numbered 1, 2, and 3. These outputs can be
used to control other instruments. They can be
programmed to open and close during a method
run. They can also be opened and closed manually
using soft key commands.
To change the state of an output, key in the number
of the output, for example output # 2. When you
press Enter, the display will show the present state
of output 2, i.e. Output # 2 open/closed. Press the
soft key Change to change the state of the output.
4-11
4
Setting Up the Pump
Operation
Setting the outputs manually is
useful to check that output # 1
turns on the integrator for
example. However, when
repeating the same operation
many times, it is better to
program the output operations
as part of a method program. In
this way, the outputs will
follow the same sequence each
time the method program is
run. Refer to programming the
outputs in Section 3 of this
Chapter.
By using this procedure, each of the three outputs
can be manually set to be open or closed. The
outputs will remain in this state until a method
program is run and a change in the outputs is
programmed.
# The default state is open.
• Press Next and go to the next menu.
Pause Prog With/Without Flow
This option runs in Program mode only. It enables
the system to be controlled from an external sensor.
For example, a temperature sensor can be used to
pause the system if the temperature is outside a
desired range. The program and flow can be
paused together, or the program can be paused
whilst the flow rate continues. External parameters
such as temperature, pressure, or composition can
be monitored to control the system.
Gradient Profile
This function only operates in the program mode,
and enables a selected gradient profile to be output
to a recorder from the analog output of the 305.
The gradient profile can be selected as being a
solvent composition, %B or %C or the flow rate
(Flow). The solvent composition can be useful for
biochromatographic applications for plotting pH
gradients and salinity (salt concentration) gradients.
The flow rate can be useful for verifying detector
stability.
The analog output gives 1 V full scale. The full scale
represents 100%B, 100%C or 100% of the maximum
possible (not programmed) flow rate of the system.
This output is from connectors 12 and 13 on the I/O
connector at the back of the 305. Pin 13 is the ground
(0 V) connection.
Options are:
Flow,
%B, %C.
# The default setting is Flow.
• Press the Change soft key to select your desired
output and press Enter.
4-12
4
Operation
Setting Up the Pump
Delay Volume
When the selected gradient profile is a solvent
composition (%B for instance), the Delay Volume
can be used to synchronise on the recorder the plot
of the programmed profile with the plot of the
detected profile (baseline drift). In this case the
delay volume is generally defined, for a first approximation, as being the total volume between the
mixer inlet and the detection cell inlet. The value is
adjusted from experimental observation to obtain
the desired synchronisation.
The 305 software divides the Delay Volume by the
total flow rate to calculate the total delay time
applied to the analog output Gradient Profile. The
size of the Delay Volume can be specified between
0.01 mL and 999 mL.
The Delay Volume option will
only appear if %B or %C has
been selected for Gradient
Profile.
# The default value is 0, i.e. no delay volume specified.
• Key in the required delay volume and press Enter.
Zero Manometric Module
The Zero soft key is used to set the manometric
module value to zero when there is zero pressure in
the system. This ensures accurate pressure readings
when the pumps are running. Before pressing the
Zero soft key, make sure that all pumps have stopped
and that the pressure has dropped to zero. Otherwise further pressure indications will be incorrect.
This can be easily done by opening the prime/purge
valve whilst the pumps are not operating. If the
operation is successful the message Pressure reading is zero is displayed. If the operation is not
successful, the message Not done - check pressure
readings is displayed.
You have now completed the Input/Output parameter setup. Press Quit to leave this branch of
the software. This will bring you back to one of the
Ready-to-Run screens.
Summary:
• Press the Menu soft key.
• Press the I/O soft key.
• Set the High Pressure Limit (Maximum value
depends on Manometric Module).
• Set the Low Pressure Limit.
• Set the Alarm to be On or Off.
4-13
4
Setting Up the Pump
Operation
• Set the GSIOC ID number for the 305 Master pump.
• Program outputs to be Open/Closed.
• Set pause in program to be with or without flow .
• Select the Gradient profile output to be Flow, %B,
or %C.
• Specify the Delay Volume. (Maximum value 999 mL)
• Zero the Manometric Module.
• When all I/O functions have been defined as
required, press the Quit soft key.
After entering the data about the pumping system, the
pump is ready to run. The 305 Master pump can
operate in three different modes. These modes are:
Flow: The 305 pump provides a constant flow rate. The
pump starts when the Run key is pressed and stops
when the Stop key is pressed. The flow mode is for
isocratic use only.
Dispense: The 305 dispenses a specified volume. The
pump starts when the Start key is pressed and stops
when the specified volume has been dispensed. The
dispense mode is for isocratic use only.
Program: The 305 controls a multi-pump system with
up to 2 slave elution pumps and 1 slave injection
pump. In this mode, the 305 Master pump can create
gradients of flow rate and composition, open and close
outputs to control other instruments and wait for
signals from other instruments.
The operation of each mode is explained.
4-14
Operation
Running the Pump in Flow Mode
In Flow mode, the pump provides a constant flow
rate, commencing when the Run soft key or start
input is activated. The pump stops when the Stop
soft key or stop input is activated.
Mode Selection
Mode Selection
4
To go to the Flow mode:
• press the Menu soft key.
• press the Mode soft key.
• press the Flow soft key.
This brings you to the Flow
mode Ready-to-Run screen.
The sequence of screens and
soft key command options
for using the flow mode can
be seen in the opposite
figure.
The flow rate can be set
between 0.01% and 100% of
the pump head size fitted to
the 305 Master pump. A
flow rate value will not be
accepted if it is larger than
the pump head size. If the
selected flow rate is incompatible with the refill time or
compressibility, the message
Invalid settings flashes after
pressing run. In this case,
you must reduce the refill
time or the flow rate.
• Key in the flow rate in
mL/min and press Enter.
• You can change the pressure units displayed at any
time by pressing the soft
key under the pressure
units currently displayed
(in this example the units
displayed are in bar).
4-15
4
Mode Selection
Operation
• The pump will start either when the Run soft key
is pressed, or when the start input is activated.
• The pump will stop when the Stop soft key is
pressed, or when the stop input is activated.
Modifying the Flow Rate
The flow rate can be modified at any time during a
run by keying in a new value. It is possible to
review and change the pump and I/O setup parameters except the pump head size during a run.
Press the Menu soft key and follow the setup
procedures described pages 4-10 to 4-15.
Operation of the Pressure Limits in the Flow
Mode
The maximum pressure limit depends on the
defined Refill Time and Compressibility. If the
parameters defined in the I/O setup procedure are
not compatible with the flow rate entered, the
message Invalid settings will flash on the screen
after the Run soft key is pressed, or the start input
activated. In this case you must lower the refill time
or the flow rate.
If there is a high pressure error, the pump will stop
and the message High pressure limit will flash on
the screen. The alarm will sound if it is programmed to be on. The pump will start again when
the pressure drops below the defined limit. This
cycle will continue indefinitely.
If there is a low pressure error, the pump will stop
and the message Low pressure limit will flash on
the screen. The alarm will sound if it is programmed to be on. The pump will stay in this
condition until the Stop soft key is pressed.
The flow mode can be simulated in the Program
mode, with the advantage of having safety error
files and having the option of including timed
events.
4-16
Operation
In this mode the pump can be used to deliver a
specified volume beginning when the Run soft key
or start input is activated, and finishing when the
specified volume of liquid has been delivered. The
parameters to enter are dispense volume and
dispense flow rate or time of dispense.
Mode Selection
Running the Pump in Dispense Mode
4
To go to the dispense mode :
• press the Menu soft key.
• press the Mode soft key.
This brings you to the Dispense mode Ready-to
Run screen. The sequence of screens and soft key
command options for using the flow mode can be
seen in the Figure on the next page.
Two parameters are displayed on the top line of the
screen, the dispense volume, and the dispense time.
A flashing cursor appears under the dispense
volume setting, key in the required dispense volume
and press Enter. The flashing cursor now moves to
the dispense time display, key in the dispensing
time and press Enter. If you wish to define the
dispense volume and dispense flow rate instead,
press the Rate soft key. The top line will then
change to display the dispense volume and flow
rate.
• Key in the dispense volume and press Enter.
• Key in the dispense time (or rate) and press Enter.
The limits for each of the parameters are as follows:
Maximum dispense volume:
100 x head size (mL).
Minimum dispense volume:
0.0001 x head size (mL).
Maximum dispense flow rate:
1 x head size (mL/min).
Minimum dispense flow rate:
0.0001 x head size (mL/min).
Maximum dispense time:
9999 minutes.
4-17
4
Mode Selection
Operation
The maximum dispense flow rate depends on the
Refill Time and Compressibility. If the parameters
are not compatible with the dispense flow rate or
volume entered, the message Invalid settings will
flash on the screen after the Run soft key is pressed.
In this case you must reduce the refill time or the
flow rate.
If the dispense flow rate or volume is not compatible with the head size, the software will not accept
the value and you must key in a new value. If the
head size is changed to a size that is too small after
the dispense volume and flow rate have been
entered, the Run soft key will not appear in the
menu when you return to the dispense Ready-toRun screen.
• press the Run soft key to start the delivery of the
liquid. The delivery will stop when the specified
volume has been delivered.
After pressing the Run soft key, the display
changes to give Roll-Pause options for the soft
keys.
• press the Paus soft key to interrupt the dispense
operation. The display changes to give EndContinue options.
• press the End soft key to terminate the delivery
without dispensing any more liquid.
• press the Cont soft key to continue delivering the
specified volume.
• press the Roll soft key to review the programmed
dispense volume and the volume already dispensed.
• press the Roll soft key again to view the programmed time for the dispense and the time
already elapsed.
• press the Roll soft key again to review the flow
rate.
Modifying the Values
It is not possible to change the dispense volume or
delivery rate during a run. All of the setup parameters (including I/O parameters) except the head
size can be reviewed and modified during a run.
Press the Menu soft key and follow the setup
procedures as described in pages 4-10 and 4-15.
4-18
Operation
4
Mode Selection
Operation of the Pressure Limits
As a safety feature of the system, it is possible to
define high pressure and low pressure limits so that
the operation will stop when the system pressure
falls outside these limits.
If the high pressure limit is exceeded, for whatever
reason (column clogged, wrong valve closed etc.),
the pump will stop and the message High pressure
limit will flash on the screen. The alarm will sound
if it is programmed to be on. The pump will start
again when the pressure drops below the limit.
This cycle will continue indefinitely.
4-19
Mode Selection
Operation
4
If the pressure falls below the low pressure limit,
the pump will stop and the message Low pressure
limit will flash on the screen. The alarm will sound
if it is programmed to be on. The pump will stay in
this condition until the End soft key is pressed.
The dispense mode can be simulated in the Program
mode with the added advantage of having Safety
Files (described page 4-31), and being able to program
timed events.
Running the Pump in Program Mode
In this mode, the 305 Master pump can create both
flow rate and composition gradients, program timed
events, and control an injection pump. The program
mode can also simulate the flow and dispense modes,
with the advantage of safety error files and the
ability to program timed events. The sequence of
screens and soft key command options for programming the flow mode can be seen in Figure below.
4-20
Operation
The 305 controls up to two other elution pumps
and one injection pump through the GSIOC cable.
Other instruments such as auto-samplers and
fraction collectors can be connected to the 305
Master pump using the Input/Output contacts on
the rear panel of the 305.
Mode Selection
At the end of a run in Program mode, the Solvent
Consumption can be obtained by selecting the
appropriate roll screen.
4
Before creating a method program in the 305
Master pump, it is necessary to understand how
the method programs are stored in memory.
Memory Layout
There are 14 files, numbered 1 to 14. Each file can
store 1 program. Files 1 to 10 are user files, available for method programs. Files 11 to 14 are reserved for safety/error programs.
A file contains timed events. A timed event is a
flow rate, a solvent composition, the operation of
an input or output or the operation of an injection
pump. One file stores a maximum of 25 timed
events which can make up the method program.
The Safety Files, 11 to 14, do not contain pre-stored
programs you can write each Safety File according
to your own requirements, for example, to output a
control signal to an external device. Write each
safety program in the same way as a method
program. This allows you to program the sequence
of events that will happen when an error occurs. If
an error occurs during a run, the method program
stops and the relevant safety program starts. If no
safety program has been written, the default operation in the event of an error is described in each
relevant Safety File description. See pages 4-31 to
4-33 for the exact operation of Safety Files.
4-21
4
File Selection
Operation
File Selection
One complete method is stored in a file. In order to
read/edit/write a method, you have to go to a file.
The sequence of screens and soft key command
options for programming a file can be seen in the
figure below.
To go to a file:
• press the Menu soft key.
• press the File soft key. This brings you to the
Select file menu.
Key in the number of the file, for example 1, and
press Enter.
There are five soft key options available:
• Directory
• Copy
• Delete
• Edit/New
• Quit
4-22
Operation
Press this key to go to each stored file, e.g. File 1,
File 3 etc. This displays all of the files where method
programs are stored. If no programs are stored, as
in the case of a new pump, Select file # —will be
displayed. Key in the file number that you want to
use and press Enter.
File Selection
Directory
4
Copy
Press this key to make a copy of a complete file.
This is useful if you want to make a small modification to an existing program and keep a copy of the
original program. After pressing copy, key in the
file number where the copy will be stored and press
Enter. The software indicates if the file where you
want to store the copy is empty (New) or if there is
a program already stored there (Exists). You have
the choice of completing the copy procedure, Yes,
or ending the procedure without making a copy,
No. The copy of the program can then be modified
without destroying the original.
Delete
Press this key to delete a complete file. The deleted
file is the file currently shown on the upper line of
the display. After pressing Del, Delete file # xx ?
is displayed. This is a safeguard against accidental
erasure. There are two options: Yes deletes the file,
No brings you back to the original menu.
Edit/New
If there is no program stored in the file number that
is displayed on the top line, the display will be New,
if there is a program stored in the file, the display
will be Edit. Both of these options will bring you to
the first step in writing/editing a method program.
Quit
Pressing Quit brings you back to the Ready-to-Run
Screens.
Pressing the Edit/New key brings you to the first menu
in the programming sequence, Number of loops.
You are now ready to write a method program.
4-23
4
Programming a Method
Operation
Programming a Method
A complete method program is written by programming flow rates, solvent compositions and
operation of the outputs. The method program run
time starts at time 0.00, i.e. when the start key is
pressed, and ends at the time of the last timed
event. For example, if you program the last event at
time 20.00, then the run time is 20 minutes.
You must program every event for your method,
starting at time 0.00. For example, at time 0.00 you
must program the flow rate and composition. If
you do not program anything at 0.00 minutes, the
pump will assume the current flow rate and composition. For a pump which is stopped, the software will assume a flow rate of 0 mL/min and a
composition of 100% A, 0% B, and 0% C. If the
pump is running, it will assume the current flow
rate and composition for time 0.00. It will then
operate on a gradient between these values and the
first flow rate in your program and the first solvent
composition in your program.
Menu: Number of Loops
The number of loops is the number of times that the
program will repeat itself before stopping. The
minimum value is 1 and the maximum value is 999.
# The default value is 1.
• Key in the number of loops and press Enter.
This brings you to the When finished, use menu.
Menu: When Finished, Use
At the end of a program, you can link the current
file to any of the 14 files. If you do not want to link
to any other file, press the soft key below None on
the display.
If you link to the current file, i.e. link File 3 to File 3,
the program will continue to run until the Pause
key is pressed. If both looping and linking are
programmed, the software will complete the programmed number of loops, then link to the new
file.
4-24
4
Operation
Programming a Method
If you link files together which have different
values for the setup parameters, the pump will not
start. After pressing Run the display will give you
the message Note ! Setup has changed since file
creation. Pressing Ok gives you the choice of which
setup parameters to keep by asking the question
Keep original setup ? Yes - No. If you choose Yes,
the values which are stored in the first file in the
sequence of files will be loaded into all of the files
which are linked together. If you choose No, the
values which are currently stored in the pumps
setup parameter memory will be loaded into all of
the files which are linked together.
# The default value is None.
• Key in the number of the file you want to link to
and press Enter, or press the None soft key.
This brings you to the Choose an event type screen.
Menu: Choose an Event Type
There are five different types of timed events. You
choose one of the different events by pressing the
soft key below it. The five timed event types are:
• Mixture
Program the composition, %A, %B and %C.
• Flowrate
Program the flow rate, mL/minute.
• Wait
Wait for an input.
One complete method program
is stored in a file. The values for
the six parameters; Refill Time,
Compressibility, Pump Head
Size, Inlet Pressure, High
Pressure Limit and Low Pressure
Limit for that method program
are also stored in the same file.
If you link two or more files
together, you must ensure that
they all have the same values
for these parameters.
In the case of linking an error
file which has different setup
parameters to the method file,
the parameters for the method
file automatically replace the
values which were written in
the error file.
• Out
Activate an output.
• Inject
Activate the injection pump.
At the end of each operation, the solvent consumption will be displayed.
Mixt
Set the composition of the solvents, e.g. 70 % solvent
A, 20 % solvent B and 10 % solvent C. There is a
maximum of three pieces of data for this menu:
- Time at which composition occurs
- % of solvent B
- % of solvent C.
4-25
4
Programming a Method
Operation
The percentage of solvent A is calculated as:
% solvent A = 100 - % B - %C.
The example opposite is for a binary gradient.
At 0 minutes, there is 95% solvent A and 5%
solvent B. At 5 minutes, there is 80% solvent A
and 20% solvent B.
Example:
There will be a linear gradient
between two solvent composition points. With the example
given, the %B will increase
linearly from 5% to 20% in 5
minutes. If you change the
gradient point during a run, the
new gradient will be between
the next programmed gradient
value and the value which
existed at the instant the
gradient was modified.
If you do not program a
composition at 0.00 min., the
pump assumes the current
composition. For a stopped
pump, this will be 100% A.
There will then be a gradient
between 100% A and the first
programmed solvent composition point. Programming the
example above will give a
composition gradient as shown
in Figure.
0.00 min
5.00 min
5%B
20%B
(%A = 95%)
(%A = 80%)
To program the example:
• press the Mixt soft key.
• key in the time for the first composition point,
0.00, and press Enter.
• key in the value for the %B, 5, and press Enter.
• press the Add soft key to add a second timed
event to the program.
• key in the time for the second composition point,
5.00, and press Enter.
• key in the value for the %B, 20, and press Enter.
Composition parameters can be set down to 0.1%
increments. If you key in a value which is too high
(sum A+B+C>100%) the last entry will not be
accepted by the software and you must key in the
last value again, or correct your composition specification.
Flow
In this menu, you can set the flow rate, for example,
2 mL/min. There are two parameters to specify for
this menu.
- Time at which flow rate occurs.
- Flow rate in mL/min.
Example: 0.00 min
5.00 min
0.00 mL/min
3.0 mL/min
To program this example:
• press the Add soft key.
• press the Flow soft key.
• key in the time for the first flow rate, 0.00, and
press Enter.
4-26
4
Operation
• press the Add soft key to add a second timed
event.
• key in the time for the second flow rate, 5, and
press Enter.
• key in the second flow rate, 3, and press Enter.
If you try to enter a flow rate value which is too
high for the pump head, the entry is refused by the
software. The maximum value accepted in a gradient system is the value of the smallest pump head
size in the system.
There will be a linear gradient
between any two programmed
flow rates. With the above
example, the flow rate will
linearly increase from 0.00 mL/
min to 3.0 mL/min in 5.00
minutes.
Programming a Method
• key in the value for the flow rate, 0, and press
Enter.
If you do not program a flow rate at 0.00 min., the
software will assume the current flow rate for the
time 0.00 min., i.e. for a stopped pump, a flow rate
of 0 mL/min. There will then be a gradient between 0 mL/min. and the first programmed flow
rate. With this example the flow rate will be as
shown in the opposite figure.
To stop the flow of solvent at the end of a run,
you must program a flow rate of 0 mL/min. Otherwise, the pump will continue to run with the last
programmed flowrate, even after the last timed
event. If there is more than one pump in the system,
you must program a composition point containing
all of the pumps followed by a flow rate of
0 mL/min.
If the system is set up to do more than one
sample, the initial composition for the
method can be maintained between method
runs by programming this composition at
the end of the program, for example 5% B.
At the end of all the samples, link to another file to completely stop the flow of
liquid. See the opposite figure.
Wait
In this menu you can make the program wait until
Input # 1 is activated. This is used to stop the
program until another piece of equipment is ready,
for example an auto-sampler or a fraction collector.
There are two pieces of data for this menu.
4-27
4
Programming a Method
Operation
- Time at which the pump will wait for an input
- Waiting for an open contact or a closed contact
Example 4:
2.00 min
Wait #1
Closed.
To program this example:
• press the Add soft key.
• press the Wait soft key.
• key in the time for the wait to begin, 2.00, and
press Enter.
• press the close soft key.
The program waits at time 2.00 minutes until input
#1 is closed. If input #1 is already closed at time
2.00 mins, the program will continue. If input # 1 is
not closed, the program will wait. During the time
that the program is waiting, the display will show
the total run time and the time that it has been
waiting.
If a pump is waiting for an input, pressing Cancel
will simulate an input and the program will continue.
Out
In this menu, you can program each of the outputs
in the system to open or close. The out-puts are
numbered 1, 2 and 3 and are used to send signals
to other equipment in the system, for example an
auto sampler or a chart recorder. By having the
output operations as part of the method program,
the same sequence of contacts repeats every time
the method program is run.
There are three pieces of data for this menu.
- Time at which output is operated
- Output number
- Output opened, closed or pulsed
Each of the outputs can be made to open, close or
pulse. Pulse means that the output will change its
current state for 0.6 of a second.
4-28
4
Operation
3.00 min
Open Close
Output 2
Pulse
To program this example:
• press the Add soft key.
• press the Out soft key.
• key in the time for the output to operate, 3.00,
and press Enter.
• key in the output number, 2, and press Enter.
Programming a Method
Example: Screen 1
Screen 2
The display will change to Open, Close or Pulse.
• press the Close soft key.
Inj
In this menu you can injection a sample using the
inject pump. There are three pieces of data for this
menu.
- Time at which the injection pump is started
- Injection volume
- Flowrate for the injection
Example: Screen 1
Screen 2
2.00 min
Inj rate
Inj 6.00 mL
0.5 mL/min
To program this example:
• press the Add soft key.
• press the Inj soft key.
• key in the time at which the injection will start,
2.00, and press Enter.
• key in the injection volume, 6.00, and press Enter.
• key in the value for the injection rate, 0.5, and
press Enter.
The injection rate parameter can be changed to
injection time by pressing the Time soft key. There
is a limit of one injection point for each method
program. The maximum injection volume is the
pump head volume multiplied by 100. If you program
a second injection point, it will write over the
existing injection point.
Preparative injection: The 305 can be used in the
Program mode for repetitive injection of the same
sample.
4-29
4
Programming a Method
Operation
At the selected time, the Master 305 starts the
injection pump and automatically lowers the
elution rate in order to keep the total flow rate, and
hence the pressure, constant. The following relationship is applied:
F’e =
F’e :
Fe :
Fi :
Fe - Fi where
the total elution flow rate during injection
the total elution flow rate before injection
the injection flow rate
A stop-flow injection, generally desired, is then
obtained by selecting Fi 암 Fe.
Reading/Writing/Editing Timed Events
The five different types of timed event have been
explained above. At the end of each event, the
menu gives you five options. These options are
explained below.
Next: displays the next timed event in the sequence. If there are no more events, it displays End of file.
Prev: displays the previous timed event in the
sequence. If there are no more previous
events, it displays Beginning of file.
Add: brings you to the Choose an event type
menu to allow you to add another event to
the present program.
Del:
deletes one timed event in the program. As
a safeguard it asks you, Delete this point ?
Press Yes to delete the event or No to return
to the original menu.
End: leaves the software for programming timed
events. The pump displays Solvent consumption in mL for pump A for one complete run of the method program.
Pressing the Next soft key displays in turn the
consumption for the other pumps in the system.
The minimum consumption is < 0.1 mL. The maximum is > 999 mL.
Press Quit to go to the Ready-to-Run Screen. You
have now finished creating a program method file.
Before running a method program, you should
program each of the four safety/error files.
4-30
Operation
The Safety Files are a useful safety feature which
can be used to control the pumping system if a malfunction is detected. It is possible to detect if the
system pressure is too high or too
low, if there has been a power
failure, or if an external sensor has
File Name Function
detected an illegal value (tempera11 Low
File runs after a low pressure error
ture too high, for example). In this
case, the method program is
12 High
File runs after a high pressure error
stopped, and the relevant Safety File 13 Input File runs if input # 2 is activated
is run. The File number and function 14 Power File runs after a power failure
of each File is listed in this table.
Programming the Safety Files
Programming the Safety Files
4
These programs are created in exactly the same
way as a method program. To program the low
pressure safety file, select file 11 and enter the
sequence of flow rates and input/output operations
that you require when there is a low pressure error.
Similarly, enter a program for the high pressure
safety file, Input# 2 safety file and the power
failure safety file. The Input # 2 contact can be
connected to an external safety device such as a
temperature or pressure measurement system.
An example of simple programs for the high and
low pressure safety files are given in program lists 2
and 3 at the end of this section.
Low Pressure Safety File (File 11)
If the pressure goes below the low pressure limit
the sequence of events is as follows:
• If the low pressure error file (11) contains no
program, the method program will stop and can
not resume until the operator presses the Pause
soft key followed by End.
• If the low pressure error file contains a program,
the method program will link to this file and will
run it. After file 11 is finished, if there is a link to
another file, this new file will start to run. If there
is another low pressure error during file 11, the
pump will stop and can not resume until the
operator presses the Pause soft key followed by
End.
For an example of a Low Pressure safety file refer to
page 4-39, Program List 2.
4-31
4
Programming the Safety Files
Operation
High Pressure Safety File (File 12)
If the pressure goes above the high pressure limit,
the sequence of events is as follows:
• If the high pressure safety file (12) contains no
program, the pumps stop at the instant the pressure rises above the limit. If the pressure drops
below the limit again, the pump will restart. This
cycle will continue indefinitely.
• If the high pressure safety file contains a program, the pumps stop and wait for the pressure
to drop below the high pressure limit contained
in File 12. When the pressure is below this limit,
file 12 will begin to run. After file 12 is finished, if
there is a link to another file, this new file will
start to run. If there is another high pressure error
during file 12, the pump will stop until the pressure drops below the limit and will then restart.
This cycle will continue indefinitely.
For an example of a High Pressure safety file, refer to
page 4-39, Program List 3.
Input # 2 Safety File (File 13)
When input # 2 is activated, it causes the following
sequence of events:
• If there is no program in File 13, activating input
# 2 will have no effect and the method program
will continue.
• If there is a program stored in File 13, when input
# 2 is activated, File 13 will start. File 13 will start
to run even if the system was not previously
running. If there is a link to another file at the end
of the program, the linked file will start to run.
Power Failure Safety File (File 14)
The power failure safety file will only operate if
there is a power failure while a method program is
running. The sequence of events after a power
failure is as follows:
• If there is no program stored in File 14: after the
power is restored, the program will go back to the
start of the method file and wait for a start input.
4-32
Operation
• If there is a program stored in File 14: after the
power is restored, the program in file 14 will be
run. If there is a link to another program at the
end of file 14, the linked file will start to run. If
the alarm is on, it will sound.
If there is a power failure in the Flow or Dispense
modes, it has the same effect as if the pump was
turned off and turned on again. The screen presented will be the Ready-to-Run Screen of the last
used mode.
Programming the Safety Files
If there is more than one file in the method, i.e.
one file is linked to another, the program will go
back to the beginning of the first file in the
method.
4
4-33
4
Running a Method Program
Operation
Running a Method Program
At the end of programming the method and error
files, the software returns to a Ready-to-Run
Screen. The top left corner will indicate which
Ready-to-Run screen you are in. To go to the
Program mode Ready-to-Run Screen:
• press Menu.
• press Mode.
• press Prog.
The pressure can be displayed in 3 units, bar, MPa
or kpsi. To change from one unit to another, press
the soft key directly below bar. The units will
change to MPa. Pressing the soft key again will
change the units to kpsi. Pressing the soft key again
will change the units back to bar.
You can go to any file by keying in a new number
and pressing Enter. The Ready-to-Run Screen
displays the present file number, the pressure, and
gives you 3 soft key options, Cond, Menu and Run.
Cond Soft Key
It brings you to the part of the software which is
used to condition the column. You program a ramp
time, the flow rate and gradient. The initial conditions are the existing conditions for the pump, i.e. for
a pump which is not running 0 mL/min and 100%
solvent A. The flow rate and composition programmed should be the flow rate and composition that
is required at the start of the method program that
you are going to use. The solvent flow rate and
composition are then ramped from 0 mL/min and
100% A to the initial composition and flow rate for
your method program.
• press Cond.
• enter the ramping time and press Enter.
• press Flow.
• enter the flow rate for the end of the ramp time.
• enter the % B for the end of the ramp time (if
pump B is present).
• enter the % C for the end of the ramp time (if
pump C is present).
4-34
Operation
After pressing Run, the display changes to give you
the choice of Roll, Stop or Quit.
Running a Method Program
Press Run to start the conditioning of the column.
The pump will ramp to the flow rate and solvent
composition that is programmed in the time programmed. The values for time, flow rate and
solvent composition can be changed during the
conditioning. At the end of the ramp time, the flow
rate and solvent composition will remain constant.
Note that you can leave the conditioning of the
column and create a program without interfering
with the conditioning of the column.
4
Pressing Roll displays in turn the time for the ramp,
the flow rate, the proportion of solvent A, B and C
in turn. The proportion of solvents B and C will not
appear if they do not exist.
This part of the software is also used at the end of a
method program to clean the column. The initial
conditions will be the final flow rate and composition which existed at the end of your method
program. You can ramp the flow rate down to 0
mL/min and create a solvent gradient that will
completely clean the column.
The Quit soft key brings you to the Select Menu
Item menu. This gives you access to the pump
setup parameters, the pump I/O parameters and
the method file. Press this key to verify or change
the value of any parameters in these sections.
Run Soft Key
It starts the program running. When this key is
pressed, the display changes. The figure in the top
left hand corner is the file number. The number in
parentheses is the loop number. If there is more than
one loop in your program, the present loop number
will be displayed here. The first time displayed is
the actual running time. The second time displayed
is the total running time for the method program.
When a program is written, the current values for
the six parameters Pump Head Size, Compressibility,
Refill time, Inlet Pressure, High Pressure Limit and
Low Pressure Limit are stored as part of the
method program.
4-35
4
Running a Method Program
Operation
When the file is being run again, if any of these
parameters has been changed, the following message will appear after Run has been pressed, Note!
Setup has changed since file creation Ok. Press
Ok. You can choose to keep the setup parameters
which were stored with the method program or
you can choose to keep the setup parameters which
exist currently. Press Yes to keep the setup parameters which existed when the file was created. Press
No to keep the current setup parameters. After
pressing one of these keys the pump will automatically start running the file.
If a program has a link to a file which has nothing
stored in it, the program will not start when Run is
pressed. The message Link file does not exist is
displayed and the alarm will sound.
After pressing Run, the bottom line of the display
changes to Roll/Menu/Pause.
• Pressing Roll will display in turn:
- current file/loop number/running time and
program time
- current file/loop number/current flow rate
- the % of solvent A
- the % of solvent B
- the % of solvent C
- the time that the 305 is waiting on an input
- the programmed injection volume
Pressing Roll once more brings you back to the
Run screen.
• The Menu soft key has the same function as
before.
The input Start/Stop has the
same effect as the End soft key
in the Program mode.
To terminate a program
completely and stop the flow,
you must press Stop followed
by End. If a method program
has terminated and the pumping system is still running,
press Cond followed by Stop.
4-36
• Press Pause to freeze the program. The pumps
will continue to run, keeping a constant flow rate
and composition. The pumps will stay in this
state until another key is pressed. When Pause is
pressed the screen changes to Stop/End/Cont.
- Stop will cause the pumps to stop. The method
file remains in the Pause state.
- End will cause the termination of the method
file without stopping the pumps. The pumps
will continue with the flow rate that existed
when the pumps were paused. The screen
returns to the Program mode Ready-to-Run
Screen.
- Cont will cause the program to continue from
the point where it was paused.
Operation
After a method program has finished, the display
returns to the Ready-to-Run screen.
Running a Method Program
During a method run, the setup parameters and
the method program can be modified. Modify a
parameter in the same way that you program it. If
the flow rate or composition is modified during a
run, the new value will take effect from the
instant it is programmed. If a flow rate is modified
while the pump is running, the new flow gradient
will be between the next programmed point and
the flow rate which existed at the instant the
modification was made.
4
4-37
4
Programming Examples
Operation
Programming Examples
Two example programs are given below. Before
running these example programs, ensure that the
hydraulic circuit is properly connected.
Example 1
In the example given in List 1, the flow rate will
start at 1 mL/min and increase to 4 mL/min after
2 minutes. The composition will be constant at
100% solvent A. An output will close at 0.00 minutes to start the integrator. The method will only
operate once and will not link to another file when
it is finished. Enter this program following the steps
given Program list 1.
Note that it is necessary to program a flow rate of
0 mL/min at the end of the program to stop the
flow, the flow does not automatically stop when
the program is finished. It will continue with the
last programmed flow rate. To stop the flow at 4.00
minutes you must program a flow rate of 4 mL/min
at 3.99 minutes and 0.00 mL/min. at 4.00 minutes.
Note on Programming Sheet
Appendix G contains a programming sheet which
can be copied. An example of how to use the
programming sheet is also given. The sequence you
should follow is:
• Fill in the File Number and name
• Fill in the SETUP parameters for your system
• Draw the flow rate and composition gradients on
the graphs provided, remembering to mark the
axes
• Fill in the table for Input/Output operations
• Write the programming steps. Finish one section
before going on to the next, i.e. program all of the
flow rate time points before going on to the
composition time points. The 305 software will
arrange all of the time points in the correct sequence.
After writing the method program, it is necessary
to write the programs for the safety/error files.
4-38
4
Operation
Programming Examples
Simple programs are given in list two and three for
the Low pressure error file and the High pressure
error file. In both programs, the flow rate is programmed to be 0 mL/min. This is a simple example
of an error file.
Enter these two error programs before running Example 1. After entering the two
pressure error programs, the system is ready
to run. Press Run. The display will look as
opposite. Press Roll to display in turn the
flow rate, %A, %B, %C, return to the run
screen. When the method program is finished, the Ready-to-Run screen is displayed.
Program List 1
Program List 2
Key to press Notes
Key to press Notes
Menu
File
1/ENTER
New/Edit
1/ ENTER
Menu
File
Select file 1
Go to file
1 Loop
None
Out
0/ ENTER
1/ENTER
No link at end of method
Program the output
At 0.00 minutes
Output # 1
Close
Add
Flow
0/ENTER
Close output # 1
Add the next timed event
Enter the flow rate
At 0.00 minutes
1/ENTER
Add
Flow
2/ENTER
Flowrate = 1mL/min.
Add the next timed event.
Enter the flow rate
At 2.00 minutes.
4/ENTER
End
Flowrate = 4mL/min
Finish writing method
Solvent A consumption: 5mL
Go to Ready-to-Run screen
Quit
11/ENTER
New/Edit
1/ENTER
None
Low pressure safety file
Go to file
1 Loop
No link to other files
Flow/ENTER
0/ENTER
0/ENTER
End
Enter the flow rate
At 0.00 minutes
Flow rate = 0mL/min
Finish writing safety file
Quit
Program List 3
Key to press Notes
Menu
File
12/ENTER
New/Edit
1/ENTER
High pressure safety file
Go to file
1 Loop
None
Flow/ENTER
0/ENTER
0/ENTER
No link to other files
Enter the flow rate
At 0.00 minutes
Flow rate = 0 mL/min
End
Quit
Finish writing safety file
4-39
4
Programming Examples
Operation
Example 2
The operation of the method in Example 2
will be as follows.
File # 4 contains the method program. The
flow rate remains constant throughout the
program. At 0.00 minutes the mobile phase
will have a constant flow rate of 3 mL/min
and a composition of 95% A, 5% B and 0%
C. The composition will change to 70% A,
30% B and 0% C in a time of 1 minute. The
composition will stay constant for 1
minute and then return to 95% A, 5% B
and 0% C in a time of 0.5 minutes. The
composition will remain at 5% B until 4.00
minutes. The program will loop and repeat
the same method 3 times and will then
link to File 5.
File 5 will contain a program to set the flow rate to
0 mL/min. The Low pressure and High pressure
safety files that were used in the first example can
also be used for this example. It is not necessary to
reprogram them.
Enter this program by following the steps given in
Program list 4 and 5.
The system is now ready to run. Press
Run.The display will look as opposite.
Press Roll to see the % of A and B changing.
After 2.5 minutes, the program will loop to
start the method a second time. The Loop
Number will change to 2.
At the end of three loops, the program will
link to File 5. File # 5 is displayed. At the
end of File # 5 the Display will go back to
File # 4. Note that in this program, File # 5
only lasts for a short time.
4-40
4
Operation
Program List 4
Program List 5
Key to press Notes
Key to press Notes
Menu
File
Menu
3/ENTER
New/Edit
3/ENTER
4/ENTER
File #
3
Flow
0/ENTER
3/ENTER
Add
Enter the flowrate
At 0.00 minutes
Flowrate = 3mL/min
Add the next timed event
Mixt
0/ENTER
5/ENTER
0/ENTER
Enter the composition
At 0.00 minutes
5% solvent B
0% solvent C
Add
Mixt
1/ENTER
30/ENTER
Add the next timed event
Enter the composition
At 1.00 minutes
30 % solvent B
0/ENTER
Add
Mixt
2/ENTER
0 % solvent C
Add the next timed event.
Enter the composition
At 2.00 minutes
30/ENTER
0/ENTER
Add
Mixt
2.5/ENTER
5/ENTER
0/ENTER
Add
Mixt
4.0/ENTER
5/ENTER
0/ENTER
End
30 % solvent B
0 % solvent C
Add the next timed event
Enter the composition
At 2.50 minutes
5 % solvent B
0 % solvent C
Add the text timed event
Enter the composition
At 4.00 minutes
5 % solvent B
0 % solvent C
Finish writing the method
program
3 Loops
Link to file # 4 when finished
File
4/ENTER
New/Edit
1/ENTER
1 Loop
None
Mixt
0/ENTER
0/ENTER
No link at end of file
Enter the composition
At 0.00 minutes
0 % solvent B
0/ENTER
Add
Flow
0/ENTER
0% solvent C
Add the next timed event
Enter the flowrate
At 0.00 minutes
0/ENTER
0mL/min
End
Finish writing the method
program
Go back to the Ready-to-Run
screen
Quit
Programming Examples
To improve on this basic program, add a wait for
input # 1 timed event at 0.00 min. This means that
the gradient will not start until it receives a signal
from another piece of equipment, for example a
sampler. Only after the sample has been injected
will the gradient start. Program a wait Input # 1 is
closed. To start the program with the wait programmed, connect Pin 1 to Pin 4 on the Input/Output
connector or press Cancel.
File # 4
Quit
4-41
Operation
4-42
4
Maintenance and Troubleshooting
5
The 305 pump has been designed to require a minimum level of care and
maintenance. In practice, maintenance is limited to cleaning and replacing parts of
the pump head.
5-1
5
Maintenance and Troubleshooting
Pump Head Maintenance
Pump Head Maintenance
The check valves and filters can be cleaned. Piston
seals, check valves, piston assemblies, anti-extrusion gaskets and return springs should be replaced
on a regular basis. A maintenance kit is available
for each model of pump head. For details about
maintenance kits and procedures, see the User’s
Guide for your pump head.
The time between each maintenance operation can be viewed
by using the Info soft key in the
Pump menu.
Time table for checking replacement parts according to the type of use.
Parts/Use
Intensive
(168 h/week)
Regular
(40 h/week)
Piston seal
2 - 3 months
6 - 9 months
Set of check valves
3 - 6 months
Piston assembly
6 - 12 months
2 - 3 years
5 years
Anti-extrusion gasket
6 - 12 months
2 - 3 years
5 years
2 - 3 years
5 years
Return spring
5-2
The use of equipment for continuous, unattended
operation is becoming more and more important.
For this reason, the following table gives an indication of replacement periods of maintenance parts
according to the type of use, intensive, regular or
occasional. The data in the table below assumes
that the pump is working at half of its maximum
flow rate and pressure. The nature of the liquid
and the pump head model have only a small
influence on these figures.
1 year
1 year
Occasional
(10h/week)
1 year
2 years
5
Maintenance and Troubleshooting
Electrical Problems
Problem
Possible cause
Solution
Pump does not operate and
power indicator does not light.
Power cord unplugged.
Fuse blown.
Incorrect voltage setting.
Check for power.
See ‘Electrical installation’ in
Chapter 3.
Slave pump does not operate.
GSIOC cable not connected
or incorrectly connected.
Check GSIOC cable is connected
correctly to the socket on the 305.
Incorrect GSIOC identity
number.
Check GSIOC identity number is set
correctly.
Message ‘Pump X missing’
Incorrect GSIOC identity
number set in pump X.
Set the GSIOC identity correctly.
Refer to Chapter 3.
Pressure reading does not
appear on display, or
Output signal from
manometric module or
adapter not connected.
Check the pressure signal output is
properly connected.
High pressure limit menu
does not appear.
Troubleshooting
Troubleshooting
The pressure signal must be
connected directly to the Master
pump, not to a slave.
Invalid settings flashing
Refill time is too long for
the flow rate programmed.
Lower the Refill time and flow rate.
Pump does not stop at end
of program.
Not programmed.
To stop the flow at the end of a
method program, you must program
a flow rate of 0 mL/min. With a
gradient system, you must program
a composition point and then a flow
rate of 0 mL/min.
5-3
5
Troubleshooting
Maintenance and Troubleshooting
Hydraulic problems
Problem
Possible cause
Solution
Leaks from the hole at the
bottom of the pump head.
Defective piston seal.
Replace piston seal. Refer to
User’s Guide for the pump head.
Low flow rate.
Leaks.
Check for leaks.
Plugged inlet filter.
Clean or replace the inlet filter.
Refer to User’s Guide for the pump
head.
Defective check valve.
Clean or replace the check valve.
Refer to User’s Guide for the pump
head.
Pump head not mounted
properly.
Check that the pump head is
properly mounted.
Loose connection of inlet
tubing.
Tighten the connection (but do inlet
not overtighten).
Worn flange of inlet tubing.
Replace the inlet tubing.
Inlet filter partly clogged.
Clean or replace the inlet filter.
Refill time is too long for the
solvent.
Decrease the refill time.
Loose connection of outlet
tubing.
Tighten the connection (but do not
overtighten).
Air bubbles appear in both
and outlet tubing.
Air bubbles appear only
in outlet tubing.
5-4
Accessory Parts List
Appendix A
Parts lists for the 305 Pump, consisting of Standard Accessories and Additional
Accessories.
Appendix A-1
Appendix A
Standard Accessory Parts List
Accessory Parts List
Standard Accessory Parts List
Reference
Qty
Description
3645388
638314512
1
1
SC type pump head clamp
Terminal block connector, 14 pin
36610101
6730204007
1
4
Double-ended wrench, 1/4"- 5/16"
Fuses 2.0 Amp type “T” slow blow (5 x 20 mm) for 100-120 V
7080316105
6730104006
1
4
Power cord for 100-120 V
Fuses 1.0 Amp type “T” slow blow (5 x 20 mm) for 220-240 V
7080316106
LT80152
1
1
Power cord for 220-240 V
Model 305 User’s Guide
Only one power cord and one set of fuses are supplied. The standard accessory package that you
receive will contain suitable parts for your voltage.
Appendix A-2
Accessory Parts List
Appendix A
Reference
Description
36078143
709910406
GSIOC cable
Four-wire electrical cable, 1.7 m length, for I/O connections.*
03434939
2105703
Mast clamp
Hex Mast, 3/4” x 16 mm
* Several units may be required according to the system configuration.
Additional Accessory Parts List
Additional Accessory Parts List
Appendix A-3
Accessory Parts List
Appendix A-4
Appendix A
GSIOC Control
Appendix B
This chapter explains how to control the 305 from a computer using Gilson HPLC
system controller software.
Appendix B-1
Appendix B
GSIOC Control
GSIOC Features
GSIOC Features
GSIOC stands for Gilson Serial Input Output
Channel. This communications channel links all of
the Gilson modules in a system together. The system
controller controls all of the modules in a system by
sending GSIOC commands to the slave modules, for
example pumps or detectors. Each device connected
to the GSIOC channel is distinguished by a GSIOC
identity number between 0 and 63. The GSIOC
identity number is set by switches inside each
module or by the module’s software. The controller
communicates with one slave device at a time. The
hardware and software requirements to control a
module from a computer using the GSIOC are as
follows:
• A PC running under Windows® 95, 98, NT, or
higher.
• A Gilson interface module, 506C.
• A Gilson HPLC system controller software package.
To get started you must:
For more details consult the
documentation that accompanies the Gilson software.
• Install the Gilson HPLC system controller software
on the computer.
• Connect the computer to the Gilson interface
using the cable provided with the interface.
• Connect the output from the interface to the
Gilson module using a GSIOC cable.
• Start the Gilson HPLC system controller software.
RS232C cable
GSIOC cable
506C
GSIOC slave
GSIOC slave
Computer
Appendix B-2
Gilson RS232C/GSIOC interface
Slave Devices
Appendix B
GSIOC Control
GSIOC Commands
GSIOC Commands
The GSIOC commands can be used to control
Gilson modules directly from a computer or from a
Gilson HPLC system controller software package.
The use of the GSIOC commands is completely
detailed in the 305 technical manual.
305 Commands
Specific 305 GSIOC commands
consider the pump as a set of peripheral devices which can be either
processed by the internal software,
or by the GSIOC bus. There are two
device types: input devices and
output devices.
Command Type
- 305 input devices are: the Keypad,
Contact Inputs, and the Pressure
Input.
- 305 output devices are: the Upper
Line of Display, the Lower Line of
Display, and Contact Outputs.
All commands are detailed below
with their type, mode and function.
Immediate commands have their
response format described. Buffered
command parameters are
documented. Comments are added
where necessary.
%
$
I
I
i
J
J
j
K
K
L
I
I
B
I
B
B
I
I
B
I
I
P
Q
Q
W
W
w
B
B
I
B
I
I
Function
Request Pump Identification
Master Reset
Write Contact Inputs
Read Contact Inputs
Read Contact Input Buffers
Write Contact Outputs
Read Contact Outputs
Read Contact Output Buffers
Remote Keystrokes
Read Key Entry
Request Manometric Module
Identification
Pulse Contact Outputs
Enter Pressure Value
Read Pressure Value
Write Display
Read Display
Read Display Buffer
Immediate %
Request Module Identification
Response format: “305 Va.bc” where
Va.bc
is the software version.
Immediate $
Master Reset
Response format: $ is echoed.
Buffered I
Write Contact Inputs
Syntax: Iabcd where
a is the START/STOP input,
b the PAUSE input,
c the IN#1 input, and
d the IN#2 input.
Parameters:
“C” for closed
“D” for open, “X” for state unchanged,
“-” for reconnected to internal software
Command example: “I-XCD” to reconnect START/STOP to the internal
software, leave PAUSE as it is, close IN#1, and open IN#2.
Appendix B-3
GSIOC Commands
GSIOC Control
Appendix B
Immediate I
Read Contact Inputs
Response format: “abcd” where
a is the START/STOP input,
b is the PAUSE input,
c is the IN#1 input and
d is the IN#2 input.
For each input:
“C” if closed and disconnected from software,
“c” if closed and disconnect from software,
“D” if open and connected to software,
“d” if open and disconnected from software.
Response example: “DDCD” for IN#1 shorted to ground and all inputs
connected to the internal software.
Immediate i
Read Contact Inputs Buffers
Response format: “abcd” where
a is the START/STOP input,
b is the PAUSE input,
c is the IN#1 input and
d is the IN#2 input.
For each input:
“C” if closed and disconnected from software,
“c” if closed and disconnected from software,
“D” if open and connected to software,
“d” if open and disconnected from software.
Response example: “DcCD” for PAUSE activated and disconnected from the
software, and other inputs connected to the software with IN#1 shorted to ground.
Buffered J
Write Contact Outputs
Syntax: Jabcde where
a is the OUT #1 relay,
b is the OUT #2 relay,
c is the OUT #3 relay,
d is the HIGH pressure limit relay,
e is the LOW pressure limit relay.
Parameters:
“C” for connected to ground
“D” for open
“P” for pulse (output state reversed, see comment)
“X” for state unchanged
“-” for reconnected to internal software.
Command example: “JPDXXX” to pulse OUT #1 and open OUT #2.
Comment: the “P” parameter is valid only for programmable outputs abc.
The pulse duration is defined by the P command. At the power ON, the
default pulse duration is 600 milliseconds.
Immediate J
Read Contact Output
Response format: “abcde” where
a is the OUT #1 relay,
b is the OUT #2 relay,
c is the OUT #3 relay,
d is the HIGH pressure limit output,
e is the LOW pressure limit output.
For each input:
“C” if closed and connected to software,
“c” if closed and disconnected from software,
“D” if open and connected to software,
“d” if open and disconnected from software.
Response example: “DDDDD” for all relays open and outputs connected to
the internal software.
Appendix B-4
GSIOC Control
Appendix B
Read Contact Output Buffers
Response format: “abcde” where
a is the OUT #1 buffer,
b is the OUT #2 buffer,
c is the OUT #3 buffer,
d is the HIGH pressure limit buffer,
e is the LOW pressure limit buffer.
For each input:
“C” if closed and connected to software,
“c” if closed and disconnected from software,
“D” if open and connected to software,
“d” if open and disconnected from software.
Response example: “DDDDD” for all relays open and outputs connected
to the internal software.
Buffered K
Input Remote Keystrokes
Syntax: Kcodes, up to 30 codes per command.
Parameters: ASCII codes, as follows:
Command example: “Kdea 1 Ee” to start
flowing 1 mL/min.
Key Name
GSIOC Commands
Immediate j
Dec Hex Code
SOFT #1
97
SOFT #2
98
SOFT #3
99
SOFT #4
100
SOFT #5
101
PRIME
80
HELP
72
CANCEL
67
DEC. POINT 46
ENTER
69
ZERO
48
ONE
49
TWO
0
THREE
51
FOUR
52
FIVE
53
SIX
54
SEVEN
55
EIGHT
56
NINE
57
61
62
63
64
65
50
48
43
2E
45
30
31
32
33
34
35
36
37
38
39
“a”
“b”
“c”
“d”
“e”
“P”
“H”
“C”
“.”
“E”
“0”
“1”
“2”
“3”
“4”
“5”
“6”
“7”
“8”
“9”
Immediate K
Read Key Entry
Response format: “x..xx”, where
x..xx is an ASCII string, 1 up to 7 characters long, encoding the keys
pressed. See table above.
Response example: “1Ee”.
Comment: if no key pressed, or if the keyboard has not been locked by
buffered K or L commands, the null ASCII character is returned.
Reading clears the buffer.
Immediate L
Request Manometric Module Identification
Response format: 4-character alphanumeric string.
Response example: “M805”.
Comment: if no manometric module present, “None” is returned.
Buffered P
Pulse Contact Outputs
Syntax: Pnt
Parameter: n is the output number (1-3) and t is the pulse duration in
tenths of a second (0-32767). If t is omitted, the last entered time is used. If
t equals zero, the pulse is ignored. The previous pulse will also be ignored
if t = zero.
Command example: “P210” to pulse OUT #2 for 1 second.
Comment: the pulse consists of reversing the output state for the time
specified. The default duration after switching the power ON or after a master
reset is 0.6 second. This pulse duration is used by the bufferd J command.
Appendix B-5
Appendix B
GSIOC Commands
GSIOC Control
Buffered Q
Enter Pressure Value
Syntax: “QBxx.x” in bars, “QPx.xx” in MPa, or “QKxx.x” in kpsi.
Parameter: if xxx is omitted, the pressure value is read from the
manometric module and the pressure unit is selected for the immediate Q
command.
Command example: “QP1.23” for 1.23 MPa.
Comment: this command does not affect the pressure unit on the display.
Immediate Q
Read Pressure Value
Response format: as above, in the pressure unit used by the last Q
buffered command. The default selection is in bars.
Response example: “B321” for 321 bars.
Comment: if no manometric module present, “N” is returned.
Buffered W
Write Display
Syntax: “WO = x..xx” for upper line, “W1 = x..xx” for lower line.
Parameter: x..xx is a 24-character long alphanumeric string. All 7-bit ASCII
characters are valid. Note that characters shown on the Japanese-made
display unit may differ from characters sent by a micro-computer (if used
as a master controller).
Immediate W
Read Display
Response format: “W0 =” (upper line) or “W1 =” (lower line) plus 24character alphanumeric string.
Response example: “W0 = Flow rate 1.000 mL/min”.
Comment: the first line to be returned is the last entered by the buffered W
write command. If the write command has not been used, the upper line of
display is read at the first occurence of the read command. The other line
is read at the second one. And so on.
Immediate w
Read Display Buffers
Response format: as above.
Comment: reading mechanism same as above. The response is the image
of the related display line from the buffer. This is also the message which
will be restored to the display after a partial (W0/W1) or total (W) command.
Identification Number
Slave Pump
ID Number
Pump B
Pump C
Injection Pump (D)
2
3
4
The Model 305 identification number is factory set
to 1. In a multi-pump configuration, it is necessary
to change the addresses of the slave pumps
according to the opposite table.
To change the GSIOC ID number, turn the power
ON. Press <Menu>, <I/O>, then <Prev>. The
display comes “GSIOC Unit ID: 1”. Key in the
desired number (from 2 to 4) and confirm by
hitting <Enter>, then <Quit>.
If a Model 302 or 303 pump is used as a slave
pump, its ID number must also be changed by
setting DIP switches on the Thumbwheel PC
Board. See the related User’s Guide on how to set
ID number.
Appendix B-6
Appendix B
GSIOC Control
GSIOC Commands
Identification of the master pump (pump A) is not
critical. However, if a Model 305 is used with a
computer-based Gilson system, its ID number must
be cleaned in the Setup menu of the software
package (Model 704, 712, 714 or 715).
Command Examples
Example 1: GSIOC Command - Zeroing the
Manometric Module
In order to zero the Manometric Module when
controlling the 305 from a computer-based system
controller, stop all pumps, or pause without flow.
This ensures no actual pressure inside the
Manometric Module. The following GSIOC
commands must be entered:
Send the zeroing K buffered command string. From
the ready-to-run menu, this command string is
made up of: Kdbbce.
This mimics the following key entry sequence:
<Menu>, <I/O>, <Prev>, <Zero>, and <Quit>.
This command can be sent before the run by using
the “GSIOC Control” option of the “Manual”
menu. It can also be added to the method as a
GSIOC event (“Edit” menu, “GSIOC Events” or
“Gilson Instruments” option).
Example 2:
To write “HELLO” on the
upper line of the display
and “My name is Model
305” on the lower line.
Command
Comment
(B) W0 = HELLO
Write on upper line of display
(B) W1 = My name is Model 305 Write on lower line of display
Example 3:
To remote read the
display.
The use of the lowercase
w immediate command
allows you to read
messages displayed
before the use of the W
buffered write command.
Command Response
Comment
(I) W
W1 = My name is Model 305 Read last entered line
(I) W
W0 = HELLO
Read the other line
Command Response
Comment
(I) w
W1 =
Menu Run
(I) w
W0 =
Flow rate 1.000 mL/min
Appendix B-7
Appendix B
GSIOC Commands
GSIOC Control
Example 4: to restore display messages
Command
Comment
(B) W0
Reconnect upper line to software.
(B) W1
Reconnect lower line to software.
This sequence sends “reconnect”
commands to the internal software
for the two related output devices.
Original messages are restored. In the
case where a separate access to the
two lines of the display is not required,
the same action is performed by a
single command as above.
Example 5: to select the flow mode, and start
pumping at 1 mL/min.
Command
Comment
(B) W
Reconnect both lines to software.
(B) W1
Reconnect lower line to software.
Command
Comment
(B) Kdea 1Ee Mimic key entries
(B) K
Appendix B-8
Reconnect keyboard to software.
Codes sent correspond to the
following key sequence: <Menu>
<Mode> <Flow> <1> <Enter> <Run>.
The reconnect command is necessary
if a direct access to keyboard keys is
required.
Twin-pump Systems
Appendix C
In each of the systems outlined in this manual there is a maximum of four pumps. The
signals from the controller to the pumps are carried on a communications channel
called the Gilson Serial Input Output Channel, or GSIOC for short. For a single pumping system, all of the pumps are connected in parallel and the controller distinguishes
between any two pumps by a GSIOC identity number which you enter in the software.
Each pump must have a different GSIOC identity number.
If we connect the pumps as shown in the following drawings, we have in effect two or
more parallel pumping systems. The same commands will go to each pump associated
with the same solvent, i.e. pumps A, and A’ will receive the same commands. Pump B
and B’ will receive the same commands etc. Each associated pump will operate in
exactly the same way, one being a mirror image of the other. In this way, we can create
two identical, parallel liquid streams with one controller. The hydraulic outlet tubing
can then be connected together to increase the overall flow rate. Theoretically there is
no limit to the number of pumps that can be connected in parallel, but effectively a
twin system with two liquid streams is the most practical. The advantage of this
arrangement is to be able to use a smaller head and hence work at a higher pressure.
For example, two 25SC heads could be used in parallel to obtain a flow rate of 50
mL/min. The maximum operating pressure would then be 28 MPa instead of a maximum of 14 MPa with a single 50SC head.
The actual flow rate of the combined pumps is the value programmed in the controller
multiplied by the number of pumps in parallel.
Appendix C-1
Appendix C
Twin-pump Systems
Two Possible Cases
Two Possible Cases:
- A system of mirror pumps controlled by a 305
Master pump.
- A system of mirror pumps controlled by a computer and a Gilson System Controller software.
When using a computer with a HPLC System
Controller software, the identity numbers for the
pumps can be chosen between 0 and 63.
305
305
305
305
pump A
1
M S
pump B
2
M S
pump C
3
M S
pump D
4
M S
pump A'
1
S
pump B'
2
S
306
306
pump C'
3
S
306
pump D'
4
S
306
When using a 305 as a master, the following identity numbers must be used.
-
306s
M
pump A
Computer
with 712
or 714
software
506/621
Interface
S
S
M
S
pump B'
M
S
pump C'
M
S
pump D'
pump C
S
pump D
M represents the GSIOC to
SLAVE socket.
S represents the GSIOC FROM
CONTROLLER socket.
Appendix C-2
S
pump A'
pump B
1
2
3
4
The requirements for a parallel
system are:
305s
S
Pumps A
Pumps B
Pumps C
Pumps Inj
- All pumps must be Model 305 or
306.
- Each pump in parallel, (A + A’, B
+ B’, etc...), must have the same
headsize.
- Each pump in parallel must have
the same GSIOC identity number,
e.g. A and A’ pumps must be 1.
Diagrams of the electrical connections for the GSIOC cables are
given in the opposite figures.
Reference Informations
Appendix D
This chapter contains Table of Solvent Miscibility, Liquid Compressibility Values and
Flow Rate Accuracy Principle.
Appendix D-1
Solvent Miscibility Table
Reference Informations
Appendix D
Solvent Miscibility Table
Miscibility means that solvents should mix with each
other in all proportions. That solvents should be
miscible is important both during elution and when
switching from one solvent to another. You are
advised to refer to the table, below, when selecting
solvents. For some solvents, lower toxicity
alternatives are indicated [(1), (2), (3)], as follows:
ACETIC ACID
ACETONE
ACETONITRILE
BUTYL ALCOHOL
CHLOROFORM (1)
CYCLOHEXANE
DICHLOROETHANE (1)
DICHLOROMETHANE
DIMETHYLFORMAMIDE
DIMETHYL SULFOXIDE
DIOXAN (2)
ETHYLACETATE
ETHANOL
DI-ETHYLETHER
HEPTANE
HEXANE
METHANOL (3)
METHYLETHYL KETONE
I-OCTANE
PENTANE
ISOPROPANOL
DI-PROPYLETHER
TETRAHYDROFURAN
TOLUENE
WATER
XYLENE
MISCIBLE
IMMISCIBLE
Appendix D-2
(1) Dichloromethane
(2) Tetrahydrofuran
(3) Ethanol
Appendix D
Reference Informations
Bibliography Data
The values of isothermal
compressibility given below
can be used for the
Compressibility value in the
pump setup menu. These
values are given under
athmospheric pressure (X0)
and are expressed in Mbar-1.
The opposite table refers to
Handbook of Chemistry and
Physics, CRC Press, 60th Ed.
(1979).
Liquid
Temperature Compressibility
(°C)
(Mbar-1)
Water
20
25
30
40
40
46
46
45
45
44
Benzene
20
25
30
40
94-95
96-97
101-103
110
Chloroform
20
25
30
40
97-101
97
108-110
118-119
Methylene chloride
25
97
Carbon tetrachloride
20
25
30
40
103-105
106-108
112-113
120-122
Ethanol
20
25
30
40
110-112
114-116
118-119
126-127
Acetone
20
25
30
40
123-127
124
133
144-156
Methanol
20
25
30
40
121-123
125-127
129-130
138
n-Heptane
20
25
30
40
140-145
142-149
150-155
160
n-Hexane
20
25
30
40
150-165
161-171
165-180
183
Diethyl ether
20
25
30
184-187
195-200
208-209
Liquid Compressibility Values
Liquid Compressibility Values
Appendix D-3
Appendix D
Liquid Compressibility Values
Reference Informations
Other Data
Liquid
Compressibility
(Mbar-1)
Acetonitrile
99
Tetrahydrofuran
93
Water-methanol,
“
“
“
“
“
10-90 (v-v)
20-80 “
40-60 “
50-60 “
60-40 “
80-20 “
117
86
56
52
46
40
For other liquids currently used at
ambient temperatures (20-25 °C), the
following data is given. This data is a
result of experiments done using the 305
pump, the figures are not presented as
physical constants of scientific value.
If no data is available in this chapter for
the liquid you use, and if you wish an
accuracy error within the specifications,
you can experimentally determine a
value to reach this goal.
To do so, use a trial-and-error empirical method.
Select the initial value for Liquid Compressibility
according the following guidelines:
- For an organic solvent, take a value given for the
same, or similar, chemical family.
- For a mixture, including salt aqueous solutions,
take the value of the dominant solvent.
Pump your liquid under high pressure to obtain a
significant error, preferably use a gravimetric
method if you know the density of the liquid.
Then, with a few successive approximations, adjust
the Liquid Compressibility value by assuming a
linear relationship between this parameter and the
resulting error.
Appendix D-4
Reference Informations
To generate the selected flow rate with high accuracy,
maintained under high pressure and for a variety of
liquids, the 305 software adds to complementary
corrections to the basic “piston flow rate”. Defined
from the piston stroke volume only, the piston flow
rate is theoretically accurate at athmospheric pressure only.
The objective flow rate, F, is considered as the sum
of three components:
F = F0 + F1 + F2
F0, the piston flow rate decreases when pressure
increases;
F1, the compensation flow rate for the liquid compressibility, increases with pressure;
F2, the compensation flow rate for all others factors,
also increases with pressure.
Flow Rate Accuracy Principle
Flow Rate Accuracy Principle
Appendix D
The piston flow rate, F0, is defined by:
F0 = N0 VS
with N0, number of piston cycles per unit time; and
VS, piston stroke volume.
The compensation flow rate for the liquid compressibility, F1, is calculated as a function of five variables:
F1 = f1 (F0, VS, VD, P, X)
where VD is the volume of the dead space inside the
compression chamber; P, the operating pressure;
and X, the compressibility of the liquid under the
pressure P.
In the 305 software, X is calculated using the simplified Tait equation:
X= c
P+d
Coeeficient c varies only slightly with the nature of
the liquid. It is a constant included in the software.
Coefficient d is calculated from the Liquid Compressibility at athmospheric pressure, X0 (for P = 0),
entered by the user as a “set-up” parameter. Values
of X0 for some common solvents are tabulated in
the previous page.
Operating pressure, P, is continuously transmitted
to the pump by the Manometric Module (pressure
feedback).
Appendix D-5
Flow Rate Accuracy Principle
Reference Informations
Appendix D-6
Appendix D
The complementary compensation flow rate for all
other factors, F2, is defined as the difference:
F2 = F (F0 + F1)
It was measured and the experimental results were
expressed using a simple function of operating
pressure P:
F2 = f2 (a, b, P)
Coefficients a and b were determined for each pump
head. They are manufacturing constants attached to
the parameter Head Size, a second ‘Setup’ parameter
entered by the user.
All of these factors taken together allow the 305 to
deliver a highly accurate flow rate, independent of
the pump head size, type of liquid and pressure.
305 Programming Sheet
Appendix E
The programming sheets provided on the next pages should be properly filled out
prior to programming the pump.
This wil ensure that the parameters are entered correctly, and will enable you to
quickly cross check them when required.
Appendix E-1
Appendix E
305 Programming Sheet
File Number
Composition and Flow
Method Name
Set Up Parameters
Pressure: High limit =
Low limit =
Number of pumps =
Loops =
Pump
Model
Solvent
Units:
%B
Link file =
I.D Refill
Comp
Head size
Time (min)
A
B
C
Inj.
%C
I/O Operations
Contact
State
Function
Time (min)
mL/min
Time
Time (min)
Set Up Parameters
Step No Time
Event Operation
Step No Time
1
13
2
14
3
15
4
16
5
17
6
18
7
19
8
20
9
21
10
22
11
23
12
24
Appendix E-2
Event Operation
305 Programming Sheet
Appendix E
Example
Appendix E-3
305 Programming Sheet
Appendix E-4
Appendix E
Technical Data
Appendix F
The following information presents construction and operational characteristics for
Gilson 305 Pumps.
Appendix F-1
Appendix F
Type of Pump
Technical Data
Appendix F-2
Type of Pump
Programmable reciprocating pump with singlepiston interchangeable head, constant stroke, and
special fast-refill motion.
Appendix F
Technical Data
Working Range, Pump Heads and
associated Manometric Modules
A complete Gilson liquid delivery system includes up
to four pumping modules with appropriate heads, a
manometric module and a mixer for gradient
elution.
Pump
head
(model)
5SC
10SC
10WSC
10WTi
25WTi
25SC
50SC
100SC
200WTi
Flow rate
range*
(mL/min)
0.010 0.050 0.050 0.050 0.125 0.125 0.250 0.500 1.000 -
5
10
10
10
25
25
50
100
200
Pressure
range*
(MPa)
0.1 0.1 0.1 0.1 0.1 0.1 0.5 0.5 0.5 -
60
60
60
60
28
28
14
7
3.5
Manometric
module
(model)
805
805
805
805
806
806
806
807
807
SC:Standard self-centering piston.
Ti: Titanium liquid contact-parts.
W: Washing compartment for
salt-concentrated solutions
(> 0.1M).
*: Minimum values for the flow
rate and pressure are not
absolute limits, they are
indicated to obtain specifified
precision and accuracy.
Flow rate is adjustable down
to 0.01 % of the maximum
flow rate.
Working Range & Performance Data
Working Range & Performance Data
Adjustable Parameters
Liquid compressibility, refill time and inlet pressure.
Compressibility from 0 to 2000 Mbar -1, refill time from
125 to 1000 ms and inlet pressure from 0 to 10 MPa.
Residual Pulsations
Typically less than 1 %.
Flow Rate Precision and Accuracy at
20°C over full working range
Coefficient of Variation
0.1 to 0.6% with aqueous solutions or hydro-organic
polar solvent mixtures and 0.3 to 1% with
hydrocarbons or chlorinated volatile solvents.
Maximum Accuracy Error
±1% with water over the full flow rate and pressure
ranges.
Appendix F-3
Appendix F
Technical Data
Working Range & Performance Data
Liquid-contact Materials
316L stainless steel, titanium, sapphire/ceramic,
ruby, PCTFE, PEEK, PTFE/HDPE.
Binary Gradient Systems (two-solvent
composition programming)
Mean Accuracy Error
< ± 3 % determinated in the range 0 - 10 % by 1 %
steps and in the range 0 - 100 % by 10 % steps.
Deviation from Linearity
< ± 1 %.
Repeatability
< 1 % maximum imprecision for any composition.
Repeatability of gradient HPLC analysis (ICI test F
for liquid chromatographs):
< 0.2 % for retention times, and < 0.7 % for peaks areas.
Composition
Total flow rate
(% of solvent B)
(% of maximum)
1 - 99
2 - 98
5 - 95
10 - 90
100 - 50
50 - 25
25 - 10
10 - 5
These specifications are valid for any model of
the 305 technology in the following conditions :
liquids of known compressibility, pumped at
ambient temperatures (20-25 °C), in the entire
pressure range, with any pair of identical pump
heads operating within the ranges indicated
hereafter.
Total Delay Volume (ASTM E-19.09.07)
1.2 mL dynamic mixing chamber, in-line filter (0.5 µm,
0.4 mL) and 0.5 x 500 mm tubing.
Effective Mixing Volume (ASTM E-19.09.07)
1.1 mL in the same conditions as above.
Appendix F-4
Technical Data
Operation Modes
Constant flow rate (Flow), constant volume
(Dispense), and timed-based sequence (Program) for
up to four Gilson pumps controlled either by one
305 acting as a Master 305, or by an external
computer.
Control and Interfaces
Control and Interfaces
Appendix F
Programmable Parameters
Solvent composition points for high pressure mixing
of 3 solvents from 3 pumps.
Flow rate points that can be superimposed over
gradient composition profile.
Timed events for programming 3 output contact
closures, 1 input and 1 injection pump.
Time, adjustable from 10-2 to 104 min, with
increments from 0.001 to 1 min depending on the
range used.
Flow control, adjustable from 0.01 % to 100 % of the
maximum flow rate of the pump head being used.
Possibility to program 999 loops with unlimited
linking of files.
Storage for 10 user programs and 4 error files with a
maximum of 25 points and timed events in each
program.
Dispense Mode
The dispensed volume is fully adjustable, in mL,
between 10-4 and 100 mL multiplied by the model
number of the pump head. The same range is available
for the injection pump in the program mode.
User Interface
2-line, 48-character LCD display.
Front panel keypad.
Built-in help messages.
Appendix F-5
Appendix F
Control and Interfaces
Technical Data
Appendix F-6
Electrical Interface
4 inputs, 3 programmable outputs.
Digital Interface
Gilson Serial Input/Output Channel.
The pump can act as master or slave.
Technical Data
Storage
Indoor use only.
Installation : Category II.
Altitude: Up to 2000 m.
Temperature range: 4 - 40 °C.
Pollution degree 2.
Environmental Conditions
Environmental Conditions
Appendix F
Humidity: Up to 80 %.
Power Requirements
Frequency: 50 to 60 Hz.
Voltage: 100 to 240 Vac.
Power rating: 110 VA.
Size and Weight
Size (W x D x H): 330 x 330 x 150 mm.
Weight: 10 kg (22 lb).
Appendix F-7
Technical Data
Appendix F-8
Appendix F
