Weslo Cadence 60 Se Treadmill User manual

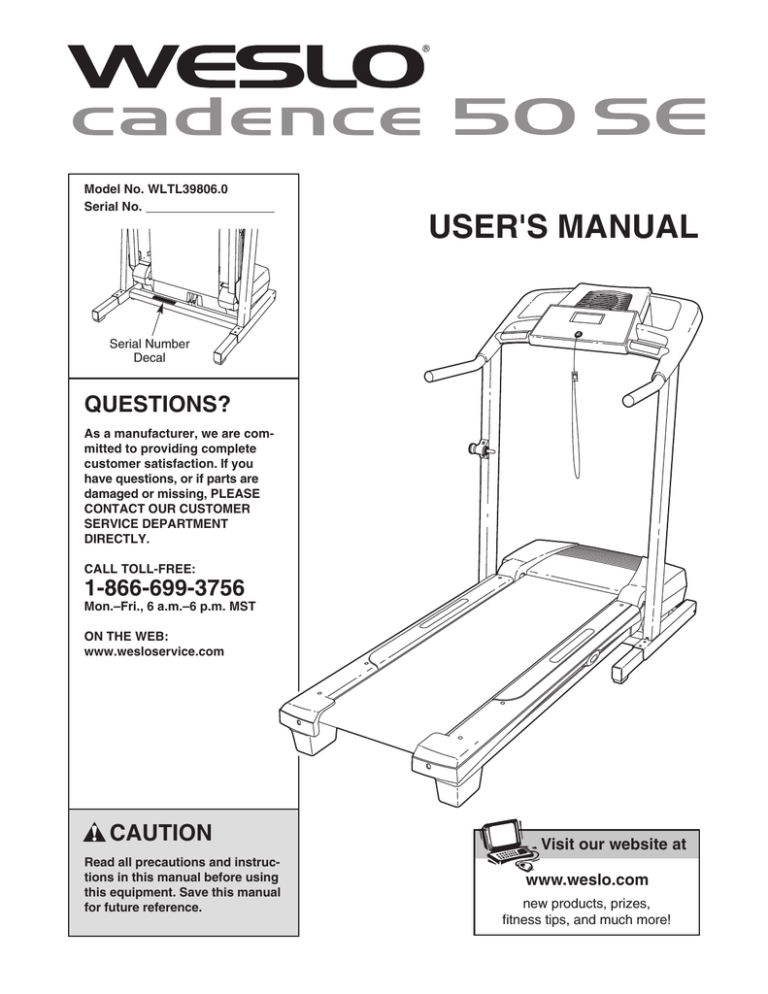

Model No. WLTL39806.0 Serial No. USER'S MANUAL Serial Number Decal QUESTIONS? As a manufacturer, we are committed to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT DIRECTLY. CALL TOLL-FREE: 1-866-699-3756 Mon.–Fri., 6 a.m.–6 p.m. MST ON THE WEB: www.wesloservice.com CAUTION Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference. Visit our website at www.weslo.com new products, prizes, fitness tips, and much more! TABLE OF CONTENTS IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover WESLO is a registered trademark of ICON IP, Inc. 2 IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill. manual and order part number 146148, or see your local electronics store. 1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions. 12. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed, accelerate, or stop unexpectedly, which may result in a fall and serious injury. 2. Use the treadmill only as described. 3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill. 13. Keep the power cord and the surge suppressor away from heated surfaces. 4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water. 14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See TROUBLESHOOTING on page 19 if the treadmill is not working properly.) 5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered. 15. Read, understand, and test the emergency stop procedure before using the treadmill (see HOW TO TURN ON THE POWER on page 13). 6. Keep children under the age of 12 and pets away from the treadmill at all times. 7. The treadmill should be used only by persons weighing 275 pounds or less. 16. Never start the treadmill while you are standing on the walking belt. Always hold the handrails while using the treadmill. 8. Never allow more than one person on the treadmill at a time. 17. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed. 9. Wear appropriate exercise clothes while using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals. 18. The pulse sensor is not a medical device. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general. 10. When connecting the power cord (see page 11), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord. 19. Never leave the treadmill unattended while it is running. Always remove the key and unplug the power cord when the treadmill is not in use. 20. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 6, and HOW TO FOLD AND MOVE THE TREADMILL on page 17.) You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill. 11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 11. To purchase a surge suppressor, see your local WESLO dealer or call the toll-free telephone number on the front cover of this 3 21. When folding or moving the treadmill, make sure that the storage latch is fully closed. tenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only. 22. Inspect and properly tighten all parts of the treadmill regularly. 23. Never insert any object into any opening. 24. DANGER: Always unplug the power 25. This treadmill is intended for in-home use only. Do not use this treadmill in a commercial, rental, or institutional setting. cord immediately after use, before cleaning the treadmill, and before performing the main- WARNING: Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product. SAVE THESE INSTRUCTIONS The decals shown here have been placed on the treadmill. If a decal is missing, or if it is not legible, call the toll-free telephone number on the front cover of this manual and order a free replacement decal. Apply the decal in the location shown. Note: The decals are not shown at actual size. 4 BEFORE YOU BEGIN Thank you for selecting the new WESLO® Cadence 50 SE treadmill. The Cadence 50 SE treadmill combines advanced technology with innovative design to help you get the most from your exercise in the convenience of your home. And when you’re not exercising, the Cadence 50 SE treadmill can be folded up, requiring less than half the floor space of other treadmills. number and serial number before calling. The model number of the treadmill is WLTL39806.0. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location). To avoid a registration fee for any service needed under warranty, you must register the treadmill at www.wesloservice.com/registration. For your benefit, read this manual carefully before using the treadmill. If you have questions after reading this manual, please see the front cover of this manual. To help us assist you, note the product model Before reading further, please review the drawing below and familiarize yourself with the labeled parts. Fan Accessory Tray Console Key/Clip Handrail Storage Latch Upright Reset/Off Circuit Breaker Walking Belt Power Cord Foot Rail Cushioned Walking Platform for maximum exercise comfort BACK RIGHT SIDE Rear Roller Adjustment Bolts 5 ASSEMBLY To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480. Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner. Assembly requires the included hex keys mallet , adjustable wrench and your own phillips screwdriver , and needlenose pliers , rubber . For help identifying the assembly hardware, see the drawings below. If a part is not in the parts bag, check to see if it has been pre-assembled. To avoid damaging plastic parts, do not use power tools for assembly. 1/2" Screw (48)–2 Silver Ground Screw (75)–1 3/4" Screw (2)–7 Nut (13)–2 1" Upright Bolt (76)–2 1" Tek Screw (39)–8 5/16" Star Washer (95)–8 Wheel Bolt (64)–2 3" Upright Bolt (21)–2 Handrail Bolt (37)–4 1. Make sure that the power cord is unplugged. 1 Tie With the help of a second person, carefully tip the treadmill onto its left side as shown. Partially fold the Frame (86) so the treadmill is more stable. Do not fully fold the treadmill until it is completely assembled. See the inset drawing. Make sure that there are two UNuts (99) in the lower end of each Upright (7, 90). Identify the Right Upright (90) with the sticker. Hold the Right Upright near the right side of the Upright Base (69), with the Right Upright turned as shown. Feed the colored tie and Upright Wire (42) into the lower end of the Right Upright and out of the upper end. If necessary, use needlenose pliers to pull the colored tie out the upper end . Pull on the end of the Upright Wire (42) to remove any slack as you hold the Right Upright (90) against the Upright Base (69); be careful not to pinch the Upright Wire. Start a 3" Upright Bolt (21) and a 1" Upright Bolt (76) with 5/16" Star Washers (95) into the Upright Base and the Right Upright as shown. Do not tighten the Bolts yet. 6 90 42 69 42 21 95 76 86 7, 90 99 2. Attach two Round Base Pads (57) and an Extension Leg Pad (61) to the Upright Base (69) and Extension Leg (63) with four 1" Tek Screws (39) as shown. 2 57 69 63 39 39 61 3. Attach a Wheel (66) to the Upright Base (69) with a Wheel Bolt (64) and a Nut (13) as shown. Do not overtighten the Wheel Bolt; the Wheel should turn freely. 39 3 64 66 69 With the help of a second person, carefully tip the treadmill onto its other side. 13 4. Partially fold the Frame (86) so the treadmill is more stable. Do not fully fold the treadmill until it is completely assembled. 4 7 69 Hold the Left Upright (7) against the Upright Base (69). Start a 3" Upright Bolt (21) and a 1" Upright Bolt (76) with 5/16" Star Washers (95) into the Upright Base and the Left Upright as shown. Do not tighten the Bolts yet. 21 76 95 86 7 5. Attach two Round Base Pads (57) and an Extension Leg Pad (61) to the Upright Base (69) and Extension Leg (63) with four 1" Tek Screws (39) as shown. 5 69 57 63 39 39 39 6. Attach a Wheel (66) to the Upright Base (69) with a Wheel Bolt (64) and a Nut (13) as shown. Do not overtighten the Wheel Bolt; the Wheel should turn freely. 61 6 64 66 69 With the help of a second person, carefully tip the treadmill up so the Round Base Pads (57) are on the floor. 57 13 7. Identify the Right Handrail (72), which has a large hole in the left side. Feed the Upright Wire (42) into the hole in the bottom of the Right Handrail and out of the large hole in the side. Note: It may be helpful to use needlenose pliers to pull the colored wire and Upright Wire out of the hole. Then, attach the Right Handrail (72) to the Right Upright (90) with two Handrail Bolts (37) and two 5/16" Star Washers (95). Attach the Left Handrail (71) to the Left Upright (7) in the same way. Note: There is not a wire on the left side. 7 37 71 Large 42 Hole 95 7 37 95 72 90 Remove the colored tie from the Upright Wire (42). 8 8. With the help of a second person, hold the Console Base (47) near the Left Handrail (71). Attach the end of the ground wire to the indicated small hole in the Left Handrail with the Silver Ground Screw (75). 8 Ground Wire 47 Small Hole 75 71 9. Touch the Right Handrail (72) to discharge any static. Slide the sleeve off the connector on the Upright Wire (42) as shown in the inset drawing. Next, press the end of the Upright Wire into the socket in the bottom of the Console Base (47). The connector should slide easily into the socket and snap into place. If the connector does not slide easily and snap into place, turn the connector and then insert it. Then, slide the sleeve back over the connector. 9 72 42 Sleeve 47 Connector 42 10.Set the Console Base (47) on the Handrails (71, 72). Attach the Console Base with four 3/4” Screws (2). Start all four Screws before tightening them; do not overtighten the Screws. 10 47 72 71 See the lower drawing. Make sure that the Upright Wire (42) is routed below the two indicated round posts (A). Next, press the Upright Wire into the slot between the square post (B) and the Console Base (47). 2 2 A B 42 9 47 11.Cover the Upright Wire (42) with the Right Grip Plate (36). Be careful not to pinch the Upright Wire. Tighten two 1/2" Screws (48) and a 3/4" Screw (2) into the Right Grip Plate and the Console Base (47). 11 47 42 36 2 48 12.Carefully lower the Left and Right Handrails (71, 72) until they are touching the floor. 12 107, 108 See the lower drawing. Position the Uprights (107, 108) so that the treadmill Frame (86) is centered between the Uprights. 76 21 71, 72 Firmly tighten the two 1" Upright Bolts (21) and the two 3” Upright Bolts (76) used in steps 1 and 4. Top View 107 108 86 13.Attach the Latch Housing (29) to the Left Upright (7) with two 3/4” Screws (2). Make sure that the large hole in the Latch Housing is on the side shown. Remove the knob from the pin. Make sure that the collar and the spring are on the pin as shown. Then, insert the pin into the Latch Housing (29), and tighten the knob back onto the pin. Plug in the power cord (see OPERATION AND ADJUSTMENT on page 11). Next, change the incline of the treadmill to the lowest level as described on page 13. If this is not done, the latch may not hold the treadmill in the storage position. 13 7 29 Knob Large Hole 2 Collar Spring Pin 14.Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may be included. Keep the included allen wrenches in a secure place; the large allen wrench is used to adjust the walking belt (see page 20). To protect the floor or carpet, place a mat under the treadmill. 10 OPERATION AND ADJUSTMENT THE PRE-LUBRICATED WALKING BELT Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear. HOW TO PLUG IN THE POWER CORD DANGER: Improper connection of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician. tric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor, and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible with GFCI-equipped outlets. This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available. 1 Grounded Outlet Box Surge Suppressor Grounding Pin Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local WESLO dealer or call the toll-free telephone number on the front cover of this manual and order part number 146148, or see your local electronics store. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed, accelerate or stop unexpectedly, which may result in a fall and serious injury. This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec- Grounding Pin Grounded Outlet Grounding Plug 2 Grounded Outlet Box Adapter Surge Suppressor Lug Metal Screw The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician. The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before using an adapter. 11 CONSOLE DIAGRAM Note: If there is a sheet of clear plastic on the console, peel off the plastic. Clip Key FEATURES OF THE CONSOLE In addition, the console features four preset programs. Each program automatically controls the speed and incline of the treadmill as it guides you through an effective workout. The treadmill console offers several features designed to make each workout more effective and enjoyable. To use the manual mode of the console, follow the steps beginning on page 13. To use a preset program, see page 15. When the manual mode of the console is selected, the speed and incline of the treadmill can be changed with the touch of a button. As you exercise, the console will display continuous exercise feedback. You can even measure your heart rate using the built-in handgrip pulse sensor. 12 HOW TO TURN ON THE POWER Plug in the power cord (see page 11). Next, locate the reset/off circuit breaker on the treadmill frame near the power cord. Make sure that the circuit breaker is in the “reset” position. If the Start button or the Speed + button is pressed, the walking belt will begin to move at 1 mph. As you exercise, change the speed of the walking belt as desired by pressing the Speed + and – buttons. Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in increments of 0.5 mph. Note: After the buttons are pressed, it may take a moment for the walking belt to reach the selected speed setting. Reset Position If one of the numbered speed buttons is pressed, the walking belt will gradually increase in speed until it reaches the selected speed setting. Next, stand on the foot rails of the treadmill. Locate the clip attached to the key (see the drawing on page 12), and slide the clip securely onto the waistband of your clothes. Then, insert the key into the console. After a moment, the display will light. Important: In an emergency situation, the key can be pulled from the console, causing the walking belt to slow to a stop. Test the clip by carefully taking a few steps backward; if the key is not pulled from the console, adjust the position of the clip. To stop the walking belt, press the Stop button. The time will begin to flash in the display. To restart the walking belt, press the Start button, the Speed + button, or one of the numbered buttons. 4 Note: To prevent damage to the walking platform, always wear clean shoes while using the treadmill. The first time the treadmill is used, observe the alignment of the walking belt, and center the walking belt if necessary (see page 20). To change the incline of the treadmill, press the Incline increase or decrease button. Each time a button is pressed, the incline will change by 0.5%. Note: After a button is pressed, it may take a moment for the treadmill to reach the selected incline setting. HOW TO USE THE MANUAL MODE 1 5 Insert the key into the console. Select the manual mode. Each time the key is inserted, the manual mode will be selected. If a program has been selected, reselect the manual mode by pressing the Program button repeatedly until a track appears in the display. 3 Follow your progress with the display. When the manual mode is selected, a track representing 1/4 mile will appear in the upper right corner of the display. As you walk or run on the treadmill, the indicators around the track will appear in succession until the entire track appears. The track will then disappear and the indicators will again begin to appear in succession. See HOW TO TURN ON THE POWER above. 2 Change the incline of the treadmill as desired. The upper left corner of the display will show the approximate number of calories you have burned during your workout. Start the walking belt. To start the walking belt, press the Start button, the Speed + button, or one of the speed buttons numbered 1 to 10. 13 To measure your heart rate, stand on the foot rails and hold the metal contacts on the handrail—avoid moving your hands. When your pulse is detected, the heart symbol in the display will flash each time your heart beats, one or two dashes will appear, and then your heart rate will be shown. For the most accurate heart rate reading, continue to hold the contacts for about 15 seconds. The lower left corner of the display will show the elapsed time and the distance that you have walked or run during your workout. The lower left corner of the display will also show the incline level of the treadmill for a few seconds each time the incline setting changes. Note: When a preset program is selected, the lower left corner of the display will show the time remaining in the program instead of the elapsed time. 7 To turn on the fan at low speed, press the Fan button. To turn on the fan at high speed, press the button a second time. To turn off the fan, press the button a third time. Note: If the fan is on when the walking belt is stopped, the fan will turn off automatically after a few minutes. The lower right corner of the display will show the speed of the walking belt. When you use the handgrip pulse sensor, the lower right corner of the display will also show your heart rate. 8 When you are finished exercising, remove the key from the console. Step onto the foot rails, press the Stop button, and adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when the treadmill is folded to the storage position or the treadmill will become damaged. Next, remove the key from the console and put it in a secure place. Note: If the display remains lit after the key is removed, the console is in the “demo” mode. See page 16 and turn off the demo mode. To reset the display, press the Stop button, remove the key, and then reinsert the key. Note: The console can display speed and distance in miles or kilometers. To find which system of measurement is selected, or to select a different system, see THE INFORMATION MODE on page 16. Note: For simplicity, all instructions in this section refer to miles. 6 Turn on the fan if desired. When you are finished using the treadmill, switch the reset/off circuit breaker to the “off” position and unplug the power cord. Measure your heart rate if desired. Note: Before using the handgrip pulse sensor, remove Contacts the sheets of clear plastic from the metal contacts on the handgrip pulse sensor. In addition, make sure that your hands are clean. 14 When the first period is completed, all speed settings will move one column to the left. The speed setting for the second period will then be shown in the flashing Current Period column and the treadmill will automatically adjust to the speed and incline settings for the second period. Note: If all five of the indicators in the Current Period column are lit, the speed settings may move downward so that only the highest indicators appear in the matrix. HOW TO USE A PRESET PROGRAM 1 Insert the key into the console. See HOW TO TURN ON THE POWER on page 13. 2 Select a preset program. To select a preset program, press the Program button repeatedly until “P–1,” “P–2,” “P–3,” or “P–4” appears in the display. When a preset program is selected, the maximum incline setting of the program and the maximum speed setting of the program will flash in the display for a few seconds. The display will then show how long the program will last. A profile of the speed settings of the program will scroll across the matrix in the upper right corner of the display. 3 The program will continue in this way until the speed setting for the last period is shown in the Current Period column and the last period ends. The walking belt will then slow to a stop. If the speed or incline setting for the current period is too high or too low, you can manually override the setting by pressing the Speed or Incline buttons. Every few times a Speed button is pressed, an additional indicator will appear or disappear in the Current Period column; if any of the columns to the right of the Current Period column have the same number of lit indicators as the Current Period column, an additional indicator may appear or disappear in those columns as well. Important: When the current period of the program ends, the treadmill will automatically adjust to the speed and incline settings for the next period. Press the Start button to start the program. A moment after the button is pressed, the treadmill will automatically adjust to the first speed and incline settings of the program. Hold the handrails and begin walking. To stop the program at any time, press the Stop button. The time will begin to flash in the display. To restart the program, press the Start button. The walking belt will begin to move at 1 mph. When the next period of the program begins, the treadmill will automatically adjust to the speed and incline settings for the next period. Each program is divided into 30 one-minute periods. One speed setting and one incline setting are programmed for each period. Note: The same speed setting and/or incline setting may be programmed for two or more consecutive periods. The speed setting for Current Period the first period will be shown in the flashing Current Period column of the matrix. (The incline settings are not shown in the matrix.) The speed settings for the next four periods will be shown in the columns to the right. 4 Follow your progress with the display. See step 5 on pages 13 and 14. 5 Measure your heart rate if desired. See step 6 on page 14. 6 When only three seconds remain in the first period of the program, both the Current Period column and the column to the right will flash and a series of tones will sound. If the speed and/or incline of the treadmill is about to change, the speed setting and/or the incline setting will flash in the display to alert you. Turn on the fan if desired. See step 7 on page 14. 7 When you are finished exercising, remove the key from the console. See step 8 on page 14. 15 THE INFORMATION MODE from the console, and the display will remain lit; the buttons will not operate. If a “d” appears when the information mode is selected, press the Speed decrease button so the “d” disappears. The console features an information mode that keeps track of treadmill usage information and allows you to select a system of measurement. The upper left corner of the display will show the total number of hours that the treadmill has been used. To select the information mode, insert the key into the console while holding down the Stop button, and then release the Stop button. When the information mode is selected, the following information will be shown: An “E” (for English) or an “M” (for metric) will appear in the lower right corner of the display. Press the Speed increase button to change the unit of measurement, if desired. Important: If a “d” appears in the display, the console is in the “demo” mode. This mode is intended to be used only when a treadmill is displayed in a store. When the console is in the demo mode, the power cord can be plugged in, the key can be removed The lower left corner of the display will show the total number of miles or kilometers that the walking belt has moved. To exit the information mode, remove the key from the console. 16 HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may become permanently damaged. Next, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill. 1. Hold the metal frame firmly in the location shown by the arrow at the right. CAUTION: To decrease the possibility of injury, do not lift the frame by the plastic foot rails. Bend your legs and keep your back straight; as you raise the frame, make sure to lift with your legs rather than your back. Raise the frame about halfway to the vertical position. Frame 2. Move your right hand to the position shown and hold the treadmill firmly. Using your left hand, pull the latch knob to the left and hold it. Raise the frame until the latch catch is aligned with the latch pin. Slowly release the latch knob; make sure that the latch pin is resting securely against the latch catch. To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° Fahrenheit. Engaged Latch Knob Catch HOW TO MOVE THE TREADMILL Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the latch pin is fully inserted into the frame. 1. Hold the upper ends of the handrails, and place one foot against one of the wheels. 2. Tilt the treadmill back until it rolls freely on the wheels. Carefully move the treadmill to the desired location. To reduce the risk of injury, use extreme caution while moving the treadmill. Do not move the treadmill over an uneven surface. Wheel 3. Place one foot against one of the wheels, and carefully lower the treadmill until it is resting in the storage position. 17 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the treadmill with your right hand as shown. Pull the latch knob to the left and hold it. Pivot the frame down until it is past the latch pin. Latch Knob Frame 2. Hold the metal frame firmly with both hands, and lower it to the floor. CAUTION: To decrease the possibility of injury, do not lower the frame by gripping only the plastic foot rails. Do not drop the frame to the floor. Make sure to bend your legs and keep your back straight. Frame 18 TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged into a properly grounded outlet (see page 11). Use only a single-outlet surge suppressor that meets all of the specifications described on page 11. Important: The treadmill is not compatible with GFCI-equipped outlets. b. After the power cord has been plugged in, make sure that the key is inserted into the console. c. Check the reset/off circuit breaker located on the treadmill frame near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in. c Tripped Reset PROBLEM: The power turns off during use SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in. b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five minutes, and then plug it back in. c. Remove the key from the console. Reinsert the key into the console. d. If the treadmill still will not run, see the front cover of this manual. PROBLEM: The displays of the console do not function properly SOLUTION: a. Remove the key from the console and UNPLUG THE POWER CORD. Remove the Screws (77) from the Hood (1), and carefully pivot the Hood off. a 77 1 Locate the Reed Switch (10) and the Magnet (18) on the left side of the Pulley (17). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure that the gap between the Magnet and the Reed Switch is about 1/8". If necessary, loosen the 3/4" Screw (58), move the Reed Switch slightly, and then retighten the Screw. Reattach the Hood, and run the treadmill for a few minutes to check for a correct speed reading. 19 1/8" 58 17 10 18 Top View PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 11. b. If the walking belt is overtightened, treadmill performance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each edge of the walking belt 2 to 3 inches off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened. b 2"–3" Rear Roller Bolts c. If the walking belt still slows when walked on, please see the front cover of this manual. PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt is off-center, remove the key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the bolt counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered. b. If the walking belt slips when walked on, remove the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each edge of the walking belt 2 to 3 inches off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened. 20 a b CONDITIONING GUIDELINES to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near the lowest number in your training zone. WARNING: Before beginning this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with preexisting health problems. For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone. The pulse sensor is not a medical device. Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general. Aerobic Exercise If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone. The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician. EXERCISE INTENSITY WORKOUT GUIDELINES Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise. Each workout should include the following three parts: A Warm-up—Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise. Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath. To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “training zone.” The lower two numbers are recommended heart rates for fat burning, and the higher number is the recommended heart rate for aerobic exercise. A Cool-down—Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent postexercise problems. EXERCISE FREQUENCY Fat Burning To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life. To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for energy. Only after the first few minutes does your begin 21 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back. 1 2. Hamstring Stretch Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin. 2 3. Calf/Achilles Stretch With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles. 3 4 4. Quadriceps Stretch With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles. 5. Inner Thigh Stretch Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles. 22 5 PART LIST—Model No. WLTL39806.0 Key No. Qty. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 21 1 2 1 3 1 1 2 1 1 2 9 2 2 2 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 1 1 1 2 2 3 2 1 10 3 1 2 1 1 1 2 6 1 1 1 4 1 8 1 Description Hood 3/4" Screw Motor Belt Motor Tension Bolt Right Rear Endcap Motor Star Washer Left Upright Drive Motor Foot Rail Cover Reed Switch Latch Warning Decal Frame Spacer Nut Frame Pivot Bolt Platform Screw, Front Lower Handrail Endcap Front Roller/Pulley Magnet Motor Pivot Bolt Motor Bracket Bolt 3" Upright Bolt Hood Clip Platform Washer Small Star Washer Foot Rail Screw Outlet Bracket Screw Console Fan Motor Tension Nut Latch Housing Latch Catch Left Rear Endcap Platform Screw, Rear Rear Endcap Screw Left Grip Plate Incline Sensor Wire Right Grip Plate Handrail Bolt Fan Housing 1" Tek Screw Ground Wire Key No. Qty. 41 42 43 44 45 46 47 48 49 50 51 52 53 3 1 1 2 1 4 1 4 1 1 1 2 1 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 2 1 1 4 7 1 1 2 2 2 2 2 2 4 6 1 1 1 1 3 1 1 2 5 1 1 2 Description Roller Star Washer Upright Wire Console Rear Roller Plate Book Holder Extension Leg Nut Console Base 1/2" Screw Wire Clamp Key/Clip Incline Motor Rear Roller Washer Incline Motor Bolt, Lower Incline Pivot Bolt Filter Wire Motor Controller Wire Round Base Pad 3/4" Tek Screw Controller Lift Frame Extension Leg Pad Caution Decal Extension Leg Wheel Bolt Base Endcap Wheel Platform Nut 8" Cable Tie Upright Base Grommet Left Handrail Right Handrail Roller Adj. Bolt Left Foot Rail Silver Ground Screw 1" Upright Bolt Belly Pan Screw Incline Stop Bracket Power Cord Assembly Rear Roller Bracket 23 R1206A Key No. Qty. 81 82 83 84 85 86 87 88 1 2 4 4 2 1 3 1 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 4 1 1 4 3 1 12 1 1 1 8 1 1 1 1 1 1 1 2 108 1 109 110 111 # # # # # 1 1 1 1 1 1 1 1 Description Belly Pan Belt Guide Belt Guide Screw Isolator Fastener Isolator Cushion Frame Releasable Tie Console Warning Decal Cable Tie Clamp Right Upright Sensor Clip Ground Screw Extension Leg Bolt Allen Wrench 5/16" Star Washer Walking Belt Walking Platform Right Foot Rail U-nut Rear Roller Optic Disk Optic Disk Sensor Motor Mount Bracket Latch Pin Assembly Small Nut Small Bolt Upper Handrail Endcap Upper Incline Motor Bolt Console Pulse Wire Left Pulse Plate Right Pulse Plate 4" Blue Wire, 2F 4" Black Wire, M/F 8" Green Wire, F/R 4" Red Wire, M/F User’s Manual #These parts are not illustrated 25 24 73 41 80 52 44 67 74 2 25 33 23 11 31 94 32 58 73 30 25 41 52 33 5 80 44 100 25 96 85 84 9 2 98 25 83 82 25 23 32 25 67 67 86 15 97 25 14 40 92 9 25 84 17 18 87 85 25 89 92 84 83 49 82 67 15 14 68 EXPLODED DRAWING A—Model No. WLTL39806.0 R1206A EXPLODED DRAWING B—Model No. WLTL39806.0 R1206A 22 22 22 1 28 6 6 4 3 20 103 4 10 28 58 91 12 20 8 60 19 73 13 41 13 13 12 79 58 77 92 55 26 77 58 58 77 56 77 26 81 59 58 77 25 EXPLODED DRAWING C—Model No. WLTL39806.0 R1206A 107 107 37 95 37 95 2 2 71 16 72 99 16 42 35 108 104 13 7 29 2 51 99 105 13 53 24 106 101 102 90 66 78 13 64 99 54 93 13 95 57 42 13 39 54 62 63 95 93 70 65 46 61 21 76 95 57 39 69 39 99 95 62 63 65 57 21 39 46 61 39 26 76 13 57 66 39 64 EXPLODED DRAWING D—Model No. WLTL39806.0 2 27 2 38 47 2 110 34 48 2 45 43 75 2 88 2 111 109 2 36 50 2 48 27 R1206A ORDERING REPLACEMENT PARTS To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give the following information: • the MODEL NUMBER of the product (WLTL39806.0) • the NAME of the product (WESLO Cadence 50 SE treadmill) • the SERIAL NUMBER of the product (see the front cover of this manual) • the KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST and EXPLODED DRAWING on pages 23 to 27) LIMITED WARRANTY ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and material, under normal use and service conditions. The drive motor is warranted for three (3) years after the date of purchase. Parts and labor are warranted for ninety (90) days after the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customer’s responsibility. For inhome service, the customer will be responsible for a minimal trip charge. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; to products used for commercial or rental purposes; or to products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON. ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you. The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state. ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813 Part No. 242952 R1206A Printed in USA © 2006 ICON IP, Inc.
