Dukane 220C User`s manual

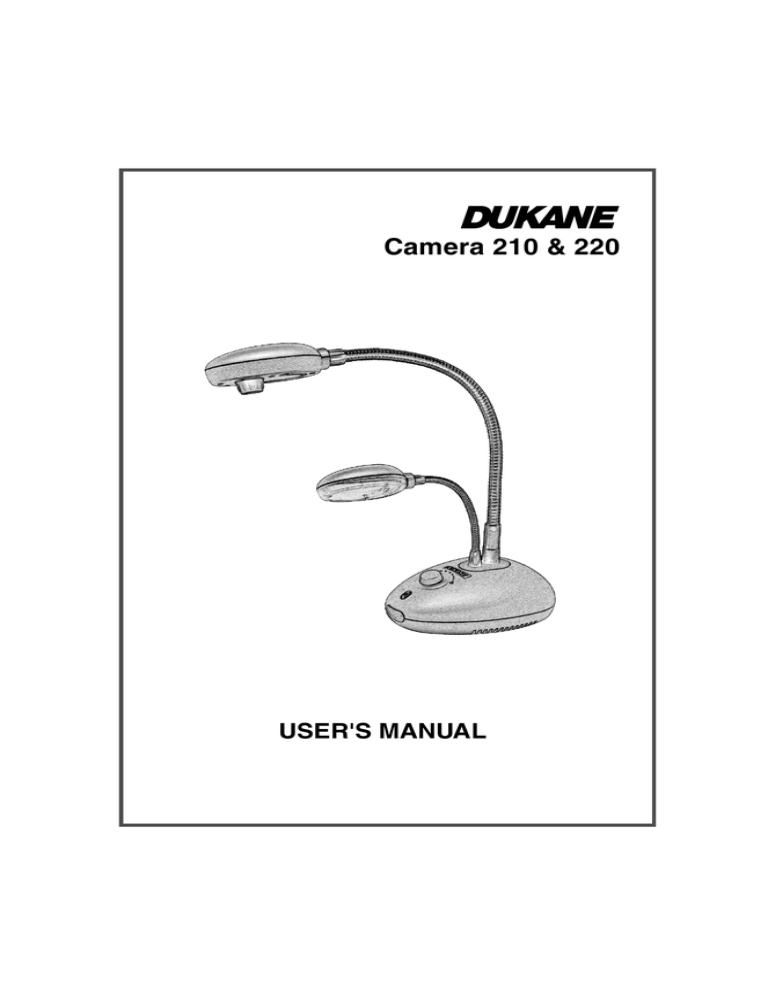

Camera 210 & 220
USER'S MANUAL
Table of Contents
Models 210 & 220
Chapter 1 Introduction
1.1 Introduction
1.2 Certification
1.3 Warning
1.4 Safety Instruction
1.5 Specification
Chapter 2 Package Content
Chapter 3 Product Overview
3.1 Digital Presenter
3.2 I/O Connection
3.3 Infrared Remote Control (220)
Chapter 4 Using the Presenter
4.1 Getting Started
4.2 Using the Menu
4.3 Menus
4.4 Base bottom switches
Chapter 5 Troubleshooting
1
Chapter 1 Introduction
Thank you for purchasing the camera.
1.1 Introduction
With a stylish and streamlined look, this Digital Presenter is outstanding. The
goose-neck technology provides more felxability, a better viewing angle for
the camera or the lamp, plus space-saving storage.
Beyond that, the Digital Presenter is designed to combine many practical
functions that help presenters deliver successful presentations. The digital presenter
displays any document or 3D object on a LCD or DLP projector. It switches between
the camera and a PC output, plus assists the presenter by providing additional light
with the lamp.
This user manual is a quick guide. Please read this manual carefully before you
set up this Digital Presenter.
1.2 Certification
UL, CE, FCC
1.3 Warning
Safety Precautions
Warning: To reduce the risk of fire or electric shock, do not expose this
appliance to rain or moisture.
This Digital Presenter has a ground-type AC line Plug. This is a safety feature to ensure
that the plug will fit into the power outlet. Do not try to defeat this safety feature.
2
CAUTION
RISK OF ELECTRIC SHOCK
Caution: To reduce the risk of electric shock. Do not remove cover (or back).
No user-serviceable parts inside. Refer servicing to licensed service Personnel.
This symbol indicates
This symbol indicates that
that dangerous voltage
there are important
constituting a risk of
operating and maintenance
electric shock is present
instructions in the User’s
within this unit.
Manual.
FCC Warning
This Digital Presenter has been certified to comply with the limits for a Class A
computing device, pursuant to Subpart J of Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against a harmful interference when the
equipment is operated in a commercial environment.
EN55022 (CE Radiation) Warning
This product is intended for use in a commercial, industrial, or educational
environment. It is not intended for residential use.
This is a Class A product. In a domestic environment it may cause radio interference,
in which case the user may be required to take adequate measures. The typical use is
in a conference room, meeting room or auditorium.
1.4 Safety Instruction
Always follow these safety instructions when setting up and using the Digital
Presenter:
1. Do not place the Digital Presenter on an unstable trolley, stand or table.
2. Do not use the Digital Presenter near water or source of heat.
3. Use attachments only as recommended.
4. Use the type of power source indicated on the Digital Presenter. If you are not sure
of the type of power available, consult your dealer or local electricity company for
advice.
5. Place the Digital Presenter where it can be easily unplugged.
6. Insert the Digital Presenter’s two-pin grounded plug into a properly grounded
socket. Do not handle the plug with wet hands.
7.
8.
Always take the following precautions when handling the plug. Failure to do so
may result in sparks or fire.
Ensure the plug is free of dust before inserting it into a socket.
Ensure that the plug is inserted into the socket securely.
Do not overload wall sockets, extensions leads or multi-way plug boards as this
3
9.
10.
11.
12.
13.
14.
may cause fire or electric shock.
Do not place the Digital Presenter where the cord can be stepped on as this may
result in fraying or damage to the lead or the plug.
Unplug the projector form the wall socket before cleaning. Use a damp cloth for
cleaning. Do not use liquid or aerosol cleaners.
Do not block the slots and openings in the projector case. They provide ventilation
and prevent the Digital Presenter from overheating. Do not place the Digital
Presenter on a sofa, rug or other soft surface or in a built-in installation unless
proper ventilation is provided.
Never push objects of any kind through cooling slots. Never allow liquid of any
kind to spill into the Digital Presenter.
Except as specifically instructed in this User’s Manual, do not attempt to operate
this product by yourself. Opening or removing covers may expose you to
dangerous voltages and other hazards. Refer all servicing to licensed service
personnel.
Unplug the Digital Presenter during thunderstorms or if it is not going to be used
for an extended period, do not place the Digital Presenter or remote control on top
of heat-emitting equipment or heated objects such as a car or radiator.
15. In the following situations, unplug the Digital Presenter from the wall outlet and
refer servicing to licensed service personnel:
If the power cable or plug becomes damaged or frayed.
If liquid is spilled into it or the Digital Presenter has been exposed to rain or
water.
1.5 Specification
Optics
Fix Lens: F3.6; f=5.0 mm
Shooting Area: 330mm x 250mm (Max.); 32mm x 24mm (Min.)
Focus: Manual
Image:
Pick-up Device: 1/3” CCD Progressive Scan
Total Pixels: 1077(H) x 788(V)
Effective Pixels: 1024(H) x 768(V)
Frame Rate: 20 Frame/Sec
White Balance: Auto
Exposure: Auto/Manual
Digital Zoom: 15X
Image Mode: Normal/ Film/ Gray (Model 220 only)
Gamma: Photo/ Text (Model 220 only)
Image Flip: Up/Down Selectable
RGB Output: XGA 60Hz/75Hz; SVGA 60Hz/75Hz Selectable
4
Composite Video Output: NTSC/PAL Selectable
Lighting
CCFL: Build in One Cathode fluorescent lamp
Input
VGA Pass through: Model 210; HD-SUB 15 pin female.
Model 220; has a VGA adapter for DVI-I connector port.
Output
VGA: HD-SUB, 15 Pins Female
DVI: Digital & Analog Receptacle Connector (Model 220 only)
C-video: RCA Jack
USB: Standard USB Socket (Type B)
DC 12V Output: DC Jack, 700 mA
Power
Power Source: 100-240Vac
Consumption: 18W
Dimension
Operating: 400mm(L) X 140mm(W) X 360mm(H)
Weight: About 2.4kg
5
Chapter 2 Package Content
Please make sure the package comes with the following items when you unpack:
Power Cable
VGA Cable
DVI Adapter (220 only)
USB Cable
C-Video Cable
Remote Controller (220 only)
User’s Manual
CD
6
Chapter 3 Product Overview
3.1 Digital Presenter
1. Camera View
2. Control Button
3. Power Button
4. I/O Port
Figure 3-1
6. Lamp View
7. DIP Switch
Figure 3-2
7
3.2 I/O Connection
Model 220
Adapter
DVI for Model 220 only.
Figure 3-3
8
3.3 Infrared Remote Control (Model 220)
Figure 3-4
1. Power:
Turn on/off.
2. Capture:
Capture the image.
3. Freeze:
Freeze the image.
8. Gamma:
Different color contrast mode.
9. Lamp:
Turn on/off Lamp.
10. Play & Del:
Press play, you can recall the saved
images in the flash memory of your
Digital Presenter. Press Del if you would
like to discard the saved image.
11. Zoom +/-:
Make the image larger & smaller.
12. BRT+/-:
Press the hot key to make the
image brighter or darker.
13. Menu:
Click on Menu, to adjust all the
functions on the screen.
5. Arrows:
Press the 4 hot keys of
Up/Down/Right/Left to go to the
desired function item.
6. Flip:
Rotate the image by 180 degrees.
7. Source:
Switch between different signal
sources.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE
OF USED BATTERIES ACCRDING TO THE INSTRUCTIONS.
9
Chapter 4 Using the Presenter
This chapter describes the basic and advanced functions of the Digital Presenter, how
to use the OSD menu.
4.1 Getting Started
Turn on the Digital Presenter.
Option 1: Press
Small Button.
Model 220 only
Option 2: Press
the Button on Remote control.
4.2 Using the Menu Introduction
Showing the Main Menu:
Option 1: Press
Knob-Button. (Control Button.)
Model 220 only
Option 2: Press
Button.
Menu operation:
First, press button to start the Menu.
Turn the control button to choose function.
Second, choosing function, press control button to start this function.
Menus
Note that menus are different for the Model 210 and the 220.
10
4.3 Menu Model 210 only
VGA Mode Computer Image. Use the Control Button for menu operation.
Layer 1
Layer 2
Function
Flip
On/Off
Select flip on or off
Source
Presenter/ VGA In
Select images of Presenter
and VGA In.
Digital Zoom
0100%
Zoom
Lamp
Language
Factory Reset
Adjust zoom 0100% ~ 1500%
On/Off
Select lamp on or off
Normal/Gray/Film
Select Normal/Gray/Film
Mode.
English, Deutsch, Francais, Italiano, Select a preferred language
Espanol, Русский,,
,
, Exit on the menu.
Reset all the values to the
factory default.
Enter/Exit
Exit this menu.
VIDEO Mode
Layer 1
Function
Select Lamp On
Select Lamp Off
Model 220 Menu
, Display
The Main Menu has five icons (Setting
, and Exit
, Source
, Storage
).
The Control Button or the remote control can be used to navigate the menu.
11
Menu Model 220 only
VGA Mode (Computer Image)
Layer 1
Setting
Layer 2
Layer 3
Function
Lamp
On/Off
Select Lamp On or Off.
English, Deutsch, Francais,
Select a preferred language
Language
Italiano, Espanol, Русский,
on the menu.
,
, Exit
Chooses a preferred
XGA 75Hz/XGA 60Hz
Output Format
resolution to be the output
SVGA 75Hz/ SVGA 60Hz
mode.
Display
Source
Storage
Factory Reset Enter/Exit
Reset all the values to the
factory default.
Exit
Exit this menu.
Digital Zoom 0100%
Adjust Zoom 100% ~
1500%.
Gamma
Photo/Text
Select Photo/Text Mode.
Normal/Gray/Film
Select Normal/Gray/Film
Mode.
Flip
On/Off
Adjust the image up and
down by 180°.
Freeze
On/Off
Use Freeze to retain the
image on the screen.
Zoom
Exit
Exit this menu.
Presenter
Select images of Presenter
camera or the VGA In.
VGA In
Capture
Capture the image of
Presenter.
Playback
Present the captured image.
Delete
Delete the captured image.
Delete All
Delete All
Delete all images.
Enter/ Exit
Format
Memory Format
Enter/ Exit
Exit
Memory Format
Exit this menu.
Exit menu.
12
VIDEO Mode (Video Image)
Layer 1
Display
Layer 2
Layer 3
Function
Gamma
Photo/Text
Select Photo/Text Mode.
Normal/Gray
Select Normal/Gray Mode.
Freeze
On/Off
Use Freeze to retain the
image on the screen.
Exit
Setting
Exit this menu.
Language
English,
Lamp
On/Off
,
, Exit
Select a preferred language
on the menu.
Adjust On/Off.
Factory Reset On/Off
Reset all the values to the
factory default.
Exit
Exit this menu.
Exit menu.
4.4 Base Bottom Switch
On the bottom of the base are four (4) small switches,
which can change the Presenter operation. After a switch
is changed the power must be turn “off” and back “on”
before the new function will be operational. Also when the
video is switched “on” the VGA (computer) mode will not
be operating. The video “on” will limit the camera to NTSC
or PAL resolution. The switch settings are:
Switch Number
On
Off
Function
SW1
AE
AE
Auto Exposure
SW2
VIDEO VIDEO
Video Operation
SW3
PAL
NTSC
Video Type
SW4
Set Here
Reserved
Default operation, all switches in "Off" position.
13
Chapter 5 Troubleshooting
This chapter describes the conditions you might have encountered when you use the
Digital Presenter. If you have a problem, refer to the appropriate section and follow all
the suggestions that apply to your problem. If none of the suggested solutions solves
the problem, call your dealer or your service center.
Problem 1: No picture from the Digital Presenter.
Solution 1: Wait a few seconds, press desired source selector again.
2: Press a different source, then press-desired source again.
3: Check if the power of the Digital Presenter is turned on.
4: Make sure the document or object is positioned under the camera.
Problem 2: Cannot Focus, camera will not focus properly.
Solution - To properly focus: Zoom in as far as possible on the document or object,
focus, then zoom out to desired distance.
Problem 3: Image is too bright or dark, cannot see desired part of the image
because it is too bright or dark.
Solution – Adjust the Control Knob Button on the Digital Presenter.
14
Audio Visual Products
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, IL 60174-3395
E-mail: avsales@dukcorp.com
www.dukcorp.com/av
Phone: (630) 762-4040
Orders: (800) 676-2485
Fax: (630) 584-5156
Parts & Service: (800) 676-2487
Fax: (630) 584-0984
Part # 401-210_220-01
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
