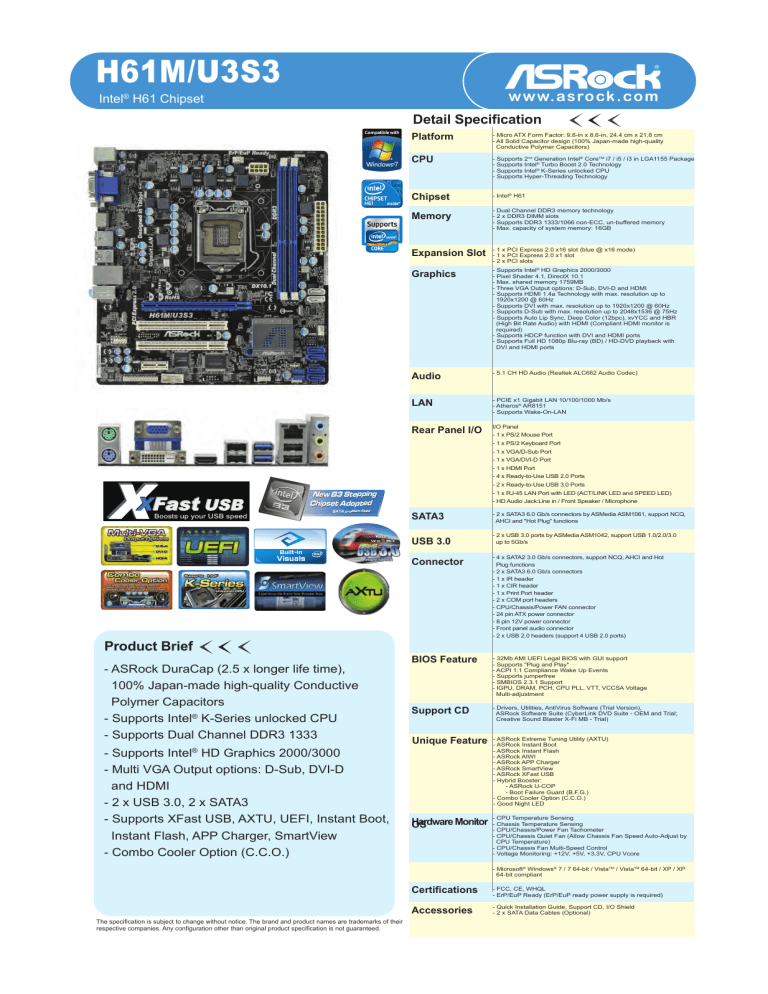

H61M/U3S3
H61M/U3S3
w w w.asrock . com
Intel® H61 Chipset
Detail Specification
Platform
- Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm
- All Solid Capacitor design (100% Japan-made high-quality
Conductive Polymer Capacitors)
CPU
-
Chipset
- Intel® H61
Memory
-
Supports
Supports
Supports
Supports
2nd Generation Intel® CoreTM i7 / i5 / i3 in LGA1155 Package
Intel® Turbo Boost 2.0 Technology
Intel® K-Series unlocked CPU
Hyper-Threading Technology
Dual Channel DDR3 memory technology
2 x DDR3 DIMM slots
Supports DDR3 1333/1066 non-ECC, un-buffered memory
Max. capacity of system memory: 16GB
Expansion Slot
- 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
Graphics
- Supports Intel® HD Graphics 2000/3000
- Pixel Shader 4.1, DirectX 10.1
- Max. shared memory 1759MB
- Three VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI 1.4a Technology with max. resolution up to
1920x1200 @ 60Hz
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR
(High Bit Rate Audio) with HDMI (Compliant HDMI monitor is
required)
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with
DVI and HDMI ports
Audio
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Atheros® AR8151
- Supports Wake-On-LAN
Rear Panel I/O
I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 4 x Ready-to-Use USB 2.0 Ports
- 2 x Ready-to-Use USB 3.0 Ports
New B3 Stepping
Chipset Adopted
SATA problem fixed
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack:Line in / Front Speaker / Microphone
SATA3
USB 3.0
- 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ,
AHCI and "Hot Plug" functions
- 2 x USB 3.0 ports by ASMedia ASM1042, support USB 1.0/2.0/3.0
up to 5Gb/s
Built-in
Visuals
Connector
- 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot
Plug functions
- 2 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x CIR header
- 1 x Print Port header
- 2 x COM port headers
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
BIOS Feature
- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage
Multi-adjustment
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version),
ASRock Software Suite (CyberLink DVD Suite - OEM and Trial;
Creative Sound Blaster X-Fi MB - Trial)
Unique Feature
- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock AIWI
- ASRock APP Charger
- ASRock SmartView
- ASRock XFast USB
- Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
Hardware
Monitor
OS
-
Product Brief
- ASRock DuraCap (2.5 x longer life time),
100% Japan-made high-quality Conductive
Polymer Capacitors
- Supports Intel® K-Series unlocked CPU
- Supports Dual Channel DDR3 1333
- Supports Intel® HD Graphics 2000/3000
- Multi VGA Output options: D-Sub, DVI-D
and HDMI
- 2 x USB 3.0, 2 x SATA3
- Supports XFast USB, AXTU, UEFI, Instant Boot,
Instant Flash, APP Charger, SmartView
- Combo Cooler Option (C.C.O.)
CPU Temperature Sensing
Chassis Temperature Sensing
CPU/Chassis/Power Fan Tachometer
CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by
CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
- Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP / XP
64-bit compliant
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables (Optional)
H61M/U3S3
w w w.asrock . com
Intel® H61 Chipset
ASRock XFast USB Technology Faster Than Your Imagination!
(The rear I/O photo is example only)
ASRock XFast USB Technology redefines the new standard in high performance computing. Proving once
again to be the pioneer in motherboard industry, ASRock XFast USB Series Motherboards integrate with
the latest XFast USB Technology which delivers the world's fastest USB data transfer speed. According to
the below graph, it shows that the ASRock XFast USB technology can even boost USB 3.0 performance up
to 229.08%!
USB 3.0 Benchmark
ATTO Disk Benchmark - 4K Read
ASRock Motherboard with XFast USB Technology
Other Motherboard without XFast USB Technology
149504 KB/s
46407 KB/s
ATTO Disk Benchmark - 4K Write
Faster
ASRock Motherboard with XFast USB Technology
Other Motherboard without XFast USB Technology
153854 KB/s
46753 KB/s
222.16%
229.08%
Faster
H61M/U3S3
Intel® H61 Chipset
w w w.asrock . com
Intel® HD Graphics Built-in Visuals
Intel® Quick Sync Video
Intel® Quick Sync Video saves valuable time for PC users who want to
create and edit video, synchronize it with other devices, and share it–at
home and on the internet. Intel Quick Sync Video uses hardware on the
processor, instead of software, to accelerate video encoding.
Intel® InTruTM 3D
Intel® HD Graphics is now built right into the processor! This integration
means lower latencies and leads to superior mainstream gaming and
enhanced 3D experiences.
Intel® Clear Video HD Technology
Intel® Clear Video HD Technology (Intel® CVT HD) enables rich media
experiences with picture perfect images by using a host of advanced
graphics technologies that support optimized, high-definition video playback and sharp image quality.
Intel® HD Graphics 2000/3000
Intel® HD Graphics is now built right into the processor! This integration
means lower latencies and leads to superior mainstream gaming and
enhanced 3D experiences.
Intel® Advanced Vector Extensions (AVX)
Intel® Advanced Vector Extensions (Intel® AVX) gives more computing
power to application developers with a new, 256 bit instruction set extension to Intel® SSE.
H61M/U3S3
w w w.asrock . com
Intel® H61 Chipset
C.C.O.
Combo Cooler Option
C.C.O. provides the flexible option to adopt three
different CPU cooler types, Socket LGA 775*,
LGA 1155 and LGA 1156**
*C.C.O. may not be compatible with all Socket 775 CPU coolers.
**O is for Socket 1155 and Socket 1156 CPU cooler.
Support Intel®
K-Series unlocked CPU
DuraCap
100% Japan-made high-quality
Conductive Polymer Capacitors
H61M/U3S3
Intel® H61 Chipset
w w w.asrock . com
AXTU – The All-in-1 Tuning Software
ASRock Extreme Tuning Utility (AXTU) is an all-in-one software to fine-tune different features in an userfriendly interface, which includes Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In
Hardware Monitor, it shows the major readings of your system. In Fan Control, it shows the fan speed and
temperature for you to adjust. In Overclocking, you are allowed to overclock the GT frequency which helps
to boost up the graphics performance and some voltage settings for optimal system performance.
In OC DNA, you can save your OC settings as a profile and share with your friends. Your friends then can
load the OC profile to their own system to get the same OC settings. In IES (Intelligent Energy Saver), the
voltage regulator can reduce the number of output phases to improve efficiency when the CPU cores are
idle without sacrificing computing performance.
UEFI – The Revolutionary BIOS Interface
Unified Extensible Firmware Interface (UEFI) is a
revolutionary BIOS utility which offers tweakfriendly options in an advanced viewing interface.
Compared with traditional BIOS design, the latest
UEFI utility provides lots improved functions. The
major features of UEFI include:
1. Graphical Visual Experience – UEFI provides an
improved visual interface with colorful icons and
makes your computing environment more versatile
to replace the traditional dull BIOS page.
2. Mouse Enabling – Besides keyboard control,
you can freely use mouse to select your ideal
settings in UEFI as well.
*Windows Vista-64bit or Windows 7-64bit OS is required
3. Supports 3TB bootable HDD - UEFI breaks the
limitations of 2TB bootable HDD on traditional
BIOS. With UEFI, you can enjoy 3TB bootable
HDD size.
H61M/U3S3
www. asrock .com
Intel® H61 Chipset
Experience the Brand New Browser Now
SmartView is the smart start page for IE that combines your most visited web sites, your history, your
Facebook friends and your real-time newsfeed into an enhanced view for a more personal Internet
experience. ASRock motherboards are exclusively equipped with the SmartView utility that helps you keep
in touch with friends on-the-go.
The Major Features of SmartView
Visual thumbnail images which categorize
and rank your frequently visited websites, as
well as provide a chronological view of your
browser history.
A persistent, real-time Facebook newsfeed
located within the Internet Explorer sidebar.
A "Friend Wall" that conveniently alphabetizes your Facebook friends by profile photo,
allowing immediate access to your friends'
profile pages.
A "share this"
button which allows you to
instantly and immediately share webpage posts
and links to your friends' Facebook pages.
A persistent search box from best-in-class search engines
such as Google, Yahoo, Baidu (China only) and Yandex
(Russia only).
Two mode options that allow you to choose your favored view style.
Flow Mode
System Requirements
OS version: Win7 32/64 bit, Vista 32/64
bit�Browser version: IE8
Flow Mode
H61M/U3S3
Intel® H61 Chipset
w w w.asrock . com
CyberLink Power2Go 6.1 LE OEM
Power2Go 6 lets you burn and backup videos, photos, music and data onto Blu-ray
Discs and DVDs.
CyberLink MediaShow 4.1 SE OEM
Photo and video management software MediaShow edits videos and photos
instantly, creates slideshow, and allows publishing directly to YouTube and Flickr.
CyberLink PowerDVD 8.0 DTS Trial
World-renowned PowerDVD 8 DTS delivers outstanding DVD movie playback quality
on your PC.
CyberLink PowerDirector 8.0 Trial
PowerDirector - Video Editing software – edits high-definition videos including
AVCHD, allows output to PSP iPod and Blu-ray Disc.
CyberLink PowerBackup 2.5 Trial
PowerBackup backups valuable data on your PC.
Creative Sound Blaster X-Fi MB Trial
The Sound Blaster X-Fi MB solution provides premium audio quality, effects and
features for PC systems equipped with onboard audio.
For gamers, the EAX® ADVANCED HD 4.0, with its state-of-the-art Multi-Environment
rendering and reverb modelling, delivers a much more realistic and immersive 3D
gaming experience than your motherboard audio ever will.
