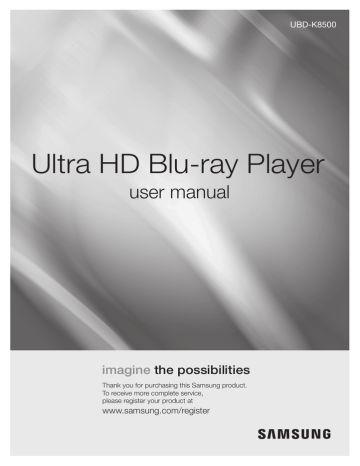

Samsung UBD-K8500 User manual

UBD-K8500
Ultra HD Blu-ray Player
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
Safety Information
Warning
CAUTION
This symbol indicates that high voltage is
present inside. It is dangerous to make
any kind of contact with any internal part
of this product.
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE THE COVER (OR
BACK). THERE ARE NO USER SERVICEABLE
PARTS INSIDE. REFER ALL SERVICING TO
QUALIFIED PERSONNEL.
• The slots and openings in the cabinet and in
the back or bottom are provided for necessary
ventilation. To ensure reliable operation of this
apparatus, and to protect it from over heating,
these slots and openings must never be
blocked or covered.
-- Do not place this apparatus in a confined
space, such as a bookcase, or built-in
cabinet, unless proper ventilation is provided.
-- Do not place this apparatus near or over a
radiator or heat register, or where it is exposed
to direct sunlight.
-- Do not place vessels (vases etc.) containing
water on this apparatus. A water spill can
cause a fire or electric shock.
• Do not expose this apparatus to rain or place it
near water (near a bathtub, washbowl, kitchen
sink, or pool, etc.). If this apparatus accidentally
gets wet, unplug it and contact an authorized
dealer immediately.
• This apparatus uses batteries. In your
community, there might be environmental
regulations that require you to dispose of these
batteries properly. Please contact your local
authorities for disposal or recycling information.
• Do not overload wall outlets, extension cords or
adaptors beyond their capacity, since this can
result in fire or electric shock.
• Route power-supply cords so that they are
not likely to be walked on or pinched by items
placed on or against them. Pay particular
attention to cords at the plug end, at wall
outlets, and the point where they exit from the
apparatus.
2
This symbol indicates that important
literature concerning operation and
maintenance has been included with this
product.
• To protect this apparatus from a lightning storm,
or when it is left unattended and unused for
long periods of time, unplug it from the wall
outlet and disconnect the antenna or cable
system. This will prevent damage to the set due
to lightning and power line surges.
• Before connecting the AC power cord to the
DC adaptor outlet, make sure the voltage
designation of the DC adaptor corresponds to
the local electrical supply.
• Never insert anything metallic into the open
parts of this apparatus. Doing so may create a
danger of electric shock.
• To avoid electric shock, never touch the inside
of this apparatus. Only a qualified technician
should open this apparatus.
• Make sure to plug the power cord in until it is
firmly seated. When unplugging the power cord
from a wall outlet, always pull on the power
cord's plug. Never unplug by pulling on the
power cord. Do not touch the power cord with
wet hands.
• If this apparatus does not operate normally in particular, if there are any unusual sounds or
smells coming from it - unplug it immediately
and contact an authorized dealer or service
center.
English
FCC NOTE (for U.S.A)
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on.
The user is encouraged to try to correct the
interference by one or more of the following
measures.
English
Safety Information
3
• To clean this apparatus, unplug the power cord
from the wall outlet and wipe the product using
a soft, dry cloth. Do not use any chemicals such
as wax, benzene, alcohol, thinners, insecticide,
air fresheners, lubricants, or detergent. These
chemicals can damage the appearance of the
product or erase the printing on the product.
• Do not expose this apparatus to dripping or
splashing. Do not put objects filled with liquids,
such as vases on the apparatus.
• Do not dispose of batteries in a fire.
• Do not plug multiple electric devices into the
same wall socket. Overloading a socket can
cause it to overheat, resulting in a fire.
• There is danger of an explosion if you replace
the batteries used in the remote with the wrong
type of battery. Replace only with the same or
equivalent type.
• WARNING - TO PREVENT THE
SPREAD OF FIRE, KEEP CANDLES
AND OTHER ITEMS WITH OPEN
FLAMES AWAY FROM THIS
PRODUCT AT ALL TIMES.
• WARNING
-- This product contains chemicals known to the
State of California to cause cancer and birth
defects or other reproductive harm.
-- To reduce the risk of fire or electric shock, do
not expose this appliance to rain or moisture.
01
• Maintenance of Cabinet.
-- Before connecting other components to this
product, be sure to turn them off.
-- If you move your product suddenly from a
cold place to a warm place, condensation
may occur on the operating parts and lens
and cause abnormal disc playback. If this
occurs, unplug the product, wait for two
hours, and then connect the plug to the
power outlet. Then, insert the disc, and try to
play back again.
• Be sure to pull the power plug out of the outlet
if the product is to remain unused or if you are
leaving the house for an extended period of time
(especially when children, elderly, or disabled
people will be left alone in the house).
-- Accumulated dust can cause an electric
shock, an electric leakage, or a fire by causing
the power cord to generate sparks and heat
or the insulation to deteriorate.
• Contact an authorized service center for
information if you intend to install your
product in a location with heavy dust, high
or low temperatures, high humidity, chemical
substances, or where it will operate 24 hours
a day such as in an airport, a train station, etc.
Failing to do so may lead to serious damage to
your product.
• Use only a properly grounded plug and wall
outlet.
-- An improper ground may cause electric shock
or equipment damage. (Class 1 Equipment
only)
• To turn this apparatus off completely, you must
disconnect it from the wall outlet. Consequently,
the wall outlet and power plug must be readily
accessible at all times.
• Do not allow children to hang on the product.
• Store the accessories (battery, etc.) in a location
safely out of the reach of children.
• Do not install the product in an unstable location
such as a shaky self, a slanted floor, or a
location exposed to vibration.
• Do not drop or strike the product. If the product
is damaged, disconnect the power cord and
contact a service center.
Safety Information
• Reorienting or relocating the receiving antenna.
• Increasing the separation between the
equipment and receiver.
• Connecting this equipment to an outlet that is
on a different circuit than the one the receiver is
connected to.
• Consulting the dealer or an experienced radio/
TV technician for help.
This class B digital product meets all requirements
of the Canadian Interference - Causing Equipment
Regulations.
CLASS 1 LASER product
This Compact Disc player is classified as a CLASS
1 LASER product. Use of controls, adjustments
or performance of procedures other than those
specified herein may result in hazardous radiation
exposure.
Complies with 21CFR 1040.10 except for
deviations pursuant to Laser Notice No. 50, dated
June 24, 2007.
DANGER :
• VISIBLE AND INVISIBLE LASER RADIATION
WHEN OPEN. AVOID DIRECT EXPOSURE TO
BEAM. (FDA 21 CFR)
CAUTION :
• CLASS 3B VISIBLE AND INVISIBLE LASER
RADIATION WHEN OPEN. AVOID EXPOSURE
TO THE BEAM. (IEC 60825-1)
• THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE. DO NOT OPEN THE COVER.
DO NOT REPAIR THE PRODUCT YOURSELF.
REFER SERVICING TO QUALIFIED
PERSONNEL.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1 PRODUCTO
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
LÁSER CLASE 1
||NOTE |
\\ If the Region number of an Ultra HD Blu-ray
Disc/Blu-ray Disc/DVD does not correspond to
the Region number of this product, the product
cannot play the disc.
Precautions
Important Safety Instructions
Read these operating instructions carefully before
using the unit. Follow all the safety instructions
listed below.
Keep these operating instructions handy for future
reference.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install
in accordance with the manufacturer's
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including AV receivers) that
produce heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug.
A polarized plug has two blades with one
wider than the other. A grounding type plug
has two blades and a third grounding prong.
The wide blade or the third prong are provided
for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where it exits the
apparatus.
11. Only use attachments/accessories specified
by the manufacturer.
4
English
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as when the power-supply cord or plug
is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Using the 3D function
IMPORTANT HEALTH AND SAFETY INFORMATION
FOR 3D PICTURES.
Read and understand the following safety
information before using the 3D function.
• Some viewers may experience discomfort while
viewing 3D TV such as dizziness, nausea, and
headaches.
If you experience any such symptom, stop
viewing 3D TV, remove the 3D Active Glasses,
and rest.
• Watching 3D images for an extended period of
time may cause eye strain. If you feel eye strain,
stop viewing 3D TV, remove your 3D Active
Glasses, and rest.
• A responsible adult should frequently check on
children who are using the 3D function.
If there are any reports of tired eyes, headaches,
dizziness, or nausea, have the child stop viewing
3D TV and rest.
• Do not use the 3D Active Glasses for other
purposes (such as general eyeglasses,
sunglasses, protective goggles, etc.).
5
English
Safety Information
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
• Do not use the 3D function or 3D Active Glasses
while walking or moving around. Using the 3D
function or 3D Active Glasses while moving
around may cause you to bump into objects,
trip, and/or fall, and cause serious injury.
• If you want to enjoy 3D content, connect a 3D
device (3D compliant AV receiver or TV) to the
player's HDMI OUT port using a high-speed
HDMI cable. Put on 3D glasses before playing
the 3D content.
• The player outputs 3D signals only through an
HDMI cable connected to the HDMI OUT port.
• The video resolution in 3D play mode is
determined by the resolution of the original 3D
video. You can not change the resolution.
• Some functions such as BD Wise, screen size
adjustment, and resolution adjustment may not
operate properly in 3D play mode.
• You must use a high-speed HDMI cable for
proper output of the 3D signal.
• Stay at least three times the width of the screen
from the TV when watching 3D images. For
example, if you have a 46-inch screen, stay 138
inches (11.5 feet) from the screen.
• Place the 3D video screen at eye level for the
best 3D picture.
• When the player is connected to some 3D
devices, the 3D effect may not function properly.
• This player does not convert 2D content into
3D.
• "Blu-ray 3D" and "Blu-ray 3D" logo are
trademarks of the Blu-ray Disc Association.
01
12. Use only with the cart,
stand, tripod, bracket,
or table specified by the
manufacturer, or sold with
the apparatus. When a cart
is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
Contents
Safety Information
Settings
2Warning
17
The Initial Settings Procedure
4
18
Accessing the Settings Screen
4Precautions
5
17
Important Safety Instructions
Using the 3D function
18
19
Getting Started
The Home Screen
Buttons on the Remote Control Used for
the Settings Menu
Settings Menu Functions
19Picture
8Accessories
20Sound
9
21
9
10
10
Front Panel
21Network
Remote Control
21System
Rear Panel
23Support
Tour of the Remote Control
13
13
14
15
16
16
16
23
Networks and the Internet
26
Upgrading Software
27
Auto Update
23
Connections
12
Smart Hub
27
Connecting to a TV
Connecting to an Audio System
Method 1 Connecting to an HDMI (HDR)
compatible AV receiver that supports pass
through
Method 2 Connecting to an HDMI
compatible AV receiver that does not
support pass through
Method 3 Connecting to an AV receiver
with a Digital Optical Cable
Connecting to a Network Router
Wired Network
Wireless Network
6
English
Configuring Your Network Connection
Update now
Media Play
Network Services
Playing Commercial Discs
40
Creating a Samsung Account
28
Playing Photos, Videos, and Music
(Multimedia)
41
Using Samsung Apps
28
29
29
30
31
31
32
34
34
34
35
35
36
36
36
40
Disc Storage & Management
Playing Media Content Saved on a USB
Device
Playing Media Content Saved in a
Computer/Mobile Device
37
38
39
39
39
42
43
44
Playing a Disc with User Recorded Content
Controlling Video Playback
44
44
The Samsung Apps Screen at a Glance
Starting an Application
Screen Mirroring
Using the Web Browser
Link Browsing and Pointer Browsing
The Control Panel at a Glance
Buttons on the Remote Control used for
Video Playback
46
Using the Sort by & Options Menus
48BD-LIVE™
Using the Settings Menu During Playback
48
Using the Setting Menu
Linking Your Internet Service Accounts to
the Product
Controlling Music Playback
Buttons on the Remote Control used for
Music Playback
Using the Options Menu During Playback
Using the Sort by & Options Menus on a
File Screen
Repeating Tracks on an Audio CD
Appendix
49
Shuffling Tracks on an Audio CD
Additional Information
49Notes
52
53
Resolution according to the contents type
Digital Output Selection
54Troubleshooting
Creating a Playlist from an Audio CD
57
37Ripping
37
41
Before Using Samsung Apps
57
Playing Photo Contents
Using the Tools Menu During Playback
57
Using the Sort by & Options Menus
58
Send files
Copying Videos, Music or Photos
Disc types and contents your product can
play
Disc types your product cannot play
Region Code
58
Logos of Discs the product can play
63
Compliance and Compatibility Notice
64
Network Service Disclaimer
59
Using the Send Function
Disc and Format Compatibility
64
Supported Formats
Copy Protection
65Licenses
66Specifications
7
English
Contents
28
Getting Started
Accessories
Check for the supplied accessories shown below.
Lithium Battery
(4301-001042)
DISC
MENU
TITLE MENU
POP-UP
OK
INFO TOOLS
123
TV
POWER
+
VOL
Power Cable
(3903-000853)
SOURCE
User Manual
(AK68-02641A)
Remote Control
(AK59-00179A)
WARNING, DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD,
The remote control supplied with this product contains a coin/button cell battery.
If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and
can lead to death. Keep new and used batteries away from children. If the battery compartment does
not close securely, stop using the remote control and keep it away from children. If you think a child has
swallowed a coin/button battery or placed it inside any part of his or her body, seek immediate medical
attention.
8
English
Front Panel
Getting Started
OPEN/CLOSE BUTTON
LED INDICATOR
Red: Power off
Green: Power on
Blue blinking: Remote control or
Front key input, Software update
||NOTES |
USB HOST
DISC TRAY
REMOTE CONTROL SENSOR
\\ To upgrade the product's software through the USB HOST jack, you must use a USB memory stick.
\\ When the product displays an Ultra HD Blu-ray or standard Blu-ray Disc's menu, you cannot start the
movie by pressing the Play button on the product or the remote control. To play the movie, you must
select Play Movie or Start in the disc's menu, and then press the OK button on the remote control.
Rear Panel
POWER
OPTICAL
DIGITAL
AUDIO OUT
LAN
SUB
(Audio Only)
(
MAIN
)
HDMI OUT
OPTICAL
DIGITAL
AUDIO OUT
POWER
POWER
02
PLAY/PAUSE BUTTON POWER BUTTON
STOP BUTTON
LAN
DIGITAL AUDIO OUT LAN
||NOTE |
SUB
(Audio Only)
(
MAIN
)
HDMI OUT
HDMI OUT
HDMI 1 outputs audio and video
HDMI 2 outputs audio only
\\ To use the Anynet+ (HDMI-CEC) function, connect an HDMI cable to the HDMI 1 terminal.
If you connect the cable to the HDMI 2 terminal, the Anynet+ (HDMI-CEC) function will not be
available.
9
English
Getting Started
Remote Control
||NOTE |
\\ Previous BD-Player remote controls may not be compatible with this player.
Tour of the Remote Control
Press to open and close the disc tray.
Turns the player on and off.
Press to play disc or files.
or
Press to pause playing.
Press to stop a disc or file.
Press to skip chapters. Press and hold to
search backwards (() or forwards ()).
Press to move to the Home screen.
Use to enter the disc menu.
DISC
MENU
Use to select menu items and change
menu values.
Return to the previous menu.
TITLE MENU
POP-UP
Use to enter the Popup menu/Title menu.
OK
Use to display playback information.
or
Press and hold this button to display the
number keypad on the screen.
INFO TOOLS
123
Press to use the Tools menu.
Turns the TV on and off.
TV
POWER
+
VOL
SOURCE
After setup, allows you to set the input
source on your TV.
These buttons are used both for menus
on the player and also several Ultra HD
Blu-ray Disc or Blu-ray Disc functions.
TV volume adjustment.
|| NOTE |
\\ Out of the box, the TV volume, source,
and on/off buttons only work with
Samsung TVs. To use these buttons with
another TV brand, enter the appropriate
TV Control Code listed on page 11.
Installing Batteries
1
Use a coin to turn the remote
control cover counterclockwise
to remove it as shown in the
figure above.
2
3
Insert a 3V lithium battery. Keep
the positive (+) pole facing up
when inserting the battery. Put
the battery cover on and align
the ' ' marks side by side as
shown in the figure above.
10
English
Use a coin to turn the cover
clockwise as far as it will go to
fix it in place.
Using Remote Control Buttons to Enter
TV Codes
2
3
TITLE MENU
POP-UP
2. While holding the
4
TV POWER button,
OK
5
6
press the buttons on the
remote that correspond
7
to a two-digit TV Code
from the list below. Use
123 TOOLS
8 9INFO
0
the illustration to the right
as a guide.
For example: To enter 01, press the TVTOOLS
button and then press the DISC MENU
POWER
button. Note that some TV brands
have more
VOL
than one 2-digit code. If the first
code does
SOURCE
not work, try the next.
+
TV Control Codes
Brand
SAMSUNG
AIWA
ANAM
LOEWE OPTA
MAGNAVOX
METZ
MITSUBISHI
MIVAR
NEC
NEWSAN
NOBLEX
NOKIA
NORDMENDE
PANASONIC
PHILIPS
PHONOLA
PIONEER
RADIOLA
Codes
01, 02, 03, 04, 05, 06, 07, 08, 09
RADIOMARELLI
RCA
82
REX
10, 11, 12, 13, 14, 15, 16, 17, 18
SABA
BANG & OLUFSEN 57
BLAUPUNKT
BRANDT
BRIONVEGA
CGE
CONTINENTAL
EDISON
DAEWOO
EMERSON
FERGUSON
FINLUX
FORMENTI
FUJITSU
GRADIENTE
GRUNDIG
HITACHI
IMPERIAL
JVC
LG
SALORA
71
SANYO
73
SCHNEIDER
57
SELECO
52
SHARP
75
SIEMENS
19, 20, 23, 24, 25, 26, 27, 28, 29,
30, 31, 32, 33, 34
SINUDYNE
64
SINGER
SONY
73
TELEAVA
06, 49, 57
TELEFUNKEN
57
THOMSON
84
THOMSON ASIA
70
TOSHIBA
49, 52, 71
06, 57
40
57
06, 48, 62, 65
52, 77
83
68
66
74
72, 73, 75
13, 53, 54, 74, 75
06, 56, 57
72, 73, 75
58, 59, 73, 74
06, 56
57
45, 46
74
57, 72, 73, 74, 75
74
41, 42, 43, 44, 48
06
74
36, 37, 38, 39, 48
71
57
57
35, 48
73
67, 73, 75, 76
72, 73, 75
80, 81
47, 48, 49, 50, 51, 52
60, 72, 73, 75
WEGA
57
61, 79
YOKO
06
ZENITH
63
52
06, 19, 20, 21, 22, 78
11
English
Codes
Getting Started
1
DISC
MENU
06, 69
02
1. Press and hold the
TV POWER button.
Brand
LOEWE
Connections
Connecting to a TV
Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI
IN jack on your TV.
-- Do not connect the power cord to the wall outlet until you have made all the other connections.
-- When you change the connections, turn off all devices before you start.
OPTICAL
DIGITAL
AUDIO OUT
POWER
POWER
OPTICAL
DIGITAL
AUDIO OUT
LAN
SUB
(Audio Only)
(
MAIN
LAN
SUB
(Audio Only)
(
MAIN
)
HDMI OUT
)
HDMI OUT
Audio
Video
||NOTES |
\\ To use the Anynet+ (HDMI-CEC) function, connect the HDMI cable to the HDMI 1 terminal.
If you connect the cable to the HDMI 2 terminal, the Anynet+ (HDMI-CEC) function will not be
available.
-- The HDMI 2 terminal does not output a video signal.
\\ If you use an HDMI-to-DVI cable to connect to your display device, you must also connect the
DIGITAL AUDIO OUT on the product to an audio system to hear audio.
\\ An HDMI cable outputs digital video and audio, so you don't need to connect an audio cable.
\\ Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual
of your TV.
\\ When you connect the product to your TV using an HDMI cable or to a new TV, and then turn it on for
the first time, the product automatically sets the HDMI output resolution to the highest supported by
the TV.
\\ A long HDMI cable may cause screen noise. If this occurs, set HDMI Deep Color to Off in the menu.
\\ To view video in the HDMI 720p, 1080i, 1080p or 2160p output mode, you must use a high speed
(category 2) HDMI cable.
\\ HDMI outputs only a pure digital signal to the TV.
If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears
on the screen.
\\ If your TV does not support HDCP (High-bandwidth Digital Content Protection) version 2.2, some of
Ultra HD Blu-ray titles may play at the 1080p resolution.
12
English
You can connect this product to an audio system using the methods illustrated below.
-- Do not connect the power cord to the wall outlet until you have made all the other connections.
-- When you change the connections, turn off all devices before you start.
Method 1 Connecting to an HDMI (HDR) compatible AV receiver that supports pass through
• Connect an HDMI cable (not supplied) from the HDMI OUT 1 jack on the back of the product to the
HDMI IN jack on your receiver. Connect another HDMI cable from the HDMI OUT jack of your receiver
to the HDMI IN jack of your TV.
-- Your receiver must have UHD pass through capability to pass through UHD video content.
OPTICAL
DIGITAL
AUDIO OUT
POWER
POWER
OPTICAL
DIGITAL
AUDIO OUT
LAN
SUB
(Audio Only)
(
MAIN
LAN
SUB
(Audio Only)
(
MAIN
)
HDMI OUT
)
HDMI OUT
Audio/Video
HDMI (HDR)
compatible
AV receiver
Video
||NOTE |
\\ If the AACS 2.0 was applied to the contents that you want to play, it may not be displayed on the screen
depending on the AV receiver connected. For more detailed information, refer to the user manual of your
AV receiver.
13
English
Connections
Connecting to an Audio System
03
\\ This product supports the HDR function. (HDR: High Dynamic Range is a technique used in imaging to
reproduce a greater dynamic range of luminosity than is possible with conventional imaging devices.)
-- To take advantage of the HDR function, you need HDR content, a TV supporting HDR, and a highspeed HDMI cable.
-- Connect the player to an HDMI input terminal on the TV that supports the HDR function using the
high speed HDMI cable.
-- Use the TV's menu to activate the HDR related function. For further information, refer to the TV's
user manual.
Connections
Method 2 Connecting to an HDMI compatible AV receiver that does not support pass through
• Connect an HDMI cable (not supplied) from the HDMI OUT 1 jack on the back of the product to
the HDMI IN jack on your your TV. Connect another HDMI cable from the HDMI OUT 2 jack on the
product to the HDMI IN jack on your receiver.
POWER
OPTICAL
DIGITAL
AUDIO OUT
OPTICAL
DIGITAL
AUDIO OUT
LAN
SUB
(Audio Only)
(
MAIN
)
HDMI OUT
LAN
SUB
(Audio Only)
(
MAIN
)
HDMI OUT
Audio
Video
HDMI
compatible AV
receiver
||CAUTION |
\\ Do not connect the HDMI OUT 1 and HDMI OUT 2 terminals of the product together with an HDMI
cable.
14
English
Method 3 Connecting to an AV receiver with a Digital Optical Cable
OPTICAL
DIGITAL
AUDIO OUT
LAN
SUB
(Audio Only)
(
MAIN
LAN
SUB
(Audio Only)
(
MAIN
)
HDMI OUT
)
HDMI OUT
Audio
7.1 Channel
Amplifier
||NOTE |
\\ If you connect a receiver to the player's OPTICAL DIGITAL AUDIO OUT port, the receiver’s audio
reproduction may not synchronize with that of the TV.
15
English
Connections
OPTICAL
DIGITAL
AUDIO OUT
POWER
POWER
03
• Using a digital Optical cable (not supplied), connect the OPTICAL DIGITAL AUDIO OUT jack on the
product to the DIGITAL OPTICAL IN jack of the receiver.
• You will hear sound only through the front two speakers with Digital Output set to PCM.
Connections
Connecting to a Network Router
Wireless Network
You can connect your product to your network
router using one of the methods illustrated below.
To use the DLNA network functionality, you must
connect your PC to your network as shown in the
illustrations.
The connection can be wired or wireless.
Wireless Router
Wired Network
POWER
OPTICAL
DIGITAL
AUDIO OUT
LAN
SUB
(Audio Only)
(
MAIN
Broadband
service
)
HDMI OUT
Broadband modem
(with integrated router)
||NOTES |
Broadband
service
Or
\\ If your wireless router supports DHCP, this
product can use a DHCP or static IP address
to connect to the wireless network.
\\ Set your wireless router to Infrastructure mode.
Ad-hoc mode is not supported.
\\ The product supports only the following
wireless security key protocols:
-- WEP (OPEN/SHARED), WPA-PSK (TKIP/
AES), WPA2-PSK (TKIP/AES)
Router
Broadband
modem
Broadband
service
||NOTES |
\\ Your router or your Internet Service Provider's
policies may prevent the product from
accessing Samsung's software update server.
If this occurs, contact your Internet Service
Provider (ISP) for more information.
\\ DSL users, please use a router to make a
network connection.
16
\\ Select a channel on the wireless router that
is not currently being used. If the channel
set for the wireless router is currently being
used by another device nearby, it will result in
interference and communication failure.
\\ If you select the Pure High-throughput
(Greenfield) 802.11n mode and set the
Encryption type on your router to WEP, TKIP or
TKIP-AES (WPS2Mixed), the product will not
support a connection in compliance with new
Wi-Fi certification specifications.
\\ Wireless LAN, by its nature, may cause
interference, depending on the operating
conditions (router performance, distance,
obstacles, interference by other radio devices,
etc).
English
Settings
The Initial Settings Procedure
The Home Screen
||NOTES |
PLAY DISC
\\ If you want to display the Initial Settings screen
again and make changes, select Settings >
System > Setup in the Home screen or select
the Reset option. (See page 23)
\\ If you want to use the Anynet+ (HDMI-CEC)
function, please follow the instructions below.
1)Connect the product to an Anynet+ (HDMICEC)-compliant Samsung TV using an HDMI
Cable.
2)Set the Anynet+ (HDMI-CEC) feature to On
in both the TV and the product.
3)Set the TV to the Initial Settings Procedure.
17
SAMSUNG APPS
No Disc
RECOMMENDED
1
1
2
3
4
\\ If you skip Network Setup during the Initial
Settings procedure, you can configure your
network settings later. See "Configuring Your
Network Connection" on pages 23~26 for
instructions.
MULTIMEDIA
6
2
Settings
After you have connected the product to your
TV, turn on the TV and product. When you turn
on the product the first time, the product's Initial
Settings screen appears on the TV. The Initial
Settings procedure lets you set the On Screen
Display (OSD) and menu languages, the aspect
ratio (screen size), and network configuration,
and connect the player to the Internet. Follow the
directions on the screen.
When the initial setup is completed, a tutorial
screen explaining how to use the Home menu will
appear. To exit this screen, press the (RETURN)
button on the remote.
3 4 5
1
04
• The Home screen will not appear if you do
not configure the initial settings.
• The OSD (On Screen Display) may change in
this product after you upgrade the software
version.
• The access steps may differ depending on
the menu you selected.
5
6
7
8
9
0
English
MY APPS
2
7
3
WebBrowser
2
8
3
Screen Mirroring
9
Settings
0
PLAY DISC : Lets you play photos,
videos, or music content from a Disc.
MULTIMEDIA : Lets you play photos,
videos, or music content from USB or
mobile devices or PCs.
Sign In : Lets you log into your Samsung
account.
Search : Lets you search for content
in Apps and YouTube by entering
corresponding search words.
Help : The tutorial screen explaining how
to use the Home menu will appear.
SAMSUNG APPS : Gives you access to
various applications you can download.
RECOMMENDED : Gives you direct
access to recommended applications.
MY APPS : Apps downloaded from MY
APPS are displayed.
Screen Mirroring : Lets you view the
screen of your smart phone or android
tablet on a TV you have connected to this
product.
Settings : Opens the product's menu. In
the menu, you can set various functions to
suit your personal preferences.
Settings
||NOTE |
\\ If you leave the product in the stop mode for
more than 5 minutes without using it, a screen
saver will appear on your TV. If the product is
left in the screen saver mode for more than 20
minutes, the power will automatically turn off.
Buttons on the Remote Control Used
for the Settings Menu
1
DISC
MENU
Accessing the Settings Screen
1. Select Settings on the Home screen, and
then press OK button. The Settings screen
appears.
TITLE MENU
POP-UP
2
OK
3
INFO TOOLS
123
Settings
Sound
Network
Smart Hub
System
Support
3D Settings
TV Aspect Ratio
BD Wise
Resolution
Movie Frame (24Fs)
DVD 24Fs Conversion
Fit Screen Size
TV
1
16:9 Original
Off
Auto
2
Off
Size 3
3
18
(RETURN) button
SOURCE : Press to return to
the previous menu.
VOL
Auto
2. To access the menus, sub-menus, and
options on the Settings screen, please refer
to the remote control illustration in the next
column.
+
(HOME) button : Press to move to the
Home screen. POWER
OK / DIRECTION buttons :
to move the cursor or
• Press
select an item.
• Press the OK button to activate the
currently selected item or confirm a
setting.
Detailed Function Information
Each Settings function, menu item, and individual
option is explained in detail on-screen. To view an
explanation, use the
buttons to select
the function, menu item, or option.
The explanation will usually appear on the right
side of the screen.
A short description of each Settings function
starts on the next page. Additional information on
some of the functions is also in the Appendix of
this manual.
English
Settings Menu Functions
Movie Frame (24Fs)
Select whether to play an Ultra HD Blu-ray Disc or
Blu-ray Disc with 3D content in 3D Mode.
If you move to the Home or SAMSUNG APPS
screen while in 3D mode, the product will switch
to 2D mode automatically.
TV Aspect Ratio
Lets you adjust the output of the product to the
screen size and screen format of your TV.
BD Wise
BD Wise is Samsung's latest inter-connectivity
feature.
When you connect a Samsung product and a
Samsung TV with BD Wise to each other via
HDMI, and BD Wise is on in both the product
and TV, the product outputs video at the video
resolution and frame rate of the Ultra HD Blu-ray
Disc, Blu-ray Disc, or DVD disc.
Resolution
Set the output resolution of the HDMI video signal
to BD Wise, Auto, 2160p, 1080p, 1080i, 720p or
480p.
The number indicates the number of lines of video
per frame.
The i and p indicate interlaced and progressive
scan, respectively. Generally, the more lines, the
higher quality.
19
DVD 24Fs Conversion
Converts DVD playback to 24 frames per second
and outputs it via HDMI. This option is only
available when Movie Frame (24Fs) is set to On.
||NOTE |
\\ This feature applies to NTSC discs only.
Fit Screen Size
Set the screen to the optimal size. (Available for
Smart Hub and Screen Mirroring only)
HDMI Color Format
Lets you set the color space format for the HDMI
output so that it matches the capabilities of the
connected device (TV, monitor, etc). The screen
goes black momentarily after you have selected a
format.
HDMI Deep Color
Lets you set the product to output HDMI video
with Deep Color. Deep Color provides more
accurate color reproduction with greater color
depth.
English
Settings
3D Settings
If the product is connected to a 24Fs compatible
TV, setting the Movie Frame (24Fs) feature to
Auto lets the product adjust its HDMI output to
24 frames per second automatically for improved
picture quality.
• You can enjoy the Movie Frame (24Fs) feature
only on a TV supporting this frame rate.
• Movie Frame is only available when the product
is in the HDMI 1080i, 1080p or 2160p output
resolution modes.
04
Settings
Sound
Dynamic Range Control
Speaker Settings
You can configure this product to connect to a
Multiroom Link compatible speaker wirelessly and
enjoy rich sound.
Speaker Settings : You can set up speakers
that are connected via your home network.
||NOTES |
\\ To use this feature, you must connect at
least one Multiroom Link speaker.
\\ Sound quality may be affected by the
condition of your wireless network.
\\ The network connection can be negatively
affected and even lost if the network
environment deteriorates over time.
\\ Activating Screen Mirroring disables
Multiroom Link.
\\ For further details, refer to the Multiroom Link
manual on the Samsung web site:
;
www.samsung.com ;
Search for Product name: UBD-K8500 ;
Manuals ; Multiroom Link ; Download PDF
\\ The audio from each connected device may
lag behind the video and audio of the device
which is playing the source contents.
Digital Output
Lets you select the digital audio output format that
is suitable for your TV or AV Receiver. For more
details, see the digital output selection table on
page 53.
PCM Downsampling
Lets you choose to have 96kHz PCM signals
downsampled to 48kHz before they are outputted
to an amplifier. Choose On if your amplifier or
receiver is not compatible with a 96kHz signal.
20
Lets you apply dynamic range control to Dolby
Digital, Dolby Digital Plus, and Dolby TrueHD
audio.
Auto : Automatically controls the dynamic range
of Dolby TrueHD audio, based on information
in the Dolby TrueHD soundtrack. Also turns
dynamic range control on for Dolby Digital and
Dolby Digital Plus.
Off : Leaves the dynamic range uncompressed,
letting you hear the original sound.
On : Turns dynamic range control on for all three
Dolby formats. Quieter sounds are made louder
and the volume of loud sounds is reduced.
Downmixing Mode
Lets you select the multi-channel downmix method
that is compatible with your stereo system.
You can choose to have the product downmix to
normal stereo or to surround compatible stereo.
DTS Neo:6 Mode
You can enjoy multichannel sound via HDMI
output from a 2 channel audio source.
Audio Sync
In some cases, when the product is connected to
a digital TV, the audio signal may not synchronize
with the video signal. If this occurs, adjust the
audio delay time to match the video signal.
• You can set the audio delay time between 0 ms
and 250 ms. Adjust it to the optimal setting.
||NOTE |
\\ The audio delay time you specify may not be
exact depending on the content played.
English
HDMI Audio Output
Network Status
Lets you check the current network and Internet
status.
Network Settings
Caption
The function is used for VOD playback that
supports closed caption display.
Use it to change the displayed caption's font color
and size.
||NOTES |
\\ This function does not work with VOD
services that don't support closed caption
display.
\\ For certain VOD services, the function's
settings may not be applied.
Configure the network connection so you can
enjoy various features such as Internet services
or DLNA functionality, and perform Software
Updates.
Terms & Policy
Lets you control which devices on your network,
such as smart phones and tablets, can share
content with your product.
Reset Smart Hub
Multimedia Device Settings
Device Name
Lets you input a name for the product that will
identify it on your network.
BD-Live Settings
Set various BD-Live functions. BD-Live allows
you to access extra features available on some
Ultra HD Blu-ray Discs or Blu-ray Discs if you are
connected to the Internet.
||NOTE |
\\ To use this function, connect the USB storage
device first and select it from the BD Data
Management menu.
21
You must review and agree to both the App Terms
& Conditions and the privacy policy to use App
services.
Resets all Smart Hub settings to their default
settings. To use, you must enter the security PIN.
The default security PIN is 0000.
System
Accessibility
Voice Guide : You can activate voice guides
that describe the menu options aloud to aid the
visually impaired.
High Contrast : Set up the background and
font in high contrast color in Samsung Apps
(Smart Hub) and Multimedia.
Enlarge : Set whether to enlarge the highlighted
item in Samsung Apps (Smart Hub) and
Multimedia.
English
Settings
Network
Smart Hub
04
Set HDMI audio to output through HDMI1 or
HDMI2.
Auto : Audio output will be set automatically
based on the devices connected to HDMI1 and
HDMI2.
HDMI1 : Audio will output to the device connected
to HDMI1.
HDMI2 : Audio will output to the device connected
to HDMI2.
BD-Live Internet Connection : Lets you fully
allow, partly allow, or prohibit a BD-Live Internet
connection.
BD Data Management : Manage BD data
downloaded from a BD-Live service or
Ultra HD Blu-ray Disc/Blu-ray Disc.
Settings
Setup
Security
Lets you re-run the Initial Settings procedure.
Language
You can select the language you prefer for the Onscreen menu, disc menu, audio, subtitles, etc.
• The language you select for the disc menu,
disc audio, or subtitles will only appear if it is
supported on the disc.
Device Manager
You can connect a wireless USB keyboard or
mouse to the USB port on the front of the product.
Keyboard Settings : Lets you configure a
wireless USB keyboard connected to the
product.
||NOTE |
\\ You can use the keyboard only when a
QWERTY keyboard screen or window
appears in the Web Browser.
Mouse Settings : Lets you configure a wireless
USB mouse connected to the product. You can
use the mouse in the product's menu and the
Web Browser in the same way you use a mouse
on your PC.
`` To use a mouse with the product's menu:
1. Connect the USB mouse to the product.
2. Click the primary button you selected
in Mouse Settings. The Simple Menu
appears.
3. Click the menu options you want.
The default security PIN is 0000. Enter the default
PIN to access the security function if you haven't
created your own PIN. After you have accessed
the security function for the first time, change the
PIN using the Change PIN function.
BD Parental Rating : Prevents playback of
Ultra HD Blu-ray Discs or Blu-ray Discs with a
rating equal to or above a specific age rating
you have set unless you enter the PIN.
DVD Parental Rating : Prevents playback of
DVDs with a rating above a specific numerical
rating you have set unless you enter the PIN.
Change PIN : Change the 4-digit PIN used to
access security functions.
`` If you forget your PIN:
1. Remove any disc or USB storage device.
2. Press and hold the @ button on the top
panel for 5 seconds or more.
The initialization message appears on
the screen, and the power will turn off
automatically.
When you turn your product on again, all
the settings will be reset.
General
You can change the options listed below to match
your preferences.
Time Zone : Select the time zone in which you
live.
Menu Transparency : Lets you adjust the
transparency of the menu box.
Anynet+ (HDMI-CEC)
||NOTES |
\\ Some USB HID keyboards and mice may
not be compatible with your product.
\\ Some HID keyboard keys may not work.
\\ Wired USB keyboards are not supported.
\\ Some applications may not be supported.
\\ If a wireless HID Keyboard does not operate
because of interference, move the keyboard
closer to the product.
22
Anynet+ is a convenient function that offers linked
operations with other Samsung product that
have the Anynet+ feature and lets you control
those products with one Samsung TV remote.
To operate this function, you must connect this
product to an Anynet+ Samsung TV using an
HDMI cable.
English
Networks and the Internet
Support
||NOTES |
\\ Remote Management service might not be
available in some countries.
\\ To use Remote Management:
1)Call the Samsung Contact Center and ask
for remote support.
2)Open the player's menu on your TV and
go to the Support section.
3)Select Remote Management, and then
read and agree to the service agreements.
When the PIN screen appears, provide the
PIN number to the agent.
4)The agent accesses your player.
Software Update
This menu allows you to upgrade the product's
software for performance improvements or
additional services.
Contact Samsung
Provides contact information for assistance with
your product.
Reset
Resets all settings to their default settings except
for the network and Smart Hub settings, and then
starts the Setup function. To use, you must enter
the security PIN. The default security PIN is 0000.
Configuring Your Network Connection
Before you begin, determine if your IP address
is static or dynamic. (Most are dynamic.) If it
is dynamic, and you have a wired or wireless
network, we recommend using the Automatic
configuration procedures described below.
If you are connecting to a wired network, connect
the product to your router using a LAN cable
before you start the configuration procedure.
If you are connecting to a wireless network,
disconnect any wired network connections before
you begin.
To begin configuring your network connection,
follow these steps:
Wired Network
ĞĞ
Wired - Automatic
1. In the Home screen, select Settings, and
then press the OK button.
2. Select Network, and then press the OK
button.
3. Select Network Settings, and then press the
OK button.
4. Select Wired in the Network Settings screen,
and then press the OK button.
5. Select the Connect button, and then press
the OK button. The product detects the wired
connection, verifies the network connection,
and then connects to the network.
23
English
Settings
When activated, lets Samsung Call Center agents
diagnose and fix problems with your player
remotely. Requires an active Internet connection.
When you connect this product to a network,
you can use network based applications and
functions such as Smart Hub and BD-LIVE,
and upgrade the product's software through
the network connection. For more information
about accessing and using Internet services, see
the Network Services chapter of this manual on
pages 40~48. Instructions for configuring the
network connection start below.
04
Remote Management
Settings
ĞĞ
Wired - Manual
If you have a static IP address or the Automatic
procedure does not work, you'll need to set the
Network Settings values manually.
Follow Steps 1 and 2 in Wired - Automatic, and
then follow these steps:
1. Select Network Status. The product
searches for a network, and then displays the
connection failed message.
2. On the bottom of the screen, select IP
Settings, and then press the OK button.
The IP Settings screen appears.
3. Select the IP Settings field, and then press
the OK button.
4. Select Enter manually in the IP Settings
field, and then press the OK button.
5. Select a parameter to enter (IP Address, for
example), and then press the OK button.
Use the
buttons on the remote control
to enter the numbers for the parameter.
buttons on the remote control
Use the
to move from entry field to entry field within a
parameter. When done with one parameter,
press the OK button.
6. Press the or button to move to another
parameter, and then enter the numbers for
that parameter following the instructions in
Step 5.
7. Repeat Steps 5 and 6 until you have filled in
all parameters.
Wireless Network
You can set up a wireless network connection in
four ways:
-- Wireless Automatic
-- Wireless Manual
-- WPS(PBC)
-- WPS PIN
When you configure the wireless network
connection, any wireless network devices currently
connected through the product or, if applicable,
the product's current wired connection, will be
disconnected.
ĞĞ
Wireless - Automatic
1. In the Home screen, select Settings, and
then press the OK button.
2. Select Network, and then press the OK
button.
3. Select Network Settings, and then press the
OK button.
4. Select Wireless in the Network Settings
screen, and then press the OK button. The
product searches for and then displays a list
of the available networks.
Network Settings
Select your network type.
Network type
||NOTE |
Wireless network
You can connect your Bluray player to the internet.
Please select which wireless
network to use.
iptime23
\\ You can get the Network parameters from your
Internet provider.
8. When finished entering all the parameters,
select OK, and then press the OK button. The
product verifies the network connection and
then connects to the network.
Wireless
iptime
solugen_edu#2
Refresh
WPS(PBC)
5. Select the desired network, and then press
the OK button.
6. On the Security screen, enter your network's
Security Code or Pass Phrase.
Enter letters by selecting a letter with an arrow
button, and then pressing OK button.
24
English
7. When finished, select Done and then press
the OK button. The product verifies the
network connection and then connects to the
network.
8. When verification is complete, select OK, and
then press the OK button.
||NOTE |
\\ You should be able to find the Security Code or
Pass Phrase on one of the set up screens you
used to set up your router or modem.
ĞĞ
Wireless - Manual
If you have a static IP address or the Automatic
procedure does not work, you'll need to set the
Network Settings values manually.
1. Follow the directions in Wireless - Automatic
through Step 5.
2. The product searches for a network, and then
displays the connection failed message.
3. On the bottom of the screen, select IP
Settings, and then press the OK button.
The IP Settings screen appears.
4. Select the IP Settings field, and then press
the OK button.
5. Select Enter manually in the IP Settings
field, and then press the OK button.
6. Select a parameter to enter (IP Address, for
example), and then press the OK button.
Use the
buttons on the remote control
to enter the numbers for the parameter.
Use the
buttons on the remote control
to move from entry field to entry field within a
parameter. When done with one parameter,
press the OK button.
25
7. Press the or button to move to another
parameter, and then enter the numbers for
that parameter following the instructions in
Step 6.
||NOTE |
Settings
\\ To view the password as you enter it, use the
arrow buttons to select Show Password on
the right side, and then press OK button.
04
||NOTE |
8. Repeat Steps 6 and 7 until you have filled in
all parameters.
\\ You can get the Network parameters from your
Internet provider.
9. When finished, select OK, and then press the
OK button. The Security Screen appears.
10. On the Security screen, enter your network's
Security Code or Pass Phrase. Enter letters by
buttons,
selecting a letter with the
and then pressing the OK button.
11. When finished, select Done at the right of the
screen, and then press the OK button.
The product verifies the network connection
and then connects to the network.
12. After the product verifies the network, select
OK, and then press the OK button.
ĞĞ
WPS(PBC)
1. In the Home screen, select Settings, and
then press the OK button.
2. Select Network, and then press the OK
button.
3. Select Network Settings, and then press the
OK button.
4. Select Wireless in the Network Settings
screen, and then press the OK button.
5. Press the
press the
button on your remote, and then
button to select WPS(PBC).
6. Press the OK button on your remote. The
"Press the PBC button on your wireless
router within the next two minutes." message
appears.
English
Settings
7. Press the WPS(PBC) button on your router
within two minutes. Your product automatically
acquires all the network settings values it
needs and connects to your network.
The Network Status screen appears.
The product connects to the network after the
network connection is verified.
ĞĞ
WPS PIN
Before you begin, open the router's setup menu
on your PC and access the screen with the WPS
PIN entry field.
1. In the Home screen, select Settings, and
then press the OK button.
Upgrading Software
This menu allows you to upgrade the product's
software for performance improvements or
additional services.
• Never turn the product off or back on
manually during the update process.
1. In the Home screen, select Settings, and
then press the OK button.
2. Select Support, and then press the OK
button.
3. Select Software Update, and then press the
OK button.
2. Select Network, and then press the OK
button.
3. Select Network Settings, and then press the
OK button.
4. Select Wireless in the Network Settings
screen, and then press the OK button.
The product searches for and then displays a
list of the available networks.
5. Select the desired network, and then press
the OK button.
6. Select the WPS PIN, and then press the
OK button. The PIN pop-up appears.
7. Enter the PIN into the WPS PIN entry field in
the router's set up screen and then save the
the screen.
||NOTES |
\\ Contact the manufacturer of the router for
instructions explaining how to access the
route's set up screens or refer to the router's
user's manual.
4. To download update software and update
now, select Update now, and then press the
OK button.
5. To let the product download update software
automatically when available, select Auto
Update, and then press the OK button. See
"Auto Update" on page 27 for details.
||NOTES |
\\ The upgrade is complete when the product
turns off, and then turns on again by itself.
\\ Samsung Electronics takes no legal
responsibility for any product malfunction
caused by an unstable Internet connection
or consumer negligence during a software
Update.
\\ If you want to cancel the upgrade while the
upgrade software is downloading, press the
OK button.
\\ For a WPS connection, set your wireless
router's security encryption method to AES.
WPS connections do not support WEP security
encryption.
26
English
Update now
6. Find Upgrade File (USB type) under
Downloads.
7. Click DOWNLOAD (ZIP).
||NOTES |
\\ When the system update is done, check the
software details in the Product Information
section of the Contact Samsung screen.
\\ Do not turn off the product during the Software
Update.
It may cause the product to malfunction.
Auto Update
You can set the Auto Update function so that the
product downloads new upgrade software when it
is in Auto Update mode.
This allows the product to download upgrade
software automatically, when you are not using it.
1. Press the
buttons to select Auto
Update, and then press the OK button.
2. Select On / Off.
||NOTE |
\\ To use the Auto Update function, your product
must be connected to the Internet.
Update by USB
8. On the page that appears, click CONTINUE.
The download begins. Click the faint X in
the upper right corner of the white area in
the center of the window. Then, click the
Download icon on your browser to display
the download in progress.
9. When the download is done, unzip the zip
archive to your computer. You should have a
single folder with the same name as the zip
file.
10. Copy the folder to the top level folder of a
USB flash drive.
11. Make sure no disc is inserted in the product,
and then insert the USB flash drive into the
USB port of the product.
12. In the product’s menu, go to Settings >
Support > Software Update.
13. Select Update now.
14. The product searches for the software on the
USB drive. When it finds the software, the
Update Request pop-up appears.
15. Select OK. The product upgrades the
software, turns off, and then turns on
automatically.
||NOTES |
\\ There should be no disc in the product when
you upgrade the software using the USB jack.
\\ When the system upgrade is done, check the
software details in the Product Information
section of the Contact Samsung screen.
To upgrade by USB, follow these steps:
1. Visit www.samsung.com.
2. Click OWNERS & SUPPORT > GET
SUPPORT on the top right of the page.
3. Enter the product's model number into the
search field in the upper right of the screen.
As you enter the model number, a drop down
will display products that match the model
number.
\\ Do not turn off the product during the Software
Update.
It may cause the product to malfunction.
\\ Software Updates using the USB jack must be
performed with a USB flash memory stick only.
4. Click your product's model number in the
drop down list.
5. On the page that appears, scroll down to
Manuals & Downloads.
27
English
Settings
2. An online update function downloads and
installs the update software directly from the
Internet.
-- This option requires an Internet connection.
04
1. Select Support > Software Update >
Update now.
Media Play
Your Ultra HD Blu-ray Player can play content
located on Ultra HD Blu-ray/Blu-ray/DVD/CD
discs, USB devices, PCs, smart phones, tablets,
and on the Web.
To play content located on your PC or a mobile
device, you must connect the PC or mobile device
and the product to your network. To play content
on your PC, you must install DLNA software or
already have DLNA software installed on your PC
and connect the Ultra HD Blu-ray Player to your
PC via your network.
||NOTE |
\\ PCs running Windows 7 and Windows 8 have
DLNA software (Windows Media Player) built in.
Playing Commercial Discs
1. Press the ^ button to open the disc tray.
2. Place a disc gently into the disc tray with the
disc’s label facing up.
Disc Storage & Management
• Holding Discs
-- Fingerprints or scratches on
a disc may reduce sound and
picture quality or cause skipping.
-- Avoid touching the surface of a disc where
data has been recorded.
-- Hold the disc by the edges so that fingerprints
will not get on the surface.
-- Do not stick paper or tape on the disc.
• Cleaning Discs
-- If you get fingerprints or dirt on a disc, clean
it with a mild detergent diluted in
water and wipe with a soft cloth.
-- When cleaning, wipe gently from
the inside to the outside of the
disc.
• Disc Storage
`` Do not keep in direct sunlight.
`` Keep in a cool ventilated area.
`` Keep in a clean protective jacket and store
vertically.
Playing Photos, Videos, and Music
(Multimedia)
You can play media content saved on a USB
device, smartphone, camera, or computer on the
product.
3. Press the ^ button to close the disc tray.
Playback starts automatically.
4. If playback does not start automatically, press
the (HOME) button, select PLAY DISC on
the upper left of the Home screen, and then
press the OK button on the remote.
28
||NOTES |
\\ You cannot play media content if the content
or the storage device is not supported by the
product.
\\ Backup important files before connecting a
USB device. Samsung is not responsible for
damaged or lost files.
English
Playing Media Content Saved on a USB
Device
3. Select the device you that has the files you
want to play. The folders and files in the
selected USB are listed.
4. Select the media content you want to play
from the list. The media content plays.
||NOTE |
\\ Alternatively, select the Media Type you want to
play (Videos, for example), then select the file
you want to play, and then press the button
to play the content.
5. To exit, press the @ button or
button.
(RETURN)
||NOTE |
\\ If you connect a USB device to the product, a
popup window appears on the screen so that
you can easily navigate the folders and files of
the USB device.
Playing Media Content Saved in a
Computer/Mobile Device
You can play media content on the product that is
stored on a computer or mobile device connected
to the same network as the product.
1. Connect the smart device and product to the
same network.
2. Press the (HOME) button. Select
MULTIMEDIA, and then Storage. Storage
devices connected to the same network as
the product are listed.
3. Select a desired storage device. The folders
and files shared by the selected storage
device are listed.
4. Select the media content you want to play
from the list. The media content plays.
||NOTES |
\\ Alternatively, select the Media Type you want
to play (Videos, for example), select the file you
want to play, and then press the button to
play the content.
\\ Playing UHD BD content may require a network
connection. Depending on the network
environment and status of Contents Server
(Studio), playback may not be successful.
5. To exit, press the @ button or
button.
||NOTES |
\\ Only available with Samsung phones supporting
DLNA functionality.
\\ You may experience compatibility issues when
attempting to play media files via a third-party
DLNA server.
\\ The content shared by a computer or a
mobile device may not play depending on the
encoding type and file format of the content. In
addition, some functions may not be available.
29
English
(RETURN)
Media Play
2. Press the (HOME) button. Select
MULTIMEDIA, and then Storage. The USB
devices connected to the product are listed.
05
1. Connect your USB device to the product.
\\ The media content may not play smoothly
depending on the network status. If the content
does not play smoothly, transfer the content to
a USB device, connect the USB device to the
player, and then play the content from the USB
device.
Media Play
Allowing a Connection with a Mobile Device
Playing a Disc with User Recorded
Content
(HOME  Settings  Network  Multimedia
Device Settings)
To play the media content stored on a mobile
device, you must allow the connection between
the mobile device and the product.
You can play multimedia files you have recorded
on Blu-ray, DVD, or CD discs.
\\ You can connect a mobile device to any
DLNA DMC device, such as your player. The
DLNA DMC function enables you to connect a
mobile device to the product, search for media
content, and control play operations on the
product.
buttons to select the type
2. Use the
of content you want to view or play - All,
Photos, Videos or Music - and then press
the OK button.
||NOTE |
1. Navigate to Settings > Network and select
Multimedia Device Settings. The mobile
devices connected to the same network as
the product are listed.
2. Allow connection with the device you wish
to connect to the product. You can only
play media files from devices that have been
allowed to connect to the product.
||NOTE |
\\ If a mobile device requests to play media
content, the connection confirmation window
appears on the TV connected to the product so
that you can easily connect the mobile device.
1. Place a user recorded disc into the disc
tray with the disc’s label facing up, and then
close the tray. The Device Connected pop-up
appears.
||NOTE |
\\ Even though the product will display folders for
all content types, it will only display files of the
Content Type you selected in Step 2.
For example, if you selected music, you will
only be able to see music files. You can change
this selection by returning to the MULTIMEDIA
screen and repeating Step 2.
3. A screen appears listing the contents of the
disc. Depending on how the contents are
arranged, you will see either folders, individual
files, or both.
buttons to
4. If necessary, use the
select a folder, and then press the OK button.
5. Use the
buttons to select a file to
view or play, and then press the OK button.
6. Press the (RETURN) button one or more
times to exit a current screen, exit a folder, or
to return to the Home screen.
7. Go to pages 31~39 for instructions that
explain how to control playback of videos,
music, and pictures on a disc.
30
English
Controlling Video Playback
„„
DISC
MENU
„„
DISC
MENU
button
TITLE MENU
POP-UP
TITLE
MENU
button
OK
Playback related buttons
The product does not play sound in Search, or
Step mode.
INFO TOOLS
• To return to normal speed123playback,
press the
p button.
p button
@ button
Using the disc menu, title menu, popup
menu, and title list
POPUP
MENU
button
Starts playback.
When a disc is
TV
playing, push to pause playback.
Push POWER
again to restart.
+
Stops
playback.
SOURCE
VOL
During playback, press and hold
the [ or ] button.
Fast
Each time you press and hold the
Motion Play
[ or ] button, the playback
speed will change.
In pause mode, press and hold
the ] button.
Slow
Each time you press and hold the
Motion Play
] button, the playback speed
will change.
During playback, press the [ or
] button.
Skip
Each time you press the [ or
Motion Play
] button, the disc moves to the
previous or next chapter or file.
31
English
During playback, press this button
to display the Disc menu.
During playback, press this button
to display the Title menu.
• If your disc has a playlist, press
View to go to the playlist.
During playback, press this button
to display the Popup menu.
Media Play
Buttons on the Remote Control used for Video Playback
05
You can control the playback of video content located on a Disc, USB, mobile device, or PC. Depending
on the disc or contents, some of the functions described in this manual may not be available.
Media Play
Using the Settings Menu During
Playback
buttons to
2. Use the
select a chapter, and then
press the OK button.
During playback or in pause mode, press the
TOOLS button.
Use the
buttons to select the
and
then press the OK button.
-- Search Time Bar : Select
to play the movie from a
selected time point.
1. Select Search Time Bar,
and then press the OK
button.
Select to return to the beginning
Play from the
of the movie, and then press the
Beginning
OK button.
2. Using the
buttons,
enter the time point you
want to go to.
Use the 3D menu when playing
a 3D file.
||NOTES |
3D
\\ The 3D menu becomes
available only when you are
playing a 3D video file.
Select Scene
\\ If you move to the Home or
Smart Hub Home screen
while in 3D mode, the
product will switch to 2D
automatically.
\\ If you run files on a network
device after you have
connected the player to a
computer on your network,
Select Scene may not work.
1. Select Search Titles, and
then press the OK button.
buttons to
2. Use the
select a title, and then press
the OK button.
||NOTE |
\\ When searching DVD titles in
stop mode, press the INFO
button, and then enter the
title number (01,02,...) you
want.
Search
1. Select Search Chapters,
and then press the OK
button.
Subtitle
Settings
-- Search Chapters : Select
to play the chapter of your
choice.
32
\\ You can also use the
buttons to advance or
rewind the movie. The movie
advances or rewinds one
minute each time you press
the
buttons.
\\ If the index information in
the file is damaged or the file
does not support indexing,
you will not be able to use
the Select Scene function.
-- Search Titles : If there is
more than one movie on the
disc or device, select to start
a different title.
Select Scene
||NOTES |
English
-- Search Scene : You can use
the Search Scene function
during playback to view or
start a movie from the scene
of your choice.
-- Search Titles : If there is
more than one movie on the
disc or device, select to start
a different title.
-- Search Time Bar : Select to
play the movie from a selected
time point.
Lets you set the desired subtitle
options.
Repeat Mode
Lets you set the picture mode.
-- Dynamic : Increases
sharpness and brightness.
-- Standard : Choose this
setting for most viewing
applications.
-- Movie : The best setting for
watching movies.
Picture Mode -- User : Lets you adjust
the sharpness and
noise reduction function
respectively.
||NOTE |
\\ When you use the BD wise
function, this menu will not
appear.
Multiroom
Link
Select to control the volume of
Multiroom speakers.
-- Volume : Adjusts the volume
level. Press the
buttons
on the remote control.
-- Mute : Mutes the sound
from this player. Press again
to restore the sound to the
previous volume level.
Angle
Information
BONUSVIEW
Video
BONUSVIEW
Audio
\\ Depending on the disc or storage device, the
menu may differ.
\\ Video files with high bitrates of 20Mbps or more
strain the product's capabilities and may stop
playing during playback.
\\ This menu is only available
when you connect to a
Multiroom Link compatible
speaker.
Audio Sync
Subtitle
Use to set the desired audio
language.
Select to adjust the audio sync.
Use to set the desired subtitle
language.
33
Use to set the desired
bonusview option.
||NOTES |
||NOTE |
Audio
Lets you view video file
information.
English
Media Play
Lets you set the size of the video
image.
Lets you view a scene from
another angle. The Angle option
displays the number of angles
available to view. When an Ultra
HD Blu-ray Disc/Blu-ray Disc/
DVD contains multiple angles
of a particular scene, you can
change to another angle.
05
Full Screen
Lets you repeat a title, chapter,
or specific section.
Media Play
Controlling Music Playback
Using the Sort by & Options Menus
Using the Sort by Menu
On a file screen containing video files, select
and then press the OK button.
Date
Title
Folder
Groups all the the video files on
the media or storage device by
date. Click a group to see the
videos in that group.
You can control the playback of music content
located on a Disc, USB, mobile device, or PC.
Depending on the disc or contents, some of the
functions described in this manual may not be
available.
Buttons on the Remote Control used
for Music Playback
Displays all the video files on the
media or storage device by title.
4
Displays all the folders on the
media or storage device in
alphabetical order.
2
||NOTE |
13
\\ Depending on the disc or storage device, the
menu may differ.
DISC
MENU
Using the Options Menu
OK
On a file screen containing video files, select
and then press the OK button.
1
Lets you select specific files
Play Selected to play. It works essentially the
same for all media.
Send
TITLE MENU
POP-UP
Select this menu to upload
selected files to a web site
(Picasa, Facebook etc) or
device. To use this menu, you
need to establish an account
with the on-line site, and then
log in using the Log In function.
See "Using the Send Function"
on page 39.
34
2
3
4
[ ] buttons : Move to the previous/
next track.
INFO TOOLS
a track.
@ button : Stops
123
Fast Play (Audio CD [CD-DA] only)
During playback, press and hold the [ or
] button. TV
Each time
you press and hold the [
POWER
or ] button, the
VOLplayback speed will
change.
SOURCE
+
-
p button : Plays/Pauses a track.
||NOTE |
\\ If you don't press a button within five seconds
of inserting an Audio CD, the screen is
displayed in Full Screen mode.
To go back to the Play List screen, press the
(RETURN) button on the remote control.
English
Using the Options Menu During
Playback
Ripping
Information
This function converts CD audio
to the mp3 or wav format,
as selected by the user, and
saves the converted files on a
USB device or a mobile device
connected to the product. See
"Ripping" on page 37.
Select to see the Contents
information.
\\ Depending on the disc or storage device, the
menu may differ.
Using the Sort by & Options Menus on
a File Screen
Using the Sort by Menu
On a file screen containing music files, select the
and then press the OK button.
Track
Album
Artist
||NOTE |
\\ Depending on the disc or storage device, the
menu may differ.
Using the Options Menu
On a file screen containing music files, select the
and then press the OK button.
Lets you select specific tracks
to play. It works essentially the
Play Selected same for all media.
See the "Repeating Tracks on
an Audio CD" on page 36.
Send
||NOTE |
Encoding
Add to
Playlist
Index
||NOTE |
Select to send selected files to
other devices. See "Using the
Send Function" on page 39.
Select to manage the text
encoding options.
Select to create a playlist.
Select to display the list of
music titles with the same initial
letter as that selected.
\\ Depending on the disc or storage device, the
menu may differ.
Displays all the music tracks on
the media or storage device in
alphabetical order.
Displays all music on the media
or storage device by album.
Displays all the the music files
on the media or storage device
by artis.
35
Displays all the folders on the
media or storage device.
English
Media Play
Lets you create a playlist by
selecting specific tracks to play.
It works essentially the same
Play Selected
way for all media. See "Creating
a Playlist from an Audio CD" on
page 36.
Folder
Displays all the music on the
media or storage device by
genre.
05
On the music file playback screen, use the
buttons to select the
and then press
the OK button.
Genre
Media Play
Repeating Tracks on an Audio CD
You can set the product to repeat tracks on an
audio CD (CD-DA/MP3).
1. On the Playback screen, use the
buttons to select
in the lower left corner
of the screen, and then press the OK button.
2. Use the
buttons to select the repeat
mode you want - Off, One Song, or All - and
then press the OK button.
TRACK 001
TRACK 002
TRACK 003
TRACK 004
TRACK 005
TRACK 006
TRACK 001
TRACK 007
00:00:39 00:02:38
TRACK 008
TRACK 009
TRACK 010
00:43
03:56
04:41
04:02
03:43
03:40
04:06
03:52
03:04
04:02
Shuffling Tracks on an Audio CD
You can set the product to play tracks on an audio
CD (CD-DA/MP3) at random.
1. On the Playback screen, use the
buttons to select
in the lower left corner of
the screen, and then press the OK button.
2. Use the
to set the Shuffle mode On or
Off, and then press the OK button.
Creating a Playlist from an Audio CD
4. Repeat Step 3 to select and check additional
tracks.
5. To remove a track from the list, move to the
track, and then press the OK button again.
The check on the track is removed.
6. When done, press the
buttons to select
Play, and then press the OK button. The
Music Playback screen reappears listing only
the tracks you checked. The selected tracks
play automatically.
||NOTES |
\\ You can create a playlist with up to 99 tracks
on Audio CDs (CD-DA).
\\ On the Selection Play screen, you can also
choose Select All, Clear All, and Cancel.
-- Use Select All to select all tracks. This
cancels your individual track selections.
When you press the (RETURN) button
on your remote control or select the Play
button, and then press the OK button, all
tracks will appear on the Music Playback
screen, and the product will begin to play all
tracks from Track 001.
-- Use Clear All to deselect all selected tracks
at once. Then, select individual tracks or
use Select All to select all the tracks, and
then press the (RETURN) button on your
remote control. If you do not use Select All
or select individual tracks, the Playlist will not
change.
-- Cancel cancels any changes you made on
the Play Select screen. When you return
to the Playback screen, the Playlist will be
unchanged.
1. With the Playback screen displayed, select
and then press the OK button. The
the
Settings menu appears.
buttons to select Play
2. Use the
Selected, and then press the OK button.
3. Use the
buttons to select a track, and
then press the OK button. A check appears
to the left of the track.
36
English
Ripping
||NOTES |
buttons to select Ripping, and
3. Use the
then press the OK button.
4. Select the ripping encoding type from the list.
Ripping types supported are:
WAV Lossless Copy
MP3 320 kbps
MP3 192 kbps
5. Use the
buttons to select a track, and
then press the OK button. A check appears
to the left of the track.
\\ This function may not be supported by some
discs.
\\ Ripping encodes music into the .mp3 format at
192kbps and 320kbps.
\\ On the Ripping screen, you can also choose
Select All and Clear All.
\\ Use Select All to select all tracks and press the
OK button. This cancels your individual track
selections.
\\ Use Clear All to deselect all selected tracks at
once.
Playing Photo Contents
6. Repeat Step 5 to select and check additional
tracks.
You can play photo contents located on a DVD,
USB, mobile device, or PC.
8. When done, select Rip using the
buttons, and then press the OK button. The
Rip pop-up appears.
During playback or in pause mode, press the
TOOLS button.
Use the
buttons to select the
and
then press the OK button.
7. To remove a track from the list, move to the
track, and then press the OK button again.
The check on the track is removed.
9. Use the
buttons to select the device to
store the ripped files to, and then press the
OK button.
||NOTE |
\\ Do not disconnect the device while ripping is in
progress.
10. If you want to cancel ripping, press the OK
button and then select Yes. Select No to
continue ripping.
11. When ripping is complete, the "Successfully
Ripped." message appears. Press the OK
button.
Using the Tools Menu During Playback
Slideshow
Settings
Rotate
Zoom
12. Press the (RETURN) button or select
Cancel, and then press the OK button to go
back to the Playback screen.
37
English
Select to change the Slide Show
settings.
-- Speed : Select to set the slide
show speed.
-- Effects : Select to set the
slide show effect.
Select to rotate the picture. (This
can rotate the picture either
clockwise or counter clockwise.)
Select to enlarge the current
picture. (Enlarge up to 4 times)
Media Play
2. With the Playback screen displayed, select
and then press the OK button. The
the
Settings menu appears.
\\ This function does not work with DTS Audio
CDs.
05
1. Insert a USB device into the USB jack on the
front of the product.
Media Play
Select to set the picture mode.
-- Dynamic : Choose this
setting to increase sharpness.
-- Standard : Choose this
setting for most viewing
applications.
-- Movie : This is the best
setting for watching movies.
Picture Mode -- User : Lets you adjust
the sharpness and
noise reduction function
respectively.
||NOTE |
\\ This menu cannot be
displayed when you use the
BD Wise function.
Select to listen to music while
viewing a slide show.
Background
Music
Multiroom
Link
||NOTE |
\\ The number of music files
available from external
devices will differ depending
on the device.
Select to control the volume of
Multiroom speakers
-- Volume : Adjusts the volume
level. Press the
buttons
on the remote control.
-- Mute : Mutes the sound
from this player. Press again
to restore the sound to the
previous volume level.
||NOTES |
\\ Depending on the disc or storage device, the
menu may differ.
\\ To enable the Background Music function, the
photo file must be on the same storage media as
the music file.
Note that the sound quality can be affected by the
bitrate of the MP3 file, the size of the photo, and
the encoding method.
\\ You can't enlarge the subtitle and PG graphic
in the full screen mode.
Using the Sort by & Options Menus
Using the Sort by Menu
On a file screen containing photo files, select the
and then press the OK button.
Date
Title
Folder
||NOTE |
\\ This menu is only available
when you connect to a
Multiroom Link compatible
speaker.
Information
Select to send the selected file
to other devices.
Select to see the Contents
information.
38
Displays all the photo files on
the media or storage device by
title.
Displays all the folders on the
media or storage device.
\\ Depending on the disc or storage device, the
menu may differ.
||NOTE |
Send
Groups all the the photo files on
the media or storage device by
date. Click a group to see the
photos in that group.
English
Using the Options Menu
Lets you select specific photos
to see. It works essentially the
same for all media.
Play Selected
See "Creating a Playlist from an
Audio CD" on page 36 for
instructions.
Send
Select this menu to upload
selected files to a web site
(Picasa, Facebook, etc.) or
device. To use this menu, you
need to establish an account
with the on-line site, and then
log in using the Log In function.
See "Using the Send Function"
on page 39.
||NOTE |
\\ Depending on the disc or storage device, the
menu may differ.
You can upload files to a device connected to your
network or an on-line site.
1. With the Videos, Music or Photos file screen
displayed, and then press the . The
Options menu appears.
2. Use the
buttons to select Send, and
then press the OK button.
3. Use the
buttons to select a file, and
then press the OK button. A check appears
to the left of the file.
4. Repeat Step 3 to select and check additional
files.
5. To remove a file from the list, move to the file,
and then press the OK button again.
The check on the file is removed.
6. When done, press the
buttons to
select Send, and then press the OK button.
The Send pop-up appears listing the on-line
sites (Picasa, Facebook, etc.) or devices that
you can send the files to.
7. Select a destination, and then press the OK
button.
8. If you are sending the files to an on-line site,
the site starts. Log in and follow the directions
on the screen.
||NOTE |
\\ To send files to an on-line site you must have
an account with that site.
Send files
Copying Videos, Music or Photos
DISC/Network
Device  USB
DISC/USB 
Network Device
Photos
Supported
Supported
Videos
Supported
Supported
Contents
Music
Supported
Supported
• Disc (CD-DA/CD-R/CD-RW, DVD±R (Finalized)/
DVD+RW/DVD-RW (Finalized))  USB
• PTP USB is not available when you copy to
USB.
39
English
Media Play
Slide Show
Starts the slide show. Shows
all the files in the current folder,
one after another. If you want
to create a slide show with a
selected group of photos, see
Play Selected below.
Using the Send Function
05
On a file screen containing photo files, select the
and then press the OK button.
Network Services
You can enjoy various network services such as
streaming video or on-line apps by connecting the
product to your network.
To use network services, you must first:
9. After you have finished with all the fields,
press the button, and then press the OK
button. Connecting appears, and then the
account confirmation message.
1. Connect the product to a network.
(See page 16)
2. Configure the network settings.
(See pages 23~26)
10. Press the OK button. The Set Profile Picture
screen appears.
Creating a Samsung Account
||NOTE |
Create a Samsung account so you can take
advantage of all Samsung has to offer on line.
Set up accounts for each household member so
each member can access their own accounts on
Facebook, Twitter, etc. You also need a Samsung
account if you want to download for-pay apps and
rent movies.
1. On the Home screen, press the
In screen appears.
8. Select the Date of Birth field, and then select
numbers using the up and down arrow
buttons or by pressing numbers on your
remote. Press the OK button when done.
. The Sign
2. Select Create Account, and then press the
OK button.
The Samsung account Terms & Conditions,
Privacy Policy screen appears.
3. Press the OK button to agree, press the
button, and then press the OK button.
The Create Account screen appears.
4. Select the ID field, and then press the OK
button. The keyboard pop-up appears.
5. Enter your e-mail address using the keyboard.
Use the arrow buttons to move from character
to character.
Press OK to select a character. Select the
Caps on the left to enter capitals. Select the
123#& to select additional symbols.
6. When finished, select the Done on the
keyboard, and then press the OK button. The
Create Account screen reappears.
7. Enter a password, your first name, and last
name in the same fashion.
40
\\ Samsung sends a confirming e-mail to the
address you entered. You must open the e-mail
and respond as requested to finalize your
account.
11. Select a picture to identify your account,
and then press the OK button. The Account
Created screen appears.
12. Press the OK button. The Home screen
appears.
Before Using Samsung Apps
If you haven’t set up Smart Hub, when you use
Apps for the first time, the product will ask you to
perform the Smart Hub set up procedure.
1. On the Home screen, select SAMSUNG
APPS, and then press the OK button.
2. If you haven't set up Smart Hub, the Smart
Hub pop-up appears asking if you want to set
up Smart Hub. Select Yes, and then press the
OK button.
3. Select Start, and then press the OK button.
The Terms and Policy screen appears.
4. On the Additional Services, Terms and
Conditions and Choices screen, you must
review and agree to both the Smart Hub
Terms and Conditions and the Privacy Policy
to use Smart Hub.
5. Scroll down, and then click the View details
to review the full documents.
English
||NOTE |
1
2
SAMSUNG APPS
RECOMMENDED
1
2
3
4
5
2
3
4
5
MY APPS
WebBrowser
6
7
8
9
10
Using Samsung Apps
You can download applications from the Internet,
and access various applications and view them on
your TV. To access some applications, you need
to have a Samsung account.
||NOTE |
\\ For some 4K streaming service Apps (Netflix,
Amazon, etc.), the use of 4K service is
enabled if the TV supports HDCP 2.2. If the
TV (or the HDMI terminal connected) does not
support HDCP 2.2, the 4K category will not be
displayed.
Most Popular
What's New
Categories
3
1
2
3
RECOMMENDED : Displays
recommended contents managed
by Samsung. You cannot delete
Recommended Apps.
MY APPS : Displays your personal gallery
of applications modifiable on the MY
APPS screen.
Most Popular, What’s New and
Categories : Select to view and download
additional apps.
The first time you open the SAMSUNG APPS
screen, the Ultra HD Blu-ray Player automatically
downloads a group of free apps. Once these
apps have been downloaded, they appear on the
SAMSUNG APPS screen.
To see additional apps, select Most Popular,
What's New, or Categories on the bottom of the
screen, and then press the OK button.
Most Popular displays the most popular apps,
What's New the newest. Categories displays a
series of icons representing categories such as
Videos, Games, and Sports. Select a category
icon, and then press the OK button. The Ultra HD
Blu-ray Player displays the apps in that category.
41
English
Network Services
6. Select I agree to all, and then press the OK
button. The Setup Complete screen appears.
Press the OK button.
The Samsung Apps Screen at a Glance
06
\\ You do not need to consent to the
Supplemental Privacy Notice, but one or more
Smart Hub features or functionalities may not
be available if you do not.
Network Services
Downloading an App
1. Select Most Popular, What's New, or
Categories, and then press the OK button.
2. If you selected Categories, select a category
icon, and then press the OK button.
Otherwise, go to Step 3.
||NOTE |
The Options Menu
Move
1. On the MY APPS screen, select the app you
want to move, and then press the OK button
for 3 seconds.
2. Select Move, and then press the OK button.
3. Use the
\\ On the Most Popular, What's New, and
Categories screens, an orange arrow
is displayed on apps you have already
downloaded.
buttons to move the app.
4. When the app is where you want it, press the
OK.
Delete
3. Select an app you want to download,
and then press the OK button. The Detail
Information screen for the app appears.
4. Select Download on the screen, and then
press the OK button. Download changes to
Cancel and the app begins to download.
5. If you want to cancel the download, select
Cancel, and then press the OK button.
6. When the download is complete, Cancel
changes to Open. Select Open, and then
press the OK button to start the application.
Alternately, press the (RETURN) button
until the SAMSUNG APPS screen reappears.
The app you downloaded will be displayed
on the SAMSUNG APPS screen under MY
APPS.
||NOTE |
\\ If the App cannot be downloaded due to
insufficient remaining internal memory, connect
a USB storage device and try again.
Starting an Application
1. Select SAMSUNG APPS on the Home
screen, and then press the OK button.
2. On the SAMSUNG APPS screen, use the
buttons to select an app, and then
press the OK button. The app starts.
42
1. On the MY APPS screen, select the app you
want to delete, and then press the OK button
for 3 seconds.
2. Select Delete, and then press the OK button.
3. Use the
buttons to select Yes, and
then press the OK button.
Multi Delete
1. On the MY APPS screen, select an app you
want to delete, and then press the OK button
for 3 seconds.
2. Select Multi Delete, and then press the OK
button.
3. Use the
buttons to select apps you
want to delete, and then press the OK button.
A check appears next to each app you select.
||NOTE |
\\ You can deselect an app by highlighting it
again, and then pressing the OK button.
4. Use the button to select Delete at the
bottom of the screen, and then press the OK
button.
||NOTE |
\\ You can also select Cancel, Select All, or
Deselect All at the bottom of the screen.
English
View Details
||NOTE |
Change View
This function toggles the Apps screen between
the Most Played view and the Custom View, which
lets you arrange the apps to your liking.
1. On the MY APPS screen, select an app, and
then press the OK button for 3 seconds.
2. Select Change View, and then press the OK
button.
3. Select Yes if you want to change the view.
Select No if you want to keep the current
view.
4. Press OK button.
Lock/Unlock
This function blocks access to an app unless you
enter your PIN. Unlock removes the lock.
1. On the MY APPS screen, select an app you
want to lock, and then press the OK button
for 3 seconds.
2. Select Lock/Unlock, and then press the OK
button. Enter your PIN.
3. Use the
buttons to select an app
you want to lock.
4. Press the OK button. A check appears next
to the app.
5. To de-select an app, highlight the app, and
then press the OK button.
6. After you have selected all the apps you want
to lock, select Save at the bottom of the
screen, and then press the OK button. Locks
appear next to all the apps you selected.
43
Update Apps
1. On the MY APPS screen, select any app, and
then press the OK button for 3 seconds.
2. Select Update Apps, and then press the OK
button.
3. The Update Samsung Apps screens lists all
the apps that have updates available. Select
each app you want to update, and then press
the OK button. You can also choose Select
All to update all the apps listed.
4. Select Update, and then press the OK button.
Screen Mirroring
The Screen Mirroring function lets you view the
screen of your smart phone or Android tablet on
the TV that you have connected to the product.
1. On the Home screen, select Screen
Mirroring, and then press the OK button.
2. Launch AllShare Cast or Screen Mirroring
on your device.
3. On your device, find the name of the player in
the list of available devices and then select it.
4. The TV displays a connecting message (for
example, Connecting to Android_92gb...) and
then displays the connected message.
5. In a few moments, the screen of your device
appears on the TV screen.
6. To stop Screen Mirroring, press the
(RETURN) on the remote control, or exit
the Screen Mirroring function on your smart
phone.
English
Network Services
2. Select View Details, and then press the OK
button.
\\ You can also select Cancel, Select All, or
Deselect All at the bottom of the screen.
To unlock apps, follow essentially the same
directions, but select apps that have locks. When
you select Save and then press the OK button,
the locks are removed.
06
1. On the MY APPS screen, select the app you
want to see detailed information for, and then
press the OK button for 3 seconds.
Network Services
||NOTES |
\\ You can connect your Player to a device that
supports AllShare Cast. Note that all devices
that have AllShare Cast may not be fully
supported, depending on the manufacturer.
For further information on mobile connection
support, refer to the manufacturer’s web site.
\\ When you are using the Screen Mirroring
function, video stuttering or audio dropouts
may occur, depending on your environment.
\\ Bluetooth transmissions can interfere with
the Screen Mirroring signal. Before using
the Screen Mirroring function, we strongly
recommend that you turn off the Bluetooth
function on your smart phone or smart device
(tablet, etc.).
Using the Web Browser
You can access the Internet using the Web
Browser application.
Select WebBrowser on the Home screen, and
then press the OK button.
||NOTES |
\\ When you run the Web Browser with the
product connected by HDMI to a BD Wise
compatible TV - and BD Wise is on - the
browser is maximized to fill the screen and the
TV's resolution is set to the optimal resolution
automatically.
\\ The Web Browser is not compatible with Java
applications.
Link Browsing and Pointer Browsing
The Web Browser provides two types of browsing,
Pointer Browsing and Link Browsing. When you
launch the browser for the first time, Pointer
Browsing is active. If you are using a mouse to
navigate in the Web Browser, we recommend
leaving Pointer Browsing active. If you are using
your remote to navigate in the Web Browser, we
recommend that you replace Pointer Browsing
with Link Browsing. Link Browsing moves a
highlight from one link to the next in the Web
Browser and is much faster than Pointer Browsing
if you are using your remote.
To activate Link Browsing, follow these steps:
buttons on your remote to
1. Use the
move the pointer to the Link Browser icon on
the top right of the screen. The Link Browser
icon is the third icon from the right.
The pointer will be in the correct position if the
icon turns blue and the words “Link Browsing”
appear on the screen.
2. Press the OK button. Link Browsing is
activated and will remain active whenever you
bring up the Web Browser.
The Control Panel at a Glance
The Control Panel, which runs across the top
of the screen, has a series of icons which start
a number of useful functions. The icons are
described on the next page, starting with the icon
on the far left of the screen.
http://www.samsung.com
http://www.samsung.com
\\ If you attempt to download a file, and the file
cannot be saved, an error message will appear.
\\ E-commerce (purchasing products online) is
not supported.
\\ ActiveX is not supported.
\\ Access may be blocked to some websites or to
web browsers operated by certain businesses.
\\ Playing Flash videos is not supported.
44
English
New Tab
100%
When you click the
, the
or access a data or text entry field,
and then press the OK button, the keyboard popup appears.
To use the keyboard pop-up with your remote,
follow these steps:
http://www.samsung.com
New Tab
http://www.samsung.com
http://www.samsung.com
100%
100%
New Tab
As you enter characters, recommended text will be shown.
Caps 1234567890
:
Clear
qw e r t y u i o p ^ *
zx c v b nm , . ? - $Cancel
123#&
a
s
d
f
g
h
j
k
l
ENG www..com /
~ @
!
_
%
+

Done
1. Use the
buttons on your remote
to move the highlight to a letter or number of
your choice.
2. Press the OK button to enter the letter or
number into the entry field.
3. To access capital letters, move the highlight to
the Caps key on the top left, and then press
the OK button. Press the OK button again
with the Caps key highlighted to access small
letters again.
4. To access symbols and additional punctuation
marks, highlight the 123#& on the left, and
then press the OK button.
5. To delete a character you entered, move the
highlight to the :, and then press the OK
button.
6. To delete all the characters you entered, move
the highlight to Clear, and then press the OK
button.
7. When finished entering, move the highlight to
Done, and then press the OK button.
45
English
Network Services
1
Using the Keyboard Pop-up
06
: Moves to the previous page.
: Moves to the next web page.
: Displays the Bookmarks and History
screen. You can bookmark the current
page, select an existing bookmark, and
edit and delete bookmarks. You can also
view your browsing history and select a
page to revisit.
• : Moves to the Home screen of the
Web Browser.
•
: Lets you enter
a page address manually using the
keyboard pop-up.
• : Reloads the current page so that it
is refreshed on the screen.
• : Adds the current page to your
bookmarks.
•
: Lets you search for
information by entering words or
characters using the keyboard pop-up.
See "Using the Keyboard Pop-up" on
the right.
•
: Lets you enlarge or shrink the
screen by various percentages.
• /
: Lets you switch between
Pointer Browsing and Link Browsing.
• : Lets you configure the Browser’s
settings. See "Using the Setting Menu"
on pages 46~48.
• : Closes the Web Browser.
• http://www.samsung.com
: Opens a new web
browser tab.
•
•
•
Network Services
||NOTE |
\\ If you have a wireless keyboard connected
to your product, you can use the wireless
keyboard to enter letters, numbers, symbols,
and punctuation. Note that the wireless
keyboard will work only when the keyboard
popup appears and can only be used to enter
letters, numbers, symbols, and punctuation.
Options on the Keyboard Pop-Up
The Setting menu contains functions that control
how the Browser operates and Browser security
functions. To open the Setting menu, highlight
the
icon in the Control Panel, and then press
the OK button. To select an option in the Setting
menu, highlight the option, and then press the OK
button.
http://www.samsung.com
To access the keyboard pop-up options, highlight
the
on the bottom left of the keyboard, and
then press the OK button.
Language
Using the Setting Menu
http://www.samsung.com
Enable Grabbing
Approved Sites
Private Browsing On
Set Search Engine
Select the language for the
keyboard.
You can select English, French,
Russian, etc.
The keyboard suggests
Recommended recommended words as you
text
enter text. You can turn this
function On or Off.
Web Browser Setting
Help
Close
Reset erases the Samsung
Keyboard's memory. Select
Reset
Reset to erase everything that
recommended the Samsung Keyboard has
text data
learned about your writing style,
including any new words you
have used.
Enable
Grabbing /
Disable
Grabbing
Predict Next
Letter
Approved
Sites
The keyboard predicts the
next letter as you enter letters.
The predictions appear in a
ring around the letter you have
just entered. You can select
a predicted letter or move to
another letter. You can turn this
function On or Off.
46
100%
New Tab
English
Turns the Grabber function
on and off. When the Grabber
function is on, you can move a
web page up and down without
dragging the scroll bar.
The Grabber function is only
available in Pointer Browsing.
Lets you restrict your children’s
access to inappropriate web
pages by allowing access
only to the web sites you have
registered.
Every time you access this
function, the PIN screen
appears. The first time you
access this function, enter the
default PIN, 0000 using the
number buttons on your remote.
Set Search
Engine
||NOTE |
\\ Set the Security Mode to On
to avoid accessing malicious/
Web Browser
phishing sites and prevent
Setting
malicious code from running.
Privacy & Security : Prevents
access to inappropriate web
pages. Also allows you to select
not to save your browsing
history.
Encoding : You can set the
Encoding setting for web pages
to Automatic or select the
encoding format manually from
a list.
Pointer : You can set the speed
of the cursor when the cursor
is set to Pointer and turn Smart
Cursor On and Off.
Browser Information : Displays
the version number and
copyright information for the
Web Browser.
You can set the desired Search
Engine.
Help
47
English
Provides basic information
about the operation of the Web
Browser.
Network Services
Enable or disable the Privacy
mode.
When the Privacy mode is
enabled, the browser does not
retain the URLs of sites you visit.
Private
If you want to enable Privacy
Browsing Off/
mode, select Yes.
Private
Browsing On If the Privacy mode is running,
the “Stop” icon appears in
front of the URL at the top of
the screen. To disable Privacy
mode, select it again when
Privacy mode is enabled.
Set as homepage : You can set
the Browser's home page.
Pop-up Block : Turns the
Popup Block on and off.
Page Block : You can determine
whether to block advertisements
and select the URLs for which
advertisements are blocked.
General : You can delete
personal information such as
website history and browsing
data (cookies, etc.), and reset
all web browser settings to their
factory defaults. You can also
set the Security Mode.
06
Approved
Sites
You can change the PIN using
the Reset password for the
Approved Sites function. See
below.
Approved Sites feature : Turns
the Approved Sites function on
or off.
Reset password for Approved
Sites : Change the Approved
Sites password.
Add current site : Lets you add
the currently displayed web site
to the Approved Sites list.
Manage Approved Sites : Lets
you key in URLs to add to the
Approved Sites List and delete
sites from the Approved Sites
list.
If you turn this function on and
have not added any sites to the
Approved Sites list, you will not
be able to access any Internet
sites.
Network Services
||NOTE |
\\ Depending on the web site, some of the
Web Browser Setting functions may not be
activated. Functions that are not activated are
greyed out and cannot be used.
8. Insert an Ultra HD Blu-ray Disc or Blu-ray Disc
that supports BD-LIVE.
9. Select an item from the list of BD-LIVE service
contents provided by the disc manufacturer.
||NOTE |
\\ The way you use BD-LIVE and the provided
contents may differ, depending on the disc
manufacturer.
Linking Your Internet Service
Accounts to the Product
The Link Service Accounts function lets you
link your product to your accounts with Internet
services such as Pandora so that the product can
log you in to the service automatically when you
start the app for that service.
Register your account by going to HOME  Sign
In  Create with Facebook.
BD-LIVE™
Once the product is connected to your network,
you can enjoy various movie-related service
content available on BD-LIVE compliant discs.
1. Attach a USB flash memory drive to the USB
jack on the front of the product, and then
check its remaining memory. The memory
device must have at least 1GB of free space
to accommodate the BD-LIVE services.
2. Select Settings on the Home screen, and
then press the OK button.
3. Select Network, and then press the OK
button.
4. Select BD-Live Settings, and then press the
OK button.
5. Select BD Data Management, and then
press the OK button.
6. Select Select Device, and then press the OK
button.
7. Select USB device, and then press the OK
button.
48
English
Appendix
Additional Information
07
Notes
• For some 3D discs, to stop a movie during 3D playback, press the @ button
once.
The movie stops and the 3D mode option is de-activated.
To change a 3D option selection when you are playing a 3D movie, press the
@ button once. The Home Screen menu appears. Press the @ button again,
then select 3D Settings in the Ultra HD Blu-ray menu.
• Depending on the content and the position of the picture on your TV screen,
you may see vertical black bars on the left side, right side, or both sides.
TV Aspect Ratio
• Depending on the disc type, some aspect ratios may not be available.
• If you select an aspect ratio and option that is different than the aspect ratio of
your TV screen, the picture might appear to be distorted.
• If you select the 16:9 Original, your TV may display 4:3 Pillarbox (black bars on
the sides of the picture).
BD Wise (Samsung Products only)
Settings
• When BD Wise is On, the Resolution setting automatically defaults to BD Wise
and BD Wise appears in the Resolution menu.
• If the product is connected to a device that does not support BD Wise, you
cannot use the BD Wise function.
• For the proper operation of BD Wise, set the BD Wise option of both the
product and the TV to On.
Digital Output
• Be sure to select the correct Digital Output or you will hear no sound or just
loud noise.
• If the HDMI device (AV receiver, TV) is not compatible with compressed formats
(Dolby Digital, DTS), the audio signal outputs as PCM.
• Regular DVDs do not have BONUSVIEW audio and Navigation Sound Effects.
• Some Ultra HD Blu-ray Discs and standard Blu-ray Discs do not have
BONUSVIEW audio and Navigation Sound Effects.
• The Digital Output setup does not affect the HDMI audio output to your TV.
It affects the optical and HDMI audio output when your product is connected
to an AV receiver.
• If you play MPEG audio soundtracks, the audio signal outputs as PCM
regardless of your Digital Output selections (PCM or Bitstream).
49
English
Appendix
3D Settings
Appendix
PCM Downsampling
• Even when PCM Downsampling is set to Off, some discs will only output
downsampled audio through the optical digital output.
• HDMI
-- If your TV is not compatible with compressed multi-channel formats (Dolby
Digital, DTS), the product may output PCM 2ch downmixed audio even
though you selected Bitstream (either Reencoded or Unprocessed) in the
setup menu.
-- If your TV is not compatible with PCM sampling rates over 48kHz, the
product will output at 48kHz.
BD-Live Internet Connection
Settings
• What is a valid certificate?
When the product uses BD-LIVE to send the disc data and a request to the
server to certify the disc, the server uses the transmitted data to check if the
disc is valid and sends the certificate back to the product.
• The Internet connection may be restricted while you are using BD-LIVE
contents.
BD Data Management
• In the external memory mode, disc playback may be stopped if you disconnect
the USB device in the middle of playback.
• Only those USB devices formatted in the FAT file system (DOS 8.3 volume
label) are supported.
We recommend you use USB devices that support the USB 2.0 protocol with
4 MB/sec or faster read/write speed.
• The Resume Play function may not work after you format the storage device.
• The total memory available to BD Data Management may differ, depending on
conditions.
Anynet+ (HDMI-CEC)
• Depending on your TV, certain HDMI output resolutions may not work. Please
refer to the user manual of your TV.
• This function is not available if the HDMI cable does not support CEC.
• If your Samsung TV has an Anynet+ logo, then it supports the Anynet+
function.
50
English
Selecting the Audio Language
• Depending on the Ultra HD Blu-ray Disc/Blu-ray Disc / DVD Disc, you may be
able to change the subtitle language in the Disc Menu. Press the DISC MENU
button.
• This function depends on the selection of subtitles that are encoded on the
disc and may not be available on all Ultra HD Blu-ray Discs/Blu-ray Discs/
DVDs.
• Information about the main feature BONUSVIEW mode will also appear if the
Ultra HD Blu-ray Disc or Blu-ray Disc has a BONUSVIEW section.
• This function changes both the primary and secondary subtitles at the same
time.
• The total number of primary and secondary subtitles, respectively, is displayed.
51
English
Appendix
Media Play
Selecting the Subtitle Language
07
• The
indicator will not appear on the screen if the BONUSVIEW section
does not contain any BONUSVIEW audio settings.
• The languages available through the Audio Language function depend on the
languages that are encoded on the disc. This function or certain languages
may not be available.
• Some Ultra HD Blu-ray Discs and standard Blu-ray Discs may allow you to
select either the PCM or Dolby Digital audio soundtrack in English.
Appendix
Resolution according to the contents type
Setup
Auto
Contents Type
Ultra HD Blu-ray
Disc/Blu-ray Disc
E-contents/
Digital contents
DVD Disc
2160p@60/24
480p@60
Movie Frame : Auto
2160p(1080p)@24
2160p(1080p)@24
2160p(1080p)@24
Movie Frame : Off
Max. Resolution of
TV input
Max. Resolution of
TV input
Max. Resolution of
TV input
2160p(1080p)@24
2160p(1080p)@24
2160p(1080p)@24
2160p
2160p@60
2160p@60
2160p@60
1080p
1080p@60
1080p@60
1080p@60
1080i
1080i@60
1080i@60
1080i@60
720p
720p@60
720p@60
720p@60
480p
480p@60
480p@60
480p@60
BD Wise
Movie Frame : Auto (24Fs)
※ 2160p, 1080p &1080i only
Resolution of Disc
||NOTES |
\\ If the TV you connected to the product does not support Movie Frame or the resolution you selected,
the message "If no pictures are shown after selecting 'Yes', please wait for 15 seconds to return to
the previous resolution. Do you want to change the resolution?" appears. If you select Yes, the TV's
screen will go blank for 15 seconds, and then the resolution will revert to the previous resolution
automatically.
\\ If the screen stays blank after you have changed the resolution, remove all discs, and then press
and hold the @ button on the top of the product for more than 5 seconds. The initialization message
appears on the screen and the player turns off automatically. When you turn your product on again, all
the settings will be reset. Run the Initial Settings procedure again. Then, go to Settings > Picture >
Resolution in the Menu, and select the correct resolution for your TV.
\\ When you run the Initial Settings procedure, re-select the language and aspect ratio (screen size and
format) only. Resetting does not affect your network settings, so you should be able to skip Network
Setup and Software Update.
\\ When the factory default settings are restored, all stored user BD data is deleted.
\\ An Ultra HD Blu-ray Disc or standard Blu-ray Disc must have the 24 frame feature for the product to
use the Movie Frame (24Fs) mode.
52
English
Digital Output Selection
Any
Bitstream
(Re-encoded
Dolby D)
Dolby Digital
Dolby Digital
DTS
DTS
Decodes the main
feature audio and
BONUSVIEW
audio stream
together into PCM
audio and adds
Navigation Sound
Effects, then reencodes the PCM
audio into DTS
bitstream.
Decodes the main
feature audio and
BONUSVIEW audio
stream together
into PCM audio and
adds Navigation
Sound Effects,
then re-encodes
the PCM audio
into Dolby Digital
bitstream or PCM.
PCM 2ch
HDMI supported HDMI supported
AV receiver or
AV receiver or
Optical
Optical
Re-encoded
PCM
PCM 2ch DTS re-encoded
Dolby Digital *
Re-encoded
Dolby Digital Dolby Digital DTS re-encoded
Dolby Digital *
Dolby Digital
Re-encoded
Dolby Digital DTS re-encoded
Plus
Dolby Digital *
Re-encoded
Dolby TrueHD Dolby Digital DTS re-encoded
Dolby Digital *
Re-encoded
DTS
DTS
DTS re-encoded
Dolby Digital *
DTS-HD High
Re-encoded
Resolution
DTS
DTS re-encoded
Dolby Digital *
Audio
DTS-HD
Re-encoded
DTS
DTS re-encoded
Master Audio
Dolby Digital *
PCM 2ch
PCM 2ch
PCM 2ch
PCM 2ch
PCM 2ch
Dolby Digital Dolby Digital
Optical
PCM 2ch
PCM 2ch
PCM 2ch
PCM 2ch
PCM 2ch
PCM 2ch
PCM 2ch
HDMI
supported
AV receiver
Bitstream
(Re-encoded
DTS)
PCM 2ch
DTS
Optical
DTS
Outputs only the main feature
Decodes the main feature audio stream so that your
audio and BONUSVIEW AV receiver can decode the
audio stream together
audio bitstream.
into PCM audio and adds You will not hear BONUSVIEW
Navigation Sound Effects. audio or Navigation Sound
Effects.
* If the Source Stream is 2ch or mono, "Re-encoded Dolby D" Settings are not applied. Output will be
PCM 2ch.
Ultra HD Blu-ray Discs and standard Blu-ray Discs may include three audio streams :
-- Main Feature Audio : The audio soundtrack of the main feature.
-- BONUSVIEW audio : An additional soundtrack such as the director or actor's commentary.
-- Navigation Sound Effects : When you choose some menu navigation functions, Navigation Sound
Effects may sound. Navigation Sound Effects are different on each Ultra HD Blu-ray Disc/Blu-ray Disc.
53
English
Appendix
HDMI
supported
AV receiver
Up to PCM
PCM
7.1ch
Up to PCM
Dolby Digital
7.1ch
Dolby Digital Up to PCM
Plus
7.1ch
Audio Stream
on
Up to PCM
Dolby TrueHD
Ultra HD
7.1ch
Blu-ray Disc/
Up to PCM
DTS
Blu-ray Disc
6.1ch
DTS-HD High
Up to PCM
Resolution
7.1ch
Audio
DTS-HD
Up to PCM
Master Audio
7.1ch
PCM
PCM 2ch
Up to PCM
Audio Stream Dolby Digital
5.1ch
on DVD
Up to PCM
DTS
6.1ch
Connection
Definition for
Ultra HD
Blu-ray Disc/
Blu-ray Disc
Bitstream
(Unprocessed)
PCM
07
Setup
Appendix
Troubleshooting
Refer to the table below if this product does not function properly. If the problem you are experiencing is not
listed below or if the instructions below do not help, turn off the product, disconnect the power cord, and
contact Samsung Electronics at 1-800-SAMSUNG (1-800-726-7864).
PROBLEM
SOLUTION
No operation can be performed
with the remote control.
• Check the batteries in the remote control. They may need
replacing.
• Operate the remote control at a distance of no more than 20 feet
from the product.
• Remove the batteries and hold down one or more buttons for
several minutes to drain the microprocessor inside the remote
control to reset it. Reinstall the batteries and try to operate the
remote control again.
The disc does not play.
• Ensure that the disc is installed with the label side facing up.
• Check the region number of the Ultra HD Blu-ray Disc/Blu-ray
Disc/DVD.
The disc Menu does not
appear.
• Confirm that the disc has disc menus.
The prohibition message
appears on the screen.
• This message appears when an invalid button is pressed.
• The Ultra HD Blu-ray Disc/Blu-ray Disc/DVD's software doesn't
support the feature (e.g., angles).
• You've requested a title or chapter number or search time that is
out of range.
Play mode differs from the
Setup Menu selection.
• Some of the functions selected in the Setup Menu may not work
properly if the disc is not encoded with the corresponding function.
The screen ratio cannot be
changed.
• The Screen Ratio on your Ultra HD Blu-ray Disc/Blu-ray Disc/DVD
Disc is fixed and cannot be changed.
• This is not a problem with the product.
No audio.
• Make sure you have selected the correct Digital Output in the
Audio Options Menu.
The screen is blank.
• If the HDMI output is set to a resolution your TV cannot support (for
example, 1080p), you may not see a picture on your TV.
• Press the @ button (on top panel) for more than 5 seconds with
no disc inside. The initialization message appears on the screen,
and the player turns off automatically. When you turn your product
on again, all the settings will be reset.
• When the factory default settings are restored, all stored user BD
data will be deleted.
54
English
PROBLEM
SOLUTION
The picture is noisy or
distorted.
• Make sure that the disc is not dirty or scratched.
• Clean the disc.
No HDMI output.
• Check the connection between the TV and the HDMI jack of the
product.
• Check if your TV supports the 480p, 720p, 1080i, 1080p, or
2160p HDMI input resolution.
Abnormal HDMI output
appears on the screen.
• If random noise appears on the screen, it means that TV does not
support HDCP (High-bandwidth Digital Content Protection).
If you experience other
problems.
• Go to the table of contents and find the section of the user manual
that contains information about the feature you are having the
problem with, and then follow the procedure again.
• If you still cannot resolve the problem, please contact your nearest
Samsung authorized service center.
Play Multimedia on network
devices
You can see folders shared on
network devices, but cannot
see the files.
• The multimedia list only shows Video, Photo, and Music files.
Other types of files are not displayed.
Video plays intermittently.
• Check if the network is stable.
• Check if the network cable is properly connected and if the
network is not overloaded.
• The wireless connection between the DLNA compatible device
and the product is unstable.
Check the connection.
The Network connection
between the product and the
PC is unstable.
• IP addresses within the same subnetwork should be unique.
If they are not, IP interference can cause this phenomenon.
• Check if you have a firewall enabled.
If so, disable the firewall function.
55
English
Appendix
• Press the @ button (on the top panel) for more than 5 seconds
with no disc inside. The initialization message appears on the
screen, and the player turns off automatically. When you turn your
product on again, all the settings will be reset.
Don't use this unless absolutely necessary.
• When the factory default settings are restored, all stored user BD
data will be deleted.
07
Forgot password.
Appendix
PROBLEM
BD-LIVE
SOLUTION
This product cannot connect
to the BD-LIVE server.
• Test whether the network connection is working using the
Network Status function. (See page 21)
• Check whether a USB memory device is connected to the
product.
• The memory device must have at least 1GB of free space to
accommodate the BD-LIVE service.
You can check the available size in BD Data Management.
(See page 21)
• See if the BD-Live Internet Connection option is set to
Allow(All).
• If all above fails, contact the content provider or update the
product to the latest firmware.
When using the BD-LIVE
service, an error occurs.
• The memory device must have at least 1GB of free space to
accommodate the BD-LIVE service.
You can check the available size in BD Data Management.
(See page 21)
||NOTE |
\\ When the factory default settings are restored, all stored user BD data will be deleted.
56
English
Disc and Format Compatibility
VIDEO
MUSIC
Disc Type
Ultra HD
Ultra HD BD-ROM format.
Blu-ray Disc
Details
Blu-ray Disc
3D Blu-ray BD-ROM or BD-RE/-R recorded in the BD-RE format.
Disc
DVD-VIDEO
DVD-VIDEO, recorded DVD+RW/DVD-RW(V)/DVD-R/+R that have been
DVD-RW
DVD-R
recorded and finalized, or a USB storage media containing MKV, MP4
DVD+RW contents.
DVD+R
CD-RW/-R,
Music recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R or a USB
DVD-RW/-R,
storage media containing MP3 or WMA contents.
BD-RE/-R
CD-RW/-R,
Photos recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R or a USB
DVD-RW/-R,
storage media containing JPEG contents.
BD-RE/-R
||NOTES |
\\ The product may not play certain CD-RW/-R and DVD-R because of the disc type or recording
conditions.
\\ If a DVD-RW/-R has not been recorded properly in DVD video format, it will not be playable.
\\ Your product will not play content that has been recorded on a DVD-R at a bit-rate that exceeds
10 Mbps.
\\ Your product will not play content that has been recorded on a BD-R or USB device at a bitrate that
exceeds 25 Mbps.
\\ Playback may not work for some types of discs, or when you use specific functions, such as angle
change and aspect ratio adjustment. Information about the discs is written in detail on the disc box.
Please refer to this if necessary.
\\ When you play a BD-J title, loading may take longer than a normal title. Also, some functions may
perform slowly.
Disc types your product cannot play
• HD DVD
• DVD-RAM
• DVD-ROM/PD/MV, etc • Super Audio CD
(except CD layer)
• DVD-RW (VR mode)
• CVD/CD-ROM/CDV/
CD-G/CD-I/LD
(CD-Gs play audio
only, not graphics.)
57
English
• 3.9 GB DVD-R for
Authoring.
Appendix
Media
07
Disc types and contents your product can play
Appendix
Region Code
Both products and discs are coded by region.
These regional codes must match for a disc to
play. If the codes do not match, the disc will not
play.
The region number for this product is displayed on
the rear panel of the product.
Disc Type
Region
Code
a
Blu-ray
Disc
b
C
DVDVIDEO
3D Blu-ray Disc
BD-LIVE
Ultra HD Blu-ray Disc
North America, Central
America, South America,
Korea, Japan, Taiwan,
Hong Kong and South
East Asia.
Europe, Greenland,
French territories, Middle
East, Africa, Australia and
New Zealand.
NTSC broadcast system in U.S.A, Canada,
Korea, Japan
India, China, Russia,
Central and South Asia.
The U.S., U.S. territories
and Canada
2
Europe, Japan, the
Middle East, Egypt, Africa,
Greenland
4
Blu-ray Disc
Area
1
3
Logos of Discs the product can play
Taiwan, Korea, the
Philippines, Indonesia,
Hong Kong
Mexico, South America,
Central America, Australia,
New Zealand, Pacific
Islands, Caribbean
5
Russia, Eastern Europe,
India, North Korea,
Mongolia
6
China
58
English
Supported Formats
Container
Video Codec
Resolution
H.264 BP/MP/HP
*.avi
*.mkv
*.asf
*.wmv
*.mp4
*.mov
*.3gp
*.vro
*.mpg
*.mpeg
*.ts
*.tp
*.trp
*.mov
*.flv
*.vob
*.svi
*.m2ts
*.mts
*.divx
AVI
MKV
ASF
MP4
3GP
MOV
FLV
VRO
VOB
PS
TS
SVAF
HEVC
(H.265 Main, Main10,
Main4:2:2 10)
4096x2160
Motion JPEG
MVC
Frame rate
(fps)
4096X2160:
30
3840X2160:
60
Bit rate
(Mbps)
60
60
80
30
80
60
20
30
20
60
20
DivX 3.11 / 4 / 5 /
6
MPEG4 SP/ASP
Window Media
Video v9(VC1)
MPEG2
MPEG1
1920x1080
Microsoft MPEG-4
v1, v2, v3
Window Media
Video v7(WMV1),
v8(WMV2)
Audio Codec
Dolby Digital
LPCM
ADPCM
(IMA, MS)
AAC
HE-AAC
WMA
DD+
MPEG(MP3)
DTS
(Core , LBR)
G.711
(A-Law, μ-Law)
H 263 Sorrenson
VP6
*.webm
WebM
*.rmvb
RMVB
VP8
1920x1080
VP9
4096x2160
RV8/9/10
(RV30/40)
4096X2160:
30
3840X2160:
60
1920x1080
60
59
English
40
20
Vorbis
RealAudio 6
Appendix
File
Extension
07
Supported Video File Formats
Appendix
`` Limitations
-- Even when a file is encoded by a supported
codec listed in the Video File Support table, the
file might not play if its content has a problem.
-- Normal playback is not guaranteed if the file’s
container information is wrong or the file itself is
corrupted.
-- Playing back contents having higher rates
than the base bit rate/frame rate may cause
stuttering sound or video.
-- The Seek (Jump) function is not available if the
file’s index table is damaged.
-- When you playback a file remotely through a
network connection, video playback may stutter
depending on the network conditions.
-- Some USB/Digital camera devices may not be
compatible with the product.
-- The RMVB format is supported only by models
made for China and Hong Kong.
-- HEVC codec is supported only for MKV, MP4.
and TS containers.
-- The DivX codec is not supported by models
made for the U.S. or Canada.
-- Supports DD+ (Up to 7.1ch)
-- The DTS LBR codec is supported only for
MKV / MP4 / TS containers.
||NOTE |
\\ Some MKV and MP4 format discs may not
play, depending on their video resolution and
frame rate.
Supported Subtitle File Formats
Name
MPEG-4 Timed text
`` Video decoder
-- Supports up to H.264 Level 4.1. (Does not
support FMO/ASO/RS)
-- Does not support VC1/AP/L4.
-- CODECs except for WMV v7, v8, MSMPEG4
v3, MVC, VP6
1)Below 1280 x 720 : 60 frames max.
2)Above 1280 x 720 : 30 frames max.
-- Does not support GMC 2 or higher.
-- Supports SVAF Top/Bottom, Side by Side, Left/
Right view sequence type(2 ES)
-- Supports BD MVC Spec.
SubViewer
.sub
.sub or .txt
Advanced
SubStation Alpha
.ass
.psb
Xsub
AVI
.xml
MKV
MKV
SubRip
MKV
MPEG-4 Timed text
MP4
VobSub
TTML in smooth
streaming
SMPTE-TT TEXT
SMPTE-TT PNG
English
.ssa
Powerdivx
Advanced
SubStation Alpha
-- Supports WMA 10 PRO (Up to 5.1).
-- Does not support WMA lossless audio.
-- Also supports the M2 profile.
-- The RealAudio 10 lossless format is not
supported by models made for China and Hong
Kong.
-- Does not support QCELP/AMR NB/WB.
-- Supports vorbis (Up to 2ch).
.srt
Micro DVD
SubStation Alpha
SubStation Alpha
`` Audio decoder
60
.smi
SMPTE-TT Text
Internal
.ttxt
SAMI
SubRip
External
File
Extension
MKV
MP4
MP4
MP4
Supported Music File Formats
Supported Picture File Formats
Codec
Support Range
*.mp3
MPEG
MPEG1
Audio
Layer 3
-
*.m4a
*.mpa
*.aac
MPEG4
AAC
-
*.flac
FLAC
FLAC
Supports up to
two channels.
*.ogg
OGG
Vorbis
Supports up to
two channels.
*.wma
WMA
For WMA 10 Pro
supports up to
M2 profile and 5.1
WMA
channels. WMA
lossless audio is
not supported.
*.wav
wav
wav
-
File
Extension
*.mpo
*.mid
*.midi
midi
midi
Type 0, type 1
and Seek is not
supported.
Only available with
USB.
*.ape
ape
ape
-
*.aif
*.aiff
AIFF
AIFF
-
*.m4a
ALAC
ALAC
-
61
Type
Resolution
JPEG
15360x8640
PNG
4096x4096
MPO
15360x8640
BMP
Notes on the USB connection
4096x4096
• Your player supports USB storage media, MP3
players, digital cameras, and USB card readers.
• Some USB/digital camera devices may not be
compatible with the player.
• Your player supports the FAT16, FAT32, and
NTFS file systems.
• Connect USB devices directly to the player's
USB port. Connecting through a USB cable
may cause compatibility problems.
• Inserting more than one memory device into
a multi-card reader may cause the reader to
operate improperly.
• The player does not support the PTP (Peer to
Peer) protocol.
• Do not disconnect a USB device while it is
transferring or recording data.
• The bigger the image resolution, the longer the
image takes to display.
• This player cannot play MP3 files with DRM
(Digital Rights Management) downloaded from
commercial sites.
• Your player only supports video that is under
30fps (frame rate).
• Your player only supports USB Mass Storage
Class (MSC) devices such as thumb drives and
USB HDD. (HUB is not supported.)
• Certain USB HDD Devices, multi-card readers
and thumb drives may not be compatible with
this player.
• If some USB devices require excessive power,
they may be limited by the circuit safety device.
English
Appendix
Type
07
File
Extension
Appendix
• If playback from a USB HDD is unstable, provide
additional power by plugging the HDD into a
wall socket.
If the problem continues, contact the USB HDD
manufacturer.
• SAMSUNG is not responsible for any data file
damage or data loss.
• Your player does not support NTFS compressed,
sparse, or encrypted files.
-- You can repair or format a USB device on
your Desktop PC. (MS-Windows OS only)
AVCHD (Advanced Video Codec High
Definition)
• This player can play back AVCHD format discs.
These discs are normally recorded and used in
camcorders.
• The AVCHD format is a high definition digital
video camera format.
• The MPEG-4 AVC/H.264 format compresses
images with greater efficiency than the
conventional image compressing format.
• Some AVCHD discs use the "x.v.Color" format.
This player can play back AVCHD discs that use
"x.v.Color" format.
• "x.v.Color" is a trademark of Sony Corporation.
• "AVCHD" and the AVCHD logo are trademarks
of Matsushita Electronic Industrial Co., Ltd. and
Sony Corporation.
||NOTES |
\\ Some AVCHD format discs may not play,
depending on the recording conditions.
AVCHD format discs need to be finalized.
\\ "x.v.Color" offers a wider color range than
normal DVD camcorder discs.
62
English
Compliance and Compatibility Notice
English
Appendix
63
07
NOT ALL discs are compatible
• Subject to the restrictions described below and those noted throughout this Manual, including the Disc
Type and Characteristics section of this user manual, disc types that can be played are: pre-recorded
commercial Ultra HD BD-ROM, BD-ROM, DVD-VIDEO, and Audio CD (CD-DA); BD-RE/-R,
DVD-RW/-R; and CD-RW/-R.
• Discs other than the above cannot and/or are not intended to be played by this player. And some of
the above discs may not play due to one or more reasons provided below.
• Samsung cannot assure that this player will play every disc bearing the Ultra HD BD-ROM,
BD-ROM, BD-RE/-R, DVD-VIDEO, DVD-RW/-R, DVD+RW/+R and CD-RW/-R logos, and this player
may not respond to all operating commands or operate all features of every disc. These and other disc
compatibility and player operation issues with new and existing format discs are possible because:
-- Ultra HD Blu-ray/Blu-ray is a new and evolving format and this player may not operate all features
of Ultra HD Blu-ray Discs/Blu-ray Discs because some features may be optional, additional features
may have been added to the Ultra HD Blu-ray Disc/Blu-ray Disc format after the production of this
player, and certain available features may be subject to delayed availability;
-- not all new and existing disc format versions are supported by this player;
-- new and existing disc formats may be revised, changed, updated, improved and/or supplemented;
-- some discs are produced in a manner that allows specific or limited operation of certain features
during playback;
-- some features may be optional, additional features may have been added after the production of this
player or certain available features may be subject to delayed availability;
-- some discs bearing the Ultra HD BD-ROM, BD-ROM, BD-RE/-R, DVD-VIDEO, DVD-RW/-R,
DVD+RW/+R and CD-RW/-R logos may still be non-standardized discs;
-- some discs may not be played depending on their physical state or recording conditions;
-- problems and errors can occur during the creation of Ultra HD Blu-ray Disc, Blu-ray Disc, or DVD
disc software and/or during the manufacture of discs;
-- this player operates differently than a standard DVD player and other AV equipment for reasons
noted throughout this user manual and for other reason(s) discovered and posted by the SAMSUNG
customer care center.
• If you encounter disc compatibility or player operation problems, please contact the SAMSUNG
customer care center.
You can also contact the SAMSUNG customer care center for possible updates for this player.
• For additional information on playback restrictions and disc compatibility, refer to the Precautions,
Before Reading the user manual, Disc Types and Characteristics, and Before Playing sections of this
user manual.
• For product progressive scan output : CONSUMERS SHOULD NOTE THAT NOT ALL HIGH
DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE
ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO 'STANDARD
DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING YOUR TV SET'S COMPATIBILITY
WITH THIS PRODUCT, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.
Appendix
Copy Protection
• Because AACS (Advanced Access Content System) is approved as content protection system for
Ultra HD Blu-ray Disc and Blu-ray Disc format, similar to use of CSS (Content Scramble System)
for DVD format, certain restrictions are imposed on playback, analog signal output, etc., of AACS
protected contents.
The operation of this product and restrictions on this product may vary depending on your time of
purchase as those restrictions may be adopted and/or changed by AACS after the production of this
product. Furthermore, BD-ROM Mark and BD+ are additionally used as content protection systems for
Ultra HD Blu-ray Disc and Blu-ray Disc formats, which imposes certain restrictions including playback
restrictions for BD-ROM Mark and/or BD+ protected contents. To obtain additional information on
AACS, BD-ROM Mark, BD+, or this product, please contact the SAMSUNG customer care center.
• Many Ultra HD Blu-ray Discs/Blu-ray Discs/DVDs are encoded with copy protection. Because of this,
you should only connect your Player directly to your TV, not to a VCR. Connecting to a VCR results in a
distorted picture from copy-protected Ultra HD Blu-ray Discs/Blu-ray Discs/DVDs.
• Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use,
display, distribution, or revision of television programs, videotapes, Ultra HD Blu-ray Discs, Blu-ray
Discs, DVDs, and other materials may subject you to civil and/or criminal liability.
• Cinavia Notice : This product uses Cinavia technology to limit the use of unauthorized copies of
some commercially-produced film and videos and their soundtracks. When a prohibited use of
an unauthorized copy is detected, a message will be displayed and playback or copying will be
interrupted.
More information about Cinavia technology is provided at the Cinavia Online Consumer Information
Center at http://www.cinavia.com. To request additional information about Cinavia by mail, send a
postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San
Diego, CA, 92138, USA.
This product incorporates proprietary technology under license from Verance Corporation and is
protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well
as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark
of Verance Corporation. Copyright 2004-2015 Verance Corporation. All rights reserved by Verance.
Reverse engineering or disassembly is prohibited.
Network Service Disclaimer
All content and services accessible through this device belong to third parties and are protected by
copyright, patent, trademark and/or other intellectual property laws. Such content and services are
provided solely for your personal noncommercial use. You may not use any content or services in a
manner that has not been authorized by the content owner or service provider. Without limiting the
foregoing, unless expressly authorized by the applicable content owner or service provider, you may
not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or
distribute in any manner or medium any content or services displayed through this device.
64
English
• Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are registered trademarks of Dolby Laboratories.
• For DTS patents, see http://patents.dts.com. Manufactured under license from
DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol,
and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc.
in the United States and/or other countries. © DTS, Inc. All Rights Reserved.
• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI
Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
• Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be
trademarks of their respective owners.
• Open Source License Notice
-- In the case of using open source software, Open Source Licenses are available on the product
menu.
• Blu-ray Disc™, Blu-ray™, Ultra HD Blu-ray Disc™, Ultra HD Blu-ray™ and the logos are trademarks of
the Ultra HD Blu-ray Disc/Blu-ray Disc Association.
65
English
Appendix
Licenses
07
THIRD PARTY CONTENT AND SERVICES ARE PROVIDED "AS IS." SAMSUNG DOES NOT WARRANT
CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE.
SAMSUNG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED
TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SAMSUNG
DOES NOT GUARANTEE THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS
OF ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO
CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL SAMSUNG BE LIABLE, WHETHER IN
CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN
CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF ANY
CONTENT OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
Third party services may be terminated or interrupted at any time, and Samsung makes no representation
or warranty that any content or service will remain available for any period of time. Content and services
are transmitted by third parties by means of networks and transmission facilities over which Samsung
has no control. Without limiting the generality of this disclaimer, Samsung expressly disclaims any
responsibility or liability for any interruption or suspension of any content or service made available
through this device.
Samsung is neither responsible nor liable for customer service related to the content and services.
Any question or request for service relating to the content or services should be made directly to the
respective content and service providers.
Appendix
Specifications
General
USB
HDMI
Audio Output
Weight
4.2 Ibs
Operating Temperature
Range
+41°F to +95°F
Dimensions
16.0 (W) X 1.8 (H) X 9.1 (D) inches
Operating Humidity Range
10 % to 75 %
DC output
5V 1A Max.
Type A
USB 3.0
2D : 2160p, 1080p, 1080i, 720p, 480p
3D : 1080p, 720p
Video
Audio
PCM, Bitstream
Digital Audio Output
Optical
Ethernet
100BASE - TX Terminal
Wireless LAN
Network
Built-in
WEP (OPEN/SHARED)
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)
Security
WPS(PBC)
Supported
• Network speeds equal to or below 10Mbps are not supported.
• Design and specifications are subject to change without prior notice.
• For information about the power supply and power consumption, refer to the label attached to the
product.
• Weight and dimensions are approximate.
• Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call, (877)
278 - 0799.
66
English
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG and delivered new, in the original carton to the original
consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty
period of:
One (1) Year Parts and Labor*
(*90 Days Parts and Labor for Commercial Use)
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States.
To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty
service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon
request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. Transportation of the product to and from the
service center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts
or products if found to be defective during the limited warranty period specified above. All replaced parts and products become
the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original
warranty, or ninety (90) days, whichever is longer.
SAMSUNG’s obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth
in the applicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an “AS IS” basis.
Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent
otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including,
but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not
intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or
other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations,
repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service
problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions,
cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal
or reinstallation; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery
problems. SAMSUNG does not warrant uninterrupted or error-free operation of the product.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES
WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO
OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS
PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS,
FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES
CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH
THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL
RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT
SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES
ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS
AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT
CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER
THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights,
and you may also have other rights which vary from state to state.
To obtain warranty service, please contact SAMSUNG customer care center.
The benefits of this Limited Warranty extend only to the original purchaser of Samsung products from an authorized Samsung
reseller.
THIS LIMITED WARRANTY SHALL NOT APPLY TO ANY SAMSUNG PRODUCTS PURCHASED FROM UNAUTHORIZED
RESELLERS OR RETAILERS, EXCEPT IN STATES WHERE SUCH RESTRICTION MAY BE PROHIBITED.
For a list of Samsung authorized retailers, please go to: http://www.samsung.com/us/peaceofmind/authorized_resellers.html.
The party responsible for product compliance:
Samsung Electronics Co., LTD.
America QA lab of Samsung
19 Chapin Rd. Building D,
Pine Brook New Jersey 07058
QUESTIONS OR COMMENTS?
Country
CALL
OR VISIT US ONLINE AT
IN THE US
1-800-SAMSUNG
(726-7864)
www.samsung.com/us/support
© 2015 Samsung Electronics Co., Ltd. All rights reserved.
WRITE
Samsung Electronics America, Inc.
85 Challenger Road
Ridgefield Park, NJ 07660
