Chauvet COLORbank 4 Specifications

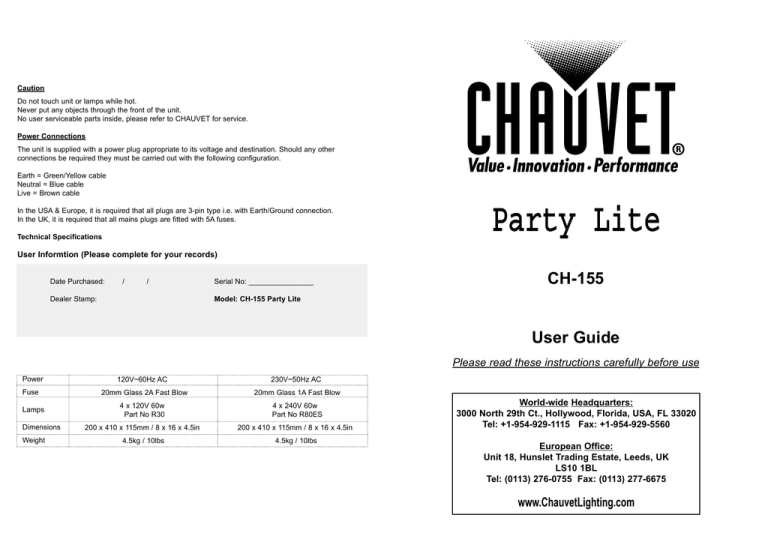

Caution
Do not touch unit or lamps while hot.
Never put any objects through the front of the unit.
No user serviceable parts inside, please refer to CHAUVET for service.
Power Connections
The unit is supplied with a power plug appropriate to its voltage and destination. Should any other
connections be required they must be carried out with the following configuration.
Earth = Green/Yellow cable
Neutral = Blue cable
Live = Brown cable
In the USA & Europe, it is required that all plugs are 3-pin type i.e. with Earth/Ground connection.
In the UK, it is required that all mains plugs are fitted with 5A fuses.
Technical Specifications
Party Lite
User Informtion (Please complete for your records)
Date Purchased:
/
/
Dealer Stamp:
Serial No: ________________
CH-155
Model: CH-155 Party Lite
User Guide
Please read these instructions carefully before use
Power
Fuse
Lamps
Dimensions
Weight
120V~60Hz AC
230V~50Hz AC
20mm Glass 2A Fast Blow
20mm Glass 1A Fast Blow
4 x 120V 60w
Part No R30
4 x 240V 60w
Part No R80ES
200 x 410 x 115mm / 8 x 16 x 4.5in
200 x 410 x 115mm / 8 x 16 x 4.5in
4.5kg / 10lbs
4.5kg / 10lbs
World-wide Headquarters:
3000 North 29th Ct., Hollywood, Florida, USA, FL 33020
Tel: +1-954-929-1115 Fax: +1-954-929-5560
European Office:
Unit 18, Hunslet Trading Estate, Leeds, UK
LS10 1BL
Tel: (0113) 276-0755 Fax: (0113) 277-6675
www.ChauvetLighting.com
At Rear
• Mounting Bracket
• Fuseholder and
Power Soucket
.
• Lamps
• Speed Adjustment
• Sound Sensitivity
Introduction
Congratulations on the purchase of your new CHAUVET lighting effect. We are confident you will enjoy
many trouble free hours with this unit. To assist with the care and use of the product we have prepared this
short guide.
Operation
This lighting effect has been designed to function on a mains power supply of either 120V~60Hz or
230V~50Hz and has been fitted with a suitable power plug for use with your local voltage. Check the label
and voltage selector switch (if fitted) and the power plug for the correct voltage before switching on.
The Party Light is a sound activated chase unit(1,2,3,4,1,2,3,4....). The audio sensitivity control adjusts the
sensitivity of the internal microphone for sound pick-up. The speed control adjusts the chase speed.The
Party Lite uses the dominant beat of the music as its ‘pulse’ for the chase. By adjusting the speed control
and the sound sensitivity, the unit will also chase without any music.
Replacing the Fuse
If the unit does not function at all when connected to the main power supply i.e. the lamps do not light, then
it is highly likely that the fuse has blown.
Disconnect from main power supply before attempting to replace either lamps or fuse.
The fuse holder is located at the bottom of the IEC power connector. Simply remove the cover using a
screw driver and replace the fuse.The unit has a label attached which indicates the correct fuse rating and
you will also find this listed as part of the specifications for the unit later in this guide. It is most important
that replacement fuses are of the correct rating. Failure to use the correct fuse could damage the lighting
effect beyond economic repair.
The fuse should simply be placed inside the holder and holder replaced. When this is done, re-connect to
the main power supply to check. If the unit is still not working then please contact your dealer or
CHAUVET for servicing.
Cleaning
The most important part of your lighting effects to keep clean are the lamps as they allow the light output to
transmit. These should be cleaned with a soft damp cloth. The body of the unit may also be cleaned in the
same way. We recommend internal cleaning be carried out by a fully qualified technician.
Maintenance & Servicing
Work on internal parts should be carried out by a qualified technician. Removal of any covers other than
the fuse replacement access is considered a breach of warranty and will not be covered under any such
agreement unless authorized first by the company.
Troubleshooting
Installation / Mounting
These units can be used in an upright position. Should you choose to mount the unit, it is recommended
that, for safety purposes, your lighting effects be properly mounted using a suitable hanging clamp and
safety cable. CHAUVET offers a range of items, which are ideal for safe mounting.
•
•
•
•
If
If
If
If
the unit is not functional – check main power supply is ‘on’ and check fuse.
the unit is functional but lamps do not light - lamps may require replacing.
the unit is not chasing to the music check the sound sensitivity adjustment.
after trying this solution you still have a problem contact your dealer or CHAUVET.
Contact Chauvet
Replacing Lamps
1. Disconnect from main power supply before attempting to replace lamp.
2. Ensure that the unit is sufficiently cool, before removing blown lamp.
In order to replace the lamps, disconnect from main power supply first, and simply unscrew the blown
lamp. Only use the appropriately rated lamps as use of any other lamp type may cause the unit to be
non-operational.
USA
Tecnical Assistance: 1-800-762-1084 (954) 929-1115
E-Mail tech@chauvetlighting.com
Europe
Technical Assistance: (0113) 276-0755
E-Mail eurosales@chauvetlighting.com
Package Contains:
1 x
1 x
1 x
Party Lite
R80ES Bulb - Red
R80ES Bulb - Blue
1 x
1 x
1 x
R80ES Bulb - Yellow
R80ES Bulb - Green
Power Cord
