Digi TransPort WR Family Datasheet

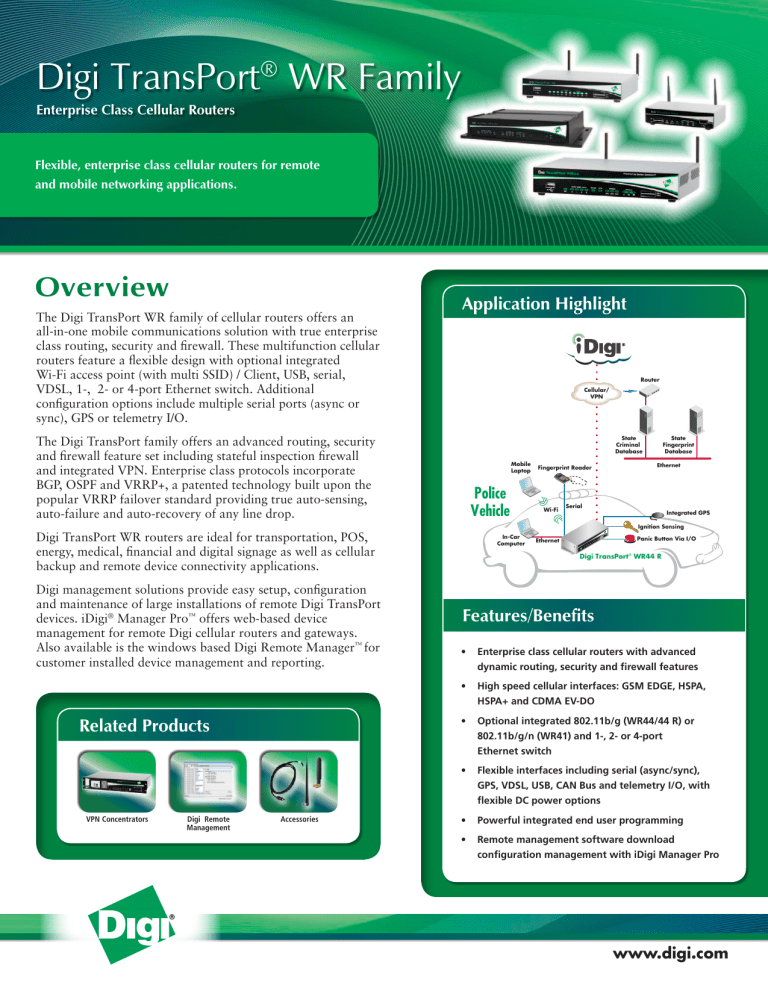

Digi TransPort® WR Family
Enterprise Class Cellular Routers
Flexible, enterprise class cellular routers for remote
and mobile networking applications.
Overview
The Digi TransPort WR family of cellular routers offers an
all-in-one mobile communications solution with true enterprise
class routing, security and firewall. These multifunction cellular
routers feature a flexible design with optional integrated
Wi-Fi access point (with multi SSID) / Client, USB, serial,
VDSL, 1-, 2- or 4-port Ethernet switch. Additional
configuration options include multiple serial ports (async or
sync), GPS or telemetry I/O.
The Digi TransPort family offers an advanced routing, security
and firewall feature set including stateful inspection firewall
and integrated VPN. Enterprise class protocols incorporate
BGP, OSPF and VRRP+, a patented technology built upon the
popular VRRP failover standard providing true auto-sensing,
auto-failure and auto-recovery of any line drop.
Digi TransPort WR routers are ideal for transportation, POS,
energy, medical, financial and digital signage as well as cellular
backup and remote device connectivity applications.
Digi management solutions provide easy setup, configuration
and maintenance of large installations of remote Digi TransPort
devices. iDigi® Manager Pro™ offers web-based device
management for remote Digi cellular routers and gateways.
Also available is the windows based Digi Remote Manager™ for
customer installed device management and reporting.
Application Highlight
Router
Cellular/
VPN
State
Criminal
Database
Mobile
Laptop
Police
Vehicle
Ethernet
Fingerprint Reader
Wi-Fi
State
Fingerprint
Database
Serial
Integrated GPS
Ignition Sensing
In-Car
Computer
Panic Button Via I/O
1
SIM 2
SIM
Ethernet
SIGNAL
44
WR
WWAN
SIM
ort
nsP
i Tra
Dig
LAN
3
2
1
0
Digi TransPort WR44 R
®
Features/Benefits
• Enterprise class cellular routers with advanced
dynamic routing, security and firewall features
• High speed cellular interfaces: GSM EDGE, HSPA, HSPA+ and CDMA EV-DO
Related Products
• Optional integrated 802.11b/g (WR44/44 R) or 802.11b/g/n (WR41) and 1-, 2- or 4-port
Ethernet switch
• Flexible interfaces including serial (async/sync),
GPS, VDSL, USB, CAN Bus and telemetry I/O, with flexible DC power options
VPN Concentrators
Digi Remote
Management
Accessories
• Powerful integrated end user programming
• Remote management software download
configuration management with iDigi Manager Pro
www.digi.com
Specifications
Digi TransPort® WR44 RR
Digi TransPort® WR44/WR44 R
Digi TransPort® WR41
Digi TransPort® WR21
Wireless Interfaces
WWAN**
GSM/CDMA Gobi (U8)
GSM and CDMA supported on the same module via Gobi diversity; UMTS/HSPA/HSPA+ (850/900/1700 AWS/1800/1900/2100 MHz with Rx Diversity);
EV-DO Rev A (800/1900 MHz with Rx Diversity); Transfer Rate (max): 5.76 Mbps Up, 14.4 Mbps Down
LTE - Verizon
(coming soon) (L2)
700 MHz, Verizon LTE; Fall back to CDMA 850/1900 MHz; Transfer rate (max): 50Mbps Up, 100 Mbps Down
LTE - AT&T
(coming soon) (L3)
700 MHz / AWS, GSM LTE; 3G fall back to HSPA 850/AWS/1900/2100 MHz; 2G fallback to 850/900/1800/1900 MHz;
Transfer rate (max): 50 Mbps Up, 100 Mbps Down
Edge (E1)
N/A
GPRS/EDGE Class 10; 850/900/1800/1900 MHz; Transfer rate (max): 236 Kbps Up/Down
CDMA 450 (Cx)
N/A
450 MHz; R-UIM support; Transfer rate (max): 1.8 Mbps Up, 3.1 Mbps Down
CDMA 1xRTT (Bx)
Connector
800/1900 MHz; Transfer rate (max):
153Kbps up/down
N/A
2 x 50 Ω TNC (Center pin: female)
U8, L2, & L3 variants: 2 x 50 Ω SMA (Center pin: female); E1, Cx, Bx variants: 1 x 50 Ω SMA (Center pin: female)
SIM Slots
SIM Security
2
SIM slot cover plate
SIM slot cover plate included with
WR44 R; Optional on WR44
802.11b/g/n
802.11b/g;
802.11b/g/n (coming soon)
Optional SIM slot cover plate
Wi-Fi*
Standard
Modes
Transmit Power
Receive Sensitivity
Security
Connector
Option of 802.11b/g or
802.11b/g/n
Access point, Client and support for multiple SSID
17 dBm ± 2 dBm
20 dBm + 1.0/-1.5 dBm
17 dBm ± 2 dBm
54 Mbps OFDM, 10% PER, -70 dBm,
11 Mbps CCK, 8% PER, -83.5 dBm
54 Mbps / <-72 dBm and 11 Mbps /
-90 dBm
54 Mbps / -70 dBm and 11 Mbps /
-83.5 dBm
N/A
Open or shared key authentication; WEP (64 and 128 bit) encryption; WPA/WPA2 with Radius
(WPA Enterprise and pre-shared keys)
1 x 50 Ω RP-TNC (Center pin: male)
2 x 50 Ω RP-SMA (Center pin: male)
GPS*
Channels
50
Sensitivity
Protocol
-163 dB
NMEA 0183 V2.3 sentence output; +3.3 VDC active antenna drive; NMEA stream to local serial port or over TCP/IP
Navigation
Galileo ready
Augmentation
Cold Start
< 27 seconds TTFF (90%)
Horizontal Accuracy
< 2.5 meters (90%)
Velocity Accuracy
Connector
N/A
SBAS
0.1m/s
1 x 50 Ω RP-TNC (Center pin: male)
1 x 50 Ω SMA (Center pin: female)
Other
XBee
N/A
Satellite
N/A
Wired Interfaces
Serial
Ports
1
Standard
Async/Sync
1; Expansion cards available to increase serial ports
RS-232; Expansion cards available in RS-422/RS-485
Async
DCE
TXD, RXD, RTS, CTS, GND
Flow Control
TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI
TXD, RXD, RTS, CTS, DTR, DCD
TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI
Software (XON/XOFF), Hardware supported
COM Port Redirector
Connector
Option of RS-232 or RS-232/422/485
Async; Expansion cards available in sync
DTE/DCE
Signal Support
1
RealPort®
5-pin A-coded M12 female
DB-9
* Optional Hardware
** Transfer Rates are network operator dependent
*** Reduced cellular performance may occur above +60° C. Standard Temperature power supplies may reduce temperature range.
RJ-45
DB-9
Specifications
Digi TransPort® WR44 RR
Digi TransPort® WR44/WR44 R
Digi TransPort® WR41
Digi TransPort® WR21
1
Option of 1 or 2
Wired Interfaces (Continued)
Ethernet
Ports
4
Standard
IEEE 802.3
Physical Layer
10/100 Base-T
Data Rate
10/100 Mbit/s
Mode
Full or Half duplex
Interface
Connector
Auto MDI/MDIX
Option of 4-pin D-coded M12 female
or 8-pin A-coded M12 female
RJ-45
I/O
Digital I/O
Connector
Extended temperature variants:
Input 4 - 28 VDC / Output: 28 VDC
50 mA max
N/A
Extended temperature variants: 4-pin
Molex (only 2 pins are used for I/O;
the other 2 pins are used for DC
power
N/A
Input 4 - 28 VDC / Output: 28 VDC 50 mA max
4-pin A-coded M12 Male
(only 2 pins are used for I/O; the
other 2 pins are used for DC Power)
4-pin Molex (only 2 pins are
used for I/O; the other 2 pins
are used for DC power)
USB
Ports
Standard
Signaling
1
USB 1.0; WR44v2: USB 2.0
N/A
USB 2.0
Full- or low-speed
Connector
High-speed
Type A
DSL*
Technology
Standard
VDSL2, ADSL2+, ADSL2, ADSL
N/A
Option of Annex A/M or B
Connector
N/A
N/A
RJ-11
Other
Expansion Cards
Optional expansion cards available for GPS, fleet, telemetry
(digital/analog I/O), ISDN/PSTN, serial and DialServ.
See page 5 for more information.
N/A
N/A
Software/Management
Management (Cloud-based)
iDigi® Manager Pro™
Management (Local)
Web Interface via HTTP/HTTPS; CLI via serial port, Telnet, SSH
Software
Python, iDigi® Dia, Digi ESP™ development environment
Software Packages
(see page 4 for details)
Memory
Enterprise
Option of Standard or Enterprise
128 MB NAND Flash/64 MB DDR2 SDRAM
64 MB RAM, 32 MB NOR Flash
128 MB NAND Flash/
128 MB DDR2 SDRAM
9 – 36 VDC
8-48 VDC
9-30 VDC
Power
Input
Consumption
Connector
DC Power Cord*
AC Power Supply*
Battery Backup
15W max, 8.5W typical
4-pin A-coded M12 male
(only 2 pins are used for power; the
other 2 pins are used for I/O)
4-pin A-coded M12 female to bare wire
(P/N: 76000917) 100W, 24 VDC
output, 67-143 VDC input, EN50155
compliant;
(P/N: 76000918) 400W, 14.2 VDC
output, 40–100 VDC input, EN50155
and S-5702 compliant
6W max, 4W typical
Locking barrel and 4-pin terminal
block
Locking barrel or 4-pin terminal block
(extended temperature models only)
Locking barrel to bare wire or 4-pin connector to bare wire
Depending on model: Locking barrel
or screw-down removeable terminal
block
Locking barrel to bare wire
100-240 VAC 50/60 Hz; Option of standard temperature or extended temperature
None
* Optional Hardware
** Transfer Rates are network operator dependent
*** Reduced cellular performance may occur above +60° C. Standard Temperature power supplies may reduce temperature range.
Specifications
Digi TransPort® WR44 RR
Digi TransPort® WR44/WR44 R
Digi TransPort® WR41
Digi TransPort® WR21
11.5 in x 6.65 in x 2.05 in
(29.2 cm x 16.9 cm x 5.2 cm)
WR44: (non-DSL variants):
5.7 in x 8.3 in x 1.6 in
(145 mm x 210 mm x 40 mm)
WR44: (DSL variants):
5.7 in x 10.4 in x 1.6 in
(145 mm x 264 mm x 40 mm)
WR44 R: 5.5 in x 10 in x 1.9 in
(140 mm x 254 mm x 48 mm)
4.7 in x 6.8 in x 1.3 in
(120 mm x 173 mm x 32 mm)
3.9 in x 5.2 in x 1.3 in
(100 mm x 131 mm x 32 mm)
5.7 lbs (2.6 kg)
WR44: (non-DSL variants): 1.98 lb (0.9 kg)
WR44: (DSL variants): 2.25 lbs (1 kg)
WR44 R: 2.4 lbs (1.1 kg)
1.27 lb (0.53 kg)
1.08 lb (0.49 kg)
Power, 4x LAN, WiFI, Serial, WWAN
(Link, Act, SIM), 3x Signal Strength
Power, 4x LAN, WiFI, Serial/DSL, WWAN
(Link, Act, SIM), 3x Signal Strength
Power, LAN, WiFi, WWAN (Link, Act,
SIM), 3x Signal Strength, Serial
Power, Service, WWAN, 3x Signal
Strength
Aluminium Alloy/ IP54
WR44: Industrial (Metal)/ IP50
WR44R: Aluminium Alloy/ IP50
4x mounting slots on the unit’s
flange
WR44: Brackets for wall mount &
DIN rail sold separately; WR44R: 4x
mounting slots on the unit’s flange
Brackets for wall mount & DIN rail
sold separately
Brackets for wall mount & DIN rail
sold separately
-40° C to +75° C
WR44: (standard temp variants):
0° C to +60° C
WR44: (extended temp variants)/
WR44 R: -40° C to +75° C
Wi-Fi variants: -20° C to +75° C
-25° C to +70° C
Wi-Fi variants: -10° C to +70° C
-35° C to +75° C
Physical
Dimensions (L x W x H)
Weight
Status LEDs
Enclosure Material/Rating
Mounting
Industrial (Metal)/ IP50
Environmental
Operating Temperature ***
Storage Temperature
-40° C to +85° C
Relative Humidity
0% to 95% (non-condensing)
20% to 95% (non-condensing)
Ethernet Isolation
2 kV RMS
1.5 kV RMS
Serial Port Protection (ESD)
10 kV
15 kV
Hazardous (Class 1 Div 2)
N/A
Conformal Coating
Optional
Available upon request
N/A
Approvals
GSM/UMTS
PTCRB, NAPRD.03, GCF-CC, R&TTE, EN 301 511
CDMA/EV-DO
CDG TIA/EIA-690, CDG TIA/EIA-98-E
Cellular Carriers
Certified by most major carriers. See www.digi.com for current listing.
Safety
UL 60950, CSA 22.2 No. 60950, EN60950
Emissions/Immunity
Industry
CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55022 Class B
AAR S-5702, EN50155, AREMA C & H
E-Marking (72/245/EEC, 2009/19/EC); Automotive Non-Immunity (2004/104/
EC, 2005/49/EC, 2005/83/EC, 2006/28/EC)
N/A
Warranty
Product Warranty
3 years
WR44 - 5 years; WR44 R - 3 years
5 years
* Optional hardware
** Transfer rates are network operator dependent
*** Reduced cellular performance may occur above +60° C. Standard temperature power supplies may reduce temperature range.
Software
Packages
Protocols
Security/Firewall/VPN
Routing
Specialty Protocol
Enterprise
Standard
Same as Standard plus iDigi; Dynamic DNS client compatible
with BIND9/No-IP/DynDNS
HTTP, HTTPS, FTP, SFTP, SSL, SMTP, iDigi SNMP, SNMP (v1/v2c/v3), SSH, Telnet
and CLI for web management; remote management via software tool (option);
SMS management, protocol analyzer, ability to capture PCAP for use with
Wireshark; DynDNS
RADIUS TACACS+, SSL, SSLv2, SSLv3, FIPS 197, L2TP, (5 tunnels included);
IPSec with IKEv1, IKEv2, ISAKMP; DES, 3DES and AES up to 256-bit
encryption; SCEP for X.509 certificates, Open VPN client and server, PPTP;
IPSec/PPP/L2TP VPN Server support; Stateful inspection firewall with
scripting; Content Filtering (via 3rd party)
IP Filtering
Bridging, NAT/NAT-Traversal, NAPT forwarding; PPP, PPPoE, GRE; IP Routing
Protocol: PPP, GRE, RIP (v1 & v2) OSPF, SRI, BGP; IP Failover: VRRP, VRRP+TM;
VLAN support; STP (Spanning Tree Protocol); Automatic failover/failback to
second GSM network/Standby APN; Firmware upgradable to IPv6; iGMP routing
(multicast); IP pass-through (advanced)
NAT, NATP, IP pass-through
DHCP; RealPort®; Modbus UDP/TCP to serial; Legacy protocols (X.25 (including X0T), SNA/IP, TPAD and PAD); Protocol switch
DHCP; RealPort®
info@digi.com
Expansion Cards
Connector
Specification
Available for Digi TransPort WR41/WR44/WR44 R
X.21/RS-422/RS-232 synchronous/
asynchronous serial port
Sync/Async Serial Port (S1)
1 x DB-25
Async Serial Ports (A3)
3x asynchronous serial ports
3 x RJ-45
PSTN interface that can be used to dial out and
receive calls. A PPP session is created over
which IP traffic can be sent and received.
PSTN (P1)
1 x RJ-45
DialServ (P3)
Dial tone simulator to emulate local telco.
1 x RJ-11 (FXS)
ISDN Basic Rate Interface (BRI) which can be configured either
as a TE (terminal endpoint) or as NT-1 (network termination).
The option also includes an additional asynchronous serial port via a second RJ-45 port.
ISDN (I1)
1 x RJ-45
ISDN-U interface suitable for the USA plus PSTN interface. Can be configured for
Bell-103 modulation in leased line mode as well as a normal PSTN interface.
ISDN-U/PSTN (I3)
1 x RJ-11, 1 x RJ-45
4 x Opto-isolated digital output ports and 1 x Opto-isolated digital input port.
It also provides a relay I/O port, voltage monitoring port, and internal temperature monitoring.
Fully programmable via Python for embedded Digi TransPort applications.
Telemetry 1 (T1)
1 x 14-pin terminal block
4 x Analog and 4 x Digital I/O ports fully programmable via
Python for embedded Digi TransPort applications.
Telemetry 2 (T2)
1 x 14-pin terminal block
Fully-integrated GPS tracking.
See main specifications area for details.
GPS (G1)
1x SMA
Flexible transportation/fleet focused applications requiring CAN bus, J1708, GPS, Non-isolated
digital I/O, Ignition Sense, 3-Axis accelerometer, and power control of Digi TransPort interfaces.
Fully programmable via Python for embedded Digi TransPort applications.
Fleet (F1)
1 x 4-pin, 1 x 15-pin, 1 x SMA
Devie Management Features
•
View of all remote devices and their connection status
• Device statistic and report generation
• Automatic registration of newly connected devices
• Alarm generation and alerting
• Remote device configuration
• Secure access to all devices from web browser, anywhere
• Actions include device grouping and scheduling of operations
• Remote reboot of device and default reset
• Monitoring of user specified events
•
Remote device management with iDigi Manager Pro,
a Digi-hosted device management software
Easy Remote Configuration and Management
Customer Application
Servers
Digi Remote Manager™
Digi TransPort® WR
Digi TransPort® DR
WAN
Cellular
Ethernet
Serial
Remote
Device
Remote
Device
Line Art
Digi TransPort WR21
Digi TransPort WR44 RR
Digi TransPort WR41
Digi TransPort WR41
WIFI 1
SIM 1
POWER LAN
WN
LINK
SIM
ACT
SERIAL
SIM 2
Digi TransPort WR44 (DSL variant)
Digi TransPort WR44/WR44 R
Visit www.digi.com for part numbers.
91001613
E1/1012
DIGI SERVICE AND SUPPORT - You can purchase with confidence knowing that Digi is here to support you
with expert technical support and a strong five-year warranty. www.digi.com/support
Digi International
Worldwide HQ
877-912-3444
952-912-3444
Digi International
France
+33-1-55-61-98-98
www.digi.fr
Digi International
Japan
+81-3-5428-0261
www.digi-intl.co.jp
Digi International
India
+91-80-4287-9887
Digi International
Singapore
+65-6213-5380
Digi International
China
+86-21-5150-6898
www.digi.cn
© 2009-2012 Digi International Inc.
All rights reserved. Digi, Digi International, the Digi logo, Digi Remote Manager, Digi TransPort, iDigi, iDigi Manager Pro and RealPort are
trademarks or registered trademarks of Digi International Inc. in the United States and other countries worldwide. All other trademarks are the
property of their respective owners. All information provided is subject to change without notice.
BUY ONLINE • www.digi.com
info@digi.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
