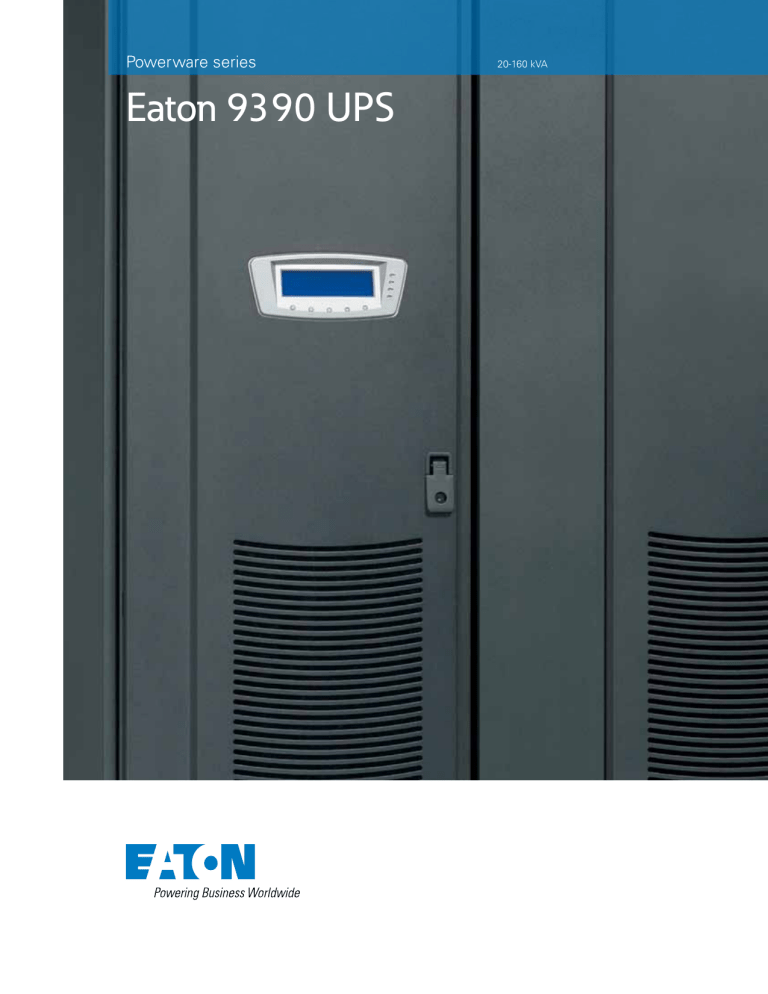

Eaton 9390 UPS - Encompass Power Solutions
Powerware series
Eaton 9390 UPS
20-160 kVA
Innovative design delivers
industry-leading power performance
The Eaton® 9390 is a double-conversion uninterruptible power
system (UPS) that resolves all utility power problems and supplies
clean, continuous, uninterruptible power to connected equipment.
Whether you’re selecting a UPS for a branch office, manufacturing
floor, medical facility, or data center, there’s a 9390 model that
delivers just the right combination of performance and price for
your needs.
Features and Benefits
• Transformer-less design
- Increased efficiency over transformer-based UPSs
- Smaller footprint and higher power density
- Lower installation and shipping costs
• Flexible Installation
- Mount directly next to a wall or even in a corner.
- Completely accessible for service and maintenance from
front panel
- Top and bottom cable entry
• Voltage Options
- Conventional 208V and 480V for standard US system
designs
- Available 400V for higher efficiency US system designs
• Powerware Hot Sync
- Easily expand system capacity
- Sync parallel configurations without fail-prone control
wires
20-80 kVA
• Advanced Battery Management
- Cyclical battery charging increases service life of
batteries, reducing total cost of ownership
- Sophisticated battery condition monitoring, testing, and
alerts identify potential problems before they affect your
load
• Low Total Harmonic Distortion
- Low input THD ensures compatibility with extended
backup power sources (generators).
- Low output THD provides clean pure power to operate
the load safely and efficiently
• Complete line of system accessories
- Battery cabinets
- Integrated distribution cabinets
- Integrated accessory cabinets
100-160 kVA
1
EATON CORPORATION
Eaton 9390 Uninterruptible Power System
High efficiency options reducing
costs and wasted energy
UPS EFFICIENCIES
EATON UPS WITH ESS
100%
Energy Saver System
EATON UPS
LEGACY UPS
UPS EFFICIENCY
The 9390 has delivered excellent energy efficiency since its
introduction to the market, helping facilities save thousands
in energy costs over traditional UPS designs. Now with the
available Energy Saver System (ESS), the 9390 achieves over
99 percent efficiency no matter how large or small the load.
This additional energy savings is achieved through advanced
power core technology, and continues to provide the load with
maximum protection. Unlike traditional “eco” modes, ESS is
not just a utility bypass. The load is always protected.
Learn more at eaton.com/ESS
90%
80%
TYPICAL
OPERATION
70%
20%
30%
40%
50%
60%
70%
80%
90%
100%
UPS LOAD
Energy Saver System vs. Legacy UPS
Critical Load
50 kW
125 kW
250 kW
Electric Costs
$0.11
$0.11
$0.11
Legacy UPS Efficiency
92.5%
92.5%
93%
(energy + demand) per kW hr
Eaton ESS UPS Efficiency
99%
99%
99%
3-year Annual Energy Savings
145 MW hr
363 MW hr
670 MW hr
104 Metric Tons
261 Metric Tons
481 Metric Tons
$15,972
$39,929
$73,715
3-year Annual CO2 Savings
Annual Electrical Cost Savings*
* Includes savings realized through minimizing UPS energy losses and reduced cooling requirements.
POWER DISTRIBUTION SYSTEM
SERVER RACK
208/120V
AC
480V
AC
480V
AC
Utility
480V
UPS
100%
Server
Power
Supply
Transformers/
PDU
8% LOSS
2% LOSS
92%
400 Volt
16% LOSS
90%
76%
Traditional 480V end-to-end efficiency
POWER DISTRIBUTION SYSTEM
480V
AC
Utility
480V
400/230V
AC
Autotransformer
480/400
99%
• Elimination of the step-down 480-208 volt transformer lowers
heat losses, saves valuable floor space, and significantly reduces
capital expenditure
• Higher voltage directly to IT equipment allows it to operate at
higher efficiency (no changes required, as virtually all servers are
rated to operate at up to 240 Vac)
• No changes to power distribution equipment since connectors
and circuit breakers already exist with these ratings
400/230V
AC
Energy Saver
System
Server
Power
Supply
1% LOSS
14% LOSS
98%
84%
UPS
<1% LOSS
100%
SERVER RACK
In addition to conventional (208V and 480V) voltage capabilities,
the 9390 now has the ability to support direct-connect 400/230 Vac
for powering directly to the IT rack. This capability allows for the
deployment of a UL/CE rated UPS that can protect and distribute
400/230 Vac directly to IT racks without an additional stepdown transformer. Some of the efficiencies and benefits of this
alternative voltage powering are:
• End-to-end efficiency of a 400V system design can be up 8%
higher than that of a traditional 480V system.
• Learn more about 400V system design at
www.eaton.com/400volt
400V with Energy Saver System
end-to end efficiency
www.eaton.com/9390 1.800.356.5794
2
Scalable architecture meets your current and
future load requirements
The 9390 supports up to 160 kVA to deliver power protection
for small branch offices to large corporate data centers and
communication networks. Up to four equivalent 9390 modules can
be paralleled for additional capacity or redundancy, without having
to utilize a central bypass cabinet. In all paralleling configurations,
each UPS module operates independently yet is completely
synchronized with the others. Parallel UPS modules can provide
N+1, N+2 or greater redundancy.
Powerware Hot Sync wireless paralleling technology
for capacity or redundancy
Powerware Hot Sync technology:
The culmination of power reliability
• Unlike other paralleling techniques, there is no system-level single
point of failure
Eaton’s patented Powerware Hot Sync® technology enables
multiple UPSs to share the load equally, eliminating the transfer
time when shifting the load from one module to the other. The load
share control algorithms maintain adjustments to variations in the
output power requirements.
When two or more UPSs operate in parallel for capacity and
redundancy, Hot Sync addresses the two primary concerns of
load sharing and selective tripping. To address these concerns
for reliability – the degree of autonomy and the complexity of
implementation – Hot Sync combines digital signal processing and
an advanced control algorithm to provide automatic load sharing
and selective tripping in a parallel system, as well as complete
autonomy of the modules and a skillfully simple implementation.
This two-module system shown below can be configured as 160
kVA N+1 redundant (320 kVA capacity with 36-inch tie cabinet). The
width of this configuration is a compact 164.6 inches.
The 9390 achieves optimum reliability and flexibility with the
following design features:
• Hot Sync systems are capable of paralleling for both redundancy
and capacity
• By using a peer configuration as opposed to a master-slave
configuration, Hot Sync ensures that each module is operating
independently
• No added circuitry or components are required to be switched in
to operate in parallel
• With thousands of successful systems installed globally, Hot Sync
is a proven technology
• The output of multiple UPSs remains in phase so that static
transfer switches connected between the separate distribution
paths may change state seamlessly when necessary
Each parallel unit operates with its own battery string – if any unit
goes offline or is taken down for maintenance, the remaining units
support the load fully with their battery capabilities. If any battery
string fails, the remaining strings continue to support the load –
thus eliminating a key potential single point of system failure.
Battery
160 kVA
UPS Module
160 kVA
UPS Module
Tie
Cabinet
3
EATON CORPORATION
Eaton 9390 Uninterruptible Power System
Battery
Flexible installation options expedite
deployment and save valuable space
The 9390 offers the smallest footprint of any UPS in its class—35
to 50 percent smaller than competitive units. Cabling can enter the
UPS from either the top or bottom of the cabinet to provide easier
and flexible installation. And since the compact 9390 cabinet can
be installed against back and side walls, you have more location
options, installation is fast and easy, deployment cost is lower, and
you save valuable data center space.
Serviceability and accessibility
Being a pre-wired, integrated module, the 9390 saves time and
cost of installation and cabling expenses because of standard top or
bottom entry design. And with front access, the 9390 can be placed
in a corner or against a wall—easily available for service and saving
valuable space.
Big power, small footprint
Weight
At $.30 per pound, the 9390 averages a cross-country freight
savings of over $630. With a transformerless design, Eaton UPS
solutions meet or exceed virtually all floor loading standards. And
with this lower weight, units can be moved without heavy capital
equipment and can fit in all standard freight elevators.
Eaton 9390
Weight = 580 pounds
18.9 x 31.6 in.
Retrofit applications
Competition’s
Weight = 2700 pounds
32.5 in. x 34.9 in.
The 9390 is perfect for retrofit operations. When an existing UPS is
exceeding capacity but has no room to expand, or when the service
contract is expiring, the existing UPS can be removed and replaced
with a 9390 that offers more power in less space.
Service Plans
PowerTrust™PowerTrust
Eaton 9390 UPS Service Plans Value
ProActive
PowerTrust
PreferredFlex Contracts
Parts and Labor for Electronics
•
•
•
•
Parts and Labor for Batteries




5x8 On-Site Corrective Maintenance
•
•
•
•
•Custom
Service
Eight-Hour Response
•
•
•
7x24 On-Site Corrective Maintenance
Next Business Day Response
Four-Hour Response



Two-Hour Response



5x8 UPS Preventive Maintenance Visit
One per year

7x24 UPS Preventive Maintenance Visit

One per year

Two per year
Battery Preventive Maintenance Visit


One per year
Two per year
30%
30%
30%
eNotify Remote Monitoring Service
•
Discounted Spare Parts Kit, T&M, and Upgrades
•
Contracts
One per year
•
•
• Included feature
 Optional
Proven warranty and support services
Extensive service options for enhanced reliability
Customers consistently rank Eaton services number one in quality.
Eaton’s comprehensive, world-class service solutions are designed
to improve costs, uptime, reliability, power quality and safety. And
with 240 field technicians in North America and 1,200 international
authorized service providers, Eaton has more service personnel
than any other UPS manufacturer.
For support beyond the warranty period, Eaton offers enhanced
service options including onsite startup, corrective and preventive
maintenance, battery solutions, training, remote monitoring and
factory spare parts and upgrades. Customizable three-phase UPS
services packages allow customers to select the plan that provides
the right combination of system uptime, convenience and value.
The standard factory warranty covers:
• System warranty: One year parts / 90 days labor
• Battery warranty: Two years parts / 90 days labor
www.eaton.com/9390 1.800.356.5794
4
Performance features to maximize
compatibility
Low input current THD enhances generator
compatibility
Electronic devices and UPSs are built with some components that
are non-linear. When voltage is applied to a circuit constructed of
non-linear components, the circuit may not respond linearly (current
may not follow the voltage in a linear manner). These components
may even create frequencies other than the fundamental applied
frequency (60 Hz).
These frequencies (harmonics) occur in odd multiplies of 60 Hz.
The degree of occurrence is called total harmonic distortion (THD).
If the power source can’t respond to all frequencies demanded
by the circuit, then further distortion of the applied voltage may
occur—creating more complication. Every UPS produces a level
of harmonics. Unchecked, harmonics can reduce overall power
factor, cause sensitive devices to malfunction, prematurely age
equipment, and cause screens and displays to flicker.
To avoid these negative effects, the 9390 uses a special input
circuit that keeps current THD at less than 4.5% at full load—
without compromising efficiency. As a result, the 9390 transfers
maximum power between the source and protected load and is
exceptionally compatible with multiple power sources, especially
auxiliary generators.
Power factor performance maximizes compatibility
and meets high power factor load requirements
Power factor (PF) describes the slight phase shift between voltage
applied to a circuit and current that the circuit draws in response to
the applied voltage. The maximum power factor possible is unity
(1.0), or no phase shift between the voltage applied and the circuit
current response—maximum transfer of power between source
and load. However, in the real world, the UPS must be able to
accept power from and deliver power to circuits that have a wide
range of power factors.
Older or worn equipment often results in lower power factor
readings. Some new servers operate at unity power factor. Lightly
loaded facilities such as brand new data centers, can often show
leading power factor readings.
On output, the ultra high-speed switching pulse width modulation
(PWM) inverter enables the 9390 to provide its full rated power
capability to the load, down to 0.9 leading power factor without
de-rating.
Double-conversion design offers highest available
protection
Unlike other commercially available UPS technologies, the doubleconversion design completely isolates output power from all input
power anomalies and delivers 100% conditioned, perfect sine wave
output—regulating both voltage and frequency, providing protection
from all nine common power problems.
Due to the 9390’s built in high-efficiency capability, it operates in a
consistent, efficient status without compromising power protection.
Even when presented with the most severe power problems,
power output remains stable with the 9390. Output voltage THD
is held within two percent of nominal specification for linear loads,
within five percent for non-linear loads—making the 9390 ideal for
supporting equipment that is sensitive to a distorted voltage input
as a result of harmonic loads. In the event of a utility power failure,
there is no delay transferring to backup power.
Advanced battery management optimizes battery
performance and service life
The 9390 UPS offers innovative technologies to maximize the
health and service life of its internal and external batteries:
• ABM technology uses a unique three-stage charging technique
that significantly extends battery service life and optimizes
recharge time when compared to traditional trickle charging
• Temperature-compensated charging monitors battery temperature
and adjusts the charge rate accordingly, which properly charges
the battery and greatly extends battery life
• An integrated battery management system tests and monitors
battery health and remaining lifetime, providing user notification
to guide preventive maintenance
LOAD Power Factor RANGE Chart
kW
Leading
PF=0.9
100% kW
Lagging
PF=1 PF=0.9
1
PF=0.8
0.75
Many competitive
UPSs cannot operate
in this range without
significant derating
0.50
Without derating
0.25
Full range of load power factor
-1
5
-0.75 -0.50 -0.25
EATON CORPORATION
0
0.25
0.50 0.75
1
Eaton 9390 Uninterruptible Power System
kVAr
Connectivity options for up-to-date system
status and integration
Enhanced communication capabilities
Power Xpert® Gateway Series cards
Power Xpert Gateway Series X-Slot cards provide Web-enabled,
real-time monitoring of UPSs, PDUs and RPPs through standard
onboard Web pages, Power Xpert software or third-party software.
The 9390 UPS is equipped with a variety of standard
communications features for network connectivity and remote
management applications, including:
Power Xpert meters
Power Xpert meters combine state-of-the-art technology with
next-generation power diagnostics, data trending and performance
benchmarking with a twist-and-click LCD display.
• RS-232 serial port
• Four X-Slot® communication bays
• Relay output contacts
• Two programmable signal inputs
Centralized control and visibility
• Remote emergency power-off (REPO)
The 9390 UPS is shipped with the Eaton Software Suite CD.
The software suite includes the following applications, as well
as a user-friendly wizard to guide users through software selection
and installation:
Easy network connectivity and monitoring
ConnectUPS-X card
The ConnectUPS-X Web/SNMP X-Slot card connects the 9390
directly to an Ethernet network and the Internet and enables
graceful shutdown of multiple computers over the network.
The ConnectUPS-X Web/SNMP also features a three-port
switching hub.
• Intelligent Power Manager and LanSafe® power
management software
•P
owerVision® UPS performance analysis and monitoring
software (30-day trial version)
• NetWatch network monitoring software
Modbus® card
The Modbus card is an X-Slot device that allows continuous,
real-time monitoring of the 9390 through a Building Management
System (BMS) or industrial automation system.
eNotify Remote Monitoring
Relay interface cards
The relay interface card for the X-Slot enables remote UPS
shutdown and provides isolated dry contact Form-C relay outputs
for utility failure, low battery, UPS alarm/OK, and on bypass.
Environmental Monitoring Probe
The environmental monitoring probe (EMP) works with the 9390
and ConnectUPS-X card to remotely monitor ambient temperature
and relative humidity of the remote environment. The EMP can also
be configured to provide status of two additional contact devices
such as smoke detectors or open-door sensors.
Eaton's eNotify Remote Monitoring Service provides 24x7 realtime monitoring of the 9390 and battery systems and alerts both
service technicians and the customer when a problem is detected.
Proactive monitoring enables technical experts to respond
immediately to more than 40 alarm conditions and, in many cases,
resolve issues remotely with minimal or no downtime. Additional
eNotify benefits include:
• One-way outbound status and event e-mails for security
and reliability
• Fast diagnosis and notification of critical alarms
• Monthly customer reports including power event logs and
overall UPS and battery health summaries
ConnectUPS-X Web/
SNMP X-Slot card
Power Xpert Gateway
Card 2000
Modbus card
Relay Interface cards
Enviromental
Monitoring Probe
Intelligent Power
Manager
LanSafe®
Foreseer
PowerVision
eNotify
www.eaton.com/9390 1.800.356.5794
6
Available Integrated Cabinets
A full line of unified power distribution accessories
Integrated Battery Cabinet (IBC)
Eaton offers two versions of battery cabinets which line-up and
match the 9390; the IBC-S and the IBC-L, each offering a wide
array of runtimes. See eaton.com/9390 for options and runtime
calculations.
Flexibility
• A variable battery bus accommodates 384 to 480V configurations,
so the battery capacity can be matched to your exact runtime
requirements – either a specific runtime, an extended runtime, an
extension to an existing battery, or legacy battery installations
73.7”
• Daisy chain up to four cabinets together for extended runtimes
• Remote configurations are available
• F
ront access only design and top/bottom cable entry provides
installation flexibility and enhances servicing
31.6”
42.7”
IBC-S with door opened
IBC-L
Integrated Distribution Cabinet (IDC)
The Eaton IDC is specifically designed to compliment the 9390.
With this optional cabinet, Eaton offers a complete, one-stop shop
for power protection and distribution solutions that is easy to
design, install, customize and manage – while delivering pay-as-yougrow scalability for future expansion.
Features
• Two, three or four-breaker maintenance bypass
• Transformer options up to K20
• (2) 42-pole panelboards
Or
• (1) 42-pole panelboard and up to (3) 250A distribution breakers
Or
• Up to (6) 250A distribution breakers
• Line and match or remote
• Casters and leveling feet
• Panelboards come with individual 225A main breaker
• Neutral rated for harmonic loads (200%)
• Distribution breakers are Eaton JG electronic trip
40-80 kVA IDC Bypass/transformer/
- Two electronic sensors available 100A and 250A
- 100A settings 40-100A trip (eight settings)
- 250A setting 100-250A trip (eight settings)
distribution cabinet
7
EATON CORPORATION
Eaton 9390 Uninterruptible Power System
Integrated Accessory Cabinets (IAC) for customizable
configurations
Eaton offers several configurations of Integrated Accessory
Cabinets (IAC) for use with the 9390 UPS.
IAC-ST and IAC-T Tie Cabinet
• Parallel UPS tie cabinet (redundant). See one-line diagram
on next page.
• Two-breaker tie with maintenance bypass (IAC-T only)
The IAC is primarily available in two forms – either a 200 mm (8”)
sidecar bolted to the UPS (maintenance bypass or tie) or a 570
mm (22.5”) free-standing cabinet (maintenance bypass, tie or
distribution). The size of the IAC is primarily dependant on function
and rating.
• Two-breaker tie-with main output
IAC-SB and IAC-B Maintenance bypass
IAC-D Distribution Cabinet
Maintenance bypass configuration (MBP) and maintenance isolation
(MIS) breakers enable power to completely bypass the UPS power
module. The module can then be serviced safely or replaced
without interrupting power to critical systems. An optional bypass
breaker (BIB) and rectifier input breaker (RIB) provide a single wiring
point input to the UPS as well as a convenient method for removing
power from the UPS when using maintenance bypass to supply the
load.
• Used to add (2) additional 42-pole panelboards
Features
• Casters and leveling feet
• Two, three or four-breaker maintenance bypass
• No internal transformers
• Smallest cabinet ships bolted to UPS (IAC-SB)
• Large cabinet can be remotely located (IAC-B)
8”
• Two-breaker tie
• Wall-mounted maintenance bypass, tie and distribution panels
are also available
Or
• (1) 42-pole panelboards and up to (3) 250A distribution breakers
Or
• Up to (6) 250A distribution breakers
• Line and match or remote
• Panelboards come with individual 225A main breaker
• Neutral rated for harmonic loads (200%)
• Distribution breakers are Eaton JG electronic trip
- Two electronic sensors available 100A and 250A
- 100A settings 40-100A trip (eight settings)
- 250A setting 100-250A trip (eight settings)
22.5”
Rectifier input
(not shown)
Bypass input
Bypass breaker
UPS output
(isolation)
System load
breaker (SLB)
UPS #2 output
(MOB 2)
UPS #1 output
(MOB 1)
80 kVA 208 &
480V
160 kVA 208V
IAC-B
IAC-B Maintenance
bypass (160 kVA)
IAC-T Parallel Tie Cabinet
160 kVA 480V
IAC-SC
www.eaton.com/9390 1.800.356.5794
8
Accessory cabinet dimensions and weight
Accessory cabinet
20-80 kVA (H x W x D, in)
IBC-S
IBC-L
73.7 x 22.5 x 31.6
73.7 x 42.7 x 31.6
73.7 x 22.5 x 31.6
Up to 2445 lb
Up to 4835 lb
Up to 540 lb
73.7 x 22.5 x 31.6
73.7 x 42.7 x 31.6
73.7 x 22.5 x 31.6
73.7 x 22.5 x 31.6
Up to 2445 lb
Up to 4835 lb
Up to 700 lb
Up to 700 lb
20-80 kVA (weight)
100-160 kVA (H x W x D, in)
100-160 kVA (weight)
Accessory cabinet
20-80 kVA (H x W x D, in)
IAC-T
IAC-D
M90 MBS
MTC
IDC
73.7 x 22.5 x 31.6
Up to 73 x 24 x 11.5
Up to 90 x 36 x 11.5
73.7 x 35.6 x 31.6
Up to 420 lb
Up to 500 lb
Up to 500 lb
1200 lb (maximum)
73.7 x 22.5 x 31.6
Up to 90 x 36 x 11.5
Up to 90 x 36 x 11.5
73.7 x 42.7 x 31.6
Up to 420 lb
Up to 775 lb
Up to 775 lb
2185 lb (maximum)
20-80 kVA (weight)
100-160 kVA (H x W x D, in)
IAC-B
100-160 kVA (weight)
IDC Technical Specifications1
9390 Integrated Distribution Cabinet
General characteristics
Power distribution option Panelboard distribution
Installation
Line up and match to UPS
Front access only
Quantity
2 (maximum)
Color
Same as UPS
Voltage
208/120V
Construction
NEMA 1 ventilated
Main breaker
225A, 65 kAIC
Input voltage
208, 480V
Circuits
84 (maximum)
Distribution breakers
(in lieu of panelboards)
Output voltage
Quantity
6 (maximum)
Isolation
208, 208/120V
Voltage
208/120V
Distribution
208/120V
Size
250A, 65 kAIC, adjustable trip
Certification
Maintenance bypass option
Safety
UL 1778
Maintenance bypass
Markings
UL, CUL
1. Due to continuing product improvements, specifications are subject to change without notice.
User interface
Cable entry
Top or bottom
Remote monitoring
Optional
Transformer option
Electrostatic shield
Standard
Insulation
150ºC Rise, Class H
Impedance
5% (maximum)
K-factor
K-1 (standard); K13, K20 (optional)
Compensation taps
2-FCAN, 4-FCBN standard
Overload protection
Standard
9
EATON CORPORATION
Eaton 9390 Uninterruptible Power System
Optional; 2, 3 or 4 breaker configuration
A closer look inside the 9390
Top cable entry area
X-Slot
communication
bays
®
Replaceable converter/inverter modules
System control
and interface
boards
Redundant
power
supplies
Input/Output
connections
Slide out fan tray
DC connections
Modular static
switch assembly
Bottom cable
entry area
20-80 kVA
Top cable entry area
X-Slot
communication
bays
Replaceable converter/
inverter modules
Redundant power
supplies
Redundant
power
supplies
Slide out fan trays
Input/Output
connections
DC connections
Modular static
switch assembly
Bottom cable
entry area
100-160 kVA
www.eaton.com/9390 1.800.356.5794
10
Technical specifications1
Eaton 9390 UPS
Dimensions and weights
UPS rating (0.9 power factor)
kVA
kW
20
30
18
27
40
50
36
60
45
80
54
72
100
90
120
108
160
144
General characteristics
Efficiency
Up to 94%
>99% with Energy Saver System
Parallel capability
Four modules with tie cabinet
Audible noise
<65 dBA @ 1 meter
Altitude (max)
2000m at 40ºC , 104ºF
20-80 kVA modules
HxWxD: 73.7 x 18.9 x 31.6 in./1872 x 480 x 803 mm
100-160 kVA modules HxWxD: 73.7 x 35.6 x 31.6 in./1872 x 904 x 803 mm
20-80 kVA modules
640 lb./290 kg (208V); 568 lb./258 kg (480V)
100-160 kVA modules 1,060 lb./481 kg (208V, 480V)
Serviceability
Back/side against
wall installation
Standard
Certification
Input characteristics
Safety
UL1778, cUL
EMC
IEC62040-2 EN50091 Class A (restricted access)
Surge
ANSI C62, 41 Cat, A&B
Voltage
208, 380, 400, 415, 480, 6002
Voltage range
+10% / -15%3
Frequency range
55-65 Hz
Power factor
0.99 (min)
Input current
distortion
<4.5% (no input filter required)
Module tie cabinet
External maintenance bypass
Integrated distribution cabinet
Isolation transformer
Soft start capability
Yes
eNotify Remote Monitoring service option
Internal backfeed
protection
Yes
Broadcast global
support
Yes
7x24 remote monitoring of UPS and battery alarms, daily heartbeat
check and monthly report required. ConnectUPS-X Web/SNMP Card and
Environmental Monitoring Probe are included with enrollment. Please visit
www.eaton.com/enotify for more information.
Optional accessories
Communication options
Output characteristics
Voltage
208 , 380 , 400 , 415 , 480 , 600
Regulation
±1%
Inverter
PWM with IGBT switching
Voltage THD
<2% (100% linear load); <5% (non-linear load)
Load power factor
range
Down to 0.9pf leading without de-rating
Heat dissipation
(BTU/Hr x 1000/Hr)
80 kVA, 208V: 23.6
160 kVA, 208V: 47.3
80 kVA, 380-480V: 21.9
160 kVA, 380-480V: 43.8
4
4
4
4
4
5
Battery
Battery types
VRLA, AGM, Gel, Wet, Eaton batteries also available
Battery voltage
384-480V
Temperature
compensation
Optional
Charging method
Advanced battery management
UNITED STATES
8609 Six Forks Road
Raleigh, NC 27615 U.S.A.
Toll Free: 1.800.356.5794
www.eaton.com/powerquality
Canada
Ontario: 416.798.0112
Toll free: 1.800.461.9166
LATIN AMERICA
South Cone: 54.11.4124.4000
Brazil: 55.11.3616.8500
Andean & Caribbean:
1.949.452.9610
Mexico & Central America:
52.55.9000.5252
Software compatibility - Intelligent Power Manager, LanSafe,
FORESEER, Power Xpert
Communications cards - Standard system includes one ConnectUPS Web/
SNMP/-X Card with an Environment Monitoring Probe. Two communications
bays standard. Four communication bays included.
The following connectivity options can be installed at any time:
- Modus Card
- Relay Interface Card (Use for AS400s)
- Industrial Relay Card (5A@120V)
- Hot Sync CAN Bridge Card provides CAN communications,
isolated RS-485 port
- Environmental Monitoring Probe (EMP)
Remote inputs/outputs - two building alarms inputs and on summary alarm
contact (5A@120V) standard
Four more building alarm inputs available with the Communications Expansion
Option Remote panel - eight backlit status indicator lamps plus an audible horn
*See the Limited Factory Warranty for 9390 products for details. Batteries are warranted by the battery
manufacturer and not by Eaton.
**Requires the Parallel Card option (RS-485 port) and requires an external 120V power supply to drive the
remote monitor panel.
1. Due to continuing improvements, specifications are subject to change without notice.
2. 600V applications require an input transformer.
3. At full load without battery discharge.
4. Output transformers are required if the desired output voltage is not the same as the input voltage.
5. 600V applications require an output transformer.
Europe/Middle East/Africa
Denmark: 45.3686.7910
Finland: 358.94.52.661
France: 33.1.6012.7400
Germany: 49.0.7841.604.0
Italy: 39.02.66.04.05.40
Norway: 47.23.03.65.50
Portugal: 55.11.3616.8500
Sweden: 46.8.598.940.00
United Kingdom: 44.1753.608.700
Asia Pacific
Australia: 61.2.9693.9366
New Zealand: 64.0.3.343.3314
China: 86.21.6361.5599
HK/Korea/Taiwan: 852.2745.6682
India: 91.11.4223.2300
Singapore/SEA: 65.6825.1668
Eaton, Powerware, Powerware Hot
Sync, ABM, PowerTrust, PowerChain
Management, Power Xpert, LanSafe,
PowerVision, Foreseer and X-Slot are trade
names, trademarks, and/or service marks
of Eaton Corporation or its subsidiaries and
affiliates. All other trademarks are property
of their respective owners.
©2010 Eaton Corporation
All Rights Reserved
Printed in USA
9390FXA
October 2010
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
