QuickSpecs
HP Compaq t5520 Thin Client
Overview

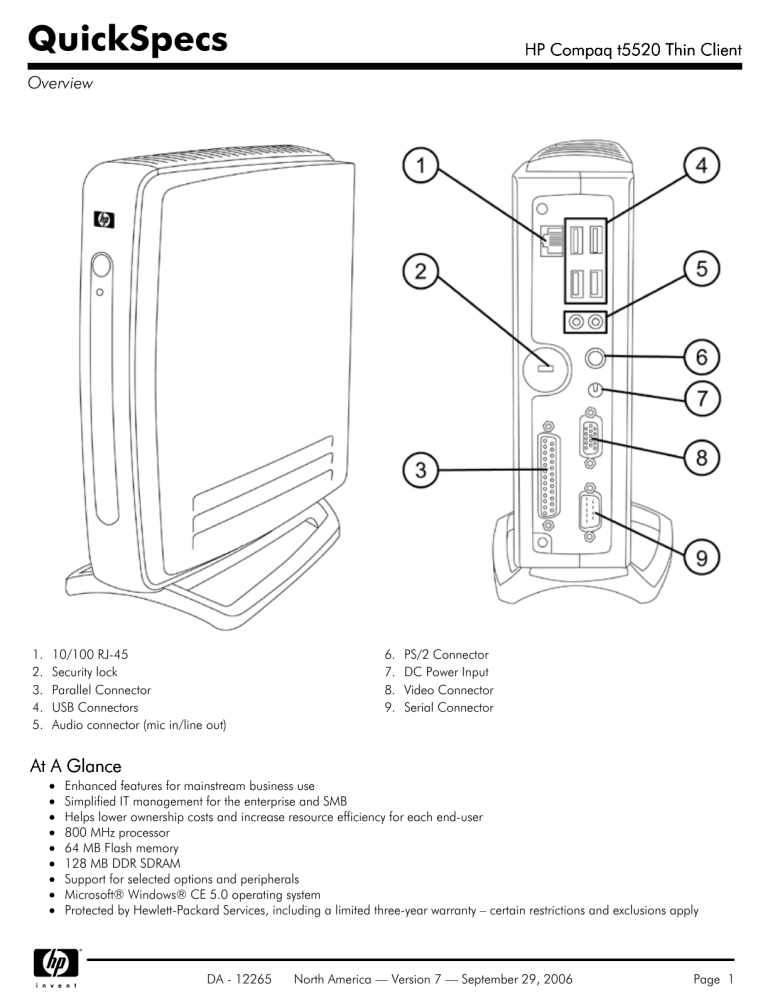

1.
2.
3.
4.
5.
10/100 RJ-45
Security lock
Parallel Connector
USB Connectors
Audio connector (mic in/line out)
6.
7.
8.
9.
PS/2 Connector
DC Power Input
Video Connector
Serial Connector
At A Glance
Enhanced features for mainstream business use
Simplified IT management for the enterprise and SMB
Helps lower ownership costs and increase resource efficiency for each end-user
800 MHz processor
64 MB Flash memory
128 MB DDR SDRAM
Support for selected options and peripherals
Microsoft® Windows® CE 5.0 operating system
Protected by Hewlett-Packard Services, including a limited three-year warranty – certain restrictions and exclusions apply
DA - 12265
North America — Version 7 — September 29, 2006
Page 1
QuickSpecs
HP Compaq t5520 Thin Client
Standard Features - Models
PY356AA#ABA /
PY356AT#ABA
Processor
Flash
Memory
Graphics
Operating System
Browser
Client Management
Software
Terminal Personalities
Standard
RA527AA#ABA
(TAA compliant)1
Processor
Flash
Memory
VIA 800 MHz
64 MB
128 MB DDR SDRAM
(NOTE:
NOTE: 16 MB of system RAM is reserved for video graphics usage)
VIA S3 graphics with support for high-resolution monitors up to 1280 x 1024
Microsoft Windows CE 5.0
Microsoft Internet Explorer 6.0 for Windows CE
Altiris Deployment Solution
Yes
VIA 800 MHz
64 MB
128 MB DDR SDRAM
(NOTE:
NOTE: 16 MB of system RAM is reserved for video graphics usage)
VIA S3 graphics with support for high-resolution monitors up to 1280 x 1024
Microsoft Windows CE 5.0
Microsoft Internet Explorer 6.0 for Windows CE
Altiris Deployment Solution
Graphics
Operating System
Browser
Client Management
Software
Yes
Terminal Personalities
Standard
NOTE1: Product complies with U.S. Trade Agreement (TAA). Available in U.S only.
DA - 12265
North America — Version 7 — September 29, 2006
Page 2
QuickSpecs
HP Compaq t5520 Thin Client
Options
Monitors
CRT Monitors
HP s7540 17" (16.0" vis) CRT Monitor
HP v7650 17" (16.0" vis) Flat-face CRT Monitor
TFT Monitors
HP L1506 15" TFT Flat Panel Monitor – Analog only
HP L1706 17" TFT Flat Panel Monitor – Analog only
HP L1740 17" TFT Flat Panel Display – Analog/Digital
HP L1755 17" TFT Flat Panel Display – Analog/Digital
HP L1906 19" TFT Flat Panel Display – Analog only
HP L1940T 19" TFT Flat Panel Display – Analog/Digital
HP L1955 19" TFT Flat Panel Display – Analog/D
HP LP2065 20" TFT Flat Panel Display – Analog/Digital
HP LP2465 24" TFT Widescreen Flat Panel Display – Analog/Digital
HP L5006tm 15" Touchscreen Flat Panel Monitor
ELO Touch 1725C CRT – USB/Serial
ELO Touch 1529L Flat Panel – USB/Serial
ELO Touch 1526C CRT – USB/Serial
ELO Touch 1529L Flat Panel – USB/Serial
ELO 1515L Flat Panel – USB/Serial
Security
Compaq Security Lock
SCM Smart Card SCR331; please visit the sites below to purchase
http://www.txsystems.com/scm.html
http://www.envoydata.com
http://www.digital-privacy.com/index.php
Storage
Apacer 256 Disk on Key (http://www.apacer.com/private/hsorderform/hsregion.htm)
Apacer 512 Disk on Key (http://www.apacer.com/private/hsorderform/hsregion.htm)
Apacer 1-GB Disk on Key
(http://www.apacer.com/private/hsorderform/hsregion.htm)
HP External MultiBay
HP MultiBay 1.44-MB Diskette Drive (requires External MultiBay)
HP MultiBay 24X CD-ROM Drive (requires External MultiBay)
HP MultiBay 60-GB Hard Drive (requires External MultiBay)
HDD 80-GB 5400rpm
HP 512-MB DriveKey II – USB Flash Drive
DA - 12265
North America — Version 7 — September 29, 2006
PF997AA#ABA
PF996AA#ABA
PX848AA#ABA
PX849AA#ABA
PL766AA#ABA
PL777AA#ABA
PX850AA#ABA
EM869AA#ABA
PD974AA#ABA
EF227A4#ABA
EF224A4#ABA
RB146AA#ABA
045182-001
726256-000
139862-001
D62751-000
E72932-000
294316-B21;
DC368A
SCR331
AP-HHR256HD2
AP-HHR512HD2
AP-HHR100HD2
DC373A
DC362A
DC513B
DC894A
DC920A
ED516AA
Page 3
QuickSpecs
HP Compaq t5520 Thin Client
Options
Communications
Zoom 3049 56K v.92 Ext. Modem - Serial
Zoom 2985 USB 56K v.90 external modem (http://www.zoom.com)**
Belkin USB Wireless 802.11b/g
(driver available at http://catalog.belkin.com/IWCatProductPage.process?
Product_Id=282161)
Linksys Ethernet Bridge
Linksys Ethernet Bridge
Connectivity
HP PS/2 Keyboard
HP USB Standard Keyboard ALL
HP USB Smartcard Kybd (Cbnt/Slv ALL)
HP PS/2 2-Button Scroll Mouse ALL
HP USB 2-Button Scroll Mouse ALL
Printers
HP Deskjet 5650 (USB and parallel)
HP Deskjet 6122 (USB and parallel)
HP LaserJet 1320 (USB and parallel)
HP Deskjet 5850 (USB, NIC and wireless)
HP Deskjet 6127 (USB and NIC)
HP LaserJet 1160 (USB and parallel)
Accessories
Mounting Bracket
t5700 40W AC Adapter ALL
HP/Kensington Cable Lock
Care Packs
9x5 Next-Business-Day Advanced Exchange – 3 Years
3049-00-00
2985-00-00C
HP4050
WET54G
WET54GS5
DT527A
DT528A
ED707AA
DD440B
DD441B
C6490A
C8954B
Q5927A
C8975A
C8959B
Q5917A (Black)
Q5933A (Opal)
DY928A
DZ991A
PC766A
331653-001;
U4847E
9x5 Next-Business-Day On-Site Coverage – 3 Years
331655-001;
U4849E
**The warranties for HP or Compaq branded products are set forth in the express limited warranty
statements accompanying such products. Although these third-party products may work effectively on HP
or Compaq thin clients, HP does not support or warrant third-party products, including the
interoperability of such products with HP or Compaq thin clients. However, third-party manufacturers
and vendors may provide their own warranties and support directly to you. Please contact the
manufacturers and vendors listed previously for support on their products.
DA - 12265
North America — Version 7 — September 29, 2006
Page 4
QuickSpecs
HP Compaq t5520 Thin Client
Technical Specifications
Processor
Memory
VIA Eden 800 MHz
Flash
System Memory
Graphics
VIA S3 graphics
Mode
640 x 480
800 x 600
1024 x 768
1280 x 1024
Keyboard
Mouse
Printer
Video
Output
64 MB (DMA mode)
128 MB of DDR SDRAM
(NOTE:
NOTE: 16 MB of system RAM is reserved for video graphics usage)
Refresh Rates
Color Depth
60, 75, or 85 Hz
8-, 16-, or 32-bit
60, 75, or 85 Hz
8-, 16-, or 32-bit
60, 75, or 85 Hz
8-, 16-, or 32-bit
60, 75, or 85 Hz
8-, 16-, or 32-bit
Input/Output/
USB (keyboard included), PS/2
Peripheral Support
USB (mouse included), PS/2
Local and/or network printers (RDP, ICA, LPD, JetCET)
VGA-type video output (DB-15)
Audio
Internal amplified speaker, 1/8-inch mini, full 16-bit stereo,
44-kHz sample rate
Input
1/8-inch mini microphone
Security
Security lock slot (cable lock sold separately)
Terminal Server Protocols Integrated Microsoft RDP 5.5 for Windows CE 5.0 and Citrix ICA 8.2 for remote server access.
Networking
TCP/IP with Dynamic DNS and DHCP support
10/100 BaseT Fast Ethernet, twisted pair (RJ-45)
Direct connection via RS-232, Point-to-Point Protocol (PPP), Point-to-Point over Ethernet (PPPoE)
VPN connection via MS Point-to-Point Tunneling Protocol (PPTP), Layer-2 Tunneling Protocol (L2TP)
Supports Citrix load balancing on ICA
Simple Network Management Protocol (SNMP)
Server Network Time Protocol (SNTP)
DHCP with FTP option for automatic updates
Wake on LAN
PXE
I/O ports and connectors Four USB 2.0 ports , 1 serial, 1 parallel, 1 PS/2 connector
Resident Operating
Microsoft Windows CE 5.0
System
Server OS Compatibility/ Microsoft Windows NT Server 5.5 family, Microsoft Windows 2003 Server family, Microsoft Windows
Support
2000 Server family (except Data Center addition); Citrix Metaframe XP, and Citrix Presentation Server
3.0 for Windows 2000/2003 Servers/Linux/Unix
Microsoft Windows CE 5.0
Software Included
Microsoft Internet Explorer 6.0 for Windows CE 5.0
Microsoft Windows Media Player 9.0 for Windows CE 5.0
Altiris Deployment Solution (client agent), Altiris Deployment Solution (management console) available
as free download from Altiris at: http://www.altiris.com/hptc
JetCET Print Professional
teemtalkCE Terminal Emulation Software
VNC Server
txtpad
Other software available as add-ons (see http://www.hp.com/support for list of available add-ons)
DA - 12265
North America — Version 7 — September 29, 2006
Page 5
QuickSpecs
HP Compaq t5520 Thin Client
Technical Specifications
Languages
Dimensions H x W x D
(approximate)
Weight (approximate)
Environmental
Regulatory Compliance
English
Without stand
With stand
With stand
Temperature range on
Temperature range off
Humidity
Power
Ergonomics
Safety
RF Interference
2.2 x 8.2 x 7.8 in (55 x 205 x 195 mm)
9.2 x 4 x 7.8 in (230 x 100 x 195 mm)
3.10 lb (1.41 kg)
50° to 104° F (10° to 40° C)
-22° to 140° F (-30° to 60° C)
20% to 80% condensing/10% to 95% non-condensing
Worldwide auto-sensing 100-240 VAC, 50-60 Hz energy-saving automatic
power-down
German ZH1/618; EN29241-3, approved
UL 1950, CSA 950; TÜV-GS (EN60 950) approved
FCC Class B; CE Mark; EN55022B; VCCI
Warranty
Three-year limited warranty
NOTE: Certain restrictions apply. Consult the HP Customer Support Center for details.
Emulations and Terminal Emulation
Terminal ID
IDs Supported
ADDS A2
AIXTerm
VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240,
VT320, VT340, VT420, VT510, VT520, VT525
ANSI BBS
VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240,
VT320, VT340, VT420, VT510, VT520, VT525
AT 386
ATT4410
DG 410/412
HP 700-92/96
70092, 70094, 70096, 2392A, 2622A
HZ1500
IBM3151
Mod11, Mod31, Mod11-28, Mod31-28
IBM3270
3278-2 (24x80), 3278-3 (32x80), 3278-4 (43x80), 3278-5 (27x132),
3278-2-E (24x80), 3278-3-E (32x80), 3278-4-E (43x80), 3278-5-E
(27x132), 3279-2 (24x80), 3279-3 (32x80), 3279-4 (43x80), 3279-5
(27x132), 3287-1
IBM5250
5291-1, 5292-2, 5251-11, 3179-2, 3196-A1, 3180-2, 3477-FC
(27x132), 3477-FG (24x80), 3486-BA, 3487-HA, 3487-HC, 3812-1, 555B01, 555-C01, 553-B01
SCO Console
VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240,
VT320, VT340, VT420, VT510, VT520, VT525
Stratus V102
TA6530
Televideo
TVI910, TVI920, TVI925, TVI950, TVI955
VT52, VT100, VT100+, VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240,
VT500 (7- or 8-bit)
VT320, VT340, VT420, VT510, VT520, VT525
VT PCTerm
VT HP220,
VT100, VT101, VT102, VT125, VT220, VT240, VT320, VT340, VT420,
VT UTF8
VT131, VT132, M2200, VT510, VT520, VT525
Wyse
PCTerm, WY50, WY50+, WY60
DA - 12265
North America — Version 7 — September 29, 2006
Page 6
QuickSpecs
HP Compaq t5520 Thin Client
Technical Specifications
