Radio Shack 10 Disc CD Changer Owner`s manual

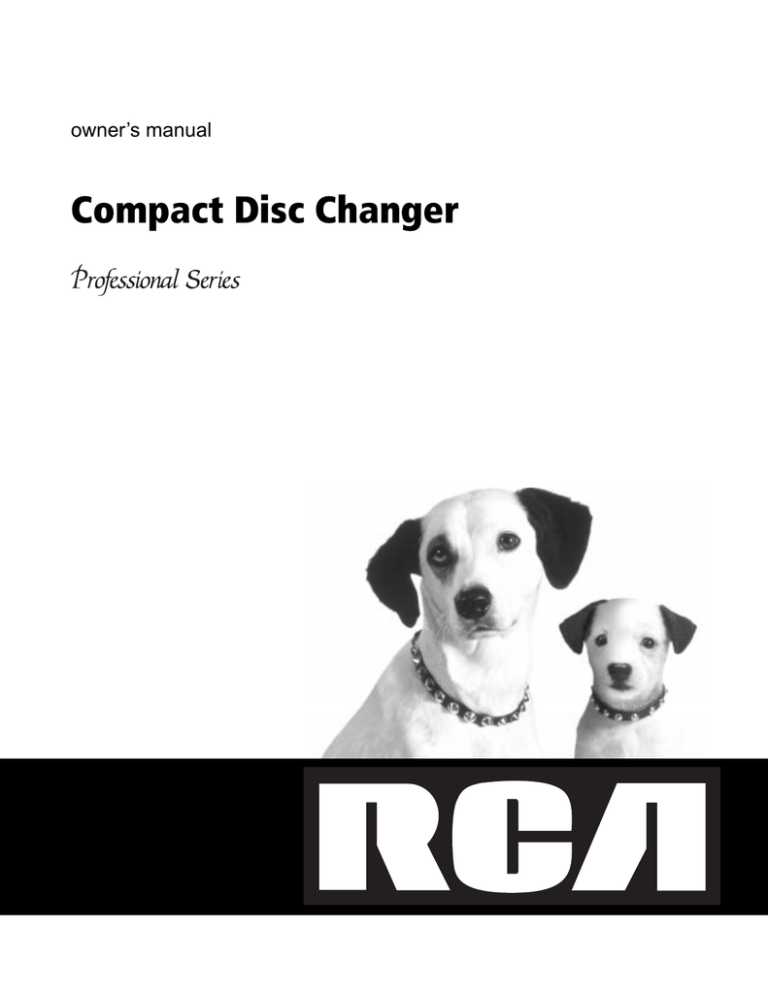

owner’s manual
Compact Disc Changer
INTRODUCING THE RCA CD-9400
Your RCA CD-9400 Compact Disc Changer is the next
step in CD changer technology. It lets you load up to 101
CDs.
This lets you select up to 100 CDs for continuous play
and gives you more musical variety without your having
to continually remove and load CDs. You can also load a
single CD for easy, one-time play.
The CD-9400’s advanced design makes the CD changer
simple to operate. Be sure to pay attention to the “Special
Features” section of this manual so you can understand
and take advantage of everything the CD-9400 can do.
Your CD-9400’s features include:
Multiple Compact Disc Racks Plus Single Play — let
you load up to 100 CDs for continuous or programmed
play, plus a single CD for easy, one-time play.
Sequence Programming — lets you program up to 36
selections (a single track or an entire CD) to play in any
order you choose.
Remote Control — lets you control the CD changer from
a distance.
Custom Playback — lets you assign loaded CDs into any
of three custom CD groups, and play only the CDs
assigned to the group.
Random Play — randomly selects and plays all tracks on
a single CD, up to 100 tracks on CDs in a custom CD
group or on all CDs.
Repeat Play — automatically repeats a single track, all
tracks on a single CD, all tracks in a custom CD group, all
tracks on all loaded CDs, or a programmed sequence.
Digital Output — lets you connect your CD changer to
another digital device.
Best Selection Memory — lets you save up to 20 of your
favorite tracks for one-touch playback.
Previous Playback — plays 10 seconds from each of the
20 most recently played CDs to help you locate a CD you
want to listen to again.
Hi-lite Scan — helps you locate a CD or track by playing
10 seconds from the first track of each CD, or 10 seconds
from each track on all CDs.
Audible Search — helps you locate a particular section
of the music by playing the CD rapidly in either direction.
Automatic Search Music System — lets you easily
locate and play any track on a CD.
Memory-Hold Function — remembers which CD is
playing when you turn off the CD-9400 and begins
playing from the first track of that CD when you turn it
back on.
Synchro Record — lets you synchronize recording when
you connect the CD changer to a compatible cassette
deck.
1-Bit DAC — uses the latest in digital-to-analog conversion circuitry to accurately reproduce all sound levels with
virtually no distortion.
©1999 Tandy Corporation.
All Rights Reserved.
2
IMPORTANT SAFETY INSTRUCTIONS
This CD Changer is made and tested to
meet exacting safety standards. It meets
both UL and FCC requirements and
complies with safety performance
standards of the US Department of Health
and Human Services.
Careful attention is devoted to quality standards in the manufacture of your CD changer, and safety is a
major factor in its design. However, safety is also your responsibility.
WARNING: TO REDUCE THE RISK
OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
Attachments — Do not use attachments/accessories not recommended by the product manufacturer, as
they might create a hazard.
CAUTION
This section lists important information that will help you properly use and enjoy your CD changer and
accessories. Read all the included safety and operating instructions before using your CD changer, follow
them closely, and retain them for future reference.
Heed Warnings — Follow all warnings on the product and in the operating instructions.
Cleaning — Unplug this product from the wall outlet before cleaning. Use only a damp cloth for cleaning.
Do not use liquid or aerosol cleaners.
Water and Moisture — Do not use this product near water (for example, near a bathtub, washbowl,
kitchen sink, or laundry tub; in a wet basement; or near a swimming pool).
Accessories — Do not place this product on an unstable cart, stand, tripod, bracket, or table. The
product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only
with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.
Follow the manufacturer’s instructions for mounting, and use a recommended mounting accessory.
Carts — Move the product on a cart carefully. Quick stops, excessive force, and
uneven surfaces may cause the product/cart to overturn.
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK, DO NOT
REMOVE COVER OR BACK. NO
USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
This symbol is intended
to alert you to the
presence of uninsulated
dangerous voltage inside
the product that can
cause shock. Do not
open the product’s case.
This symbol is intended
to alert you to important
operating and
maintenance instructions
in this owner’s manual.
Warnings:
• This CD Changer uses a laser.
Because of possible eye injury, only a
qualified service person should
remove the cover or attempt to
service this device.
• The use of controls or adjustments,
or the performance of procedures
other than specified herein, can
result in hazardous exposure to laser
light.
Ventilation — Slots and openings in the cabinet provide ventilation, ensure
reliable operation, and protect from overheating. Do not block or cover these
openings, and do not place the product on a bed, sofa, rug, or other similar
surface. Do not place the product in a built-in bookcase or rack unless it provides
proper ventilation as specified by the manufacturer.
Power Sources — Operate this product using only the power source indicated on its marking label. If
you are not sure of your home’s power type, consult your product dealer or local power company.
Polarization — This product is equipped with a polarized AC line plug (a plug having one blade wider
than the other). This plug will fit in the power outlet only one way. This is a safety feature. If you cannot
insert the plug fully into the outlet, try reversing the plug. If the plug still doesn’t fit, contact your
electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. If you
need an extension, use a polarized cord.
Power-Cord Protection — Route power-supply cords so they are not likely to be walked on or pinched
by items placed on or against them, paying particular attention to cords at plugs, convenience receptacles,
and the point where they exit from the product.
Lightning — For added protection for this product during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due to lightning and power-line surges.
Overloading — Do not overload wall outlets, extension cords, or integral convenience receptacles, as this
can result in a risk of fire or electric shock.
Objects and Liquids — Never push objects of any kind into this product through openings, as they may
touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill
liquid of any kind on the product.
Servicing — Do not attempt to service this product yourself, as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Damage Requiring Service — Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
•
When the power-supply cord or plug is damaged.
•
If liquid has been spilled or objects have fallen into the product.
•
If the product has been exposed to rain or water.
•
If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions, as an improper adjustment of other controls
may result in damage and will often require extensive work by a qualified technician to restore the
product to normal operation.
•
If the product has been dropped or damaged in any way.
•
When the product exhibits a distinct change in performance.
Replacement Parts — When replacement parts are required, be sure the service technician uses
replacement parts specified by the manufacturer or having the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other hazards.
Safety Check — Upon completion of service or repairs to this product, ask the service technician to
perform safety checks to determine that the product is in proper operating condition.
Wall or Ceiling Mount — The product should be mounted to a wall or ceiling only as recommended by
the manufacturer.
Heat — The product should be situated away from heat sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.
3
CONTENTS
Preparing Your CD Changer ..................................................................................................... 5
Connecting the CD Changer to Your Receiver/Amplifier ........................................................................................... 5
Connecting to Another Digital Audio Product ........................................................................................................... 5
Connecting Power ..................................................................................................................................................... 5
Connecting to a Cassette Deck’s Synchro Jack ........................................................................................................... 5
Installing the Remote Control’s Batteries .................................................................................................................... 6
Using a Receiver’s Remote Control with the CD Changer .......................................................................................... 6
Basic Operating Instructions ................................................................................................... 7
Using the Remote Control ......................................................................................................................................... 7
Loading CDs in the Rack ........................................................................................................................................... 7
Loading a CD in the Single Play Slot ......................................................................................................................... 8
Using the Demo ........................................................................................................................................................ 8
Playing CDs .............................................................................................................................................................. 9
Checking the Time Remaining and Elapsed on a CD ............................................................................................... 10
Special Features ..................................................................................................................... 11
Quickly Selecting Tracks ......................................................................................................................................... 11
Searching for a Section of a Track ............................................................................................................................ 11
Assigning CDs to a Custom CD Group .................................................................................................................... 11
Checking the Custom Group Contents .............................................................................................................. 11
Erasing All the CDs from a Custom Group ........................................................................................................ 11
Storing Your Best Tracks .......................................................................................................................................... 12
Scanning Previous CDs ........................................................................................................................................... 12
Using Hi-Lite Scan .................................................................................................................................................. 12
Repeating Tracks, CDs, and Sequences .................................................................................................................... 12
Playing Tracks in Random Order ............................................................................................................................. 13
Programming a Sequence ........................................................................................................................................ 13
Programming a Sequence While a CD is Playing................................................................................................ 14
Erasing a Programmed Selection ........................................................................................................................ 14
Clearing a Programmed Sequence ...................................................................................................................... 14
Storing a Pause within a Programmed Sequence for Recording to Cassette ........................................................ 14
Care and Maintenance ........................................................................................................... 15
Caring for CDs ........................................................................................................................................................ 15
Caring for the CD-9400 .......................................................................................................................................... 15
Precautions for Use ............................................................................................................................................ 15
CD Care Tips ..................................................................................................................................................... 15
FCC Information ..................................................................................................................................................... 16
Troubleshooting ...................................................................................................................................................... 16
Index to Features by Control Name ....................................................................................... 17
Self-Diagnostics...................................................................................................................... 18
Specifications ......................................................................................................................... 19
4
PREPARING YOUR CD CHANGER
CONNECTING THE CD CHANGER TO YOUR
RECEIVER/AMPLIFIER
CONNECTING TO ANOTHER DIGITAL AUDIO
PRODUCT
Caution: Do not connect the CD changer to AC power
until you complete all other connections.
You can connect the CD changer to another digital audio
product such as a digital recorder. You need an optical
cable (available through your local RadioShack store) for
this connection. To make the connection, remove the
protective dust cap from the digital jacks, and connect the
optical cable to the jacks.
1.
Select a location for your CD changer that is near your
receiver/amplifier and a standard AC outlet.
2.
Plug one end of the supplied audio cable into the CD
changer’s L (left) and R (right) LINE OUT jacks,
matching the red plug to the red R LINE OUT jack and
the white plug to the white L LINE OUT jack.
Note: Be sure to leave the dust cap in place when you are
not using the jack.
Plug the other end of the audio cable into the receiver’s
or amplifier’s left and right CD, AUX, or TAPE input
jacks.
CONNECTING POWER
3.
Cautions
• Do not connect the CD changer to the receiver’s or
amplifier’s PHONO inputs.
• Do not place the CD changer on top of the receiver/
amplifier or any other component that gets hot.
Note: If you place the CD changer too near other audio
components or their wires, you might hear a hum when you
play a CD. Move the components or their wires to eliminate
the hum.
IN
CONTROL
CD Changer
OUT
CD•DECK
SYNCHRO
Receiver/Amplifier
TAPE/DCC
INPUT
PHONO
VCR/
LD
CD
L
L
PLAY
REC
L
TAPE 2
REC
R
__ PLAY
L
L
LINE OUT
CONTROL
DIGITAL OUT
OPTICAL
R
R
R
L
R
R
OUT
L
R
After you have connected the CD changer to your receiver
or amplifier, plug the CD changer’s power cord into a
standard AC outlet.
Caution: To prevent electric shock, the plug’s blades are
polarized and fit only one way. If the plug does not fit easily,
turn it over and try again. Do not force the plug into any AC
outlet.
Note: Do not connect the CD changer’s power cord to an
amplifier or other switched outlet. The CD changer loses
memorized settings when power is removed.
CONNECTING TO A CASSETTE DECK’S
SYNCHRO JACK
The Synchro-Record feature lets you easily copy CDs to
cassette tapes. If you have a cassette deck that has a
CD•DECK SYNCHRO jack, the CD changer can
automatically start and stop with the cassette deck. Connect
the CD•deck synchro-cord, supplied with the cassette deck,
to the CD changer’s and cassette deck’s CD•DECK SYNCHRO
jacks.
For details on connection and operation refer to the cassette
deck’s owner’s manual.
5
INSTALLING THE REMOTE CONTROL’S
BATTERIES
USING A RECEIVER’S REMOTE CONTROL
WITH THE CD CHANGER
Your CD changer’s remote control requires two AA
batteries (not supplied) for power. We recommend
alkaline batteries, available from your local RadioShack
store.
l. Press in the battery compartment cover’s latch and lift
off the cover.
2. Put two fresh AA batteries into the compartment as
indicated by the polarity symbols (+ and –) marked
inside.
3. Replace the cover.
If your receiver/amplifier has an OSR mark, the receiver/
amplifier’s remote can control some of the CD changer’s
functions.
Plug one end of the supplied control cable into the CD
changer’s CONTROL IN jack. Plug the other end of the cable
into the receiver/amplifier’s CONTROL OUT jack.
Cautions:
• Use only fresh batteries of the required size and
recommended type.
• Do not mix old and new batteries, different types of
batteries (standard, alkaline, or rechargeable) or
rechargeable batteries of different capacities.
• Always remove old or weak batteries. Batteries can
leak chemicals that can damage electronic circuits.
• If you do not plan to use the remote control for a
month or more, remove and store the batteries.
Note: If the remote’s range is reduced, replace the batteries
immediately.
6
Notes:
• This connection disables the CD changer’s infrared
sensor. Aim the remote control at the receiver/amplifier’s
infrared sensor.
• When you connect the CD changer to your receiver by
digital output only, the receiver’s remote control does
not operate your CD changer.
For details on connection and operation, refer to the
receiver/amplifier’s owner’s manual.
BASIC OPERATING INSTRUCTIONS
Warning: To protect your hearing, set the volume on your
receiver or amplifier to its lowest level before you load and
play a CD.
Caution: Do not set the volume on your receiver or
amplifier too high while playing soft or quiet portions of a
music program. Due to the CD changer’s wide dynamic
range, the speakers might be damaged if the music program
includes a sudden loud passage.
USING THE REMOTE CONTROL
Many of the CD changer’s buttons also have a
corresponding button on the remote control, and you can
use either the CD changer or the remote control to control
the function.
To use the remote control, point it at the infrared sensor
on the front panel and press the control button.
When the remote control’s operating distance reduces or if
the remote control stops working, replace the batteries.
Note: The remote operates the CD changer from up to 23
feet away and within 30º of the front of the CD changer.
The multi-disc rack holds 100 CDs. The disc slots are
numbered in clockwise order, from 1 to 100, and can hold
either 3-inch or 5-inch CDs.
Follow these steps to load up to 100 CDs in the slots.
Press POWER to turn on the CD changer. If necessary,
repeatedly press 2 DISC NUMBER 3 (or 2 DISC 3
on the remote) so the slot number you want appears
on the display.
MODE
HI-LITE
CLEAR
PROGRAM
RANDOM
BEST
PREVIOUS
DISC NUMBER
REPEAT
OPEN/
CLOSE
UNLOAD
PLAY/PAUSE
STOP
6
7
DISC
ASMS/SEARCH
41
¡¢
ASMS
RANDOM
CD • DECK SYNCHRO SYSTEM
2.
Press UNLOAD to open the rack cover.
MODE
HI-LITE
CLEAR
PROGRAM
RANDOM
BEST
3.
Hold the CD vertically and insert it into the CD slot,
label side to the left.
.
4.
To load more CDs, repeatedly press2 DISC NUMBER
3 (or 2 DISC 3 on the remote) so the desired rack
number appears on the display. Then repeat Step 3.
5.
When you finish loading the desired CDs, press OPEN/
CLOSE to close the rack cover.
To remove a CD, select the slot number of the disc you want
to remove, then press UNLOAD. The rack rotates the
selected disc slot to the front. When the rack cover opens,
remove the selected CD. Press OPEN/CLOSE to close the rack
cover.
Cautions:
• Do not try to manually open the rack cover; only use
LOADING CDS IN THE RACK
1.
Note: Always handle CDs by their edges. Fingerprints and
scratches on a CD’s surface can prevent the laser beam from
correctly reading the digital information. For more
information, see “CD Care Tips” on Page 15.
PREVIOUS
OPEN/CLOSE.
•
•
•
Do not load anything other than 5-inch or 3-inch CDs
into the slots. This could damage the CD changer.
Do not use an adapter for 3-inch CDs. Also, avoid
placing 3-inch CDs between 5-inch CDs as this makes
it hard to remove the 3-inch CDs.
The CD changer does not play with the rack cover open.
Notes:
• You can use OPEN/CLOSE to open the rack cover and
remove the disc if the disc to remove is already at the
front of the rack. The display shows HOLD while the
rack cover is open.
• You can open the rack cover even while a disc is
playing. Hold down OPEN/CLOSE until the display
shows OPEN. The rack cover opens and the display
shows HOLD. In this case, the rack does not rotate
and you cannot use UNLOAD, SINGLE PLAY/ACCESS,
or 2 DISC NUMBER 3.
DISC NUMBER
REPEAT
OPEN/
CLOSE
UNLOAD
PLAY/PAUSE
STOP
6
7
ASMS/SEARCH
41
¡¢
CD•D DECK SYNCHRO SYSTEM
7
LOADING A CD IN THE SINGLE PLAY SLOT
USING THE DEMO
The single play slot lets you easily load a single CD. To
load a CD in the single play slot, press SINGLE PLAY/
ACCESS. The CD changer turns on if it was turned off,
and rotates the rack so the single play slot comes to the
loading position. Insert the CD with its label to the left.
Then press SINGLE PLAY/PLAY to start playing.
The demo showcases the features of your CD-9400 and
its display. To turn on the demo, press 4 1 within 1
second of turning on the CD changer. To turn off the
demo, press any button.
To remove a CD from the single play slot, press SINGLE
PLAY/ACCESS. The rack rotates the single play slot to the
front. When the rack cover opens, remove the CD.
The single play slot is numbered as “0” and is located
between discs 100 and 1. You can access this slot by
pressing DISC NUMBER 3 when the display shows 100,
or DISC NUMBER 2 when the display shows 1. You can
also reach to the single play slot by pressing 0 on the
remote control. The display shows the disc number as P0.
8
PLAYING CDS
To select a CD, enter its number on the remote control, then
press DISC SET within 5 seconds. You can also use 2 DISC
NUMBER 3 (or 2 DISC 3 on the remote) to step through
the disc numbers until you reach the desired CD. (Hold
down either button for a rapid search.)
If the position you select does not have a CD, the CD changer
displays no disc and plays the next CD.
To select a disc in the single play slot, repeatedly press 2
DISC NUMBER 3 until the changer displays P0.
Follow these steps to play CDs.
Note: Be sure the CD changer’s rack cover is closed:
playback does not begin if the rack cover is open.
1.
Turn on your receiver/amplifier and select the audio
input (CD, AUX, or TAPE) to which you connected
your CD changer.
2.
Press POWER to turn on the CD changer. The CD
changer returns to the first track of the last CD you
played.
3.
While the CD changer is stopped, repeatedly press
MODE until the play mode you want appears on the
display.
ALL - Plays all the loaded CDs.
SINGLE - Plays only the selected CD.
CUSTOM I, II, or III - Plays only the CDs that
belong to the custom CD group (see “Assigning CDs to
a Custom CD Group” on Page 11).
5.
To temporarily stop play, press 6 (8 on the remote
control). The display shows 6 . Press 6 again ( 3
or 8 on the remote control) to resume play.
6.
The CD changer automatically stops play at the end of
the last track on the highest numbered CD. To stop
play sooner, press 7. The CD changer returns to the
first track on the CD last played.
Note: A sudden shock or jolt while a CD is playing
might suddenly change the CD’s rotation speed or make
the CD changer skip the current track. This might
momentarily mute or distort the sound. This is not a
malfunction.
Notes: With a custom CD group selected:
• When you press 2 DISC NUMBER 3 during play, the
changer scans only through the CD slots within the
custom CD group.
• If you select a slot that is not in the custom CD group
using the remote control’s number buttons, no disc
appears for about 3 seconds. (See “Assigning CDs to a
Custom CD Group” on Page 11.)
• If a CD in the custom CD group is not loaded, no disc
appears on the display for about 3 seconds, the disc
number is erased from memory, and play continues
from the next CD.
You can switch between ALL and SINGLE during
play, but you can select custom play only when the CD
changer is stopped.
Note: You can also select and play a CD in the single
play slot by pressing 0 then DISC SET on the remote
control.
4.
Press 6 ( 3 on the remote control) to begin play
from Track 1 on Disc 1 (or the last CD you played)
and have all tracks and CDs play in order. The CD
changer stops after it plays the highest numbered CD
you loaded.
The changer displays the disc, track number, and the
currently playing track’s elapsed play time.
If a slot does not contain a CD, the CD changer
displays no disc next to the disc number as it skips
to the next slot.
The CD changer memorizes which slots contain CDs,
then it skips empty slots on subsequent play passes.
Opening the rack cover (to load/unload CDs, for
example) resets this memory.
9
CHECKING THE TIME REMAINING AND
ELAPSED ON A CD
The display normally shows the current CD and track
numbers, and the current track’s elapsed play time.
Press DISPLAY on the remote control once during play to
display the current track’s remaining time. Press DISPLAY
again to display the current CD’s remaining time. Press
DISPLAY again to display the current CD’s total elapsed time.
During programmed play, pressing DISPLAY twice displays
the total programmed time and the number of the programmed track playing (see “Programming a Sequence” on
Page 13). During best selection play, pressing DISPLAY twice
displays the number of tracks stored in the best selection
memory (see “Storing Your Best Tracks” on Page 12).
Notes:
• The CD changer does not display the current CD’s
total remaining time during programmed, random, or
best selection play.
• The CD changer might not display the remaining time
for tracks numbered greater than 24 on a CD.
10
SPECIAL FEATURES
QUICKLY SELECTING TRACKS
ASSIGNING CDS TO A CUSTOM CD GROUP
When the CD changer is stopped or paused, press 4
1 or ¡ ¢ (or 4 or ¢ on the remote control)
until the CD changer displays the desired track’s number.
Or, enter the track number using the remote control’s
number buttons, then press TRACK SET within 5 seconds.
You can assign any loaded CD into a custom CD group.
This lets you group your favorite CDs together for more
convenient playback.
Follow these steps to assign CDs to a group.
If you use this feature while a CD plays, the CD changer
stops playing the current track and skips to the next or
previous track.
1.
While the CD changer is stopped, repeatedly press
MODE until CUSTOM and the number of the desired
group light. (If any discs have been assigned to the
group, the lowest disc number appears on the display.
Press CLEAR to clear the group.)
2.
Select a CD for storing into the group.
• If you use 2 DISC NUMBER 3, simply wait until
the display blinks. The disc number is
automatically stored in memory.
• If you use the remote control’s number buttons,
press DISC SET to store the disc number in
memory.
3.
Repeat Step 2 to store all the CDs you want.
SEARCHING FOR A SECTION OF A TRACK
To rapidly search forward or backward for a track section
while a CD plays, hold down ¡ ¢ or 4 1 on
the front panel (¡ or 1 on the remote control). The
display shows the elapsed time to help you locate the
desired section, and the CD plays at a lower volume and
higher speed than normal. Release the button to resume
normal play.
You can also search a track when a CD is paused. The
searching speed is faster, the display shows only the
minutes, and you do not hear the CD play.
Notes:
• The custom group memory is kept even after you turn
off the CD changer.
• The changer keeps the CDs stored in custom group
memory for a few minutes in the event of a power loss.
Note: You cannot search past the end (End appears on
the display) or the beginning of a CD.
Checking the Custom Group Contents
With the CD changer stopped, repeatedly press MODE so
CUSTOM and the number of the desired group light. Then
repeatedly press DISPLAY so C and the custom group
number appear on the display. Then repeatedly press DISC
NUMBER 3. The programmed disc numbers appear in
order as you press DISC NUMBER 3.
Notes:
To change the CDs assigned to a custom CD group, you
must clear all the entries and enter the desired CDs again.
Erasing All the CDs from a Custom Group
With the CD changer stopped, repeatedly press MODE so
CUSTOM and the number of the desired group light Then
press CLEAR. (You cannot partially erase a custom group
memory.)
11
STORING YOUR BEST TRACKS
USING HI-LITE SCAN
You can save up to 20 tracks in a special best memory, and
then replay them at any time. To save a track in best
memory, just press BEST while that track is playing. BEST
flashes three times. To play the tracks you have saved in
best memory, press BEST while the changer is stopped.
The CD changer plays in the reverse order; the last track
you saved plays first.
To listen to 10 seconds from each CD, press Hl-LITE
while the changer is stopped or during normal play. DISC
SCAN flashes and the changer plays 10 seconds from each
CD, starting at 1 minute into the first track.
To listen to 10 seconds from every track on all CDs,
press HI-LITE twice while the changer is stopped or during
normal, programmed, or favorite track play. SCAN flashes
and the changer plays 10 seconds from each track, starting
at 1 minute into each track.
To stop scanning, either press 6 to start play at the
current track or press 7 to stop play.
Notes:
• If the track is less than 1 minute long, hi-lite scan starts
at the beginning of the track.
• You can use ¡ ¢ and 4 1 to skip forward
and backward.
• You can use repeat during hi-lite scan (see “Repeating
Tracks, CDs, and Sequences”).
Notes:
• The changer only remembers the last 20 tracks you
stored in best memory.
• You cannot store the same track twice in succession.
• You cannot save a track from a CD that is in the single
play slot into best memory.
• To clear a track from best memory, press CLEAR while
that track is playing.
• The best memory is kept even after you turn off the CD
changer.
• The changer keeps the tracks in best memory for a few
minutes in the event of a power loss.
SCANNING PREVIOUS CDS
The CD changer remembers the 20 most recently played
CDs and lets you review and replay them in reverse order.
To review the CDs, press PREVIOUS. PREVIOUS SCAN
flashes and the changer plays 10 seconds of the first track
of each of the last 20 CDs you played, starting at l minute
into the first track on each CD. To listen to an entire CD
and cancel the previous scan function, press 6.
To stop the previous scan function, press 7.
Notes:
• If a track is less than 1 minute long, previous scan starts
at the beginning of the track.
• A CD in the single play slot is not included in the
previous scan memory. Neither are any CDs played
using random play, hi-lite scan, programmed play, and
best selection.
• The previous scan memory remains stored even after
you turn off the CD changer.
• The changer keeps the CDs stored in previous scan
memory for a few minutes in the event of a power loss.
12
REPEATING TRACKS, CDS, AND SEQUENCES
Your CD changer can repeat a single track, a single CD, all
loaded CDs, a custom CD group, or a programmed
sequence.
To repeat a single track, before or during play of a track
you want to repeat, press REPEAT on the remote control.
REPEAT 3 1 appears on the display. If the CD changer is
stopped, press 6. At the end of the track, the CD
changer replays the track.
To repeat a single CD, before or during play, repeatedly
press MODE until SINGLE appears on the display, then
press REPEAT twice. REPEAT appears on the display. If
the CD changer is stopped, press 6. When the CD
changer reaches the end of the CD, it replays the CD.
To repeat all CDs, before or during play, repeatedly
press MODE until ALL appears on the display, then press
REPEAT twice. REPEAT appears on the display. If the CD
changer is stopped, press 6. When the CD changer
reaches the end of the last CD, it replays all loaded CDs in
order.
To repeat CDs in a custom group, before play,
repeatedly press MODE until CUSTOM and the number of
the desired group appear on the display, then press
REPEAT twice. REPEAT appears on the display. If the CD
changer is stopped, press 6. When the CD changer
reaches the end of the last CD, it replays all CDs in the
group in order.
To cancel repeat play, press REPEAT until neither
REPEAT 1 nor REPEAT appears on the display, or
press 7.
PLAYING TRACKS IN RANDOM ORDER
PROGRAMMING A SEQUENCE
With play stopped, press RANDOM. RANDOM appears on
the display, and random play starts in the selected play
mode.
You can program up to 36 selections from all loaded CDs
to play in any order you choose. A selection can be a
single track or an entire CD.
SINGLE - randomly plays all of the current CD’s tracks.
Once all the CD’s tracks have played, the CD changer stops.
Follow these steps to program a sequence.
ALL - selects a track from a CD and plays the track, then
repeatedly selects another CD and plays another track. When
the CD changer finishes playing 100 selections (or as many
as possible from the CDs that are loaded), it stops.
1.
Press 7 to cancel the current function.
2.
Press PGM on the remote control (or PROGRAM on
the front panel). PGM appears on the display.
3.
Select the CD that contains the first track you want to
program using the remote control’s number buttons and
DISC SET. The selected CD’s number and AL appear.
CUSTOM - selects a track from a CD in a custom CD group
and plays the track, then repeatedly selects another CD in
the same group and plays another track. When the CD
changer finishes playing 100 selections (or as many as
possible from the CDs that are loaded), it stops.
To cancel random play and continue normal play, select a
disc other than the one currently playing, either by
pressing 2 DISC NUMBER 3 or by using the remote
control’s number buttons, then pressing DISC SET. To stop
random play, press 7.
Notes:
• During play, press RANDOM to skip the track currently
playing and advance to the next random selection.
• You can switch between the ALL or SINGLE modes
during random play.
• If the CD changer does not have 100 CDs loaded, the
CD changer might select the same track or CD more
than once.
• You can use repeat during random play.
• If you start random play during programmed play, the
program’s contents are erased and the CD changer starts
ALL random play.
You can also use 2 DISC NUMBER 3 (or 2 DISC 3 on
the remote) and press PGM to select a CD. The disc
number and AL appear. If you do not select a track
within about 2 seconds, the entire CD is automatically
stored.
If you program an entire CD, skip to Step 5.
4.
Select the track you want to program using the remote
control’s number buttons and TRACK SET.
The displayed track and disc numbers are stored in the
first memory position.
You can also use ¢ or 4 then press PGM (or
PROGRAM) to select a track.
5.
Repeat Steps 3 and 4 for each track or CD you want to
program, up to 36 selections.
6.
Press 6. The CD changer plays the sequence.
Notes:
• If you try to program a nonexistent CD or track
(for example track 10 when a CD has only nine
tracks), the CD changer ignores the entry.
• Press ¡ ¢ or 4 1 to move forward or
backward through the programmed sequence while
the sequence plays.
After the CD changer plays the last track in the
programmed sequence, it stops, but the programmed
sequence is still in memory. Press PGM then 3 to restart
programmed play.
To clear the sequence, see “Clearing a Programmed
Sequence” on Page 14.
13
Programming a Sequence while a CD is
Playing
Storing a Pause within a Programmed
Sequence for Recording to Cassette
While the CD changer is playing, you can program a
sequence of tracks, but not an entire CD. Press PGM
during play, then select the CD and track using the remote
control’s number buttons and DISC SET/TRACK SET, and
press PGM. When the current track finishes playing or you
press 3, programmed play starts.
Or, you can store the track currently being played directly
into memory. While the track is playing, press PGM once
to enter the program mode, then press PGM again to store
the current track. You might find this feature convenient
to use along with hi-lite scan.
When you record a programmed sequence onto a cassette
tape, you can program a pause to occur after the last
selection you plan to record on the first side of the tape
(so you can turn the tape over).
Erasing a Programmed Selection
Notes:
• You cannot program a pause as the first or last selection.
• You cannot program two pauses in a row.
In the program mode (when PGM appears on the display),
press CLEAR to erase the last-stored selection (track or
CD). The new last-stored selection appears on the display
until you press 6 (or 3 on the remote control).
Note: You cannot erase a selection that is currently
playing or that has already played.
Clearing a Programmed Sequence
Turning off the CD changer does not clear the
programmed sequence. To clear the sequence, do any of
the following:
•
•
•
•
14
Press 7 when the CD is stopped.
Start best selection play.
Select ALL, SINGLE, CUSTOM, previous scan,
or play the CD in the single play slot while
programming a sequence.
Press RANDOM while programming a sequence.
To store a pause, press 8 on the remote in Step 3 of
“Programming a Sequence” on Page 13. PA appears on the
display.
During play, when the CD changer pauses and displays
6, turn over the tape and press 8 to resume recording.
CARE AND MAINTENANCE
CARING FOR CDS
Precautions for Use
Treat the CD surface with care. Although a CD lasts
indefinitely with normal use, we recommend the
following precautions:
• Handle a CD by its edge to avoid fingerprints, which
can prevent the CD changer’s laser beam from reading
the CD. CD cleaner kits are available at your local
RadioShack store.
• Keep the CD dry. A water drop can act as a lens and
affect the laser beam’s focus.
• CDs that this changer can play have this mark on
them:
CARING FOR THE CD-9400
Your RCA CD-9400 Compact Disc Changer is an example
of superior design and craftsmanship. The following
suggestions will help you care for the CD changer so you
can enjoy it for years.
Keep the CD changer dry. If it gets wet, wipe it
dry immediately. Liquids can contain minerals
that can corrode the electronic circuits.
Handle the CD changer gently and carefully.
Dropping it can damage its circuit boards and
cases and can cause the changer to work
improperly.
Use and store the CD changer only in normal
temperature environments. Temperature
extremes can shorten the life of electronic
devices, damage batteries, and distort or melt
plastic parts.
Keep the CD changer away from dust and dirt,
which can cause premature wear of parts.
Wipe the CD changer with a damp cloth
occasionally to keep it looking new. Do not use
harsh chemicals, cleaning solvents, or strong
detergents to clean the CD changer.
Use only fresh batteries of the recommended
size and type in the remote control. Always
remove old or weak batteries. They can leak
chemicals that destroy electronic circuits.
Modifying or tampering with your CD changer’s internal
components can cause a malfunction and might invalidate
the CD changer’s warranty and void your FCC
authorization to operate it.
• The CD-9400 has a wide dynamic range. As a result, if
you turn your amplifier’s volume up too high during
low-volume sections of a program, you might damage
your speakers when a sudden loud passage is
produced.
• During play, if the changer is subjected to a sudden
shock or jolt, the CD’s rotation speed might suddenly
change, causing the changer to momentarily become
silent. This is not a malfunction.
• If you move the changer, be sure the CDs has been
removed. This prevents possible damage to the CDs.
• Do not move the changer suddenly from a very cold
room into a warm room. This can cause moisture to
condense on the pickup lens, preventing proper CD
play. If this happens, wait at least 30 minutes before
resuming play.
• Do not place foreign objects in the CD slot. Doing so
can damage the CD changer.
CD Care Tips
Even though a CD is very durable, you should handle it
with care.
• Keep the CD inside the CD changer or in its protective
case or sleeve when you are not playing it.
• Handle a CD by its edges to avoid fingerprints which
can prevent the CD changer’s laser beam from
accurately reading the CD. Your local RadioShack store
sells a suitable CD cleaner kit.
• Do not write on either side of the CD, particularly the
non-label side. (Signals are read from the non-label
side.)
• Keep the CD dry. A water drop can act as a lens and
affect the laser beam’s focus.
If a CD skips or the CD changer displays U1 when you try
to play it, it might be scratched. Your local RadioShack
store sells a Scratch ‘n Fix kit that might help remove the
scratch and stop the skip. See also “Troubleshooting” on
Page 16.
15
FCC INFORMATION
This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These limits
provide reasonable protection against radio and TV interference in a residential area. However, your CD changer might
cause TV or radio interference even when it is operating properly. To eliminate the interference, try one or more of the
following corrective measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the CD changer and the radio or TV.
• Use outlets on different electrical circuits for the CD changer and the radio or TV.
Consult your local RadioShack store or an experienced radio/TV technician if the problem still exists.
TROUBLESHOOTING
This CD changer has been manufactured to the specifications of RadioShack and is covered by a limited warranty from
RadioShack. If your CD changer is not operating as it should, take it to your local RadioShack store or call 1-800-THESHACK for assistance.
Your CD changer should give you years of trouble-free service. However, if you do have problems, these suggestions might
help.
Symptom
Suggestion
Playback stops abruptly, or the
CD changer pauses or stops
during playback.
A CD is loaded backwards.
CD is dirty or scratched.
Load the CD with the label side to the left.
Clean the CD (see “CD Care Tips” on Page
15).
No sound.
The CD changer is not correctly
connected.
The receiver/amplifier is not set to the
correct input.
The receiver/amplifier’s volume is set
too low.
A CD is loaded backwards.
Recheck all connections.
The CD changer is not correctly
connected.
Interference from another electronic
device.
Recheck all connections.
CD skips.
CD is dirty or damaged.
Clean or repair the CD (see “CD Care Tips”
on Page 15) or try a different CD.
Remote control does not work.
Too far from the CD changer.
Another device’s cable is plugged into
the CONTROL IN jack.
Weak batteries.
Move closer to the CD changer.
Use the other device’s remote control.
The control cable is not plugged in.
Audio cables are not plugged in.
Properly plug in the control cable.
Properly plug in audio cables.
Sound is noisy or distorted.
Receiver remote control does
not work.
16
Possible Cause
Check the receiver/amplifier’s input setting.
Turn up the receiver/amplifier’s volume.
Load the CD with the label side to the left.
Turn off nearby appliances, or use a
different AC outlet for the appliance.
Replace the batteries.
INDEX TO FEATURES BY CONTROL NAME
This table lists the control names found on the front of your receiver and on the remote control, along with the page
number where the control is discussed.
Control
Page Number
ASMS 4 and ¢
ASMS/SEARCH 4 1 and¡ ¢
11
11
12,14
9
12
13
9
CLEAR
DISC
HI-LITE SCAN
PROGRAM
PLAY/PAUSE 6
POWER
RAMDOM PLAY
REPEAT
SEARCH 1 and ¡
STOP 7
9
13
12
11
9
17
SELF-DIAGNOSTICS
The CD-9400 has a self-diagnostic function. When the CD changer detects an abnormal condition, it displays an error
number on the display. If this happens, try the suggestion shown. If the error number still appears, take the CD changer to
your local RadioShack store for assistance.
Control
18
Page Number
Suggestion
U1
The disc is not loaded
properly.
Load the label side to the left.
The CD might be dirty. Clean the CD.
Check to see if there is a foreign object in the slot.
U2
Mechanism operation error.
Check to see if there is a foreign object in the slot.
Unplug the power cord and plug it in again.
U3
Rack cover error.
Check to see if the rack cover is blocked by anything.
Unplug the power cord and plug it in again.
SPECIFICATIONS
Audio Frequency Response .....................................................................................................................................2-20,000 Hz
Wow and Flutter .............................................................................................. Limit of Measurement (0.001% or less, EIAJ)
Disc Diameter ................................................................................................................................................... 3- and 5-inch
Power Requirements ................................................................................................................................... 120 V AC, 60 Hz
Power Consumption .............................................................................................................................................. 12 Watts
Size (HWD) ..................................................................................................................... 7 10/16 x 16 9/l6 x 15 l3/l6 Inches
(193 x 420 x 402 mm)
Weight .................................................................................................................................................................. 14 lbs 3 oz
(6.5 kg)
Specifications are typical; individual units might vary. Specifications are subject to change and improvement without notice.
19
Limited One-Year Warranty
This product is warranted by RadioShack against manufacturing defects in material and workmanship
under normal use for one (1) year from the date of purchase from RadioShack company-owned stores
and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN, RadioShack
MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, INCLUDING THOSE OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION
TO THE DURATION OF THE WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. EXCEPT AS
PROVIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO CUSTOMER
OR ANY OTHER PERSON OR ENTITY WITH RE-SPECT TO ANY LIABILITY, LOSS OR DAMAGE
CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING
OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES
RESULTING FROM INCONVENIENCE, LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT
OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RadioShack
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow the limitations on how long an implied warranty lasts or the exclusion of
incidental or consequential damages, so the above limitations or exclusions may not apply to you. In the
event of a product defect during the warranty period, take the product and the RadioShack sales receipt
as proof of purchase date to any RadioShack store. RadioShack will, at its option, unless otherwise
provided by law: (a) correct the defect by product repair without charge for parts and labor; (b) replace
the product with one of the same or similar design; or (c) refund the purchase price. All replaced parts
and products, and products on which a refund is made, become the property of RadioShack. New or
reconditioned parts and products may be used in the performance of warranty service. Repaired or
replaced parts and products are warranted for the remainder of the original warranty period. You will be
charged for repair or replacement of the product made after the expiration of the warranty period.
This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abuse,
accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation or
maintenance, alteration, lightning or other incidence of excess voltage or current; (b) any repairs other
than those provided by a RadioShack Authorized Service Facility; (c) consumables such as fuses or
batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costs of product
removal, installation, set-up service adjustment or reinstallation.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102
We Service What We Sell
09/99
RadioShack
A Division of Tandy Corporation
Fort Worth, Texas 76102
02A00
42-7004
<PRB1298-C>
Printed in China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
