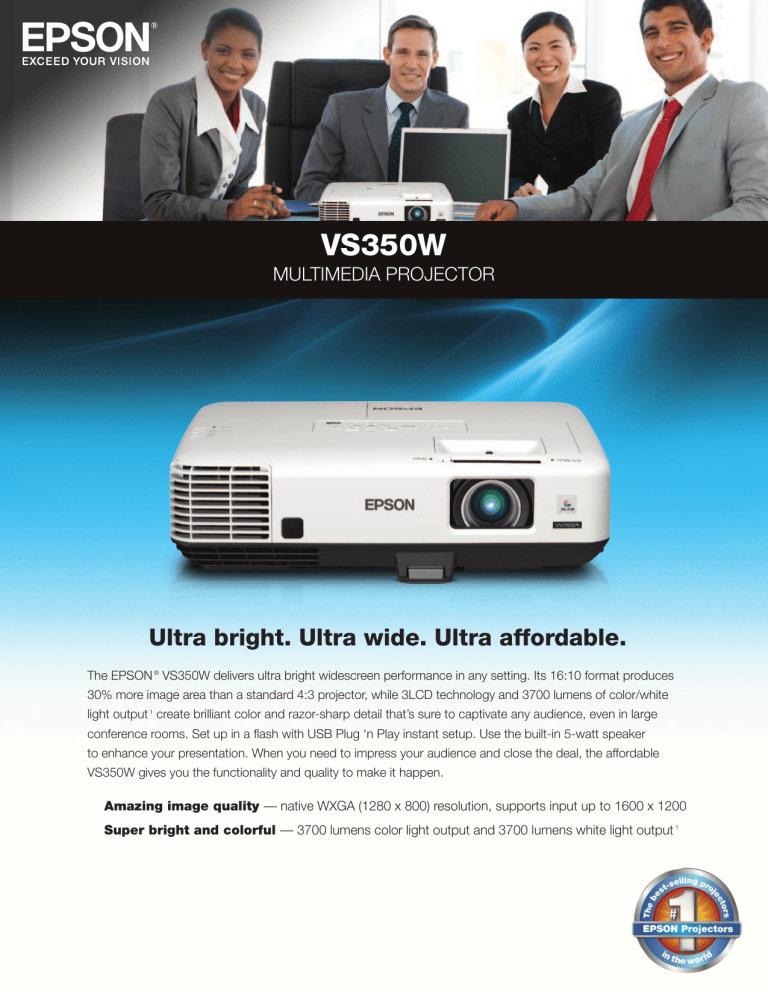

Multimedia Projector
Ultra bright. Ultra wide. Ultra affordable.
The EPSON ® VS350W delivers ultra bright widescreen performance in any setting. Its 16:10 format produces
30% more image area than a standard 4:3 projector, while 3LCD technology and 3700 lumens of color/white
light output 1 create brilliant color and razor-sharp detail that’s sure to captivate any audience, even in large
conference rooms. Set up in a flash with USB Plug ‘n Play instant setup. Use the built-in 5-watt speaker
to enhance your presentation. When you need to impress your audience and close the deal, the affordable
VS350W gives you the functionality and quality to make it happen.
Amazing image quality — native WXGA (1280 x 800) resolution, supports input up to 1600 x 1200
Super bright and colorful — 3700 lumens color light output and 3700 lumens white light output 1
The best-selling projectors in the world.
Epson offers a wide range of high-quality projectors to meet almost any need. Built with image
quality and reliability in mind, EPSON projectors enhance communication and inspire collaboration,
while offering a low total cost of ownership. From ultraportable projectors designed for educational
settings to boardroom-ready business projectors, Epson has a model that’s perfect for you.
3LCD technology — for quality and color
that’s beyond amazing
Energy-efficient E-TORL® lamp, exclusively
from Epson
Innovative technology with proven reliability
• Long lamp life lasts up to 4000 hours 3
• 3 chips for full-time, true-to-life color
• Minimizes both light diffraction and light leakage
• 25% less electricity required per lumen of brightness when
compared to 1-chip DLP projectors 2
• E-TORL lamps maximize your presentation time, while
minimizing your costs
• Over 20 years of road-tested reliability built into
every projector
E-TORL lamp
Dichroic mirror
3LCD chips
Dichroic mirror
Compact and portable design
3LCD, 3-chip technology
Eco Features
For more information on Epson’s environmental
programs, go to
Energy-efficient 3LCD light engine
Energy-efficient E-TORL lamp
Recyclable product4
RoHS compliant
Epson America, Inc. is a SmartWay SM Transport Partner 5
USB Plug ’n Play instant setup
• No more computer function keys or bulky VGA cables
• Just plug in a standard USB cable and instantly project video
and audio from your PC or Mac ®
• Instantly view your images on both the screen and your
computer; one standard USB cable does it all
• This USB connection also enables you to maintain control
over your presentation with the page up/page down function
on the remote control
• Rich, true-to-life color and reliable performance —
3LCD, 3-chip technology
• Larger-than-life widescreen images — high-definition
WXGA (1280 x 800) resolution and a 16:10 aspect ratio;
ideal for HD content
• Super bright and colorful — 3700 lumens color light
output, 3700 lumens white light output 1
• USB Plug ‘n Play instant setup — instantly projects
audio, video and mouse control from a PC or Mac via a
USB connection
• Quick, convenient control — Instant Off ®/On, Sleep Mode
(A/V Mute), Direct Power Off/On
• Added flexibility — 1.6x optical zoom
• Enhance your presentation with amazing audio — built-in
5 W speaker
• Added features, no added cost — built-in closed
captioning capabilities
Amazing light output
The Epson VS350W delivers 3700 lumens of color light
output and 3700 lumens of white light output 1 for rich, colorful
images. Whether you’re projecting images with deep, dark
colors or a white screen with minimal text or graphics, you get
consistent light output. And, with Epson, you can be confident
you’re getting what you need
because Epson measures white light
output according to the ISO 21118
standard, a more rigid standard than
the outdated ANSI lumens rating
used by competitive products.
3700 3700
• Energy-efficient E-TORL lamp — up to 4000-hour
lamp life 3
• Security in any environment — convenient metal
anchor bar
• Filters to protect your investment — with easy side
access for hassle-free maintenance
Brilliant widescreen performance
Featuring WXGA resolution, the VS350W is ideal for use
with the latest-generation widescreen computers, and for
projecting high-definition content. Its native 16:10 aspect
ratio allows you to fully utilize the capabilities of your
widescreen computer, giving you:
• 30% more image area than a 4:3 image
• 10% more image area than a 16:9 image
The VS350W still allows you to display 4:3 and 16:9 content
without losing image quality.
High color light output
Low color light output
Actual photographs of images taken from two competing projectors run in default mode. Price,
resolution and brightness (white light output) are the same for both projectors.
800 x 600
Meets basic
1024 x 768
Ensures sharper
1280 x 800
Offers the highest
quality and is ideal
for widescreen
(16:10) display
USB (Type B)
Computer 1
Rear IR Port
Epson VS350W
Multimedia Projector
Product Name VS350W Genuine EPSON Lamp Replacement Air Filter Product Code V11H406020 V13H010L64 V13H134A35 UPC
0 10343 88435 9
0 10343 88384 0
0 10343 88859 3
Audio L/R
Projection System
Epson 3LCD, 3-chip technology
Projection Method
Front/rear/ceiling mount
Driving Method
Epson Poly-silicon TFT Active Matrix
Pixel Number
1,024,000 (1280 x 800) x 3
Color Light Output1
3700 lumens
White Light Output1
3700 lumens (ISO 21118 Standard)
Aspect Ratio
Native Resolution
1280 x 800 (WXGA)
Resize Support
640 x 480 (VGA), 800 x 600 (SVGA),
1024 x 768 (XGA) ,1152 x 864 (SXGA),
1440 x 900 (WSXGA), 1400 x 1050 (SXGA+),
1600 x 1200 (UXGA)
Lamp Type
Lamp Life2
Up to 3000 hours (Normal Mode)
Up to 4000 hours (ECO Mode)
Throw Ratio Range
1.38 – 2.24
Size (projected distance)
29" – 280", (0.84 – 8.4 m)
Keystone Correction Manual
Vertical: ± 30 degrees
Horizontal ± 30 degrees
USB Plug ’n Play
PC and Mac compatible
Contrast Ratio
Up to 2500:1
Color Reproduction
16.77 million colors
Projection Lens
Manual focus
Manual (optical) zoom
1.51 – 1.99
Focal Length
18.2 mm – 29.2 mm
Zoom Ratio
Optical zoom 1.0 – 1.6
Display Performance
NTSC: 480 lines
PAL: 560 lines
(Depends on observation of the multi-burst
Input Signal
Computer/component video: D-sub 15 pin x 1
S-video: Mini DIN x 1
Composite video: RCA x 1
USB connector: Type-B x 1
Serial: RS-232c x 1
5 W (Mono)
Operating Temperature
41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
Power Supply Voltage
100 – 240 V ±10%, 50/60 Hz
Power Consumption
373 W (Normal Mode)
301 W (ECO Mode)
Fan Noise
39 dB (Normal Mode)
35 dB (ECO Mode)
Kensington®- style lock provision, security
anchor bar
Dimensions (W x D x H)
Including feet: 13.6" x 10.4" x 4.2"
Excluding feet: 13.6" x 10.4" x 3.7"
Weight: 7.25 lb
Remote Control
Search, comp, video, USB, LAN, power, aspect,
color mode, volume, e-zoom, A/V mute, freeze,
menu, page up and down, help, auto, mouse
functions, user, num, pointer, esc, enter
Operating Angle
Right/left: ± 30 degrees
Upper/lower: ± 30 degrees
Operating Distance
20' (6 m)
The Epson ConnectionSM
Pre-sales support
U.S. and Canada 800-463-7766
Internet website
Service Programs
Two-year projector limited warranty, Epson
Road Service program, PrivateLine® dedicated
toll-free support and 90-day lamp limited
What’s In The Box
VS350W projector, power cord, computer
cable (VGA), projector remote control, batteries,
soft carrying case, user manual CD, projector
software CD, Quick Setup Sheet, PrivateLine
support card, and password protection sticker
Security Lock
Accessory Part Numbers
Genuine EPSON Lamp Replacement Air Filter Universal projector ceiling mount
Advanced projector ceiling mount
High-security projector
ceiling mount
Adjustable suspended ceiling
channel kit
False ceiling plate kit Structural round ceiling plate Adjustable extension
column (pipe) 8" – 11" Component to VGA video cable
50" portable screen
Duet™ screen
ES3000 screen
ES1000 screen
Epson DC-06 document camera Kensington security lock Distribution amplifier
Packaging Specifications
Dimensions 20.6" x 15.4" x 9.1" (W x D x H)
Weight 14.8 lb
Genuine Epson Lamp
Dimensions 5.6" x 6.3" x 5.6" (W x D x H)
Weight 0.8 lb
Master Carton
Dimensions 13.1" x 28.4" x 6.8" (W x D x H)
Weight 9.6 lb
Units Per Master Carton 10
Air Filter Set
Dimensions 3.9" x 4.9" x 1.2" (W x D x H)
Weight 0.1 lb
Master Carton
Dimensions 5.1" x 12.6" x 4.3" (W x D x H)
Weight 1.4 lb
Units Per Master Carton 10
1 Color and white light output will vary depending on mode selected. White light output measured using ISO 21118 standard.
2 Data source: Jan. 2012. Average of 1122 shipping models for which the manufacturers provided lumens and total power data, all resolutions and brightness levels. Energy
efficiency was measured as wattage per lumen. It was measured for both 3LCD and 1-chip projectors in each of five brightness segments. 3LCD projectors averaged less required electricity per
lumen in each of the five segments.
3 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
4 See our website for convenient and reasonable recycling options at
5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
Epson America, Inc.
3840 Kilroy Airport Way, Long Beach, CA 90806
Epson Canada Limited
185 Renfrew Drive, Markham, Ontario L3R 6G3
Specifications and terms are subject to change without notice. Epson, E-TORL and Instant Off are registered trademarks, Epson Exceed Your Vision is a registered logomark and Better Products for a Better
Future is a trademark of Seiko Epson Corporation. PrivateLine is a registered trademark, Duet is a trademark and EPSON Connection is a service mark of Epson America, Inc. Mac is a trademark of Apple Inc.,
registered in the U.S. and other countries. SmartWay is a service mark of the U.S. Environmental Protection Agency. All other product and brand names are trademarks and/or registered trademarks of their
respective companies. Epson disclaims any and all rights in these marks. Copyright 2012 Epson America, Inc. CPD-35361R1 3/12
