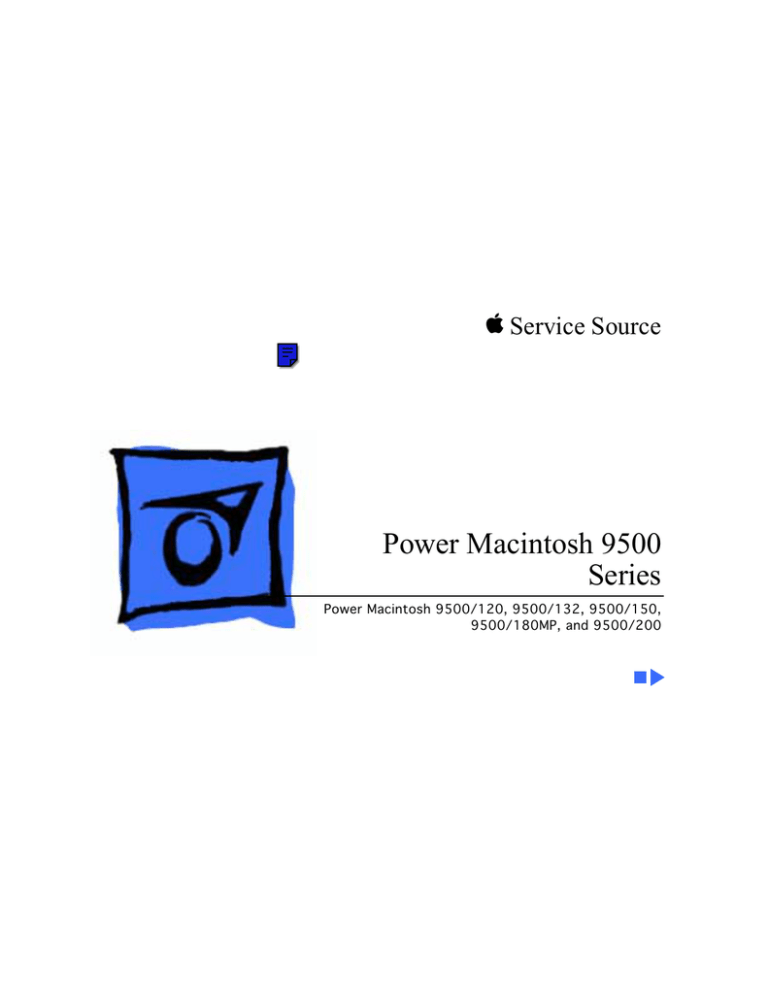

Power Macintosh 9500
Series
Power Macintosh 9500/120, 9500/132, 9500/150,
9500/180MP, and 9500/200
K Service Source
Basics
Power Macintosh 9500 Series
Basics
Overview - 1
Overview
The Power Macintosh 9500 Series computers are based on
the PowerPC 604 microprocessor and support the
industry-standard PCI (Peripheral Component
Interconnect) bus specification. These computers are the
most flexible, expandable, and highest-performance
systems from Apple to date.
The microprocessor for the Power Macintosh 9500 Series
computers is on separate plug-in card, which allows for
easy upgrades. The Power Macintosh 9500 family includes
five versions: the 9500/120, the 9500/132, the
9500/150, the 9500/180MP (multi-processor), and the
9500/200.
Basics
Overview - 2
Features of the Power Macintosh 9500 Series include
• 120, 132, 150, 180 (multi-processor) or 200 MHz
PowerPC 604 microprocessor card with built-in FPU
• Six PCI expansion slots
• 10 MB per second internal SCSI channel, 5 MB per
second external SCSI channel
• 512K Level 2 cache
• DRAM expansion up to 1536 MB using 168-pin, 70 ns,
64-bit DIMMs
• A PCI Apple Accelerated Graphics card included with
some configurations (the Power Macintosh 9500 Series
does not include on-board video support)
• Built-in AAUI and 10BASE-T Ethernet
• AppleCD™ 600i 4x or1200i 8x CD-ROM drive
• CD-quality stereo sound in/out
• Mac™ OS system software 7.5.2, 7.5.3, or 7.5.3
Revision 2
Basics
Configurations - 3
Configurations
The Power Macintosh 9500/120 comes standard with
•
•
•
•
•
120 MHz PowerPC 604 processor card
16 MB DRAM minimum
1 GB hard drive
AppleCD 600i CD-ROM drive
Apple Accelerated Graphics card with 2 MB of VRAM
The Power Macintosh 9500/132 comes standard with
•
•
•
•
132 MHz PowerPC 604 processor card
16 MB DRAM minimum
2 GB hard drive
AppleCD 600i CD-ROM drive
Basics
Configurations - 4
The Power Macintosh 9500/150 comes standard with
•
•
•
•
150 MHz PowerPC 604 processor card
16 or 32 MB DRAM minimum
2 GB hard drive
AppleCD 600i CD-ROM drive
The Power Macintosh 9500/180MP comes standard with
•
•
•
•
180 MHz PowerPC 604e multi-processor card
16 or 32 MB DRAM minimum
2 GB hard drive
AppleCD 1200i 8x-speed CD-ROM drive
The Power Macintosh 9500/200 comes standard with
•
•
•
•
200 MHz PowerPC 604e processor card
16 or 32 MB DRAM minimum
2 GB hard drive
AppleCD 1200i 8x-speed CD-ROM drive
Basics
PowerPC 604 Microprocessor - 5
PowerPC 604 Microprocessor
The Power Macintosh 9500 Series computers feature the
highest performance PowerPC processor available: the
PowerPC 604 RISC microprocessor. Designed to bring
unprecedented levels of performance to desktop computers,
the Power PC 604 processor offers up to 1.5 times the
performance of the PowerPC 601 processor at the same
clock speed. Features include
• Full RISC processing architecture
• Parallel processing units: one load-store unit, two
integer units, one complex integer unit, and one floating
point unit
• Separate built-in caches for data and instructions, 16
KB each, four-way set associative
• Advanced branching techniques for improved throughput
Basics
Multi-Processor Support - 6
The PowerPC 604 processor is installed via a processor
card that plugs into the Macintosh 9500 Series logic board,
allowing for maximum flexibility with future upgrades.
Multi-Processor Support
The Power Macintosh 9500/180MP features two 180 MHz
PowerPC 604e chips on its microprocessor card. This
computer provides extremely rapid performance for
applications that can take advantage of its coprocessing
capabilities.
Basics
Peripheral Component Interconnect (PCI) - 7
Peripheral Component Interconnect
(PCI)
The Power Macintosh 9500 Series computers offer a
Peripheral Component Interconnect (PCI) expansion bus.
Because the PCI bus is an industry standard, most existing
PCI 2.0-compliant cards (with the addition of a Mac OSspecific software driver) will work in the Power Macintosh
9500 Series computers.
PCI offers significantly higher performance than the NuBus
architecture used in previous Macintosh models. Running at
33 MHz, the PCI bus is up to three times faster than NuBus,
offering overall enhanced system performance, particularly
in the areas of video and networking.
Basics
Dual In-Line Memory Modules (DIMMs) - 8
Dual In-Line Memory Modules
(DIMMs)
The Power Macintosh 9500 Series computers use DRAM
Dual In-Line Memory Modules (DIMMs) instead of DRAM
SIMMs.
Whereas SIMMs have 72 pins, DIMMs have 168 pins. The
extra pins provide a 64-bit data path, compared to a 32-bit
data path for SIMMs. In addition, DIMMs do not have to be
installed in pairs like the SIMMs on earlier Macintosh
models. (However, to take advantage of memory
interleaving, the DIMMs should be installed in paired slots.
See "Memory Configurations" in Basics for more
information.)
Important: The Single In-Line Memory Modules (SIMMs)
used in previous Macintosh models are NOT compatible with
Basics
Dual In-Line Memory Modules (DIMMs) - 9
the Power Macintosh 9500 Series computers.
Note: There is a double click seating process for installing
DRAM DIMMs. Be sure to push the DIMMs all the way into
the DIMM slots.
Basics
Memory Configurations - 10
Memory Configurations
The Power Macintosh 9500 Series logic board has 12 DRAM
DIMM slots, each with a 64-bit data bus. You can increase
the computer’s DRAM to a total of 1536 MB using 5-volt,
64-bit-wide, 168-pin fast-paged mode, 70 ns DIMMs.
When installing DRAM DIMMs in the Power Macintosh
9500, fill slot A6 first, followed by B6, then A5, followed
by B5, and so on. DRAM DIMMs can be installed individually;
however, to take advantage of memory interleaving, which
provides maximum performance, you must install the
DIMMs in matching pairs and in paired slots (A6 and B6
first, then A5 and B5, and so on). DIMMs purchased from
different manufacturers can be paired as long as they are the
same size and speed.
Note: Memory interleaving allows the computer to read or
Basics
Memory Configurations - 11
write to its memory while other memory reads or writes
are occurring, thus providing for faster performance.
The graphic on the following page illustrates the memory
locations on the Power Macintosh 9500 logic board.
Basics
Memory Configurations - 12
B6 slot
B5 slot
B4 slot
B3 slot
B2 slot
B1 slot
A6 slot
A5 slot
A4 slot
A3 slot
A2 slot
A1 slot
(front of
Computer)
Figure: Power Macintosh 9500 Memory Locations
Basics
Ethernet Support - 13
Ethernet Support
There are two Ethernet ports on the Power Macintosh 9500
Series logic board: an AAUI port and a 10BASE-T port. You
can use only one Ethernet port at one time, however. If you
have cables plugged into both Ethernet ports, the computer
uses the 10BASE-T port by default.
PC Compatibility Cards
Apple computer offers two PC Compatibility Card upgrade
kits that bring full DOS functionality to the Macintosh
computer. Two versions of the PC Compatibility card are
available: a 7" card and a 12" card. The cards plug into any
available PCI slot on the logic board. Refer to the Upgrades
chapter in this manual for installation instructions.
Basics
GeoPort - 14
GeoPort
Geoport is a hardware and software communications architecture that has been optimized for computer-telephony
integration. It has three main attributes:
• It lets any computer connect to any telephone (analog or
digital, public or private) anywhere in the world.
• Once connected, it supports an arbitrary number of
independent data streams up to a total bandwidth of 2 MB/
second.
• Unlike traditional asynchronous data communications
(such as AppleTalk), GeoPort also supports isochronous
data streams (such as real-time voice and video) and
provides the real-time Application Program Interfaces
(APIs) necessary to hide the implementation details
from both the recipient and the sender.
Basics
GeoPort - 15
By attaching an Apple GeoPort Telecom Adapter to the Power
Macintosh 9500, you can enjoy all the features of a 14.4
modem, including data, fax, send and receive, and voice
capabilities. The GeoPort Telecom Adapter serves as a line
interface to standard (analog) telephone lines. The adapter is
capable of sending or receiving data at up to 14.4 kbps and
faxes at up to 9600 bps using the GeoPort Telecom Adapter
software.
Basics
The Cuda Chip - 16
The Cuda Chip
The Cuda is a microcontroller chip. Its function is to
•
•
•
•
•
Turn system power on and off
Manage system resets from various commands
Maintain parameter RAM (PRAM)
Manage the Apple Desktop Bus (ADB)
Manage the real-time clock
Many system problems can be resolved by resetting the Cuda
chip (see Symptom Charts for examples). Press the red
Cuda reset button on the logic board to reset the Cuda chip.
(See "Logic Board Diagram" later in this chapter to locate
the Cuda reset button.) If you continue to experience system
problems, refer to “Resetting the Logic Board” in this
Basics chapter.
Basics
Resetting the Logic Board - 17
Resetting the Logic Board
Resetting the logic board can resolve many system problems
(refer to "Symptom Charts" for examples). Whenever you
have a unit that fails to power up, you should follow this
procedure before replacing any modules.
1
Unplug the computer.
3
Using a small flat-blade screwdriver, pry open the latch
at the end of the battery holder and lift off the battery
holder cover.
2
4
Remove the logic board. (Refer to the Take Apart chapter
for instructions on how to remove the logic board.)
Remove the battery from its holder.
Basics
Resetting the Logic Board - 18
5
6
7
Verify the power supply cable is disconnected from the
logic board and then press the Power On button. (See
"Logic Board Diagram" later in this chapter to locate the
Power On button.)
Wait at least 10 minutes before replacing the battery.
Make sure the battery is installed in the correct +/direction.
Reassemble the computer and test the unit.
Note: This procedure resets the computer’s PRAM. Be sure
to check the computer’s time/date and other system
parameter settings afterwards.
Note: If this procedure resolves the problem, claim an
adjustment on an SRO. If not, replace the defective
component and DO NOT claim the adjustment procedure.
Basics
Fast SCSI - 19
Fast SCSI
The Power Macintosh 9500 Series computers offer Fast
SCSI support on the internal SCSI connector, which provides
for significantly enhanced data throughput. The internal
SCSI bus on these computers supports transfer rates up to
10 MB/sec.
Basics
Rear View Diagram - 20
Rear View Diagram
The Power Macintosh 9500 Series computers offer the
following external ports: SCSI, AAUI Ethernet, 10BASE-T
Ethernet, serial printer (GeoPort compatible), serial
modem (GeoPort compatible), ADB, sound input, and sound
output.
Some configurations of the Power Macintosh 9500 also
includes a DB-15 video port on the Apple Accelerated
Graphics card, which installs in one of the PCI slots on the
logic board.
The drawing on the next page illustrates the rear panel on
the Power Macintosh 9500 Series computers.
Basics
Rear View Diagram - 21
SCSI
AAUI Ethernet
10BASE-T Ethernet
Printer
Modem
ADB
Sound In
Sound Out
PCI Slots
Figure: Power Macintosh 9500 Rear Panel
Basics
Logic Board Diagram - 22
Logic Board Diagram
The graphic on the following page illustrates the connectors
on the Power Macintosh 9500 Series logic board.
Note: The board ships with 4 MB of ROM, which may either
be soldered or installed as a ROM SIMM.
Basics
Logic Board Diagram - 23
Internal SCSI
Power
Supply
Speaker
CD-ROM Floppy
Audio
Drive
Power Supply
External
SCSI
AAUI
Ethernet
10BASE-T
Ethernet
Printer/
Modem
Cuda Reset
ADB
Sound
In/Out
Battery
DRAM
DIMM
Slots
ROM
SIMM
DRAM
DIMM
Slots
ROM (4 MB)
Processor
Card Slot
PCI
Slots
Power LED
Power On/Off
Fan
Power Macintosh 9500 Logic Board
K Service Source
Specifications
Power Macintosh 9500 Series
Specifications
Processor - 1
Processor
9500/120
9500/132
9500/150
PowerPC 604 RISC microprocessor running at 120 MHz
Built-in FPU
Requires system software version 7.5.2 or later with System
Enabler version 701
PowerPC 604 RISC microprocessor running at 132 MHz
Built-in FPU
Requires system software version 7.5.2 or later with System
Enabler version 701
PowerPC 604 RISC microprocessor running at 150 MHz
Built-in FPU
Requires system software version 7.5.3 or later with appropriate
System Enabler
Specifications
9500/180MP
9500/200
Processor - 2
Two PowerPC 604e RISC microprocessors each running at
180 MHz
Built-in FPU
Requires system software 7.5.3 Revision 2 or later
PowerPC 604e RISC microprocessor running at 200 MHz
Built-in FPU
Requires system software 7.5.3 Revision 2 or later
Specifications
Memory - 3
Memory
DRAM
16 or 32 MB standard; expandable to 1536 MB
Uses 168-pin, 64-bit, 70 ns or faster DRAM DIMMs
ROM
4 MB ROM (may be installed in ROM SIMM slot, or soldered on the
logic board)
Cache
512K Level 2 cache soldered on the logic board
Clock/Calendar
CMOS custom circuitry with long-life battery
Specifications
I/O Interfaces - 4
I/O Interfaces
SCSI
Dual-channel asynchronous SCSI interface; external channel
supports up to seven SCSI devices; internal channel supports a
hard disk array
Serial
Two RS-232/RS-422 serial ports compatible with LocalTalk and
GeoPort cables; mini DIN-8 connectors
ADB
One Apple Desktop Bus port for a keyboard, mouse, etc.
Ethernet
One AAUI and one 10BASE-T Ethernet port (if cables are plugged
into both ports, system defaults to 10BASE-T)
Specifications
I/O Interfaces - 5
Expansion
Six PCI expansion slots, compatible with all PCI 2.0
specification-compliant cards (not NuBus compatible)
Sound
16-bit stereo sound input and output ports
Video
9500/120, 9500/150,
9500/180MP, and
9500/200:
9500/132:
DB-15 video port for display on Apple Accelerated Graphics card
No built-in video support; requires separate video card
Specifications
I/O Devices - 6
I/O Devices
Keyboard
Standard, extended, or adjustable keyboard; keyboard draws
25-80 mA, depending on model type
Mouse
ADB Mouse II; mouse draws up to 10 mA
Microphone
Apple PlainTalk microphone standard
Specifications
Video Support - 7
Video Support
9500/120, 9500/150,
9500/180MP, and
9500/200
9500/132
Ships with Apple Accelerated Graphics card, which includes 2 MB
of VRAM (expandable to 4 MB via third-party memory module
expansion card); supports all Apple and most third-party
displays, including monochrome, color, VGA, and SVGA;
supports up to 16.7 million colors on Apple color displays up
to 17" and with 2 MB VRAM upgrade supports 16.7 million
colors on Apple displays up to 21"
No built-in video support; requires third-party video card for
display support
Specifications
Disk Storage - 8
Disk Storage
Hard Drive
9500/120:
9500/132, 9500/150,
9500/180MP, and
9500/200:
One 1 GB internal hard drive
One 2 GB internal hard drive
Floppy Drive
One Apple SuperDrive 1.4 MB floppy drive
CD-ROM Drive
One internal AppleCD 600i 4x-speed or 1200i 8x-speed
CD-ROM drive
Specifications
Electrical - 9
Electrical
Line Voltage
100—240 VAC, RMS single phase, automatically configured
Frequency
50—60 Hz, single phase
Maximum Power
DC Power
AC Power
225 W, not including monitor
340 W maximum continuous; 520 W peak input
Specifications
Physical - 10
Physical
Dimensions
Height
Width
Depth
Weight
16.9 in. (430 mm)
7.75 in. (196 mm)
15.75 in. (400 mm)
28 lb. (12.7 kg); weight varies depending on devices installed
Specifications
Environmental - 11
Environmental
Operating
Temperature
50 to 104° F (10 to 40° C)
Storage
Temperature
—40 to 116° F (—40 to 47° C)
Relative Humidity
5% to 95% noncondensing
Maximum Altitude
10,000 ft. (3,048 m)
K Service Source
Troubleshooting
Power Macintosh 9500 Series
Troubleshooting
General - 1
General
The Symptom Charts included in this chapter will help you
diagnose specific symptoms related to your product. Because cures
are listed on the charts in the order of most likely solution, try
the first cure first. Verify whether or not the product continues to
exhibit the symptom. If the symptom persists, try the next cure.
(Note: If you have replaced a module, reinstall the original module
before you proceed to the next cure.)
If you are not sure what the problem is, or if the Symptom Charts
do not resolve the problem, refer to the Flowchart for the product
family.
For additional assistance, contact Apple Technical Support.
Troubleshooting
Cleaning Procedure for Card Connectors - 2
Cleaning Procedure for Card Connectors
It is possible for residue to build up on the gold edge connector
pins on some PCI cards, which could cause a variety of symptoms.
If you are having problems with a PCI card, inspect the connector
pins with a magnifying glass. If you find residue, use a pencil
eraser to gently clean the pins.
Troubleshooting
Symptom Charts/Power Supply - 3
Symptom Charts
Power Supply
System doesn’t power
up
1
2
3
4
5
6
Reseat processor card, video card, and ROM SIMM (if
present).
Reset Cuda chip. (Refer to The Cuda Chip in Basics for
instructions.)
Reset logic board. (Refer to Resetting the Logic Board in
Basics for instructions.)
Replace power supply.
Replace processor card.
Replace logic board. Note: When you replace the logic board,
be sure the LED cable is not interfering with the power
actuator.
Troubleshooting
Symptom Charts/Error Chords - 4
Error Chords
One-part error
chord sounds during
startup sequence
1
2
3
4
5
Disconnect SCSI data cable from hard drive and reboot
system. If startup sequence is normal, initialize hard drive
using Drive Setup and then run Drive Setup Updater utility
program. Test unit again with SCSI data cable connected. If
error chord still sounds, replace hard drive.
Disconnect floppy drive cable from floppy drive and reboot
system. If startup sequence is normal, replace floppy drive.
Reseat processor card.
Replace processor card.
Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
Troubleshooting
Eight-part error
chord (death chimes)
sounds during
startup sequence
Symptom Charts/Error Chords - 5
1
2
3
Make sure DRAM is installed first in banks A6 and B6,
followed by banks A5 and B5, etc. Do not install DRAM in
banks A1 and B1 until all other banks are full.
Replace DRAM DIMMs one at a time to test DRAM. Replace
any faulty DIMMs.
Replace logic board. Note: When you replace the logic board,
be sure the LED cable is not interfering with the power
actuator.
Troubleshooting
Symptom Charts/System - 6
System
Does not power on,
screen is black, fan is
not running and LED
is not lit
1
2
3
4
5
6
7
8
9
Check power cables.
Plug monitor directly into wall socket, and verify that
monitor has power.
Reseat ROM SIMM (if present) and processor card. The logic
board must have a processor card installed to operate.
Reset Cuda chip. (Refer to The Cuda Chip in Basics for
instructions.)
Reset logic board. (Refer to Resetting the Logic Board in
Basics for instructions.)
Replace power cord.
Replace power supply.
Replace processor card.
Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
Troubleshooting
Clicking, chirping,
or thumping
Symptom Charts/System - 7
1
2
3
4
5
6
7
Remove all PCI cards and test the unit. If problem does not
occur with cards removed, begin replacing them one at a
time to determine which card is causing the problem.
Replace problem card with known-good card.
Remove hard drive. If problem no longer occurs, replace
hard drive with a known-good drive.
Replace power supply.
Replace processor card.
Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
Replace floppy drive cable.
Replace floppy drive.
Troubleshooting
System shuts down
intermittently
Symptom Charts/System - 8
1
Make sure air vents are clear. Thermal protection
circuitry may shut down system. After 30 to 40 minutes,
system should be OK.
2 Make sure power cord is firmly plugged in.
3 Verify fan is plugged in and working. Replace if necessary.
4 Replace power cord.
5 Check battery.
6 Reset Cuda chip. (Refer to The Cuda Chip in Basics for
instructions.)
7 Reset logic board. (Refer to Resetting the Logic Board in
Basics for instructions.)
8 Replace power supply.
9 Replace processor card.
10 Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
Troubleshooting
System
intermittently
crashes or hangs
Symptom Charts/System - 9
1
2
3
4
5
6
7
8
Verify system software is version 7.5.2 or later (Power
Macintosh 9500/120 and 9500/132) or 7.5.3 or later
(Power Macintosh 9500/150).
Verify DIMMs are noncomposite.
Verify software is known-good. Do a clean install of the
system software.
Verify software is Power Macintosh 9500 compatible
(contact developer). Also, try booting with extensions off to
determine if there are system init problems.
Clear parameter RAM. Hold down <Command> <Option> <P>
<R> during startup but before "Welcome to Macintosh"
appears.
Remove all DRAM DIMMs and try replacing them one at a
time to test. Replace any bad DIMMs.
Replace processor card.
Replace logic board. Retain DIMMs. Note: When you replace
the logic board, be sure the LED cable is not interfering with
the power actuator.
Troubleshooting
During startup,
following message is
displayed, "This
startup disk will not
work on this
Macintosh model...."
Symptom Charts/System - 10
1
2
3
Verify that startup disk is good.
Verify system software is version 7.5.2 or later (Power
Macintosh 9500/120 and 9500/132) or 7.5.3 or later
(Power Macintosh 9500/150).
Do a clean install of the system software.
Troubleshooting
Symptom Charts/Video - 11
Video
Screen is black, boot
tone is present, drive
operates, fan is
running, and LED is
lit
1
2
Adjust brightness on monitor.
Clear parameter RAM. Hold down <Command> <Option> <P>
<R> during startup but before "Welcome to Macintosh".
3 Verify video card is installed and reseat card.
4 Reset Cuda chip. (Refer to The Cuda Chip in Basics.)
5 Reset logic board. (See Resetting the Logic Board in Basics.)
6 Replace video cable.
7 Remove all DRAM DIMMs and try replacing them one at a
time to test. Replace any bad DIMMs.
8 Replace video card.
9 Test with known-good monitor. Replace monitor if
necessary. Refer to appropriate monitor manual to
troubleshoot defective monitor.
10 Replace processor card.
11 Replace logic board. Retain customer's DIMMs.
Troubleshooting
Screen is black, no
boot tone and drive
does not operate, but
fan is running and
LED is lit
Symptom Charts/Video - 12
1
2
3
4
5
6
Reset Cuda chip. (Refer to The Cuda Chip in Basics for
instructions.)
Reset logic board. (Refer to Resetting the Logic Board in
Basics for instructions.)
Remove all DRAM DIMMs and try replacing them one at a
time to test. Replace any bad DIMMs.
Replace processor card.
Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
Replace power supply.
Troubleshooting
Boot tone is present
and screen lights up,
but nothing is
displayed on screen
Symptom Charts/Video - 13
1
2
3
4
5
6
7
Reset Cuda chip. (Refer to The Cuda Chip in Basics for
instructions.)
Reset logic board. (Refer to Resetting the Logic Board in
Basics for instructions.)
Replace video cable.
Replace video card.
Test with known-good monitor. Replace monitor if
necessary. Refer to appropriate monitor manual to
troubleshoot defective monitor.
Replace processor card.
Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
Troubleshooting
Symptom Charts/Floppy Drive - 14
Floppy Drive
Internal floppy drive
does not operate
1
2
3
4
5
Replace floppy disk with known-good disk.
Replace floppy drive cable.
Replace floppy drive.
Replace processor card.
Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
During system
startup, disk ejects;
display shows icon
with blinking “X”
1
2
3
4
5
Replace disk with known-good system disk.
Replace floppy drive cable.
Replace floppy drive.
Replace processor card.
Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
Troubleshooting
Does not eject disk
Symptom Charts/Floppy Drive - 15
1
2
3
4
5
Attempts to eject
disk, but doesn’t
1
2
Switch off computer. Hold mouse button down while you
switch computer on.
Replace floppy drive cable.
Replace floppy drive.
Replace processor card.
Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
Reseat floppy drive bezel and drive so bezel slot aligns
correctly with drive.
Replace floppy drive.
Troubleshooting
Symptom Charts/Floppy Drive - 16
Internal floppy drive
runs continuously
1
2
3
4
5
Replace disk with known-good floppy disk.
Replace floppy drive cable.
Replace floppy drive.
Replace processor card.
Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
MS-DOS drive does
not recognize a disk
formatted on a 1.4 MB
drive
To read and write files with either MS-DOS or 1.4 MB drive,
format all disks with MS-DOS drive first.
Troubleshooting
Symptom Charts/Hard Drive - 17
Hard Drive
Single internal hard
drive does not
operate; drive
doesn’t spin
1
2
No internal SCSI
drives operate
1
2
3
3
4
5
6
Replace hard drive power cable.
Replace hard drive. If problem resolved, reinstall SCSI
device driver and system software.
Replace power supply.
Verify there are no duplicate SCSI device addresses.
Disconnect external SCSI devices and check for proper
termination. Only last device in SCSI chain should be
terminated.
Replace SCSI data cable.
Replace power supply.
Replace processor card.
Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
Troubleshooting
Drive does not appear
on the desktop
Symptom Charts/Hard Drive - 18
1
2
3
4
5
6
Works with internal
or external SCSI
devices but not with
both
1
2
3
4
Verify there are no duplicate SCSI device addresses.
Update the SCSI device driver using Drive Setup and then run
Drive Setup Updater utility program. Run Disk First Aid to
verify the condition of the drive's directory structure.
Replace the SCSI hard drive cable.
If drive is not initialized, use Drive Setup to initialize it and
then run Drive Setup Updater utility program.
Replace with known-good hard drive.
If the hard drive still doesn't work, switch back to the
original hard drive and replace the logic board.
Verify there are no duplicate SCSI device addresses.
Replace terminator on external SCSI device.
Verify that SCSI device at end of internal SCSI data cable is
only device terminated.
Refer to appropriate manual to troubleshoot defective
external device.
Troubleshooting
Symptom Charts/Peripherals - 19
Peripherals
Cursor does not move
1
2
3
4
5
6
7
Check mouse connection.
Inspect inside of mouse for buildup of dirt or other
contaminants. Clean mouse if necessary.
If mouse was connected to keyboard, connect mouse to
computer ADB port instead. If mouse works, replace
keyboard.
Replace ADB cable.
If mouse does not work in any ADB port on computer, replace
mouse.
Replace processor card.
Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
Troubleshooting
Symptom Charts/Peripherals - 20
Cursor moves, but
clicking mouse
button has no effect
1
2
3
Boot from floppy or bootable CD.
Replace mouse.
Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
Double-click doesn’t
open application,
disk, or server
1
2
Remove duplicate system folders.
Clear parameter RAM. Hold down <Command> <Option> <P>
<R> during startup but before "Welcome to Macintosh"
appears.
If mouse was connected to keyboard, connect mouse to
computer ADB port instead. If mouse works, replace
keyboard.
If mouse does not work in any ADB port on computer, replace
mouse.
Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
3
4
5
Troubleshooting
Symptom Charts/Peripherals - 21
No response to any
key on keyboard
1
2
3
4
Check keyboard connection to ADB port.
Replace keyboard cable.
Replace keyboard.
Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
Known-good serial
printer does not work
1
2
3
4
5
6
Verify you have correct version of system software.
Verify that Chooser is set correctly.
Reinstall correct printer drivers.
Do clean install of system software.
Replace printer interface cable.
Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
Troubleshooting
Known-good network
printer does not print
Symptom Charts/Peripherals - 22
1
2
3
4
5
Check network connections.
Verify you have correct version of system software.
Verify that Chooser is set correctly.
Does printer show up in Chooser? If so, do clean install of
system software and/or network and printer software.
Replace logic board. Retain customer's DIMMs. Note: When
you replace the logic board, be sure the LED cable is not
interfering with the power actuator.
Troubleshooting
Symptom Charts/CD-ROM Drive - 23
CD-ROM Drive
CD-ROM drive does
not work
1
2
Try using known-good compact disc.
Replace CD-ROM drive mechanism.
Macintosh does not
display CD-ROM icon
once CD is inserted in
drive
1
2
3
Verify that CD-ROM software is installed.
Replace CD-ROM drive mechanism.
Replace SCSI data cable.
Computer with 600i
CD-ROM drive makes
stuttering sounds
when playing CD+ or
CD-R formatted
discs or CD-ROM disc
won’t mount
Replace CD-ROM drive.
Troubleshooting
Symptom Charts/Miscellaneous - 24
Miscellaneous
No sound from
speaker
1
2
3
4
5
Verify that volume setting in Control Panel is 1 or above.
Clear parameter RAM. Hold down <Command> <Option> <P>
<R> during startup but before "Welcome to Macintosh"
appears.
Verify speaker is plugged into logic board.
Replace speaker.
Replace logic board. Retain customer’s DIMMs.
Troubleshooting
Errors occur when
initializing or erasing
floppy disks and/or
1.4 MB disks show
only 1 MB available
after initialization
Symptom Charts/Miscellaneous - 25
This problem only occurs on systems using a 180 MHz or faster
processor card. Upgrade to system software version 7.5.4 to
resolve this problem (the Apple recommended solution) or,
alternatively, install the Power Mac Format Patch, which can be
found on the original system disks that shipped with the computer.
To install the patch:
• While holding down the Option key, drag the Power Mac
Format Patch icon onto the System Folder’s icon.
• Click OK to automatically place the patch in the Extensions
folder.
• Restart the computer by choosing Restart from the Special
menu.
K Service Source
Take Apart
Power Macintosh 9500 Series
Take Apart
Top Housing - 1
Top Housing
Top Housing
No preliminary steps are
required before you begin
this procedure.
Note: The top housing covers
the top, front, and left and
right sides of the computer.
IMPORTANT: Never operate
the computer with the top
housing removed. Failure to
comply may result in
irreparable damage to
internal components.
Take Apart
Top Housing - 2
1
1
2
3
4
5
6
Loosen the six captive
cover screws on the rear
panel and slide the top
housing forward about
1/2 an inch.
Take Apart
Top Housing - 3
2
Top Housing
Lift straight up on the
top housing to remove it
from the computer.
Take Apart
CD-ROM Drive - 4
CD-ROM Drive
CD-Rom Drive
Before you begin, remove
the top housing.
Note: The CD-ROM drive is
located in the top drive bay.
Take Apart
CD-ROM Drive - 5
1
CD-Rom Audio Cable
SCSI Data Cable
CD-Rom Drive
Power Cable
Disconnect the SCSI data
cable, audio cable, and
power cable from the
back of the CD-ROM
drive.
Take Apart
CD-ROM Drive - 6
2
Pull up on the retaining
clip at the back of the
CD-ROM drive and slide
the drive forward to
remove it from the
computer.
Note: Be sure to remove the
CD-ROM drive from its
carrier before returning the
drive to Apple.
Take Apart
Floppy Drive - 7
Floppy Drive
Floppy
Drive
Before you begin, remove
the following:
• Top Housing
• CD-ROM Drive
Note: The floppy drive is
located in the second drive
bay from the top.
Take Apart
Floppy Drive - 8
1
Plastic Guides
Floppy Drive
Floppy Drive Cable
Disconnect the floppy
drive cable from the
logic board and remove
the cable from the
plastic guides.
Take Apart
Floppy Drive - 9
2
3
Press down the retaining
clip at the back of the
floppy drive and slide
the floppy drive
forward about two
inches.
Disconnect the floppy
drive cable from the
back of the floppy drive
and remove the floppy
drive from the
computer.
Replacement Note: Be sure
to remove the floppy drive
from its carrier before
returning the drive to Apple.
Take Apart
Hard Drive - 10
Hard Drive
Before you begin, remove
the top housing.
Note: The hard drive is
located in the bottom drive
bay.
Hard
Drive
Take Apart
Hard Drive - 11
1
SCSI Data Cable
Hard Drive Power Cable
Hard Drive
Disconnect the SCSI data
cable and hard drive
power cable from the
hard drive.
Take Apart
Hard Drive - 12
2
Press down the retaining
clip at the back of the
hard drive and slide the
hard drive forward to
remove it from the computer.
Note: For information on
removing the hard drive
from its carrier and
returning drives, cables,
and carriers to Apple, refer
to Additional Procedures in
the Hard Drives manual.
Take Apart
Power Supply - 13
Power Supply
Before you begin, remove
the top housing.
Power
Supply
Note: As you face the
computer, the power supply
is located in the back of the
chassis, directly beneath the
speaker.
Take Apart
Power Supply - 14
1
Disconnect the two
cables that run from the
power supply to the logic
board.
Note: The 10-pin power
supply cable (the cable on
the left in the graphic)
supplies 3.3 V power for the
processor card. The 22-pin
cable (the cable on the right
in the graphic) supplies 5 V
and +/- 12 V power for the
logic board.
Power Supply Cable
Power Supply Cable
Take Apart
Power Supply - 15
2
Power Supply
3
Turn the computer
sideways so you are
facing the power supply.
(The power supply
should be to your left and
the drive bays to your
right.)
Locate the chassis
support brace, which is
between the power
supply and the drive
bays.
Take Apart
Power Supply - 16
4
Chassis Support Brace
Push in on the latch
located on the right side
of the chassis support
brace and pull out the
brace to remove it.
Take Apart
Power Supply - 17
5
Power Supply
Latch
Push in on the plastic
latch that secures the
power supply to the
chassis. The latch is
located to the right of the
power supply.
Take Apart
Power Supply - 18
6
7
Slide the power supply
forward and pull it out of
the computer.
Remove the 22-pin
cable from the power
supply.
Replacement Note: There
are two metal tabs on the
back of the power supply on
its bottom edge. You must
feed these tabs through two
openings in the chassis
before you slide the power
supply back into place.
Take Apart
Speaker - 19
Speaker
Speaker
Before you begin, remove
the top housing.
Note: As you face the
computer, the speaker is on
top of the chassis at the back
end of the computer.
Take Apart
Speaker - 20
1
Speaker
Speaker Cable
Disconnect the speaker
cable from the logic
board.
Take Apart
Speaker - 21
2
Speaker
Press the latch holding
the speaker housing to
the chassis and lift the
front of the speaker
housing.
Take Apart
Speaker - 22
3
Pull the speaker
housing from the clips at
the rear of the chassis.
Take Apart
Rear Panel - 23
Rear Panel
Before you begin, remove
the following:
• Top Housing
• Speaker
Rear
Panel
Note: To locate the rear
panel, turn the computer so
the back faces you. The rear
panel is the back part of the
housing.
Take Apart
Rear Panel - 24
1
Plastic Tab
Plastic Tab
Two plastic tabs at the
top of the rear panel
secure the rear panel to
the chassis. Lift the two
tabs to release them.
Take Apart
Rear Panel - 25
2
Plastic Tabs
Plastic Tabs
Pull out on the rear
panel and lift up
slightly to release the
two bottom tabs that
secure the rear panel to
the chassis.
Take Apart
Processor Card - 26
Processor Card
Before you begin, remove
the following:
• Top Housing
• Fan
Note: As you face the
computer, the processor
card is plugged into the logic
board on the left side,
directly beneath the power
supply.
Processor
Card
Note: For better access, lay
the computer on its side
with the power supply
facing up.
Take Apart
Processor Card - 27
Warning: The heat sink may
be hot to the touch.
1
Plastic Guide
Plastic Guide
Grab the corners of the
processor card (and the
top of the heat sink if it
is cool to the touch) and
pull straight up on the
card to remove it.
Replacement Note: Position
the bottom edges of the card
in the plastic guides and
press down on the card to
install it. Do not force the
card or you may damage it.
Make sure the card is seated
evenly.
Take Apart
PCI/Video Cards - 28
PCI/Video Cards
Before you begin, remove
the following:
• Top Housing
• Fan
Note: As you face the
computer, PCI cards (such
as the Apple Accelerated
Graphics card) plug into the
logic board on the left side.
Video
Card
Note: For better access, lay
the computer on its side
with the power supply
facing up.
Take Apart
PCI/Video Cards - 29
1
Plastic Latches
Video Card
Push apart the plastic
latches that secure the
PCI card to the chassis
and pull up on the card to
remove it.
Take Apart
PCI/Video Cards - 30
Important: If you are
returning an Apple
Accelerated Graphics card,
you must first remove the
third-party VRAM upgrade
card if one is installed.
2
VRAM Upgrade Card
Grab the edges of the
VRAM upgrade card and
lift straight up on the
card to remove it.
Take Apart
PCI/Video Cards - 31
VRAM Upgrade Card
Arrows
Replacement Note: To
replace the third-party
VRAM Upgrade card, line up
the arrows on the two cards,
as shown in the graphic on
the left, and gently press
down on the VRAM upgrade
card. Do NOT force the
upgrade card. If you
encounter resistance, first
make sure you have the card
lined up properly, and try
again.
Take Apart
Logic Board - 32
Logic Board
Logic
Board
Before you begin, remove
the following:
• Top Housing
• Fan
• Processor Card
• PCI/Video Cards (e.g.,
Apple Accelerated
Graphics Card)
Note: As you face the rear of
the computer, the logic
board is on the left side and
is perpendicular to the
bottom chassis.
Take Apart
Logic Board - 33
1
Power Floppy CD-Rom Speaker Power
Supply Drive
Supply
Audio
Cable
Cable Cable
Cable
Cable
SCSI
Cable
Disconnect all cables
from the top of the logic
board.
Take Apart
Logic Board - 34
2
Tab
Tab
Locate the power
actuator at the bottom of
the logic board. Press in
on the two plastic tabs to
remove the actuator
from the logic board.
Take Apart
Logic Board - 35
3
Remove the screw
securing the logic board
to the chassis.
Take Apart
Logic Board - 36
4
Slide the logic board
forward until the slot
indicated lines up with
the latch on the chassis.
Take Apart
Logic Board - 37
5
Lift the latch at the top of
the logic board and
release the logic board.
Take Apart
Logic Board - 38
6
Pivot the front of the
logic board out of the
chassis to remove the
board.
Take Apart
Logic Board - 39
7
Disconnect the LED cable
(which attaches to the
power actuator) from the
logic board.
Note: Remove the DRAM
DIMMs before returning the
board to Apple. Do NOT remove the ROM SIMM. Refer
to the Module Identification
manual to identify the ROM
SIMM and DRAM DIMMs.
LED Connector
Note: There is a double click
seating process for
installing DRAM DIMMs. Be
sure to push the DIMMs all
the way into the DIMM slots.
Take Apart
Fan - 40
Fan
Before you begin, remove
the top housing.
Note: As you face the
computer, the fan is on the
left side and attaches to the
bottom chassis.
Fan
Important: After you replace
the fan, be sure to plug it back
into the logic board.
Take Apart
Fan - 41
1
Fan Connector
Disconnect the fan cable
from the logic board.
Take Apart
Fan - 42
2
Plastic Latch
Plastic Latch
Squeeze in on the two
plastic latches at the top
of the fan bracket and
pull down on the fan.
Take Apart
Fan - 43
3
Plastic Stays Plastic Stays
Push the fan to the right
to release it from the
plastic stays and remove
the fan.
Replacement Note: Hold the
fan at a 90° angle to the
chassis (as shown). Fit the
fan’s bottom plastic pins
into the plastic stays on the
chassis and swing the fan
upright to install it.
Important: Be sure to plug
the fan back into the logic
board.
K Service Source
Upgrades
Power Macintosh 9500 Series
Upgrades
PC Compatibility Cards - 1
PC Compatibility Cards
There are three Apple PC Compatibility cards that can be
installed in the Power Macintosh 9500 Series computers:
• 7” 100 MHz PC Compatibility Card
• 12” 100 MHz PC Compatibility Card
• 12” 166 MHz-P PC Compatibility Card
For more information about these cards and installation
instructions, refer to the PC Compatibility Card manual on
this Service Source CD.
K Service Source
Exploded View
Power Macintosh 9500 Series
Exploded View
2
Top Housing
922-1529
Front Panel
922-1542
Logic Board
Guard
922-1530
Floppy Drive
Bezel
922-0523
CD-ROM Bezel
922-0811
Blank Bezel
922-0620
Thumb Slotted
Screw
922-0395
Rear Panel
922-1527
Battery
Cover
520-0344
DRAM DIMM
661-0918
661-0919
Speaker
922-0353
Processor
Card
661-1002
661-1146
661-0925
661-1280
661-1223
Video Card
661-0926
Speaker
Housing
922-0394
PCI
Cover
922-1628
Battery
922-1262
Logic Board
661-0924
661-1156
CD Audio Cable
922-0724
CD-ROM
Carrier
922-0850
CD-ROM Drive
661-0913
661-1240
Power Supply
Cable
922-0838
LED
Cable
922-0841
Chassis
Support
922-0396
Hard Drive
661-0180
661-0228
661-1076
Fan
922-1525
Floppy Drive Cable
922-0872
Floppy Drive
661-0121
Chassis
922-1528
Power
Supply
661-0923
CD-ROM
Shield
922-0812
SCSI Cable
922-1524
Power
Actuator
922-1543
Floppy Drive
Carrier
922-0445
Hard Drive
Carrier
922-0621
Floppy
Drive
Shield
922-0813
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
