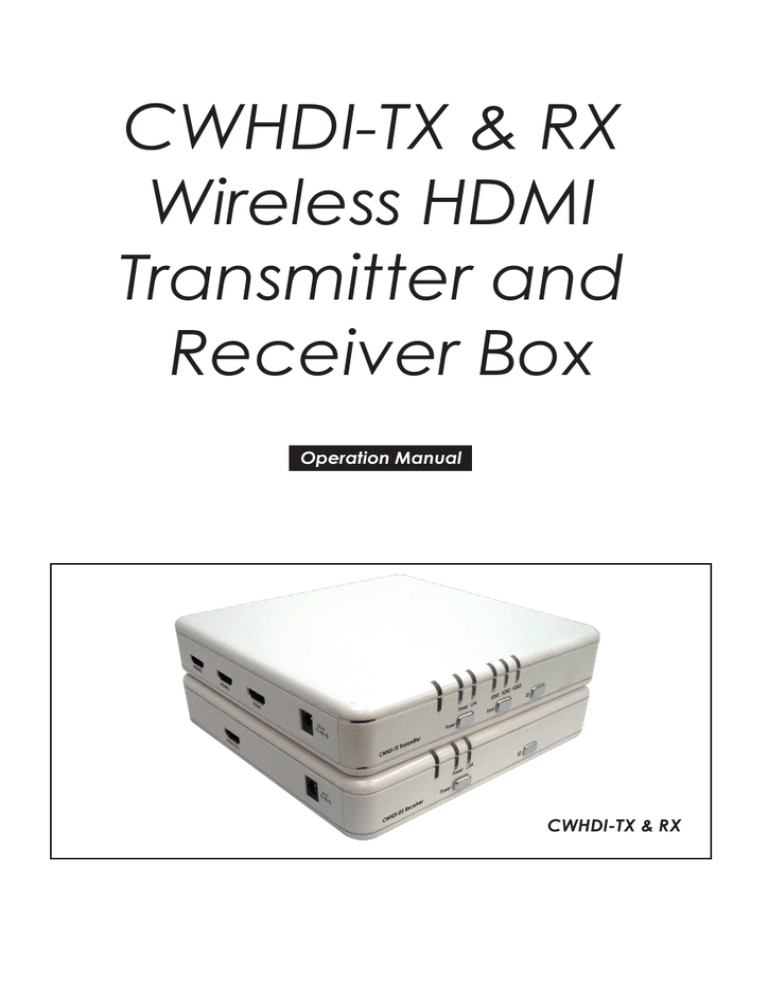

CWHDI-TX & RX
Wireless HDMI
Transmitter and
Receiver Box
Operation Manual
CWHDI-TX & RX
TABLE OF CONTENTS
1. Introduction................................................................................ 1
2. Features...................................................................................... 1
3. Package Contents................................................................... 1
4. Operation Controls and Functions.......................................... 2
4.1
Transmitter side................................................................. 2
4.1.1 Front Panel........................................................................ 2
4.1.2 Rear Panel......................................................................... 3
4.2
Receiver side..................................................................... 3
4.2.1 Front Panel......................................................................... 3
4.2.2 Rear Panel.......................................................................... 4
5. Remote Control.......................................................................... 4
6. Connection and Installation..................................................... 5
7. Specifications............................................................................ 6
8. Troubleshooting......................................................................... 7
1. Introduction
The wireless HDMI transmitter and receiver box are using baseband technology
with Wireless High Definition Interface (WHDI) to deliver uncompressed HD video
and audio up to 15~30 meters open field, while maintaining superb,
wire-equivalent quality and robustness with no latency. The transmitter and
receiver side are available with embedded antennas.
2. Features
●
●
●
●
●
●
●
●
●
●
●
●
●
Uncompressed HD audio/video wireless transmission at wire-equivalent
quality.
Supports most video resolutions including 480i/p, 576i/p, 720p, 1080i
VGA@60/72, SVGA@60/72, XGA@60/70 and 1080p(24fps/30fps).
15~30 meters open field depending on environment, no line of sight required.
Real time link, less than 1 millisecond latency
Strong 256-bit AEC based encryption for security.
Video Data Rates 1.5Gbps.
5GHz licensed band, MIMO RF.
Supports CEC functionality.
Full HDCP Compliant.
Unicast and Multicast change.
Auto shut down when one of the device is turn off.
Instant signal transition and timing change less than 10 second.
Control Channel allows two-way communications of 10Kbps.
3. Package Contents
●
●
●
●
●
●
●
Wireless HDMI Transmitter box.
Wireless HDMI Receiver box.
2 x 5V/2.6A DC power supply adaptor.
Operation Manual.
CR-67 Transmitter Remote
CR-68 Receiver Remote
Holder x 2
1
4. Operation Controls and Functions
4.1 Transmitter side
4.1.1 Front Panel 4
5
6
Power Link
CWHDI-TX Transmitter
Power
7
HDMI1 HDMI2 HDMI3
Input
1
ID
2
3
① Power: Press to turn ON/OFF the system.
② Input: Press to select input source (1/2/3).
③ ID: Press transmitter “ID” button and receiver “ID” button for 2 second to
pair the system. These systems already paired before exit factory
hence, user don't need to reset it again unless the system can’t up link
probability. Press the ID button for more than 10 sec. to switch to
different mode (Broadcast/Unicast). Green power LED means switch
to Unicast mode and Red power LED means switch to Broadcast
Mode. The factory default is on Unicast mode and it is suggested to
use this mode for household using. It is not necessary to press both
transmitter and receiver's ID button in the same time.
Note: Due to the nature of the transmission, the Broadcast mode has no
uplink and therefore no bi-directional communication between
Transmitter and Receiver. This results in the following limitations:
• HDCP protected content should not be transmitted.
• CEC and EDID repeater functionalities cannot be supported.
• Broadcast mode is not HDCP compliant.
④ IR sensor.
⑤ Power: The LED will illuminate when power ON.
⑥ Link: For pairing and learning the LED will flashing speedily, during the
signal link stage the LED will flashing slowly. When LED illuminate
without flashing it means the signal link probability.
⑦ Input indicator: The LED will illuminate to indicate which input source is
being selected and routed to the HDMI display.
2
4.1.2 Rear Panel
DC 5V
HDMI3
HDMI1
HDMI2
1
2
① HDMI 1/2/3 Inputs: Connect each of the input ports to the HDMI output
of your source equipment such as DVD player or set-top-box.
② Power: Plug the 5V DC power supply into this unit and connect the
adaptor to AC wall outlet.
4.2 Receiver side
4.2.1 Front Panel
3
IR
CWHDI-RX Receiver
4
5
Power Link
Power
ID
1
2
① Power: Press to turn ON/OFF the system.
② ID: Press transmitter “ID” button and receiver “ID” button for 2 second to pair
the system. These systems already paired before exit factory hence, user
don't need to reset it again unless the system can’t up link probability. Press
the ID button for more than 10 second to switch to different mode
(Broadcast/Unicast). Green power LED means switch to Unicast mode and
Red power LED means switch to Broadcast Mode. The factory default is on
Unicast mode and it is suggested to use this modefor household using. It is
not necessary to press both transmitter and receiver's ID button in the same
time.
③ IR sensor.
④ Power: The LED will illuminate when power ON.
⑤ Link: For pairing and learning the LED will flashing speedily, during the signal
link stage the LED will flashing slowly. When LED illuminate without flashing it
means the signal link probability.
3
4.2.2 Rear Panel
DC 5V
HDMI OUT
1
2
① HDMI output: Connect the HDMI output to the HDMI input of your display
using HDMI cable.
② Power: Plug the 5V DC power supply into this unit and connect the
adaptor to AC wall outlet.
5. Remote Control
①. Power: Press to turn ON/OFF the device.
②. ID:Press transmitter “ID” button and
receiver “ID” button for 2 second to pair the
system. These systems already paired before
exit factory hence, user don't need to reset it
again unless the system can’t up link
probability.
③. 1~3: Input source selection of 1~3, press for
your desire source to display on output HDMI.
POWER
ID
INPUT
1
①
②
③
2
3
Transmitter CR-67
POWER
ID
①
②
Receiver
4
CR-68
6. Connection and Installation
HDMI Cable
HDMI Cable
HDMI
HDMI
PS3
DVD
LCD TV
Blu-Ray
Or
HDMI Cable
HDMI
LCD TV
HDMI
HDMI
PS3
HDMI
HDMI
DVD
Blu-Ray
LCD TV
HDMI
LCD TV
3M
3M
30˚
30˚
POWER
3M
7M
3M
30˚
ID
POWER
ID
30˚
INPUT
1
2
3
Transmitter CR-67
Receiver
5
CR-68
7M
7. Specifications
Radio Power
Video resolutions (partial list)
Frequencies Supported
Modulation
Bandwidth
Wireless Range
Antenna
System Features
Digital Video Interface
Digital Audio Interface
System Latency
Security
Input ports
Output port
Power Supply
Dimensions (mm)
Weight(g)
Chassis Material
Silkscreen Color
Operating Temperature
Power Consumption
Transmit power is configurable up to 63mW
(+18dBm)
480i/p, 576i/p, 720p, 1080i, VGA@60/72,
SVGA@60/72, XGA@60/70 and 1080p(24fps/30fps)
4.9 ~ 5.9GHz
OFDM MIMO with WHDITH video-modem
Technology
20MHz
15~30 meters open field
Transmitter: 4 transmit antennas and 1 receive
antenna
Receiver: 5 receiver antenna and 1 transmit
antenna
Automatic Transmission Power Control (ATPC)-for
best power performance
Automatic Frequency Selection (AFS)-For avoiding
interferences
Up to 24 bit RGB or YCbCr (4:4:4)
PCM2CH, DTS5.1, AC3 5.1
Less than 1 millisecond delay between video/audio
source and sink
Strong 256 bit AES-based encryption
3 x HDMI
1 x HDMI
5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
162.6(W) x 164.5(D) x 33.5(H)
Trsnsmitter: 348
Receiver: 316
Plastic
White
0°C ~ 40°C
Transmitter: 1.95 Receiver: 1.62
6
8. Troubleshooting
Situation
Power LED is not
illuminate when power
ON.
Check Point
1. Check if the right adaptor is used. 5V 2.6A’s
adaptor.
2. Check all power connectors are plugged in
correctly.
3. Push the power buttons to turn on the devices.
1.
After powering on
Tx & Rx the Link’s LED
is flashing speedily /
slowly without image.
2.
3.
1.
The Link’s LED is
illuminating consistently
without image display
or unexpected image
2.
display.
3.
4.
Input’s LED not
illuminate.
1.
This is normal if the devices are pairing or learning,
the LED will illuminate slowly when it is doing signal
linking. After signal is transmit and received
steadily the LED will be light up consistently.
If the LED keeps on flashing speedily for more than
3 minute, then repairing devices by pushing the
ID keys for 2 second.
If the LED keeps on flashing slowly for more than
3 minute, then check the input selection of the
transmitter if its correct.
Check if source’s timing is supported by the
device. The device support up to 1080i and
therefore, please make sure the source is sending
acceptable timing for device and display and
the display also can accept that timing.
Check if both source and the display are
HDCP/CEC complaint.
Check if TV mode is selected rightly.
Check if both source and display are connected
stably.
For the first time linkage, if the output display is not
link up the input LED will not illuminate therefore,
please check if the HDMI output is connected.
1. Red Power LED means under Broadcast mode
and Green Power LED means under Unicast mode.
Different color on Power
If Tx is on Green LED but Rx is on Red LED, press Rx's
LED.
ID key for 10 second to change to Unicast mode.
Vice versa, when Broadcast mode is demanded
press Tx's ID key for 10 second to change to
Broadcast mode.
7
8
9
CYPRESS TECHNOLOGY CO., LTD.
Home page: http://www.cypress.com.tw
20070816 MPM-CWHDI-TX & RX
