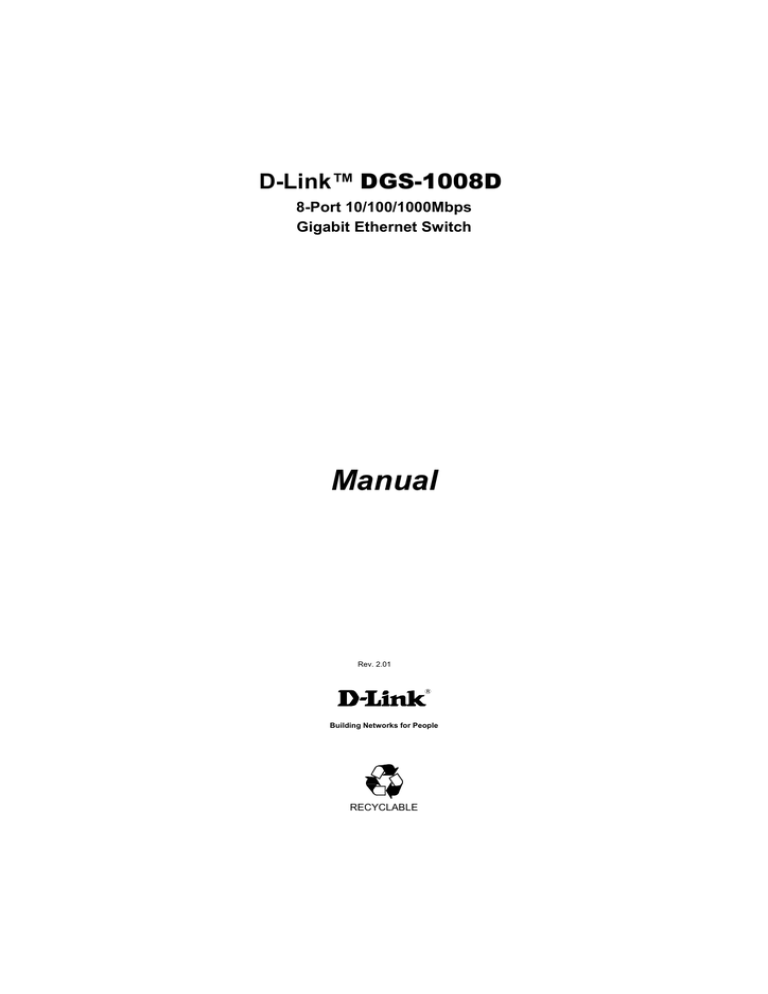

D-Link™ DGS-1008D
8-Port 10/100/1000Mbps
Gigabit Ethernet Switch
Manual
Rev. 2.01
Building Networks for People
RECYCLABLE
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
____________________
Information in this document is subject to change without notice.
© 2003 D-Link Computer Corporation. All rights reserved.
Reproduction in any manner whatsoever without the written permission of D-Link Computer Corporation is strictly forbidden.
Trademarks used in this text: D-Link and the D-LINK logo are trademarks of D-Link Computer Corporation; Microsoft and Windows are
registered trademarks of Microsoft Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
D-Link Computer Corporation disclaims any proprietary interest in trademarks and trade names other than its own.
October 2003 P/N DGS1008D..B1
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with this
user’s guide, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference in which case the user may be required to
take adequate measures.
Warnung!
Dies ist ein Produkt der Klasse B. Im Wohnbereich kann dieses Produkt Funkstoerungen verursachen. In diesem
Fall kann vom Benutzer verlangt werden, angemessene Massnahmen zu ergreifen.
Precaución!
Este es un producto de Clase B. En un entorno doméstico, puede causar interferencias de radio, en cuyo case,
puede requerirse al usuario para que adopte las medidas adecuadas.
Attention!
Ceci est un produit de classe B. Dans un environnement domestique, ce produit pourrait causer des interférences
radio, auquel cas l`utilisateur devrait prendre les mesures adéquates.
Attenzione!
Il presente prodotto appartiene alla classe B. Se utilizzato in ambiente domestico il prodotto può causare
interferenze radio, nel cui caso è possibile che l`utente debba assumere provvedimenti adeguati.
VCCI Warning
BSMI Warning
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
CONTENTS
INTRODUCTION..................................................................................................................................................1
ETHERNET TECHNOLOGY ......................................................................................................................................1
Fast Ethernet Technology ................................................................................................................................1
Gigabit Ethernet Technology ...........................................................................................................................1
SWITCHING TECHNOLOGY ....................................................................................................................................1
SWITCH DESCRIPTION ...........................................................................................................................................2
Features ...........................................................................................................................................................2
FRONT-PANEL COMPONENTS ................................................................................................................................3
LED Indicators.................................................................................................................................................3
REAR PANEL DESCRIPTION ...................................................................................................................................5
INSTALLATION ...................................................................................................................................................6
Package Contents.............................................................................................................................................6
BEFORE YOU CONNECT TO THE NETWORK ...........................................................................................................6
MOUNTING THE SWITCH ON A WALL ....................................................................................................................7
ATTACHING THE RUBBER FEET .............................................................................................................................7
PROVIDE FOR ADEQUATE VENTILATION ...............................................................................................................8
POWER ON ............................................................................................................................................................8
Power Failure ..................................................................................................................................................8
CONNECTING THE SWITCH ...........................................................................................................................9
SWITCH TO END NODE .........................................................................................................................................9
SWITCH TO HUB OR SWITCH ...............................................................................................................................10
CONNECTING TO NETWORK BACKBONE OR SERVER ..........................................................................................10
TECHNICAL SPECIFICATIONS.....................................................................................................................11
GLOSSARY..........................................................................................................................................................12
WARRANTY AND REGISTRATION INFORMATION................................................................................18
(ALL COUNTRIES AND REGIONS EXCLUDING USA) .............................................................................................18
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
Preface
The DGS-1008D User’s Guide is divided into sections that describe the system installation and operating
instructions with examples.
Section 1, Introduction - A description of the physical features of the switch, including LED indicators,
ports and panel descriptions.
Section 2, Installation – A description of the physical installation of the switch including connecting the
switch to the network and connecting stacked switch groups.
Section 3, Connecting the Switch – A description of how to connect your switch to an end node, hub,
switch or backbone server.
Appendix A, Technical Specifications - The technical specifications of the DGS-1008D.
Glossary – Lists definitions for terms and acronyms used in this document.
Index – Index of relevant terms in the DGS-1008D User’s Guide.
Intended Readers
The DGS-1008D User’s Guide contains information for setup and management and of the DGS-1008D switch.
This guide is intended for network managers familiar with network management concepts and terminology.
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make
better use of your device.
NOTICE: A NOTICE indicates either potential damage to hardware or loss
of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage,
personal injury, or death.
iv
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
Safety Instructions
Use the following safety guidelines to ensure your own personal safety and to help protect your system from
potential damage. Throughout this safety section, the caution icon (
) is used to indicate cautions and
precautions that you need to review and follow.
Safety Cautions
To reduce the risk of bodily injury, electrical shock, fire, and damage to the equipment, observe the following
precautions.
Observe and follow service markings. Do not service any product except as explained in your system
documentation. Opening or removing covers that are marked with the triangular symbol with a lightning bolt
may expose you to electrical shock. Only a trained service technician should service components inside these
compartments.
If any of the following conditions occur, unplug the product from the electrical outlet and replace the part or
contact your trained service provider:
– The power cable, extension cable, or plug is damaged.
– An object has fallen into the product.
– The product has been exposed to water.
– The product has been dropped or damaged.
– The product does not operate correctly when you follow the operating instructions.
•
Keep your system away from radiators and heat sources. Also, do not block cooling vents.
•
Do not spill food or liquids on your system components, and never operate the product in a wet
environment. If the system gets wet, see the appropriate section in your troubleshooting guide or contact
your trained service provider.
•
Do not push any objects into the openings of your system. Doing so can cause fire or electric shock by
shorting out interior components.
•
Use the product only with approved equipment.
•
Allow the product to cool before removing covers or touching internal components.
•
Operate the product only from the type of external power source indicated on the electrical ratings label.
If you are not sure of the type of power source required, consult your service provider or local power
company.
•
To help avoid damaging your system, be sure the voltage selection switch (if provided) on the power
supply is set to match the power available at your location:
– 115 volts (V)/60 hertz (Hz) in most of North and South America and some Far Eastern countries such
as South Korea and Taiwan
– 100 V/50 Hz in eastern Japan and 100 V/60 Hz in western Japan
– 230 V/50 Hz in most of Europe, the Middle East, and the Far East
•
Also be sure that attached devices are electrically rated to operate with the power available in your
location.
v
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
Safety Instructions (continued)
•
Use only approved power cable(s). If you have not been provided with a power cable for your system or
for any AC-powered option intended for your system, purchase a power cable that is approved for use in
your country. The power cable must be rated for the product and for the voltage and current marked on
the product's electrical ratings label. The voltage and current rating of the cable should be greater than
the ratings marked on the product.
•
To help prevent electric shock, plug the system and peripheral power cables into properly grounded
electrical outlets. These cables are equipped with three-prong plugs to help ensure proper grounding. Do
not use adapter plugs or remove the grounding prong from a cable. If you must use an extension cable,
use a 3-wire cable with properly grounded plugs.
•
Observe extension cable and power strip ratings. Make sure that the total ampere rating of all products
plugged into the extension cable or power strip does not exceed 80 percent of the ampere ratings limit
for the extension cable or power strip.
•
To help protect your system from sudden, transient increases and decreases in electrical power, use a
surge suppressor, line conditioner, or uninterruptible power supply (UPS).
•
Position system cables and power cables carefully; route cables so that they cannot be stepped on or
tripped over. Be sure that nothing rests on any cables.
•
Do not modify power cables or plugs. Consult a licensed electrician or your power company for site
modifications. Always follow your local/national wiring rules.
•
When connecting or disconnecting power to hot-pluggable power supplies, if offered with your system,
observe the following guidelines:
– Install the power supply before connecting the power cable to the power supply.
– Unplug the power cable before removing the power supply.
– If the system has multiple sources of power, disconnect power from the system by
unplugging all power cables from the power supplies.
•
Move products with care; ensure that all casters and/or stabilizers are firmly connected to the system.
Avoid sudden stops and uneven surfaces.
General Precautions for Rack-Mountable Products
Observe the following precautions for rack stability and safety. Also refer to the rack installation documentation
accompanying the system and the rack for specific caution statements and procedures.
Systems are considered to be components in a rack. Thus, "component" refers to any system as well as to various
peripherals or supporting hardware.
CAUTION: Installing systems in a rack without the front and side stabilizers
installed could cause the rack to tip over, potentially resulting in bodily injury under
certain circumstances. Therefore, always install the stabilizers before installing
components in the rack.
After installing system/components in a rack, never pull more than one component
out of the rack on its slide assemblies at one time. The weight of more than one
extended component could cause the rack to tip over and may result in serious
injury.
•
Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor,
and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or
front stabilizers for joined multiple racks before working on the rack.
vi
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
Safety Instructions (continued)
Always load the rack from the bottom up, and load the heaviest item in the rack first.
Make sure that the rack is level and stable before extending a component from the rack.
Use caution when pressing the component rail release latches and sliding a component into or out of a rack; the
slide rails can pinch your fingers.
After a component is inserted into the rack, carefully extend the rail into a locking position, and then slide the
component into the rack.
Do not overload the AC supply branch circuit that provides power to the rack. The total rack load should not
exceed 80 percent of the branch circuit rating.
Ensure that proper airflow is provided to components in the rack.
Do not step on or stand on any component when servicing other components in a rack.
NOTE: A qualified electrician must perform all connections to DC power and to
safety grounds. All electrical wiring must comply with applicable local or national
codes and practices.
CAUTION: Never defeat the ground conductor or operate the equipment in the
absence of a suitably installed ground conductor. Contact the appropriate electrical
inspection authority or an electrician if you are uncertain that suitable grounding is
available.
CAUTION: The system chassis must be positively grounded to the rack cabinet
frame. Do not attempt to connect power to the system until grounding cables are
connected. Completed power and safety ground wiring must be inspected by a
qualified electrical inspector. An energy hazard will exist if the safety ground cable
is omitted or disconnected.
Protecting Against Electrostatic Discharge
Static electricity can harm delicate components inside your system. To prevent static damage, discharge static
electricity from your body before you touch any of the electronic components, such as the microprocessor. You
can do so by periodically touching an unpainted metal surface on the chassis.
You can also take the following steps to prevent damage from electrostatic discharge (ESD):
1. When unpacking a static-sensitive component from its shipping carton, do not remove the component
from the antistatic packing material until you are ready to install the component in your system. Just
before unwrapping the antistatic packaging, be sure to discharge static electricity from your body.
2. When transporting a sensitive component, first place it in an antistatic container or packaging.
3. Handle all sensitive components in a static-safe area. If possible, use antistatic floor pads and
workbench pads and an antistatic grounding strap.
vii
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
SECTION 1
Introduction
Ethernet Technology
Switch Description
Features
Ports
Front-Panel Components
Ethernet Technology
Fast Ethernet Technology
The growing importance of LANs and the increasing complexity of desktop computing applications are fueling
the need for high performance networks. A number of high-speed LAN technologies are proposed to provide
greater bandwidth and improve client/server response times. Among them, Fast Ethernet, or 100BASE-T,
provides a non-disruptive, smooth evolution from 10BASE-T technology.
100Mbps Fast Ethernet is a standard specified by the IEEE 802.3 LAN committee. It is an extension of the
10Mbps Ethernet standard with the ability to transmit and receive data at 100Mbps, while maintaining the
Carrier Sense Multiple Access with Collision Detection (CSMA/CD) Ethernet protocol.
Gigabit Ethernet Technology
Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the same packet structure, format, and support
for CSMA/CD protocol, full duplex, flow control, and management objects, but with a tenfold increase in
theoretical throughput over 100Mbps Fast Ethernet and a one hundred-fold increase over 10Mbps Ethernet.
Since it is compatible with all 10Mbps and 100Mbps Ethernet environments, Gigabit Ethernet provides a
straightforward upgrade without wasting a company’s existing investment in hardware, software, and trained
personnel.
The increased speed and extra bandwidth offered by Gigabit Ethernet is essential to coping with the network
bottlenecks that frequently develop as computers and their busses get faster and more users use applications that
generate more traffic. Upgrading key components, such as your backbone and servers to Gigabit Ethernet can
greatly improve network response times as well as significantly speed up the traffic between your subnetworks.
Gigabit Ethernet enables fast optical fiber connections to support video conferencing, complex imaging, and
similar data-intensive applications. Likewise, since data transfers occur 10 times faster than Fast Ethernet,
servers outfitted with Gigabit Ethernet NIC’s are able to perform 10 times the number of operations in the same
amount of time.
In addition, the phenomenal bandwidth delivered by Gigabit Ethernet is the most cost-effective method to take
advantage of today and tomorrow’s rapidly improving switching and routing internetworking technologies.
Switching Technology
Another key development pushing the limits of Ethernet technology is in the field of switching technology. A
switch bridges Ethernet packets at the MAC address level of the Ethernet protocol transmitting among connected
Ethernet or fast Ethernet LAN segments.
Switching is a cost-effective way of increasing the total network capacity available to users on a local area
network. A switch increases capacity and decreases network loading by making it possible for a local area
network to be divided into different segments which don’t compete with each other for network transmission
capacity, giving a decreased load on each.
The switch acts as a high-speed selective bridge between the individual segments. Traffic that needs to go from
one segment to another (from one port to another) is automatically forwarded by the switch, without interfering
1
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
with any other segments (ports). This allows the total network capacity to be multiplied, while still maintaining
the same network cabling and adapter cards.
For Fast Ethernet or Gigabit Ethernet networks, a switch is an effective way of eliminating problems of chaining
hubs beyond the “two-repeater limit.” A switch can be used to split parts of the network into different collision
domains, for example, making it possible to expand your Fast Ethernet network beyond the 205-meter network
diameter limit for 100BASE-TX networks. Switches supporting both traditional 10Mbps Ethernet and 100Mbps
Fast Ethernet are also ideal for bridging between existing 10Mbps networks and new 100Mbps networks.
Switching LAN technology is a marked improvement over the previous generation of network bridges, which
were characterized by higher latencies. Routers have also been used to segment local area networks, but the cost
of a router and the setup and maintenance required make routers relatively impractical. Today’s switches are an
ideal solution to most kinds of local area network congestion problems.
Switch Description
The DGS-1008D Switch module is equipped with eight ports providing dedicated 10, 100 or 1000 Mbps
bandwidth. These ports can be used for connecting PCs, servers, and hubs. The eight multi-speed ports use
standard twisted pair cabling and are ideal for segmenting networks into small, connected subnets. Each port can
support up to 2000 Mbps of throughput in full-duplex mode. This stand-alone Switch enables the network to use
some of the most demanding multimedia and imaging applications concurrently with other user applications
without creating bottlenecks.
Features
The DGS-1008D 8-Port 1000BASE-T Gigabit Ethernet Switch was designed for easy installation and high
performance in an environment where traffic on the network and the number of users increase continuously.
•
•
•
•
•
•
•
•
•
•
•
•
•
Eight (8) 1000BASE-T Gigabit Ethernet ports
Cable Diagnostic function at Switch boot
Supports Auto-Negotiation for 10/100/1000Mbps and duplex mode
Supports Auto-MDIX for each port
Support Full/Half duplex transfer mode for 10 and 100Mbps
Support Full duplex transfer mode for 1000Mbps
Full wire speed reception and transmission
Store-and-Forward switching method
Supports 4K absolute MAC addresses
Supports 1M Bits RAM for data buffering
Extensive front-panel diagnostic LEDs
IEEE 802.3x flow control for full-duplex
Back pressure flow control for half-duplex
2
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
Front-Panel Components
The front panel of the Switch consists of LED indicators, 8(10/100/1000 Mbps) Ethernet ports.
Figure 1-1. Front Panel View of the switch
Comprehensive LED indicators display the status of the switch and the network.
LED Indicators
The LED indicators of the Switch include Power, 100/1000Mbps and Link/Act. The following shows the LED
indicators for the Switch along with an explanation of each indicator.
Figure 1-1. LED Indicators
LED Indicators
Comprehensive LED indicators display the conditions of the Switch and status of the network. A description of these LED indicators
follows (see LED Indicators). The LED indicators of the Switch include Power, Link/Act, 1000Mbps and 100Mbps.
Power Indicator
This green indicator illuminates when the Switch is receiving power.
Link / Act
This green indicator illuminates steadily when a port is connected to a station successfully and has
a good link. The indicator will blink to indicate that a port is transmitting or receiving data on the
network.
Speed — 100Mbps/amber; 1000Mbps/green; 10Mbps/off
This indicator is amber-colored when the port is connected to a 100Mbps Fast Ethernet station. It is
green when the port is connected to a 1000Mbps Ethernet station. It is not illuminated when the
port is connected to a 10Mbps Ethernet station.
Cable Diagnostic − LED Indications
When the Switch is booted, the Cable Diagnostic function is initialized and run. The Cable
Diagnostic function will detect three common faults in an Ethernet cable connecting the Switch to a
remote network device: an open circuit (a lack of continuity between the pins at each end of the
Ethernet cable or a disconnected cable), a short circuit (two or more conductors short-circuited),
and improper termination (a termination resistance greater than the specified 100 ohms). Any of
these common cable faults will be detected by the Cable Diagnostic function and the LEDs will
display the results of the Cable Diagnostic function as follows:
Open, Short, or Improper Termination − Speed LED: Amber − Link/Act LED: Off
Cable connection good − Speed LED: Green − Link/Act LED: Off
The Cable Diagnostic function operates only during the Switch boot (when the Switch is first
powered on.)
3
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
The Cable Diagnostic first scans the eight Ethernet ports to determine if the Ethernet cable is in
good working order. This process is indicated by the Speed LED blinking green for each of the
eight ports − sequentially. The initial port scan takes about 10 seconds. If a cable fault is detected,
it is indicated by the corresponding port’s Speed LED glowing amber for 5 seconds − after the
initial port scan. The Switch is then reset for normal operation. It takes about 2 seconds for the
Switch to reset. The entire Cable Diagnostic process takes about 17 seconds from the time the
Switch is booted. So, from the time power is first applied to the Switch, about 17 seconds is
required before the Switch will begin normal operation.
There is no display of cable faults detected by the Cable Diagnostic function during the normal
operation of the Switch.
NOTE: The Cable Diagnostic function does not support 10M/100M. If the port is
connected to a 10M/100M device, see the Link LED to check if the cable is good
or not.
4
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
Rear Panel Description
DC Power Jack:
Power is supplied through an external AC power adapter. Check the technical specification section for
information about the AC power input voltage.
Figure 1-2. Rear panel view of the Switch
1000BASE-T Ports:
Eight (8) Gigabit Ethernet, Auto-Negotiating ports (10/100/1000Mbps)
Comprehensive LED indicators display the conditions of the Switch and status of the network.
5
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
SECTION 2
Installation
Package Contents
Before You Connect to the Network
Installing the Switch
Power On
Package Contents
Open the shipping carton of the Switch and carefully unpack its contents. The carton should contain the
following items:
•
•
•
•
•
1.
2.
3.
4.
5.
One DGS-1008D 8-Port 1000BASE-T Gigabit Ethernet Switch
Four rubber feet with adhesive backing
One external power adapter
This manual
Wall-mounting Kit
If any item is found missing or damaged, please contact your local D-Link Reseller for replacement.
Before You Connect to the Network
The site where you install the Switch may greatly affect its performance. Please follow these guidelines for
setting up the Switch.
•
Install the Switch on a sturdy, level surface that can support at least 3 kg of weight. Do not place heavy
objects on the Switch.
•
The power outlet should be within 1.82 meters (6 feet) of the Switch.
•
Visually inspect the power cord and see that it is fully secured to the AC power port.
•
Make sure that there is proper heat dissipation from and adequate ventilation around the switch. Leave
at least 10 cm of space at the front and rear of the Switch for ventilation.
•
Install the Switch in a fairly cool and dry place for the acceptable temperature and humidity operating
ranges.
•
Install the Switch in a site free from strong electromagnetic field generators (such as motors), vibration,
dust, and direct exposure to sunlight.
•
When installing the switch on a level surface, attach the rubber feet to the bottom of the device. The
rubber feet cushion the Switch, protect the casing from scratches and prevent it from scratching other
surfaces.
6
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
Mounting the Switch on a Wall
The DGS-1008D can also be mounted on a wall. Two mounting slots are provided on the bottom of the switch for this purpose. Please
make sure that the front panel is exposed in order to view the LEDs. Please refer to the illustration below:
A.) Mounting on a cement wall
1.
Mount the Nylon screw anchors into a cement wall.
2.
3.
Drive the T3 x 15L screws into the Nylon screw anchors.
Hook the mounting holes of the switch back on the screws; you have completed the wall-mount.
B.) Mounting on a wood wall
1.
Drive the T3 x 15 L screws into the wood wall.
2.
Hook the mounting holes of the switch back on the screws; you have
completed the wall-mount.
(1) 3/4 inch minimum
for wood wall
(2)
3 inch minimum
for
cement
wall.
Figure 2-1. Mounting the Switch to a Wall
Attaching the Rubber Feet
Use rubber feet provided. Position and apply rubber feet to the underside of the DGS-1008D Switch.
Figure 2-2. Attaching the Rubber Feet
7
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
Provide for Adequate Ventilation
CAUTION: Do not place any device on top of Switch, or place the Switch on top
of any device or object that will block the free flow of air through the ventilation
slots on the sides, top, and bottom of the Switch’s case. In addition, care should
be taken not to locate the Switch next to, on top of, or underneath any device that
generates a significant amount of heat. For the Switch to perform at its optimal
level, the Switch must have adequate ventilation to prevent the Switch from
overheating and becoming damaged.
Power On
Plug one end of the AC to DC power converter into the power connector of the Switch and the other end into the
local power source outlet.
After the Switch is powered on, the LED indicators will momentarily blink. This blinking of the LED indicators
represents a reset of the system.
Power Failure
As a precaution, in the event of a power failure, unplug the Switch. When power is resumed, plug the Switch
back in.
8
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
Section 3
Connecting The Switch
Switch To End Node
Switch To Hub or Switch
Connecting To a Server
NOTE: All 8 high-performance NWay Ethernet ports can support both MDI-II
and MDI-X connections.
Switch To End Node
End nodes include PCs outfitted with a 10, 100 or 1000 Mbps RJ-45 Ethernet/Fast Ethernet Network Interface
Card (NIC) and most routers.
An end node can be connected to the Switch via a twisted-pair Category 3, 4, or 5 UTP/STP cable. The end node
can be connected to any of the ports of the Switch.
Figure 3-1. Switch connected to an end node
The Link/Act LEDs for each UTP port light green when the link is valid. The LED over the port label indicates
a port speed of either 10/100 Mbps or 1000Mbps. A blinking LED on the bottom indicates packet activity on that
port.
9
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
Switch to Hub or Switch
These connections can be accomplished in a number of ways using a normal cable
•
A 10BASE-T hub or switch can be connected to the Switch via a twisted-pair Category 3, 4, 5, or 5e
UTP/STP cable.
•
A 100BASE-TX hub or switch can be connected to the Switch via a twisted -pair Category 5 UTP/STP
cable.
•
A 1000BASE-T switch can be connected to the Switch via a twisted -pair Category 5e UTP/STP cable.
Figure 3-2. Switch connected to a port on a hub or switch using either a straight or crossover cable–
any normal cable is fine
Connecting To Network Backbone or Server
Any of the eight Gigabit Ethernet ports are ideal for uplinking to a network backbone or network server. These
ports operate at 1000 Mbps in full-duplex mode.
Figure 3-3. Connection to a Server
10
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
Appendix A
Technical Specifications
General
Standards:
IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3 10BASE-T
IEEE 802.3x Flow Control
Protocol:
CSMA/CD
Data Transfer
Rate:
Ethernet:
Fast Ethernet:
Gigabit
Ethernet:
10Mbps
(Half-duplex)
20Mbps
(Full-duplex)
100Mbps
(Half-duplex)
200Mbps
(Full-duplex)
2000Mbps
(Full-duplex)
Topology:
Star
Network
Cables:
Ethernet:
2-pair UTP Cat. 3,4,5, Unshield
Twisted Pair (UTP )Cable
Fast Ethernet:
2-pair UTP Cat. 5,
Unshield Twisted Pair (UTP )Cable
Gigabit
Ethernet:
4-pair UTP Cat. 5e,
Unshield Twisted Pair (UTP )Cable
Number of
Ports:
Eight (8) 10/100/1000BASE-T Gigabit Ethernet ports
Physical and Environmental
DC Inputs:
Power
Consumption:
Operating
Temperature:
Storage
Temperature:
Humidity:
5V / 3A
11 watts maximum
32°F ~ 131F ° (0 °C ~ 55℃)
14°F ~ 158°F (-10°C ~ 70°C)
EMI
5% ~ 95% RH, non-condensing
9.25 in. x 6.37 in. x 1.4 in.
(235mm x 161.9mm x 35.6mm)
FCC Class B, CE Mark Class B
Safety:
CSA International
Dimensions:
Performance
Transmission
Method:
RAM Buffer:
Filtering Address
Table:
Packet Filtering/
Forwarding Rate:
MAC Address
Learning:
Store-and-forward
1 M Bytes per device
4K MAC address per device
Full wire speed
Self-learning, auto-aging
11
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
Glossary
1000BASE-LX a short laser wavelength on multimode fiber optic cable for a maximum length of 550
meters
1000BASE-SX a long wavelength for a "long haul" fiber optic cable for a maximum length of 10
kilometers
100BASE-FX 100Mbps Ethernet implementation over fiber.
100BASE-TX 100Mbps Ethernet implementation over Category 5 and Type 1 Twisted Pair cabling.
10BASE-T The IEEE 802.3 specification for Ethernet over Unshielded Twisted Pair (UTP) cabling.
ageing The automatic removal of dynamic entries from the Switch Database which have timed-out and are
no longer valid.
ATM Asynchronous Transfer Mode. A connection oriented transmission protocol based on fixed length
cells (packets). ATM is designed to carry a complete range of user traffic, including voice, data and video
signals.
auto-negotiation A feature on a port which allows it to advertise its capabilities for speed, duplex and flow
control. When connected to an end station that also supports auto-negotiation, the link can self-detect its
optimum operating setup.
backbone port A port which does not learn device addresses, and which receives all frames with an
unknown address. Backbone ports are normally used to connect the Switch to the backbone of your network.
Note that backbone ports were formerly known as designated downlink ports.
backbone The part of a network used as the primary path for transporting traffic between network segments.
bandwidth Information capacity, measured in bits per second, that a channel can transmit. The bandwidth
of Ethernet is 10Mbps, the bandwidth of Fast Ethernet is 100Mbps.
baud rate The switching speed of a line. Also known as line speed.
between network segments.
BOOTP The BOOTP protocol allows you to automatically map an IP address to a given MAC address each
time a device is started. In addition, the protocol can assign the subnet mask and default gateway to a device.
bridge A device that interconnects local or remote networks no matter what higher level protocols are
involved. Bridges form a single logical network, centralizing network administration.
broadcast A message sent to all destination devices on the network.
broadcast storm Multiple simultaneous broadcasts that typically absorb available network bandwidth and
can cause network failure.
console port The port on the Switch accepting a terminal or modem connector. It changes the parallel
arrangement of data within computers to the serial form used on data transmission links. This port is most
often used for dedicated local management.
CSMA/CD Channel access method used by Ethernet and IEEE 802.3 standards in which devices transmit
only after finding the data channel clear for some period of time. When two devices transmit simultaneously,
a collision occurs and the colliding devices delay their retransmissions for a random amount of time.
data center switching The point of aggregation within a corporate network where a switch provides highperformance access to server farms, a high-speed backbone connection and a control point for network
management and security.
Ethernet A LAN specification developed jointly by Xerox, Intel and Digital Equipment Corporation.
Ethernet networks operate at 10Mbps using CSMA/CD to run over cabling.
Fast Ethernet 100Mbps technology based on the Ethernet/CD network access method.
Flow Control (IEEE 802.3z) A means of holding packets back at the transmit port of the connected end
station. Prevents packet loss at a congested switch port.
forwarding The process of sending a packet toward its destination by an internetworking device.
full duplex A system that allows packets to be transmitted and received at the same time and, in effect,
doubles the potential throughput of a link.
half duplex A system that allows packets to be transmitted and received, but not at the same time. Contrast
with full duplex.
12
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
IP address Internet Protocol address. A unique identifier for a device attached to a network using TCP/IP.
The address is written as four octets separated with full-stops (periods), and is made up of a network section,
an optional subnet section and a host section.
IPX Internetwork Packet Exchange. A protocol allowing communication in a NetWare network.
LAN Local Area Network. A network of connected computing resources (such as PCs, printers, servers)
covering a relatively small geographic area (usually not larger than a floor or building). Characterized by
high data rates and low error rates.
latency The delay between the time a device receives a packet and the time the packet is forwarded out of
the destination port.
line speed See baud rate.
main port The port in a resilient link that carries data traffic in normal operating conditions.
MDI Medium Dependent Interface. An Ethernet port connection where the transmitter of one device is
connected to the receiver of another device.
MDI-X Medium Dependent Interface Cross-over. An Ethernet port connection where the internal transmit
and receive lines are crossed.
MIB Management Information Base. Stores a device’s management characteristics and parameters. MIBs
are used by the Simple Network Management Protocol (SNMP) to contain attributes of their managed
systems. The Switch contains its own internal MIB.
multicast Single packets copied to a specific subset of network addresses. These addresses are specified in
the destination-address field of the packet.
protocol A set of rules for communication between devices on a network. The rules dictate format, timing,
sequencing and error control.
resilient link A pair of ports that can be configured so that one will take over data transmission should the
other fail. See also main port and standby port.
RJ-45 Standard 8-wire connectors for IEEE 802.3 10BASE-T networks.
RMON Remote Monitoring. Subset of SNMP MIB II which allows monitoring and management
capabilities by addressing up to ten different groups of information.
RPS Redundant Power System. A device that provides a backup source of power when connected to the
Switch.
server farm A cluster of servers in a centralized location serving a large user population.
SLIP Serial Line Internet Protocol. A protocol which allows IP to run over a serial line connection.
SNMP Simple Network Management Protocol. A protocol originally designed to be used in managing
TCP/IP internets. SNMP is presently implemented on a wide range of computers and networking equipment
and may be used to manage many aspects of network and end station operation.
Spanning Tree Protocol (STP) A bridge-based system for providing fault tolerance on networks. STP
works by allowing you to implement parallel paths for network traffic, and ensure that redundant paths are
disabled when the main paths are operational and enabled if the main paths fail.
stack A group of network devices that are integrated to form a single logical device.
standby port The port in a resilient link that will take over data transmission if the main port in the link fails.
switch A device which filters, forwards and floods packets based on the packet’s destination address. The
switch learns the addresses associated with each switch port and builds tables based on this information to
be used for the switching decision.
TCP/IP A layered set of communications protocols providing Telnet terminal emulation, FTP file transfer,
and other services for communication among a wide range of computer equipment.
Telnet A TCP/IP application protocol that provides virtual terminal service, letting a user log in to another
computer system and access a host as if the user were connected directly to the host.
TFTP Trivial File Transfer Protocol. Allows you to transfer files (such as software upgrades) from a remote
device using your switch’s local management capabilities.
UDP User Datagram Protocol. An Internet standard protocol that allows an application program on one
device to send a datagram to an application program on another device.
VLAN Virtual LAN. A group of location- and topology-independent devices that communicate as if they
are on a common physical LAN.
13
D-Link DGS-1008D Unmanaged Gigabit Ethernet Switch
VLT Virtual LAN Trunk. A Switch-to-Switch link which carries traffic for all the VLANs on each Switch.
VT100 A type of terminal which uses ASCII characters. VT100 screens have a text-based appearance.
14
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited warranty for
its product only to the person or entity that originally purchased the product from:
•
•
D-Link or its authorized reseller or distributor and
Products purchased and delivered within the fifty states of the United States, the District of Columbia, U.S.
Possessions or Protectorates, U.S. Military Installations, addresses with an APO or FPO.
Limited Warranty: D-Link warrants that the hardware portion of the D-Link products described below will be free
from material defects in workmanship and materials from the date of original retail purchase of the product, for the
period set forth below applicable to the product type (“Warranty Period”), except as otherwise stated herein.
Limited Lifetime Warranty for the Product(s) is defined as follows:
•
Hardware for as long as the original customer/end user owns the product, or five years after product
discontinuance, whichever occurs first (excluding power supplies and fans)
•
Power Supplies and Fans Three (3) Year
•
Spare parts and spare kits Ninety (90) days
D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period at no charge
to the original owner or to refund at D-Link’s sole discretion. Such repair or replacement will be rendered by D-Link at
an Authorized D-Link Service Office. The replacement Hardware need not be new or have an identical make, model
or part. D-Link may in its sole discretion replace the defective Hardware (or any part thereof) with any reconditioned
product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the
defective Hardware. Repaired or replacement Hardware will be warranted for the remainder of the original Warranty
Period from the date of original retail purchase. If a material defect is incapable of correction, or if D-Link determines
in its sole discretion that it is not practical to repair or replace the defective Hardware, the price paid by the original
purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective Hardware. All
Hardware (or part thereof) that is replaced by D-Link, or for which the purchase price is refunded, shall become the
property of D-Link upon replacement or refund.
Limited Software Warranty: D-Link warrants that the software portion of the product (“Software”) will substantially
conform to D-Link’s then current functional specifications for the Software, as set forth in the applicable
documentation, from the date of original retail purchase of the Software for a period of ninety (90) days (“Warranty
Period”), provided that the Software is properly installed on approved hardware and operated as contemplated in its
documentation. D-Link further warrants that, during the Warranty Period, the magnetic media on which D-Link
delivers the Software will be free of physical defects. D-Link’s sole obligation shall be to replace the non-conforming
Software (or defective media) with software that substantially conforms to D-Link’s functional specifications for the
Software or to refund at D-Link’s sole discretion. Except as otherwise agreed by D-Link in writing, the replacement
Software is provided only to the original licensee, and is subject to the terms and conditions of the license granted by
D-Link for the Software. Software will be warranted for the remainder of the original Warranty Period from the date or
original retail purchase. If a material non-conformance is incapable of correction, or if D-Link determines in its sole
discretion that it is not practical to replace the non-conforming Software, the price paid by the original licensee for the
non-conforming Software will be refunded by D-Link; provided that the non-conforming Software (and all copies
thereof) is first returned to D-Link. The license granted respecting any Software for which a refund is given
automatically terminates.
Non-Applicability of Warranty: The Limited Warranty provided hereunder for hardware and software of D-Link's
products will not be applied to and does not cover any refurbished product and any product purchased through the
inventory clearance or liquidation sale or other sales in which D-Link, the sellers, or the liquidators expressly disclaim
their warranty obligation pertaining to the product and in that case, the product is being sold "As-Is" without any
warranty whatsoever including, without limitation, the Limited Warranty as described herein, notwithstanding anything
stated herein to the contrary.
Submitting A Claim: The customer shall return the product to the original purchase point based on its return policy.
In case the return policy period has expired and the product is within warranty, the customer shall submit a claim to
D-Link as outlined below:
•
The customer must submit with the product as part of the claim a written description of the Hardware defect
or Software nonconformance in sufficient detail to allow D-Link to confirm the same.
•
The original product owner must obtain a Return Material Authorization (“RMA”) number from the
Authorized D-Link Service Office and, if requested, provide written proof of purchase of the product (such as a
copy of the dated purchase invoice for the product) before the warranty service is provided.
•
After an RMA number is issued, the defective product must be packaged securely in the original or other
suitable shipping package to ensure that it will not be damaged in transit, and the RMA number must be
prominently marked on the outside of the package. Do not include any manuals or accessories in the shipping
package. D-Link will only replace the defective portion of the Product and will not ship back any accessories.
15
•
The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is
allowed. Products sent COD will either be rejected by D-Link or become the property of D-Link. Products shall
be fully insured by the customer and shipped to D-Link Systems, Inc., 17595 Mt.Herrmann Fountain
Valley,CA 92708-4160. D-Link will not be held responsible for any packages that are lost in transit to D-Link.
The repaired or replaced packages will be shipped to the customer via UPS Ground or any common carrier
selected by D-Link, with shipping charges prepaid. Expedited shipping is available if shipping charges are
prepaid by the customer and upon request.
D-Link may reject or return any product that is not packaged and shipped in strict compliance with the foregoing
requirements, or for which an RMA number is not visible from the outside of the package. The product owner agrees
to pay D-Link’s reasonable handling and return shipping charges for any product that is not packaged and shipped in
accordance with the foregoing requirements, or that is determined by D-Link not to be defective or non-conforming.
What Is Not Covered: This limited warranty provided by D-Link does not cover: Products, if in D-Link’s judgment,
have been subjected to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation,
lack of reasonable care, repair or service in any way that is not contemplated in the documentation for the product, or
if the model or serial number has been altered, tampered with, defaced or removed; Initial installation, installation and
removal of the product for repair, and shipping costs; Operational adjustments covered in the operating manual for
the product, and normal maintenance; Damage that occurs in shipment, due to act of God, failures due to power
surge, and cosmetic damage; Any hardware, software, firmware or other products or services provided by anyone
other than D-Link; Products that have been purchased from inventory clearance or liquidation sales or other sales in
which D-Link, the sellers, or the liquidators expressly disclaim their warranty obligation pertaining to the product.
Repair by anyone other than D-Link or an Authorized D-Link Service Office will void this Warranty.
Disclaimer of Other Warranties: EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE PRODUCT
IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHATSOEVER INCLUDING, WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE A
PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY SHALL BE LIMITED TO NINETY (90)
DAYS. EXCEPT AS EXPRESSLY COVERED UNDER THE LIMITED WARRANTY PROVIDED HEREIN, THE
ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS WITH THE
PURCHASER OF THE PRODUCT.
Limitation of Liability: TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER ANY
CONTRACT, NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUITABLE THEORY FOR ANY LOSS
OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY CHARACTER, WHETHER DIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF
GOODWILL, LOSS OF REVENUE OR PROFIT, WORK STOPPAGE, COMPUTER FAILURE OR MALFUNCTION,
FAILURE OF OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-LINK’S PRODUCT IS
CONNECTED WITH, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON, OR INTEGRATED WITH
ANY PRODUCT RETURNED TO D-LINK FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE
PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF THIS LIMITED
WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE
REMEDY FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR
REFUND OF THE DEFECTIVE OR NON-CONFORMING PRODUCT. THE MAXIMUM LIABILITY OF D-LINK
UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT COVERED BY THE
WARRANTY. THE FOREGOING EXPRESS WRITTEN WARRANTIES AND REMEDIES ARE EXCLUSIVE AND
ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS, IMPLIED OR STATUTORY
Governing Law: This Limited Warranty shall be governed by the laws of the State of California. Some states do not
allow exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty
lasts, so the foregoing limitations and exclusions may not apply. This limited warranty provides specific legal rights
and the product owner may also have other rights which vary from state to state.
Trademarks: D-Link is a registered trademark of D-Link Systems, Inc. Other trademarks or registered trademarks
are the property of their respective manufacturers or owners.
16
Copyright Statement: No part of this publication or documentation accompanying this Product may be reproduced
in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without
permission from D-Link Corporation/D-Link Systems, Inc., as stipulated by the United States Copyright Act of 1976.
©
Contents are subject to change without prior notice. Copyright 2002 by D-Link Corporation/D-Link Systems, Inc. All
rights reserved.
CE Mark Warning: This is a Class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio communication.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
17
