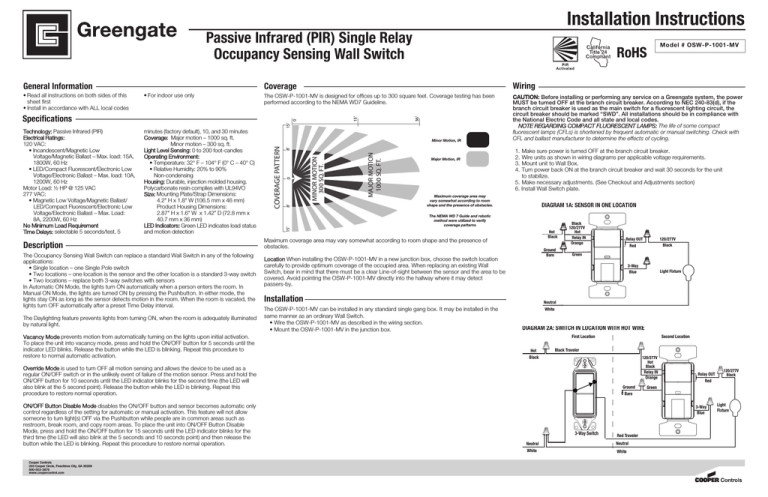

Cooper Lighting MS185 Specifications
Installation Instructions
Passive Infrared (PIR) Single Relay
Occupancy Sensing Wall Switch
Coverage
Wiring
The OSW-P-1001-MV is designed for offices up to 300 square feet. Coverage testing has been
performed according to the NEMA WD7 Guideline.
CAUTION: Before installing or performing any service on a Greengate system, the power
MUST be turned OFF at the branch circuit breaker. According to NEC 240-83(d), if the
branch circuit breaker is used as the main switch for a fluorescent lighting circuit, the
circuit breaker should be marked “SWD”. All installations should be in compliance with
the National Electric Code and all state and local codes.
NOTE REGARDING COMPACT FLUORESCENT LAMPS: The life of some compact
fluorescent lamps (CFLs) is shortened by frequent automatic or manual switching. Check with
CFL and ballast manufacturer to determine the effects of cycling.
15’
Description
The Occupancy Sensing Wall Switch can replace a standard Wall Switch in any of the following
applications:
• Single location – one Single Pole switch
• Two locations – one location is the sensor and the other location is a standard 3-way switch
• Two locations – replace both 3-way switches with sensors
In Automatic ON Mode, the lights turn ON automatically when a person enters the room. In
Manual ON Mode, the lights are turned ON by pressing the Pushbutton. In either mode, the
lights stay ON as long as the sensor detects motion in the room. When the room is vacated, the
lights turn OFF automatically after a preset Time Delay interval.
The Daylighting feature prevents lights from turning ON, when the room is adequately illuminated
by natural light.
Vacancy Mode prevents motion from automatically turning on the lights upon initial activation.
To place the unit into vacancy mode, press and hold the ON/OFF button for 5 seconds until the
indicator LED blinks. Release the button while the LED is blinking. Repeat this procedure to
restore to normal automatic activation.
MAJOR MOTION
1000 SQ. FT.
MINOR MOTION
300 SQ. FT.
0
8’
Minor Motion, IR
15’
minutes (factory default), 10, and 30 minutes
Coverage: Major motion – 1000 sq. ft.
Minor motion – 300 sq. ft.
Light Level Sensing: 0 to 200 foot-candles
Operating Environment:
• Temperature: 32° F – 104° F (0° C – 40° C)
• Relative Humidity: 20% to 90%
Non-condensing
Housing: Durable, injection molded housing.
Polycarbonate resin complies with UL94VO
Size: Mounting Plate/Strap Dimensions:
4.2" H x 1.8" W (106.5 mm x 46 mm)
Product Housing Dimensions:
2.87" H x 1.6" W x 1.42” D (72.8 mm x
40.7 mm x 36 mm)
LED Indicators: Green LED indicates load status
and motion detection
COVERAGE PATTERN
Technology: Passive Infrared (PIR)
Electrical Ratings:
120 VAC:
• Incandescent/Magnetic Low
Voltage/Magnetic Ballast – Max. load: 15A,
1800W, 60 Hz
• LED/Compact Fluorescent/Electronic Low
Voltage/Electronic Ballast – Max. load: 10A,
1200W, 60 Hz
Motor Load: ½ HP @ 125 VAC
277 VAC:
• Magnetic Low Voltage/Magnetic Ballast/
LED/Compact Fluorescent/Electronic Low
Voltage/Electronic Ballast – Max. Load:
8A, 2200W, 60 Hz
No Minimum Load Requirement
Time Delays: selectable 5 seconds/test, 5
0
Specifications
36’
• For indoor use only
8’
• Read all instructions on both sides of this
sheet first
• Install in accordance with ALL local codes
15’
General Information
Model # OSW-P-1001-MV
Major Motion, IR
1.
2.
3.
4.
Make sure power is turned OFF at the branch circuit breaker.
Wire units as shown in wiring diagrams per applicable voltage requirements.
Mount unit to Wall Box.
Turn power back ON at the branch circuit breaker and wait 30 seconds for the unit
to stabilize.
5. Make necessary adjustments. (See Checkout and Adjustments section)
6. Install Wall Switch plate.
Maximum coverage area may
vary somewhat according to room
shape and the presence of obstacles.
DIAGRAM 1A: SENSOR IN ONE LOCATION
The NEMA WD 7 Guide and robotic
method were utilized to verify
coverage patterns
Hot
Black
Maximum coverage area may vary somewhat according to room shape and the presence of
obstacles.
Ground
Bare
Location When installing the OSW-P-1001-MV in a new junction box, choose the switch location
carefully to provide optimum coverage of the occupied area. When replacing an existing Wall
Switch, bear in mind that there must be a clear Line-of-sight between the sensor and the area to be
covered. Avoid pointing the OSW-P-1001-MV directly into the hallway where it may detect
passers-by.
Cooper Controls
203 Cooper Circle, Peachtree City, GA 30269
800-553-3879
www.coopercontrol.com
Red
Green
Light Fixture
Neutral
White
DIAGRAM 2A: SWITCH IN LOCATION WITH HOT WIRE
First Location
Hot
Black
Second Location
Black Traveler
120/277V
Hot
Black
Override Mode is used to turn OFF all motion sensing and allows the device to be used as a
regular ON/OFF switch or in the unlikely event of failure of the motion sensor. Press and hold the
ON/OFF button for 10 seconds until the LED indicator blinks for the second time (the LED will
also blink at the 5 second point). Release the button while the LED is blinking. Repeat this
procedure to restore normal operation.
ON/OFF Button Disable Mode disables the ON/OFF button and sensor becomes automatic only
control regardless of the setting for automatic or manual activation. This feature will not allow
someone to turn light(s) OFF via the Pushbutton while people are in common areas such as
restroom, break room, and copy room areas. To place the unit into ON/OFF Button Disable
Mode, press and hold the ON/OFF button for 15 seconds until the LED indicator blinks for the
third time (the LED will also blink at the 5 seconds and 10 seconds point) and then release the
button while the LED is blinking. Repeat this procedure to restore normal operation.
120/277V
Black
Relay OUT
3-Way
Blue
Installation
The OSW-P-1001-MV can be installed in any standard single gang box. It may be installed in the
same manner as an ordinary Wall Switch.
• Wire the OSW-P-1001-MV as described in the wiring section.
• Mount the OSW-P-1001-MV in the junction box.
Black
120/277V
Hot
Relay IN
Orange
Relay IN
Orange
Ground
Bare
Relay OUT
Red
Green
3-Way
Blue
3-Way Switch
Red Traveler
Neutral
Neutral
White
White
120/277V
Black
Light
Fixture
Daylight Sensing Adjustment:
• The Daylight sensing feature prevents lights from turning ON when the room is adequately
illuminated by natural light.
• NOTE - The factory setting for this adjustment is fully clockwise and permits motion detection
to turn ON the lights regardless of the ambient light level in the room.
• Remove the ON/OFF Pushbutton to access the light level adjustment. See Fig. 5.
• This adjustment must be made when the light level in the room is at the desired level for the
lights to turn ON.
• From the clockwise position, turn the dial on the left counter-clock-wise using a small Phillips
screwdriver until the LED starts to flash. See Fig. 4.
• Step away from the sensor to allow the device to calibrate to the normal light level in the room.
Do not obstruct the natural light. The calibration process starts when the LED and lights turn
OFF, and will take approximately 15 seconds. After completion the lights will turn on.
• Replace the ON/OFF Pushbutton.
DIAGRAM 2B: SENSOR ONE IN LOCATION WITH HOT WIRE
First Location
Hot
Black
Second Location
Black Traveler
120/277V
Hot
Black
120/277V
Relay IN
Orange
Ground
Bare
Relay OUT
Red
Green
Ground
Light
Fixture
Traveler
Red
3-Way
Blue
Troubleshooting
Issue
Possible Causes
Suggestions
Circuit breaker is turned OFF, or fuse is
blown
Turn circuit breaker ON, or replace fuse
Light bulb is defective
Replace Light bulb
Poor connection
Verify all wiring connections
Control may be wired incorrectly
Check wiring
Daylight sensing prevents lights ON
Re-adjust daylight sensing level
Manual On mode selected
Set device to Automatic On mode.
Motion is still present
Make sure there is no motion during the Time
Delay period
Time Delay has not expired
No action needed or shorten TIME DELAY
Control may be wired incorrectly
Check wiring
Switch is being triggered by air vent or
other heat source
Move switch to the other switch location (if a 3way), or determine the source triggering the
switch, and alter the air flow.
Motion is not detected
Create movement in front of the sensor for
5 seconds
TIME control is set for too short a delay
Set switch TIME control to longer time period
Control may be wired incorrectly
Check wiring
Light does not
automatically
turn ON.
White
FIGURE 4
3-Way
Switch
FIGURE 5:
TURN TO SET
5
10
DIAGRAM 3: SENSORS IN BOTH LOCATIONS
LIGHT LEVEL
30
TEST
Neutral Traveler
White
TIME DELAY
Black Traveler
Red Traveler
120/277V
Hot
Black
120/277V
Black
Black Traveler
Relay IN
Orange
Ground
Bare
FIGURE 5
120/277V
Hot
Black
Hot
Black
Light does not
automatically
turn OFF.
Relay OUT
Red
Ground
Bare
Green
Relay IN
Orange
Relay OUT
Red
Light
Fixture
Green
3-Way
3-Way
Blue
Blue
2. LIFT UP
BUTTON
Lights
Will Not
Stay ON
1. PRESS TO
RELEASE HOOK
Neutral
White
Checkout and Adjustment
Adjustments should be made with the HVAC system ON so that the installer will be able to
detect the effect of airflow on the operation of the OSW-P-1001-MV. Use only insulated tools to
make adjustments. Immediately after applying power to the lighting circuit, wait approximately
30 seconds for the switch to power up and stabilize.
Verify that Power is ON by pushing the ON/OFF button. Lights should turn ON.
Coverage and sensitivity can be confirmed by watching the green (PIR) indicator LED on the
front of the sensor, while moving around the room.
1. Walk around the room and monitor the LED.
2. Stand in different parts of the room and wave your hands. LED should only turn ON with each
motion. (If LED does not turn ON, go to troubleshooting).
Remote switch
does not work
Special Modes:
• Vacancy Mode – Press and hold the ON/OFF button for 5 seconds until the indicator LED
blinks. Release the button while the LED is blinking. Repeat this procedure to restore to normal
automatic activation.
• ON/OFF Button Disable Mode - Press and hold the ON/OFF button for 15 seconds until the
LED indicator blinks for the third time (the LED will also blink at the 5 seconds and 10 seconds
point) and then release the button while the LED is blinking. Repeat this procedure to restore
normal operation.
• Override Mode - Press and hold for 10 seconds until LED blinks for the second time. Repeat
this procedure to restore normal operation.
Time Delay Adjustment:
1. Remove the button from the sensor by pressing in the hooks on the button, and then lift up
on the button as shown in Figure 5.
2. Set the Time Delay using the dial on the right side by using a small Phillips head screwdriver.
Align the arrow on the dial to the desired Time Delay (see Figure 4).
3. To allow the installer to quickly confirm that the sensor is functioning properly the Time Delay
can be set to TEST. This will set the Time Delay to 5 seconds.
4. Replace the button by sliding it upward into the slots in the front housing and push down until
the button hooks snap into place.
Cooper Controls
203 Cooper Circle, Peachtree City, GA 30269
800-553-3879
www.coopercontrol.com
Printed in China
P/N OSWA-PTA Rev A
P/N OSP10MA-CC-PTA
If lights will not operate properly, call Technical Services at 1-800-553-3879
Limited Warranty
All products manufactured by Cooper Controls and identified with the Greengate brand are warranted to be free from defects in
material and workmanship and shall conform to and perform in accordance with Seller’s written specifications for a period of: Five
(5) years from date of shipment for all occupancy sensors and Three (3) years from date of factory invoice for our hardware and
software on Lighting Control Panels. We warranty all our standard relays for a period of 10 years from date of factory invoice. We
guarantee the performance of our system to specifications or your money back. This warranty will be limited to the repair or
replacement, at Seller’s discretion, of any such goods found to be defective, upon their authorized return to Seller. This limited
warranty does not apply if the goods have been damaged by accident, abuse, misuse, modification or misapplication, by damage
during shipment or by improper service. There are no warranties, which extend beyond the hereinabove-limited warranty,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS.
No employee, agent, dealer, or other person is authorized to give any warranties on behalf of the Seller or to assume for the Seller
any other liability in connection with any of its goods except in writing and signed by the Seller. The Seller makes no representation
that the goods comply with any present or future federal, state or local regulation or ordinance. Compliance is the Buyer’s
responsibility. The use of the Seller’s goods should be in accordance with the provision of the National Electrical Code, UL and/or
other industry or military standards that are pertinent to the particular end use. Installation or use not in accordance with these
codes and standards could be hazardous.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
