HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Overview

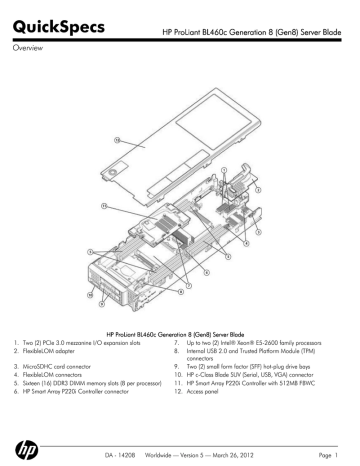

HP ProLiant BL460c Generation 8 (Gen8) Server Blade
1. Two (2) PCIe 3.0 mezzanine I/O expansion slots
7. Up to two (2) Intel® Xeon® E5-2600 family processors
2. FlexibleLOM adapter
8. Internal USB 2.0 and Trusted Platform Module (TPM)
connectors
3. MicroSDHC card connector
9. Two (2) small form factor (SFF) hot-plug drive bays
4. FlexibleLOM connectors
10. HP c-Class Blade SUV (Serial, USB, VGA) connector
5. Sixteen (16) DDR3 DIMM memory slots (8 per processor)
11. HP Smart Array P220i Controller with 512MB FBWC
6. HP Smart Array P220i Controller connector
12. Access panel
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 1
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Standard Features
NOTE: This document covers the HP ProLiant BL460c Gen8 server blade only. For information on HP BladeSystems c-Class
Enclosures and HP BladeSystem c-Class Interconnect and Mezzanine Components, please see the following:
HP BladeSystem c-Class Enclosures QuickSpecs:
HP BladeSystem c3000 Enclosure QuickSpecs at
http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html
HP BladeSystem c7000 Enclosure QuickSpecs at
http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html
HP BladeSystem c-Class Interconnect and Mezzanine Components at
http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html
NOTE: For proper BladeSystem operation, the minimum required versions of HP Onboard Administrator and HP Virtual Connect
are required and available via the HP Service Pack for ProLiant, please see http://www.hp.com/go/spp/download.
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory
Integrated Models" section.
Processor
Eight-Core Processors
One of the following
Intel® Xeon® E5-2680 (2.70GHz/8-core/20MB/130W) Processor
depending on Model
Intel® Xeon® E5-2670 (2.60GHz/8-core/20MB/115W) Processor
Intel® Xeon® E5-2665 (2.40GHz/8-core/20MB/115W) Processor
Intel® Xeon® E5-2660 (2.20GHz/8-core/20MB/95W) Processor
Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/95W) Processor
Intel® Xeon® E5-2650L (1.80GHz/8-core/20MB/70W) Processor
Six-Core Processors
Intel® Xeon® E5-2667 (2.90GHz/6-core/15MB/130W) Processor
Intel® Xeon® E5-2640 (2.50GHz/6-core/15MB/95W) Processor
Intel® Xeon® E5-2630 (2.30GHz/6-core/15MB/95W) Processor
Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/60W) Processor
Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/95W) Processor
Quad-Core Processors
Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) Processor
Intel® Xeon® E5-2603 (1.80GHz/4-core/10MB/80W) Processor
Dual-Core Processors
Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/80W) Processor
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 2
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Standard Features
Cache Memory
One of the following
depending on Model
20MB (1x20MB) L3 cache
NOTE: For Eight-core processors.
15MB (1x15MB) L3 cache
NOTE: For Six-core processors.
10MB (1x10MB) L3 cache
NOTE: For Quad-core processors.
5MB (1x5MB) Level 3 cache
NOTE: For Dual-core processors.
Chipset
Intel® C600 Series Chipset
Intel® E5-2600 Processor Family
NOTE: For more information regarding Intel chipsets, please see the following:
http://www.intel.com/products/server/chipsets/.
Upgradeability
Upgradeable to two (2) processors
On System Management HP iLO (Firmware: HP iLO 4)
Processor
NOTE: For more information, visit: http://www.hp.com/go/ilo
Memory Protection
Advanced ECC
Online spare mode
Lockstep mode
Memory
One of the following
depending on Model
Type
HP SmartMemory
DDR3 Load Reduced (LRDIMM), Registered (RDIMM), or Unbuffered ECC
(UDIMM)
Standard (Pre-configured 64GB (8 x 8GB) DDR3 1600MHz RDIMMs at 1.5V
Models)
32GB (4 x 8GB) DDR3 1600MHz RDIMMs at 1.5V
32GB (4 x 8GB) DDR3 1333MHz RDIMMs at 1.35V
16GB (4 x 4GB) DDR3 1333MHz RDIMMs at 1.35V
Maximum (LRDIMM)
512GB (16 x 32GB) up to 1333MHz at 1.35V
Maximum (RDIMM)
256GB (16 x 16GB) up to 1600MHz at 1.5V
256GB (16 x 16GB) up to 1333MHz at 1.35V
Maximum (UDIMM)
128GB (16 x 8GB) up to 1333MHz at 1.35V
NOTE: HP memory from previous generation servers are not qualified or warranted with this server. HP
SmartMemory is required to realize the memory performance improvements and enhanced functionality
listed in this document for Gen8. For additional information, please see the HP SmartMemory
QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html
NOTE: LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be mixed within
a server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM and LRDIMM.
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 3
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Standard Features
Network Controller
One (1) HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM
NOTE: Supports FCoE, Flex-10, TCP/IP offload engine, hardware-based accelerated iSCSI, iSCSI boot,
and autosensing 10Gb/1Gb Ethernet.
NOTE: Each port is autosensing 1Gb/10Gb, and can interoperate with 1Gb HP BladeSystem c-Class
interconnect components. Both ports will operate at the same speed.
NOTE: FlexFabric capabilities require the use of an HP Virtual Connect FlexFabric module. Fibre
Channel over Ethernet (FCoE) is supported with the HP 10GbE Pass-Thru Module, HP 6120XG Blade
Switch with the CEE license installed, HP Cisco B22HP Fabric Extender and HP Cisco B22HP Fabric
Extender with 16 FET for BladeSystem c-Class. Learn more at:
http://www.hp.com/go/bladesystem/interconnects
Expansion Slots
Two (2) I/O expansion mezzanine slots:
x16 PCIe 3.0 Type A (supports Type A mezzanine cards) (expansion slot 1).
NOTE: This expansion slot supports dual-port mezzanine cards: one port is routed to interconnect
module bay 3 and the other to bay 4.
x16 PCIe 3.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 2).
NOTE: This expansion slot supports dual-port and quad-port mezzanine cards. For dual-port
cards, one port is routed to interconnect module bay 5 and the other to bay 6. For quad-port
cards, one port is routed to interconnect module bay 5, one to bay 6, one to bay 7, and one to
bay 8.
NOTE: A second processor must be installed (in processor slot 2) to have access to the second
expansion slot (expansion slot 2).
Mezzanine card options include:
Dual-port 10Gb FlexFabric and10Gb Flex-10 for additional network ports.
Dual-port 8Gb Fibre Channel HBA for SAN connectivity.
QDR and FDR InfiniBand for low latency and high bandwidth server interconnectivity.
HP Server ROM
HP ROM (read only memory) is now digitally signed using HP's Corporate Signing Service. This signature
is verified before the flash process starts, reducing accidental programming and preventing malicious
efforts to corrupt system ROM.
HP ROM provides for essential initialization and validation of hardware components before control is
passed to the customer-installed operating system. The ROM also provides the capability of booting from
various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the
operating system.
HP ROM performs very early configuration of the video controller, to allow monitoring of initialization
progress via an attached monitor. If configuration or hardware errors are discovered during this early
phase of hardware initialization, suitable messages are now displayed on the connected monitor.
Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML)
to assist in diagnosis.
HP's ProLiant ROM is used to configure the following:
Processor and chipset status registers
System memory, memory map, and memory initialization
System hardware configuration (integrated PCI devices and optional PCIe cards).
Customer-specific BIOS configuration using the HP ROM-Based Setup Utility (RBSU).
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 4
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Standard Features
NOTE: For further information, please refer to HP's RBSU (ROM based setup utility) user guide:
www.hp.com/support/rbsu
Storage Controller
All Models
Maximum Internal
Storage
Hot Plug SFF SAS
2.0TB
2 x 1.0TB
Hot Plug SFF SATA
2.0TB
2 x 1.0TB
Hot Plug SFF SAS SSD
1.6TB
2 x 800GB
NOTE: The ProLiant BL460c Gen8 server includes the new HP hot plug small form factor (SFF)
SmartDrive carrier for enhanced management and reduced maintenance errors. HP drives from previous
generation servers are not compatible with the ProLiant BL460c Gen8 drive bays.
Interfaces
Micro SDHC Slot
One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot
USB 2.0 Port
One (1) internal USB 2.0 connector for USB flash media drive keys
NOTE: The above options are for integrated hypervisor virtualization environments needing a low cost
boot solution with the highest performance and reliability.
Industry Standard
Compliance
ACPI 2.0
Microsoft® Logo certifications
USB 2.0 Support
IMPI 2.0
Secure Digital 2.0
TMP 1.2 Support
IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed)
Advanced Encryption Standard (AES)
Triple Data Encryption Standard (3DES)
SNMP
SSL 2.0
DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
Active Directory v1.0
PCIe 3.0
DA - 14208
One (1) HP Smart Array P220i Controller with 512MB Flash-Backed Write
Cache (FBWC) supporting RAID 0 and RAID 1.
NOTE: Upgradeable firmware with recovery ROM.
NOTE: The HP Smart Array P220i supports two (2) small form factor (SFF)
hot plug drive bays.
NOTE: The server supports up to a combined total of two (2) FBWC
supercap options.
Available Options: Smart Array Advanced Pack Software for enhanced
performance, reliability, availability, and security of system data
Worldwide — Version 5 — March 26, 2012
Page 5
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Standard Features
Operating Systems and
Virtualization Software
Support for ProLiant
Servers
Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Solaris
VMware
Citrix XenServer
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server, please visit our Support Matrix at:
http://www.hp.com/go/ossupport
Enclosures
HP offers two different c-Class server blade enclosures to meet your individual needs:
The HP BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant
BL460c Gen8 servers plugged vertically.
The HP BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HP ProLiant
BL460c Gen8 servers plugged horizontally.
Server blades, storage blades, interconnect modules, power supplies, fans, and redundant
Onboard Administrator modules are all designed to fit into the c3000 and c7000 enclosures.
NOTE: For additional enclosure information, please see:
http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html
Graphics
Integrated Matrox G200 video standard
1280 x 1024 (32 bpp)
1920 x 1200 (16 bpp)
Form Factor
HP ProLiant BL460c Gen8 is a half-height server blade that plugs into the HP BladeSystem c3000 and
c7000 enclosures.
On System Management HP iLO Management
Engine
HP iLO Management Engine is a complete set of embedded management
features supporting the complete lifecycle of the server, from initial
deployment, through ongoing management, to service alerting and remote
support. HP iLO Management Engine comes standard on all HP ProLiant
Gen8 servers. The HP iLO Management Engine portfolio includes:
HP iLO: The HP iLO management processor is the core foundation for
HP iLO Management Engine. HP iLO for HP ProLiant servers simplify
server setup, engage health monitoring and power and thermal
control, and promote remote administration for HP ProLiant ML, DL,
BL and SL servers. Furthermore with the new HP iLO is the ability to
access, deploy, and manage your server anytime from anywhere with
your Smartphone device.
HP Agentless Management: With HP iLO Management Engine in
every HP ProLiant Gen8 server, the base hardware monitoring and
alerting capability is built into the system (running on the HP iLO
chipset) and starts working the moment that a power cord and an
Ethernet cable is connected to the server.
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 6
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Standard Features
HP Active Health System: HP Active Health System is an essential
component of the HP iLO Management Engine. The HP Active Health
System monitors and records changes in the server hardware and
system configuration. The Active Health System assists in diagnosing
problems and delivering rapid resolution when system failures occur.
HP Intelligent Provisioning (previously known as SmartStart): HP
Intelligent Provisioning offers the ability for out-of-the box single-server
deployment and configuration without the need for media.
NOTE: For more information, visit http://www.hp.com/go/ilo
HP Insight management
software
HP Service Pack for
ProLiant (SSP)
HP Service Pack for ProLiant (SPP) and HP Smart Update Manager (HP SUM)
version 5 provide a new, comprehensive approach to firmware and system
software maintenance. Together they provide better operating stability and
ensure maximum uptime. The SPP will be updated at a predictable cadence,
typically coinciding with new HP server hardware launches. By enabling all
firmware to be updated online and integrating firmware and system software
updates in one operation HP SUM and the SPP offer faster updates of
individual servers and dramatically faster updates of entire BladeSystem
enclosures. Further improving system uptime and stability is the fact that HP
provides 12 months of support on each Service Pack for ProLiant.
The user experience around HP SUM and the SPP has been improved in
several ways, starting with the web download. A single web page provides
access to a single download containing both the latest version of HP SUM
version 5 and the latest SPP. Optional smaller subsets with only specific types
of servers or specific operating systems are offered to save on download
time. The HP SUM application has been re-written to provide a more
straightforward, intuitive user interface that guides the user through the steps
of discovery, analyses and update, providing comprehensive information on
available updates, criticality and interdependencies. This information is also
available in reports. By providing the option of multiple local or shared
repositories which can be easily updated from hp.com, HP SUM provides the
tools to optimize stability and consistency throughout the company. While HP
SUM and the SPP will recommend the combinations of firmware and system
software that HP has found to be the best practice, the application gives
customers the flexibility to set their own specific baseline.
The Service Pack for ProLiant has been rigorously tested with specific
attention for interaction between firmware, drivers and agents both within the
server as well as in interaction with the BladeSystem enclosure components
(Onboard Administrator and Virtual Connect). This testing ensures the
highest quality as well as providing the input for HP SUM to deploy updates
taking into account all interdependencies, when determining the correct
updates and order of update deployment.
The Service Pack for ProLiant (which includes HP SUM 5) can be
downloaded from www.hp.com/go/spp/download. More information can be
found: www.hp.com/go/spp and http://www.hp.com/go/hpsum
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 7
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Standard Features
Security
Availability
Power-on password
Administrator's password
Keyboard password (QuickLock)
HP iLO 4 On System Management Chipset with:
SSL encryption
Secure Shell version 2
Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on
browser, CLP and XML scripting interface
AES and RC4 encryption of video
External USB port enable/disable
Network server mode
Serial interface control
TPM (Trusted Platform Module) 1.2 option
Advanced Encryption Standard (AES)
Intel® Advanced Encryption Standard-New Instructions (AES-NI)
Memory
Advanced ECC uses single device data correction (SDDC) to detect and correct single and all
multi-bit error that occurs within a single DRAM chip. Both x4 and x8 SDDC are supported (x8
requires lockstep mode).
Memory online spare mode (also known as rank spare mode) detects a rank that is degrading and
switches operation to the spare rank.
Memory Lockstep mode is used to correct a single x8 DRAM device failure on a DIMM. The
DIMMs in each paired memory channel must have identical HP part numbers.
Memory demand and patrol scrubbing to prevent accumulation of correctable errors and
reducing the likelihood of unplanned downtime.
Failed DIMM isolation improves the service time thus improving the overall system availability.
Address parity protection available on RDIMMs and LRDIMMs detects address bit errors to
improve service time and overall system availability.
Mezzanine options and I/O
" FlexibleLOM (LAN on Motherboard) connector supporting two (i.e. redundant) Ethernet ports.
Multiple mezzanine I/O expansion slots that support a wide variety of mezzanine cards each
supporting multiple data paths routed to redundant interconnect modules.
Network Adapter Teaming (bonding) provides network fault tolerance, transmit load balancing,
and switch-assisted load balancing.
Storage
Two (2) hot-plug SAS/SATA/SSD drive bays.
Integrated HP Smart Array P220i Controller with 512MB FBWC, RAID 0 and 1 support, and
upgradeable firmware with recovery ROM capability.
Optional HP D2200sb Storage Blade for direct attachment of up to 12 drives to an adjacent
blade within the c-Class enclosure.
Optional dual-port Fibre Channel mezzanine card(s) for redundant SAN connections.
Processor/Chipset
Processor internal sensors & thermal control protection against over-temperature conditions.
Cache parity/ECC protects cache data from accidental data corruption.
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 8
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Standard Features
Machine Check Architecture (MCA) detects and captures hardware errors such as system bus,
memory ECC, parity, and cache, and improves service time.
Intel® QPI Protocol Protection allows detection of data errors using a checksum of 8-bits.
Core Disable for FRB (fault resilient boot) allows a system to power-on despite a failing core-pair.
It uses BIST (built-in self test) results to detect a failure and disables the target core-pair upon
subsequent boot.
Server Blade Enclosure Infrastructure
Pooled power for true N+N power redundancy through up to six (6) hot-plug, high-efficiency,
common slot enclosure-based power supplies (configuration dependent).
Up to ten (10) redundant enclosure-based hot-plug HP Active Cool fans that scale to meet future
demands and optimize airflow, reduce power draw, and improve acoustic performance.
Dual grid power providing redundant rack enclosure power feeds to the server blade enclosure.
HP Dynamic Power Saver Mode the total enclosure power consumption is monitored in real time
and automatically adjusted with changes in demand for improved efficiency and reliability.
HP Dynamic Power Capping safely limits power usage without impacting performance by capping
peak usage instead of average power usage, removes risk to electrical infrastructure with a fastacting, hardware-based capping algorithm, and reclaims more power by dynamically controlling
power limits based on workload demand.
Up to eight interconnect modules per server blade enclosure providing four simultaneous
redundant fabrics for FlexFabric, Virtual Connect Ethernet, Fibre Channel, InfiniBand, Pass Thru
Ethernet, etc.
Enclosure crosslinks between adjacent enclosures to provide interconnect module-to-module
connections or as Virtual Connect module stacking links.
Optional enclosure redundant Onboard Administrator system management module.
Warranty
This product is covered by a global limited warranty and supported by HP Services and a worldwide
network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for
three years from date of purchase. Support for software and initial setup is available for 90 days from
date of purchase. Enhancements to warranty services are available through HP Care Pack services or
customized service agreements. Certain restrictions and exclusions apply. Hard drives have either a one
year or three year warranty; refer to specific hard drive QuickSpecs for details.
NOTE: Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Warranty repairs
may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two
categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will
result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also
designed for easy replacement but may involve added complexity. Customers may choose to have HP
replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty
and technical support is available at
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html.
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 9
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Optional Features
Fibre Channel Support
Up to two (2) optional Fibre Channel mezzanine HBAs are supported on the HP ProLiant BL460c Gen8.
Compatible SAN
HP ProLiant BL460c Gen8 server blades are optimized for HP MSA, EVA and XP.
HP ProLiant BL460c Gen8 server blades are compatible with select 3rd party SANs. Please see blade
storage page for more details at
http://h18004.www1.hp.com/products/blades/components/c-class-sans.html.
HP Virtual Connect
HP Virtual Connect is an interconnect option for BladeSystem c-Class that simplifies server connectivity to
data and storage networks, and reduces costs. Unique HP Flex-10 technology makes maximum use of
network bandwidths, provide dynamic tuning and enable extreme flexibility to meet individual server and
infrastructure requirements by allocating up to 4 network connections per server port. Virtual Connect
FlexFabric modules extend those capabilities to allocate one function per port to storage connections.
HP Virtual Connect Enterprise Manager (VCEM) provides server management software with a central
console to administer network connections and workloads for thousands of servers. For more
information on Virtual Connect Enterprise Manager, see http://www.hp.com/go/vcem. For more
information on Virtual Connect Ethernet, Fibre Channel, Converged Network and management options,
see http://www.hp.com/go/virtualconnect.
HP Insight management
software
HP Insight Control
HP Matrix Operating
Environment
HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to
deploy, migrate, monitor, remote control, and optimize your IT infrastructure
through a single, simple management console.
Two versions of Insight Control are available, to serve environments requiring
either a Linux-based or a Windows-based central management server: HP
Insight Control for Linux, and HP Insight Control. For more information, see
http://www.hp.com/go/insightcontrol.
HP Insight Control includes one year of 24 x 7 HP Software Technical
Support and Update Service ensuring rapid access to HP support staff and
proactive delivery of software updates. For more information about this
service, see http://www.hp.com/services/insight.
The HP Matrix Operating Environment (Matrix OE) for ProLiant and Integrity
servers is an integrated command center that helps you instantly adjust to
dynamic business demands. This advanced infrastructure management
software lets you reduce the cost of common data center tasks by up to 40
percent while keeping pace with your changing business.
The HP Matrix OE includes the automated provisioning, optimization, and
recovery management capabilities for HP CloudSystem Matrix, the ideal
platform for private cloud and Infrastructure as a Service (IaaS). For more
information, see http://www.hp.com/go/matrixoe.
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 10
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Optional Features
HP iLO Advanced License HP iLO management processors for HP ProLiant Gen8 servers virtualizes system controls to help simplify
for ProLiant Servers
server setup, engage health monitoring and power and thermal control, and promote remote
administration. HP iLO functions out-of-the-box without additional software installation and functions
regardless of the servers' state of operation. The HP iLO can be accessed from any location via a web
browser and works hand-in-hand with HP Systems Insight Manager, Insight Control, and Matrix
Operating Environment, helping customers unleash the value of the ProLiant platform and deliver the
highest possible quality of IT service to the business.
Advanced functionality, such as graphical remote console, multi-user collaboration, and video
record/playback can be activated with the optional HP iLO Advanced or HP iLO Advanced for
BladeSystem licenses. The Advanced licensed features offer sophisticated remote administration of
servers in dynamic data center and remote locations and can help significantly reduce cost associated
with IT-related travel and unplanned downtime.
NOTE: For more information, visit http://www.hp.com/go/ilo.
High Performance
Clusters
HP Cluster Platforms
HP Cluster Platforms are specifically engineered, factory-integrated largescale ProLiant clusters optimized for High Performance Computing, with a
choice of servers, networks and software. Operating system options include
specially priced offerings for Red Hat Enterprise Linux and SUSE Linux
Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster
Platform Configurator simplifies ordering. http://www.hp.com/go/clusters
HP HPC Interconnects
High Performance Computing (HPC) interconnect technologies are available
for this server as part of the HP Cluster Platform portfolio. These high-speed
InfiniBand and Gigabit interconnects are fully supported by HP when
integrated within an HP cluster. Flexible, validated solutions can be defined
with the help of configuration tools.
http://www.hp.com/techservers/clusters/ucp/index.html
HP Insight Cluster
HP Insight Cluster Management Utility (CMU) is an HP-licensed and HPManagement Utility
supported suite of tools that are used for lifecycle management of hyperscale
clusters of Linux ProLiant systems. CMU includes software for the centralized
provisioning, management and monitoring of nodes. CMU makes the
administration of clusters user friendly, efficient, and effective.
http://www.hp.com/go/cmu
HP HPC Linux Value Pack HP HPC Linux Value Pack is an HP-licensed and HP-supported option to HP
Insight CMU, for the development and deployment of applications on HPC
Cluster Platforms. Value Pack includes the Platform LSF workload scheduler
and Platform Application Center, as well as the HP-MPI parallelization
library.
http://h20311.www2.hp.com/hpc/us/en/linux-value-pack.html.
HP Insight Online
HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and
HP support information personalized to your IT environment. Insight Online can automatically display
devices remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can
efficiently track your IT support contracts and device status from anywhere and at anytime.
http://www.hp.com/go/insightonline
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 11
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Optional Features
Expansion Blade Support Supports one (1) optional storage, tape, or PCI expansion blade.
Factory Express Portfolio HP Factory Express offers configuration, customization, integration and deployment services for HP
for Servers and Storage servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.
For more information on Factory Express services on your specific server model please contact your sales
representative or go to: http://www.hp.com/go/factory-express.html
HP Enterprise
Configurator
The HP e-Configure Enterprise Configurator now provides factory default racking for our HP hardware
portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our
valued customers. If you require "custom" rack configuration, please contact HP's Customer Business
Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 12
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Service and Support
Service and Support
HP Technology Services for Industry Standard Servers and BladeSystem
Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who
understands your increasingly complex business technology environment. That's why it makes sense to
team up with the people who know HP infrastructure hardware and software best - the experienced
professionals at HP Services.
What HP ProLiant and BladeSystem Services can do for you
HP ProLiant and BladeSystem Services can help you design, deploy, test, integrate, support, and manage
IT and infrastructure solutions. This way, HP proposes services solutions that include more than just uplift
of base warranty. Foundation Care services deliver scalable support-packages for HP industry-standard
servers and software. You can choose the type and level of service that is most suitable for their business
needs. New to this portfolio is HP Collaborative Support. If you are running business critical
environments, HP offers Proactive Care or Critical Advantage. These services help deliver high levels of
application availability through proactive service management and advanced technical response.
You can get the support you need by choosing from one of a number of service packaged solutions we
have designed to address wider set of customer support needs.
HP Technology Services meets business challenges with services offered in three support
recommendations - Optimized Care Package, Standard Care Package, and Basic Care - available for
each product group. Such packaged solutions enable customers to optimize technology operations,
minimize risk and drive better business outcomes with easy-to-buy, easy-to-use scalable support
packages for servers, storage, networking and software.
All three service recommendations include support services from the broader portfolio of Foundation
Care and Proactive Care services.
Optimized Care Package Supports maintaining servers at optimum performance availability
HP Installation and Startup Service for HP BladeSystem c-Class Infrastructure for c3000/c7000
enclosure
Provides for the installation and startup of a BladeSystem c3000 Infrastructure in a single blade
enclosure including hardware and software, including deployment of OS, HP SIM, RDP, RDP, PMP and
VPM. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-5964ENW.pdf
3-Year HP 24x7 4 hour Response, Proactive Care OR Critical Advantage for c3000/c7000 enclosure
+ 3-Year HP 24x7 4 hour Response, Proactive Care or Critical Advantage for Blade server
Helps optimize your systems and delivers high levels of application availability through proactive service
management and advanced technical response. A skilled Technical Manager will own your query or
issue end to end until resolved, delivering a single point of contact for you.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-2140ENW.pdf
Additional Services: Virtualization Services - Strategy, Design, Transition, Operation, Continual Service
Improvement.
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 13
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Service and Support
Standard Care Package
Support Recommendation that maintains high level of server availability
HP Installation and Startup Service for HP BladeSystem c-Class Infrastructure for c3000/c7000
enclosure
Provides for the installation and startup of a BladeSystem c3000/c7000 Infrastructure in a single blade
enclosure including hardware and software, including deployment of OS, HP SIM, RDP, RDP, PMP and
VPM
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-5964ENW.pdf
HP Installation and Startup Service for HP BladeSystem c-Class Enhanced Network
HP Provides for the configuration and testing of BladeSystem Ethernet interconnect switches to facilitate
proper implementation of network protocols and access to advanced features
http://h20195.www2.hp.com/V2/GetPDF.aspx/4aa0-5969ENW.pdf
3-Year, HP 24x7 4 hour Response, Collaborative Support for c3000/c7000 enclosure + 3-Year, HP
24x7 4 hour Response, Collaborative Support for Blade server
Offers customers a single point of contact for server problem diagnosis, hardware problem resolution,
and basic software problem diagnosis, fault isolation, and resolution if available to HP. If the problem is
with HP HW, the representative will arrive on site any time and day of the year to begin hardware
maintenance service within 4 hours of the service request being logged. In case, the issue is with HP or
supported third-party software product and cannot be resolved by applying known fixes, HP will contact
the third-party vendor and create a problem incident on your behalf.
3-Year , HP 24x7 Software Support for Insight Control
Provides for the deployment and basic configuration of HP Insight Control on HP ProLiant ML and DL
series servers or HP BladeSystem servers
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf
1-Year HP Proactive Select 30 Credit
Provides a flexible way to purchase HP best-in-class consultancy and technical services
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-3842ENN.pdf
Additional Services:
Services Software OS (Microsoft, Linux (SUSE/Red Hat) & VMware Installation & Start Up
and Software Support); Microsoft or Linux or VMware education courses; +60 Proactive Select Credits,
Factory Express.
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 14
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Service and Support
Basic Care Package
Delivers minimum recommended support service level
HP Installation and Startup Service for HP BladeSystem c-Class Infrastructure for c3000/c7000
enclosure
Provides for the installation and startup of a BladeSystem c3000/c7000 Infrastructure in a single blade
enclosure including hardware and software, including deployment of OS, HP SIM, RDP, RDP, PMP and
VPM
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-5964ENW.pdf
3-Year, HP 24x7 4 hour Response, Hardware Support Onsite Service for c3000/c7000 enclosure +
3-Year, HP 24x7 4 hour Response, Hardware Support Onsite Service for Blade server
Provides you with rapid remote support and if required an HP authorized representative who will arrive
on site any time and day of the year to begin hardware maintenance service within 4 hours of the service
request being logged
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE.pdf
3-Year , HP 24x7 Software Support for Insight Control
Provides for the deployment and basic configuration of HP Insight Control on HP ProLiant ML and DL
series servers or HP BladeSystem servers
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf
1-Year HP Proactive Select 10 Credit
Provides a flexible way to purchase HP best-in-class consultancy and technical services
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-3842ENN.pdf
Additional Services:
Services Startup Blade System c-Cass Enhanced Network Service; Software OS (Microsoft,
Linux (SUSE/Red Hat) & VMware Installation & Start Up and Software Support); +30 Proactive Select
Credits, Factory Express
Insight Remote Support
Provides 24 X 7 remote monitoring, proactive notifications, and problem resolution. Learn more
http://www.hp.com/go/insightremotesupport
HP Support Center
Personalized online support portal with access to information, tools and experts to support HP business
products. Submit support cases online, chat with HP experts, access support resources or collaborate
with peers. Learn more http://www.hp.com/go/hpsc
HP's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for
live support. Now, you can get access to personalized IT support anywhere, anytime.
HP Insight Remote Support and HP Support Center are available at no additional cost with a HP
warranty, HP Care Pack or HP contractual support agreement.
*HP' Support Center Mobile App is subject to local availability.
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 15
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Service and Support
Warranty / Service
Coverage
For ProLiant servers and storage systems, the services cover HP-branded hardware options qualified for
the server, purchased at the same time or afterward, internal to the enclosure, as well as external
monitors up to 22" and tower UPS products; these items will be covered at the same service level and for
the same coverage period as the server unless the maximum supported lifetime and/or the maximum
usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty
terms and conditions apply.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives
replaced by HP due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that
have not failed. SSD/Flash Drives that are specified by HP as consumable parts and/or that have
exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's
operating manual or the technical data sheet are not eligible for the defective media retention service
feature option.
For more information
To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales
representative or HP Authorized Channel Partner. Or visit: www.hp.com/services/bladesystem
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 16
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Models
NOTE: Not all models are available in all regions. Check with your local country HP offices for availability.
Processor(s)
(2) Intel® Xeon® E5-2670 (2.60GHz/8-core/20MB/115W) (2P)
HP ProLiant BL460c
Gen8 E5-2670 2.60GHz Cache Memory
20MB (1x20MB) Level 3 cache
8-core 2P 64GB-R P220i
64GB (8x 8GB) PC3-12800R (DDR3-1600) Registered DIMMS at 1.5V)
Memory
Server
NOTE: Total of 16 DIMM slots.
666157-B21
HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM
Network Controller
HP Smart Array P220i Controller with 512MB FBWC RAID 0,1
Storage Controller
None ship standard
Hard Drive
Supports up to two (2) HP hot-plug SFF SAS/SATA/SDD drives
SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 1.6TB
Internal Storage
Optical Drive Bay
Expansion Slots
Management
Form Factor
Warranty
HP ProLiant BL460c
Processor(s)
Gen8 E5-2660 2.20GHz Cache Memory
8-core 2P 64GB-R P220i
Memory
SFF Server
666158-B21
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive Bay
Expansion Slots
Management
Form Factor
Warranty
DA - 14208
None
2 standard - Slot1supports Type A mezzanine Cards. Slot 2 supports Type A
and Type B mezzanine cards.
iLO Management Engine Standard
Optional: HP Insight Control
Up to eight (8) half-height blades supported in the HP BladeSystem c3000
Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000
Enclosure
Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.
(2) Intel® Xeon® E5-2660 (2.20GHz/8-core/20MB/95W) (2P)
20MB (1x20MB) Level 3 cache
64GB (8x 8GB) PC3-12800R (DDR3-1600) Registered DIMMS at 1.5V)
NOTE: Total of 16 DIMM slots.
HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM
HP Smart Array P220i Controller with 512MB FBWC RAID 0,1
None ship standard
Supports up to two (2) HP hot-plug SFF SAS/SATA/SDD drives
SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 1.6TB
None
2 standard - Slot1supports Type A mezzanine Cards. Slot 2 supports Type A
and Type B mezzanine cards.
iLO Management Engine Standard
Optional: HP Insight Control
Up to eight (8) half-height blades supported in the HP BladeSystem c3000
Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000
Enclosure
Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.
Worldwide — Version 5 — March 26, 2012
Page 17
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Models
HP ProLiant BL460c
Processor(s)
Gen8 E5-2650 2.0GHz Cache Memory
8-core 1P 32GB-R P220i
Memory
SFF Server
666159-B21
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive Bay
Expansion Slots
Management
Form Factor
Warranty
HP ProLiant BL460c
Processor(s)
Gen8 E5-2650L
Cache Memory
1.80GHz 8-core 1P
Memory
32GB-R P220i SFF Server
666163-B21
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive Bay
Expansion Slots
Management
Form Factor
Warranty
DA - 14208
(1) Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/95W) (1P)
20MB (1x20MB) Level 3 cache
32GB (4x 8GB) PC3-12800R (DDR3-1600 Registered DIMMs at 1.5V)
NOTE: Total of 16 DIMM slots. Only eight (8) usable with single processor.
HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM
HP Smart Array P220i Controller with 512MB FBWC RAID 0,1
None ship standard
Supports up to two (2) HP hot-plug SFF SAS/SATA/SDD drives
SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 1.6TB
None
2 standard - Slot1supports Type A mezzanine Cards. Slot 2 supports Type A
and Type B mezzanine cards.
iLO Management Engine Standard
Optional: HP Insight Control
Up to eight (8) half-height blades supported in the HP BladeSystem c3000
Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000
Enclosure
Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.
(1) Intel® Xeon® E5-2650L (1.80GHz/8-core/20MB/70W) (1P)
20MB Level 3 cache
32GB (4x 8GB) PC3L-10600R (DDR3-1333 Registered DIMMs at 1.35V)
NOTE: Total of 16 DIMM slots. Only eight (8) usable with single processor.
HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM
HP Smart Array P220i Controller with 512MB FBWC RAID 0,1
None ship standard
Supports up to two (2) HP hot-plug SFF SAS/SATA/SDD drives
SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 1.6TB
None
2 standard - Slot1supports Type A mezzanine Cards. Slot 2 supports Type A
and Type B mezzanine cards.
iLO Management Engine Standard
Optional: HP Insight Control
Up to eight (8) half-height blades supported in the HP BladeSystem c3000
Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000
Enclosure
Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.
Worldwide — Version 5 — March 26, 2012
Page 18
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Models
HP ProLiant BL460c
Processor(s)
Gen8 E5-2640 2.50GHz Cache Memory
6-core 1P 32GB-R P220i
Memory
SFF Server
666160-B21
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive Bay
Expansion Slots
Management
Form Factor
Warranty
HP ProLiant BL460c
Processor(s)
Gen8 E5-2620 2.0GHz Cache Memory
6-core 1P 16GB-R P220i
Memory
SFF Server
666161-B21
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive Bay
Expansion Slots
Management
Form Factor
Warranty
DA - 14208
(1) Intel® Xeon® E5-2640 (2.50GHz/6-core/15MB/95W) (1P)
15MB (1x15MB) Level 3 cache
32GB (4x 8GB) PC3L-10600R (DDR3-1333 Registered DIMMs at 1.35V)
NOTE: Total of 16 DIMM slots. Only eight (8) usable with single processor.
HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM
HP Smart Array P220i Controller with 512MB FBWC RAID 0,1
None ship standard
Supports up to two (2) HP hot-plug SFF SAS/SATA/SDD drives
SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 1.6TB
None
2 standard - Slot1supports Type A mezzanine Cards. Slot 2 supports Type A
and Type B mezzanine cards.
iLO Management Engine Standard
Optional: HP Insight Control
Up to eight (8) half-height blades supported in the HP BladeSystem c3000
Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000
Enclosure
Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.
(1) Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/95W) (1P)
15MB (1x15MB) Level 3 cache
16GB (4x 4GB) PC3L-10600R (DDR3-1333) Registered DIMMs at 1.35V)
NOTE: Total of 16 DIMM slots. Only eight (8) usable with single processor.
HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM
Smart Array P220i Controller with 512MB FBWC RAID 0,1
None ship standard
Supports up to two (2) HP hot-plug SFF SAS/SATA/SDD drives
SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 1.6TB
None
2 standard - Slot1supports Type A mezzanine Cards. Slot 2 supports Type A
and Type B mezzanine cards.
iLO Management Engine Standard
Optional: HP Insight Control
Up to eight (8) half-height blades supported in the HP BladeSystem c3000
Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000
Enclosure
Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.
Worldwide — Version 5 — March 26, 2012
Page 19
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Models
HP ProLiant BL460c
Processor(s)
Gen8 E5-2609 2.40GHz Cache Memory
4-core 1P 16GB-R P220i
Memory
SFF Server
666162-B21
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive Bay
Expansion Slots
Management
Form Factor
Warranty
DA - 14208
(1) Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) (1P)
10MB (1x10MB) Level 3 cache
16GB (4x 4GB) PC3L-10600R (DDR3-1333) Registered DIMMs at 1.35V)
NOTE: Total of 16 DIMM slots. Only eight (8) usable with single processor.
HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM
HP Smart Array P220i Controller with 512MB FBWC RAID 0,1
None ship standard
Supports up to two (2) HP hot-plug SFF SAS/SATA/SDD drives
SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 1.6TB
None
2 standard - Slot1supports Type A mezzanine Cards. Slot 2 supports Type A
and Type B mezzanine cards.
iLO Management Engine Standard
Optional: HP Insight Control
Up to eight (8) half-height blades supported in the HP BladeSystem c3000
Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000
Enclosure
Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.
Worldwide — Version 5 — March 26, 2012
Page 20
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure a Factory Integrated Model (configure-to-order or CTO server). To
ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales
representative for information on CTO product offerings and requirements.
NOTE: Configure-to-order server blades must start with a CTO Blade.
NOTE: FIO indicates that this option is only available as a factory installable option.
Step 1: Base Server Blade Configuration (Select a configurable Blade)
Models
HP ProLiant BL460c Gen8 Configure-to-order Server
Configurable Model ships with:
One (1) FlexibleLOM connector providing a choice of supported FlexibleLOMs (see
Step 2)
One (1) HP Smart Array P220i Controller with 512MB FBWC and RAID 0 and 1
support
Two (2) cache slots for FBWC supercap options
Two (2) HP small form factor hot-plug SAS/SATA/SSD hard drive bays
Two (2) x16 PCIe I/O expansion slots (one Type A, one Type A/B)
One (1) integrated USB connector and one (1) MicroSDHC connector
One (1) TPM connector
On System Server Management Processor - HP iLO 4 (embedded)
641016-B21
Step 2: Choose Required Options (one of the following from each list unless otherwise noted)
HP Processors
Core Processor Option Kits
NOTE: The BL460c Gen8 supports one or two processors.
NOTE: All configure-to-order processor kits (i.e. xxxxxx-L21) contain one (1)
processor.
NOTE: If two processors are desired, select one xxxxxx-L21 here in Step 2 and one
xxxxxx-B21 in Step 3.
NOTE: The BL460c Gen8 includes two I/O mezzanine expansion slots. A processor
must be installed in processor slot 1 for access to the first mezzanine expansion slot
(expansion slot 1). A processor must be installed in processor slot 2 for access to the
second mezzanine expansion slot (expansion slot 2).
NOTE: All processors within the server must be identical.
NOTE: All processors support Intel® Hyper-Threading and Intel® Turbo Boost
Technologies except the E5-2603 and E5-2609.
NOTE: The letter "L" following the model number indicates denotes lower wattage.
NOTE: The processor model as well as the memory configuration determines the
maximum speed memory can operate. Please see the see the "Memory" section later
in this document.
NOTE: The Intel Xeon E5-2620 processor does not support DIMMs at 1.35V. Using
the HP RBSU, 1.35V DIMMs can be changed to operate at 1.5V.
Eight-Core Processors
HP BL460c Gen8 Intel® Xeon® E5-2680 (2.70GHz/8-core/20MB/130W) FIO
Processor Kit
HP BL460c Gen8 Intel® Xeon® E5-2670 (2.60GHz/8-core/20MB/115W) FIO
Processor Kit
HP BL460c Gen8 Intel® Xeon® E5-2665 (2.40GHz/8-core/20MB/115W) FIO
Processor Kit
DA - 14208
Worldwide — Version 5 — March 26, 2012
662063-L21
662064-L21
667803-L21
Page 21
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Configuration Information - Factory Integrated Models
HP Memory
HP BL460c Gen8 Intel® Xeon® E5-2660 (2.20GHz/8-core/20MB/95W) FIO
Processor Kit
HP BL460c Gen8 Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/95W) FIO
Processor Kit
HP BL460c Gen8 Intel® Xeon® E5-2650L (1.80GHz/8-core/20MB/70W) FIO
Processor Kit
Six-Core Processors
HP BL460c Gen8 Intel® Xeon® E5-2667 (2.90GHz/6-core/15MB/130W) FIO
Processor Kit
HP BL460c Gen8 Intel® Xeon® E5-2640 (2.50GHz/6-core/15MB/95W) FIO
Processor Kit
662065-L21
HP BL460c Gen8 Intel® Xeon® E5-2630 (2.30GHz/6-core/15MB/95W) FIO
Processor Kit
HP BL460c Gen8 Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/60W) FIO
Processor Kit
HP BL460c Gen8 Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/95W) FIO
Processor Kit
Quad-Core Processors
HP BL460c Gen8 Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) FIO
Processor Kit
HP BL460c Gen8 Intel® Xeon® E5-2603 (1.80GHz/4-core/10MB/80W) FIO
Processor Kit
Dual-Core Processors
HP BL460c Gen8 Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/80W) FIO Processor
Kit
NOTE: HP memory from previous generation servers are not qualified or warranted
with this HP ProLiant BL460c Server. HP SmartMemory is required to realize the
memory performance improvements and enhanced functionality listed in this
document for Gen8. For additional information, please see the HP SmartMemory
QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html
NOTE: LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and
cannot be mixed within a server. The majority of ProLiant Gen8 servers support
RDIMM, UDIMM and LRDIMM.
NOTE: A minimum of one DIMM is required per server.
NOTE: For additional memory rules and guidelines, see the "Memory" section later in
this document.
HP SmartMemory
Registered DIMMs (RDIMMs)
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11
Memory Kit
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11
Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11
Memory Kit
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9
Low Voltage Memory Kit
662068-L21
DA - 14208
Worldwide — Version 5 — March 26, 2012
662066-L21
662078-L21
667804-L21
662067-L21
662079-L21
662069-L21
662070-L21
667805-L21
662077-L21
672631-B21
647899-B21
647895-B21
647901-B21
Page 22
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Configuration Information - Factory Integrated Models
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
Unbuffered with ECC DIMMs (UDIMMs)
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
HP 2GB (1x2GB) Single Rank x8 PC3L-10600 (DDR3-1333) Unbuffered CAS-9 Low
Power Memory Kit
HP Networking
Load Reduced DIMMs (LRDIMMs)
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS9 Low Voltage Memory Kit
NOTE: Depending on the memory configuration and processor model, 1600MHz
and 1333MHz memory may operate at a lower speed. Please see the see the
"Memory" section later in this document and the Online Memory Configuration Tool
for details at www.hp.com/go/ddr3memory-configurator.
FlexibleLOM Adapters
NOTE: The server requires one FlexibleLOM that is installed in the FlexibleLOM
connector. All FlexibleLOMs are dual port: One port is routed to interconnect module
bay 1 and the other to bay 2.
HP FlexFabric 10Gb 2-port 554FLB FIO Adapter
HP Flex-10 10Gb 2-port 530FLB FIO Adapter
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information: www.hp.com/go/ProLiantNICs
647897-B21
647893-B21
647909-B21
647907-B21
647905-B21
647903-B21
684212-B21
684211-B21
Step 3: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below. For additional options,
including server blade enclosures interconnect, mezzanine options and power subsystem options; please see the Core Options and
Additional sections below; or the following:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html
HP BladeSystem c-Class Interconnect and Mezzanine Components:
http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html and
http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 23
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Core Options
HP Networking
HP Fibre Channel
10 Gigabit Ethernet Mezzanines
NOTE: Each 10 Gigabit Ethernet adapter requires a minimum of 2GB of server
memory.
NOTE: A 10 Gigabit Ethernet adapter supports linking at 1Gbps or 10Gbps when
connected to an interconnect module with 10Gb Ethernet downlinks.
NOTE: A 10 Gigabit Ethernet adapter supports linking at only 1Gbps when
connected to an interconnect module with 1Gb Ethernet downlinks.
NOTE: The 10 Gigabit Ethernet adapters on each server blade connects to a 10Gb
interconnect in bays 3-6 (HP BladeSystem c7000 Enclosure) or bays 2-4 (HP
BladeSystem c3000 Enclosure).
HP FlexFabric 10Gb 2-port 554M Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information
at http://h18000.www1.hp.com/products/quickspecs/14221_div/14221_div.html.
HP Flex-10 10Gb 2-port 530M Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information
at http://h18000.www1.hp.com/products/quickspecs/14217_div/14217_div.html.
HP Flex-10 10Gb 2-port 552M Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information
at http://h18000.www1.hp.com/products/quickspecs/14218_div/14218_div.html.
FlexibleLOM Adapters
NOTE: The server supports one FlexibleLOM that is installed in the FlexibleLOM
connector and is already included in Pre-configured Models and added per Step 2 for
Factory Integrated Models. The FlexibleLOM options below are used to change these
original FlexibleLOMs.
HP FlexFabric 10Gb 2-port 554FLB Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information
at http://h18000.www1.hp.com/products/quickspecs/14219_div/14219_div.html.
HP Flex-10 10Gb 2-port 530FLB Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information
at http://h18000.www1.hp.com/products/quickspecs/14216_div/14216_div.html.
HP QMH2572 8Gb Fibre Channel Host Bus Adapter
NOTE: Please see QuickSpecs for technical specifications and additional information
at http://h18000.www1.hp.com/products/quickspecs/14230_div/14230_div.html
DA - 14208
Worldwide — Version 5 — March 26, 2012
647590-B21
631884-B21
674764-B21
647586-B21
656590-B21
651281-B21
Page 24
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Core Options
HP Processors
NOTE: The BL460c Gen8 supports one or two processors.
NOTE: The BL460c Gen8 includes two I/O mezzanine expansion slots. A processor
must be installed in processor slot 1 for access to the first mezzanine expansion slot
(expansion slot 1). A processor must be installed in processor slot 2 for access to the
second mezzanine expansion slot (expansion slot 2).
NOTE: All processors within the server must be identical.
NOTE: All processors support Intel® Hyper-Threading and Intel® Turbo Boost
Technologies except the E5-2603 and E5-2609.
NOTE: The letter "L" following the model number indicates denotes lower wattage.
NOTE: The processor model as well as the memory configuration determines the
maximum speed memory can operate. Please see the see the "Memory" section later
in this document
NOTE: The Intel Xeon E5-2620 processor does not support DIMMs at 1.35V. Using
the HP RBSU, 1.35V DIMMs can be changed to operate at 1.5V.
Eight-Core Processors
HP BL460c Gen8 Intel® Xeon® E5-2680 (2.70GHz/8-core/20MB/130W) Processor
Kit
HP BL460c Gen8 Intel® Xeon® E5-2670 (2.60GHz/8-core/20MB/115W) Processor
Kit
HP BL460c Gen8 Intel® Xeon® E5-2665 (2.40GHz/8-core/20MB/115W) Processor
Kit
HP BL460c Gen8 Intel® Xeon® E5-2660 (2.20GHz/8-core/20MB/95W) Processor
Kit
HP BL460c Gen8 Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/95W) Processor Kit
HP BL460c Gen8 Intel® Xeon® E5-2650L (1.80GHz/8-core/20MB/70W) Processor
Kit
Six-Core Processors
HP BL460c Gen8 Intel® Xeon® E5-2667 (2.90GHz/6-core/15MB/130W) Processor
Kit
HP BL460c Gen8 Intel® Xeon® E5-2640 (2.50GHz/6-core/15MB/95W) Processor
Kit
HP BL460c Gen8 Intel® Xeon® E5-2630 (2.30GHz/6-core/15MB/95W) Processor
Kit
HP BL460c Gen8 Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/60W) Processor
Kit
HP BL460c Gen8 Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/95W) Processor Kit
Quad-Core Processors
HP BL460c Gen8 Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) Processor
Kit
HP BL460c Gen8 Intel® Xeon® E5-2603 (1.80GHz/4-core/10MB/80W) Processor
Kit
Dual-Core Processors
HP BL460c Gen8 Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/80W) Processor Kit
DA - 14208
Worldwide — Version 5 — March 26, 2012
662063-B21
662064-B21
667803-B21
662065-B21
662066-B21
662078-B21
667804-B21
662067-B21
662068-B21
662079-B21
662069-B21
662070-B21
667805-B21
662077-B21
Page 25
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Core Options
HP Memory
NOTE: HP memory from previous generation servers are not qualified or warranted
with this HP ProLiant BL460c Gen8 Server. HP SmartMemory is required to realize the
memory performance improvements and enhanced functionality listed in this
document for Gen8. For additional information, please see the HP SmartMemory
QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html
NOTE: LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and
cannot be mixed within a server. The majority of ProLiant Gen8 servers support
RDIMM, UDIMM and LRDIMM.
HP SmartMemory
Registered DIMMs (RDIMMs)
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11
Memory Kit
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11
Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11
Memory Kit
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9
Low Voltage Memory Kit
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
Unbuffered with ECC DIMMs (UDIMMs)
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
HP 2GB (1x2GB) Single Rank x8 PC3L-10600 (DDR3-1333) Unbuffered CAS-9 Low
Power Memory Kit
Load Reduced DIMMs (LRDIMMs)
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS9 Low Voltage Memory Kit
NOTE: Depending on the memory configuration and processor model, 1600MHz
and 1333MHz memory may operate at a lower speed. Please see the see the
"Memory" section later in this document and the Online Memory Configuration Tool
for details at www.hp.com/go/ddr3memory-configurator.
DA - 14208
Worldwide — Version 5 — March 26, 2012
672631-B21
647899-B21
647895-B21
647901-B21
647897-B21
647893-B21
647909-B21
647907-B21
647905-B21
647903-B21
Page 26
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Core Options
HP Hard Drives
NOTE: The ProLiant BL460c Gen8 server includes the new HP hot-plug small form
factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance
errors. HP drives from previous generation servers are not compatible with the BL460c
Gen8 drive bays.
NOTE: HP hard drives have either a one year or three year warranty; refer to the
specific hard drive QuickSpecs for details.
NOTE: The hard drive options are not required when configuring a drive-less model.
SAS Hot Plug with Smart Drive SFF (2.5-inch) Enterprise Drives
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
HP 72GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
SAS Hot Plug Smart Drive SFF (2.5-inch) Midline Drives
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive
NOTE: Please see QuickSpecs for technical specifications and additional information
at http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html.
6G SATA Hot Plug with Smart Drive SFF (2.5-inch) Midline (MDL) Drives
HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive
HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive
NOTE: Please see the QuickSpecs for technical specifications and additional
information at
http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html.
6G SAS MLC Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SAS MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid
State Drive
HP 400GB 6G SAS MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid
State Drive
HP 200GB 6G SAS MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid
State Drive
6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives
HP 400GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid
State Drive
HP 200GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid
State Drive
NOTE: Please see the QuickSpecs for technical specifications and information at
http://h18000.www1.hp.com/products/quickspecs/14038_div/14038_div.html.
DA - 14208
Worldwide — Version 5 — March 26, 2012
652589-B21
652583-B21
652572-B21
652564-B21
652611-B21
652605-B21
652597-B21
652749-B21
652745-B21
655710-B21
655708-B21
653109-B21
653105-B21
658478-B21
653082-B21
653078-B21
Page 27
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Additional Options
HP Insight software
HP Insight Control
HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic
License
HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server
License
NOTE: HP Insight Management Media Kit contains DVDs without licenses. Contains
HP Systems Insight Manager, HP Insight Control, HP Matrix Operating Environment,
and Virtual Connect Enterprise Manager software. Uses an integrated installer to
perform quick and accurate software installation and updates.
HP Insight Management Media Kit
NOTE: HP Insight Management Media Kit contains DVDs without licenses. Contains
HP Systems Insight Manager, HP Insight Control, HP Matrix Operating Environment,
and Virtual Connect Enterprise Manager software. Uses an integrated installer to
perform quick and accurate software installation and updates.
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single activation key.
NOTE: Electronic software is available in all countries except China and Japan.
Customers in China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate, which must be
redeemed online or via fax in order to obtain the license activation key(s). Includes
one year of 24 x 7 HP Software Technical Support Service.
NOTE: Licenses ship without media. The HP Insight Management Media Kit can be
ordered separately, or can be downloaded at http://www.hp.com/go/insightupdates.
NOTE: For additional license kits, please see the QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/12631_div/12631_div.html
HP Insight Control for Linux
HP Insight Control for Linux including 1yr 24x7 Support Electronic License
NOTE: This part number can be purchased as a single license or as multiple licenses
with a single activation key. Customer will receive a license entitlement certificate via
e-mail. The license entitlement certificate must be redeemed online or via fax in order
to obtain the license activation key(s). Includes one year of 24 x 7 HP Software
Technical Support and Update Service.
NOTE: Electronic LTUs are only available through limited points of sales; if not
available, order a printed license entitlement certificate instead.
HP Insight Control for Linux including 1yr 24x7 Support Single Server License
HP Insight Control for Linux Media Kit
NOTE: This optional Media pack DVD contains the ISO image for HP Insight Control
for Linux, HP Systems Insight Manager, HP Insight Control power management, HP
Insight Control virtual machine management, and an integrated installer. Servers must
be acquired separately.
NOTE: This Media pack is optional because the latest ISO image and latest updates
may be downloaded at no cost from: http://www.hp.com/go/ic-linux (click on
Download button).
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be
ordered separately, or can be downloaded at: http://www.hp.com/go/ic-linux (click
on Download button).
NOTE: Electronic licenses can be used to purchase multiple licenses with a single
activation key, and are available in all countries except China and Japan. Customers
DA - 14208
Worldwide — Version 5 — March 26, 2012
T9074BAE
452148-B22
TC213AAE
TC209A
TC208A
Page 28
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Additional Options
in China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate, which must be
redeemed online or via fax in order to obtain the license activation key(s). Includes
one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html
HP Integrated Lights-Out (iLO) Advanced for ProLiant BladeSystem Remote
Management
HP iLO Advanced Blade Electronic License with 3yr 24x7 Tech Support and Updates
HP iLO Advanced Blade 1 Server License with 3yr 24x7 Tech Support and Updates
HP iLO Advanced for BladeSystem including 1yr 24x7 Support Electronic License
HP iLO Advanced for BladeSystem including 1yr 24x7 Support Single Server License
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be
ordered separately, or can be downloaded at http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single
activation key, and is available in all countries except China and Japan. Customers in
China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate, which must be
redeemed online or via fax in order to obtain the license activation key(s). Includes
one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits, including electronic delivery options, please see the
iLO QuickSpecs at: http://www.hp.com/go/iLO
HP Insight Control server deployment
HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License
HP Insight Control Server Deployment including 1yr 24x7 Support Single Server
License
NOTE: Licenses ship without media. The HP Insight Management Media Kit can be
ordered separately, or can be downloaded at http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single
activation key, and is available in all countries except China and Japan. Customers in
China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate, which must be
redeemed online or via fax in order to obtain the license activation key(s). Includes
one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits please see the Insight Control QuickSpecs at
http://h18004.www1.hp.com/products/quickspecs/12631_div/12631_div.html.
DA - 14208
Worldwide — Version 5 — March 26, 2012
BD503AAE
BD502A
TA851AAE
512488-B21
T9082AAE
452151-B21
Page 29
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Additional Options
High Performance
Clusters
HP Cluster Management Utility
HP Insight Cluster Management Utility 1yr 24x7 Flexible License
HP Insight Cluster Management Utility 3yr 24x7 Flexible License
NOTE: These part numbers can be used to purchase one certificate for multiple
licenses and support with a single activation key. Each license is for one node (server).
Customer will receive a printed end user license agreement and license entitlement
certificate via physical shipment. The license entitlement certificate must be redeemed
online in order to obtain a license key. Customer also will receive a support
agreement.
HP Insight Cluster Management Utility Media
NOTE: For additional license kits please see the QuickSpecs at
http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html.
HP HPC Linux Value Pack
HP High Performance Computing Linux Value Pack 1 Processor Flexible License
NOTE: This part number can be used to purchase one certificate for multiple licenses
with a single activation key. Each license is for one socket (a.k.a. processor).
Customer will receive a printed end user license agreement and license entitlement
certificate via physical shipment. The license entitlement certificate must be redeemed
online in order to obtain a license key.
NOTE: For additional license kits please see the QuickSpecs at
http://h18004.www1.hp.com/products/quickspecs/13485_div/13485_div.html.
HP High Performance Computing Linux Value Pack Media Kit
NOTE: This part number can be used to purchase media including software and
documentation, which will be delivered to the customer.
HP Security
HP Trusted Platform Module Option
NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely
store artifacts used to authenticate the server platform. These artifacts can include
passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption
(BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker
leverages the enhanced security capabilities of a Trusted Platform Module (TPM)
version 1.2. The TPM works with BitLocker to help protect user data and to ensure that
a server running Windows Server 2008 has not been tampered with while the system
was offline.
NOTE: For more information about TPM, including a white paper, go to
http://www.hp.com/go/TPM.
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM
deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained.
Misplacing or losing the key could result in data loss.
DA - 14208
Worldwide — Version 5 — March 26, 2012
QL803B
BD476A
BD477A
TC293B
TC294A
488069-B21
Page 30
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Additional Options
HP Storage Controllers
Optional Upgrades
HP Smart Array Advanced Pack 2.0 No Media 1 Server 1yr 24x7 Support Software
HP Smart Array Advanced Pack 2.0 No Media Electronic Lic 1yr 24x7 Support
Software
NOTE: Please see the Smart Array Advanced Pack QuickSpecs for Technical
Specifications and additional information at
http://h18000.www1.hp.com/products/quickspecs/13200_div/13200_div.html.
(Smart Array Advanced Pack)
HP InfiniBand Mezzanines HP QDR/EN InfiniBand 10Gb Dual Port 544M Adapter
HP FDR/EN InfiniBand 10/40Gb Dual Port 544M Adapter
BC377A
BC390AAE
644160-B21
644161-B21
NOTE: InfiniBand QDR and FDR speeds are only supported on the HP BladeSystem
c7000 Enclosure. For additional information, please see the HP BladeSystem c7000
Enclosure and InfiniBand QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html
http://h18000.www1.hp.com/products/quickspecs/12586_div/12586_div.html.
HP Ultrium Tape Blades
HP LTO-4 SB1760c Tape Blade
NOTE: LTO-4 Ultrium tape technology.
HP LTO-5 SB3000c Tape Blade
NOTE: LTO-5 Ultrium tape technology.
NOTE: For the above Ultrium tape drives, please see the QuickSpecs for technical
specifications and additional information at:
http://h18000.www1.hp.com/products/quickspecs/12729_div/12729_div.html
HP Storage Blades
HP D2200sb Storage Blade
NOTE: Please see the QuickSpecs for technical specifications and additional
information at http://h18006.www1.hp.com/storage/bladesystem/index.html.
HP Expansion Blade
HP BLc PCI Expansion Blade
NOTE: The PCI Expansion Blade provides PCI card slots for an adjacent c-Class
Server Blade. Order one PCI expansion Blade for each server blade needing standard
PCI-X or PCIe expansion slots.
NOTE: Ships with one pre-installed PCI-X connect board. Also includes one PCIe
connect board which requires installation.
NOTE: Please see the QuickSpecs for technical specifications and additional
information at
http://h18000.www1.hp.com/products/quickspecs/12753_div/12753_div.html
DA - 14208
Worldwide — Version 5 — March 26, 2012
AQ697A
BS580A
AP880A
448018-B21
Page 31
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Additional Options
HP USB and SD Options HP 2GB USB Flash Media Drive Key Kit
NOTE: HP qualified blank USB key for use with HP ProLiant servers that support the
VMware virtualization environment and other HP value-add software like SmartStart.
HP recommends this industry standard USB flash device for use with VMware ESXi.
USB device must be installed in the internal slot of the ProLiant server for use with
VMware ESXi. Refer to HP VMware Getting Started Guide for installation instructions.
HP 4GB MicroSDHC Flash Media Kit
NOTE: The USB flash media and Secure Digital cards are for integrated hypervisor
virtualization environments needing a low cost boot solution with the highest
performance and reliability. Learn more at
http://h18004.www1.hp.com/products/servers/options/flash_drives.html.
HP Care Pack Services
NOTE: The HP Care Pack service part numbers below for ProLiant BL c-Class server
blades, cover the server blade and all HP branded hardware options qualified for the
server, purchased at the same time or afterwards, internal to the server.
HP 3 year 4 hour 13x5 BL4xxc Server Blade Hardware Support
HP 3 year 4 hour 24x7 BL4xxc Server Blade Hardware Support
HP 3 year 6 hour 24x7 Call to Repair BL4xxc Server Blade Hardware Support
HP 3 year Next business day ProLiant BL4xxc Proactive Care Service
HP 3 year 4 hour 24x7 ProLiant BL4xxc Proactive Care Service
HP 3 year Next business day ProLiant BL4xxc Collaborative Support
HP 3 year 4 hour 24x7 ProLiant BL4xxc Collaborative Support
DA - 14208
Worldwide — Version 5 — March 26, 2012
608447-B21
647444-B21
UK065E
UK066E
UK067E
U3B08E
U3B14E
U1K88E
U1K94E
Page 32
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Memory
For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator
Memory Subsystem Architecture
Each Intel® Xeon® E5-2600 family processor socket contains four memory channels that support two DIMMs each for a total of
eight (8) DIMM per installed processor or a grand total of sixteen (16) DIMMs for the server. Up to 32GB capacity DIMMs are
supported for 512GB of memory (16 DIMM slots x 32GB per DIMM).
Memory Population Rules and Guidelines:
A minimum of one DIMM is required per processor.
Install DIMMs only if the corresponding processor is installed.
If only one processor is installed in a two processor system, only half of the DIMM slots are available.
DIMM sizes can be mixed in channel. To maximize performance, it is recommended to balance the total memory capacity
between all installed processors and to load the channels similarly whenever possible.
RDIMMs operating at either 1.35V or 1.5V may be mixed in any order, but the system will power them at the higher voltage.
LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be mixed within a server. The majority of
ProLiant Gen8 servers support RDIMM, UDIMM and LRDIMM.
The Intel Xeon E5-2620 processor does not support DIMMs at 1.35V.
DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.
The maximum memory speed is a function of the memory type, memory configuration, and processor model.
The maximum memory capacity is a function of the memory type and number of installed processors.
HP memory from previous generation servers is not compatible with the BL460c Gen8 Server Blade.
To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional
information, please see the HP SmartMemory QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html.
For memory population rules and additional memory guidelines, please see the BL460c Gen8 user guide at
http://www.hp.com/support.
BL460c Gen8 Supported Memory Bandwidth
Registered DIMMS (RDIMMs)
Dual Single Dual
Rank
Rank
Rank
DIMM Rank
Single Rank (1R) (2R)
(1R)
(2R)
DIMM Capacity
4GB
4GB
8GB
8GB 16GB
DIMM Native Speed (MHz)
1333 1600 1333 1600 1333
Voltage*
LV
Std
LV
Std
LV
*LV= low voltage at 1.35V; Std = standard voltage at 1.5V.
Dual
Rank
(2R)
16GB
1600
Std
Load
Reduced
(LRDIMMs)
Quad
Rank
(4R)
32GB
1333
LV
DIMM Type
Unbuffered with ECC
DIMMs (UDIMMs)
Single
Dual
Rank
Rank
(1R)
(2R)
2GB
4GB
8GB
1333 1333 1333
LV
LV
LV
SLOTS THAT CAN BE POPULATED
16 slot servers
16
16
16
16
16
16
16
16
16
16
MAXIMUM CAPACITY (GB)
16 slot servers
64
64
128
128
256
256
512
32
64
128
POPULATED DIMM SPEED (MHz)
1 DIMM Per Channel (1DPC)
2 DIMM Per Channel (2DPC)
1333 1600
1333** 1600
DA - 14208
1333 1600
1333** 1600
1333 1600
1333** 1600
Worldwide — Version 5 — March 26, 2012
1333
1333
1333 1333 1333
1333** 1333** 1333**
Page 33
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Memory
**Using HP SmartMemory, 1333MHz RDIMM operate at 1.35V for 2 DIMMs per channel (2DPC). Third party 1333MHz
RDIMM memory may only support 1.5V at 2DPC.
NOTE: Using HP SmartMemory, UDIMMs at 2DPC are supported up to 1333MHz. Third party UDIMMs at 2DPC may only support
up to 1066MHz.
NOTE: Maximum memory speed is a function of the processor QPI bus speed; see the table below "Memory Speed by Processor
Model".
Memory Speed by Processor Model
Processor Models
E5-2680, E5-2670, E5-2667, E5-2665, E5-2660, E5-2650, E5-2650L, E5-2637
E5-2640, E5-2630, E5-2630L, E5-2620
E5-2609, E5-2603
Supported Memory Speeds
1600/1333/1066MHz
1333/1066MHz
1066MHz
Standard and Maximum Memory Capacity (Pre-configured Models)
Pre Configured Models
Intel Xeon E5-2670, E5-2660
Intel Xeon E5-2650, E5-2650L
Intel Xeon E5-2620, E5-2609
Standard Memory
64GB
(8x 8GB)
32GB
(4x 8GB)
16GB
(4x 4GB)
Maximum Memory Plus
Optional Memory
192GB
(8x 8GB + 8x 16GB)
224GB
(4x 8GB + 12x 16GB)
208GB
(4x 4GB + 12x 16GB)
Standard Memory Replaced
with Optional Memory
512GB
(16x 32GB)
512GB
(16x 32GB)
512GB
(16x 32GB)
NOTE: Capacity references are rounded to the common gigabyte (GB) values.
2GB = 2,048MB
4GB = 4,096MB
8GB = 8,192MB
16GB = 16,384MB
32GB = 32,768MB
Memory options part number decoder
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 34
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Memory
Following are memory options available from HP:
HP SmartMemory
HP Memory
Registered DIMMs (RDIMMs)
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11
Memory Kit
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11
Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11
Memory Kit
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9
Low Voltage Memory Kit
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
Unbuffered with ECC DIMMs (UDIMMs)
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
HP 2GB (1x2GB) Single Rank x8 PC3L-10600 (DDR3-1333) Unbuffered CAS-9 Low
Power Memory Kit
Load Reduced DIMMs (LRDIMMs)
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS9 Low Voltage Memory Kit
DA - 14208
Worldwide — Version 5 — March 26, 2012
672631-B21
647899-B21
647895-B21
647901-B21
647897-B21
647893-B21
647909-B21
647907-B21
647905-B21
647903-B21
Page 35
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Storage
1-2
2 x SFF hot-plug SAS, SATA, SAS SDD, and SATA SSD
hard drives
Hard Drives
NOTE: The ProLiant BL460c Gen8 server includes the new HP hot-plug small form factor (SFF) SmartDrive carrier for enhanced
management and reduced maintenance errors. HP drives from previous generation servers are not compatible with the BL460c
Gen8 drive bays.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: The hard drive options are not required when configuring a drive-less model.
SAS Hot Plug Smart Drive SFF (2.5-inch) Enterprise Drives
Quantity
Position
Supported
Supported
Controller
900GB 6G SAS 10K
2
1-2
HP Smart Array P220i Controller
600GB 6G SAS 10K
450GB 6G SAS 10K
300GB 6G SAS 10K
300GB 6G SAS 15K
146GB 6G SAS 15K
72GB 6G SAS 15K
SAS Hot Plug Smart Drive SFF (2.5-inch) Midline Drives
Quantity
Position
Supported
Supported
1TB 6G SAS 7.2K
2
1-2
500GB 6G SAS 7.2K
Controller
HP Smart Array P220i Controller
6G SATA Hot Plug with Smart Drive SFF (2.5-inch) Midline Drives
Quantity
Position
Supported
Supported
Controller
1TB 6G SATA 7.2K
2
1-2
HP Smart Array P220i Controller
500GB 6G SATA 7.2K
6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives
Quantity
Position
Supported
Supported
Controller
400GB 6G SAS SLC
2
1-2
HP Smart Array P220i Controller
200GB 6G SAS SLC
6G SAS MLC Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 36
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Storage
800GB 6G SAS MLC
400GB 6G SAS MLC
200GB 6G SAS MLC
Quantity
Supported
2
DA - 14208
Position
Supported
1-2
Controller
HP Smart Array P220i Controller
Worldwide — Version 5 — March 26, 2012
Page 37
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Technical Specifications
System Unit
Dimensions (H x W x D)
(with bezel)
Weight
(approximate)
Power Specifications
7.11 x 2.18 x 20.37 in (18.07 x 5.54 x 51.76 cm)
Maximum: all processors, 14.00 lb (6.33 kg)
16 DIMMs, hard drives,
mezzanine cards, and two
flash cache batteries
installed)
Minimum: one processor 10.50 lb (4.75 kg)
and 2 DIMMs installed
For power specifications including input requirements, BTU rating, and power
supply output, please see the:
HP BladeSystem c3000 Enclosure QuickSpecs at
http://h18000.www1.hp.com/products/quickspecs/12790_div/
12790_div.html.
HP BladeSystem c7000 Enclosure QuickSpecs at
http://h18000.www1.hp.com/products/quickspecs/12810_div/
12810_div.html.
To review typical system power ratings use the HP Power Advisor which is
available via the online tool located at www.hp.com/go/hppoweradvisor.
System Inlet Temperature Operating
10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 305 m
(1.8°F per every 1,000 ft) above sea level to a
maximum of 3,050 m (10,000 ft), no direct
sustained sunlight.
Maximum rate of change is 10°C/hr (18°F/hr).
The upper limit may be limited by the type and
number of options installed.
Relative Humidity
(non-condensing)
Altitude
Acoustic Noise
DA - 14208
System performance may be reduced if
operating with a fan fault or above 30°C (86°F).
Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).
Operating
10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, noncondensing.
Non-operating
5 to 95% relative humidity (Rh), 38.7°C
(101.7°F) maximum wet bulb temperature, noncondensing.
Operating
3,050 m (10,000 ft). This value may be limited
by the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1,500 ft/min).
Non-operating
9,144 m (30,000 ft). Maximum allowable
altitude change rate is 457 m/min (1,500
ft/min).
For acoustic noise specifications, please see the HP BladeSystem c-Class
Worldwide — Version 5 — March 26, 2012
Page 38
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Technical Specifications
Enclosures QuickSpecs located at:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/
12790_div.html
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/
12810_div.html
HP iLO 4 On System
Management Processor
Architecture
Processor
Upgradeability
Video Support
Interfaces
Memory
Operating System
Support
Client System Support
Client Browser Support
DA - 14208
PCI Express based health and remote management ASIC
PCI Express RISC processor core running at 400MHz
Option firmware upgradeable via Flash ROM
1920 x 1200 (16 bpp) DVR max resolution
One Ethernet Sideband connection (10/100/1000 Mb/s)
One Ethernet network LAN connection (1 Gbps) for rack, towers and SL
systems
One Ethernet network LAN connection (10/100 Mb/s) for Blade Systems
16 MB Flash
256 MB DDR 3 with ECC (112 MB after ECC and video)
NOTE: For the latest operating systems and browsers supported, please refer
to http://www.hp.com/go/compareilo.
Microsoft Windows 2008 R2
Microsoft Windows 2008 (32 bit and 64 bit)
Microsoft Windows Server 2008 Standard Edition (32 bit and 64 bit)
Microsoft Windows Server 2008 Enterprise Edition (32 bit and 64 bit)
Red Hat Enterprise Linux 5.7 (32 bit and 64 bit)
Red Hat Enterprise Linux 6.0 (32 bit and 64 bit)
SUSE LINUX Enterprise Server 11 (32 bit and 64 bit)
SUSE LINUX Enterprise Server 10 (32 bit and 64 bit)
VMware ESX 4.1
VMware ESXi 5.0
Red Hat Enterprise Desktop 5.00
SUSE Linux Enterprise Desktop 11
SUSE Linux Enterprise Desktop 10
Windows 7
Microsoft Windows XP Professional Edition
Microsoft Windows Vista Business and Ultimate Editions
Microsoft Internet Explorer 9
NOTE: For customers using Protected Mode, please use the Java based
version of Integrated Remote Console.
Microsoft Internet Explorer 8
NOTE: For customers using Protected Mode, please use the Java based
version of Integrated Remote Console.
Microsoft Internet Explorer 7
Worldwide — Version 5 — March 26, 2012
Page 39
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Technical Specifications
Firefox Extended Support Release (ESR) 10 (on supported Windows and Linux
systems
Firefox 3.6 (on supported Windows and Linux systems)
Command Line Support Secure Shell and serial port access
Secure Socket Layer
Secure Shell version 2
Security
Advanced Encryption Standard (AES) and Triple Data Encryption Standard
(3DES) on browser, CLP and XML scripting interface
AES encryption of video
RC4 encryption of video
Directory Support Services Active Directory v1.0 (Windows 2003)
Driver Support
HP ProLiant iLO 4 Management Controller Driver Package
SNMP, IPMI 2.0 (system and LAN interface), DMTF Systems Management
Management protocols
supported
Architecture for Server Hardware Command Line Protocol (SMASH CLP), HP
RIBCL XML
HP Smart Array P220i
Controller
Disk Drive Interface
Server Interface
Cache Memory
Logical Drives Supported
Host Memory Addressing
RAID Support
Other
6Gb/s SAS (Serial Attached SCSI)
x4 PCI Express host interface
512MB flash backed write cache (FBWC) cache standard
64 (with included 512MB cache)
64-bit, supporting servers memory space greater than 4GB
RAID 1 (mirroring) and RAID 0 (striping)
Upgradeable firmware with recovery ROM
Online drive flash (with SAS drives)
HP FlexFabric 10Gb
2-port 554FLB
FlexibleLOM
Type
Integrated dual-port KR 10Gb FlexibleLOM with FlexFabric (Flex-10, FCoE,
hardware-based iSCSI, iSCSI boot, TCP/IP offload engine, and autosencing
1Gb/10Gb Ethernet capability)
Emulex BE3
x8 PCI Express 2.0
Two ports, each at 20Gbps full duplex; 40Gbps aggregate full duplex
theoretical bandwidth
NOTE: Each port is autosensing 1Gb/10Gb, and can interoperate with 1Gb
or 10Gb HP BladeSystem c-Class interconnect components. Both ports will
operate at the same speed.
NOTE: Each port on the 554FLB adapter transmits from the server at
20Gbps (theoretical) full duplex.
802.1p, 802.1q, 802.1qau, 802.3ad, 802.3ae, 802.3ap (10GBase-KX4)
and 802.3x
ProLiant Teaming including Network Fault Tolerance, Transmit Load
Balancing, and Switch-Assisted Load Balancing
9K Jumbo frames (4K Jumbo frames when in FCoE mode)
Microsoft Windows Receive Side Scaling (RSS)
Hardware-based accelerated iSCSI
iSCSI boot
Network Processor
Data Transfer Method
Network Transfer Rate
IEEE Compliance
Standard Features
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 40
QuickSpecs
HP ProLiant BL460c Generation 8 (Gen8) Server Blade
Technical Specifications
Flex-10 capability
Fibre Channel over Ethernet (FCoE)
TCP/IP offload engine (stateless TCP/IP)
Autosencing 1Gb/10Gb Ethernet
Environment-friendly
Products and Approach
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green. To recycle your product, please go to:
http://www.hp.com/go/green or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
© Copyright 2012 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and Xeon Inside are
trademarks of Intel Corporation in the U.S. and other countries.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
DA - 14208
Worldwide — Version 5 — March 26, 2012
Page 41
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
