Simplicity 01292-3 Operator's Manual

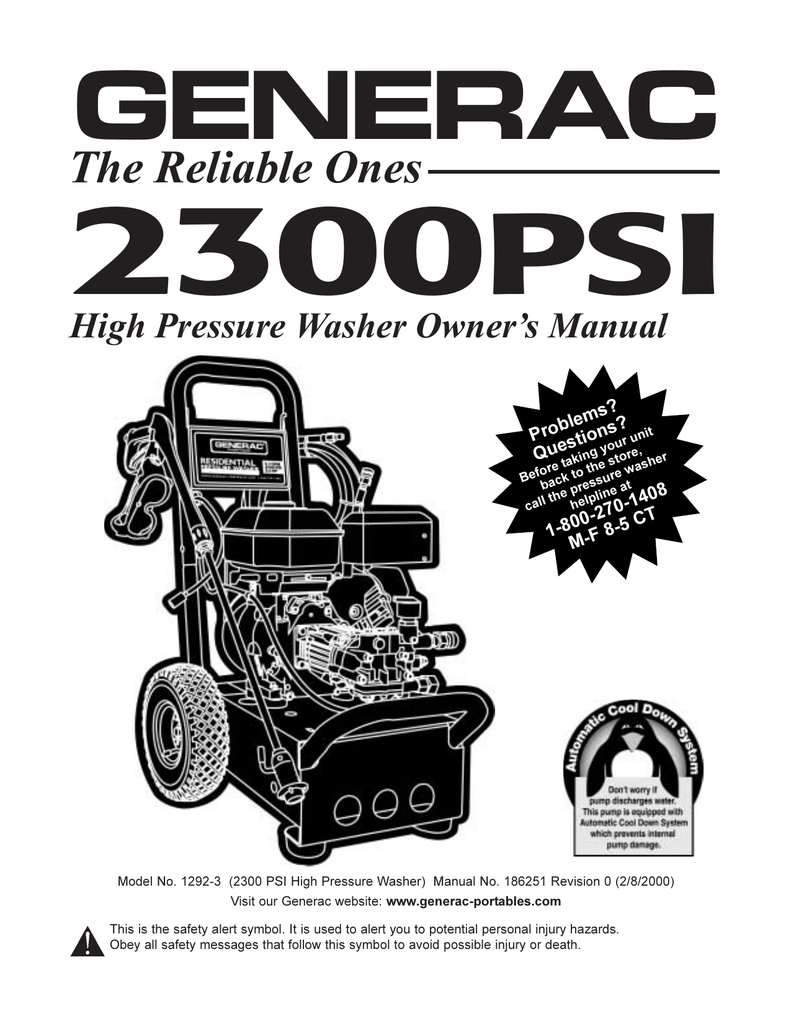

GENERAC
The Reliable Ones
2300PSI
High Pressure Washer Owner’s Manual
?
emss?
l
b
Pro stion ur unit
o
Que king y tore, er
h
ta the s
was
ore
Bef ack to ssure
b
at
re
he p elpline 1408
t
l
l
h
ca
0-
-27 CT
0
0
8
1- -F 8-5
M
Model No. 1292-3 (2300 PSI High Pressure Washer) Manual No. 186251 Revision 0 (2/8/2000)
Visit our Generac website: www.generac-portables.com
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Generac Portable Products 2300PSI High Pressure Washer
EQUIPMENT DESCRIPTION
SAFETY RULES
CONGRATULATIONS on your purchase of a
GENERAC high pressure washer. It has been
designed, engineered and manufactured to give you
the best possible dependability and performance.
CAUTION! When setting up, transporting,
adjusting or making repairs to your high
pressure washer, always disconnect the spark
plug wire from the spark plug and place the wire
where it cannot contact spark plug.
This manual contains information for a high pressure
washer that operates at 2,300 PSI at a flow rate of
2.9 gallons per minute. This high quality residential
system features large 10” wheels, pump equipped with
an automatic cool down system, chemical injection
system, adjustable spray nozzle. Includes safety
goggles, heavy duty 25’ hose, and more.
DANGER! Engine exhaust gases contain
DEADLY carbon monoxide gas. This dangerous
gas, if breathed in sufficient concentrations, can
cause unconsciousness or even death. Operate
this equipment only in the open air where
adequate ventilation is available.
Please read and retain this manual. The instructions
will enable you to assemble your unit, and maintain
your high pressure washer properly.
DANGER! Gasoline is highly FLAMMABLE
and its vapors are EXPLOSIVE. Do Not permit
smoking, open flames, sparks or heat in the
vicinity while handling gasoline. Avoid spilling
gasoline on a hot engine. Allow unit to cool for
2 minutes before refueling. Comply with all laws
regulating storage and handling of gasoline.
Every effort has been made to ensure that the
information in this manual is both accurate and current.
However, Generac reserves the right to change, alter
or otherwise improve the product and its
documentation at any time without prior notice.
Should you experience any problem you cannot easily
fix, call the pressure washer helpline at
1-800-270-1408.
Read this manual carefully and become familiar
with your pressure washer. Know its applications,
its limitations, and any hazards involved.
CUSTOMER
RESPONSIBILITIES
WARNING:
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects, or other reproductive harm.
• Read and observe the safety rules.
• Follow regular schedule in maintaining, caring for
and using your high pressure washer.
• Locate this pressure washer in areas away from
combustible materials, combustible fumes or dust.
• For off-season storage, review “Preparing The Unit
For Storage” on page 13.
• The high pressure equipment is designed to be used
with Generac authorized parts ONLY. If you use this
equipment with parts that do not comply with
minimum specifications, the user assumes all risks
and liabilities.
• Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea, fainting
or poisoning. The harmful elements may cause
property damage or severe injury.
• Do Not allow CHILDREN to operate the pressure
washer at any time.
2
Generac Portable Products 2300PSI High Pressure Washer
• Operate engine only at governed speed. Running the
engine at excessive speeds increases the hazard of
personal injury. Do Not tamper with parts which may
increase or decrease the governed speed.
• Always be certain the spray gun, nozzles and
accessories are correctly attached.
• Do Not secure the spray gun in the (open) position.
• High pressure spray may damage fragile items
including glass. Do Not point spray gun at glass
when in the jet spray mode.
• Do Not wear loose clothing, jewelry or anything that
may be caught in the starter or other rotating parts.
• Before starting the pressure washer in cold weather,
check all parts of the equipment and be sure ice has
not formed there.
• Hold the spray gun firmly in your hand before you
start the unit. Failure to do so could result in an injury
from a whipping spray gun. Do Not leave the spray
gun unattended while the machine is running.
• Never use a spray gun which does not have a trigger
lock or trigger guard in place and in working order.
• The cleaning area should have adequate slopes and
drainage to reduce the possibility of a fall due to
slippery surfaces.
• Keep the hose connected to machine or the spray
gun while the system is pressurized. Disconnecting
the hose while the unit is pressurized is dangerous.
• Keep water spray away from electric wiring or fatal
electric shock may result.
• Units with broken or missing parts, or without
protective housing or covers, should NEVER be
operated.
• Do Not by–pass any safety device on this machine.
• The muffler and engine heat up during operation and
remain hot immediately after shutting it down. Avoid
contact with a hot muffler or engine as you could be
severely burned.
• Check the fuel system for leaks or signs of
deterioration, such as chafed or spongy hose, loose
or missing clamps, or damaged tank or cap. Correct
all defects before operating the pressure washer.
• Operate and store this unit on a stable surface.
• Do Not spray flammable liquids.
• High pressure hose can develop leaks from wear,
kinking, abuse, etc. Water spraying from a leak is
capable of injecting material into skin. Inspect hose
each time before using it. Check all hoses for cuts,
leaks, abrasions or bulging of cover, or damage or
movement of couplings. If any of these conditions
exist, replace hose immediately. Never repair high
pressure hose. Replace it with another hose that
meets maximum pressure rating of your unit.
• Use a respirator or mask whenever there is a chance
that vapors may be inhaled. Read all instructions
with mask so you are certain the mask will provide
the necessary protection against inhaling harmful
vapors.
• Never aim the gun at people, animals or plants. The
high pressure stream of water that this equipment
produces can pierce skin and its underlying tissues,
leading to serious injury and possible amputation.
• The muffler and air cleaner must be installed and in
good condition before operating the pressure
washer. These components act as spark arrestors if
the engine backfires.
• Never allow any part of the body to come in contact
with the fluid stream. Do Not come in contact with a
fluid stream created by a leak in the high pressure
hose.
In the State of California a spark arrestor is required by
law (Section 4442 of the California Public Resources
Code). Other states may have similar laws. Federal
laws apply on federal lands.
• Always wear eye protection when you use this
equipment or when you are in the vicinity where the
equipment is in use.
• High pressure spray can cause paint chips or other
particles to become airborne.
NOTE: If you equip the muffler with a spark arrestor, it
must be maintained in effective working order. You can
order a spark arrestor through your authorized Briggs
and Stratton service dealer.
• Do Not operate the pressure washer above the rated
pressure.
• Never move the machine by pulling on the high
pressure hose. Use the handle provided on the unit.
3
Generac Portable Products 2300PSI High Pressure Washer
KNOW YOUR PRESSURE WASHER
Read this owner’s manual and safety rules before operating your high pressure washer.
Compare the illustrations with your high pressure washer to familiarize yourself with the locations of various
controls and adjustments. Save this manual for future reference.
Detegent Siphoning
Tube and Filter
Spray Gun
Siphoning Tube Clip
Recoil Starter
High Pressure Hose
Gas Tank
Goggles
Pressure Control Knob
Adjustable Nozzle Extension
Dual Element Air Filter
Yellow Oil Fill Cap
High Pressure Outlet
Pump equipped with
Automatic Cool Down System
Water Inlet
Adjustable Nozzle Extension — Attach the adjustable
nozzle extension to the spray gun to provide high pressure
stream. The adjustable nozzle allows you to adjust the spray
pattern which, in turn, adjusts the force of spray.
High Pressure Hose — Connect one end to the water
pump and the other end to the spray gun.
Automatic Cool Down System — Cycles water through
pump when water reaches 140°-145°F. Warm water will
discharge from pump onto ground. This system
prevents internal pump damage.
Pressure Control Knob — Varies the pressure of the high
pressure spray.
High Pressure Outlet — Connection for high pressure
hose.
Pump — Develops high pressure.
Recoil Starter — Use for starting the engine manually.
Detergent Siphoing Tube and Filter — Used to siphon
detergent from the chemical bottle to the low pressure water
stream.
Siphoning Tube Clip — Used to hold the siphoning tube
when the siphoning tube is not being used in the chemical
bottle.
Dual Element Air Filter — Filter limits the amount of dirt
and dust that gets in the engine.
Spray Gun — Controls the application of water onto
cleaning surface with trigger device. Includes safety latch.
Gas Tank — Fill tank with regular unleaded gasoline.
Always leave room for fuel expansion.
Water Inlet — Connect garden hose here.
Goggles — Always use the enclosed goggles or other eye
protection when running your pressure washer.
Yellow Oil Fill Cap — Fill engine with oil here.
4
Generac Portable Products 2300PSI High Pressure Washer
PREPARING PRESSURE
WASHER FOR USE
WARNING: Read entire owner’s manual before
you attempt to assemble or operate your new
pressure washer.
REMOVE PRESSURE
WASHER FROM CARTON
If you have any problems with the assembly of your
pressure washer or if parts are missing or damaged,
call the pressure washer helpline at 1-800-270-1408.
• Remove the high pressure hose and parts box
included with pressure washer.
To prepare your pressure washer for operation,
you will need to perform these tasks:
• Slice two corners at the end of carton from top to
bottom so the panel can be folded down flat, then
remove all packing material.
• Remove shipping cap on top of pump.
• Roll pressure washer out of carton.
• Connect the high pressure hose to the spray gun
and the pump.
• Attach the handle and attach the wire form that
holds the high pressure hose and spray gun.
CARTON CONTENTS
• Connect the water supply to the pump.
• Add oil to the engine crankcase.
Items in the carton include:
• Main Unit
• Add fuel to the fuel tank.
• Parts Box (which includes the following):
Remove Shipping Cap
• High Pressure Hose
To prevent oil from leaking from the pump, a shipping
cap has been installed on the oil breather of the pump.
• Wireform
• Goggles
You must remove the cap for your pressure washer to
operate properly (Figure 1).
• Nozzle Cleaning Kit
• Owner’s Manual
Figure 1 — Remove shipping cap on top of pump.
• Engine Manual
Shipping Cap
• Owner’s Registration Card
• Handle
Remove
shipping cap
from here.
• 2 Carriage Bolts
• 2 Knobs
• Siphoning Tube Clip
• 1 Self Tapping Screw for Siphoning Tube Clip
• Spray Gun
CAUTION: Running unit with the shipping cap
installed will damage the pump and void your
warranty.
• Nozzle Extension with Adjustable Nozzle
• Oil Bottle
• O-Ring Maintenance Kit
Attach Handle and Wireform
If any of the above parts are missing or damaged, call
the pressure washer helpline at 1–800–270–1408.
• Place the handle onto the handle supports already
connected to the main unit. Make sure the holes in
the handle align with the holes on the handle
supports. (Figure 2)
5
Generac Portable Products 2300PSI High Pressure Washer
Add Engine Oil
Figure 2 — Attach the handle to the base.
Make sure the
holes on the
handle are
aligned with the
holes on the
handle supports
IMPORTANT: Any attempt to crank or start the engine
before it has been properly serviced with the
recommended oil may result in an engine failure.
Handle
• Place pressure washer on a level surface.
• Refer to engine owners manual to add
recommended oil to engine.
Handle
Supports
NOTE: Check oil often during engine break–in.
NOTE: The pump is pre-lubricated and sealed,
requiring no additional lubrication for the life of the
pump.
NOTE: It may be necessary to move the handle
supports from side to side in order to align the handle
so it will slide over the handle supports.
• Insert the carriage bolts through the holes on the
handle and attach the plastic knobs. Tighten the
knobs by hand (Figure 3).
Add Gasoline
DANGER! Never fill fuel tank indoors. Never fill
fuel tank when engine is running or hot. Do Not
smoke when filling fuel tank.
Figure 3 — Secure Handle.
WARNING! Never fill fuel tank completely full.
Provide space for fuel expansion. Wipe away
any fuel spillage from engine and equipment
before starting.
• Attach siphoning tube clip onto the right side of the
handle (from the rear of the unit), with the self
tapper just underneath the billboard.
• Use clean regular unleaded fuel and store in
approved clean covered containers. Use clean fill
funnels. Never use “stale” gasoline left over from
last season or gasoline stored for long periods.
• Insert the detergent siphoning tube into the clip on
the handle (Figure 4).
• Clean the area around the fuel fill cap, remove the
cap. Slowly fill tank to about 1/2” below the bottom
of the filler neck (Figure 6).
Figure 4 — Insert Detergent Siphoning Tube into Clip.
Figure 6 — Add Gasoline to Fuel Tank.
• Insert the wire support with the longer arm
positioned on the left. From this view (from rear of
unit), the hook should resemble a “J” (Figure 5).
Figure 5 — Attach Wireform.
• Install the fuel cap and wipe up any spilled gasoline.
6
Generac Portable Products 2300PSI High Pressure Washer
Connect Hose and Water Supply to
Pump
• Connect the garden hose to the water inlet. Tighten
by hand (Figure 9).
• Turn ON the water and open valve all the way. The
water supply should be minimum 3.2 gallons per
minute.
IMPORTANT: You must assemble the nozzle
extension to the spray gun and attach all hoses before
you start the engine. Starting engine without all hoses
connected and water supplied will damage the pump.
• Squeeze the trigger on the gun until you have a
steady stream of water. This purges the pump of air
and impurities.
• Uncoil the high pressure hose and attach one end of
the hose to the base of the spray gun (Figure 7).
CAUTION: Before starting the pressure
washer, be sure you are wearing adequate eye
protection.
Figure 7 — Connect high pressure hose to gun.
Coupler Collar
• Attach the adjustable nozzle extension to the spray
gun. Tighten by hand (Figure 10).
Figure 10 — Connect Nozzle Extension to Spray Gun.
Connect High Pressure Hose Here
• Attach the other end of the high pressure hose to
the high pressure fitting on the pump (Figure 8).
Figure 8 — Connect high pressure hose to pump.
CHECKLIST BEFORE
STARTING ENGINE
Connect High
Pressure Hose Here
Review the unit’s assembly to confirm you have
performed all of the following:
• Before you connect your garden hose to the water
inlet, inspect the inlet screen (Figure 9). Clean the
screen if it contains debris, replace if it’s damaged.
DO NOT RUN THE PRESSURE WASHER IF THE
SCREEN IS DAMAGED.
• Make sure the handle and wireform are in place and
secure.
• Check for properly tightened hose connections.
• Check to make sure that there are no kinks, cuts, or
damage to the high pressure hose.
Figure 9 — Connect garden hose to water inlet.
• Check that oil has been added to the proper level in
the engine crankcase.
• Add the proper gasoline to fuel tank.
• Provide a proper water supply (not to exceed 140°F)
at an adaquate flow.
Connect Garden
Hose Here
Inspect inlet screen. Do Not
use if damaged, clean if dirty.
• Be sure to read the “Safety Rules” (page 2) and
“Preparing Pressure Washer For Use” (page 5)
before using the pressure washer.
• Run water through your garden hose for 30 seconds
to clean out any debris. Turn off water.
7
Generac Portable Products 2300PSI High Pressure Washer
HOW TO USE YOUR
PRESSURE WASHER
• Engage the safety latch to the spray gun trigger
(Figure 11).
Figure 11 — Spray Gun with Safety Latch Engaged
If you have any problems operating your pressure
washer, please call the pressure washer helpline at
1-800-270-1408.
Safety Latch
How to Start Your Engine
• Position the choke to the “Full” choke position.
The best way to start your engine-powered pressure
washer for the first time is to follow these instructions
step-by-step. You may also refer to your engine
owner’s manual. This starting information also applies
whenever you start the engine after you have let the
pressure washer sit idle for at least a day.
NOTE: For a warm engine, be sure the choke lever is
in the “No” choke position.
• Move throttle lever to “Fast” position.
• Grasp the starter grip handle and pull slowly until
you feel some resistance. Then pull rapidly to start
the engine.
• Place the pressure washer in an area close enough
to an outside water source capable of supplying
water at a flow rate greater than 3.2 gallons per
minute.
• Return the starter grip handle slowly. Do Not let
rope “snap back” against starter.
• Check that the high pressure hose is tightly
connected to the spray gun and to the pump. See
“Preparing Pressure Washer for Use” (page 5) for
illustrations.
• If the choke was placed in the “Full” choke position
to start the engine, slowly push it to the “No” choke
position as soon as the engine warms up enough to
run smoothly.
• Make sure unit is in a level position.
• If the engine fails to start, review instructions given
in the engine owner’s manual.
• Connect the garden hose to the water inlet on the
pressure washer pump. Turn on the water.
How to Stop Your Pressure Washer
CAUTION: Do Not run the pump without the
water supply connected and turned on. You
must follow this caution or the pump will be
damaged.
• Move throttle lever to “Stop” position.
• Squeeze trigger on the spray gun to relieve
pressure in the hose.
NOTE: A small amount of water will squirt out when
you release the pressure.
• Squeeze the trigger on the gun until you have a
steady stream of water. This purges the pump of air
and impurities.
How to Use the Adjustable Nozzle
• Attach the adjustable nozzle extension to the spray
gun. Tighten by hand.
You now should know how to START your pressure
washer and how to STOP it. The information in this
section will tell you how to adjust the spray pattern
and apply detergent or other cleaning chemicals.
• Position the nozzle in the low pressure mode (see
“How to Use the Adjustable Nozzle”) and squeeze
the trigger on the spray gun to relieve the air
pressure caused by turning ON the water. Water will
flow out of the gun in a thin stream. Continue to hold
trigger until there is a steady stream of water and no
air remains in the system. This will make it easier to
pull start the engine. Release the trigger.
DANGER! Never adjust spray pattern when
spraying. Never put hands in front of nozzle to
adjust spray pattern.
On the end of your spray gun is a nozzle that you can
slide forward and backward and that you can also
twist. This adjustable nozzle permits you to adjust the
8
Generac Portable Products 2300PSI High Pressure Washer
spray pattern to be either high pressure or low
pressure. You can also adjust the spray so it is
concentrated in a stream pattern or expanded into a
fan pattern.
• Twisting the nozzle adjusts the spray pattern from a
narrow pattern to a fan pattern.
• Located on the top of the pump is a pressure control
knob. You can increase and decrease the pressure
of the spray by turning the knob counterclockwise or
clockwise respectively (Figure 14).
• Slide the nozzle forward to adjust the spray to low
pressure mode (Figure 12). Slide the nozzle
backward to achieve high pressure.
Figure 14 — Pressure control knob.
Figure 12 - Using the Adjustable Nozzle.
Slide nozzle backward
for high pressure
mode.
Pressure Control
Knob
Slide nozzle forward
for low pressure mode
and detergent
application.
• For most effective cleaning, keep the spray nozzle
between 8 to 24 inches away from cleaning surface.
• If you get the spray nozzle too close, especially
using high pressure mode, you may damage the
surface being cleaned.
• Do Not get closer than 8 inches when cleaning tires.
Twist nozzle
counterclockwise for
fan spray pattern.
Twist nozzle clockwise
for narrow spray
pattern.
Applying Detergent with the
Adjustable Nozzle
IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could
damage the pump.
• Point the nozzle toward the ground and press the
trigger to test the pattern (Figure 13).
Figure 13 — Test the Spray Pattern.
IMPORTANT: You must attach all hoses before you
start the engine. Starting the engine without all the
hoses connected and without the water turned ON will
damage the pump.
To apply detergent, follow these steps:
• Review the use of adjustable nozzles.
• Prepare the detergent solution as required by the
job.
9
Generac Portable Products 2300PSI High Pressure Washer
location. Pressure in a running washer builds as
you climb. When you press the trigger, the recoil
from the initial spray could force you to fall. The
high pressure spray could also force you to fall
if you are too close to the cleaning surface.
• Hang the detergent solution on the hook of the
wireform attached to the handle, as shown in
Figure 15.
Figure 15 — Insert Filter into Container.
For Rinsing:
• Slide the nozzle backward to high pressure, press
the trigger and wait for the detergent to clear.
NOTE: You can also stop detergent from flowing by
simply removing detergent siphoning tube from bottle.
• Keep the spray gun a safe distance from the area
you plan to spray.
• Remove the detergent siphoning tube from the clip
on the handle.
• Apply a high pressure spray to a small area, then
check the surface for damage. If no damage is
found, it is okay to continue cleaning.
• Place the filter end of the detergent siphoning tube
into the detergent container.
• Start at the top of the area to be rinsed, working
down with same overlapping strokes as you used for
washing and applying detergent.
CAUTION: Keep the detergent siphoning tube
from coming in contact with the hot muffler. This
will damage the plastic tube. When inserting the
filter into a cleaning solution bottle, route the tube
so as to keep it from inadvertently contacting the
hot muffler.
Automatic Cool Down System
(Thermal Relief)
If you run the engine on your pressure washer for
3-5 minutes without pressing the trigger on the spray
gun, circulating water in the pump can reach a
temperature between 140–145°F. When the water
reaches this temperature, the automatic cool down
system engages and cools the pump by discharging
the warm water onto the ground. This system
prevents internal damage to the pump.
• Slide the adjustable nozzle forward to low pressure
mode. Detergent cannot be applied with the nozzle
in high pressure position.
• Make sure the garden hose is connected to the
water inlet. Check that the high pressure hose is
connected to the spray gun and the pump (see
“How To Use Your Pressure Washer”, page 7). Start
the engine.
SPECIFICATIONS
• Apply detergent to a dry surface, starting from the
bottom and working up.
Outlet Pressure . . . . 2300 psi
• Allow the detergent to “soak in” for 3-5 minutes
before washing and rinsing. Reapply as needed to
prevent surface from drying.
Flow Rate . . . . . . . . . 2.9 gallons per minute (gpm)
Detergent . . . . . . . . . Use detergent approved for
• For washing, start at lower portion of area to be
washed and work upward, using long, even,
overlapping strokes.
pressure washers
Water Supply . . . . . . Not to Exceed 140°F
Temperature
Pressure Washer Rinsing
Automatic Cool . . . . Will cycle when water
WARNING: Be extremely careful if you must
use the pressure washer from a ladder,
scaffolding or any other relatively unstable
Down System
10
reaches 140°-145°F
Generac Portable Products 2300PSI High Pressure Washer
GENERAL MAINTENANCE
RECOMMENDATIONS
Check High Pressure Hose
The high pressure hose can develop leaks from wear,
kinking, or abuse. Inspect the hose each time before
using it. Check for cuts, leaks, abrasions or bulging of
cover, damage or movement of couplings. If any of
these conditions exist, replace the hose immediately.
The pressure washer warranty does not cover items
that have been subjected to operator abuse or
negligence. To receive full value from the warranty, the
operator must maintain the high pressure washer as
instructed in this manual.
WARNING: Water spraying from a leak is
capable of injecting material into skin. Inspect
hose each time before using it. Never repair a
high pressure hose. Replace it with another
hose that meets the maximum pressure rating
of your pressure washer.
• Some adjustments will need to be made periodically
to properly maintain your high pressure washer.
• All maintenance in this manual and the engine
owner’s manual should be made at least once each
season.
Check Detergent Siphoning Tube
• Once a year you should clean or replace the spark
plug, clean or replace the air filter and check the gun
and adjustable nozzle extension assembly for wear.
A new spark plug and clean air filter assure proper
fuel-air mixture and help your engine run better and
last longer. Please refer to your engine owner’s
manual for more details.
Examine the filter on the detergent tube and clean if
clogged. The tube should fit tightly on the barbed
fitting. Examine the tube for leaks or tears. Replace
the filter or tube if either is damaged.
Check Gun and Adjustable Nozzle
Extension
BEFORE EACH USE
Examine the hose connection to the gun and make
sure it is secure. Test the trigger by pressing it and
making sure it “springs back” into place when you
release it. Put the safety latch in the ON position and
test the trigger. You should not be able to press the
trigger.
•
•
•
•
•
Check engine oil level.
Check water inlet screen for damage.
Check in-line filter for damage.
Check high pressure hose for leaks.
Check detergent siphoning tube and filter for
damage.
• Check gun and adjustable nozzle extension
assembly for leaks.
• Rinse out garden hose to flush out debris.
Check In-Line Filter
Refer to Figure 16 and service the in-line filter if it
becomes clogged, as follows:
Figure 16 — Clean In-Line Filter
PRESSURE WASHER
MAINTENANCE
Filter Screen
Nozzle Extension
Check and Clean Inlet Screen
O-ring
Examine the screen on the water inlet. Clean it if the
screen is clogged or replace it if screen is damaged.
1. Detach gun and nozzle extension from high
pressure hose. Detach nozzle extension from gun
and remove o-ring and screen from nozzle
extension. Flush the screen, gun, and adjustable
nozzle extension with clean water to clear debris.
11
Generac Portable Products 2300PSI High Pressure Washer
2. If the screen is damaged, the o-ring kit contains a
replacement in-line filter screen and an o-ring. If
undamaged, reuse screen.
• Slide the adjustable nozzle forward to the low
pressure position. Flush for 1-2 minutes.
3. Place the in-line filter screen into the threaded end
of the nozzle extension. Direction does not matter.
Push the screen in with the eraser end of a pencil
until it rests flat at the bottom of the opening. Take
care to not bend the screen.
• Insert detergent siphoning tube into clip on handle.
• Shut off the engine.
IMPORTANT: Simply shutting OFF engine will not
release pressure in the system. When the engine has
shut down, squeeze the trigger on the gun to
relieve the pressure in the hose.
4. Place the o-ring into the recess. Push the o-ring
snugly against the in-line filter screen.
Nozzle Maintenance
5. Assemble the nozzle extension to the spray gun,
as described earlier in this manual.
If the adjustable nozzle becomes restricted or clogged
with foreign materials such as dirt, excessive pump
pressure may develop. A partially clogged nozzle
causes a pulsing sensation during use.
Purge Pump of Air and
Contaminants
If the adjustable nozzle becomes clogged or partially
restricted, immediately clean the nozzle with the kit
included with your pressure washer by following these
instructions:
To remove air from the pump, follow these steps:
• Set up the pressure washer as described in
“Preparing Pressure Washer For Use” (page 5).
Connect the water supply and turn water on.
• Shut off the engine and turn off the water supply.
• Remove the nozzle extension from the gun.
• Separate the nozzle extension from the gun.
• Pull the trigger on the gun and hold.
• Adjust the nozzle extension to the stream position.
• When the water supply is steady and constant,
engage the safety latch and refasten the nozzle
attachment.
• Remove the nozzle from the end of the nozzle
extension (Figure 17) using a 2mm or 5/64 allen
wrench (like the one included in the kit).
Figure 17 — Removing and Cleaning Nozzle.
To remove contaminants from the pump, follow
these steps:
• Set up the pressure washer as described in
“Preparing Pressure Washer For Use” (page 5).
Connect the water supply and turn water on.
• Remove the nozzle extension from the gun.
Nozzle
• Start the engine according to instructions in “How To
Use Your Pressure Washer” (page 7).
• Squeeze the trigger on the gun and hold.
• When the water supply is steady and constant,
engage the safety latch and refasten the nozzle
attachment.
• Use the wire included in the kit (Figure 17) or a
small paper clip to free the foreign material clogging
or restricting the nozzle.
Cleaning Detergent Siphoning Tube
If you used the detergent siphoning tube, you must
flush it with clean water before stopping the engine.
• Place the detergent siphoning tube in a bucket full
of clean water.
12
Generac Portable Products 2300PSI High Pressure Washer
ENGINE MAINTENANCE
• Remove additional debris by back flushing water
through the nozzle extension (Figure 18). Back flush
between 30 to 60 seconds. Turn the nozzle
extension to stream spray and move the nozzle from
low to high while flushing.
See the engine owner’s manual for instructions on
how to properly maintain the engine.
PREPARING THE UNIT FOR
STORAGE
Figure 18 — Backflushing the Nozzle
Water should not remain in the unit for long periods of
time. Sediments or minerals can deposit on pump
parts and “freeze” pump action. If you do not plan to
use the pressure washer for more than 30 days, follow
this procedure:
1. Flush detergent siphoning tube by placing the filter
into a pail of clean water while running pressure
washer in low pressure mode (adjustable nozzle in
the forward position). Flush for one to two
minutes.
• Reinstall the nozzle into the nozzle extension. Do
Not overtighten.
• Reconnect the nozzle extension to the gun.
• Reconnect the water supply, turn on the water, and
start the engine.
2. Shut off the engine and let it cool, then remove all
hoses. Disconnect spark plug wire from spark
plug.
• Test the pressure washer by operating with nozzle in
the high and in the low positions.
3. Empty the pump of all pumped liquids by pulling
the recoil handle about 6 times. This should
remove most of the liquid in the pump. Insert
detegent siphoning tube into clip on handle.
O–Ring Maintenance
Through the normal operation of your pressure washer,
o–rings, which keep the connections of the hoses and
gun tight and leak–free, may become worn or
damaged.
NOTE: To protect the unit from freezing temperatures,
draw RV antifreeze (non-alcohol) into the pump by
pouring the solution into a 3-foot section of garden
hose connected to inlet adapter and pulling recoil
handle twice.
Provided with your pressure washer is an O–Ring
Maintenance Kit which includes replacement o-rings,
rubber washer and water inlet filter.
4. Store unit in a clean, dry area.
To remove a worn or damaged o–ring:
• Use a small flathead screwdriver to get underneath
the o-ring and pry it off.
STORING THE ENGINE
See the engine owner’s manual for instructions on
how to properly prepare the engine for storage.
13
Generac Portable Products 2300PSI High Pressure Washer
NOTES
14
Generac Portable Products 2300PSI High Pressure Washer
TROUBLESHOOTING
Problem
Pump has following
problems: failure to produce
pressure, erratic pressure,
chattering, loss of pressure,
low water volume.
Detergent fails to mix with
spray.
Engine runs good at no-load
but “bogs” when load is
added.
Cause
1. Nozzle in low pressure mode.
2.
3.
4.
5.
Water inlet is blocked.
Inadequate water supply.
Inlet hose is kinked or leaking.
Clogged inlet hose strainer.
6. Water supply is over 140°F.
7. High pressure hose is blocked or
leaks.
8. Gun leaks.
9. Nozzle is obstructed.
10. Pump is faulty.
1. Detergent siphoning tube is not
submerged.
2. Chemical filter is clogged.
3. Nozzle is in high pressure mode.
Engine speed is too slow.
1.
2.
3.
4.
5.
Engine will not start; or
starts and runs rough.
Low oil level.
Dirty air cleaner.
Out of gasoline.
Stale gasoline.
Spark plug wire not connected to
spark plug.
6. Bad spark plug.
7. Water in gasoline.
8. Overchoking.
9. Excessively rich fuel mixture.
10. Intake valve stuck open or
closed.
11. Engine has lost compression.
Correction
1. Pull nozzle backward for high
pressure mode.
2. Clear inlet.
3. Provide adequate water flow.
4. Straighten inlet hose, patch leak.
5. Check and clean inlet hose
strainer.
6. Provide cooler water supply.
7. Clear blocks in outlet hose.
8. Replace gun.
9. Clean nozzle.
10. Contact Generac service facility.
1. Insert detergent siphoning tube
into detergent.
2. Clean or replace filter/detergent
siphoning tube.
3. Push nozzle forward for low
pressure mode.
Move throttle control to FAST
position. If engine still “bogs down”,
contact Briggs and Stratton service
facility.
1.
2.
3.
4.
5.
Fill crankcase to proper level.
Clean or replace air cleaner.
Fill fuel tank.
Drain gas tank; fill with fresh fuel.
Connect wire to spark plug.
6. Replace spark plug.
7. Drain gas tank; fill with fresh fuel.
8. Open choke fully and crank
engine.
9. Contact Briggs and Stratton
service facility.
10. Contact Briggs and Stratton
service facility.
11. Contact Briggs and Stratton
service facility.
Engine shuts down during
operation.
1. Out of gasoline.
2. Low oil level.
1. Fill fuel tank.
2. Fill crankcase to proper level.
Engine lacks power.
Dirty air filter.
Replace air filter.
Engine “hunts” or falters.
Choke is opened too soon.
Move choke to halfway position until
engine runs smoothly.
15
Generac Portable Products 2300PSI High Pressure Washer
EXPLODED VIEW — UNIT
16
Generac Portable Products 2300PSI High Pressure Washer
PARTS LIST — UNIT
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
24
26
27
Part #
Qty. Description
A186221 1
BASE
67989
10 NUT, M8 Flange Serr.
42909
2
HHCS, M8 1.25 x 30
50190
2
WASHER, Flat .34" x 1"
27007
2
MOUNT, Donut Type Vibration
20566
1
DECAL, Generac #1-800
B4099
1
DECAL, IMP Purge Air
B2150
1
HOOK, Gun
B2516
1
CAP, Vinyl (black)
B2043
7
BOLT, 5/16"-18 x 1-3/4"
Carriage
B5713
1
DECAL, Logo
B1983
1
HANDLE
B1631A
1
BILLBOARD, Plastic
B1932
1
DECAL, Instructions
99583
8
NUT, Flange Lock 5/16"-18
B1981
2
SUPPORT, Handle
65852A
1
SPRING CLIP, Holder
185954
1
SCREW, Self Tap #8 - 18 x
1/2"
95458
1
QUICK CONNECT
21217
4
MOUNT, Rubber Shock
B1232
1
CLAMP, Hose 7/16" Dia.
A1040D
1
HOSE, 4-1/2' Chemical Clear
A1041
1
FILTER, Chemical Hose
97178
2
KNOB, Handle 1/4" - 20 PW
31669
2
BOLT, 1/4" - 20 x 1-3/4"
Carriage
Item
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
17
Part #
Qty. Description
186212
2
Tire, 10"
75402C
2
PUSHNUT, 5/8" Dia.
B4095
1
SHEET, Info.
B3297
1
MANUAL, Engine
186251
1
MANUAL
23139B
1
KEY, 3/16" sq. x 1-1/2"
95531
4
SHCS, 5/16" - 24 x 3/4"
B3699A
1
ASSEMBLY, Pump
B4757
1
CAP, Inlet Quick Connect
89647A
1
CONNECTOR, Garden Hose
97098
1
CAP, Garden Hose Inlet
B1982
1
BUMPER
NSP
1
ENGINE
B5830
1
KIT, "O" Ring
B5694
1
HOSE, High Pressure
87815
1
GOGGLES, Safety
B3263A
1
GUN, High Pressure
B3335C
1
LANCE, Nozzle Hi/Lo
97566
1
TAG, Nozzle Instructions
B2168A
1
HANGER, Hose, Gun, Jug
B4224
1
SCREEN, Gun Inlet
B2163
1
KIT, Nozzle Cleaning
97837
1
O-RING, Hi Pressure
92661
1
NOZZLE, 1.20 Blue
Replacement
B3213
1
VALVE, Thermal Relief
92479
4
LOCKWASHER, Ribbed
NSP
1
OIL
Generac Portable Products 2300PSI High Pressure Washer
EXPLODED VIEW — PUMP
18
Generac Portable Products 2300PSI High Pressure Washer
PARTS LIST — PUMP
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
Part #
Qty
100B3699
1
165B3169
6
102B3699
6
103B3699
6
104B3699
3
105B3699
1
106B3699
3
107B3699
1
108B3699
1
119B3699
1
110B3699
1
111B3699
1
112B3699
1
113B3699
1
114B3699
1
10892293P 1
116B3699
1
10292293P 3
118B3699
1
119B3699
3
120B3699
4
12692294P 6
122B3699
3
123B3699
3
120B3169
6
125B3699
3
126B3699
3
119B3169
3
128B3699
3
129B3699
3
130B3699
3
131B3699
3
132B3699
2
Description
Manifold
O-ring 12.42 x 1.78
Valve unit
O-ring 5.60 x 1.78
Valve cap
Unloader valve screw
O-ring 9.92 x 2.62
Valve seat
Spacer
Spring
Unloader piston
Seal
O-ring
Anti-extrusion ring
Unloader stem
O-ring
Guide
O-ring
Regulating knob
Oil seal
Screw, M6 x 30
Screw, M6 x 30
Head ring
O-ring
O-ring
Packing
Retainer 15mm
O-ring
Spring 33 x 56
Piston assembly
Spring plate
Spring plate retainer
Roller bearing
Item
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
60
61
62
63
64
65
66
69
70
71
72
73
74
75
Part #
Qty
148B3169
1
134B3699
1
135B3699
1
136B3699
1
100B3699A 1
138B3699
1
139B3699
1
12092293P 1
141B3699
1
142B3699
1
143B3699
1
144B3699
1
100B3169A 1
146B3699
1
147B3699
1
148B3699
4
149B3699
1
150B3699
1
177B3169
1
178B3169
1
179B3169
1
11492293P 1
197B3169
1
112B3169
1
157B3699
1
12492293P 4
159B3699
4
160B3699
1
161B3699
1
10692293P 4
12692293P 4
164B3699
1
Description
Screw, M8 x 28
Wobble plate
Bearing bushing
Crankcase
Cap, Brass
Snap ring
Oil seal
O-ring
Piston guide
Plug, M14 x 1.5 x 9mm
Plug, 10mm
O-ring
Nipple, 3/8 NPT
Orifice, 1.8mm
Plug, 3/8"
Screw, M8 x 70
Screw, M8 x 25
Inlet manifold
O-ring
Spring, conical
Ball, 7/32"
O-ring
Hose barb
O-ring
Injector housing
Washer
Screw
Gas mounting flange
Crankshaft
Washer
Screw
Vent plug
Repair Kits
Description
Part #
High Pressure Seal
Check Valve C / O Ring
Check Valve / O Ring
Oil Seal
Unloader
201B3699
202B3699
203B3699
204B3699
205B3699
Items included
in kit
23, 24, 25, 26, 27, 28
4, 5
2, 3
20
6, 7, 8, 9, 10, 11, 12, 13, 14,
15, 16, 17, 18
19
# Assys
in Kit
1
4
6
3
1
LIMITED PRESSURE WASHER WARRANTY
GENERAC PORTABLE PRODUCTS (hereafter referred to as the COMPANY) warrants to the original retail
purchaser the pressure washer manufactured by the COMPANY to be free from defects in material and
workmanship for the period(s) set forth below from the date of original purchase. This warranty is not transferable.
The term “original purchaser” means the person for whom the pressure washer is originally purchased.
Warranty Schedules
Electric Power Washer
All Other Engine-driven
1 year (does not apply to commercial or rental applications)
CONSUMER*
COMMERCIAL*
Engine:
Warranted solely by
Warranted solely by
Engine Manufacturer
Engine Manufacturer
Pump:
1 year
90 days
* NOTE: For the purpose of this warranty, “consumer” use means personal residential household use by
original purchaser. “Commercial” use means all other uses, including rental, construction, commercial
and income producing purposes. Once a pressure washer has experienced commercial use, it shall
thereafter be considered a commercial use pressure washer for the purposes of this warranty.
During said warranty period, the COMPANY will, at its option, repair or replace any part which, upon examination
by the COMPANY or COMPANY-authorized dealers, is found to be defective under normal use and service**. All
transportation costs under warranty, including return to the factory if necessary, are to be borne by the purchaser
and prepaid by the purchaser.
** NORMAL WEAR: As with all mechanical devices, pressure washers need periodic parts service and
replacement to perform well. This warranty does not cover repair when normal use has exhausted the life
of a part or pressure washer pump.
This warranty does not include: Used products and demonstration equipment. Parts, such as GUNS, HOSES,
WANDS, NOZZLES or other wear items such as quick couplers, oil, gauges, belts, o-rings, filters, pump packing,
etc. Pumps which have been run without water supplied. Damage or malfunctions resulting from accidents,
abuse, modifications, alterations, or improper servicing. Freezing or chemical deterioration. Normal maintenance
such as adjustments, fuel system cleaning and obstruction (due to chemical, dirt, carbon or lime, etc.).
THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
SPECIFICALLY, THE COMPANY MAKES NO OTHER WARRANTIES AS TO MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. THE DURATION OF ANY IMPLIED WARRANTIES
WHICH CANNOT BE DISCLAIMED IS LIMITED TO THE TIME PERIOD AS SPECIFIED IN THE
EXPRESS WARRANTY. LIABILITY FOR CONSEQUENTIAL, INCIDENTAL, OR SPECIAL
DAMAGES UNDER ANY AND ALL WARRANTIES IS EXCLUDED, EVEN IF SUCH DAMAGES ARE
A DIRECT RESULT OF THE COMPANY'S NEGLIGENCE. THE COMPANY ALSO DISCLAIMS ANY
RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, SUCH AS THE LOSS OF
TIME OR THE USE OF THE POWER EQUIPMENT, OR ANY COMMERCIAL LOSS DUE TO THE
FAILURE OF THE EQUIPMENT. ANY IMPLIED WARRANTIES ARE LIMITED TO THE DURATION
OF THIS WRITTEN WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights and you may also have other rights, which vary from state to state.
For service, see your nearest COMPANY-authorized warranty service facility or call 1-877-544-0982. Warranty
service can be performed only by a COMPANY-authorized service facility. This warranty will not apply to service at
any other facility. At the time of requesting warranty service, evidence of original purchase date must be
presented.
Generac Portable Products
Jefferson, Wisconsin U.S. A.

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
