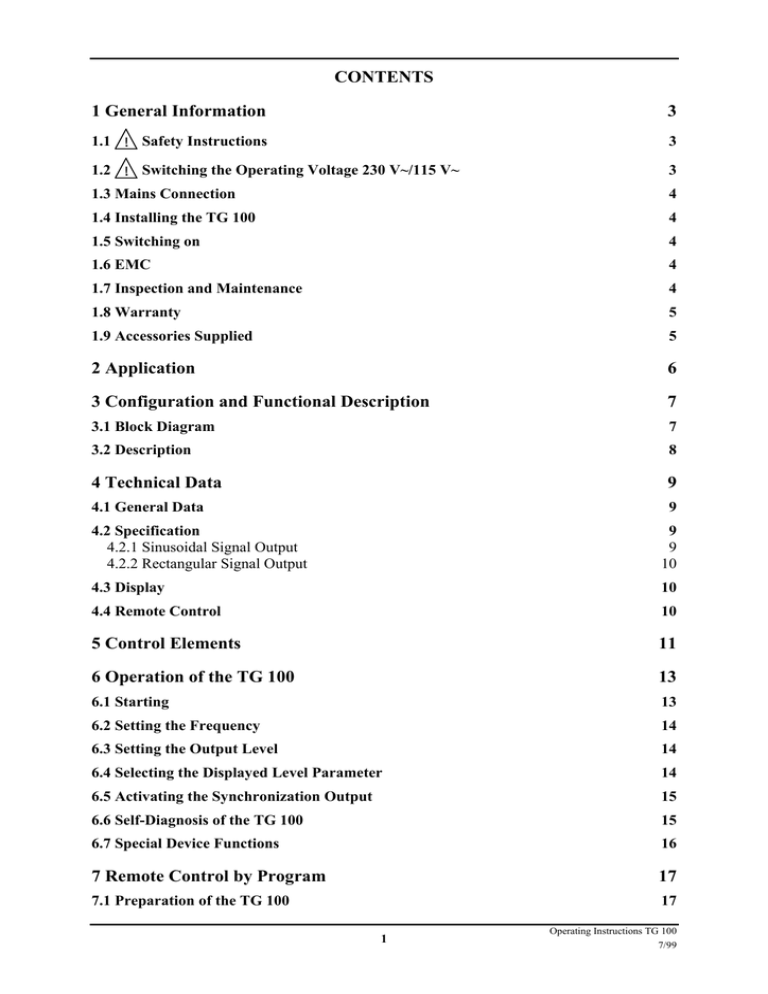

CONTENTS

1 General Information

1.1 Safety Instructions

1.2 Switching the Operating Voltage 230 V~/115 V~

1.3 Mains Connection

1.4 Installing the TG 100

1.5 Switching on

1.6 EMC

1.7 Inspection and Maintenance

1.8 Warranty

1.9 Accessories Supplied

2 Application

3 Configuration and Functional Description

3.1 Block Diagram

3.2 Description

4 Technical Data

4.1 General Data

4.2 Specification

4.2.1 Sinusoidal Signal Output

4.2.2 Rectangular Signal Output

4.3 Display

4.4 Remote Control

5 Control Elements

6 Operation of the TG 100

6.1 Starting

6.2 Setting the Frequency

6.3 Setting the Output Level

6.4 Selecting the Displayed Level Parameter

6.5 Activating the Synchronization Output

6.6 Self-Diagnosis of the TG 100

6.7 Special Device Functions

7 Remote Control by Program

7.1 Preparation of the TG 100

1

17

17

Operating Instructions TG 100

7/99

11

13

13

14

14

14

15

15

16

6

7

7

8

9

9

9

9

10

10

10

3

3

3

4

4

4

4

4

5

5

7.1.1 Selecting Interface Parameters

7.1.1.1 Baud Rate

7.1.1.2 Transmission Protocol

7.1.2 Remote Control

⇔ Local Control

7.2 Messages of the TG 100 on Remote Control

7.2.1 Description of the Unit Status

7.2.1.1 ESR - EVENT STATUS REGISTER

7.2.1.2 STB - STATUS BYTE REGISTER

7.2.2 Description of Results

7.2.3 Description of Errors

7.2.3.1 DER - DEVICE ERROR REGISTER

7.2.3.2 Error Messages

7.3 List of Commands on Remote Control

7.3.1 General Commands

7.3.2 Commands and Messages

7.3.2.1 Setting the Frequency

7.3.2.2 Setting the Output Level 24

7.3.2.3 Switching on and off the Rectangular Signal at the Synchronization Output 24

23

23

24

24

20

21

21

22

19

19

19

19

17

17

17

18

7.4 Measurement by Remote Control

7.5 Program Example (Q-Basic)

25

26

8 Maintenance 27

9 Appendix

9.1 List of Messages on the Display

9.2 Declaration of Conformity

28

28

30

Operating Instructions TG 100

7/99

2

1 General Information

1.1

Safety Instructions

Wherever you see this sign you will find information on potential hazards. Please read these sections with particular care!

Warning! Before opening the TG 100 disconnect the mains plug!

Attention! Our instrument fuses are dimensioned in such a way that optimal protection is guaranteed for the instrument and the user. In industrial power supplies, which are extremely strongly loaded, the instrument fuses could respond sporadically due to high voltage peaks.

If the fuse has to be changed, use only G fuse-link 5

× 20 according to

IEC 127 (see 4.1)!

1.2 Switching the Operating Voltage 230 V

~

/115 V

~

Your TG 100 left the factory to 230 V~. Switching to 115 V~ requires the TG 100 to be opened, which should only be done by trained personnel.

Setting the Operating Voltage 115 V~

1. Disconnect the TG 100 from the mains.

2. Remove upper caps and loosen the screws below.

3. Identify the mains voltage switch with the following illustration.

4. Switch the voltage mains voltage switch (slide switch) located under the power switch to the indication “120”.

5. Remove safety cover at the mains plug and replace the fuse with the fuse for 115 V supplied with the instrument.

6. Fasten upper caps and put the sticker supplied with the instrument for marking the switchover to 115 V on to the type label.

Mains Voltage Switch

115 V Position 230 V Position

3

Operating Instructions TG 100

7/99

1.3 Mains Connection

The design of the unit meets the requirements of safety class I according to EN 61010-1, i.e. all metal parts accessible from outside and exposed to contact are connected with the protective conductor of the supply network.

Power is supplied via a mains cable with earthing contact.

1.4 Installing the TG 100

The TG 100 should not be operated close to equipment that develops heat.

1.5 Switching on

The TG 100 is switched on using the power switch at the front. The power switch separates the TG 100 completely from the primary side of the transformer.

The LED I/O serves as a status indicator.

1.6 EMC

The TG 100 is interference-free according to the EN 50081-1 and EN 50081-2. In order to fulfil the limiting values in line with present standards, it is absolutely essential that only cables which are in perfect condition be connected to the unit. The following information applies here:

− Metallic or metallized socket cases must be used for the serial interface RS-232C. The socket cases and the braided screen of the cables must be connected at the shortest distance possible. The signal earth must not be connected to the braided screen.

− After opening and closing the TG 100 check that all the fixing elements and contact springs are installed as before and that all the screws have been tightened.

1.7 Inspection and Maintenance

If service is needed, due attention should be paid to the regulations according to VDE 0701.

The TG 100 should only be repaired by trained personnel.

Operating Instructions TG 100

7/99

4

1.8 Warranty

DIGIMESS guarantees the perfect working order of the TG 100 for 12 months as from delivery.

There is no warranty for faults arising from improper operation or from changes made to the unit or from inappropriate application.

If a fault occurs please contact or send your TG 100 to:

The TG 100 should be sent in appropriate packing - if possible in the original packing. Please enclose a detailed fault report (functions working incorrectly, deviating specifications and so on) including unit type and series number.

Kindly verify warranty cases by enclosing your supply delivery note. Any repairs carried out without reference to a valid warranty will initially be at the owner’s expense.

Should the warranty have expired, we will, of course, be glad to repair your TG 100 as per our General Terms Of Assembly And Service.

1.9 Accessories Supplied

1 mains cable

1 fine-wire fuse

2 fine-wire fuses

1 operating instructions

T 63 L/250 V (230 V)

T 125 L/250 V (115 V)

1 label for indicating the switch-over to 115 V

5

Operating Instructions TG 100

7/99

2 Application

• The precision tone generator TG 100, controlled by a microprocessor, is a compact, high value signal source in the frequency range of 1 Hz to 1 MHz. The TG 100 supplies a sinusoidal alternating voltage with a very small harmonic distortion.

• Furthermore, a rectangular signal (synchronisation signal) with a CMOS/TTL level can be picked off in the frequency range of 1 Hz to 1 MHz.

• All functions and measuring ranges can be set via menus by means of four keys and an incremental rotary switch. The chosen parameters of the output signal are clearly depicted on a two-line alphanumeric LCD matrix display.

• The TG 100 is equipped, as standard, with the serial interface RS-232C for communication with a PC. All functions and parameters can be set and set values and states of the TG 100 can be transmitted.

Operating Instructions TG 100

7/99

6

3 Configuration and Functional Description

3.1 Block Diagram

Frequency

Control

1

Level

Control

2

Oscillator 1

3

Oscillator 2

4

Amplifier

5

Rectangular

Shaper

6

Attenuator

7 Output

Buffer Stage

8

Sync.

Output

9

Keyboard

10

Display

11

Processor

12

EPROM RAM

13 14

EEPROM

(1) Frequency control circuit

(2) Level control circuit

(3) Oscillator stage 1 (1 Hz

≤ f ≤ 99.99 kHz)

(4) Oscillator stage 2 (100 kHz

≤ f ≤ 1 MHz)

(5) Amplifier of oscillator signal

(6) Rectangular shaper - sinusoidal/rectangular signal converter

(7) Output attenuator from 0 to 70 dB

(8) Buffer stage of output signal and CMOS/TTL converter

(9) Keyboard

(10) Display

(11) Microprocessor

(12) Program memory EPROM

(13) Data memory RAM

(14) Memory EEPROM for calibrated data

(15) Interface RS-232C

(16) Power supply

15

RS-232C

16

Power Supply

7

Operating Instructions TG 100

7/99

3.2 Description

The instrument’s internal operational procedures are controlled by the one-chip microprocessor MCS-51 (11) with support from additional switching circuits e. g. program memory EPROM (12), data memory RAM (13) and back-up memory EEPROM (14) for the calibrated data.

User communication is controlled via the keyboard with the incremental rotary switch (9) and via the display field (10).

The microprocessor controls communication with a PC via the serial interface RS-232C (15) at the same time.

After selecting the parameters, the microprocessor (11) carries out the instrument’s configuration and hardware setting. First, oscillator stage 1 (3) (for frequencies of 1 Hz to

99.99 kHz) or oscillator stage 2 (4) (for frequencies of 100 kHz to 1 MHz ) is switched through according to the entered frequency. The corresponding frequency range is then set and the parameters for the fine tuning of the required frequency are calculated.

The oscillator signal is fed to a rectangular shaper (6). The rectangular shaper is led to the synchronisation output via the buffer stage (8) with CMOS logic level. In addition, the rectangular signal is fed back to the microprocessor unit, where the period of the generated signal is measured. According to the measured standard deviation, the microprocessor (11) adjusts the required frequency value via the frequency control circuit (1).

The sinusoidal signal is fed, via the output attenuator, to the amplifier (5) with very small harmonic distortion. The amplification of the amplifier (5), and the damping of the output attenuator are set via the level control circuit (2) of the microprocessor according to the required level of the output signal. The signal from the attenuator (7) is then fed to the output socket of the instrument.

The TG 100 can be operated with four keys and an incremental rotary switch on the front of the instrument. The main functions of the TG 100 “FREQ”, “LEVEL”, “MENU” and

“ENTER/LOC” are selected using the function keys F1 to F4. In other menu levels, keys F1 to F4 have different meanings. The incremental rotary switch is used to change parameters which have to be set.

Operating Instructions TG 100

7/99

8

4 Technical Data

4.1 General Data

Nominal temperature:

Operating temperature:

Relative humidity:

Atmospheric pressure:

Operating position:

Operating voltage:

Power consumption:

Fuses:

Safety class:

Radio interference suppression:

Dimensions (L

× H × D):

Dimensions of packing:

Weight of

TG 100: incl. packing and accessories:

4.2 Specification

Frequency range:

Frequency setting:

Accuracy of frequency setting

(at nominal temperature):

Duration for auto calibration of frequency:

Temperature coefficient of frequency:

Time coefficient of frequency:

Output signal:

Break-in period:

4.2.1 Sinusoidal Signal Output

Harmonic distortion of output signal:

Output impedance:

Output voltage:

+ 23 °C

± 1 °C

+ 5 ... + 40 °C

20 ... 80 %

70 ... 106 kPa horizontal or inclined by

± 15 ° sinusoidal alternating voltage

115/230 V (+ 10 %/– 15 %), internal switchable

47 ... 60 Hz (

± 5 %) max. 15 VA (max. 15 W)

T 63 L/250 V (230 V~)

T 125 L/250 V (115 V~)

1, according to EN 61010 Part 1

EN 55011 Class B

225 mm

× 85 mm × 200 mm

315 mm

× 115 mm × 270 mm approx. 1.9 kg approx. 2.9 kg

1 Hz ... 1 MHz

4 places

± 0.5 %

± 0.05 % after auto calibration approx. 100 ms for f > 100 Hz approx. 0.1 ... 15 s for f < 100 Hz

< ± 5 · 10

-4

/K

< ± 1 · 10

-3

/5 min after 30 min sinusoidal signal rectangular signal (switchable)

30 min

≤ 0.02 % for 10 Hz ≤ f ≤ 10

≤ 0.05 % for 10 kHz ≤ f ≤ 50

< 0.5 % for 50 kHz

≤ f ≤ 100 kHz

< 1 % for 100 kHz

≤ f ≤ 200 kHz

< 3 % for 200 kHz MHz

600

Ω ± 1.5 %, unsymmetric

3.16 V/600

9

Operating Instructions TG 100

7/99

Accuracy of output voltage at 1 kHz:

Temperature coefficient of output voltage:

Change of output voltage in response to frequency:

Output voltage divider:

Accuracy of division:

± 0.5 dB

± 5 · 10

-3

/K

± 0.5 dB for 20 Hz ≤ f ≤ 20 kHz

± 1.0 dB for 1 Hz ≤ f ≤ 1 MHz

0 ...

− 70 dB in 0.1 dB steps

± 0.7 dB

4.2.2 Rectangular Signal Output

Output impedance:

Output voltage U

PP approx. 50

: 5

Maximum output current: 10 mA

Pulse duty factor: approx. 1:1

4.3 Display

The TG 100 is equipped with a 16-digit alphanumerical LC matrix display with lighting. It indicates setting parameters of the output signals or the functions by menu and system messages.

4.4 Remote Control

The TG 100 can be fully controlled and can be read out via the serial interface RS-232C. The

TG 100 can be completely remote controlled via the serial interface RS-232C. The data transfer is based on the ASCII character set, and the data transmission rate can be selected.

Data transmission rate:

Length of data character:

1,200, 2,400, 4,800, 9,600 Bd

8 bit

Number of STOP bits: 1

Parity: none

Protocol:

End characters on receiving:

RTS/CTS, without (NONE)

LF

(10 dec.)

End characters on transmission:

Length of input buffer:

Length of output buffer:

Plug connections of cable:

CR

+ LF (13 dec. + 10 dec.)

64 characters

256 characters

FG

TXD

TG 100

1

2

RXD

RTS

3

4

CTS

DSR

5

6

SG

DCD

DTR

7

8

20

PC

5

6

7

8

20

3

4

1

2

FG

TXD

RXD

RTS

CTS

DSR

SG

DCD

DTR

Operating Instructions TG 100

7/99

10

5 Control Elements

1

2 3 4

11 5 6 7 8 9 10

[1] Power switch

[2] LED I/O

The LED indicates whether the unit is ready for operation.

[3] Display

See 4.3.

[4] Rotary switch

The TG 100 can be completely remote controlled via the serial interface RS-232C. The file transfer is based on the ASCII file, which means the data transmission rate can be selected.

[5] Funktion button F1

FREQ - The key opens the menu to set the frequency of the output signal.

- The key has different meanings in different levels.

[6] Funktion button F2

LEVEL

Õ

- The key opens the menu to set the level of the output signal.

- The cursor is moved to the left.

- The key has different meanings in different levels.

[7] Funktion button F3

MENU

Ö

- The key opens the menu to set further parameters of the TG 100.

- The cursor is moved to the right.

- The key has different meanings in different levels.

[8] Funktion button F4

ENTER - With the help of this button the new parameter setting are confirmed.

LOC - At remote control the TG 100 changes to local control.

- The key has different meanings in different levels.

11

Operating Instructions TG 100

7/99

[9] LED REM

The LED lights up if data are sent via serial interface RS-232C.

[10] BNC output socket of sinusoidal signal

[11] BNC output socket of rectangular signal

The power is supplied by a fused plug for non-heating appliances. The TG 100 is protected by a fuse of T 63 L/250 V for 230 V~ or T 125 L/250 V for 115 V~ net voltage respectively.

The operating voltage indication shows which operating voltage is to be used.

The serial interface RS-232C serves the purpose of data transmission on remote control via a

PC.

The mains plug with fuse, the operating voltage indication, the serial interface and the type

plate can be found at the back of the TG 100.

Operating Instructions TG 100

7/99

12

6 Operation of the TG 100

6.1 Starting

Attention! When the TG 100 is operated externally, the connecting cable of the system interface RS-232C must be connected before switching on the operating voltage.

• The TG 100 is connected to the power supply by the mains cable. After activating the power switch [1], the LED I/O [2] lights up and an internal test starts up. The following messages appears on the display [3]:

LD GEN. <TG-100>

PowerUp SelfTest and

Testing: UNIT

........ Passed

The variable UNIT stands for the unit which has just been tested. The appropriate functions of the processor (CPU), the data bus (BUS), the ROM memory (ROM), the RAM memory (RAM), the EEPROM memory (EEPROM), the display (DISPLAY), the keyboard

(KEYBOARD) and the whole system (SYSTEM) are checked. On error-free conclusion of the test the following confirmation and current software version appear:

LD GEN. <TG-100>

READY and

LD GEN. <TG-100>

Ver: 2.30

• After error-free testing, the settings correspond to those of the original state of operation:

− f = 1 kHz,

− V = − 60 dBV,

− rectangular signal output - switched off,

− baud rate - 9600 Bd,

− transmission protocol - none (NONE) or last setting of the user.

The following settings are shown on the display [3]:

FREQ: 1.000 kHz

LEVEL: -60.0 dBV

• Should a system error occur during the internal test, the TG 100 interrupts the test until the error is eliminated. The following message appear on the display [3]:

Testing: UNIT

........ ERROR

The variable UNIT stands for the unit which has just been tested.

• If errors which have no direct effect on the function of the TG 100 occur in the component circuits, the test will continue. A warning with corresponding error characterization appears on the display [3]:

LD GEN. <TG-100>

WARNING: and

Calibration

Data Expired!

13

Operating Instructions TG 100

7/99

6.2 Setting the Frequency

• After pressing the F1 button FREQ [5] the starting state of the TG 100 for frequency setting is reached and the following message appears on the display [3]:

FREQ: 1.000 kHz

LEVEL: -60.0 dBV

• Select the position with the help of the cursor buttons Õ [6] and Ö [7] and change the current frequency value of 1 Hz to 1 MHz with the help of the rotary switch [4].

• Store the new setting with the help of the F4 button ENTER [8].

The cursor disappears and the TG 100 returns to the starting state. The last position of the cursor is preserved.

The frequency of the output signal is tuned in exactly to the required value. While tuning, the symbol “~” appears on the display.

6.3 Setting the Output Level

• After pressing the F2 button LEVEL [6] the starting state of the TG 100 for level setting of sinusoidal output signal is reached and the following message appears on the display [3]:

FREQ: 1.000 kHz

LEVEL: -60.0 dBV

• Select the position with the help of the cursor buttons Õ [6] and Ö [7] and change the current output level value with the help of the rotary switch [4].

• Select the measuring range dBV and dBm for the output level or V und mV for the output voltage with the help of the F1 button [5].

• Store the new settings with the help of the F4 button ENTER [8].

The cursor disappears and the TG 100 returns to the starting state. The last position of the cursor is preserved.

6.4 Selecting the Displayed Level Parameter

• After pressing the F3 button MENU [7] the main menu of the TG 100 is reached and the following message appears on the display [3]:

-- Main Menu --

DSP OUT AUX EXIT

The function buttons F1, F2, F3 and F4 have the function which is indicated on the display.

• Call up the menu point DSP for setting the displayed measuring range of the output level with the help of the F1 button [5]. The following message appears on the display [3]:

Display Mode:

LEVEL [dBV]

Operating Instructions TG 100

7/99

14

• Change the measuring range of the output level with the help of the rotary switch [4]. The following message appears on the display [3]:

Display Mode:

LEVEL [ V ] or

Display Mode:

LEVEL [dBm]

• Store the new settings with the help of the F4 button ENTER [8].

The TG 100 returns to the main menu. After pressing the F4 button EXIT [8] again, the settings are concluded and the TG 100 returns to the starting state.

6.5 Activating the Synchronization Output

• After pressing the F3 button MENU [7] the main menu of the TG 100 is reached and the following message appears on the display [3]:

-- Main Menu --

DSP OUT AUX EXIT

The function buttons F1, F2, F3 and F4 have the function which is indicated on the display.

• Call up the menu point OUT for switching on and off the rectangular signal at the synchronization output with the help of the F2 button [6]. The following message appears on the display [3]:

Sync. Output:

OFF

• Switch the synchronization output on or off with the help of the rotary switch [4].

• Store the new settings with the help of the F4 button ENTER [8].

The TG 100 returns to the main menu. After pressing the F4 button EXIT [8] again, the settings are concluded and the TG 100 returns to the starting state.

6.6 Self-Diagnosis of the TG 100

• After pressing the F3 button MENU [7] twice the sub-menu of the TG 100 is reached and the following message appears on the display [3]:

--- Aux.Menu ---

INT TST SPC EXIT

The function buttons F1, F2, F3 and F4 have the function which is indicated on the display.

• Call up the menu point TST for self diagnosis of the TG 100 with the help of the F2 button

[6].

Note: Testing equipment must be installed for a successful test.

After pressing the F4 button EXIT [8] the TG 100 returns to the main menu. After pressing the F4 button EXIT [8] again, the settings are concluded and the TG 100 returns to the starting state.

15

Operating Instructions TG 100

7/99

6.7 Special Device Functions

• After pressing the F3 button MENU [7] twice the sub-menu of the TG 100 is reached and the following message appears on the display [3]:

--- Aux.Menu ---

INT TST SPC EXIT

The function buttons F1, F2, F3 and F4 have the function which is indicated on the display.

• Call up the menu point SPC for input the password with the help of the F3 button [7]. The following message appears on the display [3]:

Password:

00000000

• Select the position with the help of the cursor buttons Õ [6] and Ö [7] and input the password correctly with the help of the rotary switch [4].

After confirmation with the F4 key ENTER [8], the special menu for service and calibration is opened to the authorised user (service technician).

Operating Instructions TG 100

7/99

16

7 Remote Control by Program

7.1 Preparation of the TG 100

Remote control of the TG 100 with a personal computer (PC) is possible via the serial interface RS-232C. The interface of the personal computer must be configured as described in

paragraph 4.4. The connecting cable must not be longer than 15 m. Interface cables should be

connected when the unit is off. After switching on the TG 100 is in starting position and can receive commands. The remote control is displayed on LED REM [9].

7.1.1 Selecting Interface Parameters

After switching on the TG 100 and after the following internal test is successfully completed the transmission parameters can be set by the menu.

• After pressing the F3 button MENU [7] twice the sub-menu is reached and the following message appears on the display [3]:

--- Aux.Menu ---

INT TST SPC EXIT

The function buttons F1, F2, F3 and F4 acquire the indicated meaning.

• With the help of the F1 button [5] call the menu INT for selection of the interface parameters. The following message appears on the display [3]:

-- RS 232 Set --

BdR PRT EXIT

The function buttons F1, F2, F3 and F4 acquire the indicated meaning.

7.1.1.1 Baud Rate

• After pressing the F1 button BdR [5] the current baud rate is displayed, e. g.:

BaudRate:

9600

• Set the desired baud rate 1200, 2400, 4800 or 9600 with the help of the rotary switch

[4].

• Save the new setting with the F4 button ENTER [8].

The TG 100 returns to the menu INT for selection of the interface parameters.

After pressing the F4 button EXIT [8] three times the settings are finished and the TG 100 returns to the starting state.

7.1.1.2 Transmission Protocol

• After pressing the F2 button PRT [6] the current transmission protocol is displayed, e. g.:

Protocol:

NONE

• Set a transmission protocol with RTS/CTS signals (RTS/CTS) or no transmission protocol

(NONE) with the help of the rotary switch [4].

17

Operating Instructions TG 100

7/99

• Save the new setting with the F4 button ENTER [8].

The TG 100 returns to the menu INT for selection of the interface parameters.

After pressing the F4 button EXIT [8] three times the settings are concluded and the

TG 100 returns to the starting state.

Note: After switching off the TG 100 the settings of the interface parameters are kept.

Communication with RTS/CTS protocol

Data received from PC: signal RTS=ON

Data transmitted to PC: signal CTS=ON

- TG 100 can receive data.

- TG 100 transmits data.

Communication without RTS/CTS protocol

Data received from PC:

Data transmitted to PC: signal RTS=ON signal CTS=ON

- TG 100 can always receive data, on overloading of the input buffer the error INP.BUFFER FULL is reported.

- TG 100 can always transmit data.

7.1.2 Remote Control

Local Control

On transmission of the command REN the TG 100 is in the REMOTE CONTROL status. This is indicated by the LED REM [9]. Afterwards control of the TG 100 by the local control elements is not possible (except with the F4 button LOC [8]).

• There are several ways of switching from remote control to local control:

− by transmitting command GTL (Go To Local) from the PC,

− by pressing the F4 button LOC [8] at the TG 100 if the keyboard has not been locked by the command LLO (Local Lock Out),

− by switching the power switch [1] off and on.

Note: Block the F4 button LOC [8] with the help of the command LLO. Then all the commands of the PC are processed completely.

• The following commands can also be sent and received by the PC when the TG 100 is on local control:

*IDN?,*CLS,*ESR?,*ESE,*ESE?,*STB?,*SRE,*SRE?,ERR?,DER?.

Operating Instructions TG 100

7/99

18

7.2 Messages of the TG 100 on Remote Control

7.2.1 Description of the Unit Status

The current status of the operating conditions of the TG 100 can be interrogated at any time via the EVENT STATUS REGISTER and the STATUS BYTE REGISTER.

7.2.1.1 ESR - EVENT STATUS REGISTER

The contents of the ESR register are filed in the output buffer and deleted by transmitting the command *ESR?. The ESR register is set on Ø (except bit 7 - PON) when switching on the

TG 100, by transmitting the command *CLS or after changing the interface parameters.

Contents of the ESR register:

ESR XXX

6: (URQ) User Request - is not used, is always set on Ø.

5: (CME) Command Error - is set on 1 at instruction errors.

4: (EXE) Execution Error - is set on 1 at query errors and execution errors.

3: (DDE) Device Dependent Error - device errors are displayed on 1.

2: (QYE) Query Error - is set on 1 at query errors.

1: (RQC) Request Control - is not used, is always set on Ø.

Ø: (OPC) Operation Complete - is set on 1 by transmitting the command *OPC.

ESE - EVENT STATUS ENABLE REGISTER

• Various statuses and settings of the TG 100 can be checked. For this the contents of the

ESR register are called with the help of a mask. The single bits are compared and evaluated by the following logical equation:

ESB = (ESR7

∧ ESE7) ∨ (ESR6 ∧ ESE6) ∨ (ESR5 ∧ ESE5) ∨ (ESR4 ∧ ESE4) ∨

(ESR3

∧ ESE3) ∨ (ESR2 ∧ ESE2) ∨ (ESR1 ∧ ESE1) ∨ (ESRØ ∧ ESEØ)

The result ESB (Event Summary Bit) is entered in the STB register.

• The command *ESE XXX offers the possibility of initializing the ESE register with any mask. The value XXX has to be within the range of Ø to 255.

Note: If the value is out of range from Ø to 255 the error VAL. OUT OF RANGE is reported.

• The current contents XXX are saved in the output buffer by transmitting the command

*ESE?

. The ESE register can set on Ø (except bit 7) when switching on the TG 100, by transmitting the command *ESE 0 or after changing the interface parameters.

7.2.1.2 STB - STATUS BYTE REGISTER

The contents of the STB register are filed in the output buffer by transmitting the command

*STB?

. The STB register can be set on Ø (except bit 4 - MAV) when switching on the unit, by transmitting the command *CLS or after changing the interface parameters.

19

Operating Instructions TG 100

7/99

Contents of the STB register:

STB XXX

6: (MSS) Master Summary Bit - result during checkup of the STB register with a mask (SRE register, see below).

5: (ESB) Event Summary Bit - result during checkup of the ESR register with a mask

(ESE register).

4: (MAV) Message Available - is set on 1 if a current message of the TG 100 is requested at the output buffer.

3: is not used, is always set on Ø.

2: is not used, is always set on Ø.

1: is not used, is always set on Ø.

Ø: is not used, is always set on Ø.

SRE - SERVICE REQUEST ENABLE REGISTER

• Various statuses and settings of the TG 100 can be checked. For this the contents of the

ESR register are called with the help of a mask. The single bits (except SRE bit 6, which is always set on Ø) are compared and evaluated by the following logical equation:

MSS = (STB7

∧ SRE7) ∨ (STB5 ∧ SRE5) ∨ (STB4 ∧ SRE4) ∨ (STB3 ∧ SRE3) ∨

(STB2

∧ SRE2) ∨ (STB1 ∧ SRE1) ∨ (STBØ ∧ SREØ)

The result MSS (Master Summary Status) is entered in the STB register.

• The command *SRE XXX offers the possibility of initializing the ESE register with any mask. The value XXX has to be within the range of Ø to 255.

Note: If the value is out of range from Ø to 255 the error VAL. OUT OF RANGE is reported.

• The current contents XXX are saved in the output buffer by transmitting the command

*SRE?

. The SRE register can be set on Ø when switching on the TG 100, by transmitting the command *SRE Ø or after changing the interface parameters.

7.2.2 Description of Results

The results are transmitted in the following format:

• Numeric argument of data within the range of 0 to 255:

Where:

X

Y

Z

- character from Ø to 9

- character from 1 to 9

- character from 1 to 2

• Output level [dBV] within the range of − 60.0 to + 10.0:

Where:

X

Y

S

- character from Ø to 9

- character from 1 to 6

- Vorzeichen (+/

−)

• Output level [dBm] within the range of − 57.8 to + 12.2:

Where:

X

Y

S

- character from Ø to 9

- character from 1 to 5

- sign (+/

−)

X

or YX or ZXX

SYX.X

SYX.X

Operating Instructions TG 100

7/99

20

• Numeric argument which is implemented in the TG 100: from Z.XXXE+0Y to ZXX.XE+0Y

Where:

Z

X

- character from 1 to 9

- character from Ø to 9

Y

-

Ø

, 3 or 6

• Numeric argument which is implemented in the TG 100: from Z.XXES0Y to ZXXES0Y

Where:

Z

X

Y

S

- character from 1 to 9

- character from Ø to 9

- character Ø or 3

- sign (+/

−)

7.2.3 Description of Errors

• When errors occur in the remote-controlled settings and measurements, they are saved with a code in the error register. The contents (error message) of the error register can be called and deleted at any time by transmitting the command ERR?. If a error has been recorded, the corresponding error message is only deleted after the error has been eliminated.

• If several errors arise only the error codes of the first and last error are saved. On repeating transmission of the command ERR? the contents of the error codes are filed in the output buffer and initialized (deleted). The initializing of the error register is also started by transmitting the command *CLS (initializing of the state register).

Note: Before the transmission of the command ERR? the interface command DCL has to be send.

7.2.3.1 DER - DEVICE ERROR REGISTER

The contents of the DER register specify the device error in the error register and are filed in the output buffer by transmitting the command DER?. The contents of the register are not deleted after reading.

Contents of the DER register:

DER XXX

6: The calibration data are deleted.

5: Is not used, is always set on Ø.

4: Is not used, is always set on Ø.

3: Is not used, is always set on Ø.

2: Is not used, is always set on Ø.

1: Is not used, is always set on Ø.

Ø: Is not used, is always set on Ø.

• When a device error occurs the bit ESR3 (DDE) of the ESR register is set on 1.

• After following commands the DER register is set on Ø:

− use of the command ERR? severals time (according to number of error),

− initialization of status structure (*CLS).

21

Operating Instructions TG 100

7/99

7.2.3.2 Error Messages

The error messages are dependent on the operating status and the type of error.

At local control interface errors are displayed for only a short time. At remote control of the

TG 100 interface errors are displayed until the contents of the error register are queried or initialized.

Device errors are displayed until new commands from the personal computer are transmitted.

List of Error Messages

Error code

Ø

12Ø

131

132

134

151

181

Text of messages

-

QUERY ERROR

BAD USING QUERY

EXECUTION ERROR

NO EXECUTION

NOT EX. IN LOCAL

VAL. OUT OF RANGE

COMMAND ERROR

ILLEGAL COMMAND

RS 232 error

INP. BUFFER FULL

Meaning of text

- faultless operation

query error

- used query is wrong

execution error

- cannot be executed

- cannot be executed in local control

- value is out of range

command error

- illegal command

error of the RS-232C interface

- input buffer is full

Operating Instructions TG 100

7/99

22

7.3 List of Commands on Remote Control

7.3.1 General Commands

- transition from local control to remote control

LLO

- locking of the F4 button LOC [8]

- transition from remote control to local control

- initializing for the communication protocol of the interface, resetting or initializing of the partial circuits command has no influence on the functions of the device.

These have to be initialized by the general command *RST.

- initializing of device settings (starting state) frequency of the output signal:

1.000 kHz level of the output signal: -60 dBV synchronization output (rectangular signal): switched off

The command correspond to instructions:

SQU_OFF;UNIT_DBV;

LEVEL -60.0;FREQ 1E3

Note: After switching on the TG 100 the commands DCL and *CLS are executed automatically and the contents of the ESE and SRE register are reset. Bit 7 (PON) of the ESR register is set on 1.

- start of internal test and saving of result

Meaning:

Ø

- test is successful

1

- test is not successful identification

*CLS

(Clear Status Byte)

Y

- software version or Ø query should be written at the end of the command line because subsequent data can be lost before transmission. Otherwise the error BAD USING QUERY is reported.

- resetting of ESR- and STB register (except bit 4 - MAV)

Initializing of the error structure (see 7.2.3), ESE and SRE

registers are not deleted.

- The following commands are executed only after completion of current operation.

*OPC

(Operation Complete) - After completion of current operation bit Ø (OPC) in the ESR register is set on 1.

*OPC?

- After completion of current operation the number 1 is saved in the output buffer.

23

Operating Instructions TG 100

7/99

DER?

- reading and resetting of the error messages (see 7.2.3.2)

- Contents of the DER register are filed in the output buffer.

*ESR?

; *ESE XXX; *ESE?

- reading and resetting of the ESR register (see 7.2.1.1)

*STB?

; *SRE XXX; *SRE?

- reading and resetting of the STB register (see 7.2.1.2)

7.3.2 Commands and Messages

7.3.2.1 Setting the Frequency

FREQ

- frequency setting [Hz] within range (XXXXXX) from 1.Ø to 1.ØØØ E6 (argument is rounded up)

Note: If the value is out of range the error 143 is reported.

FREQ?

- The set frequency value is filed in the output buffer:

Z.XXE+0Y

to ZX.XE+0Y

Where:

Z

- character from 1 to 9

X

- character from Ø to9

Y

-

Ø

, 3 or 6

7.3.2.2 Setting the Output Level

Setting the measuring unit

UNIT_DBV

UNIT_DBM

- The measuring unit dBV for the level setting is selected.

- The measuring unit dBm for the level setting is selected.

UNIT_V

- The measuring unit V for the level setting is selected.

UNIT?

- , UNIT_DBM or UNIT_V of the measuring unit is filed in the output buffer.

Setting the output level with selected measuring unit

LEVEL

- level setting with selected measuring unit within the range: from

-6Ø

to

+1Ø for measuring unit dBV

from for measuring unit V

Note: If the value is out of range the error 143 is reported.

LEVEL?

- Current output level is filed in the output buffer:

SXX.X

- for measuring units dBV and dBM

Where:

X

- character from Ø to 9

S

- sign (+/

−)

Z.XXE.X

to ZX.XE+0Y - for measuring unit V

Where:

X

- character from Ø to 9

Z

- character from 1 to 9

7.3.2.3 Switching on and off the Rectangular Signal at the Synchronization Output

SQU_ON

- The rectangular signal at the synchronization output is switched on.

SQU_OFF

- The rectangular signal at the synchronization output is switched off.

UNIT?

-

Operating Instructions TG 100

7/99

24

7.4 Measurement by Remote Control

• For remote control of the TG 100 the connecting cable of the serial interface RS-232C has to be connected before switching on the operating voltage. After switching on the TG 100 is in starting position and can receive commands. The remote control is displayed on LED

REM [9].

• Single commands can be written one after the other in one command line, the length of which must not exceed 64 characters. In case errors occur, the command sequence is ignored and error INP. BUFFER FULL is indicated.

• It should be noted that single commands and device messages have to be separated by a semicolon (ASCII: ; = 59) and finished by the end character (see below). Certain commands or messages can contain parameters or results which are separated by a separation character (see below) from the command.

Separation and end characters during transmission of commands:

ASCII

Separation character

SP

= 32 (dec.)

NUL = 0 to 9 (dec.)

STX to BS = 0 to 9 (dec.)

VT

to = 0 to 9 (dec.)

NAK

to CAN = 0 to 9 (dec.)

SUB

to US = 11 to 31 (dec.)

End character

LF

= 10 (dec.)

Separation and end characters during receiving of commands:

ASCII

Separation character

SP

= 32 (dec.)

End character

CF+LF

= 13 (dec.) + 10 (dec.)

25

Operating Instructions TG 100

7/99

7.5 Program Example (Q-Basic)

2Ø REM THE EXAMPLE OF USING TG 100 WITH RS-232C INTERFACE

3Ø REM PORT COM 2, BAUD RATE 1200 Bd

4Ø REM GENERATOR SETTING - OUTPUTFREQUENCY: 1.234 kHz

5Ø REM - OUTPUT LEVEL : 1 V

70 REM

8Ø CLS

9Ø REM *** ACTIVATE INTERFACE ***

1ØØ IDCL$=CHR$(2Ø):IREN$=CHR$(9):ILLO$=CHR$(25):IGTL$=CHR$(1)

11Ø REM

12Ø REM *** CONFIGURATE INTERFACE ***

13Ø OPEN "com2:12ØØ,n,8,1,CS3ØØØØ,LF" FOR RANDOM AS #1

14Ø REM

15Ø REM *** CONFIGURATE TG 100 ***

16Ø PRINT #1,IDCL$;IREN$;ILLO$;"*RST;*CLS"

17Ø REM

18Ø REM *** SET FREQUENCY ***

19Ø PRINT #1,"FREQ 1.234E+3"

2ØØ REM

21Ø REM *** SET MEASURING UNIT ***

22Ø PRINT #1,"UNIT V"

23Ø REM

24Ø REM *** SET OUTPUT LEVEL ***

25Ø PRINT #1,"LEVEL !"

26Ø REM

27Ø REM *** TRANSITION TO LOCAL CONTROL ***

28Ø PRINT #1,"*OPC?"

29Ø INPUT #1,A$

3ØØ PRINT #1,IGTL$

31Ø REM

32Ø REM *** CLOSE STATEMENT ***

33Ø CLOSE #1

34Ø END

Operating Instructions TG 100

7/99

26

8 Maintenance

The TG 100 does not require special maintenance if it is used and handled correctly.

Only use a soft wet rag with some soap suds or a soft rinse liquid for cleaning. Avoid acrid cleanser and solvents.

Service work should only be done by trained personnel.

In case of repairs it is vital to ensure that the design features of the TG 100 are not changed, resulting in a reduction in operational safety, and that replacement parts match the original ones and are installed properly (original state).

Warning! The TG 100 must be separated from all power sources before maintenance work is carried out and before parts or fuses are repaired or replaced.

27

Operating Instructions TG 100

7/99

9 Appendix

9.1 List of Messages on the Display

LD GEN. <TG-100>

PowerUp SelfTest

- internal test starts

Testing: CPU

........ Passed

Testing: CPU

........ ERROR

- faultless CPU test

- error at the CPU test

Testing: BUS

........ Passed

Testing: BUS

........ ERROR

- faultless BUS test

- error at the BUS test

Testing: ROM

........ Passed

Testing: ROM

........ ERROR

- faultless test of the ROM

- error at the ROM test

Testing: RAM

........ Passed

Testing: RAM

........ ERROR

- faultless test of the RAM

- error at the RAM test

Testing: EEPROM

........ Passed

Testing: EEPROM

........ ERROR

- faultless test of the EEPROM

- error at the EEPROM test

Testing: DISPLAY

........ Passed

Testing: DISPLAY

........ ERROR

- faultless display test

- error at the display test

Testing:KEYBOARD

........ Passed

Testing:KEYBOARD

........ ERROR

- faultless keyboard test

- error at the keyboard test

Operating Instructions TG 100

7/99

28

Testing: SYSTEM

........ Passed

Testing: SYSTEM

........ ERROR

LD GEN. <TG-100>

READY

LD GEN. <TG-100>

Ver: 2.30

LD GEN. <TG-100>

WARNING:

Calibration

Data Expired!

Bad using query

Not Execution

Not Ex. in Local

Val.Out of Range

Illegal command

Inp. Buffer Full

Password:

00000000

Invalid password

- faultless SYSTEM test

- error at the SYSTEM test

- operational readiness of the device

- version of the firmware

- error in the partial circuit during the test is not interupted

- error descriptions in the partial circuit, e. g.

“Calibration Data Expired!”

- used query is wrong

- instruction cannot be executed

- instruction cannot be executed in local control

- value is out of range

- illegal command

- input buffer is full

- password input

- invalid password

29

Operating Instructions TG 100

7/99

9.2 Declaration of Conformity

Operating Instructions TG 100

7/99

30

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
