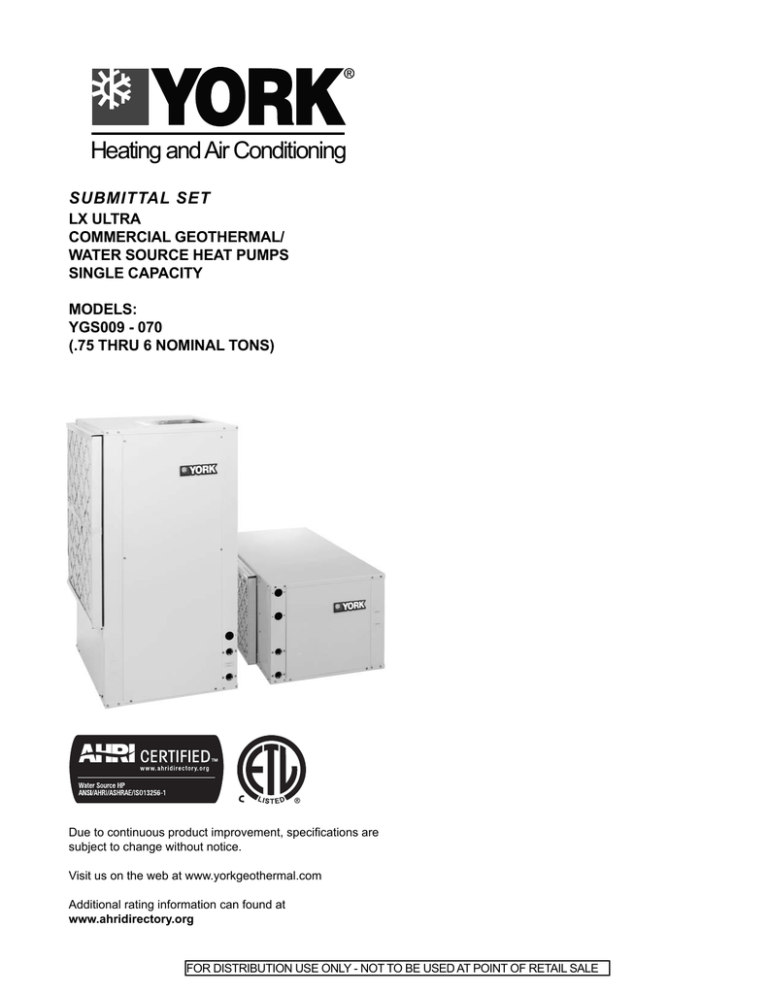

LX ULTRA
COMMERCIAL GEOTHERMAL/
WATER SOURCE HEAT PUMPS
SINGLE CAPACITY
MODELS:
YGS009 - 070
(.75 THRU 6 NOMINAL TONS)
Due to continuous product improvement, specifications are
subject to change without notice.
Visit us on the web at www.yorkgeothermal.com
Additional rating information can found at
www.ahridirectory.org
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Model Nomenclature
1-2
3
4
5-7
8
9
10
11
12
13
14
15
16
17
18
19
20
21 22-23 24
YG
S
V
036
T
L
0
0
0
C
A
N
N
A
5
N
0
0
SS
*
Model Type
YG – YG Series
Vintage
* - Factory Use Only
Operation Range
S – Single Stage
Non-Standard Options
SS – Standard
Cabinet Configuration
V – Vertical
H - Horizontal
Drain Pan Option
0 – Composite, No Secondary Connection
1 – Composite, Secondary Connection
2 – Stainless Steel, No Secondary Connection
3 – Stainless Steel, Secondary Connection
Unit Capacity (MBTUH)
009, 012, 015, 018,
023 (Horizontal Only)
024, 030, 036,
041 (Vertical Only)
042, 048, 060, 070
Cabinet Option
0 – Unpainted, 1 in MERV 4, Filter Rail
1 – Painted, 1 in MERV 4, Filter Rail
2 – Unpainted, 2 in MERV 13, Filter Rail
3 – Painted, 2 in MERV 13, Filter Rail
4 – Unpainted, 1 in MERV 4, Filter Rack
5 – Painted, 1 in MERV 4, Filter Rack
6 – Unpainted, 2 in MERV 13, Filter Rack
7 – Painted, 2 in MERV 13, Filter Rack
Discharge Configuration
T – Top (Vertical)
E – End (Horizontal)
S – Side (Horizontal)
Return Air Configuration
L – Left
R – Right
Phase Guard
N – No Phase Guard, No Disconnect
P – Phase Guard, No Disconnect
B – Phase Guard, Disconnect
D – No Phase Guard, Disconnect
Voltage
0 – 208-230/60/1
2 – 265-277/60/1 (009-030)
3 – 208-230/60/3 (023-070)
4 – 460/60/3 (023-070)
5 – 575/60/3 (PSC Only 041-070)
All-Aluminum Air Coil Option
5 – AlumiSealTM, Extended Range
6 – AlumiSeal, Standard Range
7 – No Coating, Extended Range
8 – No Coating, Standard Range
Hot Water Generation Option
0 – No HWG, No GeoStart
2 – HWG without Pump, No GeoStart (V015 – 070)
3 – No HWG, GeoStart
5 – HWG without Pump, GeoStart
Control Option
A – AuroraTM Base Control (ABC)
Water Control Option
N – None
R – Water Flow Regulator (015-070)
V – 2-Way Valve (015-070)
B – 2-Way Valve w/ Water Flow Regulator
(015-070)
Blower Options
0 – PSC Blower
1 – Variable Speed ECM Blower (015-070)
2 – High Static Variable Speed ECM Blower (042-048)
3 – High Static PSC Blower (024, 030, 042, 048)
4 – 5-Speed ECM Blower (015-070)
Refrigeration Option
0 – None
G – Hot Gas Bypass (015-072)
R – Hot Gas Reheat (015-072)
B – Hot Gas Bypass w/Hot Gas Reheat (015-072)
Water Coil Option
C – Copper
N – CuproNickel
Sound Kit Option
A – None
B – Sound Kit (Not Available on H009-012)
Rev.: 29 October 2013D
Note: Phase Guard Only Available on 208-230/60/3, 460/60/3, and 575/60/3
50VA Transformer with Aurora
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
2
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
AHRI Data
PSC Motor
AHRI/ASHRAE/ISO 13256-1
English (IP) Units
Water Loop Heat Pump
Flow Rate
Model
Cooling
EWT 86°F
Capacity
Btu/h
EER
Btu/h/W
Ground Water Heat Pump
Heating
EWT 68°F
Capacity
Btu/h
COP
Cooling
EWT 59°F
Capacity
Btu/h
EER
Btu/h/W
Ground Loop Heat Pump
Heating
EWT 50°F
Capacity
Btu/h
COP
Cooling
EWT 77°F
Capacity
Btu/h
EER
Btu/h/W
Heating
EWT 32°F
Capacity
Btu/h
gpm
cfm
COP
009
3.0
350
8,500
12.0
11,500
4.4
10,500
18.2
9,600
3.7
9,100
13.5
7,600
3.0
012
3.5
400
10,900
12.7
14,700
4.4
12,500
18.2
12,000
3.8
11,500
14.7
9,600
3.2
015
4.0
500
14,000
15.0
16,500
4.8
16,000
24.0
15,000
4.1
14,700
17.2
11,500
3.5
018
5.0
600
17,600
14.6
21,000
4.7
20,600
23.5
17,500
4.0
18,500
17.0
13,700
3.5
023
6.0
800
23,000
14.5
26,000
4.5
25,400
22.5
21,900
3.9
23,900
16.8
17,000
3.4
024
6.0
800
23,900
14.6
27,000
4.7
26,400
22.8
22,300
4.0
24,400
17.0
17,500
3.5
030
8.0
1000
29,500
14.9
34,600
4.8
32,900
23.0
28,300
4.0
29,000
17.0
22,800
3.5
036
9.0
1150
33,300
14.4
40,600
4.5
37,700
21.2
33,000
3.9
34,500
16.6
26,000
3.3
041
11.0
1300
40,000
13.8
45,000
4.3
44,500
20.6
36,000
3.8
41,000
15.8
29,000
3.3
042
11.0
1400
40,800
14.5
45,400
4.5
45,800
22.0
37,000
3.8
42,300
16.8
29,900
3.3
048
12.0
1600
47,700
14.7
56,000
4.4
52,000
21.0
45,900
3.8
49,500
16.8
36,900
3.3
060
15.0
1900
58,400
14.7
72,500
4.4
65,500
20.8
58,400
3.8
60,900
16.6
47,100
3.3
070
18.0
2100
63,000
14.2
79,000
4.4
70,000
20.3
64,100
3.8
68,500
15.2
51,600
3.3
12/6/10
Cooling capacities based upon 80.6°F DB, 66.2°F WB entering air temperature
Heating capacities based upon 68°F DB, 59°F WB entering air temperature
All ratings based upon 208V operation
Variable Speed ECM, or 5-Speed ECM Motor
AHRI/ASHRAE/ISO 13256-1
English (IP) Units
Water Loop Heat Pump
Flow Rate
Model
Cooling
EWT 86°F
Ground Water Heat Pump
Heating
EWT 68°F
Cooling
EWT 59°F
Ground Loop Heat Pump
Heating
EWT 50°F
Cooling
EWT 77°F
Heating
EWT 32°F
gpm
cfm
Capacity
Btu/h
EER
Btu/h/W
Capacity
Btu/h
COP
Capacity
Btu/h
EER
Btu/h/W
Capacity
Btu/h
COP
Capacity
Btu/h
EER
Btu/h/W
Capacity
Btu/h
COP
015
4.0
500
14,000
15.3
16,500
4.9
16,000
24.3
15,000
4.4
14,700
018
5.0
600
17,600
15.2
21,000
4.8
20,600
24.0
17,500
4.4
18,500
17.5
11,500
3.7
17.5
13,700
3.7
023
6.0
800
23,000
15.0
26,000
4.7
25,400
23.0
21,900
4.3
23,900
17.0
17,000
3.6
024
6.0
800
23,900
15.1
27,000
5.0
26,400
23.4
22,300
4.5
24,400
17.5
17,500
3.8
030
8.0
900
29,500
15.7
34,600
5.1
32,900
23.9
28,300
4.4
29,000
18.3
22,800
3.8
036
9.0
1150
33,300
15.0
40,600
4.8
37,700
23.0
33,000
4.3
34,500
17.3
26,000
3.5
041
11.0
1300
40,000
14.5
45,000
4.5
44,500
22.0
36,000
4.0
41,000
16.5
29,000
3.4
042
11.0
1400
40,800
15.6
45,400
5.0
45,800
23.5
37,000
4.3
42,300
18.5
29,900
3.7
048
12.0
1600
47,700
15.5
56,000
4.8
52,000
23.4
45,900
4.2
49,500
18.1
36,900
3.6
060
15.0
1900
58,400
15.3
72,500
4.7
65,500
23.0
58,400
4.0
60,900
17.9
47,100
3.6
070
18.0
2100
63,000
14.3
79,000
4.7
70,000
21.0
64,100
4.0
68,500
16.1
51,600
3.5
12/6/10
Cooling capacities based upon 80.6°F DB, 66.2°F WB entering air temperature
Heating capacities based upon 68°F DB, 59°F WB entering air temperature
All ratings based upon 208V operation
All LX Ultra Series product is safety listed under UL1995 thru ETL and performance listed
with AHRI in accordance with standard 13256-1.
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
3
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Vertical Dimensional Data
Standard filter rails for
open return applications
Field installed
duct flange
Deluxe filter rack for
ductable return applications
A
A
N
S
R
Air coil
N
Q
P
B
AIR COIL SIDE
AIR COIL SIDE
Q
P
4
G
3
F
ACCESS
PANEL
B
2' (61 cm)
Alternate
Service Access
4
FRONT
FRONT
1.4 in (3.5 cm)
M
G
3
F
1.4 in (3.5 cm)
M
Top View - Right Return
Top View - Left Return
2' (61 cm)
Service Access Left Return
(Right Return opposite side)
Isometric View - Left Return
T
U
W
Air coil
Air coil
ACCESS
PANEL
ACCESS
PANEL
V
C
C
1.6 in (4.1 cm)
Condensate 3/4 in
PVC glue socket
1.6 in (4.1 cm)
H
E
5
6
2
8
L
1
D
Front View - Right Return
J
Power supply
1 in (25.4 mm)
knockout
Condensate
3/4 in PVC
glue socket
Low voltage
1/2" (12.7 mm)
knockout
1.6 in (4.1 cm)
8
7
L
K
1.6 in
(4.1 cm)
5
6
2
8
1
Front View - Left Return
E
H
J
ACCESS
PANEL
8
7
L
K L
D
Right View - Right Return
Left View - Left Return
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
4
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Vertical Dimensional Data cont.
Overall Cabinet
Vertical
Models
009-012
015-018
024-030
036
041
042-048
060
070
A
in.
cm.
in.
cm.
in.
cm.
in.
cm.
in.
cm.
in.
cm.
in.
cm.
in.
cm.
Vertical
Models
009-012
015-018
024-030
036
041
042-048
060
070
in.
cm.
in.
cm.
in.
cm.
in.
cm.
in.
cm.
in.
cm.
in.
cm.
in.
cm.
B
C
1
2
3
D
E
F
Width
Depth
Height**
In
Out
22.5
57.2
22.5
57.2
22.5
57.2
22.5
57.2
22.5
57.2
25.5
64.8
25.5
64.8
25.5
64.8
22.2
56.4
22.2
56.4
26.2
66.5
26.2
66.5
26.2
66.5
31.2
79.2
31.2
79.2
31.2
79.2
23.7
60.2
36.2
91.9
40.2
102.1
44.2
112.3
44.2
112.3
44.2
112.3
48.2
122.4
52.2
132.6
2.6
6.6
2.6
6.6
2.6
6.6
2.6
6.6
2.6
6.6
2.6
6.6
2.6
6.6
2.6
6.6
5.6
14.2
7.6
19.3
7.6
19.3
7.6
19.3
7.6
19.3
7.6
19.3
7.6
19.3
7.6
19.3
M
Filter Rack
Width
2.2
5.6
2.2
5.6
2.2
5.6
2.2
5.6
2.2
5.6
2.2
5.6
2.2
5.6
2.2
5.6
N
Supply
Width
10.0
25.4
14.0
35.6
14.0
35.6
14.0
35.6
18.0
45.7
18.0
45.7
18.0
45.7
18.0
45.7
Water Connections
4
5
HWG
In
N/A
N/A
1.4
3.6
1.4
3.6
1.4
3.6
1.4
3.6
1.4
3.6
1.4
3.6
1.4
3.6
G
HWG Out
N/A
N/A
2.9
7.4
4.4
11.2
4.4
11.2
2.9
7.4
4.4
11.2
4.4
11.2
4.4
11.2
Discharge Connection
duct flange installed (±0.10 in)
P
Q
R
Supply
Depth
10.0
6.1
9.4
25.4
15.5
23.9
14.0
4.1
4.3
35.6
10.4
10.9
14.0
6.1
4.5
35.6
15.5
11.4
14.0
6.1
4.5
35.6
15.5
11.4
18.0
4.1
3.9
45.7
10.4
9.9
18.0
6.6
4.6
45.7
16.8
11.7
18.0
6.6
4.6
45.7
16.8
11.7
18.0
6.6
4.6
45.7
16.8
11.7
Electrical Knockouts
6
7
8
H
Loop
Condensate
8.8
22.4
10.8
27.4
10.8
27.4
10.8
27.4
10.8
27.4
10.8
27.4
10.8
27.4
10.8
27.4
Water
FPT
1/2
12.7 mm
3/4
19.1 mm
3/4
19.1 mm
3/4
19.1 mm
3/4
19.1 mm
1
25.4 mm
1
25.4 mm
1
25.4 mm
S
T
9.4
23.9
7.7
19.6
7.7
19.6
7.7
19.6
3.9
9.9
6.3
16.0
6.3
16.0
6.3
16.0
2.1
5.3
2.1
5.3
2.1
5.3
2.1
5.3
2.1
5.3
1.6
4.1
1.6
4.1
1.6
4.1
Knockout
HWG Provisions
N/A
N/A
0.875
22.2 mm
0.875
22.2 mm
0.875
22.2 mm
0.875
22.2 mm
0.875
22.2 mm
0.875
22.2 mm
0.875
22.2 mm
J
K
L
1/2 in.
cond
7.4
18.8
9.4
23.9
10.1
25.7
10.1
25.7
10.1
25.7
10.1
25.7
10.1
25.7
10.1
25.7
1/2 in.
cond
3.4
8.6
5.4
13.7
6.1
15.5
6.1
15.5
6.1
15.5
6.1
15.5
6.1
15.5
6.1
15.5
1 in.
cond
5.4
13.7
7.4
18.8
8.1
20.6
8.1
20.6
8.1
20.6
8.1
20.6
8.1
20.6
8.1
20.6
Return Connection*
using deluxe filter rack (±0.10 in)
U
V
Return
Return
Depth
Height
18.1
10.0
46.0
25.4
18.1
20.0
46.0
50.8
22.1
22.1
56.1
56.1
22.1
26.1
56.1
66.3
22.1
26.1
56.1
66.3
28.1
26.0
71.4
66.0
28.1
30.0
71.4
76.2
28.1
34.0
71.4
86.4
Condensate is 3/4 in. PVC female glue socket and is switchable from side to front.
*Dimensions for return connections are for the deluxe filter rack that is suitable for ducted return applications and extends 3.25 in. [8.26 cm]
from the unit. The open filter rack, used in non-ducted returns, extends 2.2 in. [5.59 cm] from the unit.
**Discharge flange is field installed and extends 1 in. (25.4 mm) from top of cabinet.
W
1.9
4.8
1.9
4.8
1.9
4.8
1.9
4.8
1.9
4.8
2.0
5.1
2.0
5.1
2.0
5.1
11/10/09
Vertical Disconnect
When using disconnect, do not use dimension L from the
standard vertical dimensional data. Use dimension LL from the
vertical disconnect dimensional data.
Vertical Models
009-012
015-018
024-030
036
042-048
060
070
Dimensions in inches [cm]
LL
Externally Mounted
18.8 [47.8]
14.3 [36.3]
15.3 [38.9]
14.3 [36.3]
14.3 [36.3]
14.3 [36.3]
Disconnect Located on this
Side for a Right Return
Disconnect
Location
02/06/13
Alternative
Power
Location
Power
Supply
LL
1.8 in.
[4.6 cm]
Vertical Shown in
Left Return Configuration
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
5
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Horizontal Dimensional Data
1.7 in.
[5.3 cm]
Standard filter rails
1 in. [2.5 cm] knockout
0.5 in. [1.3 cm] knockout
Front
Right Return
1.7 in.
[5.3 cm]
Standard filter rails
K
CP
Left Return
Front
AP
J
E
A
AP
D
AP
RR Front View
CMP
CMP
1.7
1.7
2' (61 cm)
Service Access
Condensate
"X" PVC size
AP
E
Deluxe filter rack option shown
2.3 in. [5.8 cm]
P
N
D
K
LR Front View
L
BLOWER
OUTLET
M C
L
AP
= Alternate Service Panel
BP
= Blower Service Panel
CP
= Control Access Panel
C
M
BLOWER
OUTLET
CMP = Compressor Service Panel
H
2.1 in. [5.3 cm]
A
Right Return
End Discharge
Left Return
End Discharge
N
0.5 in. [1.3 cm]
knockout
K
AP
M
BLOWER
OUTLET
J
BP
M
AP
CMP
L
Left Return Side Discharge
Right Return Side Discharge
Q
P
BLOWER
OUTLET
Front
Front
1 in. [2.5 cm]
knockout
K
J
0.5 in. [1.3 cm]
knockout
CMP
Air Coil
N
1.5 in. [3.8 cm]
1.5 in. [3.8 cm]
L
BP
Deluxe filter rack option shown
P
N
2.3 in.
[5.8 cm]
Legend
2.1 in. [5.3 cm]
A
P
Condensate
"X" PVC size
End Discharge
Side Discharge
1 in. [2.5 cm]
knockout
FILTER RACK
AIR COIL SIDE
FILTER RACK
AIR COIL SIDE
0.5 in. [1.3 cm]
knockout
CP
Side Discharge
End Discharge
H
2' (61 cm)
Service Access
J
T
T
S
S
Air Coil
Q
Deluxe filter
rack option
(shown)
FILTER RACK CONNECTION
C
R
C
R
FILTER RACK CONNECTION
Front
Front
B
B
Right Return Side View
Left Return Side View
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
6
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Horizontal Dimensional Data cont.
Water Connections
2
3
E
H
CondOut
ensate
4.8
0.8
12.2
2.0
6.8
0.8
17.3
2.0
6.8
0.8
17.3
2.0
6.8
0.8
17.3
2.0
6.8
0.8
17.3
2.0
6.8
0.8
17.3
2.0
6.8
0.8
17.3
2.0
Overall Cabinet
Horizontal
Models
009-012
015-023
024-030
036
042-048
060
070
in.
cm.
in.
cm.
in.
cm.
in.
cm.
in.
cm.
in.
cm.
in.
cm.
Horizontal
Models
009-012
015-023
024-030
036
042-048
060
070
A
B
C
1
D
Width
Depth
Height*
In
19.2
48.8
22.5
57.2
22.5
57.2
22.5
57.2
25.5
64.8
25.5
64.8
25.5
64.8
30.9
78.5
42.0
106.7
42.0
106.7
45.0
114.3
48.0
121.9
53.0
134.6
61.0
154.9
11.9
30.2
17.2
43.7
19.2
48.8
19.2
48.8
21.2
53.8
21.2
53.8
21.2
53.8
1.8
4.6
1.8
4.6
1.8
4.6
1.8
4.6
1.8
4.6
1.8
4.6
1.8
4.6
L
Discharge Connection
duct flange installed (±0.10 in)
M
N
Supply Width Supply Depth
8.0
10.0
P
2.3
Electrical Knockouts
J
K
1/2 in. cond
1 in. cond
Power
Low Voltage
Supply
4.5
4.5
11.4
11.4
7.1
7.1
18.0
18.0
9.2
7.1
23.4
18.0
9.2
7.1
23.4
18.0
9.2
9.1
23.4
23.1
9.2
9.1
23.4
23.1
9.2
9.1
23.4
23.1
Loop
Water FPT
1/2
12.7 mm
3/4
19.05 mm
3/4
19.05 mm
3/4
19.05 mm
1
25.4 mm
1
25.4 mm
1
25.4 mm
Return Connection*
using deluxe filter rack option (±0.10 in)
Q
R
S
T
Return Depth Return Height
15.4
9.4
3.0
1.4
PVC Size
X
in.
2.3
cm.
5.8
20.3
25.4
5.8
39.1
23.9
7.6
3.6
1/2
1.3
in.
5.7
10.5
9.4
4.9
23.4
14.5
2.0
1.4
3/4
cm.
14.5
26.7
23.9
12.4
59.4
36.8
5.1
3.6
1.9
in.
6.7
10.5
9.4
4.9
27.4
16.4
2.0
1.5
3/4
cm.
17.0
26.7
23.9
12.4
69.6
41.7
5.1
3.8
1.9
in.
6.7
10.5
9.4
4.9
30.4
16.4
2.1
1.5
3/4
cm.
17.0
26.7
23.9
12.4
77.2
41.7
5.3
3.8
1.9
in.
4.9
13.6
13.2
4.6
35.4
18.6
2.4
1.5
3/4
cm.
12.4
34.5
33.5
11.7
89.9
47.2
6.1
3.8
1.9
in.
4.9
13.6
13.2
4.6
40.4
18.4
2.4
1.5
3/4
cm.
12.4
34.5
33.5
11.7
102.6
46.7
6.1
3.8
1.9
in.
4.9
13.6
13.2
4.6
45.6
18.6
2.3
1.5
3/4
cm.
12.4
34.5
33.5
11.7
115.8
47.2
5.8
3.8
1.9
10/29/13
*Dimensions for return connections are for the deluxe filter rack that is suitable for ducted return applications and extends 3.25 in. [8.26 cm]
from the unit. The open filter rack, used in non-ducted returns, extends 2.2 in. [5.59 cm] from the unit.
Condensate 3/4 in. PVC stub extends from cabinet approximately 1-1/2 in. [38.1 mm]
Horizontal Disconnect
When using disconnect, do not use dimension K from the standard
horizontal dimensional data. Use dimension KK from the horizontal
disconnect dimensional data.
Horizontal Models
009-012
015-018
024-030
036
042-048
060
070
Dimensions in inches [cm]
KK
Externally Mounted
8.2 [20.8 ]
9.2 [23.4]
9.2 [23.4]
11.2 [28.4]
10.2 [25.9]
11.2 [28.4]
Disconnect
Location
Disconnect Located
on this Side for a
Left Return
KK
02/06/13
Power Supply
2.1 in.
[5.3 cm]
Horizontal Shown in
Right Return Configuration
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
7
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Hanger Bracket Locations
Right
D
Left
F
Compressor
Section
E
G
Air Handler
Section
C
B
Air Handler
Section
E
G
D
Compressor
Section
F
A
3/8”
Threaded Rod
(not supplied)
Vibration Isolator
Washer
Hex Nuts
(not supplied)
Bolt and
Lockwasher
Hanger Dimensions
Hanger Kit
Part Number
Model
009-012
015-023
024-030
036
042-048
060
070
in.
cm
in.
cm
in.
cm
in.
cm
in.
cm
in.
cm
in.
cm
99S500A04
99S500A04
99S500A04
99S500A04
99S500A04
99S500A04
99S500A04
Weight Distribution
Unit Hanger Dimensions
A
B
C
31.7
21.8
18.1
[80.5]
[55.4]
[46.0]
42.8
25.1
21.4
[108.6]
[63.8]
[54.4]
42.8
25.1
21.4
[108.7]
[63.8]
[54.4]
45.8
25.1
21.4
[116.3]
[63.8]
[54.4]
48.8
28.1
24.4
[124.0]
[71.4]
[62.0]
53.8
28.1
24.4
[136.7]
[71.4]
[62.0]
61.8
28.1
24.4
[157.0]
[71.4]
[62.0]
10/29/13
Model
009
012
015
018
023
024
030
036
041
042
048
060
070
lb.
kg
lb.
kg
lb.
kg
lb.
kg
lb.
kg
lb.
kg
lb.
kg
lb.
kg
lb.
kg
lb.
kg
lb.
kg
lb.
kg
lb.
kg
Vertical
Shipping
Weight
Horizontal
Shipping
Weight
110
[50]
115
[52]
165
[75]
170
[77]
na
na
230
[104]
240
[109]
265
[120]
275
[125]
285
[129]
290
[132]
335
[152]
380
[172]
120
[54]
125
[57]
175
[79]
180
[82]
185
[84]
245
[111]
255
[116]
285
[129]
na
na
300
[136]
310
[141]
360
[163]
405
[184]
Horizontal Weight Distribution
Front
Back
D
E
F
G
46
23
26
25
[21]
[11]
[12]
[11]
48
24
27
26
[22]
[11]
[12]
[12]
67
34
37
36
[31]
[15]
[17]
[17]
69
35
38
38
[31]
[16]
[17]
[17]
71
36
39
39
[32]
[16]
[18]
[17]
94
47
52
51
[43]
[22]
[24]
[23]
98
49
54
53
[44]
[22]
[25]
[24]
110
55
61
59
[50]
[25]
[28]
[27]
na
na
na
na
na
na
na
na
115
58
64
63
[52]
[26]
[29]
[28]
119
60
66
65
[54]
[27]
[30]
[29]
138
70
77
75
[63]
[32]
[35]
[34]
156
78
86
84
[71]
[36]
[39]
[38]
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
8
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Physical Data
Single Speed
Model
009
012
Compressor (1 each)
015
018
023
024
030
036
041
Rotary
042
048
060
070
Scroll
Factory Charge R-410A, oz [kg] Vertical
26 [0.74]
32 [0.91]
38 [1.08]
40 [1.13]
n/a
46 [1.30]
54 [1.53]
56 [1.59]
54 [1.53]
68 [1.93]
76 [2.15]
88 [2.49]
92 [2.61]
Factory Charge R-410A, oz [kg] Horizontal
24 [0.68]
26 [0.74]
38 [1.08]
40 [1.13]
46 [1.30]
46 [1.30]
56 [1.59]
60 [1.70]
n/a
68 [1.93]
76 [2.15]
88 [2.49]
88 [2.49]
1/2 [373]
1/2 [373]
1/2 [373]
1/2 [373]
1 [746]
1 [746]
Blower Motor & Blower
VS
ECM
Not Available
Variable Speed
PSC
4 Speeds
3 Speeds
5-Spd
ECM
Not Available
5 Speeds
VS
ECM
Not Available
Blower Motor Type/Speeds
Blower Motor- hp [W]
PSC
5-Spd
ECM
1/10 [75]
1/2 [373]
1/10 [75]
Not Available
1/2 [373]
Blower Wheel Size (Dia x W),
in. [mm]
PSC
5-Spd
ECM
1/2 [373]
1/6 [134]
1/6 [134]
1/5 [149]
1/5 [149]
1/3 [249]
1/2 [373]
1/2 [373]
1/2 [373]
1/2 [373]
1 [746]
1 [746]
1/2 [373]
1/2 [373]
1/2 [373]
1/2 [373]
1/2 [373]
1 [746]
1 [746]
1 [746]
1 [746]
1 [746]
1 [746]
1 [746]
Not Available
PSC
VS
ECM
1/2 [373]
1/2 [373]
VS
ECM
Optional - Oversized Blower
Motor - hp [W]
1/2 [373]
Not Available
3/4 [560]
3/4 [560]
9x7
9x7
9x7
9x7
9x7
9x7
[229 x 178] [229 x 178] [229 x 178] [229 x 178] [229 x 178] [229 x 178]
10 x 10
[254 x 254]
11 x 10
[279 x 254]
11 x 10
[279 x 254]
11 x 10
[279 x 254]
11 x 10
[279 x 254]
6x8
6x8
9x7
9x7
9x7
9x7
9x7
9x7
[152 x 203] [152 x 203] [229 x 178] [229 x 178] [229 x 178] [229 x 178] [229 x 178] [229 x 178]
10 x 10
[254 x 254]
10 x 10
[254 x 254]
10 x 10
[254 x 254]
11 x 10
[279 x 254]
11 x 10
[279 x 254]
9x7
9x7
9x7
9x7
9x7
9x7
[229 x 178] [229 x 178] [229 x 178] [229 x 178] [229 x 178] [229 x 178]
11 x 10
[279 x 254]
11 x 10
[279 x 254]
11 x 10
[279 x 254]
11 x 10
[279 x 254]
11 x 10
[279 x 254]
1/2 [12.7] 1/2 [12.7] 3/4 [19.1] 3/4 [19.1] 3/4 [19.1] 3/4 [19.1] 3/4 [19.1] 3/4 [19.1] 3/4 [19.1]
1 [25.4]
1 [25.4]
1 [25.4]
1 [25.4]
Not Available
Not Available
1/3 [249]
1/2 [373]
Not Available
Not Available
Not Available
Coax and Water Piping
Water Connection Size - FPT - in. [mm]
HWG Connection Size - FPT - in. [mm]
(Vertical Only)
Coax & Piping Water Volume - gal [l]
Not Available
1/2 [12.7] 1/2 [12.7] 1/2 [12.7] 1/2 [12.7] 1/2 [12.7] 1/2 [12.7] 1/2 [12.7] 1/2 [12.7] 1/2 [12.7] 1/2 [12.7]
0.26 [0.98]
0.3 [1.12] 0.4 [1.49] 0.4 [1.49] 0.4 [1.49] 0.4 [1.49]
0.75 [2.83]
0.9 [3.41] 0.9 [3.41] 0.9 [3.41]
1.25 [4.72]
1.5 [5.68] 1.5 [5.68]
12 x 16
[305 x 406]
12 x 16
[305 x 406]
24 x 20
[610 x 508]
28 x 20
[711 x 508]
28 x 25
[711 x 635]
32 x 25
[813 x 635]
Vertical
Air Coil Dimensions (H x W), in. [mm]
Air Coil Total Face Area, ft2 [m2]
22 x 16
[559 x 406]
n/a
24 x 20
[610 x 508]
28 x 20
[711 x 508]
28 x 25
[711 x 635]
36 x 25
[914 x 635]
2.4 [0.220]
n/a
3.3 [0.310] 3.3 [0.310]
3.9 [0.362]
3.9 [0.362]
4.9 [0.452]
4.9 [0.452]
5.6 [0.516] 6.3 [0.581]
3/8 [9.5]
3/8 [9.5]
3/8 [9.5]
3/8 [9.5]
n/a
3/8 [9.5]
3/8 [9.5]
3/8 [9.5]
3/8 [9.5]
3/8 [9.5]
3/8 [9.5]
3/8 [9.5]
3/8 [9.5]
3
3
3
3
n/a
3
3
3
3
3
3
3
3
Filter Standard - 1 in. [25mm] MERV4
Throwaway, in. [mm]
12 x 20
[305 x 508]
12 x 20
[305 x 508]
22 x 20
[559 x 508]
22 x 20
[559 x 508]
n/a
24 x 24
24 x 24
28 x 24
[610 x 610] [610 x 610] [711 x 610]
28 x 24
[711 x 610]
28 x 30
[711 x 762]
28 x 30
32 x 30
36 x 30
[711 x 762] [813 x 762] [914 x 762]
Filter Standard - 2 in. [51mm] Pleated
MERV13 Throwaway, in. [mm]
12 x 20
[305 x 508]
12 x 20
[305 x 508]
22 x 20
[559 x 508]
22 x 20
[559 x 508]
n/a
24 x 24
24 x 24
28 x 24
[610 x 610] [610 x 610] [711 x 610]
28 x 24
[711 x 610]
28 x 30
[711 x 762]
28 x 30
32 x 30
36 x 30
[711 x 762] [813 x 762] [914 x 762]
10 x 16
[254 x 406]
10 x 16
[254 x 406]
16 x 23
[406 x 584]
16 x 23
[406 x 584]
16 x 23
[406 x 584]
18 x 30
[457 x 762]
n/a
20 x 35
[508 x 889]
20 x 35
[508 x 889]
1.1 [0.103] 1.1 [0.103] 2.6 [0.238] 2.6 [0.238] 2.6 [0.238] 3.4 [0.316] 3.4 [0.316] 3.9 [0.362]
Air Coil Tube Size, in. [mm]
Air Coil Number of rows
1.3 [0.121] 1.3 [0.121] 2.4 [0.220]
22 x 16
[559 x 406]
Horizontal
Air Coil Dimensions (H x W), in. [mm]
Air Coil Total Face Area, ft2 [m2]
Air Coil Tube Size, in. [mm]
Air Coil Number of rows
18 x 27
[457 x 686]
18 x 27
[457 x 686]
20 x 40
20 x 45
[508 x 1016] [508 x 1143]
n/a
4.9 [0.452]
4.9 [0.452] 5.6 [0.516] 6.3 [0.581]
3/8 [9.5]
3/8 [9.5]
3/8 [9.5]
3/8 [9.5]
3/8 [9.5]
3/8 [9.5]
3/8 [9.5]
3/8 [9.5]
n/a
3/8 [9.5]
3/8 [9.5]
3/8 [9.5]
3
3
3
3
3
3
3
3
n/a
3
3
3
3
n/a
2 - 18 x 20
[457 x 508]
2 - 18 x 20
[457 x 508]
1 - 20 x 20
[508 x 508]
1 - 20 x 22
[508 x 559]
1 - 20 x 25
[508 x 635]
1 - 20 x 22
[508 x 559]
n/a
20 x 37
[686 x 940]
20 x 37
[686 x 940]
1 - 20 x 20
[508 x 508]
1 - 20 x 22
[508 x 559]
1 - 20 x 25
[508 x 635]
1 - 20 x 22
[508 x 559]
Filter Standard - 1 in. [25mm] MERV 4
Throwaway, in. [mm]
11 x 17
[279 x 432]
11 x 17
[279 x 432]
16 x 25
[406 x 635]
16 x 25
[406 x 635]
16 x 25
[406 x 635]
2 - 18 x 14
[457 x 356]
2 - 18 x 14
[457 x 356]
1 - 18 x 14
[457 x 356]
1 - 18 x 18
[457 x 457]
Filter Standard - 2 in. [51mm] Pleated
MERV 13 Throwaway, in. [mm]
11 x 17
[279 x 432]
11 x 17
[279 x 432]
16 x 25
[406 x 635]
16 x 25
[406 x 635]
16 x 25
[406 x 635]
18 x 29
[457 x 737]
18 x 29
[457 x 737]
18 x 32
[457 x 813]
3/8 [9.5]
10/23/13
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
9
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Electrical Availability
PSC
Voltage
Static
Option
208-230/60/1
Single Speed Models
009
012
015
018
023
024
030
036
041
042
048
060
070
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
208-230/60/1 w/GeoStart
265-277/60/1
208-230/60/3 (also w/GeoStart)
Standard
•
•
•
460/60/3 (also w/GeoStart)
575/60/3
208-230/60/1
•
•
•
•
208-230/60/1 w/GeoStart
•
•
•
•
265-277/60/1
•
•
•
•
•
•
•
•
•
•
•
•
208-230/60/3 (also w/GeoStart)
High
460/60/3 (also w/GeoStart)
575/60/3
01/22/13
Variable Speed ECM
Voltage
Static
Option
Single Speed Models
009
012
015
018
023
024
030
036
041
042
048
060
070
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
208-230/60/1
•
•
208-230/60/1 w/GeoStart
•
•
•
•
•
•
208-230/60/1
208-230/60/1 w/GeoStart
265-277/60/1
208-230/60/3 (also w/GeoStart)
•
Standard
460/60/3 (also w/GeoStart)
575/60/3
265-277/60/1
208-230/60/3 (also w/GeoStart)
High
460/60/3 (also w/GeoStart)
575/60/3
01/22/13
5-Speed ECM
Voltage
Static
Option
208-230/60/1
Single Speed Models
009
012
015
018
023
024
030
036
041
042
048
060
070
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
208-230/60/1 w/GeoStart
265-277/60/1
208-230/60/3 (also w/GeoStart)
Standard
460/60/3 (also w/GeoStart)
575/60/3
01/22/13
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
10
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Electrical Data
PSC Motor
009
012
015
018
023
024
024*
030
030*
036
041
042
042*
048
048*
060
070
LRA**
Blower
Motor
FLA
Total
Unit
FLA
Min
Circ
Amp
Max
Fuse/
HACR
n/a
n/a
n/a
n/a
n/a
n/a
13.4
n/a
23.3
n/a
33.0
16.8
23.3
n/a
33.0
16.8
23.3
n/a
33.0
16.8
29.2
n/a
34.8
16.8
29.2
n/a
34.8
16.8
38.7
n/a
57.0
27.0
46.0
57.0
27.0
n/a
46.0
57.0
27.0
n/a
46.0
57.0
27.0
n/a
46.0
69.0
30.0
46.0
69.0
30.0
n/a
60.0
72.0
42.0
n/a
58.0
72.0
42.0
n/a
0.6
0.6
0.6
0.6
1.1
1.0
1.1
1.0
1.2
1.1
1.2
0.6
1.2
1.1
1.2
0.6
1.5
1.5
1.5
1.0
1.5
1.5
1.5
1.0
2.2
2.0
2.2
1.1
2.2
1.1
2.2
1.1
3.5
3.5
1.8
1.4
3.5
3.5
1.8
1.4
4.6
4.6
2.3
1.9
3.5
3.5
1.8
4.6
4.6
2.3
1.9
5.9
5.9
3.0
1.9
5.9
5.9
3.0
1.9
4.7
4.9
5.5
5.1
7.0
6.0
7.8
6.6
14.7
10.1
8.3
4.1
14.7
10.1
8.3
4.1
15.0
10.5
8.6
4.5
15.6
12.7
10.4
5.2
16.3
13.2
11.1
5.3
19.5
13.3
15.0
7.5
23.5
16.3
8.2
6.8
23.5
16.3
8.2
6.8
24.6
17.4
8.7
7.3
24.5
19.5
9.5
25.6
20.6
10.0
8.3
32.3
23.5
11.3
9.3
36.0
23.2
12.6
9.9
5.7
6.0
6.7
6.2
8.5
7.2
9.5
8.0
18.1
12.4
10.1
5.0
18.1
12.4
10.1
5.0
18.4
12.8
10.4
5.4
19.1
15.5
12.6
6.3
19.8
16.0
13.3
6.4
23.8
16.3
18.2
9.1
28.5
19.5
9.8
8.2
28.5
19.5
9.8
8.2
29.6
20.6
10.3
8.7
29.8
23.5
11.4
30.9
24.6
11.9
9.9
38.8
27.9
13.4
11.2
43.5
27.5
15.0
11.9
10/15
10/15
10/15
10/15
10/15
10/15
15
10/15
30
20
15
10/15
30
20
15
10/15
30
20
15
10/15
30
25
20
10/15
30
25
20
10/15
40
20
30
15
45
30
15
10/15
45
30
15
10/15
45
30
15
10/15
50
35
15
50
40
15
15
60
45
20
15
70
40
20
15
Compressor
Rated
Voltage
Voltage
Min/Max
MCC
RLA
LRA
208-230/60/1
265/60/1
208-230/60/1
265/60/1
208-230/60/1
265/60/1
208-230/60/1
265/60/1
208-230/60/1
265/60/1
208-230/60/3
460/60/3
208-230/60/1
265/60/1
208-230/60/3
460/60/3
208-230/60/1
265/60/1
208-230/60/3
460/60/3
208-230/60/1
265/60/1
208-230/60/3
460/60/3
208-230/60/1
265/60/1
208-230/60/3
460/60/3
208-230/60/1
265/60/1
208-230/60/3
460/60/3
208-230/60/1
208-230/60/3
460/60/3
575/60/3
208-230/60/1
208-230/60/3
460/60/3
575/60/3
208-230/60/1
208-230/60/3
460/60/3
575/60/3
208-230/60/1
208-230/60/3
460/60/3
208-230/60/1
208-230/60/3
460/60/3
575/60/3
208-230/60/1
208-230/60/3
460/60/3
575/60/3
208-230/60/1
208-230/60/3
460/60/3
575/60/3
187/253
238/292
187/253
238/292
187/253
238/292
187/253
238/292
187/253
238/292
187/253
414/506
187/253
238/292
187/253
414/506
187/253
238/292
187/253
414/506
187/253
238/292
187/253
414/506
187/253
238/292
187/253
414/506
187/253
238/292
187/253
414/506
187/253
187/253
414/506
517/633
187/253
187/253
414/506
517/633
187/253
187/253
414/506
517/633
187/253
187/253
414/506
187/253
187/253
414/506
517/633
187/253
187/253
414/506
517/633
187/253
187/253
414/506
517/633
6.4
6.7
7.7
7.0
9.2
7.8
10.4
8.7
21.0
14.0
11.0
5.5
21.0
14.0
11.0
5.5
21.0
14.0
11.0
5.5
22.0
17.5
13.9
6.5
22.0
17.5
13.9
6.5
27.0
19.0
20.0
10.0
31.0
20.0
10.0
8.5
31.0
20.0
10.0
8.5
31.0
20.0
10.0
8.5
32.0
25.0
12.0
32.0
25.0
12.0
10.0
41.0
27.5
13.0
11.5
47.0
28.0
15.0
12.5
4.1
4.3
4.9
4.5
5.9
5.0
6.7
5.6
13.5
9.0
7.1
3.5
13.5
9.0
7.1
3.5
13.5
9.0
7.1
3.5
14.1
11.2
8.9
4.2
14.1
11.2
8.9
4.2
17.3
12.2
12.8
6.4
20.0
12.8
6.4
5.4
20.0
12.8
6.4
5.4
20.0
12.8
6.4
5.4
21.0
16.0
7.7
21.0
16.0
7.7
6.4
26.3
17.6
8.3
7.4
30.1
17.3
9.6
8.0
21.0
22.0
25.0
22.0
29.0
28.0
33.5
28.0
58.3
54.0
55.0
28.0
58.3
54.0
55.0
28.0
58.3
54.0
55.0
28.0
73.0
60.0
58.0
28.0
73.0
60.0
58.0
28.0
96.7
72.0
95.0
45.0
115.0
95.0
45.0
38.0
115.0
95.0
45.0
38.0
115.0
95.0
45.0
38.0
115.0
115.0
50.0
115.0
115.0
50.0
40.0
150.0
120.0
70.0
53.0
145.0
120.0
70.0
53.0
Model
05/21/13
HACR circuit breaker in USA only
* With optional high-static PSC motor
** With optional GeoStartTM
NOTE: High-static option not available on all model sizes.
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
11
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Electrical Data cont.
5-Speed ECM Motor
Model
015
018
023
024
030
036
041
042
048
060
070
Compressor
Rated Voltage
Voltage
Min/Max
MCC
RLA
LRA
LRA**
208-230/60/1
265/60/1
208-230/60/1
265/60/1
208-230/60/1
265/60/1
208-230/60/3
460/60/3
208-230/60/1
265/60/1
208-230/60/3
460/60/3
208-230/60/1
265/60/1
208-230/60/3
460/60/3
208-230/60/1
265/60/1
208-230/60/3
460/60/3
208-230/60/1
208-230/60/3
460/60/3
208-230/60/1
208-230/60/3
460/60/3
208-230/60/1
208-230/60/3
460/60/3
208-230/60/1
208-230/60/3
460/60/3
208-230/60/1
208-230/60/3
460/60/3
187/253
238/292
187/253
238/292
187/253
238/292
187/253
414/506
187/253
238/292
187/253
414/506
187/253
238/292
187/253
414/506
187/253
238/292
187/253
414/506
187/253
187/253
414/506
187/253
187/253
414/506
187/253
187/253
414/506
187/253
187/253
414/506
187/253
187/253
414/506
9.2
7.8
10.4
8.7
21.0
14.0
11.0
5.5
21.0
14.0
11.0
5.5
22.0
17.5
13.9
6.5
27.0
19.0
20.0
10.0
31.0
20.0
10.0
31.0
20.0
10.0
32.0
25.0
12.0
41.0
27.5
13.0
47.0
28.0
15.0
5.9
5.0
6.7
5.6
13.5
9.0
7.1
3.5
13.5
9.0
7.1
3.5
14.1
11.2
8.9
4.2
17.3
12.2
12.8
6.4
20.0
12.8
6.4
20.0
12.8
6.4
21.0
16.0
7.7
26.3
17.6
8.3
30.1
17.3
9.6
29.0
28.0
33.5
28.0
58.3
54.0
55.0
28.0
58.3
54.0
55.0
28.0
73.0
60.0
58.0
28.0
96.7
72.0
95.0
45.0
115.0
95.0
45.0
115.0
95.0
45.0
115.0
115.0
50.0
150.0
120.0
70.0
145.0
120.0
70.0
n/a
n/a
13.4
n/a
23.3
n/a
33.0
16.8
23.3
n/a
33.0
16.8
29.2
n/a
34.8
16.8
38.7
n/a
57.0
27.0
46.0
57.0
27.0
46.0
57.0
27.0
46.0
69.0
30.0
60.0
72.0
42.0
58.0
72.0
42.0
HACR circuit breaker in USA only
** With optional GeoStartTM
Blower
Motor
FLA
4.1
3.6
4.1
3.6
4.1
3.6
4.1
2.1
4.1
3.6
4.1
2.1
4.1
3.6
4.1
2.1
4.1
3.6
4.1
2.1
7.6
7.6
4.0
7.6
7.6
4.0
7.6
7.6
4.0
7.6
7.6
4.0
7.6
7.6
4.0
Total
Unit
FLA
10.0
8.6
10.8
9.2
17.6
12.6
11.2
5.6
17.6
12.6
11.2
5.6
18.2
14.8
13.0
6.3
21.4
15.8
16.9
8.5
27.6
20.4
10.4
27.6
20.4
10.4
28.6
23.6
11.7
33.9
25.2
12.3
37.7
24.9
13.6
Min
Circ
Amp
11.5
9.9
12.5
10.6
21.0
14.9
13.0
6.5
21.0
14.9
13.0
6.5
21.7
17.6
15.2
7.4
25.7
18.9
20.1
10.1
32.6
23.6
12.0
32.6
23.6
12.0
33.9
27.6
13.6
40.5
29.6
14.4
45.2
29.2
16.0
Max
Fuse/
HACR
15
10/15
15
15
30
20
20
10/15
30
20
20
10/15
35
25
20
10/15
40
30
30
15
50
30
15
50
30
15
50
40
20
60
45
25
70
45
25
05/21/13
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
12
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Electrical Data cont.
Variable Speed ECM Motor
015
018
023
024
030
036
041
042
042*
048
048*
060
070
Compressor
Rated
Voltage
Voltage
Min/Max
MCC
RLA
LRA
LRA**
208-230/60/1
265/60/1
208-230/60/1
265/60/1
208-230/60/1
265/60/1
208-230/60/3
460/60/3
208-230/60/1
265/60/1
208-230/60/3
460/60/3
208-230/60/1
265/60/1
208-230/60/3
460/60/3
208-230/60/1
265/60/1
208-230/60/3
460/60/3
208-230/60/1
208-230/60/3
460/60/3
208-230/60/1
208-230/60/3
460/60/3
208-230/60/1
208-230/60/3
460/60/3
208-230/60/1
208-230/60/3
460/60/3
208-230/60/1
208-230/60/3
460/60/3
208-230/60/1
208-230/60/3
460/60/3
208-230/60/1
208-230/60/3
460/60/3
187/253
238/292
187/253
238/292
187/253
238/292
187/253
414/506
187/253
238/292
187/253
414/506
187/253
238/292
187/253
414/506
187/253
238/292
187/253
414/506
187/253
187/253
414/506
187/253
187/253
414/506
187/253
187/253
414/506
187/253
187/253
414/506
187/253
187/253
414/506
187/253
187/253
414/506
187/253
187/253
414/506
9.2
7.8
10.4
8.7
21.0
14.0
11.0
5.5
21.0
14.0
11.0
5.5
22.0
17.5
13.9
6.5
27.0
19.0
20.0
10.0
31.0
20.0
10.0
31.0
20.0
10.0
31.0
20.0
10.0
32.0
25.0
12.0
32.0
25.0
12.0
41.0
27.5
13.0
47.0
28.0
15.0
5.9
5.0
6.7
5.6
13.5
9.0
7.1
3.5
13.5
9.0
7.1
3.5
14.1
11.2
8.9
4.2
17.3
12.2
12.8
6.4
20.0
12.8
6.4
20.0
12.8
6.4
20.0
12.8
6.4
21.0
16.0
7.7
21.0
16.0
7.7
26.3
17.6
8.3
30.1
17.3
9.6
29.0
28.0
33.5
28.0
58.3
54.0
55.0
28.0
58.3
54.0
55.0
28.0
73.0
60.0
58.0
28.0
96.7
72.0
95.0
45.0
115.0
95.0
45.0
115.0
95.0
45.0
115.0
95.0
45.0
115.0
115.0
50.0
115.0
115.0
50.0
150.0
120.0
70.0
145.0
120.0
70.0
n/a
n/a
13.4
n/a
23.3
n/a
33.0
16.8
23.3
n/a
33.0
16.8
29.2
n/a
34.8
16.8
38.7
n/a
57.0
27.0
46.0
57.0
27.0
46.0
57.0
27.0
46.0
57.0
27.0
46.0
69.0
30.0
46.0
69.0
30.0
60.0
72.0
42.0
58.0
72.0
42.0
Model
HACR circuit breaker in USA only
* With optional 1 HP ECM motor
** With optional GeoStartTM
Blower
Motor
FLA
4.0
4.1
4.0
4.1
4.0
4.1
4.0
4.1
4.0
4.1
4.0
4.1
4.0
4.1
4.0
4.1
4.0
4.1
4.0
4.1
4.0
4.0
4.1
4.0
4.0
4.1
7.0
7.0
6.9
4.0
4.0
4.1
7.0
7.0
6.9
7.0
7.0
6.9
7.0
7.0
6.9
Total
Unit
FLA
9.9
9.1
10.7
9.7
17.5
13.1
11.1
7.6
17.5
13.1
11.1
7.6
18.1
15.3
12.9
8.3
21.3
16.3
16.8
10.5
24.0
16.8
10.5
24.0
16.8
10.5
27.0
19.8
13.3
25.0
20.0
11.8
28.0
23.0
14.6
33.3
24.6
15.2
37.1
24.9
16.5
Min
Circ
Amp
11.4
10.3
12.4
11.1
20.9
15.4
12.9
8.5
20.9
15.4
12.9
8.5
21.6
18.1
15.1
9.4
25.6
19.3
20.0
12.1
29.0
20.0
12.1
29.0
20.0
12.1
32.0
23.0
14.9
30.3
24.0
13.7
33.3
27.0
16.5
39.9
29.0
17.3
44.6
29.4
18.9
Max
Fuse/
HACR
15
15
15
15
30
20
15
10/15
30
20
15
10/15
35
25
20
10/15
40
30
30
15
45
30
15
45
30
15
50
35
20
50
40
20
50
40
20
60
45
25
70
45
25
05/21/13
CAUTION: When installing a unit with a variable speed ECM blower motor in 460/60/3 voltage, a neutral wire is required to allow proper
unit operation.
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
13
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Blower Performance Data
Standard PSC Motor
Model
009
012
015
018
023
024
030
036
041
042
048
060
070
Blower
Spd
H
MH
ML*
L
H
MH*
ML
L
H
M
L
H
M
L
H
M
L
H
M
L
H
M
L
H
M
L
H
M
L
H
M
L
H
M
L
H
M
L
H
M
L
Blower
Size
Motor
hp
6x8
1/10
6x8
1/10
9x7
1/6
9x7
1/6
9x7
1/5
9x7
1/5
9x7
1/3
9x7
1/2
10x10
1/2
10 x 10
1/2
10 x 10
1/2
11 x 10
1
11 x 10
1
0
530
475
435
370
530
475
435
370
875
760
630
875
760
630
1020
960
720
1065
880
805
1240
1095
860
1360
1205
1070
1655
1470
1150
1705
1485
1180
1930
1580
1180
2360
2165
1965
2450
2215
2005
0.05
515
460
420
355
515
460
420
355
860
750
620
860
750
620
990
840
700
1045
865
790
1220
1085
860
1340
1190
1060
1635
1455
1140
1685
1475
1165
1910
1565
1170
2330
2130
1940
2435
2190
1990
0.10
500
450
410
340
500
450
410
340
845
740
610
845
740
610
960
820
680
1030
850
780
1200
1080
855
1320
1170
1050
1615
1445
1130
1665
1465
1150
1885
1550
1160
2300
2095
1920
2420
2170
1975
0.15
485
435
395
325
485
435
395
325
830
730
600
830
730
600
930
800
650
1005
830
765
1175
1060
850
1290
1145
1035
1590
1425
1110
1645
1445
1135
1860
1535
1140
2270
2070
1900
2395
2155
1960
0.20
470
420
380
310
470
420
380
310
820
720
590
820
720
590
900
780
640
975
815
745
1150
1045
850
1260
1120
1020
1570
1410
1090
1625
1430
1120
1830
1525
1120
2240
2050
1885
2370
2140
1950
Airflow (cfm) at External Static Pressure (in. wg)
0.25
0.30
0.35
0.40
0.45
0.50
450
430
405
385
355
330
405
385
365
345
320
300
365
345
325
300
290
275
450
430
405
385
355
330
405
385
365
345
320
300
365
345
325
300
290
275
805
790
770
750
725
700
710
700
680
660
640
620
580
570
560
550
520
490
805
790
770
750
725
700
710
700
680
660
640
620
580
570
560
550
520
490
870
850
830
800
770
690
760
740
720
690
670
620
600
580
570
550
950
925
900
870
835
800
795
775
750
725
700
670
725
710
685
660
630
600
1110
1080
1055
1030
975
920
1020
995
960
925
885
850
845
845
825
805
775
750
1220
1185
1130
1080
1045
1010
1085
1050
1015
980
940
900
995
970
940
910
875
840
1535
1500
1425
1350
1270
1185
1380
1350
1285
1240
1205
1170
1050
1010
970
930
900
865
1595
1565
1530
1500
1450
1405
1410
1390
1350
1315
1260
1210
1090
1060
1030
1000
965
920
1790
1750
1710
1665
1620
1580
1505
1485
1445
1410
1310
1215
1100
1080
1050
1020
970
930
2215
2190
2160
2130
2095
2060
2030
2010
1985
1965
1930
1900
1870
1855
1825
1800
1780
1760
2340
2310
2280
2250
2225
2200
2120
2095
2070
2045
2015
1990
1940
1925
1910
1890
1865
1845
0.60
840
785
680
910
845
780
1080
905
800
1260
1110
855
1280
1130
875
1985
1850
1720
2040
1940
1780
0.70
730
675
855
970
1140
1010
1235
1030
1920
1775
1625
2000
1876
1710
0.80
1855
1700
1530
1950
1795
1565
0.90
-
1.00
7/6/10
Factory settings are in Bold
Airflow values are with dry coil and standard filter
For wet coil performance first calculate the face velocity of the air coil (Face Velocity [fpm] = Airflow [cfm] / Face Area [sq ft]).
Then for velocities of 200 fpm reduce the static capability by 0.03 in. wg, 300 fpm by 0.08 in. wg, 400 fpm by 0.12in. wg. and 500 fpm by 0.16 in. wg.
Optional High Static PSC Motor
Model
0
0.05
0.10
0.15
0.20
Airflow (cfm) at External Static Pressure (in. wg)
0.25
0.30
0.35
0.40
0.45
0.50
0.60
0.70
0.80
0.90
1.00
1240
1220
1200
1175
1150
1110
1080
1055
1030
975
920
840
730
-
-
-
1095
1085
1080
1060
1045
1020
995
960
925
885
850
785
675
-
-
-
L
860
860
855
850
850
845
845
825
805
775
750
680
-
-
-
-
H
1340
1320
1300
1270
1240
1200
1160
1115
1070
1025
985
880
-
-
-
-
Blower
Spd
Blower
Size
Motor
hp
H
024
030
042
M
M
9x7
1185
1175
1165
1130
1095
1065
1035
1000
965
920
880
795
-
-
-
L
1050
1040
1030
1015
1000
980
960
925
895
855
815
-
-
-
-
-
H
2095
2080
2060
2020
1980
1950
1920
1880
1840
1780
1725
1550
1335
1120
-
-
M
9x7
1/3
10 x 10
1/2
3/4
L
H
048
M
10 x 10
L
3/4
1960
1940
1920
1890
1865
1830
1800
1760
1725
1670
1620
1435
1300
-
-
-
1800
1780
1760
1740
1725
1695
1670
1625
1585
1525
1465
1300
1200
-
-
-
2095
2080
2060
2020
1980
1950
1920
1880
1840
1780
1725
1550
1335
1120
-
-
1960
1940
1920
1890
1865
1830
1800
1760
1725
1670
1620
1435
1300
-
-
-
1800
1780
1760
1740
1725
1695
1670
1625
1585
1525
1465
1300
1200
-
-
-
Factory settings are in Bold
Airflow values are with dry coil and standard filter
For wet coil performance first calculate the face velocity of the air coil (Face Velocity [fpm] = Airflow [cfm] / Face Area [sq ft]).
Then for velocities of 200 fpm reduce the static capability by 0.03 in. wg, 300 fpm by 0.08 in. wg, 400 fpm by 0.12in. wg. and 500 fpm by 0.16 in. wg.
* Setting for 265 V operation.
7/6/10
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
14
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Blower Performance Data cont.
5-Speed ECM Motor
Model
015
018
023
024
030
036
041
042
048
060
070
Motor
Speed
Motor
Tap
High
Med High
Med
Med Low
Low
High
Med High
Med
Med Low
Low
High
Med High
Med
Med Low
Low
High
Med High
Med
Med Low
Low
High
Med High
Med
Med Low
Low
High
Med High
Med
Med Low
Low
High
Med High
Med
Med Low
Low
High
Med High
Med
Med Low
Low
High
Med High
Med
Med Low
Low
High
Med High
Med
Med Low
Low
High
Med High
Med
Med Low
Low
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
5
4
3
2
1
Blower
Size
Motor
HP
9x7
1/2
9x7
1/2
9x7
1/2
9x7
1/2
9x7
1/2
9x7
1/2
11 x 10
1
11 x 10
1
11 x 10
1
11 x 10
1
11 x 10
1
0
0.05
0.10
0.15
0.20
915
805
725
695
655
915
805
725
695
655
980
890
830
780
625
980
890
830
780
625
1340
1130
1030
960
790
1370
1265
1160
1110
825
1840
1730
1630
1550
1380
1840
1730
1630
1550
1380
2060
1880
1790
1670
1430
2400
2180
2080
1930
1750
2400
2180
2080
1930
1750
895
785
715
675
600
895
785
715
675
600
960
878
815
760
593
960
878
815
760
593
1310
1115
1005
945
765
1345
1253
1143
1095
803
1825
1713
1610
1520
1340
1825
1713
1610
1520
1340
2045
1860
1770
1650
1405
2360
2160
2050
1920
1735
2360
2160
2050
1920
1735
880
765
700
650
550
880
765
700
650
550
940
865
800
740
560
940
865
800
740
560
1280
1100
980
930
740
1320
1240
1125
1080
780
1810
1695
1590
1490
1300
1810
1695
1590
1490
1300
2030
1840
1750
1630
1380
2330
2140
2020
1910
1720
2330
2140
2020
1910
1720
865
750
680
630
530
865
750
680
630
530
930
845
788
703
535
930
845
788
703
535
1240
1085
965
915
725
1285
1220
1113
1065
770
1790
1670
1563
1465
1275
1790
1670
1563
1465
1275
2015
1825
1730
1605
1353
2315
2130
2010
1893
1698
2315
2130
2010
1893
1698
850
740
660
610
508
850
740
660
610
508
920
825
775
665
510
920
825
775
665
510
1200
1070
950
900
710
1250
1200
1100
1050
760
1770
1645
1535
1440
1250
1770
1645
1535
1440
1250
2000
1810
1710
1580
1325
2300
2120
2000
1875
1675
2300
2120
2000
1875
1675
Airflow (cfm) at External Static Pressure (in. wg)
0.25
0.30
0.35
0.40
0.45
0.50
830
725
635
590
490
830
725
635
590
490
905
813
755
653
495
905
813
755
653
495
1170
1057
935
885
690
1220
1175
1085
1038
740
1745
1623
1513
1415
1225
1745
1623
1513
1415
1225
1970
1785
1685
1555
1303
2290
2105
1985
1863
1658
2290
2105
1985
1863
1658
815
705
615
575
475
815
705
615
575
475
890
800
735
640
480
890
800
735
640
480
1140
1044
920
870
670
1190
1150
1070
1025
720
1720
1600
1490
1390
1200
1720
1600
1490
1390
1200
1940
1760
1660
1530
1280
2285
2090
1970
1850
1640
2285
2090
1970
1850
1640
805
685
600
550
435
805
685
600
550
435
875
785
723
620
455
875
785
723
620
455
1095
1022
900
855
660
1158
1120
1055
1008
705
1700
1575
1470
1370
1175
1700
1575
1470
1370
1175
1925
1740
1640
1510
1255
2275
2075
1955
1833
1620
2275
2075
1955
1833
1620
795
665
585
525
395
795
665
585
525
395
860
770
710
600
430
860
770
710
600
430
1050
1000
880
840
650
1125
1090
1040
990
690
1680
1550
1450
1350
1150
1680
1550
1450
1350
1150
1910
1720
1620
1490
1230
2265
2060
1940
1815
1600
2265
2060
1940
1815
1600
775
655
560
490
350
775
655
560
490
350
840
753
690
585
410
840
753
690
585
410
1015
970
870
825
630
1085
1053
1020
980
670
1660
1535
1425
1330
1125
1660
1535
1425
1330
1125
1890
1705
1600
1470
1210
2250
2045
1925
1798
1583
2250
2045
1925
1798
1583
750
635
535
455
750
635
535
455
820
735
670
570
390
820
735
670
570
390
980
940
860
810
610
1045
1015
1000
970
650
1640
1520
1400
1310
1100
1640
1520
1400
1310
1100
1870
1690
1580
1450
1190
2230
2030
1910
1780
1565
2230
2030
1910
1780
1565
0.60
0.70
0.80
0.90
1.00
730
605
485
730
605
485
800
710
640
800
710
640
900
870
830
790
580
960
1600
1480
1370
1260
1030
1600
1480
1370
1260
1030
1830
1640
1550
1410
1130
2200
2000
1870
1740
1525
2200
2000
1870
1740
1525
695
535
695
535
745
665
600
745
665
600
800
780
750
740
500
1570
1440
1330
1220
980
1570
1440
1330
1220
980
1800
1610
1510
1370
1070
2165
1960
1840
1700
1490
2165
1960
1840
1700
1490
640
640
1530
1390
1290
1180
820
1530
1390
1290
1180
820
1750
1570
1460
1340
925
2110
1930
1800
1660
1450
2110
1930
1800
1660
1450
1480
1350
1480
1350
1740
1535
2080
1890
1760
1620
1410
2080
1890
1760
1620
1410
2030
1850
1720
1590
1350
2030
1850
1720
1590
1350
01/23/13
Factory settings are in Bold
Airflow values are with dry coil and standard 1 in. filter
ISO/AHRI rating point on the US*070 will require moving the red wire on the motor to high speed (tap 5) and disconnecting the tan wire from tap 5.
Setting Blower Speed - 5-Speed ECM
5-speed ECM blower motors have five (5) speeds of which
three (3) are selectable on single speed and four (4) are
selectable on dual capacity.
5-Speed ECM Motor
Connections
CAUTION: Disconnect all power before
performing this operation.
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
15
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Blower Performance Data cont.
Variable Speed ECM Motor
Model
Max
esp
015
0.50
018
0.50
023
0.50
024
0.50
030
0.50
036
0.50
041
0.50
042
0.50
042
w/1hp*
0.75
048
0.50
048
w/1hp*
0.75
060
0.75
070
0.75
1
300
L
300
2
400
400
L
400
400
400
3
500
M
500
500
L
500
L
500
L
4
600
H
600
M
600
M
600
M
600
600
650
750
650
750
800
L
650
1000
M
750
800
750
1000
L
900
800
950
850
L
850
L
1100
850
1100
1000
1100
L
950
950
1300
H
950
1300
M
1200
L
1300
5
700
Airflow DIP Switch Settings
6
7
700
H
700
8
9
10
11
12
900
1000
1100
1200
900
1000
1100
1200
1000
1100
1200
1000
1150
900
H
900
M
1250
1100
H
1375
1150
1225
1300
1475
1550
1600
1150
1250
1375
1475
1550
1600
1600
1800
1150
1600
1250
M
1800
1325
1375
1475
1550
H
1600
1600
1700
1850
H
2100
H
2000
2200
2300
2400
1750
M
1950
800
800
H
800
H
800
700
700
M
700
L
1050
M
1050
M
1500
800
1050
L
1500
H
1400
M
1500
1325
H
1325
H
2300
11/10/09
Factory settings are at recommended L-M-H DIP switch locations.
Shaded regions are recommended for best performance. It is acceptable to operate outside of this area as long as the WSHP operates within the guidlines of the Operating Limits table and Correction Factor tables.
Lowest and Highest DIP switch settings are assumed to be L and H respectively.
CFM is controlled within ±5% up to the maximum esp.
Max esp includes allowance for wet coil and standard filter
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
16
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Operating Limits
Operating Limits
Air Limits
Min. Ambient Air
Rated Ambient Air
Max. Ambient Air
Min. Entering Air
Rated Entering Air db/wb
Max. Entering Air db/wb
Water Limits
Min. Entering Water
Normal Entering Water
Max. Entering Water
Cooling
Heating
(°F)
(°C)
(°F)
(°C)
45
80
100
50
80.6/66.2
110/83
7.2
26.7
37.8
10.0
27/19
43/28.3
45
70
85
40
68
80
7.2
21.1
29.4
4.4
20.0
26.7
30
50-110
120
-1.1
10-43.3
48.9
20
30-70
90
-6.7
-1.1
32.2
NOTE: Minimum/maximum limits are only for start-up conditions, and are meant
for bringing the space up to occupancy temperature. Units are not designed to
operate at the minimum/maximum conditions on a regular basis. The operating
limits are dependant upon three primary factors: 1) water temperature, 2) return
air temperature, and 3) ambient temperature. When any of the factors are at the
minimum or maximum levels, the other two factors must be at the normal level for
proper and reliable unit operation.
Definitions
ABBREVIATIONS AND DEFINITIONS:
CFM
EWT
GPM
WPD
EAT
=
=
=
=
=
HC
TC
SC
KW
HR
=
=
=
=
=
airflow, cubic feet/minute
entering water temperature, Fahrenheit
water flow in gallons/minute
water pressure drop, PSI and feet of water
entering air temperature, Fahrenheit
(dry bulb/wet bulb)
air heating capacity, MBTUH
total cooling capacity, MBTUH
sensible cooling capacity, MBTUH
total power unit input, kilowatts
total heat of rejection, MBTUH
HE
= total heat of extraction, MBTUH
HWC = hot water generator capacity, MBTUH
EER = Energy Efficient Ratio
= BTU output/Watt input
COP = Coefficient of Performance
= BTU output/BTU input
LWT = leaving water temperature, °F
LAT = leaving air temperature, °F
TH
= total heating capacity, MBTUH
LC
= latent cooling capacity, MBTUH
S/T = sensible to total cooling ratio
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
17
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Correction Factor Tables
Cooling Capacity Corrections
Entering
Air WB ºF
55
60
65
66.2
67
70
75
Total
Clg Cap
0.898
0.912
0.967
0.983
1.000
1.053
1.168
60
0.723
65
0.866
0.632
Sensible Cooling Capacity Multipliers - Entering DB ºF
70
75
80
80.6
85
90
1.048
1.185
*
*
*
*
0.880
1.078
1.244
1.260
*
*
0.694
0.881
1.079
1.085
1.270
*
0.655
0.842
1.040
1.060
1.232
*
0.616
0.806
1.000
1.023
1.193
1.330
0.693
0.879
0.900
1.075
1.250
0.687
0.715
0.875
1.040
95
*
*
*
*
*
1.404
1.261
Power
Input
0.985
0.994
0.997
0.999
1.000
1.003
1.007
100
*
*
*
*
*
*
1.476
NOTE: * Sensible capacity equals total capacity at conditions shown.
Heat of
Rejection
0.913
0.927
0.972
0.986
1.000
1.044
1.141
11/10/09
Heating Corrections
Ent Air DB °F
45
Htg Cap
1.062
Power
0.739
Heat of Ext
1.158
50
1.050
0.790
1.130
55
1.037
0.842
1.096
60
1.025
0.893
1.064
65
1.012
0.945
1.030
68
1.005
0.976
1.012
70
1.000
1.000
1.000
75
0.987
1.048
0.970
80
0.975
1.099
0.930
11/10/09
Airflow Corrections
Airflow
cfm Per Ton
% of Nominal
of Clg
240
60
275
69
300
75
325
81
350
88
375
94
400
100
425
106
450
113
475
119
500
125
520
130
Cooling
Heating
Total Cap
Sens Cap
Power
Heat of Rej
Htg Cap
Power
0.922
0.944
0.959
0.971
0.982
0.992
1.000
1.007
1.012
1.017
1.019
1.020
0.786
0.827
0.860
0.894
0.929
0.965
1.000
1.034
1.065
1.093
1.117
1.132
0.910
0.924
0.937
0.950
0.964
0.982
1.000
1.020
1.042
1.066
1.092
1.113
0.920
0.940
0.955
0.967
0.978
0.990
1.000
1.010
1.018
1.026
1.033
1.038
0.943
0.958
0.968
0.977
0.985
0.993
1.000
1.007
1.013
1.018
1.023
1.026
1.150
1.105
1.078
1.053
1.031
1.014
1.000
0.990
0.983
0.980
0.978
0.975
Heat of Ext
0.893
0.922
0.942
0.959
0.973
0.988
1.000
1.011
1.020
1.028
1.034
1.038
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
18
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Antifreeze Corrections
Antifreeze Corrections
Catalog performance can be corrected for antifreeze use. Please use the following table and note the example given.
Antifreeze
% by wt
Antifreeze Type
EWT - degF [DegC]
Water
Ethylene Glycol
Propylene Glycol
Ethanol
Methanol
Cooling
Capacity
Heating
Capacity
Pressure Drop
90 [32.2]
30 [-1.1]
30 [-1.1]
0
1.000
1.000
1.000
10
0.991
0.973
1.075
20
0.979
0.943
1.163
30
0.965
0.917
1.225
40
0.955
0.890
1.324
50
0.943
0.865
1.419
10
0.981
0.958
1.130
20
0.969
0.913
1.270
30
0.950
0.854
1.433
40
0.937
0.813
1.614
50
0.922
0.770
1.816
10
0.991
0.927
1.242
20
0.972
0.887
1.343
30
0.947
0.856
1.383
40
0.930
0.815
1.523
50
0.911
0.779
1.639
10
0.986
0.957
1.127
20
0.970
0.924
1.197
30
0.951
0.895
1.235
40
0.936
0.863
1.323
50
0.920
0.833
1.399
Warning: Gray area represents antifreeze concentrations greater than 35% by weight and
should be avoided due to the extreme performance penalty they represent.
Antifreeze Correction Example
Antifreeze solution is Propylene Glycol 20% by weight. Determine the corrected heating and cooling performance at 30°F and 90°F respectively as well as pressure drop at 30°F for a LX Ultra Series YGS*024-PSC.
The corrected cooling capacity at 90°F would be: 24,500 Btu/h x 0.969 = 23,740 Btu/h
The corrected heating capacity at 30°F would be: 19,000 Btu/h x 0.913 = 17,347 Btu/h
The corrected pressure drop at 30°F and 6 gpm would be: 10.5 ft. hd x 1.270 = 13.34 ft. hd.
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
19
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Pressure Drop
Model
gpm
009
012
015
018
023
024
030
036
041
042
048
060
070
Pressure Drop (psi)
Cv
1.0
1.5
9.6
0.02
1.8
2.0
9.7
0.04
3.0
9.9
0.09
6.0
4.0
10.1
0.16
0.8
0.7
1.5
9.6
0.02
1.8
1.5
2.5
9.8
0.06
3.2
2.7
2.3
3.5
10.0
0.12
4.9
4.5
3.8
3.5
4.5
10.2
0.19
0.5
0.5
0.4
0.4
2.0
9.7
0.04
1.1
1.0
0.9
0.8
0.6
3.0
9.9
0.09
4.0
1.9
1.8
1.6
1.5
1.3
4.0
10.1
0.16
5.0
3.3
3.2
3.0
2.9
2.7
5.0
10.4
0.23
3.0
1.1
1.0
0.9
0.8
0.6
3.0
9.9
0.09
4.0
1.9
1.8
1.6
1.5
1.3
4.0
10.1
0.16
5.0
3.3
3.2
3.0
2.9
2.7
5.0
10.4
0.23
6.0
4.5
4.4
4.3
4.1
4.0
6.0
10.6
0.32
3.0
1.1
1.0
0.9
0.8
0.6
3.0
9.9
0.09
4.5
2.4
2.2
2.1
2.0
1.9
4.5
10.2
0.19
6.0
4.5
4.4
4.3
4.1
4.0
6.0
10.6
0.32
8.0
6.7
6.6
6.5
6.3
6.2
8.0
11.0
0.53
3.0
1.1
1.0
0.9
0.8
0.6
3.0
9.9
0.09
4.5
2.4
2.2
2.1
2.0
1.9
4.5
10.2
0.19
6.0
4.5
4.4
4.3
4.1
4.0
6.0
10.6
0.32
8.0
6.7
6.6
6.5
6.3
6.2
8.0
11.0
0.53
4.0
0.9
0.8
0.7
0.6
0.5
4.0
10.1
0.16
6.0
1.9
1.8
1.7
1.6
1.5
6.0
10.6
0.32
8.0
3.7
3.6
3.5
3.4
3.3
8.0
11.0
0.53
10.0
4.8
4.7
4.6
4.5
4.4
10.0
11.5
0.76
5.0
1.4
1.1
0.9
0.7
0.5
5.0
10.4
0.23
7.0
2.5
2.3
2.1
1.8
1.6
7.0
10.8
0.42
9.0
6.0
5.8
5.5
5.3
5.1
9.0
11.2
0.64
12.0
6.6
6.4
6.2
6.0
5.7
12.0
11.9
1.02
5.0
1.5
1.2
0.9
0.5
0.4
5.0
10.4
0.23
8.0
3.4
3.1
2.8
2.5
2.1
8.0
11.0
0.53
11.0
7.9
7.5
7.2
6.9
6.6
11.0
11.7
0.89
14.0
9.1
8.8
8.5
8.2
7.9
14.0
12.3
1.29
5.0
1.5
1.2
0.9
0.5
0.4
5.0
15.9
0.10
8.0
3.4
3.1
2.8
2.5
2.1
8.0
16.6
0.23
11.0
7.9
7.5
7.2
6.9
6.6
11.0
17.2
0.41
14.0
9.1
8.8
8.5
8.2
7.9
14.0
17.9
0.61
6.0
2.0
1.7
1.3
1.0
0.6
6.0
16.1
0.14
9.0
4.2
3.8
3.5
3.1
2.7
9.0
16.8
0.29
12.0
6.7
6.3
5.9
5.6
5.2
12.0
17.4
0.47
16.0
11.5
11.2
10.8
10.5
10.1
16.0
18.3
0.76
9.0
3.6
3.3
3.0
2.7
2.3
9.0
16.8
0.29
12.0
6.1
5.8
5.5
5.2
4.8
12.0
17.4
0.47
15.0
9.6
9.2
8.9
8.6
8.3
15.0
18.1
0.69
20.0
15.5
15.2
14.9
14.5
14.2
20.0
19.2
1.09
12.0
4.1
3.6
3.2
2.8
2.3
12.0
17.4
0.47
15.0
5.9
5.0
4.6
4.1
3.7
15.0
18.1
0.69
18.0
8.8
8.4
7.9
0.5
7.1
18.0
18.7
0.92
24.0
12.9
12.0
11.5
11.1
10.7
24.0
20.1
1.43
50°F
70°F
90°F
110°F
1.5
2.0
1.7
1.4
1.3
2.0
3.8
3.2
2.8
2.3
3.0
7.2
6.0
5.1
4.5
4.0
4.0
12.0
10.0
9.0
7.5
1.5
1.1
1.0
0.9
2.5
2.5
2.3
2.1
3.5
3.9
3.6
4.5
5.3
2.0
0.6
3.0
Valve
Pressure
gpm
30°F
1/2 in.
1/2 in.
1/2 in.
1/2 in.
3/4 in.
3/4 in.
3/4 in.
3/4 in.
3/4 in.
1 in.
1 in.
1 in.
1 in.
Drop (psi)
11/10/09
7/6/10
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
20
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG009 - Performance Data
Single Speed PSC (350 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
COOLING - EAT 80/67°F
Flow
gpm
psi
ft. hd.
1.5
2.2
5.1
2.0
4.2
9.7
3.0
7.5
17.3
1.5
2.0
4.6
2.0
3.8
8.8
6.1
0.64
3.9
84.1
2.79
11.2
7.5
0.67
0.52
13.0
21.7
3.0
7.2
16.6
6.9
0.67
4.6
86.2
3.01
11.4
7.7
0.67
0.49
13.0
23.4
1.5
1.9
4.4
2.0
3.5
8.1
6.9
0.67
4.6
86.3
3.03
11.1
7.6
0.68
0.55
13.0
20.3
3.0
6.5
15.0
7.5
0.69
5.2
87.9
3.21
11.2
7.7
0.68
0.52
13.0
21.6
1.5
1.7
3.9
7.6
0.69
5.2
88.1
3.23
11.1
7.6
0.69
0.59
13.1
18.6
2.0
3.2
7.4
7.8
0.69
5.4
88.6
3.29
11.1
7.6
0.69
0.58
13.1
19.0
3.0
6.0
13.8
8.2
0.70
5.8
89.6
3.41
11.1
7.6
0.69
0.56
13.0
19.9
1.5
1.6
3.6
8.7
0.72
6.2
90.9
3.52
10.4
7.3
0.70
0.66
12.6
15.9
2.0
3.0
6.9
8.9
0.72
6.4
91.5
3.59
10.5
7.3
0.70
0.64
12.6
16.3
3.0
5.6
12.8
9.3
0.73
6.8
92.7
3.74
10.5
7.4
0.70
0.61
12.6
17.2
1.5
1.4
3.2
9.7
0.75
7.1
93.7
3.79
9.8
7.0
0.71
0.72
12.2
13.6
2.0
2.8
6.5
10.0
0.75
7.4
94.4
3.88
9.8
7.0
0.71
0.70
12.2
14.0
3.0
5.1
11.9
10.5
0.76
7.9
95.8
4.05
10.0
7.2
0.72
0.67
12.3
14.9
1.5
1.4
3.1
11.2
0.77
8.5
97.5
4.27
9.0
6.8
0.75
0.80
11.7
11.3
2.0
2.6
5.9
11.4
0.77
8.8
98.1
4.32
9.1
6.8
0.75
0.76
11.7
12.0
3.0
4.8
11.0
11.8
0.78
9.1
99.1
4.42
9.3
7.0
0.75
0.74
11.8
12.6
1.5
1.3
3.0
12.6
0.78
9.9
101.4
4.74
8.3
6.6
0.79
0.87
11.3
9.5
2.0
2.3
5.3
12.8
0.79
10.1
101.9
4.75
8.4
6.7
0.79
0.83
11.3
10.2
3.0
4.5
10.4
13.0
0.80
10.3
102.4
4.76
8.6
6.8
0.79
0.80
11.3
10.7
1.5
1.3
2.9
2.0
2.1
4.7
7.9
6.5
0.83
0.91
11.0
8.6
3.0
4.3
9.8
8.0
6.6
0.82
0.88
11.0
9.1
1.5
1.0
2.3
2.0
1.8
4.2
3.0
4.0
9.2
1.5
0.9
2.1
2.0
1.7
3.9
6.2
5.6
0.89
3.0
3.8
8.8
6.4
5.6
0.89
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COP
TC
MBtu/h
SC
MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
6.0
0.65
3.8
83.9
2.71
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
7.2
6.2
0.86
0.99
10.6
7.3
7.4
6.3
0.86
0.96
10.6
7.7
1.07
9.9
5.8
1.04
9.9
Operation not recommended
6.1
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
21
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG012 - Performance Data
Single Speed PSC (400 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
COOLING - EAT 80/67°F
Flow
gpm
psi
ft. hd.
1.5
1.2
2.8
2.5
2.6
6.0
3.5
4.1
9.5
1.5
1.1
2.5
2.5
2.5
5.8
8.6
0.81
5.9
88.0
3.13
15.7
10.0
0.64
0.47
17.3
33.5
3.5
3.9
9.0
8.9
0.83
6.1
88.6
3.14
15.9
10.2
0.64
0.44
17.4
36.1
1.5
1.1
2.4
2.5
2.4
5.5
9.6
0.83
6.8
90.2
3.39
15.3
10.0
0.65
0.53
17.1
28.6
3.5
3.8
8.7
10.0
0.85
7.1
91.0
3.45
15.5
10.1
0.65
0.50
17.1
31.2
1.5
1.0
2.3
10.3
0.85
7.4
91.8
3.55
14.7
10.0
0.68
0.65
16.9
22.6
2.5
2.3
5.3
10.7
0.86
7.7
92.7
3.65
14.9
10.0
0.67
0.60
16.9
24.8
3.5
3.6
8.3
11.0
0.86
8.1
93.5
3.75
15.0
9.9
0.66
0.55
16.9
27.3
1.5
1.0
2.2
11.5
0.87
8.5
94.5
3.86
14.2
9.7
0.68
0.73
16.7
19.5
2.5
2.2
5.1
11.9
0.88
8.9
95.5
3.96
14.4
9.7
0.68
0.68
16.7
21.1
3.5
3.4
7.9
12.4
0.89
9.3
96.6
4.07
14.5
9.8
0.67
0.63
16.6
23.0
1.5
0.9
2.1
12.6
0.89
9.6
97.2
4.15
13.7
9.4
0.69
0.81
16.5
16.9
2.5
2.1
4.9
13.2
0.91
10.1
98.4
4.26
13.9
9.5
0.69
0.76
16.4
18.2
3.5
3.2
7.4
13.7
0.92
10.6
99.7
4.36
14.0
9.6
0.69
0.71
16.4
19.7
1.5
0.9
2.0
14.2
0.91
11.0
100.8
4.54
13.0
9.2
0.70
0.89
16.1
14.6
2.5
2.0
4.5
14.6
0.93
11.4
101.7
4.60
13.2
9.3
0.70
0.85
16.1
15.5
3.5
2.9
6.7
15.0
0.94
11.7
102.6
4.66
13.4
9.4
0.70
0.83
16.2
16.2
1.5
0.8
1.8
15.7
0.94
12.5
104.4
4.92
12.4
8.9
0.72
1.02
15.8
12.1
2.5
1.8
4.2
16.0
0.95
12.7
104.9
4.93
12.5
9.0
0.72
0.97
15.9
12.9
3.5
2.7
6.2
16.2
0.96
12.9
105.5
4.95
12.8
9.2
0.71
0.94
16.0
13.6
1.5
0.8
1.7
2.5
1.7
3.8
12.2
9.0
3.5
2.5
5.8
12.4
9.0
1.5
0.7
1.6
2.5
1.5
3.5
3.5
2.3
5.3
1.5
0.7
1.5
2.5
1.4
3.1
11.3
8.6
0.76
3.5
2.1
4.9
11.5
8.7
0.76
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COP
TC
MBtu/h
SC
MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
7.2
0.81
4.4
84.7
2.61
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
0.73
1.11
16.0
11.0
0.73
1.07
16.1
11.6
Operation not recommended
Operation not recommended
11.8
8.8
12.0
8.9
0.75
1.23
16.0
9.5
0.74
1.20
16.1
10.0
1.34
15.8
8.4
1.30
15.9
8.8
Operation not recommended
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
22
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG015 - Performance Data
Single Speed PSC (500 cfm)
WPD
HEATING - EAT 70°F
EWT
°F
Flow
gpm
2.0
0.6
1.4
20
3.0
1.2
2.8
4.0
2.0
4.6
2.0
0.6
1.4
3.0
1.1
4.0
psi
ft. hd.
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
30
40
50
60
70
80
90
100
110
120
Operation not recommended
10.0
1.00
6.6
86.5
2.93
1.2
2.6
11.0
1.04
7.4
88.3
3.09
1.3
14.5
9.8
0.68
0.71
16.9
20.3
---
1.9
4.4
11.0
1.00
7.6
88.4
3.22
1.3
14.7
10.0
0.68
0.67
17.0
21.9
---
2.0
0.6
1.3
3.0
1.1
2.5
12.1
1.05
8.5
90.4
3.37
1.3
15.6
10.6
0.68
0.77
18.3
20.2
---
4.0
1.8
4.3
12.4
1.04
8.8
90.9
3.50
1.3
15.9
10.8
0.68
0.74
18.4
21.4
---
2.0
0.5
1.2
13.0
1.06
9.4
92.1
3.59
1.4
16.5
11.3
0.68
0.85
19.4
19.4
0.8
3.0
1.0
2.3
13.4
1.07
9.7
92.7
3.67
1.4
16.8
11.4
0.68
0.83
19.6
20.2
0.8
4.0
1.8
4.1
13.7
1.07
10.1
93.4
3.75
1.5
17.0
11.5
0.68
0.81
19.8
21.0
0.8
2.0
0.5
1.2
14.4
1.07
10.7
94.6
3.93
1.6
15.7
10.9
0.69
0.92
18.8
17.2
0.9
3.0
0.9
2.1
14.8
1.08
11.1
95.4
4.03
1.6
16.0
11.0
0.69
0.89
19.0
18.0
0.9
4.0
1.7
3.9
15.3
1.09
11.5
96.2
4.12
1.7
16.2
11.1
0.68
0.86
19.1
18.9
0.8
2.0
0.5
1.1
15.7
1.08
12.0
97.1
4.26
1.8
14.9
10.5
0.70
0.98
18.2
15.2
1.1
3.0
0.8
1.9
16.3
1.09
12.5
98.1
4.37
1.8
15.2
10.6
0.70
0.94
18.4
16.1
1.1
4.0
1.6
3.7
16.8
1.10
13.1
99.1
4.48
1.8
15.4
10.6
0.69
0.90
18.5
17.1
1.0
2.0
0.5
1.1
17.6
1.10
13.8
100.5
4.69
2.0
14.2
10.2
0.72
1.03
17.7
13.7
1.4
3.0
0.8
1.8
18.0
1.11
14.2
101.3
4.75
2.0
14.4
10.3
0.71
0.99
17.8
14.6
1.3
4.0
1.5
3.6
18.4
1.12
14.6
102.1
4.81
2.1
14.7
10.4
0.71
0.96
17.9
15.3
1.3
2.0
0.4
1.0
19.4
1.11
15.6
103.9
5.12
2.3
13.4
9.9
0.74
1.09
17.1
12.3
1.8
3.0
0.7
1.6
19.7
1.13
15.9
104.5
5.13
2.3
13.6
10.0
0.73
1.04
17.2
13.1
1.7
4.0
1.5
3.4
20.0
1.14
16.1
105.0
5.14
2.3
13.9
10.1
0.73
1.01
17.3
13.8
1.6
2.0
0.4
0.9
3.0
0.6
1.4
12.8
9.7
0.76
1.16
16.7
11.0
2.1
4.0
1.4
3.2
13.0
9.8
0.76
1.13
16.8
11.5
1.9
2.0
0.4
0.9
3.0
0.5
1.2
4.0
1.3
3.0
2.0
0.4
0.9
3.0
0.5
1.1
10.8
9.1
0.84
1.41
15.6
7.6
3.3
4.0
1.2
2.9
11.0
9.2
0.84
1.37
15.7
8.0
3.0
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
11.8
9.4
12.0
9.5
0.80
1.27
16.1
9.2
2.7
0.79
1.24
16.2
9.7
2.5
Operation not recommended
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
23
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG018 - Performance Data
Single Speed PSC (600 cfm)
WPD
HEATING - EAT 70°F
EWT
°F
Flow
gpm
3.0
1.2
2.8
20
4.0
2.0
4.6
5.0
3.4
7.8
3.0
1.1
2.6
4.0
1.9
5.0
psi
ft. hd.
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
30
40
50
60
70
80
90
100
110
120
Operation not recommended
13.0
1.21
8.9
88.1
3.15
1.4
4.4
14.5
1.29
10.1
90.3
3.29
1.5
18.2
11.8
0.65
0.86
21.1
21.0
---
3.3
7.6
14.9
1.31
10.4
91.0
3.33
1.5
18.4
12.0
0.65
0.81
21.2
22.7
---
3.0
1.1
2.5
4.0
1.8
4.3
15.7
1.34
11.1
92.2
3.43
1.6
19.1
12.4
0.65
0.92
22.2
20.8
---
5.0
3.2
7.5
16.5
1.37
11.8
93.4
3.52
1.6
19.4
12.6
0.65
0.89
22.4
21.9
---
3.0
1.0
2.3
16.0
1.36
11.4
92.7
3.45
1.7
19.7
12.8
0.65
0.98
23.0
20.1
0.9
4.0
1.8
4.1
17.0
1.40
12.2
94.2
3.57
1.7
20.0
13.0
0.65
0.97
23.3
20.6
0.9
5.0
3.2
7.3
18.0
1.43
13.1
95.8
3.69
1.8
20.3
13.1
0.65
0.96
23.6
21.1
0.9
3.0
0.9
2.1
17.5
1.43
12.6
95.0
3.60
1.9
18.7
12.4
0.66
1.07
22.3
17.6
1.1
4.0
1.7
3.9
18.5
1.45
13.5
96.5
3.73
1.9
18.9
12.6
0.67
1.06
22.5
17.9
1.1
5.0
3.1
7.1
19.5
1.48
14.5
98.1
3.86
2.0
19.2
12.8
0.67
1.05
22.7
18.3
1.0
3.0
0.8
1.9
19.0
1.49
13.9
97.3
3.74
2.1
17.7
12.0
0.68
1.15
21.6
15.4
1.3
4.0
1.6
3.7
20.0
1.51
14.8
98.9
3.88
2.1
17.9
12.3
0.69
1.14
21.7
15.7
1.3
5.0
3.0
6.9
21.0
1.53
15.8
100.4
4.02
2.2
18.0
12.5
0.69
1.13
21.9
15.9
1.2
3.0
0.8
1.8
21.9
1.56
16.5
101.7
4.10
2.4
16.6
11.4
0.69
1.36
21.2
12.2
1.7
4.0
1.5
3.6
22.6
1.58
17.2
102.8
4.17
2.4
16.8
11.7
0.70
1.30
21.2
12.9
1.6
5.0
2.9
6.8
23.3
1.61
17.8
103.9
4.25
2.5
17.0
12.0
0.70
1.26
21.3
13.5
1.5
3.0
0.7
1.6
24.7
1.64
19.1
106.2
4.43
2.8
15.4
10.8
0.70
1.49
20.5
10.3
2.2
4.0
1.5
3.4
25.1
1.66
19.5
106.8
4.44
2.8
15.7
11.1
0.71
1.43
20.5
11.0
2.0
5.0
2.9
6.6
25.5
1.68
19.8
107.4
4.45
2.8
16.0
11.4
0.71
1.38
20.7
11.6
1.9
3.0
0.6
1.4
4.0
1.4
3.2
14.9
11.0
0.74
1.52
20.1
9.8
2.5
5.0
2.8
6.4
15.1
11.1
0.73
1.47
20.1
10.3
2.3
3.0
0.5
1.2
4.0
1.3
3.0
13.9
10.5
5.0
2.7
6.2
14.2
10.7
3.0
0.5
1.1
4.0
1.2
2.9
13.2
10.1
0.76
1.76
5.0
2.6
6.1
13.5
10.2
0.76
1.71
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
0.76
1.60
19.4
8.7
3.2
0.75
1.56
19.5
9.1
3.0
19.2
7.5
4.0
19.3
7.9
3.6
Operation not recommended
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
24
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG023 - Performance Data
Single Speed PSC (700 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
COOLING - EAT 80/67°F
Flow
gpm
psi
ft. hd.
3.0
1.2
2.8
4.5
2.4
5.6
6.0
4.6
10.6
3.0
1.1
2.6
4.5
2.4
5.5
17.9
1.74
11.9
88.7
3.01
26.3
16.7
0.63
1.11
30.1
23.8
6.0
4.5
10.5
18.2
1.76
12.2
89.1
3.04
26.7
17.0
0.64
1.04
30.2
25.7
3.0
1.1
2.5
4.5
2.3
5.3
19.6
1.78
13.6
90.7
3.24
26.5
17.0
0.64
1.20
30.6
22.0
6.0
4.5
10.3
20.3
1.80
14.1
91.4
3.30
26.8
17.3
0.64
1.14
30.7
23.6
3.0
1.0
2.3
20.8
1.79
14.7
92.1
3.41
26.4
17.3
0.66
1.37
31.1
19.3
4.5
2.2
5.2
21.6
1.82
15.4
92.9
3.48
26.6
17.4
0.65
1.30
31.1
20.5
6.0
4.4
10.2
22.3
1.84
16.0
93.8
3.55
26.9
17.5
0.65
1.23
31.1
21.9
3.0
1.0
2.2
23.0
1.83
16.7
94.6
3.68
25.7
17.0
0.66
1.52
30.9
16.9
4.5
2.2
5.0
23.8
1.85
17.5
95.5
3.76
25.9
17.1
0.66
1.44
30.9
18.0
6.0
4.3
10.0
24.6
1.88
18.2
96.4
3.84
26.2
17.2
0.66
1.36
30.8
19.3
3.0
0.9
2.0
25.2
1.87
18.8
97.1
3.94
25.0
16.7
0.67
1.67
30.7
15.0
4.5
2.1
4.9
26.0
1.89
19.6
98.1
4.03
25.3
16.8
0.67
1.58
30.6
16.0
6.0
4.3
9.9
26.9
1.91
20.4
99.1
4.12
25.5
16.9
0.66
1.49
30.6
17.1
3.0
0.8
1.9
27.9
1.88
21.5
100.2
4.35
23.8
16.1
0.68
1.81
30.0
13.1
4.5
2.1
4.7
28.5
1.90
22.0
101.0
4.40
24.1
16.3
0.68
1.73
30.0
13.9
6.0
4.2
9.7
29.2
1.92
22.6
101.8
4.46
24.5
16.5
0.67
1.68
30.2
14.6
3.0
0.8
1.7
30.6
1.88
24.1
103.4
4.76
22.7
15.6
0.69
2.01
29.6
11.3
4.5
2.0
4.6
31.0
1.91
24.5
103.9
4.77
23.0
15.8
0.69
1.92
29.6
12.0
6.0
4.1
9.6
31.5
1.93
24.9
104.5
4.78
23.5
16.0
0.68
1.86
29.8
12.6
3.0
0.7
1.6
4.5
1.9
4.4
21.7
15.1
0.69
2.20
29.2
9.9
6.0
4.1
9.4
22.1
15.2
0.69
2.13
29.3
10.4
3.0
0.6
1.4
4.5
1.9
4.3
6.0
4.0
9.3
3.0
0.6
1.3
4.5
1.8
4.1
18.4
14.2
0.77
6.0
3.9
9.1
18.8
14.4
0.77
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COP
TC
MBtu/h
SC
MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
15.0
1.68
9.2
85.3
2.61
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
20.2
14.2
0.70
2.46
28.6
8.2
20.6
14.4
0.70
2.39
28.8
8.6
2.85
28.2
6.5
2.77
28.3
Operation not recommended
6.8
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
25
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG024 - Performance Data
Single Speed PSC (800 cfm)
WPD
HEATING - EAT 70°F
EWT
°F
Flow
gpm
3.0
1.2
2.8
20
4.5
2.4
5.6
6.0
4.6
10.6
3.0
1.1
2.6
4.5
2.4
6.0
psi
ft. hd.
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
30
40
50
60
70
80
90
100
110
120
Operation not recommended
15.6
1.68
9.8
86.0
2.72
1.6
5.5
18.7
1.74
12.7
89.6
3.14
1.7
27.5
17.4
0.63
1.11
31.2
24.8
---
4.5
10.5
19.0
1.76
13.0
90.0
3.16
1.7
27.8
17.7
0.64
1.04
31.4
26.8
---
3.0
1.1
2.5
4.5
2.3
5.3
20.5
1.78
14.4
91.7
3.38
1.9
27.6
17.7
0.64
1.20
31.7
22.9
---
6.0
4.5
10.3
21.1
1.80
15.0
92.4
3.44
1.9
27.9
18.0
0.64
1.14
31.8
24.6
---
3.0
1.0
2.3
21.7
1.79
15.6
93.2
3.56
2.1
27.5
18.0
0.65
1.37
32.2
20.1
1.3
4.5
2.2
5.2
22.5
1.82
16.3
94.0
3.63
2.1
27.8
18.1
0.65
1.30
32.2
21.4
1.2
6.0
4.4
10.2
23.2
1.84
16.9
94.9
3.70
2.2
28.0
18.2
0.65
1.23
32.2
22.7
1.2
3.0
1.0
2.2
24.0
1.83
17.7
95.7
3.84
2.3
26.8
17.7
0.66
1.52
32.0
17.6
1.5
4.5
2.2
5.0
24.8
1.85
18.5
96.7
3.92
2.4
27.0
17.8
0.66
1.44
32.0
18.8
1.4
6.0
4.3
10.0
25.6
1.88
19.2
97.6
4.00
2.4
27.3
17.9
0.66
1.36
31.9
20.1
1.4
3.0
0.9
2.0
26.2
1.87
19.8
98.3
4.10
2.6
26.1
17.4
0.67
1.67
31.8
15.6
1.8
4.5
2.1
4.9
27.1
1.89
20.6
99.4
4.20
2.6
26.3
17.5
0.66
1.58
31.7
16.7
1.8
6.0
4.3
9.9
28.0
1.91
21.5
100.4
4.30
2.7
26.6
17.6
0.66
1.49
31.6
17.8
1.7
3.0
0.8
1.9
29.0
1.88
22.6
101.5
4.53
2.9
24.9
16.8
0.68
1.81
31.1
13.7
2.3
4.5
2.1
4.7
29.7
1.90
23.2
102.4
4.58
2.9
25.2
17.0
0.68
1.73
31.1
14.5
2.2
6.0
4.2
9.7
30.4
1.92
23.8
103.2
4.64
3.0
25.5
17.1
0.67
1.68
31.2
15.2
2.1
3.0
0.8
1.7
31.8
1.88
25.4
104.8
4.95
3.3
23.6
16.2
0.69
2.01
30.5
11.7
2.8
4.5
2.0
4.6
32.3
1.91
25.8
105.4
4.96
3.4
24.0
16.5
0.69
1.92
30.6
12.5
2.7
6.0
4.1
9.6
32.8
1.93
26.2
105.9
4.98
3.5
24.5
16.7
0.68
1.86
30.8
13.2
2.5
3.0
0.7
1.6
4.5
1.9
4.4
22.7
16.0
0.71
2.20
30.2
10.3
3.4
6.0
4.1
9.4
23.0
16.2
0.70
2.13
30.3
10.8
3.2
3.0
0.6
1.4
4.5
1.9
4.3
6.0
4.0
9.3
3.0
0.6
1.3
4.5
1.8
4.1
19.1
14.8
0.77
2.85
6.0
3.9
9.1
19.6
15.0
0.77
2.77
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
21.1
15.4
21.5
15.6
0.73
2.46
29.5
8.6
4.1
0.73
2.39
29.7
9.0
3.9
28.9
6.7
4.9
29.0
7.1
4.6
Operation not recommended
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
26
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG030 - Performance Data
Single Speed PSC (1000 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
Flow
gpm
PSI
FT
4.0
1.0
2.2
6.0
1.9
4.5
8.0
3.8
8.7
4.0
0.9
2.1
6.0
1.9
8.0
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
20.0
1.90
13.5
86.5
3.09
1.9
4.4
21.2
1.96
14.5
87.6
3.16
2.1
30.4
19.3
0.64
1.38
35.1
21.9
---
3.7
8.5
22.0
1.98
15.2
88.4
3.26
2.1
30.8
19.7
0.64
1.30
35.2
23.7
---
4.0
0.9
2.0
6.0
1.8
4.3
23.9
2.00
17.1
90.1
3.50
2.3
31.3
20.2
0.64
1.41
36.1
22.1
---
8.0
3.7
8.4
25.0
2.02
18.1
91.1
3.62
2.4
32.4
20.9
0.65
1.40
37.2
23.1
---
4.0
0.8
1.9
25.8
2.01
18.9
91.9
3.76
2.5
30.5
19.9
0.65
1.39
35.2
21.9
1.4
6.0
1.8
4.1
26.9
2.04
19.9
92.9
3.87
2.6
32.3
21.0
0.65
1.45
37.2
22.3
1.3
8.0
3.6
8.3
27.9
2.06
20.9
93.8
3.97
2.7
34.0
22.1
0.65
1.50
39.1
22.7
1.3
4.0
0.8
1.8
29.4
2.05
22.4
95.2
4.20
2.9
30.1
19.7
0.66
1.54
35.3
19.5
1.6
6.0
1.7
4.0
30.5
2.07
23.4
96.2
4.31
2.9
31.9
20.9
0.66
1.60
37.4
20.0
1.5
8.0
3.6
8.2
31.6
2.10
24.5
97.3
4.42
3.0
33.8
22.1
0.66
1.65
39.4
20.5
1.4
4.0
0.7
1.6
33.0
2.09
25.9
98.6
4.63
3.2
29.6
19.5
0.66
1.69
35.4
17.5
2.0
6.0
1.7
3.9
34.2
2.11
27.0
99.6
4.74
3.3
31.6
20.8
0.66
1.75
37.6
18.1
1.9
8.0
3.5
8.1
35.3
2.13
28.0
100.7
4.86
3.4
33.6
22.2
0.66
1.80
39.7
18.7
1.8
4.0
0.7
1.5
36.9
2.19
29.4
102.1
4.93
3.6
29.3
19.3
0.66
2.16
36.6
13.6
2.5
6.0
1.6
3.8
37.8
2.22
30.2
103.0
4.99
3.7
30.7
20.4
0.66
2.06
37.8
15.0
2.4
8.0
3.5
8.0
38.7
2.24
31.0
103.8
5.06
3.8
32.1
21.5
0.67
1.99
38.8
16.1
2.3
4.0
0.6
1.4
40.7
2.29
32.9
105.7
5.21
4.1
29.0
19.0
0.66
2.36
37.0
12.3
3.3
6.0
1.6
3.7
41.4
2.32
33.4
106.3
5.22
4.2
29.9
20.0
0.67
2.25
37.6
13.3
3.1
8.0
3.4
7.9
42.0
2.35
34.0
106.9
5.24
4.3
30.5
20.7
0.68
2.18
37.9
14.0
3.0
4.0
0.6
1.3
6.0
1.6
3.6
27.5
19.7
0.72
2.58
36.3
10.7
3.9
8.0
3.4
7.8
28.0
19.9
0.71
2.50
36.5
11.2
3.7
4.0
0.5
1.2
6.0
1.5
3.5
8.0
3.3
7.6
4.0
0.5
1.1
6.0
1.5
3.3
21.1
17.2
0.82
3.09
8.0
3.3
7.5
21.6
17.5
0.81
3.00
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
24.9
18.7
0.75
2.89
34.7
8.6
4.9
25.4
19.0
0.75
2.81
35.0
9.0
4.5
31.7
6.8
5.7
31.8
7.2
Operation not recommended
5.4
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
27
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG036 - Performance Data
Single Speed PSC (1250 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
Flow
gpm
psi
ft. hd.
5.0
1.5
3.4
7.0
2.6
6.0
9.0
6.1
14.1
5.0
1.4
3.1
7.0
2.5
9.0
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
23.4
2.43
15.1
86.9
2.83
2.3
5.8
27.4
2.46
19.0
90.1
3.27
2.5
35.9
25.1
0.70
1.64
41.5
21.9
---
6.0
13.8
28.2
2.51
19.6
90.7
3.29
2.6
36.4
25.6
0.70
1.54
41.7
23.6
---
5.0
1.3
2.9
7.0
2.4
5.5
30.8
2.52
22.2
92.8
3.58
2.9
38.7
27.2
0.70
1.74
44.6
22.2
---
9.0
5.9
13.6
31.9
2.57
23.2
93.7
3.65
2.9
39.2
27.5
0.70
1.66
44.9
23.6
---
5.0
1.1
2.6
33.3
2.53
24.6
94.8
3.85
3.1
40.9
29.1
0.71
1.90
47.4
21.5
1.6
7.0
2.3
5.2
34.5
2.58
25.7
95.8
3.92
3.2
41.5
29.2
0.70
1.84
47.7
22.5
1.5
9.0
5.8
13.3
35.7
2.62
26.8
96.7
3.99
3.3
42.0
29.4
0.70
1.78
48.1
23.6
1.5
5.0
1.0
2.4
37.7
2.60
28.8
98.3
4.25
3.5
39.2
28.5
0.73
2.09
46.4
18.8
2.0
7.0
2.2
5.0
39.0
2.64
30.0
99.4
4.33
3.6
39.9
28.7
0.72
2.02
46.8
19.7
1.9
9.0
5.7
13.1
40.2
2.67
31.1
100.4
4.42
3.6
40.5
28.9
0.71
1.96
47.2
20.7
1.8
5.0
0.9
2.1
42.1
2.67
33.0
101.9
4.62
3.9
37.6
27.9
0.74
2.28
45.3
16.5
2.5
7.0
2.1
4.7
43.5
2.70
34.3
103.0
4.73
4.0
38.3
28.2
0.74
2.21
45.8
17.4
2.4
9.0
5.5
12.8
44.8
2.72
35.5
104.1
4.83
4.1
39.0
28.5
0.73
2.13
46.3
18.3
2.3
5.0
0.8
1.8
46.7
2.73
37.4
105.6
5.01
4.4
36.1
27.1
0.75
2.55
44.8
14.1
3.2
7.0
1.9
4.5
47.7
2.76
38.3
106.4
5.07
4.5
36.7
27.6
0.75
2.43
45.0
15.1
3.0
9.0
5.4
12.5
48.8
2.79
39.3
107.3
5.13
4.6
37.4
28.0
0.75
2.36
45.4
15.9
2.9
5.0
0.7
1.6
51.2
2.79
41.7
109.3
5.39
4.9
34.5
26.3
0.76
2.79
44.1
12.4
3.9
7.0
1.8
4.2
52.0
2.83
42.4
109.9
5.40
5.1
35.1
27.0
0.77
2.67
44.2
13.2
3.7
9.0
5.3
12.3
52.8
2.86
43.1
110.5
5.41
5.2
35.8
27.5
0.77
2.58
44.6
13.9
3.6
5.0
0.6
1.3
7.0
1.7
4.0
33.3
26.4
0.79
2.98
43.5
11.2
4.6
9.0
5.2
12.0
33.8
26.6
0.79
2.89
43.6
11.7
4.4
5.0
0.5
1.1
7.0
1.6
3.7
9.0
5.1
11.8
5.0
0.4
0.8
7.0
1.5
9.0
5.0
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
31.2
25.3
0.81
3.28
42.4
9.5
5.7
31.8
25.7
0.81
3.19
42.7
10.0
5.4
3.5
26.5
22.7
0.85
3.61
38.8
7.4
6.8
11.5
27.1
23.0
0.85
3.50
39.0
7.7
Operation not recommended
6.4
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
28
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG041 - Performance Data
Single Speed PSC (1300 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
Flow
gpm
psi
ft. hd
5.0
1.6
3.8
8.0
3.6
8.2
11.0
8.0
18.5
5.0
1.5
3.4
8.0
3.4
11.0
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
25.7
2.81
16.1
85.0
2.68
3.5
7.8
28.5
2.82
18.9
86.9
2.97
3.7
41.9
30.4
0.73
1.93
48.4
21.7
---
7.9
18.1
29.5
2.86
19.7
87.5
3.02
3.8
42.4
31.0
0.73
1.81
48.6
23.4
---
5.0
1.3
3.0
8.0
3.2
7.5
31.7
2.88
21.9
89.0
3.23
4.0
43.8
31.4
0.72
2.06
50.9
21.2
---
11.0
7.7
17.8
33.0
2.91
23.1
89.8
3.33
4.1
44.4
31.9
0.72
1.95
51.1
22.8
---
5.0
1.2
2.7
33.7
2.92
23.7
90.3
3.38
4.4
45.2
32.0
0.71
2.31
53.1
19.6
2.4
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
8.0
3.1
7.1
35.2
2.94
25.1
91.2
3.50
4.5
45.8
32.4
0.71
2.20
53.3
20.8
2.4
11.0
7.5
17.4
36.6
2.96
26.5
92.2
3.62
4.7
46.5
32.7
0.70
2.09
53.6
22.2
2.3
5.0
1.0
2.3
37.8
2.99
27.7
93.0
3.72
5.0
44.2
31.5
0.71
2.57
52.9
17.2
3.0
8.0
2.9
6.7
39.3
3.01
29.0
94.0
3.83
5.1
45.1
31.8
0.70
2.43
53.4
18.6
2.8
11.0
7.4
17.0
40.7
3.03
30.4
94.9
3.95
5.3
46.1
32.1
0.70
2.30
53.9
20.1
2.7
5.0
0.9
2.0
42.0
3.05
31.6
95.8
4.03
5.6
43.1
30.9
0.72
2.82
52.7
15.3
3.8
8.0
2.8
6.4
43.4
3.07
32.9
96.7
4.14
5.7
44.4
31.2
0.70
2.66
53.5
16.7
3.6
11.0
7.2
16.7
44.8
3.09
34.3
97.7
4.25
5.9
45.7
31.5
0.69
2.50
54.2
18.3
3.4
5.0
0.7
1.6
46.9
3.11
36.3
99.0
4.42
6.3
41.7
30.4
0.73
3.02
52.0
13.8
4.8
8.0
2.6
6.0
48.0
3.15
37.3
99.8
4.48
6.5
42.6
30.6
0.72
2.88
52.5
14.8
4.5
11.0
7.1
16.3
49.2
3.18
38.3
100.5
4.54
6.7
43.7
30.8
0.71
2.79
53.2
15.7
4.3
5.0
0.5
1.2
51.9
3.18
41.0
102.3
4.78
7.1
40.2
29.8
0.74
3.34
51.6
12.1
6.0
8.0
2.5
5.7
52.7
3.22
41.7
102.8
4.79
7.3
40.9
30.0
0.73
3.18
51.7
12.8
5.7
11.0
6.9
16.0
53.5
3.26
42.4
103.4
4.81
7.5
41.7
30.1
0.72
3.08
52.2
13.5
5.5
5.0
0.4
0.9
8.0
2.3
5.3
38.2
29.0
0.76
3.55
50.3
10.8
7.1
11.0
6.8
15.6
38.8
29.2
0.75
3.44
50.5
11.3
6.8
5.0
0.4
0.9
8.0
2.1
4.9
11.0
6.6
15.2
5.0
0.4
0.9
8.0
2.0
11.0
6.5
Operation not recommended
Operation not recommended
Operation not recommended
35.2
27.9
0.79
3.91
48.5
9.0
8.6
35.9
28.3
0.79
3.80
48.9
9.4
8.3
4.6
31.8
27.1
0.85
4.55
47.4
7.0
10.4
14.9
32.5
27.5
0.84
4.42
47.6
7.4
Operation not recommended
10.0
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
29
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG042 - Performance Data
Single Speed PSC (1400 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
Flow
gpm
psi
ft. hd.
5.0
1.6
3.8
8.0
3.6
8.2
11.0
8.0
18.5
5.0
1.5
3.4
8.0
3.4
11.0
5.0
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
27.0
2.81
17.4
85.9
2.82
3.5
7.8
30.0
2.82
20.4
87.8
3.12
3.7
43.6
31.7
0.73
1.93
50.2
22.6
---
7.9
18.1
31.0
2.86
21.2
88.5
3.18
3.8
44.2
32.3
0.73
1.81
50.4
24.4
---
1.3
3.0
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
8.0
3.2
7.5
33.4
2.88
23.5
90.1
3.40
4.0
45.7
32.7
0.72
2.06
52.7
22.1
---
11.0
7.7
17.8
34.8
2.91
24.8
91.0
3.50
4.1
46.3
33.2
0.72
1.95
53.0
23.7
---
5.0
1.2
2.7
35.5
2.92
25.5
91.5
3.56
4.4
47.1
33.4
0.71
2.31
55.0
20.4
2.4
8.0
3.1
7.1
37.0
2.94
27.0
92.5
3.69
4.5
47.8
33.8
0.71
2.20
55.3
21.7
2.4
11.0
7.5
17.4
38.5
2.96
28.4
93.5
3.81
4.7
48.4
34.1
0.70
2.09
55.5
23.2
2.3
5.0
1.0
2.3
39.9
2.99
29.7
94.4
3.91
5.0
46.0
32.8
0.71
2.57
54.8
17.9
3.0
8.0
2.9
6.7
41.4
3.01
31.1
95.3
4.03
5.1
47.0
33.1
0.70
2.43
55.3
19.3
2.8
11.0
7.4
17.0
42.9
3.03
32.5
96.3
4.15
5.3
48.0
33.5
0.70
2.30
55.8
20.9
2.7
5.0
0.9
2.0
44.2
3.05
33.8
97.2
4.25
5.6
44.9
32.2
0.72
2.82
54.5
15.9
3.8
8.0
2.8
6.4
45.7
3.07
35.2
98.2
4.36
5.7
46.3
32.5
0.70
2.66
55.3
17.4
3.6
11.0
7.2
16.7
47.2
3.09
36.7
99.2
4.48
5.9
47.6
32.8
0.69
2.50
56.1
19.0
3.4
5.0
0.7
1.6
49.4
3.11
38.8
100.7
4.65
6.3
43.4
31.6
0.73
3.02
53.8
14.4
4.8
8.0
2.6
6.0
50.6
3.15
39.8
101.5
4.71
6.5
44.4
31.9
0.72
2.88
54.3
15.4
4.5
11.0
7.1
16.3
51.8
3.18
40.9
102.2
4.78
6.7
45.6
32.1
0.70
2.79
55.1
16.3
4.3
5.0
0.5
1.2
54.6
3.18
43.8
104.1
5.04
7.1
42.0
31.0
0.74
3.34
53.4
12.6
6.0
8.0
2.5
5.7
55.5
3.22
44.5
104.7
5.05
7.3
42.6
31.2
0.73
3.18
53.5
13.4
5.7
11.0
6.9
16.0
56.3
3.26
45.2
105.2
5.06
7.5
43.5
31.4
0.72
3.08
54.0
14.1
5.5
5.0
0.4
0.9
Operation not recommended
8.0
2.3
5.3
39.8
30.2
0.76
3.55
52.0
11.2
7.1
11.0
6.8
15.6
40.5
30.5
0.75
3.44
52.2
11.8
6.8
5.0
0.4
0.9
8.0
2.1
4.9
36.7
29.1
11.0
6.6
15.2
37.4
29.5
5.0
0.4
0.9
Operation not recommended
Operation not recommended
0.79
3.91
50.0
9.4
8.6
0.79
3.80
50.4
9.8
8.3
Operation not recommended
8.0
2.0
4.6
33.2
28.2
0.85
4.55
48.7
7.3
10.4
11.0
6.5
14.9
33.9
28.6
0.84
4.42
49.0
7.7
10.0
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
30
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG048 - Performance Data
Single Speed PSC (1600 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
Flow
gpm
psi
6.0
2.2
5.1
9.0
4.4
10.0
12.0
6.8
15.8
6.0
2.0
4.7
9.0
4.2
12.0
6.0
ft. hd.
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
30.8
3.32
19.5
87.0
2.72
4.6
9.6
35.3
3.31
24.0
89.8
3.12
4.9
50.3
31.3
0.62
2.33
58.3
21.6
---
6.7
15.5
35.8
3.35
24.4
90.1
3.13
5.0
51.0
31.9
0.63
2.19
58.5
23.3
---
1.9
4.3
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
9.0
4.0
9.2
40.1
3.44
28.4
92.8
3.41
5.4
53.1
34.8
0.65
2.52
61.7
21.1
---
12.0
6.5
15.0
41.9
3.51
30.0
93.9
3.51
5.5
54.0
35.5
0.66
2.39
62.2
22.6
---
6.0
1.7
3.9
42.9
3.50
31.0
94.5
3.60
5.9
54.9
37.4
0.68
2.84
64.6
19.3
2.9
9.0
3.8
8.8
45.5
3.58
33.3
96.1
3.73
6.1
56.0
38.3
0.68
2.72
65.2
20.6
2.8
12.0
6.3
14.6
48.1
3.66
35.6
97.7
3.85
6.2
57.0
39.1
0.69
2.59
65.8
22.0
2.7
6.0
1.5
3.5
49.5
3.67
37.0
98.6
3.96
6.7
54.5
37.4
0.69
3.14
65.2
17.4
3.5
9.0
3.6
8.4
52.2
3.73
39.5
100.2
4.11
6.8
55.4
38.0
0.69
2.99
65.6
18.5
3.4
12.0
6.1
14.1
54.9
3.79
42.0
101.9
4.25
7.0
56.2
38.6
0.69
2.85
65.9
19.8
3.2
6.0
1.3
3.0
56.1
3.83
43.0
102.6
4.29
7.5
54.1
37.3
0.69
3.43
65.8
15.8
4.5
9.0
3.5
8.0
58.9
3.87
45.7
104.4
4.46
7.7
54.8
37.7
0.69
3.27
65.9
16.8
4.3
12.0
5.9
13.7
61.7
3.91
48.4
106.1
4.63
7.9
55.4
38.2
0.69
3.10
66.0
17.9
4.0
6.0
1.1
2.6
61.3
3.91
47.9
105.8
4.59
8.4
51.4
35.8
0.70
3.71
64.0
13.9
5.6
9.0
3.3
7.6
63.2
3.96
49.7
107.0
4.68
8.6
52.1
36.4
0.70
3.54
64.2
14.7
5.3
12.0
5.8
13.3
65.2
4.01
51.5
108.2
4.77
8.9
52.9
36.9
0.70
3.43
64.6
15.5
5.1
6.0
1.0
2.2
66.5
4.00
52.9
109.1
4.88
9.4
48.7
34.3
0.70
4.06
62.5
12.0
7.0
9.0
3.1
7.1
67.5
4.05
53.7
109.7
4.89
9.7
49.4
35.0
0.71
3.87
62.7
12.8
6.7
12.0
5.6
12.9
68.6
4.10
54.6
110.3
4.90
10.1
50.4
35.6
0.70
3.75
63.2
13.5
6.4
6.0
0.8
1.8
Operation not recommended
9.0
2.9
6.7
46.7
34.3
0.74
4.37
61.6
10.7
8.4
12.0
5.4
12.5
47.4
34.6
0.73
4.23
61.8
11.2
8.0
6.0
0.6
1.4
9.0
2.7
6.3
43.4
33.2
12.0
5.2
12.1
44.3
33.7
6.0
0.4
1.0
Operation not recommended
Operation not recommended
0.76
4.83
59.9
9.0
10.3
0.76
4.70
60.4
9.4
9.7
Operation not recommended
9.0
2.6
5.9
40.1
32.0
0.80
5.40
58.5
7.4
12.4
12.0
5.0
11.6
41.0
32.5
0.79
5.24
58.8
7.8
11.8
7/6/10
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
31
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG060 - Performance Data
Single Speed PSC (2000 cfm)
WPD
HEATING - EAT 70°F
EWT
°F
Flow
gpm
9.0
3.8
8.7
20
12.0
6.3
14.5
15.0
9.7
22.5
psi
ft. hd.
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
30
40
50
60
70
80
90
100
110
120
Operation not recommended
41.9
4.06
28.0
87.4
3.02
5.5
9.0
3.6
8.4
12.0
6.1
14.1
43.8
3.99
Operation not recommended
30.2
88.3
3.22
5.9
72.0
49.1
Operation not recommended
0.68
2.96
82.1
24.3
---
15.0
9.6
22.2
46.5
4.11
32.5
89.5
3.31
6.1
73.0
50.0
0.68
2.78
82.5
26.3
---
---
9.0
3.5
8.0
12.0
6.0
13.7
49.7
4.12
Operation not recommended
35.6
91.0
3.53
6.6
70.8
48.8
Operation not recommended
0.69
3.11
81.4
22.8
15.0
9.4
21.7
52.2
4.22
37.8
92.2
3.63
6.7
71.8
49.5
0.69
2.97
81.9
24.2
---
9.0
3.3
7.6
54.6
4.20
40.3
93.3
3.81
7.1
68.5
48.0
0.70
3.34
79.9
20.5
3.9
12.0
5.8
13.4
56.2
4.26
41.7
94.0
3.87
7.3
69.5
48.5
0.70
3.25
80.6
21.4
3.7
15.0
9.2
21.3
57.8
4.32
43.1
94.8
3.92
7.5
70.5
48.9
0.69
3.16
81.3
22.3
3.5
9.0
3.1
7.3
62.2
4.35
47.3
96.8
4.19
8.0
67.3
47.0
0.70
3.64
79.7
18.5
4.8
12.0
5.6
13.0
64.3
4.41
49.3
97.8
4.28
8.3
68.2
47.6
0.70
3.54
80.3
19.3
4.6
15.0
9.1
21.0
66.4
4.46
51.2
98.8
4.36
8.5
69.1
48.3
0.70
3.45
80.9
20.1
4.4
9.0
3.0
6.9
69.8
4.50
54.4
100.3
4.54
9.0
66.0
46.0
0.70
3.93
79.4
16.8
6.0
12.0
5.5
12.6
72.4
4.55
56.9
101.5
4.66
9.3
66.9
46.8
0.70
3.83
79.9
17.5
5.7
15.0
8.9
20.6
75.0
4.60
59.3
102.7
4.78
9.5
67.7
47.6
0.70
3.73
80.4
18.2
5.4
9.0
2.8
6.5
76.2
4.59
60.6
103.3
4.87
10.2
62.2
45.0
0.72
4.45
77.4
14.0
7.6
12.0
5.3
12.3
78.2
4.65
62.3
104.2
4.93
10.5
63.1
45.7
0.72
4.25
77.6
14.9
7.2
15.0
8.8
20.2
80.1
4.70
64.1
105.1
5.00
10.7
64.1
46.3
0.72
4.11
78.1
15.6
6.8
9.0
2.7
6.1
82.7
4.68
66.8
106.3
5.18
11.4
58.4
43.9
0.75
4.86
75.0
12.0
9.5
12.0
5.2
11.9
84.0
4.74
67.8
106.9
5.19
11.8
59.3
44.6
0.75
4.64
75.2
12.8
9.0
15.0
8.6
19.9
85.3
4.80
68.9
107.5
5.21
12.2
60.5
45.0
0.74
4.49
75.9
13.5
8.6
9.0
2.5
5.8
12.0
5.0
11.5
56.1
43.4
0.77
5.15
73.7
10.9
11.2
15.0
8.4
19.5
57.0
43.7
0.77
4.99
74.0
11.4
10.6
9.0
2.3
5.4
12.0
4.8
11.2
15.0
8.3
19.1
Operation not recommended
Operation not recommended
Operation not recommended
52.3
41.8
0.80
5.63
71.6
9.3
13.8
53.4
42.4
0.79
5.48
72.1
9.7
13.1
16.6
9.0
2.2
5.0
12.0
4.7
10.8
48.0
39.9
Operation not recommended
0.83
6.25
69.3
7.7
15.0
8.1
18.8
49.0
40.5
0.83
6.07
69.7
8.1
15.9
7/6/10
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
32
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG070 - Performance Data
Single Speed PSC (2200 cfm)
WPD
HEATING - EAT 70°F
EWT
°F
Flow
gpm
12.0
4.3
9.8
20
15.0
5.6
13.0
18.0
9.0
20.8
12.0
4.1
9.4
15.0
5.9
18.0
8.8
12.0
3.8
8.8
15.0
5.2
18.0
psi
ft. hd.
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
30
40
50
60
70
80
90
100
110
120
Operation not recommended
46.0
4.98
29.0
87.4
2.71
6.5
13.6
52.0
4.92
35.2
89.9
3.09
7.0
73.0
46.1
0.63
3.30
84.3
22.1
---
20.3
53.7
5.06
36.4
90.6
3.11
7.3
74.0
47.0
0.64
3.10
84.6
23.9
---
12.0
58.4
5.10
41.0
92.6
3.35
7.8
74.6
49.3
0.66
3.49
86.5
21.4
---
8.6
19.8
60.9
5.20
43.1
93.6
3.43
8.0
76.1
50.5
0.66
3.36
87.5
22.7
---
12.0
3.6
8.4
62.8
5.25
44.9
94.4
3.51
8.5
74.2
51.0
0.69
3.74
87.0
19.8
4.3
15.0
5.0
11.5
65.4
5.29
47.4
95.5
3.62
8.7
76.2
52.5
0.69
3.68
88.7
20.7
4.1
18.0
8.4
19.3
68.0
5.33
49.8
96.6
3.74
8.9
78.2
54.0
0.69
3.61
90.5
21.7
3.9
12.0
3.4
7.9
71.9
5.46
53.3
98.3
3.86
9.5
71.6
50.0
0.70
4.08
85.5
17.6
5.2
15.0
4.8
11.0
73.9
5.49
55.2
99.1
3.95
9.8
73.3
51.3
0.70
4.00
87.0
18.3
4.9
18.0
8.2
18.8
76.0
5.52
57.2
100.0
4.03
10.1
75.1
52.5
0.70
3.92
88.4
19.1
4.8
12.0
3.2
7.4
81.0
5.66
61.7
102.1
4.19
10.7
69.0
49.0
0.71
4.41
84.0
15.6
6.6
15.0
4.6
10.5
82.5
5.69
63.1
102.7
4.25
11.0
70.5
50.0
0.71
4.32
85.2
16.3
6.3
18.0
7.9
18.3
84.0
5.71
64.5
103.3
4.31
11.3
71.9
51.0
0.71
4.23
86.4
17.0
6.0
12.0
3.0
6.9
89.7
5.82
69.8
105.8
4.52
12.1
65.3
47.4
0.73
5.04
82.5
12.9
8.3
15.0
4.4
10.0
91.2
5.88
71.2
106.4
4.55
12.4
66.5
48.3
0.73
4.81
82.9
13.8
7.9
18.0
7.7
17.9
92.7
5.93
72.5
107.0
4.59
12.8
67.9
49.0
0.72
4.66
83.8
14.6
7.5
12.0
2.8
6.4
98.4
5.99
78.0
109.4
4.82
13.6
61.6
45.8
0.74
5.50
80.4
11.2
10.4
15.0
4.1
9.5
99.9
6.07
79.2
110.1
4.83
14.0
62.5
46.6
0.75
5.25
80.4
11.9
9.9
18.0
7.5
17.3
101.5
6.14
80.5
110.7
4.84
14.4
63.8
47.0
0.74
5.08
81.1
12.6
9.4
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
12.0
2.5
5.9
15.0
3.9
9.1
59.7
44.9
Operation not recommended
0.75
5.83
79.6
10.2
12.4
18.0
7.3
16.9
60.6
45.3
0.75
5.65
79.8
10.7
11.7
12.0
2.3
5.4
15.0
3.7
8.5
18.0
7.1
16.4
12.0
2.1
4.9
15.0
3.5
18.0
6.9
Operation not recommended
Operation not recommended
56.2
42.9
0.76
6.38
78.0
8.8
15.1
57.4
43.5
0.76
6.21
78.5
9.2
14.3
8.1
51.9
41.4
0.80
7.09
76.0
7.3
18.2
15.9
53.0
42.0
0.79
6.88
76.4
7.7
Operation not recommended
17.3
7/6/10
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
33
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG015 - Performance Data
Single Speed Variable Speed ECM or 5-Speed ECM (500 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
COOLING - EAT 80/67°F
Flow
gpm
psi
ft. hd.
2.0
0.6
1.4
3.0
1.2
2.8
4.0
2.0
4.6
2.0
0.6
1.4
3.0
1.1
2.6
11.0
0.99
7.6
88.3
3.25
1.3
14.5
9.8
0.68
0.66
16.8
22.0
---
4.0
1.9
4.4
11.0
0.95
7.8
88.4
3.39
1.3
14.7
10.0
0.68
0.62
16.8
23.7
---
2.0
0.6
1.3
3.0
1.1
2.5
12.1
1.00
8.7
90.4
3.54
1.3
15.6
10.6
0.68
0.72
18.1
21.7
---
4.0
1.8
4.3
12.4
0.99
9.0
90.9
3.67
1.3
15.9
10.8
0.68
0.69
18.2
23.0
---
2.0
0.5
1.2
13.0
1.01
9.6
92.1
3.77
1.4
16.5
11.3
0.68
0.80
19.2
20.6
0.8
3.0
1.0
2.3
13.4
1.02
9.9
92.7
3.85
1.4
16.8
11.4
0.68
0.78
19.4
21.5
0.8
4.0
1.8
4.1
13.7
1.02
10.2
93.4
3.94
1.5
17.0
11.5
0.68
0.76
19.6
22.4
0.8
2.0
0.5
1.2
14.4
1.02
10.9
94.6
4.12
1.6
15.7
10.9
0.69
0.87
18.7
18.2
0.9
3.0
0.9
2.1
14.8
1.03
11.3
95.4
4.22
1.6
16.0
11.0
0.69
0.84
18.8
19.1
0.9
4.0
1.7
3.9
15.3
1.04
11.7
96.2
4.32
1.7
16.2
11.1
0.68
0.81
18.9
20.1
0.8
2.0
0.5
1.1
15.7
1.03
12.2
97.1
4.47
1.8
14.9
10.5
0.70
0.93
18.1
16.0
1.1
3.0
0.8
1.9
16.3
1.04
12.7
98.1
4.58
1.8
15.2
10.6
0.70
0.89
18.2
17.0
1.1
4.0
1.6
3.7
16.8
1.05
13.2
99.1
4.69
1.8
15.4
10.6
0.69
0.85
18.3
18.1
1.0
2.0
0.5
1.1
17.6
1.05
14.0
100.5
4.92
2.0
14.2
10.2
0.72
0.98
17.5
14.4
1.4
3.0
0.8
1.8
18.0
1.06
14.4
101.3
4.98
2.0
14.4
10.3
0.71
0.94
17.6
15.4
1.3
4.0
1.5
3.6
18.4
1.07
14.7
102.1
5.04
2.1
14.7
10.4
0.71
0.91
17.7
16.2
1.3
2.0
0.4
1.0
19.4
1.06
15.8
103.9
5.35
2.3
13.4
9.9
0.74
1.04
17.0
12.9
1.8
3.0
0.7
1.6
19.7
1.08
16.0
104.5
5.36
2.3
13.6
10.0
0.73
0.99
17.0
13.7
1.7
4.0
1.5
3.4
20.0
1.09
16.3
105.0
5.38
2.3
13.9
10.1
0.73
0.96
17.2
14.5
1.6
2.0
0.4
0.9
3.0
0.6
1.4
12.8
9.7
4.0
1.4
3.2
13.0
9.8
2.0
0.4
0.9
3.0
0.5
1.2
4.0
1.3
3.0
2.0
0.4
0.9
3.0
0.5
1.1
10.8
9.1
0.84
1.36
4.0
1.2
2.9
11.0
9.2
0.84
1.32
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
10.0
0.95
6.8
86.5
3.09
1.2
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
0.76
1.11
16.5
11.5
2.1
0.76
1.08
16.6
12.0
1.9
Operation not recommended
Operation not recommended
11.8
9.4
12.0
9.5
0.80
1.22
15.9
9.6
2.7
0.79
1.19
16.1
10.1
2.5
15.4
7.9
3.3
15.5
8.3
3.0
Operation not recommended
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
34
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG018 - Performance Data
Single Speed Variable Speed ECM or 5-Speed ECM (600 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
Flow
gpm
psi
ft. hd.
3.0
1.2
2.8
4.0
2.0
4.6
5.0
3.4
7.8
3.0
1.1
2.6
4.0
1.9
5.0
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
13.0
1.15
9.1
88.1
3.31
1.4
4.4
14.5
1.23
10.3
90.3
3.45
1.5
18.2
11.8
0.65
0.80
20.9
22.7
---
3.3
7.6
14.9
1.25
10.6
91.0
3.49
1.5
18.4
12.0
0.65
0.75
21.0
24.5
---
3.0
1.1
2.5
4.0
1.8
4.3
15.7
1.28
11.3
92.2
3.59
1.6
19.1
12.4
0.65
0.85
22.0
22.3
---
5.0
3.2
7.5
16.5
1.31
12.0
93.4
3.68
1.6
19.4
12.6
0.65
0.83
22.2
23.5
---
3.0
1.0
2.3
16.0
1.30
11.6
92.7
3.61
1.7
19.7
12.8
0.65
0.92
22.8
21.4
0.9
4.0
1.8
4.1
17.0
1.34
12.4
94.2
3.73
1.7
20.0
13.0
0.65
0.91
23.1
22.0
0.9
5.0
3.2
7.3
18.0
1.37
13.3
95.8
3.85
1.8
20.3
13.1
0.65
0.90
23.4
22.6
0.9
3.0
0.9
2.1
17.5
1.37
12.8
95.0
3.76
1.9
18.7
12.4
0.66
1.01
22.1
18.6
1.1
4.0
1.7
3.9
18.5
1.39
13.7
96.5
3.89
1.9
18.9
12.6
0.67
1.00
22.3
19.0
1.1
5.0
3.1
7.1
19.5
1.42
14.7
98.1
4.02
2.0
19.2
12.8
0.67
0.99
22.5
19.4
1.0
3.0
0.8
1.9
19.0
1.43
14.1
97.3
3.89
2.1
17.7
12.0
0.68
1.09
21.4
16.2
1.3
4.0
1.6
3.7
20.0
1.45
15.1
98.9
4.04
2.1
17.9
12.3
0.69
1.08
21.5
16.5
1.3
5.0
3.0
6.9
21.0
1.47
16.0
100.4
4.19
2.2
18.0
12.5
0.69
1.07
21.7
16.8
1.2
3.0
0.8
1.8
21.9
1.50
16.7
101.7
4.26
2.4
16.6
11.4
0.69
1.29
21.0
12.8
1.7
4.0
1.5
3.6
22.6
1.53
17.4
102.8
4.33
2.4
16.8
11.7
0.70
1.23
21.0
13.6
1.6
5.0
2.9
6.8
23.3
1.55
18.0
103.9
4.41
2.5
17.0
12.0
0.70
1.20
21.1
14.2
1.5
3.0
0.7
1.6
24.7
1.58
19.3
106.2
4.59
2.8
15.4
10.8
0.70
1.43
20.3
10.8
2.2
4.0
1.5
3.4
25.1
1.60
19.7
106.8
4.60
2.8
15.7
11.1
0.71
1.36
20.3
11.5
2.0
5.0
2.9
6.6
25.5
1.62
20.0
107.4
4.61
2.8
16.0
11.4
0.71
1.32
20.5
12.1
1.9
3.0
0.6
1.4
4.0
1.4
3.2
14.9
11.0
0.74
1.46
19.8
10.2
2.5
5.0
2.8
6.4
15.1
11.1
0.73
1.41
19.9
10.7
2.3
3.0
0.5
1.2
4.0
1.3
3.0
5.0
2.7
6.2
3.0
0.5
1.1
4.0
1.2
2.9
13.2
10.1
0.76
1.70
5.0
2.6
6.1
13.5
10.2
0.76
1.65
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
13.9
10.5
14.2
10.7
0.76
1.54
19.2
9.0
3.2
0.75
1.50
19.3
9.5
3.0
19.0
7.8
4.0
19.1
8.2
3.6
Operation not recommended
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
35
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG023 - Performance Data
Single Speed Variable Speed ECM or 5-Speed ECM (800 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
COOLING - EAT 80/67°F
Flow
gpm
psi
ft. hd.
3.0
1.2
2.8
4.5
2.4
5.6
6.0
4.6
10.6
3.0
1.1
2.6
4.5
2.4
5.5
17.9
1.59
12.4
88.7
3.29
26.3
16.7
0.63
0.94
29.6
27.9
6.0
4.5
10.5
18.2
1.61
12.7
89.1
3.31
26.7
17.0
0.64
0.89
29.7
30.2
3.0
1.1
2.5
4.5
2.3
5.3
19.6
1.63
14.1
90.7
3.54
26.5
17.0
0.64
1.04
30.1
25.4
6.0
4.5
10.3
20.3
1.65
14.6
91.4
3.60
26.8
17.3
0.64
0.98
30.1
27.3
3.0
1.0
2.3
20.8
1.64
15.2
92.1
3.71
26.4
17.3
0.66
1.22
30.6
21.7
4.5
2.2
5.2
21.6
1.66
15.9
92.9
3.79
26.7
17.4
0.65
1.15
30.6
23.2
6.0
4.4
10.2
22.3
1.69
16.5
93.8
3.87
26.9
17.5
0.65
1.08
30.6
25.0
3.0
1.0
2.2
23.0
1.68
17.3
94.6
4.01
25.7
17.0
0.66
1.37
30.4
18.8
4.5
2.2
5.0
23.8
1.70
18.0
95.5
4.09
26.0
17.1
0.66
1.29
30.3
20.2
6.0
4.3
10.0
24.6
1.72
18.7
96.5
4.18
26.2
17.2
0.66
1.21
30.3
21.7
3.0
0.9
2.0
25.2
1.72
19.3
97.2
4.28
25.0
16.7
0.67
1.52
30.2
16.5
4.5
2.1
4.9
26.1
1.74
20.1
98.2
4.38
25.3
16.8
0.67
1.43
30.1
17.7
6.0
4.3
9.9
26.9
1.76
20.9
99.1
4.48
25.5
16.9
0.66
1.34
30.1
19.0
3.0
0.8
1.9
27.9
1.73
22.0
100.3
4.72
23.8
16.2
0.68
1.65
29.5
14.4
4.5
2.1
4.7
28.5
1.75
22.6
101.0
4.78
24.1
16.3
0.68
1.58
29.5
15.3
6.0
4.2
9.7
29.2
1.77
23.2
101.8
4.83
24.5
16.5
0.67
1.53
29.7
16.1
3.0
0.8
1.7
30.6
1.74
24.6
103.4
5.16
22.7
15.6
0.69
1.85
29.0
12.2
4.5
2.0
4.6
31.0
1.76
25.0
103.9
5.17
23.0
15.8
0.69
1.77
29.1
13.0
6.0
4.1
9.6
31.5
1.78
25.4
104.5
5.19
23.5
16.0
0.68
1.71
29.3
13.7
3.0
0.7
1.6
4.5
1.9
4.4
21.7
15.1
0.69
2.04
28.7
10.7
6.0
4.1
9.4
22.1
15.2
0.69
1.97
28.8
11.2
3.0
0.6
1.4
4.5
1.9
4.3
6.0
4.0
9.3
3.0
0.6
1.3
4.5
1.8
4.1
18.4
14.2
0.77
6.0
3.9
9.1
18.8
14.4
0.77
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COP
TC
MBtu/h
SC
MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
15.0
1.53
9.8
85.4
2.87
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
20.2
14.2
0.70
2.30
28.0
8.8
20.6
14.4
0.70
2.24
28.2
9.2
2.70
27.6
6.8
2.63
27.8
Operation not recommended
7.2
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
36
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG024 - Performance Data
Single Speed Variable Speed ECM or 5-Speed ECM (800 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
Flow
gpm
psi
ft. hd.
3.0
1.2
2.8
4.5
2.4
5.6
6.0
4.6
10.6
3.0
1.1
2.6
4.5
2.4
6.0
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
15.6
1.53
10.3
86.0
2.98
1.6
5.5
18.7
1.59
13.2
89.6
3.44
1.7
27.5
17.4
0.63
0.94
30.7
29.1
---
4.5
10.5
19.0
1.61
13.5
90.0
3.46
1.7
27.8
17.7
0.64
0.89
30.9
31.5
---
3.0
1.1
2.5
4.5
2.3
5.3
20.5
1.63
14.9
91.7
3.69
1.9
27.6
17.7
0.64
1.04
31.2
26.4
---
6.0
4.5
10.3
21.1
1.65
15.5
92.4
3.75
1.9
27.9
18.0
0.64
0.98
31.3
28.5
---
3.0
1.0
2.3
21.7
1.64
16.1
93.2
3.88
2.1
27.5
18.0
0.65
1.22
31.7
22.6
1.3
4.5
2.2
5.2
22.5
1.66
16.8
94.0
3.96
2.1
27.8
18.1
0.65
1.15
31.7
24.2
1.2
6.0
4.4
10.2
23.2
1.69
17.4
94.9
4.03
2.2
28.0
18.2
0.65
1.08
31.6
26.0
1.2
3.0
1.0
2.2
24.0
1.68
18.2
95.7
4.17
2.3
26.8
17.7
0.66
1.37
31.5
19.6
1.5
4.5
2.2
5.0
24.8
1.70
19.0
96.7
4.26
2.4
27.0
17.8
0.66
1.29
31.4
21.0
1.4
6.0
4.3
10.0
25.6
1.72
19.7
97.6
4.35
2.4
27.3
17.9
0.66
1.21
31.4
22.6
1.4
3.0
0.9
2.0
26.2
1.72
20.3
98.3
4.45
2.6
26.1
17.4
0.67
1.52
31.3
17.2
1.8
4.5
2.1
4.9
27.1
1.74
21.1
99.4
4.56
2.6
26.3
17.5
0.66
1.43
31.2
18.4
1.8
6.0
4.3
9.9
28.0
1.76
22.0
100.4
4.66
2.7
26.6
17.6
0.66
1.34
31.1
19.8
1.7
3.0
0.8
1.9
29.0
1.73
23.1
101.5
4.91
2.9
24.9
16.8
0.68
1.65
30.5
15.0
2.3
4.5
2.1
4.7
29.7
1.75
23.7
102.4
4.97
2.9
25.2
17.0
0.68
1.58
30.5
16.0
2.2
6.0
4.2
9.7
30.4
1.77
24.3
103.2
5.03
3.0
25.5
17.1
0.67
1.53
30.7
16.7
2.1
3.0
0.8
1.7
31.8
1.74
25.9
104.8
5.37
3.3
23.6
16.2
0.69
1.85
29.9
12.8
2.8
4.5
2.0
4.6
32.3
1.76
26.3
105.4
5.38
3.4
24.0
16.5
0.69
1.77
30.0
13.6
2.7
6.0
4.1
9.6
32.8
1.78
26.7
105.9
5.40
3.5
24.5
16.7
0.68
1.71
30.3
14.3
2.5
3.0
0.7
1.6
4.5
1.9
4.4
22.7
16.0
0.71
2.04
29.6
11.1
3.4
6.0
4.1
9.4
23.0
16.2
0.70
1.97
29.7
11.7
3.2
3.0
0.6
1.4
4.5
1.9
4.3
6.0
4.0
9.3
3.0
0.6
1.3
4.5
1.8
4.1
19.1
14.8
0.77
2.70
6.0
3.9
9.1
19.6
15.0
0.77
2.63
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
21.1
15.4
0.73
2.30
29.0
9.2
4.1
21.5
15.6
0.73
2.24
29.2
9.6
3.9
28.4
7.1
4.9
28.5
7.4
Operation not recommended
4.6
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
37
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG030 - Performance Data
Single Speed Variable Speed ECM or 5-Speed ECM (1000 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
Flow
gpm
psi
ft. hd.
4.0
1.0
2.2
6.0
1.9
4.5
8.0
3.8
8.7
4.0
0.9
2.1
6.0
1.9
8.0
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
20.0
1.70
14.2
86.5
3.45
1.9
4.4
21.2
1.76
15.1
87.6
3.52
2.1
30.4
19.3
0.64
1.17
34.4
25.9
---
3.7
8.5
22.0
1.78
15.9
88.4
3.62
2.1
30.8
19.7
0.64
1.10
34.6
28.0
---
4.0
0.9
2.0
6.0
1.8
4.3
23.9
1.80
17.7
90.1
3.89
2.3
31.3
20.2
0.64
1.21
35.4
25.9
---
8.0
3.7
8.4
25.0
1.82
18.7
91.1
4.02
2.4
32.4
20.9
0.65
1.20
36.5
27.0
---
4.0
0.8
1.9
25.8
1.81
19.6
91.9
4.18
2.5
30.5
19.9
0.65
1.19
34.6
25.6
1.4
6.0
1.8
4.1
26.9
1.84
20.6
92.9
4.29
2.6
32.3
21.0
0.65
1.25
36.5
25.9
1.3
8.0
3.6
8.3
27.9
1.86
21.6
93.8
4.40
2.7
34.0
22.1
0.65
1.30
38.4
26.2
1.3
4.0
0.8
1.8
29.4
1.85
23.1
95.2
4.66
2.9
30.1
19.7
0.66
1.34
34.6
22.4
1.6
6.0
1.7
4.0
30.5
1.87
24.1
96.2
4.77
2.9
31.9
20.9
0.66
1.40
36.7
22.9
1.5
8.0
3.6
8.2
31.6
1.90
25.1
97.3
4.89
3.0
33.8
22.1
0.66
1.45
38.7
23.3
1.4
4.0
0.7
1.6
33.0
1.89
26.6
98.6
5.12
3.2
29.6
19.5
0.66
1.49
34.7
19.9
2.0
6.0
1.7
3.9
34.2
1.91
27.6
99.6
5.24
3.3
31.6
20.8
0.66
1.55
36.9
20.5
1.9
8.0
3.5
8.1
35.3
1.93
28.7
100.7
5.36
3.4
33.6
22.2
0.66
1.60
39.1
21.0
1.8
4.0
0.7
1.5
36.9
1.99
30.1
102.1
5.42
3.6
29.3
19.3
0.66
1.94
35.9
15.1
2.5
6.0
1.6
3.8
37.8
2.02
30.9
103.0
5.49
3.7
30.7
20.4
0.66
1.85
37.1
16.6
2.4
8.0
3.5
8.0
38.7
2.04
31.7
103.8
5.55
3.8
32.1
21.5
0.67
1.79
38.2
17.9
2.3
4.0
0.6
1.4
40.7
2.10
33.6
105.7
5.70
4.1
29.0
19.0
0.66
2.14
36.3
13.5
3.3
6.0
1.6
3.7
41.4
2.12
34.1
106.3
5.71
4.2
29.9
20.0
0.67
2.05
36.9
14.6
3.1
8.0
3.4
7.9
42.0
2.15
34.7
106.9
5.73
4.3
30.5
20.7
0.68
1.98
37.3
15.4
3.0
4.0
0.6
1.3
6.0
1.6
3.6
27.5
19.7
0.72
2.37
35.6
11.6
3.9
8.0
3.4
7.8
28.0
19.9
0.71
2.30
35.8
12.2
3.7
4.0
0.5
1.2
6.0
1.5
3.5
8.0
3.3
7.6
4.0
0.5
1.1
6.0
1.5
3.3
21.1
17.2
0.82
2.88
8.0
3.3
7.5
21.6
17.5
0.81
2.80
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
24.9
18.7
25.4
19.0
0.75
2.68
34.0
9.3
4.9
0.75
2.61
34.3
9.7
4.5
31.0
7.3
5.7
31.2
7.7
5.4
Operation not recommended
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
38
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG036 - Performance Data
Single Speed Variable Speed ECM or 5-Speed ECM (1150 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
Flow
gpm
psi
ft. hd.
5.0
1.5
3.4
7.0
2.6
6.0
9.0
6.1
14.1
5.0
1.4
3.1
7.0
2.5
9.0
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
23.4
2.31
15.6
86.9
2.97
2.3
5.8
27.4
2.34
19.4
90.1
3.43
2.5
35.9
25.1
0.70
1.51
41.1
23.7
---
6.0
13.8
28.2
2.38
20.1
90.7
3.47
2.6
36.4
25.6
0.70
1.42
41.2
25.6
---
5.0
1.3
2.9
7.0
2.4
5.5
30.8
2.40
22.6
92.8
3.76
2.9
38.7
27.2
0.70
1.62
44.2
23.9
---
9.0
5.9
13.6
31.9
2.44
23.6
93.7
3.84
2.9
39.2
27.5
0.70
1.54
44.5
25.5
---
5.0
1.1
2.6
33.3
2.41
25.0
94.8
4.05
3.1
40.9
29.1
0.71
1.78
47.0
23.0
1.6
7.0
2.3
5.2
34.5
2.46
26.1
95.8
4.12
3.2
41.5
29.2
0.70
1.72
47.3
24.1
1.5
9.0
5.8
13.3
35.7
2.50
27.2
96.7
4.18
3.3
42.0
29.4
0.70
1.66
47.7
25.3
1.5
5.0
1.0
2.4
37.7
2.48
29.2
98.3
4.45
3.5
39.2
28.5
0.73
1.97
46.0
19.9
2.0
7.0
2.2
5.0
39.0
2.52
30.4
99.4
4.54
3.6
39.9
28.7
0.72
1.90
46.4
21.0
1.9
9.0
5.7
13.1
40.2
2.55
31.5
100.4
4.62
3.6
40.5
28.9
0.71
1.84
46.8
22.1
1.8
5.0
0.9
2.1
42.1
2.55
33.4
101.9
4.84
3.9
37.6
27.9
0.74
2.16
44.9
17.4
2.5
7.0
2.1
4.7
43.5
2.58
34.7
103.0
4.95
4.0
38.3
28.2
0.74
2.09
45.4
18.4
2.4
9.0
5.5
12.8
44.8
2.60
35.9
104.1
5.05
4.1
39.0
28.5
0.73
2.01
45.9
19.4
2.3
5.0
0.8
1.8
46.7
2.62
37.8
105.6
5.23
4.4
36.1
27.1
0.75
2.42
44.3
14.9
3.2
7.0
1.9
4.5
47.7
2.65
38.7
106.4
5.29
4.5
36.7
27.6
0.75
2.31
44.6
15.9
3.0
9.0
5.4
12.5
48.8
2.68
39.7
107.3
5.35
4.6
37.4
28.0
0.75
2.24
45.0
16.7
2.9
5.0
0.7
1.6
51.2
2.68
42.1
109.3
5.60
4.9
34.5
26.3
0.76
2.66
43.6
13.0
3.9
7.0
1.8
4.2
52.0
2.72
42.8
109.9
5.61
5.1
35.1
27.0
0.77
2.54
43.8
13.8
3.7
9.0
5.3
12.3
52.8
2.75
43.5
110.5
5.63
5.2
35.8
27.5
0.77
2.46
44.2
14.6
3.6
5.0
0.6
1.3
7.0
1.7
4.0
33.3
26.4
0.79
2.86
43.0
11.7
4.6
9.0
5.2
12.0
33.8
26.6
0.79
2.77
43.2
12.2
4.4
5.0
0.5
1.1
7.0
1.6
3.7
31.2
25.3
9.0
5.1
11.8
31.8
25.7
5.0
0.4
0.8
7.0
1.5
3.5
26.5
22.7
0.85
3.53
38.6
7.5
6.8
9.0
5.0
11.5
27.1
23.0
0.85
3.43
38.8
7.9
6.4
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
0.81
3.16
41.9
9.9
5.7
0.81
3.07
42.3
10.4
5.4
Operation not recommended
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
39
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG041 - Performance Data
Single Speed Variable Speed ECM or 5-Speed ECM (1300 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
Flow
gpm
psi
ft. hd.
5.0
1.6
3.8
8.0
3.6
8.2
11.0
8.0
18.5
5.0
1.5
3.4
8.0
3.4
11.0
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
25.7
2.61
16.8
85.0
2.89
3.5
7.8
28.5
2.61
19.6
86.9
3.20
3.7
41.8
30.4
0.73
1.71
47.7
24.5
---
7.9
18.1
29.5
2.66
20.4
87.5
3.26
3.8
42.4
31.0
0.73
1.61
47.9
26.4
---
5.0
1.3
3.0
8.0
3.2
7.5
31.7
2.67
22.6
89.0
3.48
4.0
43.8
31.4
0.72
1.85
50.2
23.7
---
11.0
7.7
17.8
33.1
2.71
23.8
89.9
3.58
4.1
44.5
31.9
0.72
1.75
50.4
25.5
---
5.0
1.2
2.7
33.7
2.72
24.4
90.3
3.64
4.4
45.2
32.0
0.71
2.11
52.4
21.5
2.4
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
8.0
3.1
7.1
35.2
2.74
25.8
91.2
3.77
4.5
45.9
32.4
0.71
2.00
52.7
23.0
2.4
11.0
7.5
17.4
36.6
2.76
27.2
92.2
3.89
4.7
46.5
32.7
0.70
1.89
52.9
24.7
2.3
5.0
1.0
2.3
37.9
2.78
28.4
93.0
3.99
5.0
44.2
31.5
0.71
2.36
52.2
18.7
3.0
8.0
2.9
6.7
39.3
2.80
29.7
94.0
4.11
5.1
45.1
31.8
0.70
2.23
52.7
20.3
2.8
11.0
7.4
17.0
40.7
2.82
31.1
94.9
4.23
5.3
46.1
32.1
0.70
2.09
53.2
22.1
2.7
5.0
0.9
2.0
42.0
2.85
32.3
95.8
4.33
5.6
43.1
30.9
0.72
2.62
52.0
16.5
3.8
8.0
2.8
6.4
43.4
2.87
33.6
96.7
4.44
5.7
44.4
31.2
0.70
2.46
52.8
18.1
3.6
11.0
7.2
16.7
44.8
2.89
35.0
97.6
4.55
5.9
45.7
31.5
0.69
2.30
53.5
19.9
3.4
5.0
0.7
1.6
46.9
2.91
37.0
99.0
4.73
6.3
41.7
30.4
0.73
2.80
51.2
14.9
4.8
8.0
2.6
6.0
48.0
2.94
38.0
99.8
4.79
6.5
42.6
30.6
0.72
2.67
51.7
16.0
4.5
11.0
7.1
16.3
49.2
2.97
39.0
100.5
4.85
6.7
43.7
30.8
0.70
2.59
52.5
16.9
4.3
5.0
0.5
1.2
51.9
2.98
41.7
102.3
5.11
7.1
40.2
29.8
0.74
3.11
50.9
12.9
6.0
8.0
2.5
5.7
52.7
3.02
42.4
102.9
5.12
7.3
40.9
30.0
0.73
2.97
51.0
13.8
5.7
11.0
6.9
16.0
53.5
3.06
43.1
103.4
5.13
7.5
41.7
30.1
0.72
2.88
51.5
14.5
5.5
5.0
0.4
0.9
8.0
2.3
5.3
38.2
29.0
0.76
3.34
49.6
11.4
7.1
11.0
6.8
15.6
38.8
29.2
0.75
3.24
49.8
12.0
6.8
5.0
0.4
0.9
8.0
2.1
4.9
11.0
6.6
15.2
5.0
0.4
0.9
8.0
2.0
11.0
6.5
Operation not recommended
Operation not recommended
Operation not recommended
35.2
27.9
0.79
3.70
47.8
9.5
8.6
35.9
28.3
0.79
3.60
48.2
10.0
8.3
4.6
31.8
27.1
0.85
4.34
46.6
7.3
10.4
14.9
32.5
27.5
0.85
4.22
46.9
7.7
Operation not recommended
10.0
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
40
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG042 - Performance Data
Single Speed Variable Speed ECM or 5-Speed ECM (1400 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
Flow
gpm
psi
ft. hd.
5.0
1.6
3.8
8.0
3.6
8.2
11.0
8.0
18.5
5.0
1.5
3.4
8.0
3.4
11.0
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
27.0
2.61
18.1
85.9
3.04
3.5
7.8
30.0
2.61
21.1
87.8
3.37
3.7
43.6
31.7
0.73
1.71
49.4
25.5
---
7.9
18.1
31.0
2.66
21.9
88.5
3.42
3.8
44.2
32.3
0.73
1.61
49.7
27.5
---
5.0
1.3
3.0
8.0
3.2
7.5
33.4
2.67
24.2
90.1
3.66
4.0
45.7
32.7
0.72
1.85
52.0
24.7
---
11.0
7.7
17.8
34.8
2.71
25.5
91.0
3.77
4.1
46.3
33.2
0.72
1.75
52.3
26.5
---
5.0
1.2
2.7
35.5
2.72
26.2
91.5
3.83
4.4
47.1
33.4
0.71
2.11
54.3
22.4
2.4
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
8.0
3.1
7.1
37.0
2.74
27.7
92.5
3.96
4.5
47.8
33.8
0.71
2.00
54.6
23.9
2.4
11.0
7.5
17.4
38.5
2.76
29.1
93.5
4.10
4.7
48.4
34.1
0.70
1.89
54.8
25.7
2.3
5.0
1.0
2.3
39.9
2.78
30.4
94.4
4.20
5.0
46.0
32.8
0.71
2.36
54.1
19.5
3.0
8.0
2.9
6.7
41.4
2.80
31.8
95.3
4.33
5.1
47.0
33.1
0.70
2.23
54.6
21.1
2.8
11.0
7.4
17.0
42.9
2.82
33.2
96.3
4.45
5.3
48.0
33.5
0.70
2.09
55.1
23.0
2.7
5.0
0.9
2.0
44.2
2.85
34.5
97.2
4.55
5.6
44.9
32.2
0.72
2.62
53.8
17.2
3.8
8.0
2.8
6.4
45.7
2.87
35.9
98.2
4.68
5.7
46.3
32.5
0.70
2.46
54.6
18.8
3.6
11.0
7.2
16.7
47.2
2.89
37.4
99.2
4.79
5.9
47.6
32.8
0.69
2.30
55.4
20.7
3.4
5.0
0.7
1.6
49.4
2.91
39.5
100.7
4.97
6.3
43.4
31.6
0.73
2.80
53.0
15.5
4.8
8.0
2.6
6.0
50.6
2.94
40.5
101.5
5.04
6.5
44.4
31.9
0.72
2.67
53.6
16.6
4.5
11.0
7.1
16.3
51.8
2.97
41.6
102.2
5.11
6.7
45.6
32.1
0.70
2.59
54.4
17.6
4.3
5.0
0.5
1.2
54.6
2.98
44.4
104.1
5.37
7.1
42.0
31.0
0.74
3.11
52.6
13.5
6.0
8.0
2.5
5.7
55.5
3.02
45.2
104.7
5.39
7.3
42.6
31.2
0.73
2.97
52.8
14.3
5.7
11.0
6.9
16.0
56.3
3.06
45.9
105.2
5.40
7.5
43.5
31.4
0.72
2.88
53.3
15.1
5.5
5.0
0.4
0.9
8.0
2.3
5.3
39.8
30.2
0.76
3.34
51.2
11.9
7.1
11.0
6.8
15.6
40.5
30.5
0.75
3.24
51.5
12.5
6.8
5.0
0.4
0.9
8.0
2.1
4.9
11.0
6.6
15.2
5.0
0.4
0.9
8.0
2.0
11.0
6.5
Operation not recommended
Operation not recommended
Operation not recommended
36.7
29.1
0.79
3.70
49.3
9.9
8.6
37.4
29.5
0.79
3.60
49.7
10.4
8.3
4.6
33.2
28.2
0.85
4.34
48.0
7.6
10.4
14.9
33.9
28.6
0.84
4.22
48.3
8.0
Operation not recommended
10.0
11/10/09
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
41
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG048 - Performance Data
Single Speed Variable Speed ECM or 5-Speed ECM (1600 cfm)
WPD
EWT
°F
HEATING - EAT 70°F
COOLING - EAT 80/67°F
Flow
gpm
psi
6.0
2.2
5.1
9.0
4.4
10.0
12.0
6.8
15.8
6.0
2.0
4.7
9.0
4.2
9.6
35.3
3.12
24.6
89.8
3.31
4.9
50.3
31.3
0.62
2.09
57.4
24.1
---
12.0
6.7
15.5
35.8
3.15
25.1
90.1
3.33
5.0
51.0
31.9
0.63
1.96
57.7
26.0
---
6.0
1.9
4.3
9.0
4.0
9.2
40.1
3.25
29.0
92.8
3.62
5.4
53.1
34.8
0.65
2.29
60.9
23.2
---
12.0
6.5
15.0
41.9
3.29
30.7
93.9
3.74
5.5
54.0
35.5
0.66
2.16
61.4
25.0
---
6.0
1.7
3.9
42.9
3.32
31.6
94.5
3.79
5.9
54.9
37.4
0.68
2.61
63.8
21.0
2.9
9.0
3.8
8.8
45.5
3.38
34.0
96.1
3.95
6.1
56.0
38.3
0.68
2.49
64.4
22.5
2.8
12.0
6.3
14.6
48.1
3.43
36.4
97.7
4.11
6.2
57.0
39.1
0.69
2.36
65.1
24.1
2.7
6.0
1.5
3.5
49.5
3.47
37.7
98.6
4.18
6.7
54.5
37.4
0.69
2.91
64.4
18.7
3.5
ft. hd.
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
20
30
40
50
60
70
80
90
100
110
120
Operation not recommended
30.8
3.09
20.2
87.0
2.92
4.6
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
9.0
3.6
8.4
52.2
3.52
40.2
100.2
4.35
6.8
55.4
38.0
0.69
2.76
64.8
20.0
3.4
12.0
6.1
14.1
54.9
3.56
42.8
101.9
4.52
7.0
56.2
38.6
0.69
2.62
65.1
21.5
3.2
6.0
1.3
3.0
56.1
3.62
43.7
102.6
4.54
7.5
54.1
37.3
0.69
3.20
65.0
16.9
4.5
9.0
3.5
8.0
58.9
3.65
46.5
104.4
4.73
7.7
54.8
37.7
0.69
3.04
65.1
18.0
4.3
12.0
5.9
13.7
61.7
3.68
49.2
106.1
4.91
7.9
55.4
38.2
0.69
2.87
65.2
19.3
4.0
6.0
1.1
2.6
61.3
3.70
48.7
105.8
4.86
8.4
51.4
35.8
0.70
3.48
63.2
14.8
5.6
9.0
3.3
7.6
63.2
3.74
50.5
107.0
4.96
8.6
52.1
36.4
0.70
3.31
63.4
15.7
5.3
12.0
5.8
13.3
65.2
3.78
52.3
108.2
5.05
8.9
52.9
36.9
0.70
3.21
63.9
16.5
5.1
6.0
1.0
2.2
66.5
3.78
53.6
109.1
5.16
9.4
48.7
34.3
0.70
3.84
61.8
12.7
7.0
9.0
3.1
7.1
67.5
3.83
54.5
109.7
5.17
9.7
49.4
35.0
0.71
3.66
61.9
13.5
6.7
12.0
5.6
12.9
68.6
3.87
55.4
110.3
5.19
10.1
50.4
35.6
0.70
3.54
62.5
14.2
6.4
6.0
0.8
1.8
9.0
2.9
6.7
46.7
34.3
0.74
4.14
60.8
11.3
8.4
12.0
5.4
12.5
47.4
34.6
0.73
4.00
61.0
11.8
8.0
6.0
0.6
1.4
9.0
2.7
6.3
43.4
33.2
0.76
4.59
59.1
9.5
10.3
12.0
5.2
12.1
44.3
33.7
0.76
4.46
59.5
9.9
9.7
6.0
0.4
1.0
12.4
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
9.0
2.6
5.9
40.1
32.0
0.80
5.16
57.7
7.8
12.0
5.0
11.6
41.0
32.5
0.79
5.01
58.1
8.2
11.8
7/6/10
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
42
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG060 - Performance Data
Single Speed Variable Speed ECM or 5-Speed ECM (2000 cfm)
WPD
HEATING - EAT 70°F
EWT
°F
Flow
gpm
9.0
3.8
8.7
20
12.0
6.3
14.5
15.0
9.7
22.5
psi
ft. hd.
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
30
40
50
60
70
80
90
100
110
120
Operation not recommended
41.9
3.96
28.4
87.4
3.10
5.5
9.0
3.6
8.4
12.0
6.1
14.1
43.8
3.89
Operation not recommended
30.5
88.3
3.30
5.9
72.0
49.1
Operation not recommended
0.68
2.86
81.8
25.2
---
15.0
9.6
22.2
46.5
4.01
32.8
89.5
3.39
6.1
73.0
50.0
0.68
2.68
82.2
27.2
---
---
9.0
3.5
8.0
12.0
6.0
13.7
49.7
4.03
Operation not recommended
35.9
91.0
3.62
6.6
70.8
48.8
Operation not recommended
0.69
3.01
81.0
23.5
15.0
9.4
21.7
52.2
4.12
38.1
92.2
3.71
6.7
71.8
49.5
0.69
2.87
81.6
25.0
---
9.0
3.3
7.6
54.6
4.10
40.6
93.3
3.90
7.1
68.5
48.0
0.70
3.24
79.6
21.1
3.9
12.0
5.8
13.4
56.2
4.16
42.0
94.0
3.96
7.3
69.5
48.5
0.70
3.15
80.3
22.0
3.7
15.0
9.2
21.3
57.8
4.22
43.4
94.8
4.01
7.5
70.5
48.9
0.69
3.06
81.0
23.0
3.5
9.0
3.1
7.3
62.2
4.25
47.7
96.8
4.28
8.0
67.3
47.0
0.70
3.54
79.3
19.0
4.8
12.0
5.6
13.0
64.3
4.31
49.6
97.8
4.37
8.3
68.2
47.6
0.70
3.44
79.9
19.8
4.6
15.0
9.1
21.0
66.4
4.36
51.5
98.8
4.46
8.5
69.1
48.3
0.70
3.35
80.5
20.6
4.4
9.0
3.0
6.9
69.8
4.40
54.8
100.3
4.64
9.0
66.0
46.0
0.70
3.83
79.1
17.2
6.0
12.0
5.5
12.6
72.4
4.45
57.2
101.5
4.76
9.3
66.9
46.8
0.70
3.73
79.6
17.9
5.7
15.0
8.9
20.6
75.0
4.50
59.6
102.7
4.88
9.5
67.7
47.6
0.70
3.63
80.1
18.6
5.4
9.0
2.8
6.5
76.2
4.50
60.9
103.3
4.97
10.2
62.2
45.0
0.72
4.35
77.0
14.3
7.6
12.0
5.3
12.3
78.2
4.55
62.7
104.2
5.04
10.5
63.1
45.7
0.72
4.15
77.2
15.2
7.2
15.0
8.8
20.2
80.1
4.60
64.4
105.1
5.10
10.7
64.1
46.3
0.72
4.01
77.8
16.0
6.8
9.0
2.7
6.1
82.7
4.59
67.1
106.3
5.29
11.4
58.4
43.9
0.75
4.76
74.7
12.3
9.5
12.0
5.2
11.9
84.0
4.65
68.1
106.9
5.30
11.8
59.3
44.6
0.75
4.54
74.8
13.1
9.0
15.0
8.6
19.9
85.3
4.70
69.2
107.5
5.31
12.2
60.5
45.0
0.74
4.39
75.5
13.8
8.6
9.0
2.5
5.8
12.0
5.0
11.5
56.1
43.4
0.77
5.05
73.4
11.1
11.2
15.0
8.4
19.5
57.0
43.7
0.77
4.89
73.7
11.7
10.6
9.0
2.3
5.4
12.0
4.8
11.2
15.0
8.3
19.1
Operation not recommended
Operation not recommended
Operation not recommended
52.3
41.8
0.80
5.53
71.2
9.5
13.8
53.4
42.4
0.79
5.38
71.8
9.9
13.1
16.6
9.0
2.2
5.0
12.0
4.7
10.8
48.0
39.9
Operation not recommended
0.83
6.15
69.0
7.8
15.0
8.1
18.8
49.0
40.5
0.83
5.97
69.4
8.2
15.9
7/6/10
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
43
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
YG070 - Performance Data
Single Speed Variable Speed ECM or 5-Speed ECM (2200 cfm)
WPD
HEATING - EAT 70°F
EWT
°F
Flow
gpm
12.0
4.3
9.8
20
15.0
5.6
13.0
18.0
9.0
20.8
12.0
4.1
9.4
15.0
5.9
18.0
8.8
12.0
3.8
8.8
15.0
5.2
18.0
psi
ft. hd.
HC
MBtu/h
Power
kW
HE
MBtu/h
LAT
°F
COOLING - EAT 80/67°F
COP
HWC
TC
SC
MBtu/h MBtu/h MBtu/h
S/T
Ratio
Power
kW
HR
MBtu/h
EER
HWC
MBtu/h
Operation not recommended
30
40
50
60
70
80
90
100
110
120
Operation not recommended
46.0
4.88
29.3
87.4
2.76
6.5
13.6
52.0
4.82
35.5
89.9
3.16
7.0
73.0
46.1
0.63
3.18
83.9
22.9
---
20.3
53.7
4.96
36.8
90.6
3.17
7.3
74.0
47.0
0.64
2.99
84.2
24.7
---
12.0
58.4
5.00
41.3
92.6
3.42
7.8
74.6
49.3
0.66
3.38
86.1
22.1
---
8.6
19.8
60.9
5.10
43.5
93.6
3.50
8.0
76.1
50.5
0.66
3.25
87.2
23.4
---
12.0
3.6
8.4
62.8
5.15
45.2
94.4
3.57
8.5
74.2
51.0
0.69
3.64
86.6
20.4
4.3
15.0
5.0
11.5
65.4
5.19
47.7
95.5
3.69
8.7
76.2
52.5
0.69
3.58
88.4
21.3
4.1
18.0
8.4
19.3
68.0
5.23
50.2
96.6
3.81
8.9
78.2
54.0
0.69
3.51
90.2
22.3
3.9
12.0
3.4
7.9
71.9
5.36
53.6
98.3
3.94
9.5
71.6
50.0
0.70
3.98
85.2
18.0
5.2
15.0
4.8
11.0
73.9
5.39
55.6
99.1
4.02
9.8
73.3
51.3
0.70
3.90
86.6
18.8
4.9
18.0
8.2
18.8
76.0
5.42
57.5
100.0
4.11
10.1
75.1
52.5
0.70
3.82
88.1
19.7
4.8
12.0
3.2
7.4
81.0
5.56
62.0
102.1
4.27
10.7
69.0
49.0
0.71
4.31
83.7
16.0
6.6
15.0
4.6
10.5
82.5
5.59
63.4
102.7
4.33
11.0
70.5
50.0
0.71
4.22
84.9
16.7
6.3
18.0
7.9
18.3
84.0
5.61
64.8
103.3
4.39
11.3
71.9
51.0
0.71
4.13
86.0
17.4
6.0
12.0
3.0
6.9
89.7
5.72
70.2
105.8
4.59
12.1
65.3
47.4
0.73
4.93
82.1
13.2
8.3
15.0
4.4
10.0
91.2
5.78
71.5
106.4
4.63
12.4
66.5
48.3
0.73
4.71
82.6
14.1
7.9
18.0
7.7
17.9
92.7
5.83
72.9
107.0
4.67
12.8
67.9
49.0
0.72
4.56
83.4
14.9
7.5
12.0
2.8
6.4
98.4
5.89
78.3
109.4
4.90
13.6
61.6
45.8
0.74
5.39
80.0
11.4
10.4
15.0
4.1
9.5
99.9
5.97
79.6
110.1
4.91
14.0
62.5
46.6
0.75
5.15
80.1
12.2
9.9
18.0
7.5
17.3
101.5
6.04
80.9
110.7
4.92
14.4
63.8
47.0
0.74
4.98
80.8
12.8
9.4
12.0
2.5
5.9
15.0
3.9
9.1
59.7
44.9
0.75
5.73
79.2
10.4
12.4
18.0
7.3
16.9
60.6
45.3
0.75
5.55
79.5
10.9
11.7
12.0
2.3
5.4
15.0
3.7
8.5
18.0
7.1
16.4
12.0
2.1
4.9
15.0
3.5
18.0
6.9
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
Operation not recommended
56.2
42.9
0.76
6.28
77.6
8.9
15.1
57.4
43.5
0.76
6.11
78.2
9.4
14.3
8.1
51.9
41.4
0.80
6.98
75.7
7.4
18.2
15.9
53.0
42.0
0.79
6.78
76.1
7.8
Operation not recommended
17.3
7/6/10
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
44
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Wiring Schematics
Aurora Base Control 208-230/60/1 PSC with GeoStart
Compressor
S
PSC
Blower
Motor
C
Black
R
Blue
Cap
Grn
Red
Run Winding
Pink
Active
Soft Start
Blue
Red
Brn Wht
Tan
Pink
Blue
Start Winding
Black
Common Winding
Unit Power Supply
208-230/60/1
G
Cap
P3
3 Airflow
Settings
H
M
T2
T1
CC
L2
L
Note 1
L1
Green (93)
Black
White
Black
1
RB
3
Black
Black (95)
L1
L1
Red (97)
L2
L2
L3
L3
Red
208V
Note 2
Blue
230V
Ground
Neutral
Disconnect
Black
Transformer
24V
Yellow
Black/White
Ÿ
Resistor
RB
CC
LP
HP
T
RV
Black (10)
Black (09)
Blue (08)
Blue (07)
Yellow
Yellow
Orange (02)
Orange (01)
Black (15)
1
Violet (14)
White (12)
2
Black (13)
Note 3
Isolation
Valve
FD
Ÿ
RV
3
DH W Y2 Y1 G O/B C
R LO P9
R
JW2
Red
(51)
Green
(50)
White
(52)
F FG CC CCG
CC2 CC2 CC2 P5
HI LO G
REV REV FP1 FP1 FP2 FP2 LPS LPS HPS HPS P4
C
P2
K3
ES
K4
LS
ALM
K1
R
K2
Black/White
Yellow
F
K5
ALG
PWM
ACC COM
ACC NO
ACC NC
K6
Aurora Base Control
(ABC)
LO
R
SW1
CFM
Status
G
C
Red (53)
Note 3
P13
Fault
R
C
O/B
G
FP1 – 15°F/30°F
FP2 – 15°F/30°F
RV – B/O
Acc – Dip 1
Acc – Dip 2
CC – Dual/Single
L – Pulse/Continuous
Reheat/Normal
Y1
Y2
W
DH
P1
LED4
F1
C
Config
Y
G
RS485 NET
P8
C
R
A- B+ P7
C
R
A- B+ P6 N/A CO C EH1 C EH2 P3
Y1 G
CC
Legend
Factory Low Voltage Wiring
Factory Line Voltage Wiring
Field Low Voltage Wiring
Field Line Voltage Wiring
Optional Block
DC Voltage PCB Traces
Field Zone Sensor Wiring
Internal Junction
Quick Connect Terminal
Condensate
Aurora LED Flash Codes
Field Wiring Lug
Switch - Condensate Overflow
Switch - High pressure
Switch - Low pressure
1
L1
Relay Coil
2
1 second on and 1 second off
100 milliseconds on and 100 milliseconds off
100 milliseconds on and 400 milliseconds off with a 2 second pause before repeating
Random Start Delay
Fast Flash
Status LED (LED1, Green)
Fast Flash
Configuration LED (LED2, Yellow)
Fast Flash
Fault LED (LED3, Red)
Configuration LED (LED2, Yellow)
Fault LED (LED3, Red)
Status LED (LED1, Green)
No Software Overide
Flash ECM Setting Normal Mode
OFF
ON
Normal Mode
DIP Switch Overide
Slow Flash
Input Fault Lockout
Flash Code 1
OFF
Control is Non-Functional
Fast Flash
High Pressure Lockout
Flash Code 2
Slow Flash ECM Configure Mode
Test Mode
Off
Low Pressure Lockout
Flash Code 3
Fast Flash Reset Configure Mode
Lockout Active
Flash Code 4
Low Air Coil Limit Lockout - FP2
Flash Code 2
Dehumidification Mode
Low Water Coil Limit Lockout - FP1 Flash Code 5
Flash Code 3
Reserved
Flash Code 6
Reserved
Flash Code 4
Reserved
Flash Code 7
Flash Code 5
Condensate Overflow Lockout
Load Shed
Flash Code 8
Over/Under Voltage Shutdown
ESD
Flash Code 6
Flash Code 9
Flash Code 7
Reserved
Reserved
Flash Code 10
Reserved
Flash Code 11
Air/Water Coil Limit Sensor Error
Slow Flash
Fast Flash
Flash Code
Thermistor
T
3
Aurora Timing Events
Test Mode
Normal Mode
Event
5 to 80 seconds
1 second
Random Start Delay
5 seconds
< 1 second
Compressor On Delay
2 minutes
5 seconds
Compressor Minimum On Time
4 minutes
15 seconds
Compressor Short Cycle Delay
30 seconds
2 seconds
Blower Off Delay
Less than 1 second Less than 1 second
Fault Recognition Delay – High Pressure
2 minutes
30 seconds
Start-Up Bypass – Low Pressure
30 seconds
30 seconds
Fault Recognition Delay – Low Pressure
2 minutes
30 seconds
Start-Up Bypass – Low Water/Air Coil Limit
30 seconds
30 seconds
Fault Recognition Delay – Low Water/Air Coil Limit
30 seconds
30 seconds
Fault Recognition Delay – Condensate Overflow
2 seconds
2 seconds
Thermostat Call Recognition Time
5 minutes
20 seconds
Auxiliary Heat Staging Delay
2 minutes
7.5 seconds
Emergency Heat Staging Delay
90 seconds
90 seconds
Water Valve Slow Open Delay
30 seconds
30 seconds
Reheat Delay
RS485 EXP
Notes:
1 – Optional, factory installed unit mounted disconnect.
2 – Swap blue and red leads for 208V operation.
3 – Optional, factory installed internal isolation valve.
Brown (23)
Green
Accessory Relay
Operation
SW2-4 SW2-5
On
On
Cycle with Blower
Off
Off
Cycle with Compressor
Off
On
Water Valve Slow Open
Off
On
Outdoor Air Damper
On
1
2
3
4
5
6
7
8
SW2
LED5
G
RS485 NET
R
Off
Polarized connector
Ground
G
Light Emitting Diode - Green
Capacitor
Y
Light Emitting Diode - Yellow
Fuse
R
Light Emitting Diode - Red
Relay Contacts – N.O., N.C.
CC – Compressor Contactor
CO – Condensate Overflow Sensor
ES – Emergency Shutdown
HP – High Pressure Switch
LP – Low Pressure Switch
FD – Freeze Detection Sensor
F1 – Fuse
SW1 – Push button
SW2 – DIP package 8 position
RB – Blower Relay
RV – Reversing Valve Coil
97P817-02
11/08/10
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
45
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Wiring Schematics cont.
Aurora Base Control 460/60/3 5-Speed ECM
T3
Note 4
T1
T2
Red
Phase
Guard
Monitor
(PGM)
L1 L2 L3
Black
Yellow
T3
T2
Unit Power Supply
460/60/3
G
T1
CC
L3
L2
L1
Note 1
Black (7)
Green (93)
Ground
Neutral
Disconnect
White (8)
Red (9)
L1
L1
Yellow (96)
L2
L2
Red (97)
L3
L3
Green
G
Black (95)
Black
N
Brown
Orange
5-Speed ECM
Blower
Motor
L
Blue
460V
Note 5
Transformer
PGM
Y-OUT
Y
5
24V
4
3
2
1
C
Black/White
C
Yellow
Note 5
Black/White (92)
Note 6
Yellow (91)
Gray (30)
Tan (31)
Red (32)
Blue (33)
Black (35)
RV
Ÿ
Resistor
FD
LP
HP
Ÿ
T
RV
CC
Note 2
REV REV FP1 FP1 FP2 FP2 LPS LPS HPS HPS P4
C
P2
K3
ES
K4
LS
ALM
5-Speed ECM Low Voltage Connections
Model TAP-1 TAP-2 TAP-3 TAP-4 TAP-5
015
Blue
Red
Gray
018
Blue
Red
Gray
023
Blue
Red
Gray
024
Blue
Red
Gray
030
Blue
Red
Gray
036
Blue
Red
Gray
041
Blue
Red
Gray
042
Blue
Red
Gray
048
Blue
Red
Gray
060
Blue
Red
Gray
070
Blue
Red
Gray
Black (10)
Black (09)
Blue (08)
CC2 CC2 CC2 P5
HI LO G
Blue (07)
F FG CC CCG
Yellow
R
Yellow
R LO P9
JW2
DH W Y2 Y1 G O/B C
Orange (02)
3
Orange (01)
1
Red
(51)
Green
(50)
White
(52)
Black (15)
2
Violet (14)
Isolation
Valve
K1
R
K2
Black/White
Yellow
F
K5
ALG
PWM
ACC COM
ACC NO
ACC NC
K6
SW1
Aurora Base Control
(ABC)
LO
R
CFM
Status
G
Notes:
C
Fault
R
Red (53)
Note 2
C
O/B
On
Off
1
FP1 – 15°F/30°F
2
FP2 – 15°F/30°F
RV – B/O
3
4
Acc – Dip 1
Acc – Dip 2
5
CC – Dual/Single
6
L – Pulse/Continuous
7
8
Reheat/Normal
SW2
G
Y1
Y2
W
DH
P1
LED4
F1
LED5
G
C
Config
Y
G
RS485 NET
R
RS485 NET
P8
C
R
A- B+ P7
C
R
A- B+ P6 N/A CO C EH1 C EH2 P3
Y1 G
CC
Legend
Factory Low Voltage Wiring
Factory Line Voltage Wiring
Field Low Voltage Wiring
Field Line Voltage Wiring
Optional Block
DC Voltage PCB Traces
Field Zone Sensor Wiring
Internal Junction
Quick Connect Terminal
Condensate
Aurora LED Flash Codes
Switch - Condensate Overflow
Switch - High pressure
Switch - Low pressure
1
L1
Field Wiring Lug
Relay Coil
2
1 second on and 1 second off
100 milliseconds on and 100 milliseconds off
100 milliseconds on and 400 milliseconds off with a 2 second pause before repeating
Random Start Delay
Fast Flash
Status LED (LED1, Green)
Fast Flash
Configuration LED (LED2, Yellow)
Fast Flash
Fault LED (LED3, Red)
Configuration LED (LED2, Yellow)
Fault LED (LED3, Red)
Status LED (LED1, Green)
No Software Overide
Flash ECM Setting Normal Mode
OFF
Normal Mode
ON
DIP Switch Overide
Slow Flash
Input Fault Lockout
Flash Code 1
OFF
Control is Non-Functional
Fast Flash
High Pressure Lockout
Flash Code 2
Test Mode
Slow Flash ECM Configure Mode
Low Pressure Lockout
Off
Flash Code 3
Fast Flash Reset Configure Mode
Lockout Active
Flash Code 4
Low Air Coil Limit Lockout - FP2
Flash Code 2
Dehumidification Mode
Low Water Coil Limit Lockout - FP1 Flash Code 5
Flash Code 3
Reserved
Flash Code 6
Reserved
Flash Code 4
Reserved
Flash Code 7
Flash Code 5
Condensate Overflow Lockout
Load Shed
Flash Code 8
Over/Under Voltage Shutdown
Flash Code 6
ESD
Flash Code 9
Reserved
Flash Code 7
Reserved
Flash Code 10
Reserved
Flash Code 11
Air/Water Coil Limit Sensor Error
Slow Flash
Fast Flash
Flash Code
Thermistor
T
3
Aurora Timing Events
Test Mode
Normal Mode
Event
5 to 80 seconds
1 second
Random Start Delay
5 seconds
< 1 second
Compressor On Delay
2 minutes
5 seconds
Compressor Minimum On Time
4 minutes
15 seconds
Compressor Short Cycle Delay
30 seconds
2 seconds
Blower Off Delay
Less than 1 second Less than 1 second
Fault Recognition Delay – High Pressure
2 minutes
30 seconds
Start-Up Bypass – Low Pressure
30 seconds
30 seconds
Fault Recognition Delay – Low Pressure
2 minutes
30 seconds
Start-Up Bypass – Low Water/Air Coil Limit
30 seconds
30 seconds
Fault Recognition Delay – Low Water/Air Coil Limit
30 seconds
30 seconds
Fault Recognition Delay – Condensate Overflow
2 seconds
2 seconds
Thermostat Call Recognition Time
5 minutes
20 seconds
Auxiliary Heat Staging Delay
2 minutes
7.5 seconds
Emergency Heat Staging Delay
90 seconds
90 seconds
Water Valve Slow Open Delay
30 seconds
30 seconds
Reheat Delay
RS485 EXP
1 - Optional, factory installed unit mounted disconnect.
2 - Optional, factory installed internal isolation valve.
3 - Optional, factory installed phase guard.
4 - Optional, factory installed phase guard. The yellow transformer wire shall
be connected directly to the CPU board, if this option is not installed.
5 - Refer to the 5-Speed ECM Low Voltage Connection Table.
6 - Wire is provided with the unit but not connected to the 5-Speed ECM.
Brown (23)
Green
Accessory Relay
Operation
SW2-4 SW2-5
On
On
Cycle with Blower
Off
Off
Cycle with Compressor
Off
On
Water Valve Slow Open
Off
On
Outdoor Air Damper
P13
Polarized connector
Ground
G
Light Emitting Diode - Green
Capacitor
Y
Light Emitting Diode - Yellow
Fuse
R
Light Emitting Diode - Red
Relay Contacts – N.O., N.C.
CC – Compressor Contactor
CO – Condensate Overflow Sensor
ES – Emergency Shutdown
HP – High Pressure Switch
LP – Low Pressure Switch
FD – Freeze Detection Sensor
F1 – Fuse
SW1 – Push button
SW2 – DIP package 8 position
RB – Blower Relay
RV – Reversing Valve Coil
PGM – Phase Guard Monitor
RH – Reheat Valve Coil
97P819-07
3/8/12
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
46
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Engineering Guide Specifications
General
Furnish and install York water source heat pumps as indicated
on the plans. Equipment shall be completely assembled, piped
and internally wired. Capacities and characteristics as listed in
the schedule and the specifications that follow. The reverse cycle
heating/cooling units shall be either suspended type with horizontal
air inlet and discharge or floor mounted type with horizontal air
inlet and vertical upflow air discharge. Units shall be AHRI/ISO
13256-1 certified and listed by a nationally recognized safetytesting laboratory or agency, such as ETL Testing Laboratory. Each
unit shall be computer run-tested at the factory with conditioned
water and operation verified to catalog data. Each unit shall be
mounted on a pallet and shipped in a corrugated box or stretchwrapped. The units shall be designed to operate with entering liquid
temperature between 20°F and 120°F [-6.7°C and 48.9°C].
Casing and Cabinet
The cabinet shall be fabricated from heavy-gauge galvanized steel
and finished with optional corrosion-resistant powder coating. This
corrosion protection system shall meet the stringent 1000 hour
salt spray test per ASTM B117. The interior shall be insulated with
1/2 in. thick, multi-density, cleanable aluminum foil coated glass
fiber with edges sealed or tucked under flanges to prevent the
introduction of glass fibers into the discharge air. Standard cabinet
panel insulation must meet NFPA 90A requirements, air erosion and
mold growth limits of UL-181, stringent fungal resistance test per
ASTM-C1071 and ASTM G21, and shall meet zero level bacteria
growth per ASTM G22. Unit insulation must meet these stringent
requirements or unit(s) will not be accepted.
One (horizontal) to two (vertical) blower and two compressor
compartment access panels shall be ‘lift-out’ removable with supply
and return ductwork in place.
A duct collar shall be provided on the supply air opening. Standard
size 1 in. [2.54 cm] MERV 4 filters shall be provided with each
unit. Units shall have a return air filter rack that is field convertible
from 1 in. [2.54 cm] to 2 in. [5.1 cm]. The upflow vertical units shall
have a removable insulated divider panel between the air handling
section and the compressor section to minimize the transmission of
compressor noise and to permit operational service testing without
air bypass. Vertical units shall be supplied with left or right horizontal
air inlet and top vertical air discharge. Horizontal units shall be
supplied with left or right air inlet and side or end air discharge.
The compressor shall be double isolation mounted using selected
durometer grommets to provide vibration free compressor mounting.
The compressor mounting bracket shall be acoustically deadened
galvanized steel to prevent vibration transmission to the cabinet.
Option: AlpinePure MERV 13 Filter - A 2 in. thick [51 mm] MERV
13 filter can help fulfill a credit under the LEED Rating System. Its
low initial resistance promotes low energy consumption (0.21 in.
w.g. @ 300 fpm) and provides nearly twice the life of a standard
filter (300 fpm vs. standard 500 fpm application).
Option: A Super Quiet Sound package shall include multi-density
full coverage compressor blanket.
Option: An internally mounted low pressure drop (high Cv)
water solenoid valve shall be factory installed for use in variable
speed pumping applications.
Option: An internally mounted automatic flow regulator shall be
set to 3 gpm/ton to deliver optimal flow to the unit.
Refrigerant Circuit
All units shall utilize the non-ozone depleting and low global
warming potential refrigerant R-410A. All units shall contain a
sealed refrigerant circuit including a hermetic motor-compressor,
bidirectional thermostatic expansion valve, finned tube air-torefrigerant heat exchanger, reversing valve, coaxial tube water-torefrigerant heat exchanger, optional hot water generator coil, and
service ports.
Compressors shall be high-efficiency single speed rotary or scroll
type designed for heat pump duty and mounted on vibration
isolators. The compressor shall be double isolation mounted using
selected durometer grommets to provide vibration free compressor
mounting. Compressor motors shall be single-phase PSC with
overload protection.
The air coil shall be sized for low-face velocity and constructed of
lanced aluminum fins bonded to rifled aluminum tubes in a staggered
pattern not less than three rows deep for enhanced performance.
Option: AlumiSeal electro-coated air coil
The coaxial water-to-refrigerant heat exchanger shall be designed
for low water pressure drop and constructed of a convoluted copper
(cupronickel option) inner tube and a steel outer tube. Refrigerant
to air heat exchangers shall utilize enhanced corrugated lanced
aluminum fins and rifled copper tube construction rated to withstand
600 psig (4135 kPa) refrigerant working pressure. Refrigerant to
water heat exchangers shall be of copper inner water tube and
steel refrigerant outer tube design, rated to withstand 600 psig
(4135 kPa) working refrigerant pressure and 450 psig (3101 kPa)
working water pressure. The thermostatic expansion valve shall
provide proper superheat over the entire liquid temperature range
with minimal “hunting.” The valve shall operate bidirectionally
without the use of check valves.
Option: Cupronickel refrigerant to water heat exchanger shall
be of copper-nickel inner water tube and steel refrigerant outer
tube design, rated to withstand 600 psig (4135 kPa) working
refrigerant pressure and 450 psig (3101 kPa) working water
pressure. Water lines shall also be of cupronickel construction.
Option: Hot water generator - Internal double wall vented hot
water generator coil refrigerant to water heat exchangers shall be
of copper inner water tube and steel refrigerant outer tube design,
rated to withstand 600 psig (4135 kPa) working refrigerant pressure
and 450 psig (3101 kPa) working water pressure.
Option: ThermaShield coated water-to-refrigerant heat exchanger,
water lines and refrigerant suction lines shall be insulated to
prevent condensation at low liquid temperatures below 50°F.
Option: AlpinePure hot gas bypass
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
47
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Engineering Guide Specifications cont.
The hot gas bypass (HGB) option is designed to limit the minimum
evaporating pressure in the cooling mode to prevent the air coil from
icing. The option shall consist of a hot gas bypass valve installed
in the discharge side of the compressor. The refrigerant control
shall proportionately bypass hot gas refrigerant to the air coil when
suction pressure falls below 115 psig thus limiting air coil freeze-up.
type. The 5-speed ECM blower motor shall be soft starting, shall
maintain constant torque over its operating static range, and shall
provide 5 speed settings. The blower motor shall be isolated from
the housing by rubber grommets. The motor shall be permanently
lubricated and have thermostatic overload protection. 5-speed ECM
motors shall be long-life ball bearing type.
Optional AlpinePure hot gas reheat
An optional hot gas reheat coil shall be available to allow
dehumidification-only operation. The internal reheat system shall
be factory installed and include a high efficiency reheat coil located
downstream of the evaporator coil, a reclaim valve and integral
controls to allow heating, cooling and reheat/dehumidification modes.
The reheat coil shall be sized so that during reheat/dehumidification
mode the unit will produce neutral air (78 ±3°F DB @ 50-58% relative
humidity) with typical 80 DB/67 WB °F entering air and 90°F entering
water temperature. The reheat coil shall be sized to restrict airflow by
no more than 0.17 in wg at 350 feet per minute airflow velocity.
Option: Variable speed ECM blower motor shall be a variable
speed ECM type. The variable speed ECM blower motor shall be
soft starting, shall maintain constant cfm over its operating static
range, and shall provide 12 cfm settings. Variable speed ECM
motors shall be long-life ball bearing type.
The following control options are available:
Room wall dehumidistat – An optional room wall
dehumidistat shall control the reheat mode thru a 24VAC ‘Hum’
input (On or Off). Setpoint and deadband shall be determined
by the dehumidistat.
Dehumidification set point (used only with a humidity
sensor) - The factory default set point for dehumidification is
52% this is field adjustable from 30% to 60%. In addition there
shall be a factory default differential of 5% field adjustable from
5% to 15%. The control will enable re-heat when the space
humidity rises above the set point plus the differential.
Reheat operation during periods of vacancy - The control
logic contains an unoccupied set point that can be used for
periods the unoccupied mode if desired. The factory default for
the set point is 60% and is adjustable from 30% to 60%. The
unoccupied setback must be enabled either through a building
automation system or with a user interface. Factory default for
unoccupied setback is off.
Space humidity high and low alarm limits (building
automation system only) - The control has a high and low
alarm limit that can be enumerated over a building automation
system. The factory default set point for these alarm limits is
0% for the low alarm and 100% for the high alarm limit. These
limits can be adjusted through a building automation system.
Blower Motor and Assembly
The blower shall be a direct drive centrifugal type with a dynamically
balanced wheel. The housing and wheel shall be designed for quiet
low outlet velocity operation. The blower housing shall be removable
from the unit without disconnecting the supply air ductwork for
servicing of the blower motor. The blower motor shall be isolated
from the housing by rubber grommets. The motor shall be
permanently lubricated and have thermostatic overload protection.
Option: High static blower motors shall be available on certain
PSC and ECM models.
Electrical
A control box shall be located within the unit compressor
compartment and shall contain a 75VA transformer, 24 volt
activated, 2 pole compressor contactor, terminal block for
thermostat wiring and solid-state controller for complete unit
operation. Electromechanical operation WILL NOT be accepted.
Units shall be name-plated for use with time delay fuses or HACR
circuit breakers. Unit controls shall be 24 volt and provide heating
or cooling as required by the remote thermostat/sensor.
An Aurora microprocessor-based controller that interfaces with
a multi-stage electronic thermostat to monitor and control unit
operation shall be provided. The control shall provide operational
sequencing, blower speed control, high and low pressure switch
monitoring, freeze detection, condensate overflow sensing, lockout
mode control, LED status and fault indicators, fault memory, field
selectable options and accessory output. The control shall provide
fault retry three times before locking out to limit nuisance trips.
A detachable terminal block with screw terminals will be provided
for field control wiring. All units shall have knockouts for entrance of
low and line voltage wiring. The blower motor and control box shall
be harness plug wired for easy removal.
Optional GeoStart® (compressor soft starter) shall be factory
installed for use in applications that require low starting amps,
reduced compressor startup noise, off-grid, and improved startup
behavior. GeoStart shall reduce normal starting current by 60% on
208-230/60/1 units.
Piping
Supply and return water connections shall be FPT copper
fittings fixed to the corner post, which eliminate the need for backup
pipe wrenches.
With vertical units, the condensate connection shall be a 3/4 in.
[19.1 mm] PVC socket with internally-trapped hose that can be
routed to front or side corner post locations.
Option: PSC blower motor shall be a three-speed PSC type.
Option: 5-Speed ECM blower motor shall be a 5-speed ECM
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
48
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Engineering Guide Specifications cont.
Hanger Kit
(included with horizontal units only - field installed)
The hanger kit shall consist of galvanized steel brackets, bolts, lock
washers, and isolators and shall be designed to fasten to the unit
bottom panel for suspension from 3/8 in. threaded rods. Unit sizes
009-070 shall include four brackets. Brackets shall not inhibit filter
removal in any way.
Accessories
Thermostat (field-installed)
A multi-stage auto-changeover electronic digital thermostat shall
be provided. The thermostat shall offer two heating stages and
one cooling stage with precise temperature control. An OFF-HEATAUTO-COOL-EMERG system switch, OFF-AUTO blower switch,
and indicating LEDs shall be provided. The thermostat shall display
in °F or °C.
Hose Kits – Ball Valves (field-installed)
A flexible steel braid hose featuring Kevlar® reinforced EPDM
core with ANSI 302/304 stainless steel outer braid and fire rated
materials per ASTM E 84-00 (NFPA 255, ANSI/UL 723 & UBC 8-1).
Ball valve at one end; swivel connector with adapter at the other
end (swivel to adapter connection via fiber or EPDM gasket). Swivel
connection provides union between heat pump and piping system.
The hoses feature brass fittings, stainless steel ferrules. A full port
ball valve shall be provided with integral P/T (pressure/temperature)
port on supply hose.
Hose Kits – Automatic Balancing and Ball Valves with ‘Y’
strainer (field-installed)
A flexible steel braid hose featuring Kevlar® reinforced EPDM
core with ANSI 302/304 stainless steel outer braid and fire rated
materials per ASTM E 84-00 (NFPA 255, ANSI/UL 723 & UBC
8-1). Ball valve at one end; swivel connector with adapter at the
other end (swivel to adapter connection via fiber or EPDM gasket).
Swivel connection provides union between heat pump and piping
system. The hoses feature brass fittings, stainless steel ferrules.
A “y” strainer is provided on one end for fluid straining and integral
“blowdown” valve. A full port ball valve shall be provided with
integral P/T (pressure/temperature) port on supply hose and
automatic balancing valve with integral P/T ports and full port ball
valve on return hose.
Specifications:
• Temperature range of 35°F [2°C] to 180°F [82°C]
• Max. working pressure of 400 psi [2756 kPa] for 1/2 in.
and 3/4 in. hose kits; max. working pressure of 350 psi
[2413 kPa] for 1 in. and 1-1/4 in. hose kits
• Minimum burst pressure of four times working pressure
Hot Water Pump Kit
An accessory pump kit is available for hot water generation option.
This kit includes hot water pump, fittings, and water heater kit
necessary for potable water application. Order DPK5 for use with
Aurora and FX10 controls.
Specifications:
• Temperature range of 35°F [2°C] to 180°F [82°C].
• Max. working pressure of 400 psi [2757 kPa] for 1/2 in. and 3/4
in. hose kits; max. working pressure of 350 psi [kPa] for 1 in. and
1-1/4 in. hose kits.
Hose Kits – Automatic Balancing and Ball Valves
(field-installed)
A flexible steel braid hose featuring Kevlar® reinforced EPDM
core with ANSI 302/304 stainless steel outer braid and fire rated
materials per ASTM E 84-00 (NFPA 255, ANSI/UL 723 & UBC 8-1).
Ball valve at one end; swivel connector with adapter at the other
end (swivel to adapter connection via fiber or EPDM gasket). Swivel
connection provides union between heat pump and piping system.
The hoses feature brass fittings, stainless steel ferrules. A full port
ball valve shall be provided with integral P/T (pressure/temperature)
port on supply hose and automatic balancing valve with integral P/T
ports and full port ball valve on return hose.
Specifications:
• Temperature range of 35°F [2°C] to 180°F [82°C]
• Max. working pressure of 400 psi [2757 kPa] for 1/2 in.
and 3/4 in. hose kits; max. working pressure of 350 psi
[2413 kPa] for 1 in. and 1-1/4 in. hose kits
• Minimum burst pressure of four times working pressure
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
49
Page _____ of _____
Contractor:
LX Ultra Series
Single Capacity
.75 - 6 Tons 60Hz
P.O.:
Engineer:
Project Name:
Unit Tag:
Revision Guide
Pages:
All
Description:
First Published
Date:
By:
18 Oct 2013
DS
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
SD1200AK6
10/13
50
Page _____ of _____
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
