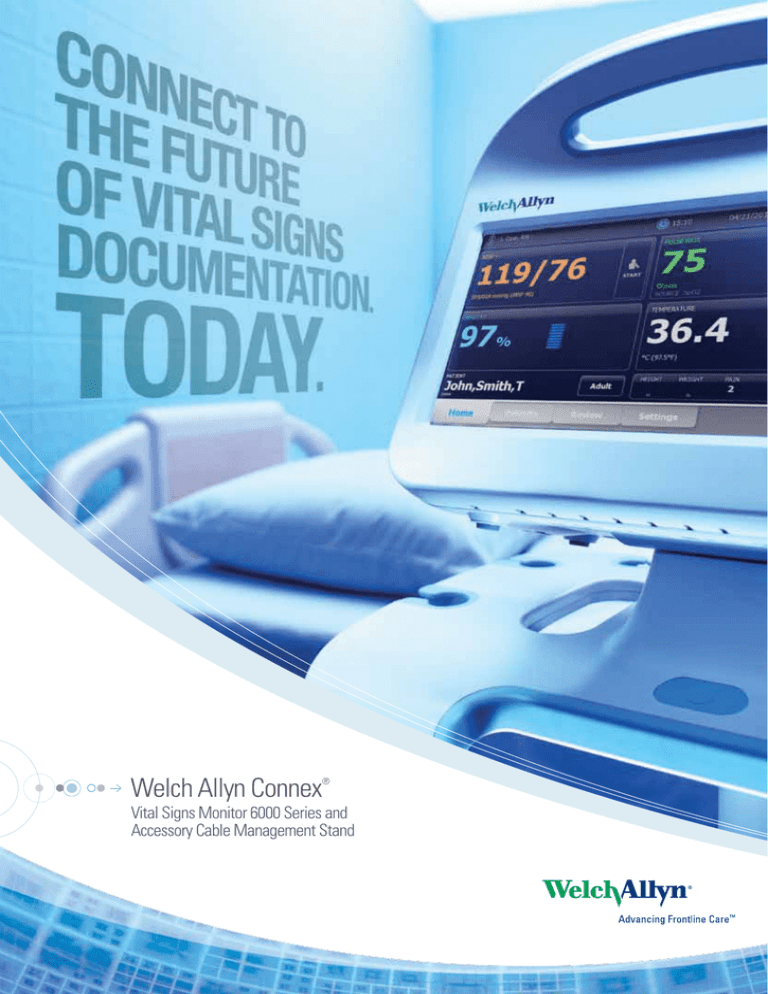

Welch Allyn Connex
®
Vital Signs Monitor 6000 Series and
Accessory Cable Management Stand
Everything that’s vital to patient safety,
where you need it.
Complete documentation
on a single screen.
The Welch Allyn Connex Vital Signs Monitor (VSM) enables you to wirelessly transmit vital
signs from the bedside to your EMR – with no extra steps.
The Connex VSM helps you improve clinical workflow by dramatically increasing the accuracy of vital sign
documentation and decreasing the time it takes to post readings to your EMR. Plus, our integrated, on-board wireless
capability provides the ability to send the data to your EMR anytime, anywhere. Even if you haven’t adopted an EMR
yet, you’re covered. The Connex VSM has been designed with upgrades in mind – so even if you don’t purchase
wireless capability initially, the radio can be easily added in the future.
The Connex Vital Signs Monitor:
Turn it on. See the future.
The Connex VSM is an advanced, easy-to-use monitor designed
specifically for non-critical care settings. It acts as three devices
in one (spot-check, monitoring and triage), with an optimised user
interface so you can quickly configure it to the way your staff needs
to work.
Simple, intuitive operation makes it easy to use with minimal
training. It features a vivid colour touch-screen monitor, designed
without buttons or knobs to help facilitate cleaning and minimise
cross contaminations.
Comprehensive Patient Documentation* | Now clinicians won’t
need a bedside computer to capture patient modifiers and qualifiers (such
as body position, pain and respiration). They can document this data right
on the device, eliminating the need to locate a PC and transcribe it later.
>Manual parameters (respiration, pain, height, weight, etc.)
>Modifiers (body position, O
2
therapy details, etc.)
>Device memory organisation:
- auto-delete
- automatic filtering
>Control alarms, patient data and monitoring as needed
Advanced Patient ID* | The Connex VSM is capable of two-way
wireless communication. It associates patient ID numbers to names to
help you properly identify patients at the bedside. Plus, it allows you
to customise which ID fields are required and how they’re displayed,
including simultaneous display of multiple forms of ID.
>Automatic measurements
Spot-Check Vital Signs
Monitoring
Organised workflows let you
customise the Connex VSM
to the way your staff works.
Best-in-Class Wireless Technology** | The Connex VSM’s
optional wireless technology is built into the system. It’s an integrated,
elegant solution that allows the monitor to act as a true mobile device,
and works with your current wireless network to make integration simple
and seamless. Plus, two-way communication delivers up-to-date patient
demographics, ensuring proper patient identification at the point of care.
Advanced power-management features ensure that your
device is ready when you need it.
>Smart Li-ion batteries deliver longer “on” time with short recharge
>Battery gauge indicates time remaining on each charge
>Configurable power-management options help conserve battery life
>Internal power supply uses standard medical grade power cord
time
> T he Connex VSM is loaded
with features to enhance
efficiency and protect your
patients.
Complete Documentation Features
>Patient list
>Compressed view of vital signs
>Patient summary
>Alarm parameters
>Modifiers
Review Screen
* Requires Connex Vitals Management Software.
** Please contact your Welch Allyn representative for system requirements and compatibility.
Alarms
>Filter and sort data
>Visual confirmation that record went to EMR
Settings
>Interval programs
Triage
PartnerConnect ™ and the Welch Allyn
Service Tool keep you up and running.
Advanced accessory
management that
stands on its own.
The Accessory Cable Management Stand, with its unique
accessory storage and cable routing system, is ergonomically
designed for ease of use. All system components have their
own compartment to allow quick identification and easy access.
This helps keep everything neat and organised, so users can
work efficiently and project confidence and professionalism
when they interact with patients. All supplies are on board for
convenience, and the stand is designed for ease of cleaning to
help minimise cross-contamination.
ORGANISATION
Every system ships with Welch Allyn PartnerConnect Service
Software. The software provides a gateway for remote
diagnostics, troubleshooting and repair of devices through our
service tool that helps you keep equipment performing at its
peak. It includes proactive maintenance features that can help
quickly solve minor issues and streamline requirements such as
validation and calibration.
Part of the revolutionary Connex Electronic
Vitals Documentation (EVD) System.
As the leader in frontline care, only Welch Allyn offers a complete,
end-to-end solution for vital sign capture and documentation that
was designed specifically for medical/surgical applications. In
addition to the Connex VSM, the EVD system also includes:
>Connex Vitals Management Software, the intelligence that quickly and
accurately interfaces vital signs data with your EMR
>Every system component has its own carefully
>Accessory Cable Management Stand, with its unique accessory storage
>Easy identification and quick access
>Cable routing minimises tangling and damage
>Welch Allyn Partners in Care ServicesSM for comprehensive support
designed storage compartment
and cable management system
services that include installation, integration and a service tool that
enables remote diagnostics of devices
Ergonomic Design
>
>Comfortable working height
Small footprint, easy to manoeuvre
>On-board LED lighting aids vision in dark rooms
without disturbing the patient
INFECTION PREVENTION
>Cleaning wipes on board encourage use
>Rounded interior corners and bin openings
>Modular design
Welch Allyn UK Ltd.
Cublington Road - Aston Abbotts
Buckinghamshire HP22 4ND
England
(Tel:) 0 207 365 6780 (Fax:) 0 207 365 9694
www.welchallyn.com
Only Masimo® SET SpO2 sensors,
including LNCS series of cables and NR
value disposable sensors, should be used
with Masimo pulse oximetry. Masimo,
Masimo SET, LNCS and NR are registered
trademarks of Masimo Corporation.
Braun® and ThermoScan® are
registered trademarks of Braun,
GmbH.
Only Nellcor® pulse oximetry sensors, including
OxiMax® patient-dedicated adhesive sensors,
should be used with the Nellcor pulse oximetry
option. Nellcor and OxiMax are registered
trademarks of Nellcor Puritan Bennett, Inc.
To learn how the Connex VSM and Accessory Cable Management Stand
can help you make documenting vital signs more accurate and efficient,
contact your Welch Allyn representative or call 18005356663 to speak
with a customer representative. For a customised value analysis, visit
www.welchallyn.com/connex.
© 2010 Welch Allyn SM4027GB Rev B
