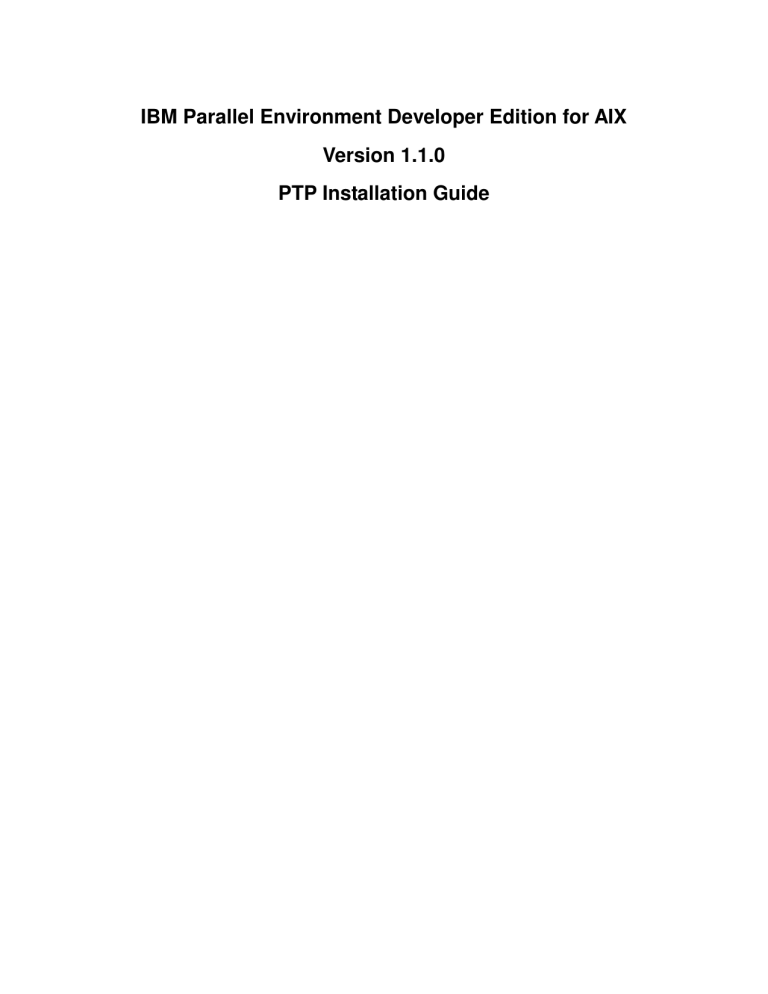

IBM Parallel Environment Developer Edition for AIX
Version 1.1.0
PTP Installation Guide
Introduction
IBM Parallel Environment Developer Edition is a complete state of the art integrated
development environment based on the Eclipse workbench with additional open source
and proprietary components for parallel application development.
PE Developer Edition includes Parallel Tools Platform (PTP) as one of its components.
PTP is a set of Eclipse plug-ins that provide an integrated Eclipse development
environment where you can edit, compile, debug and run your HPC applications on your
HPC cluster. PTP also provides tools to help with editing your source code and to analyze
your source code from within the same Eclipse environment.
PE Developer Edition adds tools to view compiler transformation (optimization) reports,
assists for programming in new models such as PAMI and visualization tools for use with
the IBM High Performance Toolkit to the PTP installation images.
PTP packaging is comprised of two packages, Eclipse and PTP client software which
runs on your local desktop or laptop system and PTP proxy software which runs on the
login node or front end node of your HPC cluster.
Supported Software Levels
The PTP component of PE Developer Edition is supported on these software levels
•
•
Eclipse and PTP client software
• Red Hat 6 32 bit mode
• Red Hat 6 64 bit mode
• Microsoft Windows XP 32 bit mode
• Microsoft Windows 7 32 bit mode
• Apple Mac OS X 10.6 32 bit
• Apple Mac OS X 10.6 64 bit
PTP proxy software
• AIX 7.1 service pack 3 or later
In order to run a parallel application interactively, you must have IBM Parallel Runtime
Edition 1.1.0 or later installed on your HPC cluster. In order to submit batch jobs on your
HPC cluster you must have Tivoli Workload Scheduler LoadLeveler 5.1 installed on your
HPC cluster.
Media Contents
The installation media for PE Developer Edition contains installation images for the
Parallel Tools Platform (PTP) client software IBM proprietary software described in the
introduction as well as the installation image containing the required license files for PE
Developer Edition installation. The installation images are:
Installation Image
ppedev.loc.license
ppedev.ptp
ppedev.ptp.rte
Purpose
PE Developer Edition licensing
Eclipse, PTP client software and IBM
proprietary tools
PTP server (proxy) software
The ppedev.ptp installation image contains copies of the Java runtime required for a
supported PTP installation on Microsoft Windows and Red Hat Linux desktop or laptop
(client) systems as well as copes of Eclipse for each supported client platform and a copy
of the PTP plug-ins and the IBM High Performance Computing Toolkit plugin for
installation in an existing Eclipse 3.7.1 (Indigo SR1) installation.
PE Developer Edition does not provide a Java runtime for Mac systems. Any user using a
Mac system should use the Java runtime provided with that system.
The ppedev.ptp.rte installation image contains proxies used by PTP to run parallel
applications using IBM PE Runtime Edition and to submit batch jobs using LoadLeveler.
Space Planning
PE Developer Edition installs into the /opt/ibmhpc/ppedev.ptp directory.
The ppedev.ptp installation image contains copies of a complete Eclipse installation
including PTP and the IBM HPC Toolkit plug-ins for each supported client platform and
Java runtimes for each supported client platform. As a result, this installation requires
approximately 1.5GB of space in the filesystem containing the /opt/ibmhpc/ppedev.ptp
directory where PE Developer Edition is installed and approximately 1.5GB of temporary
space to contain the installation image during the installation process.
You may, at your option, remove Eclipse images and Java runtimes not required for
client platforms not supported at your site. However, if you do this, system installation
and maintenance directories may report warnings due to missing files in the
/opt/ibmhpc/ppedev.ptp directory.
The ppedev.ptp.rte installation image contains copies of the proxies used by the Eclipse
client to run interactive parallel jobs and submit batch jobs and a copy of the Java runtime
required by the PTP remote development support. This installation requires
approximately 80MB of space in the /opt/ibmhpc/ppedev.ptp directory for the proxies
and the compressed tar file containing the Java runtime.
Approximately 150MB is required for in a directory chosen by you for the Java runtime
installation.
PTP Proxy Installation
The PTP proxy software must be installed on any login nodes or front end nodes in your
HPC cluster where you expect your users to use to run parallel applications or submit
batch jobs.
To prepare to install the proxies,
• Create a directory to store the installation images, for example, ~/images.
• Copy the ppedev.ptp.rte install image to that directory.
• If you have not already accepted the PE Developer Edition license on this node, copy
the ppedev.loc.license image installation image to this directory.
Once you have copied the installation images, you can install the proxies by invoking
installp from the command line or by using smit
Proxy Installation Using installp
To install the ppe.hpct.rte installation image using installp where the installation images are
stored in ~/images:
installp –a –I –X –Y –d ~/images/ppedev.ptp.rte all
This command will accept the PE Developer Edition license (-Y flag) and expands the
filesystem containing the installation directory /opt/ibmhpc/ppedev.ptp if required (-X
flag)
Proxy Installation Using smit
To install the proxies using smit, follow these steps:
• Insert the distribution medium in the installation device, unless you are installing over a
network.
• Enter smit install_latest This command invokes SMIT, and takes you directly to its
window for installing software.
• Press List. A window opens listing the available INPUT devices and directories for
software.
• Select the installation device or directory from the list of available INPUT devices. The
window listing the available INPUT devices and directories closes and the original
SMIT window indicates your selection.
• Press Do The SMIT window displays the default installation parameters.
• Type ppedev.ptp.rte in the Software to install field.
• After choosing the appropriate software, you might also want to change other options
on the panel, as needed. For example, the panel also asks whether or not you want to
expand the file systems.
• When you are prompted, answer yes to expand the file systems if you want to allow the
filesystem to be expanded.
• Type yes in the ACCEPT new license agreements field. If the eLicense is not accepted,
the proxies will not be installed.
• Press Do. The system installs the proxies.
Java Installation on Front End or Login Node
The remote development support in PE Developer Edition requires a copy of the Java
runtime to be installed on the login nodes or front end nodes your users will use when
running PE Developer Edition. For a supported PE Developer Installation you must either
have the IBM Java runtime version 6.0.0 or later installed on your system or install the
copy included with PE Developer Edition.
The copy of the Java runtime included with PE Developer Edition is located at
opt/ibmhpc/ppedev.ptp/jre/jre664redist.tar.gz. You can install the Java runtime in any
directory you choose that is accessible to your users.
To install the Java runtime, do the following:
• Copy the Java runtime compressed tar file to a temporary directory. For instance cp
/opt/ibmhpc/ppedev.ptp/jre/jre664redist.tar.gz ~/images/ jre664redist.tar.gz
• cd to the temporary directory containing jre664redist.tar.gz
• Uncompress the Java runtime image using a gzip uncompression utility, for instance
gzip –d jre664redist.tar.gz
• Create the directory that will contain the Java runtime if required. For instance mkdir
/usr/local/java_6.0.9
• cd to the directory where you will unpack the Java runtime.
• Unpack the Java runtime. For instance tar –xf ~/images/ jre664redist.tar
• Ensure that the directory containing the java runtime executable,
/usr/local/java_6.0.9/jre/bin in this example, is included in the default PATH used
by your users.
PTP Client Installation
PTP client installation consists of three phases:
• Install client images on a cluster server node accessible to users.
• Download client images to users desktop or laptop machine.
• Install client software on user’s desktop or laptop machine.
Server Node Installation
PTP client images must be installed on an AIX server node that is accessible to users.
This may be any node at your site, including front end or login nodes for your HPC
cluster.
Note that the PTP client images include Eclipse installation images for all supported
platforms and the Java runtimes for all supported platforms except Apple Mac systems.
As a result, the PTP client installation requires approximately 1.5GB of disk space.
To prepare to install the client images,
• Create a directory to store the installation images, for example, ~/images. This
directory must have approximately 1.5GB of free space.
• Copy the ppedev.ptp install image to that directory.
• If you have not already accepted the PE Developer Edition license on this node, copy
the ppedev.loc.license image installation image to this directory.
Once you have copied the installation images, you can install the client images by
invoking installp from the command line or by using smit
Client Image Installation Using installp
To install the ppe.hpct installation image using installp where the installation images are
stored in ~/images:
installp –a –I –X –Y –d ~/images/ppedev.ptp all
This command will accept the PE Developer Edition license (-Y flag) and expands the
filesystem containing the installation directory /opt/ibmhpc/ppedev.ptp if required (-X
flag)
Client Image Installation Using smit
To install the client images using smit, follow these steps:
• Insert the distribution medium in the installation device, unless you are installing over a
network.
• Enter smit install_latest This command invokes SMIT, and takes you directly to its
window for installing software.
• Press List. A window opens listing the available INPUT devices and directories for
software.
• Select the installation device or directory from the list of available INPUT devices. The
window listing the available INPUT devices and directories closes and the original
SMIT window indicates your selection.
• Press Do The SMIT window displays the default installation parameters.
• Type ppedev.ptp in the Software to install field.
• After choosing the appropriate software, you might also want to change other options
on the panel, as needed. For example, the panel also asks whether or not you want to
expand the file systems.
• When you are prompted, answer yes to expand the file systems if you want to allow the
filesystem to be expanded.
• Type yes in the ACCEPT new license agreements field. If the eLicense is not accepted,
the proxies will not be installed.
• Press Do. The system installs the client images.
Download Client Images to Client System
Users who want to install Eclipse must download the necessary installation images for
their desktop or laptop client platform from the server where they were installed in the
previous step. Installation images are provided for new installations on user’s systems
and for installation of PE Developer Edition plug-ins in an existing Eclipse 3.7.1 (Indigo
SR1) installation.
Installation images are installed on the server node in the following locations
• Java 6.0.9 runtimes required for Red Hat 6 Linux and Microsoft Windows systems:
/opt/ibmhpc/ppedev.ptp/jre
• Eclipse installation images containing PE Developer Edition plug-ins
/opt/ibmhpc/ppedev.ptp/eclipse
• PE Developer Edition plug-ins: /opt/ibmhpc/ppedev.ptp/plugins
In order to download, users should create a directory (folder) with write permissions on
their client system. Then they should connect to the server system using file transfer
software such as ftp or sftp, cd to the directory containing the image they need, and then
download the images they need as listed in the following table
Purpose
Java runtime for Red Hat 6 32 bit Linux
Java runtime for Red Hat 6 64 bit Linux
Java runtime for Microsoft Windows XP
32 bit
Java runtime for Microsoft Windows 7 32
bit
Eclipse and plug-ins for Red Hat 6 32 bit
Linux
Eclipse and plug-ins for Red Hat 6 64 bit
Linux
Eclipse and plug-ins for Microsoft
Windows XP 32 bit
Eclipse and plug-ins for Microsoft
Windows 7 32 bit
Eclipse and plug-ins for Mac OS X 32 bit
Eclipse and plug-ins for Mac OS X 64 bit
PE Developer Edition plug-ins for existing
Eclipse 3.7.1 installation
Image Name
ibm-java-i386-jre-6.0-9.0.i386.rpm
ibm-java-x86_64-jre-6.0-9.0.x86_64.rpm
ibm-java-jre-60-win-i386.exe
ibm-java-jre-60-win-i386.exe
ppedev-3.7-linux-gtk.tar.gz
ppedev-3.7-linux-gtk-x86_64.tar.gz
ppedev-3.7-win32.zip
ppedev-3.7-win32.zip
ppedev-3.7-macosx-cocoa.tar.gz
ppedev-3.7-macosx-cocoa-x86_64.tar.gz
ppedev_update.zip
Installation on Client Systems
Once images have been downloaded to the user’s system, the next step is to install the
required software.
If the user’s Red Hat 6 or Microsoft Windows system does not have the IBM Java
runtime version 6.0.9 or later installed, the user must install the Java runtime provided
with PE Developer Edition for a supported installation.
For Mac OS X users, no Java runtime is provided with PE Developer Edition, and users
should use the Java runtime provided with their system.
If the user does not already have Eclipse 3.7.1 installed, they should install the Eclipse
client software which includes PE Developer Edition plug-ins according to the table
above.
If the user has an existing Eclipse 3.7.1 installation, they can install just the PE Developer
Edition plug-ins. The Eclipse 3.7.1 installation must have CDT (C/C++ Development
Tooling) 8.0.1 or later and RSE (Remote System Explorer) 3.3 installed.
Java Runtime Installation
Java runtime images for Linux are provided in RPM format. Installation of the Java
runtime will require root user privilege. To install the Java runtime, su to root and issue
the command rpm –i <path to java runtime RPM>, for instance rpm –i
~/images/ibm-java-i386-jre-6.0-9.0.i386.rpm. Alternatively, issue sudo rpm –i <path
to java runtime RPM> without switching to root.
Java runtime images for Microsoft Windows are provided in a windows installer format.
In order to install the Java runtime, you may require an account with administrator
privileges. Install the Java runtime by just invoking ibm-java-jre-60-win-i386.exe and
following the prompts in the installation dialog.
New Eclipse and Plug-ins Installation
Eclipse images are packaged as compressed tar files for Linux and Mac OS X systems
and as zip files for Microsoft Windows systems. For all systems, Eclipse can be installed
in a directory for use by all users on the system or can be installed in a directory only
accessible by the user installing it. Multiple Eclipse instances can be installed on the
same system in different locations.
If you are installing Eclipse into a publicly accessible directory, you will require root or
system administrator privileges. If you are installing Eclipse into a user’s private
directory, then no privileges are required other than that the user has write access to that
directory.
The first step is to create the directory where Eclipse will be installed if the directory does
not already exist.
The next step is to unpack the Eclipse image into that directory. On Microsoft Windows
and Mac OS X systems, use the archive tools available on your system to perform the
installation.
For Linux systems, su to root if necessary then cd to the installation directory. Then
Extract the Eclipse software using a command such as tar –zxf <path to Eclipse
installation tar file>
PE Developer Plugin Only Installation
PE Developer Edition plug-ins can be installed into an existing Eclipse 3.7.1 installation.
This installation can be a shared installation or can be a private copy for a single user.
For an Eclipse shared installation, the plug-ins can be installed for all users by logging in
as root or obtaining administrator privileges before starting the installation process.
Shared Eclipse installations and private Eclipse installations can be updated just for the
user performing the install by not switching to the root user or obtaining administrator
privileges before starting the installation process.
In order to install the PE Developer Edition plug-ins, do the following:
•
•
•
•
•
•
•
•
•
•
•
•
Invoke the Eclipse 3.7.1 instance where you want to install the plug-ins.
Click help in the Eclipse main menu bar.
Click Install new software in the submenu to open the Install dialog.
Click the add button in the Install dialog.
Enter a name in the Name field of the Add Repository dialog, such as PE Developer
Edition 1.1 and click the Archive button.
Navigate to the directory containing the ppedev_update.zip file and select that file.
Click the OK button in the Add Repository dialog.
A list of available plug-ins will appear in the Install dialog. Click the Select All
button to install all plug-ins then click Next.
Click Next in the Install Details dialog page.
Review the license terms in the Review Licenses dialog page and click I accept the
terms of the license agreements if you agree to the license terms then click Finish.
The plugin installation will proceed. Once installation is complete you will be
prompted to restart Eclipse.
Click the Restart Now button. Eclipse will restart and the PE Developer Edition
plug-ins will be installed.
Installation Completed
After successful completion of the above steps, PTP installation is complete. Refer to the
online help documentation for assistance in using PTP and the other features in PE
Developer Edition.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
