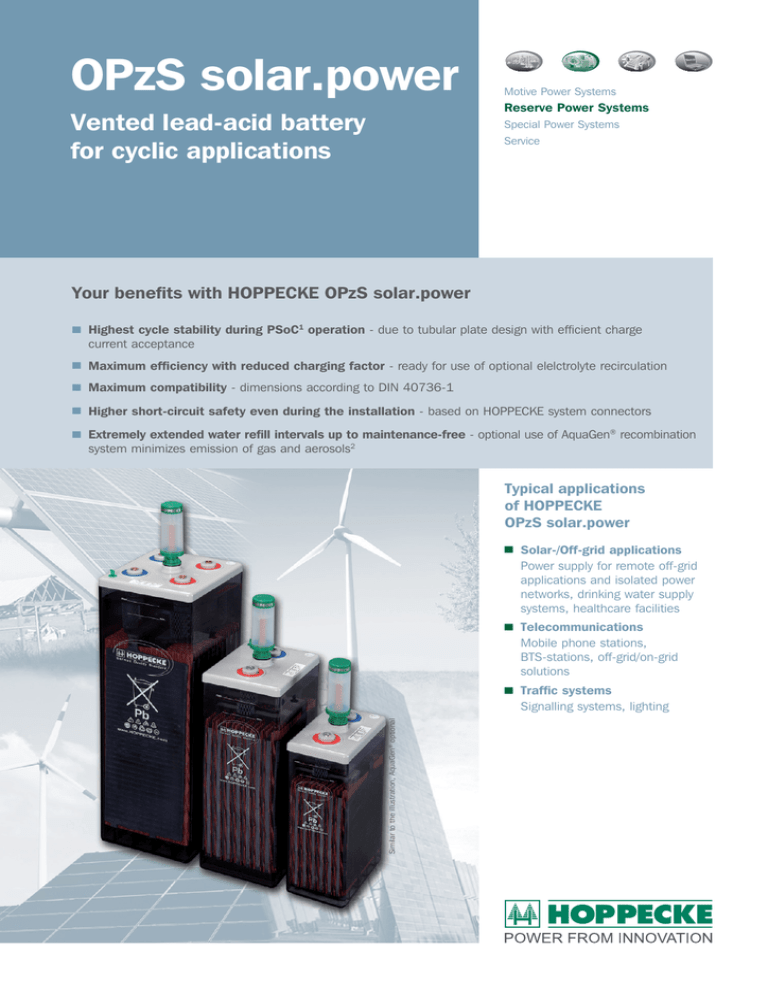

Your benefits with HOPPECKE OPzS solar.power
■
Highest cycle stability during PSoC1 operation - due to tubular plate design with efficient charge
current acceptance
■
Maximum efficiency with reduced charging factor - ready for use of optional elelctrolyte recirculation
■
Maximum compatibility - dimensions according to DIN 40736-1
■
Higher short-circuit safety even during the installation - based on HOPPECKE system connectors
■
Extremely extended water refill intervals up to maintenance-free - optional use of AquaGen® recombination
system minimizes emission of gas and aerosols2
Similar to the illustration, AquaGen® optional
Typical applications
of HOPPECKE
OPzS solar.power
■
Solar-/Off-grid applications
Power supply for remote off-grid
applications and isolated power
networks, drinking water supply
systems, healthcare facilities
■
Telecommunications
Mobile phone stations,
BTS-stations, off-grid/on-grid
solutions
■
Traffic systems
Signalling systems, lighting
OPzS solar.power
Type overview
Type
C100/1.85 V
Ah
4 OPzS solar.power 280
5 OPzS solar.power 350
6 OPzS solar.power 420
5 OPzS solar.power 520
6 OPzS solar.power 620
7 OPzS solar.power 730
6 OPzS solar.power 910
7 OPzS solar.power 1070
8 OPzS solar.power 1220
9 OPzS solar.power 1370
10 OPzS solar.power 1520
11 OPzS solar.power 1670
12 OPzS solar.power 1820
12 OPzS solar.power 2170
14 OPzS solar.power 2540
16 OPzS solar.power 2900
18 OPzS solar.power 3250
20 OPzS solar.power 3610
22 OPzS solar.power 3980
24 OPzS solar.power 4340
26 OPzS solar.power 4700
280.0
350.0
420.0
520.0
620.0
730.0
910.0
1070.0
1220.0
1370.0
1520.0
1670.0
1820.0
2170.0
2540.0
2900.0
3250.0
3610.0
3980.0
4340.0
4700.0
C50/1.85 V C24/1.83 V
Ah
Ah
265.0
330.0
395.0
490.0
585.0
685.0
860.0
1001.9
1145.0
1282.5
1425.0
1572.1
1715.0
2010.0
2349.4
2685.0
3015.0
3350.0
3685.0
4020.0
4355.0
244.8
307.2
369.6
453.6
542.4
633.6
796.8
930.3
1063.2
1192.3
1324.8
1458.6
1591.2
1843.2
2163.0
2472.0
2764.8
3072.0
3388.0
3696.0
4004.0
C10/1.80 V C5/1.77 V
Ah
Ah
213.0
266.0
320.0
390.0
468.0
546.0
686.0
800.6
915.0
1026.0
1140.0
1255.8
1370.0
1610.0
1881.3
2150.0
2412.0
2680.0
2951.7
3220.0
3488.3
181.5
227.0
272.5
345.0
414.0
483.0
590.0
691.3
790.0
886.5
985.0
1086.3
1185.0
1400.0
1631.9
1865.0
2097.0
2330.0
2562.1
2795.0
3027.9
Weight electrolyte
kg (1.24 kg/l)
max.* Length L
mm
max.* Width W
mm
max.* Height H
mm
Fig.
17.3
21.0
24.9
29.3
34.4
39.5
46.1
59.1
63.1
72.4
76.4
86.6
90.6
110.4
142.3
150.9
179.1
187.3
212.5
221.2
229.6
4.5
5.6
6.7
8.5
10.1
11.7
13.3
16.7
17.3
20.5
21.1
25.2
25.8
32.7
46.2
45.9
56.4
55.7
67.0
66.4
65.4
105
126
147
126
147
168
147
215
215
215
215
215
215
215
215
215
215
215
215
215
215
208
208
208
208
208
208
208
193
193
235
235
277
277
277
400
400
490
490
580
580
580
420
420
420
535
535
535
710
710
710
710
710
710
710
855
815
815
815
815
815
815
815
A
A
A
A
A
A
A
B
B
B
B
B
B
B
C
C
D
D
D
D
D
8000
C100, C50, C24, C10 and C5 =
Capacity at 100 h, 50 h, 24 h, 10 h and 5 h discharge
7000
* according to DIN 40736-1 data to be understood as maximum values
Service life in cycles and Depth of Discharge
9000
6000
5000
4000
3000
2000
1000
0
0
10
20
30
40
50
60
70
80
90
Depth of Discharge DoD [%]
Fig. D
H
Fig. C
Fig. B
L
L
L
4 OPzS solar.power 280 - 7 OPzS solar.power 1070 6 OPzS solar.power 910 12 OPzS solar.power 2170
L
14 OPzS solar.power 2540 16 OPzS solar.power 2900
18 OPzS solar.power 3250 26 OPzS solar.power 4700
Optimal environmental compatibility - closed loop for recovery of materials in an accredited recycling system.
IEC 60896-11
IEC 61427
1
2
Partial State of Charge (Teilentladebetrieb)
Similar to sealed lead-acid batteries
HOPPECKE Batterien GmbH & Co. KG
P.O. Box 1140 · D-59914 Brilon · Germany
Bontkirchener Straße 1 · D-59929 Brilon-Hoppecke
Phone: + 49 (0) 29 63 61-3 74
Fax:
+ 49 (0) 29 63 61-2 70
Email: [email protected]
Internet: www.hoppecke.com
Printed in Germany
W
W
W
W
Fig. A
Form OPzS solar.power EN/12.11/1 K
Number of cycles [n]
max. Weight
kg
All details in this brochure are based on state-of-the-art technology. Our products are subject to constant development. We therefore reserve the right to make changes.
Capacities, dimensions and weights
