Cisco | TelePresence VX Clinical Assistant | Installation guide | Cisco TelePresence VX Clinical Assistant Installation guide

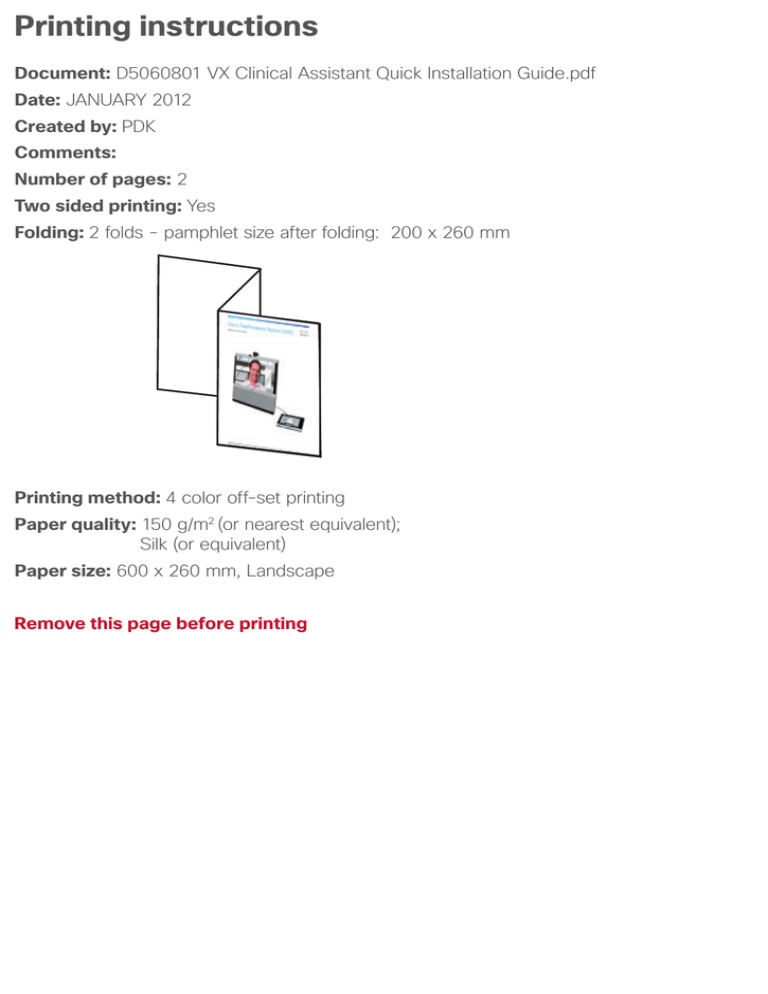

Printing instructions
Document: D5060801 VX Clinical Assistant Quick Installation Guide.pdf
Date: JANUARY 2012
Created by: PDK
Comments:
Number of pages: 2
Two sided printing: Yes
Folding: 2 folds - pamphlet size after folding: 200 x 260 mm
Printing method: 4 color off-set printing
Paper quality: 150 g/m2 (or nearest equivalent);
Silk (or equivalent)
Paper size: 600 x 260 mm, Landscape
Remove this page before printing
The VX Clinical Assistant is delivered with:
User documentation
• VX Clinical Assistant unit
• Precision HD Camera
• Remote Control with
batteries (4x AAA)
• Documentation
The user documentation for this
product, including compliance and
safety information, is found on the
Cisco web site.
1
Cables:
• VGA to DVI-I cable with
3.5 mm stereo audio cable
• Ethernet cable
• AC accessory cable (2x)
Go to: http://www.cisco.com/go/
telepresence/docs.
Carefully cut any banding and remove
the top of the box.
3
B
Remove the sides of the box to access
the unit and its accessories.
Mounting and connecting the camera
Place the included ramp up against the pallet,
unlock the system’s wheels (5x), and carefully
roll the unit down the ramp.
A
Reach behind the mounted display to remove
the thumbscrew and coverplate just under the
camera mounting surface.
A
B
B
Remove the camera box and accessories bag.
Carefully unpack the camera from its box and
the accessory content from the plastic bag.
Unpacking the system
A
2
Unpacking the unit, camera, and cables
C
Carefully loosen and remove the foam
protection around the unit.
NOTE: 12x Camera
shown. The locations
of HDMI and Camera
Control on the 4x
Camera are reversed.
Use the provided thumbscrew to securely mount
the camera through the bottom of the mounting
surface.
Locked
Unlocked
C
Replace the coverplate with the thumbscrew.
D
Connect the camera cables to the camera.
CAMERA
CONTROL
Camera
HDMI
VIDEO OUT
Camera Cables
Camera
Coverplate
Thumbscrews
Cables
Ramp
Display
4
Installing the battery
A
Remove the Access Panel on the lower
column by releasing the thumbscrew (1)
near the top of the panel.
If the Battery has enough charge, then the VX
Clinical Assistant is ready to be configured and
begin making calls.
B
Remove the thumb screw (1) that holds the
Base Plate in place.
C
If the Battery does not have enough charge,
provide power by plugging the system into
an appropriate outlet (120V or 240V) -- this
charges the Battery while powering the system
with AC power.
Remove the Base Plate by gently pulling the
plate forward and then up.
D
Locate the yellow Battery Connector that
extends from the battery and plug into the
Power Supply Unit in the base.
E
5
Installing accessory options
A number of optional add-ons for storage and peripheral use for the VX Clinical Assistant may be installed. Please refer to the unit’s User Manual for additional information and installation instructions.
Cisco TelePresence VX Clinical Assistant
QUICK INSTALLATION GUIDE
Splash Cover
Scope Hooks
NOTE: It is recommended that the unit is initially charged 4-6 hours or until the batter meter
indicates a full charge.
Drawer
Wireless Mount
Make sure the display is ON if it has not turned
on automatically.
PC Shelf
Replace the Base Plate and the Access
Panel.
Access Panel
Retractable
Cord Caddy
Power
Supply Unit
Laptop Tray
Storage Pod
Battery
Connector
Thumb
screw
Base Plate
Thumb
screw
6
Starting the system
When connected to an AC outlet, turn the unit ON with the
power switch at the rear of the unit’s base and then press and
hold the Power Button on the Battery Meter Control Panel for
one (1) second.
When operating with the battery only, press and hold the
Power Button on the Battery Meter Control Panel for one (1)
second.
NOTE: Ensure the POWER SWITCH is in the ON position.
Providing power to the system via the AC power cord will
automatically switch the system from battery power to
AC power; the battery power will shut off and will begin
to charge from the AC power.
NOTE: The switch at the unit’s base toggles AC power only.
The battery will operate when it has a charge and the system
is not connected to AC power. The battery will not charge
unless the AC switch is on and plugged in to an AC outlet.
AC Power Switch
AC Power Input
Power Button
(on the Battery
Meter Panel)
D5060801 VX Clinical Assistant Quick Installation Guide | January 2012 | © 2012 Cisco Systems, Inc. All rights reserved.

×
