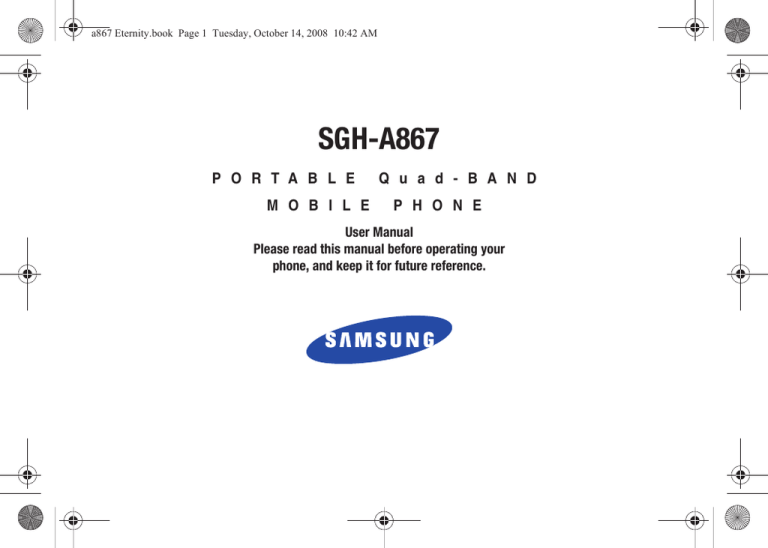

a867 Eternity.book Page 1 Tuesday, October 14, 2008 10:42 AM
SGH-A867
P O R T A B L E
M O B I L E
Q u a d - B A N D
P H O N E
User Manual
Please read this manual before operating your
phone, and keep it for future reference.
a867 Eternity.book Page 2 Tuesday, October 14, 2008 10:42 AM
Intellectual Property
All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to
the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to
Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited
to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation
and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you
agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or
otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All
applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers.
Samsung Telecommunications America (STA), LLC
Headquarters:
1301 E. Lookout Drive
Richardson, TX 75082
Toll Free Tel:
Customer Care Center:
1000 Klein Rd.
Plano, TX 75074
1.888.987.HELP (4357)
Internet Address: http://www.samsungusa.com
©
2008 Samsung Telecommunications America, LLC is a registered trademark of Samsung Electronics America, Inc. and its related
entities.
Do you have questions about your Samsung Mobile Phone?
For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at:
www.samsungtelecom.com/support
a867_UCHJ2_PS_101408_F4
a867 Eternity.book Page 3 Tuesday, October 14, 2008 10:42 AM
Your phone is designed to make it easy for you to access a wide variety of content. For your protection, we want you to be aware that
some applications that you enable may involve the location of your phone being shared. For applications available through AT&T, we offer
privacy controls that let you decide how an application may use the location of your phone and other phones on your account. However,
the AT&T privacy tools do not apply to applications available outside of AT&T. Please review the terms and conditions and the associated
privacy policy for each location-based service to learn how location information will be used and protected. In addition, your AT&T phone
may be used to access the Internet and to download, and/or purchase goods, applications, and services from AT&T or elsewhere from
third parties. AT&T provides tools for you to control access to the Internet and certain Internet content. These controls may not be
available for certain devices which bypass AT&T controls.
Licensed by Qualcomm Incorporated under one or more of the following patents: U.S.
Patent No. 4, 901, 307; 5, 056, 109; 5, 099, 204; 5, 101, 501; 5, 103, 459; 5, 107, 225; 5, 109, 390.
Openwave® is a registered Trademark of Openwave, Inc.
Disclaimer of Warranties; Exclusion of Liability
EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE
PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER
WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY
PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE
WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE
REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION
MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE
PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF
THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS.
a867 Eternity.book Page 1 Tuesday, October 14, 2008 10:42 AM
Table of Contents
Section 1: Getting Started ..............................................5
Setting Up Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Charging a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Switching the Phone On or Off . . . . . . . . . . . . . . . . . . . . . . . . . 9
Locking the Touch Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Setting Up Your Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Section 2: Understanding Your Phone .........................11
Features of Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Front View of Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Side Views of Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Rear View of Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Display Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Using the Multitasking Menu . . . . . . . . . . . . . . . . . . . . . . . . . 17
Section 3: Menu Navigation ......................................... 19
Menu Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Widgets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Widget Bar Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Understanding the Event Widget . . . . . . . . . . . . . . . . . . . . . . . 27
Section 4: Call Functions ............................................. 28
Displaying Your Phone Number . . . . . . . . . . . . . . . . . . . . . . . . 28
Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Making a Call from the Address Book . . . . . . . . . . . . . . . . . . . 29
Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Dialing Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
1
Video Share . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Call Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Data Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Options During a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Section 5: Entering Text ............................................... 40
Text Input Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Changing the Entry Method . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Changing the Text Input Mode - Keypad . . . . . . . . . . . . . . . . . 41
Using T9 Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Using Multitap Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Using Numeric . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Using Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Using the Handwriting Feature . . . . . . . . . . . . . . . . . . . . . . . . 44
Changing the Text Input Mode - Handwriting . . . . . . . . . . . . . 45
Handwriting Mode-Entering Characters . . . . . . . . . . . . . . . . . 46
Handwriting Mode-Entering Numbers . . . . . . . . . . . . . . . . . . . 46
Handwriting Mode-Entering Symbols . . . . . . . . . . . . . . . . . . . 47
Using the QWERTY Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . 48
Changing the Text Input Mode - Keyboard . . . . . . . . . . . . . . . 48
Section 6: Changing Your Settings .............................. 50
Sound Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Normal Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Silent Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
a867 Eternity.book Page 2 Tuesday, October 14, 2008 10:42 AM
Driving Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outdoor Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display and Light Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .
Illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Time & Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Phone Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Airplane Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Call Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth Secure Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring Your Phone’s USB Settings . . . . . . . . . . . . . . . . .
Network Profile Configuration . . . . . . . . . . . . . . . . . . . . . . . . .
Applications Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reset Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Memory Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Software Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Phone Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
53
55
57
59
60
61
65
66
67
69
70
70
72
73
74
75
75
Section 7: Video Features ............................................ 76
Cellular Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Music Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Section 8: AT&T Mobile TV ........................................... 80
AT&T Mobile TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Mobile TV Player . . . . . . . . . . . . . . . . . . . . . . . . . . .
Activating Full-Screen Mode . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Program Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the Options menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
80
82
83
83
84
Section 9: Understanding Your Address Book ............ 87
Address Book Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding a New Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Address Book Entry Options . . . . . . . . . . . . . . . . . . . . . . . . . .
Finding My Own Phone Number . . . . . . . . . . . . . . . . . . . . . . .
FDN Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Group Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Managing Address Book Entries . . . . . . . . . . . . . . . . . . . . . .
87
87
91
92
93
93
94
95
Section 10: My Stuff ..................................................... 98
My Stuff Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Audio Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Games & Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Record Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Memo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
World Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
2
a867 Eternity.book Page 3 Tuesday, October 14, 2008 10:42 AM
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Stopwatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Other Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Used Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Section 11: Camera .................................................... 108
Using the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Camera and Camcorder Options . . . . . . . . . . . . . . . . . . . . . . 109
Using the Camcorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Section 12: Messaging ............................................... 117
Types of Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Creating and Sending Messages . . . . . . . . . . . . . . . . . . . . . . 117
Additional Message Options . . . . . . . . . . . . . . . . . . . . . . . . . 118
Viewing New Received Messages . . . . . . . . . . . . . . . . . . . . . 119
Using Message Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Signing into Your Mobile Email . . . . . . . . . . . . . . . . . . . . . . . 121
Using Instant Messaging (IM) . . . . . . . . . . . . . . . . . . . . . . . . 121
Deleting Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Messaging Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Used Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Section 13: MEdia Mall ............................................... 126
Downloading Multimedia Files . . . . . . . . . . . . . . . . . . . . . . . 126
Ringtones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Games . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Cool Tools/Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Color Graphics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Answer Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
3
Multimedia Store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
MEdia Mall Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Section 14: AT&T Music ............................................. 129
Music Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Shop Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Using Playlists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
MusicID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
XM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Music Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Pandora . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Community . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Music Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Section 15: AT&T GPS ................................................ 140
Launching AT&T Navigator . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Using the Navigator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Obtaining Driving Directions . . . . . . . . . . . . . . . . . . . . . . . . . 141
Shopping for GPS Applications . . . . . . . . . . . . . . . . . . . . . . . 142
Where . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Section 16: Applications ............................................ 144
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Record Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
a867 Eternity.book Page 4 Tuesday, October 14, 2008 10:42 AM
Memo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
World Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stopwatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Yellow Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
148
148
149
149
150
150
150
Section 17: Web .......................................................... 151
Accessing the WAP Browser . . . . . . . . . . . . . . . . . . . . . . . .
Navigation Using the WAP Browser . . . . . . . . . . . . . . . . . . .
Navigating via a URL Address . . . . . . . . . . . . . . . . . . . . . . . .
Using Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Browser Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using your History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting Browser Preferences . . . . . . . . . . . . . . . . . . . . . . . .
About Browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessing the MEdia Net Homepage . . . . . . . . . . . . . . . . . .
Accessing the MEdia Net Site . . . . . . . . . . . . . . . . . . . . . . . .
Changing the WAP Profiles . . . . . . . . . . . . . . . . . . . . . . . . . .
151
151
154
155
157
158
159
159
160
161
161
Responsible Listening . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using Your Phone Near Other Electronic Devices . . . . . . . . .
FCC Hearing-Aid Compatibility (HAC) Regulations for
Wireless Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Potentially Explosive Environments . . . . . . . . . . . . . . . . . . .
Emergency Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FCC Notice and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . .
Other Important Safety Information . . . . . . . . . . . . . . . . . . .
Product Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Availability of Various Features/Ring Tones . . . . . . . . . . . . .
Battery Standby and Talk Time . . . . . . . . . . . . . . . . . . . . . .
Battery Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
174
176
176
177
179
179
180
180
181
182
182
182
183
Section 20: Warranty Information ............................. 185
Standard Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 185
Index ............................................................................ 189
Section 18: Accessibility ............................................ 164
Section 19: Health and Safety Information ............... 165
Health and Safety Information . . . . . . . . . . . . . . . . . . . . . . .
Samsung Mobile Products and Recycling . . . . . . . . . . . . . . .
UL Certified Travel Adapter . . . . . . . . . . . . . . . . . . . . . . . . . .
Consumer Information on Wireless Phones . . . . . . . . . . . . . .
Road Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
165
166
167
167
173
4
a867 Eternity.book Page 5 Tuesday, October 14, 2008 10:42 AM
Section 1: Getting Started
This section explains how to start using your phone by first
configuring your hardware, activating your service, and then
setting up your voice mail.
Setting Up Your Phone
Prior to use it is necessary to install both the battery and SIM into
their corresponding internal compartments. The microSD card
slot is also located in this same internal area.
1.
Remove the battery cover by pressing down on the cover.
2.
While applying pressure, slide the top portion up and away
from the silver, lower portion of the phone.
Installing the SIM Card
When you subscribe to a cellular network, you are provided with
a plug-in SIM card loaded with your subscription details, such as
your PIN, available optional services, and many others features.
Important!: The plug-in SIM card and its contacts information can be easily
damaged by scratching or bending, so be careful when handling,
inserting, or removing the card. Keep all SIM cards out of reach
of small children.
䊳
Carefully slide the SIM card into the SIM card socket (as
shown) until the card locks into place.
• Make sure that the card’s gold contacts face into the phone and
that the upper-left angled corner of the card is positioned as shown.
5
a867 Eternity.book Page 6 Tuesday, October 14, 2008 10:42 AM
Note: The Samsung A867 has been tested to support up to an 8GB memory
card.
Note: If the card is not inserted correctly, the phone does not detect the SIM
card. Re-orient the card back into the slot.
Installing the Memory Card
Your phone also supports the use of a memory card (microSD™)
for data storage of such things as data, music, pictures, and
video files. This type of memory card is designed for use with this
mobile phone and other devices.
1.
Installing the Battery
1.
Insert the battery into the opening on the back of the
phone, making sure the connectors align (1).
2.
Gently press down to secure the battery (2).
Place the microSD card into the slot (as shown).
• Make sure the microSD’s gold contact pins face downward and the
card is securely inserted.
Getting Started
6
a867 Eternity.book Page 7 Tuesday, October 14, 2008 10:42 AM
Charging a Battery
Your phone is powered by a rechargeable Li-ion battery. The
Travel Adapter is used to charge the battery, is included with your
phone. Use only Samsung-approved batteries and chargers.
Note: Long backlight settings, searching for service, vibrate mode, browser
use, and other variables may reduce the battery’s talk and standby
times.
Although you can use the phone while the battery is charging,
doing so will require additional charging time.
Note: You must fully charge the battery before using your phone for the first
time. A discharged battery recharges fully in approximately 4 hours.
Using the Travel Adapter
1.
With the battery installed, temporarily remove the plastic
cover (left side of phone) and plug in the wall charger’s
3.
Replace the battery cover onto the back of the phone (3).
4.
While applying pressure, slide the top portion towards the
camera area (4) until you hear a light click.
Note: Make sure the battery is properly installed before switching on the
phone.
7
connector into the jack.
Important!: Verify that the handset battery is installed prior to connection. If
the battery is not properly installed and the wall charger is
connected, the handset may power off and on continuously,
preventing proper operation.
a867 Eternity.book Page 8 Tuesday, October 14, 2008 10:42 AM
Low Battery Indicator
When the battery is weak and only a few minutes of talk time
remain; the battery icon (
) blinks and the device sounds a
warning tone at regular intervals. In this condition, your phone
conserves its remaining battery power, not by turning off the
backlight, but by entering the dimming mode. For a quick check
of your battery level, glance at the battery charge indicator
located in the upper-right corner of your device’s display.
+
Correct
Incorrect
2.
Plug the flat end of the Travel Adapter into the Power/
When the battery level becomes too low, the phone automatically
turns off.
Note: Long backlight settings, searching for service, vibrate mode, browser
use, and other variables may reduce the battery’s talk and standby
times.
Accessory Interface connector and the other end into a
standard AC wall outlet.
3.
When charging is finished, first unplug the adapter’s power
plug from the AC wall outlet and then remove the flat end
from the interface connector jack on the phone.
Note: Failure to unplug the wall charger before you remove the battery, can
cause damage to the phone.
Getting Started
8
a867 Eternity.book Page 9 Tuesday, October 14, 2008 10:42 AM
Switching the Phone On or Off
1.
Press and hold
or
Locking the Touch Screen
until the phone
1.
Press HOLD to lock the touch screen.
switches on.
Hold key
The phone launches the activation splash screen and then
proceeds to search for the network. Once the network has
been found, you can make or receive calls.
Note: The display language is preset to English at the factory. To change the
language, use the Language menu. For more information, refer to
“Changing Your Settings” on page 50.
2.
9
Press and hold
, until the phone switches off.
2.
Press HOLD again to unlock the touch screen.
a867 Eternity.book Page 10 Tuesday, October 14, 2008 10:42 AM
Setting Up Your Voice Mail
1.
In Idle mode, press
, then touch and hold
Accessing Your Voice Mail From Another Phone
.
You may be prompted to enter a password.
1.
Dial your wireless phone number.
2.
When you hear your voicemail greeting, press
3.
Enter your passcode using the onscreen keypad.
.
Note: You can also access your voicemail from the onscreen keypad by
touching
then pressing
or touch Call.
2.
Follow the tutorial to create a password, record a greeting,
and record your name.
Note: These steps may be different depending on your network.
Accessing Your Voice Mail
1.
In Idle mode, press
, then touch and hold
.
2.
When connected, follow the voice prompts from the voice
mail center.
Getting Started
10
a867 Eternity.book Page 11 Tuesday, October 14, 2008 10:42 AM
Section 2: Understanding Your Phone
This section outlines some key features of your phone. It also
displays the screen and the icons that appear when the phone is
in use.
Features of Your Phone
Your phone is lightweight, easy-to-use and offers many
significant features. The following list outlines a few of the
features included in your phone.
• Touch screen provides quick response to a variety of in-phone menus
and options
• Multitasking
• User friendly, menu driven access to features and options
• Ready access to the Internet
• Built-in Bluetooth technology
• Instant Messaging capability
• AT&T GPS Navigation functionality provides real-time navigation
• microSD card compatibility for use in data storage and access
• Games & Apps feature provides Files, Games, Organizer, Alarm,
Calendar, Tasks, Calculator, World Clock, Unit Converter, Timer, and
Stopwatch.
Front View of Your Phone
10
1
9
2
3
4
8
5
7
6
11
a867 Eternity.book Page 12 Tuesday, October 14, 2008 10:42 AM
1.
2.
External speaker allows you to hear the caller and any
7.
seconds to turn the phone on or off. While in a menu,
Display shows the information needed to operate your
pressing this key once cancels the current input and twice
returns the phone to Idle mode.
phone, such as the received signal strength, phone battery
level, time, etc..
3.
4.
Menu key allows you to access your phone’s menu
functions menu, such as Address Book, AT&T Music, AT&T
Groups and Favorites lists.
GPS, MEdia Net, My Stuff, Tools, and Settings.
Dial key allows you to access the Phone Functions menu,
Talk/Send key allows you to power on the phone, make or
answer a call, access your History, Call Manager, and Call
Block features. Press and hold to redial the last phone
number.
6.
8.
Contacts key allows you to access your current Contacts,
such as Dialer, Contacts, and New Message screen.
5.
Power/End key ends a call. Press and hold for three
ringtones or sounds offered by your phone.
Back key allows you to return to the previous menu. This
key also allows you to return to the previous page within
• While in the Menu screen, this key is replaced with the Messaging
key, whose function is to create new text messages.
9. Light sensors use the ambient light level to adjust both
screen brightness/contrast and keypad access.
• In a bright light condition (outdoors), the sensors cause the phone to
increase the brightness and contrast for better viewing.
• In a dark light condition (while talking on the phone) the sensors
detect talk activity and lock the keypad to prevent accidental key
presses.
10. Hold key ( HOLD ) lets you lock or unlock the touch
the Web browser.
screen. If you receive an incoming call while the screen is
• While in an event, touch once to display the calendar in the Month
view.
• While on the Idle screen, pressing
also displays the
calendar in the Month view.
locked, you can answer it by either:
• Pressing
to receive the call without unlocking the screen.
• Pressing HOLD to unlock the screen and answer the call
normally.
Understanding Your Phone
12
a867 Eternity.book Page 13 Tuesday, October 14, 2008 10:42 AM
Side Views of Your Phone
1.
Volume keys allow you to adjust the ringer volume while in
standby mode or adjust the voice volume during a call.
When receiving an incoming call, briefly press down either
volume key (
7
) to mute the ring tone.
• Press and hold either volume key to reject the call and send it
directly to voicemail.
2. Power/Accessory Interface connector allows you to
1
connect a Travel Charger or other optional accessories
such as a USB/data cable or a hands-free headset for
convenient, hands-free conversations.
3.
5
2
4.
13
4
Illumination bar glows using different user-defined colors
depending on the event (call, alarm, text message).
5.
3
Microphone allows other callers to hear you clearly when
you are speaking to them.
6
• For more information, refer to “Illumination” on page 59.
Camera key allows you to both access the Picture camera
menu and take pictures when you are in camera mode.
Press to launch to activate the camera.
a867 Eternity.book Page 14 Tuesday, October 14, 2008 10:42 AM
6.
Multitask key (
) launches the multitask menu. This
menu provides ready access to some of the most
commonly used features such as: Call, Music Player, Main
menu, MEdia Net, and Messaging.
7.
Display Layout
Your display screen provides a wealth of information about the
phone’s status and options, as well as providing access to the
new widget bar. The display has 4 main areas:
Earphone jack allows you to plug in an optional headset for
Indicators
listening of music playback. Music can also be heard via a
paired Bluetooth headset.
Rear View of Your Phone
1
Main Display
area
3.0
Widget bar
Function
categories
1.
Camera lens is used to take pictures and shoot videos.
Understanding Your Phone
14
a867 Eternity.book Page 15 Tuesday, October 14, 2008 10:42 AM
Widget bar
Displays when a call is in progress.
The Widget bar provides quick access to those functions you use
most frequently (Analog Clock, Digital Clock, Dual Clock, TV,
Today, Calendar, Photo, Birthday, Sound Profile, Alarm, Bluetooth,
Calculator, Music player and Event). For more information about
the Widget bar, see “Widget Bar Navigation” on page 26.
Function categories
Function categories are also shortcuts to Dial (for dialing a
number), Contacts (accessing the Contacts list), and Menu
(displays the icons for application access). While viewing the
Main Menu, the Menu category changes to Messaging, that can
be used to view and create messages.
Displays within the lock screen when a call has been
missed.
Displays within the Event Widget as a tab when a
call has been missed.
Displays your battery’s charge level. The more bars you
see, the more power you have remaining.
Displays when your connection to an Edge network is
active.
Displays when your phone is communicating with the
Edge network.
Icons
This list identifies the symbols you’ll see on your phone’s display
and Indicator area:
Displays your current signal strength. The greater the
number of bars, the stronger the signal.
Indicates that the Airplane Mode is active. You cannot
send or receive any calls or access online information.
Displays when you are out of your service area.
15
x
Displays when your connection to a 3G network is
active.
Displays when the phone is accessing services in a
3G+ (HSDPA) network. When data is being transferred,
this icon animates.
Displays when your phone is communicating with the
3G network.
a867 Eternity.book Page 16 Tuesday, October 14, 2008 10:42 AM
Displays when an internal microSD memory card is
detected.
Displays when the phone is connected to a computer
via a supported USB cable connection.
Displays within the Indicators area when a new text
message is received.
Displays within the Event Widget as a tab when
a new text message is received.
Displays within the Indicators area when a new
Multimedia message is received.
Displays within the Event Widget as a tab when
a new voicemail message is received.
Displays within the Event Widget as a tab when
an event has been missed.
Displays within the Indicators area when a new voice
mail is received.
Displays when you set an alarm to ring at a specified
time. For more information, refer to “Alarms” on
page 145.
Displays when Call forwarding is set to Forward always.
For more information, refer to “Call Settings” on
page 66.
Displays when the Sound profile is set to Normal
(volume levels 1-7).
Displays when the Sound profile is set to silent or the
volume has been manually lowered below level 1.
Displays when the Sound profile is set to Driving.
Displays when the Sound profile is set to Outdoor.
Displays when Bluetooth is active and a compatible
device has been paired.
Displays when a Bluetooth stereo headset has been
paired with the phone.
For more details on configuring your phone’s settings, see
“Changing Your Settings” on page 50.
Understanding Your Phone
16
a867 Eternity.book Page 17 Tuesday, October 14, 2008 10:42 AM
Using the Multitasking Menu
This key (
) launches the Multitask menu that can be
activated from within any active window or page on the phone.
There is now no need to stop what you are doing, if you quickly
want to jump out and activate another common feature.
The idea is to allow you to temporarily exit from your current
location to access a group of common functions such as: Call,
Music Player, Main menu, MEdia Net, and Messaging. This key
keeps you from having to completely exit from your current task
or window, whether that be a text message, a web page, or an
active call, just to quickly do something else.
Here is an example:
You might be in the middle of typing up an email or text message,
when you suddenly realize that you need to make a quick call.
Typically, you would have to exit from your current message,
navigate to the Idle screen, make your call (page 28), after which
you would have to go back and re-create your message.
Using this same situation, all you would have to do is:
1.
Press
until the you see the Multitask menu screen.
2.
Touch Call, then enter your number and continue the call.
3.
Once you are done, hang up the call normally and you are
returned to the previous message screen.
17
Multitask Functions
Pressing the Multitasking key (
) on the right side of the
handset, allows you to choose from one of the following
functions:
• Call: allows you to make a voice call while using the handset for other
tasks. If Music Player is active, it is muted during the call.
• Music Player: allows you to launch the Music Player while using the
handset for other tasks. If an incoming call is received or you want to
make a call, the Music Player is muted.
• Main menu: allows you to quickly access the Main menu.
• MEdia Net: allows you to launch the MEdia Net browser while using
the handset for other tasks.
• Messaging: allows you to send a text or multimedia message while
using the handset for other tasks.
• Back: exits the Multitask menu and returns you to your previously
active menu or page.
a867 Eternity.book Page 18 Tuesday, October 14, 2008 10:42 AM
Multitask key
Multitask menu
Understanding Your Phone
18
a867 Eternity.book Page 19 Tuesday, October 14, 2008 10:42 AM
Section 3: Menu Navigation
This section explains the menu navigation for your phone. The
A867 has done away with the need for navigation wheels or
keypads. The A867 is completely navigable by either an onscreen
touch or scroll.
• Touching an onscreen option activates the feature.
• Long menu list can be easily viewed by either using your fingertip to
scroll either up or down the onscreen list, or pressing the volume
keys up or down.
Hold key
Idle screen
Menu Navigation
You can tailor the phone’s range of functions to fit your needs
using both menus and widgets. Menus, sub-menus, and features
can be accessed by scrolling through the available onscreen
menus.
Locking and Unlocking the Phone
When the device is locked, press HOLD to unlock the A867 and
display the Idle screen.
The Idle screen provides access to a wealth of phone features,
including popup Widgets and Menu tabs (Dial, Contacts, and
Menu).
Menu tabs
19
a867 Eternity.book Page 20 Tuesday, October 14, 2008 10:42 AM
Opening an Application
䊳
Tap the associated onscreen icon.
• Press
to exit from the current menu and return to the
previous screen.
• Press
to exit from the current location/function, cancel
your input and return to the Main Menu.
• Press
twice to return to the Idle screen.
Navigating Through Menus
As you navigate through a menu, options display on the screen
as scrollable lists. Menu tabs (located at the bottom of most
screens, provide access to additional screen options).
To navigate a scrollable list:
1.
From the Idle screen, touch
2.
Touch and gently press an onscreen option.
.
3.
From the available list of options you can either:
• Touch an onscreen entry to activate it.
• Firmly press and slide your finger up or down the screen to scroll
through lists of menu items.
• Navigate through a long list by pressing either volume key up or
down.
Note: Tapping or touching individual entries on the list opens the list entry.
Menu Navigation
20
a867 Eternity.book Page 21 Tuesday, October 14, 2008 10:42 AM
Note: Scrolling requires that you press firmly on the screen then drag. When
scrolling through a list (see below) make sure not to touch or press
individual entries on the list as this will open the list entry.
1.
Touch
➔ Settings.
2.
Accessing the Phone’s Main Menu
Once you display a menu list, tapping an item causes different
functions, depending on its function. For example, you can open
another list, add text to a message, send a message, play a song,
or view a photo.
21
Scroll through the list to then touch/activate the desired
phone function.
a867 Eternity.book Page 22 Tuesday, October 14, 2008 10:42 AM
Using the Power Search Tab
Within the Contacts list (sorted alphabetically) the Power Search
tab allows to quickly “thumb through” the alphabetical listing of
entries by first letter (A ➔ B ➔ C, etc...). The Power Search tab is
located along the left side of the screen and Contacts entries are
then selected by pressing their name fields.
1.
2.
Touch
➔ Tools ➔ Alarms ➔ Create Alarm.
Touch the Alarm Time field and then adjust the hour and
minutes values by using either the up/down input arrows
or by quickly sliding your fingertip over the numbers.
Power Search tab
Scrolling Through Field Entries
Some screens will ask you to assign a value to an onscreen field
by either touching the up/down selection arrows or by quickly
sliding through these values by using your fingertip. An example
of these actions can be found on the Alarm page.
Menu Navigation
22
a867 Eternity.book Page 23 Tuesday, October 14, 2008 10:42 AM
Widgets
The Widget bar provides quick access to mini-programs
(widgets). This bar (located at the left of the Idle screen) gives
you information at a glance and provides easy access to
frequently used tools such as (Analog Clock, Digital Clock, Dual
Clock, TV, Today, Calendar, Photo, Birthday, Sound Profile, Alarm,
Bluetooth, Calculator, Music Player and Event). This bar makes
great use of the available space on your A867. The Widget bar is
a pane on the side of the display screen that houses userselected mini-applications and keeps them organized and always
accessible.
You can easily customize the Widget bar by allowing you to keep
these mini-apps docked within the bar itself or they can also be
undocked by dragging anywhere onto your Idle screen.
Adding and Deleting Widgets
To select which items are displayed or hidden within the Widget
bar:
1.
From Idle mode, touch
➔ Settings ➔ Display and
Light ➔ Widget.
2.
Touch the check box to place a check mark next to the
Widget you want to display.
Note: By default all widgets are checked and will display on the Widget bar.
– or –
Widget
bar
Touch the check box again to remove the check mark and
hide the Widget.
The following table contains a description of each available
Widget, it’s function, and how to navigate to that particular
application. If the application is already described in another
section of this user manual, only a cross reference is then
provided.
23
a867 Eternity.book Page 24 Tuesday, October 14, 2008 10:42 AM
Analog Clock: displays the current time on an
analog clock.
• Touch, drag and drop the Analog clock onto
the desktop to view the time in an analog
format.
10
36 AM
36
Calendar: allows you to access the Calendar
feature.
With the Calendar feature, you can:
• Consult the calendar by month, week, or day.
• Set schedules and note anniversaries.
Digital Clock: displays the current time on a digital
clock.
• Write memos to keep track of your schedule.
• Touch, drag and drop the Digital clock onto the
• For more information, refer to “Calendar” on
desktop to view the time in a digital format.
Dual Clock/World Clock: displays current time in
other user-defined international locations and find
out what time it is another part of world.
• Touch, drag and drop the World clock onto the
desktop to view the time in dual locations. For
more information, refer to “World Clock” on
page 149.
tv
• Set an alarm to act as a reminder, if necessary.
page 146.
Photo: allows you to view the list of photos
downloaded from the web server, received in
messages, or taken by the camera. You can then
assign the image as the current wallpaper.
• For more information, refer to “Using the
Camera” on page 108.
MobileTV: allows you to watch television shows on
you device.
• For more information, refer to “AT&T Mobile
TV” on page 80.
Menu Navigation
24
a867 Eternity.book Page 25 Tuesday, October 14, 2008 10:42 AM
Birthday: displays an onscreen alert for a birthday
occurring today on the calendar. These dates have
been previously entered for an entry within the
Address Book on the day assigned for that person's
birthday.
Bluetooth: From this application you can activate
Bluetooth and configure it so other Bluetooth
devices can see your device by name.
• For more information, refer to “Adding a New
• For more information, refer to “Bluetooth” on
• Touch, drag and drop, then tap the Bluetooth
icon to launch the Bluetooth application.
Contact” on page 87.
page 67.
• For more information, refer to “Understanding
the Event Widget” on page 27.
0
• For more information, refer to “Calculator” on
Sound Profile: allows you to quickly modify your
current sound Profile.
• For more information, refer to “Sound Profiles”
Calculator: allows you to use a built-in calculator.
page 148.
Monday
SEP 22 2008
Today: displays the current date (day/month/year).
on page 50.
Alarm: allows you to access alarm settings.
• For more information, refer to “Alarms” on
page 145.
1:01 Play 00:01:23
Music Player allows you to play music files stored
on the phone and control their playback.
• Touch, drag and drop, then Tap the Music
Player icon to launch the Music player. For
more information, refer to “Music Player” on
page 129.
• Touch the arrows on the widget to control the
playback of the currently active song.
25
a867 Eternity.book Page 26 Tuesday, October 14, 2008 10:42 AM
Widget Bar Navigation
You can drag the widgets to the desktop to use the application or
feature, then drag it back to the Widget Bar when you are
finished.
Note: Many widgets can be used directly from the widget bar without
dragging them onto the screen (ex: Bluetooth and Alarms).
Widget
Accessing the Widget Bar
1.
Tap the Widget bar tab, located on the left side of the main
display to open the widget (quick access) bar.
2.
Tap the Widget bar tab again to close the widget bar.
Undocking Widgets
You can easily customize the Widget bar by either keeping these
mini-apps docked within the bar itself or undocking them by
dragging anywhere onto your Main display screen.
1.
Touch and hold the widget (1).
2.
While still holding the icon, in a single motion, drag it over
to the new location and release your finger from the screen
(2). The application is now located in another menu or in
Rearranging Widgets
You can also customize the Widget bar by arranging the location
of your current widgets. This can help you place your frequently
used (favorite) widgets at the top of the list.
1.
Touch and hold the widget (1).
2.
While still holding the icon, in a single motion, drag it away
from the widget bar (2) then drag it back into its new
location in the list.
the case of this example, on the Main display screen.
Menu Navigation
26
a867 Eternity.book Page 27 Tuesday, October 14, 2008 10:42 AM
Activating a Widget
1.
Displays within the Event Widget as a tab when a
new voicemail message is received.
Locate your widget (whether it is still docked in the Widget
bar or in another location).
2.
Touch the icon to activate the mini-application (widget).
Scrolling Through the Widget Bar
Although the Widget Bar contains a number of widgets, it can
only display seven or eight widget icons at one time on the bar.
䊳
Displays within the Event Widget as a tab when a
scheduled event has been missed.
Displays within the Birthday Widget (see below)
when a birthday event (assigned within the Contact
entry) is within 29 days of the current day.
Use your fingertip to scroll up and down along the Widget bar.
Tip: Flick the screen in an upward motion to quickly scroll through the list.
Understanding the Event Widget
The Event Widget is an area that displays on the screen to inform
you of calendar events, missed calls, or when new messages
have been sent to the phone. The following is a description of
these onscreen notification tabs:
Displays within the Event Widget as a tab when
a new text message is received.
Displays within the Event Widget as a tab when
a call has been missed.
27
Indicators Area
Event Widget (with tabs)
Birthday Widget
a867 Eternity.book Page 28 Tuesday, October 14, 2008 10:42 AM
Section 4: Call Functions
This section describes how to make or answer a call. It also
includes the features and functionality associated with making or
answering a call.
Making an International Call
1.
For more information, refer to “Call Settings” on page 66.
Touch
2.
From the Idle screen, touch
2.
Touch
or press
.
Use the onscreen keypad to enter the country code, area
• If you make a mistake, touch
been deleted.
3. Touch
or press
and use the onscreen
keypad to enter the number you wish to dial.
. The + character
code, and phone number.
➔ Settings ➔ Phone Information.
Making a Call
1.
, then touch and hold
appears.
Displaying Your Phone Number
䊳
Touch
until the desired numbers have
.
Correcting an Entered Number
Use the following steps to correct a mis-typed entry when
dialing.
Note: When you activate the Auto Redial option in the Voice Call menu, the
phone will automatically redial up to 10 times when the person does
not answer the call or is already on the phone. For more information,
refer to “Call Settings” on page 66.
1.
After entering a number using the keypad.
• If you make a mistake, touch
to erase a single character.
• Press and hold
to erase the entire string of numbers.
2. Press
to return to the Idle screen.
Ending a Call
䊳
Press
key.
Call Functions
28
a867 Eternity.book Page 29 Tuesday, October 14, 2008 10:42 AM
Dialing a Recent Number
All incoming, outgoing and missed calls are recorded in the Calls
menu. If the number or caller is listed in your Address Book, the
associated name also displayed.
1.
From the Idle Screen, briefly press
2.
Find the number by touching the drop down arrow to the
.
To call the
selected number
right to view the call logs from the various options screens.
Choose from: All, Missed, Made, or Received.
3.
Touch
next to the desired phone number (or entry
name if already in your Address Book).
Making a Call from the Address Book
– or –
From the entry’s Details page, touch Call or press
to dial the number.
Note: Press and hold
29
To save the
number to the
Address Book
to redial the last number.
You can store phone numbers that you use regularly on the SIM
card or in the phone’s memory. These entries are collectively
called the Address Book.
For further details about the Address Book feature, see “Finding
an Address Book Entry” on page 91.
a867 Eternity.book Page 30 Tuesday, October 14, 2008 10:42 AM
Answering a Call
Dialing Options
When a call is received the phone rings and displays the caller’s
phone number, or name if stored in the Address Book.
1.
From the Incoming call screen, press
.
• If the Any Key option is activated (Settings ➔ Calls ➔ General ➔
Call Answer), you can press any key to answer a call except
.
Note: To reject an incoming call, press and hold either Volume key on the left
side of the phone. A quick press of a Volume key silences the ringer on
an incoming call.
2.
End the call by pressing
Video Share
.
Note: You can answer a call while using the Address Book or other menu
feature. After ending the call, the phone returns to the previously active
function screen.
Other Answering Options
䊳
Briefly press down either volume key (
The Video Share features allows you to place a call and share live
or recorded video while on the call. You can initiate or receive
video by using the following steps.
Initiating and Receiving a Video Share Session
To initiate and receive a Video Share session:
1.
When receiving an incoming call:
䊳
From the Idle screen and Main menu, you have the option to
access the Dialer and initiate a call. When you manually enter
numbers from the Dialer, you will see three dialing options
displayed on the screen.
• Call: dials the current number entered using the onscreen keypad.
• Send Message: to create a new text message and address it to either
a manually entered number or a current entry from your Address Book.
• Create Contact: to store the current phone number into your Address
Book as either a new entry or an updated number.
From the Idle screen, touch
and use the onscreen
keypad to enter the number you wish to dial.
) to mute the
ring tone.
2.
Touch
Press and hold either volume key to reject the call and send it
3.
Once the call is answered, if you're both capable of Video
directly to voicemail.
or press
.
Sharing, the Video Share icon appears on the screen and
turn from grey to black (
).
Call Functions
30
a867 Eternity.book Page 31 Tuesday, October 14, 2008 10:42 AM
4.
Touch the Video Share onscreen button to invite the other
party to see video shot from your phone. “Establishing a
Stop: to stop the video share feature.
Video Connection” displays. A message is sent to the
recipient “###-###-#### Wants to Share Video With
Brightness: to adjust the brightness for the video.
You.”
Important!: When establishing a Video Share session, only the sender of the
video clip can save the file.
5.
Landscape: to rotate the picture from Portrait to
Landscape mode. Press any key to revert back to
Portrait.
Rotate: to rotate from Portrait to Landscape, when
Video Share is selected from the Camcorder options.
The recipient will receive a Video Share pop-up to either
Accept or Decline the Video Share call. They should
press the Accept soft key to continue or Decline soft key
the invitation.
6.
Mute: Select this icon to turn the audio off.
If the Auto Record option is On, a Recording Started popup
displays showing the memory available for the video.
Note: The Auto Record option (page 72) must be enabled for this popup to be
displayed.
Tip: To stop the video share call press the Options soft key and press the
Select the “Video Share End” soft key.
8.
7.
Stopped. Save the Recorded Video?” If accepted, the
displayed as icons on the screen. Touch the corresponding
recorded videos are stored in the My Stuff ➔ Video folder.
icon to activate the feature. Once selected, the following
options display above the right soft option key:
31
A pop-up message displays “Video Sharing has been
During a Video Share session, the following functions are
a867 Eternity.book Page 32 Tuesday, October 14, 2008 10:42 AM
Video Share (In-Call)
Viewing All Calls
You can begin a Video Share call during an existing call by
touching Video Share ➔ Live.
1.
select the All option. All calls made, received, and missed
Play a Video Share Recording
During a call (while not in a Live Video Share session) you can
share a recorded video for the recipient.
1.
Touch Video Share ➔ Recorded and then select from the
available files in your Videos folder.
2.
To make the connection, the recipient should press Accept
and the Video begins to play on both phones.
Recent Calls
The phone stores the numbers of the calls you’ve dialed,
received, or missed in the Calls menu. You can access this menu
by from the Idle screen by doing one of the following:
1.
Briefly press
.
– or –
Touch
2.
From the Recent Calls menu, touch the drop-down and
are listed.
2.
Touch an entry from the list to view the following options:
• Details: (located at the bottom of the page) allows you to see the
number of the sender, the date and time of the call, the length of
the call, and the contact’s name, if listed in your Contact List.
• Call: allows you to return the call automatically.
• Video Share: allows you to set up a Video Share call with the caller,
if their handset is Video Share enabled.
• Send Message: allows you to sent a text or Multimedia message to
the caller.
• Save: allows you to save the number to your Address Book on
either the phone or SIM card.
• Block Caller: allows you to add the sending number to your Reject
List, where incoming calls are sent directly to voice mail.
• Delete: allows you to delete the selected call or All calls.
➔ Tools ➔ Recent Calls.
Touch the drop-down list located at the top right of the
screen to select from All, Missed, Made, or Received.
If the number or caller is listed in your Address Book, the
associated name is displayed.
Call Functions
32
a867 Eternity.book Page 33 Tuesday, October 14, 2008 10:42 AM
Viewing Missed Calls
The number of calls you have missed is displayed on the Idle
screen.
1.
Touch the onscreen Missed Calls dialog. The most recently
Viewing the Details of a Missed Calls
To view the details of a selected missed call, use the following
steps:
1.
Touch the Missed Calls dialog. A list of the most recently
2.
Touch the desired missed call. Information for that caller is
missed calls are displayed.
missed calls is displayed.
then displayed within a Missed Calls page. For more
information regarding the available options, see “Viewing
All Calls” on page 32.
Calling Back a Missed Call
To call back a missed call number:
1.
Touch Call (if there was only a single missed call) or touch
the Missed Calls dialog. A list of the most recently missed
calls is displayed.
Note: If there is a voicemail sent by the same number, associated icons are
displayed and can then be selected.
2.
Scroll through the list of missed calls.
3.
To move to another call type, touch the call drop-down list
(upper right of Calls page) and make your selection.
33
2.
Touch the desired missed call.
3.
Touch either Call or press
.
a867 Eternity.book Page 34 Tuesday, October 14, 2008 10:42 AM
Saving a Missed Call to your Address Book
1.
missed calls is displayed.
2.
Touch the desired missed call.
Note: You may see different choices depending upon the settings for your
“Save New Contacts to” option.
3.
Touch Save ➔ New.
For further details about the Address Book feature, see “Adding
a New Contact” on page 87.
Sending a Message to a Missed Call
1.
Touch the Missed Calls dialog. A list of the most recently
missed calls is displayed.
2.
Touch the desired missed call.
3.
Touch Send Message.
4.
At the “Create” screen, touch the empty text field and use
the onscreen alphanumeric keys to type in a message.
5.
6.
To add additional recipients, touch the yellow recipients
field. Insert new recipients by:
Touch the Missed Calls dialog. A list of the most recently
• Pressing the yellow field and then entering the number manually.
• Selecting from Recent Contacts to choose your recipient.
• Select an entry from your Contacts list.
• Selecting members of a Group.
7. Touch Send to initiate delivery.
Deleting a Missed Call
1.
Touch the Missed Calls dialog. A list of the most recently
missed calls is displayed.
2.
Touch Delete.
3.
Place a check mark adjacent to those entries you wish to
select for deletion.
• Touching All toggles the placement of a check mark next to every
entry in the list.
4. Touch Delete.
Note: You can press
at any time to exit the Missed Call feature.
When you are done with your message, touch OK.
Call Functions
34
a867 Eternity.book Page 35 Tuesday, October 14, 2008 10:42 AM
Call Time
1.
Touch
5.
➔ Tools ➔ Recent Calls ➔ Call Manager ➔
reset all counters. For more information, refer to “Change
Phone Password” on page 64.
Call Time.
2.
Choose from one of the following options:
• Last Call Duration: shows the length of time for the last call.
• Total Dialed: shows the total length of time for the calls made.
• Dialed Voice Calls: shows the total length of time for all voice calls
made.
• Dialed Data Calls: shows the total length of time for all data calls
made.
• Total Received: shows the total length of time for the calls
received.
• Received Voice Calls: shows the total length of time for all voice
calls received.
• Received Data Calls: shows the total length of time for all data
calls received.
• Total Call Duration: shows the total length of time for all calls made
and received.
3. Reset these fields by touching Reset All.
4.
Touch Yes to confirm the reset or No to cancel the
operation.
35
Enter the user-defined password and touch Confirm to
• Press
or
to cancel this operation.
Data Counter
Data Counter refers to the amount of data (volume) to and from
the phone.
1.
Touch
➔ Tools ➔ Recent Calls ➔ Call Manager ➔
Data Counter.
2.
Choose from one of the following options:
• Last Sent: shows the size of the last data packet (measured in KB kilobytes) sent by the phone since the last time this counter was
reset.
• Last Received: shows the size of the last data packet (measured in
KB - kilobytes) received by the phone since the last time this
counter was reset.
• Total Sent: shows the size of the total data packet (measured in KB
- kilobytes) which have been sent by the phone since the last time
this counter was reset.
• Total Received: shows the size of the total data packet (measured
in KB - kilobytes) which have been received by the phone since the
last time this counter was reset.
a867 Eternity.book Page 36 Tuesday, October 14, 2008 10:42 AM
3.
To set these counters back to zero, touch Reset.
• Place a checkmark adjacent to those individual fields you would like
reset.
• Touch All to place a checkmark adjacent to all fields.
4. Enter the password and touch Confirm to reset all
counters. For more information, refer to “Change Phone
Password” on page 64.
5.
Press
or
to cancel this operation.
Options During a Call
Your phone provides a number of control functions that you can
use during a call.
Adjusting the Call Volume
During a call, to adjust the earpiece volume, use the Volume keys
on the left side of the phone.
䊳
Press
to increase the volume level and press
to decrease the volume level.
In Idle mode, you can also adjust the ringer volume using these
same keys.
In-Call Options
During an active call there are several functions available by
touching a corresponding onscreen button.
• Spkr On/Off routes the phone’s audio through either the speaker or
through the earpiece.
– Touch Spkr On to route the audio through the speaker. (You can adjust
the speaker volume using the volume keys.)
– Touch Spkr Off to use the phone’s earpiece.
• Mute/Unmute turn the onboard microphone either on or off.
– Touch Mute during a call to mute the microphone.
– Touch Unmute to unmute the microphone.
• Video Share lets you share video during an active call. For more
information, refer to “Video Share” on page 30.
• Dial to display the onscreen keypad, where you can choose to Save
the entered number to your Address Book, Send a new text message,
or initiate a new call.
• Hold to place the current active call on hold.
• More to access additional in-call options such as:
– Address Book to display your current Address Book entries.
– Save to Address Book to store the current phone number into your
Address Book.
– View Address Book Details to view the detail information for the
current Address Book entry. This function is only available when the
number was previously entered into the Address Book.
Call Functions
36
a867 Eternity.book Page 37 Tuesday, October 14, 2008 10:42 AM
– Send Message to send a new text message.
– Memo to create a new memo during the active call.
Placing a Call on Hold
You can place the current call on hold at any point during a
conversation. You can also make another call while you have a
call in progress if your network supports this service.
1.
While on a call, touch
Hold
. This action places the current
caller on hold (which is displayed onscreen as a
greyed-out box).
2.
You can later reactivate this call by touching Resume .
Switching Between Calls
When you have an active call and a call on hold, you may switch
between the two calls, changing the one on hold to active and
placing the other on hold.
1.
2.
While on a call, touch
Touch
Dial
Hold
.
and enter the new phone number or look it up
in the Address Book.
3.
Press
to dial the second number.
- or Touch New Call . Once connected, each call is displayed
within either an In call or On hold tab.
Note: The caller currently on hold appears within the On Hold tab.
37
Swap
.
• The current call (caller #2) is placed on hold and the previous call
on hold (caller #1) is then reactivated so that you can continue
conversing with that person.
2. Press
to end the currently active call.
To end a specific call:
1.
Press the associated tab (In call or On hold).
2.
Touch
3.
Press the
To making a new call while you have a call in progress:
1.
Touch
to end the specific call.
key to end the remaining call.
a867 Eternity.book Page 38 Tuesday, October 14, 2008 10:42 AM
Important!: For more information, see “Responsible Listening” on page 174.
Switching off the Microphone (Mute)
You can temporarily switch your phone’s microphone off, so that
the other person cannot hear you.
Example: You wish to say something to person in the room, but do not want
the person on the phone to hear you.
Note: If you are already in Video Share or you have a call on hold, you need to
select Mute/Unmute.
To switch the microphone off temporarily during a call:
Using the Speakerphone During an Active Call
While in an active call, it is possible to enable the speakerphone
feature.
1.
Dial the number and press
2.
Once the call is answered, touch Spkr On to activate the
.
speakerphone.
3.
Use the Volume keys (located on the left side of your
1.
Touch Mute. The option is then replaced with Unmute.
2.
Touch Unmute to deactivate the Mute function and
reactivate the microphone.
Searching for a Number in Address Book
1.
During the active call, touch More ➔ Address Book.
2.
Touch the Address Book entry.
For further details about the Address Book feature, see “Finding
an Address Book Entry” on page 91.
phone) to adjust the volume.
Call Functions
38
a867 Eternity.book Page 39 Tuesday, October 14, 2008 10:42 AM
Call Waiting
The Call Waiting feature allows you to answer an incoming call
while you have a call in progress, if this service is supported by
the network, and you have set the Settings ➔ Calls ➔ Voice Call
➔ Call Waiting Menu to Activated. You are notified of an
incoming call by a call waiting tone.
To answer a call while you have a call in progress:
1.
Press
to answer the next incoming call. The first
Note: The Join option combines all of the calls you have established with
your phone (both active and on hold).
Swap places the current call on hold and then activates the previous
call.
This feature joins all of the calls you have established with your
phone (both active and on hold) into a multi-party call.
1.
Press
to answer the first incoming call.
2.
Press
to answer the next incoming call. The first
call is automatically put on hold.
2.
To switch between the two calls, touch
call is automatically put on hold.
Swap
.
• Swap: Places the current call on hold and then activates the
previous call.
To end a call on hold
1.
Touch the On hold tab and touch
adjacent to the
caller you wish to disconnect.
2.
Press
to end the current active call.
3-Way Calling (Multi-Party Calling)
The 3-Way or Multi-Party feature allows you to answer a series of
incoming calls and place them on hold. If this service is
supported by the network, all calls can be joined together. You
are notified of an incoming call by a call waiting tone.
39
3.
Join the first two callers by pressing touching Join.
• Join: combines your current set of callers into a single multi-party
call (both active and on hold).
4. Press
to end the call.
a867 Eternity.book Page 40 Tuesday, October 14, 2008 10:42 AM
Section 5: Entering Text
This section outlines how to select the desired text input mode
when entering characters into your phone. This section also
describes how to use the T9 predictive text entry system to
reduce the number of key strokes associated with entering text.
The A867 comes equipped with an orientation detector that can
tell if the phone is being held in an upright (Portrait) or sideways
(Landscape) orientation. This is useful when entering text. If the
phone is sideways, an onscreen keyboard is displayed. When
upright, only the alphanumeric keypad is shown.
The A867 not only provides several on screen keypad/keypad
text entry options, but also provides handwriting recognition to
make the task of text entry that much easier.
Text Input Options
Your phone has the following text input modes:
• T9 ( T9Ab ): this mode allows you to enter words with only one
keystroke per letter. Each key on the keypad has more than one letter;
for example, touching
can enter J, K, or L. However, the T9®
mode automatically compares the series of keystrokes you make with
an internal linguistic dictionary to determine the most likely word, thus
requiring far fewer keystrokes than the traditional ABC mode.
• Multitap (
Abc ): this mode allows you to enter letters by touching the
key labeled with the letter you want repeatedly, and then selecting the
character from the available series of onscreen characters.
• Numeric ( 123 ): this mode allows you to enter numbers.
• Symbols ( SYM ): this mode allows you to enter symbols, such as
punctuation marks.
• Emoticons ( SYM ): this mode allows you to scroll through pages of
emoticons and then select one for insertion into your message.
When you are in a field that allows character entry, the text input
mode indicator displays on the upper right portion of the screen.
Changing the Entry Method
The A867 can detect the orientation of the phone and adjust the
text input screen accordingly. If the phone is detected in a Portrait
(upright) orientation, only the alphanumeric keypad is shown. If
the phone is turned on its side, the screen displays a full
keyboard (page 48). The following will describe entering text in
the portrait mode. For more information on entering text in
Landscape mode, see “Using the QWERTY Keyboard” on
page 48.
Entering Text
40
a867 Eternity.book Page 41 Tuesday, October 14, 2008 10:42 AM
Changing the Text Input Mode - Keypad
When using your phone, you often need to enter text, such as
when storing a name in your Contacts List, creating your
personal greeting or scheduling events on your calendar. You can
enter alphanumeric characters by using your phone’s keypad.
1.
From a screen where you can enter text, touch the text
Using T9 Mode
T9 is a predictive text input mode that allows you to key in any
character using single keystrokes. This text input mode is based
on a built-in dictionary.
To enter a word in T9 mode:
1.
entry field.
2.
From the onscreen keypad, touch
screen and touch and select T9 Predictive text (
Abc
to change the Text
Example: Writing a text message.
).
to 9 keys. touch each key only once for each letter.
Example: To enter “Hello” in T9 mode, touch the 4, 3, 5, 5, and 6 keys.
To change the text input mode, touch the Text Input Mode
The word that you are typing displays on the screen. It may
button (bottom center button) and select one of the
change with each consecutive key that you touch.
following options:
• T9 Predictive text ( T9Ab )
• Multitap ( Abc )
• Numeric ( 123 )
• Symbols ( SYM )
• Emoticons ( SYM )
2. Touch the text mode you desire. The text mode changes to
the mode you touched.
41
T9Ab
When in T9 mode, start entering a word by touching the 2
Input mode.
1.
Touch the Text Input Mode button at the bottom of the
2.
Enter the whole word before editing or deleting the
keystrokes.
3.
When the word correctly displays, go to step 4.
• If the word doesn’t display correctly, you can then choose from
possible word choices onscreen by touching the correct one.
• If these choices do not include the word you want to use, touch the
down arrow, then touch the Add Word field to then add the new
word into the T9 dictionary.
a867 Eternity.book Page 42 Tuesday, October 14, 2008 10:42 AM
• To enter periods, hyphens, and other special characters, touch the Text
Current Mode
Word choices
Add Word to
current Dictionary
Text Input Mode
Input button (bottom center), select Symbols ( SYM ) and then touch
the corresponding key. If the symbol does not display on the initial
screen, touch the left or right arrow key to display the next set of
symbols.
• To shift case in T9 mode, touch Shift and then touch the desired letter
on the keypad. There are 3 cases: Initial capital, Capital lock, and
Lower case.
• You can move the cursor by touching where you want to place the
cursor. To delete letters, touch
, or touch and hold
key to
clear the entire text string.
Using Multitap Mode
Example: Both the words “Of” and “Me” have the 6 and 3 keys. The phone
displays the most commonly used choice first.
To use ABC mode, use the 2 to 9 keys to enter your text.
䊳
4.
Note:
Touch the Text Input Mode button at the bottom of the screen
Insert a space by touching Space and start entering the
and select Multitap (
next word.
letter you want:
has some punctuation marks associated with it. This feature may
not be available for some languages.
Abc
), then touch the key labeled with the
• Once for the first letter, twice for the second letter, and so on.
• To shift case in ABC mode, touch Shift. There are 3 cases: Initial
capital, Capital lock, and Lower case.
Entering Text
42
a867 Eternity.book Page 43 Tuesday, October 14, 2008 10:42 AM
Multitap Keys
+=<>€£$%&¥¤0
By default, the first letter of an entry is capitalized and all
consecutive letters are kept in lowercase (unless you touch the
Shift key). After entering a character, the cursor automatically
advances to the next space after two seconds or when you enter
a character on a different key.
Characters scroll in the following order (lowercase characters
shown in parentheses):
.,'-?!@:/1
ABCÄÇ2abcäàç
Space
Adds a space
Shift
Shift the case of the character.
Using Numeric
The Numeric mode enables you to enter numbers into a text
message.
䊳
Touch the Text Input Mode button at the bottom of the screen
and select Numeric (
123
), then touch the keys corresponding
to the digits you want to enter.
DEFÉ3defèé
GHI4ghi
JKL5jkl
Using Symbols
Symbol mode enables you to insert symbols and punctuation
marks into text.
1.
screen and select Symbols (
PQRS7pqrsβ
symbol key.
TUVÜ8tuvüù
W X Y Z9 w x y z
43
Touch the Text Input Mode button at the bottom of the
MNOÑÖ6mnoñö
SYM
), then touch the desired
2.
To display more symbols, touch the left or right arrow key.
3.
To clear the symbol(s), touch
.
a867 Eternity.book Page 44 Tuesday, October 14, 2008 10:42 AM
4.
Select the other letters in the same way.
• To enter a period, @, or comma touch
. ABC mode applies
grammar rules to ensure correct punctuation.
You can move the cursor by touching Space. To delete letters,
touch
. Touch and hold
key to clear the display.
Tip: The cursor moves to the right when you touch a different key. When
entering the same letter twice or a different letter on the same key, wait
for a few seconds for the cursor to automatically move to the right, and
then select the next letter.
Using the Handwriting Feature
1.
3.
Use your finger tip to write out each character.
From a screen where you can enter text, touch the Input
Select field (shown below) to change the screen to Hand
Note: To properly recognize the written characters and to prevent scratching
of the LCD do not use script and to prevent scratching of the LCD.
Writing mode.
2.
From the drop-down list touch Handwriting to activate the
handwriting recognition on the phone.
Entering Text
44
a867 Eternity.book Page 45 Tuesday, October 14, 2008 10:42 AM
The available Text Input modes are: abc, Abc, ABC, Numeric, and
Symbols. Each option causes the Handwriting mode to behave
differently.
Handwriting area
ABC
Abc
Initial uppercase: causes the phone to read words as
having the initial character in uppercase and all
consecutive characters of the same word as lower
case. Ex: Hi There.
All lowercase: causes the phone to read everything
being written as uppercase characters. Ex: hi there.
Input Select field
abc
Text Input Mode button
123
Numeric: causes the phone to try and interpret all
inputs as numbers. Ex: The letter I would be displayed
as the number 1. The word HI would appear as 551.
SYM
Symbols: causes the phone to try and interpret all
inputs as symbols. Ex: The letter H would be displayed
as +). The word Hi would appear as +))0.
Changing the Text Input Mode - Handwriting
You can write your message using the Handwriting mode but if at
any time you feel you can’t remember how to input text, you can
touch the Input Select field and select Keypad.
45
All uppercase: causes the phone to read everything
being written as uppercase characters. Ex: HI THERE.
a867 Eternity.book Page 46 Tuesday, October 14, 2008 10:42 AM
Handwriting Mode-Entering Characters
1.
• Write THERE or there (in either case the abc mode causes
characters to display as lowercase.)
• Touch the screen to insert a period.
Touch the Text Input Mode button at the bottom of the
screen and select Abc. The input mode indicator then
changes to
Abc
which activates the Initial uppercase
function.
2.
Write the desired text using the stylus.
• To change the case of the alphabetic characters touch the Text
Input Mode button and select ABC or abc.
• If you make a mistake, touch
to erase a single character.
• Touch and hold
to erase an entire word or line.
As an example, to write “Hi there.” you would:
• Touch the Text Input Mode button and select Abc. Abc is then
shown onscreen.
• Write HI or Hi (in either case the Abc mode causes the initial
character to be uppercase while the rest are forced into lowercase.)
• Draw a line ( ___ ) across the screen to insert a space. Since there
is no letter that matches this icon, the A867 inserts an empty
space.
– You could also touch the Input Select field and choose Keypad to then
touch Space and insert an empty space. After which return to the
Handwriting mode.
• Touch the Text Input Mode button and select abc. abc is then
shown onscreen.
Note: Draw a diagonal slash across the screen ( / ) to enter a paragraph
return.
Handwriting Mode-Entering Numbers
1.
Touch the Text Input Mode button at the bottom of the
screen and select Numeric. The input mode indicator then
changes to
123
which activates the number function. No
alphabetic characters are recognized.
2.
Write the desired numbers using the stylus.
• If you make a mistake, touch
to erase a single character.
• Touch and hold
to erase an entire word or line.
As an example, to write “123 Anywhere” you would:
• Touch the Text Input Mode button and select Numeric. 123 is
then shown onscreen.
• Write 123.
• Touch the Text Input Mode button and select Abc. Abc is then
shown onscreen.
• Write ANYWHERE or Anywhere (in either case the Abc mode
causes the initial character to be uppercase while the rest are
forced into lowercase.)
Entering Text
46
a867 Eternity.book Page 47 Tuesday, October 14, 2008 10:42 AM
• Draw a line ( ___ ) across the screen to insert a space. Since there
is no letter that matches this icon, the A867 inserts an empty
space.
• You could also touch the Input Select field and choose Keypad to then
touch Space and insert an empty space. After which return to the
Handwriting mode.
Handwriting Mode-Entering Symbols
1.
Touch the Text Input Mode button at the bottom of the
screen and select Symbols. The input mode indicator then
changes to
SYM
which activates the symbols function.
No alphabetic or numeric characters are recognized.
2.
Write the desired numbers using the stylus.
• If you make a mistake, touch
to erase a single character.
• Touch and hold
to erase an entire word or line.
47
As an example, to write “pat@att.net” you would:
• Touch the Text Input Mode button and select abc. abc is then
shown onscreen.
• Write PAT or pat (in either case the abc mode causes all characters
to be lowercase.)
• Touch the Text Input Mode button and select Symbols. SYM is
then shown onscreen.
• Draw @ or touch the Input Select field, choose Keypad to then choose
from several pages of available symbols.
• Touch the Text Input Mode button and select abc. abc is then
shown onscreen.
• Write ATT or att (in either case the abc mode causes all characters
to be lowercase.)
• Touch the screen to insert a period.
• Write NET or net (in either case the abc mode causes all characters
to be lowercase.)
• Touch the Input Select field and choose Keypad to then touch Space to
insert an empty space. After which return to the Handwriting mode.
• Select
from the Symbols page to insert a new paragraph.
a867 Eternity.book Page 48 Tuesday, October 14, 2008 10:42 AM
Using the QWERTY Keyboard
Changing the Text Input Mode - Keyboard
From a screen where you can enter text, rotate your phone to a
Landscape orientation. Regardless of the current setting with the
Input Select field (page 44), the onscreen QWERTY keyboard will
display.
Current Language
There are three main keyboard layout keys that will change the
onscreen keys within the QWERTY keyboard.
The available Text Input modes are: T9, 1@, Emot, Abc, and
EN/FR/ES. Refer to the Text Input mode in the upper right hand
corner to identify which mode you are currently in.
Text Input mode
T9
1@
Text Input
selector
Emot
New Paragraph
Abc
T9: activates the T9 mode in either abc (all lower
case) or T9Eab (where the keys default to lowercase
until the Shift key is touched [activated]). This is
achieved by repeatedly pressing the button to toggle
the current state.
Symbol-Numeric: activates the number and symbol
keys.
Emoticons: activates the emoticon keys.
Abc: activates the default alphabet keys.
This function works in conjunction with the T9
feature.
Entering Text
48
a867 Eternity.book Page 49 Tuesday, October 14, 2008 10:42 AM
EN
Language: revamps the onscreen keyboard to
conform to one of three available languages:
English (EN), Spanish (ES), or French (FR).
1.
Touch an onscreen Text Input mode button.
2.
Touch a corresponding key to enter the associated
character within the text field.
3.
Touch either
or
to cycle through additional
keys. This is only available within 123 and Emot options.
4.
Touch OK to complete the message and return to the
previous screen.
49
a867 Eternity.book Page 50 Tuesday, October 14, 2008 10:42 AM
Section 6: Changing Your Settings
This section includes tips on how to use your phone’s features,
as well as how to change and customize the display settings, call
handling, security settings, and other settings associated with
your phone.
Sound Profiles
This menu allows you to specify how you are informed of
incoming calls.
Selecting a Profile
Touch
2.
Touch the radio button next to the profile name. The
selected profile activates. Choices include:
Normal
Silent
Driving
Outdoor
The phone’s profile defaults to Normal where the incoming Alert
Type is set to melody.
Editing the Normal - Call Profile
1.
Touch
➔ Settings ➔ Sound Profile ➔ Normal.
• Touch the name field and not the radio button to the right.
2. Touch drop-down menu (upper-right of the screen) and
select Call.
➔ Settings ➔ Sound Profile.
1.
•
•
•
•
Normal Profile
3.
Select the Call Alert Type field and select one of the
following and touch Save:
• Melody: the phone rings using the ring melody selected in the Ring
tone menu.
• Increasing Melody: the melody volume increases.
• Vibration then Melody: the phone vibrates 3 times and then starts
ringing.
• Vibration & Melody: the phone vibrates and plays a melody
simultaneously.
• Vibration & Increasing Melody: the phone vibrates and the
melody increases simultaneously.
Changing Your Settings
50
a867 Eternity.book Page 51 Tuesday, October 14, 2008 10:42 AM
4.
Touch the Voice Call Ringtone field, touch to select a
4.
ringtone and touch Save.
5.
Touch and drag the Ringtone Volume slider to the volume
ringtone and touch Save.
5.
level you desire (range is 1-7).
6.
Touch the Vibration Pattern field, then touch to select
Vibration 1 - 5.
7.
Touch Save to return to the Sound Profiles menu.
Editing the Normal - Message Profile
1.
Touch
➔ Settings ➔ Sound Profile ➔ Normal.
• Touch the name field and not the radio button to the right.
2. Touch drop-down menu (upper-right of the screen) and
select Message.
3.
Touch the Message Alert Repetition pull-down and select
one of the following options and touch Save:
• Once: repeats the message alert once.
• Periodic: repeats the message alert periodically.
6. Touch and drag the Alert Tone Volume slider to the volume
level you desire (range is 1-7).
7.
Touch the Vibration Pattern field, then touch to select
Vibration 1 - 3.
8.
Touch Save to return to the Sound Profiles menu.
Editing the Normal - Phone Profile
Touch
➔ Settings ➔ Sound Profile ➔ Normal.
Touch the Message Alert Type field, select one of the
1.
following and touch Save:
• Touch the name field and not the radio button to the right.
2. Touch drop-down menu (upper-right of the screen) and
• Melody: the phone rings using the ring melody selected in the Ring
tone menu.
• Vibration: the phone vibrates 3 times.
• Vibration & Melody: the phone vibrates and plays a melody
simultaneously.
• Mute: the phone is silent and does not play a melody or vibrate.
51
Touch the Message Alert Tone field, touch to select a
select Phone.
3.
Touch the Keypad Tone pull-down and select one of the
following tones and touch Save:
• Beep
a867 Eternity.book Page 52 Tuesday, October 14, 2008 10:42 AM
• TouchWiz
• Mute
4. Touch the Power On Type field, select one of the following
and touch Save:
• Melody: the phone rings using the ring melody selected in the Ring
tone menu.
• Vibration: the phone vibrates but does not play a melody.
• Vibration & Melody: the phone vibrates and plays a melody
simultaneously.
• Mute: the phone is silent and does not play a melody or vibrate.
5. Touch the Power Off Type field, select one of the following
and touch Save:
• Melody: the phone rings using the ring melody selected in the Ring
tone menu.
• Vibration: the phone vibrates but does not ring.
• Vibration & Melody: the phone vibrates and plays a melody
simultaneously.
• Mute: the phone is silent and does not play a melody or vibrate.
6. Touch and drag the Phone Sound Volume slider to the
Silent Profile
Silent mode is convenient when you wish to stop the phone from
making noise, in a theater for example.
䊳
Touch
Editing the Silent - Call Profile
1.
Touch Save to return to the Sound Profiles menu.
Touch
➔ Settings ➔ Sound Profile ➔ Silent.
• Touch the name field and not the radio button to the right.
2. Touch drop-down menu (upper-right of the screen) and
select Call.
3.
Select the Call Alert Type field and select one of the
following and touch Save:
• Vibration: the phone vibrates 3 times.
• Mute: the phone is silent and does not play a melody or vibrate.
4. Touch the Vibration Pattern field, then touch to select
Vibration 1 - 5.
5.
Touch and drag the Vibration Intensity slider to the intensity
level you desire (range is 1-7).
volume level you desire (range is 0-7).
7.
➔ Settings ➔ Sound Profile ➔ Silent.
All sound tones are now changed to Silent.
6.
Touch Save to return to the Sound Profiles menu.
Changing Your Settings
52
a867 Eternity.book Page 53 Tuesday, October 14, 2008 10:42 AM
Editing the Silent - Message Profile
1.
Touch
➔ Settings ➔ Sound Profile ➔ Silent.
• Touch the name field and not the radio button to the right.
2. Touch drop-down menu (upper-right of the screen) and
select Message.
3.
Touch the Message Alert Type field, select one of the
following and touch Save:
• Vibration: the phone vibrates 3 times.
• Mute: the phone is silent and does not play a melody or vibrate.
4. Touch the Message Alert Repetition pull-down and select
one of the following options and touch Save:
• Once: repeats the message alert once.
• Periodic: repeats the message alert periodically.
5. Touch the Vibration Pattern field, then touch to select
Vibration 1 - 3 and touch Save.
6.
Touch and drag the Vibration Intensity slider to the intensity
7.
Touch Save to return to the Sound Profiles menu.
level you desire (range is 0-7).
Driving Profile
In this case, the speaker is active and launches the currently
selected Call alert type when the associated notification is
activated.
Editing the Driving - Call Profile
1.
Touch
➔ Settings ➔ Sound Profile ➔ Driving.
• Touch the name field and not the radio button to the right.
2. Touch drop-down menu (upper-right of the screen) and
select Call.
3.
Select the Call Alert Type field and select one of the
following and touch Save:
• Melody: the phone rings using the ring melody selected in the Ring
tone menu.
• Increasing Melody: the melody volume increases.
• Vibration then Melody: the phone vibrates 3 times and then starts
ringing.
• Vibration & Melody: the phone vibrates and plays a melody
simultaneously.
• Vibration & Increasing Melody: the phone vibrates and the
melody increases simultaneously.
4. Touch the Voice Call Ringtone field, touch to select a
ringtone and touch Save.
53
a867 Eternity.book Page 54 Tuesday, October 14, 2008 10:42 AM
5.
Touch and drag the Ringtone Volume slider to the volume
5.
level you desire (range is 1-7).
6.
Touch the Vibration Pattern field, then touch to select
Vibration 1 - 5 and touch Save.
7.
Touch Save to return to the Sound Profiles menu.
Editing the Driving - Message Profile
1.
Touch
➔ Settings ➔ Sound Profile ➔ Driving.
• Touch the name field and not the radio button to the right.
2. Touch drop-down menu (upper-right of the screen) and
select Message.
3.
Touch the Message Alert Repetition pull-down and select
one of the following options and touch Save:
• Once: repeats the message alert once.
• Periodic: repeats the message alert periodically.
6. Touch and drag the Alert Tone Volume slider to the volume
level you desire (range is 1-7).
7.
Touch the Vibration Pattern field, then touch to select
Vibration 1 - 3 and touch Save.
8.
Touch Save to return to the Sound Profiles menu.
Editing the Driving - Phone Profile
Touch
➔ Settings ➔ Sound Profile ➔ Driving.
Touch the Message Alert Type field, select one of the
1.
following and touch Save:
• Touch the name field and not the radio button to the right.
2. Touch drop-down menu (upper-right of the screen) and
• Melody: the phone rings using the ring melody selected in the Ring
tone menu.
• Vibration: the phone vibrates but does not ring.
• Vibration & Melody: the phone vibrates and plays a melody
simultaneously.
• Mute: the phone is silent and does not play a melody or vibrate.
4. Touch the Message Alert Tone field, then touch to select
Message Tone 1 - 4 and touch Save.
select Phone.
3.
Touch the Keypad Tone pull-down and select one of the
following tones and touch Save:
• Beep
• TouchWiz
• Mute
Changing Your Settings
54
a867 Eternity.book Page 55 Tuesday, October 14, 2008 10:42 AM
4.
Touch the Power On Type field, select one of the following
and touch Save:
• Melody: the phone rings using the ring melody selected in the Ring
tone menu.
• Vibration: the phone vibrates but does not play a melody.
• Vibration & Melody: the phone vibrates and plays a melody
simultaneously.
• Mute: the phone is silent and does not play a melody or vibrate.
5. Touch the Power Off Type field, select one of the following
Outdoor Profile
In this case, you are outdoors and might not be able to hear the
phone, or need an increased volume in order to hear the phone.
For example, you might be jogging and need the phone to vibrate
and ring loudly.
Editing the Outdoor - Call Profile
1.
volume level you desire (range is 0-7).
7.
55
Touch Save to return to the Sound Profiles menu.
➔ Settings ➔ Sound Profile ➔ Outdoor.
• Touch the name field and not the radio button to the right.
2. Touch drop-down menu (upper-right of the screen) and
and touch Save:
• Melody: the phone rings using the ring melody selected in the Ring
tone menu.
• Vibration: the phone vibrates but does not ring.
• Vibration & Melody: the phone vibrates and plays a melody
simultaneously.
• Mute: the phone is silent and does not play a melody or vibrate.
6. Touch and drag the Phone Sound Volume slider to the
Touch
select Call.
3.
Select the Call Alert Type field and select one of the
following and touch Save:
• Melody: the phone rings using the ring melody selected in the Ring
tone menu.
• Increasing Melody: the melody volume increases.
• Vibration then Melody: the phone vibrates 3 times and then starts
ringing.
• Vibration & Melody: the phone vibrates and plays a melody
simultaneously.
• Vibration & Increasing Melody: the phone vibrates and the
melody increases simultaneously.
a867 Eternity.book Page 56 Tuesday, October 14, 2008 10:42 AM
4.
Touch the Voice Call Ringtone field, touch to select a
4.
ringtone and touch Save.
5.
Touch and drag the Ringtone Volume slider to the volume
Message Tone 1 - 4 and touch Save.
5.
level you desire (range is 1-7).
6.
Touch the Vibration Pattern field, then touch to select
Vibration 1 - 5 and touch Save.
7.
Touch Save to return to the Sound Profiles menu.
Editing the Outdoor - Message Profile
1.
Touch
➔ Settings ➔ Sound Profile ➔ Outdoor.
• Touch the name field and not the radio button to the right.
2. Touch drop-down menu (upper-right of the screen) and
select Message.
3.
Touch the Message Alert Tone field, then touch to select
Touch the Message Alert Repetition pull-down and select
one of the following options and touch Save:
• Once: repeats the message alert once.
• Periodic: repeats the message alert periodically.
6. Touch and drag the Alert Tone Volume slider to the volume
level you desire (range is 1-7).
7.
Touch the Vibration Pattern field, then touch to select
Vibration 1 - 3 and touch Save.
8.
Touch Save to return to the Sound Profiles menu.
Editing the Outdoor - Phone Profile
Touch
➔ Settings ➔ Sound Profile ➔ Outdoor.
Touch the Message Alert Type field, select one of the
1.
following and touch Save:
• Touch the name field and not the radio button to the right.
2. Touch drop-down menu (upper-right of the screen) and
• Melody: the phone rings using the ring melody selected in the Ring
tone menu.
• Vibration: the phone vibrates but does not ring.
• Vibration & Melody: the phone vibrates and plays a melody
simultaneously.
• Mute: the phone is silent and does not play a melody or vibrate.
select Phone.
Changing Your Settings
56
a867 Eternity.book Page 57 Tuesday, October 14, 2008 10:42 AM
3.
Touch the Keypad Tone pull-down and select one of the
6.
following tones and touch Save:
• Beep
• TouchWiz
• Mute
4. Touch the Power On Type field, select one of the following
and touch Save:
• Melody: the phone rings using the ring melody selected in the Ring
tone menu.
• Vibration: the phone vibrates but does not play a melody.
• Vibration & Melody: the phone vibrates and plays a melody
simultaneously.
• Mute: the phone is silent and does not play a melody or vibrate.
5. Touch the Power Off Type field, select one of the following
and touch Save:
• Melody: the phone rings using the ring melody selected in the Ring
tone menu.
• Vibration: the phone vibrates but does not ring.
• Vibration & Melody: the phone vibrates and plays a melody
simultaneously.
• Mute: the phone is silent and does not play a melody or vibrate.
57
Touch and drag the Phone Sound Volume slider to the
volume level you desire (range is 0-7).
• Touch Save to return to the Sound Profiles menu.
Display and Light Settings
In this menu, you can change various settings for the display or
backlight.
1.
From Idle mode, touch
➔ Settings ➔ Display and
Light.
2.
Select one of the following options:
•
•
•
•
•
•
•
•
Wallpaper
Widget
Font Type
Greeting Message
Transition Effect
Brightness
Backlight Time
Illumination
a867 Eternity.book Page 58 Tuesday, October 14, 2008 10:42 AM
Wallpaper
Font Type
This menu allows you to change the background image displayed
on the Main screen.
1.
From Idle mode, touch
➔ Settings ➔ Display and
You can select the text style for the informational text displayed
on the Main LCD.
1.
Light ➔ Wallpaper.
2.
Touch and drag an onscreen image to the left or right to
view either the next or previously available images (located
in your Pictures folder) for the wallpaper selection.
3.
Touch one of the following options:
• Set: assigns the current image as the new wallpaper image that
appears when the Main screen.
• Pictures: allows you to choose a photo from Pictures folder, that
are displayed in a thumbnail view.
Widget
From Idle mode, touch
➔ Settings ➔ Display and
Light ➔ Font Type.
2.
Select Type1, Type2 or Type3 and touch Save.
Greeting Message
In this menu you enter the text which displays on the main
screen when the phone powers on.
1.
From Idle mode, touch
➔ Settings ➔ Display and
Light ➔ Greeting Message.
2.
Touch and hold
to erase the current greeting
message.
Allows you to select which widget applications will appear
docked within the Widget bar on the Idle screen.
3.
For more information, refer to “Widgets” on page 23.
4.
Use either the onscreen keypad/keyboard to enter a new
greeting.
Touch OK .
Changing Your Settings
58
a867 Eternity.book Page 59 Tuesday, October 14, 2008 10:42 AM
Transition Effect
Backlight Time
Allows you to activate/deactivate the default transition effect
(wipe) during transitions between menu/options pages.
1.
From Idle mode, touch
➔ Settings ➔ Display and
Light ➔ Transition Effect.
2.
Touch either On (activate) or Off (deactivate).
LCD Brightness
The backlight turns the screen on using a preset brightness level.
When the time (set in this feature) runs out, the touch screen
locks. For more information, refer to “Locking and Unlocking the
Phone” on page 19.
1.
2.
From Idle mode, touch
2.
Touch and drag the Level slider to the brightness level you
desire (range is 1-5).
– or –
Touch either On or Off (from within the Automatic field) to
also allow the phone to use its light sensors to
automatically adjust the LCD brightness.
3.
Touch
Save
.
Note: Modifying this setting will impact your battery life.
59
Touch one of the backlight times to set the amount of time
the phone’s touchscreen remains lit without activity.
Options include: 8 Seconds, 15 Seconds, 30 Seconds,
➔ Settings ➔ Display and
Light ➔ Brightness.
➔ Settings ➔ Display and
Light ➔ Backlight Time.
Allows you to adjust the display brightness for the LCD to see
better within different lighting conditions.
1.
From Idle mode, touch
1 Minute, 3 Minutes, or 10 Minutes).
3.
Touch
Save
.
Note: Modifying this setting will impact your battery life.
Illumination
This menu allows you to activate the lighting effect emitted by
the phone when a certain event occurs. When active, this feature
flashes a strip of color along the bottom of the phone once an
event condition (such as incoming call, message, alarm, and
turning the phone on/off) is met.
a867 Eternity.book Page 60 Tuesday, October 14, 2008 10:42 AM
䊳
From Idle mode, touch
➔ Settings ➔ Display and Light
3.
➔ Illumination.
Touch the Time Zone field and assign a new time zone by
touching a corresponding area of the world map.
The illumination bar will activate during any of the following
situations:
• When an incoming call is received
• When an incoming message is received
• When the alarm rings
• Power is turned On or Off.
• When the phone is charging (while powered off).
Time & Date
• Touch OK to save the new setting.
• Major cities in each zone are displayed upon selection.
• Current time zones are based upon Greenwich Mean Time.
4. Touch 12hr (12 hour) or 24hr (24 hour) from the Time
format field.
5.
Touch the Time field then adjust the hour and minutes
values by using either the up/down input arrows or by
quickly sliding your fingertip over the numbers to scroll
This menu allows you to change the current time and date
displayed.
➔ Settings ➔ Time and Date.
1.
From Idle mode, touch
2.
Touch the Time Zone Updating drop-down list and select
through their available values.
• Touch either AM or PM.
• Touch Set to complete the assignment.
one of the following:
• Automatic: the phone automatically updates the time and date
according to the current time zone using the network service.
• Manual Only: you need to manually set the time and date
according to the current time zone using the Set time menu.
• Prompt First: you are prompted before a time change is applied.
Changing Your Settings
60
a867 Eternity.book Page 61 Tuesday, October 14, 2008 10:42 AM
8.
Touch Save to store all the new Time and Date settings.
Phone Settings
You can customize various phone settings.
䊳
From Idle mode, touch
➔ Settings ➔ Phone.
Language
This menu allows you to select a display language for Text
language and Text Input mode. Choose from Automatic, English,
Français, and Español.
1.
From Idle mode, touch
➔ Settings ➔ Phone ➔
Language.
2.
Touch the Screen Text drop-down list, touch one of the
following selections and touch
6.
Touch the Date Format pull-down list and select the format
in which you want the date to display.
7.
Touch the Date field then adjust the Month, Day, and Year
values by using either the up/down input arrows or by
quickly sliding your fingertip over the numbers to scroll
through their available values.
• Touch
61
Set
to complete the assignment.
•
•
•
•
Save
:
Automatic (uses the language set on your SIM card).
English
Français
Español
a867 Eternity.book Page 62 Tuesday, October 14, 2008 10:42 AM
3.
Touch the Input Language drop-down list, touch one of the
following selections and touch
• English
• Français
• Español
4. Touch
Save
2.
:
four targets displayed.
3.
to return to Phone settings page.
Note: When touching the screen in Calibration mode, you must touch the
center of the cross hair area.
You can set the level of intensity at which you want the vibration
mode.
From Idle mode, touch
➔ Settings ➔ Phone ➔
Vibration Feedback.
2.
Touch and drag the Vibration Intensity slider to the intensity
level you desire (range is 0-4).
3.
Touch OK from the New settings saved... display page.
Auto Keypad Lock
Vibration Feedback
1.
Touch the center of each target and repeat this step for all
Touch Save.
From Idle mode, touch
2.
Touch On or Off from the Auto Keypad Lock field.
Phone Security
The Security feature enables you to restrict the use of your phone
by others and to restrict the types of calls.
Various codes and passwords are used to protect the features of
your phone.
䊳
Calibration
➔ Settings ➔ Phone.
1.
From Idle mode, touch
➔ Settings ➔ Phone ➔ Security.
The Calibration feature allows you to re-align the screen’s touch
accuracy. Use this feature only when the device does not respond
properly when you touch the screen.
1.
From Idle mode, touch
➔ Settings ➔ Phone ➔
Calibration.
Changing Your Settings
62
a867 Eternity.book Page 63 Tuesday, October 14, 2008 10:42 AM
Lock Phone
When the Phone Lock phone feature is enabled, the phone is
locked and you must enter the 4 to 8 digit phone password each
time the phone is switched on.
Note: You will be prompted to create a password the first time this feature is
enabled.
To change the phone password, see “Change Phone Password”
on page 64. Once you enter the correct password, you can use
the phone until you switch it off.
䊳
Touch On or Off from the Lock Phone field.
Lock SIM Card
When the Lock SIM Card feature is enabled, your phone only
works with the current SIM. You must enter the lock code to
unlock the SIM so you can use a different SIM card. Once you
have entered the lock code, you are asked to confirm your
password.
䊳
Touch On or Off from the Lock SIM Card field.
Note: This lock code is typically the last four digits of the current phone
number or can be obtained from an AT&T customer service
representative.
Check PIN code
When the Check PIN code feature is enabled, you must enter
your PIN each time you switch on the phone. Consequently, any
person who does not have your PIN cannot use your phone
without your approval.
䊳
Touch On or Off from the Check PIN Code field.
Note: You can obtain your PIN from an AT&T customer service representative.
Lock Applications
Using this menu, you can lock your applications and media
contents (apps, messages, images, and sounds) from being
accidentally accessed, altered or deleted. Once you lock the
contents, you must enter the phone’s password to access the
associated menus.
Note: The first time you access the password screen, you will be prompted to
create a password.
1.
Touch the Lock Applications field.
2.
Touch the check box next to each application you wish to
lock, or touch All to select all applications.
• Applications include: Messaging, My Stuff, Recent Calls, Address
Book, Calendar, Memo, IM, and Tasks.
63
a867 Eternity.book Page 64 Tuesday, October 14, 2008 10:42 AM
3.
• Touch Save to store your new selections.
Enter a new password (during the first use) using the
onscreen keypad into the New Password field and touch
Confirm
4.
Change Phone Password
.
Enter the new password again and touch
Confirm
.
Note: To change this password, see “Change Phone Password” on page 64.
Fixed Dialing Mode
FDN (Fixed Dial Number) mode, if supported by your SIM card,
restricts your outgoing calls to a limited set of phone numbers.
When this feature is enabled, you can make calls only to phone
numbers stored in the FDN list on the SIM card. For more
information, refer to “FDN Mode” on page 93.
1.
Touch On or Off from the Fixed Dialing Mode field.
• On: you can only call phone numbers stored in the Address Book.
You must enter your PIN2 to continue this configuration. You can
obtain your PIN2 from AT&T’s customer service department.
• Off: you can call any number.
2. Use the onscreen keypad to enter your PIN2 Code and
touch
Confirm
Note: The PIN2 code is provided by AT&T. Entering an incorrect PIN2 code
can cause the phone to lock, at which point, you will have to call AT&T
customer service for assistance.
The Change password feature allows you to change your current
phone password to a new one. You must enter the current
password before you can specify a new one.
1.
Touch the Change Phone Password field.
2.
Enter the current phone password and touch
Confirm
.
Note: Initially, the phone will not have a password assigned, and step 2 will
not be necessary. Once a password is assigned, all steps are
necessary.
Confirm
3.
Enter the new password and touch
4.
Re-enter the same password and touch
.
Confirm
.
Note: If you change your password, be sure to write it down and keep it in a
safe place. If you forget your password, your phone will require AT&T
customer service to have it unlocked.
.
Changing Your Settings
64
a867 Eternity.book Page 65 Tuesday, October 14, 2008 10:42 AM
Change PIN code
This feature allows you to change your current PIN, provided that
the PIN check feature is enabled. The Check Pin Code field must
be active before you can access this function (page 63).
Note: This code is provided by AT&T. Entering an incorrect code can cause
the phone to lock, at which point, you will have to call AT&T customer
service for assistance.
1.
Touch the Change PIN Code field.
2.
Enter your PIN code and touch Save.
Change PIN2 code
The Change PIN2 code feature allows you to change your current
PIN2 to a new one. You must first enter the current PIN2
(obtained from AT&T) before you can specify a new one. Once
you have entered a new PIN2, you are asked to confirm it by
entering it again.
Note: Not all SIM cards have a PIN2. If your SIM card does not, this menu
does not display.
1.
Touch the Change PIN2 Code field.
2.
Use the onscreen keypad/keyboard to enter your PIN2
code and touch
65
Confirm
.
Confirm
3.
Enter the new PIN2 code and touch
.
4.
Re-enter (reconfirm) the same code and touch
Confirm
.
APN Control
Allows you to turn control of Access Point Names (APN) On or Off.
APNs are a method by which you can access advanced
communication using your handset. This advanced
communication can include instant messaging, multimedia
messaging, email, and Internet access. Turning On APN Control
requires the PIN2 code.
1.
Touch On or Off from the APN Control field.
2.
Press
to return to the previous Phone settings
page.
Airplane Mode
Airplane Mode allows you to use many of your phone’s features,
such as Games, Voice note, etc., when you are in an airplane or
in any other area where making or receiving calls or data is
prohibited. When your phone is in Airplane Mode, it cannot send
or receive any calls or access online information. The (
) icon
appears in place of the signal strength indicator when active.
➔ Settings ➔ Phone.
1.
From Idle mode, touch
2.
Touch On or Off from the Airplane Mode field.
a867 Eternity.book Page 66 Tuesday, October 14, 2008 10:42 AM
3.
Press
to return to the previous Phone settings
page.
Call Settings
䊳
From Idle mode, touch
➔ Settings ➔ Calls.
Adjusting the General Call Settings
1.
Touch General and select from the following options:
• Show My Number: allows you to select how your caller ID is
handled when an outgoing call is initiated. This is what
others see on their Caller ID screen. This value can be
made blank if you do not wish your number displayed to
other users.
• Auto Reject: selects which numbers will be automatically sent to
voicemail based on a user-created list from within the Reject List.
• Call Answer: selects how your phone answers incoming calls.
Selections are: Green Key, Any key, Automatic (Time - 1-5
seconds).
• Auto Reply: sets up an automatic text message that is sent to the
calling party when they call you.
– Touch either On or Off to activate/deactivate the function.
– If active (On), touch the Reply to Send field and use the onscreen
keypad/keyboard to enter an auto reply message.
• Call Status Tones: allows you to activate an alert tone for one of
two available status categories. Touch an option to make your
selection and then touch Save to store your new selection.
Options include:
– Call Connect Tone: allows you to activate an alert tone when the a
connection has been made.
– Minute Minder: allows you to activate an alert tone which sounds
every minute the call is active.
• Alerts on Call: activates an alert tone for new messages being
received during an active call. Touch Save to store setting.
2. Press
twice return to the previous Phone settings
page.
Adjusting the Voice Call Settings
1.
Touch Voice Call and select from the following options:
• Call Forwarding: incoming calls are re-routed to a secondary
number that you specify. Select the condition for the call forward
action:
– Forward Always activates an automatic forward of all incoming calls
regardless of condition.
– Busy activates an forward function only when your number is currently
in use and the caller receives a busy signal.
– No Reply activates an automatic forward of all incoming calls after a
preset amount of time (5 seconds - 30 seconds).
Changing Your Settings
66
a867 Eternity.book Page 67 Tuesday, October 14, 2008 10:42 AM
– Unreachable activates an automatic forward of all incoming calls only
when you can not be reached and your phone status is set to
unreachable.
– Cancel All cancels all call forwarding functions.
• Call Waiting: this network service informs you when someone is
trying to reach you during another call. You can specify individual
call waiting options for voice calls and/or data calls.
– Touch of the available options: Activate, Deactivate, Check Status
(checks the status of this service on your account).
• Auto Redial: the phone automatically redials the last active number
if the call was either cut off or you were unable to connect.
– Touch either On or Off to activate/deactivate the function.
– Touch Save to store the new setting.
2. Press
twice return to the previous Phone settings
page.
Connectivity
The phone has several communication/connection parameters
which can be edited.
Bluetooth
Bluetooth is a short-range wireless communications technology
capable of exchanging information over a distance of about 30
feet without requiring a physical connection. Unlike infrared, you
don't need to line up the devices to beam information with
Bluetooth. If the devices are within a range of one another, you
can exchange information between them, even if they are located
in different rooms. The following Bluetooth options are available:
Activation
1.
From Idle mode, touch
➔ Settings ➔ Connectivity ➔
Bluetooth.
2.
Touch the onscreen Bluetooth icon to activate or deactivate
Bluetooth.
– or –
Touch
67
➔ Turn Bluetooth On/Off.
a867 Eternity.book Page 68 Tuesday, October 14, 2008 10:42 AM
Phone’s Visibility
1.
From Idle mode, touch
➔ Settings ➔ Connectivity ➔
Bluetooth ➔ Visible.
2.
Touch Yes or No to enable or disable the visibility
(discoverability) of your phone.
Bluetooth
Inactive
• Your phone becomes visible to other devices when you transmit
your device’s name to others in your area. This allows other devices
to detect your phone and request a connection. If your phone is not
visible, you can still detect and connect to other devices, while still
hiding yourself from others.
Connecting to Other Bluetooth Devices
Bluetooth
Active
1.
Device Name
1.
From Idle mode, touch
➔ Settings ➔ Connectivity ➔
Bluetooth ➔ My Info.
2.
Touch the Name field, touch and hold
to erase the
current name.
3.
4.
• Detected Bluetooth devices then appear as buttons on the
Bluetooth page.
2. Touch the desired device to begin pairing.
3.
refer to “Entering Text” on page 40.
Touch
Save
.
➔ Settings ➔ Connectivity ➔
Bluetooth ➔ Search.
Use the onscreen keypad/keyboard to enter the new name
for this device and touch OK . For more information,
From Idle mode, touch
Touch the Passkey field, enter the passkey used by the
target device and touch OK .
4.
Select a connection option and touch OK .
5.
Once the target device accepts the pair your new device
shows as connected (green) within the Bluetooth page.
Changing Your Settings
68
a867 Eternity.book Page 69 Tuesday, October 14, 2008 10:42 AM
Bluetooth Secure Mode
Bluetooth Services
When the Bluetooth Visibility is turned on, your phone is
wirelessly transmitting its phone name and status to every device
within its range. This transmission can pose a security risk and
incite unauthorized connection to your phone. It is recommended
that you remain hidden unless necessary.
Remote SIM mode
This mode allows you to turn On or Off Remote SIM Mode.
Remote SIM mode, when set to On, allows the Bluetooth phone
car kit to access the contact information stored on the SIM card.
Note: There is a risk that another Bluetooth device (user) can access and
modify your SIM card features and data.
1.
From Idle mode, touch
➔ Settings ➔ Connectivity ➔
Bluetooth ➔ My Info.
69
2.
Touch On or Off from the Remote SIM Control field.
3.
Touch Save.
The Bluetooth specification is a protocol that describes how the
short-range wireless technology works, whereas services
describe the individual devices that are supported. These
services reduce the chance that incompatible devices are
allowed to connect to your phone.
• Headset: the Bluetooth headset enables both incoming and outgoing
calls using the Bluetooth headsets.
• Handsfree: the Bluetooth car kit enables both incoming and outgoing
calls.
• Bluetooth Stereo Headset: used to make calls and listen to music
through the Bluetooth stereo headset.
• Serial Port: used to connect to other Bluetooth devices through a
virtual serial port.
• Dial up: used to provide Internet access for Bluetooth devices through
the phone’s modem.
• Basic Printing: used to print images, text messages, personal data
such as namecards and appointments, etc. through a remote
Bluetooth printer.
• File transfer: used to transfer files to and from Bluetooth devices.
• Object Push: used to exchange personal data (namecards, Address
Book contacts, etc.) with Bluetooth devices.
• SIM Access: provides access to the SIM card on the phone.
a867 Eternity.book Page 70 Tuesday, October 14, 2008 10:42 AM
Configuring Your Phone’s USB Settings
This menu selects the method of communication for the USB
port.
Note: The Bluetooth feature must first be disabled before initiating a USB
connection with the phone. Prior to connecting the USB cable to the
phone, install the latest version of the PC Studio application. This
application installs the necessary USB drivers onto your machine. For a
free download of PC Studio, go to www.samsung.com/us/support.
1.
From Idle mode, touch
➔ Settings ➔ Connectivity ➔
Select USB Mode.
2.
Select one of the following USB modes:
• Ask on Connection: causes the phone to present a “Select USB
Mode” pop-up when you connect to the PC. You can then choose
from either: PC Studio, Media Player, or Mass Storage.
• Samsung PC Studio: sets PC Studio to launch as the default
application when a USB connection is detected.
• Media Player: sets the Media Player to launch as the default
application when a USB connection is detected.
• Mass Storage: allows you to utilize the onboard storage capacity of
the phone to store and upload files. This option allows your
computer to detect the phone as a removable storage drive.
3. Touch Save .
Network Profile Configuration
Your phone is wirelessly connecting to the Internet via a built in
WAP browser. Connection can be made via either one of three
available WAP browsers: MEdia Net, AT&T MMS (MultiMedia
Server), and AT&T IMS. You need these settings to use the web
browser or send MMS messages or Emails.
Use this menu to create and customize the profiles containing the
settings for connecting your phone to the network. Although the
active connection can be changed by the user, it is recommended
that this choice be made with the assistance of either the retailer
or customer service representative.
1.
From Idle mode, touch
➔ Settings ➔ Connectivity ➔
Network Profiles.
2.
Touch one of these options:
• MEdia Net
• AT&T MMS
• AT&T IMS
Note: The MEdia Net WAP is pre-configured and cannot be altered on this
screen. The AT&T MMS connection option can be edited, renamed, or
deleted on this screen. Your phone is set up by default for connecting
to the network. If you change the settings without first checking with
your service provider, the web browser, MMS, and e-mail features may
not work properly.
Changing Your Settings
70
a867 Eternity.book Page 71 Tuesday, October 14, 2008 10:42 AM
3.
To create a new connection, touch
Create
.
• Advanced Settings: allows you to configure some of the IP-specific
information: Static IP, Static DNS, Server information, and Traffic
Class.
– Static IP: specify if you want to manually enter an IP address. If you
want the IP address to be automatically assigned by the server, remove
the check mark.
– Static DNS: specify if you want to manually enter the Domain Name
Server (DNS) address. If you want the address to be automatically
assigned by the server, remove the check mark.
– Traffic Class: select the traffic class.
– or –
To edit the existing AT&T MMS, touch this entry.
4.
Select the parameter you want to edit:
• Set Name: enter a profile name.
• Access Name: edit the access point name.
• Auth Type: select the type of authentication used for this WAP
connection: None, Normal, or Secure.
• User ID: enter the User ID required to connect to the network.
• Password: enter the user password required to connect to the
network.
• Protocol: set the connection protocol used by the WAP browser:
WAP, HTTP, or Other.
• Home URL: enter the URL address of the page to be used as your
homepage.
• Proxy Address: MEdia Net set as the proxy server address and
port.
• Linger Time (sec.): set a time period (in seconds) after which the
network is disconnected if there has been no new data traffic in that
time.
71
Note: The WAP settings may vary depending on the service provider.
5.
Touch
Save
to store these new settings.
IMS Settings
IMS is the method used to connect to the server in order set up
the Video Share option.
1.
From Idle mode, touch
➔ Settings ➔ Connectivity ➔
IMS Settings.
2.
Touch one of these options:
• IMS Service allows you to set the IMS service to On or Off.
Touch Save to store the new setting.
a867 Eternity.book Page 72 Tuesday, October 14, 2008 10:42 AM
Important!: If you reset the IMS Service to Off, you will not be able to use the
Video Share Option.
• IMS Profiles allows you to set the server that service is coming
from. Select a profile, make your alterations, and touch Save
to store the new setting.
• Calendar (see page 73)
• Address Book (see page 87).
Video Share Settings
To enable the Alerts, Auto Record, and Recording Location for
Video Share, use the following steps.
1.
Important!: If you change from the default AT&T IMS, you may not be able to
use Video Sharing.
The Applications Settings feature allows you to configure the
functional parameters for most of the onboard applications.
These applications are described in more detail within other
sections of this manual.
1.
From Idle mode, touch
➔ Settings ➔ Applications
Settings.
2.
Select the type of application which you want to change:
•
•
•
•
•
•
➔ Settings ➔ Applications
Settings ➔ Video Share.
2.
Applications Settings
From Idle mode, touch
Activate any of the following options by touching the
onscreen button.
• Audio Alert: allows you to turn On or Off the Video Share Alerts
which displays a message and a tone.
• Auto Record: allows you to turn On or Off the Auto Record which
records the Video Share call.
• Recording Location: allows you to set whether video recorded is
stored on the Phone or on the microSD Memory Card.
3. Touch Save .
Messaging (see page 117)
Browser (see page 157)
Music Player (see page 129)
CV (see page 76)
Video Share (see page 72)
Record Audio (see page 73)
Changing Your Settings
72
a867 Eternity.book Page 73 Tuesday, October 14, 2008 10:42 AM
Record Audio Settings
2.
1.
From Idle mode, touch
➔ Settings ➔ Applications
Settings ➔ Record Audio.
2.
Touch either of the following fields and edit the
information:
• Default Name: allows you to use the onscreen keyboard to enter a
prefix name of all recorded audio files. Touch OK to store the
new name.
• Recording Time: allows you to choose the maximum limit allowed
for the recorded audio file (1 Minute, 2, Minutes, 3 Minutes,
4 Minutes, 5 Minutes, 60 Minutes, or Limit for MMS.)
3. Touch Save .
Calendar Settings
To configure the starting day and view used when opening the
Calendar application.
1.
From Idle mode, touch
Settings ➔ Calendar.
➔ Settings ➔ Applications
Touch either of the following fields and edit the
information:
To configure the filename and maximum length for a recording.
• Starting Day: allows you choose which day mark the first day in
your calendar week (Sunday or Monday).
• View by: allows you to choose the default view for appointments
used by the Calendar application when launched (Month, Week, or
Day).
3. Touch Save .
Reset Settings
You can easily reset your phone to its default settings. To reset
your phone:
From Idle mode, touch
2.
Place a checkmark next to those settings you wish reset:
• All: selects all fields and places a checkmark alongside all entries.
• Sound Profiles
• Display and Light
• Phone
• Alarms
3. Touch Reset.
4.
Enter your phone password, if prompted and touch
Confirm.
73
➔ Settings ➔ Reset Settings.
1.
a867 Eternity.book Page 74 Tuesday, October 14, 2008 10:42 AM
At the “Reset Settings?” prompt, touch Yes to reset, or No to
cancel. Once your phone has been reset to its default settings for
those selected options, it will restart itself in order to incorporate
the new settings.
1.
Management ➔ Clear Phone Memory.
2.
You can easily check the amount of memory being used for
storing data, such as messages, media, calendar data, or
contacts entries. You can also delete any selected information
from your phone:
From Idle mode, touch
➔ Settings ➔ Memory
Management.
2.
Place a checkmark alongside those applications you wish
to clear by touching individual applications
Memory Management
1.
➔ Settings ➔ Memory
From Idle mode, touch
Touch any of the following options:
• Clear Phone Memory
• Memory Card Details
• Use Space
Clear Phone Memory
From this menu you can clear the memory for Files, Messages,
Address Book entries, Calendar entries, Tasks, Memos, or All
licenses. You can all select All to clear everything listed.
– or –
touch All to clear all the memory settings.
3.
Touch
Clear .
Memory Card Details
Allows you to view specific information related to the current
microSD card being used for storage.
䊳
From Idle mode, touch
➔ Settings ➔ Memory
Management ➔ Memory Card Details.
Note: Memory card is optional.
Check the Used Space
1.
From Idle mode, touch
➔ Settings ➔ Memory
Management ➔ Used Space.
Note: To completely remove any personal information stored on your device,
see “Precautions for Transfer and Disposal” on page 188.
Changing Your Settings
74
a867 Eternity.book Page 75 Tuesday, October 14, 2008 10:42 AM
2.
Select one of the following storage categories to view the
contents of a category’s memory:
• Shared Memory
• Messaging
• My Stuff
• Calendar
• Tasks
• Memo
• Address Book
3. When you are finished, press
This option allows you to see the phone number on the SIM card
(within the phone), the manufacturer, and the model number.
This information may be necessary if talking to Customer Service
in the event of a problem.
1.
2.
to return to Main
The Software Update feature enables you to use your phone to
connect to the network and upload any new phone software
directly to your phone.
➔ Settings ➔ Software
Update.
2.
75
When you are finished, press
menu.
Software Update
From Idle mode, touch
From Idle mode, touch
➔ Settings ➔ Phone
Information.
menu.
1.
Phone Information
Follow the on screen instructions.
to return to Main
a867 Eternity.book Page 76 Tuesday, October 14, 2008 10:42 AM
Section 7: Video Features
There are a number of available video services on your A867:
• Cellular Video (CV) allows you to view pre-recorded video clips of news
stories, weather forecasts, sports highlights, movie trailers, music
videos and more from popular content providers.
• The AT&T MobiVJ™ provides music channels playing the latest music
videos.
• AT&T Mobile TV™ provides you with real-time scheduled
programming in full-length broadcast quality and sound (page 80).
Cellular Video
Your phone is equipped with a WAP (Wireless Application
Protocol) browser which allows you to access the Internet and
download media files directly to your phone. These media files
are displayed using the built-in Media Player. Cellular Video (CV)
is a media service which allows you to stream media content
(Weather, News, Sports highlights, etc.) directly to your phone.
1.
In Idle mode, touch
➔
to launch the default CV
homepage. This homepage provides you with access to
• Video Categories: provides some general content categories from
which to begin searching for media: Entertainment, Sports, News &
Weather, Music, Kids & Cartoons & HBO Mobile.
• Customize CV: allows you to access the CV Settings menu where
you can configure most of the settings associated with CV.
• Parental Controls: provides you with settings which can be
configured to restrict certain media content from being displayed on
the phone.
• MEdia Net: exits from the CV application and launches the MEdia
Net homepage.
• Help: provides basic on-line assistance which answers most of the
common issues users come across while using this feature.
2. Select from one of the available categories by touching an
option.
Viewing a Video Clip
In Idle mode, touch
2.
Select the video clip by touching the entry from within the
.
Favorites section.
content categories & settings:
• My Favorites: allows you to choose from some recently uploaded
video clips from among the following media providers: CNN, ESPN,
HBO Mobile Preview, or Access Hollywood.
➔
1.
3.
After the stream has been buffered into memory, you can
choose to either pause or play the content.
• Touch the Pause/Play button to toggle between the two functions.
Video Features
76
a867 Eternity.book Page 77 Tuesday, October 14, 2008 10:42 AM
• Touch the Return button to be taken back to the CV homepage.
Using the Video Categories
This grouping of media categories provides access to an
additional listing of streaming media. Where the previous
Favorites list of media stream can be user edited and updated,
this list of categories is defined by CV’s homepage and can not
be changed.
Adding a Video Alert
When new media is available for upload to your phone (such as
breaking news), you can set your phone to notify you of the new
available content.
1.
Touch the radio box next to any of the available alert
page (ex: Breaking News).
The list of media providers which appear in the Favorites section
of the CV homepage can be edited and changed by the user.
In Idle mode, touch
➔
➔ Customize CV ➔
Edit Favorites.
My Purchases
The CV homepage can be used to shop for streaming multimedia
content. The My Purchases section can help keep track of your
purchase history and view any new resale products.
2.
Touch the Add to Favorites section of the page.
3.
Touch the radio box next to any of the available streaming
My Purchases ➔ Purchase History. This provides you with
media channels (not currently in your Favorites list [ex:
an on screen listing of your “to date” purchase history for
Cartoon Network].) The Manage My Favorites section of the
media content.
page then reflects these new additions.
1.
2.
In Idle mode, touch
➔
➔ Customize CV ➔
Touch My Account. This provides you with an onscreen
description of your account details.
77
➔ Customize CV ➔
services listed within the Add to My Alerts section of the
Updating the Favorites List
1.
➔
My Video Alerts ➔ Add to My Alerts.
2.
Customizing CV
In Idle mode, touch
a867 Eternity.book Page 78 Tuesday, October 14, 2008 10:42 AM
Parental Controls
Configuring the Filters
Your phone can be configured to block both purchased and
streamed media content. Before filtering, you must first establish
a pin/password and a contact e-mail address. Once those have
been established, you can the two available filter options:
• Content Filters: let you restrict access to inappropriate content both
on and outside of MEdia Net.
• Purchase Blocker: lets you restrict the ability to buy ringtones,
downloads, games, etc., from MEdia Net on this phone.
Setting up Parental Controls
1.
In Idle mode, touch
➔
➔ Customize CV ➔
1.
2.
3.
3.
Touch OK to activate the filter.
Music Videos provides links to music video channels that are
organized by music genres.
1.
Touch
➔ AT&T Music ➔ Music Videos.
You are then taken to the MobiVJ Music Videos application.
2.
During the initial setup, touch OK to acknowledge the data
service usage information and verify your subscription.
3.
Touch Accept to agree to the terms of the MobiVJ service
and follow the on screen prompts. A welcome video is then
Touch Save and allow a few minutes for your information to
displayed.
be received and accepted by MEdia Net. You can then use
this information to activate the parental filters.
Touch Purchase Blocker ➔ On button to toggle the On/Off
Music Videos
keypad/keyboard to enter the information: PIN, Re-enter,
contact email address.
➔ Customize CV ➔
state.
fields.
Touch each of the following fields and use the onscreen
➔
Content Filters ➔ On button to toggle the On/Off state.
Parental Controls to access the MEdia Net parental setup
2.
In Idle mode, touch
4.
Touch a desired video station to view music videos.
Video Features
78
a867 Eternity.book Page 79 Tuesday, October 14, 2008 10:42 AM
Music Video Options
While playing a music video channel, touch Guide to view the
channel guide listing.
Note: This service requires a subscription. You will have a trial period, after
which a fee will be applied.
➔ AT&T Music ➔ Music Videos ➔ Guide.
1.
Touch
2.
From the main Music Video homepage, touch Options.
To view Help content and access video player options, select
from the following:
• Full Screen - enlarges the picture to fill the entire screen.
• Get Ringtones - allows you to purchase ringtone content associated
with the video content that is currently playing.
• Buy - allows you to purchase a monthly subscription.
• Mute - silences the audio in the application.
• Help/Settings - provides information on how to use the application &
information about subscriptions.
Viewing a Video Clip
䊳
Touch the video clip to begin the streaming playback.
After the stream has been buffered into memory, you can choose
to either Pause or play the content.
79
a867 Eternity.book Page 80 Tuesday, October 14, 2008 10:42 AM
Section 8: AT&T Mobile TV
AT&T Mobile TV
2.
Follow the onscreen instructions to navigate through the
onscreen guide.
The AT&T Mobile TV service allows you to watch an exciting
lineup of live full-length episodes of entertainment, news, sports
and kids' programming from some of the most popular networks,
including CBS Mobile, CNBC, CNN Mobile Live, Comedy Central,
ESPN Mobile TV, FOX Mobile, FOX News, MSNBC, MTV, NBC 2Go,
Nickelodeon and PIX.
OK
Subscribe and start watching your favorite programs
immediately. The Program Guide is simple to use and navigate,
allowing you to change from one channel to the next quickly and
easily without progress bars and download delays.
Important!: Programming and available networks are subject to change.
AT&T Mobile TV services may require separate subscription and
activation fees. Contact AT&T for details.
In Idle mode, touch
Touch any of the following buttons to activate a function.
Move up through the available options.
Getting Started
1.
3.
➔
tv .
– or –
Move down through the available options.
From the Widget bar, scroll through and touch tv . Allow
a few minutes for the system to launch when you start
AT&T Mobile TV for the first time.
AT&T Mobile TV
80
a867 Eternity.book Page 81 Tuesday, October 14, 2008 10:42 AM
Return to the previous page.
4.
Select the premium package(s) you want to add to your
base package and touch Continue. You can choose more
than one premium package at a time. The Terms of
Service screen then appears.
Accept the current onscreen selection.
OK
5.
Read the Terms of Service and if you agree, touch Agree.
– or –
Touch Disagree if you do not agree to the terms and you
Subscribing to AT&T Mobile TV
will be prompted to exit the subscription process.
You need to be in an AT&T Mobile TV coverage area to subscribe.
➔
tv .
1.
In Idle mode, touch
2.
Touch Subscribe now. The Review Base Package screen
then appears.
6.
Package costs are automatically added to your monthly
bill.
7.
– or –
If you decide to Subscribe later, you can access the
Subscribe now option each time you launch Mobile TV.
3.
Review the basic package information and touch Continue.
• If premium content is available, the Select Premium Package
screen appears allowing you to select from additional packages.
81
Confirm your package subscription and touch Submit.
Touch Close to return to the Player.
Note: The costs of the package(s) are automatically added to your monthly
bill.
8.
Edit or cancel your subscription options by accessing
Subscription Manager from within the Program Guide
Options menu.
a867 Eternity.book Page 82 Tuesday, October 14, 2008 10:42 AM
Using the Mobile TV Player
Move up through the channels.
While in the Mobile TV application, you will receive visual
notification for incoming calls and calendar/alarm events. For all
other incoming alerts, you will receive only an audible tone.
Move down through the channels.
View the current program in full-screen mode.
Return to the previous page.
Accept the current selection.
Touch any of the following onscreen buttons to navigate within
the Player.
OK
Access and display the Program Guide.
Exit the AT&T Mobile TV application.
AT&T Mobile TV
82
a867 Eternity.book Page 83 Tuesday, October 14, 2008 10:42 AM
Activating Full-Screen Mode
You may view Mobile TV programming using the entire video
screen by touching
after selecting a program.
Note: The default resolution for program viewing is 320 x 240.
䊳
From a current onscreen program, touch
OK
. This resizes
the onscreen video window to full-screen mode (400 x 240).
After selecting full-screen mode, the Player displays video at this
resolution only when Player controls are not visible. If you touch
the screen again, the Player controls and program title
information become visible and the video resizes back to its
default viewing size of 320 x 240.
Using the Program Guide
The Program Guide lists all scheduled programs, along with their
respective channel names, program titles, descriptions, program
ratings and show times.
Touch a program entry (onscreen buttons) from within the
Program Guide to then launch that program in the Mobile TV
Player. If you select a channel that is not included in your
subscription package, you can add that programming package
immediately by touching the onscreen Press here for subscription
info button and following the prompts.
83
䊳
Touch any of the following buttons to move through the
Program Guide:
Returns to the Player with the selected program
still in progress.
Launches a current highlighted program.
OK
• You can also touch the program title to launch
the program.
• This page also displays information about any
future program you have highlighted
a867 Eternity.book Page 84 Tuesday, October 14, 2008 10:42 AM
Subscription manager
Launch the Options menu.
Move up/down through different channels in the
guide and display program titles across the same
time block.
Move left/right across different time blocks to see
upcoming programming for a particular channel.
The Subscription manager allows you to edit or cancel your
subscription, as well as view your memory usage and terms of
agreement.
1.
From the Program Guide screen, touch
to launch the
Options menu.
2.
Touch Subscription manager to manage your subscription
and configure available options.
Display information about the current or any future
programs.
Using the Options menu
OK
You can change your subscription, set parental controls, check
for updates, and refresh your subscription by accessing the
Options menu.
1.
From the Program Guide screen, touch
.
2.
Follow the onscreen options and make your selection by
touching the corresponding onscreen button. Options
include: Subscription manager, Mobile TV Parental Controls,
3.
Touch
to display available options.
4.
Touch OK after selecting your updated settings.
Check for Updates, Refresh Subscription, and About.
AT&T Mobile TV
84
a867 Eternity.book Page 85 Tuesday, October 14, 2008 10:42 AM
Mobile TV parental controls
Limits access to certain rated programs, by setting parental
controls.
1.
From the Program Guide screen, touch
to launch the
Options menu.
2.
Touch Mobile TV Parental Controls.
3.
Touch the Parental control on/off field and touch On.
4.
Use the onscreen keypad/keyboard to create a 4-digit PIN.
OK
This PIN will be required to delete, modify, or add
programming packages to your subscription.
5.
Touch OK to store the new PIN.
6.
Touch Parental control ratings and select the rating levels
for TV, movies and audio.
After settings are confirmed, the service assesses a program's
rating before allowing it to be viewed. When a selected program
exceeds the rating you've set, you will be prompted to enter the
assigned PIN.
• Enter the incorrect or no PIN and the program cannot be viewed.
• Enter the correct PIN and the program can be viewed.
Keep your PIN in a safe place, and do not share it with
unauthorized third parties.
If you forget your PIN, call AT&T customer service for assistance.
85
a867 Eternity.book Page 86 Tuesday, October 14, 2008 10:42 AM
Checking for updates
1.
From the Program Guide screen, touch
to launch the
Options menu.
2.
Touch Check for updates. The system searches for updates
to your AT&T Mobile TV service and automatically
downloads any new software versions.
Refreshing a subscription
Refresh your subscription if you have more than one AT&T Mobile
TV enabled phone and you switch your SIM card between
phones.
1.
From the Program Guide screen, touch
to launch the
Options menu.
2.
Touch Refresh Subscription. The AT&T Mobile TV service
then checks your records to verify you are receiving the
correct package.
About
1.
From the Program Guide screen, touch
to launch the
Options menu.
2.
Touch About to display the current version of AT&T Mobile
TV operating on your phone.
AT&T Mobile TV
86
a867 Eternity.book Page 87 Tuesday, October 14, 2008 10:42 AM
Section 9: Understanding Your Address Book
This section allows you to manage your daily contacts by storing
their name and number in your Address Book. Address Book
entries can be sorted by name, entry, or group.
Note: When storing an Address Book entry into your SIM card, note that only
the name, phone number, group, and slot location are initially offered
as fields (some SIM cards may allow an address as well). Although you
may add additional fields to a SIM entry; if you move that same SIM
card to another model phone, it is possible that only the basic
information will be transferred.
• Used Space: displays the memory storage allocation (total available
and remaining) within both your Phone, SIM card, and FDN list
(page 97).
Adding a New Contact
Use the following procedure to store a new contact to your
Address Book.
Saving a Number from the Idle screen
1.
Address Book Settings
87
➔ Address Book ➔ Address Book Settings.
Touch
➔
Create Contact
(Create Contact). This opens the
Add New Contact screen.
1.
Touch
2.
Touch any of the following options to activate a function:
by choosing one of three options:
• My Business Card: attaches a user created virtual business card
as an attachment to outgoing messages.
• Save New Contacts to: defines the destination for new contact
entries (Phone or SIM Card) (page 95).
• View Contacts from: to filter the display of current Address Book
entries. Options include: All, Phone, or SIM Card (page 91).
• Own Number: to display your current phone number (page 93).
• Fixed Dial Contacts: assigns phone numbers as FDN entries
(page 93).
• Remove although not an option with a new entry, deletes any
previously assigned image.
• Take Photo to use the camera to take a new picture and assign it
to this entry.
• Caller Image to retrieve a previously stored image from your
Pictures folder and assign it to this entry. Select an image and touch
Add to assign the image and return to the previous Add New
Contact screen.
2.
Touch the image icon and assign a picture to the new entry
a867 Eternity.book Page 88 Tuesday, October 14, 2008 10:42 AM
3.
Touch the First Name, Last Name, and Display Name fields
and use the onscreen keyboard to enter names for the new
entry, and touch OK . (For more information, refer to
“Entering Text” on page 40.)
• First Name: allows you enter a first name for this entry.
• Last Name: allows you enter a Last name for this entry.
• Display Name: allows you enter a display name for this entry which
then appears when you receive a call from this contact.
4. Touch the Phone Number field and use the onscreen
keypad to enter the phone number for the entry, and
touch OK .
• Phone Number: allows you keep or alter the currently entered
phone number.
5. Touch
to change the category type of the entry.
Choose from among: Phone Number (Cell), Home, Work,
Fax, or Others.
6.
Use your fingertip to scroll down the screen and touch any
• Group: assigns this contact to group. Touch an group type to
complete the assignment. For more information, refer to
“Creating New Group” on page 94.
• Ringtone: assigns a ringtone for this contact information. Choose
from Tones, Music, or Recorded Audio categories. Touch a music
file to play a short sample and then touch Add to complete the
assignment.
• Vibration: assigns a vibration type for this contact information.
Touch a setting (Vibration 1 - 5) to be provided with a sample.
Touch Save to complete the assignment.
• Birthday: assigns a calendar date for the contacts birthday. Touch
Save to store the new date. For more information, refer to
“Scrolling Through Field Entries” on page 22.
• Note: allows you enter notes associated with this contact. For more
information, refer to “Entering Text” on page 40.
7. Touch Save to store the new entry into the Address
Book.
Note: By default, Contacts are saved on the phone. To copy them to a SIM
card, see “Copying an Entry to the SIM Card” on page 95.
of the remaining fields to update their information. Touch
OK to save your updates. Available fields consist of:
• Email: adds a contact email address for this entry.
Understanding Your Address Book
88
a867 Eternity.book Page 89 Tuesday, October 14, 2008 10:42 AM
Adding More Fields to a Number
While in the process of creating a new entry or editing an existing
contact, you can add additional fields to the entry’s list of
information.
1.
2.
Within the open Contact Screen, touch
Add More Fields
• Job Title: adds a a Job Title field for this entry.
• Address: adds a field used to assign a physical address for this
entry.
3. Touch Done to store the new fields to the entry and
return to the previous screen.
(Add
More Fields).
– or –
Place a checkmark adjacent to an individual field by
To add even more fields, touch
touching each entry.
previous step.
– or –
Place a checkmark alongside all entries by touching All.
Phone Number: adds an additional number field for the entry.
Email: adds an additional contact email address field for this entry.
URL: adds a Web site’s URL to the entry.
DTMF: adds a DTMF tone string for use with this entry.
Group: creates an additional group field for group assignment.
Message Tone: adds a field used to assign a message tone that
will sound when messages are received from this contact.
• NickName: adds a field that can be used to enter a nickname for
the entry that is displayed when calls are either made to or received
from the contact.
• Company: adds a company field for this entry.
89
and repeat the
Deleting Fields From a Number
1.
Additional fields include:
•
•
•
•
•
•
Add More
Fields
Within the open Contact Screen, touch
Delete
Fields
(Delete
Fields).
2.
Touch
to confirm deletion of an individual field. After
each deletion, you are returned to the Contacts screen.
3.
Repeat the above step for each field you wish to delete.
4.
Once you have made your modifications, touch
store the new entry and its fields.
Save
to
a867 Eternity.book Page 90 Tuesday, October 14, 2008 10:42 AM
Saving a Number During a Call
1.
Make your call, touch
, use the onscreen keypad to
enter your number.
2.
3.
Press
Touch
or touch
More
to initiate the call.
➔ Save to Address Book ➔ New.
To call the
selected number
• Select Update if this was a previously created entry and your are
adding the current number to the previous entry.
4. Enter the desired information, see “Saving a Number from
To save the
number to the
Address Book
the Idle screen” on page 87.
Saving a Number After a Call Has Ended
1.
Press
to bring up the recent calls screen.
– or –
Touch
2.
➔ Tools ➔ Recent Calls.
Touch a phone number from the list to reveal the Details
page (shown below) for the phone entry.
3.
Touch
Save
➔ New.
• Select Update if this was a previously created entry and your are
adding the current number to the previous entry.
4. Enter the desired information, see “Saving a Number from
the Idle screen” on page 87.
Understanding Your Address Book
90
a867 Eternity.book Page 91 Tuesday, October 14, 2008 10:42 AM
Using Contacts
3.
Dialing a Number from Address Book
Within the Contacts list (sorted alphabetically), touch and
drag the Power Search tab to quickly “thumb through” the
alphabetical listing by first name.
Once you have stored phone numbers in the Address Book, you
can dial them easily and quickly by either using their SIM card
location number or by using the Search field to locate the entry.
Contacts Filter
Note: The default Address Book entries are: *Now - *669,
Check Bill Balance - *225#, Directory Assistance - 411,
Pay My Bill - *729, View Data Usage - *3282#,
View My Minutes - *646#, Voice Dial - *08, and
Music ID - #43.
Finding an Address Book Entry
You can store phone numbers and their corresponding names
onto your SIM card and phone’s onboard memory. The two
locations are physically separate but are used as a single entity,
called the Address Book.
Depending on your particular SIM card, the maximum number of
phone numbers the SIM card can store and how they are stored
may differ.
➔ Address Book ➔ Contacts.
1.
In Idle mode, touch
2.
Touch the Contacts Filter field (upper-right) and select
Contacts. Additional entry categories include Groups and
Favorites.
91
Power Search tab
4.
When found, touch
call.
adjacent to the entry to make the
a867 Eternity.book Page 92 Tuesday, October 14, 2008 10:42 AM
Address Book Entry Options
While in the details page for a specific entry (seen below) you
have two sets of options, each accessible from two of the
onscreen buttons.
1.
Touch
and touch a phone number from the list to
reveal the Entry Options page (shown below) for the phone
entry.
2.
Touch
to reveal the first set of options:
• Call: allows you to call a currently selected entry.
• Video Share: allows you to share either a live video recording or
recorded video with a phone that is similarly equipped, and if both
SIMs have the feature enabled.
• Send Message: allows you to send a text message or a multimedia
message to the selected entry.
3. Press
to return to the previous Entry Options
page.
4.
Touch
Edit
to alter the properties of the current entry
such as: Name, Category, Group, or location. Touch
Save
to store your changes.
Phone Options
5.
Touch
Delete
to delete the current address book entry from
a target location such as the Phone and/or SIM card.
6.
Additional
Options
Touch
More
to reveal the second set of entry options:
• Print via Bluetooth: allows you send the selected contact entry
information to a Bluetooth compatible printer.
• Send Business Card via: allows you to send a message to the
selected entry which contains the information from an Address
Book Business Card entry which you have on file.
This can be sent as either a message or via Bluetooth.
• Add to Favorites: allows you add the current contact entry to your
favorite list of callers (Favorites list).
Understanding Your Address Book
92
a867 Eternity.book Page 93 Tuesday, October 14, 2008 10:42 AM
Finding My Own Phone Number
This function is a memory aid, which you can use to check your
own phone number if you need to do so.
䊳
In Idle mode, touch
Creating New FDN Numbers
With the Fixed Dial mode On, follow these procedures:
1.
➔ Address Book ➔ Address Book
In Idle mode, touch
➔ Address Book ➔ Fixed Dial
Contacts ➔ Create FDN.
Settings ➔ Own Number ➔ <voice line #>.
FDN Mode
Note: If FDN is Off: touch Menu -> Address Book -> Address Book Settings ->
Fixed Dial Contacts -> Create FDN. Then follow steps 2-7.
FDN (Fixed Dialing Number) mode, if supported by your SIM card,
restricts your outgoing calls to a limited set of phone numbers.
When this feature is enabled, you can make calls only to phone
numbers stored in the FDN list on the SIM card.
Note: FDN Mode must be set to On in the Menu ➔ Settings ➔ Phone ➔
Security ➔ Fixed Dialing Mode option before you can add, change, or
delete contacts on the FDN List.
2.
is provided to you by your Service Provider.
3.
4.
Touch Phone Number and use the onscreen numeric
keypad to enter a contact phone number for this FDN
contact. Touch OK .
1.
In Idle mode, touch
2.
Scroll down to the Fixed Dialing Mode field and touch
numeric keypad to enter a location value for the entry on
On (to enable fixed dialing) or Off to disable the option.
the SIM card. Touch OK .
Important!: With Fixed Dial Mode enabled, you will NOT be able to dial any
number other than those created Fixed Dial Numbers.
93
Touch Name and use the onscreen alphanumeric keypad to
enter a name for this FDN contact. Touch OK .
Changing the FDN mode Status
➔ Settings ➔ Phone ➔ Security.
Enter your PIN2 password and touch Confirm. This number
5.
Touch the SIM card location field to then use the onscreen
6.
Touch
7.
Press
Save
to store the new FDN entry.
to return to the Main menu.
a867 Eternity.book Page 94 Tuesday, October 14, 2008 10:42 AM
Group Settings
5.
Creating New Group
1.
In Idle mode, touch
assignment to this new group. Choose from five vibration
Touch the Group Name field and use the onscreen
keypad/keyboard to enter a new group name. For more
information, refer to “Entering Text” on page 40.
• Touch OK to store the new group name.
3.
options (Vibration 1-5).
➔ Address Book ➔ Group ➔
Create Group.
2.
Touch Group Vibration to choose a vibration type for
• Touch a vibration option to activate a short sample and then touch
Save to complete the assignment.
6. Touch Save to store the new Group category.
Adding an Entry to a Group
1.
• Touch a music file to play a short sample and then touch Add to
complete the assignment.
Edit
➔ Group.
2.
Touch
3.
Touch a current Group category ➔
Save
.
– or –
1.
In Idle mode, touch
2.
Touch a group entry.
3.
assignment to this new group. Choose from Tones, Music,
or Recorded Audio categories.
, then touch an Address Book entry from the
entry.
new image:
• Reset, although not an option with a new group, deletes any
previously assigned image.
• Take Photo to use the camera to take a new picture and assign it
to this entry.
• Group Picture to retrieve a previously stored image from your
Pictures folder and assign it to this group entry.
4. Touch Group Ringtone to choose an audio file for
Touch
list to reveal the Entry Options page (page 92) for the phone
Touch the Group Picture field and choose a location for the
➔ Address Book ➔ Group.
Touch Add Member and place a checkmark alongside those
entries you wish to add to the current Group.
4.
Touch Add.
Understanding Your Address Book
94
a867 Eternity.book Page 95 Tuesday, October 14, 2008 10:42 AM
Removing an Entry From a Group
1.
Touch
, then touch an Address Book entry from the
Make modifications to the Group Name, Group Picture,
Group Ringtone, Group Vibration fields. For more
information, refer to “Creating New Group” on page 94.
Edit
➔ Group.
3.
Touch a remaining Group category to then assign the entry
5.
to this new group.
Touch
Save
to store the new assignment.
Touch
Save
to store your changes.
Managing Address Book Entries
You can copy, delete, and view the memory status for the Phone
and SIM entries on your phone.
Copying an Entry to the SIM Card
– or –
➔ Address Book ➔ Group.
1.
In Idle mode, touch
2.
Touch a group entry.
3.
Touch Remove Member and place a checkmark alongside
those entries you wish to add to the current Group.
Touch Remove.
Editing a Caller Group
Note: When storing an Address Book entry into the SIM card, note that only
the name, phone number, group, and slot location are initially offered
as fields (some SIM cards may allow an address as well). To save
additional information for a particular contact, such as other phone
numbers, or e-mail, it is important to add new fields to that Contact
information. It is also important to note that if you move the SIM card to
another phone that does not support additional fields on the SIM card,
this additional information may not be available.
1.
To edit a Group entry, there must be at least one member as part
of the selected group.
95
4.
entry.
Touch
4.
➔ Edit Group.
Touch
list to reveal the Entry Options page (page 92) for the phone
2.
4.
More
3.
➔ Address Book ➔ Group.
1.
In Idle mode, touch
2.
Touch a current Group entry.
In Idle mode, touch
➔ Address Book ➔ SIM
Management ➔ Copy Contacts to SIM. The phone then
displays a list of your current contacts.
a867 Eternity.book Page 96 Tuesday, October 14, 2008 10:42 AM
2.
Place a checkmark adjacent to those entries you wish to
2.
have copied to the SIM card.
• Repeat this step for all individual entries you wish copied to the SIM
or touch All to place a checkmark alongside all entries.
3. Touch Copy. You are prompted to confirm that you want to
copy these entries to the SIM card.
• To copy the checked entries to the SIM card, touch Yes.
• To cancel the copy process, touch No.
4. When you are finished, press
to return to the Main
menu.
Copying an Entry to the Phone
1.
In Idle mode, touch
➔ Address Book ➔ SIM
have copied from the SIM card to the Phone.
• Repeat this step for all individual entries you wish copied to the
Phone or touch All to place a checkmark alongside all entries.
3. Touch Copy.
4.
to return to the Main
Deleting All of the Address Book Entries
You can delete all Phone or SIM entries from your phone’s
memory.
Deleting all entries from the Phone
1.
In Idle mode, touch
➔ Address Book ➔ Contacts ➔
Delete.
2.
card.
• If the entry’s associated Group graphic has a SIM location icon on it,
then the entry exists on the SIM card. This is the type you can
duplicate.
• If the entry’s associated Group image does not have a SIM location
icon, then this entry currently exists on the phone.
When you are finished, press
menu.
Management ➔ Copy Contacts from SIM. The phone then
displays a list of your current contacts held on the SIM
Place a checkmark adjacent to those entries you wish to
Touch the All field to place checkmarks alongside all the
current Address Book entries.
3.
Touch Delete.
4.
When you are finished, press
to return to the Main
menu.
Understanding Your Address Book
96
a867 Eternity.book Page 97 Tuesday, October 14, 2008 10:42 AM
Deleting all entries from the SIM
1.
In Idle mode, touch
➔ Address Book ➔ SIM
Management ➔ Delete Contacts from SIM.
Touch the All field to place checkmarks alongside all the
current Address Book entries.
2.
Touch Delete.
3.
When you are finished, press
to return to the Main
Note: This menu is available only when your SIM card supports Service
Dialing Numbers.
Checking the Address Book’s Used Space
You can check how many names and numbers are stored in the
Address book, in both SIM card and the phone memory. You can
also see the capacity of both memories.
1.
• Phone: tells you how many Address Book entries (out of a possible
2000) are in use.
• SIM Card: tells you how many entries are in use on your SIM card.
• Additional No. 1: if you have added additional numbers to contacts
saved on the SIM card, this is a counter of the number of SIM
contacts with a second number saved on your SIM card.
• Additional No. 2:if you have added additional numbers to contacts
saved on the SIM card, this is a counter of the number of SIM
contacts with a third number saved on your SIM card.
• Email: tells you how many entries are in use.
• FDN: tells you how many entries are in use (out of a possible 40).
Note: Entries on the FDN Address Book must be deleted from within the FDN
Address Book
Using the Service Dialing Numbers
You can view the list of Service Dialing Numbers (SDN) assigned
by your service provider. These numbers may include emergency
numbers, customer service numbers, and directory inquiries.
In Idle mode, touch
➔ Address Book ➔ Service
Number.
2.
Scroll through the available numbers.
3.
To dial the number displayed, press
.
Note: Depending on the SIM card, the number of entries may differ.
2.
97
➔ Address Book ➔ Address Book
Settings ➔ Used Space.
menu.
1.
In Idle mode, touch
Once finished, press
to return to the Main menu.
a867 Eternity.book Page 98 Tuesday, October 14, 2008 10:42 AM
Section 10: My Stuff
The topics covered in this section are games, apps, pictures,
videos, calendar, schedule events, setting an alarm, and
performing simple math calculations.
➔ My Stuff.
1.
Touch
2.
Select from one of the following functions: Audio, Games &
Apps, Pictures, Videos, Tools, Other Files, or Used Space.
3.
• More: provides you with the ability to Delete, Rename, Sort by,
Send via Bluetooth, Bluetooth Visibility, and Lock/Unlock certain files
or folders.
Creating a New Folder
Touch
2.
Select a destination for the new folder by touching either
Phone or Memory Card.
Touch the filter drop down (upper-right of My Stuff page) to
filter the entries based on their current location (All, Phone,
3.
This page provides you with several functions that can be
activated from virtually any page within the My Stuff directories.
Most editing features are only applicable to those files/folders
that are not locked, and therefore editable.
➔ My Stuff.
1.
Touch
2.
Select from the following:
• Create Folder: create a new My Stuff folder on either the Phone or
Memory Card.
• Manage: allows you to move or copy an existing unlocked folder or
file.
Use the onscreen alphanumeric keypad to create a new
name for the folder and touch OK once your are done.
or Memory Card).
My Stuff Functions
➔ My Stuff ➔ Create Folder.
1.
Managing Files and Folders
➔ My Stuff ➔ Manage.
1.
Touch
2.
Select a migration option by touching either Move or Copy.
• Move: takes an unlocked file/folder and moves it to a new location.
• Copy: takes the selected file/folder and duplicates it in the new
location.
3. Select an unlocked entry by touching it to then place a
checkmark next to the entry.
• Touch All to place a checkmark alongside all available/unlocked
items.
My Stuff
98
a867 Eternity.book Page 99 Tuesday, October 14, 2008 10:42 AM
4.
Once complete, touch Move/Copy to complete the process.
More Functionality
➔ My Stuff ➔ More.
1.
Touch
2.
Select an onscreen option:
• Delete: erases selected files/folders.
• Rename: renames the selected files/folders.
• Sort by: sorts the current available files and folders using either:
Date, Type, Name, or Size.
• Send via Bluetooth: sends a selected file via Bluetooth to another
compatible device.
• Bluetooth Visibility: allows you to make specific files or folders
visible to other Bluetooth devices.
• Lock: locks available files and folders.
Audio Files
You can shop, download, and save to your Downloaded
Ringtones folder.
1.
Touch
➔ My Stuff ➔ Audio ➔ Tones. A menu then
displays to give you the option of either shopping for tones
or selecting from files previously stored to your phone.
2.
Touch Shop Tones ➔ select a file to download, and follow
the on-screen options. (These files are downloaded and
stored in the Tones folder.)
– or –
Touch an available entry.
3.
From the playback page, touch Set as and select from the
following options:
The Audio menu option allows you to shop tones, answer tones,
and music using the WAP browser. You can also access
previously stored (pre-recorded) audio files from your internal
miroSD card.
➔ My Stuff ➔ Audio.
1.
Touch
2.
Touch an onscreen option (Tones, Answer Tones, Music,
and Recorded Audio).
99
Tones
• Call Ringtone: allows you to assign the selected ringtone for use
with general incoming calls when no other caller ringtone has been
assigned.
• Caller Ringtone: allows you to assign a ringtone to someone in
your Contacts list (Search Contact) or Create Contact.
• Alarm Tone: allows you to assign the tone to an alarm.
a867 Eternity.book Page 100 Tuesday, October 14, 2008 10:42 AM
Answer Tones
Recorded Audio
You can shop and download Answer Tones, manage your Answer
Tones, and access Help files. To access the Answer Tones menu
option, use the following steps:
➔ My Stuff ➔ Audio ➔ Answer Tones.
1.
Touch
2.
Touch one of the following options and follow the onscreen
instructions.
• Shop Answer Tones: launches the WAP browser from which you
can touch Shop Answer Tones, then follow the onscreen
instructions to purchase a file.
• Manage Answer Tones: launches the WAP browser from which
you can assign Answer Tones to Callers and Groups, turn your
greeting on or off, and shop for more Answer Tones.
• About Answer Tones: launches the WAP browser from which you
can navigate through the frequently asked questions regarding
Answer Tones.
This menu shows a list of saved voice memos. When a voice
memo is recorded and saved, it is stored in the Recorded Audio
folder. To access this menu use the following steps:
➔ My Stuff ➔ Audio ➔ Recorded Audio.
1.
Touch
2.
Touch a pre-recorded memo to begin playback.
3.
To exit, press
.
Creating a new audio recording
➔ Tools ➔ Record Audio.
1.
Touch
2.
To start recording, touch
.
For more information, refer to “Record Audio” on page 144.
Music
This menu allows you to shop for music using the WAP browser.
1.
Touch
➔ My Stuff ➔ Audio ➔ Music ➔ Shop Music
to launch the WAP browser.
2.
Follow the on-screen options.
My Stuff
100
a867 Eternity.book Page 101 Tuesday, October 14, 2008 10:42 AM
Games & Apps
The Games & Apps menu option allows you to shop games and
applications using the WAP browser. You can download new
games and applications, then save them to the Games & Apps
folder.
Shop Games
1.
Touch
2.
Select one of the following options:
• Shop Games
• Shop Applications
• Tumbling Dice
• AT&T Navigator
• MEdia Mall 2.0
• Mobile Banking
• Mobile Email
• MobiVJ
• MusicID
• My-Cast Weather
• and others..
3. Follow the onscreen options.
➔ My Stuff ➔ Games & Apps ➔ Shop Games
to launch the WAP browser.
2.
Follow the onscreen options. The file is downloaded and
stored in the Games & Apps folder.
➔ My Stuff ➔ Games & Apps.
1.
Touch
Note: Service charges and subscription purchase may be required.
3.
To access a pre-installed game, touch a game from the
available list.
For more information, refer to “MEdia Mall” on page 126.
Shop Applications
1.
Touch
➔ My Stuff ➔ Games & Apps ➔ Shop
Applications to launch the WAP browser.
2.
Follow the onscreen options to purchase the new
application. The file is downloaded and stored in the
Games & Apps folder.
3.
To access a new application, touch the entry from the
available list.
101
a867 Eternity.book Page 102 Tuesday, October 14, 2008 10:42 AM
Mobile Banking Access
You can access your banking information on your device. Mobile
Banking allows you to view balances, perform transfers, view
account history and pay bills directly from your mobile phone.
Partner banks include: Wachovia, SunTrust, Synovus, and
BancorpSouth.
1.
Touch
➔ My Stuff ➔ Games & Apps ➔ Mobile
• Manage: allows you to move or copy an existing unlocked folder or
file.
• More: provides you with the ability to Delete, Rename, Sort by,
Send via Bluetooth, Bluetooth Visibility, and Lock/Unlock certain files
or folders.
Shop Graphics
1.
Banking.
2.
Follow the onscreen instructions.
Note: This service is dependent upon your banking institution’s rules and
regulations. Standard data charges apply.
Pictures
Touch
➔ My Stuff ➔ Pictures ➔ Shop Graphics. The
2.
Follow the onscreen options to purchase the new image.
The file is downloaded and stored in the Pictures folder.
3.
To access a new application, touch the entry from the
available list.
Image Features
The Pictures menu option allows you to shop for and download
new graphics (using the WAP browser), then save them to your
Pictures folder. To access the Graphics menu option, use the
following steps:
䊳
Touch
WAP browser is launched.
➔ My Stuff ➔ Pictures.
From the Pictures page you can access the following menu
options (see “My Stuff Functions” on page 98.):
• Create Folder: create a new My Stuff folder on either the Phone or
Memory Card.
Touch a graphic from the Pictures page to display the image.
From the image viewer page, you have access to both macro
functions (Zoom, Edit, and Info) and menu options.
• Zoom: allows you to magnify the current image.
• Edit: allows you to edit the current image by applying various image
effects. For more information, refer to “Editing Images” on
page 103.
Note: Editing is only available for unlocked images or non DRM images.
My Stuff
102
a867 Eternity.book Page 103 Tuesday, October 14, 2008 10:42 AM
• Information: displays an onscreen listing of the image’s properties
such as: name, format, size, etc..
• Send: lets you send the currently active image as part of a new
multimedia message, to an external device via Bluetooth, or to HP’s
online Snapfish® service.
• Set as: allows you to assign the current image as either your current
Wallpaper, or as a display image used by a specific entry within your
Address Book.
• More: allows you to choose from the following image options:
• Delete: allows you to delete the current graphic.
• Rename: allows you to rename the current graphic.
• Slide Show: allows you play a slideshow using the graphics
currently available from within the Pictures folder. Press
to stop the slideshow.
• Bluetooth Visibility: allows you to toggle your current Bluetooth
visibility status between Visible or Hidden.
• Print via: allows you to make a selected graphic printable by either
USB or Bluetooth printer.
• Lock/Unlock: allows you to secure a selected graphic by protecting
it from accidental alterations.
• Properties: allows you to view the properties of a photo.
103
Editing Images
1.
Touch
2.
Touch Edit (
➔ My Stuff ➔ Pictures ➔ <image>.
) ➔ Files ➔ Open or Save as (to save a
renamed copy of this image).
– or –
Touch Edit (
) ➔ Edit and select from any of the
following:
• Effects: allows you to choose from among several effects such as:
Filter, Style, Warp, or Partial Blur.
• Adjust: allows you to adjust Auto Level, Brightness, Contrast,
and Color.
• Transform: allows you to Resize, Rotate, and Flip the image.
• Crop: allows you to crop the image. Touch one corner of the image
and, in a single motion, drag to another location to create the crop
area, then touch Crop.
• Insert: allows you to add Frames, Picture, Clip arts, Emoticon,
and Text to the image.
• Memo on screen: allows you to select a color, then handwrite a
message onto the current image. Touch Done to store the new
changes.
a867 Eternity.book Page 104 Tuesday, October 14, 2008 10:42 AM
Videos
1.
1.
Touch
➔ My Stuff ➔ Videos ➔ Shop Videos. The WAP
browser is launched.
2.
Follow the onscreen options to purchase the new video.
The file is downloaded and stored in the Videos folder.
Tools
The Tools folder provides access to and allows you to use the
Camera, Record Audio files, set Alarms, use the Calendar
features, view Recent Calls, create Tasks, create Memos, use the
Calculator, use the Converter (for currency, length, weight,
volume, area, and temperature), view World Clock, set the Timer,
and use the Stopwatch.
For more information, refer to “Tools” on page 144.
Camera
Taking Photos
Note: When taking a photo in direct sunlight or in bright conditions, shadows may
appear on the photo.
Press the Camera key to activate the camera mode.
– or –
This menu allows you shop for videos and to set up folders to
save your videos using the WAP browser.
In Idle mode, touch
2.
➔ Tools ➔ Camera.
If desired, before taking the photo, press the onscreen
Settings button to access camera options.
3.
Press the Camera key to take the photo.
Note: Your camera produces photos in JPEG format.
For more information, refer to “Using the Camera” on page 108.
Record Audio
Record Audio allows you to record voice memos. It also allows
you to send your audio clip to other people as an attachment of
an MMS message. Recording time is limited to free memory
space available.
For more information, refer to “Record Audio” on page 144.
Alarms
This feature allows you to:
• set the alarm to ring at a specific time.
• set the phone to switch on automatically and ring the alarm even if the
phone is switched off.
My Stuff
104
a867 Eternity.book Page 105 Tuesday, October 14, 2008 10:42 AM
䊳
Access the Alarms menu by selecting My Stuff ➔ Tools ➔
Alarms.
For more information, refer to “Alarms” on page 145.
Calendar
The calendar feature allows you to view the Month, Week, and
Day layout views. Events such as an appointment, anniversary, or
private entries are merged into a single scheduled event. It also
shows any Missed Alarm Events that have occurred.
Note: Birthdays which take place on the current day are displayed within the
onscreen Birthday widget (page 23).
䊳
Access the Calendar menu by selecting My Stuff ➔ Tools ➔
Calendar.
For more information, refer to “Calendar” on page 146.
Recent Calls
The phone stores the numbers of the calls you’ve dialed,
received, or missed in the Recent Calls menu. If the number or
caller is listed in your Address Book, the associated name is
displayed.
䊳
Access the Recent Calls menu by selecting My Stuff ➔ Tools ➔
Recent Calls.
For more information, refer to “Recent Calls” on page 148.
Tasks
This menu option allows you to create a “to do” entry of tasks
which are created in a similar fashion to previously described
Calendar entries.
䊳
Access the Tasks menu by selecting My Stuff ➔ Tools ➔
Tasks.
For more information, refer to “Tasks” on page 148.
Memo
This option allows you to create memos and add them to your
events.
䊳
Access the Memo menu by selecting My Stuff ➔ Tools ➔
Memo.
For more information, refer to “Memo” on page 148.
Calculator
This option allows you to use your phone as a calculator. The
calculator provides the basic arithmetic functions; addition,
subtraction, multiplication, and division.
䊳
Access the Calculator menu by selecting My Stuff ➔ Tools ➔
Calculator.
For more information, refer to “Calculator” on page 148.
105
a867 Eternity.book Page 106 Tuesday, October 14, 2008 10:42 AM
Converter
The Converter menu provides the following conversion
categories:
• Currency
• Length
• Weight
• Volume
• Area
• Temperature
䊳
Access the Converter menu by selecting My Stuff ➔ Tools ➔
Converter.
For more information, refer to “Converter” on page 149.
World Clock
The World Clock allows you to view the time of day or night in
another parts of the world. World displays time in the 30 different
time zones around the world.
䊳
Access the World Clock menu by selecting My Stuff ➔ Tools ➔
World Clock.
Timer
The Timer allows you to set an amount on time and then activate
the built-in counter to begin a countdown (Hour/Minute/Second)
to that preset time frame.
䊳
Access the Timer menu by selecting My Stuff ➔ Tools ➔ Timer.
For more information, refer to “Timer” on page 150.
Stopwatch
This feature allows you can to measure intervals of time for four
separate times. To enable the Stopwatch, do the following:
䊳
Access the Stopwatch menu by selecting My Stuff ➔ Tools ➔
Stopwatch.
For more information, refer to “Stopwatch” on page 150.
Other Files
This feature provide additional storage of other miscellaneous file
types that may not fit into any of the previous categories.
䊳
Access the Other Files menu by selecting My Stuff ➔ Other
Files.
For more information, refer to “World Clock” on page 149.
My Stuff
106
a867 Eternity.book Page 107 Tuesday, October 14, 2008 10:42 AM
Used Space
The Used Space menu option allows you to view the usage and
available memory for Audio, Games & Apps, Pictures, Videos, and
Other Files. To access the Used Space option, use the following
steps:
➔ My Stuff ➔ Used Space.
1.
Touch
2.
Choose from Audio, Games & Apps, Pictures, Videos, or
Other Files.
3.
107
Press
to return to the Used Space menu.
a867 Eternity.book Page 108 Tuesday, October 14, 2008 10:42 AM
Section 11: Camera
This section explains how to use the camera on your phone. You
can take photographs and shoot video by using the built-in
camera functionality. Your 3.0 megapixel camera produces
photos in JPEG format.
2.
Using the phone’s main display screen as a viewfinder,
adjust the image by aiming the camera at the subject.
3.
Press the Camera key until the shutter sounds. (The
picture will automatically be stored within your designated
Important!: Do not take photos of people without their permission.
Do not take photos in places where cameras are not allowed.
Do not take photos in places where you may interfere with
another person’s privacy.
storage location. If no microSD is installed, all pictures will
be stored on the Phone.) For more information, refer to
“Camera and Camcorder Options” on page 109.
Using the Camera
Taking Photos
Pictures Remaining
Display Image
Taking pictures with your device’s built-in camera is as simple as
choosing a subject, pointing the camera, then pressing the
camera key.
Current mode
217
Note: When taking a photo in direct sunlight or in bright conditions, shadows
may appear on the photo.
1.
Press the Camera key to activate the camera mode.
– or –
In Idle mode, touch
➔ Tools ➔ Camera.
Settings
Current Configurations
Camera
108
a867 Eternity.book Page 109 Tuesday, October 14, 2008 10:42 AM
Shooting mode: allows you to set the shooting mode.
Options are:
Note: The number of JPEG pictures remaining on the selected media appears
in the upper-right of the screen. This is an approximate number of total
pictures which can be taken at the current image size.
• Single: takes a single photo and view it before
4.
If desired, before taking the photo, you can touch onscreen
returning to the shooting mode.
icons to access various camera options.
5.
Press
• Continuous: takes a succession of consecutive photos
by pressing and holding the Camera key.
to return to the picture viewer.
Camera and Camcorder Options
• Panorama: takes a landscape photo by taking an
initial photo and then adding additional images to
itself. The guide box lets you view the area where the
second part of the panoramic picture should fall
within.
Options are represented by icons across both sides of the screen.
Camera/Camcorder/Video Share Mode: allows you to take a
photo in various modes. Once you change the mode, the
corresponding indicator appears at the top left of the
display. Choose from Camera, Camcorder, or Video Share.
• Smile Shot: the camera focuses on the face of your
subject. Once the camera detects the person’s smile,
it will take the picture.
• Mosaic: takes up to nine photos and then groups them
together into a single final photo.
Recording Mode: allows you to set the recording mode to
either: Normal (limited only by available space on
destination location), Limit for MMS (limited by MMS size
restrictions), Video Share (only available in Camcorder
mode.)
109
• Frame: allows you to choose a custom frame border
for your image. Choose from one of the 20 available
frames. Touch OK to assign the frame.
0
Camera Resolution: allows you to set the image size to
either: 3M(2048x1536), 2M(1600x1200), 1M(1280x960),
0.3M(640x480), w3M (2048X1232) or 400x240.
a867 Eternity.book Page 110 Tuesday, October 14, 2008 10:42 AM
320
240
Camcorder Resolution: allows you to set the video size to
either: 320x240 or 176x144.
Settings: allows you to customize your camera settings.
Choose the following options and touch OK:
Camera tab:
Camcorder tab:
• Effects: allows you to change the color tone or apply
special effects to the video. Options include: None,
Black and White, Sepia, Negative, or Water Color.
• Video Quality: allows you to set the video quality to:
Fine, Normal, or Economy.
• Effects: allows you to change the color tone or apply
special effects to the photo. Options include: None,
Black and White, Sepia, Negative, or Water Color.
• Exposure Meter: allows you to set how the camera
measures or meters the light source: Normal,
Center-Weighted, or Spot.
• Scene: allows you to set the camera options to
capture scenes such as None, Portrait, Landscape,
Night, Sports, Sunset, or Text.
• Image Quality: allows you to set the image quality to:
Superfine, Fine, Normal, or Economy.
Settings tab:
• Guidelines: allows you to turn the guidelines On or Off.
• Review: allows you to activate the instant review
feature where images are displayed immediately after
review (On or Off).
• Shutter Sound: allows you to select a tone to play
when the camera’s shutter opens and closes. Sound
selections are Shutter 1, Shutter 2, Shutter 3, or Off.
• Audio Recording: allows you to record audio while
recording video. Selecting Off, temporarily mutes the
microphone and records only video.
• Storage: allows you to configure the default storage
location for images/videos as either Phone or Memory
Card (if inserted).
Camera
110
a867 Eternity.book Page 111 Tuesday, October 14, 2008 10:42 AM
AWB White Balance: allows you to set this option from the
following choices: Auto, Daylight, Incandescent,
Fluorescent, or Cloudy.
Pictures/Videos Folder Options
After you have taken a photo or shot a video, you can access
various options from the Pictures/Video Folder page.
Image/Video
Timer: allows you to set a time delay before the camera
takes the photo or the camcorder begins recording video.
Options include: Off, 2 seconds, 5 seconds, or 10 seconds.
Send
Play Slideshow
1/19
Brightness: allows you to adjust the brightness level by
moving the slider across the page.
Access Pictures/Video Folder Options: allows you to access
the options page for a selected image/video. Options
include: Play slideshow, Edit, Information, Send, Set as,
Delete, and Return to previous page.
Edit
䊳
Return to previous page
Touch one of the available options:
• Play Slideshow (
): to play the available images (from the
Pictures folder) within a slideshow. Touch the Up/Down arrows to set
the duration of each onscreen image.
111
a867 Eternity.book Page 112 Tuesday, October 14, 2008 10:42 AM
• Edit (
): allows you to edit the current image using any of the
following:
– Effects: allows you to choose from among several effects.
– Adjust: allows you to adjust Auto Levels, Brightness, Contrast, and
Color.
– Transform: allows you to Resize, Rotate, and Flip the image.
– Crop: allows you to crop the image. Touch one corner of the image and,
in a single motion, drag to another location to create the crop area,
then touch Crop.
– Insert: allows you to add Frames, Picture, Clip arts, Emoticon, and
Text to the image.
– Memo on screen: allows you to select a color, then handwrite a
message onto the current image. Touch Done to store the new
changes.
Note: Edit and Set as are not a features available when the camcorder mode
is active.
• Information (
): displays file information such as name, format,
size, resolution, etc..
• Send (
): lets you send the currently active image as part of a
new multimedia message, to an external device via Bluetooth, or to
HP’s online Snapfish® service.
• Set as (
): allows you to assign the current image as either your
current Wallpaper, or as a display image used by a specific entry
within your Address Book.
• Delete (
): erases the currently selected image/video.
): takes you back to the previously active camera or
camcorder page where you can take another photo or shoot a new
video.
• Return (
Accessing the Pictures Folder
➔ My Stuff ➔ Pictures.
1.
Touch
2.
Touch a photo to open it in the viewer.
Selecting and Using the Pictures Folder
Touch a picture from the Pictures page to display the image.
From the image viewer page, you have access to both macro
functions (Zoom, Edit, and Info) and menu options.
• Zoom: allows you to magnify the current image.
• Edit: allows you to edit the current image by applying various image
effects.
• Information: displays an onscreen listing of the image’s properties
such as: name, format, size, etc..
• Send: lets you send the currently active image as part of a new
multimedia message, to an external device via Bluetooth, or to HP’s
online Snapfish® service.
• Set as: allows you to assign the current image as either your current
Wallpaper, or as a display image used by a specific entry within your
Address Book.
Camera
112
a867 Eternity.book Page 113 Tuesday, October 14, 2008 10:42 AM
• More: allows you to choose from the following image options:
– Delete: allows you to delete the current graphic.
– Rename: allows you to rename the current graphic.
– Slide Show: allows you play a slideshow using the pictures currently
available from within the Pictures page. Touch the screen to stop the
slideshow.
– Bluetooth Visibility: allows you to toggle your current Bluetooth
visibility status between Visible or Hidden.
– Print via: allows you to make a selected graphic printable by either USB
or Bluetooth printer.
– Lock/Unlock: allows you to secure a selected graphic by making it
protected from accidental alterations.
– Properties: allows you to view the properties of a photo.
113
Editing a Photo
➔ My Stuff ➔ Pictures ➔ <image>.
1.
Touch
2.
Use the following options onscreen buttons and icons for
editing and photo management.
3.
Touch Edit (
) ➔ Edit and select from any of the
following:
• Effects: allows you to choose from among several effects such as:
Filter, Style, Warp, or Partial Blur.
• Adjust: allows you to adjust Auto Levels, Brightness, Contrast,
and Color.
• Transform: allows you to Resize, Rotate, and Flip the image.
• Crop: allows you to crop the image. Touch one corner of the image
and, in a single motion, drag to another location to create the crop
area, then touch Crop.
• Insert: allows you to add Frames, Picture, Clip arts, Emoticon,
and Text to the image.
• Memo on screen: allows you to select a color, then handwrite a
message onto the current image. Touch Done to store the new
changes.
a867 Eternity.book Page 114 Tuesday, October 14, 2008 10:42 AM
Assigning an Image to an Address Book Entry
1.
2.
Touch
➔ My Stuff ➔ Pictures ➔ <image>.
Touch Set as ➔ Caller Image ➔ Search Contact, touch an
onscreen entry and touch
Save
.
– or –
Touch Set as ➔ Caller Image ➔ Create Contact, and follow
the create a new Address Book entry with the image
already assigned. For more information, refer to
Using the Camcorder
In addition to taking photos, the camera also doubles as a
camcorder allowing you to also record, view, and send videos.
Shooting Video
Tip: When shooting video in direct sunlight or in bright conditions, it is
recommended that you provide your subject with sufficient light by
having the light source behind you.
1.
➔ My Stuff ➔ Pictures ➔ <image>.
Touch
2.
Touch Set as ➔ Wallpaper.
3.
Touch the screen to reveal the adjustment tools:
• Zoom slider: touch the magnifying icons at either the top or bottom
of the slider to adjust the magnification of the current image.
• Rotate: orients the current image in either a landscape or portrait
orientation. The bottom left of the page indicates how much of the
image will be displayed as the wallpaper.
4. Touch Set to store the new settings and assign the
➔ Tools ➔ Camera.
Press the Camera key to activate the camera mode.
Assigning an Image as a Wallpaper
1.
In Idle mode, touch
– or –
“Understanding Your Address Book” on page 87.
2.
Touch
then touch Camcorder (
).
3.
Using the phone’s main display screen as a viewfinder,
adjust the image by aiming the camera at the subject.
4.
Press the Camera key again to begin shooting video.
5.
Touch
to stop the recording and save the video file to
your Videos folder.
– or –
Before shooting, touch
and select Video Share.
wallpaper image.
Camera
114
a867 Eternity.book Page 115 Tuesday, October 14, 2008 10:42 AM
• Video Share allows you to make a Video Share call by displaying a
screen where you can input the number of a recipient that also has
Video Share. (This option will only display if you have the Video
Share service.) If the recipient accepts the Video Share call, you
continue using the camcorder as usual.
• Touch
to end the Video Share session. You will get a
message “Video Sharing has been Stopped. Save the Recorded
Video?” You can select either Yes or No. You can then continue the
call or terminate it.
6. Once the file has been saved, touch
to play back your
video for review.
7.
Press
to return to the viewer.
Camcorder Options
Camcorder options are represented by icons across both sides of
the screen.
For more information, refer to “Camera and Camcorder Options”
on page 109.
115
Camcorder Options after a Video is Taken
After you have shot a video, you can use various options that
appear as icons on the screen. Touch an icon to activate the
function.
䊳
Touch one of the available options:
• Play Slideshow (
): to play the available images (from the
Pictures folder) within a slideshow. Touch the Up/Down arrows to set
the duration of each onscreen image.
Note: Edit and Set as are not a features available when the camcorder mode
is active.
• Information (
): displays file information such as name, format,
size, resolution, etc..
• Send (
): lets you send the currently active image as part of a
new multimedia message or to an external device via Bluetooth.
• Delete (
): erases the currently selected image/video.
• Return (
): takes you back to the previously active camera or
camcorder page where you can take another photo or shoot a new
video.
a867 Eternity.book Page 116 Tuesday, October 14, 2008 10:42 AM
Accessing the Video Folder
➔ My Stuff ➔ Videos.
1.
Touch
2.
Touch a video to open it in the viewer and initiate playback.
3.
To play the video, touch
.
Options available from the main Videos page, and before you
select it to play:
• Create Folder: create a new My Stuff folder on either the Phone or
Memory Card.
• Manage: allows you to move or copy an existing unlocked folder or
file.
– Move: allows you to choose the Selected or Multiple videos to move.
– Copy: allows you to copy a selected or multiple videos.
• More: provides you with the ability to Delete, Rename, Sort by, Send
via Bluetooth, Bluetooth Visibility, and Lock/Unlock certain files or
folders.
– Delete: allows you to delete the Selected video or Multiple videos.
– Rename: allows you to rename the video file.
– Sort by: allows you to sort video clips by Name, Date, Size or Type.
– Send via Bluetooth: allows you to send the video to a Bluetooth
device.
– Bluetooth Visibility: allows you to make the Selected or Multiple
videos visible to Bluetooth devices.
– Lock/Unlock: allows you to lock/unlock the video file to prevent
deletion. Lock prevents the video clip from being deleted; Unlock allows
the video clip to be deleted.
Once you have selected the video to play, your options are:
• Options (
): to access the following:
– Send via: allows you to send the video clip via a multimedia message
or a Bluetooth device.
– Properties: allows you to view the properties for this video file.
• Pause/Resume: allows you to pause the video being played, and then
resume playing.
• Stop: allows you to stop playback of the current video.
• Previous/Next: allows you to jump to either the previously played
video or the next file in the Videos folder.
• Return: takes you back to the Videos page.
Camera
116
a867 Eternity.book Page 117 Tuesday, October 14, 2008 10:42 AM
Section 12: Messaging
This section describes how to send or receive different types of
messages. It also includes the features and functionality
associated with messaging.
䊳
Touch
Save
to store each new settings.
Types of Messages
Your phone provides the following message types:
• Text Messages
• Multimedia (Picture and Video) Messages
• IM Messages
The Short Message Service (SMS) lets you send and receive text
messages to and from other mobile phones or email addresses.
To use this feature, you must subscribe to your service provider’s
message service.
The Multimedia Messaging Service (MMS) lets you send and
receive multimedia messages (such as picture messages and
video messages) to and from other mobile phones or email
addresses. To use this feature, you must subscribe to your
service provider’s multimedia message service.
117
Important!: When creating a message, adding an image, a sound file, or a
video clip to a text message changes the message from a text
message to a multimedia message.
Messaging icons are displayed at the top of the screen and
indicate when messages are received and their type. For more
information, refer to “Icons” on page 15.
Creating and Sending Messages
1.
Touch
➔ Messaging ➔ Create Message.
– or –
Touch Messaging from the bottom of the Main menu.
2.
Select a recipient by selecting an entry method by touch
Tap to Add Recipient and then selecting an associated
option:
• Recent Contacts: to select a recipient from a list of recently sent
messages.
• Contacts: to select a recipient from your Contacts list (valid entries
must have a wireless phone number).
• Group: to select a recipient from the Group list.
a867 Eternity.book Page 118 Tuesday, October 14, 2008 10:42 AM
Note: If the number of recipients are less than 10, all members in the group
will be added. You will need to delete any unnecessary members in the
list by selecting the trash can icon and deleting unwanted entries.
• Enter Manually: to manually enter a destination using a valid
cellular phone number.
Note: Enter additional recipients by separating each entry with a semicolon
(;) then using the previous procedure.
3.
Touch the empty onscreen text field and use the onscreen
keyboard to enter a message. Rotate the phone on its side
to reveal the keyboard. For more information, refer to
“Entering Text” on page 40.
4.
Touch OK to save your text and return to the message
screen.
5.
Add more recipients by touching the yellow recipient field
and repeating step 2.
6.
Review you message and touch
Send
.
Additional Message Options
1.
Touch
Insert
to reveal additional insert options.
• Picture: allows you to choose an existing image from the Pictures
list, then add it to your message by touching Add.
• Video: allows you to choose an existing video from the Videos list,
touch
, then select Add.
• Audio: allows you to choose an existing audio file from the Audio
list, then add it to your message by touching Add.
• Take Picture: allows you to temporarily exit the message, take a
photo with phone’s camera, and then add it to your message by
touching OK.
• Record Video: allows you to temporarily exit the message, record a
video clip using the phone’s camera, and then add it to your
message by touching OK.
• Record Audio: allows you to temporarily exit the message, record
an audio clip using the phone’s microphone, and then add it to your
message by touching Add.
• Favorites URL: allows you to temporarily exit the message, access
your Favorites list then select those URLs you would like to add to
the current message by touching Add.
• Contact Info: allows you to choose an existing Address Book entry,
then add it to your message by touching Insert.
Messaging
118
a867 Eternity.book Page 119 Tuesday, October 14, 2008 10:42 AM
2.
Touch
More
to reveal additional options.
• Preview: allows you to preview your current message before
delivery.
• Slide Options: allows you to add more images to the current
message but then have those configured to display as a slideshow
on the recipients phone. Options include: Add Slide, Delete Slide, or
Edit Style).
• Attach Files: allows you to add either a file, card, or other
information such as a calendar entry, task, or note.
– File: allows you to insert an audio, graphic, or video clip to your
message as an attached file.
– Business Card: allows you to insert the contact information for an
entry from Address Book directly to your message as an attached file.
– Event: allows you to insert an Event entry from your calendar directly to
your message as an attached file.
– Tasks: allows you to insert an entry from your calendar tagged as a
Task directly to your message as an attached file.
– Memo: allows you to insert a presaved Memo (text) directly to your
message as an attached file.
– Favorites: allows you to add a web address from your Favorites list of
Internet sites as an attachment to the message.
• Add Subject/Remove Subject: allows you to either add or delete a
subject field to the new message.
• Save to Drafts: saves the current message to the Drafts folder.
• Delivery Options: allows you to configure the options associated
with sending the message.
3. When you have finished composing your message, touch
Send to and confirm the recipient(s). For more
information, refer to “Creating and Sending Messages” on
page 117.
4.
Touch
Send
to deliver the message to the selected
recipients.
Viewing New Received Messages
1.
In Idle mode, new messages are indicated by icons and a
New Messages pop-up. For more information, refer to
“Understanding the Event Widget” on page 27.
2.
Touch the tab corresponding to the message type (Text or
Multimedia).
Note: If you accidentally exit from this notification screen, you will need to go
to Menu ➔ Messaging ➔ Inbox, or you will need to dial your voicemail
to access your messages.
3.
Touch a message you wish to view. The selected message
appears in the display.
119
a867 Eternity.book Page 120 Tuesday, October 14, 2008 10:42 AM
4.
.
To play a multimedia message, touch
䊳
have been added), touch the screen and in a single motion,
scroll up or down the onscreen page.
6.
When you have finished, press
.
Note: Messages can also be accessed by navigating to your Inbox (Menu ➔
Messaging ➔ Inbox).
Using Message Options
Message options at the Inbox level differ according to the
message type, what you have done with the message, and
whether you are viewing the message. Some of the main
message category types include:
• Inbox: stores any incoming message (text or multimedia).
• Sent: stores a copy of the messages you sent.
• Outbox: contains messages until they are sent and then the message
no longer displays in this box but instead displays in the Sent box.
• Drafts: stores unsent messages that you want to edit or send later.
With the list of current message displayed onscreen, use any
of the following menu options:
• To pause playback of the multimedia message, touch
.
• To stop playback of the multimedia message, touch Stop.
5. To scroll through the message (if additional text pages
䊳
• List by: sort the current list based on one of the following criteria:
– Sender, Read/Unread, Type, Subject, Size, or Protection status.
• Delete: deletes either a single or multiple set of messages. Touch
an entry from the list to place a checkmark alongside the entry and
mark it for deletion. Touch Delete to complete the process.
With a message open for reading, use any of the following
menu options:
• Reply (to): allows you to compose and send a reply to the
message. This option reads Reply (when replying to an SMS [Text]
message), and Reply to (when replying to an MMS [Multimedia]
message).
• Delete: deletes the current message.
• More: provides these additional message functions:
– Forward: allows you to forward the message.
– Save to Address Book: allows you to save the recipient or sender’s
information from the message to your Address Book as either a New or
Updated entry. For more information, refer to “Understanding Your
Address Book” on page 87.
– Move to Phone/Move to SIM: If a message is stored in the SIM card,
it is saved to the phone’s memory. If a message is stored in the phone’s
memory, it is then saved to the SIM card.
– Print via Bluetooth: allows you to print the contents of the message
on a Bluetooth compatible printer.
Messaging
120
a867 Eternity.book Page 121 Tuesday, October 14, 2008 10:42 AM
– Save Attachment: allows you save any selected attachments. If the
file is currently available, you are prompted to rename the filename.
– Properties: displays the properties of any attached files.
– Lock/Unlock: allows you to secure a selected message by
protecting it from accidental alterations.
Signing into Your Mobile Email
Take your email with you! With Mobile Email you can check your
Yahoo!® Mail, AOL®, AIM, Windows Live Hotmail, AT&T Yahoo!®,
BellSouth, and other providers quickly and easily.
➔ Messaging ➔ Mobile Email.
1.
Touch
2.
Touch an Email carrier of your choice.
3.
Touch I Agree to accept the conditions of service.
4.
Touch both the ID and password fields, then use your
Using Instant Messaging (IM)
The Instant Messaging allows you to send and receive instant
messages using AIM, Windows Live, and Yahoo!® communities.
Signing into Your IM Account
Although each account type differs, the initial sign in procedure is
common to all supported types. Before beginning the sign in
procedure, you must complete the previous procedures for
selecting your default IM Community.
Touch
2.
Touch an IM client of your choice (AIM, Windows Live, or
Yahoo!).
3.
Password. Select any additional fields.
information (for example, “silverfox2”), and touch Sign In.
contacts, where you can send and receive emails.
5.
Follow any remaining onscreen instructions to complete
the process.
121
Touch New Account and then touch the available fields to
enter your information such as Email Address and
onscreen keyboard/keypad to enter the account
You will be connected to your account's Inbox and
➔ Messaging ➔ IM.
1.
4.
Touch Sign In to continue.
a867 Eternity.book Page 122 Tuesday, October 14, 2008 10:42 AM
Deleting Messages
2.
entries.
3.
Touch Delete .
4.
At the “Locked Messages” pop-up, touch Yes or Cancel to
discontinue the process. This message indicates the
Deleting Messages within a Folder
1.
2.
Touch
3.
Select a message folder (Inbox, Sent, Outbox, or Drafts). A
Touch Delete and touch an entry to mark it for selection
with a checkmark.
4.
Touch either an individual message or Select All to place a
checkmark alongside all entries in the list.
5.
selected folders.
Messaging Settings
To configure the settings for text messages, multimedia
messages, Voice mails, and Push messages.
䊳
Touch
Touch
➔ Messaging ➔ Delete by Folder.
➔ Settings ➔ Applications Settings ➔ Messaging.
Configuring Text Message Settings
1.
From Messaging Settings page, touch Text Message ➔
Delivery Options.
Touch Delete.
Delete All Messages
1.
presence of protected/locked messages in one of the
➔ Messaging.
list of messages in the folder appears in the display.
Touch either a single category (Inbox, Sent, Outbox, or
Drafts) or touch All to place a checkmark alongside all
When your phone’s memory is full, an error message displays
notifying you that you cannot receive any new messages. Use the
Delete option erase obsolete messages, freeing memory for new
messages. You can delete the messages in each message
folder(s) either individually or all at one time. Another option is to
delete messages from all categories at once.
2.
Touch Keep a Copy and touch
Save
to store a local
copy of all outgoing text messages.
Messaging
122
a867 Eternity.book Page 123 Tuesday, October 14, 2008 10:42 AM
Configuring the Text Message Center
1.
From Messaging Settings page, touch Text Message ➔ Text
Message Center. These settings allow you to set the default
method of text message transmission used by the Text
Message Center.
2.
Touch one of the available setting fields and make the
necessary updates.
• SMS Settings: allows you to configure the Text message delivery
parameters when sending Text messages.
• Email Settings: allows you to configure the Email parameters when
sending this type of message.
• Empty: allows you to configure a new Text Message Center profile
for use when sending this type of message.
Note: It is recommended that you do not alter these fields without assistance
from a customer service representative.
3.
Touch
Save
to store your settings.
Configuring Multimedia Message Settings
1.
From Messaging Settings page, touch Multimedia
2.
Touch an available field and make the necessary updates.
Message.
123
• Delivery Options: to configure the parameters associated with the
delivery of the multimedia message such as:
– Priority: you can select the priority level of your messages.
– Expiration: select the length of time you wish the message you sent to
remain on the Multimedia message server.
– Delivery Time: you can set a time delay before the phone sends your
messages.
– Message Size: you can set the maximum allowed size (30/100/300/
600 KB) for a multimedia message.
– Get Delivery Report: when this option is enabled, the network informs
you whether or not your message has been delivered.
– Get Read Report: when this option is enabled, your phone requests a
reply along with your message to the recipient.
– Keep a Copy: you specify whether you want to keep a copy of the sent
messages on your phone.
– Add My Business Card: you send your content information along with
your sent messages.
• Receiving Options: to configure the parameters associated
received multimedia messages such as:
– Download Type: allows you to set the message receipt options.
Choose from Auto Download, Manual, or Reject.
– Send Delivery Report: when this option is enabled, the phone allow
the network report to the sender whether or not the message has been
received.
a867 Eternity.book Page 124 Tuesday, October 14, 2008 10:42 AM
– Send Read Report: when this option is enabled, your phone sends a
notification back to the recipient indicating that your message has been
received.
– Reject Anonymous: allows you to automatically reject messages with
a category of anonymous.
– Reject Advertisement: allows you to automatically reject messages
with a category of advertisement.
• MMS Profiles: to configure you Network parameters (For more
information, refer to “Changing the WAP Profiles” on
page 161.)
• Auto Resize Image: to configure the limits you’ll accept for
incoming images. Images larger then your setting, will be resized to
meet this value. Options include: No Resize, 100 KB, 300 KB, or
600 KB.
• Creation Mode: provide you with editing and formatting tools.
Choose from: Free, Warning, or Restricted.
• Default Style: assigns the “look and feel” for the multimedia
message screen with parameters such as: Background Color, Font
Color (for text), Font Style, and Slide Duration (during playback).
3. Touch Save to store each new settings.
Configuring Voice Mail Settings
There may be times when the voice mail access number might
need to be changed. If this is necessary, please obtain the
information from the customer service center.
Note: It is recommended that you do not alter these fields without assistance
from a customer service representative.
1.
2.
From Messaging Settings page, touch Voice Mail.
Touch the Voicemail field and use your onscreen
keypad/keyboard to enter the new Name and Center
Address (voicemail phone number).
• Name: allows you to create a new descriptive name for this access
number.
• Center Address: allows you edit the existing number and create a
new number for use when accessing the remote voicemail.
3. Touch Save to store this new information.
Messaging
124
a867 Eternity.book Page 125 Tuesday, October 14, 2008 10:42 AM
Configuring Push Message Settings
A Push Message is a method for your service provider to deliver
content (e.g. images, ringtones, software upgrades, information,
etc.) to mobile phones that are WAP enabled. You cannot initiate
or reply to WAP Push Messages. This message may direct you to
go to a URL that is included in the message for further
information and/or updates, or it may be information only.
Examples may be firmware updates or emergency notifications.
1.
From Messaging Settings page, touch Push Message.
2.
From the Receiving Options field touch On (activate) or Off
(deactivate) to toggle the state of this feature.
3.
Touch the Service Loading field and choose how
applications will be loaded onto your phone: Always,
Prompt, or Never.
125
Used Space
You can check the amount of the memory being used and the
memory remaining for Multimedia, Text, Push, and Configuration
Messages. The display shows the total space including the used
and free space. You can also view how much space is currently
occupied by each message box.
➔ Messaging ➔ Used Space.
1.
Touch
2.
Touch a particular folder for review or both size and
contents within the selected folder.
3.
When you have finished, press
.
a867 Eternity.book Page 126 Tuesday, October 14, 2008 10:42 AM
Section 13: MEdia Mall
The MEdia Mall allows you to shop for Ringtones, Games, Cool
Tools/Apps, Videos, Color Graphics, Answer Tones, and
Multimedia using the built-in browser. You can also access the
MEdia Home site.
䊳
Touch
➔ MEdia Mall. This then launches the WAP
browser to the Media Mall home page.
Downloading Multimedia Files
You can buy a variety of multimedia files, such as ringtones,
graphics, applications, Multimedia content, and so on from the
WAP browser. Your phone has embedded links to the web sites
providing you with download services, preset by your service
provider.
➔ MEdia Mall.
1.
Touch
2.
Touch an onscreen entry such as: Games, Cool Tools/Apps,
Videos, Color Graphics, Answer Tones, or Multimedia Store.
• To access the homepage for the online shopping mall, touch MEdia
Net Home.
3. Touch the onscreen Options button to also access the
following options. For more information, refer to “MEdia
Mall Options” on page 128.
• MEdia Mall Home
• My MEdia Club
• MEdia Mall Account
• Recently View
• Exit
4. Find the item you want to download and follow the
onscreen instructions to purchase it.
Note: You can retrieve the messages from the server and then save the items
in your phone’s memory. You cannot forward these messages to other
people or add the saved items to a Multimedia message.
Ringtones
This option allows you to shop for ringtones using the built-in
browser.
1.
Touch
➔ MEdia Mall ➔ Ringtones. You may have to
touch an onscreen entry twice, once to select it and a
second time to navigate to that page.
2.
Follow the on-screen options. Purchase options include:
Full Track Music, Movie Tones, Voice Tones, and Sound
Effects.
MEdia Mall
126
a867 Eternity.book Page 127 Tuesday, October 14, 2008 10:42 AM
Games
Color Graphics
This option allows you to shop for games using the built-in
browser.
1.
Touch
➔ MEdia Mall ➔ Games. You may have to
touch an onscreen entry twice, once to select it and a
This menu option allows you to shop for graphic images using
the built-in browser. You can download new images to your
Pictures folder.
1.
2.
This menu allows you to shop for tools and applications using the
built-in browser.
1.
Touch
➔ MEdia Mall ➔ Cool Tools/Apps. You may
have to touch an onscreen entry twice, once to select it
2.
3.
This menu option allows you to shop for answer tones using the
built-in browser.
1.
tool.
Shopping for GPS Applications
➔ AT&T GPS ➔ Shop GPS Apps.
1.
Touch
2.
Follow the onscreen prompts to purchase additional GPS
Applications.
127
Touch
➔ MEdia Mall ➔ Answer Tones. You may have
to touch an onscreen entry twice, once to select it and a
second time to navigate to that page.
If prompted to accept a redirection, touch Ok.
Follow the on-screen options to purchase an application or
Follow the on-screen options to purchase a color graphic.
Answer Tones
and a second time to navigate to that page.
2.
➔ MEdia Mall ➔ Color Graphics. You may have
second time to navigate to that page.
Follow the on-screen options to purchase a game.
Cool Tools/Apps
Touch
to touch an onscreen entry twice, once to select it and a
second time to navigate to that page.
2.
If prompted to accept a redirection, touch Ok.
3.
Follow the on-screen options to purchase an answer tone.
a867 Eternity.book Page 128 Tuesday, October 14, 2008 10:42 AM
Multimedia Store
This menu option allows you to shop for multimedia files (videos)
using the built-in browser.
1.
Touch
➔ MEdia Mall ➔ Multimedia Store. You may
• MEdia Mall Account: shows a history of your MEdia Mall account.
• Recently Viewed: shows the most recently viewed ringtones, games,
videos, graphics, and answer tones.
• Exit: takes you back to the Main menu.
have to touch an onscreen entry twice, once to select it
and a second time to navigate to that page.
2.
When prompted to confirm that you want to “Open Link in
Browser? This link will take you out of MEdia Mall.
Continue?” touch Ok.
3.
Follow the on-screen options to purchase multimedia
content.
MEdia Mall Options
The onscreen Options button (visible from the main MEdia Mall
homepage). The following options appear:
• MEdia Mall Home: takes you back to the MEdia Mall home screen.
• MyMEdia Club: enables you to join the MyMEdia Club, where you can
earn credits to be used for tones, graphics, and games in the AT&T
MEdia Mall.
Note: A monthly charge is applied for MyMEdia membership.
MEdia Mall
128
a867 Eternity.book Page 129 Tuesday, October 14, 2008 10:42 AM
Section 14: AT&T Music
AT&T Music provides you access to Streaming Music, Music
Videos, Music communities, Music applications, and allows you
to both identify and purchase music directly from your handset.
Music Player
Music Player Functions
䊳
Touch any of the following onscreen buttons during playback
to activate their features:
The Music Player is an application that can play music files. The
music player supports files with extensions AAC, AAC+, eAAC+,
MP3, WMA, 3GP, MPEG, MP4, and M4A. Launching the Music
Player allows you to navigate through your music library, play
songs, and create playlists.
Shuffle mode button:
• Shuffle On: the current list of songs are
randomly shuffled for playback.
• Shuffle Off: songs play in order and are not
shuffled.
Important!: You must create and organize your playlist before you get
started. The following characters cannot be used in the filename:
< > “ ? / \ : * |.
Using the Music Player
➔ AT&T Music ➔ Music Player.
1.
Touch
2.
Touch a library category (all music, artist, album, or
playlist) to view the available music files.
3.
Scroll through the list of songs and touch an entry to begin
playback.
NORM
Equalizer button:
Equalizer presets include: NORMAL, ROCK, POP,
DANCE, CLASSICAL, JAZZ, WIDE, DYNAMIC, and
SURROUND.
Repeat button:
• Repeat one: repeats the currently playing
song.
• Repeat all: replays the current list when the
list ends.
• Play All: plays the current song list once.
129
a867 Eternity.book Page 130 Tuesday, October 14, 2008 10:42 AM
• Plays the previous song.
– Properties: allows you to view details for the current song such as
Name, Format, Size, Date Created, and Location.
Adding Music to your Handset
• Touch once to play the current song.
• Touch twice to pause the current song.
• Advances to the next song.
䊳
Touch the player menu options at the bottom of the screen to
reveal additional menu functions:
• Library: displays the Music Player library view (Now Playing, All Music,
Artist, Album, Playlists, and Shop Music).
• Minimize: reduces the player and leaves it running in the background
so that you can navigate to other programs or activities.
• More: provides access to options such as:
– Add to Playlist: allows you to add the current audio file to a selected
playlist.
– Send via: allows you to send the current file via a message attachment
or as a data file delivered to a Bluetooth-capable device.
– Settings: allows you to access the Background Playing Settings menu.
Music files (ringtones and full tracks) can be added to your
handset by using one or more of the following methods:
• Purchase and download music and ringtones directly to your handset
over your wireless carrier’s network by using the AT&T Music – Shop
Music feature (also accessible from My Stuff).
Note: Audio files smaller than 300 KB are treated as ringtones, whereas
audio files larger than 300 KB are stored in the Music Folder.
You can not assign an MP3 file larger than 300 KB as a ringtone.
• Transfer music files from a personal computer using a media player
application and an optional USB Data Cable and an optional microSDTM
Memory Card.
Note: When the Bluetooth feature is active on your handset, USB
communication is not be available.
To transfer files to your handset, turn off the Bluetooth functionality
(Settings ➔ Connectivity ➔ Bluetooth). (For more information, refer to
“Bluetooth” on page 67.)
Note: The maximum number of songs you can synchronize between your
phone and your PC is 1500.
AT&T Music
130
a867 Eternity.book Page 131 Tuesday, October 14, 2008 10:42 AM
Shop Music
3.
1.
Touch
➔ AT&T Music ➔ Music Player ➔ Shop Music.
Verify the pre-insertion of the microSD card into the
handset. For more information, refer to “Installing the
AT&T Music can be used to shop for ringtones, Answer Tones™
and songs from some of your favorite music stores.
Memory Card” on page 6.
4.
Use the USB adapter cable to connect the handset to the
This launches the built-in browser.
target PC. When an active connection has been
2.
Select your music store of choice (or select Ringtones).
established, a USB icon (
3.
From the Categories listing, select the desired entry. Touch
to return to the previous page.
4.
Exit the browser at any time by pressing
.
Transferring Music from the Digital Music Stores
In order to download music from the computer to your handset, a
microSD card and USB data cable are required. These items are
sold separately; go to www.wireless.att.com/cell-phone-service/
accessories/.
1.
Note: If the target computer does not detect the newly connected handset or
provide an MTP Player dialog window on the PC screen, please follow
steps 6 - 9.
5.
6.
Once the USB connection has been established, the
handset displays “Connected” and the computer screen
then shows your device. If the detection occurs, skip to
step 8.
management client.
7.
131
➔ Settings ➔ Connectivity ➔ Select USB Mode
“Configuring Your Phone’s USB Settings” on page 70.
Using your computer, open your preferred Windows Media
Download the selected song to your library.
Note: If the music file is protected, Media Player will block the playing or
synching of that file.
Touch
➔ Mass Storage. For more information, refer to
Digital Rights Management (WMDRM) PC music
2.
) appears on the phone.
Locate the song on your computer and using your right
mouse button, click Copy.
8.
Open the Removable Disk drive corresponding to the
microSD card location on the phone.
a867 Eternity.book Page 132 Tuesday, October 14, 2008 10:42 AM
9.
Open the Music folder (ex:\\Audio\Music) you wish to
upload from the handset.
10. Using your right mouse button, click Paste. This step
begins the download process.
Note: The Music Player does not necessarily support all features of a
particular file format nor all the variations of those formats. The Music
Player includes support for Windows Media Digital rights Management
(WMDRM) which allows you to play some purchased or subscription
content. Copyright protections may prevent some images, music
(including ringtones) and other content from being copied, modified,
transferred or forwarded.
Playing Music through a Stereo Bluetooth Device
Your device supports the Stereo Bluetooth profile (A2DP), and
when connected to a stereo Bluetooth headset, will play back
music in stereo from the phone through the headset.
1.
Pair and connect your handset to a stereo Bluetooth
device. For more information, refer to “Connecting to Other
Bluetooth Devices” on page 68.
2.
From the list of compatible devices, select the previously
paired Bluetooth headset to begin listening to your song
through the headset.
3.
Touch
4.
Select a song to play within the Music Player.
Playing Music while Using the Phone
The Music Player allows you to play music in the background
while performing other tasks on your phone. The music will
pause when an incoming call is accepted, and the music will
resume when the call is ended. Music will continue to play when
you receive a Text Message, Multimedia Message, or an Instant
Message.
The other functions you can use are:
• Call: make or receive a call (music player is paused)
• Messaging: send or receive a text or multimedia message. Music
continues to play unless an audio clip is received as a part of a
multimedia message.
• MEdia Net: browse the web (music continues to play).
• Music Player: turns on Music Player, or allows you to use full-screen
controls of the music player.
• Games & Apps: lets you play games or access applications while
listening to music.
Important!: When you are finished using the Music Player function, you
must press
to stop the function to prevent the battery
from losing its charge. Pausing the player will continue to use
the battery.
➔ AT&T Music ➔ Music Player ➔ All Music.
AT&T Music
132
a867 Eternity.book Page 133 Tuesday, October 14, 2008 10:42 AM
Music Player Settings
Adding Songs to a Playlist
➔ AT&T Music ➔ Music Player ➔ Settings.
1.
Touch
2.
Touch On or Off to either activate or deactivate the
Touch
2.
Touch a previously created playlist from the list and touch
Background Playing option. This determines whether you
want the music to play in the background while outside of
Add.
3.
the player.
3.
Touch
Save
– or –
Touch Select All to select all available songs from the list.
Playlists are used to assign songs to a list of preferred media
which can then be grouped into a list for later playback. These
Playlists can be created via either the handset’s Music Player
options menu or from within a 3rd party music application (such
as Windows Media Player) and then downloaded to the handset.
Creating a Playlist
Touch
3.
4.
Touch Add and wait for the songs to be added to the
current playlist.
Remove songs from a Playlist
Touch
1.
Touch a previously created playlist from the list and touch
Remove.
2.
Touch any available music files to place a checkmark
Touch the ivory playlist name field and use the onscreen
alongside their entry (indicating their selection).
keyboard to enter a descriptive name for the new playlist.
– or –
Touch OK ➔
Touch Select All to select all available songs from the list
Save
to complete the creation process.
for removal.
133
➔ AT&T Music ➔ Music Player ➔ Playlists.
1.
➔ AT&T Music ➔ Music Player ➔ Playlists ➔
Tap to Create.
2.
Touch any available music files to place a checkmark
alongside their entry (indicating their selection).
.
Using Playlists
1.
➔ AT&T Music ➔ Music Player ➔ Playlists.
1.
a867 Eternity.book Page 134 Tuesday, October 14, 2008 10:42 AM
3.
Touch Remove and wait for the songs to be deleted from
the current playlist.
Transferring Music using a Media Application
A USB cable, microSD card, and a current version of a media
application (such as Napster® or Windows Media Player®) are
required for this procedure.
1.
Note: If the target computer does not detect the newly connected handset or
provide an MTP Player dialog window on the PC screen, see
“Transferring Music from the Digital Music Stores” on page 131.
Note: The following steps reflect the procedure used with Windows Media
Player. If you are using either Napster, or some other form of media
player, you should refer to that application’s Help files for specific
directions.
Open the media player on your personal computer (if you
are using Windows Media Player, use version 10.0 or
5.
If this is your first time connecting the A867 to Windows
Media Player you will need to enter a unique name for this
higher).
phone connection (ex: A867 Card). This assigns a name to
Note: The Napster application can be downloaded at www.napster.com.
Subscription fees may apply.
2.
Touch
both the phone (when recognized) and to the internal
microSD card.
➔ Settings ➔ Connectivity ➔ Select USB Mode
➔ Media Player. For more information, refer to “Configuring
Your Phone’s USB Settings” on page 70.
3.
Use the USB adapter cable to connect the handset to the
target PC. When an active connection has been
established, a USB icon (
4.
) appears on the phone.
Once the USB connection has been established, the
handset displays “Connected” and the computer screen
then shows your phone.
AT&T Music
134
a867 Eternity.book Page 135 Tuesday, October 14, 2008 10:42 AM
Name for microSD storage card
Playlists
6.
Current selected source
(indicating the internal microSD card)
Click Finish to continue onto the application. You will then
notice the Sync tab active and displaying a connection with
the phone and displaying the name you created.
7.
From within the Windows Media Player application, click
on the Sync tab. Available songs are then listed on the left
side of the application.
Note: This upper-right area also indicates the amount of free storage space
left on the internal microSD.
A867 Music
Library
Sync List Sync button
8.
If not already active, click the Sync tab.
9.
Choose the destination location for the media files. The
A867 Card entry (you named) appears in a drop-down list
on the left side of the screen.
135
a867 Eternity.book Page 136 Tuesday, October 14, 2008 10:42 AM
10. Click on the Library entry (from the left column) and select
3.
a category to reveal available songs.
Once the USB connection has been established, the
handset displays “Connected” and the computer screen
then shows your phone.
11. Click a song from the center column and drag it into the
Sync List section of the current page. This then places the
current song on a “wait list” for update to the target
location within the phone.
12. Click the Start Sync button (at the bottom of the Sync List)
to begin uploading the selected songs to your handset. A
“synchronization in progress” message appears on the
Note: If the target computer does not detect the newly connected handset or
provide an MTP Player dialog window on the PC screen, see
“Transferring Music from the Digital Music Stores” on page 131.
4.
If not already active, click the Sync tab.
5.
Locate the Playlist section (upper-left).
6.
Right-click a playlist entry and select Add to ‘Sync List’.
7.
Click the Start Sync button (at the bottom of the Sync List)
application. Do not unplug the handset during this process.
Once complete, a Sync Results folder then appears below
to begin uploading the selected playlist to your handset.
the device entry to indicate sync status.
13. It is now safe to unplug the USB connector from the
handset.
Importing a Playlist from Windows Media Player
1.
Open Windows Media Player on your computer (version
10.0 or higher).
2.
Use the USB adapter cable to connect the handset to the
target PC. When an active connection has been
established, a USB icon (
) appears on the phone.
8.
It is now safe to unplug the USB connector from the
handset.
MusicID
MusicID is an application which uses the onboard microphone to
analyze a music sample and then identify the song. Once the
application completes the analysis of the song sample, it then
provides you with the name of the song, artist and album art as
well as opportunities to buy related content.
1.
Touch
➔ AT&T Music ➔ Music ID.
AT&T Music
136
a867 Eternity.book Page 137 Tuesday, October 14, 2008 10:42 AM
2.
Select any of the following options by touching an entry:
• ID song!: begins the analysis of the song being sampled through
the handset’s microphone.
• manage IDs: provides a list of recently identified song and allows
you to obtain information about the song, delete the song, or send
the Music ID as a link to another phone number.
• help me out: provides you with on screen descriptions of several
key MusicID features.
• exit: allows you to exit the application and return to the main AT&T
Music menu.
To exit the application at any time, simply press
.
Using ID song!
5.
display an alphanumeric keypad. Use these keys to enter
the recipients phone number. Touch OK once complete.
6.
➔ AT&T Music ➔ Music ID ➔ ID song!.
Touch
2.
Place the handset’s microphone up to the source of the
message containing a Music ID link to the song.
7.
The handset then begins to analyze the audio signal and
analyzing the song again.
To exit the application at any time, simply press
1.
.
found, the screen displays the Artist Name, Track Title, and
Album cover art.
To purchase the song (with ringtone and wallpaper if
available), touch get:.
To share the song ID with another user, touch Share ID.
Touch
➔ AT&T Music ➔ Music ID ➔ manage IDs. The
screen displays a list of the most recent successful song
IDs which were made.
2.
displays “Listening” then “Analyzing”. If a song match is
137
If the song can not be found, the handset displays a “Sorry,
No Match Try Again!” message. Touch newID! and try
song, which can be from either a radio, stereo, or headset.
4.
Touch ShareID!. Within a short time they will receive a
Using Manage IDs
1.
3.
Touch the 123 button from the bottom of the screen to
Touch a song to highlight it then touch the onscreen
Options button.
3.
Select one of the following options:
• ID Info: displays the Artist Name, Track Title, and Album cover art of
the identified song.
• Delete ID: deletes the selected song from the list of identified
songs.
a867 Eternity.book Page 138 Tuesday, October 14, 2008 10:42 AM
• New ID!: begins the song analysis process again. Hold the
microphone to the song source and wait for analysis.
To exit the application at any time, simply press
.
Getting Help with Music ID
1.
Touch
➔ AT&T Music ➔ Music ID ➔ help me out. The
screen displays a list of helpful topics related to the
XM Radio
This service allows you to stream over 20 channels of
commercial free music through your handset.
Note: Since this product uses a large amount of data in its stream process,
you should note that you are responsible for all data charges incurred.
It is recommended that you subscribe to a MEdia Max data bundle so
that you are not charged for data overages.
musicID application. These topics cover:
• IDing a Song: provides information about the analysis process.
• ID Picks and More!: describes the process following the
successful identification of a song. You can choose to purchase the
song and wallpaper (if available) or send the musicID as a link to
another phone number.
• Subscription: provides details about the general usability and
monthly term information.
• About MusicID: provides information about the MusicID software
version.
Exiting from the Music ID Application
䊳
Exit the application by simply pressing
➔ Yes.
Note: XM Radio does not work with Bluetooth. Periodically, the application
will ask the customer to confirm they are still listening to the stream.
➔ AT&T Music ➔ XM Radio.
1.
Touch
2.
During the initial setup, touch OK to acknowledge the data
service usage information and verify your subscription.
Note: This is a paid service, initially you will only be allowed a 10 minute trial
period before you have to register for the paid service.
3.
Touch Accept to agree to the terms of the XM Radio service
and follow the on screen prompts.
4.
Select a radio station category from the guide list.
5.
Select a specific radio channel to start the music
streaming to your phone.
AT&T Music
138
a867 Eternity.book Page 139 Tuesday, October 14, 2008 10:42 AM
6.
Touch Buy to purchase the music content associated to the
3.
selected channel.
Music Videos
For more information, refer to “Music Videos” on page 78.
Pandora
You can enter the name of your favorite artist or song, and the
system will generate a radio station featuring not only the
selected song, but also similar songs you might enjoy.
You can also rate songs using thumbs up and thumbs down,
which allows the application to better personalize the songs
offered on your stations. You can also allows bookmark your
favorite artists and songs. The Pandora™ application on your
phone is fully integrated with its web counterpart, so that
everything you create, rate, or bookmark on your mobile phone
then appears the next time you're back on the web.
➔ AT&T Music ➔ Pandora.
1.
Touch
2.
If you agree to the high data use by this application, touch
OK (right onscreen key). Read and answer the remaining
prompts.
139
(username) and password, the touch OK.
Note: It is not recommended that you use the same password as is currently
active for your email account.
4.
This service allows you to enjoy all the stations you've created on
the web - and create new ones right from your mobile phone.
Register for the service by entering a unique email address
Follow the onscreen prompts.
Exit the application by simply pressing
.
Community
The Community is a place where you can find a listing of various
fan sites that provide sound clips, wallpapers, bios,
discographies, and other information about an artist.
➔ AT&T Music ➔ Community.
1.
Touch
2.
Select a fan site and follow the onscreen instructions.
Exit the application by simply pressing
.
Music Applications
The Music Applications option accesses the internet to provide
Music tools for your handset. Services provided on this site may
include, Music ID, MobiRadio, Billboard Mobile Channel, MobiTV:
Live TV, and MobiTV en Español.
➔ AT&T Music ➔ Music Applications.
1.
Touch
2.
Select a music site and follow the onscreen instructions.
a867 Eternity.book Page 140 Tuesday, October 14, 2008 10:42 AM
Section 15: AT&T GPS
AT&T GPS provides you with access to real-time GPS-driven
applications. These programs not only allow you to achieve
real-time GPS enabled turn-by-turn navigation, but also access
local searches based on a variety of category parameters. The
system is also future upgradeable via the purchase of additional
GPS applications.
Global GPS turn-by-turn navigation—mapping and Point of
Interest content for three continents, including North America
(u.s., Canada, and Mexico), Western Europe, and China where
wireless coverage is available from AT&T or its roaming providers
AT&T GPS is an audible and visual, JAVA-based driving aid that
uses a GPS signal to provide turn-by-turn directions.
The application is a separately licensed product that requires you
to download the feature to your handset, and accept the license
agreement before using. A trial period is provided for you to test
it for your own use.
Launching AT&T Navigator
➔ AT&T GPS ➔ AT&T Navigator.
1.
Touch
2.
Touch the onscreen Free Trial button to activate the 30-day
trial and create a temporary account. A 30-day free trial
period is provided with a notice that if you do not cancel
within 30 days then you are charged for the GPS service.
Important!: After the trial period, a monthly recurring charge for AT&T
Navigator will apply. Contact your AT&T service provider for
details.
3.
Read the warning disclaimer and touch Agree to
acknowledge the terms of use.
4.
Touch Yes to take a brief tour of the AT&T Navigation
features and functionality, or No, Skip Tour to continue to
the main navigation screen.
Important!: You must have a data plan to use this feature.
AT&T GPS
140
a867 Eternity.book Page 141 Tuesday, October 14, 2008 10:42 AM
Using the Navigator
Although your phone does not come with left and right softkeys,
these are available as onscreen buttons so you can activate their
corresponding features. Touch
below an onscreen option
to activate the function.
➔ AT&T GPS ➔ AT&T Navigator.
1.
Touch
2.
Select an option and follow the onscreen instructions to
activate a Navigator features.
• Drive To: lets you get driving directions from wherever you are to
wherever you’re going. Choices include:
– My Favorites: displays your favorite (marked) GPS navigation sites.
– Recent Places: displays your recently entered locations.
– Address: displays manually entered locations.
– Intersection: used to locate a specific address by using two separate
street addresses to identify an intersection. These can be entered either
manually (Type It) or by speaking into the phone (Speak It).
– City: allows you to enter a city, State and/or Province for navigation.
– Businesses: allows you to enter a business type or name, category, or
location.
– Airports: allows you to use either local airports based on current a GPS
location or manually enter the 3-letter airport code or name.
• Search: allows you to search for the address by either speaking it
or by entering the information manually. This function lets you
search for locations from options such as: Food/Coffee, Gas
141
Stations, Gas By Price, Banks/ATMs, WiFi Spots, Parking Lots
Hotels & Motels, and Movie Theaters.
• Maps and Traffic: provides access to 2D and 3D maps for both
your current location and for several categories of locations such
as Airports and Contacts.
• Tools & Extras: provides additional features such as sharing your
location with contacts, recording your current location, creating and
storing My Favorites locations, accessing the product tour, enabling
a real-time compass, and setting detailed application preferences.
3. Press
to return to the Main menu.
Note: These services require the purchase of a subscription.
Obtaining Driving Directions
The A867’s built-in GPS hardware allows you to get real-time
driving directions to selected locations or establishments based
on your current location.
Using a Physical Address
1.
Touch
➔ AT&T GPS ➔ AT&T Navigator ➔ Drive To ➔
Address ➔ OK.
a867 Eternity.book Page 142 Tuesday, October 14, 2008 10:42 AM
2.
Touch either Type It or Speak It.
• Type It: requires that you enter the physical address using either
the keypad or onscreen keyboard.
• Speak It: allows you to place a call to the TeleNav™ operator
where you will speak the desired address. This is similar to calling
411 for directory assistance.
3. If typing in the address, touch the following fields and use
Where
WHERE™ is a downloadable mobile application that uses your
current location (obtained via the built-in GPS) to help you find
places of interest, things to do, and local information while you’re
on the go.
1.
the onscreen alphanumeric keypad to enter the necessary
➔ AT&T GPS ➔ Where. A seven-day free trial
within seven days then you are charged for the GPS
information:
service.
• Street: used to enter a street address. Touch OK to complete.
• City: to enter the city for the address. Touch OK to complete.
• State/Province or ZIP/Postalcode: additional information that can
provide a more detailed search. Touch OK to complete.
4. Touch Done to begin the search process and receive
Important!: After the trial period, charges for Where service apply. Contact
your service provider for details.
2.
Follow both the onscreen and audio directions.
Shopping for GPS Applications
➔ AT&T GPS ➔ Shop GPS Apps.
1.
Touch
2.
Follow the onscreen prompts to purchase additional GPS
Applications.
Read through the onscreen and touch Agree to accept the
Terms of Service.
driving directions from the GPS network.
5.
Touch
period is provided with a notice that if you do not cancel
3.
Touch either Buy Now (to purchase the service) or Continue
Trial (to continue the trail period). The following menu
options then appear in the display:
• add free widgets: allows you to download and manage your
widgets.
• Starbucks: allows you to locate the nearest Starbucks.
AT&T GPS
142
a867 Eternity.book Page 143 Tuesday, October 14, 2008 10:42 AM
• Yelp: allows you to search for the address, phone numbers, and
reviews of restaurants, shopping, arts and entertainment, and
hotels and travel.
• Eventful Events: allows you to search for in Music, Performing
Arts, Sports, Single, Social, Food, Cuisine, Wine, and Family Fun
categories.
• GasBuddy: allows you research gas pricing in your area.
• AccuWeather: allows you to check the local weather.
• Insider Alerts: allows you to insider alert information for your
current area.
4. Touch an option and follow the onscreen prompts.
These services require the purchase of a subscription.
143
a867 Eternity.book Page 144 Tuesday, October 14, 2008 10:42 AM
Section 16: Applications
The on-board applications (such as camera, camcorder,
calendar, and alarms) can be supplemented with additional
applications which can be purchased through the AT&T Mall.
3.
(
) to
has stopped, the message is automatically saved.
Tools are feature options that allow you to use your handset for a
variety of non-phone related activities. To access any of the tools,
perform the following:
Touch
➔ Tools.
Camera
For more information, refer to “Camera” on page 108.
Record Audio
Record Audio allows you to record voice memos. It also allows
you to send your audio clip to other people as an attachment of
an MMS message. Recording time will vary based on the
available memory within the phone.
1.
) to stop the recording or Pause (
temporarily halt the recording. Once the audio recording
Tools
䊳
During the recording process you can either touch Stop
Touch
➔ Tools ➔ Record Audio. For more
4.
Once stopped, choose from one of the following options:
• Play: allows you to play the memo.
• Record: allows you to save the current memo and begin another
session.
• Delete: allows you to delete the current memo.
• More: provides these additional functions.
– Send via: allows you to send your voice clip to other people using either
a message or to a Bluetooth device.
– Set as: allows you to set the music file as a Call Ringtone, a Caller
Ringtone for a specific entry or an Alarm Tone.
– Properties: displays the Name, Format, Size, etc.. of the current voice
memo.
5. To exit, press
or press
.
information, refer to “Record Audio Settings” on page 73.
2.
To start recording, touch
. Record a memo by
speaking into the microphone.
Applications
144
a867 Eternity.book Page 145 Tuesday, October 14, 2008 10:42 AM
Recorded Audio Folder
This folder shows a list of audio clips that have been recorded
and saved. To access this folder, use the following steps:
➔ My Stuff ➔ Audio ➔ Recorded Audio.
1.
Touch
2.
Touch a pre-recorded memo from the list to begin
playback.
3.
To exit, press
or press
.
Alarms
This feature allows you to both set the alarm to ring at a specific
time.
1.
Touch
➔ Tools ➔ Alarms ➔ Tap to Create. The
following options display:
• Alarm Name: allows you to use a specific name for the alarm. The
name will appear on the display when the alarm activates.
• Alarm Time: use either the Up/Down input arrows or scroll through
the available fields to set the new time for the event, at which time
an alarm will sound. Touch Set to save the new values.
Note: To change the time format, see “Time & Date” on page 60.
145
• Alarm Repeat: use this option to set the repeating status for the
alarm by placing a checkmark alongside those days you would like
to use for the current alarm. Everyday places a checkmark
alongside all days.
• Set Details: allows you modify some additional features:
– Alarm Type sets the way in which the alarm sounds when activated
(Melody, Increasing Melody, Vibration, Vibration then Melody, Vibration &
Melody, and Vibe & Increasing Melody).
– Alarm Tone sets the sound file which is played when the alarm is
activated.
– Alarm Volume adjusts the alarm’s volume (1 - 7).
2. Touch Save to store the alarm details and Save again store
this new event.
3.
Touch On from the Auto Power-up field to keep the alarm
event active even if the phone is turned off. Activating this
feature turns the phone on and sounds the alarm even if
the phone was previously is a powered-off state.
Note: To stop the alarm when it rings, locate the Stop slider on the screen
and slide it across to the right until the alarms stops, or you can also
press any key, such as: volume,
,
, etc..
a867 Eternity.book Page 146 Tuesday, October 14, 2008 10:42 AM
Calendar
The calendar feature allows you to view the Month, Week, and
Day layout views. It also shows any Missed Alarm Events that
have occurred.
Creating a New Event
➔ Tools ➔ Calendar ➔ Create Event.
1.
Touch
2.
Touch the Title field and use the onscreen keyboard to
enter a name for this specific event. Touch OK to save the
new name.
3.
Touch the Start Date field and use either the Up/Down
arrows or scroll through the available fields to set the new
date. Touch Set to complete the process.
4.
Touch the Start Time field and use either the Up/Down
arrows or scroll through the available fields to set the new
time. Touch Set to complete the process.
Note: Touching and holding down the arrows (up or down) increases the
speed at which the numbers scroll through each reel.
5.
Touch the Alarm field and select a time for the alarm to
begin alerting you of the upcoming event. Touch Save to
store the new alert time.
• Choices include: Off, On Time, 30 Minutes Before, 1 Hour Before, 1
Day before, 1 Week Before, Customize (your own defined
schedule).
6. Touch Set Details to configure additional parameters for the
new event:
• End Date: enter final date for this event to occur. This is useful if the
alarm is for a repeating event. Touch Set to store the date.
• End Time: enter final time for this repeating event. Touch Set to
store the time.
• Details: enter a description for this event. Touch OK to store the
name.
• Location: enter a location for this event. Touch OK to store the
name.
• Alarm Tone: allows you to choose an alarm tone. Once highlighted,
navigate to the Audio folder and select an audio file. Touch Add to
assign the file as your new alert tone.
• Repeat: allows you to set the number of repetitions allowed for this
appointment (Off, Everyday, Every Week, Every Month, or
Every Year). Once selected, all remaining alarm settings are
enabled. Touch Save to store the option.
– Every: allows you to set the number of times the entry is to repeat in the
selected time frame.
• Repeat Until: allows you to set as duration for this appointment by
assigning an expiration date.
7. Touch Save ➔ Save to store the new event.
Applications
146
a867 Eternity.book Page 147 Tuesday, October 14, 2008 10:42 AM
Other Event Options
1.
2.
Touch
➔ Tools ➔ Calendar ➔ More.
1.
Touch
➔ Tools ➔ Calendar ➔ Event List. A listing of
all upcoming events is then displayed.
Touch any of the following options:
• Go to: allows you to manually select a target date for review by
using the Go To dialer page. Touch Go to be taken to the dialed-in
date.
• View by Day: allows you to change the Calendar view to display a
daily event listing.
• View by Week: allows you to change the Calendar view to display a
weekly event listing.
• Delete: allows you to remove an event from your Calendar.
• Calendar Settings: allows you to configure the Calendar’s Starting
Day (select either Sunday or Monday) and Default View Mode
(select Month, Week, or Day view).
• Missed Alarm Events: displays any missed events.
• Used Space: displays a list of the different Calendar event
categories along with the memory allocation for each.
3. To exit, press
or press
.
147
Viewing an Event
2.
Touch an event from the Events page to then open that
instance.
3.
To exit, press
or press
.
Deleting an Event
1.
2.
Touch
➔ Tools ➔ Calendar ➔ Event List ➔ Delete.
Touch an individual event from the list or touch Select All to
place a checkmark adjacent to all events.
3.
Touch Delete.
4.
To exit, press
or press
.
a867 Eternity.book Page 148 Tuesday, October 14, 2008 10:42 AM
Recent Calls
3.
The phone stores the numbers of the calls you’ve dialed,
received, or missed in the Recent Calls menu. If the number or
caller is listed in your Address Book, the associated name
displays.
For more information, refer to “Recent Calls” on page 32.
Tasks
This menu option allows you to create a “to do” entry of tasks
which are created in a similar fashion to previously described
Calendar entries.
➔ Tools ➔ Tasks ➔ Tap to Create.
1.
Touch
2.
Select any of the following options:
• Title: enter a title for this task (up to 15 characters).
• Priority: allows you assign the task a priority (High, Medium, or
Low).
• Start Date: enter a date for this task to begin.
• Due Date: enter a date for this task to end.
• Status: allows you assign a current project status Completed or
Ongoing).
Touch Set Details to access additional options:
• Details: enter a detailed description for this task (up to 100
characters).
• Alarm: allows you to set a time prior to the event where the event
alerts will begin.
• Alarm Time: enter a time for this alarm to sound. Touch Set to
assign the new time.
• Alarm Tone: allows you to choose an alarm tone. Once selected,
navigate to the Audio folder, select a file, and touch Add to assign
the audio file as the current alarm tone.
4. Touch Save ➔ Save to store the new task.
Memo
This option allows you to create memos to add to your events.
➔ Tools ➔ Memo ➔ Create Memo.
1.
Touch
2.
Use the onscreen keyboard to enter a new memo and
touch OK .
Calculator
With this feature, you can use the phone as a calculator. The
calculator provides the basic arithmetic functions; addition,
subtraction, multiplication, and division.
➔ Tools ➔ Calculator.
1.
Touch
2.
Enter the first number using the onscreen numeric keys.
Applications
148
a867 Eternity.book Page 149 Tuesday, October 14, 2008 10:42 AM
3.
Enter the operation for your calculation by touching the
3.
corresponding onscreen arithmetic function key.
4.
Enter the second number.
5.
To view the result, touch equals (=).
Converter
Your phone comes with a built-in conversion application. This
conversion menu provides the following conversion categories:
• Currency
• Length
• Weight
• Volume
• Area
• Temperature
1. Touch
➔ Tools ➔ Converter.
2.
149
Select the specific converter function by touching one of
Enter the main value by touching the first onscreen value
field (top left of the page).
4.
Use the popup keypad to enter the necessary value and
touch OK .
5.
Touch the drop-down list (upper-right) to then select the
desired source unit. This is the value you are converting
“from”.
• The resulting converted values (“to”) are the automatically
displayed in a list.
6. Touch Reset to erase the current values and begin again.
7.
To exit, press
or press
.
World Clock
World Clock allows you to view the time of day or night in another
parts of the world. World displays time in the 100 different cities,
within all 24 time zones around the world.
➔ Tools ➔ World Clock ➔ Add.
the above onscreen conversion functions.
1.
Touch
• Each converter function has a field for the type of unit to be
converted, and the type of unit to convert to. An additional field
allows you to input the unit amount to convert.
2.
Touch and drag the onscreen map to find the desired
global region.
a867 Eternity.book Page 150 Tuesday, October 14, 2008 10:42 AM
3.
Touch a representative city from a desired area. If the city
3.
area is then correctly highlighted in blue, your selection
was accurately read and you can touch OK .
– or –
Touch Start to begin the timer and touch Stop to pause the
timer.
Stopwatch
You can use this menu to measure intervals of time.
If not read correctly, repeat the previous two steps until
your selection is correct.
Touch
2.
Touch Stop to stop the stopwatch and touch Lap to mark a
Deleting a World Clock Entry
unit of time per lap.
➔ Tools ➔ World Clock ➔ Delete.
1.
Touch
2.
Touch the Trash Can (
➔ Tools ➔ Stopwatch ➔ Start.
1.
) next to the entry you wish to
delete.
Timer
You can use this menu to set a countdown timer. Use a timer to
count down to an event based on a preset time length (hours,
minutes, and seconds).
➔ Tools ➔ Timer.
1.
Touch
2.
Select a countdown time length for the alert by setting the
Hours, Minutes, and Seconds value.
3.
Touch Reset to erase all times recorded.
Yellow Pages
The Yellowpages.com application provides quick and ready
access to businesses, map locations, and storage of your favorite
searches (My Place). A leader in local search, this application
allows you to tap into local businesses, locations, and events,
connecting you to your search in real-time.
➔ Yellowpages.
1.
Touch
2.
Follow the onscreen prompts to enter the desired business
name, location or search by category types.
Note: Touching and holding down the arrows (up or down) increases the
speed at which the numbers scroll through each reel.
Applications
150
a867 Eternity.book Page 151 Tuesday, October 14, 2008 10:42 AM
Section 17: Web
Your phone is equipped with a WAP (Wireless Application
Protocol) browser which allows you to access the Internet. This
section explains how to access the WAP services of your service
provider and navigate the WAP browser.
Accessing the WAP Browser
䊳
In Idle mode, touch
and select any one of the following
Navigation Using the WAP Browser
Navigation within web pages is all driven via touch points on the
screen.
Browser Window Overview
Navigation Toolbar
Magnification
menu options:
• MEdia Mall ➔ Ringtones / Games / Cool Tools/Apps /
Color Graphics / Answer Tones / Multimedia Store / MEdia Net
Home (For more information, refer to “MEdia Mall” on
page 126.)
• AT&T Music ➔ Music Player / Shop Music / MusicID / XM
Radio / Music Videos / Pandora / Community / Music
Applications (For more information, refer to “AT&T Music” on
page 129.)
• MEdia Net ➔ MEdia Net Home (For more information, refer to
“Accessing the MEdia Net Homepage” on page 160.)
Tip: You can also access the WAP browser from the My Stuff menu by
selecting any of the “Shop” options in any of the My Stuff sub-menus.
151
Screen View
(Fullscreen/with Toolbar)
Web Toolbar
Note: The default view for the browser is to display as much of the web page
without the Web Toolbar.
a867 Eternity.book Page 152 Tuesday, October 14, 2008 10:42 AM
Changing the Orientation of the Web page
Back: returns you to the previous web page.
Reload: reloads the current page with updated
information.
The A867 comes equipped with an orientation detector that can
tell if the phone is being held in an upright (Portrait) or sideways
(Landscape) orientation. This is useful when entering text. If the
phone is sideways, an onscreen keyboard is displayed. When
upright, only the alphanumeric keypad is shown.
Magnify: launches the magnification slider that
allows you to zoom a web page either in or out.
Portrait
Add to Favorites: bookmarks the current page and
marks it as a favorite site.
Favorites: accesses and displays the bookmarks
assigned as favorite web pages.
Toolbar View
(with buttons)
Home: returns you to the currently assigned
homepage.
Fullscreen View: indicates the page is being displayed
in a fulllscreen view either in a Portrait or Landscape
orientation. No toolbars are visible.
Toolbar View: toggles the state of the onscreen
Web Toolbar so these onscreen buttons become
visible.
Landscape
Web
152
a867 Eternity.book Page 153 Tuesday, October 14, 2008 10:42 AM
䊳
From within any active web page, change the orientation:
• Turn the phone on its side to see a Landscape/Widescreen view of
the current page.
• Turn the phone upright to see a Portrait view of the current screen.
Viewing the Page in Full Screen Mode
Scrolling Within a Web Page
As with other menu items and pages on your phone, scrolling
requires that steady directional pressure be applied onscreen via
via your fingertip.
Scrolling
By default, only the Navigation Toolbar and Screen View icons are
displayed on the screen. The Screen View button can be used to
either reveal the Web Toolbar or remove it to reveal more of the
current page.
Magnifying the current page
From an active page you can toggle the view by touching the
Screen View button.
1.
Touch
2.
Touch the magnification slider (at the bottom when in
from the upper-right of the current web page.
landscape or on the right when in portrait) and drag to one
side or another
– or –
Touch
to zoom into the page or
to zoom out. This
enlarges or shrinks the size of the displayed page in
increments.
153
Moving Around
To scroll up or down a Web page
䊳
Touch and slide your finger either up or down on the screen.
a867 Eternity.book Page 154 Tuesday, October 14, 2008 10:42 AM
To move around a Web page:
䊳
Touch and drag across the screen in any direction.
Note: The page must be magnified enough so there are unseen areas to
where you would move to. If the page is already being displayed in its
entirety, you will not be able to move around it.
Accessing the Web Toolbar
From an active page you can toggle the view by touching the
Screen View button.
1.
Touch either
to change the view to Fullscreen without
Toolbars. This view maximizes the viewable area of the
current page.
– or –
Touch
2.
to launch (make visible) the Web Toolbar.
Navigate around the web page.
Selecting Onscreen Items
䊳
Entering Text Into a Search or Text Field
Touch an onscreen text field (such as the Navigation Toolbar)
once to reveal an onscreen keyboard.
Touch a search field twice to display the text input screen and the
onscreen keyboard. For more information, refer to “Entering
Text” on page 40.
Returning to the Previous Page
䊳
Touch
Returning to the Homepage
1.
Touch
2.
Touch
(Toolbar View) to launch the Web Toolbar.
to return to the homepage.
Navigating via a URL Address
➔ MEdia Net ➔ Enter URL.
1.
In Idle mode, touch
2.
Use either the onscreen alphanumeric keypad or keyboard,
to enter the target Web address, beginning with the www.
Touch an onscreen item or hyperlink.
Links, which are displayed as underlined and colored text, allow
you to jump to other Web pages, select special functions, or even
activate an application.
from the left of the Navigation Toolbar’s Address
bar.
The http:// prefix is pre-inserted into the text string.
3.
Touch OK to go to the ENTER URL page where you have
the opportunity to also add the new page to your Favorites
list and assign a display name for the link.
Web
154
a867 Eternity.book Page 155 Tuesday, October 14, 2008 10:42 AM
4.
Touch
Go
to launch the new web page.
Using Favorites
1.
While navigating through either the Internet or the MEdia Net
pages, you can bookmark a site to quickly and easily access it at
a future time. The URLs (web site addresses) of the bookmarked
sites are stored in the Favorites folder, where you can use the six
preset favorites and store your own favorite URLs.
Accessing a Web Site Using Favorites
In Idle mode, touch
2.
Touch a bookmark item from the Favorite list. The preset
•
•
•
•
•
•
My Account
Chat Group
News
Sports
Weather
MEdia Net (homepage)
In Idle mode, touch
➔ MEdia Net ➔ Favorites ➔ Add
New.
2.
Touch the Enter URL Address field and use the onscreen
alphanumeric keypad to input the desired web address.
Touch OK to continue.
3.
Touch the Title field to associate a display name for this
link.
➔ MEdia Net ➔ Favorites.
1.
bookmarks consist of:
Adding Favorites
• Use the onscreen alphanumeric keypad to input the desired web
address. Touch OK to continue.
4. Touch Save to store the new Favorite entry.
– or –
➔ MEdia Net ➔ Enter URL.
1.
In Idle mode, touch
2.
Use the onscreen alphanumeric keypad to input the
desired web address. Touch OK to continue.
3.
Place a checkmark to add the current entry to the
Favorites list by touch the Add to Favorites field.
4.
Touch the Title field to associate a display name for this
link.
155
a867 Eternity.book Page 156 Tuesday, October 14, 2008 10:42 AM
5.
Touch
Go
to store the entry and launch the web
page.
In Idle mode, touch
➔ MEdia Net ➔ Favorites.
• Only those entries with
can be edited.
2. Touch
adjacent to a favorite entry. Do not touch the
3.
Copying a selected URL as text into a message requires that the
selected URL Address already be saved as a Favorite entry.
1.
2.
Touch a Favorite entry and touch Done .
Touch either the Enter URL Address or Title fields and use
3.
Touch the Tap to Add Recipient field to use the onscreen
Touch
Save
keypad/keyboard to enter the recipients phone number.
4.
to store the changes to the entry.
Deleting a Favorite
In Idle mode, touch
• Only those entries with
2. Touch Delete .
3.
➔ MEdia Net ➔ Favorites ➔
name, as this will launch the assigned web site.
web address.
1.
In Idle mode, touch
More ➔ Copy URL to Message.
the onscreen alphanumeric keypad to input the desired
4.
Touch Delete .
Copying a URL to a Message
Editing Favorites
1.
4.
Continue the creation of the remaining message. For more
information, refer to “Messaging” on page 117.
Sending a URL
➔ MEdia Net ➔ Favorites.
can be deleted.
Place a checkmark adjacent to those editable entries you
wish to choose for deletion.
A selected URL can also be sent as a file attachment within a
new text message but also transmitted to any paired Bluetooth
device that can receive the data.
1.
In Idle mode, touch
➔ MEdia Net ➔ Favorites ➔
More ➔ Send URL via.
– or –
Touch Select All to place a checkmark alongside all
deleteable fields.
Web
156
a867 Eternity.book Page 157 Tuesday, October 14, 2008 10:42 AM
2.
Touch one of the following options and follow the onscreen
prompts to complete the process:
• Message: attaches a selected Favorite URL Address to a new
multimedia message.
• Bluetooth: sends selected Favorite URL Address as a data file to a
paired Bluetooth device capable of using the file.
3. Touch a Favorite entry and touch Done .
• Preferences: changes the settings for the web browser to suit
your preference.
• Browser Profiles: deletes the current browser profile. For more
information, refer to “Changing the WAP Profiles” on
page 161.
• About Browser: displays the access version and copyright
information about the browser.
3. Touch Yes to activate the feature.
Browser Settings
– or –
To configure the parameters on the onboard browser, use the
Browser Settings page.
1.
In Idle mode, touch
➔ MEdia Net ➔ Browser
Settings.
2.
Touch any of the following function fields.
• Clear Caches: deletes the information stored in the cache. The
cache stores the most recently accessed pages (page 157).
• Delete Cookies: delete cookies. Cookies are pieces of personal
information sent to a web server while navigating the web
(page 158).
• Cookie Options: sets whether cookies are stored on your phone
(Accept All or Reject All). If you select Prompt, the phone will ask
you to save the cookies on every page requiring cookies.
• Delete History: deletes the record of any previously visited web
sites.
157
Touch
Save
to save the new setting.
Clearing Caches
A cache is the phone’s temporary memory in which the most
recently accessed web pages (and their associated images) are
stored. The cache can be cleared at any time from your phone.
1.
In Idle mode, touch
➔ MEdia Net ➔ Browser
Settings ➔ Clear Caches.
2.
At the Clear cache? pop-up, touch Yes to continue, or No to
cancel the operation.
a867 Eternity.book Page 158 Tuesday, October 14, 2008 10:42 AM
Deleting Cookies
3.
A cookie is a small file that is placed on your phone by a web site
during navigation. In addition to containing some site-specific
information, it can also store some personal information (such as
username and password) which can pose a security risk if not
properly managed. Cookies can be deleted at any time from your
phone.
1.
In Idle mode, touch
➔ MEdia Net ➔ Browser
Settings ➔ Delete Cookies.
2.
Touch
Save
to save the new setting.
Using your History
The History list provides you with a list of the most recently
visited web sites. These entries can be used to quickly return
return to a previously unmarked web pages without the need to
retype the entire address.
Accessing your History List
1.
In Idle mode, touch
At the Delete cookies? pop-up, touch Yes to continue, or No
➔ MEdia Net Home.
History List
drop down
to cancel the operation.
Setting Cookie Options
You can define how to manage cookie installation on your phone
when a web site is attempting to place them on your phone.
1.
In Idle mode, touch
➔ MEdia Net ➔ Browser
Settings ➔ Cookie Options.
2.
Touch one of the following options:
• Accept All: allows all cookies to be placed on your phone.
• Reject All: allows no cookies to be placed on your phone.
• Prompt: allows you to be prompted before a cookie can be placed
on your phone.
2.
Touch the Toolbar View (
) to launch the Web
Toolbar.
Web
158
a867 Eternity.book Page 159 Tuesday, October 14, 2008 10:42 AM
3.
From the Navigation Toolbar (at the top of the web page)
2.
touch the History List drop down arrow to reveal the
• Run JavaScript
• Display Images
• Play Sound
3. Touch either On (to activate the feature) or Off (to
current stored list of visited web sites.
4.
Touch an entry from the list to automatically be taken to
the selected web site.
deactivate the feature).
Deleting Your History List
A cache is the phone’s temporary memory in which the most
recently accessed web pages (and their associated images) are
stored. The cache can be cleared at any time from your phone.
➔ MEdia Net ➔ Browser
1.
In Idle mode, touch
2.
At the Delete History? pop-up, touch Yes to continue, or No
Settings ➔ Delete History.
to cancel the operation.
Settings ➔ Preferences.
159
➔ MEdia Net ➔ Browser
Touch
Save
to save the new setting.
About Browser
The About Browser option gives the browser software version
information.
In Idle mode, touch
➔ MEdia Net Home ➔ Browser
Settings ➔ About Browser.
2.
The Preferences option allows you to set your browser’s ability to
run JavaScript, display images, and play sounds.
In Idle mode, touch
4.
1.
Setting Browser Preferences
1.
Activate any of the following by touch an option:
Once finished, press
page.
to return to the previous
a867 Eternity.book Page 160 Tuesday, October 14, 2008 10:42 AM
Accessing the MEdia Net Homepage
1.
In Idle mode, touch
➔ MEdia Net ➔ MEdia Net Home.
The content of the start-up homepage contains the
following selections:
• Search field: allows you enter a text string into the field and then
search the MEdia Net database for matches. For more information,
refer to “Entering Text Into a Search or Text Field” on
page 154.
• My Links: provides you with quick access to your those sites which
you have setup in this category. Touch an entry to launch the site.
• Categories: provides you with a list of MEdia Net web pages
containing links to a variety of special interest sites. Touch an entry
to launch the site. These categories can be edited from within
Customize MEdia Net.
Note: Prior to using these services, you must complete the MEdia Net
registration process located at: att.com/wireless, or you must agree to
the terms of the service agreement and setup the service on your
handset.
• My Account: provides you with access to a listing of your most
recent purchases and available product (services). From the My
Account screen, touch My Purchases to begin.
• Customize MEdia Net: provides you with a list of MEdia Net setup
and service options which allow you to configure different aspects
of the MEdia Net experience. Touch an entry to launch the option.
– Edit My Links: provides you with a list of available Internet links which
you can choose to add to your My Links section of the main Media Net
homepage. To add a link, navigate to the Add to My Links section and
touch an entry. To remove a link, navigate to the Move/Delete Links
section and touch an entry. From the Edit My Links page, touch
Remove.
– Edit Categories: allows you to edit those category entries which
appear on the MEdia Net homepage. Although the first four entries
(WHAT’S HOT, Tones, Games, Pics, and CV) can not be removed, the
remaining entries can be toggled on or off. Touch a category entry to
toggle it on (appear on the page) or off (remove it from the homepage).
– Parental Controls: provides you with settings which can be configured
to restrict certain media content from being downloaded on the phone.
(For more information, refer to “Parental Controls” on page 78.)
– Username & Password: allows you to setup a username and
password prior to gaining access to the MEdia Net homepage and
related services.
Note: Prior to using this service you must agree to the terms of the service
agreement and setup the service on your handset.
Web
160
a867 Eternity.book Page 161 Tuesday, October 14, 2008 10:42 AM
– MEdia Net Mail: allows you to access and edit the entries found within
the MEdia Net messaging center. Although most of the entries can not
be removed, the remaining entries can be toggled on or off by
navigation to the top of the page, touch Edit. From the Mail &
Messaging page, touch an entry to toggle it on (appears on the Mail &
Messaging page) or off (remove it from the Mail & Messaging page).
– MEdia Net Tour: allows you to take a quick guided tour through the
main features of the MEdia Net pages (homepage, navigation, teams,
etc.).
– Privacy Policy: provides the web address for Cellular’s Privacy Policy.
• Help: provides you with list of some of the most frequently asked
questions regarding MEdia Net functionality. Touch a question to
launch an on screen description
2. To exit the browser at any time, simply press
.
Accessing the MEdia Net Site
The MEdia Net Home menu option allows you to access your
MEdia Net homepage using the built-in browser. This page gives
you quick access to information such as local weather, sports
scores, horoscope information and quick links to the previously
mentioned shopping sites. To access this menu option, use the
following steps:
161
There are several ways to access a web site:
• In Idle mode, touch
➔ MEdia Net ➔ MEdia Net Home.
• Selecting a link on the browser.
• Selecting an item in the Favorites menu.
• Entering a URL address manually, using the Go to URL / Enter URL
browser option.
Changing the WAP Profiles
To configure the settings for text message, multimedia
messages, Voice mail, and Push messages.
䊳
From Idle mode, touch
➔ Settings ➔ Applications
Settings ➔ Browser.
Connection can be made via either one of three available
connection profiles: MEdia Net, AT&T MMS (MultiMedia Server),
or AT&T IMS. Use this menu to create and customize the profiles
containing the settings for connecting your phone to the network.
You need these settings to use the WAP browser or to send MMS
messages or Email messages.
Note: Although the active connection can be changed by the user, it is
recommended that this choice be made with the assistance of either
the retailer or customer service representative.
a867 Eternity.book Page 162 Tuesday, October 14, 2008 10:42 AM
1.
In Idle mode, touch
➔ MEdia Net ➔ Browser
Settings ➔ Browser Profiles.
2.
Touch one of the following profiles:
• MEdia Net
• AT&T MMS
• AT&T IMS
Caution!: The WAPs are pre-configured and can not be altered using this
screen. The MMS connection option can be edited, renamed, or
deleted using this screen. Your phone is set up by default for
connecting to the network.
If you change the settings without first checking with your service
provider, the web browser, MMS, and e-mail features may not
work properly.
3.
To create a new connection profile, touch
Create
and follow
the onscreen prompts.
– or –
To edit an existing profile, touch a profile from list, scroll to
the desired field, and use the onscreen keypad/keyboard
to edit the parameter you want to edit:
• Set Name: enter a profile name.
• Access Name: edit the access point name.
• Auth Type: select the type of authentication used for this WAP
connection: None, Normal, or Secure.
• User ID: enter the User ID required to connect to the network.
• Password: enter the user password required to connect to the
network.
• Protocol: set the connection protocol used by the WAP browser:
WAP or HTTP.
• Home URL: enter the URL address of the page to be used as your
homepage.
• Gateway Address: (WAP only) enter the gateway address of the
proxy server.
• Proxy Address: (HTTP only) set the proxy server address and port.
• Secure Connection: (WAP only).
• Linger Time (sec.): set a time period (in seconds) after which the
network is disconnected if there has been no new data traffic in that
time.
• Advanced Settings: (touch
) allows you to configure some of
the IP-specific information: Static IP, Static DNS, Server information,
and Traffic Class.
– Static IP: specify if you want to manually enter an IP address. If you
want the IP address to be automatically assigned by the server, remove
the check mark.
– Local Phone IP: enter the IP address obtained from the network
operator, if you checked the Static IP option.
Web
162
a867 Eternity.book Page 163 Tuesday, October 14, 2008 10:42 AM
– Static DNS: specify if you want to manually enter the Domain Name
Server (DNS) address. If you want the address to be automatically
assigned by the server, remove the check mark.
– Server 1/Server 2: enter the Domain Name Server (DNS) addresses.
– Traffic Class: select the traffic class.
4.
Touch
Save
to save these settings
The WAP settings may vary depending on the service provider.
163
a867 Eternity.book Page 164 Tuesday, October 14, 2008 10:42 AM
Section 18: Accessibility
TTY Settings*
TTY (also known as a TDD or Text Telephone) is a
telecommunications device that allows people who are deaf or
hard of hearing, or who have speech or language disabilities, to
communicate via a telephone. This phone comes TTY-ready and
only requires the insertion of the TTY device to enable this
feature.
Use the following steps to access the TTY settings:
䊳
Inserting a TTY connector into the Headset/Adapter jack (on
the left side of the phone) enables this function.
For additional technical support you may access the following
website or call 1-888-987-4357.
http://www.samsungtelecom.com/contact_us/accessibility.asp
Accessibility
164
a867 Eternity.book Page 165 Tuesday, October 14, 2008 10:42 AM
Section 19: Health and Safety Information
This section outlines the safety precautions associated with using
your phone. These safety precautions should be followed to
safely use your phone.
Health and Safety Information
Exposure to Radio Frequency (RF) Signals
Certification Information (SAR)
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the exposure limits for
radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. government.
These FCC exposure limits are derived from the
recommendations of two expert organizations, the National
Counsel on Radiation Protection and Measurement (NCRP) and
the Institute of Electrical and Electronics Engineers (IEEE).
In both cases, the recommendations were developed by scientific
and engineering experts drawn from industry, government, and
academia after extensive reviews of the scientific literature
related to the biological effects of RF energy.
The exposure limit set by the FCC for wireless mobile phones
employs a unit of measurement known as the Specific
Absorption Rate (SAR). The SAR is a measure of the rate of
165
absorption of RF energy by the human body expressed in units of
watts per kilogram (W/kg). The FCC requires wireless phones to
comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg).
The FCC exposure limit incorporates a substantial margin of
safety to give additional protection to the public and to account
for any variations in measurements.
SAR tests are conducted using standard operating positions
accepted by the FCC with the phone transmitting at its highest
certified power level in all tested frequency bands. Although the
SAR is determined at the highest certified power level, the actual
SAR level of the phone while operating can be well below the
maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the power
required to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output.
Before a new model phone is available for sale to the public, it
must be tested and certified to the FCC that it does not exceed
the exposure limit established by the FCC. Tests for each model
phone are performed in positions and locations (e.g. at the ear
and worn on the body) as required by the FCC.
a867 Eternity.book Page 166 Tuesday, October 14, 2008 10:42 AM
For body worn operation, this phone has been tested and meets
FCC RF exposure guidelines when used with an accessory that
contains no metal and that positions the handset a minimum of
1.5 cm from the body.
Use of other accessories may not ensure compliance with FCC RF
exposure guidelines.
The FCC has granted an Equipment Authorization for this mobile
phone with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. The maximum SAR values
for this model phone as reported to the FCC are:
GMS 850
• Head: 0.168 W/Kg.
• Body-worn: 1.080 W/Kg.
PCS
• Head: 0.194 W/Kg.
• Body-worn: 0.420 W/Kg.
SAR information on this and other model phones can be viewed
online at http://www.fcc.gov/oet/ea. To find information that
pertains to a particular model phone, this site uses the phone
FCC ID number which is usually printed somewhere on the case
of the phone.
Sometimes it may be necessary to remove the battery pack to
find the number. Once you have the FCC ID number for a
particular phone, follow the instructions on the website and it
should provide values for typical or maximum SAR for a particular
phone. Additional product specific SAR information can also be
obtained at www.fcc.gov/cgb/sar.
Samsung Mobile Products and Recycling
Samsung cares for the environment and encourages its
customers to recycle Samsung mobile phones and genuine
Samsung accessories.
Go to: https://fun.samsungmobileusa.com/recycling/index.jsp for more
information.
WCDMA 2
• Head: 0.815 W/Kg.
• Body-worn: 0.584 W/Kg.
WCDMA 5
• Head: 0.108 W/Kg.
• Body-worn: 0.292 W/Kg.
Health and Safety Information
166
a867 Eternity.book Page 167 Tuesday, October 14, 2008 10:42 AM
UL Certified Travel Adapter
The Travel Adapter for this phone has met applicable UL safety
requirements. Please adhere to the following safety instructions
per UL guidelines.
FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY LEAD
TO SERIOUS PERSONAL INJURY AND POSSIBLE PROPERTY
DAMAGE.
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE
INSTRUCTIONS.
DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS.
FOR CONNECTION TO A SUPPLY NOT IN NORTH AMERICA, USE
AN ATTACHMENT PLUG ADAPTOR OF THE PROPER
CONFIGURATION FOR THE POWER OUTLET. THIS POWER UNIT IS
INTENDED TO BE CORRECTLY ORIENTATED IN A VERTICAL OR
HORIZONTAL OR FLOOR MOUNT POSITION.
Consumer Information on Wireless Phones
The U.S. Food and Drug Administration (FDA) has published a
series of Questions and Answers for consumers relating to radio
frequency (RF) exposure from wireless phones. The FDA
publication includes the following information:
167
What kinds of phones are the subject of this update?
The term wireless phone refers here to hand-held wireless
phones with built-in antennas, often called "cell," "mobile," or
"PCS" phones. These types of wireless phones can expose the
user to measurable radio frequency energy (RF) because of the
short distance between the phone and the user's head. These RF
exposures are limited by Federal Communications Commission
safety guidelines that were developed with the advice of FDA and
other federal health and safety agencies.
When the phone is located at greater distances from the user, the
exposure to RF is drastically lower because a person's RF
exposure decreases rapidly with increasing distance from the
source. The so-called "cordless phones," which have a base unit
connected to the telephone wiring in a house, typically operate at
far lower power levels, and thus produce RF exposures well
within the FCC's compliance limits.
Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health
problems are associated with using wireless phones. There is no
proof, however, that wireless phones are absolutely safe.
Wireless phones emit low levels of radio frequency energy (RF) in
the microwave range while being used. They also emit very low
levels of RF when in the stand-by mode. Whereas high levels of
RF can produce health effects (by heating tissue), exposure to
a867 Eternity.book Page 168 Tuesday, October 14, 2008 10:42 AM
low level RF that does not produce heating effects causes no
known adverse health effects. Many studies of low level RF
exposures have not found any biological effects. Some studies
have suggested that some biological effects may occur, but such
findings have not been confirmed by additional research. In some
cases, other researchers have had difficulty in reproducing those
studies, or in determining the reasons for inconsistent results.
What is FDA's role concerning the safety of wireless
phones?
Under the law, FDA does not review the safety of radiationemitting consumer products such as wireless phones before they
can be sold, as it does with new drugs or medical devices.
However, the agency has authority to take action if wireless
phones are shown to emit radio frequency energy (RF) at a level
that is hazardous to the user. In such a case, FDA could require
the manufacturers of wireless phones to notify users of the
health hazard and to repair, replace or recall the phones so that
the hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory
actions, FDA has urged the wireless phone industry to take a
number of steps, including the following:
• Support needed research into possible biological effects of RF of the
type emitted by wireless phones;
• Design wireless phones in a way that minimizes any RF exposure to
the user that is not necessary for device function; and
• Cooperate in providing users of wireless phones with the best possible
information on possible effects of wireless phone use on human
health.
FDA belongs to an interagency working group of the federal
agencies that have responsibility for different aspects of RF
safety to ensure coordinated efforts at the federal level. The
following agencies belong to this working group:
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Safety and Health Administration
• National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency
working group activities, as well.
FDA shares regulatory responsibilities for wireless phones with
the Federal Communications Commission (FCC). All phones that
are sold in the United States must comply with FCC safety
guidelines that limit RF exposure. FCC relies on FDA and other
health agencies for safety questions about wireless phones.
Health and Safety Information
168
a867 Eternity.book Page 169 Tuesday, October 14, 2008 10:42 AM
FCC also regulates the base stations that the wireless phone
networks rely upon. While these base stations operate at higher
power than do the wireless phones themselves, the RF
exposures that people get from these base stations are typically
thousands of times lower than those they can get from wireless
phones.
Base stations are thus not the primary subject of the safety
questions discussed in this document.
What are the results of the research done already?
The research done thus far has produced conflicting results, and
many studies have suffered from flaws in their research
methods. Animal experiments investigating the effects of radio
frequency energy (RF) exposures characteristic of wireless
phones have yielded conflicting results that often cannot be
repeated in other laboratories. A few animal studies, however,
have suggested that low levels of RF could accelerate the
development of cancer in laboratory animals. However, many of
the studies that showed increased tumor development used
animals that had been genetically engineered or treated with
cancer-causing chemicals so as to be pre-disposed to develop
cancer in absence of RF exposure. Other studies exposed the
animals to RF for up to 22 hours per day. These conditions are
not similar to the conditions under which people use wireless
169
phones, so we don't know with certainty what the results of such
studies mean for human health.
Three large epidemiology studies have been published since
December 2000. Between them, the studies investigated any
possible association between the use of wireless phones and
primary brain cancer, glioma, meningioma, or acoustic neuroma,
tumors of the brain or salivary gland, leukemia, or other cancers.
None of the studies demonstrated the existence of any harmful
health effects from wireless phones RF exposures.
However, none of the studies can answer questions about longterm exposures, since the average period of phone use in these
studies was around three years.
What research is needed to decide whether RF exposure
from wireless phones poses a health risk?
A combination of laboratory studies and epidemiological studies
of people actually using wireless phones would provide some of
the data that are needed. Lifetime animal exposure studies could
be completed in a few years. However, very large numbers of
animals would be needed to provide reliable proof of a cancer
promoting effect if one exists. Epidemiological studies can
provide data that is directly applicable to human populations, but
ten or more years' follow-up may be needed to provide answers
about some health effects, such as cancer.
a867 Eternity.book Page 170 Tuesday, October 14, 2008 10:42 AM
This is because the interval between the time of exposure to a
cancer-causing agent and the time tumors develop - if they do may be many, many years. The interpretation of epidemiological
studies is hampered by difficulties in measuring actual RF
exposure during day-to-day use of wireless phones. Many
factors affect this measurement, such as the angle at which the
phone is held, or which model of phone is used.
What is FDA doing to find out more about the possible
health effects of wireless phone RF?
FDA is working with the U.S. National Toxicology Program and
with groups of investigators around the world to ensure that high
priority animal studies are conducted to address important
questions about the effects of exposure to radio frequency
energy (RF).
FDA has been a leading participant in the World Health
Organization international Electromagnetic Fields (EMF) Project
since its inception in 1996. An influential result of this work has
been the development of a detailed agenda of research needs
that has driven the establishment of new research programs
around the world. The Project has also helped develop a series of
public information documents on EMF issues.
FDA and Cellular Telecommunications & Internet Association
(CTIA) have a formal Cooperative Research and Development
Agreement (CRADA) to do research on wireless phone safety.
FDA provides the scientific oversight, obtaining input from
experts in government, industry, and academic organizations.
CTIA-funded research is conducted through contracts to
independent investigators. The initial research will include both
laboratory studies and studies of wireless phone users. The
CRADA will also include a broad assessment of additional
research needs in the context of the latest research
developments around the world.
What steps can I take to reduce my exposure to radio
frequency energy from my wireless phone?
If there is a risk from these products - and at this point we do not
know that there is - it is probably very small. But if you are
concerned about avoiding even potential risks, you can take a
few simple steps to minimize your exposure to radio frequency
energy (RF). Since time is a key factor in how much exposure a
person receives, reducing the amount of time spent using a
wireless phone will reduce RF exposure.
• If you must conduct extended conversations by wireless phone every
day, you could place more distance between your body and the source
of the RF, since the exposure level drops off dramatically with distance.
For example, you could use a headset and carry the wireless phone
away from your body or use a wireless phone connected to a remote
antenna.
Health and Safety Information
170
a867 Eternity.book Page 171 Tuesday, October 14, 2008 10:42 AM
Again, the scientific data do not demonstrate that wireless
phones are harmful. But if you are concerned about the RF
exposure from these products, you can use measures like those
described above to reduce your RF exposure from wireless phone
use.
What about children using wireless phones?
The scientific evidence does not show a danger to users of
wireless phones, including children and teenagers. If you want to
take steps to lower exposure to radio frequency energy (RF), the
measures described above would apply to children and
teenagers using wireless phones. Reducing the time of wireless
phone use and increasing the distance between the user and the
RF source will reduce RF exposure.
Some groups sponsored by other national governments have
advised that children be discouraged from using wireless phones
at all. For example, the government in the United Kingdom
distributed leaflets containing such a recommendation in
December 2000.
They noted that no evidence exists that using a wireless phone
causes brain tumors or other ill effects. Their recommendation to
limit wireless phone use by children was strictly precautionary; it
was not based on scientific evidence that any health hazard
exists.
171
Do hands-free kits for wireless phones reduce
risks from exposure to RF emissions?
Since there are no known risks from exposure to RF emissions
from wireless phones, there is no reason to believe that handsfree kits reduce risks. Hands-free kits can be used with wireless
phones for convenience and comfort. These systems reduce the
absorption of RF energy in the head because the phone, which is
the source of the RF emissions, will not be placed against the
head. On the other hand, if the phone is mounted against the
waist or other part of the body during use, then that part of the
body will absorb more RF energy. Wireless phones marketed in
the U.S. are required to meet safety requirements regardless of
whether they are used against the head or against the body.
Either configuration should result in compliance with the safety
limit.
Do wireless phone accessories that claim to shield
the head from RF radiation work?
Since there are no known risks from exposure to RF emissions
from wireless phones, there is no reason to believe that
accessories that claim to shield the head from those emissions
reduce risks. Some products that claim to shield the user from RF
absorption use special phone cases, while others involve nothing
more than a metallic accessory attached to the phone. Studies
have shown that these products generally do not work as
a867 Eternity.book Page 172 Tuesday, October 14, 2008 10:42 AM
advertised. Unlike "hand-free" kits, these so-called "shields"
may interfere with proper operation of the phone. The phone may
be forced to boost its power to compensate, leading to an
increase in RF absorption. In February 2002, the Federal trade
Commission (FTC) charged two companies that sold devices that
claimed to protect wireless phone users from radiation with
making false and unsubstantiated claims.
According to FTC, these defendants lacked a reasonable basis to
substantiate their claim.
What about wireless phone interference with
medical equipment?
Radio frequency energy (RF) from wireless phones can interact
with some electronic devices. For this reason, FDA helped
develop a detailed test method to measure electromagnetic
interference (EMI) of implanted cardiac pacemakers and
defibrillators from wireless telephones. This test method is now
part of a standard sponsored by the Association for the
Advancement of Medical instrumentation (AAMI). The final draft,
a joint effort by FDA, medical device manufacturers, and many
other groups, was completed in late 2000. This standard will
allow manufacturers to ensure that cardiac pacemakers and
defibrillators are safe from wireless phone EMI. FDA has tested
wireless phones and helped develop a voluntary standard
sponsored by the Institute of Electrical and Electronic Engineers
(IEEE). This standard specifies test methods and performance
requirements for hearing aids and wireless phones so that no
interference occurs when a person uses a compatible phone and
a compatible hearing aid at the same time. This standard was
approved by the IEEE in 2000.
FDA continues to monitor the use of wireless phones for possible
interactions with other medical devices. Should harmful
interference be found to occur, FDA will conduct testing to assess
the interference and work to resolve the problem.
Additional information on the safety of RF exposures from various
sources can be obtained from the following organizations
(Updated 12/1/2006):
• FCC RF Safety Program:
http://www.fcc.gov/oet/rfsafety/
• Environmental Protection Agency (EPA):
http://www.epa.gov/radiation/
• Occupational Safety and Health Administration's (OSHA):
http://www.osha.gov/SLTC/radiofrequencyradiation/index.html
• National Institute for Occupational Safety and Health (NIOSH):
http://www.cdc.gov/niosh/homepage.html
• World Health Organization (WHO):
http://www.who.int/peh-emf/
• International Commission on Non-Ionizing Radiation Protection:
http://www.icnirp.de
Health and Safety Information
172
a867 Eternity.book Page 173 Tuesday, October 14, 2008 10:42 AM
• National Radiation Protection Board (UK):
3.
http://www.hpa.org.uk/radiation
• US Food and Drug Administration:
http://www.fda.gov/cellphones
Road Safety
Your wireless phone gives you the powerful ability to
communicate by voice, almost anywhere, anytime. But an
important responsibility accompanies the benefits of wireless
phones, one that every user must uphold.
When driving a car, driving is your first responsibility. When using
your wireless phone behind the wheel of a car, practice good
common sense and remember the following tips:
1.
access your wireless phone without removing your eyes
from the road. If you get an incoming call at an
inconvenient time, let your voice mail answer it for you.
4.
weather conditions. Rain, sleet, snow, ice and even heavy
traffic can be hazardous.
5.
When available, use a hands-free device. If possible, add
an additional layer of convenience and safety to your
wireless phone with one of the many hands free
accessories available today.
173
Do not take notes or look up phone numbers while driving.
Jotting down a "to do" list or flipping through your address
book takes attention away from your primary
responsibility, driving safely.
speed dial and redial. If available, these features help you
2.
Let the person you are speaking with know you are driving;
if necessary, suspend the call in heavy traffic or hazardous
Get to know your wireless phone and its features, such as
to place your call without taking your attention off the road.
Position your wireless phone within easy reach. Be able to
6.
Dial sensibly and assess the traffic; if possible, place calls
when you are not moving or before pulling into traffic. Try
to plan calls when your car will be stationary. If you need to
make a call while moving, dial only a few numbers, check
the road and your mirrors, then continue.
a867 Eternity.book Page 174 Tuesday, October 14, 2008 10:42 AM
7.
Do not engage in stressful or emotional conversations that
may be distracting. Make people you are talking with
aware you are driving and suspend conversations that
have the potential to divert your attention from the road.
8.
Use your wireless phone to call for help. Dial 9-1-1 or other
local emergency number in the case of fire, traffic accident
or medical emergencies.
9.
Use your wireless phone to help others in emergencies. If
you see an auto accident, crime in progress or other
serious emergency where lives are in danger, call 9-1-1 or
other local emergency number, as you would want others
to do for you.
10. Call roadside assistance or a special non-emergency
wireless assistance number when necessary. If you see a
broken-down vehicle posing no serious hazard, a broken
traffic signal, a minor traffic accident where no one
appears injured, or a vehicle you know to be stolen, call
roadside assistance or other special non-emergency
number.
"The wireless industry reminds you to use your phone safely when
driving."
For more information, please call 1-888-901-SAFE, or visit our
web-site www.ctia.org.
Important!: If you are using a handset other than a standard numeric keypad,
please call 1-888-901-7233.
Provided by the Cellular Telecommunications & Internet
Association.
Responsible Listening
Caution!: Avoid potential hearing loss.
Damage to hearing occurs when a person is exposed to loud
sounds over time. The risk of hearing loss increases as sound is
played louder and for longer durations. Prolonged exposure to
loud sounds (including music) is the most common cause of
preventable hearing loss. Some scientific research suggests that
using portable audio devices, such as portable music players and
cellular telephones, at high volume settings for long durations
may lead to permanent noise-induced hearing loss. This includes
the use of headphones (including headsets, earbuds, and
Bluetooth or other wireless devices). Exposure to very loud sound
has also been associated in some studies with tinnitus (a ringing
in the ear), hypersensitivity to sound and distorted hearing.
Health and Safety Information
174
a867 Eternity.book Page 175 Tuesday, October 14, 2008 10:42 AM
Individual susceptibility to noise-induced hearing loss and
potential hearing problem varies. Additionally, the amount of
sound produced by a portable audio device varies depending on
the nature of the sound, the device settings, and the headphones
that are used. As a result, there is no single volume setting that is
appropriate for everyone or for every combination of sound,
settings and equipment.
• Avoid using headphones after exposure to extremely loud noises, such
You should follow some commonsense recommendations when
using any portable audio device:
• Set the volume in a quiet environment and select the lowest volume at
which you can hear adequately.
• When using headphones, turn the volume down if you cannot hear the
people speaking near you or if the person sitting next to you can hear
what you are listening to.
• Do not turn the volume up to block out noisy surroundings. If you
choose to listen to your portable device in a noisy environment, you
noise-cancelling headphones to block out background environmental
noise. By blocking background environment noise, noise cancelling
headphones should allow you to hear the music at lower volumes than
when using earbuds.
• Limit the amount of time you listen. As the volume increases, less time
is required before you hearing could be affected.
You can obtain additional information on this subject from the
following sources:
175
as rock concerts, that might cause temporary hearing loss. Temporary
hearing loss might cause unsafe volumes to sound normal.
• Do not listen at any volume that causes you discomfort. If you
experience ringing in your ears, hear muffled speech or experience
any temporary hearing difficulty after listening to your portable audio
device, discontinue use and consult your doctor.
American Academy of Audiology
11730 Plaza American Drive, Suite 300
Reston, VA 20190
Voice: (800) 222-2336
Email: info@audiology.org
Internet: http://www.audiology.org
a867 Eternity.book Page 176 Tuesday, October 14, 2008 10:42 AM
National Institute on Deafness and Other Communication Disorders
National Institutes of Health
31 Center Drive, MSC 2320
Bethesda, MD 20892-2320
Voice: (301) 496-7243
Email: nidcdinfo@nih.gov
Internet: http://www.cdc.gov/niosh/topics/noise/default.html
National Institute for Occupational Safety and Health
Hubert H. Humphrey Bldg.
200 Independence Ave., SW
Washington, DC 20201
Voice: 1-800-35-NIOSH (1-800-356-4647)
Internet: http://www.cdc.gov/niosh/topics/noise/default.html
Operating Environment
Remember to follow any special regulations in force in any area
and always switch your phone off whenever it is forbidden to use
it, or when it may cause interference or danger.
When connecting the phone or any accessory to another device,
read its user's guide for detailed safety instructions. Do not
connect incompatible products.
As with other mobile radio transmitting equipment, users are
advised that for the satisfactory operation of the equipment and
for the safety of personnel, it is recommended that the
equipment should only be used in the normal operating position
(held to your ear with the antenna pointing over your shoulder if
you are using an external antenna).
Using Your Phone Near Other Electronic Devices
Most modern electronic equipment is shielded from radio
frequency (RF) signals. However, certain electronic equipment
may not be shielded against the RF signals from your wireless
phone. Consult the manufacturer to discuss alternatives.
Implantable Medical Devices
A minimum separation of six (6) inches should be maintained
between a handheld wireless phone and an implantable medical
device, such as a pacemaker or implantable cardioverter
defibrillator, to avoid potential interference with the device.
Persons who have such devices:
• Should ALWAYS keep the phone more than six (6) inches from their
implantable medical device when the phone is turned ON;
• Should not carry the phone in a breast pocket;
• Should use the ear opposite the implantable medical device to
minimize the potential for interference;
Health and Safety Information
176
a867 Eternity.book Page 177 Tuesday, October 14, 2008 10:42 AM
• Should turn the phone OFF immediately if there is any reason to
suspect that interference is taking place;
• Should read and follow the directions from the manufacturer of your
implantable medical device. If you have any questions about using
your wireless phone with such a device, consult your health care
provider.
For more information see:
http://www.fcc.gov/oet/rfsafety/rf-faqs.html
FCC Hearing-Aid Compatibility (HAC)
Regulations for Wireless Devices
On July 10, 2003, the U.S. Federal Communications Commission
(FCC) Report and Order in WT Docket 01-309 modified the
exception of wireless phones under the Hearing Aid Compatibility
Act of 1988 (HAC Act) to require digital wireless phones be
compatible with hearing-aids.
The wireless telephone industry has developed a rating system
for wireless phones, to assist hearing device users find phones
that may be compatible with their hearing devices. Not all phones
have been rated. Phones that are rated have the rating on their
box or a label located on the box.
The ratings are not guarantees. Results will vary depending on
the user's hearing device and hearing loss. If your hearing device
happens to be vulnerable to interference, you may not be able to
use a rated phone successfully. Trying out the phone with your
hearing device is the best way to evaluate it for your personal
needs.
M-Ratings: Phones rated M3 or M4 meet FCC requirements and
are likely to generate less interference to hearing devices than
phones that are not labeled. M4 is the better/higher of the two
ratings.
The intent of the HAC Act is to ensure reasonable access to
telecommunications services for persons with hearing
disabilities.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and are
likely to generate less interference to hearing devices than
phones that are not labeled. T4 is the better/higher of the two
ratings.
While some wireless phones are used near some hearing devices
(hearing aids and cochlear implants), users may detect a
buzzing, humming, or whining noise. Some hearing devices are
more immune than others to this interference noise, and phones
also vary in the amount of interference they generate.
Hearing devices may also be rated. Your hearing device
manufacturer or hearing health professional may help you find
this rating. Higher ratings mean that the hearing device is
relatively immune to interference noise. The hearing aid and
wireless phone rating values are then added together. A sum of 5
177
a867 Eternity.book Page 178 Tuesday, October 14, 2008 10:42 AM
The HAC rating and measurement procedure are described in the
American National Standards Institute (ANSI) C63.19 standard.
is considered acceptable for normal use. A sum of 6 is
considered for best use.
Other Medical Devices
M3
+
M2
=
5
T3
+
T2
=
5
If you use any other personal medical devices, consult the
manufacturer of your device to determine if it is adequately
shielded from external RF energy. Your physician may be able to
assist you in obtaining this information. Switch your phone off in
health care facilities when any regulations posted in these areas
instruct you to do so. Hospitals or health care facilities may be
using equipment that could be sensitive to external RF energy.
Vehicles
In the above example, if a hearing aid meets the M2 level rating
and the wireless phone meets the M3 level rating, the sum of the
two values equal M5. This is synonymous for T ratings. This
should provide the hearing aid user with "normal usage" while
using their hearing aid with the particular wireless phone.
"Normal usage" in this context is defined as a signal quality that
is acceptable for normal operation.
The M mark is intended to be synonymous with the U mark. The
T mark is intended to be synonymous with the UT mark. The M
and T marks are recommended by the Alliance for
Telecommunications Industries Solutions (ATIS). The U and UT
marks are referenced in Section 20.19 of the FCC Rules.
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles. Check with the
manufacturer or its representative regarding your vehicle. You
should also consult the manufacturer of any equipment that has
been added to your vehicle.
Posted Facilities
Switch your phone off in any facility where posted notices require
you to do so.
Health and Safety Information
178
a867 Eternity.book Page 179 Tuesday, October 14, 2008 10:42 AM
Potentially Explosive Environments
Switch your phone off when in any area with a potentially
explosive atmosphere and obey all signs and instructions. Sparks
in such areas could cause an explosion or fire resulting in bodily
injury or even death.
Users are advised to switch the phone off while at a refueling
point (service station). Users are reminded of the need to observe
restrictions on the use of radio equipment in fuel depots (fuel
storage and distribution areas), chemical plants or where blasting
operations are in progress.
Areas with a potentially explosive atmosphere are often but not
always clearly marked. They include below deck on boats,
chemical transfer or storage facilities, vehicles using liquefied
petroleum gas (such as propane or butane), areas where the air
contains chemicals or particles, such as grain, dust or metal
powders, and any other area where you would normally be
advised to turn off your vehicle engine.
Emergency Calls
This phone, like any wireless phone, operates using radio
signals, wireless and landline networks as well as userprogrammed functions, which cannot guarantee connection in all
conditions. Therefore, you should never rely solely on any
wireless phone for essential communications (medical
emergencies, for example).
179
Remember, to make or receive any calls the phone must be
switched on and in a service area with adequate signal strength.
Emergency calls may not be possible on all wireless phone
networks or when certain network services and/or phone
features are in use. Check with local service providers.
To make an emergency call:
1.
If the phone is not on, switch it on.
2.
Key in the emergency number for your present location (for
example, 911 or other official emergency number).
Emergency numbers vary by location.
3.
Press the
key.
If certain features are in use (call barring, for example), you may
first need to deactivate those features before you can make an
emergency call. Consult this document and your local cellular
service provider.
When making an emergency call, remember to give all the
necessary information as accurately as possible. Remember that
your phone may be the only means of communication at the
scene of an accident; do not cut off the call until given
permission to do so.
a867 Eternity.book Page 180 Tuesday, October 14, 2008 10:42 AM
Restricting Children's access to your Phone
Your phone is not a toy. Children should not be allowed to play
with it because they could hurt themselves and others, damage
the phone or make calls that increase your phone bill.
FCC Notice and Cautions
FCC Notice
The phone may cause TV or radio interference if used in close
proximity to receiving equipment. The FCC can require you to
stop using the phone if such interference cannot be eliminated.
Vehicles using liquefied petroleum gas (such as propane or
butane) must comply with the National Fire Protection Standard
(NFPA-58). For a copy of this standard, contact the National Fire
Protection Association, One Batterymarch Park, Quincy, MA
02269, Attn: Publication Sales Division.
Cautions
Any changes or modifications to your phone not expressly
approved in this document could void your warranty for this
equipment, and void your authority to operate this equipment.
Only use approved batteries, antennas and chargers. The use of
any unauthorized accessories may be dangerous and void the
phone warranty if said accessories cause damage or a defect to
the phone.
Although your phone is quite sturdy, it is a complex piece of
equipment and can be broken. Avoid dropping, hitting, bending
or sitting on it.
Other Important Safety Information
• Only qualified personnel should service the phone or install the phone
in a vehicle. Faulty installation or service may be dangerous and may
invalidate any warranty applicable to the device.
• Check regularly that all wireless phone equipment in your vehicle is
mounted and operating properly.
• Do not store or carry flammable liquids, gases or explosive materials in
the same compartment as the phone, its parts or accessories.
• For vehicles equipped with an air bag, remember that an air bag
inflates with great force. Do not place objects, including both installed
or portable wireless equipment in the area over the air bag or in the air
bag deployment area. If wireless equipment is improperly installed and
the air bag inflates, serious injury could result.
• Switch your phone off before boarding an aircraft. The use of wireless
phone in aircraft is illegal and may be dangerous to the aircraft's
operation.
• Failure to observe these instructions may lead to the suspension or
denial of telephone services to the offender, or legal action, or both.
Health and Safety Information
180
a867 Eternity.book Page 181 Tuesday, October 14, 2008 10:42 AM
Product Performance
Getting the Most Out of Your Signal Reception
The quality of each call you make or receive depends on the
signal strength in your area. Your phone informs you of the
current signal strength by displaying a number of bars next to the
signal strength icon. The more bars displayed, the stronger the
signal.
If you're inside a building, being near a window may give you
better reception.
Understanding the Power Save Feature
If your phone is unable to find a signal after searching, a Power
Save feature is automatically activated. If your phone is active, it
periodically rechecks service availability or you can check it
yourself by pressing any key.
Anytime the Power Save feature is activated, a message displays
on the screen. When a signal is found, your phone returns to
standby mode.
Understanding How Your Phone Operates
Your phone is basically a radio transmitter and receiver. When it's
turned on, it receives and transmits radio frequency (RF) signals.
When you use your phone, the system handling your call controls
the power level. This power can range from 0.006 watts to 0.2
watts in digital mode.
181
Maintaining Your Phone's Peak Performance
For the best care of your phone, only authorized personnel should
service your phone and accessories. Faulty service may void the
warranty.
There are several simple guidelines to operating your phone
properly and maintaining safe, satisfactory service.
• To ensure that the Hearing Aid Compatibility rating for your phone is
maintained, secondary transmitters such as Bluetooth and WLAN
components must be disabled during a call.
• If your phone is equipped with an external antenna, hold the phone
with the antenna raised, fully-extended and over your shoulder.
• Do not hold, bend or twist the phone's antenna, if applicable.
• Do not use the phone if the antenna is damaged.
• If your phone is equipped with an internal antenna, obstructing the
internal antenna could inhibit call performance.
• Speak directly into the phone's receiver.
• Avoid exposing your phone and accessories to rain or liquid spills. If
your phone does get wet, immediately turn the power off and remove
the battery. If it is inoperable, call Customer Care for service.
a867 Eternity.book Page 182 Tuesday, October 14, 2008 10:42 AM
Availability of Various Features/Ring Tones
Many services and features are network dependent and may
require additional subscription and/or usage charges. Not all
features are available for purchase or use in all areas.
Downloadable Ring Tones may be available at an additional cost.
Other conditions and restrictions may apply. See your service
provider for additional information.
Battery Standby and Talk Time
Standby and talk times will vary depending on phone usage
patterns and conditions. Battery power consumption depends on
factors such as network configuration, signal strength, operating
temperature, features selected, frequency of calls, and voice,
data, and other application usage patterns.
Battery Precautions
• Avoid dropping the cell phone. Dropping it, especially on a hard
surface, can potentially cause damage to the phone and battery. If you
suspect damage to the phone or battery, take it to a service center for
inspection.
• Never use any charger or battery that is damaged in any way.
• Do not modify or remanufacture the battery as this could result in
serious safety hazards.
• If you use the phone near the network's base station, it uses less
power; talk and standby time are greatly affected by the signal
strength on the cellular network and the parameters set by the
network operator.
• Follow battery usage, storage and charging guidelines found in the
user’s guide.
• Battery charging time depends on the remaining battery charge and
the type of battery and charger used. The battery can be charged and
discharged hundreds of times, but it will gradually wear out. When the
operation time (talk time and standby time) is noticeably shorter than
normal, it is time to buy a new battery.
• If left unused, a fully charged battery will discharge itself over time.
• Use only Samsung-approved batteries and recharge your battery only
with Samsung-approved chargers. When a charger is not in use,
disconnect it from the power source. Do not leave the battery
connected to a charger for more than a week, since overcharging may
shorten its life.
• Do not use incompatible cell phone batteries and chargers. Some Web
sites and second-hand dealers, not associated with reputable
manufacturers and carriers, might be selling incompatible or even
counterfeit batteries and chargers. Consumers should purchase
manufacturer or carrier recommended products and accessories. If
unsure about whether a replacement battery or charger is compatible,
contact the manufacturer of the battery or charger.
Health and Safety Information
182
a867 Eternity.book Page 183 Tuesday, October 14, 2008 10:42 AM
• Misuse or use of incompatible phones, batteries, and charging devices
could result in damage to the equipment and a possible risk of fire,
explosion, leakage, or other serious hazard.
• Extreme temperatures will affect the charging capacity of your battery:
it may require cooling or warming first.
• Do not leave the battery in hot or cold places, such as in a car in
summer or winter conditions, as you will reduce the capacity and
lifetime of the battery. Always try to keep the battery at room
temperature. A phone with a hot or cold battery may temporarily not
work, even when the battery is fully charged. Li-ion batteries are
particularly affected by temperatures below
0 °C (32 °F).
• Do not place the phone in areas that may get very hot, such as on or
near a cooking surface, cooking appliance, iron, or radiator.
• Do not get your phone or battery wet. Even though they will dry and
appear to operate normally, the circuitry could slowly corrode and
pose a safety hazard.
• Do not short-circuit the battery. Accidental short-circuiting can occur
when a metallic object (coin, clip or pen) causes a direct connection
between the + and - terminals of the battery (metal strips on the
battery), for example when you carry a spare battery in a pocket or
bag. Short-circuiting the terminals may damage the battery or the
object causing the short-circuiting.
• Do not permit a battery out of the phone to come in contact with metal
objects, such as coins, keys or jewelry.
183
• Do not crush, puncture or put a high degree of pressure on the battery
as this can cause an internal short-circuit, resulting in overheating.
• Dispose of used batteries in accordance with local regulations. In some
areas, the disposal of batteries in household or business trash may be
prohibited. For safe disposal options for Li-Ion batteries, contact your
nearest Samsung authorized service center. Always recycle. Do not
dispose of batteries in a fire.
Care and Maintenance
Your phone is a product of superior design and craftsmanship
and should be treated with care. The suggestions below will help
you fulfill any warranty obligations and allow you to enjoy this
product for many years.
• Keep the phone and all its parts and accessories out of the reach of
small children.
• Keep the phone dry. Precipitation, humidity and liquids contain
minerals that will corrode electronic circuits.
• Do not use the phone with a wet hand. Doing so may cause an electric
shock to you or damage to the phone.
• Do not use or store the phone in dusty, dirty areas, as its moving parts
may be damaged.
• Do not store the phone in hot areas. High temperatures can shorten the
life of electronic devices, damage batteries, and warp or melt certain
plastics.
a867 Eternity.book Page 184 Tuesday, October 14, 2008 10:42 AM
• Do not store the phone in cold areas. When the phone warms up to its
normal operating temperature, moisture can form inside the phone,
which may damage the phone's electronic circuit boards.
• Do not drop, knock or shake the phone. Rough handling can break
internal circuit boards.
• Do not use harsh chemicals, cleaning solvents or strong detergents to
clean the phone. Wipe it with a soft cloth slightly dampened in a mild
soap-and-water solution.
• Do not paint the phone. Paint can clog the device's moving parts and
prevent proper operation.
• Do not put the phone in or on heating devices, such as a microwave
oven, a stove or a radiator. The phone may explode when overheated.
• If your phone is equipped with an external antenna, use only the
supplied or an approved replacement antenna. Unauthorized antennas
or modified accessories may damage the phone and violate
regulations governing radio devices.
• If the phone, battery, charger or any accessory is not working properly,
take it to your nearest qualified service facility. The personnel there
will assist you, and if necessary, arrange for service.
Health and Safety Information
184
a867 Eternity.book Page 185 Tuesday, October 14, 2008 10:42 AM
Section 20: Warranty Information
Standard Limited Warranty
What is Covered and For How Long?
SAMSUNG TELECOMMUNICATIONS AMERICA, LLC ("SAMSUNG")
warrants to the original purchaser ("Purchaser") that SAMSUNG's
Phones and accessories ("Products") are free from defects in
material and workmanship under normal use and service for the
period commencing upon the date of purchase and continuing for
the following specified period of time after that date:
Phone
1 Year
Batteries
1 Year
Leather Case
90 Days
Holster
90 Days
Other Phone Accessories
1 Year
What is Not Covered? This Limited Warranty is conditioned upon
proper use of Product by Purchaser. This Limited Warranty does
not cover: (a) defects or damage resulting from accident, misuse,
abuse, neglect, unusual physical, electrical or electromechanical
stress, or modification of any part of Product, including antenna,
or cosmetic damage; (b) equipment that has the serial number
185
removed or made illegible; (c) any plastic surfaces or other
externally exposed parts that are scratched or damaged due to
normal use; (d) malfunctions resulting from the use of Product in
conjunction with accessories, products, or ancillary/peripheral
equipment not furnished or approved by SAMSUNG; (e) defects or
damage from improper testing, operation, maintenance,
installation, or adjustment; (f) installation, maintenance, and
service of Product, or (g) Product used or purchased outside the
United States or Canada.
This Limited Warranty covers batteries only if battery capacity
falls below 80% of rated capacity or the battery leaks, and this
Limited Warranty does not cover any battery if (i) the battery has
been charged by a battery charger not specified or approved by
SAMSUNG for charging the battery, (ii) any of the seals on the
battery are broken or show evidence of tampering, or (iii) the
battery has been used in equipment other than the SAMSUNG
phone for which it is specified.
What are SAMSUNG's Obligations? During the applicable warranty
period, SAMSUNG will repair or replace, at SAMSUNG's sole
option, without charge to Purchaser, any defective component
part of Product. To obtain service under this Limited Warranty,
Purchaser must return Product to an authorized phone service
a867 Eternity.book Page 186 Tuesday, October 14, 2008 10:42 AM
facility in an adequate container for shipping, accompanied by
Purchaser's sales receipt or comparable substitute proof of sale
showing the date of purchase, the serial number of Product and
the sellers' name and address. To obtain assistance on where to
deliver the Product, call Samsung Customer Care at 1-888-9874357. Upon receipt, SAMSUNG will promptly repair or replace the
defective Product. SAMSUNG may, at SAMSUNG's sole option,
use rebuilt, reconditioned, or new parts or components when
repairing any Product or replace Product with a rebuilt,
reconditioned or new Product. Repaired/replaced leather cases,
pouches and holsters will be warranted for a period of ninety (90)
days. All other repaired/replaced Product will be warranted for a
period equal to the remainder of the original Limited Warranty on
the original Product or for 90 days, whichever is longer. All
replaced parts, components, boards and equipment shall
become the property of SAMSUNG.
If SAMSUNG determines that any Product is not covered by this
Limited Warranty, Purchaser must pay all parts, shipping, and
labor charges for the repair or return of such Product.
WHAT ARE THE LIMITS ON SAMSUNG'S WARRANTY/LIABILITY?
EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED
HEREIN, PURCHASER TAKES THE PRODUCT "AS IS," AND
SAMSUNG MAKES NO WARRANTY OR REPRESENTATION AND
THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY
OR OTHERWISE, OF ANY KIND WHATSOEVER WITH RESPECT TO
THE PRODUCT, INCLUDING BUT NOT LIMITED TO:
• THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY
PARTICULAR PURPOSE OR USE;
• WARRANTIES OF TITLE OR NON-INFRINGEMENT;
• DESIGN, CONDITION, QUALITY, OR PERFORMANCE OF THE PRODUCT;
• THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS
CONTAINED THEREIN; OR
• COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY
LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO.
NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE
CONSTRUED TO CREATE AN EXPRESS WARRANTY OF ANY KIND
WHATSOEVER WITH RESPECT TO THE PRODUCT. ALL IMPLIED
WARRANTIES AND CONDITIONS THAT MAY ARISE BY OPERATION
OF LAW, INCLUDING IF APPLICABLE THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE HEREBY LIMITED TO THE SAME DURATION OF
TIME AS THE EXPRESS WRITTEN WARRANTY STATED HEREIN.
SOME STATES/PROVINCES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION
MAY NOT APPLY TO YOU. IN ADDITION, SAMSUNG SHALL NOT BE
LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE
PURCHASE, USE, OR MISUSE OF, OR INABILITY TO USE THE
PRODUCT OR ARISING DIRECTLY OR INDIRECTLY FROM THE USE
Warranty Information
186
a867 Eternity.book Page 187 Tuesday, October 14, 2008 10:42 AM
OR LOSS OF USE OF THE PRODUCT OR FROM THE BREACH OF
THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL,
CONSEQUENTIAL OR SIMILAR DAMAGES, OR LOSS OF
ANTICIPATED PROFITS OR BENEFITS, OR FOR DAMAGES ARISING
FROM ANY TORT (INCLUDING NEGLIGENCE OR GROSS
NEGLIGENCE) OR FAULT COMMITTED BY SAMSUNG, ITS AGENTS
OR EMPLOYEES, OR FOR ANY BREACH OF CONTRACT OR FOR
ANY CLAIM BROUGHT AGAINST PURCHASER BY ANY OTHER
PARTY. SOME STATES/PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE/PROVINCE TO PROVINCE. THIS LIMITED
WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE
ORIGINAL PURCHASER OF THIS PRODUCT AND STATES
PURCHASER'S EXCLUSIVE REMEDY. IF ANY PORTION OF THIS
LIMITED WARRANTY IS HELD ILLEGAL OR UNENFORCEABLE BY
REASON OF ANY LAW, SUCH PARTIAL ILLEGALITY OR
UNENFORCEABILITY SHALL NOT AFFECT THE ENFORCEABILITY
FOR THE REMAINDER OF THIS LIMITED WARRANTY WHICH
PURCHASER ACKNOWLEDGES IS AND WILL ALWAYS BE
CONSTRUED TO BE LIMITED BY ITS TERMS OR AS LIMITED AS
THE LAW PERMITS. THE PARTIES UNDERSTAND THAT THE
PURCHASER MAY USE THIRD-PARTY SOFTWARE OR EQUIPMENT
187
IN CONJUNCTION WITH THE PRODUCT. SAMSUNG MAKES NO
WARRANTIES OR REPRESENTATIONS AND THERE ARE NO
CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR
OTHERWISE, AS TO THE QUALITY, CAPABILITIES, OPERATIONS,
PERFORMANCE OR SUITABILITY OF ANY THIRDPARTY SOFTWARE
OR EQUIPMENT, WHETHER SUCH THIRD-PARTY SOFTWARE OR
EQUIPMENT IS INCLUDED WITH THE PRODUCT DISTRIBUTED BY
SAMSUNG OR OTHERWISE, INCLUDING THE ABILITY TO
INTEGRATE ANY SUCH SOFTWARE OR EQUIPMENT WITH THE
PRODUCT. THE QUALITY, CAPABILITIES, OPERATIONS,
PERFORMANCE AND SUITABILITY OF ANY SUCH THIRD-PARTY
SOFTWARE OR EQUIPMENT LIE SOLELY WITH THE PURCHASER
AND THE DIRECT VENDOR, OWNER OR SUPPLIER OF SUCH
THIRD-PARTY SOFTWARE OR EQUIPMENT, AS THE CASE MAY BE.
This Limited Warranty allocates risk of Product failure between
Purchaser and SAMSUNG, and SAMSUNG's Product pricing
reflects this allocation of risk and the limitations of liability
contained in this Limited Warranty. The agents, employees,
distributors, and dealers of SAMSUNG are not authorized to make
modifications to this Limited Warranty, or make additional
warranties binding on SAMSUNG. Accordingly, additional
statements such as dealer advertising or presentation, whether
oral or written, do not constitute warranties by SAMSUNG and
should not be relied upon.
a867 Eternity.book Page 188 Tuesday, October 14, 2008 10:42 AM
Precautions for Transfer and Disposal
If data stored on this device is deleted or reformatted using the
standard methods, the data only appears to be removed on a
superficial level, and it may be possible for someone to retrieve
and reuse the data by means of special software.
To avoid unintended information leaks and other problems of this
sort, it is recommended that the device be returned to Samsung’s
Customer Care Center for an Extended File System (EFS) Clear
which will eliminate all user memory and return all settings to
default settings. Please contact the Samsung Customer Care
Center for details.
Important!: Please provide warranty information (proof of purchase) to
Samsung’s Customer Care Center in order to provide this service
at no charge. If the warranty has expired on the device, charges
may apply.
Samsung Telecommunications America, LLC:
1301 East Lookout Drive
Richardson, Texas 75082
Phone: 1-800-SAMSUNG (726-7864)
Important!: If you are using a handset other than a standard numeric keypad,
dial the numbers listed in brackets.
Phone: 1-888-987-HELP (4357)
©2008 Samsung Telecommunications
America. All rights
reserved.
No reproduction in whole or in part allowed without prior written
approval. Specifications and availability subject to change
without notice.
Customer Care Center:
1000 Klein Rd.
Plano, TX 75074
Toll Free Tel: 1.888.987.HELP (4357)
Warranty Information
188
a867 Eternity.book Page 189 Tuesday, October 14, 2008 10:42 AM
Index
A
Accessing AT&T Music 129
Adding a New Contact
Adding More Fields 89
Deleting Fields 89
During a Call 90
Idle Screen 87
Address Book
Adding a New Contact 87
Address Book Entry Options 92
Checking the Used Space 97
Copying an entry to the Phone 96
Copying Entry to Phone 96
Copying Entry to SIM Card 95
Deleting all of the Address Book
Entries 96
Dialing a Number 91
FDN (Fixed Dialing Number) Mode
93
Finding an Address Book Entry 91
Group Settings 94
Managing Address Book Entries 95
Own Phone Number 93
189
Service Dialing Numbers 97
Using Contacts List 91
Address Book Settings 87
AIM 121
Alarms 104 145
Answer Tones 100 127
AOL 121
Application Settings
Record Audio 73
Video Share 72
Applications
Alarms 145
Calculator 148
Calendar 146
Converter 149
Memo 148
Music Player 129
Record Audio 144
Stopwatch 150
Tasks 148
Timer 150
Tools 144
Using the Camcorder 114
,
,
,
Using the Camera 104 108
World Clock 149
AT&T GPS
Navigator 140
AT&T Mobile TV 80
Full-Screen Mode 83
Getting Started 80
Overview 80
Parental Controls 85
PIN 85
Player 82
Program Guide 83
Refresh Subscription 86
Subscribing 81
Subscription manager 84
Updates 86
AT&T Music
Adding Music to your Handset 130
Community 139
Music Apps 139
Music Player 129
Music Videos 78 139
MusicID 136
,
a867 Eternity.book Page 190 Tuesday, October 14, 2008 10:42 AM
Pandora 139
Playing Music Through a Stereo
Bluetooth Device 132
Playing Music while Using the Phone
132
Playlists 133
Shop Music 131
Transferring Music From the Digital
Music Stores 131
Transferring Music Windows Media
Player 134
XM Radio 138
AT&T Yahoo! 121
Audio 99
Audio Folder 119 145
,
B
Backlight
settings 59
Battery
charging 7
Installing 6
Low Battery Indicator 8
BellSouth 121
Birthday Widget 27
Block Caller 32
Bluetooth Device
Stereo 132
Brightness 59
Browser
Preferences 159
Settings 161
C
Calculator 105
Calendar 146
Deleting an Event 147
Viewing an Event 147
Call Functions 28
3-Way Calling (Multi-Party Calling)
39
Address Book 29
Adjusting the Call Volume 36
Answering a Call 30
Call Back Missed Call 33
Call Time 35
Call Waiting 39
Correcting the Number 28
Data Counter 35
Deleting Missed Call 34
Dialing a Recent Number 29
Ending a Call 28
International Call 28
Making a Call 28
Missed Call Details 33
Options During a Call 36
Putting a Call on Hold 37
Recent Calls 32
Saving the Missed Call Number to
Address Book 34
Searching for a Number in Address
Book 38
Send Message to Missed Call 34
Using the Speakerphone 38
Viewing All Calls 32
Viewing Missed Calls 33
Camcorder 114
Accessing the Video Folder 116
Camcorder Options 115
Shooting Video 114
Camcorder Options
Camcorder Options after a Video is
Taken 115
190
a867 Eternity.book Page 191 Tuesday, October 14, 2008 10:42 AM
Camera 104
Accessing the Pictures Folder 112
Camera Options 109
Picture Folder 112
Taking Pictures 104 108
Camera Options
Settings 110
Shooting mode 109
Timer 111
White Balance 111
Cellular Video (CV) 76
Adding a Video Alert 77
Customizing 77
My Purchases 77
Parental Controls 78
Updating Favorites 77
Video Categories 77
Change Phone Password 64
Changing Your Settings 50
Charging battery 7
Check PIN code 63
Clear Phone Memory 74
Converter 106
,
191
G
Cookies
Deleting 158
Options 158
Copying a URL 156
D
Digital Music Stores 131
Display
icons 15
,
E
Entering Text 40
Changing the Text Entry Mode 41
45, 48
Using Multitap Mode 42
Using Numeric 43
Using Symbols 43
Using T9 Mode 41
Event Widget 27
F
FDN
Changing the State 93
Creating New Numbers 93
Fixed Dialing Mode 64
Full Screen Mode 153
Games 127
Games & Apps 101
Getting Started 5
Setting Up Your Phone 5
Voice mail 10
GPS Applications 127 142
Shopping For 127 142
Graphics 127
Group
Adding an Entry 94
Creating New Group 94
Editing 95
Removing an Entry 95
Group Settings
Editing a Caller Group 95
,
,
H
HAC 177
Handwriting 44
Changing Text Input 45
Entering Characters 46
Entering Numbers 46
Entering Symbols 47
a867 Eternity.book Page 192 Tuesday, October 14, 2008 10:42 AM
Health and Safety Information 165
I
Icons, description 15
Illumination 59
IMS Settings 71
In-Call Options 30
International Call 28
J
Join 39
K
Keybaord
Changing Text Input 48
Keyboard 40 48
,
L
Landscape 48
Lock Applications 63
M
MEdia Mall
Answer Tones 127
Games 127
Multimedia Store 128
Options 128
Ringtones 126
Tools & Apps 127
MEdia Net and WAP
Accessing the MEdia Net Homepage
160
Accessing the MEdia Net Site 161
Changing WAP Profiles 161
Downloading Multimedia Files 126
Navigating with the WAP Browser
151
Using Favorites 155
Memory
Used Space 125
Memory Card Installation 6
Memory Management 74
Used Space 74
Menu Navigation 19
Messaging
Creating and Sending Text
Messages 117
Settings 122
Signing into Your Mobile Email 121
Types of Messages 117
Using Message Options 120
microSD card
Installing 6
Mobile Banking 102
Mobile Email
AIM 121
AOL 121
AT&T Yahoo! 121
BellSouth 121
Windows Live Mail 121
M-Ratings 177
Multitap Keys 43
Multitap Mode 40
Multitasking 132
Functions 17
Menu 17
Music 100
Music File Extensions
3GP 129
AAC 129
AAC+ 129
eAAC+ 129
M4A 129
MP3 129
MP4 129
MPEG 129
WMA 129
192
a867 Eternity.book Page 193 Tuesday, October 14, 2008 10:42 AM
Music Player 129
Music Videos
Music Video Options 79
Viewing a Video Clip 79
MusicID
Exit 138
Help me out 138
ID song! 137
Manage IDs 137
Mute 36 38
My Stuff
Alarms 104
Answer Tones 100
Audio 99
Calculator 105
Calendar 105
Camera 104
Converter 106
Games & Apps 101
Memo 105
Mobile Banking 102
Music 100
Other Files 106
Pictures 102
Recent Calls 105
,
193
Recorded Audio 100
Shop Applications 101
Shop Games 101
Stopwatch 106
Tasks 105
Timer 106
Tones 99
Used Space 107
Videos 104
World Clock 106
N
Network Profile
Configuration 70
Network Selection 70
Number mode 40
P
Pandora 139
Paragraph
Inserting a Return 46
Parental Controls
Configuring Filters 78
Setup 78
Password
Changing 64
Phone
Front View 11
icons 15
Rear View 14
Side View 13
Switching On/Off 9
Phone Information 75
Phone Lock 63
Phone Safety 176
Phone Settings 61
Playlists
Adding songs to a Playlist 133
Creating a Playlist 133
Importing a Playlist from Windows
Media Player 136
Removing songs from a Playlist 133
Power Search tab 22
Powering
Off 9
On 9
a867 Eternity.book Page 194 Tuesday, October 14, 2008 10:42 AM
Q
QWERTY Keyboard 48
,
R
,
Recent Calls 32 105 148
Record Audio
Audio Folder 119 145
Recorded Audio 100
Creating 100
,
S
SAR values 165
Security 62
Sending a URL 156
Service Dialing Numbers 97
Settings
Address Book 87
Applications 72
Call Settings 66
Display and Light 57
Phone 61
Phone Information 75
Reset 73
Security 62
Software Update 75
Sound 50
Time & Date 60
SIM card
installation 5
Installing 5
Speakerphone Key 38
Standard Limited Warranty
185
Stopwatch 106
Swap 37
Symbol mode 40
T
T9 mode 40
Tasks 105
Text Input Mode
Changing within Handwriting 45
Changing within Keypad 41
Timer 106
Tones 99
Tools
Alarms 145
Calculator 148
Calendar 146
Camera 108
Converter 149
Memo 148
Recent Calls 148
Record Audio 144
Stopwatch 150
Tasks 148
Timer 150
World Clock 149
Touch Screen 9
Lock/Unlock 9
Transition Effect 59
T-Ratings 177
Travel Adapter 7
Using 7
TTY Settings 164
U
UL Certification 167
Understanding Your Phone 11
Features of Your Phone 11
Front View 11
Rear View 14
Side Views 13
Unmute 36
URL
Copying to Message 156
Entering Manually 154
Sending 156
194
a867 Eternity.book Page 195 Tuesday, October 14, 2008 10:42 AM
,
,
Used Space 97 107 125
Using Favorites
Accessing a Web Site Using
Favorites 155
Adding Favorites 155
Deleting a Favorite 156
Editing Favorites 156
V
Video Categories
Viewing a Video Clip 76
Video Features 76
Video Share 30
IMS Settings 71
In-Call 32
Initiating and Receiving a Video
Share Session 30
Play a Recording 32
Settings 72
Videos 104
Voice Mail
Accessing 10
From Another Phone 10
Setup 10
195
W
Warranty Information 185
Widget
Activation 27
Event 27
Widgets 23
Accessing 26
Adding to the Widget bar 23
Deleting from the Widget bar 23
Rearranging 26
Undocking 26
Windows Live Hotmail 121
World Clock 149
Deleting an Entry 150
Y
Yellowpages 150
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
