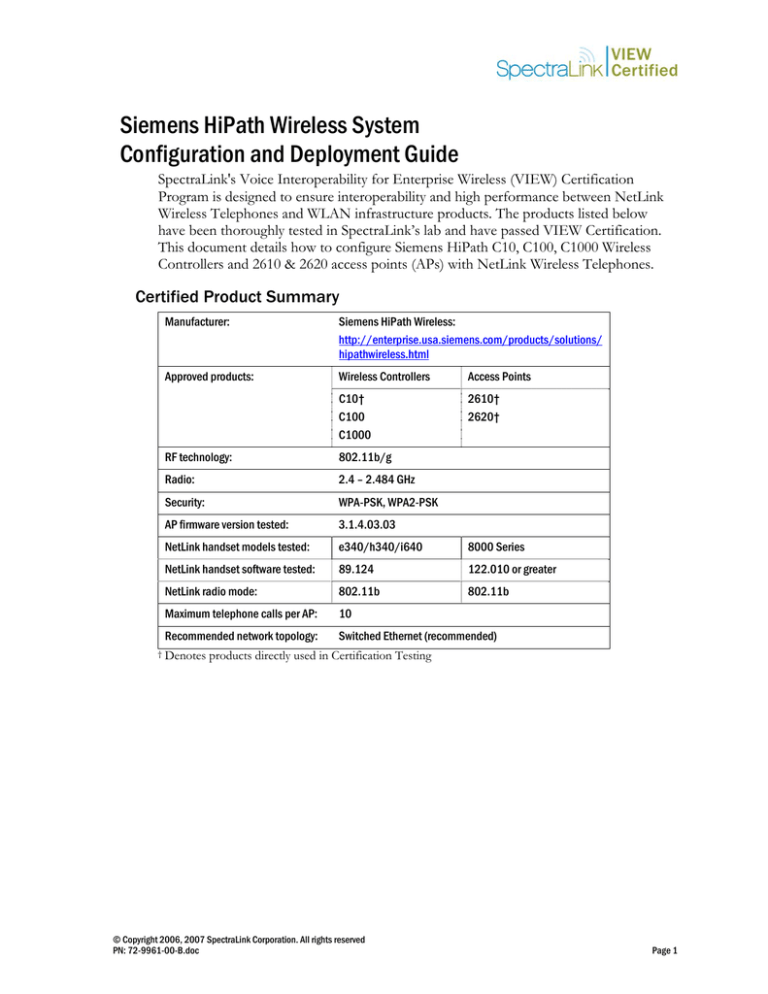

Siemens HiPath Wireless System
Configuration and Deployment Guide
SpectraLink's Voice Interoperability for Enterprise Wireless (VIEW) Certification
Program is designed to ensure interoperability and high performance between NetLink
Wireless Telephones and WLAN infrastructure products. The products listed below
have been thoroughly tested in SpectraLink’s lab and have passed VIEW Certification.
This document details how to configure Siemens HiPath C10, C100, C1000 Wireless
Controllers and 2610 & 2620 access points (APs) with NetLink Wireless Telephones.
Certified Product Summary
†
Manufacturer:
Siemens HiPath Wireless:
http://enterprise.usa.siemens.com/products/solutions/
hipathwireless.html
Approved products:
Wireless Controllers
Access Points
C10†
C100
C1000
2610†
2620†
RF technology:
802.11b/g
Radio:
2.4 – 2.484 GHz
Security:
WPA-PSK, WPA2-PSK
AP firmware version tested:
3.1.4.03.03
NetLink handset models tested:
e340/h340/i640
8000 Series
NetLink handset software tested:
89.124
122.010 or greater
NetLink radio mode:
802.11b
802.11b
Maximum telephone calls per AP:
10
Recommended network topology:
Switched Ethernet (recommended)
Denotes products directly used in Certification Testing
© Copyright 2006, 2007 SpectraLink Corporation. All rights reserved
PN: 72-9961-00-B.doc
Page 1
Network Topology
The following topology was tested during VIEW Certification. It is important to note
that these do not necessarily represent all "certified" configurations. The access points
were powered through a mid-span POE adaptor.
2610 AP
192.168.110.11
255.255.255.0
*Phones DHCP
192.168.121.X
SUBNET A
192.168.110.X
2610 AP
C10 Controller
esa0 INTRFC
192.168.110.10:5825
255.255.255.0
DHCP
192.168.121.x
Handed out by
controller
Router
192.168.110.12
255.255.255.0
LINKSYS
SWITCH
SVP SERVER 192.168.110.6
Gateway: 192.168.110.15
Port 0/0
192.168.110.15
255.255.255.0
PRI GATEWAY 192.168.110.5
Gateway: 192.168.110.15
Port 0/1
192.168.123.15
255.255.255.0
WIRED TEST PC 192.168.110.9
WIRELESS TEST PC DHCP on SSID
‘data’, SUBNET 192.168.122.x
SUB-NET B
192.168.123.X
2620 AP
192.168.123.11
255.255.255.0
*Phones DHCP 192.168.121.X
*All clients are on their own ‘Virtual Subnet’, per SSID
PN: 72-9961-00-B.doc
Page 2
Known Limitations
1. Beacons are sent from the AP inconsistently; therefore you may see decreased
battery life on the handsets.
2. A hex-key is not supported with both WPA-PSK and WPA2-PSK. You must use a
passphrase for each.
3. Because the Controller configures a virtual subnet, broadcast data cannot be sent to
the handsets.
Installing Software & Configuration
1. If software upgrades are required, contact Siemens Customer Support for the latest
version of software and instructions.
2. The current version of software installed can be found by opening a telnet session of
the AP and typing the command version, or by looking at the configuration GUI
under Wireless APs and selecting the general tab for the AP in the field s/w version.
3. If you encounter difficulties or have questions regarding the configuration process,
please contact your Siemens representative or visit the web site
http://enterprise.usa.siemens.com/products/solutions/hipathwireless.html
Initial Setup
1. The following instructions are for configuring a wireless controller and a number of
access points with no prior configuration.
2. All of the initial setup is done via a web interface. Connect a ‘Cross-Over’ Ethernet
cable directly from the Management Port of the controller to a PC’s Ethernet port.
3. Log onto the controller by opening a web browser and connect to
https://192.168.10.1:5825/. The default username is admin; the default password is
abc123.
4. Do this step only if it is necessary to reset the controller back to its factory default
configuration:
a. Click the Wireless Controller button to open the Wireless Controller
Configuration screen.
b. In the navigation pane, click System Maintenance.
c. Click the Reset database to factory default and reboot button.
d. Click the Apply button.
This will reset the database and cause the controller to reboot. It will take three
to four minutes before the controller is finished.
PN: 72-9961-00-B.doc
Page 3
Controller Setup
The setup steps described below refer to the network topology diagram shown in this
document. Make sure all the access points are disconnected from the system if
configuring the system for the first time.
Assigning an IP address to a wireless controller
1. Log onto the controller by opening a web browser and connect to
https://192.168.10.1:5825/. The default username is admin; the default password is
abc123.
2. Click the Wireless Controller button.
3. In the navigation pane, click IP Addresses.
4. Change the value of esa0 to 192.168.110.10 for the IP Address, and to
255.255.255.0 for the Subnet mask.
5. Select the Mgmt and SLP check boxes for this port only (thus turning it on). Leave
these unchecked (off) for the other ports.
6. For Function, select Host Port if static routing is used. Otherwise, select Dynamic
Port if OSPF is being used for routing and routing advertisements.
7. Enter esa0 for Multicast Support. Refer to the screen shot shown below.
8. Click the Save button.
PN: 72-9961-00-B.doc
This is for topologies where the SpectraLink gateway(s) and SVP Servers are
located adjacent to the esa0 port, as was done in this VIEW Certification test.
In topologies where the setup is different, this multicast setting should be
configured to whichever port the SpectraLink servers are adjacent to. This
setting permits proper wired replication of multicast data from the wireless
subnet.
Page 4
PN: 72-9961-00-B.doc
Page 5
Assigning routing protocols to a wireless controller
1. In the Wireless Controller screen, click Routing Protocols in the navigation pane.
2. Enter 0.0.0.0 for the Destination Address and 0.0.0.0 for the Subnet Mask. Add the
appropriate address for the Gateway.
3. Click the Save button.
PN: 72-9961-00-B.doc
If dynamic routing (OSPF) is being used, then the default route should be set
automatically. However, it is always recommended that you assign a
temporary static route in dynamic environments to allow the device to
operate immediately without having to wait for the initial updates. Be sure to
clear the check box for Override dynamic routes. This will allow dynamic
routes to be the default once they arrive.
Page 6
AP registration
1. Click the Wireless APs button.
2. Click AP registration in the navigation pane.
3. Enter all information for your APs (see screen shot below). Make sure the setting for
Security Mode is selected to Allow all Wireless APs to Connect.
4. Click the Save button.
PN: 72-9961-00-B.doc
This setting allows new APs to be added to the system automatically. Once
the addition of APs is complete,S it is recommended to switch this setting
back to Allow only approved Wireless APs to connect.
Page 7
AP maintenance
1. In the Wireless APs screen, click AP Maintenance in the navigation pane.
2. Select the proper image file in the AP Images box and click the Set as default
button.
3. Under Upgrade Behavior select the Upgrade when AP connects using settings from
Controlled Upgrade. Option.
4. Select the Do not upgrade AP images if current image version = upgrade version
check box.
5. Under Downgrade Behavior, select the Automatically downgrade AP to default
image if AP is at later release number (major/minor rev) check box.
6. Click the Save button.
PN: 72-9961-00-B.doc
Page 8
Setting up SSID, Security and QOS
1. Click the VNS Configuration button.
2. Click the Topology tab.
3. Assign a subnet for clients for a specific SSID.
4. Under DHCP Settings:
a. Enter the appropriate address for the Gateway
b. For Mask enter 255.255.255.0.
c. The address range should default to 192.168.121.2 – 192.168.121.254.
Change this if you want a limited range of addresses assigned to this subnet.
d. No DNS Servers or WINS is required.
5. Set the Timeout Idle: pre and post to 2.
6. Under Next Hop Routing, set the OSPF Route Cost to 50000.
7. Enter an SSID name.
8. Under Wireless APs, select the b/g check box for each AP.
9. Click the Save button.
PN: 72-9961-00-B.doc
Page 9
Filtering
1. In the VNS Configuration screen, click the Filtering tab.
2. Select Default from the Filter ID drop-down list.
a. Select all 3 options, In, Out and Allow.
b. Leave the IP:Port as *.*.*.*.
3. Select Non-Authenticated in the Filter ID drop-down list.
a. Select all 3 options, In, Out and Allow.
b. Leave the IP:Port as *.*.*.*.
4. Click the Save button.
PN: 72-9961-00-B.doc
A more secure setup for this topology might be:
Allow 192.168.121.* UDP
Allow 192.168.110.* UDP
Allow 192.168.123.* UDP
Disallow
*.*.*.* N/A T
Page 10
Multicast configuration
1. In the VNS Configuration screen, click the Multicast tab.
2. Select the Enable Multicast Support check box.
3. From the Defined groups drop-down list, select or enter Spectralink SVP
(224.0.1.116) and click the Add button.
4. Enable Wireless Replication for the multicast selection by selecting the check box
beside the entry.
5. Click the Save button.
PN: 72-9961-00-B.doc
Page 11
Security
1. In the VNS Configuration screen, click the Privacy tab.
2. For WPA2 AES-CCKM, click the WPA-PSK option, clear the WPA v.1 check box,
then select the WPA v.2 check box.
3. For WPA TKIP, click the WPA-PSK option, clear the WPA v.2 check box, then select
the WPA v.1 check box.
4. Enter the appropriate pass phrase in the Pre-shared key field.
5. Click the Save button.
PN: 72-9961-00-B.doc
There is no hex key available at this time.
Page 12
Quality of service
1. In the VNS Configuration screen, click the Policy tab.
2. From the Quality of Service drop-down list, select Voice VNS w/o WMM; this is
required for SpectraLink phones.
3. Click the Save button.
Setting up Other SSIDs
1. Repeat the above steps, starting at step 1.
2. Create a new SSID and DHCP pool as before. Each SSID has its own sub-net.
3. Use the same filtering settings as before.
4. Set up privacy as required.
5. If creating a sub-net for data, select Best Effort in the Policy page.
Make sure the proper SSID is selected on each page as it is being configured.
PN: 72-9961-00-B.doc
Page 13
Connecting access points to the controller
1. Click the Reports button.
2. Make sure the controller is configured to accept new APs (this is selected by default).
3. Physically connect the access points to the system one at a time. Once an AP is
connected to the system, it will show up in the Active Wireless APs screen of the
Reports menu. Press F5 to refresh the screen.
PN: 72-9961-00-B.doc
Page 14
Wireless APs address assignment
1. After all the APs have been connected and discovered by the controller, click
Wireless APs tab.
2.
Click the Static Configuration tab.
3. Select an AP to configure. The AP’s name will default to their MAC address.
4. Under IP Address Assignment click either the Use DHCP or the Static Values option.
If selecting Static Values, assign the proper values.
5. Under Wireless Controller Search List add the IP address of the controller port.
6. Repeat steps 4 and 5 for each access point.
7. Click the Save button.
PN: 72-9961-00-B.doc
Page 15
For each AP, follow the steps in the following sections.
AP properties
1. In the Wireless APs screen, click the AP Properties tab. Select an AP to configure.
Here you can assign a meaningful name to each AP.
2. Enable Telnet Access. This is useful for troubleshooting the setup and configuring
security settings.
PN: 72-9961-00-B.doc
Page 16
802.11b/g settings
1. In the Wireless APs screen, select the 802.11 b/g tab.
2. Select an AP to configure.
3. Under Base Settings:
a. Set the DTIM Period to 3.
b. Set the Beacon Period to 100.
c. Set the RTS/CTS Threshold to 2346.
d. Set the Frag. Threshold to 2346.
4. For Enable Radios, select the 802.11b check box.
5. Under Radio Settings:
a. Select the appropriate Channel and Tx Power Level.
(Note: DRM values will override this setting, if enabled).
b. Set the Diversity to Best.
c. Set the Min Basic Rate to 1 Mbps.
d. Set the Max Basic rate to 11Mbps.
e. Set the Max Operational Rate to 11Mbps.
f. Set the Preamble to Short (note that the value Long works as well).
6. Click the Save button.
PN: 72-9961-00-B.doc
Page 17
Enable the radio
1. Click the VNS Configuration button.
2. Click the Topology tab.
3. Enable each AP’s b/g radio for each SSID.
4. Set No. of Retries for Voice VO to adaptive (multi-rate) and No. of Retries for Turbo
Voice TVO to 2.
5. Click the Save button..
PN: 72-9961-00-B.doc
After the controller and access points are set up, the Management port is no
longer required. The Controller can now be managed through the Host Port,
or the esa0 port in this configuration. Open a browser and connect to
https://<ip address>:5825.
Page 18
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
