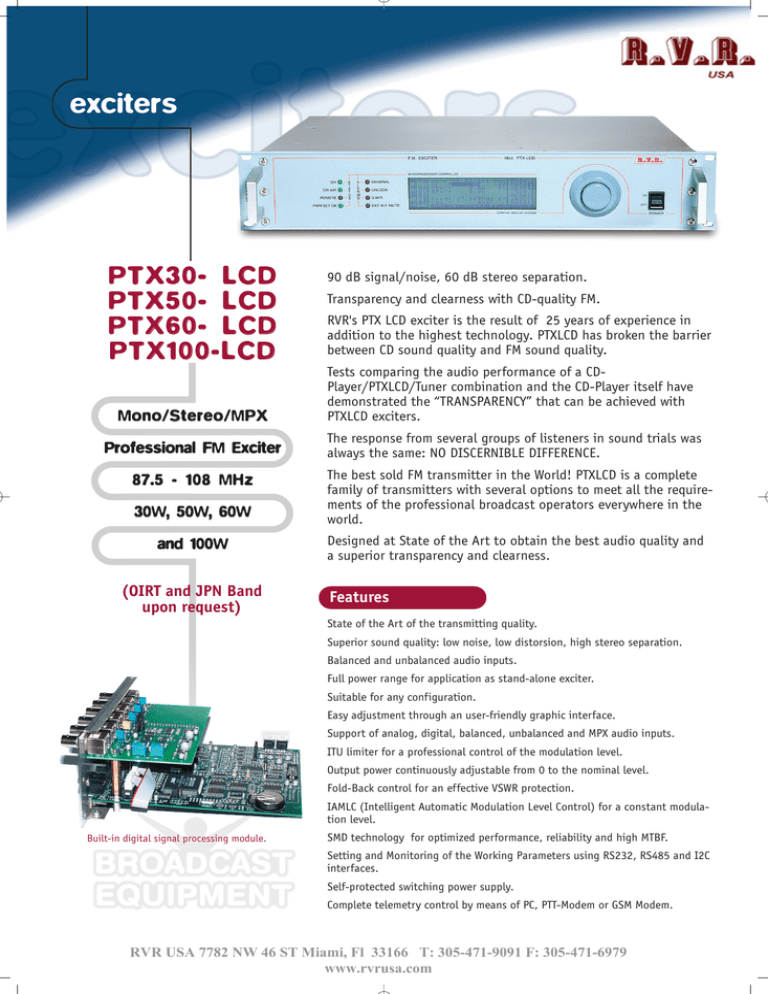

PTX LCD
exciters
PTX30- LCD
PTX50- LCD
PTX60- LCD
PTX100-LCD
90 dB signal/noise, 60 dB stereo separation.
Transparency and clearness with CD-quality FM.
RVR's PTX LCD exciter is the result of 25 years of experience in
addition to the highest technology. PTXLCD has broken the barrier
between CD sound quality and FM sound quality.
Mono/Stereo/MPX
Tests comparing the audio performance of a CDPlayer/PTXLCD/Tuner combination and the CD-Player itself have
demonstrated the “TRANSPARENCY” that can be achieved with
PTXLCD exciters.
Professional FM Exciter
The response from several groups of listeners in sound trials was
always the same: NO DISCERNIBLE DIFFERENCE.
87.5 - 108 MHz
30W, 50W, 60W
and 100W
(OIRT and JPN Band
upon request)
The best sold FM transmitter in the World! PTXLCD is a complete
family of transmitters with several options to meet all the requirements of the professional broadcast operators everywhere in the
world.
Designed at State of the Art to obtain the best audio quality and
a superior transparency and clearness.
Features
State of the Art of the transmitting quality.
Superior sound quality: low noise, low distorsion, high stereo separation.
Balanced and unbalanced audio inputs.
Full power range for application as stand-alone exciter.
Suitable for any configuration.
Easy adjustment through an user-friendly graphic interface.
Support of analog, digital, balanced, unbalanced and MPX audio inputs.
ITU limiter for a professional control of the modulation level.
Output power continuously adjustable from 0 to the nominal level.
Fold-Back control for an effective VSWR protection.
IAMLC (Intelligent Automatic Modulation Level Control) for a constant modulation level.
Built-in digital signal processing module.
SMD technology for optimized performance, reliability and high MTBF.
Setting and Monitoring of the Working Parameters using RS232, RS485 and I2C
interfaces.
Self-protected switching power supply.
Complete telemetry control by means of PC, PTT-Modem or GSM Modem.
RVR USA 7782 NW 46 ST Miami, Fl 33166 T: 305-471-9091 F: 305-471-6979
www.rvrusa.com
exciters
Serial RS232 interface can be used to connect the PTXLCD
exciter to the service PC of the local manteinance operator
or, via modem, to the remote Technical Assistance Centre.
Different configurations can be made for Telecontrol and
Telemetry purpose.
Telemetry connector
8 analog input sockets, 2 relays output terminals and a I2C
bus interface are the telemetry connectors available which
data are displayed either on the LCD or on the PC monitor.
Remote connector
Two signal input sockets for the control of “foldback” output
power are present on this connector: Direct and Reflected
Power Signal.
By adjusting the RFL trimmer, the Reflected Power Threshold
level (Reflected Fold-Back) can be regulated: the exciter
supplies the maximum possible Direct Power so that the
Reflected Power never exceeds the pre-set level. In this way,
the transmission signal continues to be present, albeit more
weakly, even in the event of very high VSWR levels (a typical
example is the presence of ice on the antenna).
By adjusting the FWD trimmer, the Direct Power Threshold
level (Forward Fold-Back) can be regulated: the modulator
stabilises the Forward Output Power within 1dB in AGC.
This function is especially useful when the system includes
tube amplifiers which are subject to output power variations
in the event of fluctuations of the main voltage.The remote
connector has 6 analogue input sockets and 2 relay output
terminals.These signals are used to read measurements and
to perform the on/off functions of the RF Power
Amplifier.There is also a I2C line for data transfer with other
equipment (RVR’s TLC300, SCM4, TLC2000, etc.).
Personal computer link-up
It is possible to read and adjust through RVR's Supervisory
Software all the exciter's settings by linking the exciter to a
PC (either directly or by means of a telephone/radio
modem). The System Manager can select the settings to be
accessed by the user. Different properties, such as visibleyes/no, modifiable-yes/no, name, maximum level, unit of
measurement, etc., for each setting can be adjusted. RVR's
Supervisory Software allows to use customized configurations for Type and Format of the data to be displayed. A
telephone directory with name, number and automatic
dialling of all stations makes it possible to set up a control
and Supervisory System for a specific geographical area.
RVR USA 7782 NW 46 ST Miami, Fl 33166 T: 305-471-9091 F: 305-471-6979
www.rvrusa.com
exciters
RS232 connector
exciters
On the PTX LCD’s front panel, by means of a user-friendly graphic interface, are displayed all the exciter’s diagnostic and control capabilities, depending on the customized software and the installed options (DIGITAL-IN, DIGITAL-IN/DSP). The settings
that can be monitored and adjusted with a standard SW-Version are the following:
Main menu
Display and Setting of the Working Frequency, Output Power, Reflected Power,
Audio Levels and Modulation.
From this menu, by selecting ADMIN, the user can move on to other Menus like:
RF Amplifier/Power Supply menu
Display of the characteristics of the RF operational power supply, power supply
voltage, VCO voltage, RF power amplifier temperature, etc.
External Power/External Status menu
Display of Direct and Reflected RF power, Alarms, operating Voltages and Currents
of the RF Power Amplifier.
Telemetry menu
Display of Telemetry Board readings, setting of Output Relays.
SCA/RDS menu
Display of the three SCA/RDS subcarrier levels, independently of audio modulation,
thus enabling “on air” level readings.
General set menu
Display of communication settings, node number in case of networking and baudrate. Display of “jumper” operating mode settings.
Audio set/board set menu
On/off settings for the following functions: channels, clipper, input impedance,
pre-emphasis, etc.
IAMLC menu
Intelligent Automatic Modulation Level Control settings. This system keeps the signal modulation constant even in the presence of significant variations in the input
signal level (from -13 to +14dbm). By intervening in the final stage of transmission, by means of the digital input attenuator, it is possible to correct variations
caused at other stages of the transmission chain (studio, STL, etc.).
Hardware Highlights
RVR's PTXLCD exciter was carefully designed to have
superior parameters and operating stability. Several
details permit to reach the state of the art. The audio
inputs are equipped with RF filters and protection circuits all housed in a metal box. The connections between
the box and the audio input board are by means of
through-pass capacitors, ensuring that RF or any other
kind of interference on the cables are discharged onto
the Exciter casing. The total shielding of audio signal
and RF circuits guarantee the quality of the radio-electric characteristics S/N, Spurious, etc. as well as full
electromagnetic compatibility with other equipment.
RVR USA 7782 NW 46 ST Miami, Fl 33166 T: 305-471-9091 F: 305-471-6979
www.rvrusa.com
exciters
exciters
DIGITAL-IN
DIGITAL-IN / DSP / SFN
Features
Features
Input card for the acquisition of Analogue and Digital
Audio Signals with automatic changeover.
Input card for the acquisition of Analogue and Digital
Audio Signals with built-in digital stereo encoder, digital
RDS Encoder and SFN capability.
A simple way to use digital audio signals on PTXLCD
exciters.
Support of S/PDIF, AES/EBU (32 to 96 kHz sampling frequency) and EIAJ CP340/1201 data format.
Advanced digital features: fully integrated SFN capability.
Stereo composite MPX signal directly generated in digital
form.
Support of S/PDIF, AES/EBU (32 to 96 kHz sampling frequency) and EIAJ CP340/1201 data format.
DIGITAL-IN / DSP
High performance DSP digital stereo coder high fidelity
Stereo signal, stereo separation > 65 dB S/N ratio > 80 dB.
Features
DSP based integrated RDS Coder fully compliant with CENELEC 500067 and many other features.
Input card for the acquisition of Analogue and Digital
Audio Signals with built-in digital stereo encoder and digital RDS Encoder.
All in one! The professional integration of digital MPX and
digital RDS.
Supports all the functions needed for SFN Applications:
Stereocoder synchronisation and delay setting for MPX and
AF Inputs.
Generates the stereo composite MPX signal directly generated in digital form.
Support of S/PDIF, AES/EBU (32 to 96 kHz sampling frequency) and EIAJ CP340/1201 data format.
High performance DSP digital stereo coder, high fidelity
Stereo signal, stereo separation > 65 dB S/N ratio > 80 dB.
DSP based integrated RDS Coder fully compliant with CENELEC 500067 and many other features.
RVR USA 7782 NW 46 ST Miami, Fl 33166 T: 305-471-9091 F: 305-471-6979
www.rvrusa.com
exciters
Technical specifications PTX-LCD
Parameters
Conditions
U.M.
Frequency range
Frequency programmability
Frequency stability
Rated output power
Modulation type
Modulation capability
Operational Mode
OIRT (66 - 74 MHz) and JPN (76-90 MHz) on request
MHz
WT from -10°C to 50°C
Continuously variable by software from 0 to maximum
ppm
W
GENERALS
kHz
Front panel width
Front panel height
Overall depth
Without condensing
Referred to 100% AM, with no de-emphasis
Referred to 100% AM, FM deviation 75 kHz by 400Hz sine, without de-emphasis
mm
HE
mm
°C
mS
dBc
dB
dB
RMS @ ± 75 kHz peak, HPF 20Hz - LPF 23 kHz, 50 mS de-emphasis
Qpk @ ± 75 kHz peak, CCIR weighted, 50 mS de-emphasis
Qpk @ ± 40 kHz peak, CCIR weighted, 50 mS de-emphasis
30Hz ÷ 15kHz
THD+N 30Hz ÷ 15kHz
Measured with a 1 KHz and 1.3 KHz tones, 1:1ratio, at FM 75 kHz
Measured with a 3.18 kHz square wave and a 15 kHz sine wave at 75 kHz FM
dB
dB
dB
dB
%
%
%
RMS @ ± 75 kHz peak, HPF 20Hz - no LPF, 50 mS de-emphasis
30Hz ÷ 53kHz
53kHz ÷ 100kHz
THD+N 30Hz ÷ 53kHz
THD+N 53kHz ÷ 100kHz
Measured with a 1 KHz and 1.3 KHz tones, 1:1, modulation at FM 75 kHz
Measured with a 3.18 kHz square wave and a 15 kHz sine wave at 75 kHz FM
30Hz ÷ 53kHz
dB
dB
dB
%
%
%
%
dB
RMS @ ± 75 kHz peak, HPF 20Hz - LPF 23 kHz, 50 mS de-emphasis, L & R demodulated
Qpk @ ± 75 kHz peak, CCIR weighted, 50 mS de-emphasis, L & R demodulated
Qpk @ ± 40 kHz peak, CCIR weighted, 50 mS de-emphasis, L & R demodulated
30Hz ÷ 15kHz
THD+N 30Hz ÷ 15kHz
Measured with 1 KHz and 1.3 KHz tones, 1:1 ratio, modulation at FM 75 kHz
Measured with a 3.18 kHz square wave and a 15 kHz sine wave at 75 kHz FM
dB
dB
dB
dB
%
%
%
dB
40kHz ÷ 100kHz
RMS, ref @ ± 75 kHz peak, no HPF/LPF, 0mS de-emphasis, with 67 kHz tone on SCA input @ 7,5kHz FM deviation
RMS, ref @ ± 75 kHz peak, no HPF/LPF, 0mS de-emphasis, with 92 kHz tone on SCA input @ 7,5kHz FM deviation
dB
dB
dB
Phisical Dimensions
Ambient working temperature
Pre-emphasis mode
Spurious & harmonic suppression
Asynchronous AM S/N ratio
Synchronous AM S/N ratio
MONO OPERATION
S/N FM Ratio
Frequency Response
Total Harmonic Distortion
Intermodulation Distortion
Transient intermodulation distortion
MPX OPERATION
Composite S/N FM Ratio
Frequency Response
Total Harmonic Distortion
Intermodulation distortion
Transient intermodulation distortion
Stereo separation
STEREO OPERATION
Stereo S/N FM Ratio
Frequency Response
Total Harmonic Distortion
Intermodulation distortion
Transient intermodulation distortion
Stereo separation
SCA OPERATION
Frequency response
Crosstalk to main or to stereo channel
AUDIO INPUTS
Mono/Left
MPX balanced/Right
MPX unbalanced
SCA / RDS
These are general specifications. They show typical values and are subject to change without notice.
Connector
Type
Impedance (selectable by software)
Input Level, Adjustment Range
Connector
Type
Impedance (selectable by software)
Input Level, Adjustment Range
Connector
Type
Impedance (selectable by internal jumper)
Input Level, Adjustment Range
Connector
Type
Impedance
Input Level, Adjustment Range
Ohm
dBu
Ohm
dBu
Ohm
dBu
Ohm
dBu
99/5/CE
RVR USA 7782 NW 46 ST Miami, Fl 33166 T: 305-471-9091 F: 305-471-6979
www.rvrusa.com
exciters
PTX30-LCD
Value
PTX50-LCD
Value
PTX60-LCD
Value
PTX100-LCD
Value
87.5 ÷ 108
From software, with 10 kHz steps
±1
30
Direct carrier frequency modulation
150 Stereo, 200 Mono/MPX
Mono, Stereo, Multiplex
483
2
400
0 to + 50 (operational -10)
0, 25, 50 (CCIR), 75 (FCC)
<75 (80 typical)
≥ 70
≥ 50
87.5 ÷ 108
From software, with 10 kHz steps
±1
50
Direct carrier frequency modulation
150 Stereo, 200 Mono/MPX
Mono, Stereo, Multiplex
483
2
400
0 to + 50 (operational -10)
0, 25, 50 (CCIR), 75 (FCC)
<75 (80 typical)
≥ 70
≥ 50
87.5 ÷ 108
From software, with 10 kHz steps
±1
60
Direct carrier frequency modulation
150 Stereo, 200 Mono/MPX
Mono, Stereo, Multiplex
483
2
400
0 to + 50 (operational -10)
0, 25, 50 (CCIR), 75 (FCC)
<75 (80 typical)
≥ 70
≥ 50
87.5 ÷ 108
From software, with 10 kHz steps
±1
100
Direct carrier frequency modulation
150 Stereo, 200 Mono/MPX
Mono, Stereo, Multiplex
483
2
400
0 to + 50 (operational -10)
0, 25, 50 (CCIR), 75 (FCC)
<75 (80 typical)
≥ 70
≥ 50
> 85 (typical 87)
>75
>70
better than ± 0.5 dB (typical ± 0.2)
< 0.05 (Tipical 0.03%)
< 0.02
< 0.1 (typical 0.05)
> 83 (typical 85)
>73
>69
better than ± 0.5 dB (typical ± 0.2)
< 0.05 (Tipical 0.03%)
< 0.02
< 0.1 (typical 0.05)
> 83 (typical 85)
>73
>69
better than ± 0.5 dB (typical ± 0.2)
< 0.05 (Tipical 0.03%)
< 0.02
< 0.1 (typical 0.05)
> 80 (typical 84)
>73
>68
better than ± 0.5 dB (typical ± 0.2)
< 0.05 (Tipical 0.03%)
< 0.02
< 0.1 (typical 0.05)
> 85 (typical 87)
± 0.2
± 0.5
< 0.05
< 0.1
< 0.05
< 0.1 (typical 0.05)
> 50 dB (typical 60)
> 83 (typical 85)
± 0.2
± 0.5
< 0.05
< 0.1
< 0.05
< 0.1 (typical 0.05)
> 50 dB (typical 60)
> 83 (typical 85)
± 0.2
± 0.5
< 0.05
< 0.1
< 0.05
< 0.1 (typical 0.05)
> 50 dB (typical 60)
> 80 (typical 84)
± 0.2
± 0.5
< 0.05
< 0.1
< 0.05
< 0.1 (typical 0.05)
> 50 dB (typical 60)
> 80 (Typical 82)
> 68 dB
> 67 dB
± 0.5
< 0.05
≤ 0.03
< 0.1 (typical 0.05)
> 50 (typical 60)
> 80 (Typical 82)
> 69 dB
> 67 dB
± 0.5
< 0.05
≤ 0.03
< 0.1 (typical 0.05)
> 50 (typical 60)
> 80 (Typical 82)
> 69 dB
> 67 dB
± 0.5
< 0.05
≤ 0.03
< 0.1 (typical 0.05)
> 50 (typical 60)
> 80 (Typical 82)
> 68 dB
> 67 dB
± 0.5
< 0.05
≤ 0.03
< 0.1 (typical 0.05)
> 50 (typical 60)
± 0.5
> 75 (typical 79 dB)
> 80 (typical 81 dB)
± 0.5
> 75 (typical 79)
> 80 (typical 81)
± 0.5
> 75 (typical 79)
> 80 (typical 81)
± 0.5
> 75 dB (typical 79)
> 80 dB (typical 81)
XLR F
balanced or externally unbalanced
10 k or 600
-13 to +14
XLR F
balanced or externally unbalanced
10 k or 600
-13 to +14
BNC
unbalanced
10 k or 50
-13 to +14
3 x BNC
unbalanced
10 k
-3 to +15
XLR F
balanced or externally unbalanced
10 k or 600
-13 to +14
XLR F
balanced or externally unbalanced
10 k or 600
-13 to +14
BNC
unbalanced
10 k or 50
-13 to +14
3 x BNC
unbalanced
10 k
-3 to +15
XLR F
balanced or externally unbalanced
10 k or 600
-13 to +14
XLR F
balanced or externally unbalanced
10 k or 600
-13 to +14
BNC
unbalanced
10 k or 50
-13 to +14
3 x BNC
unbalanced
10 k
-3 to +15
XLR F
balanced or externally unbalanced
10 k or 600
-13 to +14
XLR F
balanced or externally unbalanced
10 k or 600
-13 to +14
BNC
unbalanced
10 k or 50
-13 to +14
3 x BNC
unbalanced
10 k
-3 to +15
These are general specifications. They show typical values and are subject to change without notice.
99/5/CE
exciters
Technical specifications PTX-LCD
exciters
Technical specifications PTX-LCD
Parameters
Conditions
U.M.
RF Output
Connector
Impedance
Connector / Impedance
Output Level (referred to the output)
Connector / Impedance
Output Level
Connector / Impedance
Output Level
Ohm
/ Ohm
dB
/ Ohm
Vpp
/ Ohm
dBu
OUTPUTS
RF Monitor
Pilot output
MPX Monitor
POWER REQUIREMENTS
AC Power Input
DC Power Input
AC Supply Voltage
AC Apparent Power Consumption
Active Power Consumption
Power Factor
Connector
DC Supply Voltage
DC Current
VAC
VA
W
VDC
ADC
MECHANICAL DIMENSIONS
Phisical Dimensions
Front panel width
Front panel height
Overall depth
Chassis depth
mm
mm
mm
mm
kg
Weigh
TELEMETRY-TELECONTROL SW
Telecon
VARIOUS
Cooling
Acoustic Noise
STANDARD COMPLIANCE
Safety
EMC
Spectrum Optimization
AUXILIARY CONNECTIONS
Interlock / RS232 Serial Interface / Remote Interface
OPTIONS
Input 10 MHz / 24V backup input / Telemetry interface / DIGITAL-IN / DIGITAL-IN/ DSP / DIGITAL-IN / DSP /SFN
These are general specifications. They show typical values and are subject to change without notice.
dBA
99/5/CE
RVR USA 7782 NW 46 ST Miami, Fl 33166 T: 305-471-9091 F: 305-471-6979
www.rvrusa.com
exciters
PTX30-LCD
Value
PTX50-LCD
Value
PTX60-LCD
Value
PTX100-LCD
Value
N type
50
BNC / 50
approx. -30
BNC / 50
1
BNC / > 600
0
N type
50
BNC / 50
approx. -30
BNC
1
BNC / > 600
0
N type
50
BNC / 50
approx. -30
BNC
1
BNC / > 600
0
N type
50
BNC / 50
approx. -30
BNC
1
BNC / > 600
0
115 - 125 - 230 - 250
135
95
0,7
IEC Standard
24
3,5
115 - 125 - 230 - 250
220
150
0,68
IEC Standard
24
5
115 - 125 - 230 - 250
220
150
0,68
IEC Standard
24
6
115 - 125 - 230 - 250
350
250
0,71
IEC Standard
24
6
483 (19")
88 (3 1/2")
400
389
About 10
483 (19")
88 (3 1/2")
400
389
About 13
483 (19")
88 (3 1/2")
400
389
About 15
483 (19")
88 (3 1/2")
400
389
About 15
Yes
Yes
Yes
Yes
Forced, with internal fan
< 56
Forced, with internal fan
< 56
Forced, with internal fan
< 56
Forced, with internal fan
< 56
EN60215:1989
EN 301 489-11 V1,2,1
ETS 300 447
EN60215:1989
EN 301 489-11 V1,2,1
ETS 300 447
EN60215:1989
EN 301 489-11 V1,2,1
ETS 300 447
EN60215:1989
EN 301 489-11 V1,2,1
ETS 300 447
Standard for all versions
Available for all versions
These are general specifications. They show typical values and are subject to change without notice.
99/5/CE
RVR USA 7782 NW 46 ST Miami, Fl 33166 T: 305-471-9091 F: 305-471-6979
www.rvrusa.com
exciters
Technical specifications PTX-LCD
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
