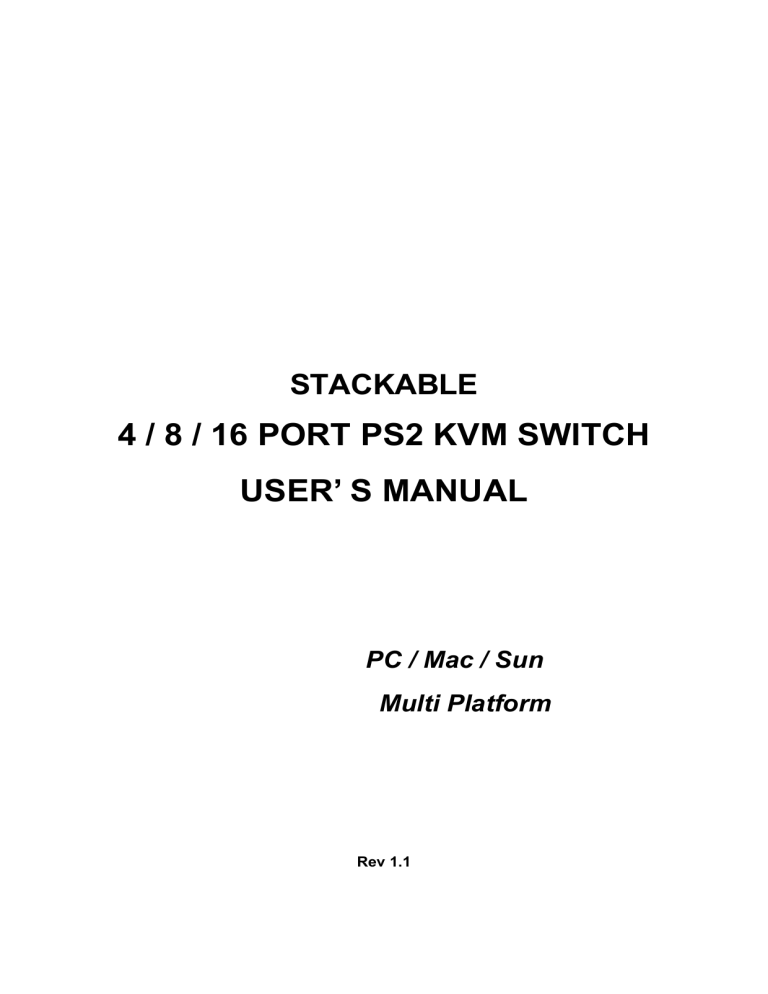

STACKABLE
4 / 8 / 16 PORT PS2 KVM SWITCH
USER’S MANUAL
PC / Mac / Sun
Multi Platform
Rev 1.1
TABLE OF CONTENTS
INTRODUCTION … … … … … … . … … … … … … … … … … … … … … . .1
FEATURES … … … … . .. … … … … … … … … … … … … … … … … … … . 1
PACKAGE CONTENTS … … … … … . .. … … … … . . … … … … … … … … 2
TECHNICAL SPECIFICATIONS… … … . . … … … … … … … … … … … . 3
SYSTEM REQUIREMENT … … … … … … … … … … … … … … … … . .4
CABLE DIAGRAMS … … … … … … … … … … … … … … … … … … … . 5
PRODUCT DETAILS … … … … … … … … … … … … … … … … … … … 6
HARDWARE INSTALLATION… … … … … … … … … … … … … … … 7
USAGE … … … … … … … … … … … … … … … … … … … … … … … … … 9
DAISY CHAIN CONNECTION DIAGRAM … … … … … … … … … … 1 2
HOT PLUG … … … … … … … … … … … … … … … … … … … … … … … 13
ON SCREEN DISPLAY OPERATION … … … … … … … … … … … 13
ACCESSORIES… … … … … … … … … … … … … … … … … … … … . ..16
CERTIFICATES… … … … … … … … … … … … … … … … … … … … . .1 6
Introduction
Thank you for purchasing KVM switch. KVM switch can save your MONEY, TIME, SPACE,
EQUIPMENT and POWER.
Controlling multiple PCs from One Keyboard, Mouse and VGA Monitor. KVM switch is
loaded with features such as 19” Rack Mount Size, Daisy Chain up to eight units, On
Screen Display Menu, Password security, Searching PC server name, Hot key Control,
Front Panel Push Button and Auto Scan Control. It has complete keyboard and mouse
emulation for simultaneous PCs boot-up process.
Features
l
4/8/16 port KVM switch is 19” rack mount size design.
l
Support Microsoft Intellimouse, Microsoft Intellimouse Explorer, Logitech Net Mouse or
the other fully compatible MS mouse.
l
Provide Console PS/2 to PC serial mouse conversion
l
Support DOS, Win3.X, Win95/98/98SE/2000/ME/XP, WinNT, Netware, SCO Unix, HP
Unix, Linux
l
Hot Plug - Add PCs or Remove Connected PCs for Maintenance without Powering
Down the KVM switch or PCs.
l
Very High Video Quality - Up To 1920X1440, Bandwidth: 200MHz
l
No Software Required - easy PC selection via On Screen Display Manual, Push
Buttons, Hot Keys
l
Support eight characters password protection and search PC server name
l
Auto Scan Mode for monitoring PCs and flexible Scan time from 5~99 seconds
l
Keyboard status restored when switching PCs
l
LED Display for easy status monitoring
l
Buzzer sound for switching port confirmation.
l
Using Standard Keyboard, VGA, Mouse cable.
l
Built-in one extra daisy chain port and no waste any PC port
l
No DIP switch setting needed and auto detect daisy chain bank
Package Contents
4 port KVM Switch
4 port KVM Switch
1 PCS
User’s manual
1 PCS
AC to DC Power Adapter
1 PCS
Stack Kit
1 SET
Daisy Chain Cable
1 SET
8 port KVM Switch
8 port KVM Switch
1 PCS
User’s manual
1 PCS
AC to DC Power Adapter
1 PCS
Stack Kit
1 SET
Daisy Chain Cable
1 SET
16 port KVM Switch
16 port KVM Switch
1 PCS
User’s manual
1 PCS
AC to DC Power Adapter
1 PCS
Stack Kit
1 SET
Daisy Chain Cable
1 SET
Technical Specifications
4 port KVM Switch
Model No.
8 port KVM Switch
16 port KVM Switch
PC Port
4
8
16
Console Port
1
1
1
PC Port Connector
(All Female Type)
PS/2 Keyboard mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Console Port Connector
(All Female Type)
PS/2 Keyboard mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Daisy Chain Port Connector PS/2 Keyboard mini Din 6 pin
(All Female Type)
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
PC selection
On Screen Display Menu, Hot Key, Push Button
7 segment LED
One Bank LED, Two PC Port LEDs
On Screen Display Control
Yes
Scan Intervals
5~99 Sec.
Keyboard Emulation
PS2
Mouse Emulation
PS2
Mouse Conversion
(Only Console port to PC
port)
Console PS/2 to each PC port serial mouse
VGA Resolution
1920X1440
Bandwidth
200MHz
Daisy Chain MAX Level
8 levels
MAX PC Connection
116
Housing
Metal
Power Adapter
DC 12V 1A or DC 9V 1A
Operation Temperature
0~40℃
Storage Temperature
-20 ~ 60℃
Humidity
0~80%, Non-Condensing
Size
120
128
19” Rack Mount / 1RU
19” Rack Mount / 1RU
19” Rack Mount/ 2RU
Weight (kg)
1.3kg
2.2kg
3.5kg
Dimension (cm)
41(L) X 16.5(W) X 4.4(H)
41(L) X 16.5(W) X 4.4(H)
41(L) X 22.5(W) X 8.9(H)
System Requirements
Specifications:
Model No.
Console side
Computer side
Model No.
Console side
Computer side
Model No.
Console side
Computer side
4 port KVM Switch
One VGA Monitor
One PS/2 Keyboard
One PS/2 Mouse
4 HDB 15 pin male to male VGA cables
4 PS/2 cables male to male for Keyboard
4 PS/2 cables male to male for Mouse
8 port KVM Switch
One VGA Monitor
One PS/2 Keyboard
One PS/2 Mouse
8 HDB 15 pin male to male VGA cables
8 PS/2 cables male to male for Keyboard
8 PS/2 cables male to male for Mouse
16 port KVM Switch
One VGA Monitor
One PS/2 Keyboard
One PS/2 Mouse
16 HDB 15 pin male to male VGA cables
16 PS/2 cables male to male for Keyboard
16 PS/2 cables male to male for Mouse
Cable Diagrams
PS/2 Cable:
Mini Din 6 pin Male to Male
,
VGA Cable:
HDB15 pin Male to Male
AT to PS/2 keyboard adapter: (Optional)
Din 5 pin Male to Mini Din 6 pin Female
PS2 to DB9 adapter (Optional)
Mini Din 6 pin Female to DB 9 pin Female
Product Details
Front Panel & Rear Panel of 4 port KVM Switch:
Front Panel & Rear Panel of 8 port KVM Switch:
Front Panel & Rear Panel of 16 port KVM Switch:
Hardware Installation
Before installation, please make sure all of peripherals and computers have been turned off.
This example of installation is based on 8 port KVM Switch and you also can think that 4
port KVM Switch and 16 port KVM Switch have the same installation procedures
Step 1
Find a convenient place to put your KVM Switch. Its 19” rack mount form factor makes it
ideal stackable on 19” rack. When stacking to a rack, attach the included brackets to the
sides of the KVM Switch. Take note of the length of your cables so that your computers,
KVM Switch, keyboard, mouse and monitor are distanced properly.
Step 2
Connect the monitor to the KVM Switch. Using the attached cable, or the one included with
your monitor, connect it to the HD DB-15 female port on the back of the KVM unit labeled
with the monitor symbol at the CONSOLE port connector.
Step 3
Connect the keyboard to the KVM Switch. If you have an AT type keyboard, you will need
an AT to PS/2 adapter.
Step 4
Connect the mouse to the KVM Switch.
Step 5
Now the PC connections will be made with the monitor (VGA) connections first. Connect a
VGA cable (15-pin HDDB Male / Male) with the Male side to both of the PC and the rear
panel of the KVM switch to the connector labeled VGA. Repeat this for all PCs.
The rear side of PC
Step 6
Connect the first computer’s mouse cable to the KVM Switch. If using a PS/2 cable,
connect one end to the PS/2 mouse port on the computer, and the other end to the PC1
PS/2 mouse port on the back of KVM Switch. If using a serial mouse cable (optional),
connect one end to a DB-9 serial port on the computer, and the other end to the PC1 DB-9
serial mouse port on the back of the KVM Switch. If you need Serial DB-9 to PS2 Mini Din 6
pin adapter, please contact your supplier.
The rear side of PC
Step 7
Connect the first computer’s keyboard cable to the KVM Switch. Using another PS/2 cable
connect one end to PS/2 keyboard port on the computer, and the other end to the PC1
keyboard port on the back of KVM unit. If your computer has an AT type keyboard port, you
will need a PS/2 to AT keyboard adapter.
The rear side of PC
Step 8
Double-check all of the connections. You can check the color of keyboard and mouse
connector to make sure the keyboard and mouse cables go to the correct ports.
Step 9
Repeat step 5 to 7 for the remainder of the computers.
Step 10
Attach the power supply to the KVM unit and plug the other end into an electrical receptacle.
Now you will see the LED for Port 1 light up, and you will hear a beep. Switch on your
monitor.
NOTE:
Please be remind to plug in power adapter. Although the PCs connected to KVM Switch
are able to support enough power to the stand alone switch, KVM Switch still needs a
power adapter for daisy chain more banks. If you forget to plug in power adapter on the
status of daisy chain, it may cause the unexpected status occurred.
Usage
The power on state of 4/8/16 port KVM switch:
When you power on KVM switch, it will ask you the password, the default password value
is eight zero –“ 00000000 “. Please key in eight zero and enter the same value at retype
field.
Note: Before you are not familiar with the operation of OSD menu, please don’t change the
password – i.e. keep default eight zero (00000000) value. Otherwise, if you have set the
password and unfortunately forget the password, you need send it back to your distributor
for maintaining the password.
The Push Buttons
:
Pressing the button cyclically through all the ports.
4 port KVM Switch
1
2
3
4
LED Indication:
You can press the button in order like mentioned-above diagram.
When you select one of four PC ports and this PC is shut down or this PC port is
disconnected to the PC, the selected port LED will flash. When you select one of four PCs
ports and this PC is powered on, the selected port LED is lit.
8 port KVM Switch
1
2
3
4
5
6
7
8
:
7-Segment LED Indication
You can press the button in order like mentioned-above diagram.
When you select one of eight PC ports and this PC is shut down or this PC port is
disconnected to the PC, the selected port LED will flash. When you select one of eight PCs
ports and this PC is powered on, the selected port LED is lit.
16 port KVM Switch
1
2
16
15
3
4
5
6
7
8
14
13
12
11
10
9
:
7-Segment LED Indication
You can press the button in order like mentioned-above diagram.
When you select one of sixteen PCs ports and this PC is powered on, the selected port
LED is lit. When you select one of sixteen PC ports and this PC is shut down or
disconnected a PC, the selected port LED will flash.
Reset Button (
(Bank Select) and
(Port Select) ):
To press both “select” button and “bank” button of master bank simultaneously can reset
KVM switch. This reset action will not only return KVM switch back to initial state --- Check
the password, but also re-check all of slave banks which connected to mast KVM Switch.
If you add a new KVM Switch as a slave bank, please use reset button of master KVM
Switch to automatic assign a new ID to it. You can view this new slave bank go through
OSD menu. The PC ports of KVM Switch does not be reset by reset command.
Keyboard Hot Key Commands:
You can also conveniently command KVM switch by switching ports through simple key
sequences. To send commands to KVM switch, the “SCROLL LOCK” key must be
pressed twice within 2 seconds. You will hear a beep for confirmation and the keyboard
is in hot key mode. If you have not pressed any key in hot key mode within 2 seconds (It
means to key in any key follows up “Scroll Lock” “Scroll Lock” key ), the keyboard will back
to under Operation System control state.
Below are the different hot key commands:
within 2 seconds
Scroll
Lock
+
Scroll
Lock
+
↑
=
Previous Channel
Scroll
Lock
+
Scroll
Lock
+
↓
=
Next Channel
(Note: You also could press “up arrow key” or “down arrow
key” longer time to speed up selecting the destination
port)
Scroll
Lock
+
Scroll
Lock
+
Page
Up
=
Previous Bank
Scroll
Lock
+
Scroll
Lock
+
Page
Down
=
Next Bank
To select PC port:
Scroll
Lock
Scroll
Lock
+
+
Scroll
Lock
Scroll
Lock
+
Bank
No
+
B
Port
No
=
Port No.
1~4 (4 port)
1~8 (8port)
1~16 (16 port)
Beeper
(Note: The default Beeper function is ON and beeper
control is only for available for Scan Mode )
Scroll
Lock
+
Scroll
Lock
+
S
=
Auto Scan
To get out of Auto Scan Mode, Press any key or SPACE bar.
Scroll
Lock
+
Scroll
Lock
+
=
R
OSD default value
(Note: Not including password)
ROM
Scroll
Lock
+
Scroll
Lock
+
F
=
REFLASH
Search the same PC name
st
(Note: Search PC name starting from 1 PC port)
FIND:
Scroll
Lock
+
Scroll
Lock
+
Space bar
=
On Screen Display Menu
Example:
A. To access a computer attached to Port 6 of the fifth Bank. You can press through hot key as below:
Scroll lock + Scroll lock + “ 5 “ + “ 0 “
“ 6”
B. To access a computer attached from Bank 3 to Bank 4, You can press through hot key as below:
Scroll lock + Scroll lock + Page Down
Note:
Bank no. and Port no. selection must be made using the numeric keys on the keyboard. Numeric keys on the
keypad are not available as a hot key command.
Daisy Chain Connection Diagram
Please use the attached 3 feet 3-in-one daisy chain Cable Kit to daisy chain the KVM
Switch.
A. Connect Keyboard, Mouse and Monitor to the console port (white color block) of bank 1
KVM switch.
B. Use one end of 3-in-one Cable Kit to connect the daisy chain port of bank 1 and the
other end for the console port (white color block) of bank 2 KVM switch.
C. Please repeat item B to daisy chain more bank as you want. But, the maximum daisy
chain bank is eight levels.
D. Before chaining the slave bank up to six banks, you need a VGA extender (Max. 100
feet ) between the fifth bank and the sixth bank to enhance the VGA signal.
Bank:1
Bank:2
Bank:3
Bank:8
Maximum 8 Levels
Hot Plug
The KVM Switch supports “Hot Plug“ function for easy addition or removal of PCs. The user
can arrange or maintain PCs as follows:
a. A PC can be disconnected and reconnected to the same or different port of the KVM
unit without having to power it off as long as it is not the Daisy-chain port or pass
through port.
b. The pass through port PC (i.e. The pass through port means the console port is
connected to PC directly) is powered on. Before you go hot plug function, please switch
to this pass through port to next port and then switch back to the pass through port.
c. You may unplug the mouse or the keyboard from the console port and plug it back in at
any time.
NOTE:
Some O.S. (Operation Systems) like SCO Unix are unable to support “ Hot Plug ”
function. If you apply “Hot Plug” to this kind of O.S., it will cause unpredictable
behavior or shut down the PC. Before attempting to use “ Hot Plug ” , please make
sure your O.S. and software driver supports the “Hot Plug” function.
On Screen Display Operation
When you pop up the OSD menu window go through the hot key, you will see the following
small window on your monitor.
BANK : 1
a. The 1ST line bar is Bank no.
01
SYSTEM
01
02
SYSTEM
02 E
03
SYSTEM
03
04
SYSTEM
04
05
SYSTEM
05
06
SYSTEM
06
07
SYSTEM
07
08
SYSTEM
08
09
SYSTEM
09
SYSTEM
10
11
SYSTEM
11
10
1
12
SYSTEM
12
13
SYSTEM
13
14
SYSTEM
14
15
SYSTEM
15
16
SYSTEM
16
OSD : 1 0 SEC.
CHANGE PASSWORD
SCAN: 1 0 SEC.
CONSOLE
ON/OFF
ESC : QUIT
ENTER :COMPLETE
TAB : NEXT
INSERT :EDIT
Ç/È: SELECT
PORT
PgDn/PgUp: BANK
SELECT
b. The 2nd block is your PC
system name list. You will find
the system number list from
01 to 04 ( if the current box is
4 port) or from 01 to 8 (if the
current box no. is 8 port)or
from 01 to 16 (if the current
box no. is 16 port). You can
define your PC name in
maximum 8 characters. The
factory default of 16 port KVM
switch PC name is from
“SYSTEM 01”, “SYSTEM
02” , … , “SYSTEM 16” and 8
port KVM switch is from
“SYSTEM 01”, “SYSTEM
02”, …, “SYSTEM 08”. Besides,
the sun symbol “
“ near to
the PC name represents the
PC system is powered on.
To use up arrow key “ — “ or down arrow key “ ˜ “ to select port for destination PC name.
After you have selected the PC port already, you can press the ENTER Key to switch the
PC port you want immediately
To use “ PgUp “ key or “ PgDn” key for selecting previous or next Bank no. (or Box No.)
BANK : 1
01
SYSTEM
01
02
SYST EM
E
02
To press “ INS” key for
editing PC name.
After finishing the edit, please press “ Enter “ key for saving information.
To use “ Tab “ key to select items like Bank, OSD, SCAN, CHANGE PASSWORD,
CONSOLE ON/OFF, etc…
15
SYSTEM
15
16
SYSTEM
16
OSD : 1 0 SEC. E CHANGE PASSWORD
SCAN: 1 0 SEC.
CONSOLE
ON/OFF
ESC : QUIT
ENTER :COMPLETE
TAB : NEXT
INSERT :EDIT
a. The “ OSD: 10 SEC” means
that the OSD windows
display or PC system name
exists 10 sec. on your
monitor. You can modify it
from 05 sec to 99 sec. The
factory default value is 10
sec..
b. The “ SCAN TIME” means that scan interval from one PC port to next PC port. The
default SCAN time is 10 sec and the maximum scan time is 99 sec.
c. The “ CHANGE PASSWORD” is for user to avoid all PC systems to be intruded by the
other person. The default password is 8 digits “ 00000000 “.
ENTER
ESC : QUIT
PASSWORD :
ENTER : COMPLETE
There is an enter password window showed out when you select this item and then
press the Enter. The maximum password is eight digits. After you key in the
password already and press the Enter key, there is another window for confirming
your typed password.
ENTER
NEW
ESC : QUIT
RETYPE NEW
COMPLETE
ESC : QUIT
PASSWORD :
ENTER : COMPLETE
PASSWORD :
ENTER : COMPLETE
You need to retype the password again for rechecking your previous key-in password
is matched or not.
NEW
PASSWORD
ESC : QUIT
COMPLETE
ENTER : COMPLETE
d. The “ CONSOLE ON/OFF “ means to manage the console of KVM switch. If you
select “ CONSOLE ON “, it means that any user can use the console. If you select
“ CONSOLE OFF “(factory default OFF state), it means that any user will not be
allowed to use the console unless you enter the password. When you enter the
password already and pass the KVM switch authentication, the CONSOLE will be set
to ON. After you finish using KVM switch, please don’t forget to set up CONSOLE
ON state to OFF state. Besides, if current CONSOLE is ON state and you reset KVM
switch, the CONSOLE will be set up ON state back to OFF state.
e. When you finish the set up of PC name and get out of OSD setting mode, you will find
the PC name showed at the up-left corner of monitor. Now, you can use ESC key to
clear the message right away if you don’t need it.
102
SYSTEM
02
f. If you want OSD returning back to factory default value, you can execute “SCROLL
LOCK”, “SCROLL LOCK” , “R” keys in order. The Seven segment LEDs on the front
panel will be flashed during the refresh process.
ROM
REFLASH
When the OSD value back to default setting, the seven segment LEDs on the front
panel will stop flashing
Accessories
Ordering information:
1.
VGA Extender (DB15 Female to DB15 Female) MAX. 100 feet
2.
PC port PS2 Extender (Mini Din 6 Female to Mini Din 6 Female) MAX. 100 feet
3.
Daisy Chain port Extender (Mini Din 6 Female to Mini Din 6 Female) MAX. 100 feet
4.
PS2 to Serial adapter (Mini Din 6 Female to DB9 Female)
5.
3-in-one 6 feet VGA and PS2 cable for pc port to KVM Switch
6.
Stack Brackets
CERTIFICATES
FCC
This equipment has been tested and found to comply with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received. Including interference that may
cause undesired operation.
CE – Certificate
This equipment is in compliance with the requirements of the following regulations: EN 55
022: CLASS B
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
