Asus PA279 Series User guide

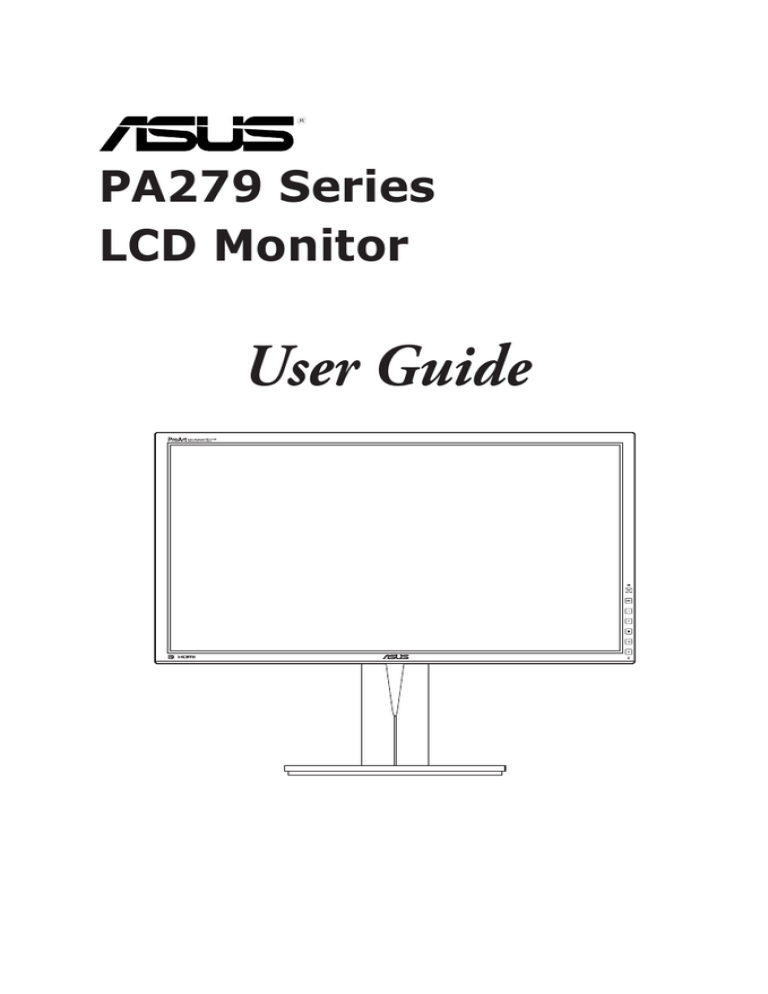

PA279 Series
LCD Monitor
User Guide
Contents
Contents........................................................................................................ ii
Notices.......................................................................................................... iii
Safety information....................................................................................... iv
Care & Cleaning............................................................................................ v
Chapter 1: Product introduction
1.1
Welcome! ..................................................................................... 1-1
1.2
Package contents.......................................................................... 1-1
1.3
Monitor introduction..................................................................... 1-2
1.3.1
Front view........................................................................ 1-2
1.3.2
Back view......................................................................... 1-3
1.3.3
QuickFit Function............................................................. 1-5
Chapter 2: Setup
2.1
Detaching the arm/base.
(for VESA wall mount).................................................................... 2-1
2.2
Adjusting the monitor................................................................... 2-2
2.3
Connecting the cables.................................................................. 2-3
2.4
Turning on the monitor................................................................. 2-3
Chapter 3: General instructions
3.1
ii
OSD (On-Screen Display) menu ................................................. 3-1
3.1.1
How to reconfigure........................................................... 3-1
3.1.2
OSD function introduction................................................ 3-1
3.2
Specifications summary............................................................... 3-8
3.3
Troubleshooting (FAQ)................................................................. 3-9
3.4
Supported operating modes...................................................... 3-10
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
•
This device may not cause harmful interference, and
•
This device must accept any interference received including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with manufacturer’s instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is
required to assure compliance with FCC regulations. Changes or modifications
to this unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
As an Energy Star® Partner, our company has determined that this
product meets the Energy Star® guidelines for energy efficiency.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
This Class B digital apparatus meets all requirements of the Canadian
Interference - Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du
Réglement sur le matériel brouiller du Canada.
iii
Safety information
•
Before setting up the monitor, carefully read all the documentation that came
with the package. •
To prevent fire or shock hazard, never expose the monitor to rain or moisture. •
Never try to open the monitor cabinet. The dangerous high voltages inside the
monitor may result in serious physical injury.
•
If the power supply is broken, do not try to fix it by yourself. Contact a qualified
service technician or your retailer. •
Before using the product, make sure all cables are correctly connected and the
power cables are not damaged. If you detect any damage, contact your dealer
immediately.
•
Slots and openings on the back or top of the cabinet are provided for
ventilation. Do not block these slots. Never place this product near or over a
radiator or heat source unless proper ventilation is provided. •
The monitor should be operated only from the type of power source indicated
on the label. If you are not sure of the type of power supply to your home,
consult your dealer or local power company.
•
Use the appropriate power plug which complies with your local power standard.
•
Do not overload power strips and extention cords. Overloading can result in fire
or electric shock. •
Avoid dust, humidity, and temperature extremes. Do not place the monitor in
any area where it may become wet. Place the monitor on a stable surface.
•
Unplug the unit during a lightning storm or if it will not be used for a long period
of time. This will protect the monitor from damage due to power surges.
•
Never push objects or spill liquid of any kind into the slots on the monitor
cabinet.
•
To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between
100-240V AC. •
If you encounter technical problems with the monitor, contact a qualified
service technician or your retailer. This symbol of the crossed out wheeled bin indicates that the product (electrical,
electronic equipment, and mercury-containing button cell battery) should not
be placed in municipal waste. Please check local regulations for disposal of
electronic products.
iv
Care & Cleaning
•
Before you lift or reposition your monitor, it is better to disconnect the cables
and power cord. Follow the correct lifting techniques when positioning the
monitor. When lifting or carrying the monitor, grasp the edges of the monitor.
Do not lift the display by the stand or the cord.
•
Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor
surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed
with a cloth dampened with mild cleaner.
•
Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended
for use with the monitor. Never spray cleaner directly on the screen, as it may
drip inside the monitor and cause an electric shock.
The following symptoms are normal with the monitor:
•
You may find slightly uneven brightness on the screen depending on the
desktop pattern you use.
•
When the same image is displayed for hours, an afterimage of the previous
screen may remain after switching the image. The screen will recover slowly or
you can turn off the Power Switch for hours.
•
When the screen becomes black or flashes, or cannot work anymore, contact
your dealer or service center to fix it. Do not repair the screen by yourself! Conventions used in this guide
WARNING: Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when trying
to complete a task.
IMPORTANT: Information that you MUST follow to complete a task.
NOTE: Tips and additional information to aid in completing a task.
v
Where to find more information
Refer to the following sources for additional information and for product and
software updates.
1.
ASUS websites
The ASUS websites worldwide provide updated information on ASUS
hardware and software products. Refer to http://www.asus.com
2.
Optional documentation
Your product package may include optional documentation that may have
been added by your dealer. These documents are not part of the standard
package.
vi
1.1
Welcome!
Thank you for purchasing the ASUS® LCD monitor!
The latest widescreen LCD monitor from ASUS provides a broader, brighter and
crystal-clear display, plus a host of features that enhance your viewing experience.
With these features, you can enjoy the convenience and delightful visual
experience that the monitor brings to you!
1.2
Package contents
Check your package for the following items:
LCD monitor
Quick start guide
Warranty card
Power cord
DVI-D cable (Dual Link)
DisplayPort cable
DisplayPort cable (Mini-DP to DP)
USB 3.0 cable
Support CD
Cable tie
Color Calibration Testing Report
Hood
If any of the above items is damaged or missing, contact your retailer
immediately.
ASUS PA279 Series LCD Monitor
1-1
1.3
Monitor introduction
1.3.1
Front view
1
2
3
4
5
6
7
1.
2.
QuickFit button:
•
Activates the QuickFit function designed for alignment.
•
The QuickFit function contains 7 pages of common grid patterns and paper
and photo sizes. (Please refer to 1.3.3 QuickFit Function).
•
Enacts the selected OSD menu item.
•
Increases/Decreases values or moves your selection up/down/left/right.
MENU button:
•
Turns on the OSD menu.
•
Exits the OSD menu or goes back to the previous menu when the OSD
menu is active.
•
Exits the QuickFit patterns.
•
Toggles the Key Lock function between on and off with a long press for
5 seconds.
The OSD menu is not available when the QuickFit function is in use.
1-2
Chapter 1: Product introduction
3.
4.
Shortcut
•
Default: Brightness hotkey
•
To change the hotkey function, go to the Shortcut > Shortcut 1 menu.
Shortcut
•
•
5.
Default: Contrast hotkey
To change the hotkey function, go to the Shortcut > Shortcut 2 menu.
button:
•
Selects a desired preset mode.
•
Selects an available input source.
6.
button:
button (Input Select button) to display HDMI/DisplayPort
signals after you connect HDMI/DisplayPort cable with the monitor.
Press
7.
Power button/power indicator
•
Turns the monitor on/off.
•
The color definition of the power indicator is as the below table.
Status
Description
White
Amber
Off
On
Standby mode
Off
ASUS PA279 Series LCD Monitor
1-3
1.3.2
Back view
1
2
3 4 5 6
7
8
9
10
11 11
12
11
Rear connectors
1.
Kensington lock slot.
2.
Power switch. Press the switch to turn on/off power.
3.
AC-IN port. This port connects the power cord.
4.
Audio-in port. This port connects PC audio source by the bundled audio
cable.
5.
6.
Earphone jack.
DisplayPort in. This port is for connection with your computer.
7.
DVI port. This 24-pin port is for PC (Personal Computer) DVI-D digital signal
connection.
8.
HDMI port. This port is for connection with an HDMI compatible device.
9.
Daisy-chain DisplayPort Output. This port allows you to connect multiple
DisplayPort compatible monitors.
10. USB 3.0 upstream port. This port is for connection with a USB upstream cable.
The connection enables the USB ports on the monitor.
11. USB 3.0 downstream ports. These ports are for connection with USB devices,
such as USB keyboard/mouse, USB flash drive, etc.
This monitor is Super-Speed USB 3.0 compatible. Port with
BC1.2 compliant.
icon is
12. Card reader. See below for more information about the card reader
specifications.
1-4
Chapter 1: Product introduction
Card reader specifications
•
Support Ssecure DigitalTM v1.0 / v1.1 / v2.0/ SDHC / SDXC (Capacity up to
2TB)
•
Support Secure DigitalTM v3.0 UHS-I (Ultra High Speed): SDR12/SDR25/
SDR50/DDR50/SDR104
•
Compliant with MultiMediaCard TM (MMC)
- MMC specification v3.x / v4.0 / v4.1 / v4.2 / v4.3 / v4.4
- x1 / x4
•
Support Memory Stick PRO / Memory Stick PRO Duo / Memory Stick Micro /
Memory
•
Stick PRO-HG / Memory Stick XC (Capacity up to 32GB)
- Compliant with Memory Stick Series Specification: MS v1.43, MS PRO
v1.05, MS Micro v1.04 (MS HG Micro v1.00), MS PRO-HG Duo 1.03, MS XC
Duo v1.00, MS XC-HG Duo v1.00, MS XC Micro v1.00 and MS XC-HG Micro
v1.00
- Support Read/Write quad data access (512Bytex4) for MS PRO-HG to
enhance the transmission rate
1.3.3
QuickFit Function
The QuickFit function contains three kinds of patterns: (1) Grid patterns (2) Paper
size (3) Photo size. To activate the patterns, press the QuickFit button. Press the
button again until a desired pattern is selected. You can move the button up/down/
left/right to change the pattern’s position if needed. Note that all the patterns can
be moved left/right accroding to your need, but may have limited range for moving
up/down.
1. Grid patterns
The grid patterns facilitate designers and users to organize content and layout on a
page and achieve a consistent look and feel.
Centimeters
ASUS PA279 Series LCD Monitor
Inches
1-5
Alignment Grid
2. Paper size
QuickFit provides numerous commonly used standard paper sizes for users to view
their documents in real size on the screen.
A4
Letter
3. Photo size
The various real photo sizes displayed in the QuickFit function provides
photographers and other users to accurately view and edit their photos in real size
on the screen.
Photo 4x6, 3x5, 2x2
1-6
Photo 8x10, 5x7
Chapter 1: Product introduction
2.1
Detaching the arm/base
(for VESA wall mount)
The detachable arm/base of this monitor is specially designed for VESA wall
mount.
To detach the arm/base:
1.
Have the front of the monitor face down on a table.
2.
Use a screwdriver to remove the four screws on the arm (Figure 1), and then
detach the arm/base from the monitor (Figure 2).
(Figure 1)
(Figure 2)
We recommend that you cover the table surface with soft cloth to prevent
damage to the monitor.
ASUS PA279 Series LCD Monitor
1
2.2
Adjusting the monitor
•
or optimal viewing, we recommend that you look at the full face of the
F
monitor, then adjust the monitor to the angle that is most comfortable for you.
•
Hold the stand to prevent the monitor from falling when you change its angle.
•
ou can adjust the monitor’s angle from +20˚ to -5˚, and it allows 60˚ swivel
Y
adjustment from either left or right. You can also adjust the monitor’s height
within +/- 130 mm.
(Tilt)
(Swivel)
+20° ~ -5°
(Height adjustment)
130mm
60°
60°
0°
Pivoting the monitor
1. Lift the monitor to the highest position.
2. Tilt the monitor to its maximum angle.
3. Pivot the monitor clockwise to the angle you need.
+20° ~ -5°
It is normal that the monitor slightly shakes while you adjust the viewing angle.
2-2
Chapter 2: Setup
2.3
1.
Connecting the cables
Connect the cables as the following instructions:
•
To connect the power cord: connect one end of the power cord securely to
the monitor’s AC input port, the other end to a power outlet.
•
To connect the HDMI/DVI/DisplayPort cable:
a. Plug one end of the HDMI/DVI/DisplayPort cable to the monitor’s HDMI/
DVI/DisplayPort jack.
b. Connect the other end of the HDMI/DVI/DisplayPort cable to your
computer's HDMI/DVI/DisplayPort jack.
c.
Tighten the two screws to secure the DVI connector.
•
To use the earphone: connect the end with plug type to the monitor’s
earphone jack when an HDMI or DisplayPort signal is fed.
•
To use the USB 3.0 ports: Take the supplied USB 3.0 cable, and plug
the smaller end (type B) of the USB upstream cable to the monitor’s USB
upstream port, and the larger end (type A) to your computer’s USB 3.0 port.
Make sure your computer is installed with the lastest Windows 7/Windows 8
operating system. That will enable the USB ports on the monitor to work.
When these cables are connected, you can choose the desired signal
from the Input Select item in the OSD menu.
2.4
Turning on the monitor
Press the power button . See page 1-2 for the location of the power button. The
power indicator lights up in white to show that the monitor is ON.
ASUS PA279 Series LCD Monitor
2-3
2-4
Chapter 2: Setup
3.1
OSD (On-Screen Display) menu
3.1.1
How to reconfigure
1.
Press the MENU button to activate the OSD menu.
2.
Move the
button up/down to navigate through the functions. Highlight
the desired function and press the
button to activate it. If the function
selected has a sub-menu, move the
button up/down to navigate through
the sub-menu functions. Highlight the desired sub-menu function and press
the
button to activate it.
3.
Move the
4.
To exit and save the OSD menu, press the MENU button repeatedly until the
OSD menu disappears. To adjust other functions, repeat steps 1-3.
3.1.2
1.
button left/right to change the settings of the selected function.
OSD function introduction
Splendid
This function contains 7 sub-functions you can select for your preference.
Each mode has the Reset selection, allowing you to maintain your setting or
return to the preset mode.
•
Standard Mode: best choice for document editing with SPLENDID™
Video Enhancement.
•
sRGB Mode: compatible with sRGB color space, sRGB mode is the best
choice for document editing.
ASUS PA279 Series LCD Monitor
3-1
Color
Space
sRGB
•
Xr
0.64
Yr
0.33
Primaries
Xg
Yg
0.3
0.6
Xb
Yb
0.15 0.06
Adobe RGB Mode: compatible with Adobe RGB color space.
Color
Space
Adobe
RGB
3-2
White Point
Xw
Yw
0.3127 0.329
White Point
Xw
Yw
Xr
Yr
0.3127 0.329
0.64
0.33
Primaries
Xg
Yg
0.21
0.71
Xb
Yb
0.15
0.06
•
Scenery Mode: best choice for scenery photo display with SPLENDID™
Video Enhancement.
•
Theater Mode: best choice for movies with SPLENDID™ Video
Enhancement.
•
User Mode 1/User Mode 2: More items are adjustable in the Color menu.
Chapter 3: OSD (On-Screen Display) menu
Function
Brightness
Contrast
Saturation
Hue
Color Temperature
Gamma
Uniformity
compensation
Six-axis
Hue
Advanced Six-axis
Saturation
Setting
Gain
Offset
2.
User
Mode
Adobe
Scenery Theater 1/
Standard sRGB
RGB
Mode Mode User
Mode
Mode
Mode
Mode
2
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
Yes
Yes
Yes
No
No
No
Yes
Yes
Yes
No
No
No
No
No
Yes
Yes
No
No
Yes
Yes
Yes
Yes
No
No
No
No
Yes
Yes
No
No
No
No
Yes
No
No
No
No
No
Yes
No
No
No
No
No
Yes
No
No
No
No
No
Yes
No
No
No
No
No
Yes
Color
Set a desired color setting from this menu.
•
Brightness: the adjusting range is from 0 to 100.
•
Contrast: the adjusting range is from 0 to 100.
•
Saturation: the adjusting range is from 0 to 100.
•
Hue: shifts the image color between green and purple.
•
Color Temp.: contains 4 modes including 9300K, 6500K, 5500K and
5000K.
•
Gamma: allows you to set the color mode to 2.2 or 1.8.
•
Advanced Setting:
ASUS PA279 Series LCD Monitor
3-3
•
3.
3-4
*
6-axis Hue adjustment.
*
6-axis Saturation adjustment.
*
Adjusts the gain levels for R, G, B.
* Adjusts the black level offset values for R, G, B.
Color Reset:
*
Current Splendid color mode reset:
Resets the color settings of current color mode to the factory
default value.
*
All Splendid color mode reset:
Resets the color settings of all color modes to the factory default
value.
Set the image related setting from this menu.
•
Sharpness: the adjusting range is from 0 to 100.
•
Aspect Control: adjusts the aspect ratio to full, 4:3, 1:1, or OverScan
(only available for the HDMI input).
Chapter 3: OSD (On-Screen Display) menu
•
Uniformity Compensation: adjusts different areas of the screen to
reduce any screen uniformy errors, providing consistent brightness and
color across the entire screen.
•
ASCR: turns on/off the ASCR (ASUS Smart Contrast Ratio) function.
4.
PIP/PBP Setting
The PIP/PBP Setting allows you to open up another sub-window connected
from another video source besides the main-window from your original video
source. By activating this function, you can have two pictures from two
different video sources displayed by the monitor.
•
PIP/PBP Mode: turns the PIP or PBP function on or off.
•
PIP/PBP Source: Selects the video input source from among DVI, HDMI,
and DisplayPort.
•
Size: Adjusts the PIP size to Small, Middle, or Large. (Only available for
the PIP mode)
•
Position: Adjusts the position of the sub-window to Right-Top, Left-Top,
Right-Bottom, or Left-Bottom. (Only available for the PIP mode)
•
Swap: Switches the sources of the main and sub-windows.
The DVI and HDMI input sources should not be selected as the mainwindow or sub-window at the same time. See the table below for details.
Sub-window
5.
DVI
HDMI
DisplayPort
Main-window
DVI
HDMI
No
No
Yes
Yes
DisplayPort
Yes
Yes
Input Select
In this function, you can select your desired input source.
ASUS PA279 Series LCD Monitor
3-5
6.
System Setup
Allows you to adjust the system.
•
Splendid Demo Mode: splits the screen into two for Splendid modes
comparison. (Scenery mode/theater mode only)
•
Volume: the adjusting range is from 0 to 100.
•
OSD Setup:
•
*
Adjusts the horizontal position (H-Position)/the vertical position
(V-Position) of the OSD from 0 to 100.
*
Adjusts the OSD timeout from 10 to 120 seconds.
*
Enables or disables the DDC/CI function.
*
Adjusts the OSD background from opaque to transparent.
*
Adjusts the OSD rotation.
DisplayPort Stream: supports SST (single-stream transport) and MST
(multi-stream transport) . When using the multi-stream transport, images
may not be displayed properly with some video card combinations.
The default setting is SST. When using the daisy chain function, be sure to
select MST first.
3-6
•
Keylock: To disable all function keys. Press the NEMU button over five
seconds to cancel the key lock function.
•
Information: shows the monitor information.
Chapter 3: OSD (On-Screen Display) menu
•
•
Language: there are 21 languages for your selection, including English,
French, German, Italian, Spanish, Dutch, Portuguese, Russian, Czech,
Croatia, Polish, Romanian, Hungarian, Turkey, Simplified Chinese,
Traditional Chinese, Japanese, Korean, Thai, Indonesia, Persian.
Power Indicator: turns the power LED indicator on/off.
•
QuickFit Color: adjusts the QuickFit color among 7 preset colors.
•
All Reset: “Yes” allows you to restore the default settings.
7.
Shortcut
Defines the functions for Shortcut 1 and 2 buttons.
•
Shortcut 1/Shortcut 2: selects a function for Shortcut 1 and 2 buttons.
When a certain function is selected or activated, your shortcut key may not
support. See the table below for details.
Function selected or activated
ASCR
sRGB
PBP
OSD Rotation
Standard/Scenery/Theater
DVI
QuickFit
ASUS PA279 Series LCD Monitor
The defined shortcut key not
support
Brightness
Contrast/Color Temp./Advanced
Setting
OSD Rotation
PIP/PBP Setting
Advanced Setting
Volume
All, except for QuickFit Color
3-7
3.2
Specifications summary
Panel Type
Panel size
Max. Resolution
Pixel pitch
Brightness (Typ.)
Contrast Ratio (Typ.)
Contrast Ratio (Max.)
Viewing angle (H/V) CR>10
Display colors
Response time
SPLENDID™ Video Enhancement
SPLENDID™ selection
Auto adjustment
Color temperature selection
Digital input
Temperature (Operating)
TFT LCD
27.0" (16:9, 68.47 cm) wide screen
2560 x 1440
0.2331 mm
350 cd/m2
1000:1
100,000,000:1 (with ASCR on)
178˚/178˚
1.07 B
6 ms (Gray to gray)
Yes
7 video preset modes (by hotkey)
No
4 color temperatures
HDMI v1.4, DisplayPort V1.2, DVI-D (Dual link)
with HDCP
Yes
Upstream x 1, Downstream x 6
Black
White (On)/Amber (Standby)
+20˚~ -5˚
+60˚~ -60˚
130 mm
Yes
AC: 100~240V
Power On: < 49 W (Typ.), Standby: < 0.5 W (Typ.),
Power Off: 0 W (Switch off)
5˚C~35˚C
Temperature (Non-operating)
-20˚C~+60˚C
Dimension (W x H x D)
640.78 mm x 559.84 mm x 240 mm (machine)
756 mm x 456 mm x 300 mm (package)
10.0 kg (Net); 14.0 kg (Gross)
21 languages (English, French, German, Italian,
Spanish, Dutch, Portuguese, Russian, Czech,
Croatia, Polish, Romanian, Hungarian, Turkey,
Simplified Chinese, Traditional Chinese, Japanese,
Korean, Thai, Indonesia, Persian)
DVI-D (Dual link) cable, HDMI 1.4 cable,
DisplayPort cable, DisplayPort cable (Mini-DP
to DP) , Power cord, USB 3.0 cable, Quick start
guide, Warranty card, Support CD, Cable tie, Color
Calibration Testing Report, Hood
Energy Star, China Energy Level 2, EPEAT Gold,
UL/cUL, CB, CE, EuP, FCC (Class B), CCC, BSMI,
CU, C-Tick, VCCI, TCO6.0, TUV-GS, TUV-Ergo,
Ukraine, J-MOSS, RoHS, WEEE, PSE, Windows 7
& 8 WHQL, Mac Compliance**
Earphone jack
USB 3.0 port
Colors
Power LED
Tilt
Swivel
Height Adjustment
Kensington lock
AC input voltage
Power consumption
Weight (Esti.)
Multi-languages
Accessories
Regulation approvals
3-8
Chapter 3: OSD (On-Screen Display) menu
*Specifications are subject to change without notice.
**Requires Mac OS X v10.x
3.3
Troubleshooting (FAQ)
Problem
Power LED is not ON
The power LED lights amber and there is
no screen image
Screen image is too light or dark
Screen image is not centered or sized
properly
Possible Solution
• Press the button to check if the monitor
is in the ON mode.
• Check if the power cord is properly
connected to the monitor and the power
outlet.
• Check if the power switch is ON.
• Check if the monitor and the computer are
in the ON mode.
• Make sure the signal cable is properly
connected the monitor and the computer.
• Inspect the signal cable and make sure
none of the pins are bent.
• Connect the computer with another
available monitor to check if the computer
is properly working.
• Adjust the Contrast and Brightness
settings via OSD.
• Adjust the H-Position or V-Position
settings via OSD.
Screen image bounces or a wave pattern is • Make sure the signal cable is properly
present in the image
connected to the monitor and the
computer.
• Move electrical devices that may cause
electrical interference.
Screen image has color defects (white does • Inspect the signal cable and make sure
not look white)
that none of the pins are bent.
• Perform All Reset via OSD.
• Adjust the R/G/B color settings or select
the Color Temperature via OSD.
Screen image is blurry or fuzzy
• Adjust the Phase and Clock settings via
OSD.
No sound or sound is low
ASUS PA279 Series LCD Monitor
• Ensure that the HDMI/DisplayPort cable is
properly connected to the monitor and the
computer.
• Adjust the volume settings of both your
monitor and HDMI/DisplayPort device.
• Ensure that the computer sound card
driver is properly installed and activated.
3-9
3.4
Supported operating modes
Resolution
Frequency
Horizontal
Frequency (KHz)
Vertical Frequency . Pixel .
(Hz)
(MHz)
640x480
640x480
640x480
640x480
720x400
800x600
800x600
800x600
800x600
832X624
1024x768
1024x768
1024x768
1152x864
1280x960
1280x1024
1280x1024
1366x768
1440x900
1600x1200
1680x1050
31.47(N)
35.00(N)
37.87(N)
37.5(N)
31.47(N)
35.16(P)
37.88(P)
48.08(P)
46.86(P)
49.72(P/N)
48.36(N)
56.476(N)
60.02(N)
67.5(P/N)
60.00(P)
63.98(P)
79.98(P)
47.712(P)
55.94(N)
75.00(P)
65.29(N)
59.94(N)
66.66(N)
72.82(N)
75.00(N)
70.08(P)
56.25(P)
60.32(P)
72.12(P)
75.00(P)
74.55(P/N)
60.00(N)
70.069(N)
75.00(N)
75.00(P/N)
60.00(N)
60.02(P)
75.02(P)
59.79(P)
59.89(P)
60.00(P)
60.00(P)
25.18
30.24
31.5
31.5
28.32
36
1920x1080
1920x1200
(Reduced Blanking)
1920x1200
67.5(P)
60.00(P)
148.5
74.038(P)
59.95(N)
154
74.556(N)
59.885(P)
193.25
2560x1080
66.636(P)
59.978(N)
181.25
2560x1440
88.787(P)
59.951(N)
241.50
40
50
49.5
57.28
65
75
78.75
108
108
108
135
85.5
106.5
162
146.25
When the monitor is operating in the video mode (ie, not displaying data) using the HDMI
connector, the following high definition modes shall be supported in addition to standard definition
video
Timing Name
480p
720p60
576p
720p50
1080p60
1080p50
Pixel Format
720x480
1280x720
720x576
1280x720
1920x1080
1920x1080
Horizontal
Frequency (KHz)
31.469
45
31.25
37.5
67.5
56.25
Vertical Frequency .
(Hz)
60
60
50
50
60
50
* Modes not listed in the table may not be supported. For optimal resolution, we recommend that
you choose a mode listed in the table above.
3-10
Chapter 3: OSD (On-Screen Display) menu
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
