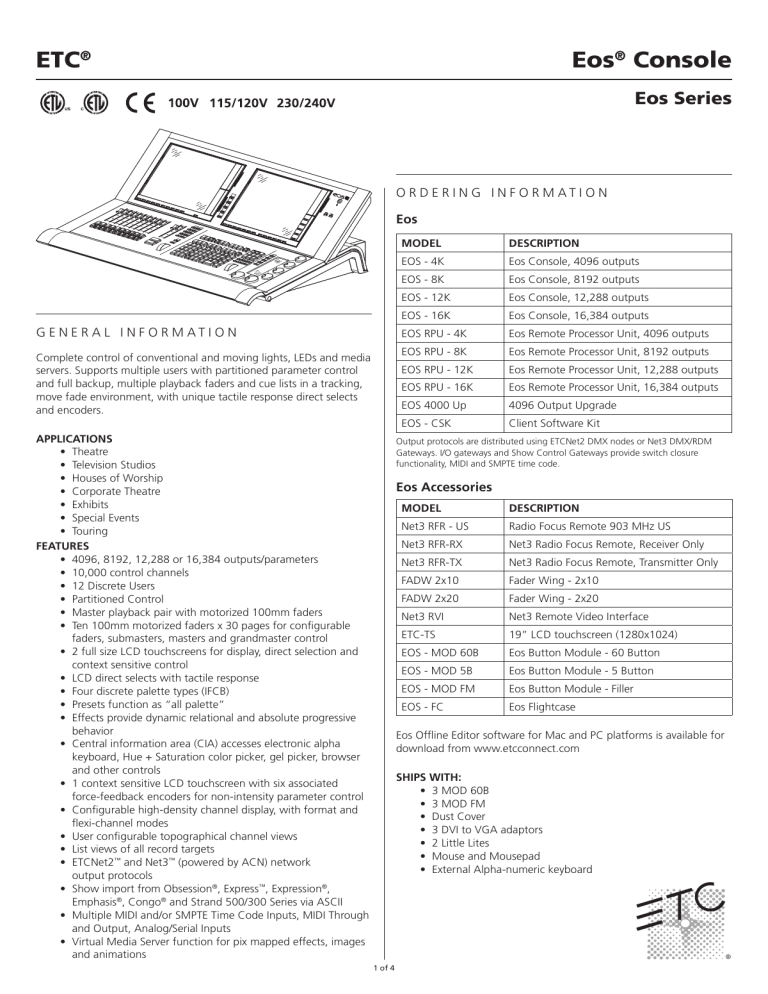

Eos® Console
Eos Series
O R D E R I N G I N F O R M AT I O N
Eos
G E N E R A L I N F O R M AT I O N
Complete control of conventional and moving lights, LEDs and media
servers. Supports multiple users with partitioned parameter control
and full backup, multiple playback faders and cue lists in a tracking,
move fade environment, with unique tactile response direct selects
and encoders.
APPLICATIONS
• Theatre
• Television Studios
• Houses of Worship
• Corporate Theatre
• Exhibits
• Special Events
• Touring
FEATURES
• 4096, 8192, 12,288 or 16,384 outputs/parameters
• 10,000 control channels
• 12 Discrete Users
• Partitioned Control
• Master playback pair with motorized 100mm faders
• Ten 100mm motorized faders x 30 pages for configurable
faders, submasters, masters and grandmaster control
• 2 full size LCD touchscreens for display, direct selection and
context sensitive control
• LCD direct selects with tactile response
• Four discrete palette types (IFCB)
• Presets function as “all palette”
• Effects provide dynamic relational and absolute progressive
behavior
• Central information area (CIA) accesses electronic alpha
keyboard, Hue + Saturation color picker, gel picker, browser
and other controls
• 1 context sensitive LCD touchscreen with six associated
force-feedback encoders for non-intensity parameter control
• Configurable high-density channel display, with format and
flexi-channel modes
• User configurable topographical channel views
• List views of all record targets
• ETCNet2™ and Net3™ (powered by ACN) network
output protocols
• Show import from Obsession®, Express™, Expression®,
Emphasis®, Congo® and Strand 500/300 Series via ASCII
• Multiple MIDI and/or SMPTE Time Code Inputs, MIDI Through
and Output, Analog/Serial Inputs
• Virtual Media Server function for pix mapped effects, images
and animations
MODEL
DESCRIPTION
EOS - 4K
Eos Console, 4096 outputs
EOS - 8K
Eos Console, 8192 outputs
EOS - 12K
Eos Console, 12,288 outputs
EOS - 16K
Eos Console, 16,384 outputs
EOS RPU - 4K
Eos Remote Processor Unit, 4096 outputs
EOS RPU - 8K
Eos Remote Processor Unit, 8192 outputs
EOS RPU - 12K
Eos Remote Processor Unit, 12,288 outputs
EOS RPU - 16K
Eos Remote Processor Unit, 16,384 outputs
EOS 4000 Up
4096 Output Upgrade
EOS - CSK
Client Software Kit
utput protocols are distributed using ETCNet2 DMX nodes or Net3 DMX/RDM
O
Gateways. I/O gateways and Show Control Gateways provide switch closure
functionality, MIDI and SMPTE time code.
Eos Accessories
MODEL
DESCRIPTION
Net3 RFR - US
Radio Focus Remote 903 MHz US
Net3 RFR-RX
Net3 Radio Focus Remote, Receiver Only
Net3 RFR-TX
Net3 Radio Focus Remote, Transmitter Only
FADW 2x10
Fader Wing - 2x10
FADW 2x20
Fader Wing - 2x20
Net3 RVI
Net3 Remote Video Interface
ETC-TS
19” LCD touchscreen (1280x1024)
EOS - MOD 60B
Eos Button Module - 60 Button
EOS - MOD 5B
Eos Button Module - 5 Button
EOS - MOD FM
Eos Button Module - Filler
EOS - FC
Eos Flightcase
Eos Offline Editor software for Mac and PC platforms is available for
download from www.etcconnect.com
SHIPS WITH:
• 3 MOD 60B
• 3 MOD FM
• Dust Cover
• 3 DVI to VGA adaptors
• 2 Little Lites
• Mouse and Mousepad
• External Alpha-numeric keyboard
1 of 4
ETC®
Eos® Console
Eos Series
S P E C I F I C AT I O N S
S P E C I F I C AT I O N S
SYSTEM CAPACITY
• 4096, 8192, 12,288 or 16,384 Outputs/Parameters
• 10,000 Control Channels (devices)
• 10,000 Cues
• 999 Cue Lists
• 200 Active Playbacks
• 300 Submasters
• 30 Fader Pages
• 4 x 1000 Palettes (Intensity, Focus, Color, Beam)
• 1000 Presets (all palette)
• 1000 Groups
• 1000 Effects (relative, absolute or step)
• 1000 Macros
• 1000 Snapshots
• 1000 Curves
• Supports three external DVI/SVGA monitors at 1280x1024
resolution, minimal resolution with optional
touchscreen control
• Hard Disk
• USB ports for flash drives, pointing devices, keyboards
DISPLAY FUNCTIONS
• All show data may be viewed on a single external monitor or
may be posted to the integral touchscreens. External views
may be posted separately or expanded across a maximum of
three monitors
• The Central Information Area accesses:
-- Browser
-- File Management
-- System Defaults
-- Show Defaults
-- Desk Defaults
-- Partition Definitions
-- Network Configuration
-- Show Data Utilities
-- Printing
-- Record Target Lists
-- Patch functions
-- Help
-- Hue and Saturation Color Picker
-- Electronic alpha keyboard
-- Command Line
-- Selected Cue
-- Error messages
-- Context Sensitive Control
-- Parameter Categories and individual parameters
-- Filters
• Channel Displays
-- Live channel or table view
-- Blind cue, palette, preset and group views, in list, channel,
table and spreadsheet formats
-- User configurable to show required parameters and/or
parameter categories (IFCB)
-- Flexi-channel to determine which channels to display
-- Zoom allows user to define how many channels are viewed
-- Color coded intensity levels indicate direction of move
-- C
olor coded non-intensity levels indicate change from
previous state
-- Graphic differentiation of moving lights, single parameter
devices and unpatched channels
• Channel Layouts
-- 1000 Channel Layouts
-- User-defined topographical view of channels
-- User-definable view of parameters and/or parameter
categories
• Patch Views
-- Patch by channel
-- Patch by address
-- Assign proportional patch value, curve, preheat value
for intensity
-- Swap pan and tilt
-- Invert pan and tilt
-- Custom fixture editor
• Playback Status Display
-- Accesses status of 30 fader pages
-- Expanded cue list for selected cue
• Cue List Index
• Effect Editor
• Group Editor
• Park Display
• Fader Display
-- Isolates display to active output by fader contribution
• Dimmer Monitoring
PLAYBACK CONTROLS
• Master Playback crossfade pair with 2 100mm motorized
potentiometers, Go, Stop/Back and Load
• 30 pages of 10 100mm motorized faders, each
configurable as:
-- Single playback, with Go and Stop/Back
-- Crossfade playback, with Go and Stop/Back
-- Rate controller
-- Additive or Inhibitive Submaster, with Bump and Assert/
Channel Select
• Grand Master with Blackout
• Playback fader controls include:
-- Load to assign cue lists
-- Timing Disable
-- Off/On
-- Release
-- Filters
-- Freeze
-- Assert
-- Manual Override
-- Rate
-- Go To Cue 0
-- Multipart Spread
2 of 4
ETC®
Eos® Console
Eos Series
S P E C I F I C AT I O N S
S P E C I F I C AT I O N S
-----------
Assert at cue or parameter level
Allfade flag
Follow or hang times
Out of sequence link
Loop functions
Cue level parameter category timing
20 part multi-part cues with default part assignment
Cue level rate override
Mark flags for Auto or Referenced Marks
Up to 99 decimal cues between each two whole
numbered cues
-- Execute List
·· Triggers snapshot with delay
·· Triggers macros with delay
·· Triggers go of other cues
·· Syncs go to multiple cue lists
·· Show control triggers
·· Analog triggers
-- Update and Update Trace functions
-- Undo record and delete
• Submaster Recording and Playback
-- 300 additive or inhibitive submasters
-- Bump button timing for fade up/dwell/fade out
-- Assert/Channel select button
-- Exclusive or Shielded Mode
-- Fader as progress controller or intensity master
-- Bump button to mark NPs
-- Independent status
-- Motorized faders match level across all devices and
when paging
-- Submaster mapping on the fly
• Curves
-- Assignable in patch to modify dimmer output ramp
-- Assignable at cue or cue part level to modify intensity
crossfade profle or non-intensity parameter ramping
INTERFACES
• Ethernet (four ports) 802.3af compliant PoE
• ETCNet2™, Net3™ (powered by ACN), and Artnet and Avab
UDP output protocols
• Three video connectors support DVI/SVGA external displays
(1280x1024) with optional touch screen control
• USB multipurpose (four ports)
• Radio Focus Remote (RFR)
• MIDI Timecode, MIDI Show Control through Gateway
• SMPTE Timecode through Gateway
• Contact closure (12 analog inputs, 12 SPDT contact outputs,
RS-232) through Gateway
ELECTRICAL
• AC Input (100 - 240V at 50/60 Hz)
• Power consumption (less external monitors) approximately 3
amps at 120V and 1.5 amps at 230/240V
MANUAL CONTROL
• Channel selection from keypad and/or multi-touch
direct selects
• Lists constructed with +, -, thru
• Intensity set with level wheel, keypad, “level” button, full
and out
• Select Last recalls last sequential channel selection set
• Select Manual selects all channels with manual values
• Select Active selects all channels with intensity above zero
• Ordered groups
• Offset; including even, odd, random, and reverse
• Fan
• Sneak
• User definable home
• Home by parameter, parameter category or all non-intensity
parameters
• Capture
• Park at level
• Scaled park for temporary percentage adjustment
• Recall from and Copy to commands
• About provides detailed view of selected channels or
record targets
• Undo
• Highlight and Lowlight, with optional Rem Dim
• Lamp controls to strike and douse arc sources,
calibrate devices
PROGRAMMING FEATURES
• Channel Functions
-- Non Intensity parameters set via numeric entry or
pageable encoders
-- Encoders support software controlled tactile response
-- Local display of color and gobo images
-- Color matching to gel selector or Hue/Saturation
color picker
-- Apply discrete time and delay per channel parameter
• Palette and Preset Functions
-- Record and Update
-- Toggle display to absolute data
-- Up to 99 decimal values may be inserted between any two
whole numbers
• Effects
-- Create live or blind
-- Pattern based relative dynamic effects
-- Absolute effects
-- Step effects
-- Multi-part effects easily synchronize parameter activity
-- Entry mode determines how parameters enter effects
-- Exit mode determines how parameters depart effects
• Cue Recording
-- Cue List HTP/LTP Intensity
-- Cue List Independent
-- Cue List Assert
-- Fader as progress controller or intensity master
-- Record manual values or channels in use
-- Autoplay back recorded cues
-- Referenced or auto-mark instructions
-- Block at cue or parameter level
3 of 4
ETC®
Eos® Console
Eos Series
PHYSICAL
Eos Weights*
Eos Dimensions*
MODEL
Eos
Eos in Shipping
Container
Eos in Road
Case
HEIGHT
WIDTH
MODEL
DEPTH
inches
mm
inches
mm
inches
mm
11.97
304
39.52
1004
23.79
604
17
17
432
432
44
45
1118
1143
30
34
762
WEIGHT
lbs
kgs
Eos Console
90
40.8
Eos in Shipping Container
113
51.3
Eos in Road Case
170
77.1
*Weights and dimensions typical
864
39.52”
1004 mm
11.97”
304 mm
23.79”
604 mm
Corporate Headquarters • 3031 Pleasant View Rd, PO Box 620979, Middleton WI 53562 0979 USA • Tel +1 608 831 4116 • Fax +1 608 836 1736
London, UK • Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK • Tel +44 (0)20 8896 1000 • Fax +44 (0)20 8896 2000
Rome, IT • Via Pieve Torina, 48, 00156 Rome, Italy • Tel +39 (06) 32 111 683 • Fax +44 (0) 20 8752 8486
Holzkirchen, DE • Ohmstrasse 3, 83607 Holzkirchen, Germany • Tel +49 (80 24) 47 00-0 • Fax +49 (80 24) 47 00-3 00
Hong Kong • Room 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong • Tel +852 2799 1220 • Fax +852 2799 9325
Web • www.etcconnect.com • Copyright©2011 ETC. All Rights Reserved. All product information and specifications subject to change. 4250L1001 Rev. I USA 09/11
Eos products protected by US and International patents pending
4 of 4
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
