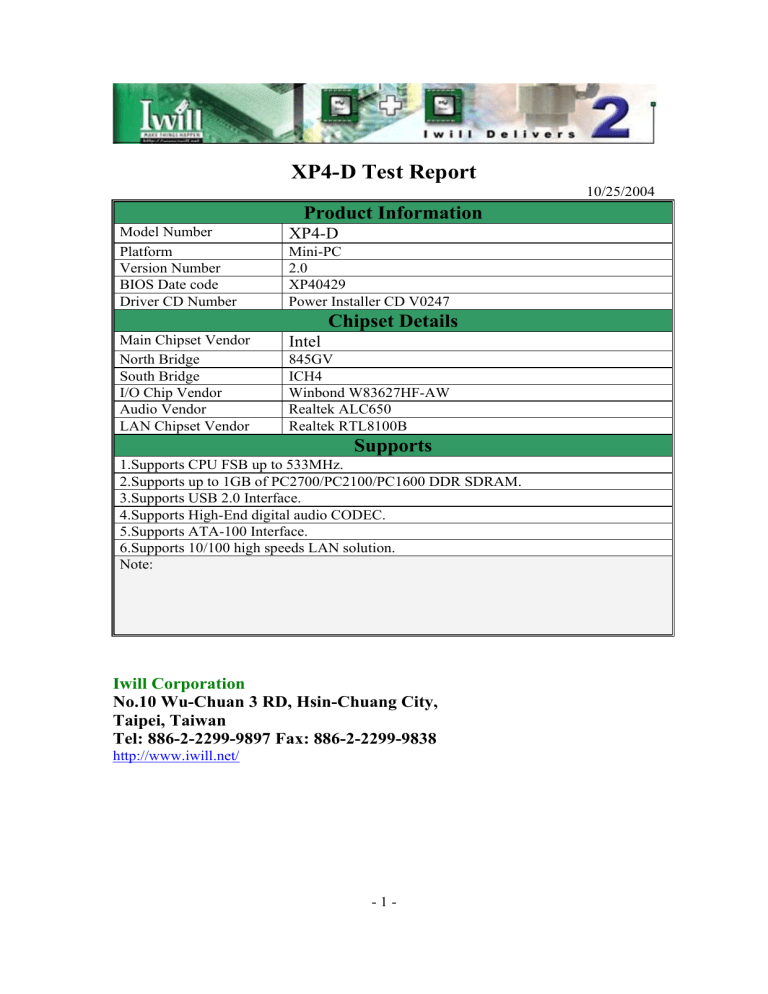

XP4-D Test Report
XP4-D Test Report
10/25/2004
Product Information
Model Number
Platform
Version Number
BIOS Date code
Driver CD Number
XP4-D
Mini-PC
2.0
XP40429
Power Installer CD V0247
Chipset Details
Main Chipset Vendor
North Bridge
South Bridge
I/O Chip Vendor
Audio Vendor
LAN Chipset Vendor
Intel
845GV
ICH4
Winbond W83627HF-AW
Realtek ALC650
Realtek RTL8100B
Supports
1.Supports CPU FSB up to 533MHz.
2.Supports up to 1GB of PC2700/PC2100/PC1600 DDR SDRAM.
3.Supports USB 2.0 Interface.
4.Supports High-End digital audio CODEC.
5.Supports ATA-100 Interface.
6.Supports 10/100 high speeds LAN solution.
Note:
Iwill Corporation
No.10 Wu-Chuan 3 RD, Hsin-Chuang City,
Taipei, Taiwan
Tel: 886-2-2299-9897 Fax: 886-2-2299-9838
http://www.iwill.net/
-1-
CONTENTS
1. Hardware Designs Check ........................................................................4
1.1 Mechanical Review ........................................................................................ 4
1.2 Power Voltage Measurement ....................................................................... 5
2. Chamber Test...........................................................................................6
3. BIOS Function Test .................................................................................7
3.1 PC Health Statues............................................................................................ 7
3.2 Systems Boot Up ............................................................................................. 7
3.3 Power Management Supports ...................................................................... 7
3.4 The Onboard Function Test .......................................................................... 8
4. Performance For Benchmark Test .........................................................9
5. Software Compatibility Test .................................................................11
5.1 Windows XP Home Edition ....................................................................... 11
5.2 Windows XP Professional .......................................................................... 14
5.3 Windows 2000 Profession SP3.................................................................. 16
5.4 Windows Me .................................................................................................. 18
5.5 Windows 98 SE ............................................................................................. 19
5.6 MS-DOS Mode .............................................................................................. 20
5.7 Linux Red Hat 8.0 ......................................................................................... 21
6. Power Installer CD Software Compatibility Test................................22
7. Heavy Load Test ....................................................................................23
8. Hardware Compatibility List................................................................24
8.1 Camera Device............................................................................................... 24
8.2 CD-ROM ......................................................................................................... 24
8.3 CPU .................................................................................................................. 24
8.4 DVD-ROM ..................................................................................................... 25
8.5 HDD ................................................................................................................. 25
8.6 Joystick ............................................................................................................ 26
8.7 Keyboard ......................................................................................................... 26
8.8 LAN Card ........................................................................................................ 26
8.9 LAN HUB ....................................................................................................... 27
8.10 DDR Memory .............................................................................................. 27
8.11 Modem ........................................................................................................... 28
8.12 Monitor .......................................................................................................... 28
8.13 Mouse ............................................................................................................ 29
8.14 Power Supply ............................................................................................... 29
8.15 Printer ............................................................................................................ 29
8.16 Scanner .......................................................................................................... 30
-2-
8.17 SCSI Card ..................................................................................................... 30
8.18 Sound Card ................................................................................................... 30
8.19 USB Device .................................................................................................. 30
8.20 ZIP/LS120 .................................................................................................... 31
9.0 CPU Transient test...............................................................................32
9.1 CPU Transient measured: ................................................................................... 32
9.2 CPU Transient Loadline ..................................................................................... 33
-3-
1. Hardware Designs Check
1.1 Mechanical Review
Product Dimensions
L 270 mm W 190
Onboard Layout
Screw holes combine with the case.
PS/2 connectors combine with the case.
USB connectors combine with the case.
VGA connector combine with the case.
COM connectors combine with the case.
Printer connector combine with the case.
Audio connector combine with the case.
CPU FAN retention holes in the PCB.
PCI slots combine with the case.
Front Panel Connectors combine with the case.
Power connector placement.
; Ok
; Ok
; Ok
; Ok
; Ok
; Ok
; Ok
; Ok
; Ok
; Ok
; Ok
-4-
mm H 160
Placement
† Fail
† Fail
† Fail
† Fail
† Fail
† Fail
† Fail
† Fail
† Fail
† Fail
† Fail
mm
† None
† None
† None
† None
† None
† None
† None
† None
† None
† None
† None
; Ok
; Ok
; Ok
; Ok
HDD connector placement.
CD-in connector placement.
CPU FAN connector placement.
System FAN connector placement.
Note:
† Fail
† Fail
† Fail
† Fail
† None
† None
† None
† None
1.2 Power Voltage Measurement
Voltage List
Battery Voltage
Battery Current
+5V
+12V
-5V
-12V
+3.3V
+5VSB
Clock Frequency
CPU Host Clock
DRAM Clock
PCI Clock
Reference Clock
Note:
Voltage SPEC
3.0V
5uA
5.0V+-5%
12.0V+-5%
-5.0V+-5%
-12.0V+-10%
+3.3V+-5%
5.0V+-5%
Spec Value (MHz)
100
133
100
133
33
14.318
-5-
Measured Value
3.20v
5.02uA
5.04
11.88
-5.02
-12.15
3.34
5.09
Measured Value (MHz)
100.3
133.7
100.2
132.3
33.22
14.37
Pass/Fail
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass/Fail
Pass
Pass
Pass
Pass
Pass
Pass
2. Chamber Test
Test Environment
CPU
DRAM
AGP
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
INTEL Pentium-4 2.8G
IDE1 Primary
Infineon 256MB DDR266 IDE1 Secondary
ON-Board 845GV
IDE2 Primary
3COM 3C905C-TX
IDE2 Secondary
None
Floppy
None
USB Device
None
Windows Version
None
BCM Version
Burn-in Test
Corner 1 : Burn-in For High Temperature Testing (40℃/ 3.3V/48 Hours)
Corner 2 : Burn-in For Low Temperature Testing (5℃/ 3.3V/48 Hours)
-6-
Western Digital WD200
None
SONY 48X
None
None
Windows XP Professional
2.01
Pass/Fail
Pass
Pass
3. BIOS Function Test
Test Environment:
BIOS: XP40429
Driver CD: Power Installer 0247
CPU: INTEL PENTIUM-4 2.53G
DRAM: INFINEON 256MB DDR266
AGP: Onboard
Hard Disk: WESTERN DIGITAL WD200 ATA-100
3.1 PC Health Statues
Current CPU Temperature
Current System Temperature
Current CPU Fan Speed
Current System Fan Speed
Vcore
+2.5V
+3.3V
+5.0V
+12V
Write Actual Values
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
3.2 Systems Boot Up
For The BIOS update utility testing. (Write flash)
BIOS checksum review.
Clear CMOS with Jumper.
BIOS function supports review.
Memory Size Counter Check.
The BIOS core show out message check.
Check the systems show up message during the POST.
Iwill logo check.
The power SW function test.
Power LED function check.
Reset SW function test.
HDD LED function check.
Speaker function check.
Boot sequence test. (For HDD/CD-ROM/DVD/SCSI/USB...)
RTC data check in the CMOS.
The USB legacy supports test. (With the USB K/B under DOS mode)
The Windows booting, restart and shut down test. (For continues loop)
Pass/Fail
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
3.3 Power Management Supports
Pass/Fail
Power Failure Function
--Pass
Pass
Pass
Former-Sts.
On.
Off.
-7-
ACPI Function Test
CPU FAN shut down after the systems enter S3 mode.
Alarm function check after CMOS RTC timeout.
RTC time out then wake up after the Windows enters S3 mode.
Power LED off after enter S4 mode.
With the USB K/B or Mouse wake up the Windows under standby mode.
3.4 The Onboard Function Test
Check the DMI information.
IDE for CD-ROM/DVD test.
USB ports for the Keyboard and the Mouse PnP test.
COM port for serial mouse test.
LPT port for printer test.
PCI slots for add on cards PnP test.
The onboard audio quality testing. (R/L channel check)
Onboard audio disables test.
Onboard LAN disables test.
Link the network after S3 resume.
Link the network after S4 resume.
Playing CD/DVD/MP3/WAV/MIDI after S3 resume.
Playing CD/DVD/MP3/WAV/MIDI after S4 resume. (Hibernate mode)
With the USB K/B and the Mouse after S3 resume.
With the USB K/B and the Mouse after S4 resume.
Note:
-8-
--Pass
Pass
Pass
Pass
Pass
Pass/Fail
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
4. Performance For Benchmark Test
Test Environment:
BIOS: XP40129
Driver CD: Power Installer 0247
DRAM: INFINEON DDR266 256MB
VGA: Onboard
Hard Disk: WESTERN DIGITAL WD200 ATA-100
Operating System: WINDOWS XP PROFESSIONAL WITH SP1
Platform
Celeron 2.2G
Pentium 4 2.8G
SiSoft 2003
CPU Benchmark (Dhrystone ALU) MIPS
CPU Benchmark (Whetstone FPU) MFLOPS
CPU Multi-Media Benchmark (Integer) it/s
CPU Multi-Media Benchmark (Floating) it/s
RAM Int Buffered Bandwidth (MB/s)
RAM Float Buffered Bandwidth (MB/s)
Disk Bench (MB/s)
Note:
CPU Score
Memory Score
HDD Score
Note:
Business Winstone 2001
Content Creation Winstone2002
Note:
Overall
Note:
Run3dsmax01
DRV-08
DX-07
Light-05
Runproe
Note:
5645
1263/2900
8765
11174
1805
1804
14412
7390
1616/3644
11121
14164
1663
1670
23487
PC Mark 2002
4997
3625
769
6723
4687
645
Winstone 2002
33.6
23.6
59.4
33.3
3D Mark 2001 SE
1092
1317
SPEC ViewPerf 6.1.2
3.464
10.51
13.77
6.257
3.140
4.511
12.63
14.88
8.817
3.326
-9-
Calculated Time
Note:
Super_PI (1M)
2mins17sec
- 10 -
1min10sec
5. Software Compatibility Test
Test Environment:
BIOS: XP40429
Driver CD: Power Installer 0247
CPU: Intel Pentium 4 2.53 GHz
DRAM: INFINEON 256MB DDR266
VGA: Onboard
Hard Disk: WESTERN DIGITAL WD200 ATA-100
5.1 Windows XP Home Edition
Setup installation the Windows XP. (APIC function enable)
The Windows XP patch files installation.
Setup installation the Iwill power installer CD.
Restart the Windows.
Shut down the Windows.
Enter standby Mode.
With the PS/2 K/B or Mouse wake up the Windows.
Scandisk test.
Setup installation the Microsoft Office 2000.
Hardware device manager check. (No error mark in the device manager)
System event viewer check.
Windows task manager check. (CPU usage history)
Systems Reboot test.
Onboard Function Test
PS/2 keyboard test.
PS/2 Mouse test
IDE for HDD test.
IDE for CD-ROM test.
IDE for DVD-ROM test.
Serial Port test.
Printer Port test.
LAN port for 10/100 data transfer test.
PCI Cards Compatibility Test
PCI Slots for Sound card test.
PCI Slots for LAN card test.
PCI Slots for SCSI card test.
USB Devices Compatibility Test
USB ports for Keyboard PnP/restart/S3 resume test.
USB ports for Mouse PnP/restart/S3 test.
USB ports for Printer PnP/restart/S3 test.
USB ports for Scanner PnP/restart/S3 test.
USB ports for joystick PnP/restart/S3 test.
USB ports for HDD PnP/restart/S3 test.
- 11 -
Pass/Fail
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
USB ports for Camera PnP/restart/S3 test.
VGA Quality Review
Check the shadows on the screen.
Check the ripples on the screen.
Playback for VCD test.
Playback for DVD test.
Playback for MPEG test.
3D Mark2001 SE for continues loop test. (More than 1 hour)
Business Winstone 2001 test.
Content Creation Winstone 2002 test.
Onboard VGA Resolution Test
Resolution
Colors
Optimal
75
85
800x600
16 bit
√
√
√
800x600
32 bit
√
√
√
1024x768
16 bit
√
√
√
1024x768
32 bit
√
√
√
1152x864
16 bit
√
√
√
1152x864
32 bit
√
√
√
1280x1024
16 bit
√
√
√
1280x1024
32 bit
√
√
√
Onboard Audio Test
Playback audio CD for noise test.
Check R/L channel for earphone.
Record test.
CD-in connector check.
Line-in connector check.
MIC-in connector check.
Power Manager For the Windows
Suspend to RAM (S3 mode) test.
WOL test after enter S3 mode.
RTC wake up test for a scheduled task enable.
Hardware device manager check after S3 mode resume.
Suspend to hard disk (Hibernate) test.
Hardware device manager check after hibernate (S4 mode) resume.
Utilities Test
PC Mark2002 test.
Winbench 99 v2.0.
Content Creation Winstone2002 test.
Business Winstone2001 test.
3D Mark2001 SE test.
3D Winbench 2000.
- 12 -
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
100
√
√
√
√
√
√
√
√
Pass/Fail
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
SiSoft Sandra 2003 test.
Quake III Demo test.
Super PI (1M) test.
BCM Diagnostic test. (Include the DMI information review)
CPU stability test.
Power Strip test.
WCPUID test.
Games Test
AOE II.
MOTO GP.
Note:
- 13 -
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Test Environment:
BIOS: XP40129
Driver CD: Power Installer 0247
CPU: Intel Pentium 4 2.26 GHz
DRAM: VM VM VT56DD32M8PC-7, DDR266, 512MB
Display: On board chipset (Intel 82845G Graphics Controller)
Hard Disk: IBM DJNA-352500, Ultra DMA66, 25GB
5.2 Windows XP Professional
Setup installation the Windows XP.
Setup installation the Iwill power installer CD.
Restart the Windows.
Shut down the Windows.
Enter Stand By mode.
With the PS/2 K/B or Mouse wake up the Windows.
Scandisk test.
Setup installation the Microsoft Office 2000.
Hardware device manager check.
System event viewer check.
Windows task manager check. (CPU usage history)
Power Management For the Windows
Suspend to RAM (S3 mode) test.
WOL test after enter S3 mode.
RTC wake up test for a scheduled task enable.
Hardware device manager check after S3 mode resume.
Suspend to hard disk (Hibernate) test.
Hardware device manager check after hibernate (S4 mode) resume.
Memory Compatibility Test
Bmem memory test for continues loop 200 times.
Content Creation Winstone2002 test for continues loop 5 times.
Suspend to RAM (S3 Mode) test.
Utilities Test
Reboot test.
Winbench 99 v2.0.
PC Mark2002 test.
Content Creation Winstone2002 test.
Business Winstone2001 test.
3D Mark2001 SE test.
SiSoft Sandra 2002 test.
Super PI (1M) test.
BCM Diagnostic test.
CPU stability test.
Power Strip test.
- 14 -
Pass/Fail
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
WCPUID test.
Note:
Pass
- 15 -
Test Environment:
BIOS: XP41029
Driver CD: 0247
CPU: Intel Pentium 4 2.4 GHz
DRAM: ATP SAMSUNG PC2100 1GB
AGP: Onboard
Hard Disk: MAXTOR 2R015H1
5.3 Windows 2000 Profession SP3
Setup installation the Windows 2000. (APIC function enable)
Setup installation the Iwill power installer CD.
Restart the Windows.
Shut down the Windows.
Enter standby Mode.
With the PS/2 K/B or Mouse wake up the Windows.
Hardware device manager check.
System event viewer check.
Windows task manager check. (CPU usage history)
Scandisk test.
Setup installation the Microsoft Office 2000.
Onboard Function Test
PS/2 keyboard test.
PS/2 Mouse test.
FDD function test. (Format/Read/Wrote)
IDE for HDD test.
IDE for CD-ROM test.
IDE for DVD-ROM test.
Serial Port test.
Printer Port test.
LAN port for 10/100 data transfer test.
LAN port for ADSL test.
PCI Slots for Sound card test.
PCI Slots for LAN card test.
PCI Slots for SCSI card test.
USB Ports Function test.
Onboard AC97 Audio CODEC test.
Power Manager For the Windows
Suspend to RAM (S3 mode) test.
RTC wake up test for a scheduled task enable.
Hardware device manager check after S3 mode resume.
Suspend to hard disk (Hibernate) test.
Utilities Test
Reboot test.
- 16 -
Pass/Fail
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Winbench 99 v2.0
BCM 2.01 Stress test.
Note:
Pass
Pass
- 17 -
Test Environment:
BIOS: XP40129
Driver CD: 0247
CPU: Intel Pentium 4 1.7 GHz
DRAM: APACER NANYA DDR 266 128 MB
AGP: Onboard
Hard Disk: SEAGATE ST340016A
5.4 Windows Me
Setup installation the Windows Me.
Setup installation the Iwill power installer CD.
Restart the Windows.
Shut down the Windows.
Enter standby Mode.
With the PS/2 K/B or Mouse wake up the Windows.
Hardware device manager check.
Scandisk test.
Setup installation the Microsoft Office 2000.
Onboard Function Test
PS/2 keyboard test.
PS/2 Mouse test.
FDD function test. (Format/Read/Wrote)
IDE for HDD test.
IDE for CD-ROM test.
IDE for DVD-ROM test.
Serial Port test.
Printer Port test.
LAN port for 10/100 data transfer test.
LAN port for ADSL test.
PCI Slots for Sound card test.
PCI Slots for LAN card test.
PCI Slots for SCSI card test.
USB ports Function test.
Onboard AC97 Audio CODEC test.
Utilities Test
BCM 2.01 Stress test.
Note:
- 18 -
Pass/Fail
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Test Environment:
BIOS: XP40129
Driver CD: 0247
CPU: INTEL PENTIUM-4 1.7 GHz
DRAM: APACER NANYA DDR266 128MB
AGP: ON BOARD
Hard Disk: SEAGATE ST340016A
5.5 Windows 98 SE
Setup installation the Windows 98SE.
Setup installation the Iwill power installer CD.
Restart the Windows.
Shut down the Windows.
Enter standby Mode.
Hardware device manager check.
Scandisk test.
Setup installation the Microsoft Office 2000.
Onboard Function Test
PS/2 keyboard test.
PS/2 Mouse test.
FDD function test. (Format/Read/Wrote)
IDE for HDD test.
IDE for CD-ROM test.
IDE for DVD-ROM test.
Serial Port test.
Printer Port test.
LAN port for 10/100 data transfer test.
LAN port for ADSL test.
PCI Slots for Sound card test.
PCI Slots for LAN card test.
PCI Slots for SCSI card test.
USB ports PnP test.
Onboard AC97 Audio CODEC test.
Note:
- 19 -
Pass/Fail
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Test Environment:
BIOS: XP40129
CPU: Intel Pentium4 2.53 GHz
DRAM: INFINEON DDR266 256MB
AGP: Onboard
Hard Disk: WESTERN DIGITAL WD200 ATA-100
Operating System: DOS
5.6 MS-DOS Mode
Pass/Fail
MS-DOS Command
--Pass
Pass
Pass
--Pass
--Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
FDISK
Format
Copy
Utilities Test
BCM for memory test. (BMEM)
Checkit 4.0
System Board Test
Memory Test
Hard Disk Test
Floppy Test
Serial Port Test (Loop back)
Parallel Port Test (Loop back)
Modem Test
Video Card Test
Printer Test
Keyboard Test
Note:
- 20 -
Test Environment:
BIOS: XP40129
Driver CD: 0247
CPU: Intel Pentium4 1.7GHz
DRAM: ATP Samsung PC2100 1GB
AGP: Onboard
Hard Disk: Seagate ST340016A
5.7 Linux Red Hat 8.0
Setup installation the Linux Red Hat 8.0.
Setup installation the Iwill power installer CD.
Restart the systems.
Shut down the systems.
Onboard Function Test
PS/2 keyboard test.
PS/2 Mouse test
FDD function test. (Format/Read/Wrote)
IDE for HDD test.
IDE for CD-ROM test.
IDE for DVD-ROM test.
Serial Port test.
Printer Port test.
LAN port for 10/100 data transfer test.
LAN port for ADSL test.
PCI Slots for Sound card test.
PCI Slots for LAN card test.
PCI Slots for SCSI card test.
USB ports test.
Note:
- 21 -
Pass/Fail
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
6. Power Installer CD Software Compatibility Test
Test Environment:
BIOS: XP40129
Driver CD: Power Installer 0247
CPU: Intel Pentium 4 2.53 GHz
DRAM: INFINEON 256MB DDR266
AGP: Onboard
Hard Disk: MAXTOR D740X-6L
Operating Systems List
Setup installation the Power Installer CD for the Windows98 FE.
Setup installation the Power Installer CD for the Windows98 SE.
Setup installation the Power Installer CD for the Windows Me.
Setup installation the Power Installer CD for the Windows 2000.
Setup installation the Power Installer CD for the Windows XP Home Edition.
Setup installation the Power Installer CD for the Windows XP Professional.
Note:
- 22 -
Pass/Fail
Pass
Pass
Pass
Pass
Pass
Pass
7. Heavy Load Test
Test Environment:
BIOS: XP40129
Driver CD: 0247
OS: Windows2000 SP2
CPU0: Pentium 4 2.6 GHz
DIMM0: TwinMOS Hynix HY5DU28822AT-K, 256MB PC2100
AGP: Onboard 845G Graphics
IDE0 Master: Maxtor 6L060J3 DMA133
Windows 2000 Profession SP2
Setup installation the Windows 2000.
Setup installation the Iwill power installer CD.
Restart the Windows.
Hardware device manager check.
Setup installation the HCT 9.502.
HCT 9.502 List
Test Disk load A:/C:/D:/E:/F:/G:/H:/I:/J…
HCT 9.502 System Stress test for 48 hours.
- 23 -
Pass/Fail
Pass
Pass
Pass
Pass
Pass
Pass
Pass
8. Hardware Compatibility List
Vendor
Canon
Note:
Vendor
ACER
Aopen
Aopen
GENUINE
Panasonic
SONY
TEAC
TEAC
BENQ
MSI
SONY
Aopen
Note:
Vendor
Intel
Intel
Intel
Intel
Intel
Intel
Intel
Intel
Intel
Intel
Intel
Intel
Intel
Intel
Intel
Intel
Intel
8.1 Camera Device
Model No
Interface
Power Shot S40
USB
8.2 CD-ROM
Model No
Interface
624A-106
CD-948E
DVD1648
GC-845
SR-8588-B
CDU4811
CD-532E
CD-540E
652A
C52
CDU-5221
CD-952E
Model No
Pentium 4
Pentium 4
Pentium 4
Pentium 4
Pentium 4 ES
Pentium 4
Pentium 4
Pentium 4
Pentium 4
Pentium 4
Pentium 4
Pentium 4
Pentium 4
Celeron
Celeron
Celeron
Celeron
Result
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
8.3 CPU
Frequency
1.7 GHZ
1.8 GHz
1.9 GHz
2.0 GHz
2.2 GHz
2.26 GHz
2.4 GHz
2.53 GHz
2.5 GHz
2.6 GHz
2.66 GHz
2.8 GHz
3.06 GHz
1.7 GHz
1.8 GHz
2.0 GHz
2.2 GHz
- 24 -
Pass
Speed
Result
24X
48X
48X
45X
32X
48X
32X
40X
52X
52X
52X
52X
Fail (holder)
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
FSB
Result
400 MHZ
400 MHZ
400 MHZ
400 MHZ
533 MHZ
533 MHZ
533 MHZ
533 MHZ
400 MHZ
400 MHZ
533 MHZ
533 MHZ
533 MHZ
400 MHZ
400 MHZ
400 MHZ
400 MHZ
Pass
Pass
Pass
Pass
Fail
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Intel
Celeron
2.4GHz
Intel
Celeron
2.6GHz
Intel
Celeron
2.8GHz
Note: Bios SEP/30/2004 Support Celeron D Type CPU(Prescott)
Vendor
Aopen
AFREEY
ASUS
BTC
SONY
SONY
Panasonic
Panasonic
Pioneer
LiteOn
Teac
4KUS
Pioneer
LITE-ON
LITE-ON
LEMEL
ASUS
SONY
Plextor
February
Note:
400MHz
400MHz
533MHz
Pass
Pass
Pass
Speed
Result
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
IDE
16X
10X
12X
16X
5X
16X
5X
16X
16X
16X
16X
16X
16X
52X/32X/52X
16X
16X
16X
48X/32X/48X
16X
12X
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Fail (holder)
Pass
Pass
Pass
Pass
Fail (holder)
Pass
Fail (holder)
Pass
Pass
Size
Interface
Result
10.2G
6.4G
25G
40G
60G
35G
60G
15G
60G
60G
IDE 66
IDE 33
IDE 66
IDE 100
IDE 100
IDE 100
IDE 100
IDE 100
IDE 133
IDE 133
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
8.4 DVD-ROM
Model
Interface
DVD1648
DD-4010E
DVD-E612
BDV-316B
DDU220-E
DDU1621
SR-8583-B
SR-8588-B
DVD-120RD
LTD-163D
DV-516
DVD 16X6S
DVD-121
LTR-52327S
XJ-HD166S
LDV-1648L
DVD-E616P1
CRX300A
PX-116A
CR-T87-B
8.5 HDD
Vendor
FUJITSU
IBM
IBM
IBM
IBM
IBM
IBM
Maxtor
Maxtor
Maxtor
Model No
MPE3102AT
DTTA-350640
DJNA-352500
IC35L040AVVN07
IC35L060AVVA07
DTTA-350640
IC35L060AVER07-0
2R015H1
D740X-6L
6L060J3
- 25 -
Maxtor
Maxtor
Quantum
Quantum
Quantum
Western Digital
Western Digital
Western Digital
Western Digital
Western Digital
Note:
D740X-6L
D740X-6L
CR4300AT
CX10200AT
CX13000AT
14300
WD200AB-00BVA
WD200EB
WD400BB
WD-200EB
8.6 Joystick
Model No
Vendor
Logitech
Microsoft
Note:
Wingman
Side Winder Joystick
8.7 Keyboard
Model No
Vendor
ACER
ACER
BTC
BTC
BTC
BUS LOGIC
Genuine
Genuine
K.A.CHEN
LEMEL
Logitech
Microsoft
Microsoft
SAMPO
Unikey
Note:
6511-TA
6311-TW4C
8110M
5126
5121
BA81C15
K288
K388P
KB-7000
KB-5122D-P
Y-SA2
X03-51764
RT9401
F-21BM
KWP-840 US
8.8 LAN Card
Model No
Vendor
3 COM
3 COM
80G
60G
4.3G
10.2G
13G
4.3G
20G
20G
40G
20G
3C905B
3C905C
- 26 -
IDE 100
IDE 100
IDE 66
IDE 66
IDE 66
IDE 66
IDE 66
IDE 100
IDE 100
IDE 100
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Interface
Result
USB
USB
Pass
Pass
Interface
Result
PS/2
PS2
USB
PS2
PS2
PS2
PS/2
PS2
PS/2
PS2
PS/2
USB / PS/2
USB / PS/2
PS2
PS2
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Type
Result
PCI
PCI
Pass
Pass
ACCTON
D-Link
D-Link
D-Link
Intel
Intel
Realtek
Realtek
Note:
Vendor
3COM 100/10
3COM
BUFFLO
D-Link
D-Link
D-Link
Note:
Vendor
ADATA
Apacer
Apacer
Apacer
ATP
ATP
ATP
Buffalo
Corsair Micro
Corsair Micro
Hyundai
HCD
KingMax
KingMax
KingMax
KingMax
Micron
Micron
M-tec
EN1207D-TX
DE-530CT+
DEF-530TX
DEF-550TX
S82550
S82559
RTL8139B
RTL8139C
8.9 LAN HUB
Model No
Switch office400
Super Stack 3
LSW 10/100-8H
DE-812TP+
DE-805TP
DE-809TC
8.10 DDR Memory
Model No
Size
Winbond W942508BH-5
Infineon HYB25D128800AT-7A
Winbond W942508BH-5
Winbond W942508BH-5
AG28L64C8SMB0S
AG28L64C8SMB3S
Samsung K4H280838B-TCB0
Toshiba TC59WM807BFT-75
MT 46V16M8-75A
MT 46V16M8-75A
Hyundai HY5DU28822T-H
Samsung K4H280838-TCB0
KingMax KDL684T4A2A-05
KingMax KDL684T4A2A-06
KingMax KDL684T4AA-50
KingMax KDL684T4AA-50
MT 46V16M8-5
MT 46V16M8-5
M-tec TTD7608F8E75B
- 27 -
256M
256M
256M
512M
1GB
1GB
128M
512M
128M
256M
128M
256M
256M
256M
128M
256M
128M
256M
512M
PCI
PCI
PCI
PCI
PCI
PCI
PCI
PCI
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Transfer Rate
Result
100/10
100/1000
100/10
10-Base
10-Base
10-Base
Pass
Pass
Pass
Pass
Pass
Pass
Speed
Result
DDR400
DDR266
DDR400
DDR400
DDR266
DDR333
DDR266
DDR266
DDR300
DDR300
DDR266
DDR266
DDR333
DDR300
DDR400
DDR400
DDR400
DDR400
DDR266
Pass
Pass
Fail
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Fail
Fail
Pass
NANYA
NANYA
NANYA
NEC
SAMSUNG
SAMSUNG
SAMSUNG
SAMSUNG
TwinMOS
TwinMOS
VM
VM
ELPIDA
Note:
NT5DS16M8AT-6-CL2.5
NT5DS32M8AT-7K
NT5DS32M8AT-7K
NEC D45D128842G5-C75-9LG
SAMSUNG K4H280838D-TCB4
SAMSUNG K4H280838D-TCC4
SAMSUNG K4H280838D-TCC4
SAMSUNG K4H280838D-TCC4
SAMSUNG K4H560838C-TCB3
TwinMOS TMD7608F8E50B
VM VT56DD32M8PC-7
VM VT56DD32M8PC-7
1GB 184P DDR
8.11 Modem
Model No
Vendor
Actiontec
ADI
ADI
Aopen
Aopen
Aztech
D-Link
GENUINE
GENUINE
GVC
GVC
Intel
INTERSTAR
M-G
PINE
Well
Note:
Vendor
ADi
GENUINE
View Sonic
View Sonic
512M
256M
512M
128M
256M
128M
256M
512M
256M
256M
256M
512M
1G
56KPCI Pro
MDX-56KRE
NW58-11
C1701
FM56-PM
MDP-3880W-B
DHN-520
E336RXV
GM56RVD
F1156IV/EID
FM-56PCI
536EP/V.92
PANTHER-5600PB
MG56AMR
PF-X02A-10
FM-56AMR-SL
8.12 Monitor
Model No
Size
Micro Scan
G585
VX500
E653
15"
14″
15″
15″
- 28 -
DDR333
DDR333
DDR266
DDR266
DDR400
DDR400
DDR400
DDR400
DDR333
DDR400
DDR266
DDR266
DDR266
Pass
Pass
Pass
Pass
Pass
Fail
Fail
Fail
Pass
Pass
Pass
Pass
Pass
Type
Result
PCI
External
External
External
PCI
PCI
PCI
PCI
PCI
PCI
External
PCI
PCI
PCI
PCI
PCI
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Type
Result
CRT
CRT
LCD
CRT
Pass
Pass
Pass
Pass
SAMPO
View Sonic
View Sonic
View Sonic
View Sonic
PHILIPS
SAMPO
SAMPO
MOZO
Note:
Alpha scan 521a
17GA
GF775
PS775
E70
107MP
Alpha Scan 761
Alpha Scan 712 a
MZ1700
8.13 Mouse
Model No
Vendor
Aero
ARTEC
DEXIN
DEXIN
GENUINE
Logitech
Logitech
Logitech
Logitech
NEC
QTRONIX
Venus
Venus
X'TEC
Note:
IM-PC20
ITEUEC 19604966
MA21
A2U800A
K3P400A
Cordless Freedom Navigator
Cordless Wheel
M-MM43
M-S43
8.14 Power Supply
Model No
Vendor
Chyang Fun
Note:
CWT-150FXC (150W MAX)
8.15 Printer
Model No
Vendor
HP
EPSON
Note:
15”
17″
17″
17”
17”
17”
17”
17”
17”
Laser 5MP
EPL580L
- 29 -
CRT
CRT
CRT
CRT
CRT
CRT
CRT
CRT
LCD
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Interface
Result
Serial
PS2
PS2
USB
PS2
USB; PS2
PS2
Serial
PS2
PS2
PS2
Serial
Serial
Serial
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Type
Result
150W
Pass
Interface
Result
LPT
USB
Pass
Pass
Vendor
Plustek
UMAX
HP
HP
Note:
Vendor
Adaptec
Adaptec
Advansys
Iwill
Tekram
Tekram
Tekram
Tekram
Tekram
Note:
Vendor
Aureal
CMI
Creative
Creative
Creative
ESS
Top Solution
Top Solution
Note:
Vendor
Adaptec
EPSON
EPSON
Fujitsu
Genuine
IBM
8.16 Scanner
Model No
OpticPro 9636T
Astra 1220S
ScanJet 5200C
ScanJet 3400C
8.17 SCSI Card
Model No
AHA-3950U2B
ASC-39160
ABP-940/70UW70
SIDE-2930C
DC-390U2B
DC-395UW
DC310/310U
DC-390U2W
DC-390F
8.18 Sound Card
Model No
Vortex
8738
Sound Blaster Live
Sound Blaster Audigy
Sound Blaster 5.1
ES1948F C237
Xwave
Live 6CH
8.19 USB Device
Model No
XHUB4+ (USB2.0 HUB)
EPL580L (USB2.0 Printer)
PERFECTION 2450 (USB2.0 Scanner)
USB 1300 MO (USB2.0 MO)
USB/PS2 Mouse
IC25N020ATDA04-0 (USB2.0 HDD)
- 30 -
Interface
Result
LPT
SCSI
USB; Print Port
USB; Print Port
Pass
Pass
Pass
Pass
Type
Result
PCI
PCI
PCI
PCI
PCI
PCI
PCI
PCI
PCI
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Interface
Result
PCI
PCI
PCI
PCI
PCI
PCI
PCI
PCI
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Result
Pass
Pass
Pass
Pass
Pass
Pass
JS
Plextor
QTRPNIX
Mitsumi
Logitech
Chicony
BTC
ACK
Life View
Logitech
Note:
Vendor
Iomega
Iomega
Note:
J6502 (USB Speakers)
PX-S88TU (USB 2.0 CD-RW)
Scorpius 980N (USB Keyboard)
D353GUE (USB Floppy)
M-UB48 (USB Keyboard)
KU-8933 (USB Keyboard)
7932 (USB Keyboard)
ACK-298 (USB Keyboard)
RoboCam
Quick Cam PRO
Model
DDXZ100S2
Z250P
8.20 ZIP/LS120
Size
100MB
250MB
- 31 -
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Pass
Type
Result
ZIP
ZIP
Pass
Pass
9.0 CPU Transient test
9.1 CPU Transient measured:
Blue cells need to be filled in with lab measurement
Yellow cells need to have the overall design tolerance entered
VID Voltage:
Tolerance:
+Tolerance
- Tolerance
1.550
0.00%
0.000
0.000
V
Overall
V
V
Static Voltage Measurements at pins AC14/AC15
Current
5
14
28
42
56
70
Measured Static Voltage
1.522
1.511
1.493
1.474
1.452
1.426
Units
V
V
V
V
V
V
Ripple Voltage Measurements (mV) at pins AC14/AC15
Current
5
14
28
42
56
70
Measurement
8.400
9.800
13.600
18.000
14.400
15.000
Units
mV
mV
mV
mV
mV
mV
Transient Min (mV) at pins AC14/AC15
Load Step
5A to 5A
5A to 14A
5A to 28A
5A to 42A
5A to 56A
5A to 70A
Current
5
14
28
42
56
70
Measurement
0.00
13.10
43.40
71.00
99.00
126.50
Units
mV
mV
mV
mV
mV
mV
Transient Max (mV) at pins AC14/AC15
Load Step
55A to 5A
Current
55
Measurement
106.50
21.80
- 32 -
Units
mV
us
9.2 CPU Transient Loadline
- 33 -
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
