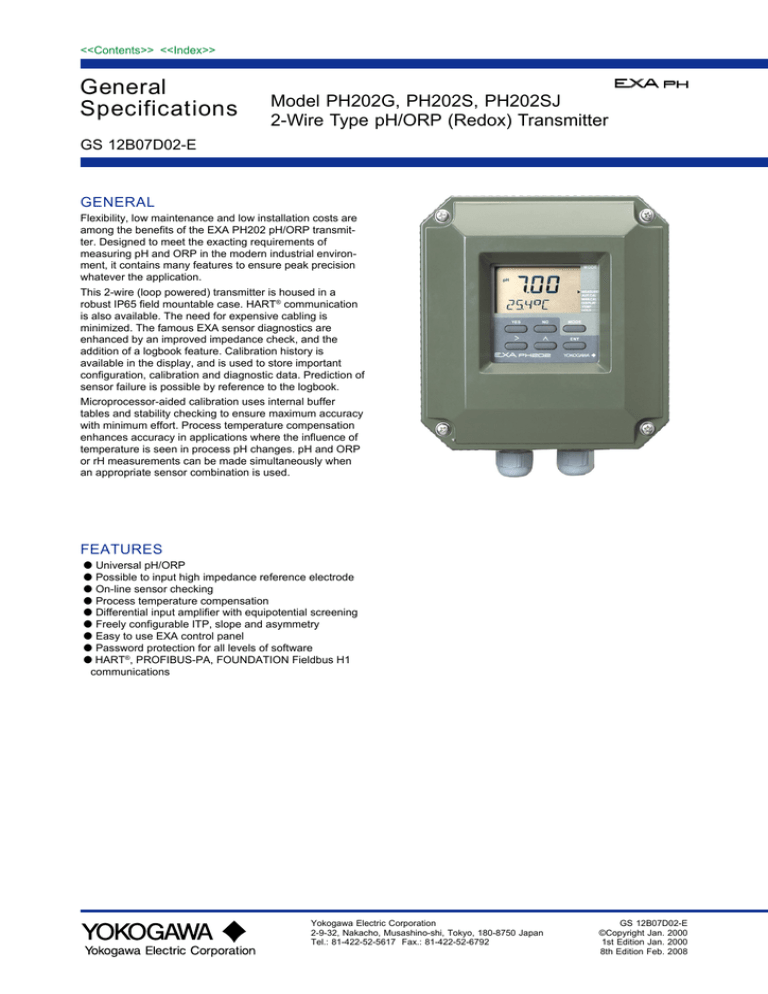

General
Specifications
Model PH202G, PH202S, PH202SJ
2-Wire Type pH/ORP (Redox) Transmitter
GS 12B07D02-E
GENERAL
Flexibility, low maintenance and low installation costs are
among the benefits of the EXA PH202 pH/ORP transmitter. Designed to meet the exacting requirements of
measuring pH and ORP in the modern industrial environment, it contains many features to ensure peak precision
whatever the application.
This 2-wire (loop powered) transmitter is housed in a
robust IP65 field mountable case. HART® communication
is also available. The need for expensive cabling is
minimized. The famous EXA sensor diagnostics are
enhanced by an improved impedance check, and the
addition of a logbook feature. Calibration history is
available in the display, and is used to store important
configuration, calibration and diagnostic data. Prediction of
sensor failure is possible by reference to the logbook.
Microprocessor-aided calibration uses internal buffer
tables and stability checking to ensure maximum accuracy
with minimum effort. Process temperature compensation
enhances accuracy in applications where the influence of
temperature is seen in process pH changes. pH and ORP
or rH measurements can be made simultaneously when
an appropriate sensor combination is used.
FEATURES
d Universal pH/ORP
d Possible to input high impedance reference electrode
d On-line sensor checking
d Process temperature compensation
d Differential input amplifier with equipotential screening
d Freely configurable ITP, slope and asymmetry
d Easy to use EXA control panel
d Password protection for all levels of software
d HART®, PROFIBUS-PA, FOUNDATION Fieldbus H1
communications
Yokogawa Electric Corporation
2-9-32, Nakacho, Musashino-shi, Tokyo, 180-8750 Japan
Tel.: 81-422-52-5617 Fax.: 81-422-52-6792
GS 12B07D02-E
©Copyright Jan. 2000
1st Edition Jan. 2000
8th Edition Feb. 2008
2
<<Contents>> <<Index>>
ACCURATE pH MEASUREMENT
1. Electrode selection
In order to make precise pH/ORP measurements, there
are a number of pre-requisites. Special attention should be
paid to the choice of the sensors to ensure compatibility
with the chemical composition of the process fluid. The
speed of response required, the solids content and the
flow rate of the fluid are also contributory factors. The
GS12B07B02 -E general specifications cover the choice of
sensors.
PROCESS TEMPERATURE COMPENSATION
The figure below shows the strong change in pH with
temperature, caused by the dissociation constant of water
changing. This effectively shifts the neutral point from pH7.
In order to reliably control the pH of solutions it is necessary to compensate for the changes. The PH202
transmitter has a simple-to-operate system of process
temperature compensation to provide optimum accuracy
and best control. An application where this is particularly
important is in the measurement of alkalized boiler feed
water.
2. Signal processing (pH/ORP)
3. High performance transmitter
The PH202 provides excellent noise rejection, minimizing
the stray signals that can affect industrial pH measurements. Earth loop currents in damp and damaged cabling
are eliminated by the equipotential screening. It offers a
simple and effective process temperature compensation in
addition to the usual compensation to the Nernst equation.
pH at process temp.
With the correct sensor configuration, the PH202 can
measure pH and ORP.
pH 11.00 at 258C
becomes pH 9.80 at 808C
4. Maintenance
It is important that the system be well maintained to make
precise pH/ORP measurement. The electrodes must be
properly cleaned and regularly calibrated. Yokogawa online cleaning systems may be used where there is
significant fouling of the sensors. Other influences from the
electrode holders can be less obvious, but important none
the less. Well designed fittings make it easy to provide the
routine maintenance needed for best accuracy. Flowthrough submersion, suspension and float types of
holders are available.
pH at reference temp.
F2.EPS
3-LEVEL OPERATION
The PH202 transmitter uses a 3-level operating system to
take full advantage of the microprocessor while retaining
the traditional simplicity of a 2-wire transmitter. Advanced
functions are separated from conventional operation to
avoid confusion. They can be activated as required for
each individual application.
HART COMMUNICATION
One of the features of smart field devices is their ability to
detect faults, either in the device electronics or in an
associated sensor. Using a fieldbus system, such faults
are reported in the device status byte in every message
(assuming that communication is still possible!). For
HART, it is still useful to follow the convention of indicating
fault conditions by setting the analogue output current to a
value which is recognizably beyond the normal operating
range (including the small amount of linear over-range
commonly allowed). If it is still alive, the current output
value is set to an appropriate value with the intention that a
host system should be able to set alarm thresholds just
outside the normal 4 to 20 mA range, to indicate measurement out-of-range, and to set further alarm thresholds to
indicate a fault condition.
DD specification and other support files
The PH202 Device Description (DD) files are available
enabling communications compatible HOST devices (and
HHT for HART). Other files to support AMS, PRM and
PDM are available as well.
All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation
GS 12B07D02-E
8th Edition Feb.13.2008-00
3
<<Contents>> <<Index>>
MAINTENANCE level
The normal maintenance functions are accessible through
the flexible window by pushing the keys underneath.
Use : Normal operation and checking
How : Simple operation by dialog through the closed
front cover
Example : Calibration with buffers
COMMISSIONING level
Functions required to commission the instrument are
hidden to discourage unauthorized tampering. The front
cover is removed to reveal the commissioning menu and
the hidden access key (marked p).
Use : For normal commissioning
How : Removal of the front cover reveals the access
key and second menu
Example : Selecting a measuring range
SERVICE level
Specialized functions can be adjusted via the SERVICE
menu. In this case access is by using “service codes”.
Use : Only for specialist functions
How : Through special coded entries
Example : Process temperature compensation
With this 3-level user-friendly approach, the instrument can
be operated by anyone. Commissioning is straight-forward
and needs no calibration equipment compared to analog
instruments. Specialist functions available via access
codes are invisible during normal operation. All three
levels can be separately protected against unauthorized
access by a password system using a three digit code.
3. Off-line checks
During calibration of a pH measuring system, the
response of the sensors is measured and checked.
Sensitivity and drift are calculated and checked. During
calibration of an ORP measuring system, the drift of the
sensors is calculated and checked. If any of these are
outside the limits, an error is signaled.
The comprehensive combination of on-line and off-line
checking monitors all key aspects of the measurement to
give an early warning, if the reading is faulty.
GENERAL SPECIFICATIONS
1. Transmitter
SENSOR CHECKING
1. On-line checks
Real-time sensor checking in the 2-wire transmitter is one
of the most important features of the EXA PH202 transmitter. By special circuitry on the input board an alternating
voltage is applied to the liquid earth pin and the sensors.
The impedance of the measuring electrode (pH-glass or
ORP-metal electrode) and reference electrode are
independently measured. The measured values are
compared to limiting values.
2. Faults
The pH-sensor is checked for low impedance to detect
breakage of the bulb and for high impedance to detect an
open circuit.
The Redox sensor is checked for high impedance to detect
an open circuit.
The reference electrode is also checked for high impedance to detect fouling of the diaphragm, poisoning of the
reference liquid or non immersion of the sensors.
These faults can be transmitted to the control room or
remote panel by a discrete current output of 21 mA or 3.6
mA when HART or distributor comm. is non-used, 3.9 mA
when HART or distributor comm. is used over the 2-wire
connection. The fault is also flagged on the display by a
special marker field and an error code in the message
display.
All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation
Input specifications : Dual high impedance inputs
(greater than1012 Ω) with provision for liquid earth
connection. Suitable for inputs from glass or enamel pH
& reference sensors and ORP metal electrodes.
Input ranges :
• pH : –2 to 16 pH
• ORP : –1500 to 1500 mV
• rH : 0 to 55 rH
• Temperature : –30 to 1408C (-20 to 3008F)
8.55kV NTC sensor : –10 to 120 8C ( 10 to 2508F)
for 10kV PTC sensor : –20 to 140 8C ( 0 to 3008F)
(Measuring range may also be limited by the
specification of the used sensor.)
Output ranges :
• pH : min. 1 pH max. 20 pH
• ORP : min. span 100 mV max. span 3000 mV
• rH : min. 2 rH max. 55 rH
• Temperature : min. 25 8C max. 200 8C
(for 8.55kV NTC sensor max. 120 8C )
Output signal :
4-20 mA DC loop powered, isolated from input.
With the possibility of 21 mA “FAIL” signal (burn up)
and 3.6 mA (burn down when HART or distributor
comm. is non-used), 3.9 mA (burn down when HART
or distributor comm. is used).
GS 12B07D02-E
8th Edition Feb.13.2008-00
4
<<Contents>> <<Index>>
Temperature compensation:
800
Process compensation by configurable coefficient.
Adjustable ITP (Iso-thermal point of intersection).
775
Load Resistance (V)
• Range : –30 8C to 140 8C (-20 to 300 8F)
(for 8.55kV sensor –10 8C to 120 8C)
Sensor types: Pt100, Pt1000, 3kV PTC, 5.1kV PTC,
8.55kV NTC, 350V PTC, 6.8kV PTC, 10k
V PTC
Automatic or manual compensation to Nernst equation.
600
425
400
Possible
200
0
12
17
16
24
28
32
31.5 V
Voltage (V)
Calibration :
Semi-automatic, using tables in transmitter for pH 4, 7
& 9 buffer solutions, or using user-defined tables, with
automatic check of measurement stability.
Manual, using standard sample, by correcting reading
to value of standard.
Calibration by slope and asymmetry potential setting.
(IEC746-2)
Logbook :
Fig.2 Supply voltage/ load diagram for the PH202S
For the PH202SJ
175V or less with the PH201G
25V or less with the SDBT
For PH202SJ allowable load resistance should be
determined by the following equation.
When used with BARD-800:
Software record of important events and diagnostic
data. Available through HART link, with diagnostic
information available in the display.
Bi-directional digital communication superimposed on
the 4-20 mA signal.
Display : Custom liquid crystal display, with a main display
of 3 1/2 digits 12.5 mm high.
Message display of 6 alphanumeric characters, 7
mm high.
Warning flags and units (pH and mV).
Power supply : Nominal 24 volt DC loop powered system.
PH202G: 17 to 40 V, see Fig. 1.
PH202S: 17 to 31.5 V, see Fig. 2.
Maximum load resistance:
V-18.5
0.022
-R
50V or less with the SDBT
For the PH202S, see Fig. 2.
1150
1000
800
600
400
Possible
17 18 20
V-19
0.022
-R
V: Minimum output voltage of power supply (distributor)
R: Internal resistance of power supply (distributor)
Note: Maximum load resistance depending on distributor
used should be as follows.
(PH201G) + (BARD-800): 175 V
(SDBT) + (BARD-800):
25 V
pH- Linearity : 6 0.01 pH
• Repeatability : 6 0.01 pH
• Accuracy : 6 0.01 pH
ORP- Linearity : 6 1 mV
• Repeatability : 6 1 mV
• Accuracy : 6 1 mV
Temperature with Pt1000, 3kV PTC, 5.1kV PTC,
8.55kV NTC, 350V PTC, 6.8kV PTC, 10kV PTC
200V or less with the PH201G
200
180
0
Allowable load resistance (V)=
Performance : (The specifications are expressed with
simulated inputs.)
For the PH202G, see Fig. 1.
0
Allowable load resistance (V)=
When used with BARD-400:
Serial communication:
Load Resistance (Ω)
20
25
Voltage (V)
30
35
40
• Linearity : 6 0.3 8C
• Repeatability : 6 0.1 8C
• Accuracy : 6 0.3 8C
Temperature with Pt100
• Linearity : 6 0.4 8C
• Repeatability : 6 0.1 8C
• Accuracy : 6 0.4 8C
Note: The following tolerance is added to above
performance.
mA output tolerance: 6 0.02 mA of “4 - 20 mA”
F2.1E.eps
Fig.1 Supply voltage/ load diagram for the PH202G
All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation
GS 12B07D02-E
8th Edition Feb.13.2008-00
5
<<Contents>> <<Index>>
Ambient operating temperature: –10 to + 55 ⬚C
Operation protection :
Storage temperature: –30 to +70 ⬚C
3-digit programmable password.
Sensor impedance checking :
Humidity : 10 to 90% RH (Non-condensing)
Independent impedance check on measuring and
reference sensor elements, with temperature compensation.
Display of sensor impedance on message line of
display.
FAIL flag in event of “out of limits” impedance, and the
possibility of 21 mA or 3.6 mA when HART comm. is
non-used (3.9 mA when HART comm. is used) error
signal.
Signal processing (pH/ORP):
Housing :
Case:
Cast aluminum case with chemically
resistant coating
Cover:
Polycarbonate window.
Case color: Off-white (Equivalent to Munsell 2.5Y8.4/1.2)
Cover color: Deep sea Moss green (Equivalent to
Munsell 0.6GY3.1/2.0)
The PH202 can measure pH or ORP. Using the FU20
allows simultaneous measurement and display of pH
and ORP. It also allows display and out put of pH.
EMC Conformity standards (PH202G, S)
Sensor
cable gland
In case of
PH202SJ
Grounding
terminal
,
EN 61326-1 Class A, Table 2 (For use in industrial locations)
EN 61326-2-3
EN 61326-2-5 (pending)
PH202S Intrinsically safe type
Power/Output
cable gland
In case of
PH202G, PH202S
Item
Description
Code
Cable and terminals :
Factory
Mutual (FM)
Pin-shaped terminal
F3.7.EPS
-U
IECEx
8.3mm or less
2.5mm or less
8.3mm or less
The PH202 is equipped with terminals suitable for the
connection of finished cables in the size: 0.13 to 2.5 mm
(26 to 14 AWG)
Cable entry: 2 cable glands 1/2NPT. The cable glands
will form a tight seal on cables with an outside
diameter in the range of 6 to 12 mm (0.24 to 0.47
inches).
CENELEC
ATEX
Ring-shaped terminal Fork-shaped terminal
for option code /TB.
for option code /TB.
-E
IECEx
Requirement of connecting with external instruments
Terminal for pin cable terminal
Crimp contact
for cable
Usable contact
Torque for fixing
Example of
crimp contact*
Screw terminal (option /TB)
Ring-shaped or fork-shaped
crimp contact
Crimp contact shown as the figures
see upper this table, for M3 screw
1.35 N m (recommended)
0.5 N m or less
JST, Mfg. Co., Ltd. make:
Weidmuller Co., Ltd. make:
H0.34/10, H0.5/12, H1/12, H1.5/12S VD1.25-3 (Ring shape),
VD1.25-S3A (Fork shape)
Pin-shaped crimp contact
with sleeve insulator
max. 2.5 mm
*Note: Other crimp contact may be required , depending on core-cable diameter .
Canadian
Standards
Association
(CSA)
T3.2E.eps
-C
IECEx
Construction :
Weather resistant to IP65, NEMA 4X and Type 3S
standards
Mounting :
(Note)
IECEx
Scheme
Pipe, wall or panel mounting, using optional hardware
Weight : Approx. 1.6 kg
T1E.EPS
Data protection :
EEPROM for configuration and logbook, and lithium cell
for clock.
Automatic safeguard :
Return to measuring mode when no safe guard
keystroke is made for 10 min.
All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation
GS 12B07D02-E
8th Edition Aug.31.2009-00
6
<<Contents>> <<Index>>
Type of protection “n” or Non-incendive of PH202S
Item
Description
Item
Description
Code
Code
IECEx
Scheme
Entity
-P
Factory
Mutual (FM)
or
-F
IECEx
Scheme
FISCO
CENELEC
ATEX
-B
-N
IECEx
Scheme
or
-D
Canadian
Standards
Association
(CSA)
IEC.EPS
Item
Description
IECEx
Scheme
T2.EPS
Item
Description
FM Intrinsically safe Approval
Applicable standard: FM3600, FM3610, FM3810
Intrinsically Safe for Class I, Division 1, Groups ABCD
Class I, Zone 0, AEx ia IIC
Temp. Class: T4, Amb. Temp.: -10 to 55ⴗC
Intrinsically Safe Apparatus Parameters
Entity
Factory
Mutual (FM)
Code
-P
or
-F
FISCO
FM Non-incendive safe Approval
Applicable standard: FM3600, FM3611, FM3810
Non-incendive Safe for Class I, Division 2,
Groups ABCD, Zone 2
Temp. Class: T4, Amb. Temp.: -10 to 55ⴗC
Non-incendive Safe Apparatus Parameters
or
-F
-B
or
-D
CSA.EPS
-B
Item
Description
or
-D
FNICO
NEPSI
FM.EPS
Description
-P
Entity
Canadian
Standards
Association FISCO
(CSA)
CSA Non-incendive safe Approval or
type of protection "n"
Applicable standard: C22.2, No.0-M1991,
C22.2, No.04-M2004, C22.2, No.157-M1992,
C22.2, No.213-M1987, C22.2, No. 61010-1
Class I, Division 2, Groups ABCD
Ex nA [nL] IIC
Temp. Class: T4, Amb. Temp.: -10 to 55ⴗC
T6, Amb. Temp.: -10 to 40ⴗC
Entity:
FNICO:
Entity
Item
Code
CSA Intrinsically safe Approval
Applicable standard: C22.2, No. 0-M1991,
C22.2, No. 04-M2004, C22.2, No. 157-M1992,
C22.2, No. 61010-1
Ex ia Class I, Division 1, Groups ABCD
Ex ia IIC
Temp. Class: T4, Amb. Temp.: -10 to 55ⴗC
Code
Code
NEPSI Intrinsically safe Approval
Applicable standard:
GB3836.1-2000, GB3836.4-2000
Cert No. GYJ081156X
Ex ia IIC T4/T6
Temp. Class: T4, Amb. Temp.: -10 to 55ⴗC
Temp. Class: T6, Amb. Temp.: -10 to 40ⴗC
Ui(Vmax)=31.5 V, Ii(Imax)=100 mA
Pi(Pmax)=1.2 W, Ci=22 nF, Li=35 ␮H
-K
NEPPH.EPS
CENELEC
ATEX
Entity
-P
PH202SJ TIIS Intrinsically safe type
Electrical:
or
Safety Barrier Used
CENELEC
ATEX
FISCO
-F
Construction, Explosion
Safety Barrier Rating
/Ignition Groups
BARD-800
i3aG4
BARD-400
i3aG4
-B
CENELEC
ATEX
or
-D
ATEX.EPS
All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation
Vm=DC 31.5 V
Im=DC 29.2 mA
Pm=0.92 W
Vm=DC 31.5 V
Im=DC 35 mA
Pm=1.1 W
T5e.eps
Environmental:
Altitude:
1000 m max.
Ambient temperature: –10 to +55ⴗC for sensor and
transmitter
Humidity:
45 to 85% RH
GS 12B07D02-E
8th Edition Aug.31.2009-00
7
<<Contents>> <<Index>>
Location:
Zones 0, 1 and 2 hazardous
locations, with safety barrier.
Wiring between PH202SJ and safety barrier:
Safety Barrier
BARD-800
BARD-400
Maximum Allowable Maximum Allowable
Inductance
Capacitance
2.2 mH
2.2 mH
35 nF
35 nF
T6e.eps
Sample oxidation-reduction potential: Within ⴞ 2 V
Connection is required between common terminal (3) of
safety barrier and common terminal of distributor (power
supply). Failure to connect may cause errors on 4-20 mA
signal due to characteristics of safety barrier. When
BARD-800/400 safety barrier is used, be sure to prevent
large current from flowing into the safety barrier in order to
avoid possible fuse blowing.
Yokogawa’s distributors, Models PH201G and SDBT, have
a current limiter function and are best suited for use with
the PH202SJ.
HART ® communications
Input
: Two-wire system, 4-20 mA DC
Power supply
: PH202G : up to 40 volts
PH202S ,SJ: up to 31.5 volts
Note: The transmitter contains a
switched power supply,drawing its
energy from the 0-4 mA section
of the signal. Consequently the 17
volt limit is applied at 4 mA. The
characteristic of the unit is such
that above about 7 mA on the
output, the terminal voltage can
drop to 14.5 volts without
problem.
Transmission
: Isolated output of 4 to 20 mA DC.
Signal
: Maximum load 425Ω at 24 VDC
Burn to signal failure acc.
NAMUR Recommendation NE43
(18.01.1994)
Operating range : 3.9 to 21mA
Communication : HART®, 1200 Baud, FSK
modulated on 4 to 20 mA signal
Configuration
: Local with 6 keys
Software
: Firmware based on Yokogawa
stack.
Hardware
: Yokogawa HART Modem
F9197UB
Other Control systems : Yokogawa PRM,
Rosemount AMS, Siemens PDM
Hand Terminal
: Rosemount HHT 275/375
Output span
:
- pH
: min 1 pH, max 20 pH.
(max 90% zero suppression)
: The instrument is user
programmable for linear or nonlinear pH ranges.
Cable specification: 0.5 mm diameter or 24 AWG over
maximum length of 1500 m
DD specification : The PH202 Device Description is
available enabling
communications with the
Handheld communicator and
compatible devices.
All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation
PROFIBUS-PA communications
Input signal: Digital
Supply voltage: 9 to 32 V DC
Operating current: 26.0 mA
Operating values: According to IEC 1158-2
Bus connection: Fieldbus interface based on IEC
1158-2 according to FISCO-Model
Power supply: Power supply is achieved dependant
on the application by means of
segment coupler
Data transfer: According to PROFIBUS- PA profile
class B based on EN 50170 and
DIN 19245 part 4
GSD file: The actual file can be downloaded from
www.profibus.com
Configuration: Local with 6 keys
Software: Firmware based on Siemens DPC31 stack.
Hardware: PC- or PCMCIA-interfaces from Siemens
Other control: Siemens PDM systems
Electrical connection: Terminals acc. to IEC 1158-2
Fieldbus-cable-types: Twisted and shielded two wire
cable according to recommendation
based on IEC 1158-2
Cable diameter: 6 to 12 mm (0.24 to 0.47 inch)
FOUNDATION Fieldbus H1 communications
Input signal: Digital
Supply voltage: 9 to 32 V DC
Operating current: 26.0 mA (base current)
Operating values: According to IEC 1158-2
Bus connection: Fieldbus interface based on IEC
1158-2 according to FISCO-Model
Power supply: Power supply is achieved dependant
on the application by means of
segment coupler
Data transfer: FF Specification Rev. 1.4, Basic device
Function blocks: 3xAI, Transducer, Resource
Files: Actual file can be downloaded from our
homepage
Configuration: Local with 6 keys,
Software: National Instruments, NI-FBUS configurator
Hardware: FBUS-interfaces from National Instruments
(AT-FBUS and PCMCIA FBUS)
Other control systems: Yokogawa PRM, DMT
2.
Dedicated Distributor PH201G (Style B)
This distributor, designed exclusively for use with these pH
transmitter, supplies drive power to the 2-wire transmitter
while simultaneously receiving 4 to 20 mA DC current
signal from the transmitter and converting it to 1 to 5 V DC
voltage signal; it also simultaneously receives a digital
signal superimposed on 4 to 20 mA DC signal, and
provides contact outputs during hold, failure, and/or
cleaning.
A current limiter function is built into this unit so it can
continue to operate properly even with a short circuit on
the transmitter side.
<Input/Output Signal Specifications>
Number of input points (Number of transmitter units
connectable): 1 point
Output signal: 1 to 5 V DC (2 points)
Load resistance : 2 kΩ or less (1 to 5 V DC Output)
Isolation system : Loop isolation type
GS 12B07D02-E
8th Edition Aug.31.2009-00
8
<<Contents>> <<Index>>
<Mounting /Form>
Mounting method : Indoor rack mounting
Connection method :
External signal connection : M4 screw terminal
connection
Power supply / Ground connection :
100V : JIS C8303 ground type 2 plug connection
220V : CEE 7VII (European electrical device standard)
plug connection
Cable length : 300 mm
External dimensions : 180H x 48W x 300D mm
Weight : Approx. 1.7 kg (Including rack and case)
<Standard Specifications>
Accuracy : ⫾0.2 % of span
Transmitter supply voltage : 26.5 ⫾ 1.5 V DC
Maximum current and power consumption
24 V DC : Approx. 4.8 W
100 V AC : Approx. 7 VA
220 V AC : Approx. 11 VA
Insulation resistance
Between I/O terminals and ground pin : 100 MΩ / 500
V DC
Between power supply pins and ground pin : 100 MΩ /
500 V DC
<Operating Specifications>
Ambient temperature : 0 to 50⬚C
Ambient humidity : 5 to 90 % RH (Non-condensing)
Power supply : Dual use AC/DC
100 V : DC power 20 to 130 V, no polarity
AC power 80 to 138 V, 47 to 63 Hz
220 V : DC power 120 to 340 V, no polarity
AC power 138 to 264 V, 47 to 63 Hz
<Contact Output>
Contact rating : 250 V AC, maximum 100 VA
220 V DC, maximum 50 VA
Hold contact output : N.C. 1 contact, Normally energized
Contact closes when power is off or during maintenance.
Failure contact output : N.C. 1 contact, Normally
energized
Contact closes when power is off or during failure.
Cleaning contact output : 1 contact, Close during
cleaning only
Used as drive contact for solenoid valve for cleaning.
3.
Safety Barrier BARD-800 (for PH202SJ)
The BARD-800 intrinsic safety (IS) barrier, connected to
intrinsic safety devices installed in a hazardous area,
configure an IS system in such a way that electric currents
and voltages delivered from a safe area into a hazardous
area can be limited to prevent energy generated in the IS
circuit from igniting specified explosive gases.
<Standard Specifications>
Type: Zener barrier
Use: 4 to 20 mA DC signal
Intrinsic safety class and certificate number:
Construction Grade; i3aG5 (certified by TIIS, No.
55577)
Intrinsic safety ratings:
Vmax (Uo):
31.5 V
Icc (Io):
29.2 mA
Pmax (Po):
0.92 W
Cext (Co):
42 nF
Lext (Lo):
4.2 mH
VM (Um):
250 V AC/DC
Leakage current: 10 ␮A at 28 V
Internal voltage drop:
139⍀ ⴛ Io + 0.9 V, 4.16 V at 23.6 mA
Maximum impressed voltage: 31.0 V
Rated current of internal fuse: 50 mA
Working temperature range: -10 to 50ⴗC
Storage temperature range: -40 to 90ⴗC
Humidty range: 5 to 95% RH (no condensation)
Installation location: Nonhazardous area (indoors)
Grounding: Grounding resistance of 10⍀ or less
(equivalent to Japanese Industrial Standard Class A)
Housing: Material; Polycarbonate, Color; Light green
Weight:160 g
Schematic Diagram
CL
A
1
B
2
C
System Configuration
Example
3
F01_6.EPS
2-wire pH/ORP Transmitter
PH202G (General purpose type)
PH202S, PH202SJ (Explosionproof type)
Combination
to use
Dedicated Distributor
PH201G
pH or ORP
Electrode
General purpose type
Explosionproof type
Hazardous Non-hazardous
area
area
Safety Barrier
(Note)
BARD
-800
A
B
C
3
2
1
General Distributor
Analog output
1 to 5 V DC
Failure contact
output
Maintenance
contact output
Output
or
Power supply
Power supply
20 to 130 V DC or 80 to 138 V AC,
47 to 63Hz
Contact output can be used by using
dedicated distributor PH201G.
(Note) For intrinsically safe approval, use the safety barrier certified by the testing laboratories.
Use the safety barrier designed for the communications when PH201G distributor is used.
Use BARD-800/400 when PH202SJ is used.
All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation
GS 12B07D02-E
8th Edition Aug.31.2009-00
9
<<Contents>> <<Index>>
MODEL AND SUFFIX CODES
[Style : S3]
1. 2-Wire pH/ORP Transmitter (Non-explosionproof type)
Model
Suffix Code
Option Code
PH202G
Type
2-Wire pH/ORP Transmitter ( 1)
*
-E
mA with HART (For other regions)
-C
mA with HART (Canada type)
-U
mA with HART (North America type)
-P
Profibus
-F
FF
Japanese
-J
Language
English
-E
Option
Description
/U
Pipe, wall mounting bracket (Stainless steel)
/PM
Panel mounting bracket (Stainless steel)
/H
Hood for sun protection (Carbon steel)
/H2
Hood for sun protection (Stainless steel)
Tag Plate
/SCT
Stainless steel tag plate
Conduit Adapter
/AFTG
G 1/2
/ANSI
1/2 NPT
/TB
Screw terminal ( 2)
/X1
Epoxy baked finish ( 3)
Mounting Hardware
Hood
*
*
( 1) The PH202G can be also used as ORP transmitter. (Setting can be made in the field. )
*
*
( 3) The housing is coated with epoxy resin.
*
T8-1.eps
( 2) It can be specified when the suffix code "-E" or "-C" or "-U" is selected.
[Style : S3]
2. 2-Wire pH/ORP Transmitter (Explosionproof type)
Model
Suffix Code
Option Code
PH202S
Type
Intrinsic safe mA with HART (ATEX)
Intrinsic safe mA with HART (CSA)
Intrinsic safe mA with HART (FM)
Intrinsic safe mA with HART (NEPSI)
Intrinsic safe Profibus (ATEX, CSA, FM)
Intrinsic safe FF (ATEX, CSA, FM)
Non-incendive FF (ATEX, CSA, FM) (*3)
Non-incendive mA with HART (ATEX, CSA, FM) (*3)
Non-incendive Profibus (ATEX, CSA, FM) (*3)
-E
-C
-U
-K
-P
-F
-B
-N
-D
Language
Option
Description
2-Wire pH/ORP Transmitter (*1)
Japanese
English
-J
-E
Mounting Hardware
Hood
Tag Plate
Conduit Adapter
/U
/PM
/H
/H2
/SCT
/AFTG
/ANSI
/X1
Pipe, wall mounting bracket (Stainless steel)
Panel mounting bracket (Stainless steel)
Hood for sun protection (Carbon steel)
Hood for sun protection (Stainless steel)
Stainless steel tag plate
G 1/2
1/2 NPT
Epoxy baked finish (*2)
( *1) The PH202S can be also used as ORP transmitter. (Setting can be made in the field. )
( *2) The housing is coated with epoxy resin.
( *3) When the instrument with Suffix Code "-B,-N,-D" is used, take measures so that
the display window is not exposed to direct sunlight.
All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation
GS 12B07D02-E
8th Edition Aug.31.2009-00
10
<<Contents>> <<Index>>
3. 2-Wire pH/ORP Transmitter (TIIS Explosionproof type)
Model
Suffix Code
[Style : S2]
Option Code
Description
*
PH202SJ
Intrinsically safe type transmitter ( 1)
Type
*
TIIS Certification ( 5)
-1
Language
Option
-J
Japanese
-E
English
/U
Pipe, wall mounting bracket (Stainless steel)
/PM
Panel mounting bracket (Stainless steel)
/H
Hood for sun protection (Carbon steel)
/H2
Hood for sun protection (Stainless steel)
Tag Plate
/SCT
Stainless steel tag plate
Conduit Adapter
/AFTG
G 1/2
/ANSI
1/2 NPT
/TB
Screw terminal
/SPS
Teflon coated SUS steel screws
(resistance to salt corrosion) ( 2)
/X1
Epoxy baked finish ( 3)
/PAC
Cable gland for separate type detector ( 4)
Mounting Hardware
Hood
*
*
*
PH202SJ is available only for Japan, South Korea , Taiwan, China, and Russia.
( 1) The PH202SJ can be also used as ORP transmitter. (Setting can be made in the field. )
*
*
( 3) The housing is coated with epoxy resin.
*
( 4) Cable gland for separate type pH detector (pH sensor, reference sensor and temperature element
*
T8-12.eps
( 2) The SUS screws with teflon coating are used at the four corners of the cover.
are not integrated) "/PAC" contains the items on the following table.
Item
Qty.
Description
1) Packing with 4 holes
1
Use in case of applying separate type pH detector (pH sensor,
2) Plug (black)
2
For plugging the unused holes of Packing with 4 holes
3) Plug (Semi-transparent)
1
For plugging the unused holes of Packing with 4 holes
reference sensor and temperature element are not integrated.)
Note: The above items may also be necessary when using detectors other than YOKOGAWA-made ones.
When using this packing, be careful to ensure that it is well enough sealed to be waterproof.
When separate type pH detector (pH sensor, reference sensor and temperature element are
not integrated) is used, use packing with 4 holes. Plug the unused holes in the packing
with the black plugs.
( 5) "TIIS Certification" as a certified explosion approval from the Technology Institution of Industrial Safety.
*
4. Distributor (Dedicated EXA Series)
Suffix Code
Model
Option Code
Dscription
Distributor
PH201G
100 V AC
-A1
Power Supply
220 V AC
-A2
Style B
*B
/TB
Option
Terminal for Power connection
T8-2.eps
5. Safety Barrier BARD-800 for PH202SJ only
Model
Use
Description
Suffix Codes
Safety barrier
BARD
-8
Type
Style code
For use with a 4 to 20 mA signal
00
Zener barrier
*A
Style A
T01.EPS
All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation
GS 12B07D02-E
8th Edition Feb.13.2008-00
11
<<Contents>> <<Index>>
DIMENSIONS
pH/ORP Transmitter
Panel Mounting (Option code : /PM)
Unit : mm
202
162
Panel
thickness
155
1 to 10
Panel mounting
bracket
50
130
30
180
30
Hood (Option)
Option code : / Hu
38
77
115
185
205
3.9
80
42
156
121
11.1
0
68
96
9
Grounding terminal
(M4 screw)
60
*1
173 11.1
138
0
Sensor cable inlet
cable gland (Pg13.5)
34
*2
138
5660.2
*1 For PH202SJ
*2 For PH202G, PH202S
Transmission signal cable inlet
Cable gland : Pg13.5
Conduit Adapter (Option)
M6 screw (32)
121
PANEL CUTOUT
1.eps
5.eps
Panel Mounting when using two (2) self-taping screws
+1
0
Unit: mm (inch)
+1
0
Adapter for Conduit Work (optional)
(option code : / AFTG, / ANSI)
49
Approx.
55
18.5
(0.72)
Adapter
G1/2 screw (/AFTG)
1/2 NPT screw (/ANSI)
SPACING PANEL CUTOUT
3.5
(0.14)
PANEL CUTOUT
Pipe/Wall Mounting (Option code : /U)
Pipe mounting
(Vertical)
56
Pipe mounting
(Horizontal)
2-[6.5
200
4-[10
77
115
70
Nominal 50 A (O.D. [60.5 mm)
4.eps
All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation
GS 12B07D02-E
8th Edition Feb.13.2008-00
12
<<Contents>> <<Index>>
PH201G Dedicated Distributor (Style B)
Unit : mm
2-f5.8
Mounting Hole
136
180
48
303
79
Terminal
configuration
"/TB" Terminal for
Power Connection
F11-1.EPS
Terminal configuration
Safety Barrier BARD-800
Unit: mm (approximate inches)
Nonhazardous
terminals
(M4 screws)
Grounding terminal
(M4 screw)
3
2
1
A
B
C
3
2
1
12.5 (0.492)
BARD
-700
2-ø4.5
81.3 (3.20)
A
B
C
115 (4.53)
Intrinsically
safe terminals
(M4 screws)
Bracket
5 (0.197)
125.5 (4.94)
91.5 (3.60)
10.1 (0.397)
Grounding terminal
(M4 screw)
12.75 (0.502)
139 (5.47)
F10.EPS
All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation
GS 12B07D02-E
8th Edition Feb.13.2008-00
13
<<Contents>> <<Index>>
WIRING DIAGRAMS
Example of Non-Explosionproof System
PH201G
PH202G
Terminal Box
pH/ORP
Sensor
pH/ORP Transmitter
SDBT
Distributor
*1
Distributor
*1
15
15
+
A(+)
C
16
16
-
B(-)
(CMN)D
G
13
13
12
12
11
11
14
14
Output Signal
(1 to 5V DC)
F
a
d
c
f
2(-)
(-)B
Output Signal
(1 to 5V DC)
H
b
1(+) (+)A
F
H
Output Signal
(1 to 5V DC)
Output Signal
(1 to 5V DC)
e
Ground *2
WiringDia1.EPS
(100V or less)
Hold
FAIL WASH
*1: Use a 2-conductor shielded cable with an outside diameter of 6 to 12 mm. Shield must be connected to internal
terminal G of transmitter and left unconnected at the other side.
*2: Transmitter must be grounded using external terminal: for general purpose version ground resistance of PH202G should not exceed 100V
(Japanese Class D grounding).
Example of Explosionproof System
PH202S
pH/ORP Transmitter
pH/ORP
Sensor *1
*3
Safety Barrier
Distributor
*2
+
Output
G
Ground
to earth
*1: This cable is specified by the additional code of a pH sensor, or a sensor cable.
*2: Use two-wire cable with OD (Outside Diameter) of 6 to 12 mm.
*3: For intrinsically safe approval, use the safety barrier certified by the testing laboratories.
In case of non-incendive type (PH202S-B, -N, -D), the safety barrier is not neccessary.
pH/ORP
Sensor
PH202SJ
pH/ORP Transmitter
BARD-800
PH201G
Safety Barrier
Distributor
SDBT
Distributor
*1
15
+
A(+)
1
A(+)
C
16
-
B(-)
2
B(-)
(CMN)D
13
G
3
J
Output Signal
(1 to 5V DC)
F
Output Signal
(1 to 5V DC)
H
12
WiringDia1s.EPS
1(+) (+)A
2(-)
(-)B
7
F
H
11
b
14
Ground *2
(100V or less)
Ground *2
(10V or less)
a
HOLD
d
c
f
Output Signal
(1 to 5V DC)
Output Signal
(1 to 5V DC)
e
FAIL WASH
*1: Use a 2-conductor shielded cable with an outside diameter of 6 to 12 mm. Shield must be connected to internal terminal G of transmitter
and left unconnected at the other side.
*2: Transmitter must be grounded using external terminal: for intrinsically safe version ground resistance of PH202SJ should be 100V or less
(Japanese Class D grounding). For safety barrier ground resistance should not exceed 10V (Japanese Class A grounding).
CAUTION
Grounding wire connection for PH202SJ is different from that for PH200S.
When installing PH202SJ as a replacement for PH200S,
grounding wire must be reconnected as above.
All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation
GS 12B07D02-E
8th Edition Feb.13.2008-00
14
<<Contents>> <<Index>>
Wiring Example for Electrode
General pH electrode
Special pH electrode
Box*1
Terminal
(WTB10-PH1 or BA10)
*2
15
PH8EFP
PH8ERP
PH8EHP
Terminal Box*1
(WTB10-PH2)
PH202
pH/ORP Transmitter
15
16
16
13
13
12
12
11
11
14
14
*2
15
HA405
HF405
DPA405
DPAS405
PH202
pH/ORP Transmitter
15
16
SA405
16
13
13
12
12
11
11
14
14
Note : Both "SE(14)" terminals of the pH detector is
connected to the "SE(14)" terminal of the PH202.
Nothing is connected to the "S(16)" terminal of the PH202.
Separate electrodes pH/Ref electrode
Combined pH/ref electrode
PH202
pH/ORP Transmitter
Green
*
Red
11 Temperature
Blue
Yellow
*
Red
Black
Red *
Red
PH202
pH/ORP Transmitter
Green
*
Blue
13 Reference
Blue
14 Solution ground
Black
Blue *
15 Glass (measure)
Blue
Red
12 Temperature
14 Solution ground
15 Glass (measure)
16 Shield
17 Shield
17 Shield
*
Cable markers
F9-2.EPS
pH
ref.
13 Reference
White
* Cable markers
temp
12 Temperature
Red
16 Shield
Blue
11 Temperature
temp
pH/ref.
*1 Terminal box is used only where pH/ORP transmitter is installed remotely from electrodes (normally not needed).
*2 This cable is specified in the option code for the terminal box (WTB10), or extension cable (WF10).
Special ORP electrode
General ORP electrode
Terminal Box*1
(WTB10-PH1 or BA10)
15
OR8EFG
OR8ERG
*2
15
16
16
13
13
12
13
12
12
11
11
11
11
14
14
14
14
Red
*
16
12
Black
Red
15
16
Combined ORP/Ref electrode
pH/ORP Transmitter
pH/ORP Transmitter
11 Temperature
11 Temperature
12 Temperature
12 Temperature
*
*2
15
HA485
DPA485
DPAS485
PH202
pH/ORP Transmitter
13
Separate electrodes ORP/Ref electrode
Yellow
Terminal Box*1
(WTB10-PH2)
PH202
pH/ORP Transmitter
Red
Blue
Blue
Blue
13 Reference
14 Solution ground
15 Metal (measure)
Blue
*
13 Reference
14 Solution ground
Red
15 Metal (measure)
White
16 Shield
16 Shield
17 Shield
17 Shield
*Cable markers
* Cable markers
Notes
1. A temperature sensor maybe
connected to 11 & 12, for
temperature indication.
ref.
ORP
ORP/ref
*1 Terminal box is used only where pH/ORP transmitter is installed remotely from electrodes (normally not needed).
*2 This cable is specified in the option code for the terminal box (WTB10), or extension cable (WF10).
All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation
GS 12B07D02-E
F9-2-1.EPS
8th Edition Feb.13.2008-00
15
<<Contents>> <<Index>>
Wiring of the PH20/FU20
pH/ORP Transmitter
pH (& ORP) WIRING DIAGRAM
11
12
Conventional pH (& ORP) wiring
Connect the PH20 or FU20 to the EXA or EXAxt PH analyzer
as shown. With this configuration, it is possible to measu re
ORP (or rH) at the same time.
13
(11)
(12)
(13)
(17)
14
15
16
(14)
(15)
(16)
pH/ORP Transmitter
ORP WIRING DIAGRAM with normal reference
11
12
13
Wiring for ORP measurement with normal r efe rence
Connect the PH20 or FU20 to the EXAPH analyzer as shown.
(11)
(12)
(13)
(17)
(14)
14
(15)
(16)
16
15
(Not used)
pH/ORP Transmitter
ORP WIRING DIAGRAM with pH sensor as reference
11
12
Wiring for ORP measurement with pH r eference
Connect the PH20 or FU20 to the EXA Glass PH analyzer as
shown.
15
16
(11)
(12)
(13)
(17)
(14)
14
(15)
(16)
13
(Not used)
To connect the other sensor systems, follow the general pattern of the terminal connections as listed below:
11 & 12
Temperature compensation resistor input
(= T1 and T2)
13
Input no. 2 (normally the reference element) = RE
17
Screen (shield) for input no. 2
14
Liquid earth (solution ground) connection
= SE or LE
15
Input no. 1 (normally the measuring element) = GE
16
Screen (shield) for input no. 1
= S or G
All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation
GS 12B07D02-E
8th Edition Feb.13.2008-00
16
<<Contents>> <<Index>>
Inquiry Specifications Sheet for 2-Wire pH/ORP (Redox) Transmitter System
Make inquiries by placing checkmarks (✔) in the pertinent boxes and filling in the blanks.
1. General
Company name;___________________________________
Contact person ;
Section;
Department;________________
Plant name ; ___________________________________
Measurement location ;_________________________________
Purpose of use ; u Indication, u Record, u Alarm, u Control
Power supply ;
V AC
Hz
2. Measurement Conditions
(1) Process temperature ;
(2) Process pressure ;
(3) Flow rate ;
(4) Flow speed ;
to
Normally
Normally
Normally
Normally
[8C]
[kPa]
[l/min]
[m/sec]
(5) Slurry or contaminants, u No, u Yes
(6) Name of process fluid ; ____________________________
(7) Composition of process fluid ; ____________________________
(8) Others ; ___________________________________
3. Installation Site
(1) Ambient temperature ; __________________ ___________
(2) Installation location, u Outdoors, u Indoors______________
(3) Others ;___________________________________
4. User Requirements
(1) Measuring range ;
u pH 0 to 14 u______________
(2) Transmission output ; u 4 to 20 mA DC
u HART® u PROFIBUS-PA u FOUNDATION Fieldbus H1
(3) System configuration selection ; u Electrode, u Holder, u pH/ORP Transmitter, u Cleaning system,
u Terminal box, u Accessories, u Safety Barrier
(4) Electrode cable length; u 3m u 5m u 7m u 10m u 15m u 20m u
m
(5) Electrode operating pressure; u 10 kPa or less, u Greater than 10 kPa
(6) Type of holder ;
u Guide pipe, u Submersion, u Flow-through, u Suspension, u Angled floating ball,
(7) Cleaning method ;
u Vertical floating ball
u No cleaning, u Ultrasonic cleaning, u Jet cleaning, u Brush cleaning
(8) Sample temperature ; u –5 to 1058C u –5 to 1008C u –5 to 808C
(9) Others ;___________________________________
All Rights Reserved. Copyright © 2000, Yokogawa Electric Corporation
Subject to change without notice
GS 12B07D02-E
8th Edition Feb.13.2008-00
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
