DeWalt DW087-XE Instruction manual

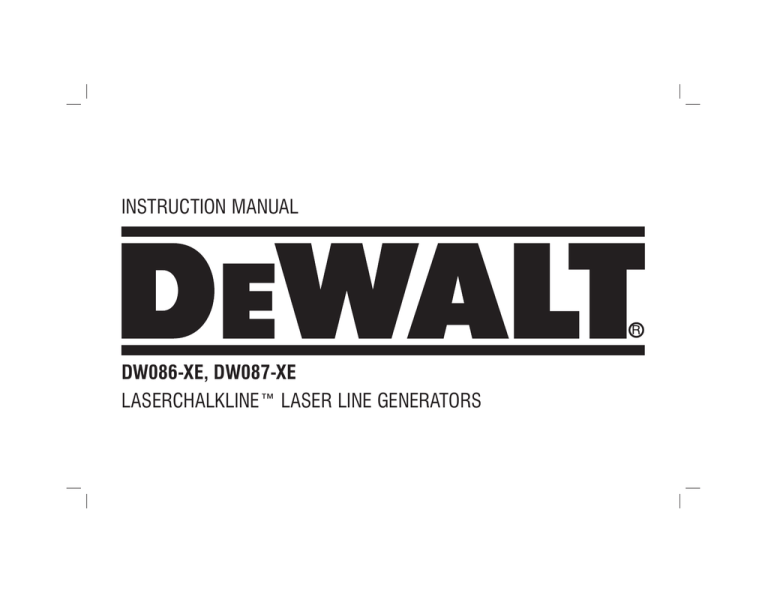

INSTRUCTION MANUAL
DW086-XE, DW087-XE
LASERCHALKLINE™ LASER LINE GENERATORS
SAVE THESE INSTRUCTIONS
Definitions: Safety Guidelines
WARNING! Laser Radiation Exposure. Do not disassemble or modify the laser
level. There are no user serviceable parts inside. Serious eye injury could result.
WARNING: Hazardous Radiation. Use of controls or adjustments or performance
of procedures other than those specified herein may result in hazardous radiation
exposure.
• Do not operate the laser in explosive atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools create sparks which may ignite
the dust or fumes.
• Use the laser only with the specifically designated batteries. Use of any other
batteries may create a risk of fire.
• Store idle laser out of reach of children and other untrained persons. Lasers
are dangerous in the hands of untrained users.
• Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one laser, may create a risk of injury
when used on another laser.
• Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel may result in injury. To locate
your nearest DeWALT service center call (AUS) 1800 654 155 or (NZ) 09 526
2556 or go to www.dewalt.com.au on the Internet.
• Do not use optical tools such as a telescope or transit to view the laser beam.
Serious eye injury could result.
• Do not place the laser in a position which may cause anyone to intentionally
or unintentionally stare into the laser beam. Serious eye injury could result.
• Turn the laser off when it is not in use. Leaving the laser on increases the risk
of staring into the laser beam.
• Do not disassemble the laser tool. There are no user serviceable parts inside.
• Do not modify the laser in any way. Modifying the tool may result in Hazardous
Laser Radiation Exposure.
• Do not operate the laser around children or allow children to operate the
laser. Serious eye injury may result.
• Do not remove or deface warning labels. Removing labels increases the risk of
exposure to radiation.
The definitions below describe the level of severity for each
signal word. Please read the manual and pay attention to
these symbols.
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury.
CAUTION: Used without the safety alert symbol indicates a
potentially hazardous situation which, if not avoided, may
result in property damage.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY DEWALT TOOL,
CALL US AT: 1800 654 155 (Aust) or 09 526 2556 (NZ).
SAFETY INSTRUCTIONS FOR POWER TOOLS
When using power tools, always observe the safety regulations applicable in your
country to reduce the risk of fire, electric shock and personal injury. Read the following
safety instructions before attempting to operate this product. Keep these instructions in
a safe place.
Safety Instructions for Lasers
WARNING! Read and understand all instructions. Failure to follow all
instructions listed below may result in electric shock, fire and/or serious
personal injury.
3
• Position the laser securely on a level surface. Damage to the laser or serious
injury could result if the laser falls.
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known to the State of California to
cause cancer, birth defects, or other reproductive harm. Some examples of these
chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber (CCA).
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as those dust masks that are specially
designed to filter out microscopic particles.
• Avoid prolonged contact with dust from power sanding, sawing, grinding,
drilling, and other construction activities. Wear protective clothing and wash
exposed areas with soap and water. Allowing dust to get into your mouth, eyes,
or lay on the skin may promote absorption of harmful chemicals.
WARNING: Use of this tool can generate and/or disburse dust, which may cause
serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved
respiratory protection appropriate for the dust exposure. Direct particles away from
face and body.
• The label on your tool may include the following symbols.
V ................................... volts
mW ............................... milliwatts
................... laser warning symbol
nm ................................. wavelength in nanometers
II .................................... Class II Laser
IIIa ................................. Class IIIa Laser
tool will operate on alternating current. As little as 10% lower voltage can cause loss
of power and can result in overheating. All DEWALT tools are factory tested; if this
tool does not operate, check the power supply. Your DEWALT tool is double insulated,
therefore no earth wire is required.
• Young children and the infirm. This appliance is not intended for use by young
children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with this appliance.
• Replacement of the supply cord. If the supply cord is damaged, it must be
replaced by the manufacturer or an authorised DeWALT Service Centre in order
to avoid a hazard.
Electrical Safety
The DW086-XE and DW087-XE LaserChalkLine™ Laser Line Generators are Class II
laser products and comply with 21 CFR 1040.10 and 1040.11 except for deviations
pursuant to laser notice No. 50, dated July 26, 2001.
Extension Cords
CAUTION: Use only extension cords that are approved by the country’s Electrical
Authority. Before using extension cords, inspect them for loose or exposed wires,
damaged insulation and defective fittings. Replace the cord if necessary.
WARNING LABELS
For your convenience and safety, the following label is on your laser.
CAUTION: LASER RADIATION - DO NOT STARE INTO THE LASER BEAM.
CLASS II LASER PRODUCT.
CAUTION: CLASS 2 LASER RADIATION WHEN OPEN DO NOT STARE INTO
THE BEAM.
Laser Information
The electric motor has been designed for one voltage only. Always check that the
power supply corresponds to the voltage on the rating plate. 230 V AC means your
4
INTRODUCTION
The DW086-XE and DW087-XE lasers are self-leveling laser tools that can be used
inside and outside for horizontal (level) and vertical (plumb, DW087-XE model only)
alignment projects.
WARNING: Batteries can explode, or leak, and can cause injury or fire. To
reduce this risk:
• Carefully follow all instructions and warnings on the battery label
and package.
• Always insert batteries correctly with regard to polarity (+ and –), marked
on the battery and the equipment.
• Do not short battery terminals.
• Do not charge batteries.
• Do not mix old and new batteries. Replace all of them at the same time with
new batteries of the same brand and type.
• Remove dead batteries immediately and dispose of per local codes.
• Do not dispose of batteries in fire.
• Keep batteries out of reach of children.
• Remove batteries if the device will not be used for several months.
General Safety Rules For Battery Operated Tools
WARNING! Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire
and/or serious personal injury.
WORK AREA
• Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases, or dust. Power tools create sparks which may
ignite the dust or fumes.
• Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
–
FIG. 1
• Use battery operated tool only with
A
the specifically designed batteries.
Use of any other batteries may create a
risk of fire.
Battery
+
+
This tool is powered by three 1.5V AA size
batteries.
To install batteries:
1. Lift up the battery compartment cover
(A) as shown in Figure 1.
2. Insert three fresh AA batteries in the
compartment, placing the batteries
according to (+) and (–) on the inside
of the battery door.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating
a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may
result in serious personal injury.
• Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep
your hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught in moving parts. Air vents often cover moving
parts and should also be avoided.
• Do not overreach. Keep proper footing and balance at all times. Proper footing
and balance enables better control of the tool in unexpected situations.
• Use safety equipment. Always wear eye protection. Dust mask, non-skid safety
shoes, hard hat, or hearing protection must be used for appropriate conditions.
TOOL USE AND CARE
• Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.
• Store idle tools out of reach of children and other untrained persons. Tools are
dangerous in the hands of untrained users.
5
• Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool, may become hazardous
when used on another tool.
SERVICE
• Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel could result in a risk of injury.
• When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or
failure to follow Maintenance Instructions may create a risk of electric shock or
injury.
To locate your nearest DEWALT service center call (AUS) 1800 654 155 or (NZ) 09
526 2556 or go to www.dewalt.com.au on the Internet.
continue to drain, but the beam(s) will quickly dim. After fresh batteries are installed
and the laser is turned on again, the laser beam(s) will return to full brightness and the
red indicator light will stay off. (A flashing laser beam is not caused by low batteries;
see Out of Tilt Range Indicator.)
FIG. 2
DW086-XE
B
DW087-XE
B
Operating Tips
• Use only new, high-quality, name brand batteries for best results.
• Ensure batteries are in good working condition. If the low battery red indicator
light is flashing, the batteries need replacement.
• To extend battery life, turn laser off when not working with or marking the beam.
• To ensure the accuracy of your work, check to make sure your laser is calibrated
often. See Field Calibration Check.
• Before attempting to use the laser, make sure it is positioned securely, on a
smooth, flat surface.
• Always mark the center of the beam created by the laser.
• Extreme temperature changes may cause movement of internal parts that can
affect accuracy. Check your accuracy often while working. See Field Calibration
Check.
• If the laser has been dropped, check to make sure your laser is still calibrated.
See Field Calibration Check.
LOW BATTERY INDICATION
The DW086-XE and DW087-XE lasers are equipped with a red indicator light (B),
as shown in Figure 2. The red indicator lights are located to the left of the ON/OFF
buttons (C, D).
A flashing red indicator light indicates that the batteries are low and need to be
replaced. The laser may continue to operate for a short time while the batteries
C
C
D
OPERATION
To Turn the Lasers On and Off (Fig. 2)
DW086-XE: With the laser off, place it on a flat surface. Press the ON/OFF button (C)
to power the laser on. The laser will turn on and project a horizontal laser line. Press
the ON/OFF button again to turn the laser line off.
DW087-XE: With the laser off, place it on a flat surface. This model has two ON/OFF
buttons, one for a horizontal laser line (C) and one for a vertical laser line (D). Each
laser line is powered on by pressing its ON/OFF button. The laser lines can be powered one at a time or at the same time. Pressing the ON/OFF buttons again turns the
laser lines off.
Using the Lasers
The beams are level or plumb as long as the calibration has been checked (see
Field Calibration Check) and the laser beam is not flashing (see Out of Tilt Range
Indicator).
6
FIG. 3
FIG. 4
FIG. 5
DW0860
E
H
F
F
FLASHING
G
H
DW0860
>4° {
AVERAGE
FLASHING
OUT OF TILT RANGE INDICATOR (FIG. 3, 4)
The DW086-XE and DW087-XE lasers are designed to self-level. If the laser has been
tilted so much that it cannot level itself (average > 4° tilt), it will flash the laser beam
(Fig. 4). The flashing beam indicates the tilt range has been exceeded and IS NOT
LEVEL (OR PLUMB) AND SHOULD NOT BE USED FOR DETERMINING OR MARKING
LEVEL (OR PLUMB). Try repositioning the laser on a more level surface.
USING THE LASERS WITH ACCESSORIES
The lasers are equipped with a 1/4" x 20 female thread on the bottom of the unit. This
thread is to accommodate current or future DEWALT accessories. Only use DEWALT
accessories specified for use with this product. Follow the directions included with the
accessory.
CAUTION: The use of any other accessory not recommended for use with this tool
could be hazardous.
If you need any assistance in locating any accessory, please contact DEWALT
Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286 or call (AUS) 1800
654 155 or (NZ) 09 526 2556. See our catalog on the World Wide Web at www.
dewalt.com.au.
USING THE PIVOT BRACKET (FIG. 5)
The DW086-XE and DW087-XE lasers have a magnetic pivot bracket (E) permanently
attached to the units. This bracket allows the unit to be mounted to any upright
surface made of steel or iron. Common examples of suitable surfaces include steel
framing studs, steel door frames and structural steel beams. The bracket also has a
keyhole slot (F) allowing the unit to be hung from a nail or screw on any kind of surface. Position the laser and/or wall mount on a stable surface. Serious personal injury
or damage to the laser may result if the laser falls.
USING THE LASER WITH THE WALL MOUNT (FIG. 5)
The DW0860 Laser Wall Mount offers more mounting options for the DW086-XE and
DW087-XE lasers. The wall mount has a clamp (G) at one end which can be fixed to a
wall angle for acoustic ceiling installation. At the other end of the wall mount is a screw
7
hole (H), allowing the wall mount to be attached to any surface with a nail or screw.
Once the wall mount is secured, its steel plate provides a surface to which the
magnetic pivot bracket can be attached. The position of the laser can then be
fine-tuned by sliding the pivot bracket up or down on the wall mount.
LEVELING THE LASERS
As long as the DW086-XE and DW087-XE lasers are properly calibrated, the lasers
are self-leveling. Each laser is calibrated at the factory to find level as long as it is
positioned on a flat surface within average ± 4° of level. No manual adjustments must
be made.
Step 4
FIG. 6
Step 2
MAINTENANCE
Step 2
• To maintain the accuracy of your work, check the laser often to make sure it is
properly calibrated. See Field Calibration Check.
• Calibration checks and other maintenance repairs may be performed by DEWALT
service centers.
• When not in use, store the laser in the kit box provided. Do not store your laser at
temperatures below -20˚C (-5˚F) or above 60˚C (140˚F).
• Do not store your laser in the kit box if the laser is wet. The laser should be dried
first with a soft dry cloth.
b
a
45˚
90˚
Step 3
Step 3
Step 1
2. Turn on the laser’s horizontal beam and pivot the laser approximately 45˚
so that the right-most end of the laser line is striking the opposing wall at
a distance of at least 9 m (30'). Mark the center of the beam (a).
3. Pivot the laser approximately 90˚ to bring the left-most end of the laser line
around to the mark made in Step 2. Mark the center of the beam (b).
4. Measure the vertical distance between the marks.
5. If the measurement is greater than the values shown below, the laser must be
serviced at an authorized service center.
Distance
Allowable Distance
Between Walls
Between Marks
9 m (0')
3.0 mm (1/8")
12 m (40')
4.0 mm (5/32")
15 m (50')
5.0 mm (7/32")
Cleaning
Exterior plastic parts may be cleaned with a damp cloth. Although these parts are
solvent resistant, NEVER use solvents. Use a soft, dry cloth to remove moisture from
the tool before storage.
Field Calibration Check
CHECKING ACCURACY – HORIZONTAL BEAM, SCAN DIRECTION (FIG. 6)
Checking the horizontal scan calibration of the laser requires two walls 9 m (30')
apart. It is important to conduct a calibration check using a distance no shorter than
the distance of the applications for which the tool will be used.
1. Attach the laser to a wall using its pivot bracket. Make sure the laser is facing
straight ahead.
CHECKING ACCURACY – HORIZONTAL BEAM, PITCH DIRECTION (FIG. 7)
Checking the horizontal pitch calibration of the laser requires a single wall at least 9 m
(30') long. It is important to conduct a calibration check using a distance no shorter
than the distance of the applications for which the tool will be used.
8
FIG. 7
Step 1, 2
9m (30')
c
d
Step 3
Step 3
Steps 4, 5
c
Step 8
e
d
Step 6
Step 7
1. Attach the laser to one end of a wall using its pivot bracket.
2. Turn on the laser’s horizontal beam and pivot the laser toward the opposite end
of the wall and approximately parallel to the adjacent wall.
3. Mark the center of the beam at two locations (c, d) at least 9 m (30') apart.
4. Reposition the laser to the opposite end of the wall.
5. Turn on the laser’s horizontal beam and pivot the laser back toward the first end
of the wall and approximately parallel to the adjacent wall.
6. Adjust the height of the laser so that the center of the beam is aligned with the
nearest mark (d).
7. Mark the center of the beam (e) directly above or below the farthest mark (c).
8. Measure the distance between these two marks (c, e).
9. If the measurement is greater than the values shown below, the laser must be
serviced at an authorized service center.
Distance
Between Walls
9 m (30')
12 m (40')
15 m (50')
Allowable Distance
Between Marks
6.0 mm (1/4")
8.0 mm (5/16")
10.0 mm (13/32")
CHECKING ACCURACY – VERTICAL BEAM (DW087-XE MODEL ONLY)
Checking the vertical (plumb) calibration of the laser can be most accurately done
when there is a substantial amount of vertical height available, ideally 9 m (30'), with
one person on the floor positioning the laser and another person near a ceiling to
mark the position of the beam. It is important to conduct a calibration check using
a distance no shorter than the distance of the applications for which the tool will be
used (Fig. 8).
1. Start by marking a 1.5 (5') line on the floor.
9
Step 4
Step 7
7. Measure the distance between these two marks.
8. If the measurement is greater than the values shown
below, the laser must be serviced at an authorized
service center.
Step 6
g
FIG. 8
f
Ceiling
Height
2.5 m (8')
3.0 m (10')
4.0 m (14')
6.0 m (20')
9.0 m (30')
g
f
Allowable Distance
Between Marks
3.5 mm (5/32")
4.5 mm (3/16")
6.0 mm (1/4")
9.0 mm (3/8")
13 mm (1/2")
Troubleshooting
THE LASER DOES NOT TURN ON
• Make sure batteries are installed according to (+) and
(–) on the inside of the battery door.
• Make sure the batteries are in proper working condition.
If in doubt, try installing new batteries.
Step 5
• Make sure that the battery contacts are clean and free
of rust or corrosion. Be sure to keep the laser level dry
and use only new, high-quality, name brand batteries to
reduce the chance of battery leakage.
• If the laser unit is heated above 50˚C (120˚F), the unit will
not turn on. If the laser has been stored in extremely hot
temperatures, allow it to cool. The laser level will not be
damaged by pressing the on/off button before cooling to
its proper operating temperature.
THE LASER BEAMS FLASH
The DW086-XE and DW087-XE have been designed to self-level up to an average
of 4° in all directions when positioned as shown in Figure 3. If the laser is tilted so
much that internal mechanism cannot level itself, it will flash the laser (Fig. 4) – the
tilt range has been exceeded. THE FLASHING BEAMS CREATED BY THE LASER
ARE NOT LEVEL OR PLUMB AND SHOULD NOT BE USED FOR DETERMINING OR
MARKING LEVEL OR PLUMB. Try repositioning the laser on a more level surface.
Steps 2, 3
1.5 m (5')
Step 1
2. Turn on the laser’s vertical beam and position the unit at one end of the line,
facing the line.
3. Adjust the unit so its beam is aligned and centered on the line on the floor.
4. Mark the position of the laser beam on the ceiling (f). Mark the center of the
laser beam directly over the midpoint of the line on the floor.
5. Reposition the laser at the other end of the line on the floor. Adjust the unit once
again so its beam is aligned and centered on the line on the floor.
6. Mark the position of the laser beam on the ceiling (g), directly beside the first
mark (f).
10
This warranty does not apply to
• Accessories
• Damage caused where repairs have been made or attempted by others.
• Damage due to misuse, neglect, wear and tear, alteration or modification.
This warranty gives you specific legal rights and you may have other rights under the
provisions of the Consumer Guarantee Act 1993 (New Zealand only), Trade Practices
Act 1974 and State Legislation (Australia only).
In addition to the warranty, DEWALT tools are covered by our:
FREE ONE YEAR SERVICE CONTRACT
DEWALT will also maintain the tool for free at any time during the first year of purchase.
This includes labour, parts and lubrication required to restore the product to sound
mechanical and/or electrical condition. Normal wear parts are not covered in this
service. Carbon brushes worn more then 50% will be replaced.
NOTE: Three Year Warranty is not applicable to items deemed as consumables. Radial
arm saws are covered by a one (1) year warranty only. DEWALT Reserves the right to
review its warranty policy prior to launch of any new business development products.
30 DAY NO SATISFACTION GUARANTEE
If you are dissatisfied with any DEWALT power tool, laser or nailer, for any reason,
simply return it to the point of purchase with your sales receipt within 30 days for a
replacement unit or a full refund.
FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are
missing, call (AUS) 1800 654 155 or (NZ) 09 526 2556 for a free replacement.
THE LASER BEAMS WILL NOT STOP MOVING
The DW086-XE and DW087-XE are precision instruments. Therefore, if the laser is not
positioned on a stable (and motionless) surface, the laser will continue to try to find
level. If the beam will not stop moving, try placing the laser on a more stable surface.
Also, try to make sure that the surface is relatively flat, so that the laser is stable.
Light Source
Laser Wavelength
Laser Power
Working Range
Accuracy (Plumb)
Accuracy (Level)
Indicators
Power Source
Operating Temperature
Storage Temperature
Environmental
SPECIFICATIONS
Semiconductor laser diode
630 – 680nm Visible
<1mw (each beam) CLASS II LASER PRODUCT
30m (±100')
±6 mm per 9 m (± 1/4" per 30')
±3 mm per 9 m (± 1/8" per 30')
Flashing Indicator: battery low
Flashing Laser: tilt range exceeded
3 AA (1.5V) size batteries (4.5V DC)
-10°C to 45°C (20°F to 115°F)
-20°C to 60°C (-5°F to 140°F )
Water Resistant
Service and Repairs
NOTE: Disassembling the laser level will void all warranties on the product.
To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment
should be performed by authorized service centers. Service or maintenance performed
by unqualified personnel may result in a risk of injury. To locate your nearest DEWALT
service center call (AUS) 1800 654 155 or (NZ) 09 526 2556 or go to www.dewalt.
com.au on the Internet.
Guarantee
Applicable to hand held Power Tools, Lasers and Nailers.
Three Year Limited Warranty
DEWALT will repair, without charge, any defects due to faulty materials or workmanship
for three years from the date of purchase. Please return the complete unit, transportation
prepaid, to any DEWALT Service Centre, or any authorised service station.
For warranty repair information, call (AUS) 1800 654 155 or (NZ) 09 526 2556.
Patents Pending.
11
DEWALT Industrial Tool Co.,
701 East Joppa Road, Baltimore, MD 21286 • 20 Fletcher Road, Mooroolbark, VIC 3138 Australia
(SEP06)
Form No. 647869-00
DW086-XE, DW087-XE
Copyright © 2006 DEWALT
The following are trademarks for one or more DEWALT power tools: the yellow and black color scheme; the “D” shaped air intake grill; the array of pyramids on the handgrip; the kit box
configuration; and the array of lozenge-shaped humps on the surface of the tool.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
