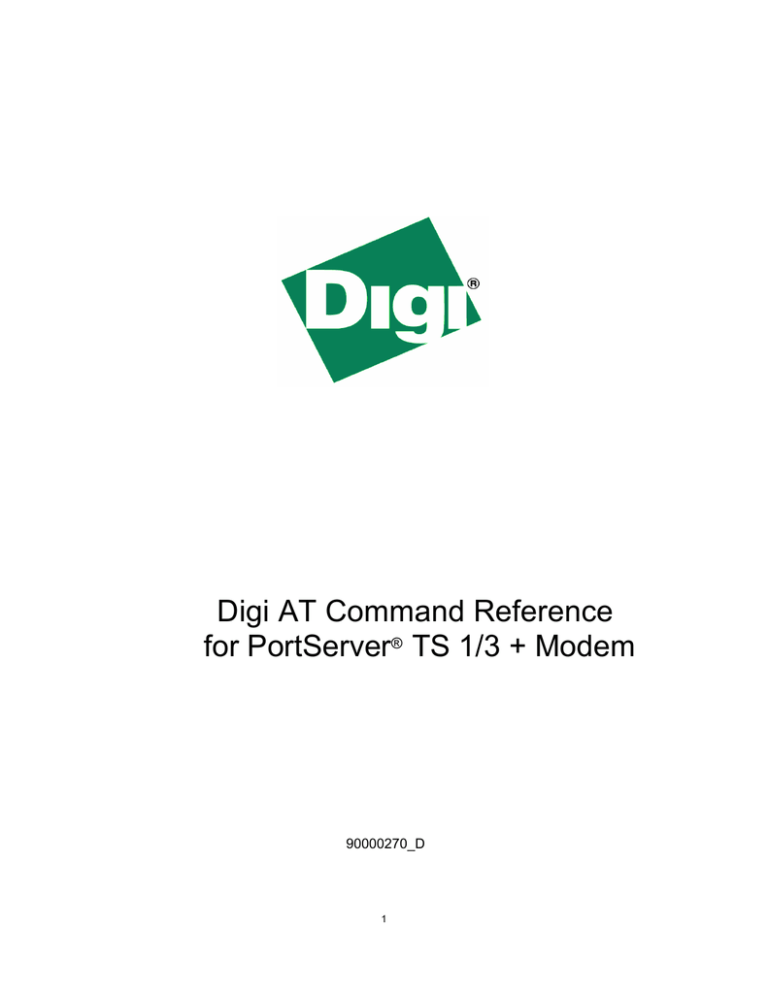

Digi AT Command Reference
for PortServer® TS 1/3 + Modem
90000270_D
1
&RS\ULJKW
© Digi International Inc., 2011. All Rights Reserved.
The Digi logo and ConnectPort are registered trademarks of Digi International.
All other brand and product names are trademarks of their respective holders.
Information in this document is sub ject to change without notice and does not
represent a commitment on the part of Digi International. Digi provides this document “as is”,
without warranty of any kind, either expressed or implied, including, but not limited to,
the implied warranties of fitness or merchantability for a particular purpose. Digi may make
improvements and/or changes in this manual or in the product(s) and/or the program(s)
described in this manual at any time. This product could include technical inaccuracies
or typographical errors. Changes are periodically made to the information herein;
these changes may be incorporated in new editions of the publication.
&RUSRUDWH+HDGTXDUWHUV Digi International
11001 Bren Road East
Minnetonka, Minnesota 55343 USA
Phone: (952) 912-3444 or (877) 912-3444
Fax: (952) 912-4952
'LJL7HFKQLFDO6XSSRUW
If you encounter technical problems installing or using this product, your first line of support is
to contact your solution provider for technical assistance.
For self- help, visit the Digi support site at http://support.digi.com for drivers,
firmware upgrades, cable information, documentation, FAQs, and knowledgebase articles.
2
Contents
Chapter 1 – Introduction ...................................................................................................................5
Overview......................................................................................................................................5
Command Syntax ...................................................................................................................5
Command Descriptions ...........................................................................................................5
Chapter 2 – Syntax and Procedures .................................................................................................6
Alphabet ......................................................................................................................................6
DTE Commands Lines ..................................................................................................................6
Command Line General Format ...............................................................................................6
Command Line Editing ............................................................................................................7
Command Line Echo ..............................................................................................................7
Repeating a Command Line ....................................................................................................7
Types of DTE Commands .......................................................................................................7
Basic Syntax Commands ..............................................................................................................8
Basic Syntax Command Format ...............................................................................................8
Parameters ............................................................................................................................8
Extended Syntax Commands ........................................................................................................9
Command Naming Rules ........................................................................................................9
Values ...................................................................................................................................9
Action Commands ................................................................................................................10
Parameter Commands ..........................................................................................................11
Additional Syntax Rules ........................................................................................................12
Issuing Commands .....................................................................................................................13
Executing Commands .................................................................................................................13
Aborting Commands .............................................................................................................13
Handling of Invalid Numbers and S -Parameter Values ............................................................13
Modem Responses .....................................................................................................................14
Responses ...........................................................................................................................14
Extended Syntax Result Codes .............................................................................................14
+<name>: <compound_value>Information Text Formats for Test Commands ...........................15
Chapter 3 – Data Command Set......................................................................................................17
Command Guidelines.................................................................................................................. 17
Escape Code Sequence........................................................................................................ 17
Data Commands ......................................................................................................................... 17
Generic Modem Control Commands ...................................................................................... 17
DTE-Modem Interface Commands ......................................................................................... 24
Call Control Commands ........................................................................................................32
Modulation Control Commands ..............................................................................................40
Error Control Commands .......................................................................................................43
Data Compression Commands .............................................................................................. 48
V.8/V.8bis Commands ..........................................................................................................51
Diagnostic Commands ..........................................................................................................52
Compatibility Commands....................................................................................................... 57
FastConnect Commands ....................................................................................................... 58
S-Parameters ............................................................................................................................. 58
Factory Defaults ................................................................................................................... 59
S-Parameters Definitions.......................................................................................................61
Result Codes ..............................................................................................................................70
Chapter 4 – Fax Class 1 and Class 1.0 Commands ......................................................................... 75
Fax I/O Processing ..................................................................................................................... 75
3
DTE-to-Modem Transmit Data Stream ................................................................................... 75
Modem-to-DTE Receive Data Stream .................................................................................... 75
Fax Mode Selection .............................................................................................................. 76
Fax Origination ..................................................................................................................... 76
Fax Answering...................................................................................................................... 76
Fax Control Transmission ...................................................................................................... 76
Fax Control Reception .......................................................................................................... 77
Fax Data Transmission ......................................................................................................... 78
Fax Data Reception .............................................................................................................. 78
Commands and Parameters ........................................................................................................ 79
Mode Entry Commands ......................................................................................................... 79
Mode Commands ................................................................................................................. 79
Service Class 1 Parameters ..................................................................................................82
Examples ................................................................................................................................... 86
Chapter 6 – Voice Commands.........................................................................................................88
Voice Commands Overview ........................................................................................................88
<DLE> Shielded Event Codes Sent to the DTE .......................................................................89
<DLE> Shielded Codes Sent to the Modem (DCE) .................................................................90
Voice Commands .......................................................................................................................91
Configuration Commands ......................................................................................................91
Voice Commands .................................................................................................................92
Speakerphone Commands .................................................................................................. 102
4
Digi AT Command Reference
Chapter 1 – Introduction
Chapter 1 – Introduction
Overview
This manual describes the host command and responses for embedded modems.
The commands and responses are implemented in controller firmware for specific modem models.
Additional configuration and implementation information is available in release notes and/or readme files
that accompany product firmware releases.
The descriptions in this manual apply to all commands and parameters that may be supported by
different modem models.
Command Syntax
The fundamental DTE interface command syntax is described in Chapter 2.
Command Descriptions
Commands are grouped into the following categories:
Syntax and procedures Chapter 2
Data commands Chapter 3
Fax Class 1 and Fax Class 1.0 commands Chapter 4
Voice/Audio commands Chapter 5
5
Digi AT Command Reference
Chapter 2 – Syntax and Procedures
Chapter 2 – Syntax and Procedures
The command and response syntax and procedures generally conform to referenced recommendations
and standards. Since these recommendations and standards describe characteristics universal to a large
installed base of modems to a maximum degree, there may be syntax and procedural differences due to
extensions and behavioral differences in implemented commands, parameters, and responses beyond
that described in these recommendations and standards.
The syntax and procedures described in this section are based on V.250 and V.253 with additional
information included for implemented extensions, behavioral differences beyond V.250, and legacy
commands.
Alphabet
The T.50 International Alphabet 5 (IA5) is used in this document. Only the low-order seven bits of each
character are significant to the modem; any eighth or higher-order bit(s), if present, are ignored for the
purpose of identifying commands and parameters.
Lowercase characters are considered identical to their uppercase equivalents when received by the
modem from the DTE. Result codes from the modem are in uppercase.
DTE Command Line
Words enclosed in <angle brackets> are references to syntactical elements. The brackets are not
used when the words appear in a command line. Words enclosed in [square brackets] represent
optional items, which may be omitted from the c ommand line at the specified point. The square
brackets are not used when the words appear in the command line. Other characters that appear in
syntax descriptions must as included as shown.
Any modem responses are mentioned in terms of their alphabetic fo rmat; the actual response issued
will depend on the setting of parameters that affect response formats, e.g., Q and V commands.
Command Line General Format
A command line is made up of three elements: the prefix, the body, and the termination character.
The command line prefix consists of the characters "AT" or "at" or, to repeat the execution of the
previous command line, the characters "A/" or "a/".
The body is made up of individual commands described in this document. Space characters (IA5 2/0)
are ignored and may be used freely for formatting purposes, unless they are embedded in numeric or
string constants. The termination character may not appear in the body. The modem can accept at
least 50 characters in the body.
The termination character may be selected by a user option (parameter S3), the default being CR.
6
Digi AT Command Reference
Chapter 2 – Syntax and Procedures
Command Line Editing
The character defined by parameter S5 (default, BS) is interpreted as a request from the DTE to the
modem to delete the previous character. Any control characters (IA5 0/0 th rough 1/15, inclusive) that
remain in the command line after receipt of the termination character are ignored by the modem.
The modem checks characters from the DTE (first) then the editing character (S5), before checking
for other characters to see if the y match the termination character (S3). This ensures that these
characters will be properly recognized even if they are set to values that the modem uses for other
purposes. If S3 and S5 are set to the same value, a matching character will be treated as matching
S3 (S3 is checked before S5).
Command Line Echo
The modem may echo characters received from the DTE during command state and online command
state back to the DTE, depending on the setting of the E command. If enabled, characters received
from the DTE are echoed in the same format as received. Invalid characters in the command line or
incomplete or improperly formed command line prefixes may not be echoed.
Repeating a Command Line
If the prefix "A/" or "a/" is received, the modem immediately executes once again the body of the
preceding command line. No editing is possible, and no termination character is necessary. A
command line may be repeated multiple times in this manner. Responses to the repeated command
line are issued using format of the original command line. If "A/" is received before any command line
has been executed, the preceding command line is assumed to have been empty (that results in an
OK result code).
Types of DTE Commands
There are two types of commands: action commands and paramet er commands. Commands of
either type may be included in command lines, in any order.
Action commands may be "executed" (to invoke a particular function of the equipment, which
generally involves more than the simple storage of a value for later use), or "tested" (to determine
whether or not the equipment implements the action command, and, if sub-parameters are associated
with the action, the ranges of sub-parameter values that are supported).
Parameters may be "set" (to store a value or values for later use), "read" (to determine the current
value or values stored), or "tested" (to determine whether or not the equipment implements the
parameter, and the ranges of values supported).
7
Digi AT Command Reference
Chapter 2 – Syntax and Procedures
Basic Syntax Commands
Basic Syntax Command Format
The format of Basic Syntax commands, except for the D and S commands, is as follows:
<command>[<number>]
where <command> is either a single character, or the "&" character followed by a single character per
V.250. In addition, <command> can be the "%" character followed by a single character, the "*"
character followed by a single character, or the "^" character followed by a single character.
<number> may be a string of one or more characters from "0" through "9" representing a decimal
integer value. Commands that expect a < number> are noted in the description of the command. If a
command expects <number> and it is missing (<command> is immediately followed in the command
line by another <command> or the termination character), the value "0" is assumed. If a command
does not expect a <number> and a number is present, an ERROR is generated. All leading "0"s in
<number> are ignored by the modem.
Additional commands may follow a command (and associated parameter, if any) on the same
command line without any character required fo r separation. The actions of some commands cause
the remainder of the command line to be ignored (e.g., A).
See the D command for details on the format of the information that follows it.
Parameters
Commands that begin with the letter "S" are known as "S-parameters". The number following the "S"
indicates the "parameter number" being referenced. If the number is not recognized as a valid
parameter number, an ERROR result code is issued.
Immediately following this number, either a "?" or "=" character must appear. "?" is used to read the
current value of the indicated S-parameter; "=" is used to set the S-parameter to a new value.
S<parameter_number>?
S<parameter_number>=[<value>]
If the "=" is used, the new value to be stored in the S-parameter is specified in decimal following the
"=". If no value is given (i.e., the end of the command line occurs or the next command follows
immediately), the S-parameter specified may be set to 0, or an ERROR result code issued and the
stored value left unchanged. The ranges of acceptable values are given in the description of each
S-parameter.
If the "?" is used, the modem transmits a single line of information text to the DTE. The text portion of
this information text consists of exactly three characters, giving the v alue of the S-parameter in
decimal, with leading zeroes included.
8
Digi AT Command Reference
Chapter 2 – Syntax and Procedures
Extended Syntax Commands
Command Naming Rules
Both actions and parameters have names, which are used in the related commands. Names always
begin with the character "+". Following the "+", from one to 16 additional characters appear in the
command name. These characters will be selected from the following set:
A through Z
(IA5 4/1 through 5/10)
0 through 9
(IA5 3/0 through 3/9)
!
(IA5 2/1)
%
(IA5 2/5)
(IA5 2/13)
.
(IA5 2/14)
/
(IA5 2/15)
:
(IA5 3/10)
_
(IA5 5/15)
The first character following the "+" is an alphabetic character in the range of "A" through "Z". This
first character generally implies the application in which a command is used (e.g., F for Fax or V for
voice). The modem considers lowercase characters to be the same as their uppercase equivalents.
Values
When sub parameters are associated with the execution of an action, or when setting a parameter,
the command may include specification of values. This is indicated by the appearance of <value> in
the descriptions below.
<value> consists of either a numeric constant or a string constant.
Numeric Constants
Numeric constants are expressed in decimal, hexadecimal, or binary.
Decimal numeric constants consist of a sequence of one or more of the characters "0" through
"9", inclusive.
Hexadecimal numeric constants consist of a sequence of one or more of the characters "0"
through "9", inclusive, and "A" through "F" inclusive. The characters "A" through "F" represent the
equivalent decimal values 10 through 15.
Binary numeric constants consist of a sequence of one or more of the characters "0" and "1".
In all numeric constants, the most significant digit is specified first. Leading "0" characters are
ignored by the modem. No spaces, hyphens, periods, commas, parentheses, or other
generally-accepted numeric formatting characters are permitted in numeric constants; note in
particular that no "H" suffix is appended to the end of hexadecimal constants.
String Constants
String constants consist of a sequence of displayable IA5 characters, each in the range from 2/0
to 7/15, inclusive, except for the characters ‘"’ (IA5 2/2) and " \" (IA5 5/12). String constants are
bounded at the beginning and end by the double -quote character (‘"’, IA5 2/2).
Any character value may be included in the string by representing it as a backslash (" \") character
followed by two hexadecimal digits. For example, " \0D" is a string consisting of the single
character <CR> (IA5 0/13). If the " \" character itself is to be represented in a string, it is encoded
as "\5C". The double -quote character, used as the beginning and ending string delimiter, is
represented within a string constant as " \22".
A "null" string constant, or a string constant of zero length, is represe nted by two adjacent
delimiters ("").
9
Digi AT Command Reference
Chapter 2 – Syntax and Procedures
Compound Values
Actions may have more than one sub-parameter associated with them, and parameters may have
more than one value. These are known as "compound values", and their treatment is the same in
both actions and parameters.
A compound value consists of any combination of numeric and string values (as defined in the
description of the action or parameter). The comma character must be included as a separator,
before the second and all subsequent values in the compound value. If a value is not specified
(i.e., defaults assumed), the required comma separator must be specified; however, trailing
comma characters may be omitted if all associated values are also omitted.
Action Commands
Action Execution Command Syntax
There are two general types of action commands: those that have associated sub-parameter
values that affect only that invocation of the command, and those that have no sub-parameters.
If sub-parameters are associated with a command, the definition of the act ion command
indicates, for each sub-parameter, whether the specification of a value for that sub-parameter is
mandatory or optional. For optional sub-parameters, the definition indicates the assumed (default)
value for the sub-parameter if no value is specified for that sub-parameter; the assumed value
may be either a previous value (i.e., the value of an omitted sub-parameter remains the same as
the previous invocation of the same command, or is determined by a separate parameter or other
mechanism), or a fixed value (e.g., the value of an omitted sub-parameter is assumed to be zero).
Generally, the default value for numeric sub-parameters is 0, and the default value for string
sub-parameters is "" (empty string).
The following syntax is used for actions that have no sub-parameters:
+<name>.
The following syntax is used for actions that have one sub-parameter:
+<name>[=<value>]
The following syntax is used for actions that have two or more sub-parameters:
+<name>[=<compound_value>]
For actions that accept sub-parameters, if all sub-parameters are defined as being optional, and
the default values for all sub-parameters are satisfactory, the data terminal equipment (DTE) may
use the first syntax above (i.e., omit the "=" from the action execution command as well as all of
the sub-parameter value string).
If all other relevant criteria are met (e.g., the modem is in the proper state), the command is
executed with any indicated sub-parameters. If <name> is not recognized, the modem issues the
ERROR result code and terminates processing of the command line. An ERROR is also
generated if a sub-parameter is specified for an action that does not accept sub-parameters, if too
many sub-parameters are specified, if a mandatory sub-parameter is not specified, if a value is
specified of the wrong type, or if a value is specified that is not within the supported range.
Action Test Command Syntax
The DTE may test if an action command is implemented in the modem by using the syntax:
+<name>=?
If the modem does not recognize the indicated name, it returns an ERROR result code and
terminates processing of the command line. If the modem does recognize the action name, it
returns an OK result code. If the named action accepts one or more sub-parameters, the modem
sends an informatio n text response to the DTE, prior to the OK result code, specifying the values
supported by the modem for each such sub-parameter, and possibly additional information. The
format of this information text is defined for each action command.
10
Digi AT Command Reference
Chapter 2 – Syntax and Procedures
Parameter Commands
Parameter Types
Parameters are defined as "read-only" or "read -write". "Read-only" parameters are used to
provide status or identifying information to the DTE, but cannot be set by the DTE; attempting to
set their value is an error. In some cases (specified in the description of the individual parameter),
the modem may ignore attempts to set the value of such parameters rather than respond with an
ERROR result code, if the continued correct operation of the interface between the modem and
DTE will not be affected by such action. Read -only parameters may be read and tested.
"Read-write" parameters can be set by the DTE, to store a value or values for later use.
Read-write parameters can be set, read, and tested.
Parameters can take either a single value , or multiple (compound) values. Each value can be
either numeric or string; the definition of the parameter will specify the type of value for each
sub-parameter. Attempting to store a string value in a numeric parameter, or a numeric value in a
string parameter, is an error.
Parameter Set Command Syntax
The definition of the parameter indicates, for each value, whether the specification of that value is
mandatory or optional. For optional values, the definition indicates the assumed (default) value if
none is specified; the assumed value may be either a previous value (i.e., the value of an omitted
sub-parameter retains its previous value), or a fixed value (e.g., the value of an omitted
sub-parameter is assumed to be zero). Generally, the default value for numeric parameters is 0,
and the default value for string parameters is "" (empty string).
The following syntax is used for parameters that accept a single value:
+<name>=[<value>]
The following syntax is used for parameters that accept more than one val ue:
+<name>=[<compound_value>]
For each implemented parameter, if all mandatory values are specified, and all values are valid
according to the definition of the parameter, the specified values are stored. If <name> is not
recognized, one or more mandatory values are omitted, or one or more values are of the wrong
type or outside the permitted range, the modem issues the ERROR result code and terminates
processing of the command line. An ERROR is also generated if too many values are specified.
In case of an error, all previous values of the parameter are unaffected.
11
Digi AT Command Reference
Chapter 2 – Syntax and Procedures
Parameter Read Command Syntax
The DTE may determine the current value or values stored in a parameter by using the following
syntax:
+<name>?
The modem responds by sending the current values st ored for the parameter to the DTE in an
information text response. The format of this response is described in the definition of the
parameter. Generally, the values are sent in the same form in which they would be issued by the
DTE in a parameter setting command; if multiple values are supported, they will generally be
separated by commas, as in a parameter setting command.
Parameter Test Command Syntax
The DTE may test if a parameter is implemented in the modem, and determine the supported
values, by using the syntax:
+<name>=?
If the modem does not recognize the indicated name, it returns an ERROR result code and
terminates processing of the command line. If the modem does recognize the parameter name, it
returns an information text response to the DTE, f ollowed by an OK result code. The information
text response indicates the values supported by the modem for each such sub-parameter, and
possibly additional information. The format of this information text is defined for each parameter.
Additional Syntax Rules
Concatenating Commands after Extended Syntax Commands
Additional commands may follow an extended -syntax command on the same command line if a
semicolon (";") is inserted after the preceding extended command as a separator. The semicolon
is not necessary when the extended syntax command is the last command on the command line.
Concatenating Commands after Basic Format Commands
Extended syntax commands may appear on the same command line after a basic syntax
command without a separator, in the same mann er as concatenation of basic syntax commands.
12
Digi AT Command Reference
Chapter 2 – Syntax and Procedures
Issuing Commands
All characters in a command line must be issued at the same data rate, and with the same parity
and format.
The modem will ignore any command line that is not properly terminated. The modem may consider 30
seconds of mark idle time between any two characters as an improperly terminated command line. In this
case the modem may or may not generate an ERROR message. The modem will ignore any characters
received from the DTE that are not part of a properly formatted command line.
If the maximum number of characters that the modem can accept in the body is exceeded, an ERROR
result code is generated after the command line is terminated.
The DTE will not begin issuing a subsequent command line until at least one-tenth of a second has
elapsed after receipt of the entire result code issued by the modem in response to the preceding
command line.
Executing Commands
Upon receipt of the termination character, the modem commences execution of the commands in the
command line in the order received from the DTE. Should execution of a command result in an error, or a
character be not recognized as a valid command, execution is terminated, the remainder of the command
line is ignored, and the ERROR result code is issued. Otherwise, if all commands execute correctly, only
the result code associated with the last command is issued; result codes for preceding commands are
suppressed. If no commands appear in the command line, the OK result code is issued.
Aborting Commands
Some action commands that require time to execute may be aborted while in progress; these are
explicitly noted in the description of the command. Aborting of commands is accomplished by the
transmission from the DTE to the modem of any character. A single character is sufficient to abort the
command in progress; however, characters transmitted during the first 125 milliseconds after
transmission of the termination character are ignored (to allow for the DTE to append additional
control characters such as line feed after the command line termination character). To ensure that
the aborting character is recognized by the modem, it should be sent at the same rate as the
preceding command line; the modem may ignore characters sent at other rates. When such an
aborting event is recognized by the modem, the modem terminates the command in progress and
returns an appropriate result code to the DTE, as specified for the particular command.
Handling of Invalid Numbers and S-Parameter Values
The modem reacts to undefined numbers and S-parameter values in one of three ways:
1. Issue the ERROR result code, and leave the previous value of the parameter unchanged;
2.
3.
Issue the OK result code, and leave the previous value of the parameter unchanged; or,
Issue the OK result code, and set the parameter value to the valid value nearest to that specified
in the command line.
The description of each command specifies which of these three techniques is used to handle invalid
parameter values for that command or parameter.
13
Digi AT Command Reference
Chapter 2 – Syntax and Procedures
Modem Responses
While in command state and online command state, the modem will issue responses using the same rate,
word length, and parity as the most recently received DTE command line. In the event that no DTE
command has yet been received, rate, word length, and parity used will depend on the capabilities of the
modem.
When the modem transitions from the command state or online command state to the online data state,
the result code CONNECT should be issued at the bit rate and parity used during the command state.
When the modem transitions from the online data state to the command state or online command state,
the result codes should be issued at the bit rate used during the online data state. Thereafter, any
unsolicited result codes should use the bit rate and parity of the last command line issued by the DTE to
the modem.
The characters of a response will be contiguous, with no more than 100 milliseconds of mark idle issued
between characters in addition to stop elements.
Responses
There are two types of responses that may be issued by the modem: information text and result
codes.
Information Text. Information text responses consist of three parts: a header, information text, and a
trailer:
1. The characters transmitted for the header are dete rmined by the V command.
2. The trailer consists of two characters, being the character having the ordinal value of parameter
S3 followed by the character having the ordinal value of parameter S4.
3. Information text usually consists of a single line; info rmation text returned in response to some
commands may contain multiple lines, and the text may therefore include CR, LF, and other
formatting characters to improve readability.
Result Code Parts. Result codes consist of three parts: a header, the result text, and a
trailer.
1. The characters transmitted for the header and trailer are determined by the V command setting.
2. The result text may be transmitted as a number or as a string, also depending on the V command
setting.
Result Code Types. There are three types of result codes: final, intermediate, and
unsolicited.
1. A final result code indicates the completion of a full modem action and an ability to accept new
commands from the DTE.
2. An intermediate result code is a report of the progress of a modem action. The CONNECT result
code is an intermediate result code. In the case of a dialing or answering command, the modem
switches from command state to online data state, and issues a CONNECT result code. This is
an intermediate result code for the m odem because it cannot accept commands from the DTE
while in online data state. When the modem switches back to the command state, it then issues a
final result code (such as OK or NO CARRIER).
3. Unsolicited result codes (such as RING) indicate the occurrence of an event not directly
associated with the issuance of a command from the DTE.
Extended Syntax Result Codes
Extended syntax result codes may be issued in response to either basic or extended commands, or
both. The appropriate responses are specified in the definitions of the commands, the responses, or
both.
14
Digi AT Command Reference
Chapter 2 – Syntax and Procedures
The general format of extended syntax result codes is the same as result codes defined in TIA-602
with regard to headers and trailers. The characters specified in S -parameters S3 and S4 are used in
headers and trailers of extended syntax result codes as they are in basic format result codes. The
setting of the V command affects the headers and trailers associated with extended syntax result
codes in the same manner as basic format result codes; however, unlike basic format result codes,
extended syntax result codes have no numeric equivalent, and are always issued in alphabetic form.
Extended syntax result codes are subject to suppression by the Q1 command, as with basic format
result codes. The issuance of extended syntax result codes are not be affected by the setting of the X
command.
Extended syntax result codes may be final, intermediate, or unsolicited; the type being indicated in
the definition of the result code.
Extended syntax result codes are prefixed by the "+" character to avoid duplication of basic format
result codes specified in TIA -602. Following the "+" character, the name of the result code appears;
result code names follow the same rules as command names.
Extended syntax result codes may include the reporting of values. The definition of the result code
specifies whether or not values are appended to the result code, and, if so, how many, their types,
and their assumed default values if omitted.
Data/voice Modes. When no values are to be reported, the result code appears in the
simplest form:
+<name>
If a single value is to be reported, the form of the result code is:
+<name>: <value>
A single space character separates the colon character from the <value>; no space appears between
the result code name and the colon. If multiple values are to be reported with the result code, the form
is:
+<name>: <compound_value>
Fax Modes. If a single value is to be reported, the form of the result code is:
<value> or (<value>)
+<name>: <compound_value>Information Text Formats for Test
Commands
In general, the format of information text returned by extended syntax commands is described in the
definition of the command.
The modem may insert intermediate <CR> characters in very long information text responses in order
to avoid overrunning DTE receive buffers. If intermediate <CR> characters are included, the modem
does not include the character sequences "0 <CR>"or "OK<CR>", so that DTE can avoid false
detection of the end of these information text responses.
Range of Values
When the action accepts a single numeric sub-parameter, or the parameter accepts only one
numeric value, the set of supported values may be presented in the information text as an
ordered list of values. The list is precede d by a left parenthesis (() , and is followed by a right
parenthesis ()). If only a single value is supported, it appears between the parentheses. If more
than one value is supported, then the values may be listed individually, separated by comma
characters, or, when a continuous range of values is supported, by the first value in the range,
15
Digi AT Command Reference
Chapter 2 – Syntax and Procedures
followed by a hyphen character (-), followed by the last value in the range. The specification of
single values and ranges of values may be intermixed within a single information text. In all
cases, the supported values are indicated in ascending order.
For example, the following are some examples of value range indications:
(0)
Only the value 0 is supported.
(1,2,3)
(1-3)
(0,4,5,6,9,11,12)
The values 1, 2, and 3 are supported.
The values 1 through 3 are supported.
The several listed values are supported.
(0,4-6,9,11-12)
An alternative expression of the above list.
Compound Range of Values
When the action accepts more than one sub-parameter, or the parameter accepts more than one
value, the set of supported values is presented as a list of the parenthetically enclosed value
range strings described above, separated by commas. For example, the information text in
response to testing an action that accepts three sub-parameters, and supports various ranges for
each of them, could appear as follows:
(0),(1-3),(0,4-6,9,11-12)
This indicates that the first sub-parameter accepts only the value 0, the second accepts any value
from 1 through 3 inclusive, and the third sub-parameter accepts any of the values 0, 4, 5, 6, 9, 11,
or 12.
16
AT Command Reference
Chapter 3 – Data Command Set
Chapter 3 – Data Command Set
Command Guidelines
The commands used to control and report modem operation in data modem mode are defined in this
section.
The Data Modem Mode commands and responses desc ribed in this section are applicable when
command +FCLASS=0.
The default values are typical of a fully configured modem supporting all data rates and options. The
actual default value is dependent upon installed modem firmware and country-specific parameters.
Commands are accepted by the modem once the previous command has been fully executed, which is
normally indicated by the return of an appropriate result code. Execution of commands D and A, either as
a result of a direct command or a re-execute command, will be aborted if another character is entered
before completion of the handshake.
Escape Code Sequence
When the modem has established a connection and has entered on-line data mode, it is possible to break
into the data transmission in order to issue further commands to the modem in an on-line command
mode. This is achieved by the DTE sending to the modem a sequence of three ASCII characters
specified by register S2. The default character is '+'. The maximum time allowed between receipt of the
last character of the three escape character sequence from the DTE and sending of the OK result code to
the DTE is controlled by the S12 register.
Data Commands
The modem will respond to the commands detailed below. Parameters applicable to each command are
listed with the command description. The defaults shown for each configuration command are those used
in the Conexant factory profile 0.
Generic Modem Control Commands
Command:
Description:
Syntax:
Defined Values:
Result Codes:
Z
Soft Reset and Restore Profile
This command causes the modem to perform a soft reset and restore (recall) the
configuration profile. If no <value> is specified, zero is assumed.
Z<value>
<value> Decimal number corresponding to the selected profile.
0 Soft reset and restore stored profile 0.
1 Soft reset and restore stored profile 1.
OK <value> = 0 or 1.
ERROR Otherwise.
17
AT Command Reference
Command:
Description:
Syntax:
Defined Values:
Chapter 3 – Data Command Set
+FCLASS
Result Codes:
Reporting Current
or Selected Values:
Select Active Service Class
This command selects the active service class (mode).
+FCLASS=<mode>
<mode> Decimal number which corresponds to the selected service class.
0 Select Data Mode (Section 3). (Default.)
1 Select Facsimile Class 1 Mode.
1.0 Select Facsimile Class 1.0 Mode.
2 Select Facsimile Class 2 Mode.
8 Select Voice Mode.
10 Reserved.
OK For <mode> = 0, 1, 1.0, 2, 8, and 10 (SC only).
OK For <mode> = 0, 1, 1.0, 8, and 10 (other than SC).
ERROR Otherwise
Command: +FCLASS?
Response: +FCLASS: <mode>
Example: +FCLASS: 0 For the default setting.
Reporting Supported Range
of Parameter Values:
Command: +FCLASS=?
Response: +FCLASS: (<mode> range)
Example: +FCLASS: (0,1,1.0,2,8,10)
18
AT Command Reference
Command:
Description:
\N
Syntax:
Defined Values:
Result Codes:
Command
Chapter 3 – Data Command Set
Operating Mode
This command controls the preferred error-correcting mode to be negotiated in a
subsequent data connection. This command is affected by the OEM firmware
configuration.
\N<mode>
<mode> Decimal number which corresponds to the selected mode.
0 Selects normal speed buffered mode (disables error-correction mode). (Forces
&Q6.)
1 Serial interface selected - Selects direct mode and is equivalent to &M0, Q0 mode of
operation. (Forces &Q0.) Parallel interface selected-Same as \N0.
2 Selects reliable (error-correction) m ode. The modem will first attempt a LAPM
connection and then an MNP connection. Failure to make a reliable connection results
in the modem hanging up. (Forces &Q5, S36=4, and S48=7.)
3 Selects auto reliable mode. This operates the same as \N2 except failure to make a
reliable connection results in the modem falling back to the speed buffered normal
mode. (Forces &Q5, S36=7, and S48=7.)
4 Selects LAPM error-correction mode. Failure to make an LAPM error-correction
connection results in the modem hanging up. (Forces &Q5 and S48=0.) Note: The -K1
command can override the \N4 command.
5 Selects MNP error-correction mode. Failure to make an MNP error-correction
connection results in the modem hanging up. (Forces &Q5, S36=4, and S48=128.)
OK <mode> = 0 to 5.
ERROR Otherwise.
I
Identification
Command:
+GMI
Request Manufacturer Identification
Command:
+GMI9
Request Conexant Identification
Command
+GMM
Request Model Identification
Description:
Syntax:
Defined Values:
Result Codes:
Description:
Syntax:
Typical Response:
Description:
Syntax;
Response
Description:
Syntax:
Typical Response:
This command causes the modem to reports the requested result according to the
command parameter.
I<value>
<value> Decimal number corresponding to the selected information.
0 Reports product code, e.g., “56000”.
1 Reports the least significant byte of the stored checksum in decimal. Reports 255 if
the prestored checksum value is FFh.
2 Reports "OK".
3 Reports identification codes.
OK <value> = 0 - 7.
ERROR Otherwise.
This command causes the modem to report the modem product manufacturer.
+GMI
+GMI: CONEXANT
OK
This command causes the modem to report CONEXANT ACF identification.
+GMI9
+GMI9: CONEXANT ACF
OK
This command causes the modem to report the modem product.
+GMM
+GMM: V90
19
AT Command Reference
Command:
+GMR
Description:
Syntax:
Typical Response:
Command:
Description:
+GCAP
Syntax:
Example Responses:
Command:
Description:
+GCI
Syntax:
Defined Values:
Country
Australia
Austria
Belgium
Brazil
Bulgaria
Canada
China
Czech and Slovak
Federal Republic
Denmark
Finland
France
Germany
Greece
Default:
Reporting Current
or Selected Values:
Chapter 3 – Data Command Set
Request Revision Identification
This command causes the modem to report the modem version, revision level or date.
This is the same as the I3 command.
+GMR
+GMR: P2109-V90
OK
Request Complete Capabilities List
This extended-format command causes the modem to transmit one or more lines of
information text listing additional capabilities command +<name>s , which is intended
to permit the user to identify the overall capabilities of the modem. In particular, if the
modem implements a particular modem control standard that uses Extended Syntax
Commands, and if that modem control standard includes command(s) that indicate
general capabilities, the +<names>(s) of those commands will be reported to the
modem in response to a +GCAP command.
+GCAP
+GCAP: +FCLASS, +MS, +ES, +DS, for a data modem that supports all capabilities
listed
Where:
+FCLASS T.class1, +F (Class 1 Facsimile modem Control)
+MS +M commands (Modulation Control: +MS and +MR commands)
+ES +E commands (Error Control: +ES, +EB, +ER, +EFCS, +ETBM)
+DS +D commands (Data Compression: +DS and +DR).AT Commands Reference
Manual
Country of Installation
This extended syntax command selects and indicates the country of installation for the
modem. This parameter selects the settings for any operational parameters that need
to be adjusted for national regulations or telephone networks.
+GCI=<country_code>
<country_code> 8-bit country code from Annex A of T.35. The value is the
hexadecimal equivalent of the T.35 code, with bit 8 treated as the most-significant bit
and bit 1 treated as the least-significant bit.
The supported countries are:
Code
Country
Code
Country
Code
09
Hong Kong
50
Norway
82
0A
Hungary
51
Philippines
89
0F
India
53
Poland
8A
16
Ireland
57
Portugal
8B
1B
Israel
58
Russia
B8
20
Italy
59
Singapore
9C
26
Japan
00
South Africa
9F
2E
Korea
61
Spain
A0
31
Luxembourg
69
Sweden
A5
3C
Malaysia
6C
Switzerland
A6
3D
Mexico
73
Taiwan
FE
42
Netherlands
7B
United Kingdom B4
46
New Zealand
7E
United States
B5
If the modem is specified for use in only one country, that country code is the default.
Otherwise, the default is defined by the OEM. Factory default is B5 (United States).
Command: +GCI?
Response: +GCI: <current country_code>
Example: +GCI: 3D The modem is set for France.
Reporting Supported Range
of Parameter Values:
Command: +GCI=?
Response: +GCI: (<country_code>[,<country_code>[,<country_code].......]]
Example: +GCI: (20,73,B5) The modem can be set for Canada, Mexico or the United
States
20
AT Command Reference
Command:
Description:
&F
Syntax:
Defined Values:
Result Codes:
Command:
Description:
&T
Syntax:
Defined Values:
Command:
Description:
Syntax:
Defined Values:
Description:
Syntax:
Defined Values:
Result Codes:
Local Analog Loopback Test
The modem will perform the local analog loopback test if &T1 is selected. The test can
be run only when in an asynchronous operation in non-error-correction mode (normal),
e.g., AT&Q6. To terminate the test in progress, the escape sequence must be entered
first.
&T[<value>]
<value> Decimal number corresponding to the selected option.
0 Terminates test in progress. Clears S16.
1 Initiates local analog loopback, V.54 Loop 3.
Sets S16 bit 0. If a connection exists when this command is issued, the modem hangs
up. The CONNECT XXXX message is displayed upon the start of the test.
&W
Store Current Configuration
&Zn=x
Store Telephone Number
Result Codes:
Description:
The modem loads the factory default configuration (profile). The factory defaults are
identified for each command and in the S-Parameter descriptions. A configuration
(profile) consists of a subset of S-Parameters.
&F[<value>]
<value> Decimal number corresponding to the selected configuration.
0 Restore factory configuration 0.
1 Restore factory configuration 1.
OK
ERROR if the modem is connected.
Designate a Default Reset Profile
Syntax:
Defined Values:
Command
Restore Factory Configuration (Profile)
&Y
Result Codes:
Command:
Chapter 3 – Data Command Set
This command selects which user profile will be used after a hard reset.
&Y<value>
<value> Decimal number corresponding to the selected profile.
0 The modem will use profile 0.
1 The modem will use profile 1.
OK <value> = 0 to 1.
ERROR If <value> > 1, or if NVRAM is not installed or is not operational.
Saves the current (active) configuration (profile), including S-Parameters, in one of the
two user profiles in NVRAM as denoted by the parameter value. This command will
yield an ERROR message if the NVRAM is not installed or is not operational as
detected by the NVRAM test.
The current configuration is comprised of a list of storable parameters illustrated in the
&V command. These settings are restored to the active configuration upon receiving a
Zn command or at power up (see &Yn command).
&W<value>
<value> Decimal number corresponding to the selected profile.
0 Store the current configuration as profile 0.
1 Store the current configuration as profile 1.
OK <value> = 0 or 1.
ERROR Otherwise.
The modem can store up to four telephone numbers and each telephone number dial
string can contain up to 31 digits. (Requires 256-byte NVRAM installed.)
&Z<value>
<value> Decimal number from 0 to 3 corresponding to the selected telephone number.
<string> Dial string from 0 to 31 characters.
OK For <value> =3, and <string> =31 digits.
ERROR If <value> > 3, <string> > 31 digits, or if NVRAM is not installed or is not
operational.
21
AT Command Reference
Command
Description:
%7
Plug and Play Serial Number
%8
Plug and Play Vendor ID and Product Number
**
Load Flash Memory
Syntax:
Example:
Result Codes:
Command
Description:
Syntax:
Example:
Result Codes:
Command
Description:
Chapter 3 – Data Command Set
Sets and stores eight serial numbers in hex format used for serial Plug and Play and
for ISA Plug and Play, which use the Conexant 11596 Plug and Play device.
Applicable to Desktop configuration only.
%7<8 hex numbers><same 8 hex numbers>
%7<8 hex numbers><same 8 hex numbers>
OK <8 hex numbers><same 8 hex numbers>
ERROR Otherwise
To display the stored serial number, issue AT"?<cr>.
Sets and stores Vendor ID and product number for serial Plug and Play and for ISA
Plug and Play, which use the Conexant 11596 Plug and Play device. Applicable to
Desktop configuration only.
&8<3 ASCII characters><4 hex numbers><same 3 ASCII characters><same 4 hex
numbers><cr>
%8<3 ASCII characters><4 hex numbers><same 3 ASCII characters><same 4 hex
numbers><cr>
OK <3 ASCII characters><4 hex numbers><same 3 ASCII characters><same 4 hex
numbers>
ERROR Otherwise
The linear flash memory uploader allows flash memory connected to the modem external memory
bus to be upgraded with revised modem firmware. This process transfers (uploads) the upgraded
modem firmware (data) from the host computer to the modem, which transfers the data to the flash
memory device. The linear flash memory downloader allows the flash memory connected to the
modem external memory bus to read and saved. This process transfers (downloads) the current
modem firmware (data) to the host computer. Uploading new firmware to the flash memory or
downloading existing firmware from the flash memory device is a two-step process.
1.
When the AT** command is issued, the modem firmware boot loader is invoked. At this point,
load a flash load module (FLM) into the modem's RAM. To upload new firmware to the modem,
load the uploader FLM. To download existing firmware from the modem, load the downloader FLM.
In either case, the data transfer is done via an ASCII transfer. The FLM contains the
programming algorithm for the flash memory device being programmed and any messages
that may be sent during the load process.
2. To upload new firmware to the modem, load the new modem firmware, which the uploader
FLM will then program into the flash memory device. This transfer is done via XMODEM transfer.
To download existing firmware from the modem, set up the host PC for XMODEM receive
and the downloader FLM will begin to send the existing firmware from the flash memory to the host PC.
Procedure
1. Install in the modem a flash memory programmed with the modem firmware or a blank flash
memory.
2. Put the uploader FLM and downloader FLM files and the new modem firmware file
(e.g., XmUL003.s37, XmDL003.s37, and 206s4712.S37) in an appropriate directory on the
computer's hard disk.
3. Configure the communications application program for a DTE rate of between 9600 bps and
115200 bps and RTS/CTS flow control.
4. Check the modem for response by typing AT.
5. Initiate the download process using the AT** command. The "Download flash code…"
message appears upon issuing the AT** command.
6. Perform an ASCII transfer of the FLM file (e.g., XmUL003.s37 for uploading new firmware to
the modem or XmDL003.s37 for downloading existing firmware from the modem) from the host
computer to the modem RAM using an industry standard communications software or an
equivalent process (ensure that all ASCII translation or pacing is turned off).
7. After the FLM has been loaded, if uploading new firmware to the modem, perform an
XMODEM upload of the new modem firmware hex file (e.g., 206s4712.S37) from the host
computer to the modem RAM using industry standard communications software or an
equivalent process. If downloading existing firmware from the modem, using an industry
standard communications software or equivalent, put the host PC in XMODEM receive mode.
8. The messages described in Table 3-1 may occur during the uploading process:
22
AT Command Reference
Chapter 3 – Data Command Set
Table 3-1. Upload Messages
Message
Device not supported
Wrong S37 format
Record error
Download abort
Erase fail
Download error, Re-Load
Error, No H/W flow ctl
DTE timeout
Code doesn’t match
Hardware
Device successfully
Programmed
Description
Displayed if the FLM used does not support the flash memory that
is installed on the board.
Displayed if the modem firmware being uploaded is not in Motorola
S3 format.
Displayed if there is an error while either uploading or downloading.
If this occurs, the transfer should be aborted.
Restart at step 5.
Displayed if the transfer is aborted before it is finished. If this
occurs, restart at step 5.
Displayed if the FLM is unable to erase the flash memory. If this
occurs, restart at step 5.
Displayed if there was an error when uploading or downloading. If
this occurs, restart at step 5.
Displayed if RTS-CTS flow control is not set. If this occurs,
restart at step 3.
Displayed if the DTE has stopped the XMODEM transfer process
before it is finished. If this occurs, restart at step 5.
Displayed when attempting to upload a firmware that either
not the same model (parallel, serial, etc.), crystal frequency, or size
(1Mbit, 2Mbit, etc.) as the firmware that is currently on the board. If
this occurs, the FLM will abort and not allow uploading to continue.
Displayed by the FLM at the completion of a successful upload or
download then the modem will do a cold start.
The uploader and downloader flash load modules (FLM) have several built in safety mechanisms to
reduce the risk of a failed flash upload/download. The FLM will not allow a user to upload a
firmware of different model (serial, parallel, etc.) or crystal speed than what is currently in the flash
memory. Also, it will not allow the user to upload a firmware that is larger in size than the flash
memory itself (e.g., a 2Mbit firmware onto a 1Mbit flash memory). It will, however, allow the user to
upload a firmware that is smaller in size than the flash memory, and it will program the firmware
with the appropriate offset in order for the firmware to function properly. In the instance that there is
a failure during the download or upload process, the modem will be in a “flash rescue mode”. In this
mode, the modem will respond “OK” to all AT commands, but will only take action on the AT**
command, so a new attempt to upload or download can be initiated. When the modem is in the
“flash rescue mode” it will only be able to respond to AT commands if the DTE rate has not been
changed since the last AT** command was successfully issued, even if the modem is powered off
and on.
23
AT Command Reference
Chapter 3 – Data Command Set
DTE-Modem Interface Commands
The parameters defined in this section control the operation of the interface between the DTE and
modem.
Command:
Description:
E
Syntax:
Defined Values:
Result Codes:
Command:
Description:
Q
Syntax:
Defined Values:
Result Codes:
Command:
Description:
Syntax:
Defined Values:
Result Codes:
Quiet Results Codes Control
The command enables or disables the sending of result codes to the DTE. The
parameter value, if valid, is written to S14 bit 2.
Q<value>
<value> Decimal number corresponding to the option.
0 Enables result codes to the DTE. (Default.)
1 Disables result codes to the DTE.
OK <value>= 0 or 1.
ERROR Otherwise.
Result Code Form
W
Connect Message Control
Result Codes:
Description:
The modem enables or disables the echo of characters to the DTE. The parameter
value, if valid, is written to S14 bit 1.
E<value>
<value> Decimal number corresponding to the option.
0 Disables command echo.
1 Enables command echo. (Default.)
OK <value> = 0 or 1.
ERROR Otherwise.
V
Syntax:
Defined Values:
Command:
Command Echo
This command selects the sending of short-form or long-form result codes to the DTE.
The parameter, if valid, is written to S14 bit 3.
V<value>
<value> Decimal number corresponding to the selected option.
0 Enables short-form (terse) result codes . Line feed is not issued before a short-form
result code.
1 Enables long-form (verbose) result codes. (Default.)
OK <value>= 0 or 1.
ERROR Otherwise.
This command, in conjunction with S95 bits 0, 2, 3, and 5 (bits 2, 3, and 5 can be
written directly by the host or by the +MR, +ER, and +DR commands, respectively),
control the format of CONNECT messages. The actual result code messages reported
reflect the W command setting and the S95 bit settings. (Also see +MR, +ER, and +DR
commands.) The W parameter value, if valid, is written to S31 bits 2 and 3.
W<value>
<value> Decimal number corresponding to the selected option.
0 Upon connection, the modem reports only the DTE speed (e.g., CONNECT 19200).
Subsequent responses are disabled. (Default.)
1 Upon connection, the modem reports the modulation, line speed, the error correction
protocol, and the DTE speed, respectively. Subsequent responses are disabled.
2 Upon connection, the modem reports the DCE speed (e.g., CONNECT 14400).
Subsequent responses are disabled.
OK <value> = 0, 1, or 2.
ERROR Otherwise.
24
AT Command Reference
Command:
Description:
Syntax:
Defined Values:
Result Codes:
X
Chapter 3 – Data Command Set
Extended Result Codes
This command selects the subset of the result code messages used by the modem to
inform the DTE of the results of commands. Blind dialing is enabled or disabled by
country parameters. If the user wishes to enforce dial tone detection, a "W" can be
placed in the dial string (see D command). The information below is based upon the
default implementation of the X results table. Table 3-2 indicates the messages that
are enabled for each X value.
If the modem is in facsimile mode (+FCLASS=1, 1.0, or 2), the only message sent to
indicate a connection is CONNECT without a speed indication.
X<value>
<value> Decimal number corresponding to the selected option.
0 Disables reporting of busy tones unless forced otherwise by country requirements;
send only OK, CONNECT, RING, NO CARRIER, ERROR, and NO ANSWER result
codes. Blind dialing is enabled/disabled by country parameters. If busy tone detection
is enforced and busy tone is detected, NO CARRIER will be reported. If dial tone
detection is enforced or selected and dial tone is not detected, NO CARRIER will be
reported instead of NO DIAL TONE. The value 000b is written to S22 bits 6, 5, and 4,
respectively.
1 Disables reporting of busy tones unless forced otherwise by country requirements;
send only OK, CONNECT, RING, NO CARRIER, ERROR, NO ANSWER, and
CONNECT XXXX (XXXX = rate). Blind dialing enabled/disabled by country
parameters. If busy tone detection is enforced and busy tone is detected, NO
CARRIER will be reported instead of BUSY. If dial tone detection is enforced or
selected and dial tone is not detected, NO CARRIER will be reported instead of NO
DIAL TONE. The value 100b is written to S22 bits 6, 5, and 4, respectively.
2 Disables reporting of busy tones unless forced otherwise by country requirements;
send only OK, CONNECT, RING, NO CARRIER, ERROR, NO DIAL TONE, NO
ANSWER, and CONNECT XXXX. If busy tone detection is enforced and busy tone is
detected, NO CARRIER will be reported instead of BUSY. If dial tone detection is
enforced or selected and dial tone is not detected, NO DIAL TONE will be reported
instead of NO CARRIER. The value. 101b is written to S22 bits 6, 5, and 4,
respectively.
3 Enables reporting of busy tones; send only OK, CONNECT, RING, NO CARRIER,
ERROR, NO ANSWER, and CONNECT XXXX. Blind dialing is enabled or disabled by
country parameters. If dial tone detection is enforced and dial tone is not detected, NO
CARRIER will be reported. The value 110b is written to S22 bits 6, 5, and 4,
respectively.
4 Enables reporting of busy tones; send all messages. The value 111b is written to
S22 bits 6, 5, and 4, respectively. (Default.)
OK <value> = 0 to 4.
ERROR Otherwise.
25
AT Command Reference
Chapter 3 – Data Command Set
Table 3-2. Result Codes
Short Form
+F4
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
22
23
24
32
33
35
40
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
62
Long Form
+FCERROR
OK
CONNECT
RING
NO CARRIER
ERROR
CONNECT1200
NO DIAL TONE
BUSY
NO ANSWER
CONNECT600
CONNECT 2400
CONNECT 4800
CONNECT 9600
CONNECT 7200
CONNECT 12000
CONNECT 14400
CONNECT 19200
CONNECT 38400
CONNECT 57600
CONNECT 115200
CONNECT 230400
CONNECT 75TX/1200RX
CONNECT 1200TX/75RX
DELAYED
BLACKLISTED
FAX
DATA
+MRR: 300
+MRR: 1200/75
+MRR: 75/1200
+MRR: 1200
+MRR: 2400
+MRR: 4800
+MRR: 7200
+MRR: 9600
+MRR: 12000
+MRR: 14400
+MRR: 16800
+MRR: 19200
+MRR: 21600
+MRR: 24000
+MRR: 26400
+MRR: 28800
CONNECT 16800
CONNECT 21600
CONNECT 24000
0
x
x
x
x
x
x
1
3
3
x
1
1
1
1
1
1
1
1
1
1
1
x
1
1
4
4
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
1
1
1
n Value in ATXn Command
1
2
3
4
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
3
x
x
x
3
3
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
X
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
4
4
4
x
4
4
4
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
26
Notes
Note
Note
Note
Note
Note
Note
Note
Note
Note
2
2
2
2
2
2
2
2
2
AT Command Reference
Chapter 3 – Data Command Set
Table 3-2. Result Codes (Continued)
Short Form
63
64
66
67
69
70
77
78
79
80
81
83
84
91
134
135
136
137
138
139
140
141
142
144
145
150
151
152
153
154
155
156
157
158
159
160
161
162
165
166
167
168
169
170
171
172
173
174
175
176
177
Long Form
CONNECT 26400
CONNECT 28800
+DR: A LT
+DR: V 42B
+DR: N ONE
+ER: N ONE
+ER: L APM
+MRR: 31200
+MRR: 33600
+ER: A LT
+ER: A LT-CELLULAR
LINE-IN-USE
CONNECT 33600
CONNECT 31200
+MCR: B 103
+MCR: B 212
+MCR: V 21
+MCR: V 22
+MCR: V 22B
+MCR: V 23
+MCR: V 32
+MCR: V 32B
+MCR: V 34
+MCR: K 56
+MCR: V 90
+MRR: 32000
+MRR: 34000
+MRR: 36000
MRR: 38000
+MRR: 40000
+MRR: 42000
+MRR: 44000
+MRR: 46000
+MRR: 48000
+MRR: 50000
+MRR: 52000
+MRR: 54000
+MRR: 56000
CONNECT 32000
CONNECT 34000
CONNECT 36000
CONNECT 38000
CONNECT 40000
CONNECT 42000
CONNECT 44000
CONNECT 46000
CONNECT 48000
CONNECT 50000
CONNECT 52000
CONNECT 54000
CONNECT 56000
0
1
1
x
x
x
x
x
x
x
x
x
x
1
1
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
n Value in ATXn Command
1
2
3
4
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
27
Notes
Note 2
Note 2
Note 2
Note 2
Note 2
Note 2
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
Note 3
AT Command Reference
Chapter 3 – Data Command Set
Table 3-2. Result Codes (Continued)
Short Form
Long Form
178
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
CONNECT 230400
CONNECT 28000
CONNECT 29333
CONNECT 30667
CONNECT 33333
CONNECT 34667
CONNECT 37333
CONNECT 38667
CONNECT 41333
CONNECT 42667
CONNECT 45333
CONNECT 46667
CONNECT 49333
CONNECT 50667
CONNECT 53333
CONNECT 54667
+MRR: 28000
+MRR: 29333
+MRR: 30667
+MRR: 33333
+MRR: 34667
+MRR: 37333
+MRR: 38667
+MRR: 41333
+MRR: 42667
+MRR: 45333
+MRR: 46667
+MRR: 49333
+MRR: 50667
+MRR: 53333
+MRR: 54667
0
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
n Value in ATXn Command
1
2
3
4
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
Notes
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
Note
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
Notes:
1. An 'x' in a column indicates that the message (either the long form if verbose, or the value only for
short form) will be generated when that part icular value of 'n' (shown at the top of the column) has
been selected by the use of ATXn. If the column is blank, then no message will be generated for that
x option. A numeral indicates which less explicit message (verbose or short form) will be output for
that X option.
2. SC336 and SC56 modems only.
3. SC56 modems only.
Command:
Description:
Syntax:
Defined Values:
Result Codes:
&C
RLSD (DCD) Option
The modem controls the RLSD output in accordance with the parameter supplied.
The parameter value, if valid, is written to S21 bit 5.
&C<value>
<value> Decimal number corresponding to the selected option.
0 RLSD remains ON at all times.
1 RLSD follows the state of the carrier. (Default.)
OK 0 or 1.
ERROR Otherwise.
28
AT Command Reference
Command:
Description:
&D
Syntax:
Defined Values:
Command:
Description:
&K
Syntax:
Defined Values:
Result Codes:
Command: &R
Description:
Syntax:
Defined Values:
Result Codes:
Chapter 3 – Data Command Set
DTR Option
This command interprets the ON to OFF transition of the DTR signal from the DTE in
accordance with the parameter supplied. The parameter value, if valid, is written to
S21 bits 3 and 4. Also, see S25.
&D<value>
<value> Decimal number corresponding to the selected option.
0 DTR drop is interpreted according to the current &Qn setting as follows:
&Q0, &Q5, &Q6: DTR is ignored (assumed ON). Allows operation with DTEs that do
not provide DTR.
&Q1: DTR drop causes the modem to hang up. Auto-answer is not affected.
&Q2, &Q3: DTR drop causes the modem to hang up. Auto-answer is inhibited. 1 DTR
drop is interpreted according to the current &Qn setting as follows:
&Q0, &Q1, &Q5, &Q6: DTR drop is interpreted by the modem as if the asynchronous
escape sequence had been entered. The modem returns to asynchronous command
state without disconnecting.
&Q2, &Q3: DTR drop causes the modem to hang up. Auto-answer is inhibited. 2 DTR
drop is interpreted according to the current &Qn setting as follows:
&Q0 through &Q6: DTR drop causes the modem to hang up. Auto-answer is inhibited.
(Default.)
3 DTR drop is interpreted according to the current &Qn setting as follows:
&Q0, &Q1, &Q5, &Q6: DTR drop causes the modem to perform a soft reset as if the Z
command were received. The &Y setting determines which profile is loaded. &Q2,
&Q3: DTR drop causes the modem to hang up. Auto-answer is inhibited. If &Q5, &Q6,
+FCLASS=1 or +FCLASS=2 is in effect, the action taken is the same as for &Q0.
Flow Control
This command defines the DTE/DCE (terminal/modem) flow control mechanism. The
parameter value, if valid, is written to S39 bits 0, 1, and 2.
&K<value>
<value> Decimal number corresponding to the selected option.
0 Disables flow control.
3 Enables RTS/CTS flow control. (Default for data modem modes.)
4 Enables XON/XOFF flow control.
5 Enables transparent XON/XOFF flow control.
Note: Upon reset, both RTS/CTS and XON/XOFF flow control is enabled for fax
modem and voice modes.
OK <value> = 0, 3, 4, or 5.
ERROR Otherwise.
RTS/CTS Option
This selects how the modem controls CTS. CTS operation is modified if hardware flow
control is selected (see &K command). The parameter value, if valid, is written to S21
bit 2.
&R<value>
<value> Decimal number corresponding to the selected option.
0 In sync mode, CTS tracks the state of RTS; the RTS-to-CTS delay is defined by S26.
In async mode, CTS is normally ON and will turn OFF only if required by flow control.
1 In sync mode, CTS is always ON (RTS transitions are ignored). tracks the state of
RTS; in async mode, CTS is normally ON and will turn OFF only if required by flow
control.
OK <value> = 0 or 1.
ERROR Otherwise.
29
AT Command Reference
Command: &S
Description:
Syntax:
Defined Values:
Result Codes:
Command: +IPR
Description:
Chapter 3 – Data Command Set
DSR Override
This command selects how the modem will control DSR. The parameter value, if valid,
is written to S21 bit 6.
&S<value>
<value> Decimal number corresponding to the selected option.
&0 DSR will remain ON at all times. (Default.)
&1 DSR will become active after answer tone has been detected and inactive after the
carrier has been lost.
OK <value> = 0 or 1.
ERROR Otherwise.
Fixed DTE Rate
This numeric extended-format parameter specifies the data rate at which the modem
will accept commands during online operation. It may be used to select operation at
rates at which the modem is not capable of automatically detecting the data rate being
used by the DTE. Specifying a value of 0 disables the function and allows operation
only at rates automatically detectable by the modem. The specified rate takes effect
following the issuance of any result code(s) associated with the current command line.
The <rate> specified does not apply in OnLine Data State if Normal Mode (Direct
Mode) of operation is selected.
Syntax:
+IPR=<rate>
Defined Values:
<rate> Specifies the DTE-modem interface operation rate in bits/s.
The available rates are: 0, 300, 1200, 2400, 4800, 9600, 19200, 38400, 57600,
115200, or 230400.
If unspecified or set to 0, automatic detection is selected and the character format is
also forced to autodetect, +ICF=0.
If the rate specified is not supported by the modem, an ERROR result code will be
returned.
Reporting Current or Selected Values:
Command: +IPR?
Response:
+IPR: <rate>
Example 1:
+IPR: 0 For automatic rate detection.
Example 2:
+IPR: 115200 For 115200 bps.
Reporting Supported Range of Parameter Values:
Command: +IPR=?
Response: +IPR (<rate> range)
Example: +IPR: (0,300,1200,2400,4800,9600,19200,38400,57600,115200, 230400)
30
AT Command Reference
Chapter 3 – Data Command Set
Command: +IFC
DTE-Modem Local Flow Control
Command: +ILRR
DTE-Modem Local Rate Reporting
Description:
This extended-format compound parameter controls the operation of local flow control
between the DTE and the modem during the data state when V.42 error control is
used, or when fallback to non-error control mode is specified to include buffering and
flow control. It accepts two numeric sub-parameters.
Syntax:
+IFC=[<modem_by_DTE>[,<DTE_by_modem>]]
Defined Values:
<modem_by_DTE> Specifies the method to be used by the DTE to control the flow of
received data from the modem.
0 None.
1 XON/XOFF on transmitted data (XON/XOFF on transmit data); do not pass
XON/XOFF characters to the remote modem.
2 Circuit 133 (Ready for Receiving). (Default.)
3 DC1/DC3 on circuit 103 (Transmitted Data) with DC1/DC3 characters being passed
through to the remote DCE in addition to being acted upon for local flow control
<DTE_by_modem> Specifies the method to be used by the modem to control the flow
of transmitted data from the DTE.
0 None.
1 XON/XOFF on received data.
2 CTS/RTS. (Default.)
Reporting Current or Selected Values:
Command: +IFC?
Response: +IFC: <modem_by_DTE>,<DTE_by_modem>
Example: +IFC: 2,2 For the defaults.
Reporting Supported Range of Parameter Values:
Command: +IFC=?
Response: +IFC: (<modem_by_DTE> range),(<DTE_by_modem> range)
Example: +IFC: (0-3),(0-2).
Description:
This extended-format numeric parameter controls whether or not the extended-format
+ILRR:<rate> information text is transmitted from the modem to the DTE.
Syntax:
+ILRR=<value>
Defined Values:
<value> Decimal number corresponding to the selected option.
0 Disables reporting of local port rate (+ILRR: is not transmitted). (Default.)
1 Enables reporting of local port rate (+ILRR: is transmitted).
Reporting Current or Selected Values:
Command: +ILRR?
Response: +ILRR: <current value>
Example: +ILRR: 0 For the default setting
Reporting Supported Range of Parameter Values:
Command: +ILRR=?
Response: +ILRR: (<value> range)
Example: +ILRR: (0,1)
Reported Rate:
The <rate> reported represents the current (negotiated or renegotiated) DTE-modem
rate. If enabled, the intermediate result code is transmitted after any modulation, error
control or data compression reports are transmitted, and before any final result code
(e.g., CONNECT) is transmitted. The <rate> is applied after the final result code is
transmitted.
The DTE-modem port rate will change only if neither buffered mode nor errorcontrolled means are enabled (+ES=x,0) and if the negotiated carrier rate (+MRR)
does not match the current DTE-modem port rate (autodetected from the previous
command line).
Syntax:
+ILRR: <rate>[,<rx_rate>].
Defined Values:
<rate> Decimal value representing the current (negotiated or renegotiated) DTEmodem rate: 0, 300, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, or
230400
<rx_rate> Optional decimal value reporting the RXD rate, if it is different from the TXD
rate: 0, 300, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, or 230400
Example:
+ILRR: 19200
31
AT Command Reference
Chapter 3 – Data Command Set
Call Control Commands
Command:
Description:
D
Dial Modifiers:
Syntax:
Defined Values:
0-9
*
#
A-D
L
P
T
R
S=n
!
W
@
&
,
;
Dial
This command directs the modem to go on-line, dial according to the string entered
and attempt to establish a connection. If no dial string is supplied, the modem will go
on-line and attempt the handshake in originate mode.
NOTE: If the ATD command is issued before the S1 register has cleared, the modem
will respond with the NO CARRIER result code.
If +FCLASS=0 is selected, the modem will behave as a data modem and will attempt
to connect to another data modem. The modem will have up to the period of time
specified by register S6 or S7 to wait for carrier and complete the handshake. If this
time expires before the modem can complete the handshake, the modem will go
on-hook with the NO CARRIER response. This command will be aborted in progress upon
receipt of any DTE character before completion of the handshake.
If +FCLASS=1, 1.0, or 2 is selected, the modem will behave as a facsimile modem and
attempt to connect to a facsimile machine (or modem) by entering the HDLC V.21
channel 2 receive state, as if +FRH=3 had been issued. This command will be
aborted upon receipt of any DTE character if the modem has not finished dialing. In
this case, the modem will go on-hook and return to command mode after displaying
the NO CARRIER message. If the modem has finished dialing, it proceeds as if the
+FRH=3 command has been issued. Refer to the +FRH command to determine how
the modem behaves following this stage.
The valid dial string parameters are described below. Punctuation characters may be
used for clarity, with parentheses, hyphen, and spaces being ignored.
D<string>
<string> Character string corresponding to the selected option(s).
DTMF digits 0 to 9.
The 'star' digit (tone dialing only).
The 'gate' digit (tone dialing only).
DTMF digits A, B, C, and D. Some countries may prohibit sending of these digits
during dialing.
Re-dial last number: the modem will re-dial the last valid telephone number. The L
must be immediately after the D with all the following characters ignored.
Select pulse dialing: pulse dial the numbers that follow until a "T" is encountered.
Affects current and subsequent dialing. Some countries prevent changing dialing
modes after the first digit is dialed.
Select tone dialing: tone dial the numbers that follow until a "P" is encountered. Affects
current and subsequent dialing. Some countries prevent changing dialing modes after
the first digit is dialed.
This command will be accepted, but not acted on.
Dial the number stored in the directory (n = 0 to 3). (See &Z.)
Flash: the modem will go on-hook for a time defined by the value of S29. Country
requirements may limit the time imposed.
Wait for dial tone: the modem will wait for dial tone before dialing the digits following
"W". If dial tone is not detected within the time specified by S7 (US) or S6 (Wclass),
the modem will abort the rest of the sequence, return on-hook, and generate an error
message.
Wait for silence: the modem will wait for at least 5 seconds of silence in the call
progress frequency band before continuing with the next dial string parameter. If the
modem does not detect these 5 seconds of silence before the expiration of the call
abort timer (S7), the modem will terminate the call attempt with a NO ANSWER
message. If busy detection is enabled, the modem may terminate the call with the
BUSY result code. If answer tone arrives during execution of this parameter, the
modem handshakes.
Wait for credit card dialing tone before continuing with the dial string. If the tone is not
detected within the time specified by S7 (US models) or S6 (W-class models), the
modem will abort the rest of the sequence, return on--hook, and generate an error
message.
Dial pause: the modem will pause for a time specified by S8 before dialing the digits
following ",".
Return to command state. Added to the end of a dial string, this causes the modem to
return to the command state after it processes the portion of the dial string preceding
the ";". This allows the user to issue additional AT commands while remaining off-hook.
The additional AT commands may be placed in the original command line following the
";" and/or may be entered on subsequent command lines. The modem will enter call
32
AT Command Reference
^
()
<space>
<i>
>
Command:
Description:
T
Result Code:
Command:
Description:
Description:
progress only after an additional dial command is issued without the ";" terminator. Use
"H" to abort the dial in progress, and go back on-hook.
Toggles calling tone enable/disable: applicable to current dial attempt only.
Ignored: may be used to format the dial string.
Ignored: may be used to format the dial string.
Ignored: may be used to format the dial string.
Invalid character: will be ignored.
If enabled by country specific parameter, the modem will generate a grounding pulse
on the EARTH relay output.
Set Tone Dial Default
This command forces DTMF dialing until the next P dial modifier or P command is
received. The modem will set an S-Parameter bit to indicate that all subsequent
dialing should be conducted in tone mode. The DP command will override this
command. Clears S14 bit 5.
This command may not be permitted in some countries. (See P.)
OK
P
Set Pulse Dial Default
A
Answer
Result Code:
Command:
Chapter 3 – Data Command Set
This command forces pulse dialing until the next T dial modifier or T command is
received. Sets S14 bit 5.
As soon as a dial command is executed which explicitly specifies the dialing mode for
that particular call (e.g., ATDT...), this command is overridden so that all future dialing
will be tone dialed. (See T command.)
This command may not be permitted in some countries.
OK
The modem will go off-hook and attempt to answer an incoming call if correct
conditions are met. Upon successful completion of answer handshake, the modem will
go on-line in answer mode. This command may be affected by the state of Line
Current Sense, if enabled. (Most countries do not require Line Current Sense.)
Operation is also dependent upon +FCLASS command and country-specific
requirements.
If +FCLASS=0 is selected, the modem will enter the connect state after exchanging
carrier with the remote modem. If no carrier is detected within a period specified in
register S7, the modem hangs up. Any character entered during the connect sequence
will abort the connection attempt.
If +FCLASS=1, 1.0, or 2 is selected, the modem will go off--hook in V.21 answer mode.
It will generate the V.21 2100 Hz answer tone for 3 ± 0.5 seconds and, following a
delay of 70 ms, will proceed as if the +FTH=3 command were issued. At any stage up
to (but excluding) the +FTH=3 command state, any character will abort the
communication. See the description of the +FTH command for details.
33
AT Command Reference
Command:
Description:
H
Syntax:
Defined Values:
Result Codes:
Command:
Description:
&G
Select Guard Tone
Syntax:
Defined Values:
Result Codes:
Command:
Description:
Syntax:
Defined Values:
Result Codes:
This command initiates a hang-up sequence.
This command may not be available for some countries due to PTT restrictions.
H<value>
<value> Decimal number corresponding to the selected option.
0 The modem will release the line if the modem is currently on-line, and will terminate
any test (AT&T) that is in progress. Country-specific, modulation-specific, and error
correction protocol-specific (S38) processing is handled outside of the H0 command.
1 If on-hook, the modem will go off-hook and enter command mode. For US models,
the modem will remain off-hook. For W-class models, the modem will return on-hook
after a period of time determined by S7.
OK <value> = 0 or 1.
ERROR Otherwise.
Return to On-Line Data Mode
Result Codes:
Description:
Disconnect (Hang-Up)
O
Syntax:
Defined Values:
Command:
Chapter 3 – Data Command Set
&P
This command determines how the modem will enter the on-line data mode. If in the
on-line command mode, the modem enters the on-line data mode with or without a
retrain. If in the off-line command mode (no connection), the modem reports ERROR.
O<value>
<value> Decimal number corresponding to the selected option.
0 Enters on-line data mode without a retrain.
Handling is determined by the Call Establishment task. Generally, if a connection
exists, this command connects the DTE back to the remote modem after an escape
(+++).
1 Enters on-line data mode with a retrain before returning to on-line data mode.
2 Fast retrain without speed change (used for diagnostic purpose only).
3 Renegotiate rate without speed change (used for diagnostic purpose only.
4 Renegotiate rate down one speed (used for diagnostic purpose only).
5 Renegotiate rate up one speed (used for diagnostic purpose only).
OK <value> = 0 to 5 and a connection exists.
ERROR Otherwise or if not connected.
This command causes the modem to generate the guard tone selected by this
command (DPSK modulation modes only). The parameter value, if valid, is written to
S23 bits 6 and 7.
&G<value>
<value> Decimal number corresponding to the selected option.
0 Disables guard tone. (Default.)
1 Disables guard tone.
2 Selects 1800 Hz guard tone.
This command may not be permitted in some countries.
<value> = 0 to 2.
ERROR Otherwise.
Select Pulse Dial Make/Break Ratio
This command determines the make/break ratio used during pulse dialing. The default
is country-dependent. The parameter value, if valid, is written to S28 bits 3 and 4.
&P<value>
<value> Decimal number corresponding to the selected option.
0 Selects 39%-61% make/break ratio at 10 pulses per second. (Default.)
1 Selects 33%-67% make/break ratio at 10 pulses per second.
2 Selects 39%-61% make/break ratio at 20 pulses per second.
3 Selects 33%-67% make/break ratio at 20 pulses per second.
OK <value> = 0 to 3.
ERROR Otherwise.
34
AT Command Reference
Command:
Description:
&V
Result Code:
Example:
Chapter 3 – Data Command Set
Display Current Configuration and Stored Profiles
This command reports the current (active) configuration, the stored (user) profiles, and
the first four stored telephone numbers. The stored profiles and telephone numbers
are not displayed if the NVRAM is not installed or is not operational as detected by the
NVRAM test during reset processing.
OK
AT&V
ACTIVE PROFILE:
B1 E1 L1 M1 N0 QO T V1 W0 X4 Y0 &C1 &D2 &G0 &J0 &K3 &Q5
&R1 &S0 &T5 &X0
S00:000 S01:000 S02:043 S03:013 S04:010 S05:008 S06:002
S07:050 S08:002 S09:006
S10:014 S11:095 S12:050 S18:000 S25:005 S26:001 S36:007
S38:020 S46:138
S48:007 S95:000
STORED PROFILE 0:
B1 E1 L1 M1 N0 QO T V1 W0 X4 Y0 &C1 &D2 &G0 &J0 &K3 &Q5
&R1 &S0 &T5 &X0
S00:000 S02:043 S06:002 S07:050 S08:002 S09:006 S10:014
S11:095 S12:050 S18:000
S36:007 S40:104 S41:195 S46:138 S95:000
STORED PROFILE 1:
B1 E1 L1 M1 N0 QO T V1 W0 X4 Y0 &C1 &D2 &G0 &J0 &K3 &Q5
&R1 &S0 &T5 &X0
S00:000 S02:043 S06:002 S07:050 S08:002 S09:006 S10:014
S11:095 S12:050 S18:000
S36:007 S40:168 S41:195 S46:138 S95:000
TELEPHONE NUMBERS:
0=1=
2=3=
OK.
Command:
Description:
&V1
Display Last Connection Statistics
Displays the last connection statistics in the following format (shown with typical
results):
TERMINATION REASON.......... LOC AL REQUEST
LAST TX rate................ 26400 BPS
HIGHEST TX rate............. 26400 BPS
LAST RX rate................ 49333 BPS
HIGHEST RX rate............. 49333 BPS
PROTOCOL.................... LAPM
COMPRESSION................. V42Bis
Line QUALITY................ 038
Rx LEVEL.................... 015
Highest Rx State............ 67
Highest TX State............ 67
EQM Sum..................... 00B4
Min Distance................ 0000
RBS Pattern................. 00
Rate Drop................... 00
Digital Loss................ 2000
Local Rtrn Count............ 00
Remote Rtrn Count........... 00
Flex 9481814347C4
RBS Pattern: Shows the bits that are being robbed in the least significant 6 bytes,
e.g., 03 indicates 2 robbed bits in bit positions 0 and 1.
Digital Loss: Shows if a pad was encountered and if so, what was the digital loss.
2000 means 0dB.
Flex: Shows V.8bis information as follows:
First byte: Octet 13 (second byte of manufacturer id, 94 = K56flex)
Second byte: Octet 14 (Licensee code: 81 = Conexant)
35
AT Command Reference
Chapter 3 – Data Command Set
Third byte: Octet 15 (manufacturer's product capabilities)
Fourth byte: Octet 16 (K56flex version number)
Fifth byte: Octet 17 (Conexant pump code version number)
Sixth byte: Octet 18 (x-law and controller version number)
Bit 6 Forced/Not forced A-Law/µ-Law
0 = Forced A-Law/µ-Law.
1 = Not forced A-Law/µ-Law.
Bit 5 Select A-Law or µ-Law
0 = Select A-Law.
1 = Select µ-Law.
Bit 4:0 Controller version
Command:
\V
Command:
%L
Report Line Signal Level
%Q
Report Line Signal Quality
Description:
Syntax:
Defined Values:
Description:
Result Codes:
Command:
Description:
Example:
Result Codes:
Single Line Connect Message Enable
This command enables or disables the single line connect message format as follows:
\V<value>
<value> Decimal number corresponding to the selected option.
0 Connect messages are controlled by the command settings X, W, and S95.
1 Connect messages are displayed in the single line format described below subject to
the command settings V (Verbose) and Q (Quiet). In Non-Verbose mode (V0), single
line connect messages are disabled and a single numeric result code is generated for
CONNECT DTE.
When single line connect messages are enabled, there are no CARRIER, PROTOCOL
(+ER:), or COMPRESSION (+DR:) messages apart from the fields described below.
The single line connect message format is:
CONNECT <DTE Speed>/<Modulation>/<Protocol>/<Compression>/
<Line Speed>
Where:
DTE Speed = DTE speed, e.g., 57600.
Modulation = “V92” for V.92 modulation.
“V90” for V.90 modulation.
“K56” for K56flex modulation.
“V34” for V.34 modulation.
“V32” for V.32 or V.32bis modulation.
Note: Modulation is omitted for all other modulations.
Protocol =
“NONE” for no protocol.
“ALT” for Microcom Network Protocol.
“LAPM” for LAP-M protocol.
Compression = “V44” for V.44 compression.
“V42B” for V.42bis compression.
“ALT” for Microcom MNP5 compression.
Note: Compression is omitted if protocol is NONE.
Line Speed = Asymmetric rates are displayed as “/rate:TX/rate:RX”, e.g., /1200
TX/75 RX.
Symmetric rates are displayed as a single DCE rate, e.g., 14400.
Returns a value that indicates the received signal level. The value returned is a direct
indication (DAA dependent) of the receive level at the MDP, not at the telephone line
connector. For example, 009 = -9 dBm, 043 = -43 dBm, and so on.
OK
Reports the line signal quality (DAA dependent). Returns the higher order byte of the
EQM value. Based on the EQM value, retrain or fallback/fall forward may be initiated if
enabled by %E1 or %E2.
AT%Q
015
OK If connected.
ERROR if not connected, or connected in 300 bps, V.23, or fax modes.
36
AT Command Reference
Command:
Description:
Syntax:
Defined Values:
–STE=
Chapter 3 – Data Command Set
Set Telephony Extension
The –STE command enables/disables Line-In-Use, Extension Pickup, and Remote
Hangup detection features.
Note: Additional hardware may be required to support these features.
-STE=<value>
<value> Decimal number corresponding to the selected bit-mapped options. The bit
fields are defined as follows:
Bit 0
Line-In-Use detection enable/disable.
Bit 1
Extension Pickup detection enable/disable.
Bit 2
Remote Hangup detection enable/disable.
<value>
(Dec.)
0 (default)
1
2
3
4
5
6
7
Remote
Hangup
Disabled
Disabled
Disabled
Disabled
Enabled
Enabled
Enabled
Enabled
Extension
Pickup
Disabled
Disabled
Enabled
Enabled
Disabled
Disabled
Enabled
Enabled
Line-in-Use
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Reporting Current or Selected Values:
Command: -STE?
Response: -STE: <value>
Example: -STE: 4
Remote Hangup enabled, Extension
Pickup disabled, and Line-In-Use disabled.
Reporting Supported Range of Parameter Values:
Command: -STE=? Show available options.
Response: -STE: 0-7
Result Codes:
OK <value> = 0-7
ERROR Otherwise.
Behavior in Data Mode (+FCLASS=0):
When on-hook, if the line is in use and an ATDT is issued, the modem will not go off
hook and will return with the message LINE-IN-USE.
When off-hook and either an extension is picked up or a line reversal is detected, the
modem will drop the connection. The disconnect reason in register S86=25 (this is also
defined for #UD). You must flash the hook in order to get a dial tone because
the remote server will be retraining.
If the local handset is picked up while the modem is off-hook, the modem will do a linkdisconnect, flash the hook for 1.5 seconds, then connect the local handset to the line.
At this point, the user dial tone should be on the local handset. The disconnect reason
in S86=25.
Behavior in Voice Mode (+FCLASS=8):
When in voice mode and an extension is picked-up, a <DLE>P is sent to the DTE.
When the modem is off-hook, a line reversal may also be detected in which case a
<DLE>l is sent to the DTE.
In voice mode, there is no blocking of ATDT when the line is in use. Also, there is no
automatic hang-up in voice mode as in data mode. There is only the above stated
<DLE> shielding event reporting.
Operation in Data Mode:
Line-In-Use (Enabled by AT-STE=1, AT-STE=3, AT-STE=5, or AT-STE=7)
Case 1: Telephone Line is in Use
If an ATDT, ATDP or ATDL is issued while Line-In-Use detection is enabled and the
telephone line is in use, the modem will immediately return the message LINE-IN-USE
to the DTE without going off-hook, and then return to command mode.
Case 2: Telephone Line is in Use But Disconnected
If an ATDT, ATDP or ATDL is issued while Line-In-Use detection is enabled and the
telephone line is NOT in use, the modem will go off-hook after a short pause, then
respond with CONNECT or NO CARRIER message.
37
AT Command Reference
Chapter 3 – Data Command Set
Case 3: Telephone Line is Not Connected to Modem
If an ATDT, ATDP or ATDL is issued while Line-In-Use detection is enabled and the
telephone line is not connected, the modem will go off-hook momentarily, go back
on-hook, then respond with NO DIAL TONE message.
Extension Pick-up (Enabled by AT-STE=2, AT-STE=3, AT-STE=6, or AT-STE=7):
Case 1: Modem off-hook, Local Handset Goes Off-Hook
If the local handset goes off-hook while the modem is in a data connection, the local
handset will be muted. The modem will then send a GSTN Cleardown to the remote
modem and then go on-hook. The modem will then send a NO CARRIER message to
the DTE. A result code of 25 will be left in S86 register. After 2 seconds, the local
handset will be connected to the telephone line so the the dial tone can be heard.
Remote Hang-up (enabled by AT -STE=4, AT-STE=5, AT-STE=6, or AT-STE=7):
Case 1: Modem off-hook, Remote Hang-up
If the modem is connected (off-hook) and the remote modem/server goes hangs up,
the central office may issue a line polarity reversal. If a line polarity reversal is
detected, the modem will drop the call and respond with NO CARRIER. The reason for
hang-up can be determined by #UD or by S86=25. A line reversal can also be
simulated by simply pulling out the telephone line during a connection.
Operation in Voice Mode
Line-In-Use (enabled by AT-STE=1, AT-STE=3, AT-STE=5, or AT-STE=7):
This feature does not apply in voice mode.
Examples:
Extension Pickup (Enabled by AT-STE=2, AT-STE=3, AT-STE=6, or AT-STE=7)
If the modem is off-hook and an extension goes off-hook, the modem issues a
<DLE>P to the DTE. The application software should then hang up the line (VLS=0).
Remote Hang-up (Enabled by AT-STE=4, AT-STE=5, AT-STE=6, or AT-STE=7)
If the modem is off-hook and the remote user goes on-hook, the modem issues a
<DLE>P to the DTE. The application software should then hang up the line (VLS=0).
User is talking on an extension and the modem tries to dial
AT-STE=7
ATDT555-1212
LINE-IN-USE.
The line is not in use and the modem tries to dial
AT-STE=7
ATDT555-1212
Modem goes off-hook
CONNECT
An extension is off-hook but there is silence on the line and the modem tries to dial
AT-STE=3
ATDT555-1212
Modem goes off-hook
NO DIAL TONE
Modem is connected in data mode and remote modem goes on-hook
AT-STE=4
ATDT555-1212
CONNECT
NO CARRIER Remote modem drops line
ATS86=?
025
Modem is in answer machine mode and an extension goes off-hook
AT-STE=2
AT+FCLASS=8
OK
<DLE>h Local handset on-hook
<DLE>R Ring
AT+VLS=1
OK
AT+VSM=1,7200,0,0
AT+VTX Starts to play greeting message
<DLE>P User picks up extension
<DLE>! DTE send abort to end playback
AT+VLS=0 DTE hangs up.
38
AT Command Reference
Chapter 3 – Data Command Set
Automated system that needs to periodically use the line while giving the voice user
the highest priority
A common use for these features would be an automated system that needs to
periodically use the line while giving the voice user the highest priority. The automated
system would make a connection when the line is free. It would do this without
disturbing the line if the line is in use. The automated system would periodically retry
the connection until the line is free. Once the line is free it would dial and make its
connection. If a voice user wishes to use the line while the modem is connected. The
modem will drop the line and give the line to the user. The modem will then try to
regain control of the line by once again periodically retrying to establish a connection.
AT-STE=7
OK
ATDT5551212
CONNECT
Sometime later, the user picks up phone
NO CARRIER
ATS86?
25
OK
Delay 30 seconds
ATDT5551212
LINE-IN-USE
Try again some time later user hangs up the phone
CONNECT
39
AT Command Reference
Chapter 3 – Data Command Set
Modulation Control Commands
Command:
Description:
+MS
Syntax:
Modulation Selection
This extended-format compound parameter controls the manner of operation of the
modulation capabilities in the modem. It accepts six sub-parameters:
+MS=[<carrier>[,<automode>[,<min_tx_rate>[,<max_tx_rate>[,<min_rx_rate>
[,<max_rx_rate>]]]]]]
Where possible <carrier>, <min_tx_rate>, <max_tx_rate>, <min_rx_rate>, and
<max_rx_rate> values are listed in Table 3-3.
Table 3-3. +MS Command Supported Rates
Modulation
carrier>
Bell 103
Bell 212
V.21
V.22
V.22 bis
V.23
V.32
V.32 bis
V.34
B103
B212
V21
V22
V22B
V23C
V32
V32B
V34
K56flex
K56
V.90
V90
V.92 downstream
V.92 upstream
V92
Possible (<min_rx_rate>, <min_rx_rate>, (<min_tx_rate>), and <max_tx_rate>)
Rates (bps)
300
1200 Rx/75 Tx or 75 Rx/1200 Tx
300
1200
2400 or 1200
1200
9600 or 4800
14400, 12000, 9600, 7200, or 4800
33600, 31200, 28800, 26400, 24000, 21600, 19200, 16800, 14400, 12000, 9600,
7200, 4800, or 2400
56000, 54000, 52000, 50000, 48000, 46000, 44000, 42000, 40000, 38000, 36000,
34000, 32000
56000, 54667, 53333, 52000, 50667, 49333, 48000, 46667, 45333, 44000, 42667,
41333, 40000, 38667, 37333, 36000, 34667, 33333,32000, 30667, 29333, 28000
V92 56000, 54667, 53333, 52000, 50667, 49333, 48000, 46667, 45333, 44000,
42667, 41333, 40000, 38667, 37333, 36000, 34667, 33333, 32000, 30667, 29333,
28000
48000, 46667, 45333, 44000, 42667, 41333, 40000, 38667, 37333, 36000, 34667,
33333, 32000, 30667, 29333, 28000, 26667, 25333, 24000
1RWH: Some <carrier> values may not be supported by certain model models. For example,
modem models supporting V92 may not support K56.
Defined Values:
<carrier> A string that specifies the preferred modem carrier to use in originating or
answering a connection. <carrier> values are strings of up to eight characters,
consisting only of numeric digits and uppercase letters. <carrier> values for ITU
standard modulations take the form: <letter><1-4 digits><other letters as needed>.
Defined values are listed in Table 3-3.
<automode> A numeric value that enables or disables automatic modulation
negotiation (e.g., ITU-T V.32bis Annex A or V.8).
0 = Automode disabled.
1 = Automode enabled. (Default.)
<min_rx_rate> and <max_rx_rate>
Numeric values which specify the lowest (<min_rx_rate>) and highest (<max_rx_rate>)
rate at which the modem may establish a receive connection. May be used to condition
distinct limits for the receive direction as distinct from the transmit direction. Values for
this sub-parameter are decimal encoded, in units of bit/s. The possible values for each
modulation are listed in Table 3-3. Actual values will be limited to possible values
corresponding to the entered <carrier> and fall-back <carrier> as determined during
operation. (Default = lowest (<min_rx_rate>) and highest (<max_rx_rate>) rate
supported by the selected carrier.)
<min_tx_rate> and <max_tx_rate>
Numeric values which specify the lowest (<min_tx_rate>) and highest (<max_tx_rate>)
rate at which the modem may establish a transmit connection. Non-zero values for this
40
AT Command Reference
Chapter 3 – Data Command Set
sub-parameter are decimal encoded, in units of bit/s. The possible values for each
modulation are listed in Table 3-3.
Actual values will be limited to possible values corresponding to the entered <carrier>
and fall-back <carrier> as determined during operation. (Default = lowest
(<min_tx_rate>) and highest (<max_tx_rate>) rate supported by the selected carrier.).
Reporting Current or Selected Values:
Command: +MS?
Response: +MS:<carrier>,<automode>,<min_tx_rate>, <max_tx_rate>,
<min_rx_rate>,<max_rx_rate>
Note: The current active settings are reported under control of the +MR parameter.
Example: +MS: K56, 1,300,33600,300,56000
For default values. This example allows maximum system flexibility to determine
optimal receive and transmit rates during operation.
Reporting Supported Range of Parameter Values:
Command: +MS=?
Response: +MS: (< carrier> range),(<automode> range),(<min_tx_rate> range),
(<max_tx_rate> range), (<min_rx_rate> range), (<max_rx_rate> range)
Example 1: +MS:(B103,B212,V21,V22,V22B,V23C,V32,V32B,V34,
K56,V90),(0,1),(300-33600),(300-33600),(300-56000),(300-56000)
Example 2: +MS:(B103,B212,V21,V22,V22B,V23C,V32,V32B,V34,
V90,V92),(0,1),(300-33600),(300-33600),(300-56000),(300-56000)
Result Code:
OK Valid sub-parameter string
ERROR Otherwise.
Command:
Description:
+MR
Modulation Reporting Control
This extended-format numeric parameter controls whether or not the extended-format
+MCR:<carrier> and +MRR:<rate> intermediate result codes are transmitted from the
modem to the DTE. If enabled, +MCR:<carrier> and +MRR:<rate> intermediate result
codes represent the current (negotiated or renegotiated) modulation <carrier> and
<rate> that are transmitted at the point during connect negotiation (handshaking) at
which the modem has determined which modulation and rate will be used, i.e., before
any Error Control or Data Compression reports are transmitted, and before any final
result code (e.g., CONNECT) is transmitted.
S95 bit 2 is reset to 0 for +MR=0 and is set to a 1 for +MR=1 or +MR=2. The more
recent setting of +MR or S95 bit 2, and the W command setting, determines
modulation result code reporting (see S95 Parameter and W Command).
Syntax:
+MR=[<value>]
Defined Values:
<value> A decimal number corresponding to the selected option:
0 Disables reporting of modulation connection (+MCR: and +MRR: are not
transmitted). (Default.)
1 Enables reporting of modulation connection (+MCR: and +MRR: are transmitted with
tx rate, rx rate).
2 Enables reporting of modulation connection (+MCR: and +MRR: are transmitted with
rx rate only).
Reporting Current or Selected Values:
Command: +MR?
Response: +MR: <current value>
Example: +MR: 0 For default setting
Reporting Supported Range of Parameter Values:
Command: +MR=?
Response: +MR: (<value>range)
Example: +MR: (0-2)
+MCR: Report Syntax:
Response: +MCR: <carrier>
<carrier> Alphanumeric code corresponding to the reported carrier.
Defined values are:
B103 For Bell 103
B212 For Bell 212
V21 For V.21
V22 For V.22
V22B For V.22bis
V23C For V.23
V32 For V.32
V32B For V.32bis
41
AT Command Reference
+MRR: Report Syntax:
Command:
%E
Description:
Result Codes:
Description:
Select µ-Law or A-Law Codec Type
B
CCITT or Bell
Result Codes:
Description:
Syntax:
Defined Values:
Result Codes:
Enable/Disable Line Quality Monitor and Auto-Retrain or
Fallback/Fall Forward
%U
Syntax:
Defined Values:
Command:
V34 For V.34
K56 For K56flex
V90 For V.90
V92 For V.92
Response: +MRR: <tx_rate>,<rx_rate>
<tx_rate> Decimal transmit rate in bits/s.
<rx_rate> Decimal receive rate in bits/s.
Example: +MRR: 28800, 48000
Controls whether or not the modem will automatically monitor the line quality and
request a retrain (%E1) or fall back when line quality is insufficient or fall forward when
line quality is sufficient (%E2). The parameter value, if valid, is written to S41 bits 2 and
6.
If enabled, the modem attempts to retrain for a maximum of 30 seconds.
Fallback/Fall Forward. When %E2 is active, the modem monitors the line quality
(EQM). When line quality is insufficient, the modem will initiate a rate renegotiation to a
lower speed within the V.34/V.32 bis/V.32 (RC336) modulation speeds. The modem
will keep falling back within the current modulation if necessary until the speed reaches
2400 bps (V.34) or 4800 bps (V.32). Below this rate, the modem will only do retrains if
EQM thresholds are exceeded. If the EQM is sufficient for at least one minute, the
modem will initiate a rate renegotiation to a higher speed within the current modulation
speeds. The rate renegotiations will be done without a retrain if a V.32 bis connection
is established.
Speeds attempted during fallback/fall forward are those shown to be available in the
rate sequences exchanged during the initial connection. Fallback/fall forward is
available in error correction and normal modes, but not in direct mode or synchronous
mode with external clocks.
%E<value>
<value> Decimal number corresponding to the selected option.
0 Disable line quality monitor and auto-retrain.
1 Enable line quality monitor and auto-retrain.
2 Enable line quality monitor and fallback/fall forward. (Default.)
OK <value> = 0, 1, or 2.
ERROR Otherwise.
Syntax:
Defined Values:
Command:
Chapter 3 – Data Command Set
This command selects µ-Law or A-Law codec type for V.90 and K56flex modulation.
This command also stores the selected setting directly to NVRAM. The default value is
country-specific.
%U<value>
<value> Decimal number corresponding to the selected option.
0 Selects µ-Law.
1 Selects A-Law.
OK <value> = 0 or 1
ERROR Otherwise.
When the modem is configured to allow either option, the modem will select Bell or
CCITT modulation for a line speed connection of 300 or 1200 bps. Any other line
speed will use a CCITT modulation standard. The parameter value, if valid, is written to
S27 bit 6.
B<value>
<value> Decimal number corresponding to the selected option.
0 Selects CCITT operation at 300 or 1200 bps during Call Establishment and a
subsequent connection. (Default.)
1 Selects BELL operation at 300 or 1200 bps during Call Establishment and a
subsequent connection.
OK <value> = 0 or 1.
ERROR Otherwise.
42
AT Command Reference
Chapter 3 – Data Command Set
Error Control Commands
Command:
Description:
Syntax:
Defined Values:
+ES
Error Control and Synchronous Mode Selection
This extended-format command specifies the initial requested mode of operation when
the modem is operating as the originator, optionally specifies the acceptable fallback
mode of operation when the modem is operating as the originator, and optionally
specifies the acceptable fallback mode of operation when the modem is operating as
the answerer. It accepts three numeric sub-parameters:
+ES=[<orig_rqst>[,<orig_fbk>[,<ans_fbk>]]]
<orig_rqst> Decimal number which specifies the initial requested mode of operation
when the modem is operating as the originator. The options are:
0 Initiate call with Direct Mode.
1 Initiate call with Normal Mode (also referred to as Buffered Mode) only.
2 Initiate V.42 without Detection Phase. If V.8 is in use, disable V.42 Detection Phase.
3 Initiate V.42 with Detection Phase. (Default.)
4 Initiate MNP.
6 Initiate V.80 Synchronous Access Mode when connection is completed, and
Data State is entered. (See +ESA and +ITF commands.)
7 Initiate Frame Tunneling Mode when connection is complete, and Data Mode is
entered.
<orig_fbk> Decimal number that specifies the acceptable fallback mode of operation
when the modem is operating as the originator.
0 LAPM, MNP, or Normal Mode error control optional. (Default.)
1 LAPM, MNP, or Direct Mode error control optional.
2 LAPM or MNP error control required; disconnect if error control is not established.
3 LAPM error control required; disconnect if error control is not established.
4 MNP error control required; disconnect if error control is not established.
<ans_fbk> Decimal number that specifies the acceptable fallback mode of operation
when the modem is operating as the answerer or specifies V.80 Synchronous Access
Mode.
0 Direct Mode.
1 Error control disabled, use Normal Mode.
2 LAPM, MNP, or Normal Mode error control optional. (Default.)
3 LAPM, MNP, or Direct Mode error control optional.
4 LAPM or MNP error control required; disconnect if error control is not established.
5 LAPM error control required; disconnect if error control is not established.
6 MNP error control required; disconnect if error control is not established.
8 Initiate V.80 Synchronous Access Mode when connection is completed, and Data
State is entered (see +ESA and +ITF commands).
9 Initiate Frame Tunneling Mode when connection is complete, and Data Mode is
entered.
Examples:
+ES=6 Enable V.80 Synchronous Access Mode originator.
+ES=6 Enable V.80 Synchronous Access Mode originator.
+ES=,,8 Enable V.80 Synchronous Access Mode answerer.
+ES=6,,8 Enable V.80 Synchronous Access Mode originator and answerer.
+ES=3 Enable V.42 with Detection Phase originator. Disable V.80 Synchronous
Access Mode originator.
+ES=,,2 Allow LAPM, MNP, or Normal Mode connection answerer. Disable V.80
Synchronous Access Mode answerer.
+ES=3,,2 Enable V.42 with Detection Phase originator, allow LAPM, MNP, or Normal
Mode connection answer. Disable Synchronous Access Mode originator and answerer.
Reporting Current or Selected Values:
Command: +ES?
Response: +ES: <orig_rqst>,<orig_fbk>,<ans_fbk>
Example: +ES: 3,0,2 For the default setting.
+ES: 6,0,8 For V.80 Synchronous Access Mode originator and answerer.
Reporting Supported Range of Parameter Values:
Command: +ES=?
Response: +ES: (<orig_rqst> range),( <orig_fbk> range), (<ans_fbk> range)
Example: +ES: (0-4,6,7),(0-4),(0-6,8,9)
43
AT Command Reference
Chapter 3 – Data Command Set
Command:
+EB
Break Handling in Error Control Operation
Command:
+ESR
Selective Repeat
Command:
+EFCS
32-bit Frame Check Sequence
Description:
This extended-format compound parameter controls the break handling in V.42
operation. It accepts three numeric sub-parameters:
Syntax:
+EB=[<break_selection>[,<timed>[,<default_length>]]]
Defined Values:
<break_selection> Decimal number 0 specifying that break is to be ignored, i.e., not
signaled to remote DCE.
<timed> Decimal number 0 specifying that any transmitted V.42 L-SIGNAL will not
indicate break signal length <default_length> Decimal number 0 specifying that break
is not delivered to the DTE.
Reporting Current or Selected Values:
Command: +EB?
Response: +EB: <break_selection>,<timed>,<default_length><CR>
Example: +EB: 0,0,0 For default settings.
Reporting Supported Range of Parameter Values:
Command: +EB=?
Response: +EB: (<break_selection> range),(<timed> range), (default_length> range)
Example: +EB: (0),(0),(0)
Description:
This extended-format numeric parameter controls the use of the selective repeat
(SREJ) option in V.42.
Syntax:
+ESR=[<value>]
Decimal number 0 specifying that SREJ is not used.
Reporting Current or Selected Values:
Command: +ESR?
Response: +ESR: <value>
Example: +ESR: 0 For default setting
Reporting Supported Range of Parameter Values:
Command: +ESR=?
Response: +ESR: (<value>)
Example: +ESR: (0)
Description:
This extended-format numeric parameter controls the use of the 16-bit or 32-bit frame
check sequence (FCS) option in V.42.
Syntax:
+EFCS=[<value>]
Defined Values:
<value> Decimal number 0 specifying the use of the 16-bit FCS specified in V.42.
Reporting Current or Selected Values:
Command: +EFCS?
Response: +EFCS: <value>
Example: +EFCS: 0 For default setting.
Reporting Supported Range of Parameter Values :
Command: +EFCS=?
Response: +EFCS: (<value> range)
Example: +EFCS: (0)
44
AT Command Reference
Chapter 3 – Data Command Set
Command:
+ER
Command:
+ER: <type>
Description:
Error Control Reporting
This extended-format numeric parameter controls whether or not the extended-format
+ER: intermediate result code is transmitted from the modem to the DTE.
S95 bit 3 is reset to 0 for +ER=0 and is set to a 1 for +ER=1. The more recent setting
of +ER or S95 bit 3, and the W command setting, determines the actual error control
result code reporting (see S95 Parameter and W Command).
+ER=[<value>] +ER=[<value>] +ER=[<value>] +ER=[<value>]
Syntax:
+ER=[<value>]
Defined Values:
<value> A decimal number corresponding to the selected error control option:
0 = Error control reporting disabled (no +ER intermediate result code transmitted).
(Default.)
1 = Error control reporting enabled (+ER intermediate result code transmitted).
Reporting Current or Selected Values:
Command: +ER?
Response: +ER: <current value>
Example: +ER: 0 for the default setting
Reporting Supported Range of Parameter Values:
Command: +ER=?
Response: +ER: (<value> range)
Example: +ER: (0,1)
Description:
Syntax:
Defined Values:
Example:
The +ER: <type> reported represents the current (negotiated or renegotiated)
modem-modem error control type. If enabled, the intermediate result code is transmitted
at the point during error control negotiation (handshaking) at which the modem has
determined which error control protocol will be used (if any), before the final result
code (e.g., CONNECT) is transmitted. The format ofthis result code is: The +ER
intermediate result code, if enabled, is issued after the Modulation report (+MCR and
+MRR) and before the Data Compression Report (+DR).
+ER: <type>
<type> An alphanumeric code corresponding to the selected protocol.
NONE Error control is not in use.
LAPM V.42 LAPM protocol is in use.
ALT MNP is in use.
+ER: LAPM
45
AT Command Reference
Chapter 3 – Data Command Set
Command:
+ETBM
Call Termination Buffer Management
Command:
\B
Transmit Break to Remote
\K
Break Control
Description:
This extended-format compound parameter controls the handling of data remaining in
modem buffers upon call termination. It accepts three numeric sub-parameters:
Syntax:
+ETBM=[<pending_TD>[,<pending_RD>[,<timer>]]]
Defined Values:
<pending_TD> Decimal number 0 specifying that disconnect will occur immediately
and all buffered transmit data will be discarded when the local DTE requests call
disconnection.
<pending_RD> Decimal number 0 specifying that disconnect will occur immediately
and all buffered receive data will be discarded when the local DTE requests call
disconnection.
<timer> Decimal number 0 specifying that the modem will not attempt to deliver the
buffered data before abandoning the attempt and discarding remaining data.
Reporting Current or Selected Values:
Command: +ETBM?
Response: +ETBM: <pending_TD>,<pending_RD>,<timer>
Example: +ETBM: 0,0,0
Reporting Supported Range of Parameter Values:
Command: +ETBM=?
Response: +ETBM: (<pending_TD> range),(<pending_RD> range), (<timer> range)
Example: +ETBM: (0),(0),(0)
Description:
Syntax:
Defined Values:
Result Codes:
Command:
Description:
Syntax:
Defined Values:
In non-error correction mode, the modem will transmit a break signal to the remote
modem with a length in multiples of 100 ms according to parameter specified. If a
number in excess of 9 is entered, 9 is used. The command works in conjunction with
the \K command.
In error correction mode, the modem will signal a break through the active error
correction protocol, giving no indication of the length.
\B<value>
<value> Decimal number corresponding to the selected option.
1-9 Break length in 100 ms units. (Default = 3.)
(Non-error corrected mode only.)
OK If connected in data modem mode.
NO CARRIER If not connected or connected in fax modem mode.
Note: When the modem receives a break from the remote modem, break is passed to
the DTE as follows: In non-error correction mode direct, the break length is passed; in
non-error correction mode normal and in error correction mode, a 300 ms break is
passed.
Controls the response of the modem to a break received from the DTE or the remote
modem or the \B command. The parameter value, if valid, is written to S40 bits 3, 4,
and 5.
\K<value>
<value> Decimal number corresponding to the selected option.
The response is different in three separate states.
The first state is where the modem receives a break from the DTE when the
modem is operating in data transfer mode:
0 Enter on-line command mode, no break sent to the remote modem.
1 Clear data buffers and send break to remote modem.
2 Same as 0.
3 Send break to remote modem immediately.
4 Same as 0.
5 Send break to remote modem in sequence with transmitted data. (Default.)
The second case is where the modem is in the on-line command state (waiting
for AT commands) during a data connection, and the\B is received in order to
send a break to the remote modem:
0 Clear data buffers and send break to remote modem.
1 Clear data buffers and send break to remote modem. (Same as 0.)
2 Send break to remote modem immediately.
3 Send break to remote modem immediately. (Same as 2.)
4 Send break to remote modem in sequence with data.
5 Send break to remote modem in sequence with data. (Same as 4.) (Default.)
46
AT Command Reference
The third case is where a break is received from a remote modem during a
nonHrror corrected connection:
0 Clears data buffers and sends break to the DTE.
1 Clears data buffers and sends break to the DTE. (Same as 0.)
2 Send a break immediately to DTE.
3 Send a break immediately to DTE. (Same as 2.)
4 Send a break in sequence with received data to DTE.
5 Send a break in sequence with received data to DTE. (Same as 4.) (Default.)
OK 0 to 5.
ERROR Otherwise.
Result Codes:
Command:
Description:
Syntax:
Defined Values:
Result Codes:
Chapter 3 – Data Command Set
-K
MNP Extended Services
Enables or disables conversion of a V.42 LAPM connection to an MNP 10 connection.
The parameter value, if valid, is written to S40 bits 0 and 1.
-K<value>
<value> Decimal number corresponding to the selected option.
0 Disables V.42 LAPM to MNP 10 conversion. (Default.)
1 Enables V.42 LAPM to MNP 10 conversion.
2 Enables V.42 LAPM to MNP 10 conversion; inhibits MNP Extended Services
initiation during V.42 LAPM answer mode detection phase.
OK 0 or 2.
ERROR Otherwise.
47
AT Command Reference
Chapter 3 – Data Command Set
Data Compression Commands
This section contains parameters to condition modem use of standard ITU-T V.42bis Data Compression Procedures.
Command:
+DS
Data Compression
Command:
+DS44
V.44 Compression Select
Description:
This extended-format compound parameter controls the V.42bis data compression
function if provided in the modem. It accepts four numeric sub-parameters:
Syntax:
+DS=[<direction>[,<compr_neg>[,<max_dict>[,<max_string>]]]]
Defined Values:
<direction> Specifies the desired direction(s) of operation of the data compression
function; from the DTE point of view.
0 Negotiated; no compression (V.42bis P0=0).
3 both directions, accept any direction (V.42bis P0=11). (Default.)
<compr_neg> Specifies whether or not the modem should continue to operate if the
desired result is not obtained.
0 Do not disconnect if V.42bis is not negotiated by the remote modem as specified in
<direction>.
<max_dict> Specifies the maximum number of dictionary entries (2048 entries) that
should be negotiated (may be used by the DTE to limit the codeword size transmitted,
based on its knowledge of the nature of the data to be transmitted).
<max_string> Specifies the maximum string length (32 bytes) to be negotiated
(V.42bis P2).
Reporting Current or Selected Values:
Command: +DS?
Response: +DS: <direction>,<compr_neg>,<max_dict>,<max_string>
Example: +DS: 3,0,2048,32 for the defaults and 2048 entry max dictionary.
Reporting Supported Range of Parameter Values:
Command: +DS=?
Response: +DS: (<direction> range),(< compr_neg > range),
(<max_dict> range),(<max_string> range)
Example: +DS: (0,3),(0),(2048),(32)
Description:
Syntax:
Defined Values:
This extended-format compound parameter controls the V.44 data compression
function.
+DS44=[<direction>[,< compress_negotiation >[,<capability>[,<max_codewords_tx>
[,<max_codewords_rx>[,<max_string_tx>[,<max_string_rx>[,<max_history_tx>
[,<max_history_rx>]]]]]]]]]
<direction> Decimal number that specifies the desired direction(s) of operation of the
data compression function; from the DTE point of view.
0 Negotiated, no compression.
1 Transmit only.
2 Receive only.
3 Both directions, accept any direction. (Default.)
<compress_negotiation> Decimal number that specifies whether or not the modem
should continue to operate if the desired result is not obtained.
0 Do not disconnect if V.44 is not negotiated by the remote DCE as specified in
<direction>. (Default.)
1 Disconnect if V.44 is not negotiated by the remote DCE as specified in <direction>.
<capability> Decimal number that specifies the use of stream method, packet method,
multi-packet method.
0 Stream method. (Default.)
1 Packet method.
2 Multi-packet method.
<max_codewords_tx> Decimal number from 256 to 2048 that specifies the maximum
number of codewords which should be negotiated in the transmit direction.
(Default = 2048.)
<max_codewords_rx> Decimal number from 256 to 2048 that specifies the maximum
number of codewords which should be negotiated in the receive direction.
(Default = 2048.)
<max_string_tx> Decimal number from 32 to 255 that specifies the maximum string
length to be negotiated in the transmit direction. (Default = 32.)
48
AT Command Reference
Chapter 3 – Data Command Set
<max_string_rx> Decimal number from 32 to 255 that specifies the maximum string
length to be negotiated in the receive direction. (Default = 32.)
<max_history_tx> Decimal number from 2048 to 4096 that specifies the maximum size
of the history buffer to be negotiated in the transmit direction. (Default = 4096.)
<max_history_rx> Decimal number from 2048 to 4096 that specifies the maximum size
of the history buffer to be negotiated in the receive direction. (Default = 4096.)
Reporting Current or Selected Values:
Command: +DS44?
Response: +DS44:<direction>,<compression_negotiation>,<capability>,
<max_codewords_tx>,<max_codewords_rx>,<max_string_tx>,
<max_string_rx>,<max_history_tx>,<max_history_rx>
Example: +DS44:3,0,0,2048,2048,32,32,4096,4096 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +DS44=?
Response: +DS44:(list of supported <direction> values),(list of supported
<compression_negotiation> values),(list of supported <capability> values),(list of
supported <max_codewords_tx> values),(list of supported <max_codewords_rx>
values),(list of supported <max_string_tx> values),(list of supported <max_string_rx>
values),(list of supported <max_history_tx> values),(list of supported <max_history_rx>
values)
49
AT Command Reference
Chapter 3 – Data Command Set
Command:
+DR
Data Compression Reporting
Command:
%C
Enable/Disable Data Compression
Description:
This extended-format numeric parameter controls whether or not the extended-format
+DR: intermediate result code is transmitted from the modem to the DTE. S95 bit 5 is
reset to 0 for +DR=0 and is set to a 1 for +DR=1. The more recent setting of +DR or
S95 bit 5, and the W command setting, determines the actual data compression result
code reporting (see S95 Parameter and W Command).
Syntax:
+DR=[<value>]
Defined Values:
<value> decimal number corresponding to the selected option:
0 Data compression reporting disabled (no +DR result code transmitted).
1 Data compression reporting enabled (+DR result code transmitted). (Default.)
Reporting Current or Selected Values:
Command: +DR?
Response: +DR: <current value>
Example: +DR: 1 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +DR=?
Response: +DR: (<value> range)
Example: +DR: (0,1)
+DR: <type> Intermediate Result Code:
The +DR: <type> reported represents the current (negotiated or renegotiated) modemmodem data compression type. If enabled, the intermediate result code is transmitted
at the point after error control negotiation (handshaking) at which the modem has
determined which data compression technique will be used (if any) and the direction of
operation. The +DR intermediate result code, if enabled, is issued after the Error
Control Report (+ER) and before the final result code (e.g., CONNECT).
The format of this result code is:
Result Code Syntax:
+DR: <type>
Defined Values:
<type> An alphanumeric code corresponding to the selected option: NONE Data
compression is not in use.
V42B V.42bis is in use in both directions.
V42B RD V.42 bis is in use in receive direction only V42B TD V.42 bis is in use in
transmit direction only V44 V.44 is in use in both directions V44 RD V.44 is in use in
receive direction only V44 TD V.44 is in use in transmit direction only ALT MNP 5
compression.
Example:
+DR: V42B
Description:
Syntax:
Defined Values:
Result Codes:
Enables or disables data compression negotiation. The modem can only perform data
compression on an error corrected link. The parameter value, if valid, is written to S41
bits 0 and 1.
%C<value>
<value> Decimal number corresponding to the selected option.
0 Disables data compression. Resets S46 bit 1.
1 Enables MNP 5 data compression negotiation.
Resets S46 bit 1.
2 Enables V.42 bis data compression. Sets S46 bit 1.
3 Enables both V.42 bis and MNP 5 data compression. Sets S46 bit 1. (Default.)
OK <value> = 0, 1, 2, or 3.
ERROR Otherwise.
50
AT Command Reference
Chapter 3 – Data Command Set
V.8/V.8bis Commands
Command:
+A8E
V.8 and V.8bis Operation Controls
Command:
+A8I
CI Signal Indication
Description:
This command is defined for two conditions: as a parameter while the modem is
on-hook, and as an action command while the modem is off-hook. If enabled, V.8
negotiation does not preclude simultaneous implementation of other negotiation means
(e.g., V.8bis, V.18, V.32bis Annex A).
This command is a compound parameter if issued while the modem is on-hook, used
to precondition V.8 and V.8bis originating and answering operation. It is issued by the
DTE before the Dial (D) or Answer (A) command, regardless of the state of the
+FCLASS parameter.
This command is an action command if issued while the modem is off-hook, to (re)start
V.8 or V.8bis negotiation. For example, if initial V.8 negotiation failed, but subsequent
T.30 negotiation indicated V.8 capability, this command may be used to initiate V.8
negotiation.
Syntax:
+A8E=<v8o>,<v8a>,<v8cf>[,<v8b>][,<cfrange>][,<protrange>]
Defined Values:
<v8o> Decimal number which enables/disables issuance of +A8x indications during
modem -controlled V.8 origination negotiation.
1 Enable DCE-controlled V.8 origination negotiation without +A8x indications.
(Default.)
6 Enable DCE-controlled V.8 origination negotiation with +A8x indications.
<v8a>= Decimal number which enables/disables issuance of +A8x indications during
modem-controlled V.8 answer negotiation.
1 Enable DCE-controlled V.8 answer negotiation without +A8x indications. (Default.)
5 Enable DCE-controlled V.8 answer negotiation with +A8x indications.
<v8cf>= Set the V.8 CI signal call function to the hexadecimal octet XY.
00 (Default.)
21
C1
<v8b>= Decimal number which enables/disables V.8bis negotiation.
0 Disable V.8bis negotiation.
1 Enable V.8bis negotiation. (Default.)
<cfrange>= “<string of values>“. Applicable only for <v8a>=5. Not supported.
< protrange >= “<string of values>“. Applicable only for <v8a>=5. Not supported.
Default values: 1,1,00,1,0,0
The ATD and ATA commands behave as specified in V.250, and +A8n indications are
not generated by the modem.
For sub-parameter values <v8o>=6 and <v8a>=5, the +A8I indications are issued
during the course of the V.8 session to notify the DTE when the relevant V.8 signals
are received.
Reporting Current or Selected Values:
Command: +A8E?
Response: +A8E: <v8o>,<v8a>,<v8cf>[,<v8b>][,<cfrange>][,<protrange>] Example:
+A8E: 1,1,00,1,0,0 For the defaults
Reporting Supported Range of Parameter Values:
Command: +A8E=?
Response: +A8E: (<v8o> range),(<v8a> range),(v8cf in octets),
(<v8b> range),(<cfrange>),(<protrange>)
Example: +A8E: (1,6),(1,5),(0,21,C1),(0,1),(0),(0)
Description:
Indication Syntax:
Defined Values:
Example:
This indication is issued by an answering modem, if +A8E,<v8a> .0, to indicate
detection of a V.8 CI signal, and report the recovered Call Function octet(s).
+A8I:<v8cf><CR>
<v8cf> A hexadecimal code octet representation of those Call Function octet(s). +A8I:0
indicates that the modem timed out waiting for CI.
+A8I:0 The modem timed out waiting for CI.
+A8I:X YYY
51
AT Command Reference
Chapter 3 – Data Command Set
Diagnostic Commands
Command:
Description:
#UD
Data Call State Model:
Command Syntax:
Syntax:
Response:
Defined Values:
Last Call Status Report
#UD is an action command requesting reporting of logged operation events.
It does not take parameters and must be the last command in the command line.
The modem logs aspects of their operation for each call, and saves these results until
cleared by one of the following events:
1. Power off.
2. Hard reset (e.g., negate DTR with &D3 set; reset button).
3. Soft reset = ATZ or AT&F.
4. ATD command issued.
5. ATA command issued.
6. Automatic answer (e.g., set register S0>0 and ring detected).
These results are NOT cleared by changing DTR, V.24 circuit 108.2, if &D0, &D1 or
&D2.
For purposes of this command, there are four data call states, and associated status
issues:
• Call Setup
-Calling DCE: get dial tone, generate dial digits, and detect call progress signals.
-Answering DCE: detect ringing, detect CallerID, etc.
• Negotiation
-V.25 calling tone/answer tone exchanges
-V.8 or V.8bis call function negotiations
-V-series modem carrier detection and training
-Modem-to-modem protocols (e.g., V.42, V.42bis).
• Data Transfer
-Bit-error rates, for each direction
-Rate renegotiation
-Retraining
• Call Termination
-protocol disconnect signals
-carrier disconnect signals
-loss of carrier
-excessive error rates
In response to this command, the modem will report one or more lines of information
text as defined below. Information text format conforms to V.250; each line is preceded
by a <CR><LF> pair, and terminated by <CR><LF>. (CR and LF characters may be
changed by writing new values to the contents of registers S3 and S4, respectively.)
The modem may generate a single line or multiple lines, followed by a standard OK
final result code. For example, if call setup failed, only that result is useful. Each
information text line is formatted as follows, including one or more key=value pairs:
#UD
DIAG <token key=value [[key=value] [key=value]] …>
DIAG 5 hexadecimal characters (44h, 49h, 41h, 47h, 20h)
<
Left angle bracket (less than sign) (3Ch) token unique 32-bit hexadecimal
string 2A4D3263(32h, 4h1, 34h, 44h, 33h, 32h, 36h, 33h)
space space character (20h)
Key
One- or two-digit hexadecimal number (see Key in Table 3-4)
=
Equal sign (3Dh)
Value Any string as defined below (from Table 3-4 - Table 3-9 as appropriate)
>
Right angle bracket (greater than sign) (3Eh)
Unless otherwise noted, all values are hexadecimal numbers. Any numeric values from
tables in ITU V.58 are converted to hexadecimal. Multi-digit values are reported MSD
first. Leading 0’s may be deleted. See examples in Table 3-13.
Monitoring an Active Connection
This command is intended for use after call termination. However, codes are defined so that a modem can respond
before the first call is placed, and during a call for live monitoring purposes. For example, key 60, call termination, has
value 1 defined, indicating that the call is still in progress.
52
AT Command Reference
Chapter 3 – Data Command Set
There are at least two ways to do this. First, the DTE could switch the modem to On-Line command state, issue the
command, capture the res ponses and then issue an ATO command. For smoother on-line monitoring, in-band means
defined in ITU V.80 are recommended if available in the modem. If V.80 methods are used, each response line shall
be a separate extended in-band message.
Notes for Tables
1.
The modem may insert a delay (e.g., 10 ms) between information text lines.
2.
The code tables include values for data and fax calls. Some of the codes are applicable only to data calls
(e.g.,data compression), some are applicable only to call origination (e.g., busy, answering signal detection)
and some are applicable only to the answering modem (e.g., calling signal detection).
callCleared codes from 3.6.4/V.58-1994
callCleared: indicates that the DCE has gone on-hook and that the previously existing network connection has been
cleared. These value are hex, converted from decimal in V.58. call. Cleared codes are described in Table 3-12.
Table
Key
0
1
2
3
4
5
10
11
12
17
18
20
21
22
23
24
25
26
27
30
31
32
33
34
35
40
41
42
43
44
50
51
52
53
54
55
56
57
58
59
60
61
3-4. AT#UD Last Call Status Report Format
Value(s)
Definition
2 digits
Diagnostic Command Specification revision number, digit.digit
Table 3-5
Call Setup Result code
Table 3-6
Multi-media mode
Table 3-7
DTE-DCE interface mode
String
V.8 CM octet string, same format as V.250, in quotes
String
V.8 JM octet string, same format as V.250, in quotes
0-2F
Received signal power level, in –dBm (0-43)
0-1F
Transmit signal power level, in –dBm (e.g., 0-17)
0-64
Estimated noise level, in –dBm (e.g., 10-90)
0-FFF
Round Trip delay, in units of ms
Table 3-8
V.34 INFO bit map
Table 3-9
Transmit Carrier Negotiation Result
Table 3-9
Receive Carrier Negotiation Result
0-1F40
Transmit Carrier symbol rate (0-8000) in symbol/s
0-1F40
Receive Carrier symbol rate (0-8000) in symbol/s
0-FA0
Transmit Carrier frequency (0-4000) in Hz
0-FA0
Receive Carrier frequency (0 -4000) in Hz
0-FA00
Initial transmit carrier data rate (0-64000) in bit/s
0-FA00
Initial receive carrier data rate (0 -64000) in bit/s
0-FF
Temporary carrier loss event count
0-FF
Carrier Rate re -negotiation event count
0-FF
Carrier Retrains requested
0-FF
Carrier Retrain requests granted
0-FA00
Final transmit carrier data rate in bit/s
0-FA00
Final receive carrier data rate in bit/s
Table 3-10
Protocol Negotiation Result
0-400
Error Control frame size in bytes
0-FF
Error control link timeouts in transmission
0-FF Error
control link NAKs received
Table 3-11
Compression Negotiation Result
0-2
Transmit flow control: 0 = off; 1 = DC1/ DC3; 2 = V.24 circuit 106/133
0-2
Receive flow control: 0 = off; 1 = DC1/DC3; 2 = V.24 circuit 106/133
0-FFFFFFFF Transmit characters sent from DTE
0-FFFFFFFF Received characters sent to DTE
0-FFFF
Transmit characters lost (data overrun errors from DTE)
0-FFFF
Received characters lost (data overrun errors to DTE)
0-FFFFFFFF Transmit I- Frame count, if error control protocol running
0-FFFFFFFF Received I-Frame count, if error control protocol running
0-FFFF
Transmit I-Frame error count, if error control protocol running
0-FFFF
Received I- Frame error count, if error control protocol running
Table 3-12
Termination Cause
0-FF Call
Waiting event count
53
AT Command Reference
Table
Code
0
1
2
3
4
5
Chapter 3 – Data Command Set
7
8
9
A
B
3-5. Call Setup Result Codes
Definition
No previous call (modem log has been cleared since any previous calls)
No dial tone detected
Reorder signal detected, network busy
Busy signal detected
No recognized signal detected (e.g., no signal, or nothing recognizable)
Voice detected * if this is a voice modem (e.g., V.253) operating in voice mode
(e.g., +FCLASS=8.0)
Data Answering signal detected (e.g., V.25 ANS, V.8 ANSam)
Data Calling signal detected (e.g., V.25 CT, V.8 CI)
Fax Answering signal detected (e.g., T.30 CED, DIS)
Fax Calling signal detected (e.g., T.30 CNG)
V.8bis signal detected
Table
Code
0
1
2
9
A
3-6. Multimedia Modes
Definition
Data Only
Fax Only
Voice
Video-telephony, H.324
Other V.80 call
Table
Code
0
1
2
3-7. DTE-DCE modes
Definition
Async data
V.80 transparent synchronous mode
V.80 framed synchronous mode
Table 3-8. V.34 INFO bit report
Bits
Source bits
Definition
31-30 INFO0 bit 20; 0
20-29 INFOc bits 79-88
16-19 INFOc bits 26-29 or 35-38 or 44 - 47 or 53 -56- or 62 -65 or 71-74
Pre-emphasis field, selected by the symbol rate chosen
12-15 INFOa bits 26 -29
10-11 MP bit 50; 0
0-9 INFOa bits 40 -49.
Table
Value
0
1
2
3
4
8
9
A
B
C
E
81
84
85
3-9. gstnModulationSchemeActive from 3.7.2/V.58
Description
V.17 (G3 Fax call)
V.21
V.22
V.22bis
V.23 Constant Carrier (1200/75)
V.27ter (G3 Fax call)
V.29 HD (G3 Fax call)
V.32
V.32bis
V.34
V.90 and V.92
K56flex
Bell 212A
Bell 103
54
AT Command Reference
Chapter 3 – Data Command Set
Table 3-10. errorControl Active from 3.5.2/V.58
Value Description
0
Disable/none
1
V.42 LAPM
2
V.42 Alternative protocol (MNP™)
80
MNP10™
Table 3-11. compressionActive from 3.2.2/V.58
Value
Description
0
None
V.42bis and V.44
1
MNP5™
80
Table
Value
0
1
2
3
4
19
1F
20
29
2A
2B
2C
2D
2E
2F
31
33
34
3C
3D
3E
3F
40
41
42
46
50
51
52
5A
5B
5C
5D
5E
5F
60
64
3-12. callCleared codes from 3.6.4/V.58-1994
Description
Notes
CauseUnidentified
Call setup issues
No Previous call
Not in V.58
Call is still in progress
Not in V.58
Call Waiting signal detected
Not in V.58, only if modem can detect it
Delayed
Same as value 2A, CallAttemptsLimitExceeded
InactivityTimerExpired
cct108isOffInhibitsDial
DTR low
cct108turnedOff
DTR drop
BlacklistedNumber
Same as “Delayed”, see ETS 300 001
CallAttemptsLimitExceeded
If extension detection supported
ExtensionPhoneOff-hook
e.g., S7 timeout
CallSetupFailTimerExpired
IncomingCallDetected
If incoming call while sending dial command.
LoopCurrentInterrupted
NoDial tone
ReorderTone
Fast busy
EngagedTone
Busy
LongSpaceDisconnect
And if modem program to abort on long space
CarrierLost
Signal Converter
TrainingFailed
NoModulationinCommon
RetrainFailed
RetrainAttemptCountExceeded
GstnCleardownReceived
FaxDetected
If this was not a fax call attempt
InTestMode
Test
AnyKeyAbort
Call Control
DteHangupCommand
If ATH was used to terminate the previous call.
DteResetCommand
If ATZ was used to terminate the previous call.
FrameReject
Error Control
NoErrorControlEstablished
Error control was required
ProtocolViolation
n400exceeded
LAPM retransmission Count Timer
NegotiationFailed
DisconnectFrameReceived
SabmeFrameReceived
LossOfSynchronization
Data Compression
55
AT Command Reference
Chapter 3 – Data Command Set
Example Modem Response and Usage
Example #UD commend response are shown in Table 3 -13.
Table 3-13. Completed Data Call, with some errors and rate retrain during the call
Modem Response Line
DIAG <2A4D3263 0=09>
DIAG <2A4D3263 1=06 2=0 3=0>
DIAG <2A4D3263 5=”C14513902A” 6=”A145”>
DIAG <2A4D3263 10=1F 11=0C 12=52>
DIAG <2A4D3263 14=03 15=05 16=10>
DIAG <2A4D3263 20=C 22=780 24=0C80
26=79E0>
DIAG <2A4D3263 21=D 25=1F40 27=DAC0>
DIAG <2A4D3263 30=00 31=03 32=01 33=01>
DIAG <2A4D3263 34=7080 35=CB20>
DIAG <2A4D3263 40=1 41=100>
DIAG <2A4D3263 42=0 43=0>
DIAG <2A4D3263 44=1 45=400>
DIAG <2A4D3263 50=2 51=2>
DIAG <2A4D3263 52=343CC 54=0>
DIAG <2A4D3263 53=7230E6 55=47>
DIAG <2A4D3263 56=29D 58=0001>
DIAG <2A4D3263 58=2A4B 59=0004>
DIAG <2A4D3263 60=51>
56
Description
This is version 0.9
Data Answer signal detected; Data only;
Character async
V.8 Call Menu indicates:
V.8 Joint Menu selects:
Receive level = -31 dBm; transmit level
= -12 dBm; noise level = -82 dBm
Far end echo delay in milliseconds; Far
end echo loss in dB; Near end echo loss
= 16 dB
Transmitter: V.34 training completed;
V.34 carrier frequency = 1920; V.34
symbol rate = 3200; initial transmit rate
is 31200 bit/s
Receiver: V.90 training completed; V.90
symbol rate = 8000; initial receive rate is
56000 bit/s
No carrier loss events, 3 carrier rate
renegotiations attempted; 1 carrier
retrain requested; 1 carrier retrain
granted
Final transmit rate is 28800 bit/s; final
receive rate is 52000 bit/s
LAPM negotiation completed; frame
size = 256
No error control timeout or link NAKs
V.42bis data compression used;
dictionary size = 1024
Hardware transmit and receive flow
control
213964 DTE characters transmitted, w/o
underrun
7483622 DTE characters received, 71
characters lost due to receive data
overrun
597 (decimal) frames transmitted, with 1
frame error
10827 (decimal) frames received, with 4
frame errors
Local PC-initiated hangup
AT Command Reference
Chapter 3 – Data Command Set
Compatibility Commands
Command:
Description:
&L
Leased Line Operation
)M
Enable Cellular Power Level Adjustment
@M
Initial Cellular Power Level Setting
:E
Compromise Equalizer Enable Command
Syntax:
Defined Values:
Result Codes:
Command:
Description:
Syntax:
Defined Values:
Result Codes:
Command:
Description:
Syntax:
Defined Values:
Result Codes:
Command:
Description:
Syntax:
Defined Values :
Result Codes:
This command requests leased line or dial-up operation. This command is provided for
compatibility only; no mode change is performed, dial-up operation continues. The OK
response is returned for a valid parameter, but no other action is performed. The
parameter value, if valid, is written to S27 bit 2.
&L<value>
<value> Decimal number corresponding to the selected option.
0 Requests dial-up operation. Dial-up operation continues.
OK 0.
ERROR Otherwise.
This command is included for compatibility only and has no effect other than returning
a result code.
)M<value>
<value> Decimal number corresponding to the selected option.
0 )M0 command.
1 )M1 command.
2 )M2 command.
OK 0 to 2.
ERROR Otherwise.
This command is included for compatibility only and has no effect other than returning
a result code.
@M<value>
<value> Decimal number corresponding to the selected power setting.
0 @M0 command.
.
.
30 @M30 command.
OK 0 to 30.
ERROR Otherwise.
This command is included for compatibility only and has no effect other than returning
a result code.
:E<value>
<value> Decimal number corresponding to the selected option.
0 :E0 command.
1 :E1 command.
OK 0 or 1.
ERROR Otherwise.
57
AT Command Reference
Chapter 3 – Data Command Set
FastConnect Commands
Command:
Description:
Syntax:
Defined Values:
$F
FastConnect Control
This command allows configuring of the client modem to connect to a central site
modem that supports non-standard V.22 and V.22 bis FastConnect protocols.
$F<n>
<n> Decimal number which specifies the initial requested mode of operation when
the modem is operating as the originator. The options are:
0 Normal connection (Default)
1 FastConnect without answer tone
2 Reserved
3 FastConnect with answer tone
S-Parameters
The S-Parameters are summarized in Table 3-14 along with their default values; registers denoted with
an '*' may be stored in one of the two user profiles by entering the &W command. One of these profiles
may be loaded at any time by using the Z command. Registers or register fields quoted as “reserved” are
reserved for current or future use by the firm ware, or are permanently overridden by PTT limitations.
All bit-mapped registers are read-only. The appropriate AT command, which controls the relevant bits in the
S-Parameter, should be used to change the value.
S - Read/Write S-Parameter
The modem selects an S-Parameter, performs an S-Parameter read or write function, or reports the value
of an S-Parameter.
n Establishes S-Parameter n as the last register accessed.
n=v Sets S-Parameter n to the value v.
n? Reports the value of S-Parameter n.
The parameter n can be omitted, in which case the last S-Parameter accessed will be assumed.
The S can be omitted for AT= and AT?, in which case the last S-Parameter accessed will be assumed.
For example:
ATS7 establishes S7 as the last accessed register.
AT=40 sets the contents of the last register accessed to 40.
ATS=20 sets the contents of the last register accessed to 20.
If the number "n" is outside the range of the S-Parameters available, the modem will return the ERROR
message. If the value “v” is outside the range permitted for a given S-Parameter, the modem will return
the ERROR message. Input and output are always in decimal format. Note that some S-Parameters are
read-only.
In some cases, writing to the S-Parameter will appear to be accepted but the value w ill not actually be
written.
Due to country restrictions, some commands will be accepted, but the value may be limited and replaced
by a maximum or minimum value.
58
AT Command Reference
Chapter 3 – Data Command Set
Factory Defaults
The factory default values are stored in ROM and are loaded into the active configuration at power up or
by the ATZ command. In addition, the designated default profile is subsequently loaded, and may change
some of the factory default values. The designated default profile can be changed by entering the &Y
command where n is one of the two possible user profiles.
The defaults shown are those used by Conexant in factory profiles zero and one. These may be
overwritten by the OEM prior to placing the firmware in PROM. Minimum and maximum values may also
be imposed in response to country PTT requirements.
The default values shown in Table 3-14 may vary by modem firmware configuration. Consult the MCU
firmware release notes for exact configuration.
The factory default values can be loaded at any time by entering the &Fn command.
59
AT Command Reference
Chapter 3 – Data Command Set
Table 3-14. S-Parameter Summary
Register
S0
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S14
S16
S19
S20
S21
S22
S23
S24
S25
S26
S27
S28
S29
S30
S31
S36
S38
S39
S40
S41
S46
S48
S86
S95
S210
Function
Rings to Auto-Answer
Ring Counter
Escape Character
Carriage Return Character
Line Feed Character
Backspace Character
Wait Time before Blind Dialing or for Dial
Tone
Wait Time for Carrier, Silence, or Dial
Tone
Pause Time for Dial Delay Modifier
Carrier Detect Response Time
Lost Carrier To Hang Up Delay
DTMF Tone Duration
Escape Prompt Delay (EPD)
General Bit Mapped Options Status
Test Mode Bit Mapped Options Status
Reserved
Reserved
V.24/General Bit Mapped Options Status
Speaker/Results Bit Mapped Options
Status
General Bit Mapped Options Status
Sleep Inactivity Timer
Delay to DTR Off
RTS-to-CTS Delay
General Bit Mapped Options Status
General Bit-Mapped Options Status
Flash Dial Modifier Time
Disconnect Inactivity Timer
General Bit-Mapped Options Status
LAPM Failure Control
Delay Before Forced Hangup
Flow Control Bit Mapped Options Status
General Bit-Mapped Options Status
General Bit-Mapped Options Status
Data Compression Control
V.42 Negotiation Control
Call Failure Indication
Extended Result Codes Control
V.34 Symbol Rate
Range
0-255
0-255
0-255
0-127
0-127
0-255
2-255
Units
Rings
Rings
ASCII
ASCII
ASCII
ASCII
s
Saved
*
*
0
0
43
13
10
8
2
50
*
1-255
s
*
2-255
1-255
1-255
50-255
0-255
-
s
*
0-255
0-255
0-255
0-255
0-255
0-255
0-26
0-255
s
s or 0.01 s
0.01 s
10 ms
10 s
s
-
0.1 s
0.1 s
0.001 s
0.02 s
-
*
*
*
*
*
*
*
*
* Register value may be stored in one of two user profiles with the &W command.
60
Default**
*
2
6
14
95
50
138 (8Ah)
0
0
0
52 (34h)
117 (75h)
0
0
5
1
73 (49h)
0
70
0
192 (C0h)
7
20
3
104 (68h)
195 (C3h)
138
7
21
0
13 (0Dh)
AT Command Reference
Chapter 3 – Data Command Set
S-Parameters Definitions
S0 - Number of Rings to Auto-Answer
S0 sets the number of the rings required before the modem automatically answers a call.
Setting this parameter to zero disables auto-answer mode.
Range: 0-255 rings
Default: 0
S1 - Ring Counter
S1 is incremented each time the modem detects a ring signal on the telephone line. S1 is cleared if no rings occur
over an eight-second interval.
Range: 0-255 rings
Default: 0
S2 - Escape Character
S2 holds the decimal value of the ASCII character used as the escape character. The default value corresponds to an
ASCII '+'. A value over 127 disables the escape process, i.e., no escape character will be recognized.
Range: 0-255, ASCII decimal
Default: 43 (+)
S3 - Carriage Return Character
S3 sets the command line and result code terminator character. Pertains to asynchronous operation only.
Range: 0-127, ASCII decimal
Default: 13 (Carriage Return)
S4 - Line Fe ed Character
S4 sets the character recognized as a line feed. Pertains to asynchronous operation only. The Line Feed control
character is output after the Carriage Return control character if verbose result codes are used.
Range: 0-127, ASCII decimal
Default: 10 (Line Feed)
S5 - Backspace Character
S5 sets the character recognized as a backspace. Pertains to asynchronous operation only. The modem will not
recognize the Backspace character if it is set to a value that is greater than 32 ASCII. This character can be used to
edit a command line. When the echo command is enabled, the modem echoes back to the local DTE the Backspace
character, an ASCII space character and a second Backspace character; this means a total of three characters are
transmitted each time the modem processes the Backspace character.
Range: 0-32, ASCII decimal
Default: 8 (Backspace)
S6 - Wait Time before Blind Dialing or for Dial Tone
S6 operation is country dependent.
1. Sets the length of time, in seconds, that the modem will wait before starting to dial after going off-hook when
blind dialing. This operation, however, may be affected by some ATX options according to country restrictions.
The “Wait for Dial Tone” call progress feature (W dial modifier in the dial string) will override the value in register
S6. (US models.)
2. Sets the length of time, in seconds, that the modem will wait for dial tone when encountering a “W” dial modifier
before returning NO DIAL TONE result code. (W class.) The modem always pauses for a minimum of 2 seconds,
even if the value of S6 is less than 2 seconds.
Range: 2-255 seconds
Default: 2
61
AT Command Reference
Chapter 3 – Data Command Set
S7 - Wait Time for Carrier, Silence, or Dial Tone
S7 operation is country dependent.
1. Sets the length of time in seconds, which the modem will wait for carrier before hanging up. The timer is started
when the modem finishes dialing (originate), or 2 seconds after going off-hook (answer). In originate mode, the
timer is reset upon detection of answer tone if allowed by country restrictions.
2. Sets the length of time, in seconds, that modem will wait for silence when encountering the @ dial modifier
before continuing with the next dial string parameter.
3. Sets the length of time, in seconds, that the modem will wait for dial tone when encountering a “W” dial modifier
before continuing with the next dial string parameter. (US models.)
Range: 1-255 seconds
Default: 50
S8 - Pause Time For Dial Delay
S8 sets the time, in seconds, that the modem must pause when the “,” dial modifier is encountered in the dial string.
Range: 2-255 seconds
Default: 2
S9 - Carrier Detect Response Time
S9 is supported for backwards compatibility only. No value can be written. Responds with default value.
Range: 6 tenths of a second
Default: 6 (0.6 second)
S10 - Lost Carrier To Hang Up Delay
S10 sets the length of time in tenths of a second, which the modem waits before hanging up after a loss of carrier.
This allows for a temporary carrier loss without causing the local modem to disconnect. When register S10 is set to
255, the modem functions as if a carrier is always present.
The actual interval the modem waits before disconnecting is the value in register S10 minus the value in register S9.
Therefore, the S10 value must be greater than the S9 value or else the modem disconnects before it recognizes the
carrier.
Range: 1-255 tenths of a second
Default: 14 (1.4 seconds)
Note: For Call Waiting detection, if the modem is set to US country code and S10 >=16,
then the modem will detect the Call Waiting tone and hang-up the line. If S10 <16,the
modem will not detect Call Waiting tone.
S11 - DTMF Tone Duration
S11 operation is country dependent.
1. For US models, S11 sets the duration of tones in DTMF dialing (has no effect on pulse dialing).
2. For W-class models, S11 is a country parameter.
Range: 50-255 milliseconds
Default: 95 (95 milliseconds)
S12 - Escape Prompt Delay (EPD)
S12 defines the maximum period, in fiftieths of a second, allowed between receipt of the last character of the three
escape character sequence from the DTE and sending of the OK result code to the DTE. If any characters are
detected during this time, the OK will not be sent. Sending of the OK result code does not affect entry into command
mode.
Range: 0-255 1/50 of a second
Default: 50 (1 second)
S14 - General Bit Mapped Options Status
S14 indicates the status of command options.
Default:
138 (8Ah) (10001010b)
Bit 0 This bit is ignored.
Bit 1 Command echo (En)
0 = Disabled (E0)
1 = Enabled (E1) (Default.)
Bit 2 Quiet mode (Qn)
62
AT Command Reference
Chapter 3 – Data Command Set
0 = Send result codes (Q0) (Default.)
1 = Do not send result codes (Q1)
Bit 3 Result codes (Vn)
0 = Numeric (V0)
1 = Verbose (V1) (Default.)
Bit 4 Reserved
Bit 5 Tone (T)/Pulse (P)
0 = Tone (T) (Default.)
1 = Pulse (P)
Bit 6 Reserved
Bit 7 Originate/Answer
0 = Answer
1 = Originate (Default.)
S16 - Test Mode Bit Mapped Options Status
S16 indicates the test in progress status.
Default: 0
Bit 0 Local analog loopback
0 = Disabled (Default.)
1 = Enabled (&T1)
Bits 1-7 Not used.
S19 - Reserved
S19 is supported for backwards compatibility only. No value can be written. Responds with default value.
Range: None
Default: 0
S20 - Reserved
S20 is supported for backwards compatibility only. No value can be written. Responds with default value.
Range: None
Default: 0
S21 - V.24/General Bit Mapped Options Status
S21 indicates the status of command options.
Default:
52 (34h) (00110100b)
Bits 0 - 1 Reserved (0)
Bit 2 CTS behavior (&Rn)
0 = CTS tracks RTS (&R0)
1 = CTS always on (&R1) (Default.)
Bits 3-4 DTR behavior (&Dn)
0 = &D0 selected
1 = &D1 selected
2 = &D2 selected (Default.)
3 = &D3 selected
Bit 5 RLSD (DCD) behavior (&Cn)
0 = &C0 selected
1 = &C1 selected (Default.)
Bit 6 DSR behavior (&Sn)
0 = &S0 selected (Default.)
1 = &S1 selected
Bit 7 Long space disconnect (Yn)
0 = Y0 (Default.)
1 = Y1
63
AT Command Reference
Chapter 3 – Data Command Set
S22 - Speaker/Results Bit Mapped Options Status
S22 indicates the status of command options.
Default:
117 (75h) (01110101b)
Bits 0-1 Speaker volume (Ln)
0 = Off (L0)
1 = Low (L1) (Default.)
2 = Medium (L2)
3 = High (L3)
Bits 2-3 Speaker control (Mn)
0 = Disabled (M0)
1 = Off on carrier (M1) (Default.)
2 = Always on (M2)
3 = On during handshake (M3)
Bits 4-6 Limit result codes (Xn)
0 = X0
4 = X1
5 = X2
6 = X3
7 = X4 (Default.)
Bit 7 Reserved
S23 - General Bit Mapped Options Status
S23 indicates the status of command options.
Default:
0
Bits 0-6 Not used
Bits 6-7 Guard tone (&Gn)
0 = None (&G0) (Default.)
1 = None (&G1)
2 = 1800 Hz (&G2)
S24 - Sleep Inactivity Timer
S24 sets the length of time, in seconds, that the modem will operate in normal mode with no detected telephone line
or DTE line activity before entering low-power sleep mode.
The timer is reset upon any DTE line or telephone line activity. If the S24 value is zero, neither DTE line nor
telephone inactivity will cause the modem to enter the sleep mode.
Range: 0-255 seconds
Default: 0
S25 - Delay To DTR Off
S25 sets the length of time that the modem will ignore DTR for taking the action specified by &Dn. Its units are
seconds for synchronous modes and one hundredths of a second for other modes.
Range: 0-255 (1 second for synchronous modes 1; 0.01 second otherwise)
Default: 5
S26 - RTS to CTS Delay
S26 sets the time delay, in hundredths of a second, before the modem turns CTS ON after detecting an OFF-to-ON
transition on RTS when &R0 is commanded. Pertains to synchronous operation only.
Range: 0-255 hundredths of a second
Default: 1
64
AT Command Reference
Chapter 3 – Data Command Set
S27 - Bit Mapped Options Status
S27 indicates the status of command options.
Default:
73 (49h) (01001001b)
Bits 0,1,3 Synchronous/asynchronous selection (&Mn/&Qn)
000 = &M0 or &Q0
001 = &M1 or &Q1
010 = &M2 or &Q2
011 = &M3 or &Q3
100 = Reserved
101 = &Q5 (Default.)
110 = &Q6
Bit 2 Leased line control (&Ln)
0 = Dial up line (&L0) (Default.)
Bits 4 - 5 Internal clock select (&Xn)
0 = Internal clock (&X0) (Default.)
1 = External clock (&X1)
2 = Slave clock (&X2)
Bit 6 CCITT/Bell mode select (Bn)
0 = CCITT mode (B0)
1 = Bell mode (B1) (Default.)
Bit 7 – Reserved
S28 - Bit Mapped Options Status
S28 indicates bit mapped options status.
Default:
0
Bits 0 - 1 Reserved
Bit 2 Reserved (always 0).
Bits 3 - 4 Pulse dialing (&Pn)
0 = 39%-61% make/break ratio at 10 pulses per second (&P0) (Default.)
1 = 33%-67% make/break ratio at 10 pulses per second (&P1)
2 = 39%-61% make/break ratio at 20 pulses per second (&P2)
3 = 33%-67% make/break ratio at 20 pulses per second (&P3)
Bit 5-7 Reserved
S29 - Flash Dial Modifier Time
S29 sets the length of time, in units of 10 ms, that the modem will go on-hook when it encounters the flash (!) dial
modifier in the dial string. S29 is a country dependent parameter. The S29 value cannot be changed using S29=XX.
Range: 0-255 10 ms intervals
Default: 70 (700 ms) for U.S.
S30 - Disconnect Inactivity Timer
S30 sets the length of time, in tens of seconds, that the modem will stay online before disconnecting when no data is
sent or received. In error-correction mode, any data transmitted or received will reset the timer. In other modes, any
data transmitted will reset the timer. The timer is inoperative in synchronous mode.
Range: 0-255 tens of seconds (0-2550 seconds)
Default: 0 (disabled)
65
AT Command Reference
Chapter 3 – Data Command Set
S36 - LAPM Failure Control
Default:
7 (00000111b)
Bits 0-2 This value indicates what should happen upon a LAPM failure. These fallback options are
initiated immediately upon connection if S48=128. If an invalid number is entered, the
number is accepted into the register, but S36 will act as if the default value has been
entered.
0 = Modem disconnects.
1 = Modem stays on-line and a Direct mode connection is established.
2 = Reserved.
3 = Modem stays on-line and a Normal mode connection is established.
4 = An MNP connection is attempted and if it fails, the modem disconnects.
5 = An MNP connection is attempted and if it fails, a Direct mode connection is
established.
6 = Reserved.
7 = An MNP connection is attempted and if it fails, a Normal mode connection is
established. (Default.)
Bits 3-7 Reserved
S38 - Delay Before Forced Hang Up
S38 specifies the delay between the modem's receipt of the H command to disconnect (or ON-to-OFF transition of
DTR if the modem is programmed to follow the signal), and the disconnect operation. Applicable to error-correction
connection only. This parameter can be used to ensure that data in the modem buffer is sent before the modem
disconnects.
1. If S38 is set to a value between 0 and 254, the modem will wait that number of seconds for the remote modem to
acknowledge all data in the modem buffer before disconnecting. If time expires before all data is sent, the NO
CARRIER result code will be issued to indicate that data has been lost. If all data is transmitted prior to time-out,
the response to the H0 command will be OK.
2. If S38 is set to 255, the modem does not time-out and continues to attempt to deliver data in the buffer until the
connection is lost or the data is delivered.
Range: 0-255 seconds
Default: 20
S39 - Flow Control Bit Mapped Options Status
Default:
3 (00000011b)
Bits 0-2 Status of command options
0 = No flow control
3 = RTS/CTS (&K3) (Default.)
4 = XON/XOFF (&K4)
5 = Transparent XON (&K5)
6 = Both methods (&K6)
Bits 3-7 Reserved
S40 - General Bit Mapped Options Status
S40 indicates the status of command options.
Default:
104 (68h) (01101000b)
Bits 0-1 MNP Extended Services (-Kn)
0 = Disable extended services (-K0) (Default.)
1 = Enable extended services (-K1)
2 = Enable extended services (-K2)
Bit 2 Reserved
Bits 3-5 Break Handling (\Kn)
0 = \K0
1 = \K1
2 = \K2
3 = \K3
4 = \K4
5 = \K5 (Default.)
Bits 6-7 Reserved
66
AT Command Reference
Chapter 3 – Data Command Set
S41 - General Bit Mapped Options Status
S41 indicates the status of command options.
Default:
13 (C3h) (00001101b)
Bits 0 -1 Compression selection (%Cn)
0 = Disabled (%C0)
1 = MNP 5 (%C1)
2 = V.42 bis (%C2)
3 = MNP 5 and V.42 bis (%C3) (Default.)
Bits 2, 6 Auto retrain and fallback/fall forward (%En)
Bit 6 Bit 2
0 0 = Retrain and fallback/fall forward disabled (%E0)
0 1 = Retrain enabled (%E1)
1 0 = Fallback/fall forward enabled (%E2) (Default.)
Bit 3 Reserved
Bits 4-5 Reserved
Bit 7 Reserved
S46 - Data Compression Control
S46 controls selection of compression. The following actions are executed for the given values:
Range: 136 or 138
Default:
138
S46=136 Execute error correction protocol with no compression.
S46=138 Execute error correction protocol with compression. (Default.)
S48 - V.42 Negotiation Control
The V.42 negotiation process determines the capabilities of the remote modem.
However, when the capabilities of the remote modem are known and negotiation is unnecessary, this process can be
bypassed if so desired.
Range: 0, 7, or 128 If an invalid number is entered, it is accepted into the S-Parameter, but S48 will act as if 128 has
been entered.
Default:
7
S48=0 Disable negotiation; bypass the detection and negotiation phases; andproceed with LAPM.
S48=7 Enable negotiation. (Default.)
S48=128 Disable negotiation; bypass the detection and negotiation phases; and proceed at once
with the fallback action specified in S36. Can be used to force MNP.
67
AT Command Reference
Chapter 3 – Data Command Set
S86 - Call Failure Reason Code
When the modem issues a NO CARRIER result code, a value is written to S86 Register to help determine the reason
for the failed connection. S86 records the first event that contributes to a NO CARRIER message.
The code definitions are:
Range: 0-26
Default:
21
S86=0 Normal hangup, no error occurred.
S86=1 Reserved.
S86=2 Reserved.
S86=3 Call Waiting caused disconnect.
S86=4 Physical carrier loss.
S86=5 No error correction at the other end.
S86=6 No response to feature negotiation.
S86=7 This modem is async only; the other modem is sync only.
S86=8 No framing technique in common.
S86=9 No protocol in common.
S86=10 Bad response to feature negotiation.
S86=11 No sync information from the remote modem.
S86=12 Normal hangup initiated by the remote modem.
S86=13 Retransmission limit reached.
S86=14 Protocol violation occurred.
S86=15 Lost DTR.
S86=16 Received GSTN cleardown.
S86=17 Inactivity timeout.
S86=18 Speed not supported.
S86=19 Long space disconnect.
S86=20 Key abort disconnect.
S86=21 Clears previous disconnect reason.
S86=22 No connection established.
S86=23 Disconnect after three retrains.
S86=24 Call Waiting tone detected.
S86=25 Extension pickup detected.
S86=26 Remote hangup detected.
68
AT Command Reference
Chapter 3 – Data Command Set
S95 - Extended Result Codes Control
A bit set to a 1 in this parameter, in conjunction with the W command, will enable the corresponding extended result
code (see Table 3-16).
The +MR, +ER, and +DR settings also control S95 bits 2, 3, and 5, respectively. The more recent settings of +MR,
+ER, and +DR, or host writing of S95 bits 2, 3, and 5, along with the W command setting, determine the
corresponding actual result code reporting (see +MR, +ER, DR, and W commands).
Default:
0
Bit 0 CONNECT result code indicates DCE speed instead of DTE speed.
Bit 1 Append/ARQ to CONNECT XXXX result code in error-correction mode (XXXX = rate).
Bit 2 Enable +MCR: XXXX result code (XXXX = modulation) and +MRR: XXXX result code (XXXX
= rate). (Also, see +MR.)
Bit 3 Enable +ER: XXXX result code (XXXX = protocol identifier).
Bit 4 Reserved.
Bit 5 Enable +DR: XXXX result code (XXXX = compression type).
Bits 6-7 Reserved.
S210 – V.34 Symbol Rates
The bits in this parameter control V.34 symbol rates and enables/disables V.34 asymmetric rates.
This parameter is used for diagnostic purpose only.
Default:
13 (0Dh) (00001101b)
Bits 0-2 Selects the range of allowed V.34 symbol rates.
2 1 0 Symbol Rates (baud)
0 0 0 = 2400 only
0 0 1 = 2400 only (no 2734)
0 1 0 = 2400, 2800
0 1 1 = 2400, 2800, 3000
1 0 0 = 2400, 2800, 3000, 3200
1 0 1 = 2400, 2800, 3000, 3200, 3429 (Default.)
Bit 3 Enable/disable V.34 asymmetric rates.
0 = Disable asymmetric rates
1 = Enable asymmetric rates (Default.)
Bits 4-7 Reserved.
Examples:
S210=13 Enable asymmetric rates with all symbol rates available. (Default.)
S210=5 Disable asymmetric rates with all symbol rates available.
S210=8 Enable asymmetric rates with only 2400 baud available.
S210=11 Enable asymmetric rates with 2400 to 3000 baud available.
69
AT Command Reference
Chapter 3 – Data Command Set
Result Codes
The modem responds to commands from the DTE and to activity on the line by signaling to the DTE in the form of
result codes. The result codes that the modem can send are described in Table 3-16.
Two forms of each result code are available: long-form, an English-like "verbose" response, and short-form, a datalike numeric response (included in parentheses following the long-form). The long-form code is preceded and
terminated by the sequence < CR> < LF>. The short-form is terminated by < CR>, only with no preceding sequence.
If result messages are suppressed, nothing is returned to the DTE. The long-form results codes can be modified by
the OEM through the .INF file.
Table 3-16. Result Code Definitions
Code
+)
Message
+FCERROR
0
1
OK
CONNECT
2
RING
3
NO CARRIER
4
ERROR
5
CONNECT 1200
6
NO DIAL TONE
7
BUSY
8
NO A NSWER
9
CONNECT 600
10
CONNECT 2400
11
CONNECT 4800
Meaning
High-speed fax data (V.27, V.29, V.33, or V.17) is expected but a V.21 signal is
received.
A command line has been executed.
For X command values specifying no speed reporting, the modem has
connected to the line and either the line speed is 300 bps and line speed is
enabled, or the DTE speed is 300 bps and DTE speed reporting is enabled.
An incoming ring signal is detected on the line. What qualifies as a ring signal is
determined by country-dependent parameters. When cellular interface is
selected, RING indicates that the cellular phone is receiving an receiving an
incoming call.
Sent when attempting to establish a call if:
1. Ringback is detected and later ceases but no carrier is detected within the
period of time determined by register S7, or 2. No ringback is detected
within the period of time determined by register S7.
Also sent when the modem auto-disconnects due to loss of carrier.
For X0, sent for the following conditions:
1. If busy tone detection is enforced, busy or circuit busy has been detected.
2. If dial tone detection is enforced or selected, dial tone has not been
detected.
Sent during an attempt to execute a command line if any of the following
conditions occur:
1. The command line contains a syntax error.
2. The modem cannot execute a command contained in the command line,
i.e., the command does not exist or is not supported.
3. A command parameter within the command line is outside the permitted
range.
For X0, X1, X2, and X3, this message is sent instead of DELAYED and
BLACKLISTED.
The modem has connected to the line and either the line speed is 1200 bps and
DCE speed reporting is enabled, or the DTE speed is 1200 bps and DTE speed
reporting is enabled.
For X2 and X4, the modem has been instructed to wait for dial tone during
dialing but none is received.
When cellular phone interface is selected, indicates that cellular service is not
currently available.
For X3 and X4, if busy tone detection is enforced, the busy (engaged) signal is
detected on the line when the modem is attempting to originate a call.
The modem is attempting to originate a call if a continuous ringback signal is
detected on the line until the expiration of the timer S7.
The modem has connected to the line, the DTE speed is 600 bps, and DTE
speed reporting is enabled.
The modem has connected to the line and either the line speed is 2400 bps and
DCE speed reporting is enabled, or the DTE speed is 2400 bps and DTE speed
reporting is enabled.
The modem has connected to the line and either the line speed is 4800 bps and
DCE speed reporting is enabled, or the DTE speed is 4800 bps and DTE speed
reporting is enabled.
70
AT Command Reference
12
CONNECT 9600
13
CONNECT 7200
14
CONNECT
12000
CONNECT
14400
CONNECT
19200
15
16
17
24
CONNECT
38400
CONNECT
57600
CONNECT
115200
CONNECT
75TX/1200RX
CONNECT
1200TX/75RX
DELAYED
32
BLACKLISTED
33
35
40
FAX
DATA
+MRR: 300
44
+MRR: 1200/75
45
+MRR: 75/1200
46
+MRR: 1200
47
+MRR: 2400
48
+MRR: 4800
49
+MRR: 7200
50
+MRR: 9600
51
+MRR: 12000
52
+MRR: 14400
53
+MRR: 16800
54
+MRR: 19200
55
+MRR: 21600
56
+MRR: 24000
57
+MRR: 26400
58
+MRR: 28800
59
CONNECT
16800
CONNECT
21600
18
19
22
23
61
Chapter 3 – Data Command Set
The modem has connected to the line and either the line speed is 9600 bps and
DCE speed reporting is enabled, or the DTE speed is 9600 bps and DTE speed
reporting is enabled.
The modem has connected to the line at 7200 bps and DCE speed reporting is
enabled.
The modem has connected to the line at 12000 bps and DCE speed reporting is
enabled.
The modem has connected to the line at 14400 bps and DCE speed reporting is
enabled.
The modem has connected to the line and either the line speed is 19200 bps
and DCE speed reporting is enabled, or the DTE speed is 19200 bps and DTE
speed reporting is enabled.
The modem has connected to the line, the DTE speed is 38400 bps, and DTE
speed reporting is enabled.
The modem has connected to the line, the DTE speed is 57600 bps, and DTE
speed reporting is enabled.
The modem has connected to the line, the DTE speed is 115200 bps, and DTE
speed reporting is enabled.
The modem has established a V.23 originate connection and line speed
reporting is enabled.
The modem has established a V.23 answer connection and line speed reporting
is enabled.
For X4, sent when a call fails to connect and the number dialed is considered
'delayed' due to country blacklisting requirements.
For X4, sent when a call fails to connect and the number dialed is considered
'blacklisted'.
A fax modem connection is established in a facsimile mode.
A data modem connection is established in a facsimile mode.
The modem has connected to the line at 300 bps and carrier reporting is
enabled. (See S95 and Xn.)
The V.23 backward channel carrier is detected and carrier reporting is enabled.
(See S95 and Xn.)
The V.23 forward channel carrier is detected and carrier reporting is enabled.
(See S95 and Xn.)
The modem has connected to the line at 1200 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 2400 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 4800 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 7200 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 9600 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 12000 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 14400 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 16800 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 19200 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 21600 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 24000 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 26400 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 28800 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line, the DTE speed is 16800 bps and DTE
speed reporting is enabled.
The modem has connected to the line, the DTE speed is 21600 bps and DTE
speed reporting is enabled.
71
AT Command Reference
62
63
64
CONNECT
24000
CONNECT
26400
CONNECT
28800
66
+DR: ALT
67
+DR: V.42B
69
+DR: NONE
70
+ER: NONE
77
+ER: LAPM
78
+MRR: 31200
79
+MRR: 33600
80
+ER: ALT
81
+ER: ALTCELLULAR
LINE-IN-USE
83
84
134
CONNECT
33600
CONNECT
31200
+MCR: B103
135
+MCR: B212
136
+MCR: V21
137
+MCR: V22
138
+MCR: V22B
139
+MCR: V23
140
+MCR: V32
141
+MCR: V32B
142
+MCR: V34
144
+MCR: K56
145
+MCR: V90
150
+MRR: 32000
151
+MRR: 34000
152
+MRR: 36000
153
+MRR: 38000
154
+MRR: 40000
155
+MRR: 42000
91
Chapter 3 – Data Command Set
The modem has connected to the line, the DTE speed is 24000 bps and DTE
speed reporting is enabled.
The modem has connected to the line, the DTE speed is 26400 bps and DTE
speed reporting is enabled.
The modem has connected to the line and either the line speed is 28800 bps
and DCE speed reporting is enabled, or the DTE speed is 28800 bps and DTE
speed reporting is enabled.
The modem has connected to the line in MNP Class 5 and +DR: message
reporting is enabled. (See S95, Wn, and Xn.)
The modem has connected to the line in V.42 bis and +DR: message reporting is
enabled. (See S95, Wn, and Xn.)
The modem has connected to the line without data compression and +DR:
message reporting is enabled. (See S95, Wn, and Xn.)
The modem has connected to the line without any form of error correction and
the +ER: message reporting has been enabled. (See S95, Wn, and Xn.)
The modem has connected to the line in V.42 LAPM error correction mode and
+ER: message reporting has been enabled. (See S95, Wn, and Xn.)
The modem has connected to the line at 31200 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 33600 bps and carrier reporting is
enabled. (See S95 and Xn.)
Sent when the modem has connected in the MNP mode of error correction, and
+ER: message reporting has been enabled. (See S95, Wn, and Xn.)
The modem has connected in the MNP 10 mode and cellular power level
adjustment is enabled (")M1 or )M2").(See S95, Wn, and Xn.)
The modem attempted to go off-hook when an extension was already occupying
the line.
The modem has connected to the line, the DTE speed is 33600 bps and the DTE
speed reporting is enabled.
The modem has connected to the line DTE speed is 31200 bps and the modem
is to report the DTE speed upon connecting.
The modem has connected to the line with Bell 103 modulation and modulation
reporting is enabled. (See +MR, S95 and Xn.)
The modem has connected to the line with Bell 212 modulation and modulation
reporting is enabled. (See +MR, S95 and Xn.)
The modem has connected to the line with ITU-T V.21 modulation and
modulation reporting is enabled. (See +MR, S95 and Xn.)
The modem has connected to the line with ITU-T V.22 modulation and
modulation reporting is enabled. (See +MR, S95 and Xn.)
The modem has connected to the line with ITU-T V.22 bis modulation and
modulation reporting is enabled. (See +MR, S95 and Xn.)
The modem has connected to the line with ITU-T V.23 modulation and
modulation reporting is enabled. (See +MR, S95 and Xn.)
The modem has connected to the line with ITU-T V.32 modulation and
modulation reporting is enabled. (See +MR, S95 and Xn.)
The modem has connected to the line with ITU-T V.32 bis modulation and
modulation reporting is enabled. (See +MR, S95 and Xn.)
The modem has connected to the line with ITU-T V.34 modulation and
modulation reporting is enabled. (See +MR, S95 and Xn.)
The modem has connected to the line with K56flex modulation and modulation
reporting is enabled. (See +MR, S95 and Xn.)
The modem has connected to the line with ITU-T V.90 modulation and
modulation reporting is enabled. (See +MR, S95 and Xn.)
The modem has connected to the line at 32000 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 34000 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 36000 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 38000 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 40000 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 42000 bps and carrier reporting is
72
AT Command Reference
156
+MRR: 44000
157
+MRR: 46000
158
+MRR: 48000
159
+MRR: 50000
160
+MRR: 52000
161
+MRR: 54000
162
+MRR: 56000
165
CONNECT
32000
CONNECT
34000
CONNECT
36000
CONNECT
38000
CONNECT
40000
CONNECT
42000
CONNECT
44000
CONNECT
46000
CONNECT
48000
CONNECT
50000
CONNECT
52000
CONNECT
54000
CONNECT
56000
CONNECT
230400
CONNECT
28000
CONNECT
29333
CONNECT
30667
CONNECT
33333
CONNECT
34667
CONNECT
37333
CONNECT
38667
CONNECT
41333
CONNECT
42667
CONNECT
45333
CONNECT
166
167
168
169
170
171
172
173
174
175
176
177
178
180
181
182
183
184
185
186
187
188
189
190
Chapter 3 – Data Command Set
enabled. (See S95 and Xn.)
The modem has connected to the line at 44000 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 46000 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 48000 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 50000 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 52000 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 54000 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 56000 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 32000 bps and DCE speed reporting is
enabled.
The modem has connected to the line at 34000 bps and DCE speed reporting is
enabled.
The modem has connected to the line at 36000 bpsand DCE speed reporting is
enabled.
The modem has connected to the line at 38000 bps and DCE speed reporting is
enabled.
The modem has connected to the line at 40000 bps and DCE speed reporting is
enabled.
The modem has connected to the line at 42000 bps and DCE speed reporting is
enabled.
The modem has connected to the line at 44000 bps and DCE speed reporting is
enabled.
The modem has connected to the line at 46000 bps and DCE speed reporting is
enabled.
The modem has connected to the line at 48000 bps and DCE speed reporting is
enabled.
The modem has connected to the line at 50000 bps and DCE speed reporting is
enabled.
The modem has connected to the line at 52000 bps and DCE speed reporting is
enabled.
The modem has connected to the line at 54000 bps and DCE speed reporting is
enabled.
The modem has connected to the line at 56000 bps and DCE speed reporting is
enabled.
The modem has connected to the line, the DTE speed is 230400 bps, and DTE
speed reporting is enabled.
The modem has connected to the line at 28000 bps and DCE SPEED reporting
is enabled.
The modem has connected to the line at 29333 bps and DCE SPEED reporting
is enabled.
The modem has connected to the line at 30667 bps and DCE SPEED reporting
is enabled.
The modem has connected to the line at 33333 bps and DCE SPEED reporting
is enabled.
The modem has connected to the line at 34667 bps and DCE SPEED reporting
is enabled.
The modem has connected to the line at 37333 bps and DCE SPEED reporting
is enabled.
The modem has connected to the line at 38667 bps and DCE SPEED reporting
is enabled.
The modem has connected to the line at 41333 bps and DCE SPEED reporting
is enabled.
The modem has connected to the line at 42667 bps and DCE SPEED reporting
is enabled.
The modem has connected to the line at 45333 bps and DCE SPEED reporting
is enabled.
The modem has connected to the line at 46667 bps and DCE SPEED reporting
73
AT Command Reference
195
46667
CONNECT
49333
CONNECT
50667
CONNECT
53333
CONNECT
54667
+MRR: 28000
196
+MRR: 29333
197
+MRR: 30667
198
+MRR: 33333
199
+MRR: 34667
200
+MRR: 37333
201
+MRR: 38667
202
+MRR: 41333
203
+MRR: 42667
204
+MRR: 45333
205
+MRR: 46667
206
+MRR: 49333
207
+MRR: 50667
208
+MRR: 53333
209
+MRR: 54667
191
192
193
194
Chapter 3 – Data Command Set
is enabled.
The modem has connected to the line at 49333 bps and DCE SPEED reporting
is enabled.
The modem has connected to the line at 50667 bps and DCE SPEED reporting
is enabled.
The modem has connected to the line at 53333 bps and DCE SPEED reporting
is enabled.
The modem has connected to the line at 54667 bps and DCE SPEED reporting
is enabled.
The modem has connected to the line at 28000 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 29333 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 30667 bps and carrierreporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 33333 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 34667 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 37333 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 38667 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 41333 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 42667 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 45333 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 46667 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 49333 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 50667 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 53333 bps and carrier reporting is
enabled. (See S95 and Xn.)
The modem has connected to the line at 54667 bps and carrier reporting is
enabled. (See S95 and Xn.)
Notes:
1. See Vn for result code selection, i.e., short form (result code) or verbose/extended (result message).
2. See Wn for extended connect message control.
3. See S95 for extended result code enabling options (which override some Wn commands).
4. See Xn for extended result code subset enabling options.
5. See \Vn for single line connect message enable options.
6. See +MR for modulation reporting control.
74
AT Command Reference
Chapter 4 – Fax Class 1 and Class 1.0 Commands
Chapter 4 – Fax Class 1 and Class 1.0
Commands
Fax I/O Processing
The fax I/O interface supports asynchronous serial and parallel interfaces. The character format is 8 bits data, no
parity, and 1 stop bit. Start and stop elements are removed from the transmit data and added to the receive data.
Both transmit and receive data are buffered. Flow control using XON/XOFF or RTS/CTS is provided.
Unique control character strings are identified, filtered, or reinserted into the I/O data stream. These control
characters and their resultant actions are described below.
DTE-to-Modem Transmit Data Stream
Characters Detected
<DLE><data>
<DLE><ETX>
<DLE><DLE>
Action Taken
Delete <DLE><data> characters.
Recognize as a string terminator and take appropriate action.
Replace with single <DLE> character.
Modem-to-DTE Receive Data Stream
Characters Detected
<DLE>
Action Taken
Insert extra <DLE> ahead of <DLE>.
The modem also identifies the end of a frame by inserting <DLE><ETX> into the data stream after the FCS bytes.
75
AT Command Reference
Chapter 4 – Fax Class 1 and Class 1.0 Commands
Fax Mode Selection
Fax Class 1 and Fax Class 1.0 commands are identified in Table 4--1. Fax Class 1.0 includes all Fax Class 1
commands
Table 4-1. Fax Class 1 and Fax Class 1.0 Commands
Command/Parameter
Function
+FCLASS=<class>
+FAA=<value>
+FAE=<value>
+FTS=<time>
+FRS=<time>
+FTM=<mod>
+FRM=<mod>
+FTH=<mod>
+FRH=<mod>
+FAR=<off/on>
+FCL=<time>
+FDD=<value>
+FIT=<time>, <action>
+FPR=<rate>
+FMI?
+FMM?
+FMR?
+FLO
&K
Select, read or test service class
Auto answer enable
Auto answer enable
Stop transmission and pause
Wait for silence
Transmit data with <mod> carrier
Receive data with <mod> carrier
Transmit HDLC data with <mod> carrier
Receive HDLC data with <mod> carrier
Adaptive reception control
Carrier loss timeout
Double escape character replacement control
DTE inactivity timeout
Fixed DTE Rate
Report manufacturer ID
Report model ID
Report revision ID
Flow Control
Local DTE-modem flow control
(see Call Control Section)
Answer
Dial
Hangup (see Call Control Section)
A
D<string>
H
Applicable in
Fax Class 1
X
X
X
X
X
X
X
X
X
X
X
X
Applicable in
Fax Class 1.0
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X = Applicable; - = Not applicable.
Fax Origination
Origination of fax calls is made using the ATD command. Upon completion of the dial function, a calling tone at
1100 Hz is transmitted, with a cadence of 0.5 seconds on and 3 seconds off. The modem automatically enters mode
+FRH=3 and sends the CONNECT message to the DTE when FSK flags are detected from the remote.
Fax Answering
Answering of fax calls is identical to answering of data calls with the exception that the modem enters the fax
handshaking mode instead of the data handshaking mode after going off-hook. If +FAE=0, the modem, after sending
answer tone, automatically enters fax mode (+FTH=3), sends the CONNECT message to the DTE, and starts
sending FSK flags. If +FAE=1, the modem determines whether the caller is a data modem or fax modem and sends
the DATA or FAX result code, respectively, to the DTE.
Fax Control Transmission
Fax control transmission is initiated by the +FTH=<mod> command. After this command is issued, the modem
generates the CONNECT message and transmits carrier in the modulation scheme specified by the parameter n. The
modem then transmits HDLC flags for a minimum of 1 second. The modem continues to transmit the HDLC flags until
it receives a character from the DTE.
When characters are received from the DTE, the modem adds start and end flags, performs zero-bit insertion,
generates FCS, and deletes <DLE><chr> character pairs before transmitting the characters to the remote fax
machine. Each <DLE><DLE> sequence is transmitted as a single <DLE>. <DLE><ETX>is considered as the end of
frame marker and is not transmitted. All data received from the DTE after <DLE><ETX> is ignored by the modem
until the modem generates either the CONNECT, OK, or ERROR result code.
76
AT Command Reference
Chapter 4 – Fax Class 1 and Class 1.0 Commands
If no more data is in the transmit buffer and the final bit was a 1 (bit 4 of the second byte received from the DTE), the
modem generates the OK result code and returns to the command mode. If the final bit was a 0, the modem
generates the CONNECT message and waits for further data from the DTE while transmitting HDLC flags. If no more
data is received before 5 seconds elapse, the modem drops carrier, goes on-hook, and generates the ERROR result
code.
Fax Control Reception
Fax control reception is initiated using the AT+FRH=<mod> command. After this command is issued, the modem
looks for a carrier in the modulation scheme specified by the parameter n. If no carrier is detected before the period of
time specified by register S7 expires, the modem generates the NO CARRIER message and returns to command
mode.
If a carrier is detected that is not the one specified by the parameter n, the modem generates the +FCERROR
message and returns to the command mode. If the specified carrier is detected, the modem generates the
CONNECT message and enters the HDLC receive mode.
In HDLC receive mode, the modem receives HDLC frames from the remote fax machine, strips the flags, performs
zero-bit deletion, performs error checking, and handles <DLE><chr> character pairs before passing the data to the
DTE. The modem prefixes each <DLE> character with another <DLE> character before sending it to the DTE. After
the last byte in the frame, the modem sends <DLE><ETX> to the DTE marking the end of the frame. The modem
then generates either the OK message if no errors were detected or the ERROR message if errors were detected
(FCS is incorrect), and returns to command mode.
While in command mode, the modem continues to receive data in the selected modulation scheme, and sends the
data after sending the CONNECT message to the DTE when the DTE reissues the +FRH command with the same
parameter. If the DTE issues the +FRH command with a different parameter, the modem clears all buffers and
proceeds as described previously.
If carrier is lost while in command mode and the DTE reissues the +FRH command with the same parameter, and
there is no data in the buffer, the modem sends the ERROR result code to the DTE and returns to the command
mode. If there is data in the buffer, the modem sends the next frame of buffered data to the DTE, followed by
<DLE><ETX>, and either the ERROR result code if errors were detected or the OK result code if no errors were
detected. The modem then returns to command mode.
The modem concludes an error is detected if carrier is lost for any period of time during or before the reception of a
frame. If carrier is lost for a time period longer than the time specified by the register S10, the modem finishes
delivering the data in the receive buffer (if any) to the DTE, sends <DLE><ETX>, generates the ERROR message,
and returns to command mode. All subsequent data received from the remote is discarded.
If the modem detects a frame abort sequence (seven consecutive ones with no zero insertion) while it is waiting for a
frame beginning flag (it was receiving HDLC flags), it will wait for the HDLC flags again until either carrier is lost or the
DTE aborts the process by sending an abort character or by dropping DTR with &D2 in effect. If the frame abort
sequence is detected while the modem is receiving a frame it finishes delivering the data in the receive buffer (if any)
to the DTE, sends <DLE><ETX>, generates the ERROR message, and returns to command mode. The modem
keeps looking for HDLC flags followed by more data from the remote, with the selected modulation scheme.
If the modem detects a receive buffer overflow condition, it concludes that there was an FCS error in that frame. The
modem will receive more frames only if a starting flag is detected and there is room in the receive buffer. If a starting
flag is detected and there is no room in the buffer, the modem discards all data in that frame.
If the modem receives any character from the DTE after the +FRH command (except flow control characters if
software flow control is in effect), or if the modem detects a high-to-low transition of the DTR signal while &D1 is in
effect, it sends <DLE><ETX> to the DTE, generates OK result code, and returns to command mode. The receive
buffer is cleared and all data received from the remote is discarded. If the modem detects a DTR drop while &D2 is in
effect, it goes on-hook, sends <DLE><ETX> to the DTE, generates OK result code, and returns to command mode. If
the modem detects a DTR drop while &D3 is in effect, the modem performs a warm reset.
77
AT Command Reference
Chapter 4 – Fax Class 1 and Class 1.0 Commands
Fax Data Transmission
Fax data transmission is initiated by the AT+FTM=<mod> command. After this command is issued, the modem
generates the CONNECT message and transmits carrier in the modulation scheme specified by the parameter n. The
modem then transmits constant 1 bits for a minimum of one second and continues to transmit constant 1 bits until it
receives a character from the DTE.
When data is received from the DTE, the modem deletes start and stop bits and deletes all <DLE><chr> character
pairs before transmitting the data to the remote. Each <DLE><DLE> sequence is transmitted as a single <DLE>.
<DLE><ETX> is considered as the end of stream marker, and is not transmitted. All data received from the DTE after
the <DLE><ETX> is ignored by the modem until the modem generates either the CONNECT, OK, or ERROR result
code.
If no more data is in the transmit buffer, and the last transmitted character was not an ASCII NULL, the modem
generates the OK result code and returns to the command mode. If the last character transmitted was an ASCII
NULL, the modem generates the CONNECT message to the DTE and waits for further data from the DTE while
transmitting NULLs to the remote. If more data is received before five seconds elapse, the modem continues to
transmit the data as described in the previous paragraph. If five seconds elapse and no data is received from the
DTE, the modem drops the carrier, goes on-hook, and generates the ERROR result code.
Fax Data Reception
Fax data reception is initiated using the AT+FRM=<mod> command. After this command is issued, the modem looks
for a carrier in the modulation scheme specified by the parameter n. If no carrier is detected before the period of time
specified by register S7 expires, the modem generates the NO CARRIER message and returns to command mode. If
a V.21 carrier is detected when a high-speed carrier is expected, the modem generates the +FCERROR message
and returns to the command mode. If the specified carrier is detected, the modem generates the CONNECT
message and enters the data receive mode.
While in data receive mode, the modem receives data from the remote, adds start and stop bits, and handles
<DLE><chr> character pairs before passing the data to the DTE. The modem prefixes each <DLE> character with
another <DLE> character before sending it to the DTE.
If the modem detects a receive buffer overflow condition, it stops receiving from the remote until there is room in the
receive buffer. The modem informs the DTE of the buffer overflow after it sends to the DTE the last character that
was stored in the buffer before the overflow occurred.
If the modem receives any character from the DTE after the +FRM command (except flow control characters if
software flow control is in effect), or if the modem detects a high-to-low transition of the DTR signal while &D1 is in
effect, it sends <DLE><ETX> to the DTE, generates the OK result code, and returns to command mode. The receive
buffer is cleared and all data received from the remote is discarded. If loss of DTR is detected while &D2 is in effect,
the modem goes on-hook, sends <DLE><ETX> followed by OK result code to the DTE, and returns to command
mode. If the modem detects a DTR drop while &D3 is in effect, the modem performs a warm reset.
78
AT Command Reference
Chapter 4 – Fax Class 1 and Class 1.0 Commands
Commands and Parameters
Mode Entry Commands
+FCLASS=1 Select Facsimile Class 1 Mode
+FCLASS=1 selects the Fax Class 1 Mode. The Fax Class 1 Mode commands and responses described in this
section are applicable when command +FCLASS=1 as shown in Table 4-1.
+FCLASS=1.0 - Select Facsimile Class 1.0 Mode
+FCLASS=1.0 selects the Fax Class 1.0. The Fax Class 1.0 Mode commands and responses described in this
section are applicable when command +FCLASS=1.0 as shown in Table 4-1.
Mode Commands
Command:
Description:
+FAA
Auto Answer Enable
+FAE
Auto Answer Enable
+FTS
Transmit Silence
Syntax:
Defined Values:
Command:
Description:
Syntax:
Defined Values:
Command:
Description:
This command enables or disables fax adaptive answer. This command operates
identically to the +FAE command.
+FAA=<value>
<value> Decimal number corresponding to the selected option.
0 Disable data /fax auto answer mode. (Default.)
1 Enable data /fax auto answer mode. The modem determines the calling type and
issues DATA result code (13) if the caller is a data modem or issues FAX result code
(15) if the caller is a fax modem.
This command enables or disables fax adaptive answer. This command operates
identically to the +FAA command.
+FAE=<value>
<value> Decimal number corresponding to the selected option.
0 Disable data /fax auto answer mode. (Default.)
1 Enable data /fax auto answer mode. The modem determines the calling type and
issues DATA result code (13) if the caller is a data modem or issues FAX result code
(15) if the caller is a fax modem.
After a data (not fax) connection is achieved (indicated by the DATA result code), the
DTE must issue an ATO command to cause the modem to go on-line.
This command causes the modem to terminate a transmission and wait for <time>10-ms intervals before responding with the OK result code.
Syntax:
+FTS=<time>
Defined Values:
<time> Decimal number from 0 (default) to 255 which specifies the length of time in
10-ms intervals to delay before responding with the OK result code after terminating the
session.
Result Codes:
OK Reported when transmission has been terminated for the specified amount of time.
ERROR <value> is invalid or this command is issued while the modem is off-hook.
Reporting Supported Range of Parameter Values ;
Command: +FTS=?
Response: +FTS: <time> range
Example: +FTS: 0-255.
79
AT Command Reference
Chapter 4 – Fax Class 1 and Class 1.0 Commands
Command:
+FRS
Receive Silence
Command:
+FTM
Transmit Facsimile
Description:
This command causes the modem to listen and report an OK result code when silence
has been detected on the line for the specified period of time. This command will
terminate when the required period of silence is detected or when the DTE sends the
modem another character other than XON or XOFF, which is discarded. In either
event, the OK result code is returned.
This command is aborted if any character is received from the DTE after receipt of the
command but before the time delay elapses. In this case, the modem discards the
aborting character and issues an OK result code.
Syntax:
+FRS =<time>
Defined Values:
<time> Decimal number from 0 (default) to 255 which specifies the length of time in
10-ms intervals to delay before responding with the OK result code after detecting silence
on the line.
Result Codes:
OK Reported when silence has been present on the line for the specified amount of
time or when the DTE sends the modem a character other than XON or XOFF.
ERROR <value> is invalid or this command is issued while the modem is on-hook.
Reporting Supported Range of Parameter Values:
Command: +FRS=?
Response: +FRS: <time> range
Example: +FRS: 0-255
Description:
Syntax:
Defined Values:
This command causes the modem to transmit data using the modulation defined
below. When a valid <mod> value is entered, the modem transmits the proper training
sequence in the selected mode, followed by constant 1 bits until data is received from
the DTE. The modem also returns the CONNECT result code at the beginning of the
training sequence.
+FTM=<mod>
<mod> Decimal number corresponding to the selected modulation mode and data
rates shown in Table 4-2.
Table 4-2. Fax Class 1 and Fax Class 1.0 Modulation Modes and Rates
<mod>
3
24
48
72
73
74
96
97
98
121
122
145
146
Result Codes:
Modulation
V.21
V.27 ter
V.27 ter
V.29
V.17
V.17
V.29
V.17
V.17
V.17
V.17
V.17
V.17
Training
long
short
long
short
long
short
long
short
Modulation Mode and Rate
300 bps
2400 bps
4800 bps
7200 bps
7200 bps long
7200 bps short
9600 bps
9600 bps long
9600 bps short
12000 bps long
12000 bps short
14400 bps long
14400 bps short
CONNECT Reported when the modems begins the training sequence after receipt of a
valid <mod> value.
ERROR if the modem’s transmit buffer becomes empty and the last transmitted
character is NUL (00), the modem continues to transmit NULs until the DTE sends
more data or five seconds elapse. After five seconds elapse with a empty transmit
buffer, the modem will turn off the transmit carrier, return to the command state, and
report the ERROR result code.
OK If the modem’s transmit buffer becomes empty and the last transmitted character is
was not NUL, the modem will turn off the transmit carrier, return to the command state,
and report the OK result code.
80
AT Command Reference
Chapter 4 – Fax Class 1 and Class 1.0 Commands
Reporting Current or Selected Values:
Command: +FTM?
Response: +FTM: <mod>
Example: +FTM: 98 For V.17 9600 bps.
Reporting Supported Range of Parameter Values:
Command: +FTM=?
Response: +FTM: (<mod> range)
Example: +FTM: 3,24,48,72,73,74,96,97,98,121,122,145,146
Command:
+FRM
Receive Facsimile
Command:
FTH
Transmit Data with HDLC Framing
Description:
This command causes the modem to enter the receiver mode using the modulation
defined below.
Syntax:
+FRM=<mod>
Defined Values:
<mod> Decimal number corresponding to the selected modulation mode and data
rates shown in Table 4-2.
Reporting Current or Selected Values:
Command: +FRM?
Response: +FRM: <mod>
Example: +FRM: 98 For V.17 9600 bps.
Reporting Supported Range of Parameter Values:
Command: +FRM=?
Response: +FRM: (<mod> range)
Example: +FRM: 3,24,48,72,73,74,96,97,98,121,122,145,146
Result Codes:
CONNECT Reported when the selected carrier is detected.
+FCERROR Reported if another carrier is detected and FAR=0; the modem then
returns to the command state.
NO CARRIER Reported if loss-of-carrier is detected.
OK Reported if the DTE sends any character to the modem other than XON or XOFF
while operating in configured flow control from the DTE; the modem then returns to the
command state.
Description:
This command causes the modem to transmit data using HDLC protocol and the
modulation defined below.
Syntax:
+FTH=<mod>
Defined Values:
<mod> Decimal number corresponding to the selected modulation mode and data
rates shown in Table 4-2.
Result Codes:
CONNECT Reported for either of two conditions:
1. At the beginning of transmission of the training pattern for the selected modulation.
2. If the Final Frame bit is 0.
OK Reported for either of two conditions:
1. If the Final Frame Bit is 1.
2. if the DTE sends only <DLE><ETX> (a null frame) while transmitting flags.
ERROR Reported if five seconds elapse from the time when the modem reported the
CONNECT result code without any additional data transmitted from the DTE; the
modem then turns off carrier and returns to the command mode.
Reporting Current or Selected Values:
Command: +FTH?
Response: +FTH: <mod>
Example: +FTH: 98 For V.17 9600 bps.
Reporting Supported Range of Parameter Values:
Command: +FTH?
Response: +FTH?
Example: +FTH: 98 For V.17 9600 bps.
81
AT Command Reference
Command:
Description:
+FRH
Chapter 4 – Fax Class 1 and Class 1.0 Commands
Receive Data with HDLC Framing
This command causes the modem to receive frames using HDLC protocol and the
modulation defined below. An ERROR response code results if this command is
issued while the modem is on-hook.
Syntax:
+FRH=<mod>
Defined Values:
<mod> Decimal number corresponding to the selected modulation mode and data
rates shown in Table 4-2.
Reporting Current or Selected Values:
Command: +FRH?
Response: +FRH: <mod>
Example: +FRH: 98 For V.17 9600 bps.
Reporting Supported Range of Parameter Values:
Command: +FRH?
Response: +FRH?
Example: +FRH: 98 For V.17 9600 bps.
Result Codes:
CONNECT Reported for either of two conditions:
1. When the selected carrier is detected with an HDLC flag.
2. If the DTE sends another +FTH=<MOD> command after sending the result code
indicating frame reception is complete.
+FCERROR Reported if a different carrier is detected and FAR=0.
NO CARRIER Reported if loss of carrier is detected.
OK Reported for either of two conditions:
1. If a frame was received correctly.
2. If the DTE sends any character other than XON or XOFF while the modem is in the
configured flow control.
ERROR reported if a frame was received in error.
Service Class 1 Parameters
Command:
Description:
+FAR
Adaptive Reception Control
If Adaptive Reception is enabled, the modem adaptively detects the selected message
carrier or V.21 control messages. If the expected carrier is detected, the modem
operates as specified in the respective +FRM=<mod or +FRH=<mod commands.
If V.21 flag preamble is detected instead, the modem issues a +FRH:3 intermediate
result code, and then executes an implied +FRH=3 command.
Write Syntax:
+FAR=<value
Defined Values:
<value> Decimal number corresponding to the selected option.
0 Disable Adaptive Reception. (Default.)
1 Enable Adaptive Reception.
Reporting Current or Selected Values:
Command: +FAR?
Response: +FAR: <value
Example: +FAR: 0 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +FAR=?
Response: +FAR: (<value> range )
Example: +FAR: (0,1)
82
AT Command Reference
Chapter 4 – Fax Class 1 and Class 1.0 Commands
Command:
+FCL
Carrier Loss Timeout
Command:
+FDD
Double Escape Character Replacement
Command:
+FIT
DTE Inactivity Timeout
Description:
This parameter allows the DTE to select the modem’s loss-of-carrier delay between
initial loss-of-carrier and qualified loss-of-carrier, when the modem will give up and exit
a receive mode. Intermediate (less than FCL timeout) loss-of-carrier should be
indicated by insertion of the SQ-BAD signal quality indicator in the received data
stream.
In unframed receive modes, if the modem detects RTC as described in
Recommendation T.30 prior to initial loss of the high speed carrier, or if the modem
detects V.21 carrier after initial loss of high speed carrier, then the modem immediately
accepts the loss-of-carrier as qualified, without waiting for the FCL timer to expire.
In HDLC receive modes, if the modem detects HDLC abort prior to initial loss of the
high speed carrier, or if the modem detects V.21 carrier after initial loss of high speed
carrier, then the modem l immediately accepts the loss-of-carrier as qualified, without
waiting for the FCL timer to expire.
Write Syntax:
+FCL=<time
Defined Values:
<value> Decimal number representing the loss-of-carrier delay time in units of 100 ms.
The range is 0 - 255.
Reporting Current or Selected Values:
Command: +FCL?
Response: +FCL: <time
Example: +FCS: 0 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +FCL=?
Response: +FCL: (time range)
Example: +FCL: (0-255)
Description:
This parameter conditions the use of the ˜DLE˜˜˜SUB˜ pair to encode consecutive
<1/0€<1/0 in data. This may be used to prevent unbound expansion of data that
contains many <1/0 patterns.
Syntax:
+FDD=<value
Defined Values:
<value> Decimal number corresponding to the selected option. For modem decode
of <DLE><SUB>, the defined range are:
0 <DLE> <DLE> or discard (default and only)
1 <DLE> <DLE> (not supported)
For modem encoding of <1/0> <1/0> the defined values are:
0 <DLE> <DLE> <DLE> <DLE> (default and only)
1 <DLE> <SUB> (not supported)
Reporting Current or Selected Values:
Command: +FDD?
Response: +FDD: <value>
Example: +FDD: 0 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +FDD=?
Response: +FDD: (<value> range)
Example: +FDD: (0)
Description:
Syntax:
Defined Values:
This command specifies a DTE inactivity timeout value that allows the modem to break
away from an unsuccessful connection attempt at any stage of a facsimile transfer.
The DTE inactivity timer operates only while the modem is off-hook.
+FIT=<time ,action
<time The <time parameter indicates the DTE inactivity timeout in seconds. The value
of 0 indicates that timeout is disabled (default). The required timeout range is 1 to 255
seconds. The inactivity timer starts when the modem has taken some action that
requires DTE response. If the DTE does respond, the modem resets the inactivity
timer. Inactivity timer related events are listed in Table 4-3.
<action The <action parameter has two meanings.
0 Upon timeout, the modem will go on-hook, executing an implied ATH command; then
reset to +FCLASS 0.
1 Upon timeout, the DCE will only go on-hook.
83
AT Command Reference
Chapter 4 – Fax Class 1 and Class 1.0 Commands
Reporting Current or Selected Values:
Command: +FIT?
Response: +FIT: <time ,action
Example: +FIT: 0,0 For the default settings.
Reporting Supported Range of Parameter Values:
Command: +FIT?
Response: +FIT: (<time> range), (<action> range)
Example: +FIT: (0-255),(0-1)
Table 4-3. Inactivity Timer Start and Stop Events
On-line state
Waiting for a command
Waiting for transmit data
Waiting for transmit data
Waiting to deliver received data
Waiting to deliver received data
Command:
Description:
+FPR
Start timer event
modem sends final result code
modem sends CONNECT after +FTM or
+FTH command
modem sends <XON or sets CTS ON
modem sends <XOFF after +FRM or +FRH
command
DTE sets V.24 Ckt 133 OFF after +FRM or
+FRH command
Fixed DTE Rate
Stop timer event
DTE sends AT or “at”
DTE sends data
DTE sends data
DTE sends <XON
DTE sets V.24 Ckt 133
ON
This numeric extended-format parameter specifies the data rate at which the modem
will accept commands during on-line operation. It may be used to select operation at
rates at which the modem is not capable of automatically detecting the data rate being
used by the DTE. Specifying a value of 0 disables the function and allows operation
only at rates automatically detectable by the modem. The specified rate takes effect
following the issuance of any result code(s) associated with the current command line.
The <rate> specified does not apply in OnLine Data State if Normal Mode (Direct
Mode) of operation is selected.
Syntax:
+FPR=<rate code>
Defined Values:
<rate code> Specifies the DTE-modem interface operation rate in bits/s with a rate
code. The available rate codes are:
0 Automatic detection (default)
1 2400 bits/s (executes +IPR=2400)
2 4800 bits/s (executes +IPR=4800)
4 9600 bits/s (executes +IPR=9600)
8 19200 bits/s (executes +IPR=19200)
10 38400 bits/s (executes +IPR=38400)
18 57400 bits/s (executes +IPR=57400)
If unspecified or set to 0, automatic detection is selected and the character format is
also forced to autodetect, +ICF=0.
If the rate specified is not supported by the modem, an ERROR result code will be
returned.
Reporting Current or Selected Values:
Command: +FPR?
Response: <rate code>
Example 1: 0 For automatic rate detection.
Example 2: 18 For 57600 bits/s.
Reporting Supported Range of Parameter Values:
Command: +FPR=?
Response: (<rate code> range)
Example: (0,1,2,4,8,10,18)
84
AT Command Reference
Chapter 4 – Fax Class 1 and Class 1.0 Commands
Command:
+FMI?
Command:
Description:
Syntax:
Typical Response:
+FMM? Request Model Identification
This command causes the modem to report the modem product model.
+FMM?
V90
OK
Command:
+FMR?
Request Revision Identification
Description
Syntax:
Typical Response:
Description:
Syntax:
Typical Response:
Command:
Description:
Syntax:
Defined Values:
+FLO
Request Manufacturer Identification
This command causes the modem to report the modem product manufacturer.
+FMI?
CONEXANT
OK
This command causes the modem to transmit one or more lines of information text
identifying the modem version, revision level or date.
+FMR?
V3.001-V90_2M_DLS
OK
Flow Control
This parameter allows the DTE to identify and select the type of flow control used.
+FLO=<method>
<method> Decimal number corresponding to the selected option.
0 XON/XOFF and RTS/CTS flow control turned off.
1 Use XON/XOFF flow control in either direction.
2 Use RTS for flow control of the modem by the DTE; use CTS for flow control of the
DTE by the modem.
Reporting Current or Selected Values:
Command: +FLO?
Response: +FLO: <method>
Example: +FLO: 0 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +FLO=?
Response: +FLO: (<method>range)
Example: +FLO: (0-2)
Result Codes:
OK <method> = 0-2.
ERROR Otherwise.
85
AT Command Reference
Chapter 4 – Fax Class 1 and Class 1.0 Commands
Examples
Table 4-4 and Table 4-5 show examples of calling (transmitting) and answering (receiving) one page using fax class 1
commands. The examples show the interchange between the DTE and the modem for various cases. Comments
explain how to handle various situations. Commands and responses are in uppercase (e.g., AT+FRH=3)
and comments are in lowercase. All streams of data denoted by <..frame> are terminated by the <DLE><ETX> characters.
Table 4-4. Fax Class 1 Calling Sequence (Transmitting a Single Page)
DTE Commands
AT+FCLASS=1
ATDT<string>
AT+FRH=3
AT+FRH=3
AT+FRH=3
AT+FRH=3
<TSI frame data>
<DLE><ETX>
<DCS frame data>
<DLE><ETX>
AT+FTS=8;
+FTM=96
<TCF data pattern>
<DLE><ETX>
AT+FRH=3
AT+FRH=3
AT+FTM=96
<page image data>
<DLE><ETX>
AT+FTS=8;
+FRH=3
<EOP frame data>
<DLE><ETX>
AT+FRH=3
AT+FRH=3
AT+FRH=3
<DNC frame>
<DLE><ETX>
ATH0
Modem
Responses
OK
CONNECT
<NSF frame>
<DLE><ETX>
OK
Local Modem Action
Set Class 1
Dial and send CNG
Look for V.21
Detect flags
Detect flags
get CSI
get FCS
accept FCS
CONNECT
<DIS frame data>
<DLE><ETX>
OK
NO CARRIER
Detect flags
get DIS
get FCS
accept FCS
detect loss-of-carrier
send V.21 carrier
send flags
send TSI frame
send FCS
send flags
send DCS frame
send FCS, flags
drop carrier
wait 80 ms
send V.29 carrier
CONNECT
OK
CONNECT
OK
CONNECT
<CFR frame data>
<DLE><ETX>
OK
NO CARRIER
CONNECT
OK
CONNECT
OK
CONNECT
<MCF frame data>
<DLE><ETX>
OK
NO CARRIER
CONNECT
OK
OK
Answer
send CED, V.21
Send HDLC flags
Send NSF frame
CONNECT
<CFI frame data>
<DLE><ETX>
OK
CONNECT
Remote Station
Action
Notes
AT+FRH=3
implied by dialing with
+FCLASS=1.0
send CSI frame
send TCF data
drop carrier
detect carrier
detect flags
get CFR frame
check FCS
accept FCS
detect loss-of-carrier
send V.29 carrier
send page data
drop carrier
wait 80 ms
send V.21 carrier
send flags
send EOP frame
send FCS
drop carrier
detect carrier
detect flags
get MCF frame
check FCS
accept FCS
detect loss-of-carrier
send V.21 carrier
send flags
send DNC frame
send FCS
drop carrier
hang up
86
check FCS
Frame status OK
send DIS frame
DTE must detect final
frame bit to anticipate
loss of carrier
check FCS
drop carrier
detect carrier
detect flags
get TSI frame
get DCS frame
Final frame bit clear tells
the modem to expect
another frame.
Final frame bit set tells
the modem not to
expect another frame
detect carrier
get TCF data
send V.21 carrier
send flags
get CRF frame
send FCS
Final frame bit set.
frame OK
drop carrier
detect carrier
receive page
detect carrier
detect flags
receives EOP
send V.21 carrier
send flags
get MCF frame
send FCS
final frame
Final frame bit set.
frame OK
drop carrier
detect carrier
detect flags
receiv e DC|NC
hang up
final frame
AT Command Reference
Chapter 4 – Fax Class 1 and Class 1.0 Commands
Table 4-5. Fax Class 1 Answering Sequence (Receiving a Single Page)
DTE Commands
AT+FCLASS=1
Modem
Responses
OK
RING<-
ATA
<CSI frame data>
<DLE><ETX>
<DIS frame data>
<DLE><ETX>
AT+FRH=3
AT+FRH=3
AT+FRH=3
AT+FTM=96
AT+FRH=3
<CFR frame data>
<DLE><ETX>
AT+FTM=96
AT+FRH=3
AT+FRH=3
<MCFame data>
<DLE><ETX>
AT+FRH=3
AT+FRH=3
ATH0
CONNECT
CONNECT
OK
CONNECT
<TSI frame data>
<DLE><ETX>
OK
Local Modem Action
Set Class 1
detect ringing
off-hook,
send CED,
send V.21 carrier
send flags
send CSI frame
send FCS
send flags
send DIS data
send FCS and flags
drop carrier
detect carrier
detect flags
receive TSI
receive FCS
accept FCS
Remote Station Action
dials [,send CNG]
get CED,
detect carrier
detect flags
receive CSI
get FCS
get flags
get DIS
get flags
send DCS frame
send FCS
detect loss-of-carrier
drop carrier
CONNECT
<TCF data>
<DLE><ETX>
OK
detect carrier
receive TCF
detect loss-of-carrier
wait 75 ms
send V.29 carrier
send TCF data
drop carrier
send V.21 carrier
send flags
get CRF frame
send FCS
drop carrier
detect carrier
receive page
detect loss-of-carrier
CONNECT
<EOP frame data>
<DLE><ETX>
NO CARRIER
detect carrier
detect flags
receive EOP
receive FCS
accept FCS
detect loss-of-carrier
send V.21 carrier
send flags
get MCF frame
send FCS
accept FCS
CONNECT
<DCN frame data>
<DLE><ETX>
OK
NO CARRIER
OK
DTE did not check final
frame bit and issued
+FRH=3
detect carrier
detect flags
receive CFR
final frame
CONNECT
<page image data>
<DLE><ETX>
NO CARRIER
OK
final frame bit set
frame OK
OK
CONNECT
final frame
frame OK
receive DCS
receive FCS
accept FCS
NO CARRIER
AT+FRH=3
implied by answering
with +FCLASS=1.0.
not final frame
send V.21 carrier
send flags
send TSI frame
send FCS
CONNECT
<DCS frame data>
<DLE><ETX>
OK
NO CARRIER
CONNECT
Notes
detect carrier
detect flags
receive DCN
receive FCS
accept FCS
detect loss-of-carrier
hang up
87
send V.29 carrier
send page data
drop carrier
wait 75 ms
send V.21 carrier
send flags
send EOP frame
send FCS
drop carrier
detect carrier
detect flags
receive MCF frame
send V.21 carrier
send flags
send DCN frame
send FCS
drop carrier
frame OK
final frame
frame OK
end of session
AT Command Reference
Chapter 5 – Voice Commands
Chapter 5 – Voice Commands
Voice Commands Overview
Voice commands are identified in Table 5-1.
Table 5-1. Voice Commands
Command
+FCLASS
+VNH
+FMI?
+FMM?
+FMR?
+FLO
Voice
+VIP
+VRX
+VTS
+VTX
+VGR
+VGT
+VIT
+VLS
+VRA
+VRN
+VSD
+VSM
+VTD
+VDR
+VDT
+VPR
Speakerphone
+VSP
+VDX
+VGM
+VGS
Function
Configuration
Set Mode
Automatic Hang-up control
Manufacturer Identification
Product Identification
Version, Revision, etc.
Flow Control
Voice Initialize All Parameters
Start modem Receive (Record)
Voice Tone Send (Send single frequency or DTMF)
Start modem Transmit (Playback)
Voice Gain Receive (Record Gain)
Voice Gain Transmit (Playback Volume)
Voice Inactivity Timer (DTE/Modem)
Analog Source/Destination Selection
Ringback Goes Away Timer
Ringback Never Appeared Timer
Silence Detection (QUIET & SILENCE)
Compression Method Selection
Beep Tone Duration Timer
Distinctive Ring
Control Tone Cadence Reporting
Select DTE/modem Interface Rate (Turn off autobaud)
Speakerphone ON/OFF
Speakerphone Duplex Mode
Microphone Gain
Speaker Gain
88
AT Command Reference
Chapter 5 – Voice Commands
<DLE> Shielded Event Codes Sent to the DTE
Table 5-2 lists the supported <DLE> shielded codes sent to the DTE in the expression <DLE><code>.
The number in parentheses in the second column corresponds to the T.50 equivalent.
Table 5-2. Supported <DLE> Shielded Codes Sent to the DTE
Code
<DLE>
T.50
Equivalent
(1/0)
<SUB>
<ETX>
X
.
/
~
R
1
2
3
4
5
6
7
8
9
0
A
B
C
D
*
#
o
c
e
h
H
s
q
J
l
r
b
d
u
p
P
a
f
(1/10)
(0/3)
(5/8)
(2/14)
(2/15)
(7/15)
(5/2)
(3/1)
(3/2)
(3/3)
(3/4)
(3/5)
(3/6)
(3/7)
(3/8)
(3/9)
(3/0)
(4/1)
(4/2)
(4/3)
(4/4)
(2/10)
(2/3)
(6/15)
(6/3)
(6/5)
(6/8)
(4/8)
(7/3)
(7/1)
(4/10)
(6/12)
(7/2)
(6/2)
(6/4)
(7/5)
(7/0)
(5/0)
(6/1)
(6/6)
Event Report Description
Two contiguous <DLE><DLE> codes indicate a single <DLE> in the
data stream
<DLE><DLE> in the data stream
End Data State
Packet Header for the “Complex Event Detection Report”
Packet Terminator for the “Complex Event Detection Report”
Start of DTMF tone shielding
DTMF transitions to off
Ring
DTMF 1
DTMF 2
DTMF 3
DTMF 4
DTMF 5
DTMF 6
DTMF 7
DTMF 8
DTMF 9
DTMF 0
Extended Keypad DTMF A
Extended Keypad DTMF B
Extended Keypad DTMF C
Extended Keypad DTMF D
Extended Keypad DTMF E
Extended Keypad DTMF F
Receive Buffer Overrun
Facsimile Calling
Data Calling
Line Current Break (local phone goes on-hook)
Line Current Detected (local phone goes off-hook)
“Presumed Hangup” (SILENCE) Time-out
“Presumed End of Message” (QUIET) Time-out
SIT Signal
Loop Current Interruption
Ringing Tone
BUSY
DIAL TONE
Transmit Buffer Underrun
Line voltage increase
Line voltage decrease (extension pickup)
Facsimile or Data Answer
Data Answer
89
AT Command Reference
Chapter 5 – Voice Commands
<DLE> Shielded Codes Sent to the Modem (DCE)
Table 5-3 lists the supported <DLE> shielded codes sent to the modem in the expression <DLE><code>. The
number in parenthesis in the second column corresponds to the T.50 equivalent.
Table 5-3. Supported <DLE> Shielded Codes Sent to the Modem (DCE)
Code
<DLE>
Code
(1/0)
u
(7/5)
d
(6/4)
p
r
<ETX>
<CAN>
(7/0)
(7/2)
(0/3)
(1/8)
!
(2/1)
Simple Action Command Description
Two contiguous <DLE><DLE> codes indicate a single <DLE> in the
data stream ("Immediate Command" or "Stream Command")
[Action Numbers 0 and 3] Increase the volume or gain by one unit
("Immediate Command")
[Action Numbers 1 and 4] Decrease the volume or gain by one unit
("Immediate Command")
[Action Number 9] Pause
[Action Number 10] Resume
[Action Number 11] End voice Transmit State ("Stream Command")
[Action Number 12] Clear transmit buffer of voice data ("Immediate
Command")
[Action Number 15] Receive abort ("Immediate Command")
90
AT Command Reference
Chapter 5 – Voice Commands
Voice Commands
Configuration Commands
Command: +FCLASS=8
Select Voice Mode
+FCLASS=8 selects the Voice Mode. The Voice Mode commands and responses described in this section are
applicable when command +FCLASS=8. See the Generic Modem Control section for the definition of the FCLASS
command.
Command: +VNH
Automatic Hang-up Control
This command enables or disables automatic hangups.
Syntax:
+VNH=<hook>
Defined Values:
<hook> Decimal number corresponding to the selected option (Table 5-4).
0 The modem enables automatic hangups as is normal in other modes.
1 The modem disables automatic hangups usually found in the other non-Voice
Modes.
2 The modem disables automatic hangups in the other non-Voice Modes.
The modem performs only a “logical” hangup (returns to OK result code).
Table 5-4. +VNH Command Behavior
Command
No Carrier
Present
Y
N
N
Command Response
ATH
ATZ
DTR & D2
+VNH=0
Y
Y
Y
+VNH=1
Y
Y
Y
+VNH=2
N
N
Y
Notes:
Y= will hang-up; N= will not hang-up.
How +VNH is reset:
DTE uses +VNH command to change setting.
DTE issues another +FCLASS mode change without issuing another +VNH.
A hang-up event occurs (see this table).
DTE issues +VIP command.
Reporting Current or Selected Values:
Command: +VNH?
Response: <hook>
Example: 0 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +VNH=?
Response: (<hook> range)
Example: (0-2)
Result Codes: OK <hook> = 0-2.
ERROR Otherwise.
91
AT Command Reference
Chapter 5 – Voice Commands
Voice Commands
Command: +VIP
Description:
Syntax:
Result Code:
Command: +VRX
Description:
Syntax:
Result Codes:
Voice Initialize All Parameters
This command causes the modem to initialize all voice parameters to their default
values.
+VIP
OK
ERROR If not in Voice Mode.
Start Modem Receive (Record)
This command causes the modem to start the voice reception process.
+VRX
OK
ERROR If not in Voice Mode.
Command:+VTS - Send Voice Tone(s)
Description:
Syntax:
Defined Values:
This command causes the modem to send DTMF digit or hookflash tones with the
duration specified by +VTD, to send DTMF digit or hookflash tones with duration
specified by this command, or to send single or dual tone frequencies with duration
specified with this command.
+VTS=<string>
<string>
The tone generation consists of elements in a list where each element is separated by
a comma. Each element can be:
1. A single character which the modem interprets as a DTMF digit (0 - 9, #, *, or A-D)
or hookflash (!), with a duration given by the +VTD command.
2. A 3-element string enclosed in square brackets, "[freq1,freq2,dur]", which the
modem interprets as a general dual tone and duration selection, or
3. A 2-element string enclosed in curly braces, "{X,dur}", which the modem interprets
as a DTMF digit (0 - 9, #, *, or A-D), or hookflash (!) with a duration (dur) different than
that given by the +VTD command.
Missing sub-parameters assume the default value. Unspecified values always default
to zero for frequencies, DTMF * for DTMF tones, and +VTD for duration. The omission
of commas (and associated sub-parameters) is valid.
The quantity in the square brackets consists of a 3-element list (freq1,freq2,dur), which
can be used to send single or dual tones. The first element is the first frequency (freq1)
with range 0 or 200-3000 Hz. The second element is the second frequency (freq2),
with range 0 or 200-3000 Hz. The third element is the duration (dur) in 0.01-second
intervals with range 0-255 (ASCII units of 10 ms). A list may contain null elements. For
example [3000] means that the DCE generates a single tone at 3000 Hz for the default
duration, [3000,3300] means that the DCE generates a dual tone at 3000 and 3300 Hz
for the default duration, and [,3300] means that the DCE generates a single tone at
3300 Hz for the default duration.
The quantity in the curly braces consists of a 2-element list (X,dur), which can be used
to send DTMF tones or hookflash. The first element is the DTMF tone or hookflash (!)
character (X), and the second element is the duration (dur) in 0.01 seconds. The
characters are of the same set given above. A list may contain null elements.
For example, {2} means DTMF tone "2" for the default duration, and {} means
silence for the default duration.
The modem will stop the tone generation at the point in the string where the modem
detects a parsing error, encounters an invalid frequency range, encounters a <CR>, or
encounters a semicolon.
92
AT Command Reference
Chapter 5 – Voice Commands
Reporting Supported Range of Parameter Values:
Command: +VTS=?
Response: (<freq1> range), (<freq2> range), (<dur> range)
Example: (200-3000),(200-3000),(0-255)
OK
Result Codes:
OK Valid command.
ERROR The <string> command is invalid, or a selected frequency is out of range.
Example 1.
This example illustrates tone generation without using any null elements.
The command example is followed by a description of command execution.
AT+VTS= {!,30},1,2,[1000,1300,50],!,{*,6},[800,1300,50],9
1. Hookflash with a duration of 300 ms.
2. Play DTMF 1 with a duration given by the +VTD command.
3. Play DTMF 2 with a duration given by the +VTD command.
4. Play tone pair at 1 000 Hz and 1 300 Hz with a duration of 500 ms.
5. Hookflash with a duration given by the +VTD command.
6. Play DTMF * with a duration of 60 ms.
7. Play tone pair at 800 Hz and 1300 Hz with a duration of 500 ms.
8. Play DTMF 9 with a duration given by the +VTD command.
Example 2.
This example illustrates tone generation using null elements. The command example
is followed by a description of command execution.
AT+VTS=1,2,[1000,1300,50],[800],9
1. Play DTMF 1 with a duration given by the +VTD command.
2. Play DTMF 2 with a duration given by the +VTD command.
3. Play tone pair at 1000 Hz and 1300 Hz with a duration of 500 ms.
4. Play tone pair at 800 Hz with a duration given by the +VTD command.
5. Play DTMF 9 with a duration given by the +VTD command.
Example 3.
This example illustrates tone generation using null elements and periods of silence.
The command example is followed by a description of command execution.
AT+VTS=1,[,,50],2,[],9
1. Play DTMF 1 with a duration given by the +VTD command.
2. Play silence with a duration of 500 ms.
3. Play DTMF 2 with a duration given by the +VTD command.
4. Play silence with a duration given by the +VTD command.
5. Play DTMF 9 with a duration given by the +VTD command.
Command: +VTX
Start Modem Transmit (Playback)
Description:
Syntax:
Result Codes:
This command causes the modem to start the voice transmission process.
+VTX
CONNECT The modem accepts the command.
ERROR The modem is not connected to at least one off-hook telephone line or one
non-telephone line.
Command: +VGR
Voice Gain Receive (Record Gain)
Description:
This command causes the modem to set the gain for received voice samples.
Syntax:
+VGR=<gain> 0 (only valid number) selects automatic gain control
Reporting Current or Selected Values:
Command: +VGR?
Response: <gain>
Example: 0 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +VGR=?
Response: <gain> range
Example: 0
Result Codes:
OK <gain> = 0.
ERROR Otherwise, or if not in Voice Mode.
93
AT Command Reference
Chapter 5 – Voice Commands
Command: +VGT
Voice Gain Transmit (Playback Volume)
Command: +VIT
Voice Inactivity Timer (DTE/Modem)
Description:
This command causes the modem to set the volume level.
Syntax:
+VGT=<level>
Defined Values:
<level> Decimal number corresponding to the volume level.
Reporting Current or Selected Values:
Command: +VGT?
Response: <level>
Example: 128 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +VGT=?
Response: <level> range
Example: 0-255
Result Codes:
OK <level> = 0-255.
ERROR Otherwise, or if not in Voice Mode.
Description:
Syntax:
Defined Values:
This command sets the modem’s initial value for the DTE/modem inactivity timer.
+VIT=<timer>
<timer> Decimal number corresponding to the time in units of 1.0 second.
A value of 0 disables the timer.
Reporting Current or Selected Values:
Command: +VIT?
Response: <timer>
Example: 0 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +VIT=?
Response: <timer> range
Example: 0-255
Result Codes:
OK <timer> = 0-255.
ERROR Otherwise, or if not in Voice Mode.
94
AT Command Reference
Command: +VLS
Description:
Chapter 5 – Voice Commands
Analog Source/Destination Selection
This command causes the modem to select one or more source/destinations of the
analog data.
Syntax:
+VLS=<label>
Defined Values:
<label> Decimal number corresponding to the selected analog source/destination
hardware configuration (see Table 5-5).
Response: <label>
Example: 0 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +VLS=?
Response: <label>,<devices>,<transmit event>,<receive event>,<idle event>
Where each event sub-parameter is a hex number the represents an event bit field of
the reporting capabilities of each state. (see Table 5-6):
<label> Identifies the modem analog source/destination hardware configuration
<devices> A <string constant> made up of Primitives,
<xxxx event> <transmit event>, <receive event>, and <idle event> sub-parameters are
the DCE event reporting capabilities for the Voice Transmit State, Voice Receive State,
and the Voice Command State, respectively. Each of the event reporting subparameters is a hex number that represents an event bit field. The hex number format
is defined in Table 5-6); a one in the bit field indicates that the DCE can report the
associated event.
Each of the possible hardware configurations has its own <label>, ..., <idle event>
description line (the above form description shows just one). A <CR><LF> terminates
each description line.
Example: AT+VLS=?
0,"",B0804100,B0804100,B0804100
1,"T",0B8433C1,0FE431C1,0B8431C1
2,"L",08800300,0CE00100,08800100
3,"LT",0B8433C1,0FE431C1,0B8431C1
4,"S",00800300,04E00100,20800100
5,"ST",0B8433C1,0FE431C1,0B8431C1
8,"S1",00800300, 04E00100,20800100
9,"S1T",0B8433C1,0FE431C1,0B8431C1
11,"M1",00800300,04E00100,20800100
14,"H",00800300,04E00100,20800100
18,"M1S",00800300,04E00100,20800100
19,"M1S1",00800300,04E00100,20800100
OK <label> = 0-5,8-9,11,14,18-19.
ERROR The <label> value is out of range, or if the modem cannot service the request
in the <label> sub-parameter.
Result Codes:
Table 5-5. +VLS Command Options
Label
0
1
Primitives
None
T
2
3
L
LT
4
S
5
ST
6
M
7
MST
8
S1
Description
DCE on-hook. Local phone connected to the line.
DCE off-hook. DCE connected to the line. Local
phone provided with power to detect hook condition.
DCE on-hook. Local phone connected to the DCE.
DCE off-hook. Local phone connected to the line.
DCE connected to the line.
Internal Speaker connected to the DCE. DCE onhook. Local phone connected to the line.
Internal Speaker connected to the line. DCE
off-hook. DCE connected to the line. Local phone
provided with power to detect hook condition.
Internal Microphone connected to the DCE. DCE
on-hook. Local phone connected to the line.
Internal Microphone and Internal Speaker connected
to the line. DCE off-hook. DCE connected to the
line. Local phone provided with power to detect hook
condition.
External Speaker connected to the DCE. DCE
on-hook. Local phone connected to the line.
95
+VTX
+VRX
X
X
X
X
X
X
+VSP=1
X
X
X
X
X
X
AT Command Reference
9
S1T
10
MS1T
11
M1
12
M1ST
13
M1S1T
14
H
15
HT
16
MS
17
M1S
18
MS1
19
M1S1
Chapter 5 – Voice Commands
External Speaker connected to the line. DCE
off-hook. DCE connected to the line. Local phone
provided with power to detect hook condition.
Internal microphone and External Speaker
connected to the line. DCE off-hook. DCE
connected to the line. Local phone provided with
power to detect hook condition.
External Microphone connected to the DCE. DCE
on-hook. Local phone connected to the line.
External Microphone and Internal Speaker
connected to the line. DCE off-hook. DCE
connected to the line. Local phone provided with
power to detect hook condition.
External Microphone and External Speaker
connected to the line. DCE off-hook. DCE
connected to the line. Local phone provided with
power to detect hook condition.
External Microphone and Speaker combination
(handset or headset) connected to the DCE. DCE
on-hook. Local phone connected to the line.
External Microphone and Speaker combination
(handset or headset) connected to the line. DCE
off-hook. DCE connected to the line. Local phone
provided with power to detect hook condition.
MS Internal Microphone and Internal Speaker
connected to DCE.
MS1 Internal Microphone and External Speaker
connected to DCE.
External Microphone and Internal Speaker
connected to DCE.
External Microphone and External Speaker
connected to DCE.
X
X
X
X
X
X
X
X
X
X
Primitives (Column 2):
L Local Phone.
T Telephone Line.
M Internal Microphone.
M1 External Microphone.
S Internal Speaker.
S1 External Speaker.
H External Microphone and Speaker combination (handset or headset).
Note: All label options in this table may not be supported by the product; see +VLS command
96
AT Command Reference
Chapter 5 – Voice Commands
Table 5-6. Events Detectable in the Voice Mode per V.253
Legend: This table lists events without any regard as to whether the DCE reporting of the event
is optional or mandatory, and without assigning a DCE reporting mechanism. The first column lists
the event number assignment for each event. The event number also serves another purpose;
each number is a bit position in a bit field. Event number 0 is the most significant bit of the leftmost
hex number in a hex representation (V.253 defines a total of eight hex digits).
The final bit in the bit field occupies the least significant bit position of the rightmost hex number.
The bit representations of the event numbers are used in the +VLS= command.
The third column lists whether a single character is enough to report the event, or if the DCE must supply
a more complicated report.The description Simple indicates a single character response (<DLE> shielded),
Message indicates a full text message (<DLE><X> packet), and Pattern indicates a repeating Message.
Notes: 1. The use of complex event reporting for Stuttered Dial tone is for further study.
Event Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
19
20
21
22
23
24
25
26
27
29
30
31
32
Event Description
DID Report
Distinctive Ringing
RING
DTMF Received
Receive Buffer Overrun
Facsimile Calling (e.g., 1100 Hz)
Data Calling (e.g., 1300 Hz)
Local Phone On/Off-hook
Presumed Hangup (SILENCE) Time-out
Presumed End of Message (QUIET) Time-out
SIT Signal
Bong Tone
Loop Current Interruption
Loop Current Polarity Reversal
Call Waiting Beep/Interrupt
Distinctive Call Waiting
Ringing Tone
BUSY
DIAL TONE
Reorder/Fast Busy
V.21 Channel 2 7E flags
Transmit Buffer Underrun
Extension Phone On/Off-hook
Facsimile or Data Answer (e.g., 2100 Hz)
Data Answer (e.g., 2225 Hz)
Voice Detect
Stuttered Dial tone
Invalid Voice Data Format
Lost Data Detected Event
Facsimile Answer
97
Event Reporting
Message
Pattern
Simple
Simple
Simple
Simple
Simple
Simple
Simple
Simple
Simple, Message
Simple
Simple
Simple
Simple
Simple
Simple
Simple
Simple
Simple
Simple
Simple
Simple
Simple
Simple
Simple
Simple (note 1)
Simple
Simple
Simple
AT Command Reference
Chapter 5 – Voice Commands
Command: +VRA
Ringback Goes Away Timer
Command: +VRN
Ringback Never Appeared Timer
Command: +VSD
Silence Detection (Quiet and Silence)
Description:
This command sets the length of time the modem will wait between ringbacks during
call origination before the modem can assume h
t at the remote station has gone
off-hook.
Syntax:
+VRA=<interval>
Defined Values:
<interval> Decimal number (0-255) specifying the silence interval time in units of 0.10
second between the end of one ring interval and the start of the next ring interval. A
value of 0 forces the modem to report the OK result code immediately after the first
Ringback. The range is 0.1 to 25.5 seconds for <interval> = 1 to 255.
Reporting Current or Selected Values:
Command: +VRA?
Response: <interval>
Example: 50 (5 seconds) For the default setting.
Reporting Supported Range of Parameter Values:
Command: +VRA=?
Response: (<interval> range)
Example: (0-255) 255 = 25.5 sec
Result Codes:
OK <interval> = 0-255
ERROR Otherwise, or if not in Voice Mode.
Description:
This command sets the length of time the modem will wait between ringbacks during
call origination before the modem can assume that the remote station has gone off
hook.
Syntax:
+VRN=<interval>
Defined Values :
<interval> Decimal number specifying the time period, in units of 1.0 second, that the
modem will wait for Ringback during call origination. A value of 0 forces the modem to
report the OK result code immediately after dialing. The range is 1 to 25 seconds for
<interval> = 1 to 25.
Reporting Current or Selected Values:
Command: +VRN?
Response: <interval>
Example: 10 (10 seconds) For the default setting.
Reporting Supported Range of Parameter Values:
Command: +VRN=?
Response: (<interval> range)
Example: (0-25)
Result Codes:
OK <interval> = 0-25
ERROR Otherwise, or if not in Voice Mode.
Description:
Syntax:
Defined Values:
This command causes the modem to set the silence detection sensitivity and the
required period of silence before the modem reports silence detected at the end of a
voice receive either with the “Presumed End of Message” (QUIT) or
“Presumed Hangup” (SILENCE) event reports.
+VSD=<sds>,<sdi>
<sds> Decimal number corresponding to the selected parameter.
0 Use +VSM silence compression setting and algorithm for long-term silence
detection (if +VSM is in use) or proprietary silence compression setting and algorithm
for long-term silence detection (if +VSM is not in use).
127 Sets less aggressive long-term silence detection independent of presence or use
of silence compression.
128 Sets nominal long-term silence detection independent of presence or use of
silence compression.
129 Sets more aggressive long-term silence detection independent of presence or use
of silence compression.
<sdi> Decimal number specifying the required period of silence, in units of 0.1 second,
before the modem can report silence detected at the end of a voice receive either with
the “Presumed End of Message” (QUIT) or “Presumed Hangup” (SILENCE) event
reports. A value of 0 disables the modem silence detection. The range is 0.1 to 25.5
seconds for <sdi> = 1 to 255.
98
AT Command Reference
Chapter 5 – Voice Commands
Reporting Current or Selected Values:
Command: +VSD?
Response: <sds>,<sdi>
Example: 0,50 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +VSD=?
Response: (<sds> range),(<sdi> range)
Example: (0,127-129),(0-255)
Result Codes:
OK <hook> = 0 or 1.
ERROR Otherwise, or if not in Voice Mode.
Command: +VSM
Description:
Compression Method Selection
This command causes the modem to set the voice compression method, the silence
compression sensitivity, and the voice-sampling rate.
Syntax:
+VSM=<cml>,<vsr>,<sds>,<sel>
Defined Values:
<cml> Decimal number identifying the compression method.
<vsr> <range of values> containing the supported range of voice samples per second
of the analog signal.
<scs> <range of values> containing the supported range of sensitivity settings for
voice receives.
<sel> <range of values> containing the supported range of expansion values for voice
transmits.
Reporting Current or Selected Values:
Command: +VSM?
Response: <cml>,<vsr>,<sds>,<sel>
Example: 1,8000,0,0 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +VSM=?
Response: <cml>,<cmid>,<bps>,<tm>,<vsr>,<sds>,<sel>
<cml> Decimal number identifying the compression method (1, 129, 130, 140, or 141).
<cmid> Alphanumeric string describing the compression method (UNSIGNED PCM,
IMA ADPCM, UNSIGNED PCM, 2 Bit ADPCM, or 4 Bit ADPCM).
<bps> Decimal number defining the average number of bits in the compressed sample
not including silence compression (2, 4, or 8).
<tm> Decimal number (0) reporting the time interval, in units of 0.1 second, between
timing marks. A value of 0 reports that timing marks are not supported.
<vsr> <range of values> containing the supported range of voice samples per second
of the analog signal (8000).
<scs> <range of values> containing the supported range of sensitivity settings for
voice receives (0). A 0 indicates not supported.
<sel> <range of values> containing the supported range of expansion values for voice
transmits (0). A 0 indicates not supported.
Example: 1,"UNSIGNED PCM",8,0,8000,0,0
129,"IMA ADPCM",4,0,8000,0,0
130,"UNSIGNED PCM",8,0,8000,0,00
140,"2 Bit ADPCM",2,0,8000,0,0
141,"4 Bit ADPCM",4,0,8000,0,0
OK
Result Codes:
OK Valid range.
ERROR Otherwise, or if not in Voice Mode.
99
AT Command Reference
Chapter 5 – Voice Commands
Command: +VTD
Beep Tone Duration Timer
Command: +VDR
Distinctive Ring
Description:
Syntax:
Defined Values:
This command causes the modem to set the default DTMF/tone generation duration.
+VTD=<dur>
<dur> Decimal number specifying the default DTMF/tone generation duration in units
of 0.01 second. A value of 0 specifies the value entered by the S11 parameter
(50-255 ms). The range is 0.01 to 2.55 seconds for <dur> = 1 to 255.
Reporting Current or Selected Values:
Command: +VTD?
Response: <dur>
Example: 100 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +VTD=?
Response: (<dur> range)
Example: (0-255)
Result Codes:
OK <dur>= 0-255.
ERROR Otherwise, or if not in Voice Mode.
Description:
This command causes the modem to enable or disable reportingof the ring cadence
information and to control the timing of the RING event code report if ring cadence
reporting is enabled.
Syntax:
+VDR=<enable>, <report>
Defined Values:
<enable> Decimal number corresponding to the selected option.
0 The modem will not report ring cadence information.
1 The modem will report ring cadence information as specified for the <report>
sub-parameter.
<report> Decimal number specifying ring cadence information report when enabled by
the <enable> sub-parameter.
0 The modem will produce only DROF and DRON messages. The modem will not
produce any RING event codes. The modem will report other call progress event
codes as normal.
Other The modem will produce only DROF and DRON messages. The modem will
produce a RING event code after <report>/10 seconds after the falling edge of the
ring pulse (i.e., after the DRON report).
Reporting Current or Selected Values:
Command: +VDR?
Response: <enable>,<report>
Example: 0,0 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +VDR=?
Response: (<enable> range),(<report>range)
Example: (0,1),(0-6)
Result Codes:
OK <enable>,<report> = (0,1),(0-6)
ERROR Otherwise, or if not in Voice Mode.
100
AT Command Reference
Chapter 5 – Voice Commands
Command: +VDT
Control Tone Cadence Reporting
Command: +VPR
Select DTE/Modem Interface Rate (Turn Off Autobaud)
Description:
This command is included for compatibility only and has no effect other than returning
a result code.
This command allows the modem to enable or disable reporting of the control tone
cadence information in the frequency band used by the Ringback/Remote Ring, BUSY,
and reorder/Fast Busy tones (usually in the 300 to 600 Hz range).
Syntax:
+VDT=<enable>,<report>
Defined Values:
<enable> Decimal number corresponding to the selected option.
0 The modem will not produce any control tone cadence report.
<report> Decimal number specifying the produced any control tone cadence report
when enabled by the <enable> sub-parameter.
0 The modem will produce only CPOF and CPON messages.
Other Reserved.
Reporting Current or Selected Values :
Command: +VDT?
Response: <enable>,<report>
Example: 0,0 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +VDT=?
Response: (<enable> range),(<report> range)
Example: (0),(0)
Result Codes:
OK <enable>,<report> = (0),(0)
ERROR Otherwise, or if not in Voice Mode.
Description:
Syntax:
Defined Values:
This command selects the DTE/modem interface rate.
+VPR=<rate>
<rate>> Decimal number corresponding to the DTE/modem interface rate where 0 =
autobaud rate determined by processing the AT command, and 1,2,3,4,8,16,24,48,96
correspond to multipliers of 2400 bps to determine the actual rate:
0 = Autobaud
1 = 2400 bps
2 = 4800 bps
3 = 7200 bps
4 = 9600 bps
8 = 19200 bps
16 = 38400 bps
24 = 57600 bps
48 = 115200 bps
96 = 230400 bps
Reporting Current or Selected Values:
Command: +VPR?
Response: <rate>
Example: 0 For the default setting (Autobaud).
Reporting Supported Range of Parameter Values:
Command: +VPR=?
Response: (<rate> range)
Example: (0,1,2,3,4,8,16,24,48,96)
Result Codes:
OK <rate> = 0,1,2,3,4,8,16,24,48,96.
ERROR Otherwise, or if not in Voice Mode.
101
AT Command Reference
Chapter 5 – Voice Commands
Speakerphone Commands
Command: +VSP
Speakerphone ON/OFF
Command: +VDX
Speakerphone Duplex Mode
Command: +VGM
Microphone Gain
Description:
Syntax:
Defined Values:
This command turns the speakerphone ON or OFF
+VSP=<mode>
<mode> Decimal number corresponding to the selected option.
0 The speakerphone function is OFF. (Default.)
1 The speakerphone function is ON.
Reporting Current or Selected Values:
Command: +VSP?
Response: <mode>
Example: 0 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +VSP=?
Response: (<mode> range)
Example: (0,1)
Result Codes:
OK <mode> = 0 or 1.
ERROR Otherwise, or if not in Voice Mode.
Description:
Syntax:
Defined Values:
This command selects speakerphone full duplex mode.
+VDX=<mode>
<mode> Decimal number corresponding to the selected option.
1 The speakerphone mode is full duplex.
Reporting Current or Selected Values:
Command: +VDX?
Response: <mode>
Example: 1 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +VDX=?
Response: (<mode> range)
Example: (1)
Result Codes:
OK <mode> = 1.
ERROR Otherwise, or if not in Voice Mode.
Description:
This command causes the modem to set the microphone gain of the speakerphone
function.
Syntax:
+VGM=<gain>
Defined Values
<gain> Decimal number between 0 and 255 corresponding to the gain.
Reporting Current or Selected Values:
Command: +VGM?
Response: <gain>
Example: 64 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +VGM=?
Response: <gain> range
Example: 0-255
Result Codes:
OK <gain> = 0-255.
ERROR Otherwise, or if not in Voice Mode with speakerphone enabled (+VSP=1).
102
AT Command Reference
Command: +VGS
Description:
Chapter 5 – Voice Commands
Speaker Gain
This command causes the modem to set the speaker gain of the speakerphone
function.
Syntax:
+VGS=<gain>
Defined Values:
<gain> Decimal number between 0 and 255 corresponding to the gain.
Reporting Current or Selected Values:
Command: +VGS?
Response: <gain>
Example: 128 For the default setting.
Reporting Supported Range of Parameter Values:
Command: +VGS=?
Response: <gain> range
Example: 0-255
Result Codes:
OK <gain> = 0-255.
ERROR Otherwise, or if not in Voice Mode with speakerphone enabled (+VSP=1).
0 SaleError! No index entries found.s Offices
103
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
