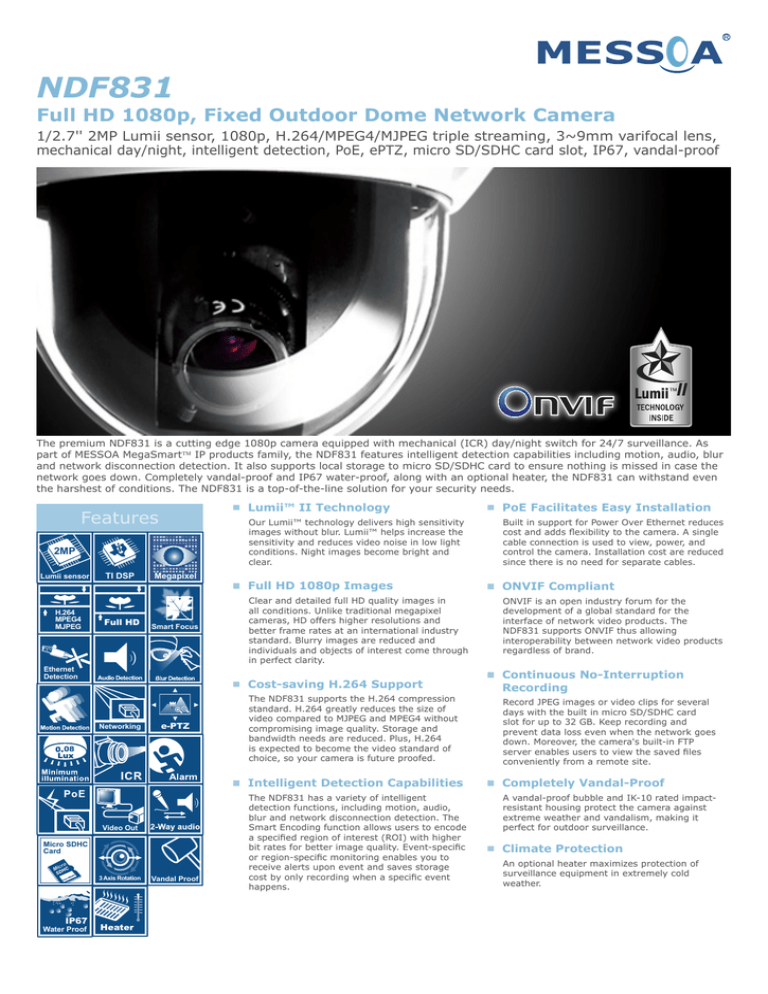

NDF831
Full HD 1080p, Fixed Outdoor Dome Network Camera
1/2.7'' 2MP Lumii sensor, 1080p, H.264/MPEG4/MJPEG triple streaming, 3~9mm varifocal lens,
mechanical day/night, intelligent detection, PoE, ePTZ, micro SD/SDHC card slot, IP67, vandal-proof
II
The premium NDF831 is a cutting edge 1080p camera equipped with mechanical (ICR) day/night switch for 24/7 surveillance. As
part of MESSOA MegaSmart IP products family, the NDF831 features intelligent detection capabilities including motion, audio, blur
and network disconnection detection. It also supports local storage to micro SD/SDHC card to ensure nothing is missed in case the
network goes down. Completely vandal-proof and IP67 water-proof, along with an optional heater, the NDF831 can withstand even
the harshest of conditions. The NDF831 is a top-of-the-line solution for your security needs.
Lumii™ II Technology
Features
Our Lumii™ technology delivers high sensitivity
images without blur. Lumii™ helps increase the
sensitivity and reduces video noise in low light conditions. Night images become bright and
clear.
2MP
Lumii sensor
H.264
MPEG4
MJPEG
TI DSP
Full HD
Megapixel
Smart Focus
Ethernet
Detection
Full HD 1080p Images
Clear and detailed full HD quality images in
all conditions. Unlike traditional megapixel
cameras, HD offers higher resolutions and
better frame rates at an international industry
standard. Blurry images are reduced and
individuals and objects of interest come through
in perfect clarity.
Cost-saving H.264 Support
Networking
e-PTZ
08
The NDF831 supports the H.264 compression
standard. H.264 greatly reduces the size of
video compared to MJPEG and MPEG4 without
compromising image quality. Storage and
bandwidth needs are reduced. Plus, H.264
is expected to become the video standard of
choice, so your camera is future proofed.
Intelligent Detection Capabilities
Video Out
Micro SDHC
Card
3 Axis Rotation
IP67
Water Proof
Vandal Proof
The NDF831 has a variety of intelligent
detection functions, including motion, audio,
blur and network disconnection detection. The
Smart Encoding function allows users to encode
a specified region of interest (ROI) with higher
bit rates for better image quality. Event-specific
or region-specific monitoring enables you to
receive alerts upon event and saves storage
cost by only recording when a specific event
happens.
PoE Facilitates Easy Installation
Built in support for Power Over Ethernet reduces
cost and adds flexibility to the camera. A single
cable connection is used to view, power, and
control the camera. Installation cost are reduced
since there is no need for separate cables.
ONVIF Compliant
ONVIF is an open industry forum for the
development of a global standard for the
interface of network video products. The
NDF831 supports ONVIF thus allowing
interoperability between network video products
regardless of brand.
Continuous No-Interruption
Recording
Record JPEG images or video clips for several
days with the built in micro SD/SDHC card
slot for up to 32 GB. Keep recording and
prevent data loss even when the network goes
down. Moreover, the camera's built-in FTP
server enables users to view the saved files
conveniently from a remote site.
Completely Vandal-Proof
A vandal-proof bubble and IK-10 rated impactresistant housing protect the camera against
extreme weather and vandalism, making it
perfect for outdoor surveillance.
Climate Protection
An optional heater maximizes protection of
surveillance equipment in extremely cold weather.
Specifications
Image System
Image Sensor
1/2.7" 2MP image sensor optimized for low-light performance
Image Compression Method
Triple Streaming : H.264 / MPEG4 / Motion JPEG
2M Full HD 1080p 1920x1080 at 15 fps (NTSC) and 12.5 fps (PAL),
1280x720 at 30 fps (NTSC) and 25 fps (PAL)
Maximum Framerate vs. Resolution
Lens
Built-in Mechanical IR Cut Filter varifocal lens f=3~9mm, F1.2 (Mega pixel lens)
IRIS Control
DC IRIS
View Angle
H: 93°(Wide)~31.7°(Tele)/V:68.4°(Wide)~23.8°(Tele)
View Angle Adjustment
Pan:0°-355°, Tilt:0°-90°, Rotate:0°-355°
Electric
Shutter Time
Range from 1/10000s to 1/3.75s selectable (60Hz); Range from 1/10000s to 1/3.125s selectable (50Hz)
Audio
Two-way Mono Audio, Full-duplex, G.711 PCM 8kHz
Alarm
External input
Day/Night Mode
Mechanical (ICR) D/N control; Auto/ Forced BW/ Forced Color/ External
Minimum Illumination
0.08 Lux @10IRE; 0.30Lux @50IRE (shutter speed: 1/15sec)
Video Port
BNC X1, 1.0Vp-p, 75Ω / RCA x 1
Video Output
NTSC: 720 X 480 @30fps; PAL: 720 X 576 @25fps
Image Enhance
Exposure Mode: Auto/Manual; White Balance: Auto/Manual; Backlight Compensation: 5x5 zones selectable
Sharpness, Staturation, Brightness, Contrast: 255 level sensitivity
Feature Brief
Digital WDR
Yes; 5 level sensitivity
Privacy Zone
Yes; customized threshold privacy zone
Intelligent Video
Audio detection / Blur detection /Ethernet Detection/ Smart Encoding/ Smart Focus/ e-PTZ/ Event Management
Alarm Detection
Motion Detection: 5 x 5 zones, 5 level sensitivity or customized threshold; Audio Detection: 5 level sensitivity or customized threshold;
Blur Detection: customized threshold; External Input
File upload via FTP, SMTP and micro SD/SDHC Card; Notification via email, HTTP and TCP; External output activation;
Video and audio recording to micro SD/SDHC Card
Alarm Event
Image Orientation
Mirror, Flip
Bit Rate Mode
Primary stream bit rate control: CBR/VBR
Local Storage
Memory Card
Micro SD/ Micro SDHC Card up to 32 GB
SD Card Overwrite
Yes
SD Card Store Category
Alarm / Motion / Schedule/ Un-interrupt recording
Power supply
Power Requirement
DC 12V & AC 24V ± 10% / PoE(IEEE 802.3af)
DC24V/AC24V± 10%
Power Connector
Power Consumption (Max.)
Screwless Terminal block
5W
18 W (Heater ON); 5 W (Heater OFF)
Environment Operating Temperature
-10ºC ~ 50ºC (-14ºF ~ 122 ºF)
-40ºC ~ 50ºC (-40ºF ~ 122 ºF)
Operating Humidity
10~ 90% RH
Storage Temperature
-20ºC ~ 60ºC (-4ºF ~ 140 ºF)
Regulatory
CE, FCC, RoHS
Network
Ethernet
10Base-T/100Base-TX Ethernet connection for LAN / WAN, RJ-45
Internet Protocol
IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP,RTSP, ICMP, UPnP
Browser
IE browser 6.0 or above
I/O connector
Alarm Port
Terminal block 2 in / 1 out
Audio In / Out port
3.5mm Phone Jack x 2
Reset
Within 5 sec for rebooting system; more than 5 sec for loading default
Mechanism
Dimensions(ΦxH)
Φ141mm x 121mm (Φ5.55" x 4.76")
Weight
1.3kg (2.87 lb)
Protection Class
Option
Order Information
IP67, IK10, vandal-proof
Without Heater
With Heater
NTSC model: NDF831-HN5-MES;
NTSC model: NDF831H-HN5-MES;
PAL model: NDF831-HP5-MES
PAL model: NDF831H-HP5-MES
Accessory
Surface mount: standard package support; Pendent mount: thread 1"
Wall mount:Bracket SAB755BP
Mount Type
Dimensions
141mm (5.55”)
Power in (Red+ / Black-)
RJ-45 (Ethernet Connector)
121mm (4.76”)
BNC
Audio out (Green)
Audio in (Red)
Ø108mm (4.25”)
Alarm out (Orange)
Reserved (Green)
Reserved (Yellow)
GND (Gray)
Alarm in 1 (Red)
Alarm in 2 (Brown)
2013.11.25 version.
MESSOA reserves the right to update this datasheet at any time without notice.
