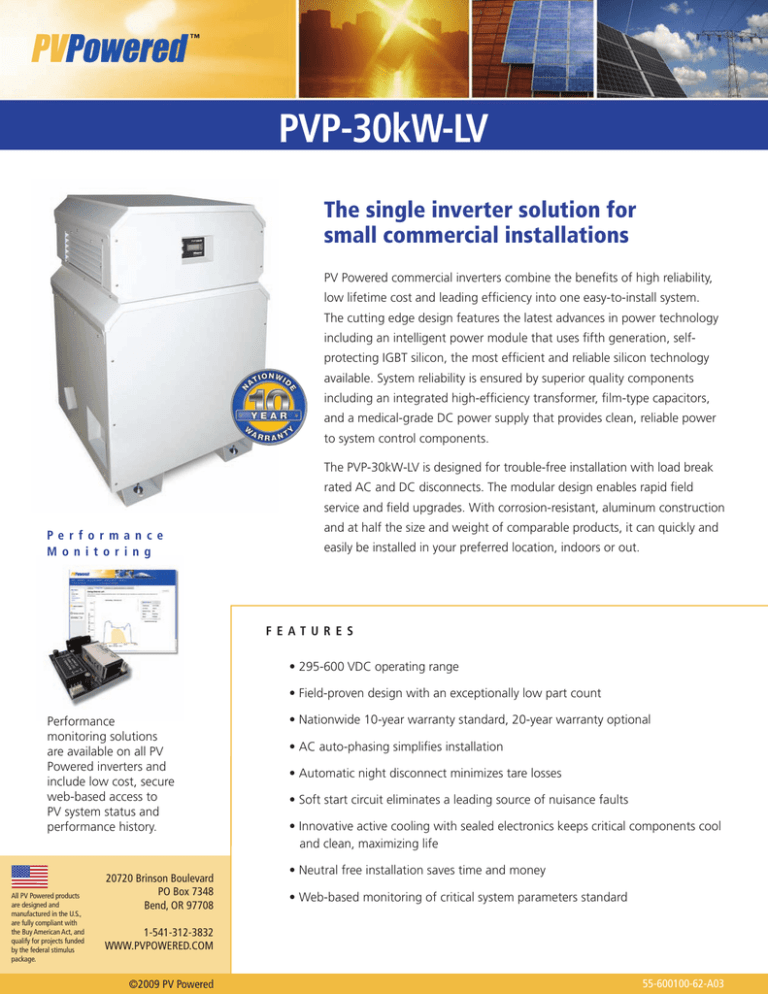

PVP-30kW-LV The single inverter solution for small commercial installations

PVP-30kW-LV The single inverter solution for small commercial installations
™
PVP-30kW-LV
The single inverter solution for
small commercial installations
PV Powered commercial inverters combine the benefits of high reliability,
low lifetime cost and leading efficiency into one easy-to-install system.
The cutting edge design features the latest advances in power technology
including an intelligent power module that uses fifth generation, selfprotecting IGBT silicon, the most efficient and reliable silicon technology
available. System reliability is ensured by superior quality components
including an integrated high-efficiency transformer, film-type capacitors,
and a medical-grade DC power supply that provides clean, reliable power
to system control components.
The PVP-30kW-LV is designed for trouble-free installation with load break
rated AC and DC disconnects. The modular design enables rapid field
service and field upgrades. With corrosion-resistant, aluminum construction
Pe r f o r m a n c e
M o n i t o r i n g
and at half the size and weight of comparable products, it can quickly and
easily be installed in your preferred location, indoors or out.
F E AT U R E S
• 295-600 VDC operating range
• Field-proven design with an exceptionally low part count
Performance
monitoring solutions
are available on all PV
Powered inverters and
include low cost, secure
web-based access to
PV system status and
performance history.
All PV Powered products
are designed and
manufactured in the U.S.,
are fully compliant with
the Buy American Act, and
qualify for projects funded
by the federal stimulus
package.
20720 Brinson Boulevard
PO Box 7348
Bend, OR 97708
• Nationwide 10-year warranty standard, 20-year warranty optional
• AC auto-phasing simplifies installation
• Automatic night disconnect minimizes tare losses
• Soft start circuit eliminates a leading source of nuisance faults
• Innovative active cooling with sealed electronics keeps critical components cool
and clean, maximizing life
• Neutral free installation saves time and money
• Web-based monitoring of critical system parameters standard
1-541-312-3832
WWW.PVPOWERED.COM
©2009 PV Powered
55-600100-62-A03
D I M E N S I O N S
P V P - 3 0 k W- LV
P OW E R
C H A R AC T E R I S T I C S
MODEL
PVP-30kW-LV
Continuous Output Power (kW)
30
Weighted CEC Efficiency (%)
208
93.0
480
93.5
Maximum DC Input Voltage (VOC)
600
DC Peak Power Tracking Range (V)
295 - 500
DC Imp Nominal Current (A)
107
AC Nominal Voltage
208Y or 480Y
AC Operating Range (V)
208
183 - 228
480
422 - 528
AC Frequency Range (Hz)
59.3 - 60.5
AC Maximum Continuous Current (A)
83 (208V), 36 (480V)
Standby Losses (W)
17
Harmonic Distortion (%THD) <3%
Power Factor >.99
M E C H A N I C A L
MODEL
PVP-30kW-LV
Enclosure NEMA 3R Construction
Aluminum
Mounting
Pad Mount
Weight (lbs)
Cooling Temperature Range (ºC)
760
Forced Convection -25 to 45
Isolation Transformer Yes Standards Approvals
UL 1741, IEEE 1547 Compliant
Electromagnetic Interference
©2009 PV Powered
S P E C I F I C AT I O N S
FCC Class A for conducted, FCC Class B for radiated
