TM-9-6115-642-24P

TM-9-6115-642-24P

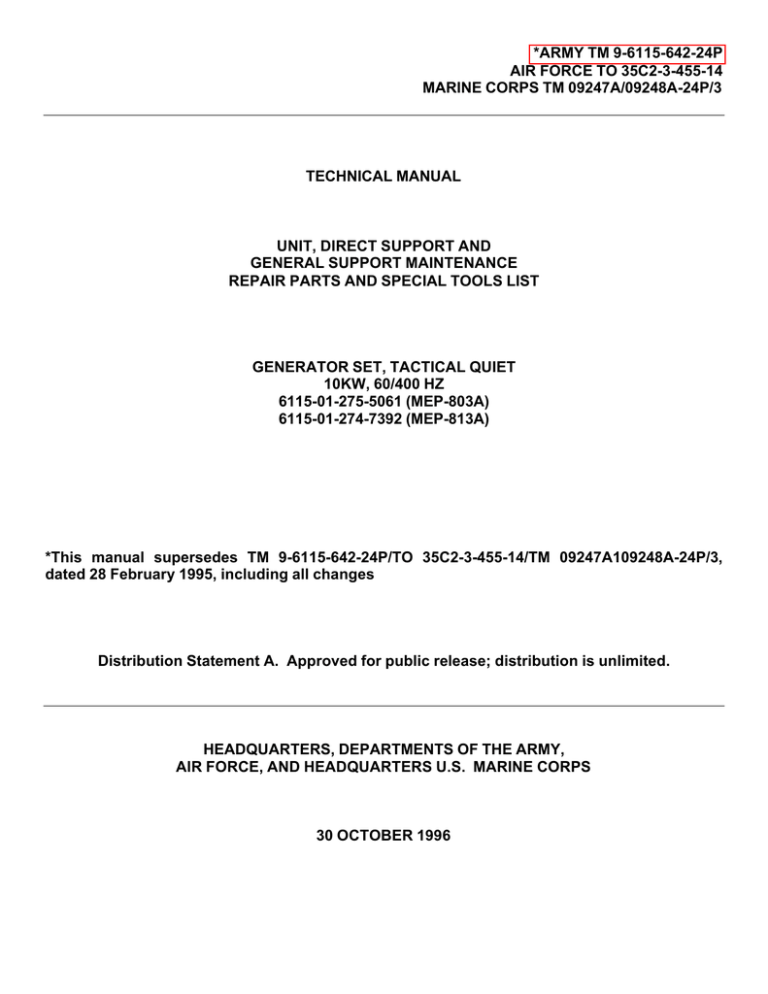

*ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

TECHNICAL MANUAL

UNIT, DIRECT SUPPORT AND

GENERAL SUPPORT MAINTENANCE

REPAIR PARTS AND SPECIAL TOOLS LIST

GENERATOR SET, TACTICAL QUIET

10KW, 60/400 HZ

6115-01-275-5061 (MEP-803A)

6115-01-274-7392 (MEP-813A)

*This manual supersedes TM 9-6115-642-24P/TO 35C2-3-455-14/TM 09247A109248A-24P/3, dated 28 February 1995, including all changes

Distribution Statement A. Approved for public release; distribution is unlimited.

HEADQUARTERS, DEPARTMENTS OF THE ARMY,

AIR FORCE, AND HEADQUARTERS U.S. MARINE CORPS

30 OCTOBER 1996

TECHNICAL MANUAL

NO. 9-6115-642-24P

*ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

HEADQUARTERS DEPARTMENTS OF THE ARMY,

AIR FORCE, AND HEADQUARTERS U.S. MARINE CORPS

WASHINGTON D.C., 30 OCTOBER 1996

UNIT, DIRECT SUPPORT AND

GENERAL SUPPORT MAINTENANCE

REPAIR PARTS AND SPECIAL TOOLS LIST

GENERATOR SET, TACTICAL QUIET

10KW, 60/400 HZ

6115-01-275-5061 (MEP-803A) 6115-01-274-7392 (MEP-813A)

Current as of 1 October 1996

*This manual supersedes TM 9-6115-642-24P/TO 35C2-3-455-14frM 09247A109248A-24P/3, dated 28 February

1995, including all changes.

REPORTING ERRORS AND RECOMMENDING IMPROVEMENTS

You can help improve this manual. If you find any mistakes or if you know of a way to improve these procedures, please let us know.

(A) Mail your letter or DA Form 2028 (Recommended Changes to Publications and Blank Forms), or DA Form 2028-2 located in the back of this manual directly to: Commander, US Army Aviation and Troop Command, ATTN: AMSAT-I-MP,

4300 Goodfellow Blvd., St. Louis, MO 63120-1798. You may also submit your recommended changes by E-mail directly to <mpmt%[email protected]>. Instructions for sending an electronic 2028 may be found at the back of this publication immediately preceding the hard copy 2028.

(F) Air Force - AFTO Form 22 Directly to: Commander, Sacramento Air Logistics Center, ATTN: TILBA, McClellan AFB,

CA 95652-5990 (AFMC).

(MC) Marine Corps - NAVMC Form 10772 Directly to: Commander, Marine Corps Logistics Bases (Code 850), Albany,

GA 31704-5000.

A reply will be furnished directly to you.

DISTRIBUTION STATEMENT A: Approved for public release; distribution is unlimited.

i

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

TABLE OF CONTENTS

Page

Section I. INTRODUCTION .......................................................................................................1

Section II.

Group 01

REPAIR PARTS LIST ...................................................................................................

D.C. Electrical System .................................................................................................

Batteries and Cables ................................................................................................ 1-1

Group 02

Group 03

Slave Receptacle and Cables ................................................................................... 2-1

Alternator Installation................................................................................................ 3-1

Alternator Assembly ................................................................................................ 4-1

Housing........................................................................................................................

Access Doors and Covers ........................................................................................ 5-1

Front Housing Panels............................................................................................... 6-1

Rear Housing Panels .............................................................................................. 7-1

Control Box Assembly ...................................................................................................

Control Box Assembly.............................................................................................. 8-1

Group 04

Group 05

Group 06

Control Box Harness................................................................................................ 9-1

Control Panel and Box Assembly............................................................................ 10-1

Output Box Assembly....................................................................................................

Output Box Installation ........................................................................................... 11-1

Output Box/Engine Harness .........................................................................................

Assembly ....................................................................................................... 12-1

Output Box Components ....................................................................................... 13-1

Air Intake and Exhaust System......................................................................................

Muffler Assembly ................................................................................................... 14-1

Air Cleaner Assembly............................................................................................. 15-1

Coolant System ............................................................................................................

Radiator and Hoses .............................................................................................. 16-1

Group 07

Group 08

Group 09

Group 10

Group 11

Group 12

Group 13

Group 14

Fuel System .................................................................................................................

Fuel Tank, Pumps and Lines .................................................................................. 17-1

Lubrication System .......................................................................................................

Oil Drain Line......................................................................................................... 18-1

Engine Accessories ......................................................................................................

Frequency Adjust Cable ......................................................................................... 19-1

Engine Accessories ............................................................................................... 20-1

Skid Base ....................................................................................................................

Skid Base Assembly .............................................................................................. 21-1

Load Terminal Board.....................................................................................................

Load Terminal Board Assembly .............................................................................. 22-1

Generator Assembly .....................................................................................................

Generator Installation............................................................................................. 23-1

Generator Assembly, 60 Hz .................................................................................... 24-1

Generator Assembly, 400 Hz .................................................................................. 25-1

Engine Assembly..........................................................................................................

Engine Installation.................................................................................................. 26-1

Bulk Items .......................................................................................................... Bulk-1

Illus/

Figure

11

12

13

14

15

16

17

8

9

10

5

6

7

1

2

3

4

23

24

25

26

18

19

20

21

22

ii

Section III.

Section IV.

*ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

TABLE OF CONTENTS - Continued

SPECIAL TOOLS LIST .......................................................................................... 27-1

CROSS REFERENCE INDEXES

National Stock Number Index ............................................................................. I-1

Part Number Index ............................................................................................. I-6

Figure and hem Number Index .......................................................................... I-28

iii(iv blank)

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/109248A-24P/3

UNIT, DIRECT SUPPORT AND GENERAL SUPPORT

MAINTENANCE REPAIR PARTS AND SPECIAL TOOLS LIST

SECTION I. INTRODUCTION

1. SCOPE. This RPSTL lists and authorizes spares and repair parts; special tools; special test, measurement, and diagnostic equipment (TMDE); and other special support equipment required for performance of unit, direct support and general support maintenance of the Generator Set, 10 KW, 60/400 HZ. It authorizes the requisitioning, issue, and disposition of spares, repair parts and special tools as indicated by the source, maintenance and recoverability (SMR) codes.

2. GENERAL. In addition to this section, Introduction, this Repair Parts and Special Tools List is divided into the following sections: a.

Section II. Repair Parts List. A list of spares and repair parts authorized by this RPSTL for use in the

performance of maintenance. This list also includes parts which must be removed for replacement of the authorized parts. Parts lists are composed of functional groups in ascending alphanumeric sequence, with the parts in each group listed in ascending figure and item number sequence. Bulk materials are listed in item name sequence. Items are shown in the associated illustration(s)/figure(s).

b.

Section III. Special Tools List. A list of special tools, special TMDE, and other special support equipment authorized by this RPSTL (as indicated by Basis of Issue (BOI) information in DESCRIPTION AND USABLE ON CODE column) for the performance of maintenance.

c.

Section IV. Cross-Reference Index. A list, in National Item Identification Number (NIIN) sequence, of all National

stock numbered items appearing in the listing, followed by a list in alphanumeric sequence of all part numbers appearing in the listings. National stock numbers and part numbers are cross referenced to each illustration figure and item number appearance. The figure and item number index lists figure and item numbers in alphanumeric sequence and cross references NSN, CAGEC and part number.

3. EXPLANATION OF COLUMNS (SECTIONS II AND III).

a.

ITEM NO. (Column (1)). Indicates the number used to identify items called out in the illustration.

b.

SM R Code (Column (?)). The Source, Maintenance, and Recoverability (SMR) code is a 5-position code containing supply/requisitioning information, maintenance category authorization criteria, and disposition instruction, as shown in the following breakout:

Source

Code

Maintenance

Code

Recoverability

Code

XX 1st two positions

How you get an item.

XX XX

3d position 4th position Who determines disposition action on an unserviceable item.

Who can install, replace or use the item.

Who can do complete repair

(see note) on the item.

*Complete Repair: Maintenance capacity, capability, and authority to perform all corrective maintenance tasks of the

"Repair" function in a use/user environment in order to restore serviceability to a failed item.

1

PA

PB

PC

PD

PE

PF

PG

KD

KF

KB

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A109248A-24P/3

(1) Source Code. The source code tells you how to get an item needed for maintenance, repair, or overhaul of an end item/equipment. Explanations of source codes follows:

Source Code Explanation

Stocked items; use the applicable NSN to request/requisition items with these source codes. They are authorized to the category indicated by the code entered in the 3rd position of the SMR code.

“NOTE: Items coded PC are subject to deterioration.

Items with these codes are not to be requested/requisitioned individually. They are part of a kit which is authorized to the maintenance category indicated in the 3rd position of the SMR code. The complete kit must be requisitioned and applied.

MO - (Made at Unit/AVUM

Level)

MF - (Made at DS/AVUM

Level)

MH - (Made at GS Level)

ML(Made at Specialized

Repair Activity (SRA))

MD - (Made at Depot)

AO - (Assembled by Unit/AVUM

Level)

AF(Assembled by DS/AVIM

Level)

AH - (Assembled by GS

Category)

AL - (Assembled by SRA)

AD - (Assembled by Depot)

Items with these codes are not to be requested/requisitioned individually. They must be made from bulk material which is identified by the part number in the

DESCRIPTION and USABLE ON CODE (UOC) column and listed in the Bulk

Material group of the repair parts list in this RPSTL If the item is authorized to you by the 3rd position code of the SMR code, but the source code indicates it is made at a higher level, order the item from the higher level of maintenance.

Items with these codes are not to be requested/ requisitioned individually. The parts that make up the assembled item must be requisitioned or fabricated and assembled at the level of maintenance indicated by the source code. If the 3rd position code of the SMR code authorizes you to replace the item, but the source code indicates the items are assembled at a higher level, order the item from the higher level of maintenance.

XA - Do not requisition "XA-coded item. Order its next higher assembly. (Refer to the NOTE below.)

XB - If an "XB" item is not available from salvage, order it using the CAGEC and part number given.

XC - Installation drawing, diagram, instruction sheet, field service drawing, that is identified manufacturer's part number.

XD - Item is not stocked. Order an "XD"-coded item through normal supply channels using the CAGEC and part number given, if no NSN is available.

NOTE

Cannibalization or controlled exchange, when authorized, may be used as a source of supply for items with the above source codes, except for those source coded

"XAN or those aircraft support items restricted by requirements of AR 750-1.

2

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

(2) Maintenance Code. Maintenance codes tell you the level(s) of maintenance authorized to USE and

REPAIR support items. The maintenance codes are entered in the third and fourth positions of the SMR code as follows:

(a) The maintenance code entered in the third position tells you the lowest maintenance level authorized to remove, replace, and use an item. The maintenance code entered in the third position will indicate authorization to the following levels of maintenance.

Maintenance

Code

C -

Application/Explanation

Crew or operator maintenance done within unit/AVUM maintenance.

O -

F -

H -

L -

D -

Unit level/AVUM maintenance can remove, replace, and use the item.

Direct support/AVIM maintenance can remove, replace, and use the item.

General support maintenance can remove, replace, and use the item.

Specialized repair activity can remove, replace, and use the item.

Depot can remove, replace, and use the item.

(b) The maintenance code entered in the fourth position tells whether or not the item is to be repaired and identifies the lowest maintenance level with the capability to do complete repair (i.e., perform all authorized repair functions.)

NOTE

Some limited repair may be done on an item at a lower level of maintenance, if authorized by the Maintenance Allocation Chart and SMR codes.

Maintenance

Code

O -

Application/Explanation

Unit/AVUM is the lowest level that can do complete repair of the item.

D -

Z -

B -

F -

H -

L -

Direct support/AVIM is the lowest level that can do complete repair of the item.

General Support is the lowest level that can do complete repair of the item.

Specialized repair activity is the lowest level that can do complete repair of the item.

Depot is the lowest level that can do complete repair of the item.

Nonrepairable. No repair is authorized.

No repair is authorized. No parts or special tools are authorized for the maintenance of a "B" coded item. However, the item may be reconditioned by adjusting, lubricating, etc., at the user level.

(3) Recoverability Code. Recoverability codes are assigned to items to indicate the disposition action on unserviceable items. The recoverability code is entered in the fifth position of the SMR Code as follows:

3

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/109248A-24P/3

Recoverability

Codes Application/Explanation

Z Nonreparable item. When unserviceable, condemn and dispose of the item at the level of maintenance shown in 3d position of SMR Code.

0 Reparable item. When not economically reparable, condemn and dispose of the item at unit or AVUM level.

F Reparable item. When uneconomically reparable, condemn and dispose of the item at the direct support or

AVIM level.

H Reparable item. When uneconomically reparable, condemn and dispose of the item at the general support level.

D Reparable item. When beyond lower level repair capability, return to depot. Condemnation and disposal of item not authorized below depot level.

L Reparable item. Condemnation and disposal not authorized below specialized repair activity (SRA).

A Item requires special handling or condemnation procedures because of specific reasons (e.g., precious metal content, high dollar value, critical material, or hazardous material). Refer to appropriate manuals/directives for specific instructions.

c.

CAGEC (Column (3)). The Commercial and Government Entity Code (CAGEC) is a 5-digit numeric code which is used to identify the manufacturer, distributor, or Government agency/activity that supplies the item.

d.

PART NUMBER (Column (4)). Indicates the primary number used by the manufacturer, (individual, company, firm, corporation, or Government activity), which controls the design and characteristics of the item by means of its engineering drawings, specifications, standards, and inspection requirements to identify an item or range of items.

NOTE

When you use an NSN to requisition an item, the item you receive may have a different part number from the number listed.

e.

DESCRIPTION AND USABLF ON CODF (UOC) (Column (5). This column includes the following information:

(1) The Federal item name and, when required, a minimum description to identify the item.

(2) Part numbers of bulk materials are referenced in this column in the line entry to be manufactured/fabricated.

(3) The statement "END OF FIGURE" appears just below the last item description in Column (5) for a given

figure in both Section II and Section III.

f.

QTY (Column (6)). The QTY (quantity per figure) column indicates the quantity of the item used in the breakout shown on the illustration/figure, which is prepared for a functional group, subfunctional group, or an assembly. A "V" appearing in this column instead of a quantity indicates that the quantity is variable and may vary from application to application.

4. EXPLANATION OF INDEX FORMAT AND COLUMNS (SECTION IV).

a.

NATIONAL STOCK NUMBER (NSN) INDEX.

(1) STOCK NUMBER Column. This column lists the NSN in national item identification number (NIIN) sequence. The NIIN consists of the last nine digits of the NSN, i.e.

NSN

5305-01-574-1

467

NIIN

When using this column to locate an item, ignore the first four digits of the NSN. Use the complete NSN (13 digits) when requisitioning items by stock number.

4

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A109248A-24P/3

(2) FIG. Column. This column lists the number of the figure where the item is identified/located. The figures

are in numerical order in Section II and Section IIl.

(3) ITEM Column. The item number identifies the item associated with the figure listed in the adjacent FIG.

column. This item is also identified by the NSN listed on the same line.

b.

PART NUMBER INDEX. Part numbers in this index are listed by part number in ascending alphanumeric sequence (i.e., vertical arrangement of letter and number combination which places the first letter or digit of each group in order A through Z, followed by the numbers 0 through 9, and each following letter or digit in like order).

(1) CAGEC Column. The Commercial and Government Entity Code (CAGEC) is a 5-digit numeric code used to identify the manufacturer, distributor, or Government agency/activity that supplies the item.

(2) PART NUMBER Column. Indicates the primary number used by the manufacturer (individual, firm, corporation, or Government activity), which controls the design and characteristics of the item by means of its engineering drawings, specifications, standards, and inspection requirements to identify an item or range of items.

(3) STOCK NUMBER Column. This column lists the NSN for the associated part number and manufacturer identified in the PART NUMBER and CAGEC columns to the left.

(4) FIG. Column. This column lists the number of the figure where the item is identified/located in Section II

and Section III.

(5) ITEM Column. The item number is that number assigned to the item as it appears in the figure referenced in adjacent figure number column.

c.

FIGURE AND ITEM NUMBER INDEX.

(1) FIG. Column. This column lists the number of the figure where the item is identified/located in Section II

and Section III.

(2) ITEM Column. The item number is that number assigned to the item as it appears in the figure referenced in the adjacent figure number column.

(3) STOCK NUMBER Column. This column lists the NSN for the item.

(4) CAGEC Column. The Commercial and Government Entity Code (CAGEC) is a 5-digit numeric code used to identify the manufacturer, distributor, or Government agency/activity that supplies the item.

(5) PART NUMBER Column. Indicates the primary number used by the manufacturer (individual, firm, corporation, or Government activity), which controls the design and characteristics of the item by means of its engineering drawings, specifications, standards, and inspection requirements to identify an item or range of items.

5. SPECIAL INFORMATION.

a.

USABLE ON CODE. The usable on code appears in the lower left comer of the Description Column heading.

Usable on codes are shown as "UOC:.." in the Description Column (justified left) on the last line of the applicable item description/nomenclature. Uncoded items are applicable to all models. Identification of the usable on codes used in this

RPSTL are:

Code

EMJ

Used On

10 kW, 60 Hz Generator Set,

Model MEP-803A

10 kW, 400 Hz Generator Set, ENZ

Model MEP-813A b.

FABRICATION INSTRUCTIONS. Bulk materials required to manufacture items are listed in the Bulk Material

Functional Group of this RPSTL. Part numbers for bulk materials are also referenced in the description column of the line entry for the item to be manufactured/fabricated. Detailed fabrication instructions for items source coded to be manufactured or fabricated are found in TM 9-6115-642-24.

c.

INDEX NUMBERS. hems which have the word BULK in the figure column will have an index number shown in the item number column. This index number is a cross-reference between the National Stock Number/Part Number Index

and the bulk material list in Section II.

5

d.

ASSOCIATED PUBLICATIONS. The publications listed below pertain to the 10kW Generator, Set, Model MEP-

803A and Model MEP-813A and its components.

Publication

LO 9-6115-642-12

TM 9-6115-642-10

TM 9-6115-642-24

TM 9-2815-253-24

TM 9-2815-253-24P

6. HOW TO LOCATE REPAIR PARTS.

Short Title

Lubrication Order, 10kW Generator Set

Operator’s Manual, 10 kW Generator Set

Maintenance Manual, 10 kW Generator Set

Maintenance Manual, Diesel Engine, Model No. DN4M

RPSTL, Diesel Engine, Model No. DN4M a.

When National Stock Numbers or Part Numbers are NOT Known.

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

(1) First. Using the table of contents, determine the assembly or subassembly group to which the item belongs. This is necessary since figures are prepared for assembly groups and subassembly groups, and listings are divided into the same groups.

(2) Second. Find the figure covering the assembly group or subassembly group to which the item belongs.

(3) Third. Identify the item on the figure and use the Figure and Item Number Index to find the NSN.

b.

When National Stock Number or Part Number is Known.

(1) First. Using the of National Stock Number and Part Number Indexes find the pertinent National Stock

Number or Part Number. The NSN index is in National Item Identification Number (NIIN) sequence (see paragraph 4.a.).

The part numbers in the Part Number index are listed in ascending alphanumeric sequence (see paragraph 4.b.). Both indexes cross-reference you to the illustration/figure and item number of the item you are looking for.

(2) Second. Turn to the figure and item number, verify that the item is the one you are looking for, then locate the item number in the repair parts list for the figure.

7. ABBREVIATIONS. Abbreviations used in this manual are listed in MIL-STD-12.

6

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

SECTION II MARINE CORPS TM 09247A/09248A-24P/3

Figure 1. Batteries and Cables

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

(3) (4) d.

PART

USMC FSCM NUMBER

1

2

3

4

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

MOOZZ MOO

5 MOOZZ MOO

6

7

8

9

AOOOO AOO

PAOZZ PAOZZ

PAOZZ PAOZZ

MOOZZ MOO

10 MOOZZ MOO

11 MOOZZ MOO

12

13

14

15

AOOOO AOO

PAOZZ PAOZZ

PAOZZ PAOZZ

MOOZZ MOO

16 MOOZZ MOO

17 MOOZZ MOO

18

19

20

21

22

23

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

PAOZZ 30554 88-20312

PAOZZ 96906 MS25036-128

PAOZZ 79550 70076

MOOZZ 30554 88-20312-4

MOOZZ 30554 88-20312-1

AOOOO 30554 88-20314

PAOZZ 96906 MS75004-1

PAOZZ 79550 70076

MOOZZ 30554 88-20314-4

MOOZZ 30554 88-20314-5

MOOZZ 30554 88-20314-1

AOOOO 30554 88-20315

PAOZZ 96906 MS25189-119

PAOZZ 96906 MS75004-1

MOOZZ 30554 88-20315-4

MOOZZ 30554 88-20315-5

MOOZZ 30554 88-20315-1

PAOZZ 93568 10942521

PAOZZ 30554 88-20522

PAOZZ 96906 MS51971-1

PAOZZ 96906 MS51412-4

PAOZZ 30554 88-20060

XBOZZ 30554 88-20055

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 01 - D C ELECTRICAL

SYSTEM

FIG. 1 BATTERIES AND

CABLES

.CABLE ASSEMBLY, BAT

..TERMINAL,LUG

TERMINAL,LUG NEGATIVE

INSULATION,SLEEVING

MAKE FROM P/N M23053/5-

109-9 (81349), 2.5 INCHES

REQUIRED

..WIRE, ELECTRICAL MAKE

FROM PIN CS2L (78174), 34

INCHES REQUIRED

.CABLE ASSEMBLY, BAT

..TERMINAL,LUG POSITIVE

..TERMINAL,LUG NEGATIVE

..INSULATION,SLEEVING

MAKE FROM P/N M23053/5-

109-2 (81349), 2.5 INCHES

REQUIRED

..INSULATION,SLEEVING

MAKE FROM P/N M23053/5-

109-9 (81349), AS REQUIRED

..WIRE, ELECTRICAL MAKE

FROM PIN CS2L (78174), 30

INCHES REQUIRED.

.CABLE ASSEMBLY, BAT

..TERMINAL,LUG

..TERMINAL,LUG POSITIVE

..INSULATION,SLEEVING

MAKE FROM PIN M23053/5-

109-2 (81349), 2.5 INCHES

REQUIRED

..INSULATION,SLEEVING

MAKE FROM P/N M23053/5-

109-9 (81349), AS REQUIRED

..WIRE, ELECTRICAL MAKE

FROM P/N CS2L (78174), 19

INCHES REQUIRED

.COVER,BATTERY TERMI

.COVER,BATTERY

.NUT,SELF-LOCKING,HE

.WASHER,FLAT

.BOLT,HOOK

.BRACKET, BATTERY HO

1

1

1

1

2

1

1

1

1

4

2

4

4

4

2

1

1

1

2

1

1

1

2

4

2

5

86

4

2

1

2

2

2

1

2

2

2

2

2

2

2

1

1

1

1

1

1-1

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

24

25

26

PAOZZ

XDOZZ

PAOZZ

PAOZZ

XB

PAOZZ

(3) (4) d.

PART

USMC FSCM NUMBER

PAOZZ 0UJ55 800U

XBOZZ 30554 88-20516

PAOZZ 96906 MS35338-63

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

.BATTERY,STORAGE

.TRAY, BATTERY

.WASHER,LOCK

END OF FIGURE

(6) (7)

USMC

QTY

PER

QTY EQUIP

2

2

4

2

2

72

1-2

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

Figure 2. Slave Receptacle and Cables

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

1

2

3

4

5

6

PAOZZ PAOZZ

PAOZZ PAOZZ

AOOOO AOO

PAOZZ PAOZZ

PAOZZ PAOZZ

MOOZZ MOO

7 MOOZZ MOO

10

11

8

9

AOOOO AOO

PAOZZ PAOZZ

PAOZZ PAOZZ

MOOZZ MOO

12 MOOZZ MOO

13 MOOZZ MOO

14

15

16

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

(3) (4) d.

PART

USMC FSCM NUMBER

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 01 - D C ELECTRICAL

SYSTEM

FIG 2 SLAVE RECEPTACLE

AND CABLES

PAOZZ 80204 B1821BH038F063N .SCREW,CAP,HEXAGON H

PAOZZ 96906 MS35338-65 .WASHER,LOCK

AOOOO 30554 88-20313

PAOZZ 96906 MS25036-128

PAOZZ 96906 MS25036-127

MOOZZ 30554 88-20313-4

.CABLE ASSEMBLY, BAT

..TERMINAL,LUG

..TERMINAL,LUG

..INSULATION,SLEEVING

MAKE FROM P/N M23053/5

109-9 (81349), 2 5 INCHES

REQUIRED

MOOZZ 30554 88-20313-1

AOOOO 30554

PAOZZ 96906

88-20316

MS25036-127

PAOZZ 96906 MS25189-119

MOOZZ 30554 88-20316-4

..WIRE, ELECTRICAL MAKE

FROM P/N CS2L (78174), 15

INCHES REQU IRED

.CABLE ASSEMBLY, BAT

..TERMINAL,LUG

..TERMINAL,LUG

..INSULATION,SLEEVING

MAKE FROM PIN M23053/5

109-2 (81349), 2 5 INCHES

MOOZZ

MOOZZ

PAOZZ

30554

30554

81205

88-20316-5

88-20316-1

2740-0003

PAOZZ 19207 12325869

PAOZZ 19207 11682345

REQUIRED

..INSULATION,SLEEVING

MAKE FROM P/N M23053/5

109-9 (81349), AS R EQUIRED

..WIRE, ELECTRICAL MAKE

FROM PIN CS2L (78174), 17

INCHES REQU IRED

.NUT,PLAIN,ASSEMBLED

.BOLT,MACHINE

.CONNECTOR,RECEPTACL

END OF FIGURE

2

2

1

1

1

1

1

1

2

1

1

1

1

5

5

1

2

10

1

2

2

1

1

2

2

1

2

1

1

362

293

1

2-1

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3455-14

MARINE CORPS TM 09247A/09248A-24P/3

Figure 3. Alternator Installation

FIG. 4

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

10

11

12

13

8

9

6

7

3

4

5

1

2

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

(3) (4) d.

PART

USMC FSCM NUMBER

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 01 - D C. ELECTRICAL

SYSTEM

FIG 3 ALTERNATOR

INSTALLATION

PAOZZ 30554 88-20003 .PULLEY,GROOVE

PAOZZ 80204 B1821BH031C100N .SCREW,CAP,HEXAGON

PAOZZ 96906 MS35338-64

PAOZZ 30554 88-20496

PAOZZ 30554 88-22790-4

.WASHER,LOCK

.WASHER,FLAT

.NUT,PLAIN,HEXAGON

PAOZZ 96906 MS35338-67

PAOZZ 96906 MS51412-9

.WASHER,LOCK

.WASHER,FLAT

PAOZZ 30554 88-20494

PAOZZ 80204

.SPACER,SLEEVE

B1821BH050C400N .SCREW,CAP,HEXAGON H

PAOZZ 30554 88-22790-2

PAOZZ 80204

.NUT,PLAIN,HEXAGON

B1821BH031C125N .BOLT,MACHINE

PAOZZ 96906 MS51412-25

XBOZZ 30554 88-22041

.WASHER,FLAT

.BRACE, ALTERNATOR

1

1

1

1

1

1

1

1

2

1

I

1

1

END OF FIGURE

9

1

5

1

1

1

1

3

6

1

1

1

5

3-1

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

(Figure 4 Sheet 1 of 2)

(Figure 4 Sheet 2 of 2)

Figure 4. Alternator Assembly 8EM3005CA (Sheet 1 of 2)

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

Figure 4. Alternator Assembly 8MR3005CA (Sheet 2 of 2)

PAOFF PAOOO

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAFZZ PAOZZ

XDFZZ XB

XDFZZ XB

XDFZZ XB

PBFZZ PBFZZ

PAFZZ PBFZZ

XDFZZ XB

XDFZZ XB

XDFZZ XB

PBFZZ PBFZZ

PAFZZ PAFZZ

XDFZZ XB

PAFZZ PAFZZ

XDFZZ XB

XDFZZ XB

XDFZZ XB

PAFZZ

PAFZZ

PAFZZ

PAFZZ

XDFZZ XB

XDFZZ XB

XDFZZ XB

XDFZZ XB

PAFZZ

PBFZZ

XAFZZ

PAFZZ

PAFZZ

XA

XDFZZ XB

XAFZZ XA

PAOFF PAOOO

PAOZZ PAOZZ

XDFZZ XB

PBFZZ PBOZZ

XDFZZ XB

19

20

21

22

23

15

16

17

18

24

25

26

27

28

29

30

31

32

10

11

12

13

14

8

9

6

7

3

4

5

1

2

33

34

35

36

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

(3) (4) d.

PART

USMC FSCM NUMBER

PAOFF 30554 88-21154

PAOZ7Z 68505 120-148

PAOZZ 68505 120-342

PAOZZ 68505 120-120

PAFZZ 68505 120-252

XBFZZ OEDY1 114-214

XBFZZ OEDY1 103-56

XBFZZ OEDY1 120-334

PBFZZ 68505 103-55

PAFZZ 68505 105-269

XBFZZ OEDY1 120-343

XBFZZ 68505 04B44761F16

XBFZZ 68505 120-121

PBFZZ 24975 101-206

PAFZZ 68505 0142499T36

XBFZZ OEDY1 0344209B135

PAFZZ 68505 120-336

XBFZZ 68505 114-222

XBFZZ 68505 111-64S

XBFZZ OEDY1 113-54

PAFZZ 68505 120-136

PAFZZ 68505 120-137

XBFZZ 68505 107-68

XBFZZ 35510 120-7

XBFZZ OEDY1 120-152

XBFZZ OEDY1 114-223

PAFZZ 68505 120-347S

PBFZZ 68505 111-21

XAF ZZ OEDY1 112-72

XBFZZ 68505 112-022

XAFZZ 68505 111-21

PAOFF 68505 8MR3005CA

PAOZZ 68505 120-376

XBFZZ 68505 120-178

PBFZZ 68505 105-311

XBFZZ 24975 103-14

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 01 - D C ELECTRICAL

SYSTEM

FIG 4 ALTERNATOR

ASSEMBLY

.GENERATOR,DIRECTCU

..NUT,SELF-LOCKING,HE

..NUT,PLAIN,HEXAGON

..WASHER,FLAT

..SCREW,ASSEMBLED WAS

..COVER,ELECTRICAL

..FELT,MECHANICAL,PRE

..BRACKET,DOUBLE ANGL

..HOLDER,ELECTRICAL C

..REGULATOR,VOLTAGE

..SCREW, MACHINE

..WASHER,INSULATOR

..SCREW, TAPPING

..SEMICONDUCTOR DEVIC

..SEMICONDUCTOR DEVIC

..SCREW, TAPPING

..THRU BOLT

..HOUSING, REAR

..RETAINER, BEARING

..STATOR ASSEMBLY

..NUT,PLAIN,HEXAGON

..WASHER,LOCK

..IMPELLER,FAN,CENTRI

..KEY, WOODRUFF

..SPACER, FAN

..HOUSING, FRONT

..SCREW,ASSEMBLED WAS

..BEARING,SLEEVE

..ROTOR ASSEMBLY

..SLIP RING ASSY

..BEARING,SLEEVE

.GENERATOR,DIRECT CU,

REPLACES 8EM3005CA

NUT

SCREW, TAPPING

REGULATOR,VOLTAGE

..GASKET, FELT

1

1

1

1

1

1

1

1

1

1

4

1

1

2

3

1

1

1

2

3

1

1

2

1

1

1

1

3

2

8

1

7

9

2

1

1

2

1

1

2

1

1

2

1

1

1

4

1

2

4

3

4

1

1

2

3

1

1

2

1

1

1

1

3

2

8

1

7

9

2

1

1

4-1

42

43

44

45

46

47

48

49

37

38

39

40

41

55

56

57

58

59

60

61

62

50

51

52

53

54

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

XDFZZ

PAFZZ

PAFZZ

PAFZZ

XB

PAOZZ

PAOZZ

XDFZZ XB

PAFZZ PAOZZ

XDFZZ XB

XDFZZ XB

XDFZZ XB

PAFZZ PAOZZ

XDFZZ XB

XDFZZ XB

XDFZZ XB

XDFZZ XB

XAFZZ

XAFZZ

PAFZZ

XA

XA

PAOZZ

PAOZZ

XDFZZ XB

XDFZZ XB

XDFZZ XB

XDFZZ XB

XAFZZ

PBFZZ

PBFZZ

PBFZZ

XA

PBOZZ

PBOZZ

PBOZZ

XDFZZ XB

(3) (4) d.

PART

USMC FSCM NUMBER

XBFZZ 68505 120-102

PAFZZ 24975 103-46

PAFZZ 68505 120-342

XBFZZ 68505 115-61

PAFZZ 68505 120-378

XBFZZ 68505 115-54

XBFZZ 68505 115-26

XBFZZ 68505 115-27

PAFZZ 68505 120-1

XBFZZ 68505 114-106

XBFZZ 68505 111-64

XBFZZ 68505 113-74

XBFZZ 68505 112-022

XAFZZ 68505 111-21

XAFZZ 68505 112-95

PAFZZ 68505 120-136

PAFZZ 68505 120-137

XBFZZ 68505 107-114

XBFZZ 68505 120-152

XBFZZ 24975 114-9

XBFZZ 68505 111-3

XAFZZ 68505 111-21

PBFZZ 68505 101-193

PBFZZ 68505 101-235

PBFZZ 68505 101-130

XBFZZ 35510 120-7

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A109248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

..SCREW, TAPPING

..BRUSH ASSY

..NUT,LOCKING,HEXAGON

..WASHER INSULATOR

..WASHER,FLAT

..WASHER INSULATOR

..INSULATOR,SLEEVE

..INSULATOR,SLEEVE

..THRU BOLT

..HOUSING, REAR

..RETAINER, BEARING

..STATOR ASSEMBLY

..SLIP RING ASSY

..BEARING,SLEEVE

..ROTOR ASSEMBLY

..NUT,PLAIN,HEXAGON

..WASHER,SPLIT LOCK

..FAN

..SPACER, FAN

..HOUSING, FRONT

..RING,RETAINING

..BEARING,SLEEVE

..DIODE,NEGATIVE

..DIODE,POSITIVE

..DIODE,TRIO

..KEY, WOODRUFF

2

1

2

4

1

1

1

1

2

4

3

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

(6) (7)

USMC

QTY

PER

QTY EQUIP

2

1

2

4

1

1

1

2

2

4

3

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

END OF FIGURE

4-2

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A109248A-24P/3

(Figure 5 Sheet 1 of 2)

(Figure 5 Sheet 2 of 2)

Figure 5. Access Doors and Covers (Sheet 1 of 2)

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A109248A-24P/3

Figure 5. Access Doors and Covers (Sheet 2 of 2)

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

1

2

3

PAOZZ PAOZZ

PAOZZ PAOZZ

MOOZZ MOO

4 MOOZZ MOO

18

19

20

21

22

11

12

13

14

15

16

17

23

24

25

8

9

10

5

6

7

26

27

28

29

30

31

32

33

34

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

PAOZZ PAOZZ

XDOZZ XB

XDOZZ XB

XDOZZ XB

XDOZZ XB

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

PAOZZ PAOZZ

XDOZZ XB

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

XDOZZ XB

XDOZZ XB

XDOZZ XB

PAOZZ PAOZZ

XDOZZ XB

XDOZZ XB

PAOZZ PAOZZ

XDOZZ XB

XDOZZ XB

XDOZZ XB

(3) (4) d.

PART

USMC FSCM NUMBER

PAOZZ 81205 2740-0003

PAO ZZ 30554 88-22793-4

MOOZZ 30554 88-20091

MOOZZ 30554 88-22705

PAOZZ 27182 S79SDTXXSXXX

PAOZZ 83385 841-6-32

PAOZZ 45722 P15121-20

PAOZZ 31827 MF6T-TPR87-B

XBOZZ 30554 88-20198

PAOZZ 19207 12325869

XBOZZ 1E045 CAT 380

XBOZZ 1E045 CAT 370

XBOZZ 30554 88-20206

XBOZZ 30554 88-20246

PAOZZ 08928 21NTE102

PAOZZ 96906 MS51412-2

XBOZZ 30554 88-22482

PAOZZ 96906 MS51493-2

XBOZZ 30554 88-20458

PAOZZ 30554 88-22790-1

PAOZZ 96906 MS35338-63

PAOZZ 80256 307608

PAOZZ 96906 MS51412-4

XBOZZ 30554 88-20077

XBOZZ 30554 88-20078

XBOZZ 30554 88-21098

XBOZZ 30554 88-22483

PAOZZ 96906 MS51493-3

XBOZZ 30554 88-20461

XBOZZ 30554 88-20460

PAOZZ 96906 MS51481-02

XBOZZ 30554 88-20123

XBOZZ 30554 88-20010

XBOZZ 30554 88-20009

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A109248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 02 - HOUSING

FIG 5 ACCESS DOORS AND

COVERS

.NUT,PLAIN,ASSEMBLED

SCREW,MACHINE

.HINGE, DOOR, CONTRO

MAKE FROM P/N AA07060408

(03007), 27 INCHE S

REQUIRED

.SEAL, DOOR MAKE FROM

P/N 20941 (56329), AS

REQUIRED

.HANDLE,DOOR

.NUT,PLAIN,ASSEMBLED

.SCREW,ASSEMBLED WAS

.BUMPER,NONMETALLIC

.DOOR, CONTROL BOX

.BOLT,MACHINE

.RETAINER, DOOR RING

.RING, DOOR

.ROOF, CONTROL BOX

.STRIKER, LATCH, CON

.NUT,SELF-LOCKING,HE

.WASHER,FLAT

.SPACER,RING

.SCREW,MACHINE

.BRACKET, DOOR HOLDI

.NUT,PLAIN,HEXAGON

.WASHER,LOCK

.BOLT,MACHINE

.WASHER,FLAT

.DOOR, LEFT SIDE

.DOOR, RIGHT SIDE

.HINGE,BUTT

.SPACER,SLEEVE

.SCREW,MACHINE

.LINK, DOOR SUPPORT

.FLANGE, DOOR LINK

.SCREW,MACHINE

.PLATE, STRIKER

.STOP, DOOR, LEFT SI

.STOP, DOOR, RIGHT S

114 362

28 34

1 1

1 2

3

2

8

4

4

12

6

1

1

4

3

32

32

32

1

8

1

1

1

16

8

32

1

1

7

18

2

7

42

26

2 2

1 1

102 293

1

8

1

1

1

118

8

4

3

93

116

48

86

1

1

3

2

8

4

4

12

6

1

1

5-1

35

36

37

38

39

40

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

XDOZZ

XDOZZ

XDOZZ

XB

XB

XB

XDOZZ XB

PAOZZ PAOZZ

MOOZZ MOO

(3) (4) d.

PART

USMC FSCM NUMBER

XBOZZ 30554 88-20005

XBOZZ 30554 88-20245

XBOZZ 30554 88-22515

XBOZZ 30554 88-20459

PAO ZZ 30554 88-20260-20

MOOZZ 30554 88-20014

41

42

43

44

45

XDOZZ XB

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

MOOZZ MOO

50

51

52

46

47

48

49

XDOZZ XB

XDOZZ XB

PAOZZ PAOZZ

MDOZZ MDO

MDOZZ MDO

MDOZZ MDO

MDOZZ MDO

53 MDOZZ MDO

54 MDOZZ MDO

55

56

MDOZZ MDO

MDOZZ MDO

XBOZZ 30554 88-20013

PAOZZ 45722 P-15121-17

PAOZZ 94222 97-50-170-11

XBOZZ 30554 88-20012

MOOZZ 30554 88-20046

XBOZZ 30554 88-20045

XBOZZ 30554 88-20044

PAOZZ 81349 M24243/1A402

MDOZZ 30554 88-20101

MDOZZ 30554 88-20328

MDOZZ 30554 88-20076

MDOZZ 30554 88-20128

MDOZZ 30554 88-20140

MDOZZ 30554 88-20110

MDOZZ 30554 88-20126

MDOZZ 30554 88-20329

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A109248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

.DOOR, OUTPUT

.DOOR, STORAGE BOX

.LINK, DOOR STOP

.FLANGE, DOOR LINK

.BOLT,MACHINE

.HINGE, DOCUMENT BOX

MAKE FROM P/N AA06060406

(03007), 9.5 INCH ES

REQUIRED

.LID, DOCUMENT BOX

.SCREW,ASSEMBLED WAS

.CATCH,CLAMPING

.BOX, DOCUMENT

.HINGE, STORAGE BOX

MAKE FROM P/N AA06060406

(03007), 8 INCHES REQUIRED

.LID, STORAGE BOX

.BOX, STORAGE

RIVET,BLIND

PLATE,IDENTIFICATIO

OPERATOR INSTRUCTIONS

PLATE,IDENTIFICATIO

WIRING DIAGRAM

PLATE,IDENTIFICATIO FUEL

SYSTEM

PLATE,IDENTIFICAT IO

LIFTING AND TIE DOWN

DIAGRAM

PLATE,IDENTIFICATIO

INSTRUCTION, BATTERY

CONNECTION

PLATE,IDENTIFICATIO

CAUTION, VOLTAGE

CONNECTION

PLATE,IDENTIFICATIO

GROUNDING STUD

PLATE,IDENTIFICATIO

SCHEMATIC DIAGRAM, 10 KW

1

4

2

1

1

1

1

1

2

12

1

(6) (7)

USMC

QTY

PER

QTY EQUIP

1

1

1

2

14

1

1

1

48

1

1

1

1

1

1

1

1

1

4

2

1

1

1

1

57

1

1

1

1

1

1

1

1

END OF FIGURE

5-2

Figure 6. Front Housing Panels

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

(3) (4) d.

PART

USMC FSCM NUMBER

1 PAOZZ PAOZZ

2 PAOZZ PAOZZ

3 XDOZZ XB

4 XDOZZ XB

5 PAOZZ PAOZZ

6 XDOZZ XB

7 PAOZZ PAOZZ

8 PAOZZ PAOZZ

9 PAOZZ PAOZZ

10 PAOZZ PAOZZ

11 XDOZZ XB

12 XDOZZ XB

13 XDOZZ XB

14 PAOZZ PAOZZ

15 PAOZZ PAOZZ

16 PAOZZ PAOZZ

17 PAOZZ PAOZZ

18 XDOZZ XB

19 PAOZZ PAOZZ

20 PAOZZ PAOZZ

21 PAOZZ PAOZZ

22 PAOZZ PAOZZ

23 MOOZZ MOO

24 XDOZZ XB

25 MOOZZ MOO

26 XDOZZ XB

27 XDOZZ XB

28 XDOZZ XB

29 PAOZZ PAOZZ

30 XDOZZ XB

31 XDOZZ XB

32 XDOZZ XB

33 PAOZZ PAOZZ

PAOZZ 81205 2740-0003

PAOZZ 19207 12325869

XBOZZ 30554 88-20319

XBOZZ 30554 88-20318

PAOZZ 30554 88-20260-23

XBOZZ 30554 88-22035

PAOZZ 78553 C7931-1032-3B

PAOZZ 30554 88-20260-34

PAOZZ 96906 MS35338-63

PAOZZ 96906 MS51412-4

XBOZZ 30554 88-20282

XBOZZ 30554 88-20283

XBOZZ 30554 88-20284

PAOZZ 96906 MS35338-62

PAOZZ 96906 MS51412-2

PAOZZ 30554 88-22790-1

PAOZZ 96906 MS51412-5

XBOZZ 30554 88-20008

PAOZZ 30554 88-20260-33

PAOZZ 78553 C7988-1420-3B

PAOZZ 02768 236-170406-04

PAOZZ 02768 8070-25-00

MOOZZ 30554 88-20294

XBOZZ 30554 88-20489

MOOZZ 30554 88-20071-237

XBOZZ 30554 88-20065

XBOZZ 30554 88-20011

XBOZZ 30554 88-20002

PAOZZ 88044 AN931-12-17

XBOZZ 30554 88-22005

XBOZZ 30554 88-22034

XBOZZ 30554 88-20124

PAOZZ 30554 88-20260-22

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 02 - HOUSING

FIG 6 FRONT HOUSING

PANELS

.NUT, PLAIN, ASSEMBLED

.BOLT, MACHINE

.MOUNT, COVER EXHAUST

.COVER, EXHAUST

.SCREW, CAP, HEXAGON H

.ROOF

.NUT, PLAIN, CLINCH

.SCREW, CAP, HEXAGON H

.WASHER, LOCK

.WASHER, FLAT

.DEFLECTOR, RADIATOR

LEFT SIDE

.DEFLECTOR, RADIATOR

RIGHT SIDE

.DEFLECTOR, RADIATOR

BOTTOM

.WASHER, LOCK

.WASHER, FLAT

.NUT, PLAIN, HEXAGON

.WASHER, FLAT

.PANEL, FRONT

.BOLT, MACHINE

.RETAINER, NUT AND BO

.PIN-RIVET, GROOVED

.NUT, SHEET SPRING

.INSULATION, AIR DIS MAKE

FROM P/N FF40JM02 (28818)

.HOUSING, FRONT

.WEBBING, TEXTILE MAKE

FROM P/N 47227 (3A290), 7

INCHES REQUIRED

.BRACKET, TANK, HOLD

.PANEL, FILLER, NECK

.CHANNEL, RADIATOR L

.GROMMET, NONMETALLIC

.PANEL, AIR DEFLECTO

.SILL, DOOR RIGHT SIDE

.SILL, DOOR LEFT SIDE

.SCREW, CAP, HEXAGON H

1

1

1

13

2

1

1

3

33

33

13

22

1

14

14

78

29

1

1

2

1

1

50

59

1

1

24

1

43

9

23

9

1

1

1

1

21

2

1

1

3

72

118

93

37

1

28

20

122

29

1

1

2

362

293

1

1

50

1

57

19

116

86

1

1

1

6-1

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

34

35

PAOZZ PAOZZ

MDOZZ MDO

(3) (4) d.

PART

USMC FSCM NUMBER

PAOZZ 81349 M24243/1A402

MDOZZ 30554 88-20160-03

35 MDOZZ MDO

36 MDOZZ MDO

MDOZZ 30554

MDOZZ 30554

88-20160-04

88-20063-03

36 MDOZZ MDO

37 MDOZZ MDO

MDOZZ 30554 88-20063-04

MDOZZ 30554 88-20102

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

10

1

REF

1

RIVET, BLIND

PLATE, IDENTIFICATIO SET

RATING, 60 HZ

UOC: EMJ

PLATE, IDENTIFICATIO SET

RATING, 400 HZ

UOC: ENZ

PLATE, IDENTIFICATIO SET

RATING 60 HZ

UOC: EMJ

PLATE, IDENTIFICATIO SET

RATING 400 HZ

UOC: ENZ

PLATE, IDENTIFICATIO EXT.

FUEL SUPPLY

END OF FIGURE

1

1

1

1

1

1

1

1

6-2

Figure 7. Rear Housing Panels

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

3

4

5

6

1

2

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

XDOZZ XB

XDOZZ XB

XDOZZ XB

7

8

PAOZZ PAOZZ

PAOZZ PAOZZ

9 PAOZZ PAOZZ

10 PAOZZ PAOZZ

11 PAOZZ PAOZZ

12 XDOZZ XB

13 XDOZZ XB

14 PAOZZ PAOZZ

15 XDOZZ XB

16 XDOZZ XB

17 XDOZZ XB

18 PAOZZ PAOZZ

19 PAOZZ PAOZZ

20 XDOZZ XB

21 PAOZZ PAOZZ

22 PAOZZ PAOZZ

23 PAOZZ PAOZZ

24 PAOZZ PAOZZ

25 PAOZZ PAOZZ

26 MOOZZ MOO

27 XDOZZ XB

28 XDOZZ XB

29 XDOZZ XB

30 PAOZZ PAOZZ

31 XDOZZ XB

32 XDOZZ XB

33 MOOZZ MOO

34 PAOZZ PAOZZ

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

(3) (4) d.

PART

USMC FSCM NUMBER

PAOZZ 81205 2740-0003

PAOZZ 19207 12325869

XBOZZ 30554 88-20207

XBOZZ 30554 88-20268

XBOZZ 30554 88-20212

XBOZZ 30554 88-20213

PAOZZ 30554 88-20260-33

PAOZZ 96906 MS35338-63

PAOZZ 96906 MS51412-4

PAOZZ 96906 MS51412-5

PAOZZ 78553 C7988-1420-3B

XBOZZ 30554 88-20214

XBOZZ 30554 88-20217

PAOZZ 83879 BBL150

XBOZZ 30554 88-20218

XBOZZ 30554 88-20030

XBOZZ 30554 88-20059

PAOZZ 30554 88-22790-1

PAOZZ 80256 307608

XBOZZ 30554 88-20499

PAOZZ 30554 88-20260-23

PAOZZ 96906 MS35338-62

PAOZZ 96906 MS51412-2

PAOZZ 78553 C7931-1032-3B

PAOZZ 02768 236-170406-04

MOOZZ 30554 88-20295

XBOZZ 30554 88-22012

XBOZZ 30554 88-20215

XBOZZ 30554 88-20031

PAOZZ 30554 88-20620-34

XBOZZ 30554 88-20216

XBOZZ 30554 88-22006

MOOZZ 30554 88-20291

PAOZZ 81349 M24243/1A402

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 02 - HOUSING

FIG. 7 REAR HOUSING

PANELS

.NUT, PLAIN, ASSEMBLED

.BOLT, MACHINE

.SILL, REAR DOOR UPPER

.PLATE, COVER

.STOP, DOOR

.DIVIDER

.BOLT, MACHINE

.WASHER, LOCK

.WASHER, FLAT

.WASHER, FLAT

.RETAINER, NUT AND BO

.HOUSING, GENERATOR

LEFT SIDE

.PLATE, RETAINER

.BUSHING, ELECTRICAL

.COVER, ELECTRICAL GE

.BOX, LOAD ENTRANCE

.BOX, THROTTLE

.NUT, PLAIN, HEXAGON

.BOLT, MACHINE

.STIFFENER, GENERATO

.SCREW, CAP, HEXAGON H

.WASHER, LOCK

.WASHER, FLAT

.NUT, PLAIN, CLINCH

.PIN-RIVET, GROOVED

.INSULATION, AIR INT MAKE

FROM P/N FF40JM02 (28818)

.INTAKE, AIR

.HOUSING, GENERATOR

.RIGHT SIDE

.BOX, SLAVE RECEPTAC

.SCREW, CAP, HEXAGON H

.SILL REAR, LOWER

.HOUSING, BULKHEAD

CENTER

.PLATE, IDENTIFICATIO

FREQUENCY ADJUST

RIVET, BLIND

8

2

14

14

15

1

1

1

1

1

17

14

44

2

2

1

12

25

13

16

8

1

67

67

1

2

1

1

1

6

1

5

1

1

48

2

50

72

118

1

1

1

1

1

93

57

122

2

2

1

28

116

86

37

20

1

362

293

1

2

1

1

1

22

1

1

1

57

7-1

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

35 MDOZZ MDO

36 MDOZZ MDO

37 MDOZZ MDO

38 PAOZZ PAOZZ

39 PAOZZ PAOZZ

(3) (4) d.

PART

USMC FSCM NUMBER

MDOZZ 30554 88-20073

MDOZZ 30554 88-20197

MDOZZ 30554 88-20259

PAOZZ 96906 MS21333-78

PAOZZ 30554 88-22815

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

COVER, ACCESS

CONVENIENCE RECEPTACLE

PLATE, INSTRUCTION

DIAGNOSTICS

PLATE, IDENTIFICATIO SLAVE

RECEPTACLE

.CLAMP, LOOP

.GASKET

END OF FIGURE

1

1

1

1

1

1

1

1

1

1

7-2

FIGURE 9

Figure 8. Control Box Assembly

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

FIGURE 9

5

6

3

4

7

1

2

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PBFFZ PBFFZ

7 PBFFZ PBFFZ

8

9

9

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

10 PAOZZ PAOZZ

11 PAOZZ PAOZZ

11 PAOZZ PAOZZ

12 PAOZZ PAOZZ

13 PBOZZ PBOZZ

UOC: EMJ

14 PAOZZ PAOZZ

15 PAOZZ PAOZZ

16 PAOZZ PAOZZ

17 PAOZZ PAOZZ

18 PAOZZ PAOZZ

19 PAOZZ PAOZZ

20 PAOZZ PAOZZ

20 PAOZZ PAOZZ

21 PAOZZ PAOZZ

22 PAOZZ PAOZZ

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

(3) (4) d.

PART

USMC FSCM NUMBER

PAOZZ 30554 88-22790-1

PAOZZ 96906 MS35338-63

PAOZZ 96906 MS51412-4

PAOZZ 81205 2740-0003

PAOZZ 19207 12325869

PAOZZ 96906 MS51412-2

PBFFZ 30554 88-20032

PBFFZ 30554 88-20034

PAOZZ 45722 P15121-20

PAOZZ 74545 5211

XBOZZ 30554 88-20104

PAOZZ 74545 CR15

PAOZZ 60177 19450-1

PAOZZ 60177 19990-1

PAOZZ 98410 BB-8707-06

PBOZZ 98410 BB-8194-08

PAOZZ 96906 MS21044N06

PAOZZ 96906 MS35206-329

PAOZZ 81205 2740-0003

PAOZZ 96906 MS21333-78

PAOZZ 30554 88-22793-4

PAOZZ 96906 MS51412-2

PAOZZ 30554 88-21143-1

PAOZZ 30554 88-21143-3

PAOZZ 77342 W23X1A1G7.5

PAOZZ 81349 F03A125V30A

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 03 - CONTROL BOX

ASSEMBLY

FIG. 8 CONTROL BOX

ASSEMBLY

.NUT, PLAIN, HEXAGON

.WASHER, LOCK

.WASHER, FLAT

.NUT, PLAIN, ASSEMBLED

.BOLT, MACHINE

.WASHER, FLAT

.CONTROL, MOTOR-GENER

60 HZ

UOC: EMJ

.CONTROL BOX, GENERAT

400 HZ

UOC: ENZ

..SCREW, ASSEMBLED WAS

..PLATE, WALL, ELECTRIC

UOC: EMJ

..COVER, ACCESS

UOC: ENZ

..CONNECTOR BODY, RECE

UOC: EMJ

..INTERRUPTER, GROUND

UOC: EMJ

..INTERRUPTER, GROUND

UOC: EMJ

...TERMINAL, LUG #6

UOC: EMJ

...TERMINAL, LUG #8

...NUT, SELF-LOCKING, HE

UOC: EMJ

...SCREW, MACHINE

UOC: EMJ

..NUT, PLAIN, ASSEMBLED

..CLAMP, LOOP

..SCREW, MACHINE

..WASHER, FLAT

..FAULT LOCATING INDI

UOC: EMJ

..INDICATOR, FAULT LOC

UOC: ENZ

..CIRCUIT BREAKER

..FUSE, CARTRIDGE 30 AMPS

2

2

2

12

15

12

1

1

93

116

86

362

293

118

1

1

23

2

6

6

1

1

2

2

1

1

1

1

1

2

2

16

1

1

2

2

362

5

34

118

1

1

1

1

1

1

1

26

1

1

24

3

8-1

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

23

24

PAOZZ PAOZZ

PBOZZ PBOZZ

25 XDOZZ XB

26 PBOZZ PBOZZ

27 PAOZZ PAOZZ

27 PAOZZ PAOZZ

28 PAOZZ PAOZZ

29 PAOZZ PAOZZ

30

31

PAOZZ PAOZZ

PAOZZ PAOZZ

31 PAOZZ PAOZZ

32 PAOZZ PAOZZ

33 PAOZZ PAOZZ

34 PAOZZ PAOZZ

35 PAOZZ PAOZZ

36 PAOZZ PAOZZ

37 PAOZZ PAOZZ

38 PAOZZ PAOZZ

39 XDOZZ XB

40 XDOZZ XB

41 PAOZZ PAOZZ

42 PAOZZ PAOZZ

43 PAOZZ PAOZZ

44 XDOZZ XB

45 PAOFZ PAOOO

46 PAOZZ PAOZZ

47 PAOZZ PAOZZ

48 XDFZZ XB

49 XDFZZ XB

50 XDFZZ XB

51 XDOZZ XB

52 PAFZZ

53 PAFZZ

54 PAFZZ

PAFZZ

PAFZZ

PAFZZ

(3) (4) d.

PART

USMC FSCM NUMBER

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

PAOZZ 81349 FHN26G1 ..FUSEHOLDER, EXTRACTO

PBOZZ 78189 61-101041-90-0142B- ..SCREW, ASSEMBLED WAS

0542B

XBOZZ 30554 88-20248

PBOZZ 78553 C7941-1032-3B

PAOZZ 30554 88-21063

..BRACKET

..NUT, PLAIN, SQUARE

..REGULATOR, VOLTAGE

PAOZZ

PAOZZ

PAOZZ

PAOZZ

PAOZZ

PAOZZ

PAOZZ

PAOZZ

PAOZZ

PAOZZ

PAOZZ

PAOZZ 0TR59 SPS-100-88-21091

PAOZZ 77342 KUP14D15-24VDC

XBOZZ 77342 20C318

XBOZZ 9R803 3300-24-XP-74

PAOZZ 77342 24A071

PAOZZ

PAOZZ

XBOZZ

30554

83385

45722

96906

60177

60177

78189

45722

53498

30554

30554

77342

30554

30554

88-21064

841-4-40

P15121-64

MS21333-75

19260

19270

511-081800-00

P15121-37

871-92UU-NGEC

88-21139

88-21141

40G432

69-662-35

88-20258

PAOFZ 30554 88-20293

PAOZZ 83385 841-4-40

PAOZZ 45722 P15121-5

UOC: EMJ

..REGULATOR, VOLTAGE

UOC: ENZ

..NUT, PLAIN, ASSEMBLED

..SCREW, ASSEMBLED WAS

..CLAMP, LOOP

..TRANSDUCER, MOTIONAL

UOC: EMJ

..TRANSDUCER, MOTIONAL

UOC: ENZ

..NUT, PLAIN, ASSEMBLED

..SCREW, ASSEMBLED WAS

..SHUNT, INSTRUMENT

..RELAY, ELECTROMAGNET

..RELAY, ELECTROMAGNET

..ELECTRONIC SWITCH

..RELAY, ELECTROMAGNET

..CLIP, SPRING TENSION

..MARKER STRIP, TERMI

..MOUNTING CLIP

..INSULATOR

..SCREW, ASSEMBLED WAS

..TRACK, SOCKET MOUNT

..CIRCUIT CARD ASSEMB

...NUT, PLAIN, ASSEMBLED

...SCREW, ASSEMBLED WAS

XBFZZ 91637 HLM-20-10Z7R50J ...RESISTOR, WIREWOUND

XBFZZ 91637 HLM-20-10Z-20R0J ...RESISTOR, WIREWOUND

XBFZZ 91637 HLM-10-10Z1301J ...RESISTOR, WIREWOUND

XBOZZ 30554 88-20299 ...SCREW, ASSEMBLED WAS

PAFZZ 88245 12142-4

PAFZZ 80131 1N5406

PAFZZ 03508 V68MA3B

...TERMINAL, STUD

...SEMICONDUCTOR DEVIC

...RESISTOR, VOLTAGE SE

(6) (7)

USMC

QTY

PER

QTY EQUIP

1

1

2

1

5

6

1

1

8

4

1

1

12

12

2

2

1

6

2

1

1

6

4

1

1

8

1

10

1

1

4

12

2

1

1

1

2

1

5

6

11

6

1

1

1

1

44

12

2

2

1

6

4

1

1

6

4

1

1

8

1

19

1

1

44

25

2

1

8-2

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

55 MFFZZ MOO

(3) (4) d.

PART

USMC FSCM NUMBER

MFFZZ 30554 88-20293-11

56 XDFZZ XB

57 PAOZZ PAOZZ

58 PAOZZ PAOZZ

59 PAOZZ PAOZZ

60 PAOZZ PAOZZ

61 PAOZZ PAOZZ

62 PAOZZ PAOZZ

63 PAOZZ PAOZZ

UOC: EMJ

64 PAOZZ PAOZZ

65 PAOZZ PAOZZ

66 PAOZZ PAOZZ

67 PAOZZ PAOZZ

68 PAOZZ PAOZZ

69 PAOZZ PAOZZ

XBFZZ 30554 88-20255

PAOZZ 83385 841-6-32

PAOZZ 45722 P15121-4

PAOZZ 45722 P15121-68

PAOZZ 96906 MS35198-46

PAOZZ 96906 MS3367-5-9

PAOZZ 80064 2601167

PAOZZ 96906 MS51007-12

PAOZZ 30554 88-20260-23

PAOZZ 81349 F03A250V10AS

PAOZZ 75915 150145

PAOZZ 59730 RBB25

PAOZZ 30554 88-22813

PAOZZ 30554 88-22812

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

1 2 ...WIRE, ELECTRICAL MAKE

FROM P/N M5086/2-20-9

(81349), AS REQUIRED

...BRACKET RESISTOR AND

DIODE

..NUT, PLAIN, ASSEMBLED

..SCREW, ASSEMBLED WAS

..SCREW, ASSEMBLED WAS

..SCREW, MACHINE

..STRAP, TIEDOWN, ELECT

UOC: EMJ

..COVER, ELECTRICAL CO

..GASKET

..SCREW, CAP, HEXAGON H

..FUSE, CARTRIDGE

UOC: EMJ

..FUSEHOLDER, EXTRACTO

UOC: EMJ

..SPLICE, CONDUCTOR

UOC: EMJ

.GASKET

.GASKET

END OF FIGURE

5

1

1

1

1

1

1

18

4

1

1

V

1

1

5

1

1

1

1

1

1

42

4

1

1

V

1

1

8-3

(Figure 9 Sheet 1 of 4)

(Figure 9 Sheet 2 of 4)

(Figure 9 Sheet 3 of 4)

(Figure 9 Sheet 4 of 4)

Figure 9. Control Box Harness (Sheet 1 of 4)

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

SHEET 2

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

SHEET 1

Figure 9. Control Box Harness (Sheet 2 of 4)

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

Figure 9. Control Box Harness (Sheet 3 of 4)

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

Figure 9. Control Box Harness (Sheet 4 of 4)

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

1 PBFFF

UOC: EMJ

1 PBFFF

PBOOO

PBOOO

4

5

2

3

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

6

7

PAOZZ PAOZZ

PAOZZ PAOZZ

UOC: EMJ

8 MFFZZ MOO

9 MFFZZ MOO

10 MFFZZ MOO

11 PAOZZ PAOZZ

12 PAOZZ PAOZZ

13 PAFZZ

14 PAFZZ

PAOZZ

PAOZZ

15 PBFZZ PBOZZ

16 PAOZZ PAOZZ

17 PAOZZ PAOZZ

18 PAFZZ

19 PAFZZ

PAOZZ

PAOZZ

20 PAFZZ

21 PAFZZ

PAOZZ

PAOZZ

22 XDFZZ XB

23 PBFZZ

24 PAFZZ

PBOZZ

PAOZZ

25 PAFZA PAOZZ

26 PBFZZ PBOZZ

(3) (4) d.

PART

USMC FSCM NUMBER

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

PBFFF 30554 88-20256

PBFFF 30554 88-20495

PAOZZ 00779 52949

PAOZZ 98410 AA-8714-08

PAOZZ 98410 AA-8715-10

PAOZZ 96906 MS25036-154

PAOZZ 96906 MS25036-157

PAOZZ 98410 BB-8194-08

MFFZZ 30554 88-20256-15

MFFZZ 30554 88-20256-16

MFFZZ 30554 88-20256-17

GROUP 03 - CONTROL BOX

ASSEMBLY

FIG 9 CONTROL BOX

HARNESS

..WIRING HARNESS, BRAN

60HZ

..WIRING HARNESS 400 HZ

UOC: ENZ

...TERMINAL, LUG #6

...TERMINAL, LUG #8

...TERMINAL, LUG #10

...TERMINAL, LUG 16 AWG

...TERMINAL, LUG 12 AWG

...TERMINAL, LUG #8

...WIRE, ELECTRIC 20GA,

MAKE FROM PIN M508612-20-9

(81349), AS REQUIRED

...WIRE, ELECTRIC 16GA,

MAKE FROM PIN M5086/2-16-9

(81349), AS REQUIRED

...WIRE, ELECTRIC 12GA,

MAKE FROM PIN M5086/2-12-9

(81349), AS REQUIRED

...TERMINAL, LUG

...SCREW, ASSEMBLED WAS

1

1

1

1

224 257

21 35

1

3

5

5

1

1

5

3

V V

V

V

8

2

V

V

10

12

PAOZZ 96906 MS25036-150

PAOZZ 45722 P-15121-11

PAFZZ 83385 841-4-40

PAFZZ 00779 207774-1

PBFZZ 97539 206151-1

PAOZZ 00779 66332-8

PAOZZ 96906 MS3368-1-9A

PAFZZ 00779 206062-3

PAFZZ 33875 800045-02

PAFZZ 36378 1003293-03

PAFZZ 36378 1003369-03

XBFZZ 27264 39-01-2180

...NUT, PLAIN, ASSEMBLED

...CLAMP, CABLE, ELECTRI

...CONNECTOR BODY, RECE

...CONTACT ASSEMBLY, EL

...STRAP, TIEDOWN, ELECT

...CLAMP, CABLE, ELECTRI

...CONNECTOR BODY, RECE

...CLAMP, CABLE, ELECTRI

...CONNECTOR BODY, RECE

...CONNECTOR BODY, PLUG

PBFZZ 49956 G435720-1 ...CONTACT, ELECTRICAL

PAFZZ 71468 CA3100R32A10S-B...CONNECTOR, RECEPTACL

05F80

PAFZA 00779 66098-9

PBFZZ 96906 MS25251-16

...CONTACT, ELECTRICAL

...PLUG, END SEAL, ELECT

1

1

1

1

1

18

1

2

1

1

45

1

12

37

2

1

1

2

1

18

1

44

1

1

45

2

12

37

9-1

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

27 AFFFF AOO

(3) (4) d.

PART

USMC FSCM NUMBER

AFFFF 30554 88-20317

28 PAOZZ PAOZZ

29 PAOZZ PAOZZ

30 MFFFF MOO

PAOZZ 00779 52949

PAOZZ 98410 AA-8715-10

MFFFF 30554 88-22629-001

31 MFFFF MOO

32 MFFFF MOO

33 PAFZZ PAOZZ

34 MFFZZ MOO

35 PAOZZ PAOZZ

35 PAOZZ PAOZZ

36 XDOZZ XB

37 XDOZZ XB

38 XDFZZ XB

39 XDOZZ XB

40 XDOZZ XB

41 PAOZZ PAOZZ

42 PAOZZ PAOZZ

43 PAOZZ PAOZZ

MFFFF 30554 88-22629-002

MFFFF 30554 88-22629-003

PAFZZ 81349 M83519/2-3

MFFZZ 30554 88-20317-1

PAOZZ 98410 BB-8707-06

PAOZZ 98410 BB-8707-06

XBOZZ 9R803 330JS

XBOZZ 9R803 3300-24

XBFZZ 77342 27E893

XBOZZ 9R803 300JS

XBOZZ 9R803 3000-6

PAOZZ 96906 MS3367-1-9

PAOZZ 96906 MS3367-5-9

PAOZZ 96906 MS3367-4-9

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

...CABLE ASSEMBLY, SHI

SHIELDED, 2 CONDUCTOR 20

GA

....TERMINAL, LUG #6

....TERMINAL, LUG #10

....MARKER, ID, WIRE

NUMBER 88-20317, MAKE

FROM P/N M23053/5-10 5-9

(81349), 1.25 INCHES REQUIRED

....MARKER, ID, WIRE

NUMBER 156A20, MAKE

FROM P/N M23053/5-105-9

(81349), 1.25 INCHES REQUIRED

....MARKER, ID, WIRE

NUMBER 157820, MAKE

FROM P/N M23053/5-105- 9

(81349), 1 25 INCHES

REQUIRED

....SPLICE, CONDUCTOR

....CABLE, SPECIAL PURPO

MAKE FROM P/N M27500-

20TE2T14(81349) 49 INCHES

REQD

...TERMINAL, LUG #6,

16AWG

UOC: EMJ

...TERMINAL, LUG #6,

16AWG

UOC: ENZ

...CONTACT, ELECTRICAL

...TERMINAL BOARD

...SOCKET, PLUG-IN ELEC

...JUMPER, TERMINAL BL

...TERMINAL BLOCK

...STRAP, TIEDOWN, ELECT

...STRAP, TIEDOWN, ELECT

...STRAP, TIEDOWN, ELECT

1

2

1

1

1

1

1

1

8

7

1

V

V

V

6

1

7

1

END OF FIGURE

1

257

5

1

2

2

1

1

17

16

1

V

V

V

12

1

6

1

9-2

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(Figure 10 Sheet 1 of 2)

(Figure 10 Sheet 2 of 2)

Figure 10. Control Panel and Box Assembly (Sheet 1 of 2)

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

Figure 10. Control Panel and Box Assembly (Sheet 2 of 2)

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

1

2

3

4

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

MFFZZ MOO

5

6

7

8

9

PBOZZ

PAOZZ

PBOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ

10 PAOZZ PAOZZ

11 XDOZZ XB

12 PAO ZZ PAOZZ

13 PAOZZ PAOZZ

13 PAOZZ PAOZZ

14 PAOZZ PAOZZ

14 PAOZZ PAOZZ

15 PAOZZ PAOZZ

16 PAOZZ PAOZZ

17 PAOZZ PAOZZ

18 AOOOO AOO

19 PAOZZ PAOZZ

20 MOOZZ MOO

21 PAOZZ PAOZZ

22 PAOZZ PAOZZ

23 PAOZZ PAOZZ

24 PAOZZ PAOZZ

25 MFFZZ MOO

(3) (4) d.

PART

USMC FSCM NUMBER

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 03 - CONTROL BOX

ASSEMBLY

FIG. 10 CONTROL PANEL AND

BOX ASSEMBLY

PAOZZ

PAOZZ

83330

80063

521-9208

A3029220-1

..LIGHT EMITTING DIOD

YELLOW

..LIGHT EMITTING DIOD

GREEN

..LIGHT, INDICATOR

..INSULATION, SLEEVING

PAOZZ 96906 MS25041-5

MFFZZ 30554 88-20032-77

PAOZZ 06555 940107

PAOZZ 06555 940109

PAOZZ

XBOZZ

PAOZZ

13555

99017

30554

99023N

SC-1/4-4

69-574

PAOZZ 30554 72-5016

MAKE FROM P/N M23053/5-

105-0 (81349), AS REQUIRED

PBOZZ 71744 6S6-30V ..LAMP, INCANDESCENT

PAOZZ 83330 47-0901-2900-201 ..LIGHT, PANEL

PAOZZ 06555 88-21103 ..METER, SPECIAL SCALE

..INDICATOR, TEMPERATU

..GAGE, PRESSURE, DIAL

..METER, TIME TOTALIZI

..CAP, SLEEVE

..AMMETER

PAOZZ 77221 638-18049

..METER, ELECTRICAL FR

UOC: ENZ

..METER, ELECTRICAL FR

PAOZZ

PAOZZ

PAOZZ

PAOZZ

PAOZZ

AOOOO 30554

PAOZZ

MOOZZ 30554

PAOZZ

PAOZZ

30554

30554

30554

73734

83385

00779

80131

30554

72-5007-1

72-5007-2

72-5008

3145

841-6-32

88-22418-1

52949

88-22418-2

1N5406

88-21160

PAOZZ 96906 MS91528-2K2B

PAOZZ 81349 RV4NAYSD502A

MFFZZ 30554 88-22629-002

UOC: EMJ

..AMMETER

UOC: EMJ

..METER, ELECTRICAL FR

UOC: ENZ

..VOLTMETER

..SCREW, MACHINE

..NUT, PLAIN, ASSEMBLED

..SEMICONDUCTOR DEVIC

...TERMINAL, LUG #6

...INSULATION, SLEEVING

MAKE FROM P/N M23053/5-

104-0 (81349) AS REQUIRED

...SEMICONDUCTOR DEVIC

..SWITCH, ROTARY

..KNOB

..RESISTOR, VARIABLE, N

..MARKER, ID, WIRE

NUMBER 156A20, MAKE

FROM P/N M23053/5-105- 9

(81349), 1.25 INCHES

REQUIRED

1

1

2

7

1

1

1

1

8

10

2

2

2

1

1

1

1

1

3

3

1

1

1

1

2

1

1

2

1

1

1

1

1

1

2

7

1

1

3

3

1

1

1

1

2

1

1

1

1

8

42

3

257

4

10-1

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

26 MFFZZ MOO

(3) (4) d.

PART

USMC FSCM NUMBER

MFFZZ 30554 88-22629-003

27 PAOZZ PAOZZ

28 PAOZZ PAOZZ

29 PAOZZ PAOZZ

30 PAOZZ PAOZZ

31 PAOZZ PAOZZ

32 XDOZZ XB

33 PAOZZ PAOZZ

34 PAOZZ PAOZZ

35 PAOZZ PAOZZ

36 PAOZZ PAOZZ

37 AOOOO AOO

38 PAOZZ PAOZZ

39 MOOZZ MOO

40 PAOZZ PAOZZ

41 MOOZZ MOO

42 PAOZZ PAOZZ

43 PAOZZ PAOZZ

44 PAOZZ PAOZZ

45 PAOZZ PAOZZ

46 PAOZZ PAOZZ

47 PBOZZ PBOZZ

48 XDOZZ XB

49 XDOZZ XB

50 PBOZZ PBOZZ

51 XDOZZ XB

52 MOOZZ MOO

53 XDOZZ XB

PAOZZ 60886 AYW401-R

PAOZZ 81640 8906K4533

PAOZZ 96906 MS25224-1

PAOZZ 81640 8906K4519

PAOZZ 96906 MS35198-29

XBOZZ 9R803 3000-6-XP-74

PAOZZ 10983 88-21902

PAOZZ 81640 88-22141

PAOZZ 78189 511-081800-00

PAOZZ 96906 MS35198-42

AOOOO 30554 88-20134

PAOZZ 96906 MS87006-13

MOOZZ 30554 88-20134-4

PAOZZ 96906 MS20659-144

MOOZZ 30554 88-20134-2

PAOZZ 94222 85-34-101-20

PAOZZ 94222 85-46-103-39

PAOZZ 94222 85-12-460-16

PAOZZ 81205 2740-0003

PAOZZ 19207 12325869

PBOZZ 78553 C7941-1032-3B

XBOZZ 30554 88-20204

XBOZZ 30554 88-20205

PBOZZ 94222 85-35-309-56

XBOZZ 30554 88-20514

MOOZZ 30554 88-20000

XBOZZ 30554 88-22044

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

..MARKER, ID, WIRE

NUMBER 157B20, MAKE

FROM P/N M23053/5-105-9

(81349), 1 25 INCHES

REQUIRED

..SWITCH, PUSH-PULL

..SWITCH, TOGGLE BATTLE

SHORT

..GUARD, SWITCH

..SWITCH, TOGGLE AC

CIRCUIT INTERRUPTER

..SCREW, MACHINE FLAT

COUNTERSUNK HD, BRASS

(GROUND SCREW)

..MARKER STRIP, TERMI

..SWITCH, ROTARY

..SWITCH, TOGGLE

..NUT, PLAIN, ASSEMBLED

..SCREW, MACHINE

..HOLDER, METER PANEL

...HOOK, CHAIN, S

...INSULATION, SLEEVING

MAKE FROM P/N M23053/5-

108-0 (81349), AS REQUIRED.

...TERMINAL, LUG

...ROPE, FIBROUS BMU 10

41 MAKE FROM P/N 1-4 INDIA

(72205), 1.04 FT REQUIRED

..WASHER, SPLIT

..WASHER, FLAT

..STUD, TURNLOCK FASTE

..NUT, PLAIN, ASSEMBLED

..BOLT, MACHINE

..NUT, PLAIN, SQUARE

..PANEL, CONTROL BOX

LEFT SIDE

..PANEL, CONTROL BOX

RIGHT SIDE

..RECEPTACLE, TURNLOCK

..SPACER, HINGE

..HINGE, CONTROL PANE

MAKE FROM P/N A703 (7B735)

1 50 INCHES X 20 90 INCHES

REQUIRED

..CONTROL PANEL

1

2

1

1

2

1

1

28

28

2

1

2

2

2

1

1

1

1

2

1

1

1

1

1

1

1

1

1

2

1

1

1

1

2

1

1

1

11

1

1

6

1

3

1

1

1

2

1

1

2

2

2

362

293

19

1

10-2

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

54 XDFZZ XB

55 PAOZZ PAOZZ

56 PAOZZ PAOZZ

57 PAOZZ PAOZZ

58 XDFZZ XB

59 PAOZZ PAOZZ

60 MDOZZ MDO

61 PAOZZ PAOZZ

62 PAOZZ PAOZZ

63 PAOZZ PAOZZ

(3) (4) d.

PART

USMC FSCM NUMBER

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

XBFZZ 30554 88-20199

PAOZZ 30554 88-22790-1

..PANEL, CONTROL BOX

..NUT, PLAIN, HEXAGON

PAOZZ 80204 B1821BH025C100N ..SCREW, CAP, HEXAGON H

PAOZZ 96906 MS51412-4

XBFZZ 30554 88-20200

PAOZZ 81349 M24243/1A402

MDOZZ 30554 88-20153

..WASHER, FLAT

..PANEL, CONTROL BOX

..RIVET, BLIND

PAOZZ

PAOZZ

PAOZZ

96906

78189

96906

MS51412-20

511-001800-00

MS35198-46

..PLATE, IDENTIFICATIO

RECONNECTION SWITCH

..WASHER, FLAT

.NUT, CAPTIVE 8-32

.SCREW, MACHINE, FLAT 8-32

X 1.00

END OF FIGURE

(6) (7)

USMC

QTY

PER

QTY EQUIP

2

I

4

1

1

2

2

3

2

1

1

93

2

86

1

67

1

8

2

1

10-3

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

Figure 11. Output Box Installation

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

(3) (4) d.

PART

USMC FSCM NUMBER

1 PAOZZ PAOZZ

2 PAOZZ PAOZZ

3 PAOZZ PAOZZ

4 XDOZZ XB

5 PAOZZ PAO ZZ

6 XDOOO XB

7

8

9

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

10 PAOZZ PAOZZ

11 XDOZZ XB

12 XDOZZ XB

13 PAOZZ PAOZZ

14 PAOZZ PAOZZ

15 PAOZZ PAOZZ

PAOZZ 81205 2740-0003

PAOZZ 19207 12325869

PAOZZ 30554 88-22793-5

XBOZZ 30554 88-20509

PAOZZ 96906 MS51412-2

XBOOO 30554 88-20036

PAOZZ 45722 P15121-64

PAOZZ 81205 2740-0003

PAOZZ 96906 MS21333-78

PAOZZ 45722 P15121-67

XBOZZ 9R803 4300-12-XP-74

XBOZZ 9R803 3300-14-XP-74

PAOZZ 78189 511-081800-00

PAOZZ 45722 P15121-37

PAOZZ 96906 MS51412-2

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 04 - OUTPUT BOX

ASSEMBLY

FIG. 11 OUTPUT BOX

INSTALLATION

.NUT, PLAIN, ASSEMBLED

.BOLT, MACHINE

.SCREW, MACHINE

.SPACER, TRAY, OUTPUT

.WASHER, FLAT

.OUTPUT BOX ASSEMBLY

SEE FIGURE 13 FOR

BREAKDOWN

..SCREW, ASSEMBLED WAS

..NUT, PLAIN, ASSEMBLED

..CLAMP, LOOP

..SCREW, ASSEMBLED WAS

..MARKER STRIP, TERMI

..MARKER STRIP, TERMI

..NUT, PLAIN, ASSEMBLED

..SCREW, ASSEMBLED WAS

..WASHER, FLAT

END OF FIGURE

2

10

2

9

1

1

2

2

6

1

1

1

1

7

6

362

293

1

1

118

1

25

362

5

9

1

1

11

6

118

11-1

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

Figure 12. Output Box/Engine Harness Assembly

1

2

3

PBFFF PBOOO

PAOZZ PAOZZ

PAOZZ PAOZZ

4

5

PAOZZ PAOZZ

PAOZZ PAOZZ

6 PAOZZ PAOZZ

7 PAOZZ PAOZZ

8

9

PAOZZ

PAOZZ

PAOZZ

PAOZZ

10 PAOZZ PAO ZZ

11 PAOZZ PAOZZ

12 PAOZZ PAOZZ

13 PAOZZ PAOZZ

14 PAOZZ PAOZZ

15 PAOZZ PAOZZ

16

17

PAOZZ PAOZZ

PAOZZ PAOZZ

18 PAOZZ PAOZZ

19 PAOZZ PAOZZ

20 PAOZZ PAOZZ

21 PAOZZ PAOZZ

22 PAOZA PAOZA

23 PAOZA PAOZA

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

(3) (4) d.

PART

USMC FSCM NUMBER

AFFZZ 30554 88-20289

PAOZZ 00779 52949

PAOZZ 98410 AA-8714-08

PAOZZ 98410 AA-8715-10

PAOZZ 96906 MS25036-101

PAOZZ 96906 MS25036-103

PAOZZ 96906 MS25036-150

PAOZZ 59730 RA2573

PAOZZ 59730 RA25177

PAOZZ 98410 BB-8707-06

PAOZZ 98410 BB-8717-10

PAOZZ 96906 MS25036-106

PAOZZ 96906 MS25036-154

PAOZZ 96906 MS25036-121

PAOZZ 98410 C-8710-06

PAOZZ 96906 MS25036-157

PAOZZ 98410 C-8198-10

PAOZZ 96906 MS25036-112

PAOZZ 96906 MS25036-158

PAOZZ 96906 MS25036-113

PAOZZ 98410 C-8718-08

PAOZA 00779 66331-8

PAOZA 00779 66100-8

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 04 - OUTPUT BOX

ASSEMBLY

FIG. 12 OUTPUT BOX I

ENGINE HARNESS ASSY

..WIRING HARNESS, BRAN

...TERMINAL, LUG 20 AWG

#6

...TERMINAL, LUG 20 AWG

#8

...TERMINAL, LUG 20 AWG

#10

...TERMINAL, LUG 20 AWG

#6

...TERMINAL, LUG 20 AWG

#10

...TERMINAL, LUG 20 AWG

1/4

...TERMINAL, QUICK DISC

...TERMINAL, QUICK DISC

...TERMINAL, LUG 16 AWG

#6

...TERMINAL, LUG 16AWG

#10

...TERMINAL, LUG 16 AWG

#6

...TERMINAL, LUG 16 AWG

1/4

...TERMINAL, LUG 6 AWG,

5/16

...TERMINAL, LUG 12 AWG

#6

...TERMINAL, LUG 12 AWG

1/4

...TERMINAL, LUG 12 AWG

#10

...TERMINAL, LUG 12 AWG

#10

...TERMINAL, LUG 12AWG

1/2

...TERMINAL, LUG 12 AWG

5/16

...TERMINAL, LUG 12 AWG

#8

...CONTACT, ELECTRICAL

...CONTACT, ELECTRICAL

2

5

1

2

4

2

1

22

2

4

41

12

5

2

5

1

7

2

3

2

1

27

14

2

5

1

5

5

2

1

46

6

4

41

16

1

257

35

5

10

5

1

24

2

5

2

12-1

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

24 PAOZZ PAOZZ

25 PAOZZ PAOZZ

26 PAOZZ PAOZZ

27 PAOZZ PAOZZ

28 PAOZZ PAOZZ

29 XDOZZ XB

30 XDOZZ XB

31 XDOZZ XB

32 AOOOO AOO

33 PAOZZ PAOZZ

34 MOOZZ MOO

(3) (4) d.

PART

USMC FSCM NUMBER

PAOZZ 96906 MS25036-104

PAOZZ 96906 MS25036-115

PAOZZ 96906 MS25036-116

PAOZZ 96906 MS25036-117

PAOZZ 96906 MS25036-118

XBOZZ 9R803 4300-12

XBOZZ 9R803 3300-14

XBOZZ 9R803 330JS

AOOOO 30554 88-22418-1

PAOZZ 00779 52949

MOOZZ 30554 88-22418-2

35 PAOZZ PAOZZ

36 PAOZZ PAOZZ

37 PAOZZ PAOZZ

38 PAOZZ PAOZZ

39 PAOZZ PAOZZ

40 PAOZZ PAOZZ

41 PAOZZ PAOZZ

42 PAOZZ PAOZZ

43 PAOZZ PAOZZ

44 PAOZZ PAOZZ

45 PAOZZ PAOZZ

46 PAOZZ PAOZZ

47 PAOZZ PAOZZ

48 MOOZZ MOO

PAOZZ 80131 1N5406

PAOZZ 60177 88-21132

PAOZZ 97539 206138-1

PAOZZ 36378 1003318-01

PAOZZ 36378 1003293-03

PAOZZ 36378 1003296-02

PAOZZ 27264 02-09-1104

PAOZZ 27264 03-09-1022

PAOZZ 27264 03-09-1032

PAOZZ 27264 03-09-1042

PAOZZ 96906 MS3367-1-9

PAOZZ 96906 MS3367-5-9

PAOZZ 96906 MS3368-1-9A

MOOZZ 30554 88-20289-27

49

50

51

MOOZZ MOO

MOOZZ MOO

MOOZZ MOO

MOOZZ 30554 88-20289-28

MOOZZ 30554 88-20289-29

MOOZZ 30554 88-20289-30

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

...TERMINAL, LUG 20 AWG

5/16

...TERMINAL, LUG 8 AWG

#10

...TERMINAL, LUG 8 AWG 1/4

...TERMINAL, LUG 8 AWG

5/16

...TERMINAL, LUG 8 AWG 3/8

...TERMINAL BOARD

...TERMINAL BLOCK

...CONTACT, ELECTRICAL

...SEMICONDUCTOR DEVIC

....TERMINAL, LUG 20 AWG

#6

....INSULATION, SLEEVING

MAKE FROM P/N M23053/5-

104-0 (81349), AS REQUIRED

....SEMICONDUCTOR DEVIC

...TRANSFORMER, CURRENT

...ADAPTER, CABLE CLAMP

...CONNECTOR BODY, PLUG

...CLAMP, CABLE, ELECTRI

...CONNECTOR BODY, PLUG

...CONTACT, ELECTRICAL

...CONNECTOR BODY, RECE

...CONNECTOR BODY, PLUG

...CONNECTOR BODY, PLUG

...STRAP, TIEDOWN, ELECT

...STRAP, TIEDOWN, ELECT

...STRAP, TIEDOWN, ELECT

...WIRE, ELECTRIC 20 AWG,

MAKE FROM P/N M5086/2-20-9

(81349), AS REQUIRED

...WIRE, ELECTRIC 16AWG,

MAKE FROM P/N M5086/2-16-9

(81349), AS REQUIRED

...WIRE, ELECTRIC , 2 AWG,

MAKE FROM P/N M5086/2-12-9

(81349), AS REQUIRED

...WIRE, ELECTRIC 10 AWG,

MAKE FROM P/N M5086/2-10-9

(81349), AS REQUIRED

1

1

1

1

V

V

2

1

1

1

1

1

1

11

1

5

2

1

1

2

2

2

1

4

2

1

1

1

1

4

2

2

2

1

1

12

3

257

4

1

1

1

4

1

V

V

V

1

2

1

2

1

1

2

1

11

12-2

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

52 MOOZZ MOO

(3) (4) d.

PART

USMC FSCM NUMBER

MOOZZ 30554 88-20289-21

53 MOOZZ MOO MOOZZ 30554 88-20289-31

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

1 1 …WIRE, ELECTRIC 6 AWG,

MAKE FROM P/N M508612-6-9

(81349), AS REQUIRED

…WIRE, ELECTRIC 8 AWG,

MAKE FROM P/N M5086/2-8-9

(81349), AS REQUIRED

1 1

END OF FIGURE

12-3

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

(Figure 13 Sheet 1 of 2)

(Figure 13 Sheet 2 of 2)

Figure 13. Output Box Components (Sheet 1 of 2)

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

Figure 13. Output Box Components (Sheet 2 of 2)

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

(3) (4) d.

PART

USMC FSCM NUMBER

1 XDFFF XB

2PAFZZ PAOZZ PAFZZ

3 MFFZZ MOO

XDFFF 30554 88-20301-1

98410 F-767-14 …TERMINAL, LUG

MFFZZ 30554 88-20301-1-1

4 XDFFF XB

5PAFZZ PAOZZ PAFZZ

6 MFFZZ MOO

XDFFF 30554 88-20301-2

98410 F-767-14 …TERMINAL, LUG

MFFZZ 30554 88-20301-2-2

7

8

9

XDFFF XB XDFFF 30554 88-20301-3

PAFZZ PAOZZ PAFZZ

MFFZZ MOO MFFZZ

98410

30554

F-767-14

88-20301-3-1

10

11

12

13

XDFFF XB XDFFF 30554 88-20301-4

PAFZZ

PAFZZ

PAOZZ

PAOZZ

MFFZZ MOO

PAFZZ

PAFZZ

MFFZZ

98410

98410

30554

F-767-14

F-766-12

88-20301-4-1

14

15

16

17

XDFFF XB

PAFZZ PAOZZ

XDFFF

PAFZZ

30554

98410

88-20301-5

F-767-14

PAFZZ PAOZZ PAFZZ

MFFZZ MOO MFFZZ

98410

30554

F-766-12

88-20301-5-1

18

19

20

21

XDFFF XB XDFFF 30554 88-20301-6

PAFZZ

PAFZZ

PAOZZ

PAOZZ

MFFZZ MOO

PAFZZ

PAFZZ

MFFZZ

98410

98410

30554

F-767-14

F-766-12

88-20301-6-1

22

23

24

25

XDFFF XB

PAFZZ

PAFZZ

PAOZZ

PAOZZ

MFFZZ MOO

XDFFF

PAFZZ

PAFZZ

MFFZZ

30554

98410

98410

30554

88-20301-7

F-767-14

F-766-12

88-20301-7-1

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 04 - OUTPUT BOX

ASSEMBLY

FIG. 13 OUTPUT BOX

COMPONENTS

..CABLE ASSY, AC PWR

2

…WIRE, ELECTRIC MAKE

FROM PIN M5086/2-4-9

(81349), 8 INCHE S REQUIRED

..CABLE ASSY, AC PWR

2

…WIRE, ELECTRIC MAKE

FROM P/N M5086/2-4-9

(81349), 8 INCHE S REQUIRED

..CABLE ASSY, AC PWR

…TERMINAL, LUG

…WIRE, ELECTRIC MAKE

FROM P/N M50861/2-4-9

(81349), 8 INCHES REQUIRED

..CABLE ASSY, AC PWR

…TERMINAL, LUG

…TERMINAL, LUG

…WIRE, ELECTRIC MAKE

FROM P/N M5086/2-4-9

(81349), 38 5 INCHES REQD

..CABLE ASSY, AC PWR

…TERMINAL, LUG

…TERMINAL, LUG

…WIRE, ELECTRIC MAKE

FROM P/N M5086/2-4-9

(81349), 24.0 IN CHES

REQUIRED

..CABLE ASSY, AC PWR

…TERMINAL, LUG

…TERMINAL, LUG

…WIRE, ELECTRIC MAKE

FROM P/N M5086/2-4-9

(81349), 25 5 INCHES

REQUIRED

..CABLE ASSY, AC PWR

…TERMINAL, LUG

…TERMINAL, LUG

…WIRE, ELECTRIC MAKE

FROM PIN M508612-4-9

(81349), 27.0 INCHES

REQUIRED

1

1

1

1

1

10

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

1

1

10

1

1

1

1

1

1

10

1

1

10

4

1

1

10

4

1

1

10

4

1

1

10

4

1

13-1

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ

PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PBOZA

PAOZZ

PAOZZ

PAOZZ

PAOZZ

XDOZZ

PAOZZ

XDOZZ

PAOZZ

PAOZZ

PBOZA

PAOZZ

PAOZZ

PAOZZ

PAOZZ

XB

PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

XB

(3) (4) d.

PART

USMC FSCM NUMBER

PAOZZ 45722 P15121-64

PAOZZ 78553 C7941-1032-3B

PAOZZ 30554 88-21066

PAOZZ 81640 SM50D8

PAOZZ 80256 307608

PAOZZ 96906 MS35338-63

PAOZZ 96906 MS51412-4

PAOZZ 80089 124-903

PBOZA 78553 C7998-1420-3B

PAOZZ 78189 501P06080000AMB

PAOZZ 45722 P15121-20

PAOZZ 96906 MS51412-1

PAOZZ 10983 C26-C57442ER

XBOZZ 30554 88-20203

PAOZZ 81205 2740-0003

PAOZZ 30554 88-20260-23

PAOZZ 30554 88-22790-1

PAOZZ 96906 MS35338-63

PAOZZ 80256 307608

PAOZZ 96906 MS51412-4

XBOZZ 30554 88-20202

XBOZZ 30554 88-20201

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

..SCREW, ASSEMBLED WAS

..NUT, PLAIN, SQUARE

..CONTACTOR ,MAGNETIC

..RELAY, ELECTROMAGNET

..BOLT, MACHINE

..WASHER, LOCK

..WASHER, FLAT

..RELAY, ELECTROMAGNET

..RETAINER, NUT AND BO

..NUT, PLAIN, ASSEMBLED

..SCREW, ASSEMBLED WAS

..WASHER ,FLAT

..SWITCH, ROTARY

..SUPPORT, RECONNECTI

..NUT, PLAIN, ASSEMBLED

..SCREW, CAP, HEXAGON H

..NUT, PLAIN. HEXAGON

..WASHER, LOCK

..BOLT, MACHINE

..WASHER, FLAT

..SIDE, OUTPUT BOX TR

..TRAY, OUTPUT BOX

1

2

2

8

8

1

8

8

2

1

2

4

1

4

2

2

2

2

1

4

2

1

25

57

1

1

48

116

86

1

2

42

26

4

1

1

362

50

93

116

48

86

2

1

END OF FIGURE

13-2

Figure 14. Muffler Assembly

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

1

2

3

4

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

MOOZZ MOO

7

8

9

5

6

PAOZZ PAOZZ

PAOZZ PAOZZ

PBOZZ PBOZZ

PBOZZ PBOZZ

PBOZZ PBOZZ

(3) (4) d.

PART

USMC FSCM NUMBER

PAOZZ 80204 B18231B10025N

PAOZZ 30554 88-22331-2

XBOZZ 61277 88-20136

MOOZZ 30554 88-20136-68

PAOZZ 30554 88-21109

PAOZZ 14153 02766

PBOZZ 30554 88-20519

PBOZZ 30554 88-20517

PBOZZ 30554 88-20518

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 05 - AIR INTAKE AND

EXHAUST SYSTEM

FIG. 14 MUFFLER ASSEMBLY

.SCREW, CAP, HEXAGON H

.WASHER, LOCK

.WRAP, MUFFLER

..WIRE, SAFETY MAKE FROM

P/N 900010-C32 (00624) 68

INCHES REQUIRED

UOC: EMJ

.MUFFLER, EXHAUST

.GASKET

.SEAL, PLAIN ENCASED

.PLATE, MOUNTING

.SEAT, HELICAL COMPRE

2

2

1

1

1

1

1

1

1

END OF FIGURE

1

1

1

1

1

2

2

1

1

14-1

Figure 15. Air Cleaner Assembly

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

8

9

10

6

7

11

12

13

14

15

16

17

18

19

20

21

3

4

5

1

2

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOOO XB

PAOZZ PAOZZ

XAOZZ XA

XAOZZ XA

PBOZZ PBOZZ

PBOZZ PBOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

(3) (4) d.

PART

USMC FSCM NUMBER

PAOZZ 81205 2740-0003

PAOZZ 30554 88-20260-23

PAOZZ 88044 AN742-40

PAOZZ 01276 FF9311-36

PAOZZ 30554 88-20500

PAOZZ 24161 4289-1972

PAOZZ 18265 RBX00-6291

PAOZZ 30554 88-22790-1

PAOZZ 96906 MS35338-63

PAOZZ 96906 MS51412-4

PAOZZ 80256 307608

PAOZZ 19207 11668089

XBOOO 30554 88-21062

PAOZZ 18265 P00-2904

XAOZZ 18265 P00-5300

XAOZZ 18265 P00-5408

PBOZZ 18265 P10-3007

PBOZZ 18265 P10-2523

PAOZZ 18265 P10-1870

PAOZZ 18265 P14-8969

XBOZZ 18265 FWG05-2619-1

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 05 - AIR INTAKE AND

EXHAUST SYSTEM

FIG. 15 AIR CLEANER

ASSEMBLY

.NUT, PLAIN, ASSEMBLED

.SCREW, CAP, HEXAGON H

.CLAMP, LOOP

.CLAMP, HOSE

.HOSE,PREFORMED AIR

FILTER

.HOSE,AIR DUCT AIR INTAKE

.INDICATOR,FILTER WA

.NUT,PLAIN,HEXAGON

.WASHER,LOCK

.WASHER,FLAT

.BOLT,MACHINE

.CLAMP,LOOP

.AIR CLEANER

..CLAMP,LOOP

…NUT

...SCREW

..CUP ASSY

..BAFFLE ASSEMBLY

..NUT, PLAIN, WING

..FILTER ELEMENT, INTA

..CANNISTER, AIR

4

4

4

1

1

4

2

1

1

1

1

1

1

1

1

1

1

3

1

1

1

362

50

1

3

1

1

1

93

116

86

48

2

1

1

1

1

1

1

1

1

1

END OF FIGURE

15-1

Figure 16. Radiator and Hoses

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

1

2

3

4

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

MOOZZ MOO

15

16

17

18

19

9

10

11

12

13

14

20

21

22

5

6

7

8

XDOZZ XB

PAOZZ PAOZZ

MDOZZ MDO

XDOZZ XB

PAOZZ PAOZZ

XDOZZ XB

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PBOFF PBOOO

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

MOOZZ MOO

23 MOOZZ MOO

24 MOOZZ MOO

25 MOOZZ MOO

(3) (4) d.

PART

USMC FSCM NUMBER

PAOZZ 19207 12325869

PAOZZ 96906 MS35338-62

PAOZZ 96906 MS51412-2

MOOZZ 30554 88-20071-140

XBOZZ 30554 88-20149

PAOZZ 81205 2740-0003

MDOZZ 30554 88-20462

XBOZZ 30554 88-20148

PAOZZ 30554 88-20260-22

XBOZZ 30554 88-20121

PAOZZ 96906 MS87006-11

PAOZZ 80256 307608

PAOZZ 96906 MS35338-63

PAOZZ 96906 MS51412-4

PBOFF 30554 88-20093

PAOZZ 78225 R28

PAOZZ 81646 6724

PAOZZ 30554 88-20189

PAOZZ 30554 88-20190

PAOZZ 28520 2326

PAOZZ 28520 2314

MOOZZ 30554 88-22302-11

MOOZZ 30554 88-22302-17

MOOZZ 30554 88-22302-16

MOOZZ 30554 88-22302-10

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 06 - COOLANT

SYSTEM

FIG. 16 RADIATOR AND

HOSES

.BOLT, MACHINE

.WASHER, LOCK

.WASHER, FLAT

.PROTECTOR, EDGE MAKE

FROM P/N 62-1/16-B-7 (57137),

AS REQUIRED

.GUARD, FAN IMPELLER LEFT

SIDE

.NUT, PLAIN, ASSEMBLED

.PLATE, IDENTIFICATIO

CAUTION HOT LIQUID

.GUARD, FAN IMPELLER

RIGHT SIDE

.SCREW, CAP, HEXAGON H

.SHROUD, FAN, RADIAT

.HOOK, CHAINS

.BOLT, MACHINE

.WASHER, LOCK

.WASHER, FLAT

UOC EMJ

.RADIATOR, ENGINE COO

.CAP, FILLER OPENING

.CLAMP, HOSE

.HOSE, PREFORMED

RADIATOR UPPER

.HOSE, PREFORMED

RADIATOR LOWER

.CLAMP, HOSE

.CLAMP, HOSE

.HOSE, NONMETALLIC MAKE

FROM P/N M6000-C-02500

(81349), 22 INCHES REQD

.HOSE, NONMETALLIC MAKE

FROM P/N M6000-C-02500

(81349), 5 INCHES REQUIRED

.HOSE, NONMETALLIC MAKE

FROM PIN M6000-C-02500

(81349), 15 INCHES REQD

.HOSE, NONMETALLIC MAKE

FROM P/N M6000-C-02500

(81349), 13 INCHES

REQUIRED

10

6

10

2

1

1

1

293

72

118

2

1

1

1

4

1

1

1

1

6

6

6

8

2

1

1

12

1

1

10

4

1

4

1

1

1

1

21

2

5

48

116

9

1

362

1

1

11

4

1

16-1

26

27

28

29

30

31

32

33

34

35

36

37

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

PAOZZ

PAOZZ

PAOZZ

PAOZZ

XDOZZ

PAOZZ

PBOZZ

PAOZZ

MOOZZ

PAOZZ

PAOZZ

PAOZZ

PAOZZ

XDOZZ XB

XDOZZ XB

PAOZZ PAOZZ

XB

PAOZZ

PBOZZ

PAOZZ

MOO

38 MOOZZ MOO

39 MOOZZ MOO

(3) (4) d.

PART

USMC FSCM NUMBER

PAOZZ 79470 1908

PAOZZ 79470 52487

PAOZZ 79470 103-22604

PAOZZ 96906 MS3367-6-9

XBOZZ 30554 88-20507

XBOZZ 4J181 RM-48-400-PV

PAOZZ 78553 C7988-1420-3B

XBOZZ 30554 88-20508

PAOZZ 88044 AN960C2016

PBOZZ 30554 88-20098

PAOZZ 30554 88-20273

MOOZZ 30554 88-22752-5

MOOZZ 30554 88-22752-6

MOOZZ 30554 88-22670-3

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

.TEE, HOSE

.COCK, DRAIN

.BUSHING, PIPE

.STRAP, TIEDOWN ELECT

.TANK, COOLANT RECOV

.CAP, TANK, COOLANT

.RETAINER, NUT AND BO

.BRACKET COOLANT

RECOVERY TANK

.WASHER, FLAT

.IMPELLER, FAN, AXIAL

.BELT, V

.HOSE, COOLANT DRAIN

MAKE FROM P/N 483666

(02280), 15 INCHES

REQUIRED

.HOSE, COOLANT DRAIN

MAKE FROM P/N 483666

(02280), 5 INCHES REQUIRED

.STRIP, SEAL MAKE FROM

P/N 200A 1/2 X 3/16 (71643),

AS REQUIRED.

2

1

1

2

1

2

2

1

1

1

1

1

1

1

1

1

2

1

1

2

2

1

20

1

1

1

1

1

END OF FIGURE

16-2

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

SHEET 2

(Figure 17 Sheet 1 of 2)

(Figure 17 Sheet 2 of 2)

Figure 17. Fuel Tank, Pumps and Lines (Sheet 1 of 2)

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

SHEET 1

Figure 17. Fuel Tank Pumps and Lines (Sheet 2 of 2)

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

1

13

14

15

16

17

18

19

10

11

12

8

9

6

7

4

5

2

3

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

AOOOO AOO

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZA PAOZA

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

XAOZZ XA

XAOZZ XA

XAOZZ XA

PAOZZ PAOZZ

MOOZZ MOO

20

21

22

23

24

25

26

27

28

29

30

31

32

33

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

AOOOO AOO

PAOZZ PAOZZ

PAOZA PAOZA

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

(3) (4) d.

PART

USMC FSCM NUMBER

PAOZZ 96906 MS51492-14

PAOZZ 96906 MS35338-62

PAOZZ 96906 MS51412-2

PAOZZ 06555 127676

PAOZZ 30554 88-20286

AOOOO 30554 88-20483

PAOZZ 96906 MS3367-1-9

PAOZZ 27264 1490P1

PAOZZ 63123 35-000252-001

PAOZA 30554 88-20062

PAOZZ 81205 2740-0003

PAOZZ 30554 88-20260-20

PAOZZ 30554 88-20492

XBOZZ 30554 88-20324

XAOZZ 96906 MS51531B4

XAOZZ 96906 MS51533B4

XAOZZ 36024 999-0616-7

PAOZZ 81343 SAE J1508-06

MOOZZ 19099 88-20071-300

PAOZZ 5U990 205-605

PAOZZ 30554 88-22755

PAOZZ 96906 MS51504A4

PAOZZ 96906 MS51412-5

PAOZZ 19207 12325869

AOOOO 30554 88-22546

PAOZZ 96906 MS3367-1-9

PAOZA 27264 03-09-2022

PAOZZ 63123 35-000252-001

PAOZZ 30554 88-21738

PAOZZ 81343 2-2-130238

PAOZZ 81343 4-4-4 070424S

PAOZZ 93742 69-539-2

PAOZZ 96906 MS87006-11

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 07 - FUEL SYSTEM

FIG. 17 FUEL TANK, PUMPS,

AND LINES

.SCREW, MACHINE

UOC: EMJ

.WASHER, LOCK

UOC: EMJ

.WASHER, FLAT

UOC' EMJ

.TRANSMI TTER, LIQUID

.GASKET

.SWITCH ASSEMBLY, FU

..STRAP, TIEDOWN, ELECT

..CONNECTOR BODY, PLUG

..CONTACT, ELECTRICAL

..SWITCH, LIQUID LEVEL

.NUT, PLAIN, ASSEMBLED

.BOLT, MACHINE

.FLOAT, SWITCH, LIQU

.TUBE, FUEL, AUXILIA

..NUT, TUBE COUPLING

..SLEEVE, FLARED, TUBE

..TUBE

.CLAMP, HOSE

.HOSE, NONMETALLIC MAKE

FROM P/N 33H581 (80244), 17

INCHES REQUIRED

.ADAPTER, STRAIGHT, TU

.FILTER BODY, FLUID

.ELBOW, PIPE TO TUBE

.WASHER, FLAT

.BOLT, MACHINE

.PUMP ASSEMBLY, FUEL

..STRAP, TIEDOWN, ELECT

..CONNECTOR ,PLUG ,ELEC

..CONTACT, ELECTRICAL

..PUMP, FUEL, ELECTRICA

AUXILIARY

.ELBOW, 90 DEGREE

.TEE, PIPE TO TUBE

.CAP, TUBE

.HOOK, CHAIN,S

1

11

1

1

1

2

1

I

1

1

2

2

1

1

1

1

2

37

293

1

1

2

15

1

2

5

1

1

15

19

19

1

2

1

1

1

2

2

1

2

2

1

4

1

1

1

3

15

59

87

1

2

1

1

1

4

4

2

15

1

362

50

1

1

1

3

17-1

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

34 MOOZZ MOO

40

41

42

43

35

36

37

38

39

44

45

46

47

48

49

50

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOOO XB

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PBOZZ PBOZZ

AOOOO AOO

PAOZZ PAOZZ

MOOZZ MOO

55

56

57

58

59

60

61

51

52

53

54

62

63

64

65

66

67

68

69

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

XAOZZ XA

XAOZZ XA

XAOZZ XA

PBOZZ PBOZZ

PAOZZ PAOZZ

AOOOO AOO

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZA PAOZA

PAOZZ PAOZZ

AOOOO AOO

(3) (4) d.

PART

USMC FSCM NUMBER

MOOZZ 30554 88-20071-196

PAOZZ 79470 695

PAOZZ 30554 88-21117

PAOZZ 30554 88-21166

XBOZZ 07707 A3816

PAOZZ 81205 2740-0003

PAOZZ 77068 1068374-1

PAOZZ 96906 MS35645-1

XBOOO 30554 88-20193

PAOZZ 96906 MS90908-1

PAOZZ 30554 88-20208

PAOZZ 96906 MS51860-54

PAOZZ 96906 MS51520A5

PBOZZ 36024 88-21026

AOOOO 30554 88-20191-4

PAOZZ 96906 MS24587-4

MOOZZ 30554 88-20191-4-2

PAOZZ 96906 MS51521A4

PAOZZ 30554 88-20179

PAOZZ 30554 88-22790-1

PAOZZ 96906 MS35228-63

PAOZZ 96906 MS51412-4

PAOZZ 30554 88-20260-33

PAOZZ 96906 MS21333-105

XBOZZ 30554 88-20325-2

XAOZZ 96906 MS51531B4

XAOZZ 96906 MS51533B4

XAOZZ 36024 999-0667-4

PBOZZ 96906 MS51508B4-4Z

PAOZZ 81343 4-4070202C

AOOOO 30554 88-20479

PAOZZ 96906 MS3367-1-9

PAOZZ 63123 35-000252-001

PAOZA 27264 03-09-2022

PAOZZ 72850 40193

AOOOO 30554 88-20191-2

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

.CHAIN, WELDLESS MAKE

FROM P/N RR-C-271TY2 CL7-

16 (81348), #14 X 4 INCHES

LONG

.COCK,SHUTOFF,SCREW

.ADAPTER,STRAIGHT,PI

.WASHER,FLAT

.NUT

.NUT,PLAIN,ASSEMBLED

.CLAMP,HOSE

.CAP,FILLER OPENING

.FILLER NECK, FUEL

..FILLER NECK

.REDUCER,TUBE

.LOCKNUT,TUBE FITTIN

.ADAPTER,STRAIGHT,TU

.TANK,FUEL,ENGINE

.HOSE ASSEMBLY

..ADAPTER,STRAIGHT,TU

..HOSE, RUBBER MAKE

FROM P/N M8794-4 (81349), 34

INCHES REQUIRED.

.ELBOW,TUBE

.TUBE ASSEMBLY,METAL

.NUT,PLAIN,HEXAGON

.WASHER,LOCK

.WASHER,FLAT

.BOLT,MACHINE

.CLAMP,LOOP

.TUBE, FUEL, PRIMARY

..NUT,TUBE COUPLING

..SLEEVE,FLARED,TUBE

..TUBE

.ELBOW,PIPE TO TUBE

.ELBOW,PIPE TO TUBE

.PUMP ASSEMBLY, FUEL

..STRAP,TIEDOWN,ELECT

..CONTACT,ELECTRICAL

..CONNECTOR,PLUG,ELEC

..PUMP,FUEL,ELECTRICA

MAIN

.HOSE ASSEMBLY

2 2

2

1

1

1

2

2

7

1

2

1

1

1

2

1

1

1

2

1

1

1

1

2

2

2

362

1

1

1

4

1

1

1

2

1

1

2

2

4

1

3

3

1

1

1

1

2

1

3

1

1

1

4

1

1

4

86

28

1

1

1

93

2

1

3

1

1

15

2

1

1

17-2

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

70

71

PAOZZ PAOZZ

MOOZZ MOO

72 MOOZZ MOO

73

74

75

76

77

78

PAOZZ PAOZZ

PBOOZ PBOOZ

PAOZZ PAOZZ

XAOZZ XA

PAOZZ PAOZZ

PAOZZ PAOZZ

(3) (4) d.

PART

USMC FSCM NUMBER

PAOZZ 96906 MS24587-4

MOOZZ 30554 88-20191-2-2

MOOZZ 30554 88-20071-172

PAOZZ 28520 2326

PBOOZ 30554 88-21101

PAOZZ 76700 85285-F

XAOZZ 76700 Q-54382

PAOZZ 01276 2018-2-4S

PAOZZ 93061 125 HB-2-2

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

..ADAPTER,STRAIGHT,TU

..HOSE, RUBBER MAKE

FROM P/N M8794-4 (81349), 17

INCHES R EQUIRED

.HOSE, NONMETALLIC MAKE

FROM PIN 483666 (02280),32.0

INCHES REQUIRED

.CLAMP,HOSE

.ITEM,SPECIAL

..FILTER,FLUID

..HEAD, FILTER

.ADAPTER,STRAIGHT PI

.ADAPTER,STRAIGHT

1

1

1

1

1

1

1

2

1

4

1

2

11

1

1

1

1

1

END OF FIGURE

17-3

Figure 18. Oil Drain Line

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

1

2

3

PAOZZ PAOZZ

PAOZZ PAOZZ

MOOZZ MOO

9

10

7

8

11

4

5

6

12

PBOZZ PBOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

PAOZZ PAOZZ

(3) (4) d.

PART

USMC FSCM NUMBER

PAOZZ 15235 PLG1

PAOZZ 96906 MS35842-11

MOOZZ 30554 88-20071-182

PBOZZ 30327 KF12-08PS

PAOZZ 36621 V500P-8-04

PAOZZ 96906 MS51873-79

PAOZZ 30554 88-22790-1

PAOZZ 96906 MS35338-63

PAOZZ 30554 88-20260-34

PAOZZ 96906 MS51412-4

XBOZZ 30554 88-20122

PAOZZ 81343 6-8-140239

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 08 - LUBRICATION

SYSTEM

FIG 18 OIL DRAIN LINE

.PLUG,PIPE

.CLAMP,HOSE

.HOSE, NONMETALLIC MAKE

FROM P/N 208-12 (98441) 35

INCHES REQUIRED

.ADAPTER,STRAIGHT,PI

.VALVE,BALL

.NIPPLE,PIPE

.NUT,PLAIN,HEXAGON

.WASHER,LOCK

.SCREW,CAP,HEXAGON H

.WASHER,FLAT

.PLATE ASSEMBLY, OIL OIL

DRAIN

.ELBOW,PIPE

2

2

2

2

1

2

1

1

1

1

2

1

1

2

2

2

1

1

93

116

19

86

1

1

END OF FIGURE

18-1

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

Figure 19. Frequency Adjust Cable

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

(3) (4) d.

PART

USMC FSCM NUMBER

1 PAOZZ PAOZZ PAOZZ 70436 347L-032-2

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 09 - ENGINE ACCESSORIES

FIG. 19 FREQUENCY ADJUST CABLE

.LEVER ASSEMBLY,POWE 1 1

END OF FIGURE

19-1

Figure 20. Engine Accessories

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

XDOZZ XB

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

AOOOO AOO

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

AOOOO AOO

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

MDOZZ MDO

XDOZZ XB

PAOZZ PAOZZ

1

19

20

21

22

23

24

25

26

27

11

12

13

14

15

16

17

18

8

9

10

6

7

4

5

2

3

28

29

30

31

32

33

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

(3) (4) d.

PART

USMC FSCM NUMBER

XBOZZ 24161 4C5C-3-4FJX-3-

PAOZZ 81343 4-2 071502CA

PAOZZ 96906 MS51504A4

PAOZZ 30327 129-B-02X24

XBOZZ 81343 2-2-2 140424C

PAOZZ 30554 88-21126

PAOZZ 16476 02504

PAOZZ 06555 127338

PAOZZ 30554 88-22203

AOOOO 30554 88-20480

PAOZZ 15912 RB2573

PAOZZ 59730 RB25177

PAOZZ 16476 71544-00

PAOZZ 30554 88-22790-1

PAOZZ 96906 MS35338-63

PAOZZ 30554 88-20260-34

PAOZZ 96906 MS51412-4

AOOOO 30554 88-20482

PAOZZ 96906 MS3367-1-9

PAOZZ 27264 03-09-2032

PAOZZ 63123 35-000252-001

PAOZZ 78388 SA-3865

PAOZZ 81205 2740-0003

PAOZZ 19207 12325869

PAOZZ 96906 MS21333-71

XBOZZ 30554 88-20484

PAOZZ 81640 8906K4522

PAOZZ 80204 B18231B06012N

PAOZZ 44940 186-6038

PAOZZ 81349 M24243/1A402

MDOZZ 30554 88-21776

XBOZZ 30554 88-20116

PAOZZ 96906 MS21333-102

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 09 - ENGINE

ACCESSORIES

FIG. 20 ENGINE

ACCESSORIES

.HOSE ASSEMBLY,NONME

4FJX-16

.ELBOW,PIPE TO TUBE

.ELBOW,PIPE TO TUBE

.COUPLING,PIPE

.TEE,PIPE

.SWITCH,PRESSURE

.TRANSMITTER,PRESSUR

.SWITCH,ENGINE TEMPE

.SWITCH,THERMOSTATIC

.TRANSDUCER ASSEMBLY

..TERMINAL,QUICK DISC

..TERMINAL,QUICK DISC

..TRANSDUCER,MOTIONAL

.NUT,PLAIN,HEXAGON

.WASHER,LOCK

.SCREW,CAP,HEXAGON H

.WASHER,FLAT

.FUEL SOLENOID ASSEM

..STR AP,TIEDOWN,ELECT

..CONNECTOR BODY,PLUG

..CONTACT,ELECTRICAL

..SOLENOID,ELECTRICAL

.NUT,PLAIN,ASSEMBLED

.BOLT,MACHINE

.CLAMP,LOOP

.BRACKET, CLAMP MTG

.SWITCH,TOGGLE DEAD

CRANK

.SCREW,CAP,HEXAGON H

.WASHER,LOCK

.RIVET,BLIND

.PLATE,IDENTIFICATIO DEAD

CRANK

.BRACKET, DEAD CRANK

.CLAMP,LOOP 1

1

1

1

15

1

362

293

1

1

1

9

1

1

93

116

19

86

1

1

1

1

1

1

1

1

1

2

2

2

67

1

1

1

1

1

1

1

1

3

1

1

1

1

2

1

2

2

1

1

1

1

1

1

1

1

1

1

1

1

2

2

2

2

END OF FIGURE

20-1

Figure 21. Skid Base Assembly

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

6

7

8

4

5

1

2

3

9

10

11

12

13

14

15

16

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

XDOZZ XB

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

PAOZZ PAOZZ

PAFZZ PAOZZ

PAFZZ PAOZZ

XDFZZ XB

PAFZZ PAOZZ

XDOZZ XB

17 XDFZZ XB

(3) (4) d.

PART

USMC FSCM NUMBER

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

PAOZZ 30554 88-22790-1

PAOZZ 96906 MS35338-65

PAOZZ 96906 MS51412-7

PAOZZ 80204 B1821BH038C125N

XBOZZ 30554 88-22000

XBOZZ 30554 88-21000

PAOZZ 96906 MS51922-2

PAOZZ 96906 MS51412-5

PAOZZ 80204 B1821BH025C225N

XBOZZ 30554 88-20150

PAOZZ 15277 FS0216B122-1

PAFZZ 81205 2740-0003

PAFZZ 19207 12325869

XBFZZ 30554 88-20524

PAFZZ 02768 236-170406-04

XBOZZ 30554 88-20523

XBFZZ 30554 88-22010

GROUP 10 - SKID BASE

FIG. 21 SKID BASE ASSEMBLY

.NUT,PLAIN,HEXAGON

.WASHER,LOCK

.WASHER,FLAT

.SCREW,CAP,HEXAGON H

.BRACKET, TIEDOWN

.RING,CONNECTING

.NUT,SELF-LOCKING,HE

.WASHER,FLAT

.SCREW,CAP,HEXAGON H

.SUPPORT, GROUND ROD

.ROD,GROUND

.NUT,PLAIN,ASSEMBLED

.BOLT,MACHINE

.PANEL, SKID

.PIN-RIVET,GROOVED

.INSULATION,SKID MAKE

FROM P/N FF40JM02 (28818),

AS REQUIRED REQUIRED

.SKID BASE ASSEMBLY,

4

1

2

8

4

8

8

8

1

1

1

4

4

1

10

1

1

93

10

10

8

4

4

1

37

1

1

1

48

4

4

10

1

1

END OF FIGURE

21-1

Figure 22. Load Terminal Board

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-456-14

MARINE CORPS TM 09247A/09248A-24P/3

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

3

4

5

1

2

PAOZZ PAOZZ

PAOZZ PAOZZ

AOOOZ AOOOZ

PAOZZ PAOZZ

MOOZZ MOO

25

26

27

28

28

18

19

20

21

22

23

24

28

28

29

30

31

10

11

12

13

14

15

16

17

6

7

8

9

PAOZZ PAOZZ

XDOZZ XB

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

XDOZZ XB

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PBOZZ PBOZZ

XDOZZ XB

XDOZZ XB

PAOZZ PAOZZ

AOOOO AOO

AOOOO AOO

AOOOO AOO

AOOOO AOO

PAOZZ PAOZZ

PAOZZ PAOZZ

MOOZZ MOO

(3) (4) d.

PART

USMC FSCM NUMBER

PAOZZ 81205 2740-0003

PAOZZ 19207 12325869

AOOOZ 30554 88-22460

PAOZZ 96906 MS20659-144

MOOZZ 30554 88-22460-2

PAOZZ 30554 88-21146

XBOZZ 30554 88-20253

PAOZZ 96906 MS51922-3

PAOZZ 96906 MS15795-911

XBOZZ 30554 88-20310

PAOZZ 30554 88-20309

PAOZZ 30554 88-20308

PAOZZ 27687 21NTE-813

PAOZZ 96906 MS15795-917

PAOZZ 93232 SL7940-17-1

PAOZZ 74159 S-38615-G5

XBOZZ 30554 88-20311

PAOZZ 30554 88-22790-1

PAOZZ 96906 MS35338-63

PAOZZ 96906 MS51412-4

PAOZZ 30554 88-20260-34

PAOZZ 30554 88-22792-1

PAOZZ 30554 88-20260-23

PBOZZ 30554 88-20066

XBOZZ 30554 88-20067

XBOZZ 30554 88-20244

PAOZZ 34371 V320PA40A

AOOOO 30554 88-20305-1

AOOOO 30554 88-20305-2

AOOOO 30554 88-20305-3

AOOOO 30554 88-20305-5

PAOZZ 15912 RB2573

PAOZZ 98410 B-801-12HDX

MOOZZ 19099 88-20305-1-1

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 11 - LOAD TERMINAL

BOARD

FIG. 22 LOAD TERMINAL

BOARD ASSEMBLY

.NUT,PLAIN,ASSEMBLED

.BOLT,MACHINE

.CORD ASSEMBLY,FIBRO

..TERMINAL,LUG

..ROPE, NYLON MAKE FROM

P/N 1-4INDIA (72205), 18 INCH

ES REQUIRED

.WRENCH,BOX

.HOLDER

.NUT,SELF-LOCKING,HE

.WASHER,FLAT

.BAR, GROUND

.STANDOFF,THREADED,S

.STANDOFF,THREADED,S

.NUT

.WASHER,FLAT

.NUT,PLAIN,HEXAGON

.TERMINAL,STUD

.BAR, BUSS

.NUT,PLAIN,HEXAGON

.WASHER,LOCK

.WASHER,FLAT

.SCREW,CAP,HEXAGON H

.WASHER,LOCK

.SCREW,CAP,HEXAGON H

.TERMINAL BOARD

.BRACKET, GROUND PLA

.MOUNT, LOAD BOARD

.RESISTOR,VOLTAGE SE

.WIRE, VARISTOR L1-V1

.WIRE, VARISTOR L2-V2

.WIRE, VARISTOR L3-V3

.WIRE, VARISTOR L0-V4

..TERMINAL,QUICK DISC

..TERMINAL,LUG

..WIRE, ELECTRIC MAKE

FROM P/N M5086/2-16-9

(81349), 6 INCH ES REQUIRED

12

4

1

1

1

1

1

4

1

1

6

2

6

6

4

8

1

1

1

1

1

1

1

1

1

5

10

5

5

1

1

1

4

4

362

293

1

3

1

1

1

4

1

1

93

116

86

19

2

50

1

1

1

9

4

4

1

1

1

5

10

5

5

1

1

1

4

4

22-1

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

31 MOOZZ MOO

31 MOOZZ MOO

31 MOOZZ MOO

32

33

PAOZZ PAOZZ

PAOZZ PAOZZ

(3) (4) d.

PART

USMC FSCM NUMBER

MOOZZ 19099 88-20305-2-1

MOOZZ 19099 88-20305-3-1

MOOZZ 19099 88-20305-5-1

PAOZZ 30554 88-20527

PAOZZ 30554 88-20530

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

WIRE, ELECTRIC MAKE

FROM P/N M508612-16-9

(81349), 6 INCHES REQUIRED

WIRE, ELECTRIC MAKE

FROM PIN M5086/2-16-9

(81349), 6 INCHES REQUIRED

WIRE, ELECTRIC MAKE

FROM P/N M5086/2-16-9

(81349), 6 INCHES REQUIRED

CAPACITOR-RESISTOR L1,

L2, AND L3

CAPACITOR-RESISTOR LO

AND GND

1

1

1

3

1

1

1

1

3

1

END OF FIGURE

22-2

Figure 23. Generator Installation

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

6

7

4

5

8

9

1

2

3

PAFZZ

PBFZZ

PAFZZ

PAOZZ

PBOZZ

PAOZZ

PAFZZ

PAFZZ

PAOZZ

PAOZZ

PAFZA PAFZA

PAFZA PAFZA

PAFZZ

PAFZZ

PAOZZ

PAOZZ

(3) (4) d.

PART

USMC FSCM NUMBER

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 12 - GENERATOR

ASSEMBLY

FIG. 23 GENERATOR

INSTALLATION

PAFZZ 96906 MS51943-9 . NUT,SELF-LOCKING,HE

PBFZZ 30554 88-20247-2 . WASHER,FLAT

PAFZZ 80204 B1821BH050C325N . SCREW,CAP,HEXAGON H

PAFZZ 96906 MS51412-9

PAFZZ 00779 206062-3

PAFZA 00779 66100-8

PAFZA 00779 206060-1

PAFZZ 96906 MS3367-1-9

PAFZZ 30554 88-20027-1

. WASHER,FLAT

. CLAMP,CABLE,ELECTRI

. CONTACT,ELECTRICAL

. CONNECTOR,PLUG,ELEC

. STRAP,TIEDOWN,ELECT

. MOUNT,RESILIENT

END OF FIGURE

4

1

2

1

2

4

2

10

2

10

2

12

1

2

4

2

V

2

23-1

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

Figure 24. Generator Assembly, 60 Hz

PBFFF

PAF ZZ

PBOOO

PAOZZ

PAFZA PAFZA

PAFZZ PAOZZ

XDFFF XB

PAFZZ PAOZZ

XDFZZ XB

PAFZZ PAOZZ

PAFZZ PAOZZ

XDFZZ XB

PBFFF PBOOO

XDFZZ XB

PAFZZ PAOZZ

XDFZZ XB

PAFZZ PAOZZ

PAFZZ

PAFZZ

PAOZZ

PAOZZ

PAFZZ

PBFFF

PAOZZ

PBOOO

PAFZZ

PAFZZ

PAOZZ

PAOZZ

14

15

16

17

18

19

20

21

9

10

11

12

13

7

8

5

6

3

4

1

2

(1) (2)

SMR CODE c.

ITEM a.

b.

AIR

NO ARMY FORCE NAVY

(3) (4) d.

PART

USMC FSCM NUMBER

PBFFF 30554 88-20040

PAFZZ 44940 862-0011

PAFZA 44940 526-0026

PAFZZ 44940 520-0984-02

XDFFF 44940 211-0436

PAFZZ 44940 815-0181

XBFZZ 44940 234-0876

PAFZZ 44940 802-0038

PAFZZ 44940 853-0013

XBFZZ 44940 232-3541

PBFFF 44940 220-4265

XBFZZ 00779 62048-2

PAFZZ 96906 MS3367-5-9

XBFZZ 44940 211-0370

PAFZZ 44940 509-0094

PAFZZ 44940 800-0050

PAFZZ 44940 850-0050

PAFZZ 44940 526-0013

PBFFF 44940 201-3447-02

PAFZZ 44940 510-0112

PAFZZ 81205 2740-0003

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 12 - GENERATOR

ASSEMBLY

FIG. 24 GENERATOR

ASSEMBLY, 60 HZ

. GENERATOR,ALTERNATI

UOC- EMJ

. . NUT,PLAIN,HEXAGON

UOC- EMJ

. . WASHER

UOC: EMJ

. . STUD,PLAIN

UOC. EMJ

. . ENDBELL ASSEMBLY

UOC. EMJ

. . . SCREW,CAP,HEXAGON H

UOC: EMJ

. . . COVER, INTAKE

UOC: EMJ

. . . SCREW,CAP,HEXAGON H

UOC- EMJ

. . . WASHER,LOCK

UOC EMJ

. . . CONNECTION BOARD AS

UOC: EMJ

. . . STATOR,GENERATOR

UOC: EMJ

. . . . TERMINAL, QUICK DIS

UOC: EMJ

. . . . STRAP,TIEDOWN,ELECT

UOC: EMJ

. . . ENDBELL

UOC- EMJ

. . . O-RING

UOC: EMJ

. . SCREW,CAP,HEXAGON H

UOC: EMJ

. . WASHER,LOCK

UOC: EMJ

. . WASHER,FLAT

UOC EMJ

. . ROTOR,GENERATOR

UOC: EMJ

. . . BEARING,ROTOR

UOC: EMJ

. . . NUT,PLAIN,ASSEMBLED

UOC: EMJ

5

5

1

1

5

1

1

2

4

1

1

2

V

1

4

1

5

4

4

1

4

19

15

1

1

19

1

1

48

8

1

2

2

V

I

4

1

10

4

4

1

4

24-1

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

30

35

36

37

38

39

40

41

42

43

44

31

32

33

34

27

28

29

24

25

26

(1) (2)

SMR CODE b.

c.

a.

ITEM AIR

NO ARMY FORCE NAVY

22

23

PAFZZ

XDFFF

PAOZZ

XB

PAFZZ

PAFZZ

PAFZZ

PAOZZ

PAOZZ

PAOZZ

PAFZA

PAFZZ

PAFZA

PAFZA

PAOZZ

PAFZA

PAFZA

XAFZZ

PAFZZ

PAFZZ

PAFZZ

PAFZZ

XAFZZ

PAFZZ

PAFZZ

XAFZZ

PBFFF

PAFZA

XA

PAOZZ

PAOZZ

PAOZZ

XDFZZ XB

XAFFF XA

PAOZZ

XA

PAOZZ

XDFFF XB

PAOZZ

XA

PBOOO

XDFZZ XB

PAFZA

PAFZZ

PAFZA

PAFZA

(3)

44940

44940

44940

44940

358-0070

(4) d.

PART

USMC FSCM NUMBER

PAFZZ 44940 526-0008

XDFFF 44940 201-3466

PAFZZ 81205 2740-0003

PAFZZ 44940 526-0008

PAFZZ 96906 MS25036-108

813-0100

853-0008

358-0069

XAFZZ 44940 201-2007

PAFZZ 44940 800-0050

PAFZZ 44940 850-0050

PAFZZ 44940 526-0013

XBFZZ 44940 232-3468-01

XAFFF 44940 201-3453-02

PAFZZ 96906 MS25036-112

XAFZZ 44940 201-1997

PAFZZ 80204 B18231B10035

XDFFF 44940 104-1755-02

PAFZZ 44940 104-1756

XAFZZ 44940 104-1744

PBFFF 44940 220-4236-02

XBFZZ 70485 2775-26012

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

. . . WASHER,FLAT

UOC: EMJ

. . . ROTOR CORE, EXCITER

UOC: EMJ

. . . . NUT,PLAIN,ASSEMBLED

UOC: EMJ

. . . . WASHER,FLAT

UOC: EMJ

. . . . TERMINAL,LUG

UOC: EMJ

. . . . SCREW

UOC: EMJ

. . . . WASHER

UOC: EMJ

. . . . SEMICONDUCTOR DEVIC

NEGATIVE

UOC: EMJ

. . . . SEMICONDUCTOR DEVIC

POSITIVE

UOC: EMJ

. . . . LAMINATION ASSY, RO

UOC: EMJ

. . . SCREW,CAP,HEXAGON H

UOC: EMJ

. . . WASHER,LOCK

UOC: EMJ

. . . WASHER,FLAT

UOC: EMJ

. . . DISC, DRIVE

UOC: EMJ

. . . ROTOR ASSY MAIN WOU

UOC: EMJ

. . . . TERMINAL,LUG

UOC: EMJ

. . . . ROTOR CORE, MAIN I

UOC: EMJ

. . SCREW,CAP,HEXAGON H

UOC: EMJ

. . FLYWHEEL ASSY

UOC: EMJ

. . . GEAR,SPUR

UOC: EMJ

. . . FLYWHEEL

UOC: EMJ

. . STATOR,GENERATOR

UOC: EMJ

. . . GROMMET

UOC: FMJ

(6) (7)

USMC

QTY

PER

QTY EQUIP

2

1

6

10

6

4

4

1

1

1

5

5

5

1

1

2

1

5

1

1

1

1

1

24

1

48

24

6

8

8

2

2

1

19

15

19

1

1

2

1

10

1

2

1

1

1

24-2

(1) (2)

SMR CODE b.

c.

a.

ITEM AIR

NO ARMY FORCE NAVY

45

46

47

PAFZZ

PAFZZ

XAFZZ

PAOZZ

PAOZZ

XA

(3) (4) d.

PART

USMC FSCM NUMBER

PAFZZ 98410 C-8718-08

PAFZZ 15912 RB2573

XAFZZ 44940 220-4246-02

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

. . . TERMINAL,LUG #8

UOC: EMJ

. . . TERMINAL,QUICK DISC

UOC: EMJ

. . . HOUSING ASSY

UOC: EMJ

END OF FIGURE

(6) (7)

USMC

QTY

PER

QTY EQUIP

12

2

1

12

2

1

24-3

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

Figure 25. Generator Assembly, 400 Hz

PBFFF PBOOO

PAFZZ

PAFZZ

PAOZZ

PAOZZ

PAFZZ PAOZZ

XDOZZ XB

XDFZZ XB

PAFZZ PAOZZ

PAFZZ PAOZZ

PAFZZ PAOZZ

XDFZZ XB

PAF ZZ

PAFFZ

PAFZZ

PAOZZ

PAFFZ

PAOZZ

XDFZZ XB

PAFZZ PAOZZ

PAFZZ

PBFFF

PAOZZ

PBOOO

XDFZZ XB

PAFZZ PAOZZ

XDFZZ XB

XDFZZ XB

1

6

7

8

4

5

2

3

9

10

11

12

13

14

15

16

17

18

19

20

21

(1) (2)

SMR CODE b.

c.

a.

ITEM AIR

NO ARMY FORCE NAVY

(3) (4) d.

PART

USMC FSCM NUMBER

PBFFF 30554 88-20041

PAFZZ 44940 800-0003

PAFZZ 44940 850-0040

PAFZZ 44940 526-0015

XBOZZ 44940 234-0895

XBFZZ 44940 806-0027

PAFZZ 44940 526-0013

PAFZZ 30554 88-20445-2

PAFZZ 44940 815-0246

XBFZZ 30554 88-20229

PAFZZ 44940 800-0050

PAFFZ 44940 211-0426-02

PAFZZ 44940 815-0181

XBFZZ 44940 234-0876

PAFZZ 44940 815-0774

PAFZZ 44940 853-0013

PBFFF 44940 220-4265

XBFZZ 00779 62048-2

PAFZZ 96906 MS3367-5-9

XBFZZ 44940 232-3541

XBFZZ 44940 211-0427

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

(6) (7)

USMC

QTY

PER

QTY EQUIP

GROUP 12 - GENERATOR ASSEMBLY

FIG. 25 GENERATOR ASSEMBLY, 400 HZ

1 1 . GENERATOR,ALTERNATI

UOC: ENZ

. . SCREW,CAP,HEXAGON H

UOC: ENZ

. . WASHER,LOCK

UOC. ENZ

. . WASHER,FLAT

UOC: ENZ

. . SCREEN ASSY

UOC: ENZ

. . SCREW

UOC: ENZ

. . WASHER,FLAT

UOC: ENZ

. . SCREW,CAP,SOCKET HE

UOC: ENZ

. . SCREW,TAPPING

UOC: ENZ

. . PLATE, RETENTION

UOC: ENZ

. . SCREW,CAP,HEXAGON H

UOC: ENZ

. . END BELL,ELECTRICAL

UOC: ENZ

. . . SCREW,CAP,HEXAGON H

UOC: ENZ

. . . COVER, INTAKE

UOC: ENZ

. . . SCREW,TAPPING

UOC: ENZ

. . . WASHER,LOCK

UOC: ENZ

. . . STATOR,GENERATOR

UOC: ENZ

. . . . TERMINAL, QUICK DIS

UOC: ENZ

. . . . STRAP,TIEDOWN,ELECT

UOC: ENZ

. . . CONNECTION BOARD AS

UOC: ENZ

. . . ENDBELL

UOC: ENZ

1

1

1

1

5

9

4

4

1

4

1

5

4

1

1

4

2

V

1

1

4

1

1

4

19

1

4

1

6

10

6

1

5

19

4

10

2

V

1

1

25-1

27

28

29

30

31

32

33

24

25

26

(1) (2)

SMR CODE b.

c.

a.

ITEM AIR

NO ARMY FORCE NAVY

22

23

PAFZZ

PBFFF

PAOZZ

PBOOO

PAFZZ

PAFZZ

PAFZZ

PAOZZ

PAOZZ

PAOZZ

XDFFF

PAFZZ

PAFZZ

PAFZZ

XB

PAOZZ

PAOZZ

PAOZZ

PAFZA PAFZA

PAFZZ PAOZZ

PAF ZA PAFZA

(3) (4) d.

PART

USMC FSCM NUMBER

PAFZZ 96906 MS28775-233

PBFFF 44940 201-3448-02

PAFZZ 30554 72-5203

PAFZZ 81205 2740-0003

PAFZZ 44940 526-0008

XDFFF 44940 201-3466

PAFZZ 81205 2740-0003

PAFZZ 44940 526-0008

PAFZZ 96906 MS25036-108

PAFZA 44940 813-0100

PAFZZ 44940 853-0008

PAFZA 44940 358-0070

34

35

36

37

38

39

40

41

42

43

44

PAFZA PAFZA

XAFZZ

PAFZZ

XA

PAOZZ

PAFZZ PAOZZ

XDFZZ XB

XDFZZ XB

XDFZZ XB

XDFZZ XB

XDFZZ XB

PAFZZ PAOZZ

XAFZZ XA

PAFZA 44940 358-0069

XAFZZ 44940 201-2007

PAFZZ 44940 800-0050

PAFZZ 44940 850-0050

XBFZZ 44940 232-3473

XBFZZ 44940 232-3472

XBFZZ 44940 232-3468-02

XBFZZ 44940 205-0190

XBFZZ 44940 201-3452-02

PAFZZ 96906 MS25036-112

XAFZZ 44940 201-1744

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

. . . O-RING

UOC: ENZ

. . ROTOR,GENERATOR

UOC: ENZ

. . . BALL,BEARING

UOC: ENZ

. . . NUT,PLAIN,ASSEMBLED

UOC: ENZ

. . . WASHER,FLAT

UOC: ENZ

. . . ROTOR CORE, EXCITER

UOC: ENZ

. . . . NUT,PLAIN,ASSEMBLED

UOC: ENZ

. . . . WASHER,FLAT

UOC: ENZ

. . . . TERMINAL,LUG

UOC: ENZ

. . . . SCREW

UOC: ENZ

. . . . WASHER

UOC: ENZ

. . . . SEMICONDUCTOR DEVIC

NEGATIVE

UOC: ENZ

. . . . SEMICONDUCTOR DEVIC

POSITIVE

UOC: ENZ

. . . . LAMINATION ASSY, RO

UOC: ENZ

. . . SCREW,CAP,HEXAGON H

UOC: ENZ

. . . WASHER,LOCK

UOC: ENZ

. . . DISC, RETENTION

UOC: ENZ

. . . SPACER, ROTOR RTNR

UOC: ENZ

. . . DISC, DRIVE

UOC: ENZ

. . . FAN, GENERATOR

UOC: ENZ

. . . ROTOR & SHAFT ASSY,

UOC: ENZ

. . . . TERMINAL,LUG

UOC: ENZ

. . . . LAMINATION ASSY-ROT

UOC: FNZ

(6) (7)

USMC

QTY

PER

QTY EQUIP

1

1

1

2

2

I

6

10

6

4

4

1

1

1

5

5

1

1

1

1

1

2

1

1

1

1

362

24

1

362

24

6

4

4

2

1

1

19

15

1

1

1

1

1

6

1

25-2

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

50

51

52

53

47

48

49

(1) (2)

SMR CODE b.

c.

a.

ITEM AIR

NO ARMY FORCE NAVY

45

46

PAFZZ

XDFZZ

PAOZZ

XB

PAFZZ

XAFZZ

PBFFF

PAOZZ

XA

PBOOO

PAFZZ

PAFZZ

PAFZZ

XAFZZ

PAOZZ

PAOZZ

PAOZZ

XA

(3) (4) d.

PART

USMC FSCM NUMBER

PAFZZ 80204 B18231B10035

XBFZZ 44940 104-1755-03

PAFZZ 44940 104-1756

XAFZZ 44940 104-1754

PBFFF 44940 220-4237-02

PAFZZ 96906 MS35489-27

PAFZZ 98410 C-8718-08

PAFZZ 15912 RB2573

XAFZZ 44940 220-4238-02

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

. . SCREW,CAP,HEXAGON H

UOC: ENZ

. . FLYWHEEL ASSY

UOC: ENZ

. . . GEAR,SPUR

UOC: ENZ

. . . FLYWHEEL

UOC: ENZ

. . STATOR,GENERATOR

UOC: ENZ

. . . GROMMET,NONMETALLIC

UOC' ENZ

. . . TERMINAL,LUG #8

UOC: ENZ

. . . TERMINAL,QUICK DISC

UOC: ENZ

. . . HOUSING ASSY

UOC: ENZ

END OF FIGURE

(6) (7)

USMC

QTY

PER

QTY EQUIP

5

1

1

1

1

1

12

2

1

5

1

1

1

1

1

46

9

1

25-3

Figure 26. Engine Installation

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(1) (2)

SMR CODE b.

c.

a.

ITEM AIR

NO ARMY FORCE NAVY

4

5

1

2

3

PAFZZ

PAFZZ

PAFZZ

PAOZZ

PAOZZ

PAOZZ

PAFZZ PAOZZ

PAFHH PAFHH

10

11

12

8

9

6

7

PAFZZ

PAFZZ

PAFZZ

PAFZZ

PAOZZ

PAOZZ

PAOZZ

PAOZZ

PBFZZ PBOZZ

PAOZZ PAOZZ

MOOZZ MOO

(3) (4) d.

PART

USMC FSCM NUMBER

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 13- ENGINE

ASSEMBLY

FIG. 26 ENGINE

INSTALLATION

PAFZZ 96906 MS51943-5 . NUT,SELF-LOCKING,HE

PAFZZ 80204 B1821BH038C300N . SCREW,CAP,HEXAGON H

PAFZZ 96906 MS51412-7 . WASHER,FLAT

PAFZZ 30554 88-20247-1

PAFHH 30554 88-21040

. WASHER,FLAT

. ENGINE,DIESEL 4

CYLINDER. SEE TM 9-2815-

253-24P FOR DETAILED

BREAKDOWN

PAFZZ 30554 88-22790-2

PAFZZ 96906 MS51412-25

. NUT,PLAIN,HEXAGON

. WASHER,FLAT

PAFZZ 96906 MS35338-64 . WASHER,LOCK

PAFZZ 80204 B1821BH031C100N . SCREW,CAP,HEXAGON

PBFZZ 30554 88-21070-4

PAOZZ 96906 MS87006-11

MOOZZ 80205 NAS1455-2-14C

. MOUNT,RESILIENT

. HOOK,CHAIN,S

. CHAIN, WELDLESS MAKE

FROM P/N RR-C-271TY2 CL7-

16 (81348), AS REQUIRED.

END OF FIGURE

(6) (7)

USMC

QTY

PER

QTY EQUIP

2

2

1

4

4

4

8

4

1

2

2

2

93

8

116

1

2

5

5

2

2

37

4

1

26-1

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

(1) (2)

SMR CODE b.

c.

a.

ITEM AIR

NO ARMY FORCE NAVY

8

9

9

1

4

6

2

3

7

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

16

17

18

19

20

10

11

12

13

14

15

21

22

23

24

25

26

27

28

29

30

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAO ZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

PAOZZ PAOZZ

(3) (4) d.

PART

USMC FSCM NUMBER

(5)

DESCRIPTION AND

USABLE ON CODE (UOC)

GROUP 14 - BULK ITEMS

FIG. BULK

PAOZZ 81348 RR-C-271 TY2 CL7- . CHAIN,WELDLESS

16

PAOZZ 03007 AA06060406

PAOZZ 03007 AA07060408

. HINGE,BUTT

. HINGE,BUTT

PAOZZ 7B735 A703

PAOZZ 98441 208-12

. HINGE,BUTT

. HOSE,NONMETALLIC 3/4 IN.

ID

PAOZZ 81349 M6000-C-02500

PAOZZ

PAOZZ

PAOZZ

81349

49185

80244

MIL-H-8794-4

483666

33H581

. HOSE,NONMETALLIC 3/8 IN.

ID

. HOSE,NONMETALLIC 3/16 IN.

ID

. HOSE,NONMETALLIC 1/4 IN.

ID

. HOSE,NONMETALLIC 5/16 ID

MIL-H-13444 TYPE 1

PAOZZ 28818 FF40JM02

PAOZZ 81349 M23053/5-108-0

PAOZZ 81349 M23053/5-105-0

PAOZZ 81349 M23053/5-109-2

PAOZZ 81349 M23053/5-109-9

PAOZZ 81349 M23053/5-105-9

PAOZZ 57137 62-B7-1/16

PAOZZ 72205 1-41NDIA

PAOZZ 56329 20941

PAOZZ 71643 200A 1/2 X 3/16

PAOZZ 81349 MILW530

PAOZZ 78174 CS2L

PAOZZ 81349 M5086/2-10-9

PAOZZ 81349 M5086/2-12-9

UOC: EMJ

. SOUND CONTROLLING B

. INSULATION SLEEVING

. INSULATION SLEEVING

. INSULATION SLEEVING

. INSULATION SLEEVING

. INSULATION SLEEVING

. NONMETALLIC CHANNEL

. ROPE,FIBROUS 3/4 IN. CIRC

. SEAL,NONMETALLIC SP

. RUBBER STRIP

. WEBBING,TEXTILE

. WIRE,ELECTRICAL

. WIRE,ELECTRICAL AWG 10

. WIRE,ELECTRICAL AWG 12

PAOZZ 81349 M5086/2-16-9

PAOZZ 81349 M5086/2-20-9

PAOZZ 81349 M5086/2-4-9

PAOZZ 81349 M5086/2-6-9

PAOZZ 81349 M5086/2-8-9

. WIRE,ELECTRICAL AWG 16

. WIRE,ELECTRICAL AWG 20

. WIRE,ELECTRICAL AWG 4

. WIRE,ELECTRICAL AWG #6

. WIRE,ELECTRICAL AWG 8

PAOZZ 00624 900010-32C WIRE,NONELECTRICAL

PAOZZ 81349 M27500-20TE2T14 . CABLE,SPECIAL PURPO

AWG 20

END OF FIGURE

(6) (7)

USMC

QTY

PER

QTY EQUIP

BULK-1

SECTION IV

STOCK NUMBER

4010-00-009-5816

5330-00-010-2822

5310-00-011-5093

5310-00-011-6120

5310-00-011-6121

5340-00-021-0066

5305-00-036-6903

5305-00-036-6972

5305-00-038-3103

5305-00-038-3145

5310-00-044-6477

5310-00-045-5211

5310-00-045-5217

5340-00-050-2740

8305-00-052-2750

5310-00-052-3632

5305-00-052-6681

5340-00-057-2904

5310-00-063-7360

5305-00-068-0511

5305-00-071-2076

5305-00-071-2079

5305-00-071-2512

5975-00-074-2072

5310-00-081-8087

5970-00-082-3942

5925-00-089-3031

6645-00-089-8842

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

20

23

8

BULK

8

10

21

9

12

17

17

17

10

13

3

21

23

3

10

11

10

20

5

8

26

22

22

8

BULK

8

8

13

8

8

11

3

FIG.

26

4

2

21

3

26

3

13

8

5

CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

ITEM

12

36

2

2

19

8

14

15

21

10

9

41

45

7

26

65

17

35

11

4

3

9

35

13

31

25

6

57

7

9

14

30

20

32

8

36

43

33

14

12

34

58

7

3

8

6

STOCK NUMBER

5975-00-111-3208

5940-00-113-8183

5940-00-113-8184

5940-00-113-8191

5940-00-113-9831

5940-00-114-1305

5940-00-114-1306

5940-00-115-2677

4730-00-121-5937

5365-00-133-0904

5975-00-133-8696

2590-00-141-9758

5940-00-143-4771

5940-00-143-4777

5940-00-143-4780

5940-00-143-4794

5940-00-143-5284

5305-00-150-3408

5365-00-166-1798

5325-00-174-9038

5310-00-189-8467

5305-00-191-6226

4730-00-202-6491

5305-00-211-9344

5305-00-224-1092

5305-00-225-3843

5306-00-226-4827

5940-00-230-0515

8

10

3

26

9

12

22

8

11

13

16

5

25

12

8

4

4

6

9

12

24

25

12

24

22

18

4

16

17

12

12

12

10

1

1

2

FIG.

8

9

12

24

25

12

9

12

2

2

47

56

2

9

5

13

15

29

7

26

28

42

43

25

15

30

49

29

6

16

26

30

18

37

4

6

57

29

41

6

26

27

40

1

2

4

ITEM

61

42

46

13

19

20

11

7

5

9

I-1

SECTION IV

STOCK NUMBER

4720-00-235-4131

4030-00-236-0843

5920-00-242-2706

5920-00-243-3787

4730-00-247-9105

5305-00-269-3233

3439-00-273-2536

5310-00-274-8710

5310-00-274-8715

4730-00-278-3383

5940-00-283-5280

6145-00-284-0657

5325-00-290-1960

9505-00-293-4208

5961-00-295-5757

5340-00-297-0312

4730-00-314-8366

5935-00-315-9563

4730-00-318-7288

4820-00-420-5499

5945-00-458-3351

5940-00-478-0037

5935-00-482-7721

5935-00-483-0259

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

18

8

8

17

17

17

7

16

17

17

12

18

18

20

22

18

12

BULK

25

BULK

8

10

12

6

7

8

13

13

15

16

7

16

17

1

5

6

FIG.

BULK

16

17

26

8

8

20

2

888

6

CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

ITEM

6

11

33

11

5

38

67

27

67

8

11

32

15

59

44

4

50

29

53

21

35

20

8

15

19

1

12

28

8

2

31

43

9

13

22

2

2

26

21

9

66

65

5

1

888

14

STOCK NUMBER

5306-00484-5730

2940-00-494-9492

5940-00-504-4703

4020-00-523-9641

5920-00-539-6920

4720-00-542-4668

5940-00-549-6581

5940-00-557-4343

5940-00-557-4345

5355-00-559-8943

4730-00-574-8807

6145-00-578-6594

6145-00-578-6595

6145-00-578-6605

6145-00-578-7513

6145-00-578-7514

5330-00-579-3166

6210-00-583-9349

5310-00-584-5628

4820-00-595-3191

5340-00-598-0228

5940-00-606-4969

5930-00-615-6731

4730-00-618-5370

4720-00-639-9907

5905-00-643-5626

4730-00-647-3207

5940-00-682-2445

5940-00-686-6880

5940-00-687-0294

5975-00-727-5153

2590-00-752-9138

4030-00-780-9350

5340-00-809-1494

5310-00-809-4058

17

10

17

1

5

6

20

12

1

2

8

9

1

10

17

BULK

10

17

25

10

16

17

15

1

BULK

1

1

12

12

10

20

BULK

BULK

BULK

BULK

BULK

FIG.

5

7

13

13

15

16

15

12

BULK

8

43

38

57

21

23

10

3

19

13

10

52

43

8

2

51

8

24

22

22

3

34

35

3

3

4

27

26

24

22

23

9

7

14

14

28

23

ITEM

22

19

30

44

11

12

18

24

17

22

I-2

SECTION IV

STOCK NUMBER

4730-00-812-1333

5970-00-812-1360

5970-00-812-2967

5940-00-813-0698

5310-00-822-8525

5935-00-823-5322

5310-00-836-3520

4730-00-842-2200

5305-00-846-5703

6145-00-851-8505

6625-00-869-3141

5975-00-878-3791

5975-00-879-7234

5920-00-892-9311

5310-00-903-8595

4730-00-908-3193

4730-00-908-3194

4730-00-908-3195

4730-00-908-6294

4730-00-909-8627

4720-00-913-5910

5970-00-914-3117

5330-00-914-7651

5310-00-929-1807

2940-00-934-7989

6210-00-935-6919

5975-00-944-1499

5970-00-954-1622

5305-00-954-5629

5305-00-954-5638

15

BULK

BULK

8

21

15

10

9

12

BULK

10

8

26

BULK

10

21

8

8

6

7

16

18

17

17

22

17

BULK

BULK

12

10

9

17

17

9

8

8

FIG.

7

8

10

13

13

15

16

17

18

20

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

6

17

47

12

36

60

4

9

13

63

7

20

7

24

17

2

18

40

2

25

12

11

9

23

26

28

46

13

49

70

20

32

14

11

5

42

ITEM

9

3

57

32

45

10

14

55

10

17

STOCK NUMBER

4010-00-958-0633

5305-00-958-0999

5940-00-958-1214

5340-00-958-8457

5310-00-965-1820

5330-00-973-8598

4730-00-980-6094

5340-00-984-8540

5310-01-009-6570

5935-01-012-1273

5310-01-012-3595

5935-01-014-2278

5935-01-014-4920

5935-01-014-7861

5935-01-018-1716

5320-01-019-5694

5961-01-019-8003

5940-01-020-2021

10

20

24

25

9

9

12

9

9

5

6

7

22

24

24

25

25

9

15

16

17

17

20

21

8

8

10

11

11

13

25

12

2

5

6

7

FIG.

BULK

10

22

7

8

11

22

24

20

20

59

30

29

33

2

28

37

15

19

48

34

34

1

21

24

25

28

21

1

6

11

39

23

12

4

16

45

1

8

40

3

42

14

1

1

1

ITEM

1

16

16

38

17

9

8

15

2

33

I-3

STOCK NUMBER

5935-01-020-4094

4730-01-020-5607

5961-01-021-2232

5935-01-023-5445

5935-01-024-1902

5935-01-024-7684

5905-01-028-6999

6625-01-038-6826

6625-01-038-6829

6625-01-038-6869

5999-01-039-8438

4730-01-043-6300

5935-01-044-8382

5310-01-051-8089

4730-01-051-9840

5935-01-053-1955

5310-01-060-7181

5310-01-060-9104

5305-01-062-3344

2920-01-071-7742

5340-01-071-8006

5340-01-074-8126

5980-01-076-8659

5310-01-077-9650

5340-01-078-9038

5940-01-082-3321

5975-01-083-0149

5935-01-090-1561

5999-01-092-2655

14

7

9

28

16

41

11

29

46

52

2

17

14

12

2

9

20

28

32

17

33

37

16

22

25

26

29

63

15

14

13

41

16

60

ITEM

19

2

33

43

45

30

34

38

40

20

39

54

7

23

17

17

25

8

20

22

24

25

25

15

15

15

10

24

20

24

25

24

24

25

2

24

24

25

25

17

10

10

10

12

17

17

FIG.

10

12

12

12

17

24

25

12

12

9

12

8

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

STOCK NUMBER

6625-01-095-7044

5935-01-102-7124

6625-01-110-6829

5940-01-112-9746

5935-01-114-5354

4730-01-123-8618

5940-01-126-3973

6620-01-128-3053

6145-01-129-9955

5940-01-135-7081

5940-01-139-0853

5310-01-151-5032

5306-01-156-7663

3110-01-160-9663

5325-01-161-2654

5305-01-165-1254

5999-01-170-0558

5305-01-174-2761

4720-01-174-4983

5310-01-183-5529

5305-01-187-5878

5305-01-190-4461

5310-01-190-4614

5310-01-197-1473

5980-01-198-6311

6240-01-204-3165

5305-01-205-4647

3110-01-214-8361

4730-01-222-0235

10

25

25

17

8

24

25

15

17

10

24

24

25

25

BULK

22

21

22

24

10

17

12

8

10

11

16

17

20

20

24

2

5

6

7

FIG.

17

20

10

9

10

12

8

17

12

20

BULK

9

5

6

24

31

24

27

31

19

38

1

16

32

11

36

7

13

13

2

20

44

1

22

5

46

2

1

24

24

12

3

15

10

2

2

ITEM

66

21

13

24

14

8

62

46

9

7

30

33

I-4

SECTION IV

STOCK NUMBER

5305-01-222-3287

5305-01-224-4644

3040-01-226-4679

5310-01-231-7459

5310-01-234-9415

5310-01-234-9416

4730-01-238-6442

5310-01-249-0904

5945-01-252-1412

5310-01-257-7590

5940-01-259-2190

2590-01-262-0996

5970-01-265-0555

5310-01-266-4641

5977-01-279-3932

5970-01-280-0362

6145-01-282-9578

5305-01-286-1752

5905-01-293-0175

5305-01-300-6264

5325-01-301-7903

5330-01-302-9994

6145-01-303-2938

5310-01-303-4701

5310-01-307-7914

5935-01-312-7038

5999-01-320-7853

5340-01-323-2486

5961-01-330-7886

3120-01-330-8382

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

10

BULK

9

13

10

9

9

BULK

4

4

4

4

4

8

BULK

5

22

20

8

9

16

4

3

23

17

17

26

13

21

26

11

11

16

7

8

8

FIG.

4

4

4

23

6

7

17

21

5

6

CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER

23

4

15

28

31

50

50

19

34

37

61

14

38

42

21

31

27

28

13

7

16

42

7

4

3

62

1

33

3

3

23

6

19

5

15

3

ITEM

16

37

56

1

17

10

23

8

16

15

4730-01-331-2850

5977-01-331-3432

5961-01-331-3974

5305-01-334-8683

5305-01-339-0822

5306-01-343-7128

2815-01-350-2206

5310-01-358-4726

5340-01-360-4846

5305-01-360-5282

5305-01-360-7589

5330-01-360-9089

5305-01-361-1185

3110-01-361-2801

4140-01-361-5876

2920-01-361-8220

5970-01-361-9097

6110-01-363-0492

1660-01-364-9843

5310-01-365-3190

5310-01-365-4381

5310-01-365-4384

5930-01-365-5466

5305-01-365-6313

2940-01-365-6535

5310-01-365-8138

5305-01-365-9390

5930-01-365-9614

5925-01-365-9756

5945-01-365-9953

5930-01-366-0048

6625-01-366-0193

2990-01-366-0735

5305-01-366-1153

6625-01-366-2509

5999-01-366-2621

10

20

25

8

9

12

17

8

20

8

13

10

7

8

13

15

22

17

23

10

4

4

10

6

4

8

17

4

4

4

4

4

4

4

4

4

FIG.

4

17

4

4

5

24

25

4

26

20

7

8

15

20

36

31

37

51

27

11

29

34

21

64

41

2

23

21

2

43

22

53

33

5

48

23

18

12

27

74

8

5

27

7

13

19

ITEM

58

77

9

14

18

6

13

17

5

29

I-5

SECTION IV

STOCK NUMBER

5945-01-366-2726

5330-01-366-2836

5340-01-366-3359

5320-01-366-4394

5999-01-366-5119

2930-01-366-6106

2990-01-366-7020

5306-01-366-7075

2910-01-366-7293

5999-01-366-7952

5310-01-366-8134

5935-01-366-9934

4720-01-367-0007

2930-01-367-0228

5305-01-367-2314

5935-01-367-4422

5950-01-367-4503

5330-01-367-6329

5340-01-367-6703

5340-01-367-6704

5306-01-367-7777

5935-01-367-7814

6110-01-367-8921

5940-01-367-9569

2945-01-368-1081

6620-01-368-1531

5905-01-368-2538

5905-01-368-2539

5930-01-368-2891

5930-01-368-2893

6115-01-368-2911

5310-01-368-3048

5930-01-368-5160

5340-01-368-6048

6115-01-368-6737

6115-01-368-7057

6695-01-368-7113

6115-01-368-7157

6115-01-368-7158

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

5

24

24

20

24

24

8

10

10

4

14

10

9

12

BULK

BULK

BULK

1

8

13

12

15

10

8

10

13

9

20

16

9

7

17

17

12

23

8

FIG.

8

17

26

6

7

21

9

16

14

6

CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER

26

1

19

13

43

11

50

28

30

1

2

22

10

28

11

7

9

48

38

36

18

3

2

22

47

27

22

1

15

12

7

56

29

23

6

26

ITEM

36

5

10

21

25

15

16

35

5

19

5305-01-368-7301

5305-01-368-7450

5306-01-368-8041

5940-01-369-2267

5940-01-369-2269

5940-01-369-2270

5940-01-369-2874

3020-01-369-4953

5940-01-369-6380

6685-01-369-6549

5940-01-369-6948

6695-01-369-9311

5310-01-370-0052

5310-01-370-0053

4730-01-370-5426

6115-01-370-8059

6115-01-370-8065

6115-01-370-8210

5340-01-370-8349

2910-01-371-2723

9905-01-372-7986

5120-01-373-8976

6140-01-374-2243

4720-01-374-8251

6115-01-375-1941

3030-01-375-8087

2940-01-376-5666

9905-01-377-5094

6150-01-378-0829

4730-01-378-5224

2910-01-378-6025

16

17

6

12

16

17

17

7

22

1

15

25

16

17

25

25

25

8

22

8

25

24

24

25

24

25

24

25

22

10

9

12

9

9

12

12

FIG.

25

25

24

25

5

17

8

9

9

12

36

75

37

1

21

68

47

36

6

24

5

49

20

73

1

23

12

39

30

31

4

18

34

7

45

51

41

47

24

8

29

4

21

3

3

4

ITEM

17

9

39

45

39

12

12

35

35

10

I-6

SECTION IV

STOCK NUMBER

5305-01-378-6738

5945-01-378-6749

5930-01-378-6882

5930-01-378-6921

5305-01-378-7034

5945-01-378-7172

5307-01-378-7470

5305-01-378-7899

5305-01-378-8612

6150-01-379-0592

5930-01-379-0644

5340-01-379-0685

5340-01-379-0686

5340-01-379-0687

5340-01-379-0892

5340-01-379-0893

5940-01-379-3482

5940-01-379-3485

5310-01-379-8641

5310-01-379-8642

5310-01-379-8647

5310-01-379-9960

5935-01-380-1611

5305-01-380-3395

5310-01-380-9059

4820-01-381-5079

6625-01-381-8195

6625-01-381-8243

5305-01-381-9970

5915-01-382-0205

5915-01-382-0517

4720-01-382-3102

5998-01-382-6232

5999-01-382-8223

6110-01-382-8413

3020-01-382-8782

6110-01-383-4122

5935-01-383-5778

5330-01-383-6842

5930-01-384-3564

5310-01-384-6243

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

14

17

4

3

8

4

22

22

15

8

1

8

18

20

22

8

8

6

3

9

23

14

4

16

5

12

12

4

26

24

9

10

22

22

14

8

FIG.

24

8

20

20

11

20

24

6

16

8

CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER

1

27

6

7

10

3

33

32

6

45

18

7

34

20

8

9

16

21

4

18

5

1

2

27

5

15

17

4

4

2

1

27

11

12

8

9

ITEM

8

35

9

6

10

22

4

33

9

59

5310-01-384-6262

6110-01-384-7081

6695-01-384-7381

5340-01-384-7863

4720-01-385-1139

2990-01-385-9030

5930-01-386-0543

5305-01-386-5242

6680-01-386-9417

5640-01-386-9618

4730-01-387-4000

4730-01-387-7158

2920-01-388-2776

4720-01-389-0682

5330-01-390-5185

6680-01-392-8821

6110-01-394-4052

5365-01-394-7856

5940-01-395-2557

4710-01-395-3989

5940-01-395-5204

5340-01-396-0454

5930-01-396-2940

5305-01-406-1192

5310-01-406-1672

6150-01-406-2902

4730-01-407-0649

5310-01-407-7191

9390-01-408-1672

4730-01-420-5286

6160-01-422-2218

5315-01-424-6611

5905-01-431-3464

5365-01-431-4540

17

6

BULK

5

5

9

17

1

4

4

8

5

13

13

13

13

5

8

13

13

13

13

13

17

17

BULK

16

17

7

16

14

17

8

3

13

13

FIG.

4

4

4

4

8

14

16

19

13

25

44

19

24

62

49

27

28

15

1

20

22

16

12

16

20

24

43

37

8

11

15

19

23

52

6

13

7

8

2

5

4

10

26

36

15

19

ITEM

39

21

52

10

31

9

18

1

38

8

I-7

SECTION IV

STOCK NUMBER

2930-01-431-4543

6160-01-431-4546

2590-01-431-4557

5961-01-431-4558

5365-01-431-4603

5940-01-431-5366

5940-01-431-5367

4140-01-432-0852

4140-01-432-0855

2990-01-432-1902

2990-01-432-1908

FIG.

CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

ITEM STOCK NUMBER

16

1

17

10

12

5

12

9

16

16

6

6

10

25

42

18

32

17

29

37

5

8

4

3

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

FIG.

ITEM

I-8

SECTION IV

FSCM

68505

27264

16476

14153

27264

27264

27264

27264

27264

0EDY1

68505

72205

36378

36378

36378

36378

68505

68505

24975

68505

24975

79470

24975

68505

0EDY1

44940

44940

44940

44940

44940

68505

68505

77068

68505

68505

93568

68505

PART NUMBER

0142499T36

02-09-1104

02504

02766

03-09-1022

03-09-1032

03-09-1042

03-09-2022

03-09-2032

0344209B135

04B44761F16

1-41NDIA

1003293-03

1003296-02

1003318-01

1003369-03

101-130

101-193

101-206

101-235

103-14

103-22604

103-46

103-55

103-56

104-1744

104-1754

104-1755-02

104-1755-03

104-1756

105-269

105-311

1068374-1

107-114

107-68

10942521

111-21

68505 111-3

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER

5961-01-330-7886

5999-01-039-8438

6620-01-128-3053

5330-01-390-5185

5935-01-012-1273

5935-01-020-4094

5935-00-315-9563

5935-00-482-7721

5935-01-053-1955

5305-01-222-3287

5970-01-361-9097

4020-00-523-9641

5935-01-024-7684

-

5935-01-024-1902

5935-01-023-5445

5935-01-014-2278

-

-

5961-01-331-3974

-

5330-00-010-2822

4730-00-202-6491

5977-01-279-3932

5977-01-331-3432

5330-01-360-9089

-

-

-

-

3020-01-369-4953

6110-01-384-7081

-

4730-00-908-6294

-

4140-01-361-5876

5999-01-382-8223

3120-01-330-8382

5365-00-133-0904

FIG.

4

4

17

4

4

1

24

25

24

25

24

25

4

4

4

4

4

4

4

16

4

4

4

12

12

9

4

4

4

20

4

4

BULK

9

12

4

12

20

14

12

12

12

17

17

ITEM

10

35

40

54

23

18

42

48

40

46

41

47

28

31

50

58

57

60

36

28

38

9

7

40

38

21

61

59

14

20

16

12

17

20

39

15

41

7

6

42

43

44

27

67

I-9

SECTION IV

FSCM

68505

68505

68505

OEDY1

68505

OEDY1

68505

68505

OEDY1

68505

OEDY1

24975

68505

68505

68505

68505

19207

19207

68505

68505

68505

68505

68505

68505

68505

OEDY1

68505

68505

OEDY1

68505

68505

OEDY1

68505

68505

68505

35510

88245

19207

120-137

120-148

120-152

120-178

120-252

120-334

120-336

120-342

120-343

120-347S

120-376

120-378

120-7

12142-4

12325869

PART NUMBER

111-64

111-64S

112-022

112-72

112-95

113-54

113-74

114-106

114-214

114-222

114-223

114-9

115-26

115-27

115-54

115-61

11668089

11682345

120-1

120-102

120-120

120-121

120-136

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER

3110-01-361-2801

3110-01-361-2801

5365-00-166-1798

-

-

-

-

-

5935-01-383-5778

2920-01-361-8220

-

3040-01-226-4679

-

-

5970-01-265-0555

-

5340-01-074-8126

5935-01-044-8382

-

5305-01-224-4644

5310-01-379-8641

5305-01-361-1185

5310-01-384-6262

-

5310-01-365-4384

-

5310-01-380-9059

-

-

-

5305-01-360-5282

5340-01-360-4846

5306-01-343-7128

5310-01-384-6243

-

-

5305-01-360-7589

-

-

5315-01-424-6611

-

5940-00-687-0294

5306-01-156-7663

4

4

8

2

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

15

2

4

4

4

4

4

4

4

4

4

FIG.

4

4

4

4

4

4

4

4

4

4

24

62

52

15

3

39

11

27

33

41

25

55

34

5

8

17

13

21

52

22

53

2

40

12

16

45

37

4

18

26

56

43

44

42

ITEM

48

19

30

49

29

51

20

48

46

6

I-10

SECTION IV

FSCM PART NUMBER

81343

81343

71643

44940

44940

44940

44940

44940

44940

44940

44940

01276

44940

5U990

00779

80089

93061

06555

06555

30327

27264

75915

44940

79470

60177

60177

60177

60177

80131

124-903

125 HB-2-2

127338

127676

129-B-02X24

1490P1

150145

186-6038

1908

19260

19270

19450-1

19990-1

1N5406

2-2-130238

2-2-2 140424C

200A 1/2 X 3/16

201-1744

201-1997

201-2007

201-3447-02

201-3448-02

201-3452-02

201-3453-02

201-3466

2018-2-4S

205-0190

205-605

206060-1

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER

5945-01-252-1412

-

2990-01-366-0735

6680-01-386-9417

4730-00-574-8807

5935-00-483-0259

5920-00-242-2706

5310-01-358-4726

4730-01-387-4000

6695-01-384-7381

6695-01-369-9311

5925-01-365-9756

-

5961-00-295-5757

-

-

-

-

-

-

-

4730-00-247-9105

5330-01-302-9994

-

-

-

6115-01-368-7057

6115-01-370-8065

-

-

-

4730-01-331-2850

-

4730-01-407-0649

5935-01-090-1561

17

25

17

23

24

25

25

24

24

25

20

BULK

25

24

24

25

10

12

17

8

8

8

17

8

20

16

8

8

22

13

17

20

17

20

FIG.

5

6

7

8

10

11

16

17

20

21

77

41

20

7

19

23

42

36

23

27

5

19

44

38

31

35

11

11

53

21

35

30

8

66

29

26

31

31

2

33

78

8

4

4

ITEM

10

2

2

5

46

2

1

24

24

13

I-11

SECTION IV

28520

44940

44940

44940

44940

44940

28520

44940

44940

02768

FSCM

00779

97539

97539

00779

98441

56329

77342

44940

44940

44940

44940

27687

08928

44940

44940

44940

44940

44940

77342

80064

81205

PART NUMBER

206062-3

206138-1

206151-1

207774-1

208-12

20941

20C318

211-0370

211-0426-02

211-0427

211-0436

21NTE-813

21NTE102

220-4236-02

220-4237-02

220-4238-02

220-4246-02

220-4265

2314

232-3468-01

232-3468-02

232-3472

232-3473

232-3541

2326

234-0876

234-0895

236-170406-04

24A071

2601167

2740-0003

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER

5935-01-380-1611

5935-01-014-4920

5935-01-014-7861

5935-01-312-7038

4720-00-235-4131

5330-01-367-6329

5340-01-370-8349

-

6115-01-370-8210

-

-

5310-01-183-5529

5310-01-406-1672

6115-01-368-7157

6115-01-375-1941

-

-

6115-01-368-7158

-

4730-01-378-5224

-

-

-

-

-

4730-01-370-5426

-

-

5320-01-366-4394

5340-01-078-9038

5935-01-114-5354

5310-01-012-3595

7

8

8

10

21

8

8

2

5

6

17

24

25

25

6

7

25

25

25

24

25

16

25

24

24

25

16

24

25

24

22

5

24

25

FIG.

9

23

12

9

9

BULK

BULK

8

24

25

1

4

16

45

15

41

62

14

1

1

73

7

14

5

21

25

40

39

38

10

20

20

53

47

11

17

21

35

21

5

13

15

43

49

ITEM

18

5

37

15

14

6

18

39

14

12

I-12

SECTION IV

FSCM PART NUMBER

70485

77342

9R803

9R803

9R803

80256

73734

9R803

9R803

9R803

9R803

9R803

80244

70436

63123

44940

44940

27264

81343

2775-26012

27E893

3000-6

3000-6-XP-74

300JS

307608

3145

3300-14

3300-14-XP-74

3300-24

3300-24-XP-74

330JS

33H581

347L-032-2

35-000252-001

358-0069

358-0070

39-01-2180

4-2 071502CA

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER

-

5935-01-367-4422

-

-

-

-

-

-

-

-

-

5306-00-484-5730

5305-00-958-0999

-

-

5940-01-431-5367

-

5999-01-366-2621

4720-00-542-4668

2990-01-385-9030

5999-01-092-2655

5961-01-021-2232

5961-01-019-8003

5935-01-366-9934

4730-00-980-6094

24

25

9

20

17

17

17

20

24

25

12

BULK

19

9

8

9

13

15

16

10

12

11

9

10

9

5

7

13

24

24

25

25

24

9

FIG

11

11

13

15

16

17

17

20

21

22

29

33

22

2

9

28

66

21

30

34

37

40

36

31

9

1

44

11

12

16

30

12

40

32

39

22

19

30

21

24

25

28

44

38

ITEM

1

8

40

1

6

11

39

23

12

1

I-13

SECTION IV

FSCM

81343

81343

72850

77342

24161

9R803

9R803

83330

49185

24161

78189

44940

44940

78189

78189

44940

83330

74545

79470

44940

44940

44940

44940

00779

81343

78189

57137

00779

77221

00779

00779

PART NUMBER

4-4-4 070424S

4-4070202C

40193

40G432

4289-1972

4300-12

4300-12-XP-74-

47-0901-2900-201

483666

4C5C-3-4FJX-3-4FJX-16

501 P06080000AMB

509-0094

510-0112

511-001800-00-

511-081800-00

520-0984-02

521-9208

5211

52487

526-0008

526-0013

526-0015

526-0026

52949

6-8-140239

61-101041-90-0142B-0542B

62-B7-1/16

62048-2

638-18049

66098-9

66100-8

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS REFERENCE INDEXES

NATIONAL STOCK NUMBER INDEX

STOCK NUMBER

4730-01-222-0235

4730-01-051-9840

2910-01-378-6025

5970-01-280-0362

4720-01-382-3102

5940-01-431-5366

-

6210-00-935-6919

4720-00-913-5910

4720-01-367-0007

5310-00-063-7360

5330-00-973-8598

3110-01-160-9663

-

5310-00-052-3632

5307-01-378-7470

5980-01-198-6311

5975-00-879-7234

4820-01-381-5079

5310-01-051-8089

5310-01-370-0053

5310-01-370-0052

5310-01-151-5032

5940-01-020-2021

-

5305-01-187-5878

9390-01-408-1672

6625-01-038-6869

-

5999-01-366-7952

12

18

8

BULK

24

25

10

9

12

23

25

24

9

9

10

12

24

25

25

24

24

25

11

24

10

8

16

24

13

24

24

10

8

10

FIG.

17

17

17

8

15

12

11

10

BULK

20

13

25

23

6

33

12

24

16

12

18

28

19

2

4

3

2

25

26

29

18

34

7

13

4

1

9

27

22

35

15

20

62

32

35

ITEM

31

63

68

42

6

29

11

6

9

1

I-14

83385

94222

94222

94222

94222

44940

44940

33875

0UJ55

44940

44940

02768

44940

44940

44940

44940

83385

SECTION IV

FSCM

00779

00779

81646

93742

30554

30554

79470

71744

79550

16476

30554

30554

30554

30554

30554

44940

44940

PART NUMBER

66331-8

66332-8

6724

69-539-2

69-574

69-662-35

695

6S6-30V

70076

71544-00

72-5007-1

72-5007-2

72-5008

72-5016

72-5203

800-0003

800-0050

800045-02

800U

802-0038

806-0027

8070-25-00

813-0100

815-0181

815-0246

815-0774

841-4-40

841-6-32

85-12-460-16

85-34-101-20

85-35-309-56

85-46-103-39

850-0040

850-0050

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER

5999-01-170-0558

5999-01-366-5119

4730-00-908-3193

4730-00-812-1333

6625-00-869-3141

5305-00-038-3103

4820-00-595-3191

6240-01-204-3165

5940-00-606-4969

6695-01-368-7113

6625-01-038-6829

6625-01-110-6829

6625-01-038-6826

6625-01-095-7044

3110-01-214-8361

5305-01-062-3344

5305-01-174-2761

5935-01-018-1716

6140-01-374-2243

5305-01-378-6738

5305-01-205-4647

5310-01-407-7191

5305-01-190-4461

5305-01-339-0822

5305-01-368-7301

5305-01-366-1153

5310-00-836-3520

5310-00-063-7360

5325-01-161-2654

5310-00-822-8525

5325-01-301-7903

5310-01-365-4381

5310-01-009-6570

5310-01-060-9104

FIG.

8

10

10

8

9

5

25

24

25

25

25

8

10

10

10

25

24

9

1

24

25

6

24

25

25

24

24

25

25

1

20

10

10

10

10

12

9

16

17

10

8

17

10

1

ITEM

46

13

6

57

17

44

31

6

13

9

15

28

42

50

43

3

17

19

24

8

6

22

27

24

2

16

32

11

36

8

13

14

14

15

13

22

16

17

32

12

43

35

5

3

I-15

SECTION IV

FSCM PART NUMBER

76700

44940

44940

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

44940

53498

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

85285-F

853-0008

853-0013

862-0011

871-92UU-NGEC

88-20000

88-20002

88-20003

88-20005

88-20008

88-20009

88-20010-

88-20011-

88-20012

88-20013

88-20014

88-20027-1

88-20030

88-20031

88-20032

88-20032-77

88-20034

88-20036-

88-20040

88-20041

88-20044

88-20045

88-20046

88-20055

88-20059-

88-20060

88-20062

88-20063-03

88-20063-04

88-20065

88-20066

88-20067

88-20071-140

88-20071-172

88-20071-182-

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER FIG.

24

25

ITEM

33

37

2940-01-376-5666

5310-01-060-7181

5310-01-077-9650

5310-01-379-8647

6625-01-381-8195

-

-

3020-01-382-8782

-

-

-

-

-

-

-

-

-

-

-

6110-01-394-4052

6110-01-382-8413

-

6115-01-368-6737

6115-01-370-8059

-

-

-

-

-

5306-01-367-7777

5930-01-384-3564

-

-

-

5940-01-369-6380

-

-

-

-

17

6

6

1

7

1

11

24

25

5

5

5

6

22

22

16

17

18

23

7

7

8

10

8

5

5

6

5

5

5

8

10

6

3

5

6

17

24

25

24

25

24

23

17

22

10

36

36

47

46

45

6

1

1

26

24

25

4

72

3

9

16

29

7

4

7

34

33

27

44

41

40

34

52

28

1

35

18

75

28

32

9

16

2

I-16

SECTION IV

FSCM

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

61277

30554

30554

30554

19099

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

PART NUMBER

88-20140

88-20148

88-20149

88-20150

88-20153

88-20160-03

88-20160-04

88-20179

88-20189

88-20190

88-20191-2

88-20191-2-2

88-20191-4

88-20191-4-2

88-20193

88-20197

88-20198

88-20199

88-20071-196

88-20071-237

88-20071-300

88-20073-

88-20076

88-20077

88-20078

88-20091

88-20093

88-20098

88-20101

88-20102

88-20104

88-20110

88-20116

88-20121

88-20122

88-20123

88-20124

88-20126

88-20128

88-20134

88-20134-2-

88-20134-4

88-20136

88-20136-68

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

STOCK NUMBER FIG.

ITEM

-

-

-

-

-

-

-

-

2930-01-367-0228

2930-01-366-6106

-

9905-01-377-5094

5340-01-379-0892

-

-

2930-01-431-4543

-

-

-

-

-

-

-

-

-

-

-

4140-01-432-0855

4140-01-432-0852

-

-

-

-

4710-01-395-3989

4720-01-385-1139

4720-01-389-0682

-

-

-

-

2590-01-431-4557

9905-01-372-7986

-

-

6

17

16

16

17

17

5

16

16

21

10

6

17

17

17

7

5

10

5

10

10

10

14

14

20

16

18

5

6

5

16

16

5

6

8

5

17

6

17

7

5

5

5

5

35

52

18

19

69

71

53

8

5

10

60

35

48

50

42

36

9

54

52

37

41

39

3

4

32

10

11

32

32

55

15

35

49

37

9

54

34

25

19

35

51

24

25

3

I-17

SECTION IV

FSCM

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

PART NUMBER

88-20200

88-20201

88-20202

88-20203

88-20204

88-20205

88-20206

88-20207

88-20208

88-20212

88-20213

88-20214

88-20215

88-20216

88-20217

88-20218

88-20229

88-20244

88-20245

88-20246

88-20247-1

88-20247-2

88-20248

88-20253

88-20255

88-20256

88-20256-15

88-20256-16

88-20256-17

88-20258

88-20259

88-20260-20

88-20260-22

88-20260-23

30554

30554

88-20260-20

88-20260-33

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER

-

-

-

-

-

-

-

-

4730-01-420-5286

-

-

-

-

-

2920-01-388-2776

-

-

-

-

5310-01-379-8642

5310-01-365-3190

-

-

-

6150-01-379-0592

-

-

-

-

-

5306-01-368-8041

5305-01-378-7899

5305-01-365-6313

5306-01-368-8041

5306-01-366-7075

FIG.

16

6

7

8

13

15

9

9

8

7

5

6

22

17

6

7

17

23

8

22

8

9

9

7

25

22

5

5

26

7

7

7

7

7

7

10

13

13

13

10

10

5

7

17

ITEM

9

5

21

64

41

2

9

10

44

37

39

33

23

12

19

7

56

2 "

25

7

56

1

8

15

10

26

36

14

4

5

6

12

28

31

13

58

47

46

39

48

49

13

3

44

1-18

SECTION IV

FSCM

30554

PART NUMBER

88-20260-34

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

19099

30554

19099

30554

19099

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

88-20301-2-2

88-20301-3-

88-20301-3-1

88-20301-4-

88-20301-4-1

88-20301-5

88-20301-5-1

88-20301-6

88-20301-6-1

88-20301-7

88-20301-7-1

88-20305-1-

88-20305-1-1

88-20305-2-

88-20305-2-1

88-20305-3-

88-20305-3-1

88-20305-5-

88-20268

88-20273

88-20282

88-20283

88-20284

88-20286

88-20289

88-20289-21

88-20289-27

88-20289-28

88-20289-29

88-20289-30

88-20289-31

88-20291

88-20293

88-20293-11

88-20294

88-20295

88-20299

88-20301-1

88-20301-1-1

88-20301-2

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

STOCK NUMBER FIG.

ITEM

5305-01-381-9970

-

3030-01-375-8087

-

-

-

5330-01-366-2836

6150-01-378-0829

-

-

-

-

-

-

-

5998-01-382-6232

-

-

-

5305-01-365-9390

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

13

13

13

13

13

22

13

13

13

13

13

13

22

22

22

22

22

22

13

13

13

6

7

8

12

12

12

7

8

8

6

17

12

12

12

12

6

18

20

22

7

16

6

6

17

18

21

22

25

28

10

13

14

6

7

9

31

28

31

28

31

28

23

26

51

1

3

4

50

51

53

33

45

55

13

5

1

52

48

49

16

21

4

36

11

12

8

9

I-19

SECTION IV

FSCM

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

PART NUM BER

88-20319

88-20324

88-20325-2

88-20328

88-20329

88-20445-2

88-20458

88-20459

88-20460

88-20461

88-20462

88-20479

88-20480

88-20482

88-20483

88-20484

88-20489

88-20492

88-20308

88-20309

88-20310

88-20311

88-20312

88-20312-1

88-20312-4

88-20313

88-20313-1

88-20313-4

88-20314

88-20314-1

88-20314-4

88-20314-5

88-20315-

88-20315-1

88-20315-4

88-20315-5

88-20316

88-20316-1

88-20316-4

88-20316-5

88-20317

88-20317-1

88-20318

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

STOCK NUMBER FIG.

ITEM

5340-01-379-0686

5340-01-379-0685

-

-

5940-00-113-9831

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

6145-01-303-2938

2990-01-432-1902

2990-01-432-1908

-

-

-

-

5305-01-386-5242

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

6680-01-392-8821

5

16

17

5

5

5

6

17

17

5

5

25

20

20

17

20

6

17

9

9

6

2

2

2

1

1

1

1

1

2

1

1

1

2

2

2

22

22

22

22

22

1

1

1

19

38

30

29

7

64

3

14

58

50

56

8

10

18

6

26

24

13

13

11

12

27

34

4

10

12

17

15

16

8

6

11

9

3

7

6

31

12

11

10

17

1

5

4

I-20

SECTION IV

FSCM

30554

30554

30554

06555

30554

30554

30554

60177

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

36024

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

PART NUMBER

88-21070-4

88-21098

88-21101

88-21103

88-21109

88-21117

88-21126

88-21132

88-21139

88-21141

88-21143-1

88-21143-3

88-21146

88-21154

88-21160

88-21166

88-21738

88-21776

88-20494

88-20495

88-20496

88-20499

88-20500

88-20507

88-20508

88-20509-

88-20514

88-20516

88-20517

88-20518

88-20519

88-20522

88-20523

88-20524

88-20527

88-20530

88-20620-34

88-21000

88-21026

88-21040

88-21062

88-21063

88-21064

88-21066

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

STOCK NUMBER FIG.

ITEM

5365-01-394-7856

6150-01-406-2902

5310-01-379-9960

-

4720-01-374-8251

-

-

-

-

6160-01-431-4546

5340-01-379-0687

5340-01-384-7863

5330-01-383-6842

6160-01-422-2218

-

-

5915-01-382-0517

5915-01-382-0205

-

-

2910-01-371-2723

2815-01-350-2206

-

6110-01-363-0492

6110-01-383-4122

6110-01-367-8921

5340-01-366-3359

5340-01-368-6048

1660-01-364-9843

6625-01-366-0193

2990-01-366-7020

4730-01-387-7158

5930-01-378-6921

5950-01-367-4503

5945-01-378-6749

5945-01-366-2726

6625-01-366-2509

6625-01-381-8243

5120-01-373-8976

6115-01-368-2911

5930-01-368-5160

5310-01-365-8138

2910-01-366-7293

-

20

12

8

8

8

8

26

5

17

10

14

17

22

4

10

17

17

20

17

26

15

8

8

13

21

21

22

22

7

21

10

1

14

14

14

1

3

7

15

16

16

11

3

9

6

36

35

36

20

20

10

26

74

7

5

36

6

1

22

37

29

31

47

5

13

27

27

28

16

14

32

33

30

6

51

25

8

9

7

19

4

20

5

30

33

4

8

1

1-21

SECTION IV

FSCM

10983

30554

30554

30554

30554

30554

30554

30554

30554

30554

81640

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

PART NUMBER

88-21902

88-22000

88-22005

88-22006

88-22010

88-22012

88-22034

88-22035

88-22041

88-22044

88-22141

88-22203

88-22302-10

88-22302-11

88-22302-16

88-22302-17

88-22331-2

88-22418-1

88-22418-2

88-22460

88-22460-2

88-22482

88-22483

88-22515

88-22546

88-22629-001

88-22629-002

88-22629-003

88-22670-3

88-22705

88-22752-5

88-22752-6

88-22755

88-22790-1

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

STOCK NUMBER FIG.

ITEM

5930-01-365-5466

-

-

-

-

-

-

-

-

-

5930-01-366-0048

5930-01-378-6882

-

-

-

-

5310-01-368-3048

5961-01-431-4558

-

-

-

5365-01-431-4603

5365-01-431-4540

-

-

-

-

-

-

-

-

-

-

-

2940-01-365-6535

-

16

5

16

16

17

5

17

9

9

10

9

10

10

13

15

6

7

8

12

22

22

5

5

5

16

16

14

10

12

10

3

10

10

20

16

16

10

21

6

7

21

7

6

6

39

4

37

38

21

20

25

30

31

25

32

26

16

18

1

55

42

8

34

3

5

17

27

37

24

23

2

18

32

20

13

53

34

9

25

22

33

5

30

32

17

27

31

6

I-22

30554

30554

30554

30554

06555

94222

13555

36024

36024

80063

07707

7B735

98410

30554

30554

30554

30554

81640

81640

81640

68505

00624

06555

98410

03007

03007

88044

88044

88044

60886

98410

80204

80204

80204

SECTION IV

FSCM PART NUMBER

88-22790-2

88-22790-4

88-22792-1

88-22793-4

88-22793-5

88-22812

88-22813

88-22815

8906K4519

8906K4522

8906K4533

8MR3005CA

900010-32C

940107

940109

97-50-170-11

99023N

999-0616-7

999-0667-4

A3029220-1

A3816

A703

AA-8714-08

AA-8715-10

AA06060406

AA07060408

AN742-40

AN931-12-17

AN960C2016

AYW401-R

B-801-12HDX

B1821BH025C100N

B1821BH025C225N

B1821BH031C100N

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER

-

-

-

-

-

-

-

-

5930-01-368-2893

5930-01-365-9614

5930-01-368-2891

-

9505-00-293-4208

6685-01-369-6549

6620-01-368-1531

5340-01-396-0454

6645-00-089-8842

-

-

5980-01-076-8659

5310-01-197-1473

5340-01-323-2486

5940-01-369-2269

5940-01-369-2270

5340-01-367-6704

5340-01-367-6703

5340-00-598-0228

5325-00-174-9038

5310-00-584-5628

5930-01-379-0644

5940-01-369-6948

5305-00-225-3843

5305-00-071-2512

5306-00-226-4827

FIG.

17

BULK

9

12

9

9

12

BULK

BULK

15

6

16

10

22

10

21

3

10

20

10

4

BULK

10

10

5

10

17

17

10

5

8

11

8

8

7

17

18

20

21

22

3

26

3

22

ITEM

3

29

34

4

2

3

38

4

3

3

4

29

27

30

56

9

2

9

43

10

17

61

2

30

27

28

32

29

8

2

18

3

69

68

39

53

7

14

1

18

10

6

5

22

I-23

80204

80204

80204

80204

80204

80204

80204

80204

80204

98410

98410

SECTION IV

FSCM

98410

83879

98410

98410

98410

10983

78553

78553

78553

78553

71468

1E045

1E045

74545

78174

98410

98410

PART NUMBER

B1821BH031C125N

B1821BH038C125N

B1821BH038C300N

B1821BH038F063N

B1821 BH050C325N

B1821 BH050C400N

B18231B06012N

B18231B10025N

B18231B10035

BB-8194-08

BB-8707-06

BB-8717-10

BBL150

C-8198-10

C-8710-06

C-8718-08

C26-C57442ER

C7931-1032-3B

C7941-1032-3B

C7988-1420-3B

C7998-1420-3B

CA3100R32A10S-B-05F80

CAT 370

CAT 380

CR15

CS2L

F-766-12

F-767-14

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

STOCK NUMBER FIG.

ITEM

5305-00-068-0511

5305-00-068-0511

5305-00-846-5703

5305-00-269-3233

5305-00-071-2076

5305-00-071-2079

5305-01-300-6264

5305-01-380-3395

5305-01-368-7450

5940-01-259-2190

5940-01-369-2267

5940-01-367-9569

5975-01-083-0149

5940-01-379-3485

5940-01-379-3482

5940-01-369-2874

5930-01-386-0543

5310-00-903-8595

5310-01-366-8134

5340-00-297-0312

5340-00-021-0066

5935-01-102-7124

-

-

5935-01-367-7814

6145-01-282-9578

5940-01-395-5204

5940-01-395-2557

BULK

13

13

13

13

13

16

13

9

5

5

8

7

8

10

13

6

7

12

12

24

25

13

6

9

9

12

12

7

12

14

24

25

8

9

8

26

3

21

26

2

23

3

20

32

34

24

12

11

10

24

26

47

27

20

11

21

12

16

20

24

2

15

21

45

51

38

7

35

35

10

11

14

17

1

39

45

13

7

12

9

11

3

9

28

4

2

1

I-24

81349

81349

81349

81349

81349

81349

81349

81349

81349

81349

31827

81349

81349

96906

96906

81349

81349

28818

01276

81349

15277

18265

49956

91637

91637

91637

30327

77342

81349

81349

81349

81349

81349

81349

SECTION IV

FSCM PART NUMBER

F03A125V30A

F03A250V10AS

FF40JM02

FF9311-36

FHN26G1

FS0216B122-1

FWG05-2619-1

G435720-1

HLM-10-10Z1301J

HLM-20-10Z-20ROJ

HLM-20-10Z7R50J

KF12-08PS

KUP14D15-24VDC

M23053/5-105-0

M23053/5-105-9

M23053/5-108-0

M23053/5-109-2

M23053/5-109-9

M24243/1A402

M27500-20TE2T14

M5086/2-10-9

M5086/2-12-9

M5086/2-16-9

M5086/2-20-9

M5086/2-4-9

M5086/2-6-9

M5086/2-8-9

M6000-C-02500

M83519/2-3

MF6T-TPR87-B-

MIL-H-8794-4

MILW530

MS15795-911

MS15795-917

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

STOCK NUMBER FIG.

ITEM

5920-00-539-6920

5920-00-243-3787

5640-01-386-9618

4730-00-909-8627

5920-00-892-9311

5975-00-878-3791

-

5999-01-320-7853

5905-01-368-2539

5905-01-431-3464

5905-01-368-2538

4730-00-318-7288

5945-00-458-3351

5970-00-954-1622

5970-00-082-3942

5970-00-812-2967

5970-00-914-3117

5970-00-812-1360

5320-01-019-5694

6145-01-129-9955

6145-00-578-7513

6145-00-578-7514

6145-00-578-6605

6145-00-851-8505

6145-00-578-6595

6145-00-578-6594

6145-00-284-0657

4720-01-174-4983

5940-01-135-7081

-

4720-00-639-9907

8305-00-052-2750

5310-00-045-5211

5310-00-045-5217

BULK

BULK

BULK

7

10

20

BULK

BULK

BULK

BULK

BULK

BULK

9

5

BULK

BULK

22

22

18

8

BULK

8

8

8

BULK

BULK

BULK

BULK

5

6

BULK

15

8

21

15

9

13

13

13

13

13

13

8

8

24

25

26

27

28

7

34

59

30

30

22

23

33

8

8

20

9

14

15

11

13

14

48

34

50

49

48

4

38

12

10

4

23

11

21

23

11

15

19

23

22

65

5

8

I-25

SECTION IV

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

FSCM

96906

96906

96906

96906

96906

96906

96906

PART NUMBER

MS20659-144

MS21044N06

MS21333-102

MS21333-105

MS21333-71

MS21333-75

MS21333-78

MS24587-4

MS25036-101

MS25036-103

MS25036-104

MS25036-106

MS25036-108

MS25036-112

MS25036-113

MS25036-115

MS25036-116

MS25036-117

MS25036-118

MS25036-121

MS25036-127

MS25036-128

MS25036-150

MS25036-154

MS25036-157

MS25036-158

MS25041-5

MS25189-119

MS25224-1

MS25251-16

MS28775-233

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

STOCK NUMBER FIG.

ITEM

5940-00-115-2677

5310-00-081-8087

5340-00-984-8540

5340-00-809-1494

5340-00-057-2904

5340-00-050-2740

5340-00-958-8457

4730-00-842-2200

5940-00-813-0698

5940-00-143-4771

5940-00-504-4703

5940-00-283-5280

5940-00-143-4780

5940-00-143.4794

5940-00-113-8183

5940-00-143-5284

5940-00-114-1305

5940-00-114-1306

5940-00-557-4345

5940-00-557-4343

5940-00-113-8191

5940-00-113-9831

5940-00-113-8184

5940-00-230-0515

5940-00-143.4777

5940-00-682-2445

6210-00-583-9349

5940-00-686-6880

5930-00-615-6731

5935-00-823-5322

5330-00-579-3166

12

9

12

9

12

12

12

2

2

1

2

9

10

1

2

10

9

25

25

12

12

12

12

12

12

12

24

25

12

24

8

11

17

17

12

12

10

22

8

20

17

20

B

7

7

5

13

6

16

19

14

5

9

2

4

11

3

13

10

29

26

22

43

20

25

26

27

28

24

12

26

30

18

37

17

9

49

70

5

6

40

4

14

33

57

25

30

38

I-26

SECTION IV

FSCM

96906

PART NUMBER

MS3367-1-9

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

MS3367-4-9

MS3367-5-9

MS3367-6-9

MS3368-1-9A

MS35198-29

MS35198-42

MS35198-46

MS35206-329

MS35228-63

MS35338-62

MS35338-63

MS35338-64

MS35338-65

MS35338-67

MS35489-27

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

STOCK NUMBER FIG.

ITEM

5975-00-074-2072

5975-00-727-5153

5975-00-111-3208

5975-00-133-8696

5975-00-944-1499

5305-00-052-6681

5305-00-954-5629

5305-00-954-5638

5305-00-150-3408

-

5310-00-274-8710

5310-00-274-8715

5310-00-011-6120

5310-00-011-5093

21

5310-00-011-6121

5325-00-290-1960

13

15

16

18

20

22

7

8

13

1

5

6

3

26

2

2

3

25

8

17

6

7

16

17

9

12

10

10

8

10

8

9

12

24

25

16

9

12

17

17

17

20

23

9

15

54

14

22

2

2

17

47

31

36

60

63

61

42

46

13

19

29

41

45

7

26

65

19

8

43

43

9

13

8

15

19

26

21

9

8

2

31

3

8

2

6

50

I-27

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

SECTION IV

FSCM

96906

96906

96906

96906

96906

PART NUMBER

MS35645-1

MS35842-11

MS51007-12

MS51412-1

MS51412-2

MS51412-20

MS51412-25

MS51412-4

MS51412-5

MS51412-7

MS51412-9

MS51481-02

MS51492-14

MS51493-2

MS51493-3

MS51504A4

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

STOCK NUMBER FIG.

ITEM

2590-00-141-9758

4730-00-908-3194

5330-00-914-7651

5310-01-303-4701

5310-01-234-9416

5310-01-307-7914

5310-00-044-6477

5310-00-809-4058

5310-01-234-9415

5310-01-257-7590

5310-01-266-4641

5305-01-286-1752

5305-01-165-1254

5305-01-334-8683

5305-01-406-1192

4730-00-647-3207

17

21

21

26

3

23

17

18

20

22

6

7

5

17

5

5

17

20

8

10

13

13

15

16

3

26

1

5

6

7

8

11

11

16

17

10

17

18

8

13

5

6

7

8

23

8

3

3

7

4

55

10

17

20

17

10

31

1

18

28

22

3

3

57

32

45

10

14

12

7

21

23

10

9

19

5

15

3

3

61

41

2

63

37

16

15

23

6

I-28

SECTION IV

45722

45722

45722

45722

45722

45722

FSCM

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

96906

80205

45722

45722

18265

18265

18265

18265

18265

18265

18265

45722

PART NUMBER

MS51508B4-4Z

MS51520A5

MS51521A4

MS51531B4

MS51533B4

MS51860-54

MS51873-79

MS51922-2

MS51922-3

MS51943-5

MS51943-9

MS51971-1

MS75004-1

MS87006-11

MS87006-13

MS90908-1

MS91528-2K2B

NAS1455-2-14C

P-15121-11

P-15121-17

P00-2904

P00-5300

P00-5408

P10-1870

P10-2523

P10-3007

P14-8969

P15121-20

P15121-37

P15121-4

P15121-5

P15121-64

P15121-67

P15121-68

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

STOCK NUMBER FIG.

ITEM

4730-01-238-6442

4730-01-123-8618

4730-00-618-5370

4730-00-314-8366

4730-01-043-6300

4730-01-020-5607

4730-00-121-5937

5310-00-929-1807

5310-00-965-1820

5310-01-249-0904

5310-01-231-7459

-

5940-00-549-6581

4030-00-236-0843

4030-00-780-9350

2590-00-752-9138

5355-00-559-8943

4010-00-009-5816

5305-01-367-2314

5305-00-211-9344

5340-01-071-8006

-

-

5310-01-190-4614

2940-00-494-9492

2920-01-071-7742

2940-00-934-7989

5305-00-036-6972

5305-00-038-3145

5305-00-036-6903

5305-00-224-1092

5305-00-191-6226

5305-01-378-7034

5305-01-378-8612

5

8

13

8

11

8

15

15

15

15

15

15

8

8

11

13

11

8

17

10

26

9

5

15

1

1

16

17

26

10

18

21

22

26

23

1

17

17

17

17

17

17

17

17

7

8

36

33

14

58

15

16

19

18

17

20

47

29

7

26

10

59

43

23

12

12

42

14

7

14

11

33

11

38

1

1

20

6

7

8

62

46

51

15

59

16

60

45

I-29

FSCM

15235

76700

78225

59730

59730

59730

15912

59730

18265

4J181

81348

81349

74159

27182

78388

81343

99017

93232

81640

81348

OTR59

34371

36621

03508

77342

SECTION IV

PART NUMBER

PLG1

Q-54382

R28

RA25177

RA2573

RB25177

RB2573

RBB25

RBX00-6291

RM-48-400-PV

RR-C-271 TY2 CL7-16

RV4NAYSD502A

S-38615-G5

S79SDTXXSXXX

SA-3865

SAE J1508-06

SC-1/4-4

SL7940-17-1

SM50D8

SN60WRP2 0.125 1LB

SPS-100-88-21091

V320PA40A

V500P-8-04

V68MA3B

W23X1A1 G7.5

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

PART NUMBER INDEX

STOCK NUMBER

4730-00-278-3383

-

2590-01-262-0996

5940-01-126-3973

5940-01-112-9746

5940-01-139-0853

5940-01-082-3321

5940-00-478-0037

2945-01-368-1081

-

4010-00-958-0633

5905-00-643-5626

5940-00-958-1214

5340-01-379-0893

5945-01-378-7172

4730-00-908-3195

-

5310-00-189-8467

5945-01-365-9953

3439-00-273-2536

5930-01-396-2940

5905-01-293-0175

4820-00-420-5499

5905-01-028-6999

5925-00-089-3031

FIG.

13

888

8

22

18

8

8

22

5

20

17

10

22

25

8

15

16

BULK

10

18

17

16

12

12

20

20

22

24

ITEM

29

888

37

27

5

54

21

16

5

22

18

11

15

52

67

7

31

1

24

1

76

16

9

8

12

11

29

46

I-30

SECTION IV

FIG.

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

3

3

1

1

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

ITEM

8

9

10

11

12

13

2

3

4

5

6

7

14

15

16

1

2

22

23

24

25

26

1

16

17

18

19

20

21

10

11

12

13

14

15

4

5

6

7

8

9

1

2

3

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

5940-00-113-9831

5940-00-113-9831

5940-00-606-4969

-

-

-

5940-00-549-6581

5940-00-606-4969

-

-

-

-

5940-00-686-6880

5940-00-549-6581

-

-

-

5999-01-382-8223

6160-01-422-2218

-

5310-00-809-4058

5306-01-367-7777

-

6140-01-374-2243

6160-01-431-4546

5310-00-274-8715

5305-00-269-3233

5310-00-011-5093

-

5940-00-113-9831

5940-00-113-8191

-

-

-

5940-00-113-8191

5940-00-686-6880

-

-

-

5310-01-012-3595

5306-01-156-7663

5935-01-044-8382

3020-01-382-8782

5306-00-226-4827

96906

30554

96906

96906

30554

30554

30554

96906

96906

30554

30554

30554

81205

19207

19207

30554

80204

30554

30554

93568

30554

96906

96906

30554

30554

0UJ55

30554

96906

80204

30554

96906

79550

30554

30554

30554

96906

79550

30554

30554

30554

30554

96906

96906

30554

PART NUMBER

88-20312

MS25036-128

70076

88-20312-4

88-20312-1

88-20314

MS75004-1

70076

88-20314-4

88-20314-5

88-20314-1

88-20315

MS25189-119

MS75004-1

88-20315-4

88-20315-5

88-20315-1

10942521

88-20522

MS51971-1

MS51412-4

88-20060

88-20055

800U

88-20516

MS35338-63

B1821BH038F063N

MS35338-65

88-20313

MS25036-128

MS25036-127

88-20313-4

88-20313-1

88-20316

MS25036-127

MS25189-119

88-20316-4

88-20316-5

88-20316-1

2740-0003

12325869

11682345

88-20003

B1821BH031C100N

I-31

SECTION IV

FIG.

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

3

3

4

3

3

3

3

3

3

3

3

3

ITEM

23

24

25

26-

27

28

17

18

19

20-

21

22

29

30

31

32

33

11

12

13

14

15

16

8

9

10

5

6

7

12

13

1

2

3

4

9

10

11

6

7

8

3

4

5

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

5310-00-011-6120

5310-01-379-9960

-

5310-00-011-6121

5310-01-266-4641

5365-01-394-7856

5305-00-071-2079

-

5305-00-068-0511

5310-00-044-6477

-

6115-01-368-2911

5310-01-380-9059

5310-01-384-6243

5310-01-379-8641

5305-01-360-5282

5935-01-383-5778

5330-01-360-9089

5340-01-360-4846

5977-01-331-3432

6110-01-384-7081

-

5970-01-361-9097

5305-01-361-1185

5961-01-331-3974

5961-01-330-7886

5305-01-222-3287

5306-01-343-7128

2920-01-361-8220

3110-01-361-2801

-

5310-01-384-6262

5310-01-365-4384

4140-01-361-5876

5315-01-424-6611

-

-

5305-01-360-7589

3120-01-330-8382

-

5365-00-166-1798

3120-01-330-8382

-

-

68505

68505

68505

0EDY1

68505

68505

68505

35510

0EDY1

0EDY1

68505

68505

0EDY1

68505

68505

68505

68505

68505

0EDY1

0EDY1

0EDY1

68505

68505

0EDY1

68505

68505

24975

68505

0EDY1

96906

30554

30554

96906

96906

30554

80204

30554

80204

96906

30554

30554

68505

68505

68505

PART NUMBER

120-336

114-222

111-64S

113-54

120-136

120-137

107-68

120-7

120-152

114-223

120-347S

111-21

112-72

112-022

111-21

8MR3005CA

120-376

MS35338-64

88-20496

88-22790-4

MS35338-67

MS51412-9

88-20494

B1821BH050C400N

88-22790-2

B1821BH031C125N

MS51412-25

88-22041

88-21154

120-148

120-342

120-120

120-252

114-214

103-56

120-334

103-55

105-269

120-343

04B44761F16

120-121

101-206

0142499T36

0344209B135

I-32

SECTION IV

FIG.

5

5

5

5

5

5

4

4

5

5

5

5

5

5

5

5

5

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

ITEM

8

9

10

5

6

7

61

62

1

2

3

4

11

12

13

14

15

55

56

57

58

59

60

49

50

51

52

53

54

43

44

45

46

48

48

34

35

36

37

38

39

40

41

42

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

-

-

5330-00-010-2822

5305-01-224-4644

5977-01-279-3932

5310-01-384-6243

-

-

5970-01-265-0555

-

-

-

-

-

3110-01-361-2801

5365-00-166-1798

3120-01-330-8382

-

5310-01-384-6262

5310-01-365-4384

-

-

3040-01-226-4679

5365-00-133-0904

3120-01-330-8382

-

-

-

5315-01-424-6611

5310-01-012-3595

-

-

-

5340-01-379-0893

5310-00-063-7360

5305-00-036-6972

-

-

5306-01-156-7663

-

-

-

-

5310-01-406-1672

68505

35510

81205

30554

30554

30554

27182

83385

45722

31827

30554

19207

1E045

1E045

30554

30554

08928

68505

68505

68505

68505

68505

68505

68505

24975

68505

68505

68505

68505

68505

68505

24975

68505

24975

68505

68505

68505

68505

68505

68505

68505

68505

68505

68505

PART NUMBER

112-022

111-21

112-95

120-136

120-137

107-114

120-152

114-9

111-3

111-21

101-193

101-235

120-178

105-311

103-14

120-102

103-46

120-342

115-61

120-378

115-54

115-26

115-27

120-1

114-106

113-74

111-64

101-130

120-7

2740-0003

88-22793-4

88-20091

88-22705

S79SDTXXSXXX

841-6-32

P15121-20

MF6T-TPR87-B

88-20198

12325869

CAT 380

CAT 370

88-20206

88-20246

21NTE102

I-33

SECTION IV

FIG.

5

5

5

5

5

5

5

5

5

5

5

5

5

5

6

6

6

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

5

ITEM

49

50

51

52

53

54

43

44

45

46

47

48

55

56

1

2

3

37

38

39

40

41

42

31

32

33

34

35

36

25

26

27

28

29

30

16

17

18

19

20

21

22

23

24

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

5310-01-234-9416

5365-01-431-4603

5305-01-334-8683

-

-

5310-00-274-8715

5306-00-484-5730

5310-00-809-4058

-

-

5340-01-368-6048

5365-01-431-4540

5305-01-406-1192

-

-

5305-01-286-1752

-

-

-

-

-

-

-

5306-01-368-8041

-

-

5305-00-211-9344

5340-01-396-0454

-

-

-

-

5320-01-019-5694

-

-

-

-

-

-

-

-

5310-01-012-3595

5306-01-156-7663

2990-01-432-1908

94222

30554

30554

30554

30554

81349

30554

30554

30554

30554

30554

30554

30554

30554

81205

19207

30554

96906

30554

30554

30554

30554

30554

30554

30554

30554

30554

30554

45722

96906

30554

96906

30554

30554

96906

80256

96906

30554

30554

30554

30554

96906

30554

30554

PART NUMBER

MS51412-2

88-22482

MS51493-2

88-20458

88-22790-1

MS35338-63

307608

MS51412-4

88-20077

88-20078

88-21098

88-22483

MS51493-3

88-20461

88-20460

MS51481-02

88-20123

88-20010

88-20009

88-20005

88-20245'

88-22515

88-20459

88-20260-20

88-20014

88-20013

P-15121-17

97-50-170-11

88-20012

88-20046

88-20045

88-20044

M24243/1A402

88-20101

88-20328

88-20076

88-20128

88-20140

88-20110

88-20126

88-20329

2740-0003

12325869

88-20319

I-34

SECTION IV

FIG.

7

7

7

6

6

6

6

6

6

6

6

6

7

7

7

7

7

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

6

ITEM

36

36

37

1

2

3

31

32

33

34

35

35

4

5

6

7

8

25

26

27

28-

29

30

19

20

21

22

23

24

13

14

15

16

17

18

10

11

12

7

8

9

4

5

6

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

2990-01-432-1902

5305-01-365-6313

-

5310-00-903-8595

5305-01-381-9970

5310-00-274-8715

5310-00-809-4058

-

-

-

5310-00-274-8710

5310-01-234-9416

-

5310-01-234-9415

-

5306-01-366-7075

5340-00-297-0312

5320-01-366-4394

5310-01-407-7191

-

-

-

-

-

-

5325-00-174-9038

-

-

-

5305-01-378-7899

5320-01-019-5694

-

-

-

-

9905-01-377-5094

5310-01-012-3595

5306-01-156-7663

-

-

-

-

5306-01-366-7075

5310-00-274-8715

30554

30554

30554

81349

30554

30554

30554

30554

30554

81205

19207

30554

30554

30554

30554

30554

96906

30554

78553

02768

02768

30554

30554

30554

30554

30554

30554

88044

30554

30554

30554

30554

78553

30554

96906

96906

30554

30554

30554

96906

96906

30554

96906

30554

PART NUMBER

88-20318

88-20260-23

88-22035

C7931-1032-3B

88-20260-34

MS35338-63

MS51412-4

88-20282

88-20283

88-20284

MS35338-62

MS51412-2

88-22790-1

MS51412-5

88-20008

88-20260-33

C7988-1420-3B

236-170406-04

8070-25-00

88-20294

88-20489

88-20071-237

88-20065

88-20011

88-20002

AN931-12-17

88-22005

88-22034

88-20124

88-20260-22

M24243/1A402

88-20160-04

88-20160-03

88-20063-04

88-20063-03

88-20102

2740-0003

12325869

88-20207

88-20268

88-20212

88-20213

88-20260-33

MS35338-63

I-35

SECTION IV

FIG.

8

8

8

8

8

8

7

7

7

7

8

8

8

8

8

8

8

7

7

7

7

7

7

7

7

7

7

7

7

7

7

7

7

7

7

7

7

7

7

7

7

7

7

7

ITEM

6

7

7

3

4

5

36

37

38

39

1

2

10

11

8

9

9

30

31

32

33

34

35

24

25

26

27

28

29

18

19

2

21

22

23

9

10

11

12

13

14

15

16

17

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

5310-00-809-4058

5310-01-234-9415

5340-00-297-0312

-

-

5975-01-083-0149

2920-01-388-2776

-

-

-

5306-00-484-5730

-

5305-01-365-6313

5310-00-274-8710

5310-01-234-9416

5310-00-903-8595

5320-01-366-4394

-

-

-

-

-

-

-

-

5320-01-019-5694

-

9905-01-372-7986

-

5340-00-958-8457

-

-

5310-00-274-8715

5310-00-809-4058

5310-01-012-3595

5306-01-156-7663

5310-01-234-9416

6110-01-394-4052

6110-01-382-8413

5305-00-036-6972

5340-01-379-0892

5975-00-879-7234

5935-01-367-7814

5925-01-365-9756

30554

30554

96906

30554

30554

96906

96906

81205

19207

96906

30554

30554

45722

30554

74545

74545

60177

78553

02768

30554

30554

30554

30554

30554

30554

30554

30554

81349

30554

96906

96906

78553

30554

30554

83879

30554

30554

30554

30554

80256

030554

30554

96906

96906

PART NUMBER

88-20197

88-20259

MS21333-78

88-22815

88-22790-1

MS35338-63

MS51412-4

2740-0003

12325869

MS51412-2

88-20032

88-20034

P15121-20

88-20104

5211

CR15

19450-1

MS51412-4

MS51412-5

C7988-1420-3B

88-20214

88-20217

BBL150

88-20218

88-20030

88-20059

88-22790-1

307608

88-20499

88-20260-23

MS35338-62

MS51412-2

C7931-1032-3B

236-170406-04

88-20295

88-22012

88-20215

88-20031

88-20620-34

88-20216

88-22006

88-20291

M24243/1A402

88-20073

I-36

SECTION IV

FIG.

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

ITEM

41

42

43

44

45

46

35

36

37

38

39

40

47

48

49

50

51

30

31

31

32

33

34

25

26

27

27

28

29

20

20

21

22

23

24

11

12

13

14

15

16

17

18

19

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

-

5940-01-369-2267

5940-01-259-2190

5310-00-081-8087

5305-00-150-3408

5310-01-012-3595

5340-00-958-8457

-

5310-01-234-9416

6625-01-381-8243

6625-01-366-2509

5925-00-089-3031

5920-00-539-6920

5920-00-892-9311

5305-01-187-5878

-

5310-01-366-8134

6110-01-363-0492

6110-01-383-4122

5310-00-836-3520

5305-00-191-6226

5340-00-050-2740

6695-01-369-9311

6695-01-384-7381

5310-00-052-3632

5305-00-038-3145

6625-01-381-8195

5945-01-378-6749

5945-01-366-2726

5930-01-396-2940

5945-00-458-3351

5340-01-370-8349

-

5340-01-078-9038

5970-01-280-0362

5305-00-038-3103

-

5998-01-382-6232

5310-00-836-3520

5305-00-224-1092

5905-01-368-2538

5905-01-431-3464

5905-01-368-2539

5305-01-365-9390

30554

30554

OTR59

77342

77342

9R803

77342

77342

30554

30554

30554

83385

45722

91637

91637

91637

30554

30554

78553

30554

30554

83385

45722

96906

60177

60177

78189

45722

53498

60177

98410

98410

96906

96906

81205

96906

30554

96906

30554

30554

77342

81349

81349

78189

PART NUMBER

19990-1

BB-8707-06

BB-8194-08

MS21044N06

MS35206-329

2740-0003

MS21333-78

88-22793-4

MS51412-2

88-21143-3

88-21143-1

W23X1A1G7.5

F03A125V30A

FHN26G1

61-101041-90-0142B-0542B

88-20248

C7941-1032-3B

88-21063

88-21064

841-4-40

P15121-64

MS21333-75

19270

19260

511-081800-00

P15121-37

871-92UU-NGEC

88-21139

88-21141

SPS-100-88-21091

KUP14D15-24VDC

20C318

3300-24-XP-74

24A071

40G432

69-662-35

88-20258

88-20293

841-4-40

P15121-5

HLM-20-10Z7R50J

HLM-20-10Z-20ROJ

HLM-10-10Z1301J

88-20299

I-37

SECTION IV

FIG.

9

9

9

9

9

9

9

9

9

9

9

9

9

9

9

9

9

9

9

9

9

9

9

8

8

8

9

9

9

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

ITEM

15

16

17

18

19

20

9

10

11

12

13

14

21

22

23

24

25

6

7

8

3

4

5

67

68

69

1

1

2

61

62

63

64

65

66

52

53

54

55

56

57

58

59

60

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

5940-00-687-0294

5961-00-295-5757

5905-01-028-6999

-

-

5310-00-063-7360

5305-00-036-6903

5305-01-378-8612

5305-00-954-5638

5975-00-111-3208

5935-01-114-5354

5330-00-914-7651

5305-01-365-6313

5920-00-243-3787

5920-00-242-2706

5940-00-478-0037

-

-

6150-01-379-0592

6150-01-406-2902

5940-01-020-2021

5940-01-369-2269

5940-01-369-2270

5940-00-230-0515

5940-00-143-4777

5940-01-259-2190

-

-

-

5940-00-113-8184

5305-01-367-2314

5310-00-836-3520

5935-01-312-7038

5935-01-014-7861

5999-01-366-5119

5975-00-944-1499

5935-01-380-1611

5935-01-018-1716

5935-01-024-7684

5935-01-014-2278

5935-01-366-9934

5999-01-320-7853

5935-01-102-7124

-

30554

30554

96906

45722

83385

00779

97539

00779

96906

00779

33875

36378

36378

27264

49956

71468

00779

59730

30554

30554

30554

30554

00779

98410

98410

96906

96906

98410

30554

88245

80131

03508

30554

30554

83385

45722

45722

96906

96906

80064

96906

30554

81349

75915

PART NUMBER

12142-4

1N5406

V68MA3B

88-20293-11

88-20255

841-6-32

P15121-4

P15121-68

MS35198-46

MS3367-5-9

2601167

MS51007-12

88-20260-23

F03A250V1 OAS

150145

RBB25

88-22813

88-22812

88-20256

88-20495

52949

AA-8714-08

AA-8715-10

MS25036-154

MS25036-157

BB-8194-08

88-20256-15

88-20256-16

88-20256-17

MS25036-150

P-15121-11

841-4-40

207774-1

206151-1

66332-8

MS3368-1-9A

206062-3

800045-02

1003293-03

1003369-03

39-01-2180

G435720-1

CA31 00R32A10S-B-05F80

66098-9

I-38

SECTION IV

FIG.

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

9

10

10

9

9

9

9

9

9

9

9

9

9

9

9

9

9

9

9

9

9

ITEM

14

14

15

16

17

18

9

10

11

12

13

13

19

20

21

22

23

6

7

8

3

4

5

40

41

42

43

1

2

35

35

36

37

38

39

26

27

28

29

30

31

32

33

34

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

5935-00-823-5322

-

5940-01-020-2021

5940-01-369-2270

-

-

-

5940-01-135-7081

6145-01-303-2938

5940-01-369-2267

5940-01-369-2267

5999-01-366-2621

5940-01-431-5367

5935-01-367-4422

-

-

5975-00-074-2072

5975-00-111-3208

5975-00-727-5153

5980-01-198-6311

5980-01-076-8659

6210-00-583-9349

-

6240-01-204-3165

6210-00-935-6919

6625-01-366-0193

6685-01-369-6549

6620-01-368-1531

6645-00-089-8842

-

6625-00-869-3141

6625-01-095-7044

6625-01-038-6869

6625-01-038-6829

6625-01-110-6829

6625-01-038-6826

5305-00-958-0999

5310-00-063-7360

5961-01-431-4558

5940-01-020-2021

-

5961-00-295-5757

5930-01-368-5160

5355-00-559-8943

06555

13555

99017

30554

30554

77221

30554

30554

30554

73734

83385

30554

00779

30554

80131

30554

96906

9R803

96906

96906

96906

83330

80063

96906

30554

71744

83330

06555

06555

96906

30554

00779

98410

30554

30554

30554

81349

30554

98410

98410

9R803

9R803

77342

9R803

PART NUMBER

MS25251-16

88-20317

52949

AA-8715-10

88-22629-001

88-22629-002

88-22629-003

M83519/2-3

88-20317-1

BB-8707-06

BB-8707-06

330JS

3300-24

27E893

300JS

3000-6

MS3367-1-9

MS3367-5-9

MS3367-4-9

521-9208

A3029220-1

MS25041-5

88-20032-77

6S6-30V

47-0901-2900-201

88-21103

940107

940109

99023N

SC-1/4-4

69-574

72-5016

638-18049

72-5007-1

72-5007-2

72-5008

3145

841-6-32

88-22418-1

52949

88-22418-2

1N5406

88-21160

MS91528-2K2B

I-39

SECTION IV

FIG.

10

10

10

10

10

10

10

10

10

10

10

10

10

11

11

11

11

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

10

ITEM

57

58

59

60

61

62

51

52

53

54

55

56

63

1

2

3

4

45

46

47

48

49

50

39

40

41

42

43

44

33

34

35

36

37

38

24

25

26

27

28

29

30

31

32

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

5905-00-643-5626

-

-

5930-01-379-0644

5930-01-368-2891

5930-00-615-6731

5930-01-368-2893

5305-00-052-6681

-

5930-01-365-5466

5930-01-366-0048

5310-00-052-3632

5305-00-954-5629

-

4030-00-780-9350

-

5940-00-115-2677

-

5310-00-822-8525

5310-01-365-4381

5325-01-161-2654

5310-01-012-3595

5306-01-156-7663

5310-01-366-8134

-

-

5325-01-301-7903

-

-

-

-

-

5305-00-225-3843

5310-00-809-4058

-

5320-01-019-5694

-

5310-01-307-7914

-

-

5310-01-012-3595

5306-01-156-7663

-

-

30554

30554

30554

30554

30554

80204

96906

30554

81349

30554

96906

78189

96906

81205

19207

30554

30554

30554

96906

30554

94222

94222

94222

81205

19207

78553

30554

30554

94222

81349

30554

30554

60886

81640

96906

81640

96906

9R803

10983

81640

78189

96906

30554

96906

PART NUMBER

RV4NAYSD502A

88-22629-002

88-22629-003

AYW401-R

8906K4533

MS25224-1

8906K4519

MS35198-29

3000-6-XP-74

88-21902

88-22141

511-081800-00

MS35198-42

88-20134

MS87006-13

88-20134-4

MS20659-144

88-20134-2

85-34-101-20

85-46-103-39

85-12-460-16

2740-0003

12325869

C7941-1032-3B

88-20204

88-20205

85-35-309-56

88-20514

88-20000

88-22044

88-20199

88-22790-1

B1821BH025C100N

MS51412-4

88-20200

M24243/1A402

88-20153

MS51412-20

511-001800-00

MS35198-46

2740-0003

12325869

88-22793-5

88-20509

I-40

SECTION IV

FIG.

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

11

11

12

12

12

12

11

11

11

11

11

11

11

11

11

ITEM

23

24

25

26

27

28

17

18

19

20

21

22

29

30

31

32

33

11

12

13

14

15

16

8

9

10

5

6

7

14

15

1

2

3

4

8

9

10

11

12

13

5

6

7

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

5310-01-234-9416

-

5305-00-191-6226

5310-01-012-3595

5340-00-958-8457

5305-01-378-7034

-

-

5310-00-052-3632

5305-00-038-3145

5310-01-234-9416

6150-01-378-0829

5940-01-020-2021

5940-01-369-2269

5940-01-369-2270

5940-00-813-0698

5940-00-143-4771

5940-00-113-8184

5940-01-112-9746

5940-01-126-3973

5940-01-369-2267

5940-01-367-9569

5940-00-283-5280

5940-00-230-0515

5940-00-557-4343

5940-01-379-3482

5940-00-143-4777

5940-01-379-3485

5940-00-143-4794

5940-00-682-2445

5940-00-113-8183

5940-01-369-2874

5999-01-170-0558

5999-01-366-7952

5940-00-504-4703

5940-00-143-5284

5940-00-114-1305

5940-00-114-1306

5940-00-557-4345

5940-01-431-5366

-

5999-01-366-2621

5961-01-431-4558

5940-01-020-2021

98410

96906

96906

96906

98410

00779

00779

96906

96906

96906

96906

96906

9R803

9R803

9R803

30554

00779

96906

96906

96906

59730

59730

98410

98410

96906

96906

96906

98410

96906

96906

30554

45722

81205

96906

45722

9R803

9R803

78189

45722

96906

30554

00779

98410

98410

PART NUMBER

MS51412-2

88-20036

P15121-64

2740-0003

MS21333-78

P15121-67

4300-12-XP-74

3300-14-XP-74

511-081800-00

P15121-37

MS51412-2

88-20289

52949

AA-8714-08

AA-8715-10

MS25036-101

MS25036-103

MS25036-150

RA2573

RA25177

BB-8707-06

BB-8717-10

MS25036-106

MS25036-154

MS25036-121

C-8710-06

MS25036-157

C-8198-10

MS25036-112

MS25036-158

MS25036-113

C-8718-08

66331-8

66100-8

MS25036-104

MS25036-115

MS25036-116

MS25036-117

MS25036-118

4300-12

3300-14

330JS

88-22418-1

52949

I-41

SECTION IV

FIG.

13

13

13

13

13

13

13

13

13

13

13

13

13

13

13

13

13

13

13

13

13

13

13

12

12

12

12

12

13

12

12

12

12

12

12

12

12

12

12

12

12

12

12

12

ITEM

14

15

16

17

18

19

8

9

10

11

12

13

20

21

22

23

24

5

6

7

2

3

4

49

50

51

52

53

1

43

44

45

46

47

48

34

35

36

37

38

39

40

41

42

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

-

5961-00-295-5757

5950-01-367-4503

5935-01-014-4920

5935-01-023-5445

5935-01-024-7684

5935-01-024-1902

5999-01-039-8438

5935-01-012-1273

5935-01-020-4094

5935-00-315-9563

5975-00-074-2072

5975-00-111-3208

5975-00-944-1499

-

-

-

-

-

-

-

5940-01-395-2557

-

-

5940-01-395-2557

-

-

5940-01-395-2557

-

-

5940-01-395-2557

5940-01-395-5204

-

-

5940-01-395-2557

5940-01-395-5204

-

-

5940-01-395-2557

5940-01-395-5204

-

-

5940-01-395-2557

5940-01-395-5204

98410

30554

30554

98410

98410

30554

30554

98410

98410

30554

30554

98410

98410

30554

30554

98410

98410

30554

30554

30554

30554

30554

30554

98410

30554

30554

98410

30554

30554

30554

80131

60177

97539

36378

36378

36378

27264

27264

27264

27264

96906

96906

96906

30554

PART NUMBER

88-22418-2

1N5406

88-21132

206138-1

1003318-01

1003293-03

1003296-02

02-09-1104

03-09-1022

03-09-1032

03-09-1042

MS3367-1-9

MS3367-5-9

MS3368-1-9A

88-20289-27

88-20289-28

88-20289-29

88-20289-30

88-20289-21

88-20289-31

88-20301-1

F-767-14

88-20301-1-1

88-20301-2

F-767-14

88-20301-2-2

88-20301-3

F-767-14

88-20301-3-1

88-20301-4

F-767-14

F-766-12

88-20301-4-1

88-20301-5

F-767-14

F-766-12

88-20301-5-1

88-20301-6

F-767-14

F-766-12

88-20301-6-1

88-20301-7

F-767-14

F-766-12

I-42

SECTION IV

FIG.

15

15

15

15

15

15

14

14

14

14

14

15

15

15

15

15

15

13

13

14

14

14

14

13

13

13

13

13

13

13

13

13

13

13

13

13

13

13

13

13

13

13

13

13

ITEM

5

6

7

2

3

4

5

6

7

8

9

1

8

9

10

11

12

46

47

1

2

3

4

40

41

42

43

44

45

34

35

36

37

38

39

25

26

27

28

29

30

31

32

33

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

-

5305-00-191-6226

5310-01-366-8134

6110-01-367-8921

5945-01-365-9953

5306-00-484-5730

5310-00-274-8715

5310-00-809-4058

5945-01-252-1412

5340-00-021-0066

5310-00-063-7360

5305-00-036-6972

5310-01-303-4701

5930-01-386-0543

-

5310-01-012-3595

5305-01-365-6313

-

5310-00-274-8715

5306-00-484-5730

5310-00-809-4058

-

-

5305-01-380-3395

5310-01-368-3048

-

-

2990-01-366-7020

5330-01-390-5185

5330-01-383-6842

5340-01-379-0687

5340-01-384-7863

5310-01-012-3595

5305-01-365-6313

5340-00-598-0228

4730-00-909-8627

4720-01-374-8251

4720-01-382-3102

2945-01-368-1081

-

5310-00-274-8715

5310-00-809-4058

5306-00-484-5730

5340-01-074-8126

30554

14153

30554

30554

30554

81205

30554

88044

01276

30554

24161

18265

30554

96906

96906

80256

19207

81205

30554

30554

96906

80256

96906

30554

30554

80204

30554

61277

30554

30554

45722

78553

30554

81640

80256

96906

96906

80089

78553

78189

45722

96906

10983

30554

PART NUMBER

88-21109

02766

88-20519

88-20517

88-20518

2740-0003

88-20260-23

AN742-40

FF9311-36

88-20500

4289-1972

RBX00-6291

88-22790-1

MS35338-63

MS51412-4

307608

11668089

88-20301-7-1

P15121-64

C7941-1032-3B

88-21066

SM50D8

307608

MS35338-63

MS51412-4

124-903

C7998-1420-3B

501P06080000AMB

P15121-20

MS51412-1

C26-C57442ER

88-20203

2740-0003

88-20260-23

88-22790-1

MS35338-63

307608

MS51412-4

88-20202

88-20201

B18231B10025N

88-22331-2

88-20136

88-20136-68

I-43

SECTION IV

FIG.

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

15

15

15

15

15

15

15

15

15

ITEM

25

26

27

28

29

30

19

20

21

22

23

24

31

32

33

34

35

13

14

15

16

17

18

10

11

12

7

8

9

4

5

6

1

2

3

13

14

15

16

17

18

19

20

21

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

-

5340-01-071-8006

-

-

2920-01-071-7742

2940-00-494-9492

5310-01-190-4614

2940-00-934-7989

-

5306-01-156-7663

5310-00-274-8710

5310-01-234-9416

-

4140-01-432-0852

5310-01-012-3595

-

4140-01-432-0855

5305-01-378-7899

2930-01-431-4543

4030-00-236-0843

5306-00-484-5730

5310-00-274-8715

5310-00-809-4058

2930-01-367-0228

2590-01-262-0996

4730-00-908-3193

4720-01-385-1139

4720-01-389-0682

4730-01-370-5426

4730-01-378-5224

-

-

-

-

4730-01-387-4000

4820-01-381-5079

4730-00-202-6491

5975-00-133-8696

-

-

5340-00-297-0312

-

5310-00-584-5628

2930-01-366-6106

30554

28520

28520

30554

30554

30554

30554

79470

79470

79470

96906

30554

4J181

78553

30554

88044

30554

30554

30554

30554

30554

96906

80256

96906

96906

30554

78225

81646

30554

30554

18265

18265

18265-

18265

18265

18265

18265

18265

19207

96906

96906.

30554

30554

81205

PART NUMBER

88-21062

P00-2904

P00-5300

P00-5408

P10-3007

P10-2523

P10-1870

P14-8969

FWG05-2619-1

12325869

MS35338-62

MS51412-2

88-20071-140

88-20149

2740-0003

88-20462

88-20148

88-20260-22

88-20121

MS87006-11

307608

MS35338-63

MS51412-4

88-20093

R28

6724

88-20189

88-20190

2326

2314

88-22302-11

88-22302-17

88-22302-16

88-22302-10

1908

52487

103-22604

MS3367-6-9

88-20507

RM-48-400-PV

C7988-1420-3B

88-20508

AN960C2016

88-20098

I-44

SECTION IV

FIG.

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

16

16

16

16

17

17

17

17

17

ITEM

30

31

32

33

34

35

24

25

26

27

28

29

36

37

38

39

40

18

19

20

21

22

23

12

13

14

15

16

17

9

10

11

6

7

8

36

37

38

39

1

2

3

4

5

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER CAGEC

3030-01-375-8087

-

-

-

5305-01-165-1254

5310-00-274-8710

5310-01-234-9416

6680-01-386-9417

5330-01-366-2836

-

5975-00-074-2072

5935-00-483-0259

5999-01-092-2655

5930-01-384-3564

5310-01-012-3595

5306-01-368-8041

6680-01-392-8821

-

4730-00-314-8366

4730-01-043-6300

-

4730-00-908-3195

-

4730-01-407-0649

2940-01-365-6535

4730-00-647-3207

5310-01-234-9415

5306-01-156-7663

-

5975-00-074-2072

5935-00-482-7721

5999-01-092-2655

2910-01-366-7293

-

4730-01-222-0235

4730-00-812-1333

4030-00-236-0843

-

4820-00-595-3191

4730-01-387-7158

5310-01-365-8138

5310-01-197-1473

5310-01-012-3595

4730-00-908-6294

19207

30554

96906

27264

63123

30554

81343

81343

93742

96906

30554

79470

30554

30554

07707

81205

77068

30554

30554

30554

96906

96906

36024

81343

19099

5U990

30554

96906

96906

30554

30554

30554

30554

96906

96906

96906

06555

30554

30554

96906

27264

63123

30554

81205

PART NUMBER

88-20273

88-22752-5

88-22752-6

88-22670-3

MS51492-14

MS35338-62

MS51412-2

127676

88-20286

88-20483

MS3367-1-9

1490P1

35-000252-001

88-20062

2740-0003

88-20260-20

88-20492

88-20324

MS51531B4

MS51533B4

999-0616-7

SAE J1508-06

88-20071-300

205-605

88-22755

MS51504A4

MS51412-5

12325869

88-22546

MS3367-1-9

03-09-2022

35-000252-001

88-21738

2-2-130238

4-4-4 070424S

69-539-2

MS87006-11

88-20071-196

695

88-21117

88-21166

A3816

2740-0003

1068374-1

I-45

SECTION IV

FIG.

17

17

17

17

17

18

17

17

17

17

17

17

18

18

18

18

18

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

17

ITEM

74

75

76

77

78

1

68

69

70

71

72

73

2

3

4

5

6

62

63

64-

65

66

67

56

57

58

59

60

61

50

51

52

53

54

55

41

42

43

44

45

46

47

48

49

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

2590-00-141-9758

2590-01-431-4557

2590-00-752-9138

4730-01-420-5286

4730-01-020-5607

4730-01-123-8618

2910-01-371-2723

-

4730-00-842-2200

-

4730-00-618-5370

4710-01-395-3989

-

-

5310-00-809-4058

5306-01-366-7075

5340-00-809-1494

-

4730-00-314-8366

4730-01-043-6300

-

4730-01-238-6442

4730-01-051-9840

-

5975-00-074-2072

5999-01-092-2655

5935-00-482-7721

2910-01-378-6025

-

4730-00-842-2200

-

-

4730-01-370-5426

1660-01-364-9843

2940-01-376-5666

-

4730-01-331-2850

-

4730-00-278-3383

4730-00-908-3194

-

4730-00-318-7288

4820-00-420-5499

4730-00-121-5937

72850

30554

96906

30554

30554

28520

30554

76700

76700

01276

93061

15235

96906

30554

30327

36621

96906

30554

96906

30554

96906

96906

36024

96906

81343

30554

96906

63123

27264

96906

30554

96906

30554

96906

96906

36024

30554

96906

30554

96906

30554

30554

96906

96906

PART NUMBER

MS35645-1

88-20193

MS90908-1

88-20208

MS51860-54

MS51520A5

88-21026

88-20191-4

MS24587-4

88-20191-4-2

MS51521A4

88-20179

88-22790-1

MS35228-63

MS51412-4

88-20260-33

MS21333-105

88-20325-2

MS51531B4

MS51533B4

999-0667-4

MS51508B4-4Z

4-4070202C

88-20479

MS3367-1-9

35-000252-001

03-09-2022

40193

88-20191-2

MS24587-4

88-20191-2-2

88-20071-172

2326

88-21101

85285-F

Q-54382

2018-2-4S

125 HB-2-2

PLGI

MS35842-11

88-20071-182

KF12-08PS

V500P-8-04

MS51873-79

I-46

SECTION IV

FIG.

20

20

20

20

20

20

20

20

20

20

20

20

20

21

21

21

21

20

20

20

20

20

20

20

20

20

20

20

20

20

20

20

20

20

20

18

18

18

18

18

18

19

20

20

ITEM

27

28

29

30

31

32

21

22

23

24

25

26

33

1

2

3

4

15

16

17

18

19

20

9

10

11

12

13

14

6

7

8

3

4

5

10

11

12

1

1

2

7

8

9

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

-

5310-00-274-8715

5305-01-381-9970

5310-00-809-4058

-

-

2990-01-385-9030

4720-01-367-0007

4730-00-980-6094

4730-00-647-3207

4730-00-574-8807

4730-00-247-9105

5930-01-378-6921

6620-01-128-3053

2990-01-366-0735

5930-01-378-6882

-

5940-01-082-3321

5940-01-139-0853

6695-01-368-7113

-

5310-00-274-8715

5305-01-381-9970

5310-00-809-4058

-

5975-00-074-2072

5935-01-053-1955

5999-01-092-2655

5945-01-378-7172

5310-01-012-3595

5306-01-156-7663

5340-00-057-2904

-

5930-01-365-9614

5305-01-300-6264

5310-01-358-4726

5320-01-019-5694

-

-

5340-00-984-8540

-

5310-00-011-5093

5310-01-257-7590

5305-00-068-0511

63123

78388

81205

19207

96906

30554

81640

80204

44940

81349

30554

30554

96906

30554

96906

96906

80204

30554

30554

15912

59730

16476

30554

96906

30554

96906

30554

96906

27264

30554

96906

30554

96906

30554

81343

70436

24161

81343

96906

30327

81343

30554

16476

06555

PART NUMBER

88-22790-1

MS35338-63

88-20260-34

MS51412-4

88-20122

6-8-140239

347L-032-2

4C5C-3-4FJX-3-4FJX-16

4-2 071502CA

MS51504A4

129-B-02X24

2-2-2 140424C

88-21126

02504

127338

88-22203

88-20480

RB2573

RB25177

71544-00

88-22790-1

MS35338-63

88-20260-34

MS51412-4

88-20482

MS3367-1-9

03-09-2032

35-000252-001

SA-3865

2740-0003

12325869

MS21333-71

88-20484

8906K4522

B18231B06012N

186-6038

M24243/1A402

88-21776

88-20116

MS21333-102

88-22790-1

MS35338-65

MS51412-7

B1821BH038C125N

I-47

SECTION IV

FIG.

22

22

22

22

22

22

22

22

22

22

22

22

22

22

22

22

22

22

22

22

22

22

22

22

22

22

22

22

22

21

21

21

21

22

22

21

21

21

21

21

21

21

21

21

ITEM

21

22

23

24

25

26

15

16

17

18

19

20

27

28

28

28

28

9

10

11

12

13

14

3

4

5

6

7

8

14

15

16

17

1

2

8

9

10

11

12

13

5

6

7

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

-

-

5310-00-929-1807

5310-01-234-9415

5305-00-071-2512

-

5975-00-878-3791

5310-01-012-3595

5306-01-156-7663

-

5320-01-366-4394

-

-

5310-01-012-3595

5306-01-156-7663

-

5940-00-115-2677

-

5120-01-373-8976

-

5310-00-965-1820

5310-00-045-5211

-

5340-01-379-0685

5340-01-379-0686

5310-01-183-5529

5310-00-045-5217

5310-00-189-8467

5940-00-958-1214

-

-

5310-00-274-8715

5310-00-809-4058

5305-01-381-9970

-

5305-01-365-6313

5940-01-369-6380

-

-

5905-01-293-0175

-

-

-

-

93232

74159

30554

30554

96906

96906

30554

30554

30554

30554

30554

30554

34371

30554

30554

30554

30554

30554

96906

30554

30554

30554

96906

96906

30554

30554

30554

27687

96906

30554

30554

96906

96906

80204

30554

15277

81205

19207

30554

02768

30554

30554

81205

19207

PART NUMBER

SL7940-17-1

S-38615-G5

88-20311

88-22790-1

MS35338-63

MS51412-4

88-20260-34

88-22792-1

88-20260-23

88-20066

88-20067

88-20244

V320PA40A

88-20305-5

88-20305-3

88-20305-2

88-20305-1

88-22000

88-21000

MS51922-2

MS51412-5

B1821BH025C225N

88-20150

FS0216B122-1

2740-0003

12325869

88-20524

236-170406-04

88-20523

88-22010

2740-0003

12325869

88-22460

MS20659-144

88-22460-2

88-21146

88-20253

MS51922-3

MS15795-911

88-20310

88-20309

88-20308

21NTE-813

MS15795-917

I-48

SECTION IV

FIG.

24

24

24

24

24

24

24

24

24

24

24

24

24

24

24

24

24

24

24

24

24

24

24

23

23

24

24

24

24

23

23

23

23

23

23

22

22

22

22

22

22

22

22

23

ITEM

17

18

19

20

21

22

11

12

13

14

15

16

23

24

25

26

27

8

9

10

5

6

7

8

9

1

2

3

4

5

6

7

2

3

4

29

30

31

31

31

31

32

33

1

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

5940-01-082-3321

5940-01-369-6948

-

-

-

-

5915-01-382-0517

5915-01-382-0205

5310-01-231-7459

5310-01-365-3190

5305-00-071-2076

5310-01-266-4641

5935-01-380-1611

5999-01-366-7952

5935-01-090-1561

5975-00-074-2072

-

6115-01-368-6737

5310-01-379-8647

5310-01-151-5032

5307-01-378-7470

-

5305-01-339-0822

-

5305-01-378-6738

5310-01-077-9650

-

6115-01-368-7158

-

5975-00-111-3208

-

5330-00-973-8598

5305-01-174-2761

5310-01-060-9104

5310-01-370-0053

6115-01-368-7057

3110-01-160-9663

5310-01-012-3595

5310-01-051-8089

-

5310-01-012-3595

5310-01-051-8089

5940-00-143-4780

5305-01-190-4461

44940

00779

96906

44940

44940

44940

44940

44940

44940

44940

81205

44940

44940

81205

44940

96906

44940

96906

30554

30554

44940

44940

44940

44940

44940

44940

44940

44940

44940

15912

98410

3119099

19099

19099

19099

30554

30554

96906

30554

80204

96906

00779

00779

00779

PART NUMBER

RB2573

B-801-12HDX

88-20305-2-1

88-20305-3-1

88-20305-5

88-20305-1-1

88-20527

88-20530

MS51943-9

88-20247-2

B1821BH050C325N

MS51412-9

206062-3

66100-8

206060-1

MS3367-1-9

88-20027-1

88-20040

862-0011

526-0026

520-0984-02

211-0436

815-0181

234-0876

802-0038

853-0013

232-3541

220-4265

62048-2

MS3367-5-9

211-0370

509-0094

800-0050

850-0050

526-0013

201-3447-02

510-0112

2740-0003

526-0008

201-3466

2740-0003

526-0008

MS25036-108

813-0100

I-49

SECTION IV

FIG.

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

24

24

24

24

24

25

24

24

24

24

24

24

24

24

24

24

24

24

24

24

24

ITEM

14

15

16

17

18

19

8

9

10

11

12

13

20

21

22

23

24

5

6

7

2

3

4

43

44

45

46

47

1

37

38

39

40

41

42

28

29

30

31

32

33

34

35

36

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

5310-01-060-7181

5961-01-019-8003

5961-01-021-2232

-

5305-01-174-2761

5310-01-060-9104

5310-01-370-0053

-

-

5940-00-143-4794

-

5305-01-368-7450

-

3020-01-369-4953

-

6115-01-368-7157

-

5940-01-369-2874

5940-01-082-3321

-

6115-01-370-8059

5305-01-062-3344

5310-01-009-6570

5310-01-370-0052

-

5305-01-205-4647

5310-01-370-0053

5305-01-386-5242

5305-01-368-7301

-

5305-01-174-2761

6115-01-370-8210

5305-01-339-0822

-

5305-01-366-1153

5310-01-077-9650

6115-01-368-7158

-

5975-00-111-3208

-

-

5330-00-579-3166

6115-01-370-8065

3110-01-214-8361

30554

44940

30554

44940

44940

44940

44940

44940

44940

44940

00779

96906

44940

44940

96906

44940

30554

44940

70485

98410

15912

44940

30554

44940

44940

44940

44940

44940

44940

44940

44940

44940

44940

44940

44940

44940

44940

44940

96906

44940

80204

44940

44940

44940

PART NUMBER

853-0008

358-0070

358-0069

201-2007

800-0050

850-0050

526-0013

232-3468-01

201-3453-02

MS25036-112

201-1997

B18231B10035

104-1755-02

104-1756

104-1744

220-4236-02

2775-26012

C-8718-08

RB2573

220-4246-02

88-20041

800-0003

850-0040

526-0015

234-0895

806-0027

526-0013

88-20445-2

815-0246

88-20229

800-0050

211-0426-02

815-0181

234-0876

815-0774

853-0013

220-4265

62048-2

MS3367-5-9

232-3541

211-0427

MS28775-233

201-3448-02

72-5203

I-50

SECTION IV

FIG.

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

25

26

26

26

26

26

26

26

26

25

25

26

26

26

26

BULK

BULK

ITEM

46

47

48

49

50

51

40

41

42

43

44

45

34

35

36

37

38

39

25

26

27

28

29

30

31

32

33

8

9

10

11

12

5

6

7

52

53

1

2

3

4

1

2

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

5310-01-012-3595

5310-01-051-8089

-

5310-01-012-3595

5310-01-051-8089

5940-00-143-4780

5305-01-190-4461

5310-01-060-7181

5961-01-019-8003

5961-01-021-2232

-

5305-01-174-2761

5310-01-060-9104

-

-

-

-

-

5940-00-143-4794

-

5305-01-368-7450

-

3020-01-369-4953

-

6115-01-375-1941

5325-00-290-1960

5940-01-369-2874

5940-01-082-3321

-

5310-01-249-0904

5305-00-846-5703

5310-01-257-7590

5310-01-379-8642

2815-01-350-2206

-

5310-00-044-6477

5310-00-011-6120

5306-00-226-4827

5340-01-366-3359

4030-00-236-0843

4010-00-009-5816

4010-00-958-0633

5340-01-367-6704

81205

44940

44940

81205

44940

96906

44940

44940

44940

44940

44940

44940

44940

44940

44940

44940

44940

44940

96906

44940

80204

44940

44940

44940

44940

96906

98410

15912

44940

96906

80204

96906

30554

30554

30554

96906

96906

80204

30554

96906

80205

81348

03007

PART NUMBER

2740-0003

526-0008

201-3466

2740-0003

526-0008

MS25036-108

813-0100

853-0008

358-0070

358-0069

201-2007

800-0050

850-0050

232-3473

232-3472

232-3468-02

205-0190

201-3452-02

MS25036-112

201-1744

B18231B10035

104-1755-03

104-1756

104-1754

220-4237-02

MS35489-27

C-8718-08

RB2573

220-4238-02

MS51943-5

B1821BH038C300N

MS51412-7

88-20247-1

88-21040

88-22790-2

MS51412-25

MS35338-64

B1821BH031C100N

88-21070-4

MS87006-11

NAS1455-2-14C

RR-C-271 TY2 CL7-16

AA06060406

I-51

SECTION IV

FIG.

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

BULK

ITEM

24

25

26

27

28

29

30

18

19

20

21

22

23

12

13

14

15

16

17

9

10

11

7

8

9

3

4

6

5340-01-367-6703

5340-01-323-2486

4720-00-235-4131

4720-01-174-4983

4720-00-639-9907

4720-00-913-5910

4720-00-542-4668

5640-01-386-9618

5970-00-812-2967

5970-00-954-1622

5970-00-914-3117

5970-00-812-1360

5970-00-082-3942

9390-01-408-1672

4020-00-523-9641

5330-01-367-6329

5330-01-302-9994

8305-00-052-2750

6145-01-282-9578

6145-00-578-7513

6145-00-578-7514

6145-00-578-6605

6145-00-851-8505

6145-00-578-6595

6145-00-578-6594

6145-00-284-0657

9505-00-293-4208

6145-01-129-9955

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

CROSS-REFERENCE INDEXES

FIGURE AND ITEM NUMBER INDEX

STOCK NUMBER FSCM

56329

71643

81349

78174

81349

81349

81349

81349

81349

81349

81349

00624

81349

03007

7B735

98441

81349

81349

49185

80244

28818

81349

81349

81349

81349

81349

57137

72205

PART NUMBER

AA07060408

A703

208-12

M6000-C-02500

MIL-H-8794-4

483666

33H581

FF40JM02

M23053/5-108-0

M23053/5-105-0

M23053/5-109-2

M2305315-109-9

M23053/5-105-9

62-B7-1/16

1-4INDIA

20941

200A 112 X 3/16

MILW530

CS2L

M5086/2-10-9

M5086/2-12-9

M5086/2-16-9

M5086/2-20-9

M5086/2-4-9

M5086/2-6-9

M5086/2-8-9

900010-32C

M27500-20TE2T14

I-52

ARMY TM 9-6115-642-24P

AIR FORCE TO 35C2-3-455-14

MARINE CORPS TM 09247A/09248A-24P/3

By Order of the Secretaries of the Army, Air Force, and Navy (Including the Marine Corps):

Official:

DENNIS J. REIMER

General, United States Army

Chief of Staff

JOEL B. HUDSON

Administrative Assistant to the

Secretary of the Army

02974

RONALD R. FOGELMAN

General, USAF

Chief of Staff

Official:

HENRY VICCELLIO, JR.

General, USAF

Commander, Air Force Materiel Command

J. E. BUFFINGTON

Rear Admiral, CEC, US Navy

Commander

Navy Facilities Engineering

Command

D. R. BLOOMER

Colonel, USMC

Director, Program Support

Marine Corps Systems Command

DISTRIBUTION:

To be distributed in accordance with DA Form 12-25-E, block no. 5560, requirements for TM 9-6115-642-24P

These are the instructions for sending an electronic 2028

The following format must be used if submitting an electronic 2028. The subject line must be exactly the same and all fields must be included; however only the following fields are mandatory: 1, 3, 4, 5, 6, 7, 8, 9,10,13,15, 16, 17, and 27.

From: "Whomever" <[email protected]>

To: mpmt%[email protected]

Subject: DA Form 2028

1. From: Joe Smith

2. Unit: home

3. Address: 4300 Park

4. City: Hometown

5. St: MO

6. Zip: 77777

7. Date Sent: 19-OCT-93

8. Pub no: 55-2840-229-23

9. Pub Title: TM

10. Publication Date: 04-JUL-85

11. Change Number. 7

12. Submitter Rank : MSG

13. Submitter FName: Joe

14. Submitter MName: T

15. Submitter LName: Smith

16. Submitter Phone: 123-123-1234

17. Problem: 1

18. Page: 2

19. Paragraph: 3

20. Line: 4

21. NSN: 5

22. Reference: 6

23. Figure: 7

24. Table: 8

25. Item: 9

26. Total: 123

27. Text:

This is the text for the problem below line 27.

¶ U.S. GOVERNMENT PRINTING OFFICE: 1999 O - 454-114 (10719)

Linear Measure

1 centimeter = 10 millimeters = .39 inch

1 decimeter= 10 centimeters = 3.94 inches

1 meter = 10 decimeters = 39.37 inches

1 dekameter = 10 Meters = 32.8 feet

1 hectometer = 10 dekameters = 328.08 feet

1 kilometer = 10 hectometers = 3,280.8 feet

The Metric System and Equivalents

Liquid Measure

1 centiliter = 10 milliliters = .34 fluid ounce

1 deciliter = 10 centiliters = 3.38 fluid ounces

1 liter = 10 deciliters = 33.81 fluid ounces

1 dekaliter = 10 liters = 2.64 gallons

1 hectoliter = 10 dekaliters = 27.42 gallons

1 kiloliter = 10 hectoliters = 264.18 gallons

Square Measure

Weights

1 centigram = 10 milligrams = .15 grain

1 decigram = 10 centigrams = 1.54 grains

1 gram = 10 decigram = 0.35 ounce

1 dekagram = 10 Grams = .35 ounce

1 hectogram = 10 dekagrams = 3.52 ounces

1 kilogram = 10 hectograms = 2.2 pounds

1 quintal = 100 kilograms = 220.46 pounds

1 metric ton = 10 quintals = 1.1 short tons

1 sq. centimeter = 100 sq millimeters = .155 sq. inch

1 sq. decimeter= 100 sq centimeters = 125.5 sq. inches

1 sq. meter (centare) = 100 sq decimeters = 10.76 sq. feet

1 sq. dekameter (are) = 1,076.4 sq. feet

1 sq. hectometer (hectare) = 100 sq. dekameters = 2.47 acres

1 sq. kilometer = 100 sq. hectometers = .386 sq. mile

Cubic Measure

1 cu. centimeter = 1000 cu. millimeters = .06 cu. inch

1 cu. decimeter = 1000 cu. decimeters = 61.02 cu. inches

1 cu. meter = 1000 cu. decimeters = 35.31 cu. feet

To change

inches feet yards miles square inches square feet square yards square miles acres cubic feet cubic yards fluid ounces pints quarts gallons ounces pounds short tons pound-feet pounds-inches

To

centimeters meters meters kilometers square centimeters square meters square meters square kilometers square hectometers cubic meters cubic meters milliliters liters liters liters grams kilograms metric tons newton-meters newton-meters

Approximate Conversion Factors

Multiply by To change

2.540

.305

.914

1.609

6.451

.093

.836

2.590

.405

.028

.765

29.573

.473

.946

3.785

28.349

.454

.907

1.356

.11296

Temperature (Exact)

ounce-inches centimeters meters meters kilometers square centimeters square meters square meters square kilometers square hectometers cubic meters cubic meters milliliters liters liters liters grams kilograms metric tons

°

F Fahrenheit Temperature 5/9 (after subtracting 32)

To

newton-meters inches feet yards miles square inches square feet s quare yards square miles acres cubic feet cubic yards fluid ounces pints quarts gallons ounces pounds short tons

Celsius Temperature

°

C

Multiply by

.007062

.394

3.280

1.094

.621

.155

10.764

1.196

.386

2.471

35.315

1.308

.034

2.113

1.057

.264

.035

2.205

1.102

PIN: 071605-000

This fine document...

Was brought to you by me:

Liberated Manuals -- free army and government manuals

Why do I do it? I am tired of sleazy CD-ROM sellers, who take publicly available information, slap “watermarks” and other junk on it, and sell it.

Those masters of search engine manipulation make sure that their sites that sell free information, come up first in search engines. They did not create it...

They did not even scan it... Why should they get your money? Why are not letting you give those free manuals to your friends?

I am setting this document FREE. This document was made by the US

Government and is NOT protected by Copyright. Feel free to share, republish, sell and so on.

I am not asking you for donations, fees or handouts. If you can, please provide a link to liberatedmanuals.com, so that free manuals come up first in search engines:

<A HREF= http://www.liberatedmanuals.com/ >Free Military and Government Manuals</A>

Sincerely

Igor Chudov http://igor.chudov.com/

Chicago Machinery Movers

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
