DDC-SVC-MAN-0040

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

To the Operator

This guide contains instructions on the safe operation and preventive maintenance of your Detroit Diesel

MBE 900 engine. Maintenance instructions cover routine engine services such as lube oil and filter changes in enough detail to permit self-servicing if desired.

The operator should become familiar with the contents of this guide before operating the engine or carrying out maintenance procedures.

Power-driven equipment is only as safe as the person operating the controls. You are urged, as the operator of this diesel engine, to keep fingers and clothing away from the revolving belts, drive shafts, etc. on engine installation.

Throughout this guide CAUTIONS regarding personal safety and

NOTICES regarding engine performance or service life will appear. To avoid personal injury and ensure long engine service life, always heed these instructions.

Whenever possible, it will benefit you to rely on an authorized Detroit Diesel service outlet for all your service needs from maintenance to major parts replacement. Authorized service outlets worldwide stock factory original parts and have the specialized equipment and experienced, trained personnel to provide prompt preventive maintenance and skilled engine repairs.

The information and specifications in this publication are based on the information in effect at the time of approval for printing. Contact an authorized Detroit Diesel service outlet for information on the latest revision. The right is reserved to make changes at any time without obligation.

The MBE 900 engine is built in accordance with sound technological principles and based on state-of-the-art technology.

Despite this the engine may constitute a risk of damage to property or injury to persons if it is not used for its intended purpose

The engine should not be modified or converted in an incorrect manner or the safety instructions included in this manual disregarded.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION i

NOTICE:

Coolant must be inhibited with the recommended SCAs (supplemental coolant additives) listed in the

How To section of this engine operators guide. In addition, the engine can be equipped with a coolant filter/inhibitor system as an installed option or as an after-sale item.

Failure to check and maintain SCA levels at required concentrations will result in severe damage (corrosion) to the engine cooling system and related components.

are registered trademarks of Detroit

Diesel Corporation. Delco Remy® is a registered trademark of Delco Remy

America, Inc. Bosch® is a registered trademark of Robert Bosch Company

N.A. Fuel Pro®, and Mega Filter® are registered trademarks of Davco

Manufacturing, L.L.C.Nexiq™ is a trademark of Nexiq Technologies,

Inc. PowerBand® is a registered trademark of Gates Rubber Company.

Tectyl® is a registered trademark of

Daubert Chemical Company, Inc.

Biobor® is a registered trademark of

United States Borax and Chemical

Corporation. DuPont® is a registered trademark of E.I. DuPont de Nemours and Company, Inc. All other trademarks used are the property of their respective owners.

WARRANTY

The applicable engine warranty is contained in the booklet “Warranty

Information for MBE 900 Engines,” available from authorized Detroit

Diesel service outlets.

Keep this Operators Guide with the engine installation at all times. It contains important operating, maintenance, and safety instructions.

Trademark Information

DDC®, Detroit Diesel®, DDEC®,

Optimized Idle®, Diagnostic Link®, reliabilt®, POWER Trac®, POWER

COOL®, and POWER GUARD® ii

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

TABLE OF CONTENTS

INTRODUCTION ..................................................................................

1

NON-GENUINE AND REBUILT COMPONENT QUALITY ALERT ..

1

PERSONNEL REQUIREMENTS .....................................................

2

ENGINE CONVERSIONS AND MODIFICATIONS ..........................

2

CAUTION SUMMARY ..........................................................................

3

ENGINE OPERATION .....................................................................

3

PREVENTIVE MAINTENANCE .......................................................

4

ELECTRICAL SYSTEM ...................................................................

6

COOLING SYSTEM .........................................................................

8

AIR INTAKE SYSTEM ......................................................................

8

FUEL SYSTEM ................................................................................

9

STARTING AIDS .............................................................................. 10

COMPRESSED AIR ......................................................................... 12

LUBRICATING OIL AND FILTERS .................................................. 12

AFTERTREATMENT SYSTEM ........................................................ 12

ENGINE IDENTIFICATION .................................................................. 14

ENGINE COMPONENTS ................................................................. 14

ENGINE MODEL AND SERIAL NUMBER DESIGNATION ............. 19

CERTIFICATION LABELS ............................................................... 20

OPERATING INSTRUCTIONS FOR STARTING THE ENGINE .......... 21

FIRST TIME START PREPARATION .............................................. 21

SYSTEM CHECKS .......................................................................... 21

COOLING SYSTEM CHECKS .................................................... 21

LUBRICATION SYSTEM CHECKS ............................................. 22

CHECKING THE OIL LEVEL .................................................. 22

EXTENDED STORAGE .......................................................... 24

FUEL SYSTEM CHECKS ............................................................ 24

ADDING FUEL ........................................................................ 26

PRIMING THE FUEL SYSTEM ............................................... 26

OTHER CHECKS ........................................................................ 26

STARTING THE ENGINE-FOR THE FIRST TIME ...................... 28

ELECTRIC STARTER ............................................................. 29

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION iii

TABLE OF CONTENTS

RUNNING THE ENGINE ................................................................. 29

OIL PRESSURE .......................................................................... 30

WARM-UP ................................................................................... 30

INSPECTION ............................................................................... 30

TRANSMISSION ..................................................................... 30

FLUID LEAKS ......................................................................... 30

CRANKCASE .......................................................................... 30

TURBOCHARGER .................................................................. 30

AVOID UNNECESSARY IDLING ................................................. 31

STOPPING THE ENGINE ................................................................ 31

EMERGENCY JUMP STARTING .................................................... 31

ROUTINE ENGINE START .............................................................. 32

STARTING THE ENGINE-ROUTINE ........................................... 33

CHECKING THE COOLANT LEVEL (COLD CHECK) ................ 35

CHECKING THE COOLANT LEVEL (HOT CHECK) .................. 35

MONITORING ENGINE OPERATION ............................................. 35

BATTERY CHARGE .................................................................... 36

OIL PRESSURE .......................................................................... 36

EXCESSIVE IDLING ................................................................... 36

CHANGING THE IDLE SPEED ....................................................... 36

SHUTTING DOWN THE ENGINE ................................................... 37

SHUTTING DOWN AFTER HIGH LOAD OPERATION ............... 37

EMERGENCY RUNNING MODE .................................................... 37

STOP ENGINE OVERRIDE OPTION .............................................. 38

COLD WEATHER OPERATION ...................................................... 38

WINTER FRONTS ....................................................................... 39

DDEC VI SYSTEM ............................................................................... 40

MOTOR CONTROL MODULE ......................................................... 40

COMMON POWERTRAIN CONTROLLER ..................................... 41

DDEC FEATURES ........................................................................... 42

CRUISE CONTROL ..................................................................... 42

DATA RECORDING CAPABILITY ............................................... 44

ENGINE BRAKES ....................................................................... 44

ENGINE PROTECTION .............................................................. 45

CALIFORNIA ENGINE IDLE LIMITING ....................................... 45

IDLE SHUTDOWN TIMER .......................................................... 46

DDEC VI OPERATION ..................................................................... 46

STOP ENGINE OVERRIDE SWITCH ......................................... 47

iv

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

IMMEDIATE SPEED REDUCTION ............................................. 48

RED STOP LAMP ........................................................................ 48

DIAGNOSTIC TOOL .................................................................... 48

FLASHING MALFUNCTION CODES ...................................... 48

DDEC VI ENGINE DRIVING TIPS ....................................................... 51

ACCELERATING THE VEHICLE ..................................................... 51

CRUISE CONTROL ......................................................................... 51

ENGINE BRAKES AND CRUISE CONTROL .................................. 53

SHIFTING ........................................................................................ 53

IDLING ............................................................................................. 54

ENGINE BRAKE SYSTEM .................................................................. 55

EXHAUST BRAKE/CONSTANT-THROTTLE VALVES,

OPTIONAL ....................................................................................... 55

ANTI-LOCK BRAKING SYSTEMS ................................................... 56

DRIVING ON FLAT, DRY PAVEMENT ............................................. 56

DESCENDING A LONG, STEEP GRADE ....................................... 56

DRIVING ON WET OR SLIPPERY PAVEMENT .............................. 58

ENGINE SYSTEMS ............................................................................. 59

FUEL SYSTEM ................................................................................ 59

LUBRICATION SYSTEM ................................................................. 59

AIR SYSTEM ................................................................................... 59

COOLING SYSTEM ......................................................................... 59

ELECTRICAL SYSTEM ................................................................... 60

EXHAUST SYSTEM ........................................................................ 60

EXHAUST GAS RECIRCULATION SYSTEM .................................. 60

AFTERTREATMENT SYSTEM ............................................................ 61

OPERATING REQUIREMENTS ...................................................... 62

MAINTENANCE ............................................................................... 62

PARKED REGENERATION ............................................................. 63

HAZARDOUS APPLICATIONS ................................................... 65

DPF STATIONARY REGEN ONLY = 0-DISABLED ................ 65

DPF STATIONARY REGEN ONLY = 1-ENABLED ................. 65

SERVICE RECORD ......................................................................... 65

INSTRUMENT PANEL LAMPS ........................................................... 67

MAINTENANCE ................................................................................... 70

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION v

TABLE OF CONTENTS

SCHEDULED INTERVALS .............................................................. 70

MAINTENANCE SCHEDULE TYPES ......................................... 70

SEVERE SERVICE ................................................................. 70

SHORT-HAUL ......................................................................... 70

LONG-HAUL ........................................................................... 71

MAINTENANCE INTERVALS ................................................. 71

SCHEDULE USE ............................................................................. 71

MAINTENANCE TABLES ................................................................ 72

PREVENTIVE MAINTENANCE INTERVALS .................................. 76

ITEM 1 – LUBRICATING OIL/ FILTER ........................................ 76

ITEM 2 – COOLING SYSTEM FLUSH AND FILL ....................... 78

ITEM 3 – VALVE LASH CHECKING AND ADJUSTMENT .......... 79

ITEM 4 – DRIVE BELTS .............................................................. 79

ITEM 5 – FUEL / WATER SEPARATOR ...................................... 80

ITEM 6 – FUEL FILTERS ............................................................ 80

ITEM 7– AIR SYSTEM ................................................................ 80

ITEM 8– EXHAUST SYSTEM ..................................................... 81

ITEM 9– AIR COMPRESSOR ..................................................... 81

ITEM 10 – AFTERTREATMENT SYSTEM (ATS) ........................ 81

ITEM 11 – VIBRATION DAMPER ................................................ 82

ITEM 12 – FEPTO TORSIONAL DAMPER CHECKING ............. 82

REQUIRED MAINTENANCE OPERATIONS ................................... 82

ENGINE INSPECTING ................................................................ 82

COOLANT CONCENTRATION CHECKING .................................... 82

COOLANT FLUSHING AND CHANGING ........................................ 84

COOLING SYSTEM INSPECTING .................................................. 86

HOW-TO SECTION .............................................................................. 87

HOW TO SELECT LUBRICATING OIL ............................................ 87

LUBRICANT REQUIREMENTS .................................................. 87

COLD WEATHER STARTING ..................................................... 87

SYNTHETIC OILS ....................................................................... 88

THE USE OF SUPPLEMENTAL ADDITIVES .............................. 89

WHEN TO CHANGE OIL ............................................................. 89

DISPOSING OF WASTE OIL ...................................................... 89

HOW TO REPLACE THE LUBE OIL AND FILTERS ....................... 90

OIL CENTRIFUGE ........................................................................... 92

HOW TO SELECT DIESEL FUEL ................................................... 93

QUALITY ..................................................................................... 93

vi

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

FUEL CONTAMINATION ............................................................. 94

BIODIESEL ............................................................................. 94

PROHIBITED ADDITIVES ........................................................... 94

USED LUBRICATING OIL ....................................................... 95

FUEL ADDITIVES WITH SULFUR OR SULFATED ASH ........ 95

GASOLINE .............................................................................. 95

HOW TO REPLACE THE FUEL FILTER/WATER SEPARATOR

FILTERS ........................................................................................... 95

PRIMARY FUEL FILTER ............................................................. 95

SECONDARY FUEL FILTER ....................................................... 97

DRAINING THE FUEL FILTER/WATER SEPARATOR ............... 98

ENGINE OUT OF FUEL — HOW TO RESTART ............................. 98

HOW TO CLEAN THE ENGINE ...................................................... 98

HIGH-PRESSURE CLEANING EQUIPMENT ............................. 99

HOW TO CLEAN THE COOLING SYSTEM .................................... 99

DEGREASING ............................................................................. 100

HOW TO SELECT COOLANT ......................................................... 101

DEFINITIONS .............................................................................. 101

APPROVED COOLANTS ............................................................ 101

EG & WATER PLUS SCA INHIBITOR OR PG & WATER PLUS

SCA INHIBITOR ...................................................................... 102

MIXING EG OR PG ANTIFREEZE AND WATER ................... 103

RECYCLED ANTIFREEZE ..................................................... 104

EG/WATER + OAT INHIBITOR OR PG/WATER + OAT

INHIBITOR .............................................................................. 104

WATER ONLY + SCA OR WATER ONLY + OAT INHIBITOR . 105

WATER REQUIREMENTS ...................................................... 107

COOLANTS NOT RECOMMENDED .......................................... 107

ALL ANTIFREEZES AND COOLANTS CONTAINING

PHOSPHATE ........................................................................... 107

AUTOMOTIVE TYPE COOLANTS .......................................... 107

METHYL ALCOHOL-BASED ANTIFREEZE ........................... 107

GLYCOL-BASED COOLANTS FORMULATED FOR HVAC ... 108

ADDITIVES NOT RECOMMENDED ........................................... 108

SOLUBLE OILS ....................................................................... 108

CHROMATE ............................................................................ 108

COOLANT INHIBITOR TEST INTERVALS ................................. 108

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION vii

TABLE OF CONTENTS

SUPPLEMENTAL COOLANT ADDITIVES FOR FULLY

FORMULATED COOLANT ...................................................... 109

MAINTENANCE INTERVALS .................................................. 109

SCA TEST PROCEDURES ......................................................... 111

NEED RELEASE COOLANT FILTERS (NON-OAT SYSTEMS) . 112

DROPOUT ................................................................................... 113

COOLANT EXTENDER INHIBITOR ADDITIVE FOR “OAT”

COOLANT ................................................................................... 113

OAT COOLANT DRAIN INTERVAL ........................................ 114

CHRONIC COOLANT SYSTEM PROBLEMS ............................. 114

DETROIT DIESEL COOLING SYSTEM MAINTENANCE

PRODUCTS ................................................................................. 114

POWER COOL SCAS ............................................................. 114

POWER COOL COOLANT FILTER ELEMENTS .................... 114

POWER COOL CLEANERS ................................................... 114

SUMMARY OF COOLANT RECOMMENDATIONS .................... 115

COOLANT LIFE OF GLYCOL COOLANT ............................... 116

COOLANT LIFE OF OAT COOLANT ...................................... 116

COOLANT LIFE OF OTHER COOLANTS .............................. 116

COOLANT FLUSHING AND CHANGING ................................... 116

COOLING SYSTEM INSPECTING ............................................. 118

TROUBLESHOOTING ......................................................................... 119

ENGINE STORAGE ............................................................................. 132

PREPARING ENGINE FOR STORAGE .......................................... 132

TEMPORARY STORAGE (30 DAYS OR LESS) ......................... 132

EXTENDED STORAGE (MORE THAN 30 DAYS) ...................... 133

PROCEDURE FOR RESTORING TO SERVICE AN ENGINE

THAT HAS BEEN IN EXTENDED STORAGE ............................. 136

CUSTOMER ASSISTANCE ................................................................. 138

ROAD SERVICE IN THE U.S. OR CANADA ................................... 140

WORKING WITH DETROIT DIESEL SERVICE OUTLETS ............ 141

STEP ONE ................................................................................... 141

STEP TWO .................................................................................. 141

STEP THREE .............................................................................. 142

SPECIFICATIONS ................................................................................ 143

FUEL AND LUBRICATING OIL FILTERS ........................................ 143

viii

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

OIL PAN CAPACITY .................................................................... 143

POWER COOL ENGINE PRODUCTS ............................................ 143

POWER COOL FULLY FORMULATED IEG COOLANT ............. 143

POWER COOL 2000 AND 3000 SUPPLEMENTAL COOLANT

ADDITIVE .................................................................................... 144

POWER COOL 3000 SUPPLEMENTAL ADDITIVE COOLANT

FILTERS ...................................................................................... 145

POWER COOL SUPPLEMENTAL ADDITIVE NEED RELEASE

COOLANT FILTERS .................................................................... 145

POWER COOL PLUS EXTENDED LIFE OAT COOLANT .......... 146

POWER COOL PLUS EXTENDER FOR USE WITH POWER

COOL PLUS OAT COOLANT ...................................................... 146

POWER COOL COOLING SYSTEM CLEANERS ...................... 146

POWER TRAC COOLANT TESTING AND ANALYSIS

PRODUCTS ................................................................................. 147

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION ix

TABLE OF CONTENTS

x

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

INTRODUCTION

This guide is intended for use by the operator of an MBE 900 diesel engine used in the following applications:

□ On-Highway Vehicles

□ Fire Truck or Crash/Rescue

Vehicles

Non-Genuine and Rebuilt

Component Quality Alert

Electronic engine controls have been instrumental in aiding engine manufacturers in meeting the stringent emission requirements of the U.S.

Environmental Protection Agency

(U.S. EPA) and the California Air

Resources Board (CARB) and also in meeting the ever-increasing performance demands of the customer.

Maintenance procedures must be followed in order to continue satisfactory performance and durability and to ensure coverage of the engine under the manufacturer's warranty. Many of these maintenance procedures also ensure that the engine continues to comply with applicable emissions standards.

Proper maintenance procedures, using specific components engineered to comply with emissions regulations, may be performed by an authorized

Detroit Diesel distributor or dealer, an independent outlet or the operator or owner. The owner is responsible for determining the suitability of components to maintain emissions compliance during the engine's useful emission life.

Detroit Diesel cautions that the indiscriminate rebuilding of precision components, without the benefit of specifications, specialized equipment, and knowledge of the electronic operating system, will jeopardize performance or lead to more serious problems, and can take the engine outside of compliance with U.S. EPA or CARB emissions standards.

There are other components in an engine, such as turbocharger, camshaft, piston, etc., which are specifically designed and manufactured to exacting standards for emissions compliance. It is important that these components, if replaced, modified or substituted, can be verified to ensure that the engine remains in compliance with emissions standards. The use of inadequately engineered, manufactured or tested components in repair or rebuild of the engine may be in violation of the federal Clean Air Act and applicable

U.S. EPA or CARB regulations.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

1

INTRODUCTION

Furthermore, modern engines exhibit operating parameters which require the use of proper fluids, such as fuel, coolant and lubricating oil, to maintain long engine life. The use of fluids that do not meet Detroit Diesel

Corporation specifications may result in early wear out or engine failure.

Personnel Requirements

Work on the engine should be carried out only by skilled technicians who have been instructed in the specific skills necessary for the type of work being performed.

Engine Conversions and

Modifications

The function and safety of the engine could be affected if unauthorized modifications are made. Detroit

Diesel will not accept responsibility for any resulting damage.

Tampering with the fuel injection system and engine electronics could also affect the engine's power output or exhaust emission levels. Compliance with the manufacturer's settings and with statutory environmental protection regulations cannot then be guaranteed.

2

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

CAUTION SUMMARY

The following cautions must be observed by the operator of the vehicle or equipment in which this engine is installed and/or by those performing basic engine preventive maintenance. Failure to read and heed these cautions and exercise reasonable care for personal safety and the safety of others when operating the vehicle/equipment or performing basic engine preventive maintenance may result in personal injury and engine and/or vehicle/equipment damage.

Engine Operation

Observe the following cautions when operating the engine.

FIRE

To avoid injury from fire, keep all potential ignition sources away from diesel fuel, including open flames, sparks, and electrical resistance heating elements. Do not smoke when refueling.

HOT EXHAUST

During parked regeneration the exhaust gases will be extremely

HOT and could cause a fire if directed at combustible materials. The vehicle must be parked outside.

PERSONAL INJURY

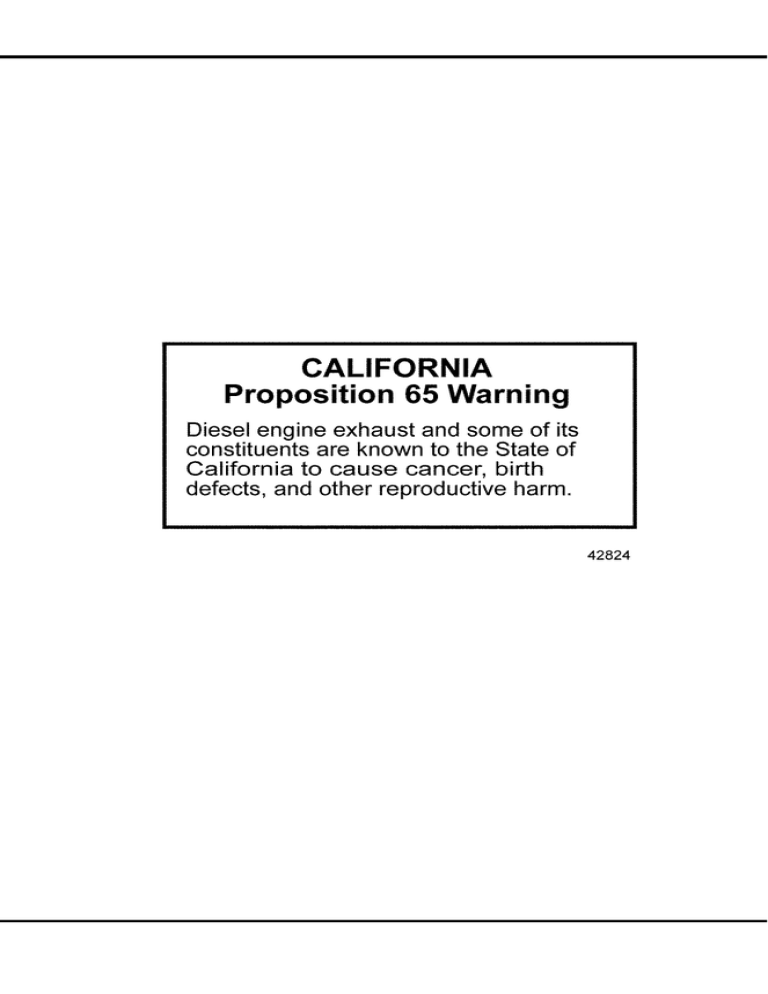

Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm.

□ Always start and operate an engine in a well ventilated area.

□ If operating an engine in an enclosed area, vent the exhaust to the outside.

□ Do not modify or tamper with the exhaust system or emission control system.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

3

CAUTION SUMMARY

Preventive Maintenance

Observe the following cautions when performing preventative maintenance.

HOT OIL

To avoid injury from hot oil, do not operate the engine with the rocker cover(s) removed.

PERSONAL INJURY

To avoid injury when working near or on an operating engine equipped with an hydraulic clutch fan, remove loose items of clothing and jewelry. Tie back or contain long hair that could be caught in any moving part causing injury. The hydraulic fan may start without warning.

PERSONAL INJURY

To avoid injury from slipping and falling, immediately clean up any spilled liquids.

HOT COOLANT

To avoid scalding from the expulsion of hot coolant, never remove the cooling system pressure cap while the engine is at operating temperature. Wear adequate protective clothing

(face shield, rubber gloves, apron, and boots). Remove the cap slowly to relieve pressure.

USED ENGINE OIL

To avoid injury to skin from contact with the contaminants in used engine oil, wear protective gloves and apron.

4

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

PERSONAL INJURY

To avoid injury from the projection of tools or other objects that may fall on or behind the vibration damper of an engine, always check and remove these items before starting the engine.

FIRE

To avoid injury from combustion of heated lubricating-oil vapors, stop the engine immediately if an oil leak is detected.

PERSONAL INJURY

To avoid injury from contact with rotating parts when an engine is operating with the air inlet piping removed, install an air inlet screen shield over the turbocharger air inlet. The shield prevents contact with rotating parts.

FIRE

To avoid injury from fire, do not smoke or allow open flames when working on an operating engine.

FIRE

To avoid injury from fire from a buildup of volatile vapors, keep the engine area well ventilated during operation.

PERSONAL INJURY

To avoid injury when using caustic cleaning agents, follow the chemical manufacturers usage, disposal, and safety instructions.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

5

CAUTION SUMMARY

Electrical System

Observe the following cautions when jump starting an engine, charging a battery, or working with the vehicle electrical system.

PERSONAL INJURY

To avoid injury from accidental engine startup while servicing the engine, disconnect/disable the starting system.

Battery Explosion and Acid Burn

To avoid injury from battery explosion or contact with battery acid, work in a well ventilated area, wear protective clothing, and avoid sparks or flames near the battery. If you come in contact with battery acid:

□ Flush your skin with water.

□ Apply baking soda or lime to help neutralize the acid.

□ Flush your eyes with water.

□ Get medical attention immediately.

Electrical Shock

To avoid injury from electrical shock, use care when connecting battery cables. The magnetic switch studs are at battery voltage.

ELECTRICAL SHOCK

To avoid injury from electrical shock, do not touch battery terminals, alternator terminals, or wiring cables while the engine is operating.

6

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Electrical Shock Hazard

High voltage can remain inside the Electrostatic Oil Separator after removal. Wait 30 minutes after turning off the ignition before removing the separator.

Never touch parts through ventilation openings or impeller opening with finger or conductive items (e.g. screwdriver or wire).

High voltage can remain inside the Electrostatic Oil Separator for up to 12 hours after the ignition is turned off.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

7

CAUTION SUMMARY

Cooling System

Observe the following cautions when servicing the cooling system.

Air Intake System

Observe the following cautions when working on the air intake system.

HOT COOLANT

To avoid scalding from the expulsion of hot coolant, never remove the cooling system pressure cap while the engine is at operating temperature. Wear adequate protective clothing

(face shield, rubber gloves, apron, and boots). Remove the cap slowly to relieve pressure.

PERSONAL INJURY

To avoid injury from hot surfaces, wear protective gloves, or allow engine to cool before removing any component.

PERSONAL INJURY

To avoid injury from slipping and falling, immediately clean up any spilled liquids.

PERSONAL INJURY

To avoid injury from contact with rotating parts when an engine is operating with the air inlet piping removed, install an air inlet screen shield over the turbocharger air inlet. The shield prevents contact with rotating parts.

8

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Fuel System

Observe the following cautions when fueling the vehicle or working with the fuel system.

PERSONAL INJURY

To avoid injury from fuel spills, do not overfill the fuel tank.

FIRE

To avoid injury from fire, keep all potential ignition sources away from diesel fuel, including open flames, sparks, and electrical resistance heating elements. Do not smoke when refueling.

FIRE

To avoid injury from fire, contain and eliminate leaks of flammable fluids as they occur. Failure to eliminate leaks could result in fire.

PERSONAL INJURY

To prevent the escape of high pressure fuel that can penetrate skin, ensure the engine has been shut down for a minimum of 10 minutes before servicing any component within the high pressure circuit. Residual high fuel pressure may be present within the circuit.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

9

CAUTION SUMMARY

FIRE

To avoid injury from fire caused by heated diesel-fuel vapors:

□ Keep those people who are not directly involved in servicing away from the engine.

□ Stop the engine immediately if a fuel leak is detected.

□ Do not smoke or allow open flames when working on an operating engine.

□ Wear adequate protective clothing (face shield, insulated gloves and apron, etc.).

□ To prevent a buildup of potentially volatile vapors, keep the engine area well ventilated during operation.

Starting Aids

Observe the following cautions when using starting aids.

FLAMES, EXPLOSION AND

TOXICITY

To avoid injury from flames, explosion, and toxicants when using ether, the following precautions must be taken:

□ Always wear goggles when testing.

□ If fluid enters the eyes or if fumes irritate the eyes, wash eyes with large quantities of clean water for 15 minutes.

A physician, preferably an eye specialist, should be contacted.

□ Contents of cylinder are under pressure. Store cylinders in a cool dry area. Do not incinerate, puncture or attempt to remove cores from cylinders.

10

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

FLAMES, EXPLOSION AND

TOXICITY

To avoid injury from flames, explosion, and toxicants when using ether, the following precautions must be taken:

□ Do not smoke when servicing ether system.

□ Work in well ventilated area.

□ Do not work near open flames, pilot flames (gas or oil heaters), or sparks.

□ Do not weld or carry an open flame near the ether system if you smell ether or otherwise suspect a leak.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

11

CAUTION SUMMARY

Compressed Air

Observe the following cautions when using compressed air.

FIRE

To avoid injury from fire, do not smoke or allow open flames when working on an operating engine.

EYE INJURY

To avoid injury from flying debris when using compressed air, wear adequate eye protection (face shield or safety goggles) and do not exceed 276 kPa (40 psi) air pressure.

Lubricating Oil and Filters

Observe the following cautions when replacing the engine lubricating oil and filters.

PERSONAL INJURY

To avoid injury from slipping and falling, immediately clean up any spilled liquids.

FIRE

To avoid injury from fire from a buildup of volatile vapors, keep the engine area well ventilated during operation.

Aftertreatment System

Observe the following cautions when servicing the Aftertreatment System

(ATS). Be advised that these two labels are attached to the Aftertreatment

Device (ATD).

FIRE

To avoid injury from combustion of heated lubricating-oil vapors, stop the engine immediately if an oil leak is detected.

12

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Figure 1 Hot Surfaces External and Internal Caution

Figure 2 Heavy Aftertreatment Device Caution

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

13

ENGINE IDENTIFICATION

ENGINE IDENTIFICATION

The MBE 900 engine has a certification label, engine model and serial number for identification.

Engine Components

The 2007 on-highway MBE 900 engine is equipped with an Exhaust

Gas Recirculation (EGR) system to reduce engine exhaust gas emissions in accordance with EPA regulations.

See Figure 3 for a right front view of the MBE 900 EGR engine, single

turbocharger model, and Figure 4

for a left rear view. See Figure 5 for

a right front view of the MBE 900

EGR engine, dual-stage turbocharger model, and Figure 6 for left side front view.

14

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

1. EGR Cooler

2. EGR Exhaust Elbow

3. Rear Lifting Bracket

4. Air Intake Throttle

5. EGR Valve

6. EGR Delivery Pipe

7. Front Lifting Bracket

8. Water Pump

9. Fan Pulley

10. Crankshaft Vibration Damper

11. Belt Tensioner Assembly

12. Oil Filter

13. Turbocharger (Single-Stage)

14. Exhaust Brake

Figure 3 Right Front View of the MBE 900 Engine (Single-Stage

Turbocharger)

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

15

ENGINE IDENTIFICATION

1. Oil Pan

2. Thermostat Housing

3. Oil Fill Cap

4. Cylinder Head Cover

5. EGR Mixer Housing

6. Electrostatic Oil Separator

7. Flywheel Housing

8. Air Compressor

9. 31-Pin Connector

10. Motor Control Module (MCM)

11. 120-Pin Connector

12. Fuel Filter/Water Separator

13. Oil Dipstick

Figure 4 Left Rear View of the MBE 900 Engine (Single Turbocharger)

16

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

1. Oil Supply Line to Turbo

2. Cylinder Block

3. Dual Turbo Oil Return to Block

4. Dual-Stage Turbocharger

5. Wastegate Actuator

6. Exhaust Elbow

7. EGR Cooler

8. Grid Heater

9. Air Intake Manifold

10. EGR Delivery Pipe

11. EGR Cooler Coolant Return Tube

12. EGR Cooler Supply Tube

13. Oil Supply Line to 2nd Turbo

Figure 5 Right Front View of the MBE 900 Engine (Dual-Stage

Turbocharger)

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

17

ENGINE IDENTIFICATION

1. Drain Line for Water Separator

2. Doser Block Assembly

3. Rocker Arm Frame

4. Fuel Injector (under cover)

5. Breather Hose

6. Cylinder Head Cover

7. EGR Valve

8. Air Intake Mixer Housing

9. Air Intake Manifold

10. Air Intake Throttle

11. Electrostatic Oil Separator

12. Dosing Fuel Line

13. Wire Harness

14. Oil Centrifuge (except 350 BHP

Motorcoach models)

15. 31–Pin Connector

16. 21–Pin Connector

17. Motor Control Module (MCM)

18. Fuel Heat Exchanger

19. 120–Pin Connector

20. Dipstick Location

Figure 6 Left Side View of the MBE 900 Engine (Dual-Stage Turbocharger)

18

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Engine Model And Serial

Number Designation

The engine identification numbers are lasered in large font onto an enlarged labeling surface on the rear right

crankcase. See Figure 7.

Figure 8 Engine Identification

Number

Figure 7 Location of Engine

Identification Number

See Figure 8 for an example of the

numbers as they appear on the engine.

The last six numbers are the serial

numbers (310187 in Figure 8).

NOTE:

In addition to the fourteen digit number etched on the crankcase, there is a ten digit number used for warranty and service that is found on the MCM label.

The ten digit number is derived from the fourteen digit number (see Figure

9).

Figure 9 Engine Serial Number

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

19

ENGINE IDENTIFICATION

Certification Labels

The MBE 900 engine complies with all United States Environmental

Protection Agency (U.S. EPA) and

California Air Resources Board

(CARB) emission standards. An emission label is attached to the cylinder head cover, as required by

law. See Figure 10 for the emission

label for the 2007, 6-cylinder, EGR model.

NOTE:

The horsepower rating on the emission label is for the highest engine rating and not necessarily the rating of your engine.

Figure 10 Engine Emission Label — EPA07

20

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

OPERATING INSTRUCTIONS FOR STARTING THE

ENGINE

Following are instructions for starting the engine.

First Time Start

Preparation

When preparing to start a new or newly overhauled engine which has been in storage, perform all of the operations listed below. Also refer

to the ENGINE STORAGE section

of this guide. Failure to follow these instructions may result in serious engine damage.

Be sure you are familiar with all of the instruments, gauges and controls which are needed to operate the engine.

Note especially the location and function of the following:

□ Oil Pressure Gauge

□ Coolant Temperature Gauge

□ Low Oil Pressure/High Coolant

Temperature Warning Light

□ Water In Fuel Warning Light

□ Tachometer

□ Air Restriction Indicator

When starting the engine, and while driving, watch for any signs of engine problems. If the engine overheats, uses excessive fuel or lubricating oil, vibrates, misfires, makes unusual noises, or shows an unusual loss of power, turn the engine off as soon as possible and determine the cause.

Frequently, engine damage may be avoided by a quick response to early indications of problems.

If you are starting the engine in cold weather, refer to "How to

Select Coolant" in the “HOW-TO

SECTION” section of this guide.

System Checks

Perform the following system checks before starting for the first time.

Cooling System Checks

Check the cooling system as follows:

1. Make sure all drain cocks in the cooling system are installed

(drain cocks are often removed for shipping) and are closed tightly.

2. Remove the radiator pressure control cap and fill with genuine

Detroit Diesel POWER COOL® antifreeze or an equivalent quality ethylene glycol or propylene glycol-base antifreeze solution in the required concentration.

In extremely hot environments,

properly inhibited water may

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

21

OPERATING INSTRUCTIONS FOR STARTING THE ENGINE

be used in the summer. Keep the coolant level at the bottom of the filler neck to allow for expansion of the coolant. For more detailed

recommendations, refer to How

to Select Coolant in the HOW-TO

SECTION of this guide.

3. Entrapped air must be purged after filling the cooling system.

To do this, allow the engine to warm up with the pressure cap removed. With the transmission in neutral, increase engine speed above 1,000 rpm and add coolant to the radiator as required.

4. Check to make sure the front of the radiator and air-to-air charge cooler (if equipped) are unblocked and free of debris.

Lubrication System Checks

The lubricating oil film on the rotating parts and bearings of a new or newly overhauled engine, or one which has been in storage for six months or more, may be insufficient when the engine is started for the first time.

NOTICE:

Insufficient lubrication at startup can cause serious damage to engine components.

To insure an immediate flow of oil to all bearing surfaces at initial engine startup, the engine lubrication system should be charged with a commercially available pressure pre-lubricator. If this is impractical,

rocker covers should be removed and

clean lubricating oil should be poured

over the rocker arms. The oil should be the same weight and viscosity as that used in the crankcase. After pre-lubricating, add additional oil to bring the level to the proper mark on the dipstick.

For lubricant recommendation,

refer to the How to Select Lubricating

Oil section in this guide.

Checking the Oil Level — Check the oil level as follows:

1. Remove the dipstick from the guide tube. Note the dipstick has a positive locking device such as a lever or twist-lock design that must be disengaged before pulling the dipstick out of the guide tube.

2. Use a shop rag to wipe off the end of the dipstick.

3. Wait 15 seconds to allow any crankcase pressure to dissipate through the guide tube and let the oil level settle in the oil pan.

4. Reinstall the dipstick and make sure it is fully inserted into the guide tube.

5.

22

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Figure 11 Oil Dipstick

Remove the dipstick and read

the oil level see Figure 11.

The figure shows a comparison between the bends on the dipstick and a crosshatch pattern on a conventional dipstick. Note the exact area noted on the bends.

For example, the “maximum” oil level will be at the BOTTOM of that bend. For the “minimum” oil level, it is noted at the TOP of the bend.

6.

Figure 12 Oil Fill Cap

If the oil level is below the

“minimum” bend, add oil to bring it up the “maximum” level.

see Figure 11. Do NOT fill

beyond the maximum fill level on the dipstick, since overfilling may result in high oil consumption and possible severe engine damage.

If necessary, add additional oil

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

23

OPERATING INSTRUCTIONS FOR STARTING THE ENGINE

through oil fill cap located on the

top of the engine. See Figure 12

PERSONAL INJURY

To avoid injury from slipping and falling, immediately clean up any spilled liquids.

Extended Storage — An engine in storage for an extended period of time (over winter, for example) may accumulate water in the oil pan through normal condensation of moisture (always present in the air) on the cold, internal surfaces of the engine.

NOTICE:

Failure to eliminate water-diluted lubricating oil may lead to serious engine damage at startup.

Lube oil diluted by water cannot provide adequate bearing protection at engine startup. For this reason,

Detroit Diesel recommends replacing the engine lubricating oil and filters after extended storage.

Fuel System Checks

Fill the tanks with the recommended fuel. Keeping tanks full reduces water condensation and helps keep fuel cool, which is important to engine performance. Full tanks also reduce the chance for microbe (black slime) growth. For fuel recommendations,

refer to the How to Select Diesel Fuel

section in this guide. Make sure the fuel shutoff valve (if used) is open.

NOTICE:

Prolonged use of the starting motor and engine fuel pump to prime the fuel system can result in damage to the starter, fuel pump and injectors.

This may cause erratic engine operation due to the amount of air in the lines and filters from the fuel supply tank to the cylinder head

24

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

NOTICE:

Under no circumstances should a starting aid such as ether be used to run the engine until the fuel system is primed. Injector damage will result if this method is used.

If an external starting aid is used, the heat generated by the external fuel source will cause the injector tips to be damaged when the fuel cools them.

The injector plunger and bushing can be scored from running without lubrication.

NOTICE:

Engines equipped with starting devices dependent on compressed air or gas reservoirs should always be primed before initial startup.

Otherwise, reserve pressure can be exhausted and injectors may be damaged from lack of lubrication and cooling.

To insure prompt starting and even running, the fuel system must be primed if air has entered the fuel system. Priming can be performed by using the priming pump on the fuel filter or by connecting a manual or electric priming pump to the fuel filter housing.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

25

OPERATING INSTRUCTIONS FOR STARTING THE ENGINE

Authorized Detroit Diesel service outlets are properly equipped and have the trained technicians to perform this service.

Priming is not normally required if the filter elements are filled with clean fuel when installed and the lines are not drained of fuel. If priming is

required refer to section Priming the

Fuel System

If the engine is equipped with a fuel/water separator, drain off any water that has accumulated. Water in fuel can seriously affect engine performance and may cause engine damage. Detroit Diesel recommends installation of a fuel/water separator wherever water contamination is a concern.

Adding Fuel — Note the following when adding fuel:

□ Add winter or summer grade fuel according to the season of the year.

□ Work in the cleanest conditions possible.

□ Prevent water from entering the fuel tank.

For further information refer to

“Diesel Fuels” in the HOW-TO

SECTION of this guide.

Priming the Fuel System —

Prime the fuel system as follows:

1. If equipped with a hand pump on the fuel filter or fuel/water separator, work the hand pump until resistance is felt.

2. Crank the engine for 30 seconds at a time, but no longer. Before cranking the engine again, wait at least two minutes. The engine should start within four 30-second attempts.

Other Checks

Make sure the transmission is filled to the proper level with the fluid recommended by the manufacturer.

Do not overfill.

26

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Battery Explosion and Acid Burn

To avoid injury from battery explosion or contact with battery acid, work in a well ventilated area, wear protective clothing, and avoid sparks or flames near the battery. If you come in contact with battery acid:

□ Flush your skin with water.

□ Apply baking soda or lime to help neutralize the acid.

□ Flush your eyes with water.

□ Get medical attention immediately.

Manufacturer

Shell Oil, Co.

Texaco, Inc.

Quaker State

Lubricant or

Part Number

No. 71032; No.

71306

No. 955

No. NYK-77

Table 1 Approved Electrical

Lubricants

Make sure cable connections to the storage batteries are clean and tight. Check the hydrometer “eye” of maintenance-free batteries for charge.

See Figure 13.

If lead-acid or low-maintenance batteries are used, make sure battery electrolyte level is normal.

Use only batteries that have been correctly filled and serviced. To provide corrosion protection, apply dielectric grease liberally to the terminal pads. Approved suppliers are listed in Table 1.

Figure 13 Maintenance-Free

Battery “Eye”

Check the turbocharger for signs of oil or exhaust leaks. Leaks should be corrected before starting the engine.

Check engine mounting bolts for tightness. Bolts should be retightened, if necessary.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

27

OPERATING INSTRUCTIONS FOR STARTING THE ENGINE

Starting the Engine-For The

First Time

Before starting the engine the first time, perform the operations listed in

the System Checks section.

NOTICE:

The turbocharger may be seriously damaged if the engine is cranked with the air shutdown in the closed position.

The engine may require the use of a cold weather starting aid if the ambient temperature is below 40°F (4°C).

To start an MBE 900 engine, make sure the transmission is in neutral and turn the ignition key on.

ENGINE EXHAUST

To avoid injury from inhaling engine exhaust, always operate the engine in a well-ventilated area. Engine exhaust is toxic.

PERSONAL INJURY

To avoid injury when working near or on an operating engine, remove loose items of clothing and jewelry. Tie back or contain long hair that could be caught in any moving part causing injury.

FLAMES, EXPLOSION AND

TOXICITY

To avoid injury from flames, explosion, and toxicants when using ether, the following precautions must be taken:

□ Do not smoke when servicing ether system.

□ Work in well ventilated area.

□ Do not work near open flames, pilot flames (gas or oil heaters), or sparks.

□ Do not weld or carry an open flame near the ether system if you smell ether or otherwise suspect a leak.

You will notice that both the Amber

Warning Lamp (AWL)/Check Engine and the Red Stop Lamp (RSL)/Stop

Engine will come on. This is the result of the Detroit Diesel Electronic

Control (DDEC®) computer diagnosing the system to ensure everything is functional, including the light bulbs for the warning lights. If everything is OK, both lights will go out in approximately five seconds.

28

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Start the engine after the lights go out. If starting a vehicle, start the engine with foot off the foot pedal.

NOTICE:

If the warning lights stay on, or do not come on momentarily after turning on the ignition, contact the Detroit Diesel Customer

Support Center at 313–592–5800.

Operating the engine under these circumstances may result in engine damage.

3. If the engine doesn't start after

30 seconds, stop. Try again after waiting two minutes. The engine should start within four 30-second attempts.

NOTICE:

Do not rev the engine if the oil pressure gauge indicates no oil pressure. To avoid engine damage, shut down the engine if no oil pressure appears within approximately ten seconds. Check to determine the cause of the problem.

Electric Starter — Start an engine equipped with an electric starting motor as follows:

NOTICE:

To prevent serious starting motor damage, do not press the starter switch again after the engine has started.

4. Monitor the oil pressure gauge immediately after starting the engine.

NOTE:

Do not place the engine under full load until it reaches operating temperature.

Running the Engine

While the engine is operating, monitor the battery charge indicator light, the oil pressure and avoid excessive idling.

Important: At outside temperatures below –25°C (–13°F), a coolant preheater is recommended.

1. Chock the tires, place the transmission in neutral, and set the parking brake.

2. With foot OFF the foot pedal, turn on the ignition switch and start the engine

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

29

OPERATING INSTRUCTIONS FOR STARTING THE ENGINE

Oil Pressure

Observe the oil pressure gage immediately after starting the engine.

A good indicator that all moving parts are getting lubrication is when the oil pressure gage registers pressure

(7 psi or 50 kPa at idle speed). If no pressure is indicated within 10 to 15 seconds, stop the engine and check the lubrication system. The pressure should not drop below 36 psi or 250 kPa at 1800 rpm, and normal operating pressure should be higher. If oil pressure does not fall within these guidelines, it should be checked with a manual gage.

HOT OIL

To avoid injury from hot oil, do not operate the engine with the rocker cover(s) removed.

Warm-up

Run the engine at part throttle for about five minutes to allow it to warm up before applying a load.

Inspection

While the engine is idling, inspect the transmission, check for fluid leaks, check the crankcase and turbocharger.

Transmission — While the engine is idling, check the automatic transmission (if equipped) for proper oil level and add oil as required.

Fluid Leaks — Look for coolant, fuel or lubricating oil leaks. If any are found, shut down the engine immediately and have the leaks repaired after the engine has cooled.

Crankcase — If the engine oil was replaced, stop the engine after normal operating temperature has been reached. Allow the oil to drain back into the crankcase for about twenty minutes, then check the oil level. If necessary, add oil to bring the level to the proper mark on the dipstick. Use only the heavy-duty oils

recommended. Refer to the How to

Select Lubricating Oil in this guide.

Turbocharger — Make a visual inspection of the turbocharger for oil leaks, exhaust leaks, excessive noise or vibration. Stop the engine immediately if a leak or unusual noise or vibration is noted. Do not restart

the engine until the cause of the concern has been investigated and

corrected. Authorized Detroit Diesel service outlets are properly equipped to perform this service.

30

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Avoid Unnecessary Idling

Whenever possible, avoid unnecessary idling.

During long engine idling periods with the transmission in neutral, the engine coolant temperature may fall below the normal operating range.

The incomplete combustion of fuel in a cold engine will cause crankcase oil dilution, formation of lacquer or gummy deposits on the valves, pistons, and rings, and rapid accumulation of sludge in the engine. When prolonged idling is necessary, maintain at least

850 rpm spring/summer and 1200 rpm fall/winter.

Stopping the Engine

Stop an engine under normal operating conditions as follows:

1. Reduce engine speed to idle and put all shift levers in the neutral position.

NOTICE:

Stopping a turbocharged engine immediately after high-speed operation without allowing a sufficient cool-down period may cause damage to the turbocharger, as it will continue to turn without an oil supply to the bearings.

for four or five minutes. This allows the engine to cool and permits the turbocharger to slow down. After four or five minutes, shut down the engine.

Emergency Jump Starting

The DDEC VI system operates on 12 volts DC. If a DDEC VI engine with an electric starting motor requires emergency jump starting, do not

exceed 16 volts DC.

BATTERY EXPLOSION

To avoid injury from battery explosion when jump starting the engine, do not attach the cable end to the negative terminal of the disabled battery.

2. Allow the engine to run between idle and 1000 rpm with no load

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

31

OPERATING INSTRUCTIONS FOR STARTING THE ENGINE

NOTICE:

Jump starting with voltages greater than those indicated or reversing battery polarity may damage the

Motor Control Module (MCM).

Before attempting to jump start the engine, make sure the jumper cables are connected properly (positive to positive, negative to negative ground) and in the proper sequence (negative to negative ground last).

NOTICE:

Failure to connect jumper cables in the proper sequence can result in alternator and/or equipment damage.

Battery Explosion and Acid Burn

To avoid injury from battery explosion or contact with battery acid, work in a well ventilated area, wear protective clothing, and avoid sparks or flames near the battery. If you come in contact with battery acid:

□ Flush your skin with water.

□ Apply baking soda or lime to help neutralize the acid.

□ Flush your eyes with water.

□ Get medical attention immediately.

Routine Engine Start

Following are the procedures for a routine, everyday start.

32

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

ENGINE EXHAUST

To avoid injury from inhaling engine exhaust, always operate the engine in a well-ventilated area. Engine exhaust is toxic.

NOTE:

As a safety function, the electronic engine control system may be wired to start the engine only if the transmission is in neutral. This is vehicle application specific.

NOTICE:

Never attempt to start the MBE

900 engine using ether or any other starting fluid. Serious engine damage could result.

PERSONAL INJURY

To avoid injury when working near or on an operating engine, remove loose items of clothing and jewelry. Tie back or contain long hair that could be caught in any moving part causing injury.

Starting the Engine-Routine

Before a routine start, refer to the

MAINTENANCE section and see the

daily checks for your engine.

Important: Before starting the engine, do all the recommended pretrip inspections and daily maintenance.

Check the engine oil and fuel levels, and drain contaminants from the fuel/water separator (optional).

NOTE:

If you drain the fuel/water separator completely, you may have to prime the fuel system.

1. Turn on the ignition switch.

2. With the accelerator pedal in the idle position, start the engine.

3. Check the engine for leaks.

[a] Check all hoses, hose clamps, and pipe unions on the engine for tightness. Shut down the engine and tighten them if necessary.

[b] Check the oil feed and return lines at the turbocharger for tightness. Shut down the engine and tighten them if necessary.

4. Shut down the engine.

5. Remove the dipstick from the guide tube. Note the dipstick has a positive locking device such as a lever or twist-lock design that must be disengaged before

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

33

OPERATING INSTRUCTIONS FOR STARTING THE ENGINE

pulling the dipstick out of the guide tube.

6. Use a shop rag to wipe off the end of the dipstick.

7. Wait 15 seconds to allow any crankcase pressure to dissipate

8. Reinstall the dipstick and make sure it is fully inserted into the guide tube.

9.

through the guide tube and let the oil level settle in the oil pan.

Figure 14 Oil Dipstick

9. Remove the dipstick and read the oil level dipstick .

See Figure 14. The figure shows

a comparison between the bends on the dipstick and a crosshatch pattern on a conventional dipstick. Note the exact area noted on the bends. For example, the “maximum” oil level will be at the BOTTOM of that bend.

For the “minimum” oil level, it is noted at the TOP of the bend.

10.

Figure 15 Oil Fill Cap

If the oil level is below the

“minimum” bend, add oil to bring it up the “maximum” level . Do

34

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

NOT fill beyond the maximum fill level on the dipstick, since overfilling may result in high oil consumption and possible severe engine damage. If necessary, add additional oil through oil fill cap located on the top of the engine

see Figure 15.

Checking the Coolant Level

(Cold Check)

Check the coolant level as follows:

1. Ensure that all coolant plugs in the bottom of the radiator and on the radiator outlet pipe are secure and tight.

2. Check the coolant level. The cooling system is correctly filled when the coolant is between the maximum and minimum marks on the surge tank.

NOTE:

For more information, refer to the

”MAINTENANCE” section.

Checking the Coolant Level (Hot

Check)

Check coolant level as follows:

1. Allow the engine to run for approximately five minutes at a moderate speed.

HOT COOLANT

To avoid scalding from the expulsion of hot coolant, never remove the cooling system pressure cap while the engine is at operating temperature. Wear adequate protective clothing

(face shield, rubber gloves, apron, and boots). Remove the cap slowly to relieve pressure.

2. Then, with the coolant temperature above 50°C (122°F), recheck the coolant level.

3. Add more coolant if necessary.

Open the heater valves (if equipped) before adding coolant.

4. Do not close the heater valves until the engine has been run briefly and the coolant level again checked and corrected as necessary.

Monitoring Engine

Operation

While the engine is operating, monitor the battery charge indicator light, the oil pressure and avoid excessive idling.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

35

OPERATING INSTRUCTIONS FOR STARTING THE ENGINE

Battery Charge

The battery charge indicator light

(see Figure 16) must go out once the

engine starts.

Figure 16 Battery Charge Indicator

Light

If the indicator light comes on while the engine is running, do the following:

FIRE

To avoid injury from fire, keep all potential ignition sources away from diesel fuel, including open flames, sparks, and electrical resistance heating elements. Do not smoke when refueling.

1. Shut down the engine.

2. Check the poly-V belt for tightness.

3. Charge or replace the batteries as needed.

4. If necessary, visit the nearest authorized dealer to have the alternator voltage and output checked. Do a load test on the batteries.

Oil Pressure

When the engine has reached its normal operating temperature, the engine oil pressure must not drop below the following values:

□ 36 psi (250 kPa) at rated speed

□ 7 psi (50 kPa) at idling speed

If oil pressure drops below these values, stop the engine and determine the cause.

Excessive Idling

Never allow the engine to idle for more than 30 minutes. Excessive idling can cause oil to leak from the turbocharger.

Changing the Idle Speed

The rpm range of the MBE 900 engine is 600 rpm to 850 rpm if the parameters in the CPC are set to the default range.

Change the idling speed as follows:

1. Turn the cruise control switch to the OFF position.

36

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

2. To increase the idle speed, push the "Resume" switch until the idle is fast enough.

3. To decrease the idle speed, push the "Decel" switch until the idle is slow enough.

Shutting Down the Engine

If the engine has been running at full output or the coolant temperature has been high, allow the engine to idle for one to two minutes without load.

Then turn off the ignition key switch.

If any the following occur, shut down the engine immediately.

□ The oil pressure swings back and forth or falls sharply.

□ Engine power and rpm fall, even though the accelerator pedal remains steady.

□ The exhaust pipe gives off heavy smoke.

□ The coolant and/or oil temperature climb abnormally.

□ Abnormal sounds suddenly occur in the engine or turbocharger.

Shutting Down After High Load

Operation

NOTICE:

After hard operation, if the engine has been running at full output or the coolant temperature has been high, allow the engine to idle for one to two minutes without load. Shutting down the engine without idling may cause damage to the turbocharger.

Turn off the ignition switch and shut down the engine.

Emergency Running Mode

The engine is equipped with the electronic engine control system, which monitors the engine as it is running.

As soon as a fault is detected, it is evaluated and one of the following measures is initiated.

NOTICE:

To prevent possible serious engine damage, have any faults corrected without delay by an authorized dealer.

□ In conjunction with any dash board or instrument panel display, the code for the electronic unit reporting the fault can be read immediately on the display.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

37

OPERATING INSTRUCTIONS FOR STARTING THE ENGINE

□ Complete fault codes are transmitted and can be read using DDDL 7.0 or latest version.

□ If the fault is serious enough to impair normal operation, the electronic engine system switches over to limp home mode. The limp home speed is dependent on MCM parameters and could be idle speed or 1000 rpm. This allows you to move the vehicle to a service location.

For fault codes and their meanings, see the DDEC VI MBE 900

Troubleshooting Guide (6SE580).

Stop Engine Override

Option

The Stop Engine Override Option is used for a momentary override. The

MCM will record the number of times the override is activated after a fault occurs.

Momentary Override – A Stop

Engine Override (SEO) switch is used to override the shutdown sequence

(see Figure 17). This override resets

the 60 second (30 seconds for oil pressure) shutdown timer, restoring power to the level when the RSL (Stop

Engine) was illuminated. The switch must be recycled after five seconds to obtain a subsequent override.

Figure 17 Typical SEO Switch and

Warning Lamps

NOTE:

The operator has the responsibility to take action to avoid engine damage.

Cold Weather Operation

Special precautions must be taken during cold weather. To protect your engine, special cold weather handling is required for fuel, engine oil, coolant, and batteries. For detailed information on the grid heater and optional fuel filter heater, refer to the MBE 900

Service Manual (6SE9007).

The engine will not require starting aids down to –15°C (5°F). Between

–15°C (5°F) and –25°C (–13°F) a grid heater is required. Temperatures below –25°C (–13°F) will require a grid heater, block heater, and oil pan heater. An optional fuel heater is available.

38

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Winter Fronts

A winter front may be used to improve cab heating while idling. At least 25% of the grill opening should remain open in sectioned stripes that run perpendicular to the charge air cooler tube flow direction. This assures even cooling across each tube and reduces header to tube stress and possible failure. Winter fronts should only be used when the ambient temperature remains below –12.2° C (10° F).

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

39

DDEC VI SYSTEM

DDEC VI SYSTEM

The engine is equipped with a fully electronic control system, which regulates the fuel injection quantity and timing using solenoid valves, allowing extremely low-emission operation. Besides the engine and its related sensors, the system is composed of the following:

□ The Motor Control Module

(MCM)

□ The Common Powertrain

Controller (CPC) located under the right-hand dash panel

The two control units are connected by a proprietary datalink through which all necessary data and information can be exchanged.

The CPC then broadcasts all information on the J1587 and J1939 datalinks, where it can be read by the diagnostic tool.

The engine control system monitors both the engine and the datalink.

When a malfunction or other problem is detected, the system selects an appropriate response; for example, the emergency running mode may be activated.

The Accelerator Pedal Assembly

(AP) eliminates the need for any throttle linkage.

Motor Control Module

The MCM (see Figure 18) is located

on the left-hand side of the engine.

The MCM processes the data received from the CPC, for example the position of the accelerator pedal, engine brake, etc.

Figure 18 MCM

These data are evaluated together with the data from the sensors on the engine, such as coolant and fuel temperature and oil and charge pressure.

40

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

The data is then compared to the characteristic maps or lines stored in the MCM. From these data, quantity and timing of injection are calculated and the unit pumps are actuated accordingly through the solenoid valves.

NOTE:

To obtain a replacement MCM, all the data given on the MCM label are required.

The MCM data label has the 10 digit engine serial number.

Common Powertrain

Controller

The CPC communicates with any other MCM unit installed on the vehicle over the J1939 data link.

See Figure 19.

Data for specific applications is stored in the CPC. These include idle speed, maximum running speed, and speed limitation.

Figure 19 CPC

The CPC receives data from the following sources:

□ The operator (accelerator pedal position, engine brake switch)

□ Other electronic control units

(for example, the anti-lock brake system)

□ The MCM (oil pressure and coolant temperature)

From these data, instructions are computed for controlling the engine and transmitted to the CPC via the proprietary datalink.

The CPC controls various systems, for example, communications with the datalink, the engine brake, and the constant-throttle valves.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

41

DDEC VI SYSTEM

DDEC Features

DDEC offers a variety of features and options designed to warn the operator of an engine malfunction.

Options can range from warning panel lights to automatic reduction in engine power followed by automatic engine shutdown.

DDEC has the ability to perform diagnostics for self-checks and continuous monitoring of other system components.

Depending on the application,

DDEC can monitor oil temperature, coolant temperature, oil pressure, fuel pressure, coolant level and remote sensors (if used). DDEC connects to the AWL (Check Engine) and the

RSL (Stop Engine) to provide a visual warning of a system malfunction.

Cruise Control

Cruise Control is available with any

DDEC engine. Cruise Control will operate in either Engine or Vehicle

Speed Mode and maintain a targeted speed (MPH or RPM) by increasing or decreasing fueling. The targeted speed can be selected and adjusted with dash-mounted switches. See Figure

20.

Figure 20 Typical Cruise Control

Switches

Cruise Control may also be programmed to permit fast idle using the Cruise Control switches.

With the engine at normal idle, transmission in neutral and service brakes on, depress the SPD CNTL

Switch, and use the RSM/ACC

Switch.. The engine rpm should increase to a pre-defined speed. The engine rpm can be raised or lowered from this point using the SET/CST and RSM/ACC switches.

Cruise Control will maintain the set speed under normal road and load conditions.

42

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

LOSS OF VEHICLE CONTROL

To avoid injury from the loss of vehicle control, do not use cruise control under these conditions:

□ When it is not possible to keep the vehicle at a constant speed (on winding roads, in heavy traffic, in traffic that varies in speed, etc.).

□ On slippery roads

(wet pavement, ice-or snow-covered roads, loose gravel, etc.).

NOTICE:

When descending a hill with

Cruise Control OFF, do not allow the engine to exceed 2500 rpm under any conditions. Failure to observe this precaution can result in overspeeding and serious engine damage.

It cannot limit vehicle speeds on down grades if available engine braking effort is exceeded, nor can it maintain speed on upgrades if power requirements exceed engine power capability.

Engine speed and power are varied under Cruise Control to maintain the set vehicle speed. The vehicle speed must be above Min. Cruise Set Speed and below Max. Cruise Set Speed. It is recommended that Max Cruise Set

Speed be set to the default to allow proper operation of other features such as Fuel Economy Incentive and

PasSmart. The Vehicle Speed Limit should be used to limit vehicle throttle speed.

When the SPD CNTL is in the ON position, Cruise Control is engaged by momentarily contacting the SET/CST

Switch. As a check after each engine start, DDEC looks for a one time activation of the clutch (if equipped) and service brake before DDEC allows Cruise Control to be enabled.

The MCM must also recognize that the Cruise Enable Switch has changed.

If the Cruise Enable Switch is off, it needs to be turned on. If the Cruise

Enable Switch is on, it must be turned off then on for cruise to operate.

Holding the switch in the SET/CST position allows the vehicle to slow to a lower speed. Toggling the switch will result in a one mile-per-hour (1.6 kph) decrease in vehicle speed. If Cruise

Control has been disabled, toggling the RSM/ACC Switch restores the vehicle to the previously set cruise speed.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

43

DDEC VI SYSTEM

Cruise Control can be overridden at any time with the throttle pedal if the vehicle is operating at less than the programmed Max Road Speed.

Additionally, using either the brake or the clutch will disable Cruise Control.

Data Recording Capability

The DDEC VI contains the ability to extract detailed data on the engine’s use and performance using DDEC

Reports software. This data, known as DDEC Data, is stored in the CPC and contains information on engine performance (such as fuel economy, idle time, time in top gear) and critical incidents (such as detailed diagnostic data records and hard braking events).

DDEC Data can be downloaded using

DDEC Reports software to produce reports.

DDEC Reports software is part of the Detroit Diesel Diagnostic Link®

7.0 (DDDL 7.0) software package.

DDDL 7.0 requires at least a Pentium

II computer with at least 256 MB of

RAM.

Engine Brakes

Engine brakes are enabled by a dash-mounted On/Off switch with a separate intensity switch to select low, medium or high braking power.

LOSS OF VEHICLE CONTROL

To avoid injury from loss of vehicle control, do not activate the Engine Brake system under the following conditions:

□ On wet or slippery pavement, unless the vehicle is equipped with ABS (anti-lock braking system) and you have had prior experience driving under these conditions.

□ When driving without a trailer

(bobtailing) or pulling an empty trailer.

□ If the tractor drive wheels begin to lock or there is fishtail motion after the

Engine Brake is activated, deactivate the brake system immediately if this occurs.

The engine brakes will only operate when the Accelerator Pedal is fully released. Disengaging the clutch will prevent the engine brakes from operating.

44

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Engine brakes will supply braking power even when in Cruise Control.

The MCM will control the amount of engine braking with respect to the Cruise Control set speed. The maximum amount of braking (low, medium, high) is selected with the dash switches.

Engine Protection

The DDEC engine protection system monitors all engine sensors and electronic components, and recognizes system malfunctions. If a critical fault is detected, the AWL

(Check Engine) and RSL (Stop

Engine) illuminate. The malfunction codes are logged into the MCM's memory.

The standard parameters which are monitored for engine protection are: low coolant level, high coolant temperature, low oil pressure, and high oil temperature.

This system features a 30-second, stepped-power shutdown sequence or an immediate speed reduction without shutdown in the event a major engine malfunction occurs, such as low oil pressure, high oil or coolant temperature, or low coolant level.

PERSONAL INJURY

To avoid injury from engine shutdown in an unsafe situation, ensure the operator knows how to override the stop engine condition on a DDEC-equipped unit.

NOTICE:

Engines equipped with the power-down/shutdown option have a system override button or switch to allow engine operation for a short period of time. Using the override button so the engine does not shutdown in 30 seconds but operates for an extended period may result in engine damage.

California Engine Idle Limiting

In order to meet the California Engine

Idle Limiting Standard, an engine idle shutdown feature has been built into the DDEC VI Engine Control

Strategy. When the California Engine

Idle Limiting feature is enabled, the engine will generally shut down after five minutes of continuous idling when the transmission is in neutral or park and the parking brake is set or after fifteen minutes when the transmission is in neutral or park and

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

45

DDEC VI SYSTEM

the parking brake is not set. Activating or momentarily changing the position of the service brake pedal, the clutch pedal, Stop Engine Override, the accelerator pedal, or park brake status during the final 30 seconds before a shutdown would otherwise occur will prevent the engine from shutting down and will reset the shutdown timer. After an automatic shutdown, the engine may be restarted and operated normally. The automatic shutdown feature is generally disabled on engines certified by the US EPA for use outside California but is required to be enabled for all California certified engines with the exception of engines used in specific vehicle types which the state of California has determined to be exempt from the idle shutdown requirement.

These include buses, school buses, recreational vehicles, medium duty vehicles, military tactical vehicles, and authorized emergency vehicles as they are defined by the state of

California. Owners of these vehicle types that wish to have the shutdown feature disabled should consult with

California authorities to determine if their vehicles qualify for the exemption.

Idle Shutdown Timer

This feature is an optional 1 –

100 minute idle shutdown system.

Its purpose is to conserve fuel by eliminating excessive idling and allowing a turbocharger cool-down period. To activate the shutdown, the transmission must be in neutral with the vehicle parking brakes set and the engine in idle or fast-idle mode.

DDEC VI Operation

NOTE:

This engine is equipped with DDEC software. This software generally assures optimal engine performance.

The installation of software upgrades may cause minor changes in features and engine performance.

Since the DDEC system is electronic, a battery is required to operate the computer. The system operates at

12 volts DC. However, in the event of a power supply malfunction, the system will continue to operate at reduced voltage. When this occurs, the AWL (Check Engine) will come

on. See Figure 21.

Figure 21 Warning Lamps and

SEO Switch

46

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

The engine will only operate at reduced rpm until the battery voltage reaches a point where the MCM will no longer function and the engine shuts down.

Should the AWL (Check Engine) come on for any reason, the vehicle can still be operated and the driver can proceed to the required destination.

This condition should be reported to an authorized Detroit Diesel distributor or dealer.

NOTICE:

When the RSL (Stop Engine) comes on, the computer has detected a major malfunction in the engine that requires immediate attention.

It is the operator's responsibility to shut down the engine to avoid serious damage.

The engine can be configured to give a warning only, to ramp down

(reduce power) or to shut down.

Ramp down will reduce engine rpm to a pre-determined speed, but will not shut down the engine. With the 30-second shutdown option, the engine will begin a 30-second, stepped power-down sequence until it shuts down completely.

A “Stop Engine Override” can be procured in case the vehicle is to operate in a critical location.

Stop Engine Override Switch

This feature allows the operator to override the automatic stop engine sequence.

This is done by pressing the Stop

Engine Override Switch every 15 to 20 seconds to prevent engine shutdown from occurring.

NOTE:

The Stop Engine Override Switch and the Diagnostic Request Switch are the same.

NOTE:

Holding down the Stop Engine

Override Switch will not prevent the engine shutdown sequence. You must continue to reset the automatic shutdown system by pressing the Stop

Engine Override Switch at intervals of approximately 15 to 20 seconds.

It takes 30 seconds from the time the automatic shutdown sequence begins until engine shutdown. Therefore, the operator must press the override switch just prior to engine shutdown and continue to do so until the vehicle can be brought to a stop in a safe location.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

47

DDEC VI SYSTEM

Immediate Speed Reduction

The immediate speed reduction option will bring engine rpm back to a predetermined speed, but will not shut down the engine.

The engine should not be restarted after it has been shut down by the engine protection system, unless the problem has been located and corrected.

Red Stop Lamp

The conditions that will cause the RSL

(Stop Engine) to come on are:

□ High coolant temperature

□ Loss of coolant

□ High oil temperature

□ Low oil pressure

□ Auxiliary shutdown

Whenever the AWL (Check Engine) or the RSL (Stop Engine) come on, the DDEC computer will determine where the problem is and will then store this information in its memory.

If the malfunction is intermittent, the lights will come on and go off as the computer senses the changing engine condition.

Diagnostic Tool

The diagnostic tool for DDEC VI is

DDDL 7.0. which requires at least a

Pentium II computer with at least 256

MB of RAM.

Once the malfunction has been corrected, the DDEC system will return the engine to normal operation.

The temperature of air in the intake system is increased with the addition of an EGR. DDEC is programmed to reduce fueling (power) for a short time to reduce air and coolant temperatures when necessary. DDEC will store an information code that this event occurred, but no corrective action is required as this action is designed to maintain operation without a noticeable affect on vehicle performance.

Flashing Malfunction Codes —

All malfunction codes are four digits.

The malfunction code recorded in the computer memory will remain until it is erased by a technician.

The flashing malfunction code can also be obtained by the operator.

To support flashing codes, a Stop

Engine Override/Diagnostic Request

Switch must be configured and the

AWL (Check Engine) and RSL (Stop

Engine) must be hard-wired. The CPC cannot flash these lamps if they are not hard-wired.

The flashing code feature may be activated by satisfying one of the following conditions:

48

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

□ Engine speed is <100 rpm and the SEO switch is put in the ON position.

□ Idle Governor is activated and the SEO switch is put in the ON position.

□ Vehicle speed is <3 mph and Park

Brake is activated and the SEO switch is put in the ON position.

The flashing code feature is deactivated to the OFF position or the listed conditions are no longer

satisfied.See Figure 22 .

Figure 22 RSL (Stop Engine) Flashing Code Example

Only one light will be flashing codes at any time. All codes will be flashed twice. The inter-digit pause is 1.5

seconds. The pause between codes is 3.5 seconds. The same 3.5 second pause occurs as the switch is made from RSL (Stop Engine) to AWL

(Check Engine).

When code flashing is initiated, the active codes will be flashed on the RSL (Stop Engine). Then the inactive codes will be flashed on the

AWL (Check Engine). When all the inactive codes have been flashed, the process of flashing all the active codes followed by all the inactive codes will repeat until the conditions for code flashing are no longer satisfied.

If there are no active or inactive faults the number 3 is flashed once followed by an inter-code gap of 3 seconds.

To Read Codes: Press and hold the

SEO/Diagnostic Request Switch.

Active codes will be flashed on the

RSL (Stop Engine) first, followed by inactive codes being flashed on the

AWL (Check Engine).

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

49

DDEC VI SYSTEM

The codes will continue to flash and repeat as long as the Diagnostic

Request Switch is held in the ON position. Both CPC and MCM faults are included.

Active Codes – The active codes will be flashed on the RSL (Stop Engine) in the order of most recent to least recent occurrence based on engine hours.

Inactive Codes – The inactive codes will be flashed on the AWL (Check

Engine) in the order of most recent to least recent occurrence based on engine hours.

50

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

DDEC VI ENGINE DRIVING TIPS

Driving with an electronically controlled engine feels different from driving with a mechanically governed engine.

Accelerating the Vehicle

Engine response versus pedal movement may feel different from the mechanical-governed engine you were driving. The Accelerator Pedal

(AP) was designed to communicate

“percentage” foot pedal travel to the engine's Motor Control Module

(MCM). The engine will respond accordingly to the driver's demand.

Another throttle or governor characteristic you may need time to get used to is the DDEC Limiting

Speed Governor. This allows the driver to command total engine response between idle and rated speed, such as accelerating at half throttle

– an advantage when driving under slippery conditions.

If you require wide-open throttle engine response, either accelerating or just plain pulling hard, the throttle AP will have to be held to the floor. To obtain 100% fueling at any speed, the

AP will have to be maintained at the fully pressed position.

Cruise Control

For added driver convenience and comfort, DDEC VI also features a

Cruise Control option that works just like the system in your car. It can be operated in any gear above 1000 rpm or road speed faster than 32 kph (20 mph), up to the rated engine speed. And it can be programmed to hold your road speed at or below the maximum vehicle speed. The switch to energize Cruise Control is usually mounted on the instrument panel.

See Figure 23.

Figure 23 Typical Cruise Control

Switches

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

51

DDEC VI ENGINE DRIVING TIPS

Turn the switch ON to energize the system. Remember as a check after each engine start, the MCM looks for a one time activation of the clutch (if equipped) and service brake before the MCM allows Cruise Control to be enabled.

DDEC VI must also see or recognize that the Cruise Enable Switch has changed. If the Cruise Enable Switch is OFF it needs to be turned ON. If the

Cruise Enable Switch is left in the ON position at key OFF, the switch must be cycled OFF then ON for DDEC

VI to see a status change to allow

Cruise Control activation. The status of DDEC VI inputs to activate Cruise

Control at key ON is listed in Table

2 below.

Once Cruise Control is enabled and you reach your road speed, press the Set Switch to activate

Cruise Control. The cruise light will come on. To increase road speed in one mile-per-hour (1.6

kilometer-per-hour) increments, press the RSM/ACL Switch. To reduce road speed, press and hold the SET/CST

Switch until the lower speed is reached.

Cruise Control is deactivated by slightly pressing the service brakes, clutch pedal, or trailer brake. The

On/Off Switch will also deactivate

Cruise Control.

Cruise Control will maintain vehicle speed even on up grades, unless power requirements demand a downshift.

And, of course, Cruise Control does not limit your speed on down grades.

Most likely, Cruise Control will feel stronger than driving with the foot pedal because of the instantaneous and wide-open throttle response.

That's why Cruise Control use is not suggested during slippery driving conditions.

Input

Status of Input at

Key ON

Service Brake Switch

Clutch Release Switch

(Manual Trans only)

Cruise Control Enable

Switch

ON

ON

OFF

Table 2 Input Status to Activate Cruise Control

Status of Input

Before Cruise

Control Activates

OFF

OFF

ON

52

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Use Cruise Control after down shifting on a hill to pull the hill. Hitting the

RSM/ACL Switch (not the Set Switch) will keep the truck accelerating in the lower gears up to the rated engine speed.

Cruise Control will disengage below

1000 rpm or 32 kph (20 mph) road speed. When using Cruise Control, if you want to pull the engine below

1000 rpm, remember to hold the throttle pedal to the floor to keep the engine pulling at wide-open throttle.

Realistically, the engine will pull to about 1050 rpm.

Remember: The electronic data programmed into the DDEC VI system will not allow you to hurt or overfuel the engine at low or “lug” engine speeds. There is enough oil pressure to withstand hard pulls at low engine speeds.

Engine Brakes and Cruise

Control

If your engine is equipped with both

Cruise Control and engine brake retarders, the engine retarders can operate automatically while you are in Cruise Control. If the Cruise

Control/Engine Brake function is turned ON in the MCM programming, the engine retarders will come on

“low” when your set road speed increases a few miles-per-hour

(kilometers per hour) above your cruise set speed. If your speed continues to increase, the MCM will increase the engine retarders' braking power progressively. When the vehicle returns to the set cruise speed, the engine retarders will turn off until you need them.

For safety reasons, don't use Cruise

Control when it is not possible to keep the vehicle at constant speed due to:

□ Winding roads

□ Heavy traffic

□ Slippery pavement

□ Descending grades that call for engine brake assistance.

For an explanation of the engine brake retarder system and recommendations

for proper operation, refer to ENGINE

BRAKE SYSTEM.

Shifting

Depending on your transmission model, the gear split may vary from

500 to 300 rpm. The electronic governor provides almost no overrun capability; and, if the transmission is downshifted too early, you will experience a temporary loss of pulling power until the engine speed falls below rated speed.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

53

DDEC VI ENGINE DRIVING TIPS

In general, when using a 7 or 9-speed transmission, you should always downshift between 1250 and 1300 rpm. This is true even on steep grades with heavy loads. When using an 18-,

15- or 13-speed transmission, you will need to downshift at an rpm that allows “less than rated” rpm before throttle application in the next gear down. You may want to limit engine speed to 1900 rpm in all gears.

Low rpm operation should feel greatly enhanced due to the characteristics of the variable nozzle turbocharger.

Engine response should be almost instantaneous below peak torque engine speeds. This should encourage progressive shifting especially during slow vehicle speed operation.

One difference you may notice with the EGR equipped engine is under hood noise. The gear train has been redesigned for quieter operation, and the EGR gas flow may be noticeable to the tuned attentive ear.

The turbocharger operates at higher boost pressure forcing EGR gas flow through the EGR plumbing. In some situations the driver may believe he/she has experienced a charge air cooler system leak. Even connecting trailer light and air hoses, the driver may hear a different tone (exhaust and under hood with the engine idling.) If equipped with a turbo boost gage, the driver may occasionally note intake manifold pressure exceeds 35 psi.

Idling

The common belief that idling a diesel engine causes no engine damage is wrong. Idling produces sulfuric acid, which breaks down the oil and eats into bearings, rings, valve stems and engine surfaces. If you must idle the engine for cab heat or cooling, the high idle function of the Cruise

Control switches should be used. An idle speed of 1100 rpm should be enough to provide cab heat in above

0° C (32° F) ambients.

54

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

ENGINE BRAKE SYSTEM

Certain MBE 900 vehicle engines are equipped with engine brakes, commonly referred to as retarders.

Before operating the vehicle, you

must familiarize yourself with the retarder system to obtain optimum benefit from it. Engine brake control systems may vary slightly, depending on the engine brake configuration and cab design. However, basic operator controls are similar for all models.

Exhaust

Brake/Constant-Throttle

Valves, Optional

To increase braking performance, the engine can be equipped with an exhaust brake on the turbocharger in conjunction with constant-throttle valves in the cylinder head. See Figure

24.

Figure 24 Constant — Throttle

Activation

The two systems operate independently of each other and in combination.

Exhaust back pressure is used by the exhaust brake to increase braking performance. The constant-throttle valves use the air that escapes through them on the compression stroke to provide braking force.

The constant-throttles valves are small valves which are built into the cylinder head and positioned opposite the exhaust valve. When open, a link is created between the combustion chamber and the exhaust port.

When the engine brake is switched on, the constant-throttle valves are put under pressure, which in turn opens the valves.

The constant-throttle valves are activated by engine oil pressure.

The engine brake is activated by the

CPC and can be activated only at engine speeds up to 2600 rpm.

Below 900 rpm, the engine brake is always turned off to prevent the engine from stalling. Also, the engine brake is automatically turned off when the accelerator pedal is pressed.

NOTE:

When in emergency running mode

(constant rpm), the engine brake can

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

55

ENGINE BRAKE SYSTEM

be activated only when the engine is in overrun. When constant rpm has been attained, the engine brake is automatically turned off.

Anti-Lock Braking

Systems

Vehicles equipped with Anti-lock

Braking Systems (ABS) have the ability to turn the engine brake retarder OFF if a wheel-slip condition is detected. The engine brake will automatically turn itself ON once the wheel slip is no longer detected.

The DDEC system will deactivate the engine brake system when the engine speed falls below 1000 rpm or when the vehicle slows down to a pre-set speed, depending on MCM programming. This prevents stalling the engine. Engine brakes can also be used with vehicle Cruise Control

TURNED ON.

Driving on Flat, Dry

Pavement

Use the following guidelines when driving on flat, dry pavement:

1. If driving on flat, dry, open stretches with a light load and greater slowing power is not required, place the progressive braking switch in the LOW position.

2. If you find you are still using the service brakes, move the switch to a higher position until you do not need to use the service brakes to slow the vehicle down.

3. If you are carrying a heavier load and road traction is good, move the progressive braking switch to the “High” position.

4. Check your progressive braking switch often for proper position, since road conditions can change quickly. Never skip a step when

operating the progressive braking

switch. Always go from OFF to LOW, and then to a higher position.

Descending a Long, Steep

Grade

An explanation of “control speed” may be helpful in understanding how to use the engine brake system while descending a grade. Control Speed is the constant speed at which the forces pushing the vehicle forward on a grade are equal to the forces holding it back, without using the vehicle service brakes. In other words, this

is the speed the vehicle will maintain without using the service brakes or fueling.

56

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

BRAKE FADE

To avoid injury, do not over apply the vehicle service brakes when descending a long, steep grade. Excessive use of the vehicle brakes will cause them to heat up, reducing their stopping ability. This condition, referred to as “brake fade”, may result in loss of braking, which could lead to personal injury or vehicle/property damage or both.

PERSONAL INJURY

Failure to keep the vehicle within safe control speed limits while descending a grade may result in loss of vehicle control, which could cause personal injury.

Use the following guidelines when descending a long, steep grade:

1. Before beginning the descent, determine if your engine brake system is operating properly by lifting your foot briefly off the throttle. You should feel the system activate.

2. Ensure the progressive braking switch is in the appropriate power position.

NOTICE:

Failure to keep the vehicle within safe control speed limits while descending a grade may result in vehicle or property damage or both.

3. Do not exceed the safe control

speed of your vehicle. Example:

You could descend a 6% grade, under control only at 16 kph (10 mph) without an engine brake, but at 40 kph (25 mph) with an engine brake. You could not descend that same hill at 80 kph (50 mph) and still expect to remain under control. Get to know how much slowing power your engine brake can provide. So get to know your engine brake system before climbing hills and do not exceed a safe control speed.

4. Check your progressive braking switch often for proper position, since road conditions can change quickly. Never skip a step when

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

57

ENGINE BRAKE SYSTEM operating the progressive braking

switch. Always go from OFF to LOW and then to a higher position when on slippery roads.

Driving on Wet or Slippery

Pavement

Do not attempt to use the engine brake system on wet or slippery roads until you have some experience with it on dry pavement.

LOSS OF VEHICLE CONTROL

To avoid injury from loss of vehicle control, do not activate the Engine Brake system under the following conditions:

□ On wet or slippery pavement, unless the vehicle is equipped with ABS (anti-lock braking system) and you have had prior experience driving under these conditions.

□ When driving without a trailer

(bobtailing) or pulling an empty trailer.

□ If the tractor drive wheels begin to lock or there is fishtail motion after the

Engine Brake is activated, deactivate the brake system immediately if this occurs.

NOTE:

On single trailers or combinations, a light air application of the trailer brakes may be desirable to help keep the trailer stretched out. Follow the manufacturer's recommended operating procedure when using your trailer brakes.

On wet or slippery pavement, start with the master switch in the OFF position and use the gear you would normally use under these conditions.

If the vehicle is maintaining traction, place the selective braking switch in the LOW position and turn ON the engine brake system. If the drive wheels are maintaining traction and you desire greater slowing power, move the braking switch to the next highest position.

However, if the tractor drive wheels begin to lock or there is a fishtail motion, turn the engine brake system

OFF immediately and do not activate it until road conditions improve.

Check your progressive braking switch often for proper position, since road conditions can change quickly.

Never skip a step when operating the progressive braking system. Always go from OFF to LOW and then to a higher position.

58

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

ENGINE SYSTEMS

The engine systems are the following:

Fuel System

The fuel system consists of Motor

Control Module (MCM), fuel injectors, Electronic Unit Pumps

(EUP), fuel pump, a fuel heat exchanger, a multi-functional fuel filter containing primary and secondary filtration with a fuel priming valve and a water separator, and the necessary connecting fuel lines.

The gear-type fuel pump is bolted to the front of the cylinder block. The pump is driven from the forward end of the camshaft.

Lubrication System

The lubricating oil system consists of an oil pump, pressure regulator, pressure relief valve, oil filters, oil filter adaptor, oil cooler, oil level dipstick, oil pan and ventilation.

There is a force-feed lubricating oil circuit supplied by a rotary oil pump.

This pump is in the front cover and is drive by a gear on the front of the crankshaft.

The oil cooler is located on the right side front of the cylinder block near the oil filter.

Air System

The outside air drawn into the engine passes through the air filter and is pulled into the turbocharger and compressed. It then moves to the air-to-air charge cooler (heat exchanger) and is cooled. Next it flows to the intake manifold and into the cylinders, where it mixes with atomized fuel from the injectors.

For optimum protection of the engine from dust and other airborne contaminants, service the dry type air cleaners used when the maximum

allowable air restriction has been reached, or annually, whichever occurs first.

Cooling System

The water pump is mounted on the front of the cylinder block and is belt driven by the crankshaft pulley. This system has a centrifugal type water pump to circulate coolant within the engine. Two full-blocking type thermostats located in a housing attached to the front of the cylinder block.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

59

ENGINE SYSTEMS

Electrical System

The electrical system consists of a starting motor, starting switch, battery-charging alternator, storage batteries, and the necessary wiring.

Exhaust System

Exhaust gases exit the cylinders through exhaust ports and the exhaust manifold. These exhaust gases expand through the exhaust turbine and drive the turbocharger compressor impeller.

The gases are then released through the exhaust pipes and the aftertreatment device to the atmosphere.

Exhaust Gas Recirculation

System

The purpose of the Exhaust Gas

Recirculation System (EGR) is to reduce engine exhaust gas emissions in accordance with EPA regulations.

The EGR system has been optimized to dramatically cut NOx formation by routing a measured amount of exhaust flow to the cylinders to lower combustion temperatures. Lower temperatures result in lower NOx levels without the negative effects of retarding engine timing. The EGR valve has been moved to the top of the engine for improved serviceability.

The EGR system consists of an EGR cooler, EGR valve, and an EGR mixer.

The MBE 900 engines for on-highway

EPA 2007 regulation applications use a cooled EGR system along with an

Aftertreatment System to meet the emission standards.

On the 260 – 350 horsepower engines, the EGR is fed by all six cylinders.

The low horsepower engines use an asymmetric turbocharger with two entries, and the EGR is fed from the first three cylinders, taken from a small entry. The exhaust with a maximum exhaust gas temperature of 730°C

(1346°F) is cooled to a maximum of

150°C (302°F) in the EGR cooler.

The cooled exhaust gases then pass through the EGR valve and added to the mixer housing. The addition of cooled exhaust gases back into the combustion airflow reduces the peak cylinder combustion temperature.

Less oxides of nitrogen (NOx) are produced at lower combustion temperatures.

60

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

AFTERTREATMENT SYSTEM

In order to meet current emissions regulations, the traditional muffler has been replaced by a new Aftertreatment

Device (ATD). This device consists of a Diesel Oxidation Catalyst (DOC) and a Diesel Particulate Filter (DPF).

Together these two components burn off collected particulate matter in a process called “regeneration.” The key to successful regeneration is high exhaust temperature for an extended period of time. Without adequate temperatures for regeneration, the filter will continue to trap particulates and eventually plug. In order to avoid plugging, Detroit Diesel has designed an actively regenerated Aftertreatment

System (ATS). See Figure 25.

Figure 25 Aftertreatment System Schematic

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

61

AFTERTREATMENT SYSTEM

Operating Requirements

Oxidation of the particulate matter is the key to filter performance.

This requires that the catalyzing agent (platinum coated passages) are providing optimum enhancement to the oxidation process. The following requirements must be met, otherwise

ATD warranty may be compromised:

NOTICE:

Do not use kerosene or fuel blended with used lube oil.

□ Use Ultra-Low Sulfur Diesel

(ULSD) fuel with (15 ppm sulfur content maximum), based on

ASTM D2622 test procedure

□ Lube oil must have a sulfated ash level less than 1.0 wt %; currently referred to as CJ-4 oil.

NOTICE:

Not following the operating requirements may result in damage to the ATD or accelerated ash plugging of the diesel particulate filter.

Engine) or RSL (Stop Engine) are indications of a system problem.

Should this occur, refer to the

Aftertreatment System Technician's

Guide (7SE63), or contact the Detroit

Diesel Customer Support Center at

313–592–5800.

Illumination of the Diesel Particulate

Filter (DPF) lamp indicates that a parked regeneration is required.

There is a need to periodically remove accumulated ash, derived from engine lube oil, from the filter. This ash does not oxidize in the filter during the regeneration process and must be removed through a cleaning procedure. All Detroit Diesel ATD equipped engines will illuminate a dashboard warning lamp indicating the need for ash cleaning. For information on this cleaning procedure, refer to the

Aftertreatment System Technician's

Guide (7SE63), or contact the Detroit

Diesel Customer Support Center at

313–592–5800.

Maintenance

A high amount of black smoke emitting from the vehicle or illumination of an AWL (Check

62

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Parked Regeneration

Regeneration of the Aftertreatment

Device (ATD) is fundamental for the oxidation of soot. This process happens during the normal operation cycle of the vehicle; it can occur both passively and actively. Regardless of this, the operator will see no difference in vehicle performance or vehicle control. If the ATD is not capable of completing regeneration due to duty cycle constraints or other restrictions, a parked regeneration may need to occur.

The driver will be notified of the need for a parked regeneration by illumination of the Diesel Particulate

Filter (DPF) lamp as listed in Table 3.

If the driver continues to operate the vehicle without a regeneration, additional measures will be taken to protect the engine and ATD device from damage, up to and including engine shutdown.

The sequence of indicator lamp(s) is as follows:

1. The DPF Regeneration Lamp will be illuminated prior to any engine protection measures being taken.

Once this lamp is lit, the parked regeneration process should be initiated.

2. If no DPF regeneration occurs after the initial DPF Regeneration

Lamp illumination, the lamp will begin blinking and a parked regeneration should be initiated as soon as possible. If the flashing

DPF is still ignored, the AWL

(Check Engine), listed in Table

3, will illuminate. This will be accompanied by a 25% engine torque reduction.

3. If parked regeneration is still not initiated, a standard 60 second engine shutdown sequence will occur. All of the following dashboard lamps will be present, blinking DPF Regeneration

Lamp, solid AWL (Check

Engine), and solid Red Stop

Lamp (RSL)/Stop Engine, listed in Table 3. Once this engine shutdown sequence is completed, a parked regeneration must occur to continue vehicle operation.

If the driver continues to operate the vehicle without a regeneration, additional measures will be taken to protect the engine and ATD device from damage, up to and including engine shutdown. Described below is the procedure for performing a parked regeneration.

NOTE:

If the DDEC VI electronics have not requested the initiation of a parked regeneration (the DPF Regeneration

Lamp is not illuminated), the regen request switch is disabled.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

63

AFTERTREATMENT SYSTEM

HOT EXHAUST

During parked regeneration the exhaust gases will be extremely

HOT and could cause a fire if directed at combustible materials. The vehicle must be parked outside.

NOTE:

The driver MUST stay with the vehicle throughout the regeneration process.

NOTE:

Not all vehicles may be equipped with a regen request switch due to application or user specification.

NOTE:

The procedure will take 20 to 40 minutes (depends on engine type and the amount of soot accumulated in the filter).

To initiate a parked regeneration, the following must occur:

□ Locate Regen request switch on dash board. This is a momentary

style switch see Figure 26

□ If no regen request switch is present, DDDL 7.0 must be connected for initiation using the service routines menu. Select

“DPF Regen Request Start.”

Figure 26 Regen Request Switch

□ Cycle the park brake OFF to ON – once an ignition cycle

□ Cycle the clutch pedal (if configured) – once an ignition cycle

□ Park Brake must be ON and the clutch must be released

□ Engine should be on the idle governor (can not be in Fast Idle or PTO Mode)

□ The engine should be fully warmed up and operating on thermostat temperature (>60°C)

□ For J1939 transmissions, the transmission must be in neutral

(confirmed by the J1939 data link

– current gear and selected gear is

0)

□ Vehicle speed must be 0 mph

□ Hold the Regen Switch to the

ON position for five seconds and release

64

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

When the request is accepted, the DPF

Regeneration Lamp will turn on for one second and then go off for the rest of the parked regeneration. The engine speed will increase to 1200 rpm.

With completion of regeneration, the following should occur:

□ The HEST lamp will remain illuminated until the exhaust outlet temperature is below 525°C

(977°F) or the vehicle speed exceeds 5 mph.

□ The DPF regeneration lamp will turn off, along with all other associated warning lamps.

If any of the above requirements are removed, the engine will return to idle.

To cancel the parked regeneration, the driver can toggle the Regen Switch to ON for five seconds. The DPF

Regeneration Lamp will turn on for one second to show acceptance of the cancellation request and then return to the appropriate state as defined by the current level of soot in the DPF.

Hazardous Applications

The MCM should be configured to not allow automatically triggered over-the-road regenerations (DPF

Manual Regen Only Enable =

Enabled).

NOTE:

This is for hazardous applications only.

There are two CPC options:

□ DPF Stationary Regen Only = 0

Disabled

□ DPF Stationary Regen Only = 1

Enabled

DPF Stationary Regen Only =

0-Disabled — This option allows the DPF Regeneration Switch to request a parked regeneration or an over-the-road regeneration. If the conditions previously mentioned are met, a parked regen will be initiated.

If the conditions are not met, then the over-the-road regeneration will occur.

DPF Stationary Regen Only =

1-Enabled — This option allows the DPF Regeneration Switch to only request a parked regeneration. If the conditions previously mentioned are met, a parked regen will be initiated.

If the conditions are not met, nothing will happen.

Service Record

It is mandatory that customers or distributors maintain a proper record of the particulate filter servicing and cleaning. This record is an agent to warranty considerations. The record must include information such as:

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

65

AFTERTREATMENT SYSTEM

□ Date of cleaning or replacement

□ Vehicle mileage at the time of cleaning or replacement

□ Particulate filter part number and serial number

66

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

INSTRUMENT PANEL LAMPS

Lamp Indicator Description

Amber

Warning Lamp

(AWL)

Indicates a fault with the engine controls.

Red Stop

Lamp (RSL)

DPF

Regeneration

Lamp

High Exhaust

System

Temperature

(HEST) Lamp

Malfunction

Indicator Lamp

(MIL)

Indicates a major engine fault that may result in engine damage

Engine derate and/or shutdown sequence will be initiated.

Solid yellow indicates a parked regeneration is required.

Blinking yellow, derate, and/or shutdown are possible as soot load continues to increase.

Lamp will shut of during regeneration.

This is an information indicator. Indicates exhaust temperature is above a preset limit and the unit is operating at low vehicle speed. Lamp flashes once every ten seconds during a parked regen. Lamp is yellow.

Yellow lamp Indicates a failure of an Emission

Control device. May illuminate at the same time as the Amber

Warning Lamp

Vehicle can be driven.

Vehicle may be driven to end of the shift. Call for service

Results

Vehicle can be driven to end of shift. Call for service.

Move the vehicle to the nearest safe location and shutdown the engine. Call for service

Lamp Solid

- parked regeneration required.

Lamp Flashing

- parked regeneration required immediately.

Table 3 Instrument Panel Lamps

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

67

INSTRUMENT PANEL LAMPS

Water in Fuel (WIF) Lamp is listed in Table 4.

Lamp Indicator

Water in Fuel

(WIF) Lamp

Flashes for 5 seconds at the start of every ignition cycle (a bulb check).

Description

Indicates the fuel filter has a high level of water and must be drained.

Table 4 Water in Fuel Instrument Panel Lamp

Results

Light stays lit indicating water must be drained from filter.

68

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

The activation conditions are listed in Table 5.

Lamp Lamp Solid

At the start of every ignition cycle (a bulb check).

When an electronic system fault occurs (problem should be diagnosed as soon as possible).

At the start of every ignition cycle (a bulb check).

A potential engine damaging fault is detected.

Parked regeneration is required.

At the start of every ignition cycle (a bulb check).

Lamp Flashing

Diagnostic Request Switch is used to activate the AWL to flash inactive codes.

Last 90 seconds before idle shutdown if programmed for override.

Idle shutdown or the

Optimized Idle shutdown occurs.

When Engine Protection

Shutdown occurs.

Diagnostic Request Switch is used to activate the RSL to flash active codes.

When a parked regeneration is required immediately (If the lamp flashing is ignored, derate and/or shutdown could occur.

At the start of every ignition cycle (a bulb check).

Vehicle speed is less than

5 mph and the DPF outlet temperature is greater than 525°C (977°F).

At the start of every ignition cycle (a bulb check).

For any emission related fault (light out when the fault is inactive)

Flashes every 10 seconds during a parked regen

Never flashes

Table 5 Lamp Activation Conditions

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

69

MAINTENANCE

MAINTENANCE

When performed on a regular basis, changing the engine oil and filters is the least costly way of obtaining safe and reliable vehicle operation. Added benefits and savings occur when you check that the valves, fuel injectors, and oil and cooling circuits are in good working order during oil changes.

The maintenance section of this manual explains when you should change your oil and what to look for when checking for wear or damage.

For additional information, please contact your regional office.

Scheduled Intervals

All service intervals and maintenance operations are based on the parts and accessories expressly approved for your engine.

The scope and frequency of maintenance work are determined by the engine's operating conditions: severe duty, short haul, long haul.

Evidence of regular maintenance is essential if a warranty claim has to be submitted.

If optional equipment is installed, be sure to comply with the maintenance requirements for these extra items.

Important: If the engine is stored for more than 18 months, the oil must be changed and the lubrication system must be primed before the engine can be brought into service. See MBE 900

Service Manual (6SE9007).

Maintenance Schedule Types

There are three types of maintenance schedule:

□ (Severe Service)

□ (Short Haul)

□ (Long Haul)

To determine which schedule to use, find the distance traveled by the vehicle in a year, regardless of vehicle type.

Severe Service — Applies to vehicles that annually travel up to

6000 miles (10,000 kilometers) or that operate under severe conditions.

Examples of Severe Service usage include: operation on extremely poor roads or where there is heavy dust accumulation; constant exposure to extreme hot, cold, salt-air, or other extreme climates; frequent short-distance travel; construction-site operation; city operation (fire truck, garbage truck); or farm operation.

Short-Haul — Applies to vehicles that annually travel up to 60,000 miles

(100,000 kilometers) and operate

70

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

under normal conditions. Examples of Short-Haul usage are: operation primarily in cities and densely populated areas; local transport with infrequent freeway travel; or high percentage of stop-and-go travel.

Long-Haul — Long Haul

(over-the-road transport) is for vehicles that annually travel more than

60,000 miles (100,000 kilometers), with minimal city or stop-and-go operation. Examples of Long-Haul usage are: regional delivery that is mostly freeway miles; interstate transport; or any road operation with high annual mileage.

Maintenance Intervals — The three maintenance interval tables show which maintenance operation must be performed at the actual distances

(in miles or kilometers) for each maintenance operation. The schedule of actual distances is based on the intervals given in the Maintenance

Tables

The three maintenance interval tables

are:referred to in section Maintenance

Tables

□ Maintenance Interval Table,

Severe Service ( listed in Table 7)

□ Maintenance Interval Table, Short

Haul (listed in Table 8)

□ Maintenance Interval Table, Long

Haul (listed in Table 9)

Schedule Use

Before placing your new vehicle in service, determine the correct maintenance intervals that apply to your intended use of the vehicle.

Refer to section Maintenance Tables

to determine the distance interval at which each maintenance operation must be performed to comply with your vehicle's schedule.

When the vehicle reaches the actual distance given for an interval,

refer to section Maintenance Tables.

When maintenance is required for hours of engine operation

refer to section Maintenance Tables.”

Listed in Table 6 provides an engine hours conversion for applications that may require service intervals based on hours and not mileage. The intervals are based on a collaboration of field and fleet data. For a more accurate analyst of when fluids should be changed, such as engine oil, refer to publication Engine Requirements

– Lubricating Oil, Fuel and Filters,

(7SE270), available from authorized

Detroit Diesel distributors.

Complete each maintenance operation at the required interval.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

71

MAINTENANCE

Maintenance Tables

Procedure

Engine Oil and Filter

Fuel Filter

Valve Lash Adjustment

Severe

(hrs)

350

700

1400

Short-

Haul/(School

Bus) (hrs)

500 or 6 months

1000

2500

Table 6 Maintenance Intervals by Engine Hours

Long-Haul

(hrs)

72

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Miles (X 1000)

Km (X 1000)

Item

1.

Lubricating Oil/Filter

& Oil Centrifuge*

2.

Cooling System

6

10 19 29 38 50 57 68 77

R

12 18 24 30 36 42 48

R R R

Procedure

R R R R

54 60

87 100

R R

66

R

Intervals are based on type of coolant used

as listed in Table 17 in the “How to Select

Coolant” section of this guide

3.

Valve Lash Checking

& Adjustment†

4.

Drive Belts

5.

Fuel/Water

Separator

6.

Fuel Filters/Pre-

Filters‡

7.

Air System

Adjust every 24,000 mi. (38,000 Km)

I I I I I I I I I

R

R

R

R

R

R

I I I I I I I I I I

I

I

I

75

106 120

R

8.

Exhaust System

9

Air Compressor

10. Aftertreatment

Device

11. Vibration Damper

I I I I I I I I I I I

I I I I I I I I I I I

Inspect same as exhaust system interval, ash removal at 150,000 Miles (240,000 Km)

Replace at major overhaul or earlier if dented or leaking.

I 12. FEPTO I I I I I I I I I I

* Change lubricating oil/filter per above schedule or every 350 hours.

† Adjust valve lash per above schedule or every 10,500 hours.

‡ Change fuel filter per above schedule or every 700 hours.

All items are described in “Preventive Maintenance Intervals"

I – Inspect, service, test, correct or replace as necessary.

R – Replace.

Table 7 Maintenance Intervals (Severe Service)

I

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

73

MAINTENANCE

Miles (X 1000)

Km (X 1000)

Item

1. Lubricating

Oil/Filter & Oil

Centrifuge

2. Cooling System

15 30 45 60 75 90 105 120 135 150 165 180

25 50 75 100 125 150 169 193 217 241 266 290

Procedure

R R R R R R R R R R R R

Intervals are based on type of coolant used

as listed in Table 17 in the “How to Select

Coolant” section of this guide

3. Valve Lash

Checking and

Adjustment

4. Drive Belts

5. Fuel/Water

Separator

6. Fuel Filters/Pre-

Filters

7. Air System

8. Exhaust System

9. Air Compressor

Adjust every 75,000 mi. (125,000 Km)

I I I I

R

R

R

R

R I

R

R

I I

R

R

I R I

R

R

I I I I

I I I I

I I I I

I

I

I

I

I

I

I I

I I

I I

I

I

I

I

I

I

10. Aftertreatment

Device

Inspect same as exhaust system interval, ash removal at 150,000 Miles (240,000 Km)

11. Vibration Damper

Replace at major overhaul or earlier if dented or leaking.

I 12. FEPTO I I I

All items are described in “Preventive Maintenance Intervals”

I – Inspect, service, test, correct or replace as necessary.

R – Replace.

Table 8 Maintenance Intervals (Short Haul)

I

I

I

I

I

R

R

I

I

I

74

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Miles (X 1000) 20 40 60 75 80 100 120 140 150 160 180 200 220 225

Km (X 1000) 32 64 97 121 129 161 193 225 241 257 290 322 354 362

Item

1. Lubricating

Oil/Filter

& Oil

Centrifuge

R R R R R

Procedure

R R R R R R

Intervals are based on type of coolant used as listed in Table

17 in the “How to Select Coolant” section of this guide

2. Cooling

System

3. Valve Lash

Check and

Adjustment

4. Drive Belts

5. Fuel/Water

Separator

6. Fuel Filters

7. Air System

8. Exhaust

System

I

I

I

I

I

I I

R

I

I

Adjust every 80,000 Mi. (129,000 Km)

R I

I

I

I I I R I I I

Follow manufacturer's recommendations.

I

I

R

I

I I

I I

I

R

I

I

I

I

I

I

I R

9. Air

Compressor

10.Aftertreatment Device

11.Vibration

Damper

12.FEPTO

I I I I I I I I I

Inspect same as exhaust system interval, ash removal at 150,000 Miles (240,000 Km)

Inspect at oil changes. Replace at major overhaul or earlier if dented or leaking.

I I I I

I I

All items are described in “Preventive Maintenance Intervals”

I – Inspect, service, test, correct or replace as necessary.

R – Replace.

Table 9 Maintenance Intervals (Long Haul)

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

75

MAINTENANCE

Preventive Maintenance

Intervals

This section describes the items listed in the maintenance interval tables.

As the operator of a vehicle, routine

“Daily” inspections of the engine and chassis should be performed. This will provide the best opportunity to identify major concerns or concerns that would stretch a longer time span like slow coolant loss.

For new or stored engines,

Refer to section OPERATING

INSTRUCTIONS FOR STARTING

THE ENGINE in this guide.

Item 1 – Lubricating Oil/ Filter

Lubricating Oil: – Check the oil level daily with the engine stopped.

If the engine has just been stopped and is warm, wait approximately 20 minutes to allow the oil to drain back into the oil pan before checking. Add the proper grade of oil to maintain the correct level on the dipstick. . Remove the dipstick from the guide tube. Note the dipstick has a positive locking device such as a lever or twist-lock design that must be disengaged before pulling the dipstick out of the guide tube. Use a shop rag to wipe off the end of the dipstick. Wait 15 seconds to allow any crankcase pressure to dissipate through the guide tube and let the oil level settle in the oil pan.

Reinstall the dipstick and make sure it is fully inserted into the guide tube. Remove the dipstick and read the oil level dipstick. See Figure

27. The figure shows a comparison

between the bends on the dipstick and a crosshatch pattern on a conventional dipstick. Note the exact area noted on the bends. For example, the

“maximum” oil level will be at the

BOTTOM of that bend. For the

“minimum” oil level, it is noted at the

TOP of the bend. If the oil level is below the “minimum” bend, add oil to bring it up the “maximum” level.

Do NOT fill beyond the maximum fill level on the dipstick, since overfilling may result in high oil consumption and possible severe engine damage.

76

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Figure 27 Oil Dipstick

NOTICE:

When adding lubricating oil, do not overfill. Overfilling may result in high oil consumption and possible severe engine damage.

All diesel engines are designed to use some oil, so the periodic addition of oil is normal.

NOTICE:

If the oil level is constantly above normal and excess oil has not been added to the crankcase, consult with an authorized Detroit Diesel service outlet for the cause. Fuel or coolant dilution of lubricating oil can result in serious engine damage.

Before adding lubricating oil,

refer to the How to Select Lubricating

Oil section in this guide.

Lubricating Oil Filter: – The oil filter is a cartridge style element and is located on the front right side of the

engine. See Figure 28. If followed

correctly, an oil filter change can be performed quickly with minimal oil cleanup.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

77

MAINTENANCE

Figure 28 Lubricating Oil filter

Item 2 – Cooling System Flush and Fill

Coolant Flush and Fill – Proper maintenance of the cooling system is vital to its performance and longevity.

The cooling system must, on a constant basis, deal with cavitation, temperature / pressure swings, and continuous threats on the additive package. Once the additives have been depleted from the coolant, it will only be a matter of time until the engine components suffer.Refer to the

How to Select Coolant section in this

guide.

Cooling System Inspection – Inspect the cooling system as follows:

PERSONAL INJURY

To avoid injury from slipping and falling, immediately clean up any spilled liquids.

Make a visual check of all lubricating oil lines for wear and/or chafing. If any indication of wear is evident, replace the oil lines and correct the cause.

Check for oil leaks after starting the engine.

HOT COOLANT

To avoid scalding from the expulsion of hot coolant, never remove the cooling system pressure cap while the engine is at operating temperature. Wear adequate protective clothing

(face shield, rubber gloves, apron, and boots). Remove the cap slowly to relieve pressure.

1. Inspect the radiator, condenser, coolant pump, engine oil cooler, freeze plugs, and heat exchanger for damage and leaks.

78

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

2. Check all cooling system pipes and hoses for damage and leaks; ensure they are positioned to avoid chafing, and are securely fastened.

3. Check the outside of the radiator and condenser for blockage.

Check fins for damage; straighten them if necessary.

Item 3 – Valve Lash Checking and Adjustment

Valve lash checking and adjustment should be performed per the maintenance intervals prescribed under the proper service category for the engine, Refer to section

Scheduled Intervals in this guide.

All three service categories (Severe,

Short Haul, and Long Haul) require a “first time” valve lash adjustment at a shorter interval. After the initial adjustment, all others are based on the same mileage intervals.

Refer to section Maintenance Tables in

this guide. Proper valve lash clearance allows the engine to produce the best possible performance with the lowest emissions. Valve lash adjustments should be performed by an authorized

Detroit Diesel maintenance or repair facility.

Item 4 – Drive Belts

Belts should be neither too tight nor too loose. Belts that are too tight impose extra loads on the crankshaft, fan and/or alternator bearings, shortening both belt and bearing life.

Excessively overtightened belts can result in crankshaft breakage. A loose belt will slip and generate excessive heat that may cause damage to the belt and accessory drive components.

PERSONAL INJURY

To avoid injury from rotating belts and fans, do not remove and discard safety guards.

Belt Replacement – Drive belts (V and poly-V) should be replaced every

2,000 hours or 100,000 miles (160,000 km).

After an extended time in service, minor rib cracks may appear, usually one or two cracks per inch is

considered normal. See Figure 29

A concern occurs when the belt ribs exhibit severe multiple cracking or

“chunking”. At this point, the belt should be replaced.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

79

MAINTENANCE

Figure 29 Minor Rib Cracking

Auto Tensioner – Auto tensioners are usually maintenance free for the life of the engine. However, routine inspections should be performed.

Uneven belt wear can indicate a loose, wore out, or bad bearing on the auto tensioner. A build up of dirt or grime around the front bearing surface of the wheel can indicate a future bearing failure due to inadequate lubrication.

Item 5 – Fuel / Water Separator

Incorporated into the fuel filter module is a fuel/water separator. The separator removes emulsified water as well as droplets and is located in the lower compartment of the fuel filter module. An optional water in fuel sensor will indicate when the trapped water needs to be drained. If the water in fuel sensor is not available, periodic draining of the trapped water should be performed.

Item 6 – Fuel Filters

The final filter is housed within the fuel filter module. The filter element filters particles down 4 micron and is snapped into the cap.

Item 7– Air System

Air Cleaner – The air cleaner element should be inspected per the maintenance intervals or more often if the engine is operated under severe dust conditions.

Replace the element, if necessary.

Check the gaskets for deterioration and replace, if necessary. If the dry type air cleaner is equipped with an aspirator, check for aspirator damage or clogging. Clean, repair or replace, as necessary.

80

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

NOTICE:

Do not allow the air inlet restriction to exceed 5.5 kPa (22 in. H2O) under any engine operating conditions.

A clogged air cleaner element will cause excessive intake restriction and reduced air supply to the engine resulting in increased fuel consumption, inefficient engine operation and reduced engine life.

Inspect the entire air system for leaks daily. Look especially for torn air inlet piping or boots and loose or damaged clamps. Have worn or damaged parts repaired or replaced, as required.

Retighten loose connections.

Air Cleaner Replacement – Dry type air cleaner elements should be replaced after one year of service or when the maximum allowable air intake restriction has been reached, whichever comes first.

Air-to-Air Charge Cooler

Periodically inspect the air-to-air charge cooler for buildup of dirt, mud, etc. and wash off using a mild soap solution. Check the charge cooler, ductwork, and flexible connections for leaks and have repaired or replaced, as required.

Item 8– Exhaust System

The exhaust manifold retaining bolts and other connections should be inspected for leaks. The exhaust pipe rain cap should be checked for proper operation, if so equipped. With the introduction of an Aftertreatment system, the sealing of the exhaust system is critical and should be inspected regularly.

Item 9– Air Compressor

The air compressor incorporates three of the major systems of a diesel engine (air, lubrication, and coolant).

Proper inspection of air compressor would include inspecting for air, oil, and coolant leaks. Due to inadequate internal sealing air compressors, when failed, can produce excessive crankcase pressure or allow an engine to ingest oil.

Item 10 – Aftertreatment System

(ATS)

There is a need to periodically remove accumulated ash, derived from engine lube oil, from the filter. This ash does not oxidize in the filter during the regeneration process and must be removed through a cleaning procedure. All Detroit Diesel ATD equipped engines will illuminate a dashboard warning lamp indicating the need for ash cleaning.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

81

MAINTENANCE

Item 11 – Vibration Damper

The viscous vibration damper should be inspected periodically and replaced

if dented or leaking. See Figure 30.

1. Vibration Damper

Figure 30 Viscous Vibration

Damper

Heat from normal engine operation may, over a period of time, cause the fluid within the damper to break down and lose its dampening properties.

For this reason the viscous vibration damper must be replaced at time of normal major engine overhaul, regardless of apparent condition.

Item 12 – FEPTO Torsional

Damper Checking

Required Maintenance

Operations

The following sections describe the required maintenance operations .

Engine Inspecting

Inspect the engine as follows:

1. Visually check the engine for signs of leakage. A slight dampness at the sealing points is no cause for alarm.

NOTE:

More severe leaks, combined with a continual loss of oil, must be corrected without delay.

2. Visually inspect all lines and hoses. Listen for any sound of leaking. Make sure all pipes and hoses are undamaged, correctly positioned to avoid chafing, and properly secured.

Coolant Concentration

Checking

Check coolant concentration as follows:

82

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

HOT COOLANT

To avoid scalding from the expulsion of hot coolant, never remove the cooling system pressure cap while the engine is at operating temperature. Wear adequate protective clothing

(face shield, rubber gloves, apron, and boots). Remove the cap slowly to relieve pressure.

2. Before adding coolant, use a suitable tester to check the concentration of corrosion-inhibiting antifreeze. If the concentration is lower than

50% by volume, drain coolant/add antifreeze until the concentration is correct. The coolant mixing ratio is listed in Table 10.

NOTE:

Concentrations of more than 55% by volume should not be used, as this is the level which affords the maximum antifreeze protection, down to –45°C

(–49°F). Higher concentrations adversely affect heat dissipation.

1. Open the cap on the surge tank slowly, to allow excess pressure to escape. Set the cap aside.

NOTE:

Check and correct the coolant level only when the coolant temperature is below 50°C (122°F).

Antifreeze

Protection Down to °C (°F)

Water Percentage by Volume

–37 (–347)

–45 (–49)

Table 10 Coolant Mixing Ratio

50

45

NOTICE:

If the concentration of antifreeze is too low, there is a risk of corrosion or cavitation in the cooling system.

Corrosion-Inhibiting

Antifreeze

Percentage by

Volume

50

Maximum 55

NOTE:

When topping off, use only a pre-prepared coolant mixture containing a 50% concentration

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

83

MAINTENANCE

by volume of corrosion-inhibiting antifreeze.

3. Check the coolant level and add more coolant if necessary.

4. Close and tighten the cap on the surge tank.

Coolant Flushing and

Changing

HOT COOLANT

To avoid scalding from the expulsion of hot coolant, never remove the cooling system pressure cap while the engine is at operating temperature. Wear adequate protective clothing

(face shield, rubber gloves, apron, and boots). Remove the cap slowly to relieve pressure.

Flush and change the coolant as follows:

1. Open the cap on the surge tank slowly, to allow excess pressure to escape. Set the cap aside.

2. Open the water regulating valve for the heating system.

3. Drain the coolant from the engine.

[a] Place a receptacle underneath the coolant drain plug.

Choose one that is large enough to hold the expected quantity of coolant.

NOTE:

Make sure the coolant can flow unobstructed into the receptacle.

[b] Open the coolant drain plug on the bottom of the radiator.

4. Flush the radiator.

NOTICE:

When flushing the radiator, do not apply more than 140 kPa (20 psi) air pressure. Excessive pressure can damage the radiator or heater core.

[a] Attach a flushing gun nozzle to the radiator outlet.

[b] Run water in until the radiator is full.

84

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

EYE INJURY

To avoid injury from flying debris when using compressed air, wear adequate eye protection (face shield or safety goggles) and do not exceed 276 kPa (40 psi) air pressure.

5. Drain the radiator, and flush the radiator until clean water flows from the radiator. Remove the flushing gun.

6. When the coolant has drained, install the coolant drain plug on the radiator.

7. Add coolant in the specified concentration until the maximum mark on the surge tank is reached.

Coolant system capacity is listed in Table 11.

[c] Apply no more than

140 kPa (20 psi) air pressure intermittently to help dislodge sediment buildup in the core.

Description Value: L (qt.)

Engine Coolant Capacity (all vehicles) L (Qt.)

Engine capacity 12 (12.7)

Business Class Coolant System Capacity L (Qt.)

Total capacity

Antifreeze quantity at 50%

Antifreeze quantity at 55%

23.6 (25)

11.8 (12.5)

13.1 (13.8)

Table 11 Coolant System Capacity

8. Start the engine and run it for about one minute at varying speeds to release air pockets in the cooling system. Make sure the heater valve is still open.

Check the coolant level and add more coolant if necessary.

9. Shut down the engine.

10. Add coolant if necessary.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

85

MAINTENANCE

Cooling System Inspecting

3. Check the outside of the radiator and condenser for blockage by dirt or debris. Make sure the fins are not damaged, and straighten them if necessary.

HOT COOLANT

To avoid scalding from the expulsion of hot coolant, never remove the cooling system pressure cap while the engine is at operating temperature. Wear adequate protective clothing

(face shield, rubber gloves, apron, and boots). Remove the cap slowly to relieve pressure.

NOTE:

Before doing this inspection, make sure to do either maintenance operation, "Coolant Concentration

Checking," or maintenance operation,

"Coolant Flushing and Changing."

Inspect the cooling system as follows:

1. Inspect the radiator, the condenser, the water pump, the engine oil cooler, the freeze plugs, and the heat exchanger for damage and leaks.

2. Check all pipes and hoses in the cooling system for damage and leaks. Make sure all pipes and hoses are properly positioned to avoid chafing, and are securely fastened.

86

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

HOW-TO SECTION

This section covers Detroit Diesel's recommendations on how to select lubricating oil, diesel fuel, and coolant and includes basic engine maintenance procedures which can be performed by the operator.

NOTICE:

The manufacturer's warranty applicable to MBE 900 engines provides in part that the provisions of such warranty shall not apply to any engine unit that has been subject to misuse, negligence or accident. Accordingly, malfunctions attributable to neglect or failure to follow the manufacturer's fuel or lubricating recommendations may not be within the coverage of the warranty.

Figure 31 API Lubricant Symbol

NOTICE:

Lubricating oil must have a sulfated ash level less than 1.0 wt %; currently referred to as CJ-4 oil

How to Select Lubricating

Oil

The selection of the proper lubricating oil is important to achieve the long and trouble-free service which Detroit

Diesel engines are designed to provide. The proper lubricating oil for model year 2007 MBE 900 engines is selected based on SAE viscosity grade and API (American Petroleum

Institute) service designation.

Only oils licensed to display the API

symbol should be used. See Figure 31.

Lubricant Requirements

API CJ-4 oils must be used in engines meeting January 2007, and later build, exhaust emission regulations.

Cold Weather Starting

At ambient temperatures below

–20°C (–4°F) when sufficient starter speed cannot be achieved with SAE

15W-40 oils, the use of 5W-XX oils and 10W-XX oils (XX =30 or 40) is allowed to improve starting.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

87

HOW-TO SECTION

NOTICE:

Monograde oils should not be used in MBE 900 engines, regardless of API service classification.

Monograde oils gel at lower ambient temperatures, reducing lubricant flow, and they do not provide adequate lubricity at higher engine operating temperatures. These factors can result in severe engine damage.

Figure 32 Engine Oil Temperature

Ranges

The oils must be API CJ-4 that have demonstrated field performance in Detroit Diesel engines.

These oils must possess a High

Temperature/High Shear (HT/HS) viscosity of 3.7 minimum. For further information, refer to publication

Engine Requirements – Lubricating

Oil, Fuel and Filters, 7SE270, available from authorized Detroit

Diesel distributors.

Select the SAE class (viscosity) on the basis of the average air temperature

for the season see Figure 32

Synthetic Oils

Synthetic oils may be used in Detroit

Diesel engines, provided they are API licensed and meet the performance and chemical requirements of non-synthetic oils outlined in this publication. Synthetic oils offer improved low-temperature flow properties and high-temperature oxidation resistance. However, they are generally more costly than non-synthetic oils.

Product information about synthetic oils should be reviewed carefully.

Performance additive systems often respond differently in synthetic oils.

NOTE:

The use of synthetic oils does not permit extension of recommended oil drain intervals.

88

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

The Use of Supplemental

Additives

Lubricants meeting the Detroit

Diesel specifications outlined in this publication already contain a balanced additive treatment. Supplemental additives are generally not necessary and can even be harmful. These additives may be marketed as either oil treatments or engine treatments and are discouraged from use in Detroit

Diesel engines.

Engine damage resulting from the use of such materials is not covered by your Detroit Diesel Corporation

warranty. Detroit Diesel will not provide statements beyond this publication relative to their use.

When to Change Oil

The length of time an engine may operate before an oil change depends upon the lubricant and fuel used, engine oil consumption, and the operating cycle.

Refer to section Maintenance Tables.

for the maximum intervals at which the engine may operate before the oil and filters must be changed.

Oil analysis may be used to determine whether this interval should be shortened, but it should not be used to lengthen the interval.

The use of fuels with sulfur content above 0.05 mass percent will require a shortening of drain intervals and/or the use of a higher TBN oil. For detailed information refer to publication

Engine Requirements – Lubricating

Oil, Fuel and Filters (7SE270), available from authorized Detroit

Diesel distributors.

Disposing of Waste Oil

Dispose of used lubricating oil and filters in an environmentally responsible manner, according to federal (EPA) and/or state recommendations. The disposal of waste oil may be best addressed by the engine oil supplier, who may accept responsibility for proper disposal of this material as part of the business of providing lubricant.

USED ENGINE OIL

To avoid injury to skin from contact with the contaminants in used engine oil, wear protective gloves and apron.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

89

HOW-TO SECTION

How to Replace the Lube

Oil and Filters

Filters are an integral part of the fuel system. Proper filter selection and maintenance are important to satisfactory engine operation and service life.

Filters should be used to maintain a clean system, not to clean up a contaminated system.

Figure 33 SAE Oil Viscosity

Classes

FIRE

To avoid injury from fire, keep open flames, sparks, electrical resistance heating elements, or other potential ignition sources away when draining lubrication oil. Do not smoke when draining lubricating oil.

To insure the engine is protected and the oil stays clean until the next oil change, use only oils of API classification CJ-4.

Only the 260 – 350 horsepower models (except motorcoach) have an oil centrifuge along with an oil filter.

NOTE:

Select the SAE class (viscosity) on the basis of the average air temperature

for the season. See Figure 33. View

the temperature ranges for the various

SAE classes as guidelines which can be exceeded for only a short time.

NOTICE:

Both the primary lube oil filter (front of engine) and the oil centrifuge cartridge (side of engine) must be replaced at each oil drain interval.

Change the oil filter as follows:

90

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

1. Chock the tires, place the transmission in neutral, and set the parking brake.

NOTE:

Change the engine oil only when the engine is at an operating temperature of approximately 82°C (180°F).

2. Using a 36-mm socket, unscrew the oil filter cap and allow the oil to drain out of the

housingSee Figure 34.

edge of the filter element to the

side. See Figure 35.

Figure 34 Oil Filter Cap

3. Place a suitable receptacle beneath the oil drain plug on the underside of the oil pan. Carefully unscrew the oil drain plug on the oil pan and allow the oil to drain out. Discard the O-ring on the oil drain plug.

4. Remove both the filter cap and the filter element. To release the filter element, twist the lower

Figure 35 Cap with Oil Filter

Element

5. Inspect the inside of the filter housing to ensure there is no debris.

6. Replace the O-ring on the cap.

See Figure 35.

7. Install the new filter into the cap.

Make sure the filter element is securely in place.

8. Screw the cap onto the oil filter housing. Tighten the cap 25 N·m

(18 lb·ft).

9. Install the oil drain plug, using a new O-ring. Tighten the plug 65

N·m (48 lb·ft).

10. Add new engine oil through the oil fill hole on the cylinder head

cover.(see Figure 36).

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

91

HOW-TO SECTION

Figure 36 Oil Fill

PERSONAL INJURY

To avoid injury from slipping and falling, immediately clean up any spilled liquids.

NOTE:

Engine oil fill capacity with a standard oil pan is 29.0 L (30.6 qts) including the oil filter.

11. Fill until the maximum fill level on the oil dipstick has been reached. Do not overfill.

NOTICE:

Keep the engine running at idling speed until an oil pressure reading is obtained. If no oil pressure is shown after approximately 10 seconds, stop the engine and determine the cause. Failure to do so could result in engine damage.

12. Start the engine with the accelerator pedal in the idle position. Monitor the oil pressure gauge.

13. Check the filter and oil drain plug for signs of leakage.

14. Stop the engine.

15. Check the oil level again after approximately five minutes.

If necessary, add oil up to the maximum fill level on the oil dipstick. Do not overfill.

Oil Centrifuge

Only the 260 – 350 horsepower models (except motorcoach) have an oil centrifuge.

NOTICE:

Both the primary lube oil filter (front of engine) and the oil centrifuge cartridge (side of engine) must be replaced at each oil drain interval.

Change the oil centrifuge cartridge as follows:

1. Remove centrifuge cover and seal ring. Discard seal ring.

See Figure 37.

2. Remove the dirty spinner cartridge and replace it with a clean one. See Figure 37.

92

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

3. Replace the centrifuge cover and new seal ring. Tighten the cover to 40 N·m (30 lb·ft).

1. Centrifuge

Cover

2. Spinner

Cartridge

3. Seal Ring

4.

Oil

Centrifuge

Housing

Figure 37 Oil Centrifuge

How to Select Diesel Fuel

Detroit Diesel engines in 2007 are designed to operate ONLY on

Ultra-Low Sulfur Diesel (ULSD) fuel.

See Figure 38.

Figure 38

Quality

Fuel quality is an important factor in obtaining satisfactory engine performance, long engine life, and acceptable exhaust emission levels.

In general, fuels meeting the properties of ASTM designation

D 975 (grades 1-D and 2-D) have provided satisfactory performance.

The fuels used must be clean, completely distilled, stable, and non-corrosive. For more information regarding the significance of these properties and selection of the proper fuel, refer to publication, Engine

Requirements – Lubricating Oil, Fuel

and Filters (7SE270), available from authorized Detroit Diesel distributors.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

93

HOW-TO SECTION

NOTICE:

Use only Ultra-Low Sulfur Diesel

(ULSD) fuel with (15 ppm sulfur content maximum), based on ASTM

D2622 test procedure. Using fuel other than ULSD will damage the

Aftertreatment Device.

Fuel Contamination

Generally, fuel contamination occurs as the result of improper fuel handling. The most common types of contamination are water, dirt, and microbial growth (“black slime”).

The formation of varnishes and gums resulting from poor stability or extended storage (“stale fuel”) also affects fuel quality. The best treatment for contamination is prevention by maintaining a clean storage system and choosing a reputable fuel supplier.

Supplemental additives are not recommended due to potential injector system or engine damage.

Our experience has been that such additives increase operating costs without providing benefit.

The use of supplemental fuel additives does not necessarily void the engine warranty. However, repair expenses

which result from fuel system or engine component malfunctions or damage attributed to their use will not be covered.

These products should be accompanied by performance data supporting their merit. It is not the policy of Detroit Diesel

Corporation to test, evaluate, approve or endorse such products.

Biodiesel — Biodiesel fuels meeting

ASTM D 6751 specification, prior to blending can be mixed up to 5% maximum by volume in petroleum diesel fuel. Detroit Diesel highly recommends biodiesel fuels made from soybean or rapeseed oil through the proper transesterification reaction process. Other feedstock source of biodiesel fuels such as animal fat or cooking oils are not recommended by

Detroit Diesel. The resulting mixture must meet ASTM D 975 specification.

More information is available in the

Detroit Diesel publication Lubricating

Oil, Fuel, and Filters (7SE270).

Failures attributed to the use of biodiesel fuel will not be covered by Detroit Diesel product warranty.

Also, any engine performance problem related to the use of biodiesel fuel would not be recognized nor considered Detroit Diesel's responsibility.

Prohibited Additives

The following fuel additives are not allowed and MUST NOT be mixed with diesel fuel:

94

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Used Lubricating Oil — Do not use fuel blended with used lubricating oil.

Detroit Diesel specifically prohibits the use of used lubricating oil in diesel fuel.

FIRE

To avoid increased risk of a fuel fire, do not mix gasoline and diesel fuel.

NOTICE:

Burning used lubricating oil in fuel cannot be tolerated as it will cause the diesel particulate filter to prematurely plug with ash.

Used lubricating oil contains combustion acids and particulate materials which can severely erode fuel injector components, resulting in loss of power and increased exhaust emissions. In addition, the use of drained lubricating oil will increase maintenance requirements due to filter plugging and combustion deposits.

Fuel Additives with Sulfur

or Sulfated Ash — Do not use non-approved fuel additives containing sulfur or sulfated ash.

Gasoline — The addition of gasoline to diesel fuel will create a serious fire hazard. The presence of gasoline in diesel fuel will reduce fuel cetane number and increase combustion temperatures.

Tanks which contain a mixture of gasoline and diesel fuel should be drained and cleaned as soon as possible.

Detroit Diesel Corporation will not be responsible for any detrimental effects it determines resulted from adding drained lubricating oil or gasoline to the diesel fuel.

How to Replace the Fuel

Filter/Water Separator

Filters

Filters are an integral part of the fuel system. Proper filter selection and maintenance are important to satisfactory engine operation and service life. Filters should be used to maintain a clean system, not to clean up a contaminated system.

Primary Fuel Filter

Perform the following to remove the primary fuel filter:

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

95

HOW-TO SECTION

1. Water-In-Fuel Sensor (Optional)

2. Water Collection Bowl

3. Main Fuel Filter Return Inlet

9. Fuel Prefilter Insert

10. Water Drain valve

11. Main Fuel Filter Inlet

4. Fuel Prefilter with Water Separator

12. Constant Vent in Main Fuel Filter

5. Main Fuel Filter Return Outlet

13. Main Fuel Filter

6. Outlet of Fuel Prefilter

14. Main Fuel Filter Outlet

15. Main Fuel Filter Inlet

7. Filling Valve

8. Inlet for Fuel Prefilter

B = Prefiltered Fuel

A = Unfiltered Fuel

D = Fuel Injector Leak Fuel

C = Cleaned Fuel

E = Fuel Return Line to Fuel Tank

Figure 39 Fuel Filter/Water Separator

96

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

1. Turn off the vehicle.

2. Place the fuel drain hose in a collection container and open the drain lever. Once the fuel stops draining from the line, close the drain lever.

3. Disconnect the connector plug to the fuel pre-heater element.

Remove the ground lead for the fuel pre-heater from the fuel filter/water separator housing.

4. Disconnect the harness water-in-fuel (WIF) sensor connector from the fuel filter/water separator housing.

See Figure 39.

5. Remove the water collection bowl from the filter housing using a 36 mm wrench/socket and remove bowl and seal ring. Discard seal ring. See Figure 39.

6. Remove the primary filter element from the filter housing and discard the element. See Figure 39.

7. Install the new primary fuel filter, ensuring that the element is firmly seated against the filter housing.

8. Install a new seal ring on the fuel filter/water separator bowl and lubricate with clean engine oil.

See Figure 39.

9. Thread the bowl into the housing and tighten bowl to 13.5 N·m

(120 lb·in.).

10. Connect the electrical connector plug to the fuel pre-heater element. Install the ground lead for the fuel pre-heater to the fuel filter/water separator housing.

11. Connect the WIF sensor harness connector to the fuel filter/water separator housing.

12. Ensure fuel drain lever is in closed position (counterclockwise).

13. Prime the fuel system using the hand primer on the fuel filter/water separator.

Secondary Fuel Filter

Perform the following to remove the secondary fuel filter:

1. Turn off the vehicle.

2. Remove the cover from the filter housing using a 36 mm wrench/socket and remove the cover and seal ring. Discard seal ring.

3. Remove the element from the cover and discard.

4. Insert a new element into the cover and lubricate the element seal (in the bottom end).

5. Install cover and element assembly into the housing and tighten the cover to 25 N·m (221 lb·in.).

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

97

HOW-TO SECTION

6. Prime the fuel system using the hand primer on the fuel filter/water separator. Pump until resistance is felt.

Draining the Fuel Filter/Water

Separator

The fuel filter/water separator has a built in water in fuel sensor signaling when the separator requires draining.

The sensor will turn on a dash light.

Do the following to drain the water from the fuel filter/water separator:

1. Place the end of the fuel filter/water separator drain hose into a suitable container

2. Open the water drain and drain filter until only clear fuel is viewed.

Engine Out of Fuel — How to Restart

When an engine has run out of fuel, there is a definite procedure to follow when restarting it.

1. If the engine is equipped with a hand priming pump located on the fuel filter module, operate the priming pump for two to three minutes or until resistance is felt.

2. If the engine is equipped with only a priming port located on the fuel filter module, have an authorized repair facility prime the fuel system.

3. Crank the engine for 30 seconds at a time, but no longer. Before cranking the engine again, wait at least two minutes. The engine should start within four 30 second attempts.

4. If the engine fails to start, ensure the vehicle has adequate fuel and the fuel system is not leaking externally.

5. If problem persists, call an authorized repair facility.

NOTICE:

The starting motor and fuel pump should

never be used to prime the fuel filters. Prolonged used of the starting motor and fuel pump to prime the fuel system can result in damage to the starter, fuel pump and injectors and cause erratic running of the engine due to the amount of air in the fuel lines and filters.

How to Clean the Engine

Important: Observe all environmental protection regulations.

98

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

High-Pressure Cleaning

Equipment

Information on suitable cleaning and protective products is available from any authorized dealer. Note the equipment manufacturer's operating instructions.

NOTICE:

To prevent damage to engine components during the cleaning process, keep the water moving at all times. Never direct water onto electrical components, plug connectors, seals or flexible hoses.

How to Clean the Cooling

System

Important: Collect the used coolant, cleaning solutions, and washing liquids and dispose of them in an environmentally responsible manner.

Clean as follows:

NOTICE:

Clean at moderate pressures only; otherwise the fins of the radiator grille could be damaged.

1. First remove debris (dust, insects, etc.) from the fins of the radiator grille.

To avoid injury, wear a face shield or goggles.

Comply with the minimum working distance between the high-pressure nozzle and the surface being cleaned:

□ Approximately 700 mm (28 in.) for circular pattern jets

□ Approximately 300 mm (12 in.) for 25-degree flat jets and dirt cutters

EYE INJURY

To avoid injury from flying debris when using compressed air, wear adequate eye protection (face shield or safety goggles) and do not exceed 276 kPa (40 psi) air pressure.

2. Remove the debris by blowing them through with compressed air or spraying them out with water.

Work from the rear of the radiator

(in the opposite direction of the normal cooling air flow).

3. Drain the coolant when the engine is cold. For

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

99

HOW-TO SECTION

detailed procedures, see the vehicle/chassis maintenance manual. For types of coolant,

refer to the “How to Select

Coolant” section in this guide.

4. If the HVAC unit is connected to the cooling system, open the regulating valves all the way.

Degreasing

Degrease as follows:

1. Fill the cooling system with a 5% solution (1.6 ounces per quart of water—50 grams per liter) of a mildly alkaline cleaning agent, such as sodium carbonate.

2. Run the engine at moderate speed until the thermostat starts to open, at an operating temperature of approximately 80°C (176°F).

Then run it for about five minutes longer. Shut down the engine and allow it to cool to approximately

50°C (112°F).

HOT COOLANT

To avoid scalding from the expulsion of hot coolant, never remove the cooling system pressure cap while the engine is at operating temperature. Wear adequate protective clothing

(face shield, rubber gloves, apron, and boots). Remove the cap slowly to relieve pressure.

3. Drain all the cleaning solution.

4. Flush the cleaning solution from the cooling system.

[a] Immediately after draining the cleaning solution, flush the system with clean water.

[b] Once the clean water has drained, fill the system again with clean water.

[c] Run the engine. Allow the engine to warm up to approximately 80°C (176°F), and then run it about five minutes longer.

[d] Drain the hot water.

5. Fill the cooling system with new coolant. For detailed procedures, see the vehicle/chassis maintenance manual. For types of coolant, “Refer to the

100

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

How to Select Coolant” section

in this guide.

How to Select Coolant

This section covers selection of the required coolant for MBE 900 engines.

Definitions

To help ensure complete understanding of the information, the definitions of the following terms are provided:

Antifreeze — Ethylene glycol or propylene glycol containing a corrosion inhibitor package and which meets an appropriate heavy-duty specification (i.e., TMC RP-329

“Type A” for ethylene glycol or

TMC RP-330 “Type A” for propylene glycol).

Coolant — The fluid mixture circulating in the engine cooling system, typically a mixture of 50% water and 50% antifreeze.

Drop–Out — Precipitated sludge or deposit formation on cooling system components.

Fully Formulated Antifreeze —

Contains all the necessary inhibitors to protect a diesel engine, and does not, therefore, require a pre-charge of

SCA before its first use.

Initial–Fill Coolant — The coolant that is used in a new or rebuilt engine, or any time the cooling system is emptied and then refilled with coolant.

OAT — Organic Acid Technology.

An inhibitor system based on organic acid inhibitors, instead of traditional North American inhibitor formulations.

SCA — Supplemental Coolant

Additive. SCAs are used in a preventive maintenance program to prevent corrosion, cavitation, and the formation of deposits.

Approved Coolants

The approved and preferred coolants for MBE 900 engines

are listed in Table 12.

Once installed, these coolants should be maintained according to the procedures discussed under

Maintenance in this section.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

101

HOW-TO SECTION

NOTICE:

Required specifications for water, ethylene glycol, propylene glycol, inhibitor packages and inhibitor concentration are included in this section. To avoid possible engine damage from inadequate or over concentrated coolant, this information should be read thoroughly before the coolant is replaced.

Coolant Fill Option

Ethylene Glycol & Water + Corrosion

Inhibitors

1

Commercial Equivalent of DDC Power

Cool

Propylene Glycol & Water + Corrosion

Inhibitors

1

Ethylene Glycol & Water + OAT

Inhibitors

Water Only + Corrosion Inhibitors

2

Product

DDC Power Cool

Fully Formulated TMC RP-329 Type A

Antifreeze & Water

DDC Power Cool Plus

DDC Power Cool Plus

Water + DDC Power Cool 3000

Water Only + OAT Inhibitors

2

Water + DDC Power Cool Plus 6000

1

Preferred Coolant

2

Water-only coolant systems offer no freeze protection and should not be used where ambient temperatures can fall to 0°.C (32° F).

Table 12 Initial Fill Coolant Options

EG & Water Plus SCA Inhibitor or

PG & Water Plus SCA Inhibitor —

These products are available as fully formulated, phosphate-free, extended service interval (ESI) coolants.

They are commercially available from Detroit Diesel (recommended) and other manufacturers as either a concentrated antifreeze or as a pre-mixed antifreeze. The pre-mixed antifreeze is ready for use, while the concentrated coolant must be mixed with water prior to use.

102

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Detroit Diesel Power Cool engine coolant (part number 23512138) is the preferred ethylene glycol (EG) coolant. If other commercial brands of ethylene glycol are used, they must be equivalent to the Power Cool. Detroit

Diesel does not market a propylene glycol (PG) coolant. If a propylene glycol coolant is used, it must also meet the following requirements:

□ Fully formulated ethylene glycol-based, low silicate antifreeze or coolant must meet TMC RP-329 “Type A” requirements.

□ Fully formulated propylene glycol-based antifreeze or coolant must meet TMC RP-330 “Type

A” requirements.

Fully formulated antifreeze does not require a dosage of SCA prior to initial use.

Mixing EG or PG Antifreeze

and Water — If a concentrated ethylene glycol (EG) or propylene glycol (PG) antifreeze is purchased, mix the antifreeze with water meeting the required quality standardslisted in Table 15 and fill the cooling system.

If a pre-diluted, fully formulated coolant is purchased, fill the cooling system. For best overall performance, a coolant consisting of 50% concentration of antifreeze

(50% antifreeze, 50% water) is

recommended.

An antifreeze concentration over

67% (67% antifreeze, 33% water) is

not recommended due to poor heat transfer, reduced freeze protection

(IEG only), and possible silicate dropout. An antifreeze concentration below 33% (33% antifreeze, 67% water) offers too little freeze and/or corrosion protection and is not

recommended.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

103

HOW-TO SECTION

Always verify that the freeze point and nitrite concentration of the antifreeze/water mixture are correct by using a POWER Trac® 3–Way

Coolant Test Strip. If chemical analysis is used, elements in the coolant must fall within the limits listed in Table 13.

Fully Formulated Glycol Coolant Concentration Limits

Boron 125 – 500 PPM

Nitrite

Nitrate

900 – 3200 PPM

200 – 1000 PPM

Silicon

Phosphorous pH

50 – 250 PPM

0 PPM

8.0 – 11.0

Table 13 Fully Formulated Glycol Coolant Limits with TMC RP-329,

TMC RP-330 Chemistry Type A (50/50 Coolant/Water

Mixture)

Recycled Antifreeze — Antifreeze or coolant recycled by reverse osmosis, distillation, and ion exchange, properly re-inhibited to meet TMC RP-329 Type A or

TMC RP-330 Type A requirements, has been demonstrated to provide service equivalent to virgin antifreeze.

Recycled antifreeze or coolants of these types are preferred. Other recycled coolants, especially coolants recycled through filtration processes, are not recommended.

EG/Water + OAT Inhibitor or

PG/Water + OAT Inhibitor —

Ethylene glycol and propylene glycol are also available with a OAT corrosion package. These coolants require less maintenance over the useful life of the engine. OAT coolants, maintained as detailed in the Maintenance section of this guide, may be operated up to 4 years,

600,000 miles (960,000 km), or

10,000 operating hours, whichever

comes first. Refer to Coolant Inhibitor

Test Intervals in this guide. The cooling system should either be equipped with a blank coolant filter, or the coolant filter and piping may be omitted from the system.

OAT fully formulated antifreezes are available as concentrated and pre-mixed. Concentrated antifreezes should be mixed 50% (50% antifreeze,

50% water).

104

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

OAT coolants should not be mixed

with conventional coolants. If they are mixed, no damage will result, but the long-life advantages of the OAT coolant will be lost. In this event, the coolant should be maintained as a fully formulated Inhibited Ethylene Glycol

(IEG) coolant, not as an Organic Acid

Technology (OAT) coolant.

Detroit Diesel markets a OATinhibited ethylene glycol coolant,

DDC Power Cool Plus, which contains all the required additives.

If a non-DDC OAT antifreeze is used, it must conform to TMC 338 specification. Do not add extender to

new OAT antifreeze or coolant.

Water Only + SCA or Water

Only + OAT Inhibitor — In warm climates a coolant based on water with corrosion inhibitors is approved for use. Water-only systems need to be treated with the proper dosage of corrosion inhibitors.

Detroit Diesel-approved SCAs or

OAT corrosion inhibitors must be added to the water to provide required corrosion and cavitation erosion protection. OAT inhibitors such as

Power Cool Plus 6000 are available for water-only systems. Inhibitor should be mixed at 7.5% – 10% by volume with water. For a list of Power

Cool products,refer to section POWER

COOL ENGINE PRODUCTS in this

guide. Traditional SCA (Power

Cool 3000) can also be used to protect the engine. Power Cool 3000 concentration limits are listed in Table

14.

NOTE:

Do not use Power Trac 3–Way Test

Strips to test OAT coolant.

POWER COOL® 3000 SCA inhibitors should be mixed at 5% by volume with water. This is 1 quart per 5 gallons of water. These additions can be made by adding liquid SCAs available in a variety of sizes. Coolant filters are also available for different cooling system capacities. These filters release the proper amount of

SCA at initial fill.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

105

HOW-TO SECTION

Power Cool

3000 Coolant Concentration Limits

Boron 125 – 500 PPM

Nitrite 900 – 3200 PPM

Nitrate

Silicon

Phosphorous pH

200 – 1000 PPM

50 – 250 PPM

0 PPM

8.0 – 11.0

Table 14 Power Cool 3000 Concentration Limits (5% Power Cool

3000/ 95% Water)

106

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Water Requirements —

Distilled, reverse osmosis-purified, or de-ionized water which eliminates the adverse effects of minerals in tap water is preferred. High levels of dissolved chlorides, sulfates, magnesium, and calcium in some tap water causes scale deposits and/or corrosion resulting in water pump failures and poor heat transfer, leading to overheating. If tap water is used, the mineral content in the water must be below the maximum allowable limits listed in Table 15.

NOTICE:

Do not add additional SCA to new, fully formulated antifreeze or coolant. This can result in dropout and/or the formation of deposits.

All Antifreezes And Coolants

Containing Phosphate — These coolants are not recommended. Drop out, overheating and water pump seal failures can result from the use of coolant or inhibitor packages based on phosphate.

Automotive Type Coolants —

These coolants generally contain high levels of phosphate and silicate, offer no liner pitting protection, and are

not suitable for use in Detroit Diesel engines.

Methyl Alcohol-Based

Antifreeze — This must not be used because of its effect on the non-metallic components of the cooling system and its low boiling point.

Coolants Not Recommended

The following coolants are not

recommended for use in Detroit Diesel engines.

Chlorides

Sulfates

Total Dissolved Solids

Total Hardness –

Magnesium and Calcium

Maximum Allowable

Parts per Million Grains per Gallon

40

100

2.5

5.8

340 20

170 10

Table 15 Satisfactory Water Limits – Make-Up Water Only

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

107

HOW-TO SECTION

Glycol-based Coolants

Formulated For HVAC —

These coolants formulated for

Heating/Ventilation/Air Conditioning

(HVAC) should not be used. These coolants generally contain high levels of phosphates, which can deposit on hot internal engine surfaces and reduce heat transfer.

Additives Not Recommended

The following additives are not

recommended for use in MBE 900 engines.

Soluble Oils — Soluble oil additives are not approved for use in Detroit

Diesel engine cooling systems. A small amount of oil adversely affects heat transfer. For example, a 1.25% concentration of soluble oil increases fire deck temperature 6%. A 2.50% concentration increases fire deck temperature 15%. The use of soluble oil additives may result in engine overheating and/or failure.

Chromate — Chromate additives are not approved for use in Detroit Diesel engine cooling systems. Chromate additives can form chromium hydroxide, commonly called “green slime.” This, in turn, can result in engine damage due to poor heat transfer. Cooling systems operated with chromium-inhibited coolant must be chemically cleaned with Power

Cool dry chemical cooling system cleaner/conditionerrefer to section

POWER COOL Cooling System

Cleaners (or equivalent sulfamic acid/sodium carbonate cleaner) and flushed.

Coolant Inhibitor Test Intervals

The coolant inhibitor level should be checked at the intervals listed in Table

16.

Service Application

Long Haul — Highway Trucks and Motor

Coaches — operates more than 60,000 miles (100,00 km) per year

Short Haul — City Transit — operates up to 60,000 miles (100,000 km) per year.

Severe Service — Fire Truck or

Crash/Rescue Vehicle — operates up to

6,000 miles (9,600 km) or under severe conditions.

Inhibitor Test Interval

20,000 Miles (32,000 Km)

15,000 miles (25,000 Km)

6,000 Miles (9,600 Km) 300 hours or 1 year, whichever comes first

Table 16 Required Coolant Inhibitor Test Intervals

108

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

HOT COOLANT

To avoid scalding from the expulsion of hot coolant, never remove the cooling system pressure cap while the engine is at operating temperature. Wear adequate protective clothing

(face shield, rubber gloves, apron, and boots). Remove the cap slowly to relieve pressure.

If topping off is needed, add coolant which is identical to the initial fill coolant.

Supplemental Coolant Additives for Fully Formulated Coolant —

The concentrations of some inhibitors will gradually deplete during normal engine operation. SCAs replenish the protection for cooling system components. The coolant must be maintained with the proper concentration of SCA. Detroit Diesel

Power Cool maintenance SCAs are recommended.

The proper application of SCA will provide:

□ pH control.

□ Restored inhibitor levels to prevent corrosion.

□ Water softening to deter formation of mineral deposits.

□ Cavitation protection to protect wet sleeve cylinder liners.

Maintenance Intervals — Check the nitrite concentration at the regular

intervals listed in Table 17 with a

Power Trac 3–Way Test Strip.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

109

HOW-TO SECTION

Coolant

Antifreeze / Water +

SCA Inhibitor (DDC

Power Cool)

Ethylene Glycol

/ Water + SCA

Inhibitor or

Propylene Glycol

/ Water + SCA

Inhibitor

Ethylene Glycol

/ Water + OAT

Inhibitor or

Propylene Glycol

/ Water + OAT

Inhibitor

Interval

300,000 Miles

(480,000 km)

1

20,000 Miles (32,000 km) or 3 Months*

20,000 Miles (32,000 km) or 3 Months*

300,000 Miles

(480,000 km)

Test at 1 Year.

300,000 Miles

(480,000 km) or 2 Years*

600,000 Miles

(960,000 km)

Action

Test nitrite concentration with test strip. Add SCA or dilute coolant as needed.

Drain and clean system.

Refill with new coolant.

Test nitrite concentration with test strip. Add SCA or dilute coolant as needed.

Drain and clean system.

Refill with new coolant.

Add Power Cool Plus

Extender

Drain and clean system.

Replace with new coolant.

Water Only + SCA

Inhibitor

Water Only + OAT

Coolant

20,000 Miles (32,000 km) or 3 Months*

300,000 Miles

(480,000 km)

300,000 Miles

(480,000 km) or 2 Years*

600,000 Miles

(960,000 km)

Test nitrite concentration with test strip. Add SCA or dilute coolant as needed.

Drain and clean system.

Replace with new coolant.

Add Power Cool Plus

Extender

Clean and drain. Replace with new coolant.

1

Maintenance interval based on application. Drain interval dependent on proper maintenance.

Table 17 Coolant Maintenance Intervals

Nitrite levels must be within the ranges listed in Table 13.

110

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

NOTICE:

Failure to properly maintain coolant with SCA can result in damage to the cooling system and its related components. Conversely, over-concentration of SCA inhibitor can result in poor heat transfer, leading to engine damage.

Always maintain concentrations at recommended levels. Do not use

traditional SCAs with OAT coolant.

Additional SCA must be added to the coolant when it becomes depleted, as indicated by a nitrite concentration of 900 PPM or less. If the nitrite

concentration is greater than 900

PPM, do not add additional SCA. If the nitrite concentration is above 3200

PPM, the system is over-inhibited and should be partially drained and filled with a 50/50 mix of water and EG or

PG.

In this case the EG or PG should contain no inhibitors and should conform to ASTM D4985. This will dilute the over-concentrated inhibitors.

NOTE:

In non-OAT systems, nitrite concentration of 5000 PPM or higher on an MBE 900 engine suggests problematic additive over-concentration. This condition

must be corrected by immediate draining and flushing of the cooling system. Refill the system with new fully formulated or pre-charged coolant.

Check the nitrite concentration level at the next maintenance interval with a

Power Trac 3–Way Test Strip.

SCA Test Procedures

Detroit Diesel Power Trac 3–Way

Coolant Test Strips should be used to measure nitrite and glycol concentrations. Part numbers

are in refer to section POWER

COOL ENGINE PRODUCTS.

Cavitation/corrosion is indicated on the strip by the level of nitrite concentration. Freeze/boil over protection is determined by glycol concentration.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

111

HOW-TO SECTION

HOT COOLANT

To avoid scalding from the expulsion of hot coolant, never remove the cooling system pressure cap while the engine is at operating temperature. Wear adequate protective clothing

(face shield, rubber gloves, apron, and boots). Remove the cap slowly to relieve pressure.

For best results make the test while the coolant is between 50° – 140° F

(10.0° – 60° C). Wait at least 60, but not longer than 75, seconds before reading the nitrite level. Use the test strips as follows:

1. Dip the strip into coolant for one second. Remove and shake briskly to eliminate excess fluid.

2. Immediately compare the pad end

(% glycol) to the color chart on the container.

3. Sixty seconds (one minute) after dipping, compare the nitrite pad to the color chart.

4. Color change of the additive indicator (middle pad) indicates the presence of inhibitor that is not approved by Detroit Diesel.

Promptly replace and tighten the test strip container cap after each use.

Discard unused strips if they have turned light pink or tan.

A factory coolant analysis program is available through authorized

Detroit Diesel service outlets. Part

numbers are inrefer to section POWER

COOL ENGINE PRODUCTS and

refer to section POWER TRAC

Coolant Testing And Analysis

Products in the Specifications section.

To verify coolant acceptability, submit a sample for coolant analysis every two (2) years, 300,000 miles (480,000 km), or 10,000 operating hours, whichever comes first.

Need Release Coolant Filters

(Non-OAT Systems)

Spin-on coolant filters are available for

Detroit Diesel engines. Membranes in the filters release SCAs before the coolant approaches a corrosive condition, protecting the engine from corrosion. The elements release the

SCA charge as needed, as opposed to the maintenance SCA elements, which instantaneously release the SCA charge. Coolant filter elements should be replaced after one (1) year, 120,000 miles (192,000 km) or 2,000 operating hours, whichever comes first.

112

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Dropout

Excessive amounts of some inhibitors in the coolant can cause a gel or crystalline deposit that reduces heat transfer and coolant flow. The deposit, called “dropout,” takes the color of the coolant when wet, but appears as a white or gray powder when dry. It can pick up solid particles in the coolant and become gritty, causing excessive wear of water pump seals and other cooling system components.

PERSONAL INJURY

To avoid injury when using caustic cleaning agents, follow the chemical manufacturers usage, disposal, and safety instructions.

The wet gel can be removed by using a non-acid (alkali) type heavy-duty cleaner, such as Detroit Diesel Power

Cool On-Line Cleaner (sodium nitrite/sodium tetraborate). Part

numbers are refer to section POWER

COOL ENGINE PRODUCTS.

NOTE:

If the gel is allowed to dry, it is necessary to disassemble the engine and clean it with a caustic solution or physically clean individual components.

Coolant Extender Inhibitor

Additive for “OAT” Coolant

The inhibitors in OAT coolant must also be maintained, but less often than traditional SCA-type coolants.

A portable test is available to test the levels of OAT inhibitors in coolant.

Where this is not used, fleet testing has determined that a OAT coolant extender package should be added to the coolant at 300,000 miles (480,000 km), two (2) years, or 5,000 hours, whichever comes first. The proper maintenance dosages for all OAT

coolants are listed in Table 17 ,

reflecting 0.6% by volume extender.

This dosage should be added to the water-only and the glycol systems at the same interval.

The proper application of extender to

OAT coolant will provide:

□ pH Control

□ Restored inhibitor levels to prevent corrosion

□ Cavitation protection to protect wet sleeve cylinder liners

NOTE:

Do not use traditional SCAs in

OAT coolant, and do not use

OAT extender in traditional coolant.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

113

HOW-TO SECTION

OAT Coolant Drain Interval —

A properly maintained OAT-inhibited coolant will last 600,000 miles

(960,000 km), four (4) years, or

10,000 operating hours, whichever comes first. At this time the coolant should be drained, and the cooling system should be thoroughly cleaned, flushed, and filled with new, properly inhibited OAT coolant.

Chronic Coolant System

Problems

The most commonly seen coolant system problems result from maintenance and formulation factors such as:

□ Hard water

□ Dilution of the coolant by the addition of untreated water

□ Over dosage or under dosage of corrosion inhibitors

□ Improper corrosion inhibitor (most often phosphated)

□ Mixing SCAs

□ Improper testing

Detroit Diesel Cooling System

Maintenance Products

The following products are available to do maintenance on the cooling system.

Power Cool

SCAs — Power Cool

SCAs are water-soluble chemical compounds. These products are available in coolant filter elements, liquid packages, and in fully formulated Power Cool antifreeze.

NOTE:

Power Cool 3000 liquid SCA is more compatible with hard water than

Power Cool 2000 SCA.

Power Cool

Coolant Filter

Elements — Power Cool coolant filter elements (spin-on canisters) are available in various sizes suitable for cooling systems of varying capacities.

Selection of the proper element size is vital when pre-charging non-fully formulated coolant at initial fill and at maintenance intervals. A fully

formulated antifreeze must not have SCA added at initial fill. Do not use SCA-containing filters with OAT antifreeze or coolant.

The need for maintenance elements is determined by the results of the nitrite concentration test performed at each cooling system interval. Do

not automatically install maintenance elements at maintenance intervals, unless the nitrite concentration falls below 900 parts per million.

Power Cool

Cleaners — Power

Cool Liquid On-Line Cleaner is used for light deposits. Power Cool Dry

114

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Chemical Cleaner/Conditioner is used for heavy deposits or scale.

Summary of Coolant

Recommendations

HOT COOLANT

To avoid scalding from the expulsion of hot coolant, never remove the cooling system pressure cap while the engine is at operating temperature. Wear adequate protective clothing

(face shield, rubber gloves, apron, and boots). Remove the cap slowly to relieve pressure.

1. Always maintain the engine coolant to meet Detroit Diesel specifications.

2. Only use water that meets the specifications listed in Table 15.

Distilled, de-mineralized (reverse osmosis) or de-ionized water is preferred.

3. The proper dosage of inhibitors

must be included in the coolant at initial fill for all Detroit Diesel engines. This dosage is usually included in the fully formulated antifreeze used, or it may need to be added if water alone or if less than 50% antifreeze is used. The

user is urged to refer to the full text of this section to determine

the proper dosage. Mixing of different manufacturers' technologies (brands) could cause cooling system problems.

4. Maintain the inhibitor at the prescribed concentration. Test the nitrite concentration by using a titration kit or Detroit Diesel

Power Trac 3-Way Coolant Test

Strips. Add SCA only if the nitrite concentration is below 900 PPM.

Do not use SCA in OAT coolant, and do not use Power Trac 3-Way

Coolant Test Strips to test OAT coolant.

NOTE:

If the nitrite concentration exceeds

3200 PPM, the coolant must be drained and replaced with new coolant. A thorough cleaning of the cooling system may be required.

5. Do not use another manufacturer's test kit to measure the SCA concentration of Detroit Diesel maintenance products.

6. Pre-mix coolant makeup solutions to the proper concentration before adding to the cooling system.

7. Do not mix OAT and other coolants in the same engine.

8. Do not use automotive coolants.

9. Where antifreeze/boil over protection is required, use only

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

115

HOW-TO SECTION

antifreeze that meets TMC

RP-329 “Type A” EG or

TMC RP-330 “Type A” PG specifications. Always maintain coolant at the proper level.

10. Do not use the following in

Detroit Diesel engine cooling systems:

□ Soluble oil

□ High silicate, automotive-type antifreeze

□ Chromate SCAs

□ Methoxy propanol-base coolant

□ Methyl alcohol-base coolant

□ Sealer additives or coolant containing sealer additives.

□ HVAC coolant

□ Phosphated coolants

Coolant life of Glycol Coolant —

A properly maintained cooling system, filled with phosphate-free coolant consisting of a 50/50 mix of antifreeze and water per TMC RP-329

“Type A” EG or TMC RP-330

“Type A” PG specifications can be operated to the limits recommended.

The proper maintenance involves periodic evaluation using Power Trac

3-Way Coolant Test Strips and the addition of SCA as needed, indicated by the strip test. To verify coolant acceptability, submit a sample for coolant analysis every 300,000 miles

(480,000 km), three (3) years, or

5,000 operating hours, whichever comes first. Submit the sample in a DDC Power Trac Coolant Test

Bottle. Required part numbers are

in refer to section POWER COOL

ENGINE PRODUCTS.

Coolant Life of OAT Coolant — A properly maintained OAT coolant may be operated 600,000 miles (960,000 km), four (4) years, or until overhaul, whichever comes first. At this time the system must be completely drained, thoroughly cleaned, and refilled. OAT

Coolants require the addition of an extender at 300,000 miles (480,000 km), two (2) years, or 5,000 hours, whichever comes first. Use 1 pint of extender for every 20 gallons of coolant.

Coolant Life of Other Coolants —

Other properly maintained coolants may be operated up to 250,000 miles

(480,000 km), two (2) years, or 4,000 operating hours, whichever comes first. At this time the system must be completely drained, thoroughly cleaned, and refilled.

Coolant Flushing and Changing

Drain and flush the cooling system as follows:

116

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

HOT COOLANT

To avoid scalding from the expulsion of hot coolant, never remove the cooling system pressure cap while the engine is at operating temperature. Wear adequate protective clothing

(face shield, rubber gloves, apron, and boots). Remove the cap slowly to relieve pressure.

1. Open the cap on the surge tank slowly, to allow excess pressure to escape. Set the cap aside.

2. Open the water regulating valve for the heating system.

3. Place a large receptacle underneath the coolant drain plug and open the coolant drain plug on the bottom of the radiator.

NOTE:

Make sure the coolant can flow unobstructed into the receptacle.

NOTICE:

Do not apply more than 140 kPa (20 psi) air pressure for a radiator flush; more pressure could damage the radiator or heater core.

4. Start radiator flushing by attaching a flushing gun nozzle to the radiator outlet and run water in until the radiator is full.

EYE INJURY

To avoid injury from flying debris when using compressed air, wear adequate eye protection (face shield or safety goggles) and do not exceed 276 kPa (40 psi) air pressure.

5. Apply no more than 140 kPa (20 psi) air pressure intermittently to help dislodge sediment buildup in the core.

6. Drain the radiator, and flush the radiator until clean water flows from the radiator. Remove the flushing gun.

7. When the coolant has drained, install the coolant drain plug on the radiator.

8. Add coolant in the specified concentration until the maximum mark on the surge tank is reached.

9. Start the engine and run it for about one minute at varying speeds to release air pockets in the cooling system. Ensure the heater valve is still open. Check

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

117

HOW-TO SECTION

the coolant level and add more coolant if necessary.

10. Shut down the engine, close and tighten the cap on the surge tank.

Cooling System Inspecting

NOTE:

Before doing this inspection, do either

"Coolant Concentration Checking," or

"Coolant Flushing and Changing."

Inspect the cooling system as follows:

3. Check the outside of the radiator and condenser for blockage.

Check fins for damage; straighten them if necessary.

HOT COOLANT

To avoid scalding from the expulsion of hot coolant, never remove the cooling system pressure cap while the engine is at operating temperature. Wear adequate protective clothing

(face shield, rubber gloves, apron, and boots). Remove the cap slowly to relieve pressure.

1. Inspect the radiator, condenser, water pump, engine oil cooler, freeze plugs, and heat exchanger for damage and leaks.

2. Check all cooling system pipes and hoses for damage and leaks; ensure they are positioned to avoid chafing, and are securely fastened.

118

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

TROUBLESHOOTING

In addition to operating the engine carefully and maintaining it properly, make sure to correct any malfunction promptly.

When the electronic engine control system detects a fault, it broadcasts a message on the datalink. The dash display will show the code

"Motor Control Module (MCM) 128," indicating there is an engine fault.

Important: To read the complete fault code, bring the vehicle to an authorized repair facility. Complete fault codes can be read using the

Nexiq DDR or DDDL 7.0 version or later.

For fault codes and their meanings, see the service/workshop manual.

The tables that follow are designed to identify the causes of common problems, suggest further checks and appropriate remedies. When dealer service is necessary, it is mentioned in the table.

NOTE:

Remember to follow all cautions when troubleshooting the engine.

Problem - The Engine Will Not Crank

Cause Remedy

The batteries are damaged or weak.

Test the batteries. Replace them, if needed.

Replace the ignition switch.

The ignition switch is damaged.

The battery cables are damaged and/or corroded.

Replace the battery cables.

The starter is damaged and/or worn.

The clutch or transmission is damaged.

There is internal damage to the engine.

Have an authorized repair facility replace the starter.

Bring the vehicle to an authorized repair facility for service.

Bring the vehicle to an authorized repair facility for service.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

119

TROUBLESHOOTING

Problem—The Engine Turns Over Slowly

Cause Remedy

The batteries are damaged or weak.

Test the batteries. Replace them, if needed.

Replace the ignition switch.

The ignition switch is damaged.

The battery cables are damaged and/or corroded

Replace the battery cables.

The starter is damaged and/or worn.

The engine oil does not meet the correct specifications.

The transmission fluid does not meet the correct specifications.

Have an authorized repair facility replace the starter.

Change the engine oil, using the correct type of oil.

Change the transmission fluid, using the correct type of fluid.

120

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Problem—The Engine Cranks, But Won't Start

Cause Remedy

The batteries are damaged or weak.

The cranking speed is not set correctly.

Test the batteries. Replace them, if needed.

Bring the vehicle to an authorized repair facility for service.

No intake air preheater is installed, and it is too cold to start without one.

The intake air preheater is malfunctioning.

Install an intake air preheater.

Check the intake air preheater, and replace it, if necessary.

The camshaft position sensor (CMP) and/or the crank angle position sensor are out of adjustment.

Push both sensors into their holes as far as they will go. If this does not solve the problem, Bring the vehicle to an authorized repair facility for service.

The camshaft position sensor (CMP) and/or the crank angle position sensor are damaged.

Bring the vehicle to an authorized repair facility for service.

There is air in the fuel system.

The air filter is clogged.

The fuel filter is clogged.

Check the fuel lines for leaks. Prime the fuel system and start the engine according to the instructions in the

“How to Replace Fuel Filter”.

Clean or replace the air filter.

Replace the filter element.

The exhaust brake valve is malfunctioning.

Have an authorized repair facility check the operation of the valve.

The valves are not adjusted properly.

Check the valve lash.

There are other problems in the fuel system.

Coolant level is too low.

Bring the vehicle to an authorized repair facility for service.

Check for leaks, add coolant to correct level.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

121

TROUBLESHOOTING

Problem—The Engine Starts Only After Cranking for a Long Time

Cause Remedy

The fuel tank is low or empty.

Add fuel and bleed the fuel system, if necessary.

There are leaks in the fuel lines.

The fuel filter is clogged.

The fuel line, the fuel prefilter, or the screen in the fuel tank is blocked.

The camshaft position (CMP) sensor and/or the crankshaft position (CKP) sensor are out of adjustment.

Check the fuel lines for leaks and repair them, if necessary.

Replace the filter element.

Clean and bleed the system. Have the fuel lines and filters checked by an authorized dealer.

Push both sensors into their holes as far as they will go. If this does not solve the problem, Bring the vehicle to an authorized repair facility for service.

The camshaft position (CMP) sensor and/or the crankshaft position (CKP) sensor are damaged.

There are other problems in the fuel system.

Bring the vehicle to an authorized repair facility for service.

Bring the vehicle to an authorized repair facility for service.

122

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Problem—The Engine Starts, But Dies

Cause Remedy

The fuel tank is low or empty.

Add fuel and bleed the fuel system, if necessary.

The fuel filter is clogged.

The fuel line, the fuel prefilter, or the screen in the fuel tank is blocked.

The camshaft position (CMP) sensor and/or the crank angle position sensor are out of adjustment.

Replace the filter element.

Clean and bleed the system. Have the fuel lines and filters checked by an authorized dealer.

Push both sensors into their holes as far as they will go. If this does not solve the problem, Bring the vehicle to an authorized repair facility for service.

The camshaft position (CMP) sensor and/or the crank angle position sensor are damaged.

The constant-throttle valves are malfunctioning.

There are other problems in the fuel system.

Bring the vehicle to an authorized repair facility for service.

Bring the vehicle to an authorized repair facility for service.

Bring the vehicle to an authorized repair facility for service.

Problem—The Engine Fan Doesn't Work

Cause Remedy

The fan hub is damaged.

Replace the fan hub.

The fan wiring is damaged.

The parameter settings in the MCM or

CPC are incorrect.

Repair the fan wiring.

Have an authorized repair facility reprogram the control unit.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

123

TROUBLESHOOTING

Problem—The Engine Fan Is Constantly On

Cause Remedy

The fan override switch is on.

Check the operation of the fan override switch.

The fan hub is damaged.

The parameter settings in the MCM or

CPC are incorrect.

Replace the fan hub

Have an authorized repair facility reprogram the control unit.

Problem—Fuel Consumption Is Too High

Cause Remedy

The tires are not properly inflated.

Check all tires for correct pressure.

The air filter and/or intake air system is clogged.

The exhaust brake valve is malfunctioning.

Check the air restriction indicator.

Clean the intake air system and replace the air filter if necessary.

Have an authorized repair facility check the operation of the valve.

124

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Problem—The Engine Performs Poorly, Does Not

Develop Full Power

Cause Remedy

The air filter and/or intake air system is clogged.

Check the air restriction indicator.

Clean the intake air system and replace the air filter if necessary.

The exhaust brake valve is malfunctioning.

The fuel filter is clogged.

There are other problems with the fuel system.

The valves are not adjusted properly

The coolant temperature sensor is damaged or reading incorrectly.

The fuel temperature sensor is damaged or reading incorrectly.

The engine oil temperature sensor is damaged or reading incorrectly.

The charge-air temperature sensor is damaged or reading incorrectly.

There are problems with the MCM or

CPC.

There is internal damage to the engine.

Have an authorized repair facility check the operation of the valve.

Replace the filter element.

Bring the vehicle to an authorized repair facility for service.

Check the valve lash.

Bring the vehicle to an authorized repair facility for service.

Bring the vehicle to an authorized repair facility for service.

Bring the vehicle to an authorized repair facility for service.

Bring the vehicle to an authorized repair facility for service.

Bring the vehicle to an authorized repair facility for service.

Bring the vehicle to an authorized repair facility for service.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

125

TROUBLESHOOTING

Problem—The Engine Is in Emergency Running Mode

(constant speed 1,300 rpm)

Cause Remedy

The MCM or CPC or sensor(s), solenoids and other electronic parts are damaged.

Bring the vehicle to an authorized repair facility for service.

Problem—The Coolant Temperature Is Above Normal

Cause Remedy

The coolant level is too low.

Check for coolant leaks, and repair as needed.

The poly-V belt is loose.

The coolant temperature gauge and/or sensor is not reading correctly.

The radiator is damaged or dirty.

The water pump is damaged.

The thermostat is not operating properly.

The fan is not operating properly.

Tighten or replace the poly-V belt.

Bring the vehicle to an authorized repair facility for service.

Clean the radiator. Repair or replace the radiator as necessary.

Have an authorized repair facility replace the water pump.

Have an authorized repair facility replace the thermostat.

Bring the vehicle to an authorized repair facility and have the fan hub checked.

Bring the vehicle to an authorized repair facility and have the parameter settings reprogrammed in the MCM or CPC.

126

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Problem—The Coolant Temperature Is Below Normal

Cause Remedy

The coolant temperature gauge and/or sensor is not reading correctly.

Bring the vehicle to an authorized repair facility for service.

The thermostat is not operating properly.

The fan is not operating properly.

Have an authorized repair facility replace the thermostat.

Bring the vehicle to an authorized repair facility and have the fan hub checked.

Bring the vehicle to an authorized repair facility and have the parameter settings reprogrammed in the MCM or CPC.

Problem—The Cooling System Is Losing Coolant

Cause Remedy

There is an external coolant leak.

Repair the leaking component.

The radiator cap is leaking.

The air compressor head is damaged.

The cylinder head gasket is leaking.

Top tank is leaking.

EGR system has an internal leak.

Replace the radiator cap.

Have an authorized repair facility replace the air compressor.

Have an authorized repair facility replace the head gasket.

Bring the vehicle to an authorized repair facility.

Bring the vehicle to an authorized repair facility.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

127

TROUBLESHOOTING

Problem—There Is Coolant in the Engine Oil

Cause Remedy

The cylinder head gasket is damaged.

Have an authorized repair facility replace the head gasket.

The oil/water heat exchanger is leaking.

There is an internal coolant leak.

Have an authorized repair facility replace the heat exchanger.

Bring the vehicle to an authorized repair facility for service.

Problem—There Is Foam in the Engine Oil

Cause Remedy

The oil level is too low or too high.

Correct the oil level.

The oil has not been changed within the recommended interval.

The oil is not of the recommended quality.

Change the oil.

Change the oil.

Problem—The Engine Oil Pressure Is Low

Cause Remedy

The oil pressure gauge and/or sensor is not reading correctly.

Bring the vehicle to an authorized repair facility for service.

There is fuel in the oil.

Bring the vehicle to an authorized repair facility for service.

The oil filter is clogged.

Replace the filter element.

The oil filter bypass valve is damaged.

Replace the bypass valve.

The oil pump and/or relief valve is damaged.

Have an authorized repair facility replace the oil pump.

128

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Problem—The Engine Exhaust Is White

Cause Remedy

The fuel is of poor quality.

Add fuel of the right quality.

The intake air preheater is malfunctioning.

Check the intake air preheater, and replace it, if necessary.

The valves are not adjusted properly.

Check the valve lash.

Problem—The Engine Exhaust Is Black

Cause Remedy

The air filter and/or intake air system is clogged.

The exhaust brake valve is malfunctioning.

Check the air restriction indicator.

Clean the intake air system and replace the air filter if necessary.

Have an authorized repair facility check the operation of the valve.

The intake air preheater is malfunctioning.

Check that the heater is not staying on all of the time.

The valves are not adjusted properly.

Check the valve lash.

There is damage to the fuel system: the fuel pump, one or more fuel injectors, or one or more unit pumps are damaged.

The charge-air temperature sensor is damaged.

There is internal damage to the engine.

Bring the vehicle to an authorized repair facility for service.

Bring the vehicle to an authorized repair facility for service.

Bring the vehicle to an authorized repair facility for service.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

129

TROUBLESHOOTING

Problem—The Engine Exhaust Is Blue

Cause Remedy

The engine oil level is too high

(engine oil is reaching the combustion chamber).

Adjust the oil level, and then have the oil level checked by an authorized dealer.

The turbocharger is leaking oil.

The valve stem seals are loose or damaged.

The piston rings are worn.

Have an authorized repair facility replace the turbocharger

Have an authorized repair facility replace the seals.

Have an authorized repair facility replace the piston rings.

Problem—Engine Brake Performance Is Poor

Cause Remedy

The engine brake control switch is damaged.

Replace the switch

The exhaust brake is not operating properly.

The constant-throttle valves are malfunctioning.

Components of the MCM and/or CPC are damaged.

Have an authorized repair facility check the operation of the valve.

Bring the vehicle to an authorized repair facility for service.

Bring the vehicle to an authorized repair facility for service.

Problem—Cruise Control Is Not Working

Cause Remedy

One or more of the cruise control switches are damaged.

Components of the MCM and/or CPC are damaged or not working properly.

Replace the damaged switch.

Bring the vehicle to an authorized repair facility for service.

130

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Problem—The Battery Charge Indicator Light Does Not

Come On When the Engine Is Not Running

Cause Remedy

The bulb is damaged.

Change the bulb.

The circuit is broken.

Repair the break in the circuit.

Problem—The Battery Charge Indicator Light Comes

On When the Engine is Running

Cause Remedy

The poly-V belt is too loose.

Check the belt tension; if necessary,

Have an authorized repair facility replace the belt tensioner.

The belt tensioner is damaged.

The poly-V belt is worn or damaged.

The alternator is damaged (has a damaged rectifier or voltage regulator).

Have an authorized repair facility replace the belt tensioner.

Replace the belt.

Have an authorized repair facility replace the alternator.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

131

ENGINE STORAGE

ENGINE STORAGE

When an engine is to be stored or removed from operation for a period of time, special precautions should be taken to protect the interior and exterior of the engine, transmission and other parts from rust accumulation and corrosion. The parts requiring attention and the recommended preparations are given below.

Preparing Engine for

Storage

It will be necessary to remove all rust or corrosion completely from any exposed part before applying rust preventive compound. Therefore, it is recommended that the engine be processed for storage as soon as possible after removal from operation.

The engine should be stored in a building that is dry and can be heated during the winter months.

Moisture-absorbing chemicals are available commercially for use when excessive dampness prevails in the storage area.

Temporary Storage (30 Days or

Less)

To protect the engine for a temporary period of time (30 days or less), follow this procedure:

1. With the engine at ambient temperature and cool to the touch, drain engine crankcase oil into a suitable container. Dispose of the oil in an environmentally friendly manner, according to state and/or federal EPA recommendations.

2. Fill the crankcase to the proper level with the recommended viscosity and grade of oil.

3. Fill the fuel tank with the recommended grade of fuel oil.

Operate the engine for two (2) minutes at 1200 rpm and no load.

Do not drain the fuel system or the crankcase after this run.

4. Check the air cleaner and service it, if necessary.

5. If freezing weather is expected during the storage period, check the antifreeze/coolant for required freeze and inhibitor protection.

Add antifreeze solution to the cooling system in accordance with

Detroit Diesels recommendations.

Refer to the How to Select

Coolant in this guide.

NOTE:

If an antifreeze solution is not required during storage, flush the cooling system with a good soluble oil (3% –

5% by volume) rust inhibitor to prevent

132

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

rusting of the outside diameter of the cylinder liners.

EYE INJURY

To avoid injury from flying debris when using compressed air, wear adequate eye protection (face shield or safety goggles) and do not exceed 276 kPa (40 psi) air pressure.

6. Clean the exterior of the engine

(except electrical parts) with fuel oil and dry with compressed air.

7. Seal all engine openings. The material used must be waterproof, vaporproof and possess sufficient physical strength to resist puncture and damage from the expansion of entrapped air.

An engine prepared in this manner can be returned to service in a short time by removing the seals at the engine openings and by checking the engine coolant, fuel oil, lubricating oil and transmission oil levels.

Extended Storage (More than 30

Days)

To prepare an engine for extended storage (more than 30 days), follow this procedure:

1. Drain the cooling system and flush with clean, soft water. Refill with clean, soft water and add a rust inhibitor to the cooling system.

2. Circulate the coolant by operating the engine until normal operating temperature is reached.

3. Stop the engine.

4. With the engine at ambient temperature and cool to the touch, drain the engine crankcase oil into a suitable container. Remove the oil filters. Dispose of the oil and filters in an environmentally friendly manner, according to state and/or federal EPA recommendations. Replace the drain plug and tighten to 65 N·m

(48 lb-ft) torque.

5. Install new lubricating oil filters. Fill the crankcase to the proper level with Tectyl®

930A preservative lubricating oil or an equivalent 30–weight preservative lubricating oil meeting Mil-L-21260C, Grade 2

Specification.

6. Drain the fuel tank. Refill with enough clean No. 1 diesel fuel or pure kerosene to permit the engine to operate for about ten

(10) minutes. If draining the fuel tank is not convenient, use

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

133

ENGINE STORAGE

a separate, portable supply of recommended fuel.

NOTE:

If engines are stored where condensation of water in the fuel tank may be a problem, additives containing methyl carbitol or butyl cellusolve may be added to the fuel.

Follow manufacturer's instructions for treatment. Where biological contamination of fuel may be a problem, add a biocide such as

Biobor® JF (or equivalent) to the fuel. When using a biocide, follow the manufacturer's concentration recommendations and observe all cautions and warnings.

7. Drain the fuel system and remove the fuel filters. Dispose of used filters in an environmentally responsible manner, according to state and/or federal EPA recommendations. Fill the new filters with No. 1 diesel fuel or pure kerosene and install on the engine.

8. Operate the engine for five (5) minutes to circulate the clean fuel throughout the engine. Be sure the engine fuel system is full.

9. Stop the engine and allow to cool. Then disconnect the fuel return line and the inlet line at the primary filter and securely plug both to retain the fuel in the engine.

10. Transmission: Follow the manufacturer's recommendations for prolonged storage.

11. Power Take-Off: If equipped, follow manufacturer's recommendations for prolonged storage.

NOTICE:

Failure to properly seal off the turbocharger air inlet and exhaust outlet openings before engine storage may permit air drafts to circulate through the turbocharger and rotate the turbine/compressor shaft without an adequate flow of lubricating oil to the center housing bearings. This can result in severe bearing damage.

12. Turbocharger: Since turbocharger bearings are pressure lubricated through the external oil line leading from the oil filter adaptor while the engine is operating, no further attention is required. However, the turbocharger air inlet and turbine exhaust outlet connection should be sealed off with moisture-resistant tape.

13. Apply a non-friction rust preventive compound to all

134

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

exposed engine parts. If convenient, apply the rust preventive compound to the engine flywheel. If not, disengage the clutch mechanism to prevent the clutch disc from sticking to the flywheel.

NOTE:

Do not apply oil, grease or any wax-base compound to the flywheel.

The cast iron will absorb these substances, which can “sweat” out during operation and cause the clutch to slip.

14. Drain the engine cooling system.

15. Drain the preservative oil from the engine crankcase. Reinstall and torque the oil drain plug to

65 N·m (48 lb-ft).

16. Remove and clean the battery and battery cables with a baking soda-water solution and rinse with fresh water. Do not allow the soda solution to enter the battery. Add distilled water to the electrolyte (if necessary) and fully charge the battery. Store the battery in a cool (never below 0°

C or 32° F) dry place. Keep the battery fully charged and check the level and specific gravity of the electrolyte regularly.

17. Insert heavy paper strips between the pulleys and drive belts to prevent sticking.

18. Seal all engine openings, including the exhaust outlet, with moisture-resistant tape. Use cardboard, plywood or metal covers where practical.

19. Clean and dry the exterior painted surfaces of the engine and spray with a suitable liquid automobile body wax, a synthetic resin varnish, or a rust preventive compound.

20. Protect the engine with a good weather-resistant tarpaulin and store it under cover, preferably in a dry building which can be heated during the winter months.

Outdoor storage of the engine is not

recommended. If units must be kept out of doors, follow the preparation and storage instructions already given. Protect units with quality, weather-resistant tarpaulins (or other suitable covers) arranged to provide for air circulation.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

135

ENGINE STORAGE

NOTICE:

Do not use plastic sheeting for outdoor storage. Plastic is fine for indoor storage. When used outdoors, however, enough moisture can condense on the inside of the plastic to rust ferrous metal surfaces and pit aluminum surfaces. If a unit is stored outside for any extended period of time, severe corrosion damage can result.

The stored engine should be inspected periodically. If there are any indications of rust or corrosion, corrective steps must be taken to prevent damage to the engine parts.

Perform a complete inspection at the end of one year and apply additional treatment as required.

Procedure for Restoring to

Service an Engine that Has Been in Extended Storage

If an engine has been in extended storage, prepare it for service as follows:

1. Remove the covers and tape from all the openings of the engine, fuel tank and electrical equipment. Do not overlook the exhaust outlet.

2. Remove the plugs from the inlet and outlet fuel lines and reconnect the lines to their proper positions.

3. Wash the exterior of the engine with fuel oil to remove the rust preventive. Do not wash

electrical components.

4. Remove the rust preventive from the flywheel. Flush any soluble oil rust inhibitor (if used) in the cooling system.

5. Remove the paper strips from between the pulleys and drive belts.

6. Fill the crankcase to the proper level with the required grade of lubricating oil. Use a pressure lubricator to insure all bearings and rocker shafts are lubricated.

7. Fill the fuel tank with the required fuel.

8. Close all drain cocks and fill the engine cooling system with clean, soft water and required inhibitors.

If the engine is to be exposed to freezing temperatures, install genuine Detroit Diesel Power

Cool antifreeze or an equivalent ethylene glycol-base or propylene glycol-base antifreeze solution which provides required freeze, boil over, and inhibitor protection.

“Refer to section How to Select

Coolant” section in this guide.

9. Install and connect the battery.

Make sure the average specific gravity of the battery is 1.260

136

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

or higher. Charge the battery, if necessary.

10. Service the air cleaner, if required.

11. Transmission: Follow the manufacturer's recommendations covering the return of the transmission to service.

12. Power Take-Off: If equipped, follow the manufacturer's recommendations covering the return of the power take-off to service.

13. Turbocharger: Remove the covers from the turbocharger air inlet and turbine outlet connections. Reconnect piping as required. Prelube the turbocharger center bearing housing. Refer to

Lubrication System Checks in the

OPERATING INSTRUCTIONS

FOR STARTING THE ENGINE

section of this guide.

NOTE:

The small amount of rust preventive which remains in the fuel system will cause smoky exhaust for a few minutes.

NOTE:

Before subjecting the engine to a load or high speed, allow it to reach normal operating temperature. Then check for trouble codes.

ENGINE EXHAUST

To avoid injury from inhaling engine exhaust, always operate the engine in a well-ventilated area. Engine exhaust is toxic.

14. After all preparations are completed, start the engine.

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

137

CUSTOMER ASSISTANCE

CUSTOMER ASSISTANCE

The satisfaction and good will of the owners of Detroit Diesel engines are of primary concern to Detroit Diesel

Corporation and its distributor/dealer

organizations. See Figure 40 for

Detroit Diesel NAFTA On-Highway service regions.

Figure 40 Detroit Diesel NAFTA On-Highway Service Regions

138

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

NAFTA ON-HIGHWAY SERVICE REGIONS

DETROIT DIESEL REGIONAL

SALES OFFICES

DETROIT DIESEL REGIONAL

SERVICE OFFICES

NORTHEAST REGION

Detroit Diesel

Powder Miss Plaza, Suite 3A

51 Gibralter Drive

Morris Plains, NJ 07950-1274

Phone: 973-492-6555

Fax: 973-267-5922

NORTH EASTERN REGION

Detroit Diesel

13400 Outer Drive West

Detroit, MI 48239-4001

Telephone: 313-592-5420

Fax: 311-592-5887

CENTRAL REGION

Detroit Diesel

9255 Indian Creek Parkway, Suite 850

Overland Park, KS 66210

Phone: 678-570-2389

SOUTHERN REGION

Detroit Diesel

3325 Paddocks Parkway, Suite 230

Suwanne, GA 30024

Phone: 678-341-6100

Fax: 678-341-6150

WESTERN REGION

Detroit Diesel

7700 Irvine Center, Suite 275

Irvine CA 92618

Phone: 949-753-7710

Fax: 949-753-7711

CANADA REGION

Detroit Diesel of Canada, Ltd.

150 Dufferin Ave., Suite 701

London ON N5A 5N6

Phone: 519-661-0149

Fax: 519-661-0171

NORTH CENTRAL & WESTERN

REGIONS

Detroit Diesel

7700 Irvine Center, Suite 275

Irvine CA 92618

Phone: 949-753-7710

Fax: 949-753-7711

SOUTHERN REGION

Detroit Diesel

3325 Paddocks Parkway, Suite 230

Suwanne, GA 30024

Phone: 678-341-6100

Fax: 678-341-6150

CANADA REGION

Detroit Diesel of Canada, Ltd.

150 Dufferin Ave., Suite 701

London ON N5A 5N6

Phone: 519-661-0149

Fax: 519-661-0171

MEXICO REGION

Detroit Diesel Allison de Mexico, S.A.

Av. Santa Rosa 58

Col. Ampliacion Norte

San Juan Ixtacala, Tlanepantla

C.P. 54160, Edo de Mexico

Phone: 525-333-1802

Fax: 525-333-1870

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

139

CUSTOMER ASSISTANCE

Road Service in the U.S. or

Canada

If you require road service for any reason in the U.S. or Canada, you may call the 1–800–445–1980 customer assistance phone number. An operator will assist you in determining what type of service is required. Not all problems are engine related and not all problems are covered by engine or vehicle warranties. YOU MAY

BE RESPONSIBLE FOR REPAIR

EXPENSES.

Before calling Customer Assistance, please do the following:

□ Check coolant level

□ Check fuel level

□ Check DDEC fuses

□ Check for fuel leaks

□ Make sure manual shutoff valve (if installed) on the fuel filter adaptor, fuel processor body or fuel supply line is open.

□ Check the oil level on the dipstick.

□ Check diagnostic codes.

If you call, have the following information available:

□ Engine serial number

□ Vehicle make and model

□ Odometer mileage (kilometers) or hourmeter hours

□ Vehicle owner/company name

140

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

Working with Detroit Diesel

Service Outlets

As the owner of a Detroit Diesel product you have a complete network of Detroit Diesel service outlets in the

U.S. and Canada, plus many outlets worldwide that are prepared to meet your parts and service needs:

□ Service by trained personnel

□ Sales teams to help determine your specific power requirements

□ In many areas, emergency service

24 hours a day

□ Complete parts support including reliabilt® remanufactured parts

□ Product information and literature

We recognize however, that despite the best intentions of everyone concerned, misunderstandings may occur. Normally, any situation that arises in connection with the sale, operation, or service of your product will be handled by the authorized service outlet in your area

(in the U.S. and Canada check the

Yellow Pages or service locator at www.detroitdiesel.com for the Detroit

Diesel service outlet nearest you).

Detroit Diesel has established a three-step procedure that customers should follow when experiencing a problem with any Detroit Diesel

Product or Part. Detroit Diesel fully realizes that ultimately the customer's concerns will be resolved at the

Distributor/Dealer level and therefore encourages customers to follow the procedure outlined below:

Step One

Customers should discuss the problem with a member of management from the authorized service outlet.

Frequently, complaints are the result of a breakdown in communication and can quickly be resolved by a member of management. If they have already discussed the problem with the Distributor or Dealer Sales or

Service Manager, they should contact the General Manager.

Step Two

When it appears that the problem cannot readily be resolved at the

Distributor/Dealer level without additional assistance, the Detroit

Diesel Customer Support Center

(CSC) should be contacted at

313–592–5800.

The information provided to the CSC will be forwarded to the appropriate

Regional Product Support Manager.

The customer will then be assisted be a member of the Regional Product

Support Managers staff, depending on the nature of his/her problem.

Prior to this contacting the CSC, the customer should have the following information available:

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

141

CUSTOMER ASSISTANCE

□ Name and location of authorized service outlet

□ Type, make and vehicle identification number of equipment

□ Engine model and serial number

□ Engine delivery date and accumulated miles/kilometers or hours of operation

□ Nature of problem

□ Chronological summary of engine's repair history

Step Three

If the customer is still not satisfied, he/she should present the entire matter in writing or by phone to:

Director of Technical Service or

Manager, Service Operations BX5

Detroit Diesel

13400 Outer Drive, West

Detroit, Michigan 48239–4001

Phone: 313–592–5000

Fax: 313–592–5888

142

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

SPECIFICATIONS

This section lists the various POWER

COOL engine products.

Fuel and Lubricating Oil

Filters

Consult with a Detroit Diesel

Distributor to obtain the proper fuel filters and lubricating oil filters.

OIL PAN CAPACITY

Engine oil capacity can vary, depending on the oil pan used and the engine application. Contact the Detroit Diesel Customer Center

(313–592–5800) if you need this specific information.

POWER COOL

ENGINE

PRODUCTS

Maintenance of the cooling system requires the chemical make-up of the system to be balanced.

POWER COOL

Fully Formulated

IEG Coolant

The part numbers and sizes of concentrated POWER COOL and pre-blended 50:50 POWER COOL are listed in Table 18

Coolant Type

Concentrated

Pre-Blended 50:50

Part Number

23512138

23512139

23529295

23512140

23528203

23518918

23528544

23513503

Description

1 Gallon Jug – 6 Per

Case

55 Gallon Drum

330 Gallon Tote

Bulk Delivery – 1,000

Gallon Min.

1 Gallon Jug – 6 Per

Case

55 Gallon Drum

330 Gallon Tote

Bulk Delivery – 1,000

Gallon Min.

Table 18 POWER COOL Fully Formulated IEG Coolant

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

143

SPECIFICATIONS

POWER COOL

2000 and 3000

Supplemental Coolant Additive

Coolant Type

For Power Cool IEG

Coolant

Part Number

23507858

23507859

23507860

23507861

Description

Pint Bottle – 12 Per case

Half Gallon Jug – 6 Per

Case

5 Gallon Pail

55 Gallon Drum

Table 19 POWER COOL 2000 Supplemental Coolant Additive

Coolant Type Part Number

23507854

23507855

For POWER COOL IEG

Coolant

23507856

23507857

Description

Pint Bottle – 12 Per Case

Half Gallon Jug – 6 Per

Case

5 Gallon Pail

55 Gallon Drum

Table 20 POWER COOL 3000 Supplemental Coolant Additive

144

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

POWER COOL

3000

Supplemental Additive Coolant

Filters

Coolant Type

For POWER COOL IEG

Coolant

Part Number

23507545

23508425

23508426

23507189

Description

4 Ounce (1 Pint

Equivalent)

8 Ounce (2 Pint

Equivalent)

12 Ounce (3 Pint

Equivalent)

16 Ounce (4 Pint

Equivalent)

23508427

23508428

32 Ounce (8 Pint

Equivalent)

53 Ounce (13 Pint

Equivalent)

Table 21 POWER COOL 3000 Supplemental Additive Coolant Filters

POWER COOL

Supplemental

Additive Need Release Coolant

Filters

Coolant Type

For POWER COOL IEG

Coolant

Part Number

NF2091

23516489

Description

For 0 – 8 Gallon Systems

For 8 – 20 Gallon

Systems

Table 22 POWER COOL Supplemental Additive Need Release

Coolant Filters

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

145

SPECIFICATIONS

POWER COOL

Plus Extended

Life OAT Coolant

Coolant Type

Part Number

Concentrated

Pre-Blended 50:50

23519397

23519394

23519395

23519396

23519398

23519399

Description

1 Gallon Jug – 6

Per Case

55 Gallon Drum

Bulk Delivery – 1,000

Gallon Min.

One Gallon Jug – 6

Per Case

55 Gallon Drum

Bulk Delivery – 1,000

Gallon Min.

Table 23 POWER COOL Plus Extended Life OAT Coolant

POWER COOL

Plus Extender

For Use With POWER COOL

Plus OAT Coolant

Coolant Type Part Number

For Power Cool Plus 23519400

Description

Quart Bottle – 6 Per

Case

Table 24 POWER COOL Plus Extender for Use with POWER COOL

Plus OAT Coolant

POWER COOL

Cooling System

Cleaners

Coolant Type Part Number

On-Line Cleaner

Twin Pack

200164

200105

200155

201549

Description

On-Half Gallon Jug –

6 Per Case

5 Gallon Pail

55 Gallon Drum

Twin Pack – 2 Per Case

Table 25 POWER COOL Cooling System Cleaners

146

All information subject to change without notice. (Rev. 04/08)

DDC-SVC-MAN-0040 0704 Copyright © 2008 DETROIT DIESEL CORPORATION

MBE 900 ENGINE 2007 OPERATOR'S GUIDE

POWER TRAC Coolant Testing

And Analysis Products

Application

Indicates Nitrite,

Molybdate & Glycol

Levels

Indicates Nitrite,

Molybdate & Glycol

Levels

Indicates Nitrite,

Molybdate & Glycol

Levels

Complete IEG/IPG

Coolant Analysis

Organic Coolant

Analysis

Part Number

23519401

23519402

23522774

23516921

23523398

Description

3-Way Coolant Test

Strips

(Single Foil Packs)

3-Way Coolant Test

Strips

(Bottle of 50)

3-Way Coolant Test

Strips

(Bottle of 10)

Coolant Analysis Bottle

(Carton of 6)

Laboratory Coolant

Analysis Bottle

(Carton of 6)

Table 26 POWER TRAC Coolant Testing And Analysis Products
