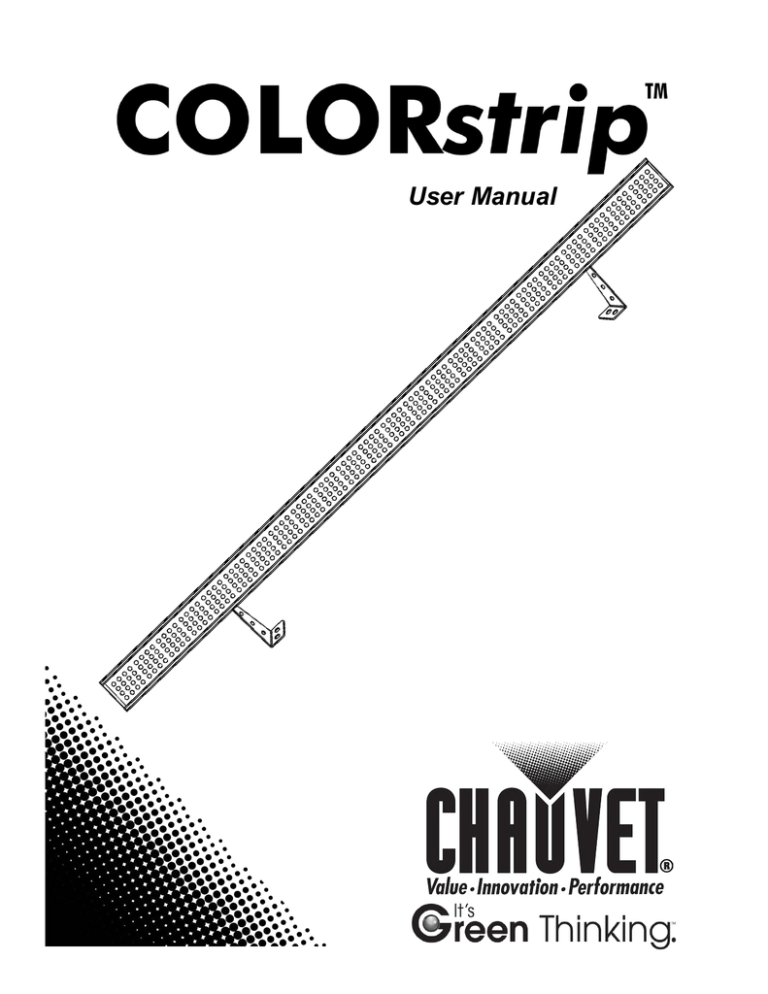

User Manual
TABLE OF CONTENTS
1. Before You Begin................................................................................3
What Is Included ........................................................................................... 3
Unpacking Instructions .................................................................................. 3
Claims ................................................................................................................... 3
Text Conventions .......................................................................................... 3
Icons ............................................................................................................. 3
Document Information ................................................................................... 3
Product at a Glance....................................................................................... 4
Safety Notes ................................................................................................. 4
2. Introduction.........................................................................................5
Product Overview .......................................................................................... 5
3. Setup ...................................................................................................6
AC Power ...................................................................................................... 6
Fuse Replacement ................................................................................................. 6
Power Linking ........................................................................................................ 7
Mounting ....................................................................................................... 8
Orientation ............................................................................................................. 8
Rigging .................................................................................................................. 8
4. Operation ............................................................................................9
Control Panel Operation ................................................................................ 9
Menu Map ..................................................................................................... 9
Configuration (DMX)...................................................................................... 9
Starting Address .................................................................................................... 9
DMX Channel Assignments and Values....................................................... 10
4-CH.................................................................................................................... 10
Configuration (Standalone) .......................................................................... 11
Automatic Mode ................................................................................................... 11
Auto Programs ..................................................................................................... 12
Sound-Active Mode .............................................................................................. 13
COLORstrip ......................................................................................................... 13
Footswitch ........................................................................................................... 13
Satellite™ D-Fi..................................................................................................... 13
Master/Slave Mode .............................................................................................. 14
Master/Slave Runway Effect ................................................................................. 14
5. Technical Information ......................................................................15
Product Maintenance .................................................................................. 15
Contact Us .................................................................................................. 16
Returns ....................................................................................................... 16
6. Technical Specifications ..................................................................17
Page 2 of 17
COLORstrip™ User Manual (Rev. 4)
1. BEFORE YOU BEGIN
What Is
Included
•
•
•
1 x COLORstrip™
2 x Tall Mounting Brackets
2 x Short Mounting Brackets
•
•
•
1 x Power Cord
1 x Warranty Card
1 x Quick Reference Guide
Unpacking
Instructions
Immediately upon receipt, carefully unpack the product and check the container to make
sure you have received all the parts indicated above in good condition.
Claims
If the box or the contents appear damaged from shipping, or show signs of mishandling,
upon receipt notify the carrier immediately, not CHAUVET®. Failure to do so in a timely
manner may invalidate your claim with the carrier. In addition, keep the container and all
the packing material for inspection.
For other issues such as missing components or parts, damage not related to shipping,
or concealed damage, file a claim with CHAUVET® within seven (7) days of receiving
the merchandise.
Text
Conventions
Convention
1~512
50/60
Settings
Menu > Settings
<ENTER>
ON
Icon
Icons
Meaning
A range of values
A set of values of which only one can be chosen
A menu option not to be modified
A sequence of menu options to be followed
A key to be pressed on the product’s control panel
A value to be entered or selected
Meaning
This paragraph contains critical installation, configuration, or
operation information. Failure to comply with this information may
render the product partially or completely inoperative, cause
damage to the product, or cause harm to the user.
This paragraph contains important installation or configuration
information. Failure to comply with this information may prevent
the product from functioning correctly.
Useful information.
Document
Information
The information and specifications contained in this document are subject to change
without notice. CHAUVET® assumes no responsibility or liability for any errors or
omissions that may appear in this manual. CHAUVET® reserves the right to update the
existing document or to create a new document to correct any errors or omissions.
You can download the latest version of this document from www.chauvetlighting.com.
© Copyright 2012 CHAUVET®. All rights reserved.
Electronically published by CHAUVET® in the United States of America.
COLORstrip™ User Manual (Rev. 4)
Author
Date
Editor
Date
A. Diaz
4/13/12
S. Graham
4/13/12
Page 3 of 17
Product at a
Glance
Use on Dimmer
Outdoor Use
Sound Activated
DMX
Master/Slave
Safety Notes
Auto Programs
Auto-ranging Power Supply
Replaceable Fuse
User Serviceable
Duty Cycle





Please read the following Safety Notes carefully before working with the product. The
Notes include important safety information about installation, usage, and maintenance.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Page 4 of 17





Always connect the product to a grounded circuit to avoid the risk of electrocution.
Always disconnect the product from the power source before cleaning or replacing
the fuse.
Avoid direct eye exposure to the light source while the product is on.
Make sure the power cord is not crimped or damaged.
Never disconnect the product from power cord by pulling or tugging on the cord.
If mounting the product overhead, always secure to a fastening device using a
safety cable.
Make sure there are no flammable materials close to the product when operating.
Do not touch the product’s housing when operating because it may be very hot.
Always make sure that the voltage of the outlet to which you are connecting the
product is within the range stated on the decal or rear panel of the product.
The product is for indoor use only! (IP20) To prevent risk of fire or shock, do not
expose the product to rain or moisture.
Always install the product in a location with adequate ventilation, at least 20 in (50
cm) from adjacent surfaces.
Be sure that no ventilation slots on the product’s housing are blocked.
Never connect the product to a dimmer.
Make sure to replace the fuse with another of the same type and rating.
Never carry the product from the power cord or any moving part. Always use the
hanging/mounting bracket or the handles.
The maximum ambient temperature (Ta) is 104° F (40° C). Do not operate the
product at higher temperatures.
In the event of a serious operating problem, stop using the product immediately.
Never try to repair the product. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance
center.
Keep this User Manual for future consultation. If you sell the product to another
user, be sure that they also receive this document.
COLORstrip™ User Manual (Rev. 4)
2. INTRODUCTION
Product Overview
Power Out
Power In
LED Display
DMX In
Fuse Holder
Sound Sensitivity Knob
Footswitch Controller
Input
COLORstrip™ User Manual (Rev. 4)
DMX Out
Microphone
Safety Loop
Satellite™ D-Fi
Output
Master/Slave
Output
Page 5 of 17
3. SETUP
AC Power
The COLORstrip™ has an auto-ranging power supply and it can work with an input
voltage range of 100~240 VAC, 50/60 Hz.
To determine the product’s power requirements (circuit breaker, power outlet, and
wiring), use the current value listed on the label affixed to the product’s back panel, or
refer to the product’s specifications chart. The listed current rating indicates the
product’s average current draw under normal conditions.
Always connect the product to a protected circuit (circuit breaker or fuse). Make
sure the product has an appropriate electrical ground to avoid the risk of
electrocution or fire.
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even
if the rheostat or dimmer channel serves only as a 0 to 100% switch.
Fuse
Replacement
Follow the instructions below to change the fuse, if necessary.
Disconnect the product from the power outlet before replacing the fuse.
1.
2.
3.
4.
Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
Pry the fuse holder out of the housing.
Remove the blown fuse from the holder and replace with a fuse of the exact same
type and rating.
Insert the fuse holder back in place and reconnect power.
Installed fuse
(held by plastic clip)
Safety cap
Spare fuse holder
(inside safety cap)
The product does not ship with a spare fuse; however, the safety cap has room
for a spare.
Page 6 of 17
COLORstrip™ User Manual (Rev. 4)
Power Linking
The product provides power linking via the Edison outlet located in the back of the unit.
st
1 Product
Power Linking
Diagram
2nd Product
3rd Product
Other products
You can power link up to fifteen (15) COLORstrip™ units on 120 VAC or up to
twenty-eight (28) COLORstrip™ units on 230 VAC.
The power linking diagram shown above corresponds to the North American
version of the product ONLY! If using the product in other markets, you must
consult with the local CHAUVET® distributor as power linking connectors and
requirements may differ in your country or region.
COLORstrip™ User Manual (Rev. 4)
Page 7 of 17
Mounting
Before mounting the product, read and follow the safety recommendations indicated in
the Safety Notes.
Orientation
The COLORstrip™ may be mounted in any position; however, make sure adequate
ventilation is provided around the product.
Rigging
•
Before deciding on a location for the product, always make sure there is easy
access to the product for maintenance and programming purposes.
•
Make sure that the structure or surface onto which you are mounting the product
can support the product’s weight. Please see the Technical Specifications section of
this manual for weight information.
•
When mounting the product overhead, always use a safety cable. Mount the
product securely to a rigging point, whether an elevated platform or a truss.
•
When rigging the product onto a truss, you should use a mounting clamp of
appropriate weight capacity.
•
When power linking multiple products, you must always consider the length of the
power linking cable and mount the products close enough for the cable to reach.
•
The bracket adjustment knobs allow for directional adjustment when aiming the
product to the desired angle. Only loosen or tighten the bracket knobs manually.
Using tools could damage the knobs.
•
The double bracket yoke/mounting brackets/rubber feet/metallic feet also serve as
floor supports/allow for surface mounting. When mounting the product on the floor,
make sure that the product and cables are away from people and vehicles.
Mounting Diagram
Mounting Brackets
Page 8 of 17
COLORstrip™ User Manual (Rev. 4)
4. OPERATION
Control Panel
Operation
To access the control panel functions, use the four buttons located underneath the
display. Please refer to the Product Overview to see the button locations on the control
panel.
Button
<MODE>
Press to find an operation mode or to back out of the current menu
option
<ENTER>
Press to activate a menu option or a selected value
<UP>
<DOWN>
Mode
Menu Map
ACt
Automatic
Operation
(extra levels not
available in all
programs)
SYS
Configuration
(DMX)
Starting Address
Function
Set
1.
2.
3.
Press to scroll up the list of options or to find a higher value
Press to scroll down the list of options or to find a lower value
Programming Steps
Description
F000-F100
Flash speed (slow to fast)
P000-P100
Run speed (slow to fast)
C000-C100
Color
A000-A023
SdAd
000-509
SAAd
Set DMX address
Reset software
the product in DMX mode to control with a DMX controller.
Connect the product to a suitable power outlet.
Turn the product on.
Connect a DMX cable from the DMX output of the DMX controller to the DMX input
socket on the product.
When selecting a starting DMX address, always consider the number of DMX channels
the selected DMX mode uses. If you choose a starting address that is too high, you could
restrict the access to some of the product’s channels.
The COLORstrip™ uses up to 4 DMX channels in its 4-channel DMX mode, which
defines the highest configurable address to 509.
If you are not familiar with the DMX protocol, see the DMX Primer online at
www.chauvetlighting.com
To select the starting address, do the following:
1. Press <MODE> repeatedly until SYS or ACt shows on the display.
2. Use <UP> or <DOWN> to select SYS.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to select SdAd from the menu.
5. Press <ENTER>.
6. Use <UP> or <DOWN> to select the starting address.
7. Press <ENTER>.
COLORstrip™ User Manual (Rev. 4)
Page 9 of 17
DMX Channel Assignments and Values
4-CH
Channel
1
Page 10 of 17
Function
Value
CH. 2
Blackout
000  009
Red
010  019
Green
020  029
Blue
030  039
Yellow
040  049
Purple
050  059
Cyan
060  069
White
070  079
Color Change 1
080  089
Color Change 2
090  099
Color Change 3
100  109
Color Change 4
110  119
Color Change 5
120  129
Color Change 6
130  139
Sequential Color
Chase 1
140  149
Sequential Color
Chase 2
150  159
Automatic
000  127
Sequential Color
Chase 3
160  169
Sound Active
128  255
Sequential Color
Chase 4
170  179
Sequential Color
Chase 5
180  189
Sequential Color
Chase 6
190  199
Sequential Color
Chase 7
200  209
RGB Mode
210  219
Red
(0~100%)
Color Mode
220  229
Fade Speed
(0~100%)
Auto Run (soundactive only)
230  255
CH. 3
CH. 4
Flash Speed
000  249
Sound-Active
250  255
Flash Speed
000  249
Sound Active
250  255
Run Speed
Green
(0~100%)
Blue
(0~100%)
COLORstrip™ User Manual (Rev. 4)
Configuration
(Standalone)
Set the product in one of the standalone modes to control without a DMX controller.
1. Connect the product to a suitable power outlet.
2. Turn the product on.
Never connect a product that is operating in any standalone mode to a DMX string
connected to a DMX controller. Products in standalone mode may transmit DMX
signals that could interfere with the DMX signals from the controller.
Automatic Mode
To enable the Automatic Mode, do the following:
1. Press <MODE> repeatedly until SYS or ACt shows on the display.
2. Use <UP> or <DOWN> to select ACt.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to choose your desired program (A000–A023).
5. Press <ENTER>.
Certain programs will have additional functionality. To find these options, press
<ENTER> after selecting an auto program. Then press <UP> or <DOWN>. Not every
program will feature all the added functionality.
Function
Description
F000–F100
Flash speed (slow to fast)
P000–P100
Run speed (slow to fast)
C000–C100
Color
COLORstrip™ User Manual (Rev. 4)
Page 11 of 17
Auto Programs
Page 12 of 17
Program
Function
A000
No function
A001
Red
A002
Green
A003
Blue
A004
Yellow
A005
Purple
A006
Cyan
A007
White
A008
Color Change 1
A009
Color Change 2
A010
Color Change 3
A011
Color Change 4
A012
Color Change 5
A013
Color Change 6
A014
Sequential Color Chase 1
A015
Sequential Color Chase 2
A016
Sequential Color Chase 3
A017
Sequential Color Chase 4
A018
Sequential Color Chase 5
A019
Sequential Color Chase 6
A020
Sequential Color Chase 7
A021
RGB Full On
A022
Color Fade
A023
Sound Active
In this channel:
P – Red
F – Green
C – Blue
COLORstrip™ User Manual (Rev. 4)
Sound-Active
Mode
To enable the Sound-Active mode, do the following:
1. Press <MODE> repeatedly until SYS or ACt shows on the display.
2. Use <UP> or <DOWN> to select ACt.
3. Press <ENTER>.
4. Use <UP> or <DOWN> to choose Sound Active (A023).
5. Press <ENTER>.
6. Turn the music on and adjust the microphone sensitivity knob until the product
starts responding to the beat of the music.
The product will only respond to low frequencies of music (bass and drums).
If there is no sound registered by the product, it will default back to Automatic
Mode after a few seconds. Once sound begins again, the Sound Active Mode will
continue.
COLORstrip
Footswitch
The COLORstrip™ is fully compatible with the COLORstrip™ Footswitch from
CHAUVET ® (sold separately).
For more detailed information about the COLORstrip™ Footswitch and its functionality,
refer to the COLORstrip™ Footswitch User Manual available at the CHAUVET ®
website: www.chauvetlighting.com
Satellite™ D-Fi
The Freedom™ series is fully compatible with the Satellite™ D-Fi from CHAUVET ®
(sold separately).
For more detailed information about the Satellite™ D-Fi and its functionality, refer to the
Satellite™ D-Fi User Manual available at the CHAUVET ® website:
www.chauvetlighting.com
COLORstrip™ User Manual (Rev. 4)
Page 13 of 17
Master/Slave
Mode
The Master/Slave mode enables a single COLORstrip™ product (the “master”) to control
the actions of one or more other COLORstrip™ products (the “slaves”) without the need
of a DMX controller. The master product will be set to operate in Automatic Mode, while
the slave products will be set to operate in Slave Mode. Once set and connected, the
slave products will operate in unison with the master.
Configure the products as indicated below.
Slave products:
1.
Connect the DMX input of the first slave product to the DMX link output of the
master. The slave product will automatically switch to slave mode. The display will
show SLA when this occurs.
2. Connect the DMX input of the subsequent slave products to the DMX link output of
the previous slave.
3. Finish setting and connecting all the slave products.
Master product:
1. Set the master to operate in Automatic Mode.
2. Make the master the first product in the DMX daisy chain.
Master/Slave
Runway Effect
•
Configure all the slave units before connecting the master unit to the DMX
daisy chain.
•
Never connect a DMX controller to a DMX string configured for Master/Slave
operation because the controller may interfere with the signals from the
master unit.
•
Do not connect more than 31 slave units to the master unit.
The Master/Slave Runway Effect enables a single COLORstrip™ product (the “master”)
to control the actions of one or more other COLORstrip™ products (the “slaves”) in
sequential order for a “runway” effect without the need of a DMX controller. The master
product will be set to operate in specific Automatic modes, while the slave products will
be set to operate in Slave Mode. Once set and connected, the slave products will
operate in unison with the master.
Configure the products as indicated below.
1. Connect all products through power linking.
2.
3.
4.
5.
Page 14 of 17
Connect the DMX input of the first slave product to the DMX link output of the
master. The slave product will automatically switch to slave mode. The display will
show SLA when this occurs.
Connect the DMX input of the following slave products to the DMX link output of the
previous slave.
Once your setup is complete, reset the software in the master product using the
steps below. This will also reset the software of all connected slave products.
a. Press <MODE> repeatedly until SYS or ACt shows on the display.
b. Use <UP> or <DOWN> to select SYS.
c. Press <ENTER>.
d. Press <UP> or <DOWN> until SAAd appears on the display.
e. Press <ENTER>.
On the master product, choose your auto program as described in the Automatic
Mode section of this manual. The auto programs that can achieve this functionality
are auto programs 14–20.
COLORstrip™ User Manual (Rev. 4)
5. TECHNICAL INFORMATION
Product
Maintenance
Dust build-up reduces light output performance and can cause overheating. This can
lead to reduction of the light source’s life. To maintain optimum performance and
minimize wear, you should clean your lighting products at least twice a month. However,
be aware that usage and environmental conditions could be contributing factors to
increase the cleaning frequency.
To clean the product, follow the instructions below:
•
Unplug the product from power.
•
Wait until the product is cold.
•
Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on
the external surface/vents.
•
Clean all transparent surfaces with a mild soap solution, ammonia-free glass
cleaner, or isopropyl alcohol.
•
Apply the solution directly to a soft, lint-free cotton cloth or a lens cleaning tissue.
•
Softly drag any dirt or grime to the outside of the transparent surface.
•
Gently polish the transparent surfaces until they are free of haze and lint.
Always dry the transparent surfaces carefully after cleaning them.
COLORstrip™ User Manual (Rev. 4)
Page 15 of 17
In case you need to return a product or request support:
•
•
•
Contact Us
If you live in the U.S., contact CHAUVET® World Headquarters.
If you live in the UK or Ireland, contact CHAUVET® Europe Ltd.
If you live in any other country, DO NOT contact CHAUVET®. Instead, contact your
distributor of record. Refer to our website for contact details of distributors outside
the U.S., United Kingdom, or Ireland.
World Headquarters
CHAUVET®
General Information
Address:
5200 NW 108th Avenue
Sunrise, FL 33351
Voice:
(954) 929-1115
Fax:
(954) 929-5560
Toll free:
(800) 762-1084
Technical Support
Voice:
(954) 929-1115 (Press 4)
Fax:
(954) 756-8015
Email:
tech@chauvetlighting.com
World Wide Web
www.chauvetlighting.com
United Kingdom & Ireland
CHAUVET® Europe Ltd.
General Information
Address:
Unit 1C
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK
NG16 6NT
Voice:
+44 (0)1773 511115
Fax:
+44 (0)1773 511110
Technical Support
Email:
uktech@chauvetlighting.com
World Wide Web
www.chauvetlighting.co.uk
If you live outside the US, United Kingdom, or Ireland, contact your distributor of
record and follow their instructions on how to return CHAUVET® products to
them. Visit our Web site for contact details.
Returns
Call the corresponding CHAUVET® Tech Support office and request a Return
Merchandise Authorization (RMA) number before shipping the product. Be prepared to
provide the model number, serial number, and a brief description of the cause for the
return.
You must send the merchandise prepaid, in its original box, and with its original packing
and accessories. CHAUVET® will not issue call tags.
Clearly label the package with the RMA number. CHAUVET® will refuse any product
returned without an RMA number.
Write the RMA number on a properly affixed label. DO NOT write the RMA number
directly on the box.
Before sending the product, clearly write the following information on a piece of paper
and place it inside the box:
•
Your name
•
Your address
•
Your phone number
•
The RMA number
•
A brief description of the problem
Be sure to pack the product properly. Any shipping damage resulting from inadequate
packaging will be your responsibility. As a suggestion, proper UPS packing or doubleboxing is always a safe method to use.
CHAUVET® reserves the right to use its own discretion to repair or replace
returned product(s).
Page 16 of 17
COLORstrip™ User Manual (Rev. 4)
6. TECHNICAL SPECIFICATIONS
Dimensions and
Weight
Length
Width
Height
Weight
38 in (965 mm)
2.5 in (64 mm)
6 in (152 mm)
4.5 lbs (2 kg)
Note: Dimensions in inches rounded to the nearest decimal digit.
Power
Power Supply Type
Range
Voltage Selection
Switching (internal)
100~240 V, 50/60 Hz
Auto-ranging
Parameter
120 V, 60 Hz
230 V, 50 Hz
Consumption
72 W
73 W
Operating
0.6 A
0.3 A
Power linking current (units)
8 A (15 units)
8 A (28 units)
Fuse
F 1 A, 250 V
F 1 A, 250 V
Power I/O
US/Worldwide
UK/Europe
Power input connector
IEC
IEC
Power output connector
Edison
IEC
Power Cord plug
Edison (US)
Local plug
Light Source
Photo Optic
Thermal
Type
Lifespan
LED
50,000 hours
Color
Quantity
Red
128
Green
128
Blue
128
Parameter
Illuminance @ 2 m
618 lux
Beam angle
53º x 27°
Field angle
68° x 46°
Maximum External Temp.
Cooling System
104° F (40° C)
Convection
I/O Connectors
Connector Type
Channel Range
3-pin XLR
Sockets
4
Product Name
Item Code
Item Number
COLORstrip™
02030122
COLORSTRIP
DMX
Ordering
COLORstrip™ User Manual (Rev. 4)
Page 17 of 17
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
