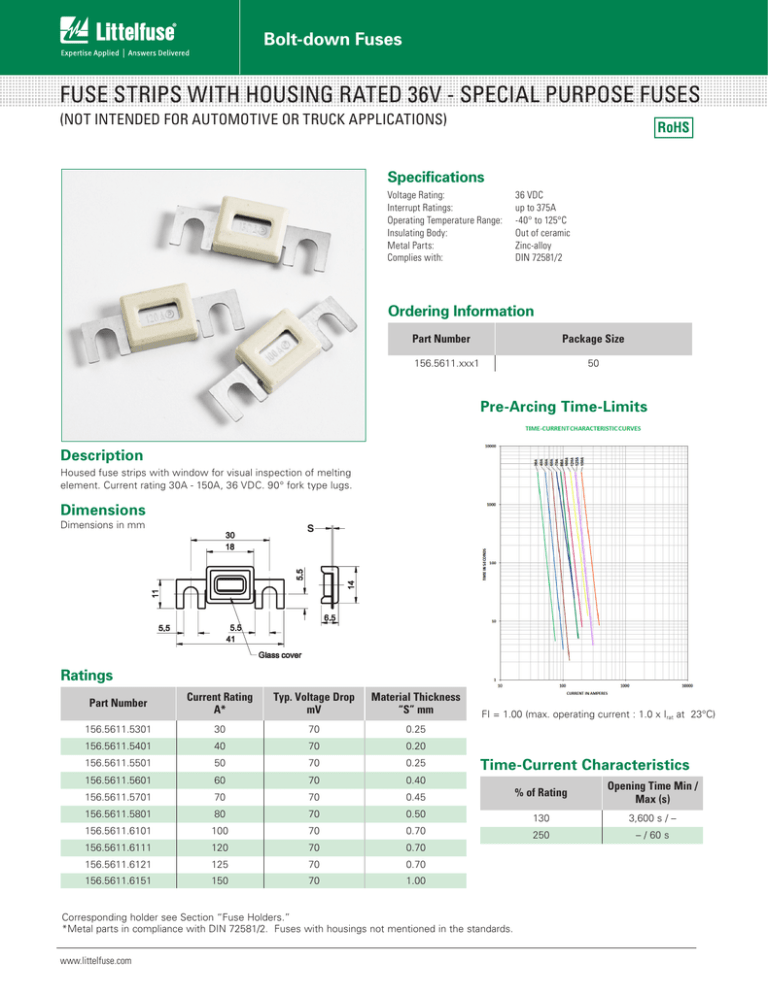

FUSE STRIPS WITH HOUSING RATED 36V - SPECIAL PURPOSE FUSES

FUSE STRIPS WITH HOUSING RATED 36V - SPECIAL PURPOSE FUSES
Bolt-down Fuses
FUSE STRIPS WITH HOUSING RATED 36V - SPECIAL PURPOSE FUSES
(NOT INTENDED FOR AUTOMOTIVE OR TRUCK APPLICATIONS)
Specifications
Voltage Rating: Interrupt Ratings:
Operating Temperature Range: Insulating Body:
Metal Parts:
Complies with:
36 VDC
up to 375A
-40° to 125°C
Out of ceramic
Zinc-alloy
DIN 72581/2
Ordering Information
Part Number
Package Size
156.5611.xxx1
50
Pre-Arcing Time-Limits
Description
Housed fuse strips with window for visual inspection of melting
element. Current rating 30A - 150A, 36 VDC. 90° fork type lugs.
Dimensions
Dimensions in mm
S
Ratings
Part Number
Current Rating
A*
Typ. Voltage Drop
mV
Material Thickness
“S” mm
156.5611.5301
30
70
0.25
156.5611.5401
40
70
0.20
156.5611.5501
50
70
0.25
156.5611.5601
60
70
0.40
156.5611.5701
70
70
0.45
% of Rating
Opening Time Min /
Max (s)
156.5611.5801
80
70
0.50
130
3,600 s / –
156.5611.6101
100
70
0.70
250
– / 60 s
156.5611.6111
120
70
0.70
156.5611.6121
125
70
0.70
156.5611.6151
150
70
1.00
FI = 1.00 (max. operating current : 1.0 x Irat at 23°C)
Time-Current Characteristics
Corresponding holder see Section “Fuse Holders.”
*Metal parts in compliance with DIN 72581/2. Fuses with housings not mentioned in the standards.
www.littelfuse.com
