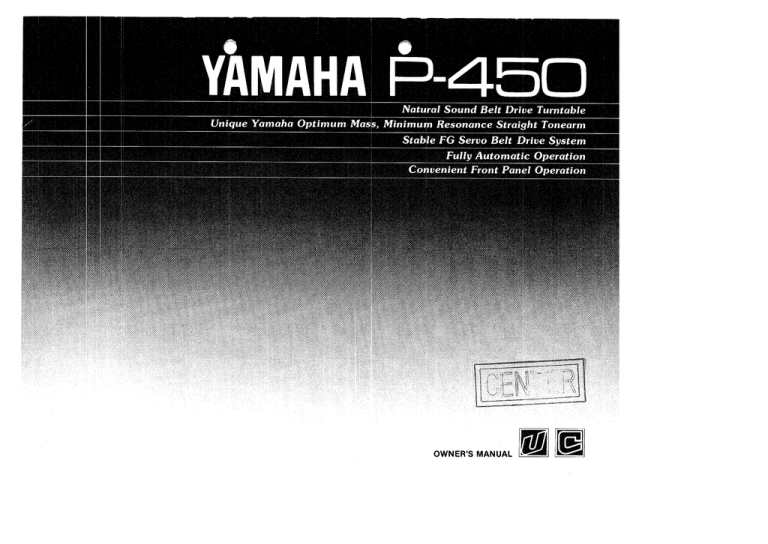

Yamaha P-450 Owner's manual
 { Drive Turntable
'S MANUAL
OWNER
Nerea
SETTLERS
Thank you for purchasing the YAMAHA P-450 belt drive fully automatic
turntable.
This handsome turntable comes with a full range of features for the
ultimate in audio performance. It provides exceptionally accurate music
reproduction and is very convenient to operate.
Please read these instructions through before operating your model and re-
tain the booklet for reference so as to ensure that you will gain the maximum
from your P-450 through many years of use.
CONTENTS
CAUTION: READ THIS BEFORE OPERATING YOUR P-450........... 3
NAMES OF THEPARTS AND THEIR FUNCTIONS ........ Liu 4
MOUNTING THE TURNTABLEPLATTER AND CARTRIDGE ................ 5
TONEARM ASSEMBLY AND ADJUSTMENTS ........... iL, 6/7
USING THE CUEING SWITCH/DUST COVER/CONNECTIONS
TOYOURAMPLIFIER «oo, RS 8
HOW TO PLAY RECORDS i 9
SPECIFICATIONS. Lo LL LL A Ad a 10
TROUBLESHOOTING oo i, 11
Please record the serial number of your unit in the space below.
Mode! Name P-4b0
Serial No.
The serial number is located on the rear of the cabinet.
Retain this Owner's Manual in a safe place for future reference.
WARNING
To prevent fire or electrical shock, do not expose this turntable to rain or
moisture,
E REA. THIS BEFORE OPERATING
” YOUR P-450
|
The F-450 is a sophisticated fully automatic
belt drive turntable. To ensure proper opera-
tion for the best possible sound reproduction,
please read this manual carefully.
Treat the P-450 with the utmost of care, as it
is extremely easy to Jar fine settings such as
tonearm tracking force out of adjustment. If
the unit is bumped, it is important that all
settings be re-checked.
3
Avoid installing the tonearm side of the P-450
next to the power transformer of your
amplifier.
4
Be sure to locate the P-450in a fiat and level
place, out of the direct rays of the sun. Also
avoid locations subject to vibration and ex-
cessive dust, heat, cold or moisture. Also
avoid placing it directly in front of or too
close to your speakers.
9
If it becomes necessary to relocate the P-450,
do so with extreme care. If possible, re-
pack the unit in its original packing for
transportation.
Do not attempt to clean the P-450 with
chemical solvents as the unit is coated with a
mat lacquer. Use a clean, dry cloth.
it is extremely important that the stylus tip be
kept free of dirt. Regular cleaning ensures the
best possible sound reproduction.
Keep your records clean. Dirty records reduce
the life of the stylus. A stylus with a diamond
tip should be replaced after every 200— 300
hours of use.
Be sure to read the “troubieshooting” sec-
tion for advice on common operating errors
before concluding that your P-450 is faulty.
|
Keep this manual in a safe place for future
reference.
O SPEED SWITCH
This is used to select the turntable speed.
*When playing a 33-1/3 rpm record, set the
switch to 337.
@ SPEED CONTROL KNOB
This gives approximately + 3% adjustment in
turntable platter rotation speed (independent
| NAMES ©. THE PARTS
AND THEIR FUNCTIONS
for 33-1/3 and 45). TO
Refer to the section
on adjusting the ОК
We „”
platter speed on Tapes
Speed control knob
page 7.
4
© ©
6 STROBOSCOPE
The P-450 features a stroboscope for ac-
curate indication of turntable speed.
® REPEAT SWITCH
Depress the repeat switch when you want to
repeat the same side of the record.
® CUEING SLIDE LEVER
This is an oil-damped system which gently
raises and lowers the stylus from the record
surface.
O CUT SWITCH
Depress this switch when you wish to stop
record play. The tonearm will rise and return
to the arm rest and the motor will stop.
@ PLAY SWITCH
When this switch is depressed, the auto play
system is activated. If the cueing switch @ is
in the right-hand position, the stylus will not
descend onto the record. For auto play, make
sure that the slide lever is in the left-hand
position.
ANTI-SKATING KNOB
This is a spring -lever type of anti-skating
control. Refer to page 7 for adjustment.
O ARM REST/ARM LOCK
When transporting
the turntable, be
sure that the
tonearm has been
secured to the
arm rest.
@® RECORD SIZE SELECTOR SWITCHES
Depress the switch that corresponds to the
size of record you wish to play.
Depress the ‘’30” switch when playing a
30 cm LP and the “17” switch with a single
or LP measuring 17 cm. |
® HEADSHELL
When fitting it into the tonearm pipe, keep it
straight and push it into the tonearm end
gently so that the connector pins are not
damaged in the process.
ea =
} MOU. MING THE TURNTABLE
1. Fit the belt provided around the inner
flange of the underside of the turntable plat-
ter as shown in fig. 1.
2. Insert your fingers into the two holes in the
platter as shown in fig. 2 and then slide it
gently over the center shaft. (Slip the platter
over the shaft securely so that when the plat-
ter is rotated, its edge will not move up and
down.)
PLATTER AND CARTRIDGE
3. Bring the oblong hole in the platter over
the motor drive pulley and through this hole
fit the drive belt on the pulley (fig. 3).
4. Place the rubber mat on top of the turn-
table platter.
e Do not touch any part of the drive
mechanism. Once the assembly has been
completed, be sure to depress the CUT
switch.
Fitting the belt
Belt
NI Turntable platter
Flange
Fig. 1
Fig. 3
Mounting the turntable platter
_ Turntable platter
==
Depress the CUT switch
Fig. 2
Cartridges with weights ranging from
2.5 to 10 grams may be used with this
turntable.
1. Properly connect the headshell leads to the
pins on the cartridge.
2. Loosely mount the cartridge to the head-
shell with cartridge mounting bolts.
3. Align the stylus with the accessory over-
hang gauge and after adjusting the overhang,
secure the cartridge mounting bolts.
Mounting the cartridge Overhang adjustment
Overhang gauge
Blue t—L)
Cartridge
Tal]
a
L H
©
White (+ L] Ad Red (+R) “Te
pq Overhang gauge
Blue (-L) Green (— R)
Fig. 4
1. To mount the main weight rotate the black
knob in the direction indicated by the arrow
in fig. b.
2. The grooves inside the main weight and
the click stopper on the end of the tonearm
interlock, thus when the main weight knob is
rotated In a counterclockwise direction (as
seen from the front of unit) the main weight
will smoothly move forward.
3. To mount the headshell, loosen the head-
shell locking screw and insert the headshell
with the phono cartridge in place. Next
securely tighten the locking screw. Be sure to
keep the headshell straight when inserting it
into the tonearm as it is very easy to damage
the four contact pins inside the headshell.
Mounting the main weight
“ Be sure that the Main weight
weight faces the
right direction
Fig. 5
Mounting the headshell
Push the headshell i
straight into Locking screw
the tonearm Headshell
Fig. 6
TONEARM. ASSEMBLY AND
ADJUSTMENTS
Proceed with the balance adjustment
after mounting and installing the tonearm
assembly. Disconnect the power supply to
prevent turntable rotation. Also, be sure to
set the ANTI-SKATING control to 0”.
1. Set the cueing slide lever to the left-hand
position (tonearm is DOWN”) and depress
the arm lifter.
2. Align the front side of the tracking force
adjustment weight with the “0” line on the
tonearm.
3. First release the arm lock. Then bring the
tonearm away from the arm rest.
4. Carefully release the finger hook and check
to see if the tonearm is horizontally balanced.
5. Adjust the main weight until the toneam is
In a perfectly horizontal position.
6. Once the tonearm has been balanced,
return it to the arm rest.
Balance adjustment
Arm lifter
SKATING
| ANTI
Tracking force
adjustment weight
- “0 line”
Tonearm -
Fig. 7
Headshell is too heavy
(rotate the black knob in the direction of the arrow)
Rear assembly is too heavy
{rotate the black knob in the direction of the arrow)
Tonearm is balanced perfectly
Tonearm Weight
I .
Headsheil with cartridge
Fig. 8
1. Make sure that the position of the main
weight does not move once the tonearm has
been horizontally balanced.
2. Move the tracking force adjustment weight
along the tracking force scale on the tonearm
until it corresponds with the rated tracking
force of your cartridge.
Align the index line on the anti-skating
knob with the scale marking which
corresponds to the rated tracking force of
your cartridge.
Tracking force adjustment
Fig. 9
Adjusting the anti-skating
N Se /7— ANTI-SKATING
ANTI- KNOB
SKATING
| Index line
о
РО: Fig. 10
Observe the stroboscope, and adjust the
speed control knob at the bottom of the
cabinet so that the stripe matching the power
line frequency in your area appears to stand
still.
The speed control knob permits an
adjustment of up to +3% in speed.
"In some cases the stroboscope stripe will ap-
pear to move slightly. This is caused by small
flucuations in the power line frequency and
does not mean that something is wrong with
the turntable.
Adjusting platter speed
LAS
a y 3000 control knob
Stroboscope When the strobe markings are:
Guen (HN AH NH HA Moving to the left= speed is fast.
Stationary = speed is correct.
Ri SUE ЕЕ
ETES
Brrr TEE
Moving to the right =speed is slow.
Fig. 11
USING TY > CUEING SWITCH/
DUST CO. cR/CONNECTIONS TO
YOUR AMPLIFIER
In normal operation the cueing switch is
set in the left-hand position. However, if you
wish to interrupt record play in order to play a
different track, the cueing switch can be used
to gently raise and lower the stylus.
1. Raising the stylus:
Slide the cueing switch to the far right. The
stylus will immediately rise from the record.
2. Lowering the stylus:
Slide the cueing switch to the far left. The
stylus will now descend onto the record and
play will begin,
Using the cueing switch
ris
Raising the stylus
Fig. 12
1. Fit the dust cover hinges into the two
cutouts at the rear of the dust cover, as
shown in fig. 13, and slide them into place.
(Arrow 1) |
2. Next, simultaneously insert the two hinges
into the left and right receptacies on the rear
of the cabinet. (Arrow 2)
3. It is possible to remove the dust cover.
To remove, follow the above procedure in
reverse.
Mounting the dust cover
\ A Na
h XA AL
Cutout
FD
Dust cover
AD
© y hinge Dust cover CB éd"
o
sama
°° ms _ Te + JO
Cabinet
Lu
Fig. 13
1. Connect the output cords from the rear
panel of the cabinet to the PHONO terminals
on the audio amplifier. Make sure that the left
and right channels are properly matched. The
white cord signifies left (L) channel and the
red the right (R) channel.
2. Connect the black ground wire to the
GROUND (GND) terminal on the audio
amplifier. Depending on the amplifier, better
sound is sometimes obtained by not connect-
ing the ground wire.
3. Connect the power plug to the AC wall
outlet or to an auxiliary outlet on the audio
amplifier.
Connections to your amplifier
PHONO terminals
yo
White is for left (L) channel
cn
Fig. 14
SE HEL
After you have assembled the turntable,
made the necessary adjustments and con-
nected the turntable to the audio amplifier,
you are ready to start playing records.
Proceed as follows.
Check to make sure that the turntable,
amplifier and speaker connecting
cords have been inserted into the
correct terminals.
* The power cord should be plugged into
an AC power outlet or into the audio
amplifier's auxiliary power outlet.
e |f you are using the ground wire, check
to see that it is securely fastened to the
amplifier's GND terminal.
Switch on the amplifier
e Set the input selector switch to PHONO.
Lower the volume control.
и
f
) HOW TO PLAY RECORDS -
Place your selected record on the turn-
table platter and set the record size
selector switch to the size of the
record.
* When playing 45 rpm singles, slip the
accessory 4b adaptor over the center
shaft.
Remove the arm rest lock and
depress the PLAY switch. Record
play will start automatically.
Set the SPEED switch so that it corre-
sponds to the rated speed of the
record.
Record play
~ ® Adjust the amplifier's volume and tone
controls to your own prefered levels.
Make sure that the cueing switch is
in the far right position (stylus up posi-
tion).
Remove the stylus cover.
Once record play has been completed,
the tonearm will automatically rise and
return to the arm rest and the platter
will stop rotating.
® Depress the CUT switch if you want to
stop record play.
® Operate the cueing switch (refer to
page 8) if you want to interrupt record
play.
® If the REPEAT switch has been ac-
tivated, the unit will indefinitely repeat the
same side of the record. Even if the CUT
switch Is depressed, play will resume
again.
TURNTABLE MOTOR SECTION
ca
SPECIFICATIONS
Drive System
FG servo belt drive
Motor
DC servo motor
Platter
30 cm (12) diecast aluminum,
0.7 kg (1 Ib. 9 oz.) (including rubber mat)
Moment of Inertia
110 kg-em* (including rubber mat)
Speed
Speed Variation
33-1/3 and 45 r.p.m.
+3% (Independent for each speed)
Signal-to-Noise Ratio
Better than 70 dB
(DIN-B, IEC 98A wid)
Wow and Flutter
TONEARM SECTION
Less than 0.04% WRMS
Arm Type
Straight arm
Tonearm Total & Effective Length
290/222 mm (11-13/32"" / 8-3/4")
Overhang
16 mm (5/8)
Tracking Force
Static balanced, sliding weight
O—3 g, 0.1 g steps
Effective Mass
11 g (without cartridge)
Horizontal Tracking Error — 1° to 3°
Anti-Skating Spring type
Offset Angle 23°
Arm Lifter Oil damped system
Sensitivity Vertical 10 mg, Horizontal 30 mg
Permissible Cartridge Weight 2.5—10 9 |
Headshell Resin, 20% carbon fiber
Weight 2.8 g
PU Cable Capacitance 100 pF
Resistance 18
10
GENERAL
Power Supplies
120 V AC 60 Hz
Power Consumption
3W
Cabinet BMC (Bulk Molding Compound)
Dust Cover Removable, transparent
Hinges Free-setting, detachable
Dimensions (W
x H x D)
440 x 132 x 372 mm
(17-3/8" x 6-1/8" x 14-5/8")
Weight
5.0 kg (11 Ibs.)
Specifications subject to change without notice.
45 adaptor
Overhang gauge
Spare headshell under hinges
Main weight
|
Headshel!
Dust cover hinges
TROUBLESHOOTING
Before assuming that your turntable is faulty, check the following troubleshooting list which details the corrective action you can take yourself without having to call
a service engineer. If you have any doubts or queries, get in touch with your nearest YAMAHA dealer.
is depressed.
Power cord is not firmly plugged into AC power
outlet or into auxiliary power outlet of amplifier.
Connect the power cord securely to the AC power
outlet or to the amplifier’'s auxiliary power outlet.
Platter rotation is too slow (or too fast).
Speed is not adjusted properly.
Refer to page 7 and adjust the speed.
Stroboscope has not been observed properly.
Check the frequency and the speed by the
stroboscope display and adjust.
Tonearm is not properly balanced when cartridge
is replaced. |
The cartridge is either too heavy or too light.
The proper cartridge weight ranges from 2.5 to
10 grams. If the weight of the cartridge used is with-
in this range, slide the weight to the front or rear and
re-adjust.
Tonearm does not descend to the record surface.
Cueing switch is in the UP position.
Set the cueing switch to DOWN position.
There is no sound or low sound although the
stylus descends to the record surface.
Defective contact of headshell connector pins.
Mount the headshell firmly onto the tonearm.
Amplifier's function switch is not set to PHONO.
Set the function switch to PHONO.
Amplifier's volume control is at lowest position.
Turn up the volume control to the required position.
Defective connection of turntable’s output cords.
Check-the connecting terminals on the rear panel
and amplifier.
The body of the cartridge catches on the record
surface.
Tracking force is too high.
Re-adjust to the proper tracking force.
Reproduced sound is distorted and unpleasant,
particularly the treble, with a clicking or
scraping noise.
Turntable is not set horizontally.
Install the turntable horizontally.
Dust on stylus.
Clean the stylus with a stylus cleaning brush.
Worn stylus.
Replace the stylus.
Damaged or dusty, dirty record.
Replace with a new record.
Tracking force is either too high or too low.
Readjust the tracking force for the cartridge to
the recomended vaiue.
Amplifier's treble control is turned up too high.
Try returning the treble control to the FLAT position.
Reproduced sound quivers and a howl {acoustic
feedback) is heard.
Installation locations of speaker systems and turntable
are too close together or turntable is unstable and
vibrations are being transmitted to cause resonance.
Move the turntable to a stable location, move it some
distance from the speakers, or change the speaker
locations (in parteular, avoid installation
in corners).
A loud humming sound is heard during record
play.
Turntable's ground wire is not connected to ampli-
fiers ground terminal.
Connect the ground wire to the ground terminal.
(Sometimes a better effect can be obtained by not
connecting this wire, however.)
Defective contact of headshell connector pins.
Mount the headshell properly onto the tonearm.
11
NIPPON GAKKI CO, LTD. HAMAMATSU, JAPAN
Printed in Japan 24
CAUTI ON : Read both this leaflet and the OWNER'S MANUAL carefully to get the best performance from this appliance.
1 Read Instructions — All the safety and operat-
ing instructions should be read before the appliance
is operated,
= Retain instructions — The safety and operating
instructions should be retained for future reference.
3 Heed Warnings — All warnings on the appliance
and in the operating instructions should be adhered
to. | |
A Follow Instructions — All operating and use
instructions should be followed. -
= Water and Moisture — The appliance should not
be used near water — for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet base-
ment, or near a swimming pool, etc.
- Carts and Stands — The appliance should be
used only with a cart or stand that is recommended
by the manufacturer.
7 Wall or Ceiling Mounting — The appliance
should be mounted to a wall or ceiling only as
recommended by the manufacturer.
S Ventilation — The appliance should be situated
so that its location or position does not interfere
with its proper ventilation. For example, the
appliance should not be situated on a bed, sofa, rug,
or similar surface that may block the ventilation
openings; or, placed in a built-in installation, such as
a bookcase or cabinet that may impede the flow of
air through the ventilation openings. a
S Heat — The appliance should be situated away
from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers)
that produce heat.
10 Power Sources — The appliance should be
connected to a power supply only of the type
described in the operating instructions or as marked
on the appliance. |
1 1 Grounding or Polarization — The precautions
that should be taken so that the grounding or
polarization means of an appliance is not defeated.
12 Power-Cord Protection — Power-supply cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or
against them, paying particular attention to cords at
plugs, convenience receptacles, and the point where
they exit from the appliance.
13 Cleaning — The appliance should be cleaned
only as recommended by the manufacturer.
14 Nonuse Periods — The power cord of the
appliance should be unplugged from the outlet
when left unused for a long period of time.
15 Object and Liquid Entry — Care should be
taken so that objects do not fall and liquids are not
spilled into the enclosure through openings.
16 Damage Requiring Service — The appliance
should be serviced by qualified service personnel
when: |
A. The power-supply cord or the plug has been
damaged; or
B. Objects have fallen, or liquid has been spilled
into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate
normally or exhibits a marked change in perform-
ance; or
E. The appliance has been dropped, or the enclo-
sure damaged. |
1/7 Servicing — The user should not attempt to
service the appliance beyond that described in the
operating instructions. All other servicing should be
referred to qualified service personnel.
18 (Applicable to the Tuner and Receiver.)
Power Lines — An outdoor antenna should be
located away from power lines. |
19 (Applicable to the Tuner and Receiver.)
Outdoor antenna grounding — If an outside antenna
is connected to the receiver, be sure the antenna
system is grounded so as to provide some protection
against voltage surges and built up static charges.
Section 810 of the National Electrical Code, ANSI/
NFPA No. 70-1978, provides information with
respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding
conductors, location of antenna-discharge unit,
connection to grounding electrodes, and require-
ments for the grounding electrode.
This leaflet has been prepared according to UL regulation 1270.
EXAMPLE OF ANTENNA GROUNDING AS
ze, PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
GROUND
CLAMP a glo”
| |POWNLEADOR,,
MAST LEAD-IN WIRE
GROUND, y
WIRE то
ANTENN
ad RECEIVER
DISCHARGE S58 >
с
UNIT
GROUND
WIRE
GROUND
CLAMPS
1 SUITABLE GROUNDING
it ELECTRODE DRIVEN
U8 INTO THE EARTH
SB1682 (2.44 METERS)
a
Use No. 10 AWG copper or No. 8 AWG aluminum or No. 17
AWG copper-clad steel or bronze wire, or larger as ground
wires for both mast and lead-in.
b
Secure lead-in wire from antenna to antenna discharge unit and
mast ground wire to house with stand-off insulators, spaced
from 4 feet (1.22 meters) to 6 feet (1.83 meters) apart.
Cc a
Mount antenna discharge unit as closely as possible to where
lead-in enters house.
SINCE 1887
NIPPON GAKKI CO., LTD. HAMAMATSU, JAPAN
Printed in Japan 804®
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
