Makita HM1203C Instruction manual

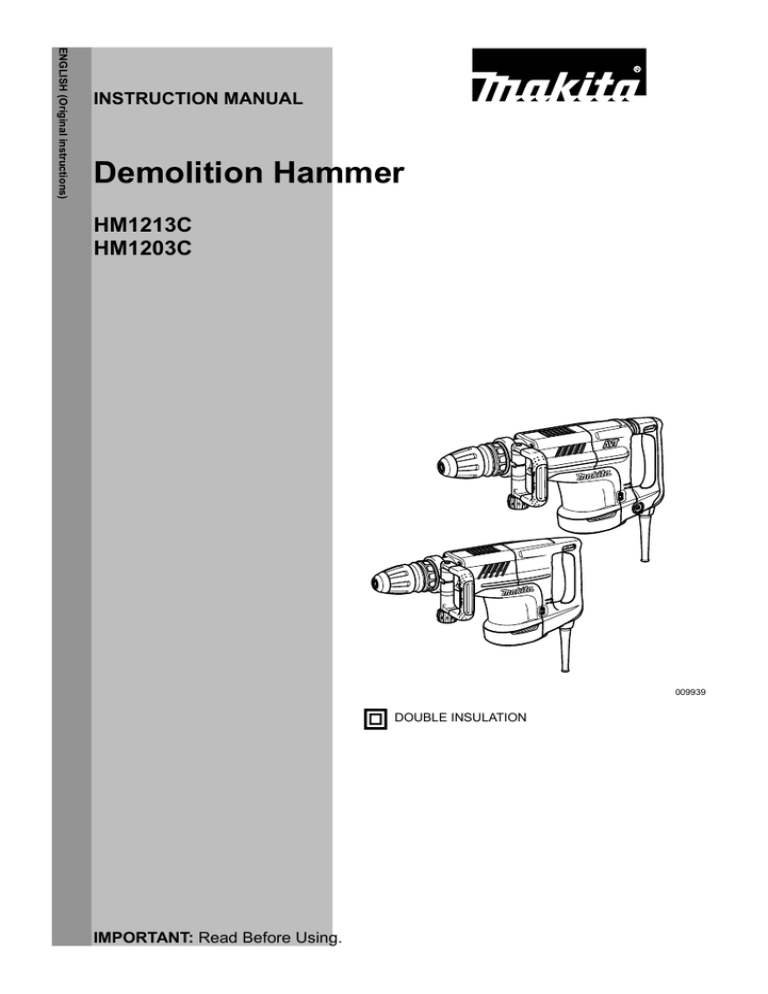

ENGLISH (Original instructions)
INSTRUCTION MANUAL
Demolition Hammer
HM1213C
HM1203C
009939
DOUBLE INSULATION
IMPORTANT: Read Before Using.
1
ENGLISH (Original instructions)
SPECIFICATIONS
Model
HM1213C
HM1203C
950 - 1,900 min-1
Blows per minute
Overall length
576 mm
Net weight
10.8 kg
Safety class
9.7 kg
II
• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Note: Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
END201-4
Uncertainty (K) : 2.5 dB(A)
Wear ear protection
Symbols
ENG216-1
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
・ Read instruction manual.
・
DOUBLE INSULATION
・
Only for EU countries
Do not dispose of electric equipment
together with household waste material!
In observance of European Directive
2002/96/EC on waste electric and
electronic
equipment
and
its
implementation in accordance with
national law, electric equipment that
have reached the end of their life must
be collected separately and returned to
an
environmentally
compatible
recycling facility.
Vibration
The vibration total value (tri-axial vector sum)
determined according to EN60745-2-6:
Work mode : chiseling function with side handle
Vibration emission (ah,CHeq) : 7.0 m/s2
Uncertainty (K) : 1.5 m/s2
For Model HM1203C
ENG102-2
For European countries only
Noise
The typical A-weighted noise level determined according
to EN60745:
Sound pressure level (LpA) : 81 dB(A)
Sound power level (LWA) : 95 dB(A)
Uncertainty (K) : 2 dB(A)
Wear ear protection
ENE045-1
ENG216-1
Intended use
The tool is intended for chiselling work in concrete, brick,
stone and asphalt as well as for driving and compacting
with appropriate accessories.
Vibration
The vibration total value (tri-axial vector sum)
determined according to EN60745-2-6:
Work mode : chiseling function with side handle
Vibration emission (ah,CHeq) : 15.5 m/s2
Uncertainty (K) : 1.5 m/s2
ENF002-1
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated in accordance with European
Standard and can, therefore, also be used from sockets
without earth wire.
ENG901-1
•
•
For Model HM1213C
ENG102-2
•
For European countries only
Noise
The typical A-weighted noise level determined according
to EN60745:
Sound pressure level (LpA) : 75 dB(A)
Sound power level (LWA) : 95 dB(A)
•
2
The declared vibration emission value has been
measured in accordance with the standard test
method and may be used for comparing one tool
with another.
The declared vibration emission value may also be
used in a preliminary assessment of exposure.
WARNING:
The vibration emission during actual use of the
power tool can differ from the declared emission
value depending on the ways in which the tool is
used.
Be sure to identify safety measures to protect the
operator that are based on an estimation of
exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it
is running idle in addition to the trigger time).
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and
instructions for future reference.
ENH213-1
EC Declaration of Conformity
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1.
Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3.
Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
4.
Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
5.
Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
6.
Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
7.
Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
8.
When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
9.
If operating a power tool in a damp location is
unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of an
GFCI reduces the risk of electric shock.
Personal safety
10. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
11. Use personal protective equipment. Always
wear eye protection. Protective equipment such
We Makita Corporation as the responsible
manufacturer declare that the following Makita
machine(s):
Designation of Machine: Demolition Hammer
Model No./ Type: HM1213C, HM1203C
are of series production and
Conforms to the following European Directives:
2000/14/EC, 98/37/EC until 28th December 2009
and then with 2006/42/EC from 29th December
2009
And are manufactured in accordance with the following
standards or standardised documents:
EN60745
The technical documentation is kept by our authorised
representative in Europe who is:
Makita International Europe Ltd,
Michigan, Drive, Tongwell,
Milton Keynes, MK15 8JD, England
The conformity assessment procedure required by
Directive 2000/14/EC was in Accordance with annex
VIII.
Notified Body:
TÜV
Rheinland
Product
Safety
GmbH,
identification no. 0197
Model HM1213C
Measured Sound Power Level: 95dB
Guaranteed Sound Power Level: 97dB
Model HM1203C
Measured Sound Power Level: 95 dB
Guaranteed Sound Power Level: 98 dB
16th January 2009
000230
Tomoyasu Kato
Director
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi, JAPAN
GEA005-2
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
3
23.
Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the power
tool for operations different from those intended
could result in a hazardous situation.
Service
24. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
25. Follow instruction for lubricating and
changing accessories.
26. Keep handles dry, clean and free from oil and
grease.
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
12. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. . Carrying power tools
with your finger on the switch or energising power
tools that have the switch on invites accidents.
13. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
14. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
15. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
16. If devices are provided for the connection of
dust extraction and collection facilities,
ensure these are connected and properly used.
Use of dust collection can reduce dust-related
hazards.
Power tool use and care
17. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
18. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
19. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
20. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
21. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
22. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
GEB004-3
SPECIFIC SAFETY RULES
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to hammer safety rules. If you use this tool unsafely
or incorrectly, you can suffer serious personal
injury.
1.
Wear ear protectors. Exposure to noise can
cause hearing loss.
2.
Use auxiliary handle(s), if supplied with the
tool. Loss of control can cause personal injury.
3.
Hold power tools by insulated gripping
surfaces, when performing an operation where
the cutting accessory may contact hidden
wiring or its own cord. Cutting accessory
contacting a "live" wire may make exposed metal
parts of the tool "live" and could give the operator
an electric shock.
4.
Wear a hard hat (safety helmet), safety glasses
and/or face shield. Ordinary eye or sun
glasses are NOT safety glasses. It is also
highly recommended that you wear a dust
mask and thickly padded gloves.
5.
Be sure the bit is secured in place before
operation.
6.
Under normal operation, the tool is designed
to produce vibration. The screws can come
loose easily, causing a breakdown or accident.
Check tightness of screws carefully before
operation.
7.
In cold weather or when the tool has not been
used for a long time, let the tool warm up for a
while by operating it under no load. This will
loosen up the lubrication. Without proper
warm-up, hammering operation is difficult.
8.
Always be sure you have a firm footing.
Be sure no one is below when using the tool in
high locations.
9.
Hold the tool firmly with both hands.
4
10.
11.
12.
13.
14.
15.
Speed change
Keep hands away from moving parts.
Do not leave the tool running. Operate the tool
only when hand-held.
Do not point the tool at any one in the area
when operating. The bit could fly out and
injure someone seriously.
Do not touch the bit or parts close to the bit
immediately after operation; they may be
extremely hot and could burn your skin.
Do not operate the tool at no-load
unnecessarily.
Some material contains chemicals which may
be toxic. Take caution to prevent dust
inhalation and skin contact. Follow material
supplier safety data.
1. Adjusting dial
1
009955
The blows per minute can be adjusted just by turning the
adjusting dial. This can be done even while the tool is
running. The dial is marked 1 (lowest speed) to 5 (full
speed).
Refer to the table below for the relationship between the
number settings on the adjusting dial and the blows per
minute.
SAVE THESE INSTRUCTIONS.
WARNING:
Number on adjusting dial
5
4
3
2
1
MISUSE or failure to follow the safety rules stated in
this instruction manual may cause serious personal
injury.
FUNCTIONAL DESCRIPTION
•
Blows per minute
1,900
1,700
1,450
1,200
950
009956
CAUTION:
Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.
•
Switch action
1. Switch lever
CAUTION:
The speed adjusting dial can be turned only as far
as 5 and back to 1. Do not force it past 5 or 1, or
the speed adjusting function may no longer work.
For Model HM1213C only
OFF
NOTE:
•
Blows at no load per minute becomes smaller than
those on load in order to reduce vibration under no
load, but this does not show trouble. Once
operation starts with a bit against concrete, blows
per minute increase and get to the numbers as
shown in the table. When temperature is low and
there is less fluidity in grease, the tool may not
have this function even with the motor rotating.
ON
1
009947
CAUTION:
Before plugging in the tool, always check to see
that the tool is switched off.
•
Switch can be locked in "ON" position for ease of
operator comfort during extended use. Apply
caution when locking tool in "ON" position and
maintain firm grasp on tool.
To start the tool, push the switch lever "ON (I)" on the left
side of the tool. To stop the tool, push the switch lever
"OFF (O)" on the right side of the tool.
Indicator lamp
•
1
2
009949
5
1. Power-ON
indicator lamp
(green)
2. Service indicator
lamp (red)
Insert the bit into the tool. Turn the bit and push it in until
it engages.
The green power-ON indicator lamp lights up when the
tool is plugged. If the indicator lamp does not light up,
the mains cord or the controller may be malfunction. The
indicator lamp is lit but the tool does not start even if the
tool is switched on, the carbon brushes may be worn out,
or the controller, the motor or the ON/OFF switch may be
malfunction.
The red service indicator lamp flickers up when the
carbon brushes are nearly worn out to indicate that the
tool needs servicing. After approx. 8 hours of use, the
motor will automatically be shut off.
1. Releasing cover
1
009940
ASSEMBLY
•
If the bit cannot be pushed in, remove the bit. Pull the
releasing cover down a couple of times. Then insert the
bit again. Turn the bit and push it in until it engages.
CAUTION:
Always be sure that the tool is switched off and
unplugged before carrying out any work on the
tool.
Side handle (auxiliary handle)
1. Side handle
2. Clamp nut
1
009941
2
After installing, always make sure that the bit is securely
held in place by trying to pull it out.
To remove the bit, pull the releasing cover down all the
way and pull the bit out.
009945
The side handle can be swung 360° on the vertical and
secured at any desired position. It also secures at eight
different positions back and forth on the horizontal. Just
loosen the clamp nut to swing the side handle to a
desired position. Then tighten the clamp nut securely.
The side handle also can be mounted in the rear groove.
Loosen the clamp nut and widen the side handle base.
Slide the side handle back to the rear groove and secure
it with the clamp nut.
1. Releasing cover
1
009942
Installing or removing the bit
Bit angle
1. Bit shank
2. Bit grease
1. Change ring
1
2
1
009664
009943
Clean the bit shank and apply bit grease before installing
the bit.
6
This tool requires no hourly or daily lubrication because
it has a grease-packed lubrication system. However, it is
recommended to periodically replace the grease for
longer tool life.
Run the tool for several minutes to warm it up. Switch off
and unplug the tool.
Loosen the six screws and remove the handle. Note that
the top screws are different from other screws.
1. Screws
1
009944
The bit can be secured at 12 different angles. To change
the bit angle, slide the change ring forward, then turn the
change ring to change the bit angle. At the desired angle,
slide the change ring back to the original position. The
bit will be secured in place.
NOTE:
•
The change ring cannot turn when the bit is not
installed on the tool.
009951
Disconnect the connector by pulling them.
OPERATION
Chipping/Scaling/Demolition
3
1. Connector
2. White
3. Black
1
2
009950
Loosen the four screws on crank cap and remove the
crank cap cover.
009948
1. Screwdriver
2. Crank cap cover
Always use the side grip (auxiliary handle) and firmly
hold the tool by both side grip and switch handle during
operations. Turn the tool on and apply slight pressure on
the tool so that the tool will not bounce around,
uncontrolled. Pressing very hard on the tool will not
increase the efficiency.
1
2
MAINTENANCE
•
•
009952
Wipe out the old grease inside and replace with a fresh
grease (60 g). Use only Makita genuine hammer grease
(optional accessory). Filling with more than the specified
amount of grease (approx. 60 g) can cause faulty
hammering action or tool failure. Fill only with the
specified amount of grease.
CAUTION:
Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
Never use gasoline, benzine, thinner, alcohol or
the like. Discoloration, deformation or cracks may
result.
Lubrication
•
CAUTION:
This servicing should be performed by Makita
Authorized or Factory Service Centers only.
7
•
1. Grease
1
•
•
•
•
•
•
009953
CAUTION:
Be careful not to damage the connector or lead
wires especially when wiping out the old grease.
To reassemble the tool, follow the disassembling
procedure in reverse.
•
•
CAUTION:
Do not tighten the crank cap excessively. It is made
of resin and is subject to breakage.
1. Connector
2. White
3. Black
3
1
2
009954
Connect the connector firmly and then reinstall the
handle.
CAUTION:
Be careful not to damage the connector or lead
wires especially when installing the handle.
To maintain product SAFETY and RELIABILITY, repairs,
carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by
Makita Authorized Service Centers, always using Makita
replacement parts.
•
ACCESSORIES
CAUTION:
These
accessories
or
attachments
are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
•
Bull point(SDS-max)
•
8
Cold chisel(SDS-max)
Scaling chisel(SDS-max)
Clay spade(SDS-max)
Bit grease
Safety goggles
Hammer grease
Plastic carrying case
9
10
11
Makita Corporation
Anjo, Aichi, Japan
884887B222
www.makita.com
12
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
