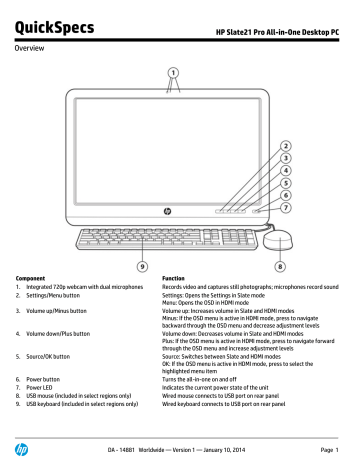

QuickSpecs
HP Slate21 Pro All-in-One Desktop PC
Overview
Component
1. Integrated 720p webcam with dual microphones
2. Settings/Menu button
3. Volume up/Minus button
4. Volume down/Plus button
5. Source/OK button
6.
7.
8.
9.
Power button
Power LED
USB mouse (included in select regions only)
USB keyboard (included in select regions only)
Function
Records video and captures still photographs; microphones record sound
Settings: Opens the Settings in Slate mode
Menu: Opens the OSD in HDMI mode
Volume up: Increases volume in Slate and HDMI modes
Minus: If the OSD menu is active in HDMI mode, press to navigate
backward through the OSD menu and decrease adjustment levels
Volume down: Decreases volume in Slate and HDMI modes
Plus: If the OSD menu is active in HDMI mode, press to navigate forward
through the OSD menu and increase adjustment levels
Source: Switches between Slate and HDMI modes
OK: If the OSD menu is active in HDMI mode, press to select the
highlighted menu item
Turns the all-in-one on and off
Indicates the current power state of the unit
Wired mouse connects to USB port on rear panel
Wired keyboard connects to USB port on rear panel
DA - 14881 Worldwide — Version 1 — January 10, 2014
Page 1
QuickSpecs
HP Slate21 Pro All-in-One Desktop PC
Overview
Component
1. SD card reader
2. USB 2.0 connector
3. Audio-out (headphone) jack
4.
5.
6.
7.
Power connector
Ethernet connector
USB 2.0 connectors
USB upstream connector
8. HDMI connector
Function
Reads data from and writes data to Secure Digital (SD) memory cards
Connects external USB devices to the all-in-one
Produces sound when connected to optional powered stereo speakers,
headphones, earbuds, or a headset
Connects the power cord to the all-in-one
Connects an Ethernet cable to the all-in-one
Connect external USB devices to the all-in-one
Connects a USB cable between a PC and the all-in-one (required for touch
functionality in HDMI mode when connected to a PC)
Connects an HDMI device, such as a PC, camera, or DVD player
DA - 14881 Worldwide — Version 1 — January 10, 2014
Page 2
QuickSpecs
HP Slate21 Pro All-in-One Desktop PC
Overview
At A Glance
Android 4.3, Jelly Bean operating system
21.5" diagonal IPS full HD widescreen LED-backlit touch-enabled (1920 x 1080)
Integrated All-in-One form factor
NVIDIA® Tegra® 4 Quad-Core processor
NVIDIA® graphics
2 GB of DDR3 memory
16GB of embedded Multi Media Card Flash storage*
HD Webcam with built-in microphone
Integrated 10/100 Ethernet
Wireless connectivity - 802.11a/b/g/n wireless
Bluetooth 4.0
HDMI input
USB keyboard and mouse (included in select regions only)
Integrated speakers
SD card reader
* 12.4GB is available for user. Total flash storage used for OS, preinstalled apps, recovery is up to 3.6GB.
DA - 14881 Worldwide — Version 1 — January 10, 2014
Page 3
QuickSpecs
HP Slate21 Pro All-in-One Desktop PC
Features
Processor
Nvidia Tegra 4 Quad-Core T40S
Processor Speed
Quad-Core 1.66 GHz (Dual-Core/Single-Core mode up to 1.8 GHz)
Chipset
ARM Cortex-A15 Mpcore
Operating System
Preinstalled
Graphics
Integrated NVIDIA GPU (72 cores)
Display
21.5" (54.6 cm) diagonal IPS full HD widescreen LED-backlit touch-enabled
Resolution
1920 x 1080 resolution (16:9)
Android 4.3, Jelly Bean
Contrast ratio
1000:1 typical
Image brightness
220 nits typical
Viewing angle (typical)
Up to 178º horizontal/178º vertical (10:1 minimum contrast ratio)
Touchscreen
2 point optical touchscreen that uses 3 cameras
NOTE: All performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.
Adjustable Tilt Stand
Tilt/recline
15 to 70 degrees
Memory
Standard
2GB DDR3-800 MHz SDRAM
NOTE: All performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.
Communications
Integrated 10/100 Ethernet
802.11 a/b/g/n wireless
Bluetooth 4.0
Wi-Fi Direct
IO Devices
HP USB Keyboard (black) - (included in select regions only)
Wired
USB
HP USB Optical Scroll Mouse (black) - (included in select regions only)
Wired
USB
DA - 14881 Worldwide — Version 1 — January 10, 2014
Page 4
QuickSpecs
HP Slate21 Pro All-in-One Desktop PC
Features
Storage
Flash storage
16 GB embedded Multi Media Card*
Media Card Reader
SD Media Card Reader
* 12.4GB is available for user. Total flash storage used for OS, preinstalled apps, recovery is up to 3.6GB.
Ports
Side I/O Ports
Rear I/O Ports
One (1) USB 2.0 port
One (1) Headphone-microphone combo out (disables integrated speakers)
One (1) SD Card reader
Two (2) USB 2.0 ports
One (1) RJ45 network connection
One (1) HDMI input
One (1) USB 2.0 upstream port
Audio/Visual
DTS Sound + integrated audio
(2) Integrated stereo speakers - 2W x 2W
Integrated Webcam (720p HD ) with built-in microphone
Headphone-microphone combo out (disables integrated speakers)
Software
Preinstalled (varies by country)
HP apps
Google Play Store
Chrome Browser
Google Hangouts
Google Drive
YouTube
Calendar Sync
Contact Sync
Gmail
Google Play Books
Google Calendar
Google Maps for Mobile
Google Play Music
Google Play Videos
Google Play Magazines
Google Play Games
Google Partner Setup
Google Search
Google Services Framework
Google Gallery
Google Street View
Google Voice Search
Config Updater
Market Updater
Media Uploader
Network Location Provider
Set Up Wizard
Widevine
DA - 14881 Worldwide — Version 1 — January 10, 2014
Page 5
QuickSpecs
HP Slate21 Pro All-in-One Desktop PC
Features
News & Weather
3rd party apps
KingSoft (WW )
Kingsoft (Japan)
Box (50GB free cloud storage offer)6
Skype
Adobe PDF reader
Citrix Receiver
Citrix Worx (30-day Citrix Xenmobile trial offer)7
Evernote (WW)
Splashtop Personal
Hulu Plus (NA Only)
RenRen (China only)
Sina Weibo (China only)
Tudou (China only)
Youku (China only)
Baidu Browser (China only)
Baidu Map (China only)
Baidu Search (China only)
QQ (China only)
Tencent MyApp (China only)
Google Apps
Google Play Store
Chrome Browser
Google Hangouts
Google Drive
YouTube
Calendar Sync
Contact Sync
Gmail
Google Play Books
Google Calendar
Google Maps for Mobile
Google Play Music
Google Play Videos
Google Play Magazines
Google Play Games
Google Partner Setup
Google Search
Google Services Framework
Google Gallery
Google Street View
Google Voice Search
Config Updater
Market Updater
Media Uploader
Network Location Provider
DA - 14881 Worldwide — Version 1 — January 10, 2014
Page 6
QuickSpecs
HP Slate21 Pro All-in-One Desktop PC
Features
Set Up Wizard
Widevine
News & Weather
Other Software
NTFS and exFAT support
IME support
Power Supply
Integrated Power Supply. 100-240 V, 50/60 Hz, 1.5 (1,5A).
1.9m power cord included
Security Lock-Ready
Yes
VESA External Mounting
Yes (one set of standard 4-hole pattern, 100 mm)
Country of Origin
China
Cables included
1.8 m USB cable
1.9 m power cable
Service and Support
Protected by HP, including a 3 year standard limited warranty. Optional HP Care Pack Services1 are
extended service contracts that extend your protection beyond the standard warranties.
DA - 14881 Worldwide — Version 1 — January 10, 2014
Page 7
QuickSpecs
HP Slate21 Pro All-in-One Desktop PC
Technical Specifications
System Unit
Dimensions (unpacked)
(WxDxH)
Weight (unpacked)
20.9 x 3.25 x 14.4 in
53.1 x 8.25 x 36.6 cm
Shipping Carton
Dimensions
(W x D x H)
Shipping Carton Weight
24.6 x 8.3 x17.8 in
62.4 x 21.1 x 45.2 cm
Pallet (30 units)
Dimensions
(WxDxH)
Pallet (30 units) Weight
Stand-Alone Power
Requirements
Temperature
Relative Humidity
Altitude
(unpressurized)
Industry Standard
Certifications
Citrix Certifications
Environmental
Color
Accessories
(sold separately)
13.6 lbs / 5.97 kgs
With keyboard and mouse 20.2 lbs / 9.2 kgs
Without keyboard and
13.13 lbs / 5.96 kgs
mouse
47.24 x 39.37 x 87.80 in
120 x 100 x 223.8 cm
630 lbs / 287 kgs
Electrical Ratings
Idle Operating Power
Max Operating Power
Operating*
Non-operating
Operating (noncondensing)
Non-operating (38.7° C
maximum wet bulb
temperature)
Operating
Non-operating
ENERGY STAR®
EPEAT® Gold2
CEL Grade 1
WW Safety and EMC
certifications
Citrix ready
HDX verified
Low Halogen3
100-240 V, 50/60 Hz
20W
<40W
41° to 95° F (5° to 35° C)
-4° to 140° F (-20° to 60° C)
25% to 80%
5% to 95%
0 to 16,400 ft (0 to 5000 m)
0 to 40,000 ft (0 to12,192 m)
Yes
Yes
Yes (APJ only)
Yes
Yes
Yes
Yes (External accessories, including power
supplies, power cords, and peripherals may not be
Low Halogen.)
Arsenic-free display glass4 Yes
Black
For accessibility information on HP products, please visit: http://www.hp.com/accessibility.
* Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level,
no direct sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the
type and number of options installed.
HP LCD Monitor Quick
An easy-to-use, VESA-compliant, LCD monitor mounting solution that allows
you to quickly and securely attach an LCD monitor to a variety of stands,
Release
Part number EM870AA5 brackets, arms or wall mounts. For more information, refer to this product's
DA - 14881 Worldwide — Version 1 — January 10, 2014
Page 8
QuickSpecs
HP Slate21 Pro All-in-One Desktop PC
Technical Specifications
QuickSpecs document.
HP Single Monitor Arm
The flexible design of the HP Single Monitor Arm provides a seemingly endless
range of display adjustments with an amazing 13 inches of lift, 75 degrees of
Part number BT861AA
tilt, and 360 degrees of pan and rotation - all at your fingertips -- helping you
stay comfortable and productive throughout the day.
HP Business PC Security Attaches to the rear of the PC with a six-foot steel cable that can be used to
secure a PC or peripherals such as mice, keyboards, monitors or USB security
Lock Kit
devices to protect them against unauthorized removal by physically
Part number PV606AA
connecting the system to an anchor point.
HP Basic Capacitive Stylus Smoothly interact with your touch screen capable notebook, desktop or tablet
with HP's economical Basic Capacitive Stylus. Enjoy the natural feel as holding
Part number E7U18AA
your favorite pen while navigating the Web or apps, writing or drawing. Keep
your screen clean of fingerprints, smudges, and scratches - even works with a
screen protector.
HP Executive Capacitive Keep your touchscreen device clean of fingerprints and smudges with HP's
Executive Capacitive Stylus - perfect for touch screen capable notebooks,
Stylus
tablets, and desktop screens. Versatile - type, draw, touch type or simply
Part Number E7U19AA
browse the Web or your favorite apps effortlessly - even works with screen
protectors.
HP Wireless Headset
Allows you to listen, stream, game and chat, all wirelessly with
uncompromising sound quality. Extended play time, stylish design,
H7000
comfortable materials, rechargeable battery, Bluetooth® connectivity, and
Part Number H6Z97AA
amazing sound clarity all assure your listening enjoyment.
HP Pocket Playlist
The revolutionary HP Pocket Playlist streams different kinds of content8movies, music, TV shows, photos- to up to 5 individual mobile devices at the
Part Number H4D65AA
same time.9 No Internet required; it won't eat up your data plan.
1. HP Care Pack Services extend service contracts beyond the standard warranties. Service levels and response times for HP Care Packs
may vary depending on your geographic location. Service starts from date of hardware purchase. To choose the right level of service
for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool. Additional HP Care Pack
Services information by product is available at: http://www.hp.com/hps/carepack.
2. EPEAT® Gold registered models of this product are available where HP registers commercial display products. See www.epeat.net
for registration status in your country.
3. External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not
be Low Halogen.
4. Arsenic and its compounds were not detected using US EPA Test Methods 3052 & 3052/6010b by ICP or ICP-AES with a with a
Method Detection Limit of 10 ppm.
5. The HP Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg) for all devices mounted. Because mounting
surfaces vary widely and the final mounting method and configuration may vary, mounting fasteners are not supplied (other than the
VESA-compliant screws). HP recommends that you consult with a qualified engineering, architectural or construction professional to
determine the appropriate type and quantity of mounting fasteners required for your application and to ensure that your mounting
solution is properly installed to support applied loads.
6. You can try MyRoom Premium 4-person account free for 1 year from the MyRoom app. Please review the MyRoom system
requirements on this site. Purchase required after the 1-year trial offer ends. For additional capabilities, you can purchase MyRoom
that will work for your needs from www.myroom.hp.com.
7. Citrix Worx Home for Android is pre-installed and ready to be managed by Citrix XenMobile. Customers who have already purchased
Citrix XenMobile can enroll immediately. A 30- day Citrix XenMobile trial is available through the Citrix icon on the HP Slate21 Pro home
screen. Subscription service required after trial period ends.
8. Streams unencrypted content only.
DA - 14881 Worldwide — Version 1 — January 10, 2014
Page 9
QuickSpecs
HP Slate21 Pro All-in-One Desktop PC
Technical Specifications
9. Battery life depends on usage.
© Copyright 2014 Hewlett-Packard Development Company, L.P. All rights reserved.
ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other countries. All other product names
mentioned herein may be trademarks of their respective companies.
December 2013
DA - 14881 Worldwide — Version 1 — January 10, 2014
Page 10
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
