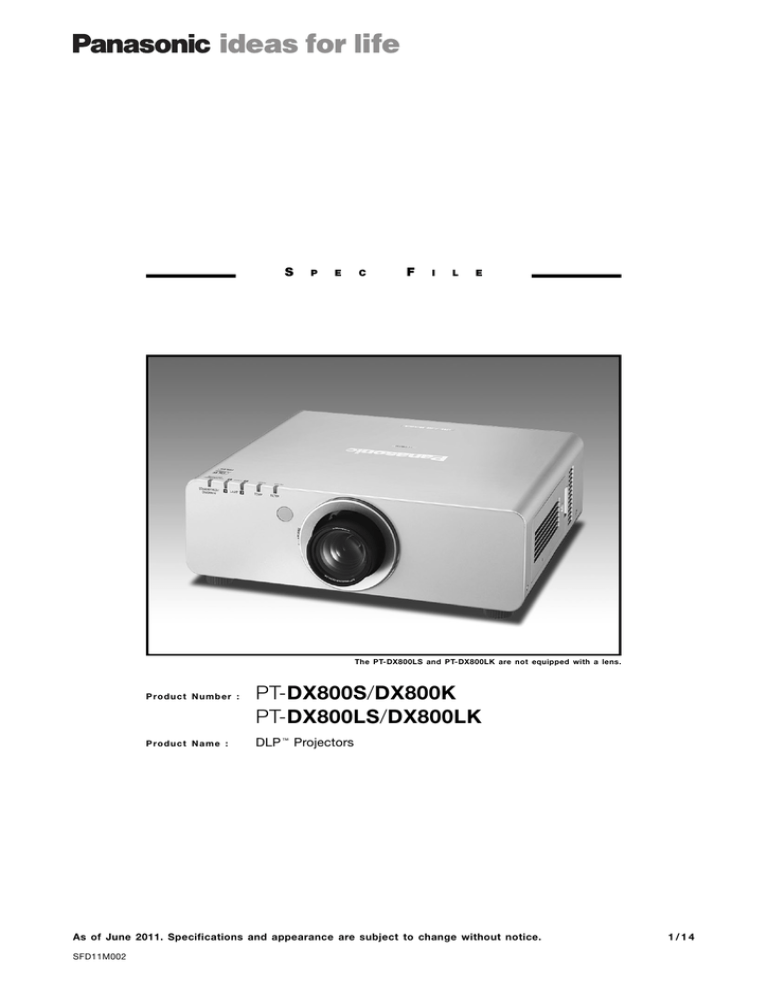

Panasonic PT-DX800UK Projector Product sheet
S
P E C
F
I L E
The PT-DX800LS and PT-DX800LK are not equipped with a lens.
P r o d u c t N u m b e r :
PT-DX800S/DX800K
PT-DX800LS/DX800LK
P r o d u c t N a m e :
DLP ™ Projectors
As of June 2011. Specifications and appearance are subject to change without notice.
SFD11M002
1 / 1 4
S
P E C
F
I L E
DLP ™ Projectors
PT-DX800S/DX800K/DX800LS/DX800LK
Specifications
Main unit
Power supply
Power consumption
DLP™ chip
Lens
Lamp
Screen size
Brightness*
Panel size
Display method
Pixels
PT-DX800S/DX800K
PT-DX800LS/DX800LK
Center-to-corner uniformity* 2
Contrast* 2
Resolution
2
Scanning frequency
Optical axis shift
120 V AC, 60 Hz
220–240 V AC, 50/60 Hz
DVI-D
RGB
YP
Keystone correction range
Installation
Terminals
B
P
R
(YC
DVI-D IN
RGB 1 IN
B
C
Video/S-Video
R, G, B
R
)
120 V AC, 7.5 A, 50/60 Hz
220–240 V AC, 4.3 A, 50/60 Hz
790 W (830 VA) (0.2 W with standby mode set to eco* 1 , 8 W with standby mode set to normal. Both with fan stopped.)
760 W (950 VA) (0.3 W with standby mode set to eco* 1 , 9 W with standby mode set to normal. Both with fan stopped.)
17.8 mm (0.7 in) diagonal (4:3 aspect ratio)
DLP™ chip × 1, DLP™ system
786,432 (1,024 × 768) × 1, total of 786,432 pixels
Powered zoom/focus lenses (1.8 – 2.5:1), F 1.7–1.9, f 25.6 – 35.7 mm
Optional powered zoom/focus lenses and fixed-focus lens
300 W (max. 310 W) UHM lamps (× 2) (dual lamp system)
1.27 –15.24 m (50 – 600 inches) (1.27– 5.08 m (50– 200 inches) with the
ET-DLE055), 4:3 aspect ratio
8,000 lumens (dual lamp, lamp mode: high)
90%
2,000:1 (full on/full off, contrast mode: high, brightness: 3,000 lumens)
1,024 × 768 pixels (Input signals that exceed this resolution will be converted to 1,024 × 768 pixels.) f
H
: 15 kHz – 91 kHz, f
V
: 50 Hz – 85 Hz, dot clock: 162 MHz or lower f
H
: 15 kHz – 91 kHz, f
V
: 50 Hz – 85 Hz, dot clock: 150 MHz or lower
480i (525i):
576i (625i): f
H
15.75 kHz; f
V
60 Hz, f
H
15.63 kHz; f
V
50 Hz,
480p (525p): f
H
31.50 kHz; f
V
60 Hz,
576p (625p): f
H
31.25 kHz; f
V
50 Hz,
720 (750)/60p: f
H
45.00 kHz; f
V
60 Hz,
720 (750)/50p: f
H
37.50 kHz; f
V
50 Hz,
1035/60i: f
H
33.75 kHz; f
V
60 Hz,
1080 (1125)/60i: f
H
33.75 kHz; f
V
60 Hz,
1080 (1125)/50i: f
H
28.13 kHz; f
V
50 Hz,
1080/25p: f
H
28.13 kHz; f
V
25 Hz,
1080/24p:
1080/24sF: f f
H
H
27.00 kHz; f
27.00 kHz; f
V
V
24 Hz,
48 Hz,
1080/30p:
1080/60p: f
H
33.75 kHz; f
V
30 Hz, f
H
67.50 kHz; f
V
60 Hz,
1080/50p: f
H
56.25 kHz; f
V
50 Hz f
H
: 15.75 kHz, f
V
: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60] f
H
: 15.63 kHz, f
V
: 50 Hz [PAL/PAL-N/SECAM]
Vertical: +50% (powered), horizontal: ±10% (powered)
(Vertical: +45%, horizontal: ±10% with the ET-DLE080)
Vertical: ±40° (±30° with the ET-DLE055 and ET-DLE080)
Ceiling/floor, front/rear
DVI-D 24-pin × 1, DVI 1.0 compliant, HDCP compatible, for single link only
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p,
1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,
VGA (640 × 480) – WUXGA* 3 (1,920 × 1,200), compatible with noninterlaced signals only, dot clock: 25–162 MHz
BNC × 5
R: 0.7 Vp-p, 75 ohms,
G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms,
B: 0.7 Vp-p, 75 ohms
HD/VD, SYNC: High impedance, TTL (positive/negative)
NOTE: HD/SYNC, and VD terminals do not accept tri-level sync signals.
Y, P
B
, P
R
(Y, C
B
, C
R
) Y: 1.0 Vp-p (including sync signal), P
B
/P
R
(C
B
/C
R
): 0.7 Vp-p, 75 ohms
As of June 2011
SFD11M002
2 / 1 4
S
P E C
F
I L E
DLP ™ Projectors
PT-DX800S/DX800K/DX800LS/DX800LK
RGB 2 IN
R, G, B
D-sub HD 15-pin × 1
R: 0.7 Vp-p, 75 ohms,
G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms,
B: 0.7 Vp-p, 75 ohms
HD/VD, SYNC: High impedance, TTL (positive/negative)
NOTE: HD/SYNC, and VD terminals do not accept tri-level sync signals.
Power cord length
Cabinet materials
Weight
Operation noise* 2
Operating temperature
Operating humidity
Y, P
B
, P
R
(Y, C
B
, C
R
)
VIDEO IN
S-VIDEO IN
SERIAL IN
SERIAL OUT
REMOTE 1 IN
REMOTE 1 OUT
REMOTE 2 IN
LAN
Dimensions (W × H × D) PT-DX800S/DX800K
PT-DX800LS/DX800LK
PT-DX800S/DX800K
PT-DX800LS/DX800LK
Y: 1.0 Vp-p (including sync signal), P
B
/P
R
(C
B
/C
R
): 0.7 Vp-p, 75 ohms
BNC × 1, 1.0 Vp-p, 75 ohms
Mini DIN 4-pin × 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
D-sub 9-pin × 1 for external control (RS-232C compliant)
D-sub 9-pin × 1 for link control (RS-232C compliant)
M3 jack × 1 for wired remote control
M3 jack × 1 for link control
D-sub 9-pin × 1 for external control (parallel)
RJ-45 × 1 for network connection, 100Base-TX/10Base-T, compliant with PJLink™
3.0 m (9 ft 10 in)
Molded plastic
× 18-11/32˝ * 5 ) 498 mm × 175 mm* 4
(with supplied lens)
498 mm × 175 mm* 4
(without lens)
× 466 mm*
× 432 mm*
5
5
(19-19/32˝ × 6-7/8˝ *
(19-19/32˝ × 6-7/8˝ *
Approx. 16.3 kg (35.9 lbs) (with supplied lens)
Approx. 15.4 kg (34.0 lbs) (without lens)
4
4 × 17˝ * 5 )
39 dB (lamp mode: high), 35 dB (lamp mode: normal)
0°– 45°C (32°–113°F) * 6
20%– 80% (no condensation)
Remote control unit
Power supply
Operation range* 6
Dimensions (W × H × D)
Weight
Supplied accessories
3 V DC (R6/AA type battery × 2)
Approx. 30 m (98 ft 5 in) when operated from directly in front of the signal receptor
51 × 176 × 23 mm (2˝ × 6-15/16˝ × 29/32˝)
Approx. 134 g (4.7 oz) (including batteries)
Power cord (× 1)
Power cord security lock (× 1)
Wireless/wired remote control unit (× 1)
Batteries for remote control (R6/AA type × 2)
Optional accessories
Zoom lens (0.9 –1.0:1)
Zoom lens (1.3 – 2.0:1)
Zoom lens (2.4 – 3.7:1)
Zoom lens (3.7– 5.6:1)
Zoom lens (5.5– 8.9:1)
Fixed-focus lens (0.8:1)
Ceiling mount bracket
Replacement lamp unit
Replacement filter unit
ET-DLE080
ET-DLE150
ET-DLE250
ET-DLE350
ET-DLE450
ET-DLE055
ET-PKD56H (for high ceilings)
ET-PKD55S (for low ceilings)
ET-LAD60A
ET-LAD60AW (Twin Pack)
ET-EMF300
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
*1 When the standby mode is set to eco, network functions such as power on over the LAN network will not operate, and the serial output terminal cannot be used. Also, only certain commands can be received for external control using the serial terminal.
*2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*3 WUXGA resolution is supported only when the signals are compliant with VESA CVT-RB (Coordinated Video Timing-Reduced Blanking).
*4 With legs at shortest position.
*5 Protruding parts not included.
*6 The operating temperature range is 0°C to 40°C (32°F to 104°F) when the fan control is set to High Altitude mode (for altitudes from 1,400 m to
2,700 m (4,593 ft to 8,858 ft) above sea level). Also, if the ambient temperature exceeds 40°C (104°F) (35°C (95°F) in High Altitude mode) when the projector is being used with Lamp Select set to Dual and Lamp Power set to High, the light output may be reduced approximately 20% to protect the projector.
*7 Operation range differs depending on environments.
As of June 2011
SFD11M002
3 / 1 4
S
P E C
F
I L E
DLP ™ Projectors
PT-DX800S/DX800K/DX800LS/DX800LK
Dimensions
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
The illustration shows the PT-DX800S/DX800K.
416 (16-3/8)
498 (19-19/32)
Terminals
1 2
7 8 9
3
R/P
R
G/Y B/P
B
SYNC/HD VD
LAN VIDEO IN
IN
S-VIDEO IN
OUT
REMOTE 1 REMOTE 2
RGB1 IN
IN SERIAL OUT
RGB2 IN
6 10 11
4 5
DVI-D I N
1 Video input
2 S-Video input
3 RGB 1 input
4 RGB 2 Input
5 DVI-D input
6 LAN connector
7 Remote 1 input
8 Remote 1 output
9 Remote 2 input
10 Serial input
11 Serial output
As of June 2011
SFD11M002
4 / 1 4
S
P E C
F
I L E
DLP ™ Projectors
PT-DX800S/DX800K/DX800LS/DX800LK
Standard setting-up position
Upper edge of projected image
L
Projected image
L
A*
1
168
(6-10/16)
255
(10-1/32)
*1 When the lens protrudes to the maximum.
A: 84 mm (3-5/16˝ ) with the ET-DLE080
43 mm (1-11/16˝ ) with the supplied lens
44 mm (1-23/32˝ ) with the ET-DLE150
45 mm (1-25/32˝ ) with the ET-DLE250
51 mm (2˝ ) with the ET-DLE350
95 mm (3-3/4˝ ) with the ET-DLE450
27 mm (1-1/16˝ ) with the ET-DLE055
*2 Adjustable in 40 mm (1-9/16˝) steps.
Lower edge of projected image
unit : mm (inch)
L
Projected image
100
(3-15/16)
400
(15-3/4)
NOTE:
Illustrations show the projector installed using optional ceiling mount bracket
ET-PKD56H and an optional lens.
This illustration is not drawn to scale.
C a u t i o n :
• All construction work should be done by a qualified technician.
• When mounting to the ceiling, use the special mounting bracket. To prevent the projector from swaying or dropping, attach the wire between the mounting bracket and the ceiling.
As of June 2011
SFD11M002
5 / 1 4
S
P E C
F
I L E
DLP ™ Projectors
PT-DX800S/DX800K/DX800LS/DX800LK
Projection distance for 4:3 aspect ratio screen
Screen size
(diagonal)
[m] [in]
1.27
/ 50
1.52
/ 60
1.78
/ 70
2.03
/ 80
2.29
/ 90
2.54
/ 100
3.05
/ 120
3.81
/ 150
5.08
/ 200
6.35
/ 250
7.62
/ 300
10.16
/ 400
12.70
/ 500
15.24
/ 600
ET-DLE080
1.15
1.32
1.49
1.66
2.00
2.51
min.
max.
0.81
0.98
1.01
1.22
1.43
1.64
1.86
2.07
2.49
3.12
3.36
4.21
5.07
4.18
5.23
6.29
6.77
8.48
8.40
10.51
10.18
12.62
ET-DLE150
1.90
2.18
2.46
2.74
3.30
4.14
min.
max.
1.34
1.62
1.97
2.37
2.77
3.18
3.58
3.98
4.79
6.00
5.54
6.94
8.33
8.02
10.03
12.05
11.13
13.92
16.08
20.12
16.72
24.15
Supplied lens
2.52
2.89
3.26
3.63
4.37
5.48
min.
max.
1.78
2.15
2.51
3.03
3.55
4.06
4.58
5.10
6.13
7.68
7.33
9.18
11.03
10.26
12.85
15.43
14.73
18.43
22.13
20.60
25.77
30.94
Distance to screen (L)
Zoom lens
ET-DLE250 ET-DLE350
3.34
3.83
4.32
4.80
5.78
7.24
min.
max.
2.36
2.85
3.78
4.55
5.32
6.09
6.86
7.63
9.18
11.49
9.69
12.13
14.57
15.34
19.20
23.06
19.45
24.33
29.22
30.77
38.48
46.19
5.25
6.02
6.79
7.56
9.10
11.41
min.
max.
3.71
4.48
5.68
6.84
8.01
9.17
10.33
11.50
13.82
17.31
15.26
19.11
22.96
23.13
28.94
34.76
30.65
38.35
46.39
58.02
46.05
69.65
ET-DLE450
7.86
9.02
10.19
11.35
13.68
17.18
min.
max.
5.53
6.69
8.91
10.75
12.60
14.44
16.28
18.12
21.81
27.33
23.00
28.83
34.66
36.54
45.76
54.97
46.31
57.96
73.39
91.81
69.61
110.23
Unit: meters
Height from the edge of screen to center of lens (H)
With a zoom lens except
ET-DLE080
0.00
– 0.38
0.00
– 0.46
0.00
– 0.53
0.00
– 0.61
0.00
– 0.69
0.00
– 0.76
0.00
– 0.91
0.00
– 1.14
0.00
– 1.52
0.00
– 1.91
0.00
– 2.29
0.00
– 3.05
0.00
– 3.81
0.00
– 4.57
With
ET-DLE080
0.08
– 0.38
0.09
– 0.46
0.11
– 0.53
0.12
– 0.61
0.14
– 0.69
0.15
– 0.76
0.18
– 0.91
0.23
– 1.14
0.31
– 1.52
0.38
– 1.91
0.46
– 2.29
0.61
– 3.05
0.76
– 3.81
0.91
– 4.57
4
Screen size
(diagonal)
[m] [in]
1.27
/ 50
1.52
/ 60
1.78
/ 70
2.03
/ 80
2.29
/ 90
2.54
/ 100
3.05
/ 120
3.81
/ 150
5.08
/ 200
6.35
/ 250
7.62
/ 300
10.16
/ 400
12.70
/ 500
15.24
/ 600
ET-DLE080
11.0
13.8
16.6
5.4
6.6
8.2
min.
max.
2.6
3.2
3.8
4.3
4.9
3.3
4.0
4.7
5.4
6.1
22.2
27.8
33.4
6.8
8.2
10.2
13.7
17.2
20.6
27.5
34.5
41.4
ET-DLE150
9.0
10.8
13.6
18.2
22.8
27.3
min.
max.
4.4
5.3
6.2
7.2
8.1
6.5
7.8
9.1
10.4
11.7
36.5
45.7
54.9
13.1
15.7
19.7
26.3
32.9
39.5
52.8
66.0
79.2
Supplied lens
11.9
14.3
18.0
24.0
30.1
36.2
min.
max.
5.8
7.0
8.3
9.5
10.7
8.2
9.9
11.6
13.3
15.0
16.7
20.1
25.2
33.7
42.2
50.6
48.3
60.5
72.6
67.6
84.5
101.5
Distance to screen (L)
Zoom lens
ET-DLE250 ET-DLE350
15.8
19.0
23.8
31.8
39.8
47.8
min.
max.
7.7
9.4
11.0
12.6
14.2
12.4
14.9
17.5
20.0
22.5
25.0
30.1
37.7
50.3
63.0
75.6
63.8
79.8
95.9
100.9
126.2
151.5
24.8
29.9
37.4
50.1
62.7
75.3
min.
max.
12.2
14.7
17.2
19.8
22.3
18.6
22.5
26.3
30.1
33.9
37.7
45.4
56.8
75.9
95.0
114.0
100.6
125.8
151.1
152.2
190.4
228.5
ET-DLE450
37.2
44.9
56.4
75.5
94.6
113.7
min.
max.
18.1
21.9
25.8
29.6
33.4
29.2
35.3
41.3
47.4
53.4
151.9
190.2
228.4
59.5
71.5
89.7
119.9
150.1
180.3
240.8
301.2
361.7
Unit: feet
Height from the edge of screen to center of lens (H)
With a zoom lens except
ET-DLE080
0.0
– 1.3
0.0
– 1.5
0.0
– 1.8
0.0
– 2.0
0.0
– 2.3
0.0
– 2.5
0.0
– 3.0
0.0
– 3.8
0.0
– 5.0
0.0
– 6.3
0.0
– 7.5
0.0
– 10.0
0.0
– 12.5
0.0
– 15.0
With
ET-DLE080
0.3
– 1.3
0.3
– 1.5
0.4
– 1.8
0.4
– 2.0
0.5
– 2.3
0.5
– 2.5
0.6
– 3.0
0.8
– 3.8
1.0
– 5.0
1.3
– 6.3
1.5
– 7.5
2.0
– 10.0
2.5
– 12.5
3.0
– 15.0
• The value for L (distance to screen) varies slightly within ±5% depending on the zoom lens characteristics.
• The zoom lens characteristics may cause slight image distortion.
4
• When vertical keystone correction is used, the image is corrected in the direction that reduces its projected size.
• The brightness varies depending on the zoom setting.
As of June 2011
SFD11M002
6 / 1 4
S
P E C
F
I L E
DLP ™ Projectors
PT-DX800S/DX800K/DX800LS/DX800LK
Projection distance for 4:3 aspect ratio screen
Screen size
(diagonal)
[m] [in]
1.27
/ 50
1.52
/ 60
1.78
/ 70
2.03
/ 80
2.29
/ 90
2.54
/ 100
3.05
/ 120
3.81
/ 150
5.08
/ 200
Unit: meters
ET-DLE055 fixed-focus lens
Distance to screen (L) Height from the edge of screen to center of lens (H)
0.81
0.98
1.15
1.32
1.49
1.66
2.01
2.52
3.38
0.69
0.76
0.91
1.14
1.52
0.38
0.46
0.53
0.61
Screen size
(diagonal)
[m]
1.27
/
[in]
50
1.52
/ 60
1.78
/ 70
2.03
/ 80
2.29
/ 90
2.54
/ 100
3.05
/ 120
3.81
/ 150
5.08
/ 200
2.7
3.2
3.8
4.3
4.9
5.5
6.6
8.3
11.1
1.3
1.5
1.8
2.0
2.3
2.5
3.0
3.8
5.0
Unit: feet
ET-DLE055 fixed-focus lens
Distance to screen (L) Height from the edge of screen to center of lens (H)
• The value for L (distance to screen) varies slightly within ±5% depending on the zoom lens characteristics.
• When vertical keystone correction is used, the image is corrected in the direction that reduces its projected size.
Note: When the ET-DLE055 is mounted, the optical lens shift function cannot be used.
Calculation of the projection distance
For a screen size different from the above, use the equation below to calculate the projection distance.
Aspect ratio 4:3
ET-DLE080
ET-DLE150
Supplied lens
ET-DLE250
ET-DLE350
ET-DLE450 minimum maximum minimum maximum
minimum maximum
minimum maximum minimum maximum minimum maximum
(fixed focus)
L (m) = (diagonal screen size in inches) × 0.0170 - 0.0471
L (m) = (diagonal screen size in inches) × 0.0211 - 0.0442
L (m) = (diagonal screen size in inches) × 0.0280 - 0.0540
L (m) = (diagonal screen size in inches) × 0.0403 - 0.0498
L (m) = (diagonal screen size in inches) × 0.0370 - 0.0746
L (m) = (diagonal screen size in inches) × 0.0517 - 0.0725
L (m) = (diagonal screen size in inches) × 0.0488 - 0.0800
L (m) = (diagonal screen size in inches) × 0.0771 - 0.0792
L (m) = (diagonal screen size in inches) × 0.0770 - 0.1351
L (m) = (diagonal screen size in inches) × 0.1163 - 0.1346
L (m) = (diagonal screen size in inches) × 0.1165 - 0.3017
L (m) = (diagonal screen size in inches) × 0.1842 - 0.2991
L (m) = (diagonal screen size in inches) × 0.0171 - 0.0476
ET-DLE055
• Distances calculated with the above equations will include a slight error.
As of June 2011
SFD11M002
7 / 1 4
S
P E C
F
I L E
DLP ™ Projectors
PT-DX800S/DX800K/DX800LS/DX800LK
Shift range
Optical axis shift function allows to shift the position of a projected image as shown below.
• Floor mount
(When the lens except the ET-DLE080 is mounted.)
H
(Width of projected image)
0.1H
0.1H
• Ceiling mount
(When the lens except the ET-DLE080 is mounted.)
Standard postition of projected image
• Floor mount
(When the ET-DLE080 is mounted.)
H
(Width of projected image)
0.1H
0.1H
Standard postition of projected image
0.1H
H
(Width of
• Ceiling mount
(When the ET-DLE080 is mounted.)
0.1H
Standard postition of projected image
0.1H
0.1H
Standard postition of projected image
H
(Width of projected image)
• The ET-DLE055 has a fixed short-focus lens. Therefore, the lens shift function provided in the main unit cannot be used.
Installable angle
Install the projector at an angle within the range shown below.
• Vertical direction
The projector may be installed at a vertical angle of 360°.
• Horizontal direction
The projector may be installed at a horizontal angle of ±15°.
3
6
°
0
1
+
5
As of June 2011
SFD11M002
8 / 1 4
S
P E C
F
I L E
DLP ™ Projectors
PT-DX800S/DX800K/DX800LS/DX800LK
List of compatible signals
The signals that can be input to this projector are shown in the table below. Horizontal scanning frequencies of 15 kHz to 91 kHz, vertical scanning frequencies of 50 Hz to 85 Hz, and a dot clock of
150 MHz maximum can be input.
NOTE: The native resolution of this projector is 1,024 × 768 pixels. If the display resolution of the input signal is different from the native resolution, image compression or expansion will be used to convert the input signal to a level within the native resolution.
Display mode
NTSC/NTSC4.43/PAL-M/PAL60
PAL/PAL-N/SECAM
480i (525i)
576i (625i)
480p (525p)
576p (625p)
720/60p
720/50p
1080/60i
1080/50i
1080/24p
1080/24sF
1080/25p
1080/30p
1080/60p
1080/50p
VGA400
VGA480
SVGA
MAC16
XGA
MXGA
MAC21
1280 x 768
1280 x 800
MSXGA
SXGA
SXGA+
WXGA+
UXGA
WSXGA+
1920 x 1080
3
WUXGA
3
Display resolution
(dots)
1
720 x 480i
720 x 576i
720 x 480i
720 x 576i
720 x 483
720 x 576
1,280 x 720
1,920 x 1,080i
1,920 x 1,080
1,920 x 1,080i
1,920 x 1,080
640 x 400
640 x 480
800 x 600
832 x 624
1,024 x 768
1,152 x 864
1,152 x 870
1,280 x 768
1,280 x 800
1,280 x 960
1,280 x 1,024
1,400 x 1,050
1,440 x 900
1,600 x 1,200
1,680 x 1,050
1,920 x 1,080
1,920 x 1,200
Scanning frequency
H
(kHz)
96.7
64.0
67.5
76.7
68.7
39.6
48.4
56.5
60.0
65.5
68.7
80.0
47.8
41.3
49.7
60.0
64.0
37.9
48.1
46.9
53.7
49.7
39.6
31.5
35.0
37.9
37.5
43.3
35.2
80.0
91.1
64.0
82.2
55.9
75.0
65.3
66.6
74.0
37.5
33.8
28.1
27.0
27.0
28.1
33.8
67.5
56.3
31.5
37.9
15.7
15.6
15.7
15.6
31.5
31.3
45.0
V
(kHz)
70.1
75.0
81.6
85.0
100.0
120.0
71.2
74.9
85.0
75.1
49.9
59.9
50.0
59.8
60.0
60.0
75.0
72.2
75.0
85.1
74.6
50.0
60.0
66.7
72.8
75.0
85.0
56.3
60.3
85.0
60.0
75.0
59.9
60.0
60.0
60.0
50.0
24.0
24.0
50.0
60.0
60.0
50.0
70.1
85.1
59.9
59.9
50.0
59.9
50.0
59.9
50.0
60.0
50.0
59.9
60.0
Dot clock frequency
(MHz)
78.8
86.0
94.5
105.0
130.0
94.2
108.0
121.5
100.0
65.3
79.5
68.0
83.5
108.0
108.0
135.0
157.5
74.3
74.3
74.3
74.3
74.3
148.5
148.5
25.2
31.5
25.2
30.2
108.0
155.9
106.5
162.0
146.3
138.5
49.5
56.3
57.3
51.9
65.0
75.0
31.5
31.5
36.0
36.0
40.0
50.0
−
−
13.5
13.5
27.0
27.0
74.3
74.3
74.3
154.0
Picture quality
A
A
A
A
A
A
AA
AA
AA
AA
A
A
AA
AA
A
A
AA
AA
A
A
A
A
A
A
A
B
A
A
A
B
A
B
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
2
Format
VIDEO/S-VIDEO
YP
YP
B
B
P
P
R
R
/RGB
/RGB/DVI-D
RGB/DVI-D
1. The “i” appearing after the resolution indicates an interlaced signal.
2. The following symbols are used to indicate picture quality.
AA
A
Maximum picture quality can be obtained.
Signals are converted by the image processing circuit before picture is projected.
B Pixels are thinned (or the image is converted by an image processing circuit for DVI-D signal input) before the picture is projected.
3. Compliant with VESA CVT-RB (Coordinated Video Timing-Reduced Blanking).
As of June 2011
SFD11M002
9 / 1 4
S
P E C
F
I L E
DLP ™ Projectors
PT-DX800S/DX800K/DX800LS/DX800LK
Serial connector
The serial connector complies with RS-232C. To control the projector from a personal computer, commands must be input through communication software, based on the format and satisfying the communication conditions shown below.
Pin assignments and signal names
1
6 9
5
4
5
2
3
No.
1
Signal name
–
TXD
RXD
–
GND
D-sub 9-pin (female) Serial input
Description
NC
Send data
Receive data
Connected internally
Ground
7
8
No.
6
9
Signal name
–
CTS
RTS
–
Description
NC
Connected internally
Connected internally
NC
Pin assignments and signal names
5
9 6
1
4
5
2
3
No.
1
Signal name
–
RXD
TXD
–
GND
D-sub 9-pin (male) Serial output
Description
NC
Receive data
Send data
Connected internally
Ground
7
8
No.
6
9
Signal name
–
RTS
CTS
–
Description
NC
Connected internally
Connected internally
NC
Communication conditions (factory setting)
Signal level
Synchronization method
Baud rate
Parity
Character length
Stop bit
X parameter
S parameter
RS-232C-compliant
Start-stop synchronization
9,600 bps
None
8 bits
1 bit
None
None
Basic format
Transmission from the computer begins with STX, then the ID, command, parameter, and ETX are sent in this order. Add parameters according to the details of control.
STX A D I1 I2 ; C1 C2 C3 : P1 P2 ... Pn ETX
Start
(1 byte)
(2 byte) Semicolon
(1 byte)
ID: 2 characters
(2 bytes)
01 to 64: Address number
0A to 0Z: Group ID
ZZ: All units (ID ALL)
Colon
(1 byte)
Parameters
Command
(3 bytes)
(undefined length)
(Control and/or query commands)
End
(1 byte)
ID designator
CAUTION
• It may not be possible to send or receive commands for about 10 to 60 seconds when the lamp is first turned on. If this occurs, wait for 60 seconds, then try sending or receiving again.
• When sending multiple commands, be sure to wait for at least 0.5 second after receiving a response from the projector before sending the next command.
• Additional time is sometimes required for response due to processing inside the projector. Set the time-out period for command response to 10 seconds or more.
• When using two or more units:
1) Set different IDs for each unit.
2) Designate only one unit as RESPONSE (ID ALL) ON and the rest as RESPONSE (ID ALL) OFF.
3) Each group should have only one RESPONSE (ID GROUP) ON and the rest should be RESPONSE (ID GROUP) OFF.
As of June 2011
SFD11M002
1 0 / 1 4
S
P E C
F
I L E
DLP ™ Projectors
PT-DX800S/DX800K/DX800LS/DX800LK
Cable specifications
Projector
1
2
5
6
3
4
7
8
9
NC
NC
NC
NC
NC
NC
NC
NC
PC (DTE)
1
2
5
6
3
4
7
8
9
Control commands
Command : Parameter
P O N
P O F
I I S : D V I
I I S : R G 1
I I S : R G 2
I I S : V I D
I I S : S V D
L P M : 0
L P M : 1
L P M : 2
L P M : 3
O S H : 0
O S H : 1
O F Z : 0
O F Z : 1
O A S
V P M : N A T
V P M : S T D
V P M : D Y N
V P M : C I N
V P M : G R A
V X X : D L V I 0 = + 0 0 0 0 0
V X X : D L V I 0 = + 0 0 0 0 1
V X X : D L V I 0 = + 0 0 0 0 2
V X X : D L V I 0 = + 0 0 0 0 3
O T E : 1
O T E : 2
O T E : 4
O T E : 1 0
T S D : y 1 y 2 y 3 y 4 m 1 m 2 d 1 d 2 w
T S T : h 1 h 2 m 1 m 2 s 1 s 2
O O S : 0
O O S : 1
Function
POWER (STANDBY)
INPUT SELECT
LAMP SELECT
SHUTTER
FREEZE
Standby power on
Standby power off
DVI-D
RGB 1
RGB 2
Video
S-Video
Dual (two lamps)
Single lamp
Lamp 1
Lamp 2
Shutter on
Shutter off
Off
On
AUTO SETUP
PICTURE MODE
SYSTEM DAYLIGHT VIEW 2
COLOR TEMPERATURE
DATE
TIME
ON SCREEN
Natural
Standard
Dynamic
Cinema
1
2
Graphic
Off
3
Middle
High
User
Default
Date setting
Time setting
On-screen display off
On-screen display on
Callback
P O N
P O F
I I S : D V I
I I S : R G 1
I I S : R G 2
I I S : V I D
I I S : S V D
L P M : 0
L P M : 1
L P M : 2
L P M : 3
O S H : 0
O S H : 1
O F Z : 0
O F Z : 1
O A S
V P M : N A T
V P M : S T D
V P M : D Y N
V P M : C I N
V P M : G R A
V X X : D L V I 0 = + 0 0 0 0 0
V X X : D L V I 0 = + 0 0 0 0 1
V X X : D L V I 0 = + 0 0 0 0 2
V X X : D L V I 0 = + 0 0 0 0 3
O T E : 1
O T E : 2
O T E : 4
O T E : 1 0
T S D : y 1 y 2 y 3 y 4 m 1 m 2 d 1 d 2 w
T S T : h 1 h 2 m 1 m 2 s 1 s 2
O O S : 0
O O S : 1
* Do not send PON, POF or OSH commands continuously in a short period of time. Doing so may burst the lamp or shorten the lamp replacement cycle.
* When a command that cannot be executed during standby mode is sent, the projector will send an ER401 command in reply.
As of June 2011
SFD11M002
1 1 / 1 4
S
P E C
F
I L E
DLP ™ Projectors
PT-DX800S/DX800K/DX800LS/DX800LK
Status request commands
Command : Parameter
Q P W
Q S H
Q F Z
Q I N
Q O S
Q S T
Q $ L : 1
Q $ L : 2
Q S L
Q L P
Q P M
Q V X : D L V I 0
Q T M : 0
Q T M : 1
Q T M : 2
Q G D
Q G T
Function
Main power status
Shutter function status
Freeze function status
Input signal status
On-screen display status
Projector run time
Lamp 1 run time
Lamp 2 run time
Lamp operation mode status
Lamp power mode status
Picture mode status
System daylight view status
Temperature status
Date setting status
Time setting status
Callback
D V I
R G 1
R G 2
V I D
S V D
0
1
0
1
0 0 0
0 0 1
0
2
3
0
1
N A T
S T D
1 p 1 p 2 p 3 p 4 p 5 p 1 p 2 p 3 p 4 p 1 p 2 p 3 p 4
0
1
D Y N
C I N
G R A
D L V I 0 = + 0 0 0 0 0
D L V I 0 = + 0 0 0 0 1
D L V I 0 = + 0 0 0 0 2
D L V I 0 = + 0 0 0 0 3 p 1 p 2 p 3 p 4 / p 5 p 6 p 7 p 8
(*1)
y 1 y 2 y 3 y 4 m 1 m 2 d 1 d 2 w h 1 h 2 m 1 m 2 s 1 s 2
Description
Standby (Off)
On
Off
On
Off
On
DVI-D
RGB 1
RGB 2
Video
S-Video
Off
On
00000h – 99999h
0000h – 9999h
0000h – 9999h
Dual
Single
Lamp 1
Lamp 2
High
Low
Natural
Standard dynamic
Cinema
Graphic
Off
1
2
3 p0 = Intake air p1 = Exhaust air p2 = DLP™ chip yyyymmdd (day of week)
(*2) hhmmss
*
1 p1p2p3p4: Celsius (°C), p5p6p7p8: Fahrenheit (°F)
*
2 Day of week: Monday = 1, Tuesday = 2, ... Sunday = 7
NOTE: If a wrong command is received, the projector will send an ER401 or ER402 command to the computer.
Command example
To set the on-screen display off, send the command as shown below.
STX ADZZ ; OOS : 0 ETX
Start ID Address Command Parameter End
NOTE: When sending commands without parameters, a colon (:) is not necessary.
As of June 2011
SFD11M002
1 2 / 1 4
S
P E C
F
I L E
DLP ™ Projectors
PT-DX800S/DX800K/DX800LS/DX800LK
Notes on projector placement and operation
The projector uses a high-wattage lamp that becomes very hot during operation. Please observe the following precautions.
1.
Never place objects on top of the projector.
2.
Make sure there is an unobstructed space of 500 mm (19-11/16˝) or more around the projector’s exhaust openings.
3.
Do not stack projector units directly on top of one another for the purpose of multiple (stacked) projection. When stacking projector units, be sure to provide the amount of space indicated below between them. These space requirements also apply to installations where only one projector unit is operating at one time and the other unit is used as a backup.
4.
Make sure that nothing blocks the projector’s air intake and exhaust openings. Also, install the projector so that cool or hot air from other air conditioning equipment does not flow directly toward the projector’s air intake or exhaust openings.
5.
Do not install the projector in an enclosed space. If it is necessary to install it in an enclosed space, add a separate ventilation system. If ventilation is insufficient, hot air will accumulate at the intake opening. This may cause the projector’s protective circuit to interrupt projector operation.
6.
If the projector is installed in an enclosed space, ensure that the projector’s intake and exhaust openings are not blocked. Take particular care to ensure that hot air from the exhaust openings is not sucked into the intake openings.
7.
When installing the projector in any manner other than floor mounting with the adjuster legs, use the five threaded ceiling mount holes (screw diameter: M6, projector interior thread length: 12 mm) to secure the projector.
500 mm (19 -11/16 ˝ ) or more
500 mm (19 -11/16 ˝ ) or more 500 mm (19 -11/16 ˝ ) or more
Do not stack projector units directly on top of one another.
100 mm
( 3-15 /16 ˝ ) or more
Direction of air intake and exhaust
Intake
Exhaust
1 3 / 1 4 As of June 2011
SFD11M002
S
P E C
F
I L E
DLP ™ Projectors
PT-DX800S/DX800K/DX800LS/DX800LK
Operating the projector continuously
1. If the projector is to be operated continuously for 24 hours, use the dual-lamp optical system's alternating lamp operation (lamp relay) function. Continuously operating the projector for 24 hours in the duallamp mode is not recommended. Allow a minimum of two hours per day of non-operation time for each lamp if the projector is to be operated continuously for more than 22 hours.
2. The lamp replacement cycle duration becomes shorter if the projector is operated repeatedly for short periods.
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
Product availability differs depending on region and country. This product may be subject to export control regulations.
DLP and the DLP logo are trademarks of Texas Instruments.
PJLink is a registered trademark, or a trademark application has been filed, in Japan, the United States, and other countries and regions.
All other trademarks are the property of their respective trademark owners.
As of June 2011
SFD11M002
1 4 / 1 4
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
